0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#48953) — 60 parça

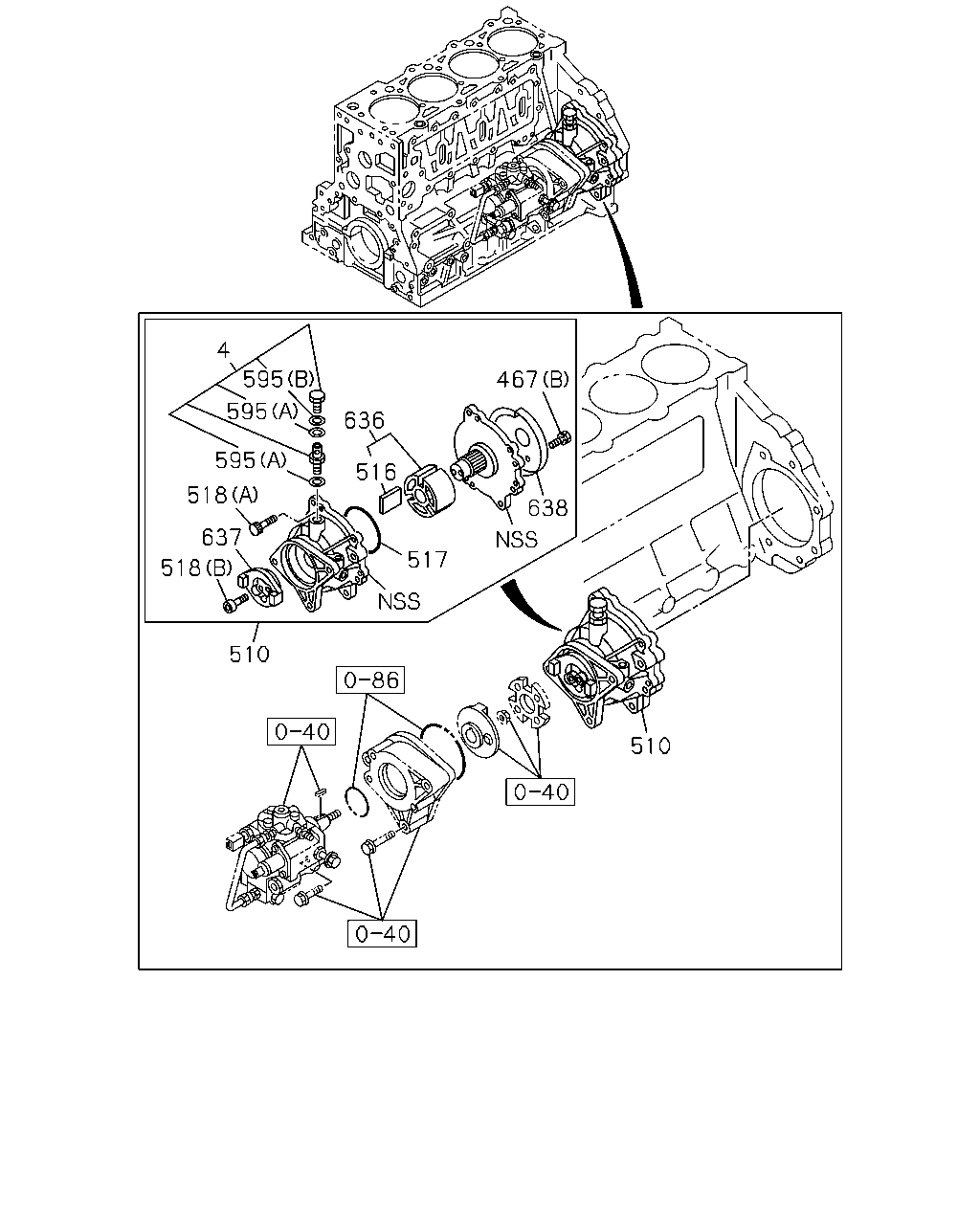

çizim 176353
4 595 595 595 518 637 518 510 467 636 516 517 510 638
BalonParca AdiParca NoAdetTipApplied Date A B
4 00.213 VALVE ASM; CHECK 8-98049-521-0 01 1 1012- ●
467 00.686 BOLT; PLATE
06.321 (A) M6X10 		8-98030-649-0 06 1 1012- ● ●
467 00.686 BOLT; PLATE
04.895 (B) 		8-98049-523-0 02 1 1012- ●
510 04.895 PUMP ASM; VACUUM
03.306 		8-97388-589-6 01 1 1012- ●
516 04.895 VANE; VAC PUMP 8-98051-279-0 03 1 1012- ●
517 04.895 GASKET; VAC PUMP 8-98051-280-0 01 1 1012- ●
518 04.895 BOLT; VAC PUMP
01.531 (A) M6X25 W/LK&PL WASHER 		0-50640-625-0 03 1 1012- ●
518 04.895 BOLT; VAC PUMP
(B) M8X20 		8-98051-277-0 02 1 1012- ●
595 00.213 GASKET; VLV
(B) ID=12 		8-98018-518-0 01 1 1012- ●
595 00.213 GASKET; VLV
(A) ID=18 		8-98018-519-0 02 1 1012- ●
636 00.206 ROTOR & VANE ASM; VAC PUMP 8-98051-281-0 01 1 1012- ●
637 00.206 COUPLING; VAC PUMP 8-98051-278-0 01 1 1012- ●
638 00.206 PLATE KIT; VAC PUMP 8-98051-276-0 01 1 1012- ●

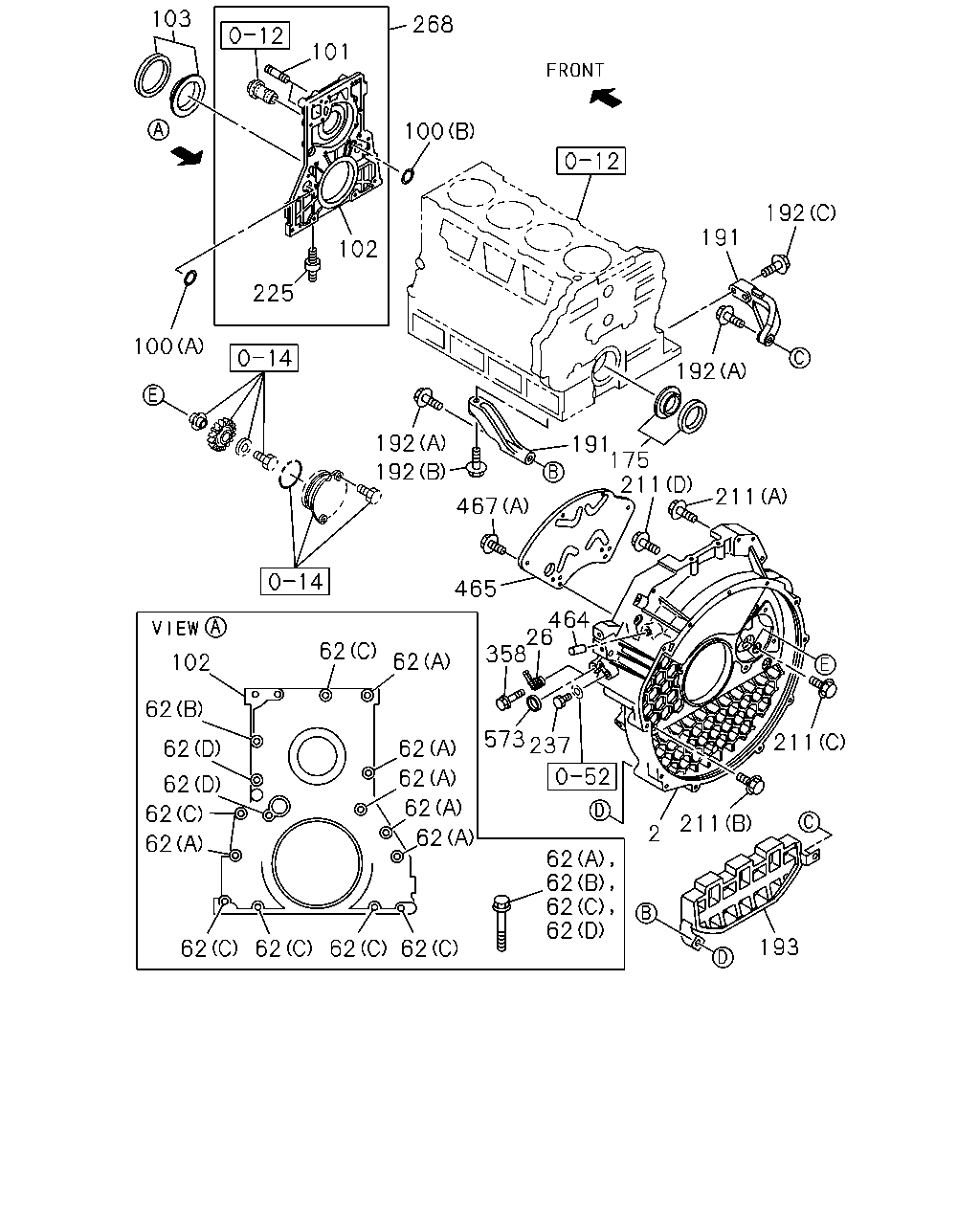

çizim 176356
103 101 102 225 100 192 192 467 465 464 26 358 573 237 193 211 211 211 211 175 191 192 192 191 100 268 102 62 62 62 62 62 62 62 62 62 62 62 62 62 62 62 62 62 62 62 2
BalonParca AdiParca NoAdetTipApplied Date A B
2 00.683 HOUSING; FLYWHEEL 8-97364-899-6 01 1 1012- ●
2 00.683 HOUSING; FLYWHEEL 8-97364-901-5 01 1 1012- ●
26 03.306 ADAPTER 8-97354-819-0 01 1 1012- ●
62 00.206 BOLT; COVER
06.216 (A) M8X25 FLANGE 		0-28650-825-0 06 1 1012- ● ●
62 00.206 BOLT; COVER
03.403 (B) M8X30 FLANGE 		0-28650-830-0 01 1 1012- ● ●
62 00.206 BOLT; COVER
01.060 (C) M8X35 FLANGE 		0-28650-835-0 06 1 1012- ● ●
62 00.206 BOLT; COVER
01.097 (D) M8X65 FLANGE 		1-09044-072-1 02 1 1012- ● ●
100 00.207 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.206 (A) ID=35.1 		8-97028-748-1 01 1 1012- ● ●
100 00.207 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 04.439 (B) ID=17.8 		9-09561-318-0 01 1 1012- ● ●
101 01.073 STUD; WATER PUMP
01.428 UPPER M8X18 L=30 		0-41010-818-0 01 1 1012- ● ●
101 01.073 STUD; WATER PUMP
00.206 LOWER M8X18 L=29 		8-97028-541-0 01 1 1012- ● ●
102 00.137 RETAINER; FRT
ANTI EROSION SPEC<7XK> 		8-98081-351-1 01 1 1012- ●
102 00.137 RETAINER; FRT 8-98039-932-2 01 1 1012- ●
102 00.137 RETAINER; FRT
EXC. ANTI EROSION SPEC<7XK> 		8-98039-932-2 01 1 1012- ●
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=109 OD=137 		8-97329-780-0 01 1 1012- ● ●
175 00.137 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139 		8-97602-379-0 01 1 1012- ● ●
191 00.669 STAY; FLYWHEEL HSG 8-97167-291-0 01 1 1012- ● ●
191 00.669 STAY; FLYWHEEL HSG 8-97167-292-0 01 1 1012- ● ●
192 00.206 BOLT; STAY TO HSG
09.181 (C) M10X45 FLANGE 		0-28151-045-0 02 1 1012- ●
192 00.206 BOLT; STAY TO HSG
09.171 (C) M10X40 FLANGE 		0-28151-040-0 02 1 1012- ●
192 00.206 BOLT; STAY TO HSG
02.510 (B) M12X100 FLANGE 		0-28151-200-0 01 1 1012- ● ●
192 00.206 BOLT; STAY TO HSG
00.685 (A) M12X50 FLANGE 		0-28151-250-0 02 1 1012- ● ●
193 01.428 SPACER; STAY TO OIL,PAN 8-97259-536-0 01 1 1012- ●
211 00.669 BOLT; HSG
(D) M8X65 W/PL WASHER 		8-94388-781-0 02 1 1012- ●
211 00.669 BOLT; HSG
(B) M12X70 FLANGE, W/PL WASHER 		8-97114-779-0 09 1 1012-1102 ●
211 00.669 BOLT; HSG
(B) M12X70 FLANGE, W/PL WASHER 		8-98179-087-1 09 1 1103- ●
211 00.669 BOLT; HSG
(C) M12X30 FLANGE 		8-97135-419-0 01 1 1012- ●
211 00.669 BOLT; HSG
00.029 (A) M10X40 FLANGE 		0-28751-040-0 01 1 1012- ● ●
211 00.669 BOLT; HSG
(B) M12X70 FLANGE, W/PL WASHER 		8-97114-779-0 11 1 1012-1102 ●
211 00.669 BOLT; HSG
(B) M12X70 FLANGE, W/PL WASHER 		8-98179-087-1 11 1 1103- ●
211 00.669 BOLT; HSG
(C) M12X30 FLANGE 		8-97135-419-0 02 1 1012- ●
225 01.428 STUD; OIL PAN
M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE 		8-97190-392-0 03 1 1012- ● ●
237 00.686 PLUG; FLYWHEEL HSG
06.225 M10X12 FLANGE 		0-28051-012-0 01 1 1012- ●
268 00.206 COVER; FRT
EXC. ANTI EROSION SPEC<7XK> 		8-98039-931-1 01 1 1108-1112 ●
268 00.206 COVER; FRT
ANTI EROSION SPEC<7XK> 		8-98079-080-1 01 1 1012- ●
268 00.206 COVER; FRT 8-98039-931-1 01 1 1012-1107 ●
268 00.206 COVER; FRT
EXC. ANTI EROSION SPEC<7XK> 		8-98039-931-1 01 1 1012-1107 ●
268 00.206 COVER; FRT 8-98039-931-1 01 1 1108-1112 ●
268 00.206 COVER; FRT 8-98039-931-2 01 1 1201- ●
268 00.206 COVER; FRT
EXC. ANTI EROSION SPEC<7XK> 		8-98039-931-2 01 1 1201- ●
358 00.206 BOLT; ADAPTER
09.242 M6X16 FLANGE 		0-28050-616-0 01 1 1012- ●
464 00.686 PIPE; PCV,FLYWHEEL HSG
00.669 		8-94373-246-3 01 1 1012- ● ●
465 00.686 PLATE; FLYWHEEL HSG 8-97363-824-1 01 1 1012- ●
465 00.686 PLATE; FLYWHEEL HSG 8-97363-823-0 01 1 1012- ●
467 00.686 BOLT; PLATE
06.321 (A) M6X10 		8-98030-649-0 06 1 1012- ● ●
467 00.686 BOLT; PLATE
04.895 (B) 		8-98049-523-0 02 1 1012- ●
573 00.206 CUP; SEALING
00.034 OD=19 		8-94150-231-0 01 1 1012- ●
