0-13 — OIL PAN AND LEVEL GAUGE (#48950) — 47 parça

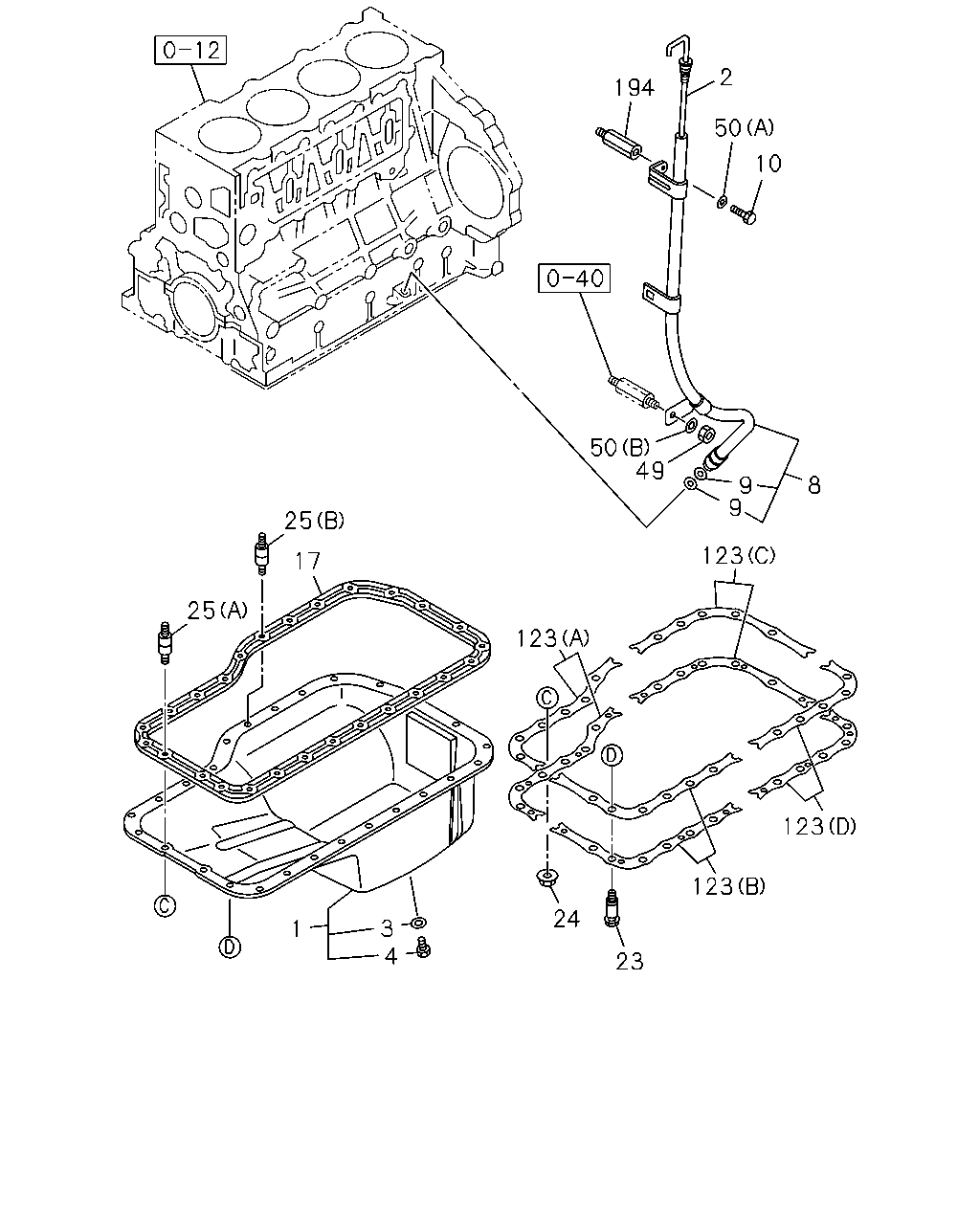

25 25 17 1 3 4 24 123 50 123 194 2 10 50 9 9 49 8 123 123 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	01.426 PAN ASM; OIL	8-97385-244-1	01	1	1012-	●
1	01.426 PAN ASM; OIL	8-98039-422-0	01	1	1012-		●
2	01.516 GAUGE; OIL LEVEL	8-97251-080-1	01	1	1012-	●
2	01.516 GAUGE; OIL LEVEL	8-98091-931-0	01	1	1012-		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	1012-	●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	1012-	●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97106-685-3	01	1	1012-	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-98039-161-0	01	1	1012-		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	02	1	1012-	●	●
10	01.516 BOLT; GUIDE TUBE 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1012-	●	●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE).	8-97364-386-0	01	1	1012-	●	●
23	01.428 BOLT; OIL PAN M8X12.8 W/PL WASHER,RUBBER TUBE	8-97190-390-0	13	1	1012-	●	●
24	01.453 NUT; OIL PAN 01.062 M8 FLANGE	0-91180-108-0	13	1	1012-	●	●
25	01.453 STUD; OIL PAN (B) M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE	8-97190-391-0	01	1	1012-	●	●
25	01.453 STUD; OIL PAN 01.428 (A) M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	09	1	1012-	●	●
49	01.516 NUT; GUIDE TUBE 03.162 M10 FLANGE	0-91180-110-0	01	1	1012-	●
50	01.516 WASHER; PL,GUIDE TUBE 00.002 (A) ID=10.5 OD=22	0-91614-610-0	01	1	1012-	●
50	01.516 WASHER; PL,GUIDE TUBE 04.085 (B) ID=10.5 OD=26	0-91614-710-0	01	1	1012-	●
123	01.516 RUBBER; SEAL OIL (A)	8-97186-988-0	01	1	1012-	●	●
123	01.516 RUBBER; SEAL OIL (B)	8-97186-994-0	01	1	1012-	●	●
123	01.516 RUBBER; SEAL OIL (C)	8-97186-998-0	01	1	1012-	●	●
123	01.516 RUBBER; SEAL OIL (D)	8-97187-000-0	01	1	1012-	●	●
194	01.429 SPACER; GUIDE TUBE	8-97101-215-0	01	1	1012-	●	●

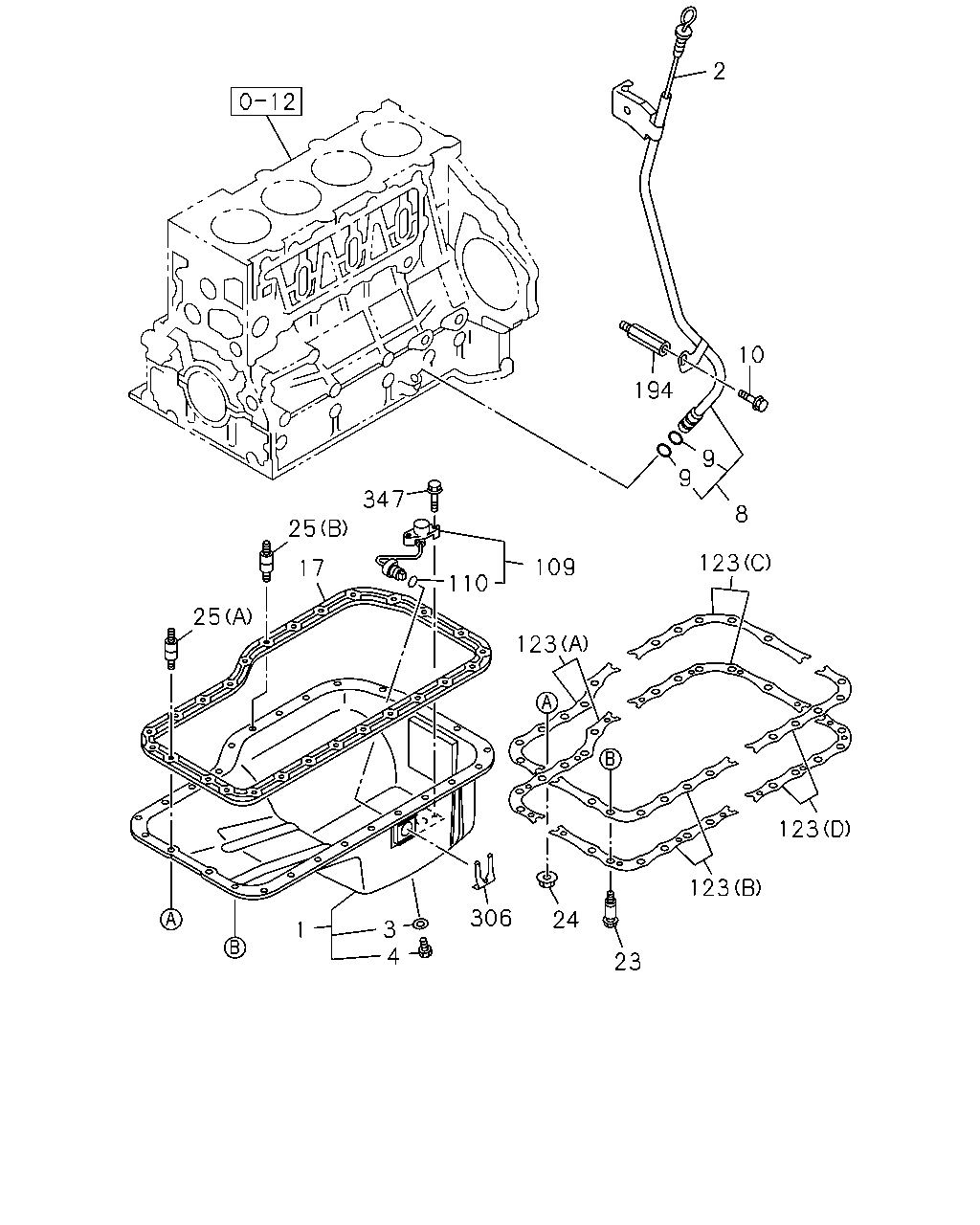

25 17 25 347 110 2 10 9 8 123 8 109 123 1 3 4 306 24 23 123 123 194

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	01.426 PAN ASM; OIL	8-97385-244-1	01	1	1012-	●
1	01.426 PAN ASM; OIL	8-98039-422-0	01	1	1012-		●
2	01.516 GAUGE; OIL LEVEL	8-97251-080-1	01	1	1012-	●
2	01.516 GAUGE; OIL LEVEL	8-98091-931-0	01	1	1012-		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	1012-	●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	1012-	●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97106-685-3	01	1	1012-	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-98039-161-0	01	1	1012-		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	02	1	1012-	●	●
10	01.516 BOLT; GUIDE TUBE 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1012-	●	●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE).	8-97364-386-0	01	1	1012-	●	●
23	01.428 BOLT; OIL PAN M8X12.8 W/PL WASHER,RUBBER TUBE	8-97190-390-0	13	1	1012-	●	●
24	01.453 NUT; OIL PAN 01.062 M8 FLANGE	0-91180-108-0	13	1	1012-	●	●
25	01.453 STUD; OIL PAN (B) M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE	8-97190-391-0	01	1	1012-	●	●
25	01.453 STUD; OIL PAN 01.428 (A) M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	09	1	1012-	●	●
109	01.516 SWITCH; OIL LEVEL	8-97328-993-1	01	1	1012-		●
110	01.456 GASKET; SW,OIL LEVEL	8-98048-191-0	01	1	1012-		●
123	01.516 RUBBER; SEAL OIL (A)	8-97186-988-0	01	1	1012-	●	●
123	01.516 RUBBER; SEAL OIL (B)	8-97186-994-0	01	1	1012-	●	●
123	01.516 RUBBER; SEAL OIL (C)	8-97186-998-0	01	1	1012-	●	●
123	01.516 RUBBER; SEAL OIL (D)	8-97187-000-0	01	1	1012-	●	●
194	01.429 SPACER; GUIDE TUBE	8-97101-215-0	01	1	1012-	●	●
306	01.516 CLIP; CONNECTOR	8-97229-219-0	01	1	1012-		●
347	01.516 BOLT; OIL LEVEL SW 00.685 M6X25 FLANGE	0-28650-625-0	02	1	1012-		●
