Isuzu WW
▶
TRUCKS
▶
EXR
▶
10724 - EXR RHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-03 - RADIATOR GRILLE
▶
6-03 — RADIATOR GRILLE
(#4895) — 53 parça
◀

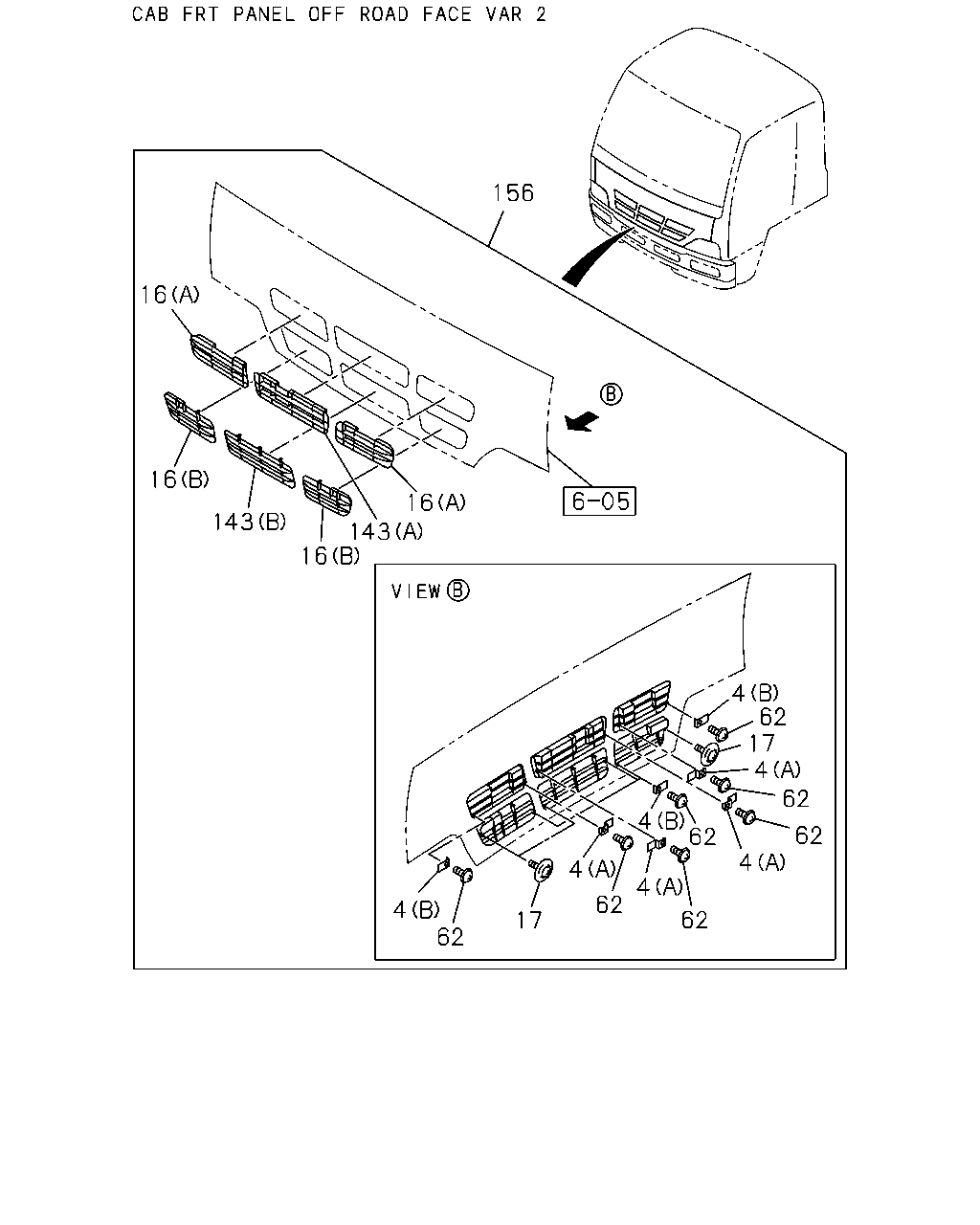

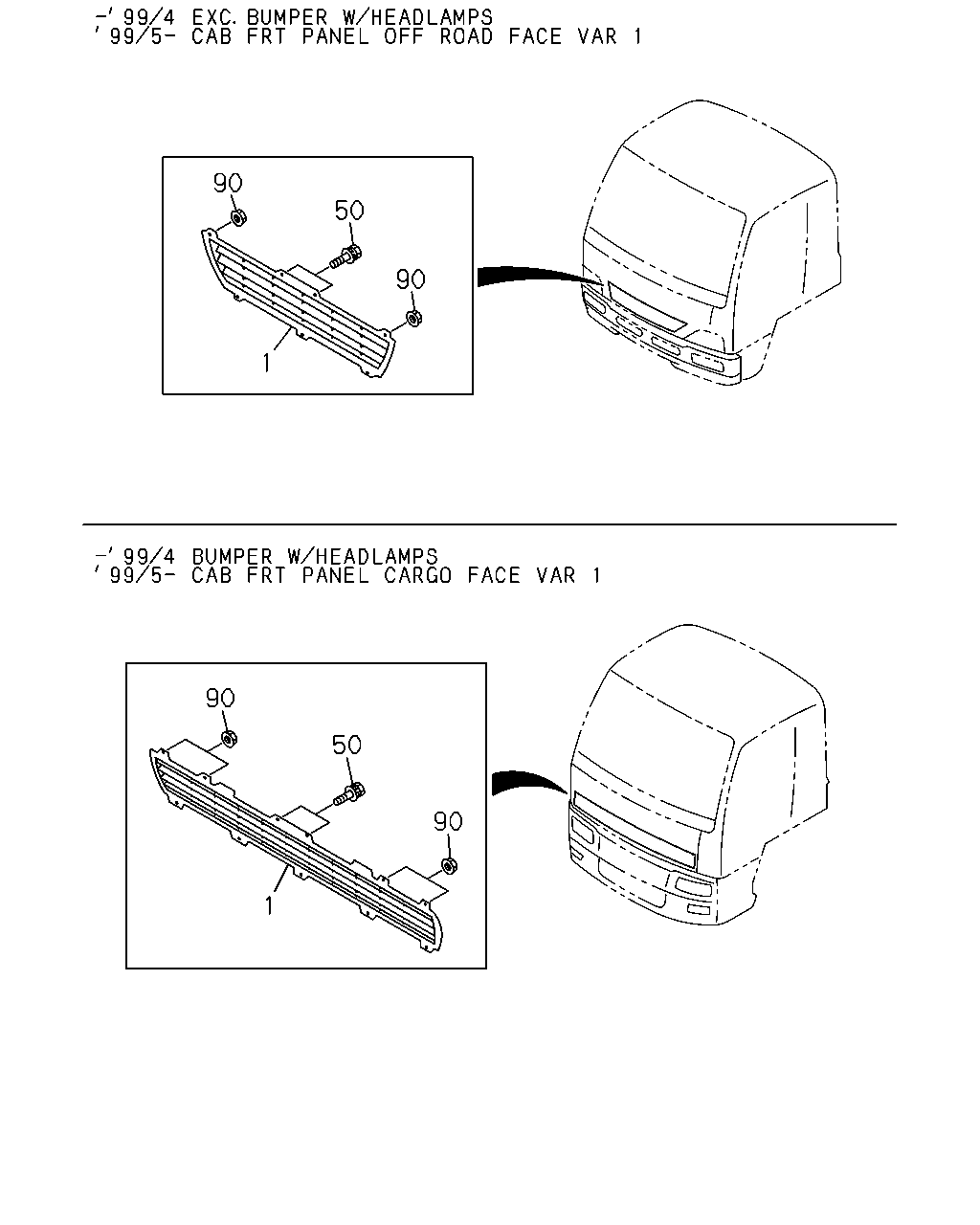

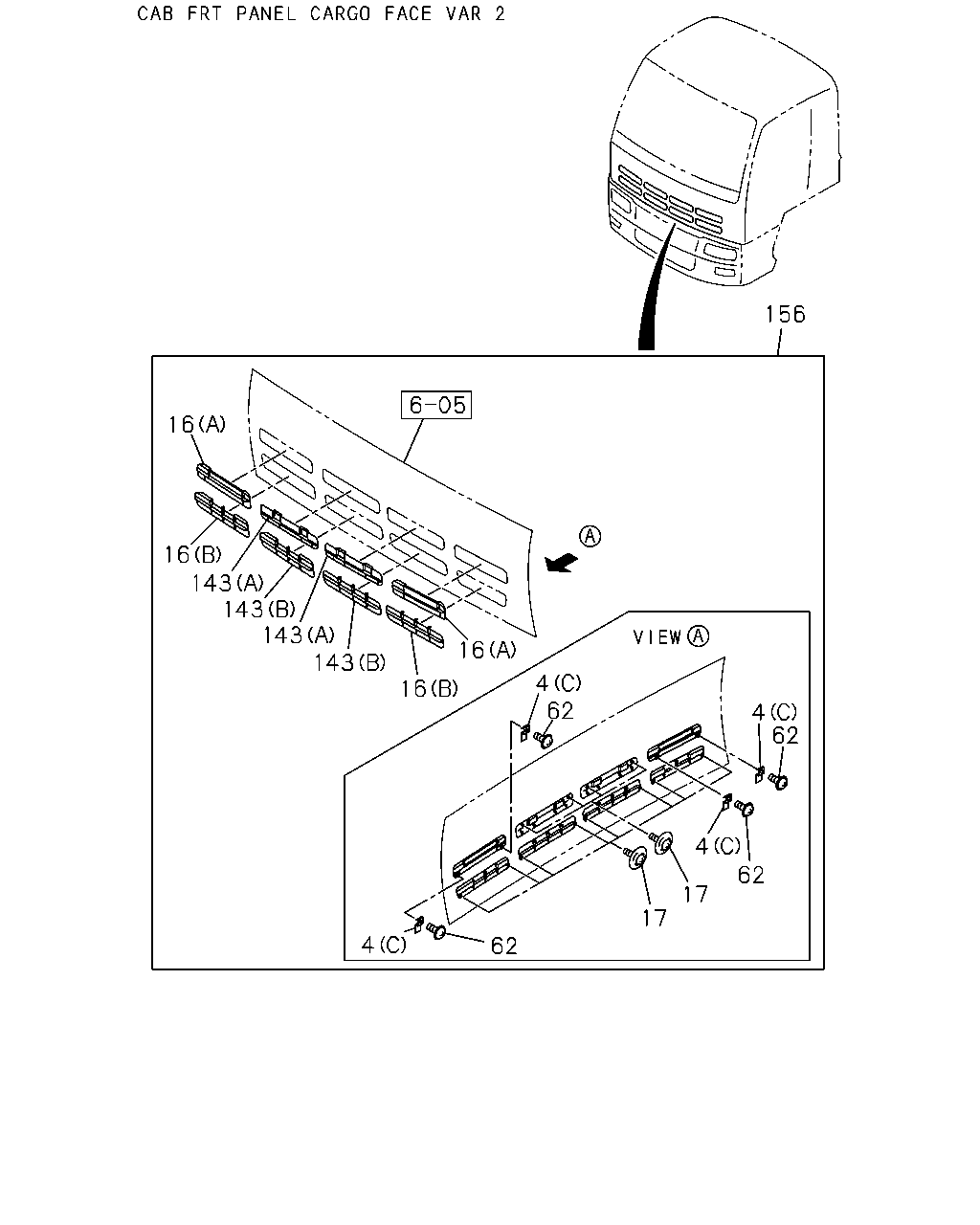

[603A] NO.1 (11 parça)
[603A] NO.3 (21 parça)
[603A] NO.2 (21 parça)
▶
90
50
90
1
90
50
90
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
GRILLE; RAD
BUMPER W/HEADLAMPS<SLB>
1-71117-181-3
01
1
9601-9610
1
GRILLE; RAD
BUMPER W/HEADLAMPS<SLB>
1-71117-244-0
01
1
9611-9904
1
GRILLE; RAD
CAB FRT PANEL CARGO FACE VAR 1<NBH>
1-71117-244-0
01
1
9905-
1
GRILLE; RAD
EXC. BUMPER W/HEADLAMPS<SLB>
1-71117-182-2
01
1
9601-9904
1
GRILLE; RAD
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>
1-71117-182-2
01
1
9905-
50
BOLT; GRILLE
M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
9601-9904
50
BOLT; GRILLE
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
9905-
90
NUT; RAD GRILLE
BUMPER W/HEADLAMPS<SLB> M6 CAP NUT FLANGE
1-65471-734-0
13
1
9601-9904
90
NUT; RAD GRILLE
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF> M6 CAP NUT FLANGE
1-65471-734-0
09
1
9905-
90
NUT; RAD GRILLE
EXC. BUMPER W/HEADLAMPS<SLB> M6 CAP NUT FLANGE
1-65471-734-0
09
1
9601-9904
90
NUT; RAD GRILLE
CAB FRT PANEL CARGO FACE VAR 1<NBH> M6 CAP NUT FLANGE
1-65471-734-0
13
1
9905-
156
16
16
16
143
16
143
4
62
17
4
62
4
62
62
4
4
4
62
4
62
62
17
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
BRACKET; RAD GRILLE
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (C)
1-71117-239-1
04
1
9905-
4
BRACKET; RAD GRILLE
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (A)
1-71117-240-1
04
1
9905-
4
BRACKET; RAD GRILLE
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (B)
1-71117-241-1
05
1
9905-
16
GRILLE; RAD,SIDE
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (A)
1-71117-232-5
01
1
9905-
16
GRILLE; RAD,SIDE
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B)
1-71117-234-4
01
1
9905-
16
GRILLE; RAD,SIDE
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (A)
1-71117-231-5
01
1
9905-
16
GRILLE; RAD,SIDE
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B)
1-71117-233-4
01
1
9905-
16
GRILLE; RAD,SIDE
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (A)
1-71117-226-3
01
1
9905-
16
GRILLE; RAD,SIDE
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (B)
1-71117-228-3
01
1
9905-
16
GRILLE; RAD,SIDE
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (A)
1-71117-225-3
01
1
9905-
16
GRILLE; RAD,SIDE
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (B)
1-71117-227-3
01
1
9905-
17
SCREW; RAD GRILLE
CAB FRT PANEL CARGO FACE VAR 2<NBJ> M5
1-71117-238-1
12
1
9905-
17
SCREW; RAD GRILLE
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> M5
1-71117-238-1
03
1
9905-
62
SCREW; BRKT,RAD GRILLE
CAB FRT PANEL CARGO FACE VAR 2<NBJ> M5X12
1-09981-539-0
04
1
9905-
62
SCREW; BRKT,RAD GRILLE
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> M5X12
1-09981-539-0
09
1
9905-
143
GRILLE; RAD,CENTER
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (A)
1-71117-229-3
02
1
9905-
143
GRILLE; RAD,CENTER
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B)
1-71117-230-4
02
1
9905-
143
GRILLE; RAD,CENTER
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (A)
1-71117-223-3
01
1
9905-
143
GRILLE; RAD,CENTER
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (B)
1-71117-224-3
01
1
9905-
156
GRILLE KIT; RAD
CAB FRT PANEL CARGO FACE VAR 2<NBJ>
1-71117-246-2
01
1
9905-
156
GRILLE KIT; RAD
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>
1-71117-245-0
01
1
9905-
156
16
16
143
143
143
143
16
4
62
16
4
62
4
62
17
17
4
62
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
BRACKET; RAD GRILLE
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (C)
1-71117-239-1
04
1
9905-
4
BRACKET; RAD GRILLE
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (A)
1-71117-240-1
04
1
9905-
4
BRACKET; RAD GRILLE
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (B)
1-71117-241-1
05
1
9905-
16
GRILLE; RAD,SIDE
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (A)
1-71117-232-5
01
1
9905-
16
GRILLE; RAD,SIDE
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B)
1-71117-234-4
01
1
9905-
16
GRILLE; RAD,SIDE
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (A)
1-71117-231-5
01
1
9905-
16
GRILLE; RAD,SIDE
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B)
1-71117-233-4
01
1
9905-
16
GRILLE; RAD,SIDE
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (A)
1-71117-226-3
01
1
9905-
16
GRILLE; RAD,SIDE
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (B)
1-71117-228-3
01
1
9905-
16
GRILLE; RAD,SIDE
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (A)
1-71117-225-3
01
1
9905-
16
GRILLE; RAD,SIDE
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (B)
1-71117-227-3
01
1
9905-
17
SCREW; RAD GRILLE
CAB FRT PANEL CARGO FACE VAR 2<NBJ> M5
1-71117-238-1
12
1
9905-
17
SCREW; RAD GRILLE
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> M5
1-71117-238-1
03
1
9905-
62
SCREW; BRKT,RAD GRILLE
CAB FRT PANEL CARGO FACE VAR 2<NBJ> M5X12
1-09981-539-0
04
1
9905-
62
SCREW; BRKT,RAD GRILLE
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> M5X12
1-09981-539-0
09
1
9905-
143
GRILLE; RAD,CENTER
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (A)
1-71117-229-3
02
1
9905-
143
GRILLE; RAD,CENTER
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B)
1-71117-230-4
02
1
9905-
143
GRILLE; RAD,CENTER
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (A)
1-71117-223-3
01
1
9905-
143
GRILLE; RAD,CENTER
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (B)
1-71117-224-3
01
1
9905-
156
GRILLE KIT; RAD
CAB FRT PANEL CARGO FACE VAR 2<NBJ>
1-71117-246-2
01
1
9905-
156
GRILLE KIT; RAD
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>
1-71117-245-0
01
1
9905-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
