8-90 — RADIO AND TV (#48939) — 78 parça

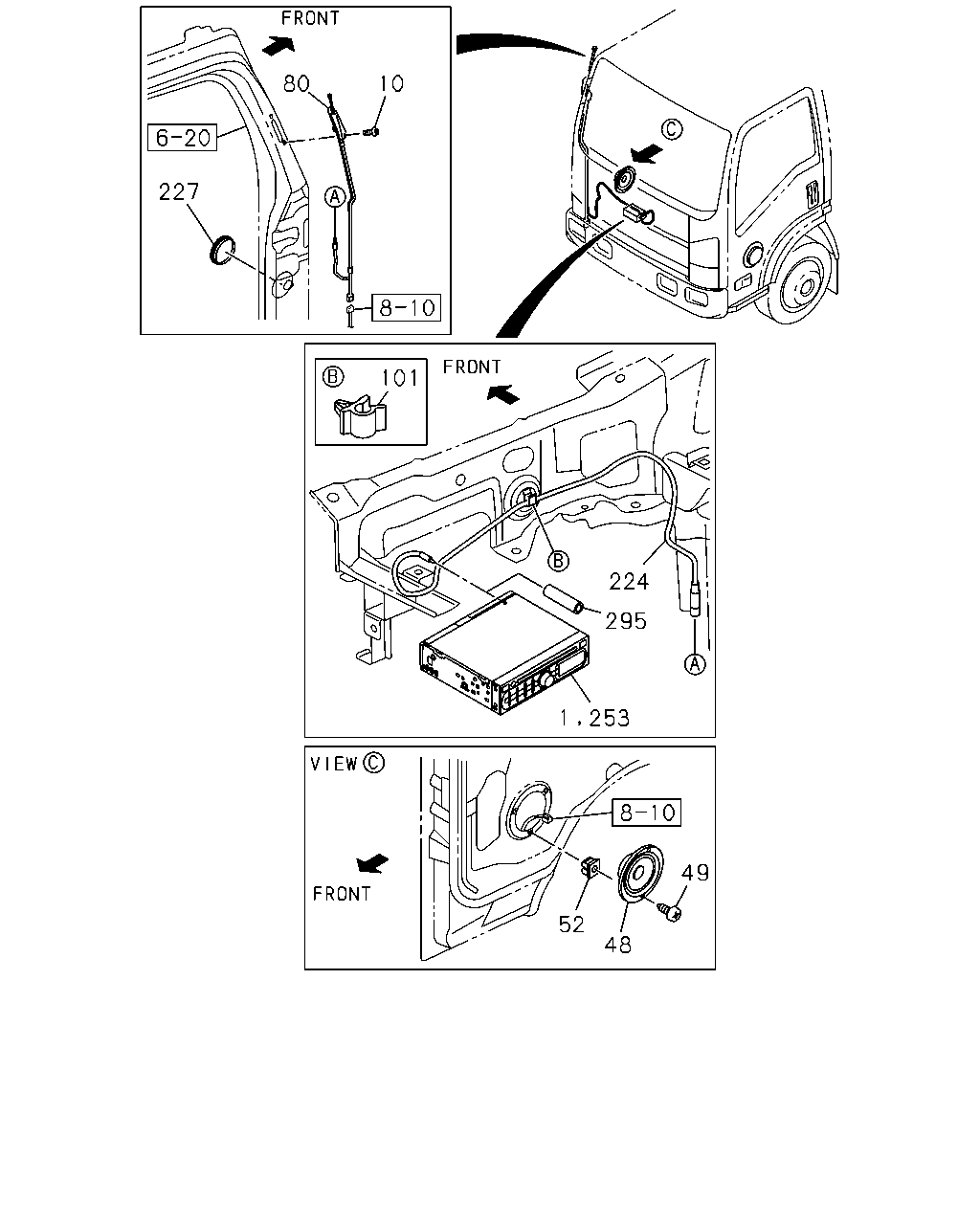

80 10 227 101 224 295 253 1 49 52 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	09.650 RADIO AM/FM RADIO(U69)	8-98032-643-0	01	1	1012-	●	●	●
10	09.647 SCREW; ANTENNA CABLE M5X11 TAPPING W/TORQUES	8-98061-742-0	02	1	1012-	●	●	●
48	09.650 SPEAKER; AUDIO 2-SPEAKER SYSTEM BASE<U95>	8-97317-001-1	02	1	1012-	●	●	●
49	09.655 SCREW; SPEAKER 2-SPEAKER SYSTEM BASE<U95> M5X14 TAPPING W/TORQUES	8-98061-856-0	06	1	1012-	●	●	●
52	09.655 GROMMET; SCREW,SPEAKER 2-SPEAKER SYSTEM BASE<U95> 01.269 D=8.6X7.7 L=7.5	8-94279-078-0	06	1	1012-	●	●	●
80	09.645 ANTENNA	8-97387-265-3	01	1	1012-	●	●	●
101	09.649 CLIP; FEEDER TO BRKT 09.647 ID=4.8	8-94128-483-0	01	1	1012-	●	●	●
224	09.647 CABLE; EXT,FEEDER 4HG1-T ENG(RDP) G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) CORNERING LAMP<T87> FOG LAMP<T96> EXC. FUEL SEDIMENTER WITH HEATER<6HU>, POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98029-970-1	01	1	1012-1212	●
224	09.647 CABLE; EXT,FEEDER 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-98029-970-1	01	1	1012-1212	●
224	09.647 CABLE; EXT,FEEDER 4HG1 ENG(RJH) G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)	8-98029-970-1	01	1	1012-1212	●
224	09.647 CABLE; EXT,FEEDER 4HK1-TCN ENG(RDQ) INTERMITTENT WIPER<C13> HYDRO BRAKE BOOSTER(7QQ) EXC. CORNERING LAMP<T87>,FUEL SEDIMENTERWITH HEATER<6HU>,PTO MANUAL CONTROL(6WC)	8-98029-970-1	01	1	1012-1212		●
224	09.647 CABLE; EXT,FEEDER 4HK1-TCN ENG(RDQ) EXC. FUEL SEDIMENTER WITH HEATER<6HU>, HYDRO BRAKE BOOSTER(7QQ)	8-98029-970-1	01	1	1012-1212		●
224	09.647 CABLE; EXT,FEEDER 4HG1-T ENG(RDP) CORNERING LAMP<T87> FOG LAMP<T96> EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-98029-970-1	01	1	1012-1212		●
224	09.647 CABLE; EXT,FEEDER 4HG1-T ENG(RDP) HYDRO BRAKE BOOSTER(7QQ) EXC. CORNERING LAMP<T87>,FOG LAMP<T96>	8-98029-970-1	01	1	1012-1212		●
224	09.647 CABLE; EXT,FEEDER 4HG1 ENG(RJH)	8-98029-970-1	01	1	1012-1212		●
224	09.647 CABLE; EXT,FEEDER	8-98029-970-1	01	1	1012-1212			●
224	09.647 CABLE; EXT,FEEDER 4HG1-T ENG(RDP) FOG LAMP<T96> EXC. CORNERING LAMP<T87>,FUEL SEDIMENTERWITH HEATER<6HU>,POWER TAKE OFF CONTROLELECTRIC(7GR)	8-98029-970-1	01	1	1301-1301	●
224	09.647 CABLE; EXT,FEEDER 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1ENG(RJH)	8-98029-970-1	01	1	1301-1301	●
224	09.647 CABLE; EXT,FEEDER 4HG1-T ENG(RDP) FOG LAMP<T96> EXC. CORNERING LAMP<T87>,FUEL SEDIMENTERWITH HEATER<6HU>,HYDRO BRAKE BOOSTER(7QQ)	8-98029-970-1	01	1	1301-1301		●
224	09.647 CABLE; EXT,FEEDER 4HG1-T ENG(RDP) HYDRO BRAKE BOOSTER(7QQ) EXC. CORNERING LAMP<T87>,FOG LAMP<T96>	8-98029-970-1	01	1	1301-1301		●
224	09.647 CABLE; EXT,FEEDER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-98029-970-1	01	1	1301-1301		●
224	09.647 CABLE; EXT,FEEDER	8-98029-970-1	01	1	1301-1301			●
224	09.647 CABLE; EXT,FEEDER 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1ENG(RJH) POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98029-970-1	01	1	1302-1310	●
224	09.647 CABLE; EXT,FEEDER 4HG1-T ENG(RDP) FOG LAMP<T96> EXC. CORNERING LAMP<T87>,FUEL SEDIMENTERWITH HEATER<6HU>,POWER TAKE OFF CONTROLELECTRIC(7GR),HYDRO BRAKE BOOSTER(7QQ)	8-98029-970-1	01	1	1302-1310	●
224	09.647 CABLE; EXT,FEEDER 4HG1-T ENG(RDP) HYDRO BRAKE BOOSTER(7QQ) EXC. CORNERING LAMP<T87>,FOG LAMP<T96>, POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98029-970-1	01	1	1302-1310	●
224	09.647 CABLE; EXT,FEEDER 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1ENG(RJH) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98029-970-1	01	1	1302-1310	●
224	09.647 CABLE; EXT,FEEDER 4HG1-T ENG(RDP) FOG LAMP<T96> EXC. CORNERING LAMP<T87>,FUEL SEDIMENTERWITH HEATER<6HU>,HYDRO BRAKE BOOSTER(7QQ)	8-98029-970-1	01	1	1302-1310		●
224	09.647 CABLE; EXT,FEEDER 4HG1-T ENG(RDP) HYDRO BRAKE BOOSTER(7QQ) EXC. CORNERING LAMP<T87>,FOG LAMP<T96>	8-98029-970-1	01	1	1302-1310		●
224	09.647 CABLE; EXT,FEEDER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-98029-970-1	01	1	1302-1310		●
224	09.647 CABLE; EXT,FEEDER	8-98029-970-1	01	1	1302-1310			●
224	09.647 CABLE; EXT,FEEDER 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR),HYDRO BRAKE BOOSTER(7QQ)	8-98029-970-1	01	1	1311-1508	●
224	09.647 CABLE; EXT,FEEDER 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98029-970-1	01	1	1311-1508	●
224	09.647 CABLE; EXT,FEEDER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98029-970-1	01	1	1311-1508	●
224	09.647 CABLE; EXT,FEEDER 4HG1-T ENG(RDP) FOG LAMP<T96> EXC. CORNERING LAMP<T87>,FUEL SEDIMENTERWITH HEATER<6HU>,POWER TAKE OFF CONTROLELECTRIC(7GR),HYDRO BRAKE BOOSTER(7QQ)	8-98029-970-1	01	1	1311-1508	●
224	09.647 CABLE; EXT,FEEDER 4HG1-T ENG(RDP) HYDRO BRAKE BOOSTER(7QQ) EXC. CORNERING LAMP<T87>,FOG LAMP<T96>, POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98029-970-1	01	1	1311-1508	●
224	09.647 CABLE; EXT,FEEDER 4HG1 ENG(RJH) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98029-970-1	01	1	1311-1508	●
224	09.647 CABLE; EXT,FEEDER 4HG1-T ENG(RDP) FOG LAMP<T96> EXC. CORNERING LAMP<T87>,FUEL SEDIMENTERWITH HEATER<6HU>,HYDRO BRAKE BOOSTER(7QQ)	8-98029-970-1	01	1	1311-1508		●
224	09.647 CABLE; EXT,FEEDER 4HG1-T ENG(RDP) HYDRO BRAKE BOOSTER(7QQ) EXC. CORNERING LAMP<T87>,FOG LAMP<T96>	8-98029-970-1	01	1	1311-1508		●
224	09.647 CABLE; EXT,FEEDER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-98029-970-1	01	1	1311-1508		●
224	09.647 CABLE; EXT,FEEDER	8-98029-970-1	01	1	1311-1508			●
224	09.647 CABLE; EXT,FEEDER 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR),HYDRO BRAKE BOOSTER(7QQ)	8-98029-970-1	01	1	1509-	●
224	09.647 CABLE; EXT,FEEDER 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98029-970-1	01	1	1509-	●
224	09.647 CABLE; EXT,FEEDER 4HK1-TCN ENG(RDQ) POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98029-970-1	01	1	1509-	●
224	09.647 CABLE; EXT,FEEDER 4HG1 ENG(RJH) FAST GLOW SYSTEM<KM6> POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. VIN MODEL YEAR 2015<VZF>,HYDRO BRAKE BOOSTER(7QQ)	8-98029-970-1	01	1	1509-	●
224	09.647 CABLE; EXT,FEEDER 4HG1 ENG(RJH) INTERMITTENT WIPER<C13> POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. FAST GLOW SYSTEM<KM6>,VIN MODEL YEAR 2015<VZF>,HYDRO BRAKE BOOSTER(7QQ)	8-98029-970-1	01	1	1509-	●
224	09.647 CABLE; EXT,FEEDER 4HG1 ENG(RJH) HYDRO BRAKE BOOSTER(7QQ) EXC. INTERMITTENT WIPER<C13>,FAST GLOW SYSTEM<KM6>,VIN MODEL YEAR 2015<VZF>,POWE R TAKE OFF CONTROL ELECTRIC(7GR)	8-98029-970-1	01	1	1509-	●
224	09.647 CABLE; EXT,FEEDER 4HG1-T ENG(RDP) FOG LAMP<T96> EXC. CORNERING LAMP<T87>,FUEL SEDIMENTERWITH HEATER<6HU>,POWER TAKE OFF CONTROLELECTRIC(7GR),HYDRO BRAKE BOOSTER(7QQ)	8-98029-970-1	01	1	1509-	●
224	09.647 CABLE; EXT,FEEDER 4HG1-T ENG(RDP) HYDRO BRAKE BOOSTER(7QQ) EXC. CORNERING LAMP<T87>,FOG LAMP<T96>, POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98029-970-1	01	1	1509-	●
224	09.647 CABLE; EXT,FEEDER 4HG1 ENG(RJH) FAST GLOW SYSTEM<KM6> EXC. VIN MODEL YEAR 2015<VZF>,POWER TAKEOFF CONTROL ELECTRIC(7GR)	8-98029-970-1	01	1	1509-	●
224	09.647 CABLE; EXT,FEEDER 4HG1 ENG(RJH) INTERMITTENT WIPER<C13> EXC. FAST GLOW SYSTEM<KM6>,VIN MODEL YEAR 2015<VZF>,POWER TAKE OFF CONTROL ELECT RIC(7GR)	8-98029-970-1	01	1	1509-	●
224	09.647 CABLE; EXT,FEEDER 4HG1 ENG(RJH) EXC. INTERMITTENT WIPER<C13>,FAST GLOW SYSTEM<KM6>,VIN MODEL YEAR 2015<VZF>,HYDR O BRAKE BOOSTER(7QQ)	8-98029-970-1	01	1	1509-	●
224	09.647 CABLE; EXT,FEEDER 4HG1 ENG(RJH) FAST GLOW SYSTEM<KM6> CORNERING LAMP<T87> EXC. VIN MODEL YEAR 2015<VZF>	8-98029-970-1	01	1	1509-		●
224	09.647 CABLE; EXT,FEEDER 4HG1 ENG(RJH) FAST GLOW SYSTEM<KM6> HYDRO BRAKE BOOSTER(7QQ) EXC. CORNERING LAMP<T87>,VIN MODEL YEAR 2015<VZF>	8-98029-970-1	01	1	1509-		●
224	09.647 CABLE; EXT,FEEDER 4HG1 ENG(RJH) INTERMITTENT WIPER<C13> CORNERING LAMP<T87> EXC. FAST GLOW SYSTEM<KM6>,VIN MODEL YEAR 2015<VZF>	8-98029-970-1	01	1	1509-		●
224	09.647 CABLE; EXT,FEEDER 4HG1 ENG(RJH) INTERMITTENT WIPER<C13> HYDRO BRAKE BOOSTER(7QQ) EXC. FAST GLOW SYSTEM<KM6>,CORNERING LAMP<T87>,VIN MODEL YEAR 2015<VZF>	8-98029-970-1	01	1	1509-		●
224	09.647 CABLE; EXT,FEEDER 4HG1 ENG(RJH) CORNERING LAMP<T87> EXC. INTERMITTENT WIPER<C13>,FAST GLOW SYSTEM<KM6>,VIN MODEL YEAR 2015<VZF>,HYDR O BRAKE BOOSTER(7QQ)	8-98029-970-1	01	1	1509-		●
224	09.647 CABLE; EXT,FEEDER 4HG1 ENG(RJH) HYDRO BRAKE BOOSTER(7QQ) EXC. INTERMITTENT WIPER<C13>,FAST GLOW SYSTEM<KM6>,VIN MODEL YEAR 2015<VZF>	8-98029-970-1	01	1	1509-		●
224	09.647 CABLE; EXT,FEEDER 4HK1-TCN ENG(RDQ)	8-98029-970-1	01	1	1509-		●
224	09.647 CABLE; EXT,FEEDER 4HG1-T ENG(RDP) FOG LAMP<T96> EXC. CORNERING LAMP<T87>,FUEL SEDIMENTERWITH HEATER<6HU>,HYDRO BRAKE BOOSTER(7QQ)	8-98029-970-1	01	1	1509-		●
224	09.647 CABLE; EXT,FEEDER 4HG1-T ENG(RDP) HYDRO BRAKE BOOSTER(7QQ) EXC. CORNERING LAMP<T87>,FOG LAMP<T96>	8-98029-970-1	01	1	1509-		●
224	09.647 CABLE; EXT,FEEDER 4HG1 ENG(RJH) EXC. CORNERING LAMP<T87>,VIN MODEL YEAR 2015<VZF>,HYDRO BRAKE BOOSTER(7QQ)	8-98029-970-1	01	1	1509-		●
224	09.647 CABLE; EXT,FEEDER	8-98029-970-1	01	1	1509-			●
227	09.647 PROTECTOR; EDGE	8-98053-117-0	01	1	1012-	●	●	●
253	09.645 DECK ASM; RADIO & CD RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) TUNER BAND LATIN AMERICA<7DM>	8-98112-329-0	01	1	1012-	●	●	●
253	09.645 DECK ASM; RADIO & CD RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) EXC. TUNER BAND LATIN AMERICA<7DM>	8-98017-752-0	01	1	1012-	●	●	●
295	09.665 INSULATOR; ANTENNA EXC. RADIO AM/FM STEREO,SEEK/SCAN, CD(UT3),AM/FM RADIO(U69)	8-98095-617-1	01	1	1012-	●	●	●

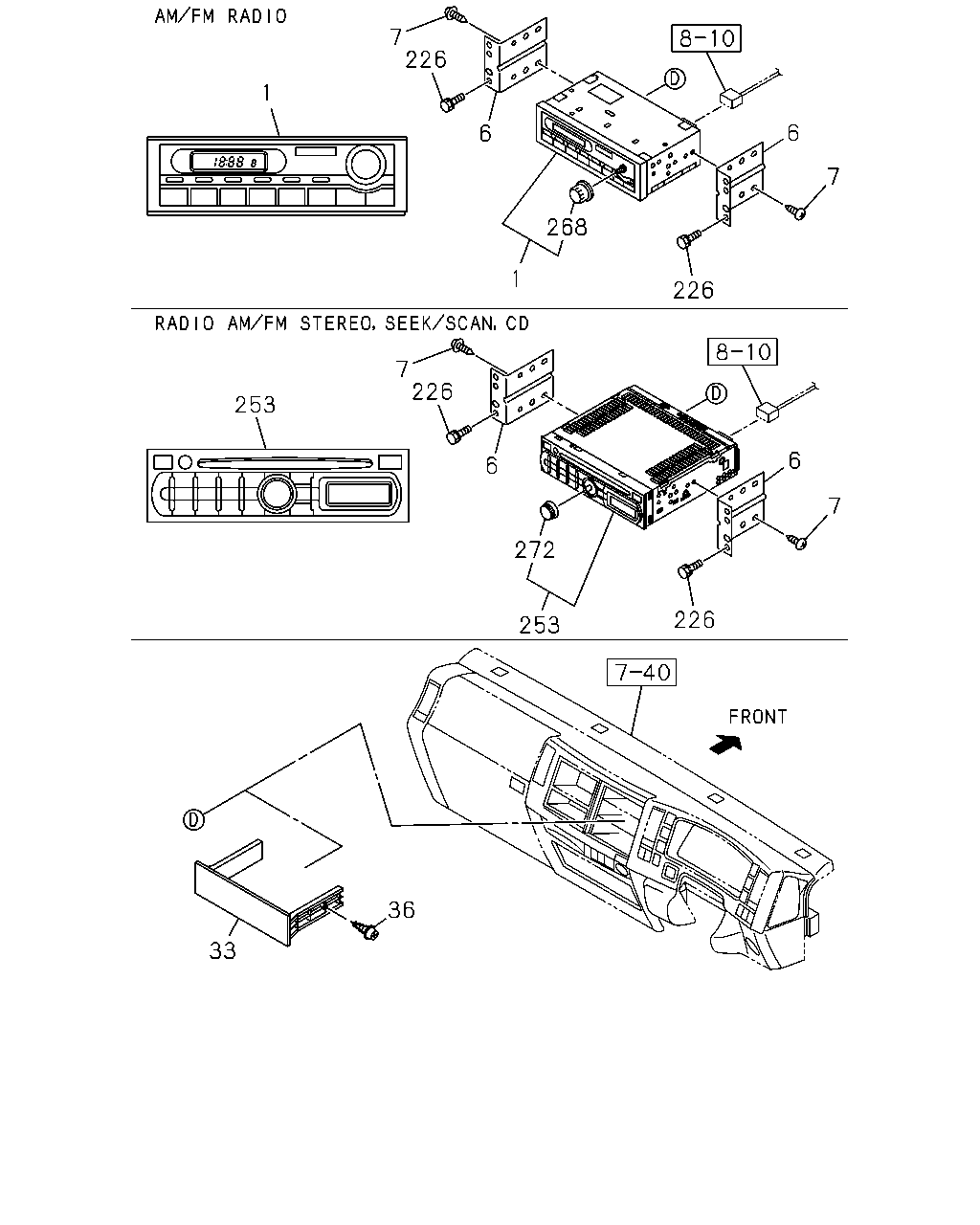

7 226 1 6 6 7 268 1 226 7 226 253 6 6 7 272 226 253 36 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	09.650 RADIO AM/FM RADIO(U69)	8-98032-643-0	01	1	1012-	●	●	●
6	09.645 BRACKET; RADIO TO PANEL	8-97585-617-0	02	1	1012-	●	●	●
7	09.650 SCREW; RADIO RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3), AM/FM RADIO(U69) M5X7 HEXALOBULAR SOCKET	8-98063-767-0	04	1	1012-	●	●	●
33	09.650 COVER; RADIO EXC. RADIO AM/FM STEREO,SEEK/SCAN, CD(UT3),AM/FM RADIO(U69) BLACK	8-97407-896-2	01	1	1012-	●	●	●
36	09.779 SCREW; COVER EXC. RADIO AM/FM STEREO,SEEK/SCAN, CD(UT3),AM/FM RADIO(U69) 16.100 T25 L=10 HEXALOBULAR	8-98058-632-0	02	1	1012-	●	●	●
226	09.647 BOLT; BRKT M5X20 TAPPING HEXALOBULAR	0-72180-520-0	02	1	1012-1012	●	●	●
226	09.647 BOLT; BRKT 16.100 M5X20 HEXALOBULAR SOCKET	8-98177-743-0	02	1	1101-1212	●	●	●
226	09.647 BOLT; BRKT M5X20 TAPPING HEXALOBULAR	0-72180-520-0	02	1	1301-	●	●	●
253	09.645 DECK ASM; RADIO & CD RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) TUNER BAND LATIN AMERICA<7DM>	8-98112-329-0	01	1	1012-	●	●	●
253	09.645 DECK ASM; RADIO & CD RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) EXC. TUNER BAND LATIN AMERICA<7DM>	8-98017-752-0	01	1	1012-	●	●	●
268	09.649 KNOB; VOL AM/FM RADIO(U69) CLARION	8-97375-820-0	01	1	1012-	●	●	●
272	09.649 KNOB; AUDIO CONTROL RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) CLARION	8-98048-329-0	01	1	1012-	●	●	●
