◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51296 - NPR/NQR-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-71 - COMPRESSOR; AIR CONDITIONING ▶
8-71 — COMPRESSOR; AIR CONDITIONING (#48935) — 15 parça

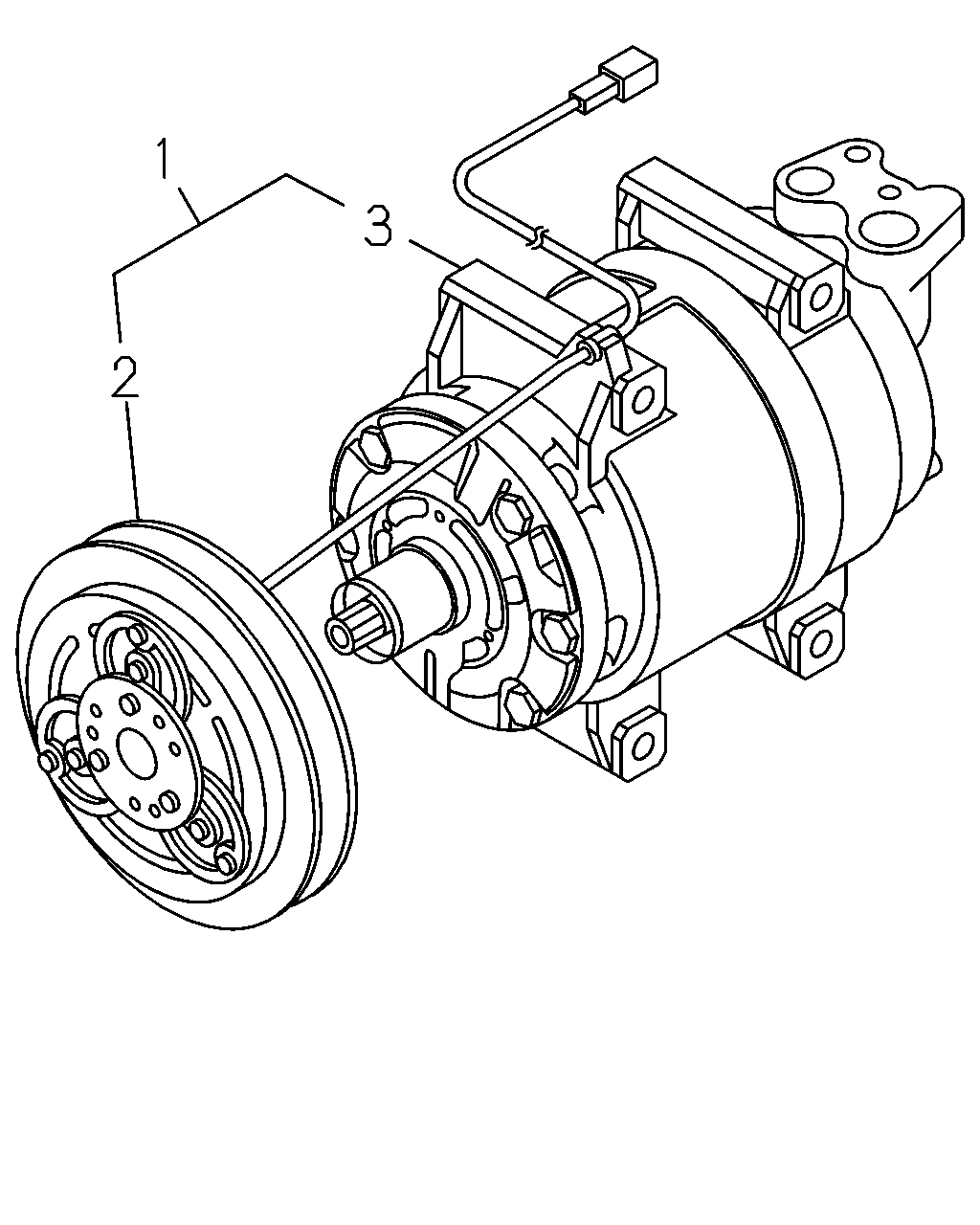

çizim 176055
1 3 2
BalonParca AdiParca NoAdetTipApplied Date A B C
1 09.170 COMPRESSOR ASM; A/C
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) VALEO 		8-98037-146-2 01 1 1012-1211 ● ●
1 09.170 COMPRESSOR ASM; A/C
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) VALEO 		8-98214-321-0 01 1 1212-1410 ● ●
1 09.170 COMPRESSOR ASM; A/C
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) VALEO 		8-98286-197-0 01 1 1411- ● ●
1 09.170 COMPRESSOR ASM; A/C
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) VALEO 		8-98000-988-2 01 1 1012-1211 ●
1 09.170 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONT(C60) VALEO 		8-98000-988-2 01 1 1012-1211 ●
1 09.170 COMPRESSOR ASM; A/C
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) VALEO 		8-98214-324-0 01 1 1212-1410 ●
1 09.170 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONT(C60) VALEO 		8-98214-324-0 01 1 1212-1410 ●
1 09.170 COMPRESSOR ASM; A/C
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) VALEO 		8-98286-199-0 01 1 1411- ●
1 09.170 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONT(C60) VALEO 		8-98286-199-0 01 1 1411- ●
2 09.188 CLUTCH; MAGNET,A/C
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98208-773-1 01 1 1012- ● ●
2 09.188 CLUTCH; MAGNET,A/C
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98208-772-1 01 1 1012- ●
2 09.188 CLUTCH; MAGNET,A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-98208-772-1 01 1 1012- ●
3 09.170 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98042-531-1 01 1 1012- ●
3 09.170 COMPRESSOR ASM; A/C
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98042-531-1 01 1 1012- ●
3 09.170 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-98042-531-1 01 1 1012- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
