Sayfa 8-52 - Isuzu EPC

8-52 — PIPING; AIR CONDITIONING (#48932) — 155 parça

50 148 147 43 202 50 67 66 67 67 67 66 148 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) HIGH PRESSURE	8-98179-006-0	01	1	1012-	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) HIGH PRESSURE	8-98179-006-0	01	1	1012-			●
50	09.222 GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) ID=7.5	1-83539-316-0	02	1	1012-	●	●
50	09.222 GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) ID=7.5	1-83539-316-0	02	1	1012-			●
66	09.225 HOSE; FLEX,A/C 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (C)	8-98100-100-1	01	1	1012-	●	●
66	09.225 HOSE; FLEX,A/C 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (D)	8-98159-630-2	01	1	1012-	●	●
66	09.225 HOSE; FLEX,A/C 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (C) HIGH PRESSURE	8-98098-289-0	01	1	1012-	●	●
66	09.225 HOSE; FLEX,A/C 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (D) LOW PRESSURE	8-98159-629-1	01	1	1012-	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) HIGH PRESSURE	8-97386-811-3	01	1	1012-	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (A) HIGH PRESSURE	8-97386-811-3	01	1	1012-			●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) LOW PRESSURE	8-98159-634-1	01	1	1012-	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (B) LOW PRESSURE	8-98159-634-1	01	1	1012-			●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) ID=11.7	8-97095-907-0	02	1	1012-	●
67	09.260 GASKET; FLEX HOSE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) ID=11.7	8-97095-907-0	02	1	1012-		●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A) ID=11.7	8-97095-907-0	02	1	1012-			●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 09.225 (B) ID=14.5	8-97095-908-0	01	1	1012-	●
67	09.260 GASKET; FLEX HOSE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 09.225 (B) ID=14.5	8-97095-908-0	01	1	1012-		●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=14.5	8-97095-908-0	01	1	1012-			●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (C) ID=17.6	8-98036-895-0	01	1	1012-	●
67	09.260 GASKET; FLEX HOSE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (C) ID=17.6	8-98036-895-0	01	1	1012-		●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (C) ID=17.6	8-98036-895-0	01	1	1012-			●
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) CAP MARK H	8-97095-911-0	01	1	1012-	●	●
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B) CAP MARK H	8-97095-911-0	01	1	1012-			●
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) CAP MARK L	1-83539-331-0	01	1	1012-	●
147	09.242 CAP; FLEX HOSE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) CAP MARK L	1-83539-331-0	01	1	1012-		●
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A) CAP MARK L	1-83539-331-0	01	1	1012-			●
148	09.262 VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B)	8-98031-629-0	01	1	1012-	●	●
148	09.262 VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B)	8-98031-629-0	01	1	1012-			●
148	09.262 VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A)	8-97095-909-0	01	1	1012-	●
148	09.262 VALVE; FLEX HOSE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A)	8-97095-909-0	01	1	1012-		●
148	09.262 VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A)	8-97095-909-0	01	1	1012-			●
202	09.275 SWITCH; PRESSURE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	1-83564-392-1	01	1	1012-	●	●
202	09.275 SWITCH; PRESSURE AIR CONDITIONER MANUAL CONT(C60)	1-83564-392-1	01	1	1012-			●

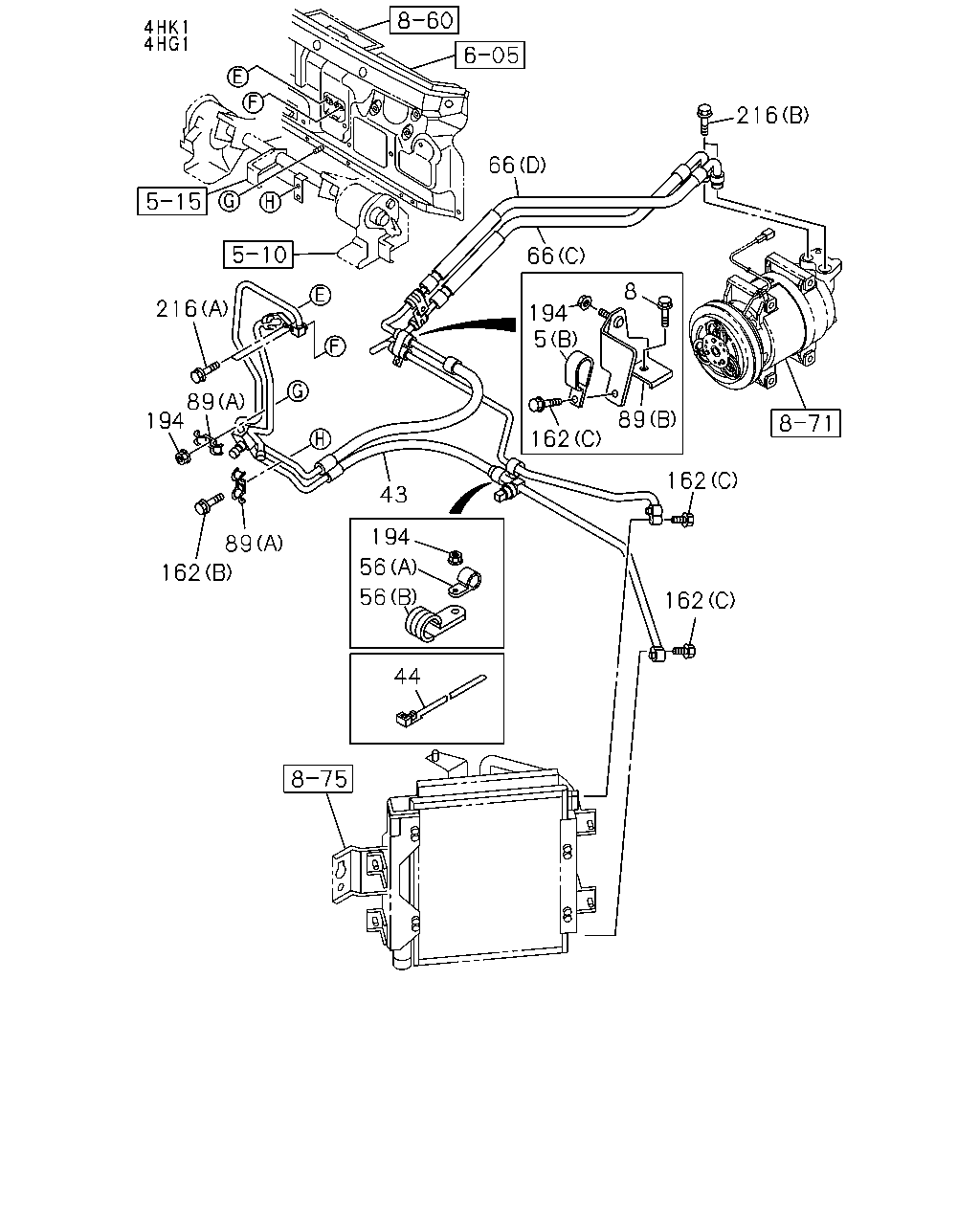

216 66 66 8 216 194 5 89 194 89 162 162 43 194 89 56 162 56 162 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	09.242 CLIP; FLEX HOSE,A/C 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B)	8-98052-857-0	01	1	1012-	●	●
5	09.242 CLIP; FLEX HOSE,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) ID=16 L=32	0-95235-562-0	02	1	1012-	●
5	09.242 CLIP; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) (A) ID=16 L=32	0-95235-562-0	02	1	1012-			●
8	09.242 BOLT; CLIP 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) HIGH PRESSURE	8-98179-006-0	01	1	1012-	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) HIGH PRESSURE	8-98179-006-0	01	1	1012-			●
44	09.242 CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 02.559 L=250	5-09707-030-1	01	1	1012-	●	●
44	09.242 CLIP; FLEX HOSE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 02.559 L=250	5-09707-030-1	01	1	1012-	●	●
44	09.242 CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 02.559 L=250	5-09707-030-1	01	1	1012-			●
44	09.242 CLIP; FLEX HOSE 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 02.559 L=170.3	1-09987-182-0	01	1	1012-	●	●
44	09.242 CLIP; FLEX HOSE 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 08.852 L=350	8-94152-256-1	01	1	1012-	●	●
44	09.242 CLIP; FLEX HOSE 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 03.162 L=140	5-09707-031-1	01	1	1012-	●
44	09.242 CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 03.162 L=140	5-09707-031-1	01	1	1012-			●
56	09.242 CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B)	8-98032-641-0	01	1	1012-	●	●
56	09.242 CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) (B)	8-98032-641-0	01	1	1012-			●
56	09.242 CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 04.930 (A) ID=13 L=20	0-95235-232-0	01	1	1012-	●
56	09.242 CLIP; PIPE,A/C 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 04.930 (A) ID=13 L=20	0-95235-232-0	01	1	1012-		●
56	09.242 CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) 04.930 (A) ID=13 L=20	0-95235-232-0	01	1	1012-			●
66	09.225 HOSE; FLEX,A/C 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (C)	8-98100-100-1	01	1	1012-	●	●
66	09.225 HOSE; FLEX,A/C 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (D)	8-98159-630-2	01	1	1012-	●	●
66	09.225 HOSE; FLEX,A/C 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (C) HIGH PRESSURE	8-98098-289-0	01	1	1012-	●	●
66	09.225 HOSE; FLEX,A/C 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (D) LOW PRESSURE	8-98159-629-1	01	1	1012-	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) HIGH PRESSURE	8-97386-811-3	01	1	1012-	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (A) HIGH PRESSURE	8-97386-811-3	01	1	1012-			●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) LOW PRESSURE	8-98159-634-1	01	1	1012-	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (B) LOW PRESSURE	8-98159-634-1	01	1	1012-			●
89	09.242 BRACKET; A/C PIPE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A)	8-98151-264-0	02	1	1012-	●	●
89	09.242 BRACKET; A/C PIPE AIR CONDITIONER MANUAL CONT(C60) (A)	8-98151-264-0	02	1	1012-			●
89	09.242 BRACKET; A/C PIPE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B)	8-98002-365-2	01	1	1012-	●	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 03.162 (B) M6X20 FLANGE	0-28650-620-0	01	1	1012-	●	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) M6X20 FLANGE	0-28650-620-0	01	1	1012-			●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 00.685 (C) M6X25 FLANGE	0-28650-625-0	02	1	1012-	●	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 00.685 (C) M6X25 FLANGE	0-28650-625-0	02	1	1012-			●
162	09.173 BOLT; FLEX HOSE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 00.685 (C) M6X25 FLANGE	0-28650-625-0	01	1	1012-	●	●
162	09.173 BOLT; FLEX HOSE 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 03.162 (A) M6X12 FLANGE	0-28050-612-0	02	1	1012-	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 03.162 (A) M6X12 FLANGE	0-28050-612-0	02	1	1012-			●
194	09.242 NUT; HOSE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 01.062 M6 FLANGE	0-91180-106-0	03	1	1012-	●	●
194	09.242 NUT; HOSE 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 01.062 M6 FLANGE	0-91180-106-0	02	1	1012-	●
194	09.242 NUT; HOSE AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	02	1	1012-			●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 03.680 (A) M6X30 FLANGE	0-28650-630-0	02	1	1012-	●	●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) 03.680 (A) M6X30 FLANGE	0-28650-630-0	02	1	1012-			●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1012-	●	●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1012-			●

50 148 147 43 202 50 67 66 67 67 67 66 148 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) HIGH PRESSURE	8-98179-006-0	01	1	1012-	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) HIGH PRESSURE	8-98179-006-0	01	1	1012-			●
50	09.222 GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) ID=7.5	1-83539-316-0	02	1	1012-	●	●
50	09.222 GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) ID=7.5	1-83539-316-0	02	1	1012-			●
66	09.225 HOSE; FLEX,A/C 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (C)	8-98100-100-1	01	1	1012-	●	●
66	09.225 HOSE; FLEX,A/C 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (D)	8-98159-630-2	01	1	1012-	●	●
66	09.225 HOSE; FLEX,A/C 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (C) HIGH PRESSURE	8-98098-289-0	01	1	1012-	●	●
66	09.225 HOSE; FLEX,A/C 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (D) LOW PRESSURE	8-98159-629-1	01	1	1012-	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) HIGH PRESSURE	8-97386-811-3	01	1	1012-	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (A) HIGH PRESSURE	8-97386-811-3	01	1	1012-			●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) LOW PRESSURE	8-98159-634-1	01	1	1012-	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (B) LOW PRESSURE	8-98159-634-1	01	1	1012-			●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) ID=11.7	8-97095-907-0	02	1	1012-	●
67	09.260 GASKET; FLEX HOSE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) ID=11.7	8-97095-907-0	02	1	1012-		●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A) ID=11.7	8-97095-907-0	02	1	1012-			●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 09.225 (B) ID=14.5	8-97095-908-0	01	1	1012-	●
67	09.260 GASKET; FLEX HOSE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 09.225 (B) ID=14.5	8-97095-908-0	01	1	1012-		●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=14.5	8-97095-908-0	01	1	1012-			●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (C) ID=17.6	8-98036-895-0	01	1	1012-	●
67	09.260 GASKET; FLEX HOSE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (C) ID=17.6	8-98036-895-0	01	1	1012-		●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (C) ID=17.6	8-98036-895-0	01	1	1012-			●
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) CAP MARK H	8-97095-911-0	01	1	1012-	●	●
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B) CAP MARK H	8-97095-911-0	01	1	1012-			●
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) CAP MARK L	1-83539-331-0	01	1	1012-	●
147	09.242 CAP; FLEX HOSE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) CAP MARK L	1-83539-331-0	01	1	1012-		●
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A) CAP MARK L	1-83539-331-0	01	1	1012-			●
148	09.262 VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B)	8-98031-629-0	01	1	1012-	●	●
148	09.262 VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B)	8-98031-629-0	01	1	1012-			●
148	09.262 VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A)	8-97095-909-0	01	1	1012-	●
148	09.262 VALVE; FLEX HOSE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A)	8-97095-909-0	01	1	1012-		●
148	09.262 VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A)	8-97095-909-0	01	1	1012-			●
202	09.275 SWITCH; PRESSURE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	1-83564-392-1	01	1	1012-	●	●
202	09.275 SWITCH; PRESSURE AIR CONDITIONER MANUAL CONT(C60)	1-83564-392-1	01	1	1012-			●

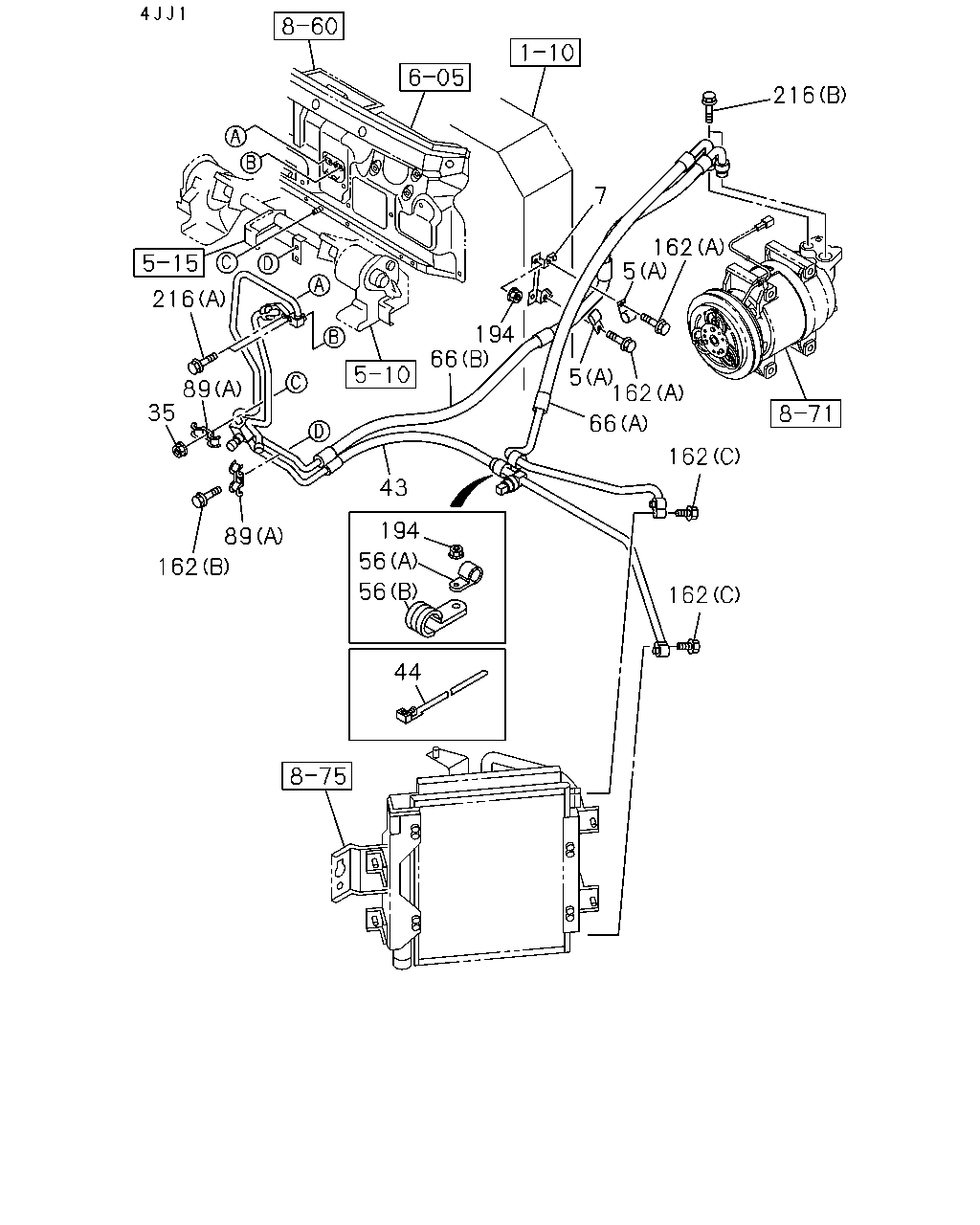

216 7 162 5 216 194 66 5 162 89 35 66 162 43 194 89 56 162 56 162 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	09.242 CLIP; FLEX HOSE,A/C 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B)	8-98052-857-0	01	1	1012-	●	●
5	09.242 CLIP; FLEX HOSE,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) ID=16 L=32	0-95235-562-0	02	1	1012-	●
5	09.242 CLIP; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) (A) ID=16 L=32	0-95235-562-0	02	1	1012-			●
7	09.242 BRACKET; FLEX HOSE,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98049-348-0	01	1	1012-	●
7	09.242 BRACKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60)	8-98049-348-0	01	1	1012-			●
35	09.242 NUT; FLEX HOSE,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 01.062 M6 FLANGE	0-91180-106-0	02	1	1012-	●
35	09.242 NUT; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	02	1	1012-			●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) HIGH PRESSURE	8-98179-006-0	01	1	1012-	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) HIGH PRESSURE	8-98179-006-0	01	1	1012-			●
44	09.242 CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 02.559 L=250	5-09707-030-1	01	1	1012-	●	●
44	09.242 CLIP; FLEX HOSE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 02.559 L=250	5-09707-030-1	01	1	1012-	●	●
44	09.242 CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 02.559 L=250	5-09707-030-1	01	1	1012-			●
44	09.242 CLIP; FLEX HOSE 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 02.559 L=170.3	1-09987-182-0	01	1	1012-	●	●
44	09.242 CLIP; FLEX HOSE 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 08.852 L=350	8-94152-256-1	01	1	1012-	●	●
44	09.242 CLIP; FLEX HOSE 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 03.162 L=140	5-09707-031-1	01	1	1012-	●
44	09.242 CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 03.162 L=140	5-09707-031-1	01	1	1012-			●
56	09.242 CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B)	8-98032-641-0	01	1	1012-	●	●
56	09.242 CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) (B)	8-98032-641-0	01	1	1012-			●
56	09.242 CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 04.930 (A) ID=13 L=20	0-95235-232-0	01	1	1012-	●
56	09.242 CLIP; PIPE,A/C 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 04.930 (A) ID=13 L=20	0-95235-232-0	01	1	1012-		●
56	09.242 CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) 04.930 (A) ID=13 L=20	0-95235-232-0	01	1	1012-			●
66	09.225 HOSE; FLEX,A/C 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (C)	8-98100-100-1	01	1	1012-	●	●
66	09.225 HOSE; FLEX,A/C 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (D)	8-98159-630-2	01	1	1012-	●	●
66	09.225 HOSE; FLEX,A/C 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (C) HIGH PRESSURE	8-98098-289-0	01	1	1012-	●	●
66	09.225 HOSE; FLEX,A/C 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (D) LOW PRESSURE	8-98159-629-1	01	1	1012-	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) HIGH PRESSURE	8-97386-811-3	01	1	1012-	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (A) HIGH PRESSURE	8-97386-811-3	01	1	1012-			●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) LOW PRESSURE	8-98159-634-1	01	1	1012-	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (B) LOW PRESSURE	8-98159-634-1	01	1	1012-			●
89	09.242 BRACKET; A/C PIPE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A)	8-98151-264-0	02	1	1012-	●	●
89	09.242 BRACKET; A/C PIPE AIR CONDITIONER MANUAL CONT(C60) (A)	8-98151-264-0	02	1	1012-			●
89	09.242 BRACKET; A/C PIPE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B)	8-98002-365-2	01	1	1012-	●	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 03.162 (B) M6X20 FLANGE	0-28650-620-0	01	1	1012-	●	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) M6X20 FLANGE	0-28650-620-0	01	1	1012-			●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 00.685 (C) M6X25 FLANGE	0-28650-625-0	02	1	1012-	●	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 00.685 (C) M6X25 FLANGE	0-28650-625-0	02	1	1012-			●
162	09.173 BOLT; FLEX HOSE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 00.685 (C) M6X25 FLANGE	0-28650-625-0	01	1	1012-	●	●
162	09.173 BOLT; FLEX HOSE 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 03.162 (A) M6X12 FLANGE	0-28050-612-0	02	1	1012-	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 03.162 (A) M6X12 FLANGE	0-28050-612-0	02	1	1012-			●
194	09.242 NUT; HOSE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 01.062 M6 FLANGE	0-91180-106-0	03	1	1012-	●	●
194	09.242 NUT; HOSE 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 01.062 M6 FLANGE	0-91180-106-0	02	1	1012-	●
194	09.242 NUT; HOSE AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	02	1	1012-			●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 03.680 (A) M6X30 FLANGE	0-28650-630-0	02	1	1012-	●	●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) 03.680 (A) M6X30 FLANGE	0-28650-630-0	02	1	1012-			●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1012-	●	●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1012-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
