Sayfa 8-50 - Isuzu EPC

8-50 — AIR CONDITIONING SYSTEM; FRONT (#48931) — 184 parça

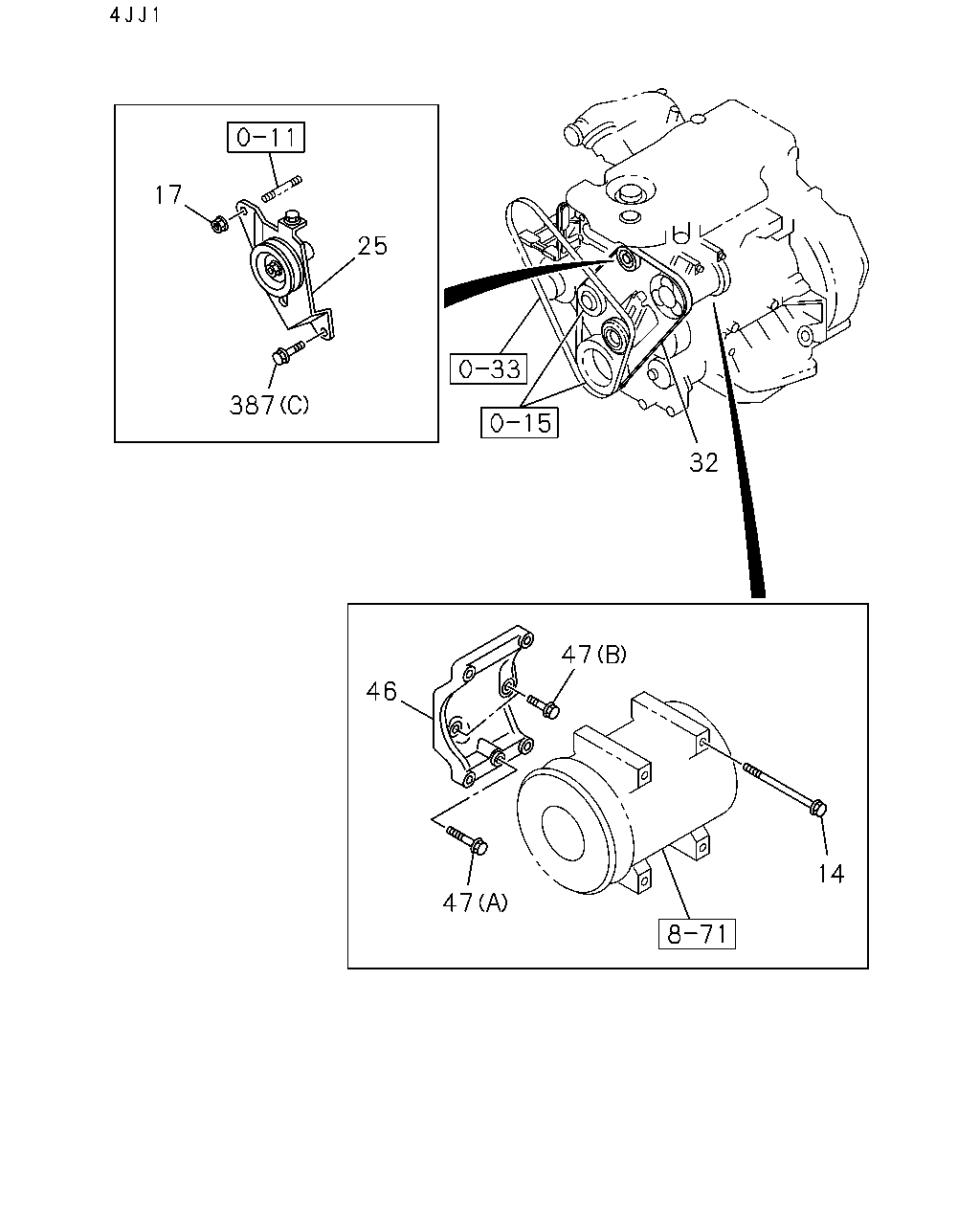

17 25 387 32 47 46 14 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
14	09.171 BOLT; CMPR 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 02.100 M8X90 FLANGE	0-28050-890-0	04	1	1012-1307	●	●
14	09.171 BOLT; CMPR 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 02.100 M8X90 FLANGE	0-28050-890-0	04	1	1012-1307	●	●
14	09.171 BOLT; CMPR 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 02.100 M8X90 FLANGE	0-28050-890-0	04	1	1308-	●	●
14	09.171 BOLT; CMPR 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 00.386 M8X100 FLANGE	0-28050-800-0	04	1	1012-	●
14	09.171 BOLT; CMPR AIR CONDITIONER MANUAL CONT(C60) 00.386 M8X100 FLANGE	0-28050-800-0	04	1	1012-			●
17	09.171 NUT; CMPR 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 01.540 M8 FLANGE	0-91180-208-0	01	1	1012-	●
17	09.171 NUT; CMPR AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE	0-91180-208-0	01	1	1012-			●
25	09.180 PULLEY ASM; IDLER,CMPR 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE	8-97161-198-1	01	1	1012-1307	●	●
25	09.180 PULLEY ASM; IDLER,CMPR 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 1-GROOVE	8-97161-198-1	01	1	1012-1307	●	●
25	09.180 PULLEY ASM; IDLER,CMPR 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 1-GROOVE	8-97161-198-1	01	1	1308-	●	●
25	09.180 PULLEY ASM; IDLER,CMPR 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 1-GROOVE	8-98114-437-0	01	1	1012-	●
25	09.180 PULLEY ASM; IDLER,CMPR AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE	8-98114-437-0	01	1	1012-			●
32	01.066 BELT; A/C CMPR 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS	5-87610-097-0	01	1	1012-1307	●	●
32	01.066 BELT; A/C CMPR 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) BEST VALUE PARTS	5-87610-097-0	01	1	1308-	●	●
32	01.066 BELT; A/C CMPR 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97180-183-3	01	1	1012-1307	●	●
32	01.066 BELT; A/C CMPR 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) L=1569	8-97180-183-3	01	1	1308-	●	●
32	01.066 BELT; A/C CMPR 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) L=1674	8-98010-841-1	01	1	1012-	●	●
32	01.066 BELT; A/C CMPR 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) L=1355 MITSUBOSHI	8-98088-385-0	01	1	1012-	●
32	01.066 BELT; A/C CMPR AIR CONDITIONER MANUAL CONT(C60) L=1355 MITSUBOSHI	8-98088-385-0	01	1	1012-			●
32	01.066 BELT; A/C CMPR 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) BEST VALUE PARTS	5-87610-103-0	01	1	1012-	●
32	01.066 BELT; A/C CMPR AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS	5-87610-103-0	01	1	1012-			●
46	09.171 BRACKET; CMPR 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 09.242	8-97305-489-0	01	1	1012-1307	●	●
46	09.171 BRACKET; CMPR 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 09.242	8-97305-489-0	01	1	1308-	●	●
46	09.171 BRACKET; CMPR 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 09.242	8-98006-515-3	01	1	1012-	●	●
46	09.171 BRACKET; CMPR 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 09.242	8-98037-322-0	01	1	1012-	●
46	09.171 BRACKET; CMPR AIR CONDITIONER MANUAL CONT(C60) 09.242	8-98037-322-0	01	1	1012-			●
47	09.173 BOLT; BRKT TO BODY 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 09.171 (E) M10X110 FLANGE	0-28156-011-0	01	1	1012-1307	●	●
47	09.173 BOLT; BRKT TO BODY 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 09.171 (E) M10X110 FLANGE	0-28156-011-0	01	1	1308-	●	●
47	09.173 BOLT; BRKT TO BODY 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 00.683 (F) M10X55 FLANGE	8-97365-449-0	02	1	1012-1307	●	●
47	09.173 BOLT; BRKT TO BODY 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 00.683 (F) M10X55 FLANGE	8-97365-449-0	02	1	1308-	●	●
47	09.173 BOLT; BRKT TO BODY 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 01.062 (C) M10X90 FLANGE	0-28151-090-0	02	1	1012-	●	●
47	09.173 BOLT; BRKT TO BODY 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 09.171 (D) M10X120 FLANGE	0-28156-012-0	01	1	1012-	●	●
47	09.173 BOLT; BRKT TO BODY 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) M8X45 FLANGE	0-28050-845-0	01	1	1012-	●
47	09.173 BOLT; BRKT TO BODY AIR CONDITIONER MANUAL CONT(C60) (A) M8X45 FLANGE	0-28050-845-0	01	1	1012-			●
47	09.173 BOLT; BRKT TO BODY 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1012-	●
47	09.173 BOLT; BRKT TO BODY AIR CONDITIONER MANUAL CONT(C60) 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1012-			●
387	09.190 BOLT; TENSIONER FIX 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 00.386 (A) M8X50 FLANGE	0-28050-850-0	01	1	1012-1307	●	●
387	09.190 BOLT; TENSIONER FIX 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 00.386 (A) M8X50 FLANGE	0-28050-850-0	01	1	1308-	●	●
387	09.190 BOLT; TENSIONER FIX 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 04.510 (B) M10X65 FLANGE	8-94344-540-1	01	1	1012-1307	●	●
387	09.190 BOLT; TENSIONER FIX 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 04.510 (B) M10X65 FLANGE	8-94344-540-1	01	1	1308-	●	●
387	09.190 BOLT; TENSIONER FIX 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1012-	●
387	09.190 BOLT; TENSIONER FIX AIR CONDITIONER MANUAL CONT(C60) 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1012-			●

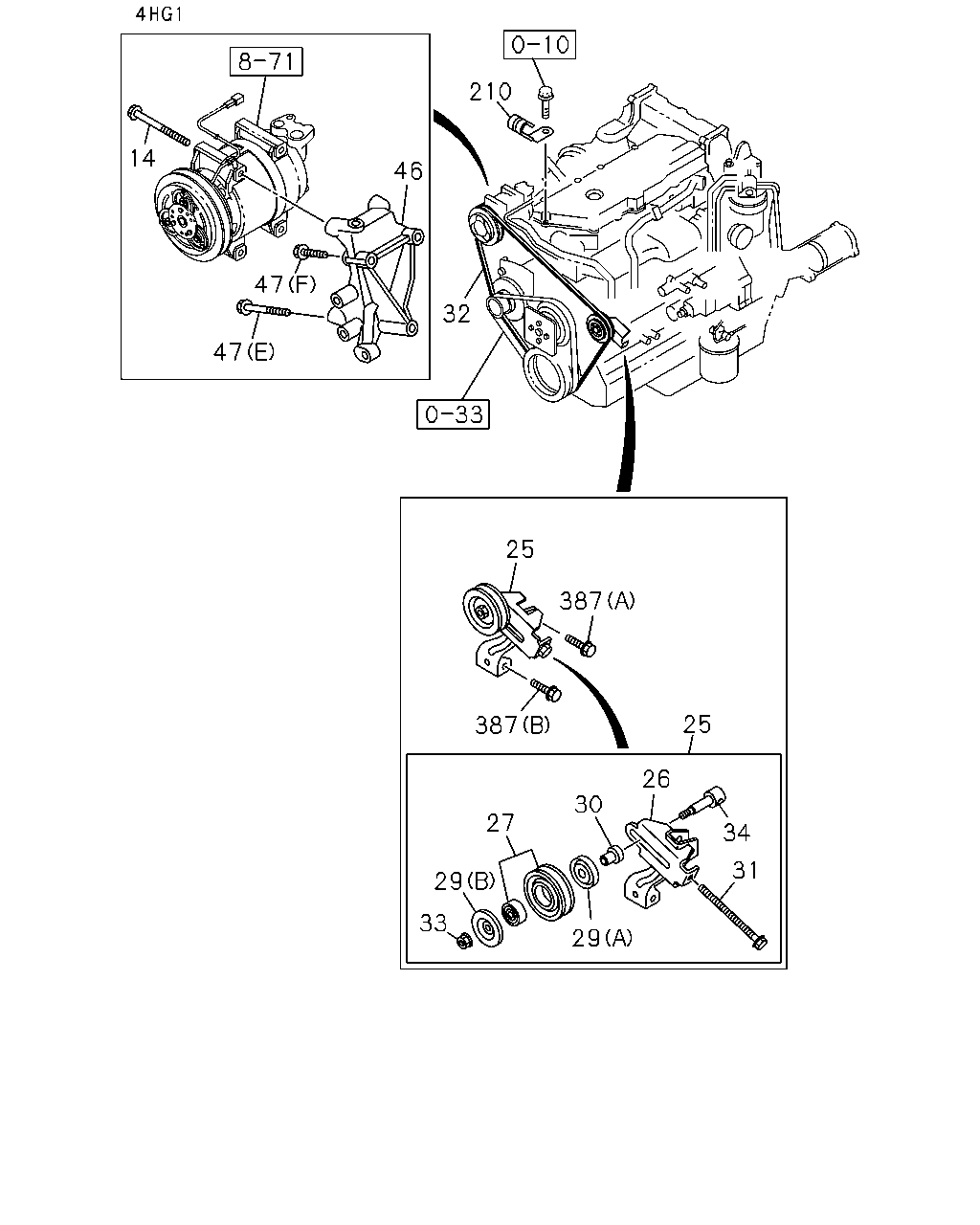

210 14 46 47 32 47 25 387 25 387 26 30 27 34 31 29 33 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
14	09.171 BOLT; CMPR 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 02.100 M8X90 FLANGE	0-28050-890-0	04	1	1012-1307	●	●
14	09.171 BOLT; CMPR 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 02.100 M8X90 FLANGE	0-28050-890-0	04	1	1012-1307	●	●
14	09.171 BOLT; CMPR 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 02.100 M8X90 FLANGE	0-28050-890-0	04	1	1308-	●	●
14	09.171 BOLT; CMPR 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 00.386 M8X100 FLANGE	0-28050-800-0	04	1	1012-	●
14	09.171 BOLT; CMPR AIR CONDITIONER MANUAL CONT(C60) 00.386 M8X100 FLANGE	0-28050-800-0	04	1	1012-			●
25	09.180 PULLEY ASM; IDLER,CMPR 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE	8-97161-198-1	01	1	1012-1307	●	●
25	09.180 PULLEY ASM; IDLER,CMPR 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 1-GROOVE	8-97161-198-1	01	1	1012-1307	●	●
25	09.180 PULLEY ASM; IDLER,CMPR 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 1-GROOVE	8-97161-198-1	01	1	1308-	●	●
25	09.180 PULLEY ASM; IDLER,CMPR 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 1-GROOVE	8-98114-437-0	01	1	1012-	●
25	09.180 PULLEY ASM; IDLER,CMPR AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE	8-98114-437-0	01	1	1012-			●
26	09.180 BRACKET; IDLE PULLEY,A/C 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60)	8-97161-031-1	01	1	1012-1307	●	●
26	09.180 BRACKET; IDLE PULLEY,A/C 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97161-031-1	01	1	1012-1307	●	●
26	09.180 BRACKET; IDLE PULLEY,A/C 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97161-031-1	01	1	1308-	●	●
27	09.180 PULLEY; IDLE,A/C 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60)	8-97386-869-0	01	1	1012-1307	●	●
27	09.180 PULLEY; IDLE,A/C 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97386-869-0	01	1	1012-1307	●	●
27	09.180 PULLEY; IDLE,A/C 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97386-869-0	01	1	1308-	●	●
29	09.181 COVER; DUST,IDLE PULLEY 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97384-114-0	01	1	1012-1307	●	●
29	09.181 COVER; DUST,IDLE PULLEY 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A)	8-97384-114-0	01	1	1012-1307	●	●
29	09.181 COVER; DUST,IDLE PULLEY 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A)	8-97384-114-0	01	1	1308-	●	●
29	09.181 COVER; DUST,IDLE PULLEY 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97384-115-0	01	1	1012-1307	●	●
29	09.181 COVER; DUST,IDLE PULLEY 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B)	8-97384-115-0	01	1	1012-1307	●	●
29	09.181 COVER; DUST,IDLE PULLEY 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B)	8-97384-115-0	01	1	1308-	●	●
30	09.181 COLLAR; IDLE PULLEY 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60)	8-97384-117-0	01	1	1012-1307	●	●
30	09.181 COLLAR; IDLE PULLEY 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97384-117-0	01	1	1012-1307	●	●
30	09.181 COLLAR; IDLE PULLEY 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97384-117-0	01	1	1308-	●	●
31	09.181 BOLT; ADJ,IDLE PULLEY 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60)	8-97384-113-0	01	1	1012-1307	●	●
31	09.181 BOLT; ADJ,IDLE PULLEY 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97384-113-0	01	1	1012-1307	●	●
31	09.181 BOLT; ADJ,IDLE PULLEY 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97384-113-0	01	1	1308-	●	●
32	01.066 BELT; A/C CMPR 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS	5-87610-097-0	01	1	1012-1307	●	●
32	01.066 BELT; A/C CMPR 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) BEST VALUE PARTS	5-87610-097-0	01	1	1308-	●	●
32	01.066 BELT; A/C CMPR 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97180-183-3	01	1	1012-1307	●	●
32	01.066 BELT; A/C CMPR 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) L=1569	8-97180-183-3	01	1	1308-	●	●
32	01.066 BELT; A/C CMPR 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) L=1674	8-98010-841-1	01	1	1012-	●	●
32	01.066 BELT; A/C CMPR 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) L=1355 MITSUBOSHI	8-98088-385-0	01	1	1012-	●
32	01.066 BELT; A/C CMPR AIR CONDITIONER MANUAL CONT(C60) L=1355 MITSUBOSHI	8-98088-385-0	01	1	1012-			●
32	01.066 BELT; A/C CMPR 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) BEST VALUE PARTS	5-87610-103-0	01	1	1012-	●
32	01.066 BELT; A/C CMPR AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS	5-87610-103-0	01	1	1012-			●
33	09.181 NUT; IDLER PULLEY 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60)	8-97384-118-0	01	1	1012-1307	●	●
33	09.181 NUT; IDLER PULLEY 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97384-118-0	01	1	1012-1307	●	●
33	09.181 NUT; IDLER PULLEY 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97384-118-0	01	1	1308-	●	●
34	09.181 SHAFT; IDLE PULLEY 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60)	8-97384-116-0	01	1	1012-1307	●	●
34	09.181 SHAFT; IDLE PULLEY 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97384-116-0	01	1	1012-1307	●	●
34	09.181 SHAFT; IDLE PULLEY 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97384-116-0	01	1	1308-	●	●
46	09.171 BRACKET; CMPR 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 09.242	8-97305-489-0	01	1	1012-1307	●	●
46	09.171 BRACKET; CMPR 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 09.242	8-97305-489-0	01	1	1308-	●	●
46	09.171 BRACKET; CMPR 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 09.242	8-98006-515-3	01	1	1012-	●	●
46	09.171 BRACKET; CMPR 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 09.242	8-98037-322-0	01	1	1012-	●
46	09.171 BRACKET; CMPR AIR CONDITIONER MANUAL CONT(C60) 09.242	8-98037-322-0	01	1	1012-			●
47	09.173 BOLT; BRKT TO BODY 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 09.171 (E) M10X110 FLANGE	0-28156-011-0	01	1	1012-1307	●	●
47	09.173 BOLT; BRKT TO BODY 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 09.171 (E) M10X110 FLANGE	0-28156-011-0	01	1	1308-	●	●
47	09.173 BOLT; BRKT TO BODY 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 00.683 (F) M10X55 FLANGE	8-97365-449-0	02	1	1012-1307	●	●
47	09.173 BOLT; BRKT TO BODY 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 00.683 (F) M10X55 FLANGE	8-97365-449-0	02	1	1308-	●	●
47	09.173 BOLT; BRKT TO BODY 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 01.062 (C) M10X90 FLANGE	0-28151-090-0	02	1	1012-	●	●
47	09.173 BOLT; BRKT TO BODY 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 09.171 (D) M10X120 FLANGE	0-28156-012-0	01	1	1012-	●	●
47	09.173 BOLT; BRKT TO BODY 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) M8X45 FLANGE	0-28050-845-0	01	1	1012-	●
47	09.173 BOLT; BRKT TO BODY AIR CONDITIONER MANUAL CONT(C60) (A) M8X45 FLANGE	0-28050-845-0	01	1	1012-			●
47	09.173 BOLT; BRKT TO BODY 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1012-	●
47	09.173 BOLT; BRKT TO BODY AIR CONDITIONER MANUAL CONT(C60) 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1012-			●
210	09.242 CLIP; HARNESS 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1012-	●	●
387	09.190 BOLT; TENSIONER FIX 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 00.386 (A) M8X50 FLANGE	0-28050-850-0	01	1	1012-1307	●	●
387	09.190 BOLT; TENSIONER FIX 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 00.386 (A) M8X50 FLANGE	0-28050-850-0	01	1	1308-	●	●
387	09.190 BOLT; TENSIONER FIX 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 04.510 (B) M10X65 FLANGE	8-94344-540-1	01	1	1012-1307	●	●
387	09.190 BOLT; TENSIONER FIX 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 04.510 (B) M10X65 FLANGE	8-94344-540-1	01	1	1308-	●	●
387	09.190 BOLT; TENSIONER FIX 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1012-	●
387	09.190 BOLT; TENSIONER FIX AIR CONDITIONER MANUAL CONT(C60) 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1012-			●

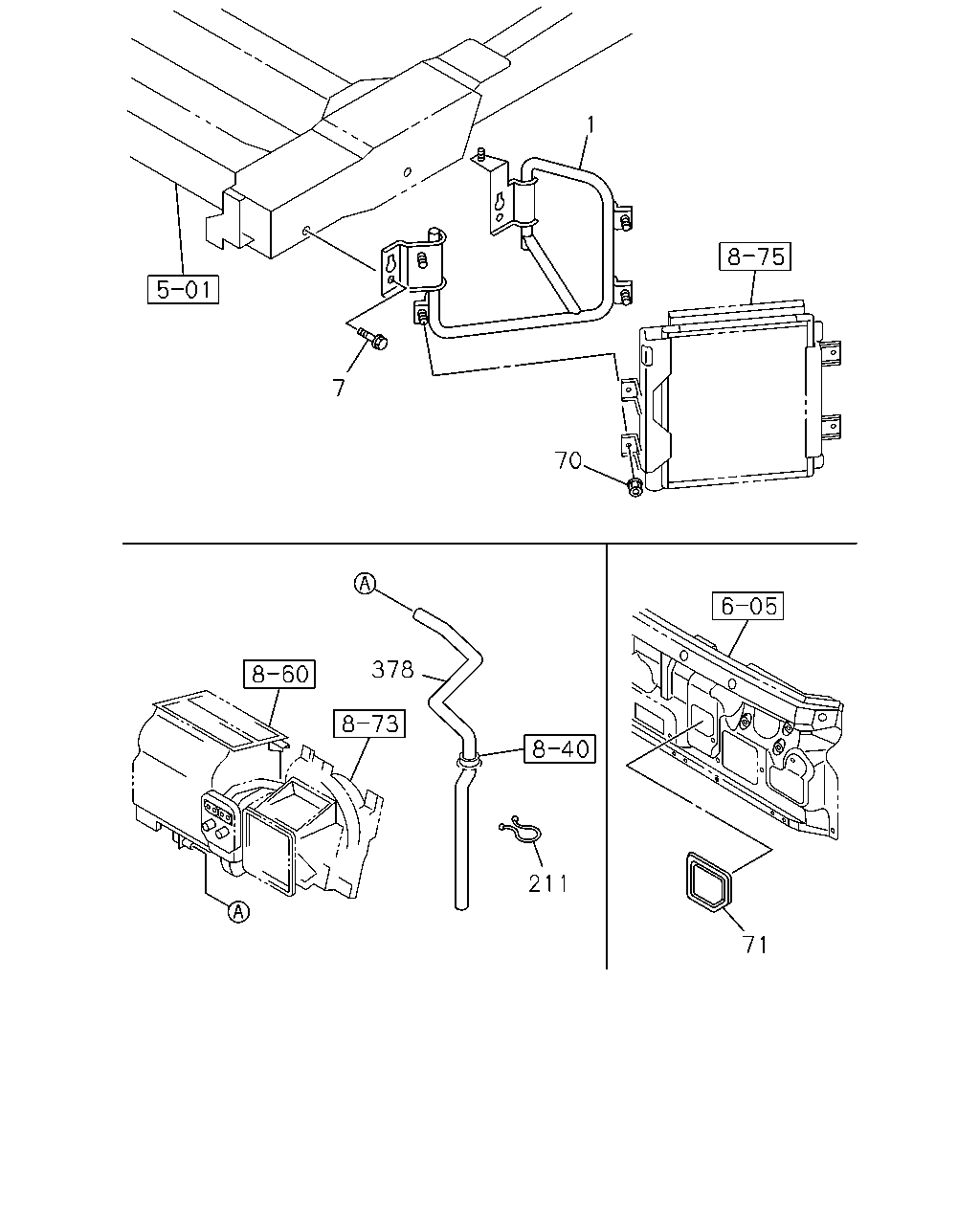

1 7 70 378 211 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	09.242 BRACKET; A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97387-182-0	01	1	1012-1303	●	●
1	09.242 BRACKET; A/C AIR CONDITIONER MANUAL CONT(C60)	8-97387-182-0	01	1	1012-1303			●
1	09.242 BRACKET; A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98214-411-0	01	1	1304-	●	●
1	09.242 BRACKET; A/C AIR CONDITIONER MANUAL CONT(C60)	8-98214-411-0	01	1	1304-			●
7	09.242 BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 07.395 M12X30 FLANGE	0-28651-230-0	04	1	1012-	●	●
7	09.242 BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) 07.395 M12X30 FLANGE	0-28651-230-0	04	1	1012-			●
70	09.190 NUT; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 01.062 M8 FLANGE	0-91180-108-0	04	1	1012-	●	●
70	09.190 NUT; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60) 01.062 M8 FLANGE	0-91180-108-0	04	1	1012-			●
71	09.190 COVER; EVAP,A/C EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98017-234-1	01	1	1012-1301	●	●
71	09.190 COVER; EVAP,A/C EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98017-234-1	01	1	1012-1301			●
71	09.190 COVER; EVAP,A/C EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98017-234-1	01	1	1302-	●	●
71	09.190 COVER; EVAP,A/C EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98017-234-1	01	1	1302-			●
211	09.190 CLIP; HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 ID=44	8-94463-508-0	01	1	1012-	●	●	●
378	09.211 HOSE; DRAIN,EVAPORATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97387-174-2	01	1	1012-	●	●
378	09.211 HOSE; DRAIN,EVAPORATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97387-174-2	01	1	1012-			●

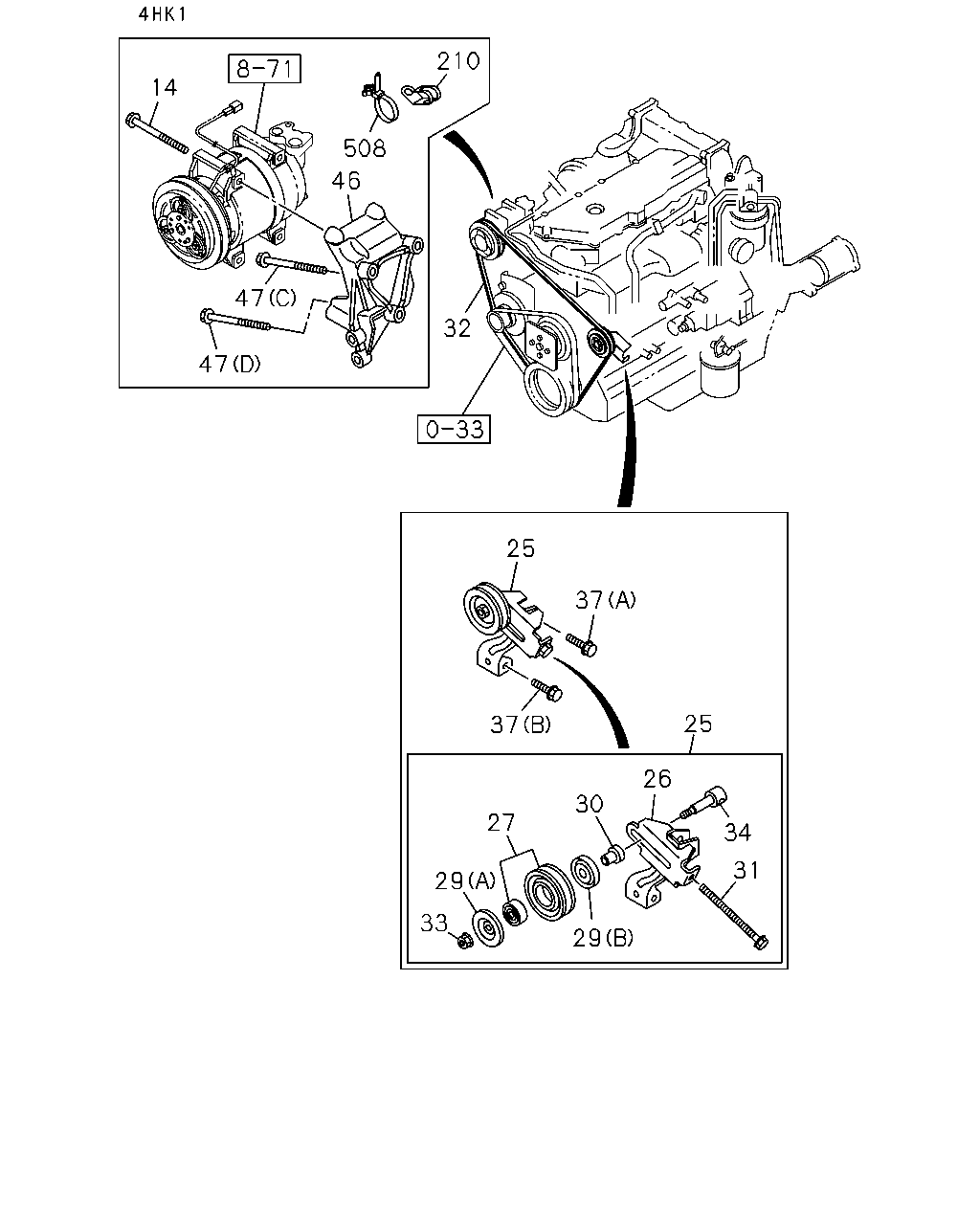

210 14 508 46 47 32 47 25 37 25 37 26 30 27 34 31 29 33 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
14	09.171 BOLT; CMPR 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 02.100 M8X90 FLANGE	0-28050-890-0	04	1	1012-1307	●	●
14	09.171 BOLT; CMPR 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 02.100 M8X90 FLANGE	0-28050-890-0	04	1	1012-1307	●	●
14	09.171 BOLT; CMPR 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 02.100 M8X90 FLANGE	0-28050-890-0	04	1	1308-	●	●
14	09.171 BOLT; CMPR 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 00.386 M8X100 FLANGE	0-28050-800-0	04	1	1012-	●
14	09.171 BOLT; CMPR AIR CONDITIONER MANUAL CONT(C60) 00.386 M8X100 FLANGE	0-28050-800-0	04	1	1012-			●
25	09.180 PULLEY ASM; IDLER,CMPR 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE	8-97161-198-1	01	1	1012-1307	●	●
25	09.180 PULLEY ASM; IDLER,CMPR 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 1-GROOVE	8-97161-198-1	01	1	1012-1307	●	●
25	09.180 PULLEY ASM; IDLER,CMPR 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 1-GROOVE	8-97161-198-1	01	1	1308-	●	●
25	09.180 PULLEY ASM; IDLER,CMPR 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 1-GROOVE	8-98114-437-0	01	1	1012-	●
25	09.180 PULLEY ASM; IDLER,CMPR AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE	8-98114-437-0	01	1	1012-			●
26	09.180 BRACKET; IDLE PULLEY,A/C 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60)	8-97161-031-1	01	1	1012-1307	●	●
26	09.180 BRACKET; IDLE PULLEY,A/C 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97161-031-1	01	1	1012-1307	●	●
26	09.180 BRACKET; IDLE PULLEY,A/C 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97161-031-1	01	1	1308-	●	●
27	09.180 PULLEY; IDLE,A/C 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60)	8-97386-869-0	01	1	1012-1307	●	●
27	09.180 PULLEY; IDLE,A/C 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97386-869-0	01	1	1012-1307	●	●
27	09.180 PULLEY; IDLE,A/C 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97386-869-0	01	1	1308-	●	●
29	09.181 COVER; DUST,IDLE PULLEY 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97384-114-0	01	1	1012-1307	●	●
29	09.181 COVER; DUST,IDLE PULLEY 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A)	8-97384-114-0	01	1	1012-1307	●	●
29	09.181 COVER; DUST,IDLE PULLEY 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A)	8-97384-114-0	01	1	1308-	●	●
29	09.181 COVER; DUST,IDLE PULLEY 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97384-115-0	01	1	1012-1307	●	●
29	09.181 COVER; DUST,IDLE PULLEY 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B)	8-97384-115-0	01	1	1012-1307	●	●
29	09.181 COVER; DUST,IDLE PULLEY 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B)	8-97384-115-0	01	1	1308-	●	●
30	09.181 COLLAR; IDLE PULLEY 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60)	8-97384-117-0	01	1	1012-1307	●	●
30	09.181 COLLAR; IDLE PULLEY 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97384-117-0	01	1	1012-1307	●	●
30	09.181 COLLAR; IDLE PULLEY 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97384-117-0	01	1	1308-	●	●
31	09.181 BOLT; ADJ,IDLE PULLEY 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60)	8-97384-113-0	01	1	1012-1307	●	●
31	09.181 BOLT; ADJ,IDLE PULLEY 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97384-113-0	01	1	1012-1307	●	●
31	09.181 BOLT; ADJ,IDLE PULLEY 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97384-113-0	01	1	1308-	●	●
32	01.066 BELT; A/C CMPR 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS	5-87610-097-0	01	1	1012-1307	●	●
32	01.066 BELT; A/C CMPR 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) BEST VALUE PARTS	5-87610-097-0	01	1	1308-	●	●
32	01.066 BELT; A/C CMPR 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97180-183-3	01	1	1012-1307	●	●
32	01.066 BELT; A/C CMPR 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) L=1569	8-97180-183-3	01	1	1308-	●	●
32	01.066 BELT; A/C CMPR 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) L=1674	8-98010-841-1	01	1	1012-	●	●
32	01.066 BELT; A/C CMPR 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) L=1355 MITSUBOSHI	8-98088-385-0	01	1	1012-	●
32	01.066 BELT; A/C CMPR AIR CONDITIONER MANUAL CONT(C60) L=1355 MITSUBOSHI	8-98088-385-0	01	1	1012-			●
32	01.066 BELT; A/C CMPR 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) BEST VALUE PARTS	5-87610-103-0	01	1	1012-	●
32	01.066 BELT; A/C CMPR AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS	5-87610-103-0	01	1	1012-			●
33	09.181 NUT; IDLER PULLEY 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60)	8-97384-118-0	01	1	1012-1307	●	●
33	09.181 NUT; IDLER PULLEY 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97384-118-0	01	1	1012-1307	●	●
33	09.181 NUT; IDLER PULLEY 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97384-118-0	01	1	1308-	●	●
34	09.181 SHAFT; IDLE PULLEY 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60)	8-97384-116-0	01	1	1012-1307	●	●
34	09.181 SHAFT; IDLE PULLEY 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97384-116-0	01	1	1012-1307	●	●
34	09.181 SHAFT; IDLE PULLEY 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97384-116-0	01	1	1308-	●	●
37	09.173 BOLT; PULLEY BRKT 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 00.386 (A) M8X50 FLANGE	0-28050-850-0	01	1	1012-	●	●
37	09.173 BOLT; PULLEY BRKT 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 04.510 (B) M10X65 FLANGE	8-94344-540-1	01	1	1012-	●	●
46	09.171 BRACKET; CMPR 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 09.242	8-97305-489-0	01	1	1012-1307	●	●
46	09.171 BRACKET; CMPR 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 09.242	8-97305-489-0	01	1	1308-	●	●
46	09.171 BRACKET; CMPR 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 09.242	8-98006-515-3	01	1	1012-	●	●
46	09.171 BRACKET; CMPR 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 09.242	8-98037-322-0	01	1	1012-	●
46	09.171 BRACKET; CMPR AIR CONDITIONER MANUAL CONT(C60) 09.242	8-98037-322-0	01	1	1012-			●
47	09.173 BOLT; BRKT TO BODY 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 09.171 (E) M10X110 FLANGE	0-28156-011-0	01	1	1012-1307	●	●
47	09.173 BOLT; BRKT TO BODY 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 09.171 (E) M10X110 FLANGE	0-28156-011-0	01	1	1308-	●	●
47	09.173 BOLT; BRKT TO BODY 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 00.683 (F) M10X55 FLANGE	8-97365-449-0	02	1	1012-1307	●	●
47	09.173 BOLT; BRKT TO BODY 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 00.683 (F) M10X55 FLANGE	8-97365-449-0	02	1	1308-	●	●
47	09.173 BOLT; BRKT TO BODY 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 01.062 (C) M10X90 FLANGE	0-28151-090-0	02	1	1012-	●	●
47	09.173 BOLT; BRKT TO BODY 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 09.171 (D) M10X120 FLANGE	0-28156-012-0	01	1	1012-	●	●
47	09.173 BOLT; BRKT TO BODY 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) M8X45 FLANGE	0-28050-845-0	01	1	1012-	●
47	09.173 BOLT; BRKT TO BODY AIR CONDITIONER MANUAL CONT(C60) (A) M8X45 FLANGE	0-28050-845-0	01	1	1012-			●
47	09.173 BOLT; BRKT TO BODY 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1012-	●
47	09.173 BOLT; BRKT TO BODY AIR CONDITIONER MANUAL CONT(C60) 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1012-			●
210	09.242 CLIP; HARNESS 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1012-	●	●
508	09.181 CLIP; HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 02.559 L=170.3	1-09987-182-0	01	1	1012-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
