0-28 — VENTILATION SYSTEM (#48930) — 137 parça

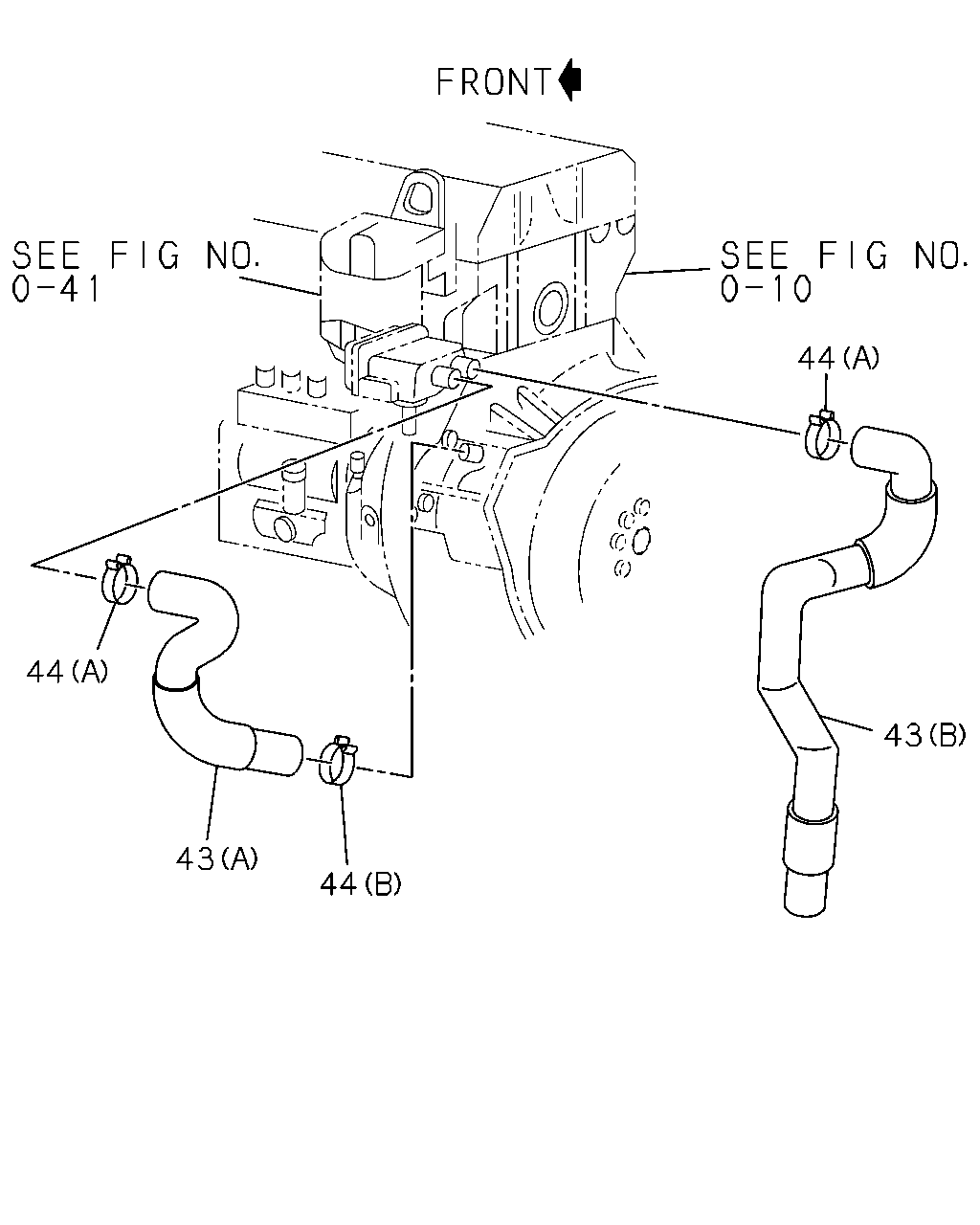

44 44 43 43 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
43	03.278 HOSE; PCV AIR INTAKE REAR VERTICAL<KJ3> L=235	8-94479-574-0	01	1	9312-	●
43	03.278 HOSE; PCV AIR INTAKE SYSTEM FRONT<6PC>	8-94478-113-0	01	1	9312-	●
43	03.278 HOSE; PCV (A)	8-97093-534-0	01	1	9312-9504		●
43	03.278 HOSE; PCV EXC. EURO1 SPECIFICATION<6YW> (A)	8-97093-534-0	01	1	9505-9510		●
43	03.278 HOSE; PCV EURO1 SPECIFICATION<6YW> (B)	8-97113-088-1	01	1	9505-9510		●
43	03.278 HOSE; PCV (B)	8-97113-088-1	01	1	9511-9606		●
43	03.278 HOSE; PCV (B)	8-97139-586-3	01	1	9607-9711		●
43	03.278 HOSE; PCV (B)	8-97139-586-3	01	1	9712-		●	●
43	03.278 HOSE; PCV CHARGE AIR COOLER<6PL> (A)	8-97149-012-2	01	1	9712-				●
43	03.278 HOSE; PCV CHARGE AIR COOLER<6PL> (B)	8-97181-607-2	01	1	9712-				●
43	03.278 HOSE; PCV EXC. CHARGE AIR COOLER<6PL> (A)	8-97088-682-1	01	1	9712-				●
43	03.278 HOSE; PCV EXC. CHARGE AIR COOLER<6PL> (B)	8-97088-683-1	01	1	9712-				●
44	03.278 CLIP; HOSE,PCV 06.672 (A) ID=21	8-94242-034-0	03	1	9312-9510					●
44	03.278 CLIP; HOSE,PCV FRAME STRAIGHT TYPE<7KJ> 06.672 ID=21	8-94242-034-0	03	1	9611-9703						●
44	03.278 CLIP; HOSE,PCV 06.672 ID=21	8-94242-034-0	03	1	9704-						●
44	03.278 CLIP; HOSE,PCV 06.672 (A) ID=21	8-94242-034-0	02	1	9312-	●
44	03.278 CLIP; HOSE,PCV (B) ID=21	8-94322-748-1	01	1	9312-	●
44	03.278 CLIP; HOSE,PCV 03.417 (A) ID=25	8-94342-958-0	01	1	9312-9504		●
44	03.278 CLIP; HOSE,PCV EXC. EURO1 SPECIFICATION<6YW> 03.417 (A) ID=25	8-94342-958-0	01	1	9505-9510		●
44	03.278 CLIP; HOSE,PCV 01.252 (B) ID=22.7	8-94466-382-0	01	1	9312-9504		●
44	03.278 CLIP; HOSE,PCV EXC. EURO1 SPECIFICATION<6YW> 01.252 (B) ID=22.7	8-94466-382-0	01	1	9505-9510		●
44	03.278 CLIP; HOSE,PCV EURO1 SPECIFICATION<6YW> 01.252 (C) ID=22.7	8-94466-382-0	02	1	9505-9510		●
44	03.278 CLIP; HOSE,PCV 01.252 (C) ID=22.7	8-94466-382-0	02	1	9511-9711		●
44	03.278 CLIP; HOSE,PCV 01.252 (C) ID=22.7	8-94466-382-0	02	1	9712-		●	●	●
44	03.278 CLIP; HOSE,PCV 06.672 (B) ID=21	8-94242-034-0	01	1	9712-				●

13 12 65 51 50 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	G
12	01.745 VENTILATOR; AIR	8-94250-172-0	01	1	9312-	●
13	00.386 SCREW; VENTILATOR TO HD COVER 06.321 M4X8 W/LK WASHER	9-03910-408-0	04	1	9312-	●
50	03.265 HOSE; PCV	8-97049-423-1	01	1	9312-9512	●
50	03.265 HOSE; PCV AIR INTAKE SYSTEM FRONT<6PC> EXC. EURO2 SPECIFICATION<7AF>	8-97049-423-1	01	1	9601-9601	●
50	03.265 HOSE; PCV	8-97049-423-2	01	1	9602-	●
50	03.265 HOSE; PCV EURO2 SPECIFICATION<7AF>	8-97030-535-0	01	1	9601-9601	●
51	03.265 CLIP; PCV HOSE ID=20.4	8-94121-113-0	02	1	9312-	●
65	01.762 PIPE; BREATHER	8-94250-615-1	01	1	9312-	●

43 44 44 44 44 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
43	03.278 HOSE; PCV AIR INTAKE REAR VERTICAL<KJ3> L=235	8-94479-574-0	01	1	9312-	●
43	03.278 HOSE; PCV AIR INTAKE SYSTEM FRONT<6PC>	8-94478-113-0	01	1	9312-	●
43	03.278 HOSE; PCV (A)	8-97093-534-0	01	1	9312-9504		●
43	03.278 HOSE; PCV EXC. EURO1 SPECIFICATION<6YW> (A)	8-97093-534-0	01	1	9505-9510		●
43	03.278 HOSE; PCV EURO1 SPECIFICATION<6YW> (B)	8-97113-088-1	01	1	9505-9510		●
43	03.278 HOSE; PCV (B)	8-97113-088-1	01	1	9511-9606		●
43	03.278 HOSE; PCV (B)	8-97139-586-3	01	1	9607-9711		●
43	03.278 HOSE; PCV (B)	8-97139-586-3	01	1	9712-		●	●
43	03.278 HOSE; PCV CHARGE AIR COOLER<6PL> (A)	8-97149-012-2	01	1	9712-				●
43	03.278 HOSE; PCV CHARGE AIR COOLER<6PL> (B)	8-97181-607-2	01	1	9712-				●
43	03.278 HOSE; PCV EXC. CHARGE AIR COOLER<6PL> (A)	8-97088-682-1	01	1	9712-				●
43	03.278 HOSE; PCV EXC. CHARGE AIR COOLER<6PL> (B)	8-97088-683-1	01	1	9712-				●
44	03.278 CLIP; HOSE,PCV 06.672 (A) ID=21	8-94242-034-0	03	1	9312-9510					●
44	03.278 CLIP; HOSE,PCV FRAME STRAIGHT TYPE<7KJ> 06.672 ID=21	8-94242-034-0	03	1	9611-9703						●
44	03.278 CLIP; HOSE,PCV 06.672 ID=21	8-94242-034-0	03	1	9704-						●
44	03.278 CLIP; HOSE,PCV 06.672 (A) ID=21	8-94242-034-0	02	1	9312-	●
44	03.278 CLIP; HOSE,PCV (B) ID=21	8-94322-748-1	01	1	9312-	●
44	03.278 CLIP; HOSE,PCV 03.417 (A) ID=25	8-94342-958-0	01	1	9312-9504		●
44	03.278 CLIP; HOSE,PCV EXC. EURO1 SPECIFICATION<6YW> 03.417 (A) ID=25	8-94342-958-0	01	1	9505-9510		●
44	03.278 CLIP; HOSE,PCV 01.252 (B) ID=22.7	8-94466-382-0	01	1	9312-9504		●
44	03.278 CLIP; HOSE,PCV EXC. EURO1 SPECIFICATION<6YW> 01.252 (B) ID=22.7	8-94466-382-0	01	1	9505-9510		●
44	03.278 CLIP; HOSE,PCV EURO1 SPECIFICATION<6YW> 01.252 (C) ID=22.7	8-94466-382-0	02	1	9505-9510		●
44	03.278 CLIP; HOSE,PCV 01.252 (C) ID=22.7	8-94466-382-0	02	1	9511-9711		●
44	03.278 CLIP; HOSE,PCV 01.252 (C) ID=22.7	8-94466-382-0	02	1	9712-		●	●	●
44	03.278 CLIP; HOSE,PCV 06.672 (B) ID=21	8-94242-034-0	01	1	9712-				●

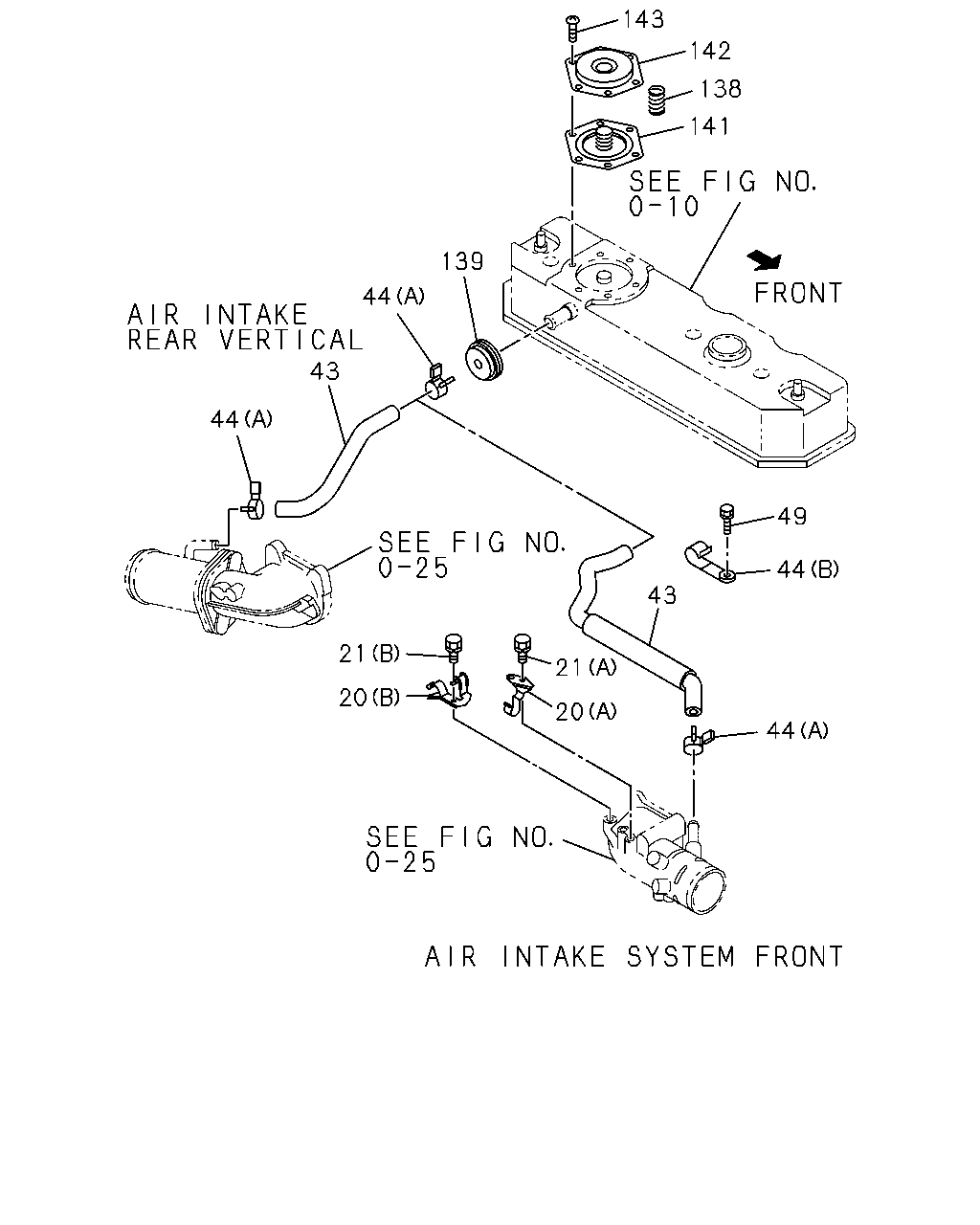

143 142 138 141 139 44 43 44 49 44 43 21 21 20 20 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
20	03.265 CLIP; PCV HOSE AIR INTAKE SYSTEM FRONT<6PC> (A)	8-94477-781-0	01	1	9312-	●
20	03.265 CLIP; PCV HOSE AIR INTAKE SYSTEM FRONT<6PC> (B)	8-94478-112-0	01	1	9312-	●
21	03.275 BOLT; CLIP AIR INTAKE SYSTEM FRONT<6PC> 00.206 (A) M6X14 W/LK WASHER	0-50040-614-0	02	1	9312-9510	●
21	03.275 BOLT; CLIP AIR INTAKE SYSTEM FRONT<6PC> 00.685 (A) M6X12 W/LK WASHER	0-50040-612-0	02	1	9511-	●
21	03.275 BOLT; CLIP AIR INTAKE SYSTEM FRONT<6PC> 08.900 (B) M6X14 W/LK&PL WASHER	0-50140-614-0	01	1	9312-	●
43	03.278 HOSE; PCV AIR INTAKE REAR VERTICAL<KJ3> L=235	8-94479-574-0	01	1	9312-	●
43	03.278 HOSE; PCV AIR INTAKE SYSTEM FRONT<6PC>	8-94478-113-0	01	1	9312-	●
43	03.278 HOSE; PCV (A)	8-97093-534-0	01	1	9312-9504		●
43	03.278 HOSE; PCV EXC. EURO1 SPECIFICATION<6YW> (A)	8-97093-534-0	01	1	9505-9510		●
43	03.278 HOSE; PCV EURO1 SPECIFICATION<6YW> (B)	8-97113-088-1	01	1	9505-9510		●
43	03.278 HOSE; PCV (B)	8-97113-088-1	01	1	9511-9606		●
43	03.278 HOSE; PCV (B)	8-97139-586-3	01	1	9607-9711		●
43	03.278 HOSE; PCV (B)	8-97139-586-3	01	1	9712-		●	●
43	03.278 HOSE; PCV CHARGE AIR COOLER<6PL> (A)	8-97149-012-2	01	1	9712-				●
43	03.278 HOSE; PCV CHARGE AIR COOLER<6PL> (B)	8-97181-607-2	01	1	9712-				●
43	03.278 HOSE; PCV EXC. CHARGE AIR COOLER<6PL> (A)	8-97088-682-1	01	1	9712-				●
43	03.278 HOSE; PCV EXC. CHARGE AIR COOLER<6PL> (B)	8-97088-683-1	01	1	9712-				●
44	03.278 CLIP; HOSE,PCV 06.672 (A) ID=21	8-94242-034-0	03	1	9312-9510					●
44	03.278 CLIP; HOSE,PCV FRAME STRAIGHT TYPE<7KJ> 06.672 ID=21	8-94242-034-0	03	1	9611-9703						●
44	03.278 CLIP; HOSE,PCV 06.672 ID=21	8-94242-034-0	03	1	9704-						●
44	03.278 CLIP; HOSE,PCV 06.672 (A) ID=21	8-94242-034-0	02	1	9312-	●
44	03.278 CLIP; HOSE,PCV (B) ID=21	8-94322-748-1	01	1	9312-	●
44	03.278 CLIP; HOSE,PCV 03.417 (A) ID=25	8-94342-958-0	01	1	9312-9504		●
44	03.278 CLIP; HOSE,PCV EXC. EURO1 SPECIFICATION<6YW> 03.417 (A) ID=25	8-94342-958-0	01	1	9505-9510		●
44	03.278 CLIP; HOSE,PCV 01.252 (B) ID=22.7	8-94466-382-0	01	1	9312-9504		●
44	03.278 CLIP; HOSE,PCV EXC. EURO1 SPECIFICATION<6YW> 01.252 (B) ID=22.7	8-94466-382-0	01	1	9505-9510		●
44	03.278 CLIP; HOSE,PCV EURO1 SPECIFICATION<6YW> 01.252 (C) ID=22.7	8-94466-382-0	02	1	9505-9510		●
44	03.278 CLIP; HOSE,PCV 01.252 (C) ID=22.7	8-94466-382-0	02	1	9511-9711		●
44	03.278 CLIP; HOSE,PCV 01.252 (C) ID=22.7	8-94466-382-0	02	1	9712-		●	●	●
44	03.278 CLIP; HOSE,PCV 06.672 (B) ID=21	8-94242-034-0	01	1	9712-				●
49	03.278 BOLT; PCV HOSE CLIP 11.377 M10X20 W/LK WASHER	0-50041-020-0	01	1	9312-9510					●
49	03.278 BOLT; PCV HOSE CLIP 00.685 M6X12 W/LK WASHER	0-50040-612-0	01	1	9312-	●
138	00.423 SPRING; DIAPH,VENTILATOR	8-94108-358-0	01	1	9712-	●					●
139	00.413 SEAL; RUBBER,PCV HOSE	8-94104-696-0	01	1	9312-9510	●				●	●
139	00.413 SEAL; RUBBER,PCV HOSE	8-94104-696-0	01	1	9511-	●					●
141	01.745 DIAPHRAGM ASM	8-94110-111-0	01	1	9312-9510	●				●	●
141	01.745 DIAPHRAGM ASM	8-94110-111-0	01	1	9511-	●					●
142	01.745 COVER; PCV	1-14362-002-0	01	1	9312-9510	●				●	●
142	01.745 COVER; PCV	1-14362-002-0	01	1	9511-	●					●
143	01.745 SCREW; PCV COVER 02.067 M5X10 PAN-HD	9-93490-510-0	06	1	9312-9510	●				●	●
143	01.745 SCREW; PCV COVER 02.067 M5X10 PAN-HD	9-93490-510-0	06	1	9602-9606	●
143	01.745 SCREW; PCV COVER 02.067 M5X10 PAN-HD	9-93490-510-0	06	1	9607-	●					●

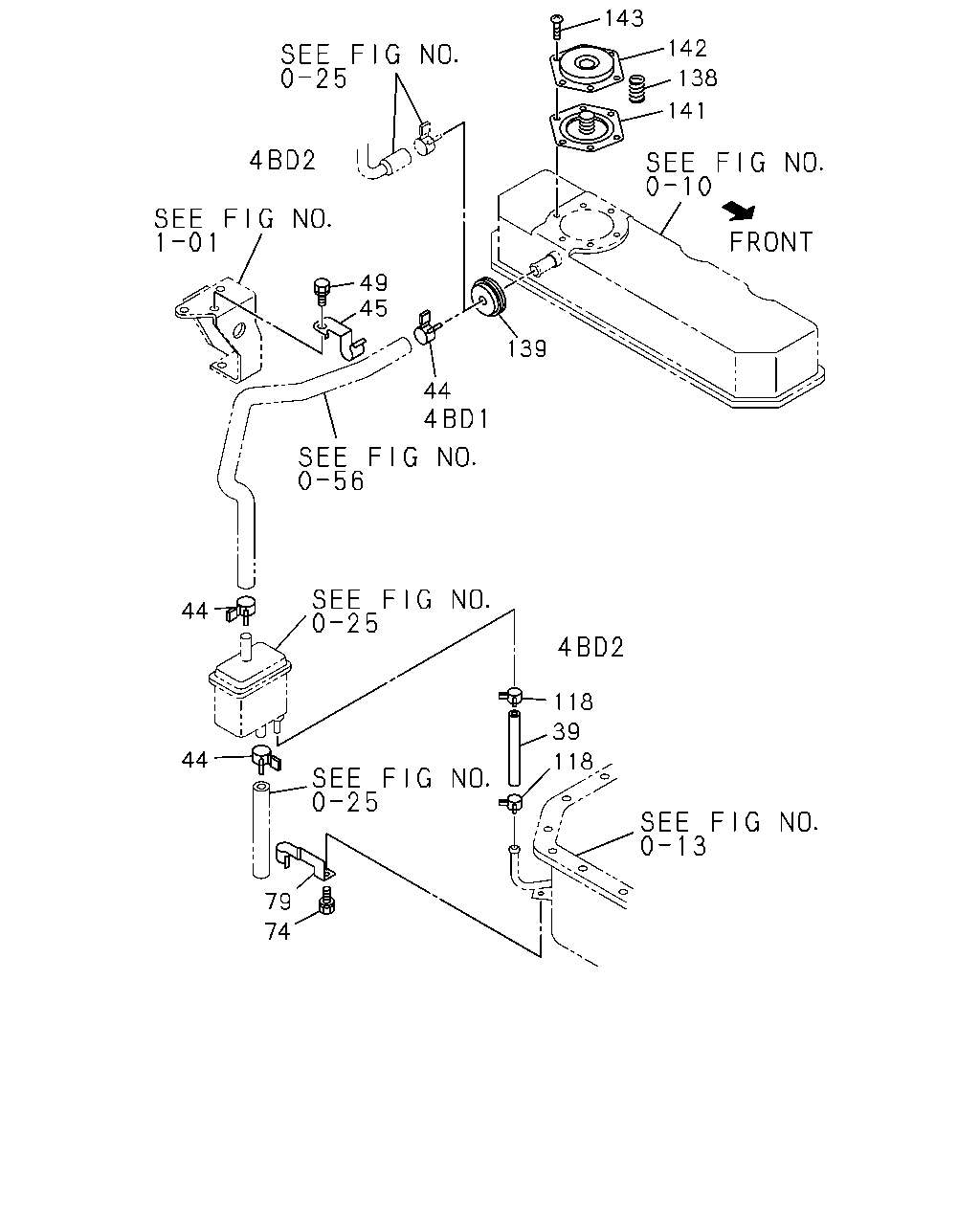

143 142 138 141 49 45 139 44 44 118 39 44 118 79 74

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
39	01.762 HOSE; CHECK VLV TO OIL PAN FRAME STRAIGHT TYPE<7KJ> L=89	8-97039-775-0	01	1	9611-9703						●
39	01.762 HOSE; CHECK VLV TO OIL PAN L=89	8-97039-775-0	01	1	9704-						●
44	03.278 CLIP; HOSE,PCV 06.672 (A) ID=21	8-94242-034-0	03	1	9312-9510					●
44	03.278 CLIP; HOSE,PCV FRAME STRAIGHT TYPE<7KJ> 06.672 ID=21	8-94242-034-0	03	1	9611-9703						●
44	03.278 CLIP; HOSE,PCV 06.672 ID=21	8-94242-034-0	03	1	9704-						●
44	03.278 CLIP; HOSE,PCV 06.672 (A) ID=21	8-94242-034-0	02	1	9312-	●
44	03.278 CLIP; HOSE,PCV (B) ID=21	8-94322-748-1	01	1	9312-	●
44	03.278 CLIP; HOSE,PCV 03.417 (A) ID=25	8-94342-958-0	01	1	9312-9504		●
44	03.278 CLIP; HOSE,PCV EXC. EURO1 SPECIFICATION<6YW> 03.417 (A) ID=25	8-94342-958-0	01	1	9505-9510		●
44	03.278 CLIP; HOSE,PCV 01.252 (B) ID=22.7	8-94466-382-0	01	1	9312-9504		●
44	03.278 CLIP; HOSE,PCV EXC. EURO1 SPECIFICATION<6YW> 01.252 (B) ID=22.7	8-94466-382-0	01	1	9505-9510		●
44	03.278 CLIP; HOSE,PCV EURO1 SPECIFICATION<6YW> 01.252 (C) ID=22.7	8-94466-382-0	02	1	9505-9510		●
44	03.278 CLIP; HOSE,PCV 01.252 (C) ID=22.7	8-94466-382-0	02	1	9511-9711		●
44	03.278 CLIP; HOSE,PCV 01.252 (C) ID=22.7	8-94466-382-0	02	1	9712-		●	●	●
44	03.278 CLIP; HOSE,PCV 06.672 (B) ID=21	8-94242-034-0	01	1	9712-				●
45	03.680 CLIP; PCV HOSE	8-94381-373-0	01	1	9312-9510					●
49	03.278 BOLT; PCV HOSE CLIP 11.377 M10X20 W/LK WASHER	0-50041-020-0	01	1	9312-9510					●
49	03.278 BOLT; PCV HOSE CLIP 00.685 M6X12 W/LK WASHER	0-50040-612-0	01	1	9312-	●
74	01.750 BOLT; PCV CLIP TO OIL PAN 00.685 M6X12 W/LK WASHER	0-50040-612-0	01	1	9312-9510					●
74	01.750 BOLT; PCV CLIP TO OIL PAN FRAME STRAIGHT TYPE<7KJ> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9611-9703						●
74	01.750 BOLT; PCV CLIP TO OIL PAN 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9704-						●
79	01.750 CLIP; PCV HOSE	8-94149-473-0	01	1	9312-9510					●
79	01.750 CLIP; PCV HOSE FRAME STRAIGHT TYPE<7KJ>	8-94149-473-0	01	1	9611-9703						●
79	01.750 CLIP; PCV HOSE	8-94149-473-0	01	1	9704-						●
118	01.750 CLIP; PCV HOSE,OIL PAN 01.219 ID=13	8-94238-571-0	02	1	9312-9510					●
118	01.750 CLIP; PCV HOSE,OIL PAN FRAME STRAIGHT TYPE<7KJ> 01.219 ID=13	8-94238-571-0	02	1	9611-9703						●
118	01.750 CLIP; PCV HOSE,OIL PAN 01.219 ID=13	8-94238-571-0	02	1	9704-						●
138	00.423 SPRING; DIAPH,VENTILATOR	8-94108-358-0	01	1	9712-	●					●
139	00.413 SEAL; RUBBER,PCV HOSE	8-94104-696-0	01	1	9312-9510	●				●	●
139	00.413 SEAL; RUBBER,PCV HOSE	8-94104-696-0	01	1	9511-	●					●
141	01.745 DIAPHRAGM ASM	8-94110-111-0	01	1	9312-9510	●				●	●
141	01.745 DIAPHRAGM ASM	8-94110-111-0	01	1	9511-	●					●
142	01.745 COVER; PCV	1-14362-002-0	01	1	9312-9510	●				●	●
142	01.745 COVER; PCV	1-14362-002-0	01	1	9511-	●					●
143	01.745 SCREW; PCV COVER 02.067 M5X10 PAN-HD	9-93490-510-0	06	1	9312-9510	●				●	●
143	01.745 SCREW; PCV COVER 02.067 M5X10 PAN-HD	9-93490-510-0	06	1	9602-9606	●
143	01.745 SCREW; PCV COVER 02.067 M5X10 PAN-HD	9-93490-510-0	06	1	9607-	●					●
