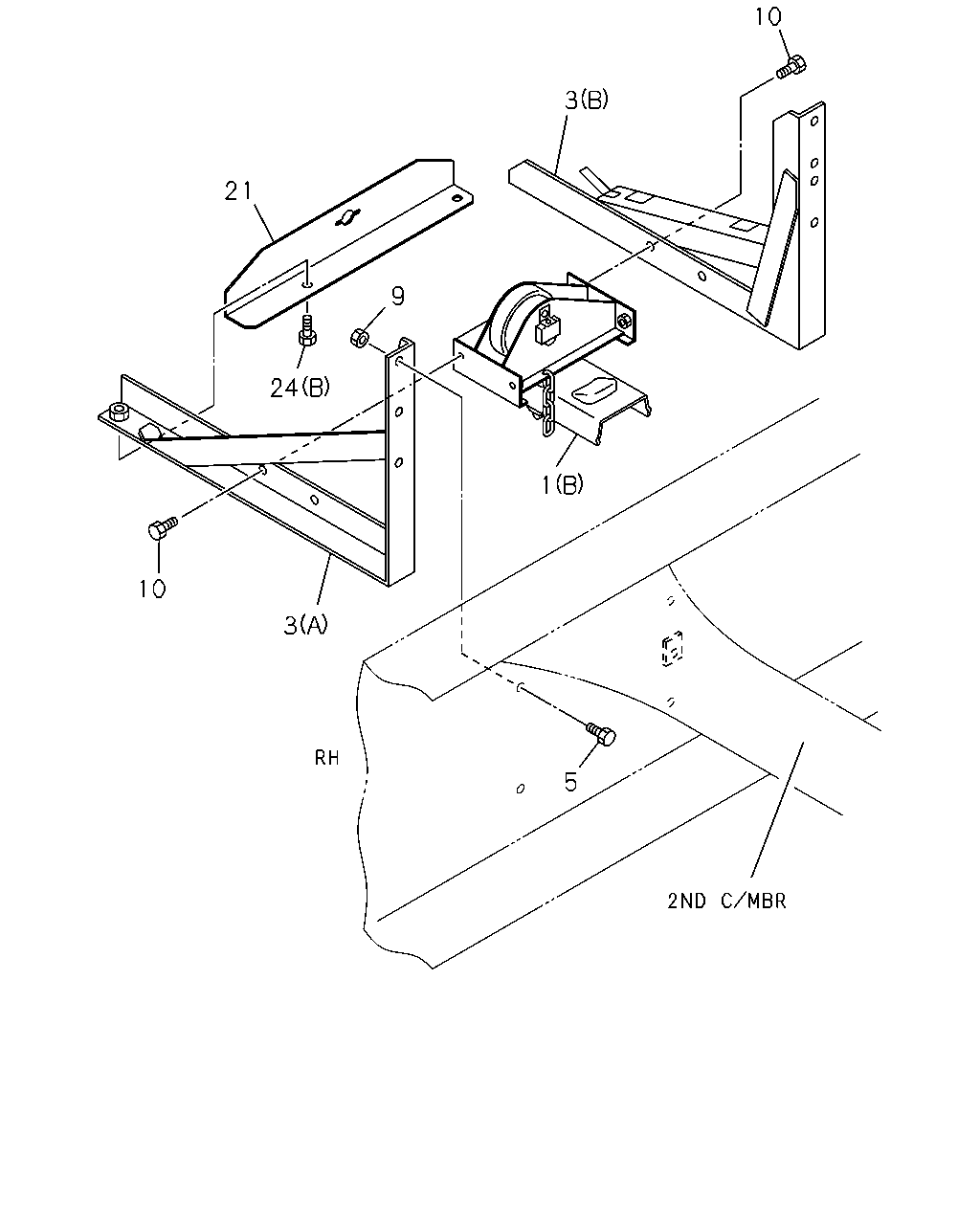

5-30 — SPARE TIRE CARRIER AND COVER (#4893) — 40 parça

10 3 21 9 24 1 10 3 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HANGER ASM; TIRE FT SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (A)	1-53630-162-1	01	1	9601-9601
1	HANGER ASM; TIRE FT SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (A)	1-53630-217-0	01	1	9602-9608
1	HANGER ASM; TIRE FT SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> (A)	1-53630-162-1	02	1	9601-9601
1	HANGER ASM; TIRE FT SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> (A)	1-53630-217-0	02	1	9602-9608
1	HANGER ASM; TIRE FT SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> (B)	1-53630-210-1	02	1	9609-
1	HANGER ASM; TIRE FT SPARE WHEEL CARRIER FRAME SIDE<P13> (B)	1-53630-210-1	01	1	9601-9608
1	HANGER ASM; TIRE FT SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (B)	1-53630-210-1	01	1	9609-
3	BRACKET; TIRE CARRIER,FRT SPARE WHEEL CARRIER FRAME SIDE<P13> (B)	1-53631-389-0	01	1	9601-9904
3	BRACKET; TIRE CARRIER,FRT SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. DISC WHEEL AL<SDM> (B)	1-53631-389-0	01	1	9905-
3	BRACKET; TIRE CARRIER,FRT SPARE WHEEL CARRIER FRAME SIDE<P13> (A)	1-53631-393-0	01	1	9601-9904
3	BRACKET; TIRE CARRIER,FRT SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. DISC WHEEL AL<SDM> (A)	1-53631-393-0	01	1	9905-
3	BRACKET; TIRE CARRIER,FRT SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL AL<SDM> (A)	1-53631-388-0	01	1	9905-
3	BRACKET; TIRE CARRIER,FRT SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL AL<SDM> (B)	1-53631-434-0	01	1	9905-
5	BOLT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12X35 FLANGE	0-28081-235-0	06	1	9601-9606
5	BOLT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12X35 FLANGE	0-28681-235-0	06	1	9607-9902
5	BOLT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12X40 FLANGE	0-28681-240-0	06	1	9903-9904
5	BOLT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12X40 FLANGE	0-28681-240-0	04	1	9905-9910
5	BOLT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12X40 FLANGE	0-28681-240-0	06	1	9911-
9	NUT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12	9-99110-512-0	06	1	9601-9904
9	NUT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12	9-99110-512-0	03	1	9911-
10	BOLT; TIRE HANGER SPARE WHEEL CARRIER FRAME SIDE<P13> M12X25 FLANGE	0-28081-225-0	04	1	9601-9606
10	BOLT; TIRE HANGER SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE	0-28681-230-0	04	1	9607-
21	BRACKET; SPARE TIRE HANGER SPARE WHEEL CARRIER FRAME SIDE<P13>	1-53631-128-1	01	1	9601-
24	BOLT; SPARE TIRE SPARE TIRE FIXING<RE3> (A) M14X100	0-20801-400-0	02	1	9601-
24	BOLT; SPARE TIRE SPARE WHEEL CARRIER FRAME SIDE<P13> (B) M12X25 FLANGE	0-28081-225-0	02	1	9601-9606
24	BOLT; SPARE TIRE SPARE WHEEL CARRIER FRAME SIDE<P13> (B) M12X25 FLANGE	0-28681-225-0	02	1	9607-

1 24 28 29 31 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HANGER ASM; TIRE FT SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (A)	1-53630-162-1	01	1	9601-9601
1	HANGER ASM; TIRE FT SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (A)	1-53630-217-0	01	1	9602-9608
1	HANGER ASM; TIRE FT SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> (A)	1-53630-162-1	02	1	9601-9601
1	HANGER ASM; TIRE FT SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> (A)	1-53630-217-0	02	1	9602-9608
1	HANGER ASM; TIRE FT SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> (B)	1-53630-210-1	02	1	9609-
1	HANGER ASM; TIRE FT SPARE WHEEL CARRIER FRAME SIDE<P13> (B)	1-53630-210-1	01	1	9601-9608
1	HANGER ASM; TIRE FT SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (B)	1-53630-210-1	01	1	9609-
24	BOLT; SPARE TIRE SPARE TIRE FIXING<RE3> (A) M14X100	0-20801-400-0	02	1	9601-
24	BOLT; SPARE TIRE SPARE WHEEL CARRIER FRAME SIDE<P13> (B) M12X25 FLANGE	0-28081-225-0	02	1	9601-9606
24	BOLT; SPARE TIRE SPARE WHEEL CARRIER FRAME SIDE<P13> (B) M12X25 FLANGE	0-28681-225-0	02	1	9607-
28	WASHER; LK,SPARE TIRE SPARE TIRE FIXING<RE3> ID=14.2	9-09150-614-0	02	1	9601-
29	WASHER; PL,BRKT,HANGER SPARE TIRE FIXING<RE3> ID=15 OD=52	9-09164-414-0	02	1	9601-9608
29	WASHER; PL,BRKT,HANGER SPARE TIRE FIXING<RE3> ID=15 OD=52	9-09164-814-0	02	1	9609-
31	SPACER; HANGER BRKT SPARE TIRE FIXING<RE3>	1-53637-007-0	02	1	9601-
