0-27 — EXHAUST MANIFOLD (#48929) — 257 parça
çizim 66859
18 13 1 19 2 14 15 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 03.601 MANIFOLD; EXHAUST 8-94366-247-0 01 1 9312-9510 ● ●
1 03.601 MANIFOLD; EXHAUST 8-94366-247-0 01 1 9511- ●
1 03.601 MANIFOLD; EXHAUST 8-97065-960-1 01 1 9312-9503 ●
1 03.601 MANIFOLD; EXHAUST 8-97124-873-0 01 1 9504-9611 ●
1 03.601 MANIFOLD; EXHAUST
EXC. EURO2 SPECIFICATION<7AF> 		8-97124-873-0 01 1 9612-9711 ●
1 03.601 MANIFOLD; EXHAUST
EXC. CHARGE AIR COOLER<6PL> 		8-97094-879-1 01 1 9712- ●
1 03.601 MANIFOLD; EXHAUST
EURO2 SPECIFICATION<7AF> 		8-97065-960-1 01 1 9606-9711 ●
1 03.601 MANIFOLD; EXHAUST 8-97065-960-1 01 1 9712- ●
1 03.601 MANIFOLD; EXHAUST 8-97028-475-1 01 1 9312- ●
1 03.601 MANIFOLD; EXHAUST 8-97104-378-2 01 1 9312-9612 ●
1 03.601 MANIFOLD; EXHAUST 8-97163-079-0 01 1 9612-9711 ●
1 03.601 MANIFOLD; EXHAUST 8-97163-079-0 01 1 9712- ● ●
1 03.601 MANIFOLD; EXHAUST
CHARGE AIR COOLER<6PL> 		8-97148-949-2 01 1 9712- ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-94404-610-0 02 1 9312-9510 ● ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-94404-610-0 02 1 9511- ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97020-591-0 01 1 9312-9408 ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97109-216-1 01 1 9409- ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97061-542-0 02 1 9312-9405 ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97105-866-1 01 1 9406-9609 ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97146-499-0 01 1 9610-9711 ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97146-499-0 01 1 9712- ● ● ●
13 03.613 WASHER; LK,EXH MANIF
00.002 ID=8.2 		9-09150-508-0 02 1 9312-9606 ●
13 03.613 WASHER; LK,EXH MANIF
03.604 T=2.2 		1-09556-015-0 04 1 9312-9404 ●
13 03.613 WASHER; LK,EXH MANIF
03.604 T=2.2 		1-09556-015-0 02 1 9405-9711 ●
13 03.613 WASHER; LK,EXH MANIF
03.604 T=2.2 		1-09556-015-0 02 1 9712- ● ● ●
14 03.604 WASHER; PL,EXH MANIF
01.276 ID=8.4 OD=18 		9-09164-608-0 04 1 9312-9510 ● ● ●
14 03.604 WASHER; PL,EXH MANIF
01.276 ID=8.4 OD=18 		9-09164-608-0 04 1 9511- ● ●
14 03.604 WASHER; PL,EXH MANIF
03.332 ID=8.5 OD=15 T=4 		1-09503-219-0 02 1 9607- ●
14 03.604 WASHER; PL,EXH MANIF
T=5.5 		1-14149-042-0 08 1 9312-9406 ●
15 03.604 BOLT; EXH MANIF
M8X42 W/PL WASHER 		8-94367-639-0 04 1 9312-9510 ● ●
15 03.604 BOLT; EXH MANIF
M8X42 W/PL WASHER 		8-94367-639-0 04 1 9511- ●
15 03.604 BOLT; EXH MANIF
M8X35 		8-97045-441-0 06 1 9312-9606 ●
15 03.604 BOLT; EXH MANIF
M8X35 W/PL WASHER & FLANGE 		8-97131-597-1 06 1 9607- ●
15 03.604 BOLT; EXH MANIF
M8X75 W/PL WASHER 		8-94318-555-0 03 1 9312- ●
15 03.604 BOLT; EXH MANIF
M8X53 W/PL WASHER 		8-97020-490-0 01 1 9312- ●
15 03.604 BOLT; EXH MANIF
M10X60 		8-97061-543-0 04 1 9312-9405 ●
15 03.604 BOLT; EXH MANIF
M10X60 		8-97061-543-0 06 1 9406-9711 ●
15 03.604 BOLT; EXH MANIF
M10X60 		8-97061-543-0 06 1 9712- ● ● ●
16 03.604 STUD; EXH PIPE TO MANIF
08.981 M10X25 L=40 		9-04731-025-0 04 1 9312-9510 ● ●
16 03.604 STUD; EXH PIPE TO MANIF
08.981 M10X25 L=40 		9-04731-025-0 04 1 9511- ●
16 03.604 STUD; EXH PIPE TO MANIF
03.613 M10X45 L=60 PLATING 		5-09302-008-1 04 1 9312- ●
16 03.604 STUD; EXH PIPE TO MANIF
M10X45 L=60 STAINLESS 		8-97032-977-0 03 1 9312-9510 ●
16 03.604 STUD; EXH PIPE TO MANIF
M10X38 L=53 		8-97077-549-0 03 1 9312-9510 ●
16 03.604 STUD; EXH PIPE TO MANIF
M10X38 L=53 		8-97077-549-0 03 1 9511-9711 ● ●
16 03.604 STUD; EXH PIPE TO MANIF
M10X38 L=53 		8-97077-549-0 03 1 9712- ● ● ●
16 03.604 STUD; EXH PIPE TO MANIF
08.981 M10X25 L=40 		9-04731-025-0 02 1 9712- ●
18 03.604 NUT; EXH MANIF
02.559 M8 		9-09110-408-0 04 1 9312-9510 ● ● ●
18 03.604 NUT; EXH MANIF
02.559 M8 		9-09110-408-0 04 1 9511- ● ●
18 03.604 NUT; EXH MANIF
00.002 M8 		9-09110-508-0 02 1 9312-9606 ●
18 03.604 NUT; EXH MANIF
01.540 M8 FLANGE 		0-91150-208-0 02 1 9607- ●
18 03.604 NUT; EXH MANIF
08.917 M10 FLANGE 		0-91150-210-0 04 1 9312-9405 ●
18 03.604 NUT; EXH MANIF
08.917 M10 FLANGE 		0-91150-210-0 02 1 9406-9408 ●
18 03.604 NUT; EXH MANIF
00.002 M10 		9-09110-510-0 02 1 9409-9711 ●
18 03.604 NUT; EXH MANIF
00.002 M10 		9-09110-510-0 02 1 9712- ● ● ●
19 03.604 STUD; MANIF TO CYL HD
M8X35 L=46 		8-97048-055-1 02 1 9312- ●

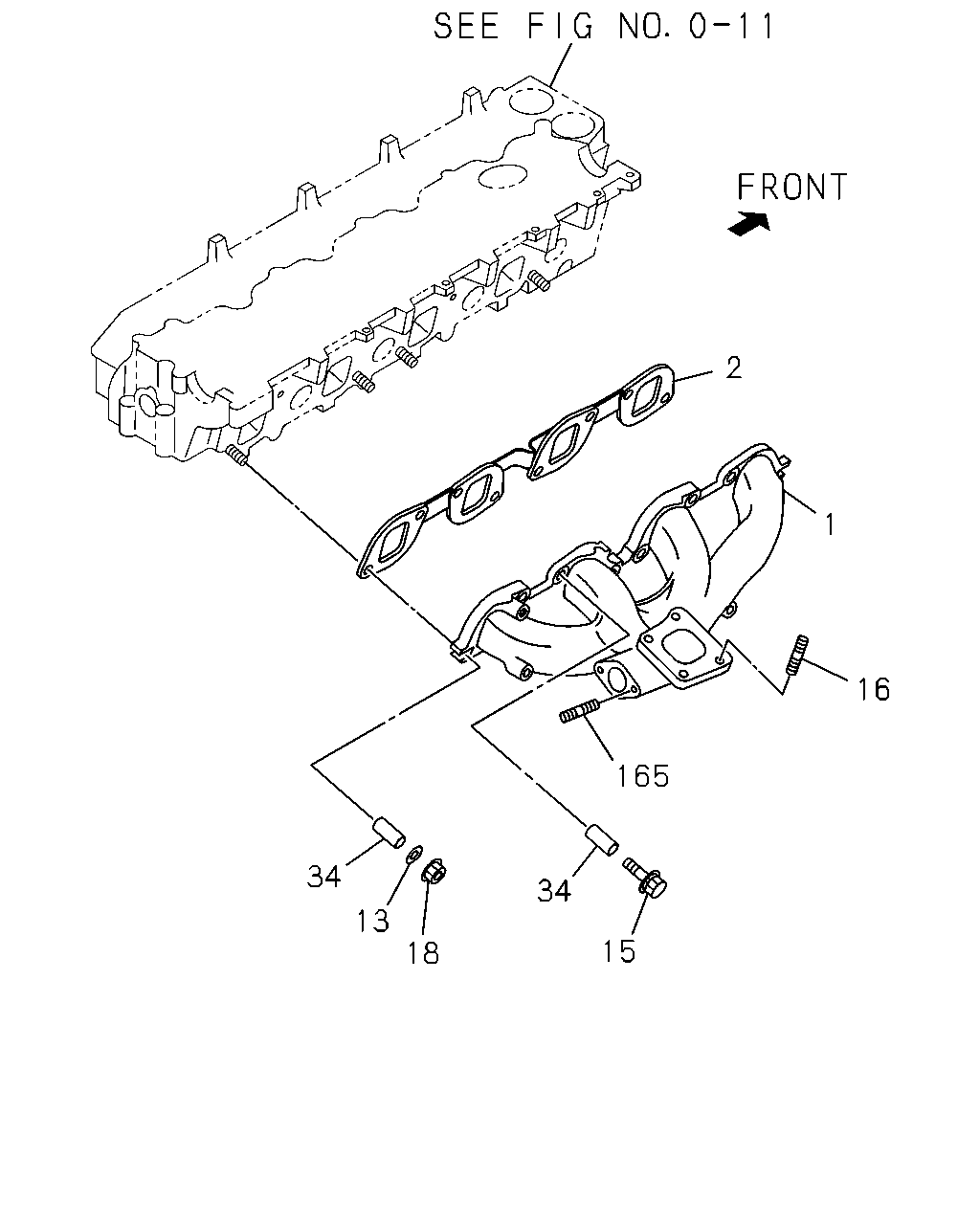

çizim 66897
2 1 16 165 34 34 13 15 18
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 03.601 MANIFOLD; EXHAUST 8-94366-247-0 01 1 9312-9510 ● ●
1 03.601 MANIFOLD; EXHAUST 8-94366-247-0 01 1 9511- ●
1 03.601 MANIFOLD; EXHAUST 8-97065-960-1 01 1 9312-9503 ●
1 03.601 MANIFOLD; EXHAUST 8-97124-873-0 01 1 9504-9611 ●
1 03.601 MANIFOLD; EXHAUST
EXC. EURO2 SPECIFICATION<7AF> 		8-97124-873-0 01 1 9612-9711 ●
1 03.601 MANIFOLD; EXHAUST
EXC. CHARGE AIR COOLER<6PL> 		8-97094-879-1 01 1 9712- ●
1 03.601 MANIFOLD; EXHAUST
EURO2 SPECIFICATION<7AF> 		8-97065-960-1 01 1 9606-9711 ●
1 03.601 MANIFOLD; EXHAUST 8-97065-960-1 01 1 9712- ●
1 03.601 MANIFOLD; EXHAUST 8-97028-475-1 01 1 9312- ●
1 03.601 MANIFOLD; EXHAUST 8-97104-378-2 01 1 9312-9612 ●
1 03.601 MANIFOLD; EXHAUST 8-97163-079-0 01 1 9612-9711 ●
1 03.601 MANIFOLD; EXHAUST 8-97163-079-0 01 1 9712- ● ●
1 03.601 MANIFOLD; EXHAUST
CHARGE AIR COOLER<6PL> 		8-97148-949-2 01 1 9712- ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-94404-610-0 02 1 9312-9510 ● ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-94404-610-0 02 1 9511- ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97020-591-0 01 1 9312-9408 ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97109-216-1 01 1 9409- ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97061-542-0 02 1 9312-9405 ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97105-866-1 01 1 9406-9609 ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97146-499-0 01 1 9610-9711 ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97146-499-0 01 1 9712- ● ● ●
13 03.613 WASHER; LK,EXH MANIF
00.002 ID=8.2 		9-09150-508-0 02 1 9312-9606 ●
13 03.613 WASHER; LK,EXH MANIF
03.604 T=2.2 		1-09556-015-0 04 1 9312-9404 ●
13 03.613 WASHER; LK,EXH MANIF
03.604 T=2.2 		1-09556-015-0 02 1 9405-9711 ●
13 03.613 WASHER; LK,EXH MANIF
03.604 T=2.2 		1-09556-015-0 02 1 9712- ● ● ●
15 03.604 BOLT; EXH MANIF
M8X42 W/PL WASHER 		8-94367-639-0 04 1 9312-9510 ● ●
15 03.604 BOLT; EXH MANIF
M8X42 W/PL WASHER 		8-94367-639-0 04 1 9511- ●
15 03.604 BOLT; EXH MANIF
M8X35 		8-97045-441-0 06 1 9312-9606 ●
15 03.604 BOLT; EXH MANIF
M8X35 W/PL WASHER & FLANGE 		8-97131-597-1 06 1 9607- ●
15 03.604 BOLT; EXH MANIF
M8X75 W/PL WASHER 		8-94318-555-0 03 1 9312- ●
15 03.604 BOLT; EXH MANIF
M8X53 W/PL WASHER 		8-97020-490-0 01 1 9312- ●
15 03.604 BOLT; EXH MANIF
M10X60 		8-97061-543-0 04 1 9312-9405 ●
15 03.604 BOLT; EXH MANIF
M10X60 		8-97061-543-0 06 1 9406-9711 ●
15 03.604 BOLT; EXH MANIF
M10X60 		8-97061-543-0 06 1 9712- ● ● ●
16 03.604 STUD; EXH PIPE TO MANIF
08.981 M10X25 L=40 		9-04731-025-0 04 1 9312-9510 ● ●
16 03.604 STUD; EXH PIPE TO MANIF
08.981 M10X25 L=40 		9-04731-025-0 04 1 9511- ●
16 03.604 STUD; EXH PIPE TO MANIF
03.613 M10X45 L=60 PLATING 		5-09302-008-1 04 1 9312- ●
16 03.604 STUD; EXH PIPE TO MANIF
M10X45 L=60 STAINLESS 		8-97032-977-0 03 1 9312-9510 ●
16 03.604 STUD; EXH PIPE TO MANIF
M10X38 L=53 		8-97077-549-0 03 1 9312-9510 ●
16 03.604 STUD; EXH PIPE TO MANIF
M10X38 L=53 		8-97077-549-0 03 1 9511-9711 ● ●
16 03.604 STUD; EXH PIPE TO MANIF
M10X38 L=53 		8-97077-549-0 03 1 9712- ● ● ●
16 03.604 STUD; EXH PIPE TO MANIF
08.981 M10X25 L=40 		9-04731-025-0 02 1 9712- ●
18 03.604 NUT; EXH MANIF
02.559 M8 		9-09110-408-0 04 1 9312-9510 ● ● ●
18 03.604 NUT; EXH MANIF
02.559 M8 		9-09110-408-0 04 1 9511- ● ●
18 03.604 NUT; EXH MANIF
00.002 M8 		9-09110-508-0 02 1 9312-9606 ●
18 03.604 NUT; EXH MANIF
01.540 M8 FLANGE 		0-91150-208-0 02 1 9607- ●
18 03.604 NUT; EXH MANIF
08.917 M10 FLANGE 		0-91150-210-0 04 1 9312-9405 ●
18 03.604 NUT; EXH MANIF
08.917 M10 FLANGE 		0-91150-210-0 02 1 9406-9408 ●
18 03.604 NUT; EXH MANIF
00.002 M10 		9-09110-510-0 02 1 9409-9711 ●
18 03.604 NUT; EXH MANIF
00.002 M10 		9-09110-510-0 02 1 9712- ● ● ●
34 03.603 COLLAR; DIST,EXH MANIF
L=24.0 		8-94396-410-0 08 1 9312-9406 ●
34 03.603 COLLAR; DIST,EXH MANIF
L=28 		8-97108-653-0 08 1 9407-9711 ●
34 03.603 COLLAR; DIST,EXH MANIF
L=28 		8-97108-653-0 08 1 9712- ● ● ●
165 03.417 STUD; EGR PIPE
CHARGE AIR COOLER<6PL> 03.342 M8X22 L=33 		8-94257-319-0 02 1 9712- ●

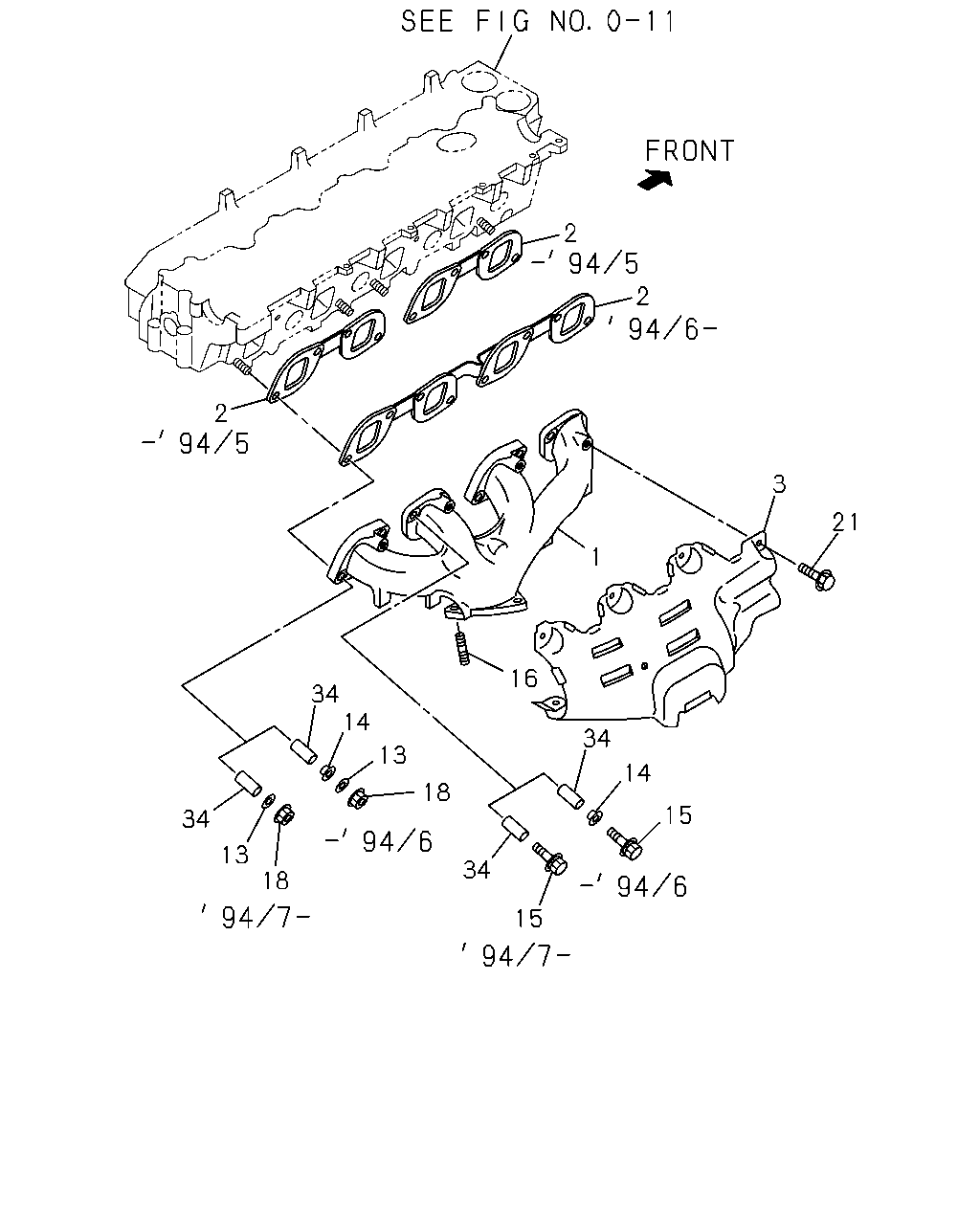

çizim 67715
2 2 2 3 21 1 16 34 14 34 13 14 18 15 34 13 34 18 15
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 03.601 MANIFOLD; EXHAUST 8-94366-247-0 01 1 9312-9510 ● ●
1 03.601 MANIFOLD; EXHAUST 8-94366-247-0 01 1 9511- ●
1 03.601 MANIFOLD; EXHAUST 8-97065-960-1 01 1 9312-9503 ●
1 03.601 MANIFOLD; EXHAUST 8-97124-873-0 01 1 9504-9611 ●
1 03.601 MANIFOLD; EXHAUST
EXC. EURO2 SPECIFICATION<7AF> 		8-97124-873-0 01 1 9612-9711 ●
1 03.601 MANIFOLD; EXHAUST
EXC. CHARGE AIR COOLER<6PL> 		8-97094-879-1 01 1 9712- ●
1 03.601 MANIFOLD; EXHAUST
EURO2 SPECIFICATION<7AF> 		8-97065-960-1 01 1 9606-9711 ●
1 03.601 MANIFOLD; EXHAUST 8-97065-960-1 01 1 9712- ●
1 03.601 MANIFOLD; EXHAUST 8-97028-475-1 01 1 9312- ●
1 03.601 MANIFOLD; EXHAUST 8-97104-378-2 01 1 9312-9612 ●
1 03.601 MANIFOLD; EXHAUST 8-97163-079-0 01 1 9612-9711 ●
1 03.601 MANIFOLD; EXHAUST 8-97163-079-0 01 1 9712- ● ●
1 03.601 MANIFOLD; EXHAUST
CHARGE AIR COOLER<6PL> 		8-97148-949-2 01 1 9712- ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-94404-610-0 02 1 9312-9510 ● ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-94404-610-0 02 1 9511- ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97020-591-0 01 1 9312-9408 ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97109-216-1 01 1 9409- ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97061-542-0 02 1 9312-9405 ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97105-866-1 01 1 9406-9609 ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97146-499-0 01 1 9610-9711 ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97146-499-0 01 1 9712- ● ● ●
3 03.602 PROTECTOR; HEAT,EXH MANIF 8-97095-360-1 01 1 9312- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF 8-97095-067-0 01 1 9312-9504 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
EXC. EURO1 SPECIFICATION<6YW> 		8-97095-067-0 01 1 9505-9509 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF 8-97096-424-0 01 1 9612-9711 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF 8-97096-424-0 01 1 9712- ● ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
EURO1 SPECIFICATION<6YW> 		8-97096-424-0 01 1 9505-9509 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF 8-97096-424-0 01 1 9510-9511 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF 8-97139-487-1 01 1 9512-9611 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF 8-97039-753-1 01 1 9712-9806 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
EXC. CHARGE AIR COOLER<6PL> 		8-97039-753-1 01 1 9807- ●
13 03.613 WASHER; LK,EXH MANIF
00.002 ID=8.2 		9-09150-508-0 02 1 9312-9606 ●
13 03.613 WASHER; LK,EXH MANIF
03.604 T=2.2 		1-09556-015-0 04 1 9312-9404 ●
13 03.613 WASHER; LK,EXH MANIF
03.604 T=2.2 		1-09556-015-0 02 1 9405-9711 ●
13 03.613 WASHER; LK,EXH MANIF
03.604 T=2.2 		1-09556-015-0 02 1 9712- ● ● ●
14 03.604 WASHER; PL,EXH MANIF
01.276 ID=8.4 OD=18 		9-09164-608-0 04 1 9312-9510 ● ● ●
14 03.604 WASHER; PL,EXH MANIF
01.276 ID=8.4 OD=18 		9-09164-608-0 04 1 9511- ● ●
14 03.604 WASHER; PL,EXH MANIF
03.332 ID=8.5 OD=15 T=4 		1-09503-219-0 02 1 9607- ●
14 03.604 WASHER; PL,EXH MANIF
T=5.5 		1-14149-042-0 08 1 9312-9406 ●
15 03.604 BOLT; EXH MANIF
M8X42 W/PL WASHER 		8-94367-639-0 04 1 9312-9510 ● ●
15 03.604 BOLT; EXH MANIF
M8X42 W/PL WASHER 		8-94367-639-0 04 1 9511- ●
15 03.604 BOLT; EXH MANIF
M8X35 		8-97045-441-0 06 1 9312-9606 ●
15 03.604 BOLT; EXH MANIF
M8X35 W/PL WASHER & FLANGE 		8-97131-597-1 06 1 9607- ●
15 03.604 BOLT; EXH MANIF
M8X75 W/PL WASHER 		8-94318-555-0 03 1 9312- ●
15 03.604 BOLT; EXH MANIF
M8X53 W/PL WASHER 		8-97020-490-0 01 1 9312- ●
15 03.604 BOLT; EXH MANIF
M10X60 		8-97061-543-0 04 1 9312-9405 ●
15 03.604 BOLT; EXH MANIF
M10X60 		8-97061-543-0 06 1 9406-9711 ●
15 03.604 BOLT; EXH MANIF
M10X60 		8-97061-543-0 06 1 9712- ● ● ●
16 03.604 STUD; EXH PIPE TO MANIF
08.981 M10X25 L=40 		9-04731-025-0 04 1 9312-9510 ● ●
16 03.604 STUD; EXH PIPE TO MANIF
08.981 M10X25 L=40 		9-04731-025-0 04 1 9511- ●
16 03.604 STUD; EXH PIPE TO MANIF
03.613 M10X45 L=60 PLATING 		5-09302-008-1 04 1 9312- ●
16 03.604 STUD; EXH PIPE TO MANIF
M10X45 L=60 STAINLESS 		8-97032-977-0 03 1 9312-9510 ●
16 03.604 STUD; EXH PIPE TO MANIF
M10X38 L=53 		8-97077-549-0 03 1 9312-9510 ●
16 03.604 STUD; EXH PIPE TO MANIF
M10X38 L=53 		8-97077-549-0 03 1 9511-9711 ● ●
16 03.604 STUD; EXH PIPE TO MANIF
M10X38 L=53 		8-97077-549-0 03 1 9712- ● ● ●
16 03.604 STUD; EXH PIPE TO MANIF
08.981 M10X25 L=40 		9-04731-025-0 02 1 9712- ●
18 03.604 NUT; EXH MANIF
02.559 M8 		9-09110-408-0 04 1 9312-9510 ● ● ●
18 03.604 NUT; EXH MANIF
02.559 M8 		9-09110-408-0 04 1 9511- ● ●
18 03.604 NUT; EXH MANIF
00.002 M8 		9-09110-508-0 02 1 9312-9606 ●
18 03.604 NUT; EXH MANIF
01.540 M8 FLANGE 		0-91150-208-0 02 1 9607- ●
18 03.604 NUT; EXH MANIF
08.917 M10 FLANGE 		0-91150-210-0 04 1 9312-9405 ●
18 03.604 NUT; EXH MANIF
08.917 M10 FLANGE 		0-91150-210-0 02 1 9406-9408 ●
18 03.604 NUT; EXH MANIF
00.002 M10 		9-09110-510-0 02 1 9409-9711 ●
18 03.604 NUT; EXH MANIF
00.002 M10 		9-09110-510-0 02 1 9712- ● ● ●
21 03.604 BOLT; HEAT PROTECTOR
03.680 M6X12 W/LK&PL WASHER 		0-50140-612-0 04 1 9312- ●
21 03.604 BOLT; HEAT PROTECTOR
02.500 M6X10 FLANGE 		0-28080-610-0 08 1 9312-9402 ●
21 03.604 BOLT; HEAT PROTECTOR
M6X12 FLANGE 		8-97108-669-0 08 1 9403-9502 ●
21 03.604 BOLT; HEAT PROTECTOR
M6X12 FLANGE 		8-97108-669-0 06 1 9503-9504 ●
21 03.604 BOLT; HEAT PROTECTOR
EXC. EURO1 SPECIFICATION<6YW> M6X12 FLANGE 		8-97108-669-0 06 1 9505-9505 ●
21 03.604 BOLT; HEAT PROTECTOR
M6X12 FLANGE 		8-97108-669-0 06 1 9506-9611 ●
21 03.604 BOLT; HEAT PROTECTOR
M6X12 FLANGE 		8-97108-669-0 08 1 9612-9711 ●
21 03.604 BOLT; HEAT PROTECTOR
M6X12 FLANGE 		8-97108-669-0 08 1 9712- ● ●
21 03.604 BOLT; HEAT PROTECTOR
CHARGE AIR COOLER<6PL> M6X12 FLANGE 		8-97108-669-0 02 1 9712-9806 ●
21 03.604 BOLT; HEAT PROTECTOR
EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9712- ●
34 03.603 COLLAR; DIST,EXH MANIF
L=24.0 		8-94396-410-0 08 1 9312-9406 ●
34 03.603 COLLAR; DIST,EXH MANIF
L=28 		8-97108-653-0 08 1 9407-9711 ●
34 03.603 COLLAR; DIST,EXH MANIF
L=28 		8-97108-653-0 08 1 9712- ● ● ●

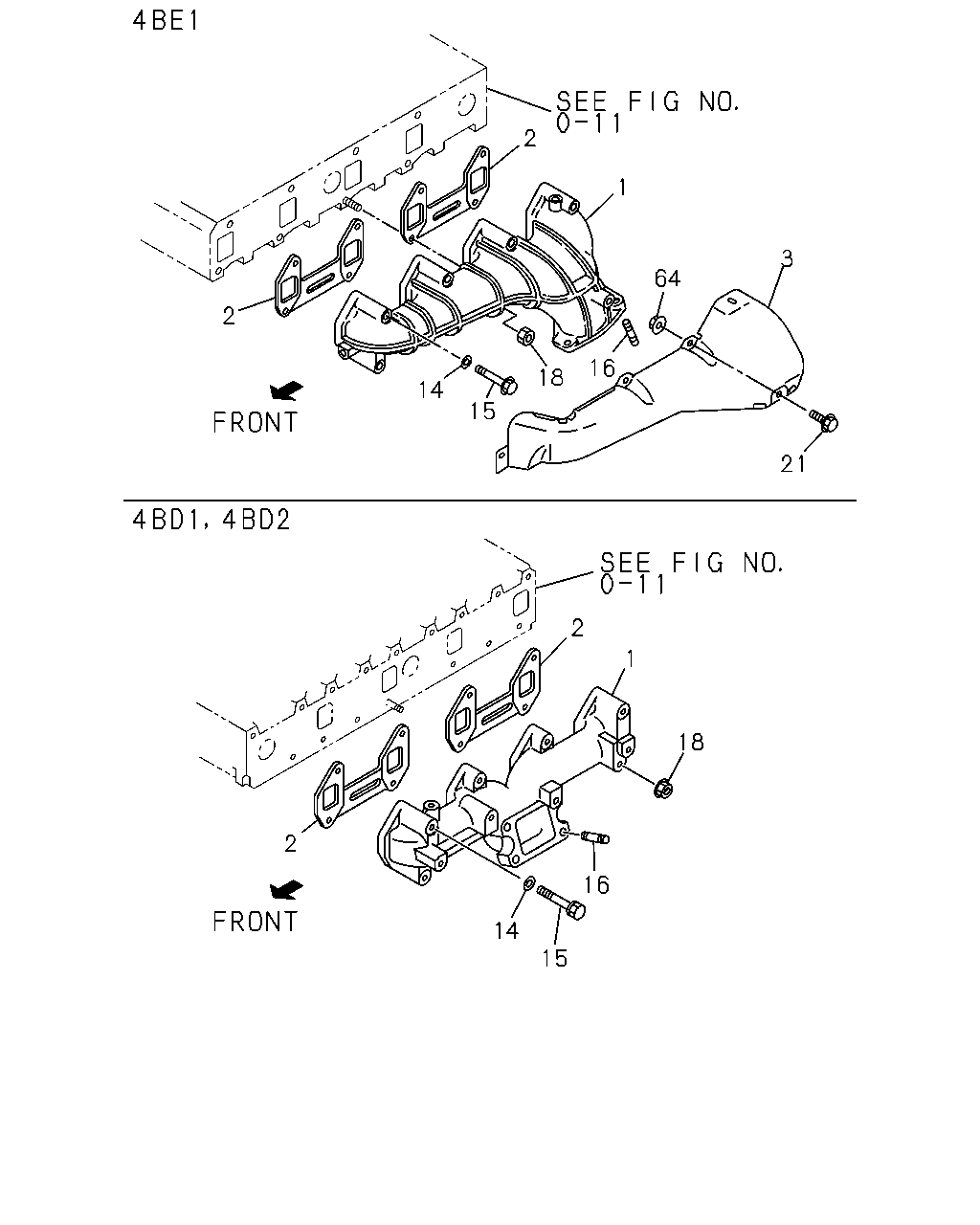

çizim 70785
2 1 3 64 2 16 18 14 15 21 2 1 18 2 16 14 15
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 03.601 MANIFOLD; EXHAUST 8-94366-247-0 01 1 9312-9510 ● ●
1 03.601 MANIFOLD; EXHAUST 8-94366-247-0 01 1 9511- ●
1 03.601 MANIFOLD; EXHAUST 8-97065-960-1 01 1 9312-9503 ●
1 03.601 MANIFOLD; EXHAUST 8-97124-873-0 01 1 9504-9611 ●
1 03.601 MANIFOLD; EXHAUST
EXC. EURO2 SPECIFICATION<7AF> 		8-97124-873-0 01 1 9612-9711 ●
1 03.601 MANIFOLD; EXHAUST
EXC. CHARGE AIR COOLER<6PL> 		8-97094-879-1 01 1 9712- ●
1 03.601 MANIFOLD; EXHAUST
EURO2 SPECIFICATION<7AF> 		8-97065-960-1 01 1 9606-9711 ●
1 03.601 MANIFOLD; EXHAUST 8-97065-960-1 01 1 9712- ●
1 03.601 MANIFOLD; EXHAUST 8-97028-475-1 01 1 9312- ●
1 03.601 MANIFOLD; EXHAUST 8-97104-378-2 01 1 9312-9612 ●
1 03.601 MANIFOLD; EXHAUST 8-97163-079-0 01 1 9612-9711 ●
1 03.601 MANIFOLD; EXHAUST 8-97163-079-0 01 1 9712- ● ●
1 03.601 MANIFOLD; EXHAUST
CHARGE AIR COOLER<6PL> 		8-97148-949-2 01 1 9712- ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-94404-610-0 02 1 9312-9510 ● ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-94404-610-0 02 1 9511- ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97020-591-0 01 1 9312-9408 ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97109-216-1 01 1 9409- ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97061-542-0 02 1 9312-9405 ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97105-866-1 01 1 9406-9609 ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97146-499-0 01 1 9610-9711 ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97146-499-0 01 1 9712- ● ● ●
3 03.602 PROTECTOR; HEAT,EXH MANIF 8-97095-360-1 01 1 9312- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF 8-97095-067-0 01 1 9312-9504 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
EXC. EURO1 SPECIFICATION<6YW> 		8-97095-067-0 01 1 9505-9509 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF 8-97096-424-0 01 1 9612-9711 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF 8-97096-424-0 01 1 9712- ● ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
EURO1 SPECIFICATION<6YW> 		8-97096-424-0 01 1 9505-9509 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF 8-97096-424-0 01 1 9510-9511 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF 8-97139-487-1 01 1 9512-9611 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF 8-97039-753-1 01 1 9712-9806 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
EXC. CHARGE AIR COOLER<6PL> 		8-97039-753-1 01 1 9807- ●
14 03.604 WASHER; PL,EXH MANIF
01.276 ID=8.4 OD=18 		9-09164-608-0 04 1 9312-9510 ● ● ●
14 03.604 WASHER; PL,EXH MANIF
01.276 ID=8.4 OD=18 		9-09164-608-0 04 1 9511- ● ●
14 03.604 WASHER; PL,EXH MANIF
03.332 ID=8.5 OD=15 T=4 		1-09503-219-0 02 1 9607- ●
14 03.604 WASHER; PL,EXH MANIF
T=5.5 		1-14149-042-0 08 1 9312-9406 ●
15 03.604 BOLT; EXH MANIF
M8X42 W/PL WASHER 		8-94367-639-0 04 1 9312-9510 ● ●
15 03.604 BOLT; EXH MANIF
M8X42 W/PL WASHER 		8-94367-639-0 04 1 9511- ●
15 03.604 BOLT; EXH MANIF
M8X35 		8-97045-441-0 06 1 9312-9606 ●
15 03.604 BOLT; EXH MANIF
M8X35 W/PL WASHER & FLANGE 		8-97131-597-1 06 1 9607- ●
15 03.604 BOLT; EXH MANIF
M8X75 W/PL WASHER 		8-94318-555-0 03 1 9312- ●
15 03.604 BOLT; EXH MANIF
M8X53 W/PL WASHER 		8-97020-490-0 01 1 9312- ●
15 03.604 BOLT; EXH MANIF
M10X60 		8-97061-543-0 04 1 9312-9405 ●
15 03.604 BOLT; EXH MANIF
M10X60 		8-97061-543-0 06 1 9406-9711 ●
15 03.604 BOLT; EXH MANIF
M10X60 		8-97061-543-0 06 1 9712- ● ● ●
16 03.604 STUD; EXH PIPE TO MANIF
08.981 M10X25 L=40 		9-04731-025-0 04 1 9312-9510 ● ●
16 03.604 STUD; EXH PIPE TO MANIF
08.981 M10X25 L=40 		9-04731-025-0 04 1 9511- ●
16 03.604 STUD; EXH PIPE TO MANIF
03.613 M10X45 L=60 PLATING 		5-09302-008-1 04 1 9312- ●
16 03.604 STUD; EXH PIPE TO MANIF
M10X45 L=60 STAINLESS 		8-97032-977-0 03 1 9312-9510 ●
16 03.604 STUD; EXH PIPE TO MANIF
M10X38 L=53 		8-97077-549-0 03 1 9312-9510 ●
16 03.604 STUD; EXH PIPE TO MANIF
M10X38 L=53 		8-97077-549-0 03 1 9511-9711 ● ●
16 03.604 STUD; EXH PIPE TO MANIF
M10X38 L=53 		8-97077-549-0 03 1 9712- ● ● ●
16 03.604 STUD; EXH PIPE TO MANIF
08.981 M10X25 L=40 		9-04731-025-0 02 1 9712- ●
18 03.604 NUT; EXH MANIF
02.559 M8 		9-09110-408-0 04 1 9312-9510 ● ● ●
18 03.604 NUT; EXH MANIF
02.559 M8 		9-09110-408-0 04 1 9511- ● ●
18 03.604 NUT; EXH MANIF
00.002 M8 		9-09110-508-0 02 1 9312-9606 ●
18 03.604 NUT; EXH MANIF
01.540 M8 FLANGE 		0-91150-208-0 02 1 9607- ●
18 03.604 NUT; EXH MANIF
08.917 M10 FLANGE 		0-91150-210-0 04 1 9312-9405 ●
18 03.604 NUT; EXH MANIF
08.917 M10 FLANGE 		0-91150-210-0 02 1 9406-9408 ●
18 03.604 NUT; EXH MANIF
00.002 M10 		9-09110-510-0 02 1 9409-9711 ●
18 03.604 NUT; EXH MANIF
00.002 M10 		9-09110-510-0 02 1 9712- ● ● ●
21 03.604 BOLT; HEAT PROTECTOR
03.680 M6X12 W/LK&PL WASHER 		0-50140-612-0 04 1 9312- ●
21 03.604 BOLT; HEAT PROTECTOR
02.500 M6X10 FLANGE 		0-28080-610-0 08 1 9312-9402 ●
21 03.604 BOLT; HEAT PROTECTOR
M6X12 FLANGE 		8-97108-669-0 08 1 9403-9502 ●
21 03.604 BOLT; HEAT PROTECTOR
M6X12 FLANGE 		8-97108-669-0 06 1 9503-9504 ●
21 03.604 BOLT; HEAT PROTECTOR
EXC. EURO1 SPECIFICATION<6YW> M6X12 FLANGE 		8-97108-669-0 06 1 9505-9505 ●
21 03.604 BOLT; HEAT PROTECTOR
M6X12 FLANGE 		8-97108-669-0 06 1 9506-9611 ●
21 03.604 BOLT; HEAT PROTECTOR
M6X12 FLANGE 		8-97108-669-0 08 1 9612-9711 ●
21 03.604 BOLT; HEAT PROTECTOR
M6X12 FLANGE 		8-97108-669-0 08 1 9712- ● ●
21 03.604 BOLT; HEAT PROTECTOR
CHARGE AIR COOLER<6PL> M6X12 FLANGE 		8-97108-669-0 02 1 9712-9806 ●
21 03.604 BOLT; HEAT PROTECTOR
EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9712- ●
64 03.604 NUT; HEAT PROTECTOR
01.540 M8 FLANGE 		0-91150-208-0 04 1 9312- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
