0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#48926) — 305 parça

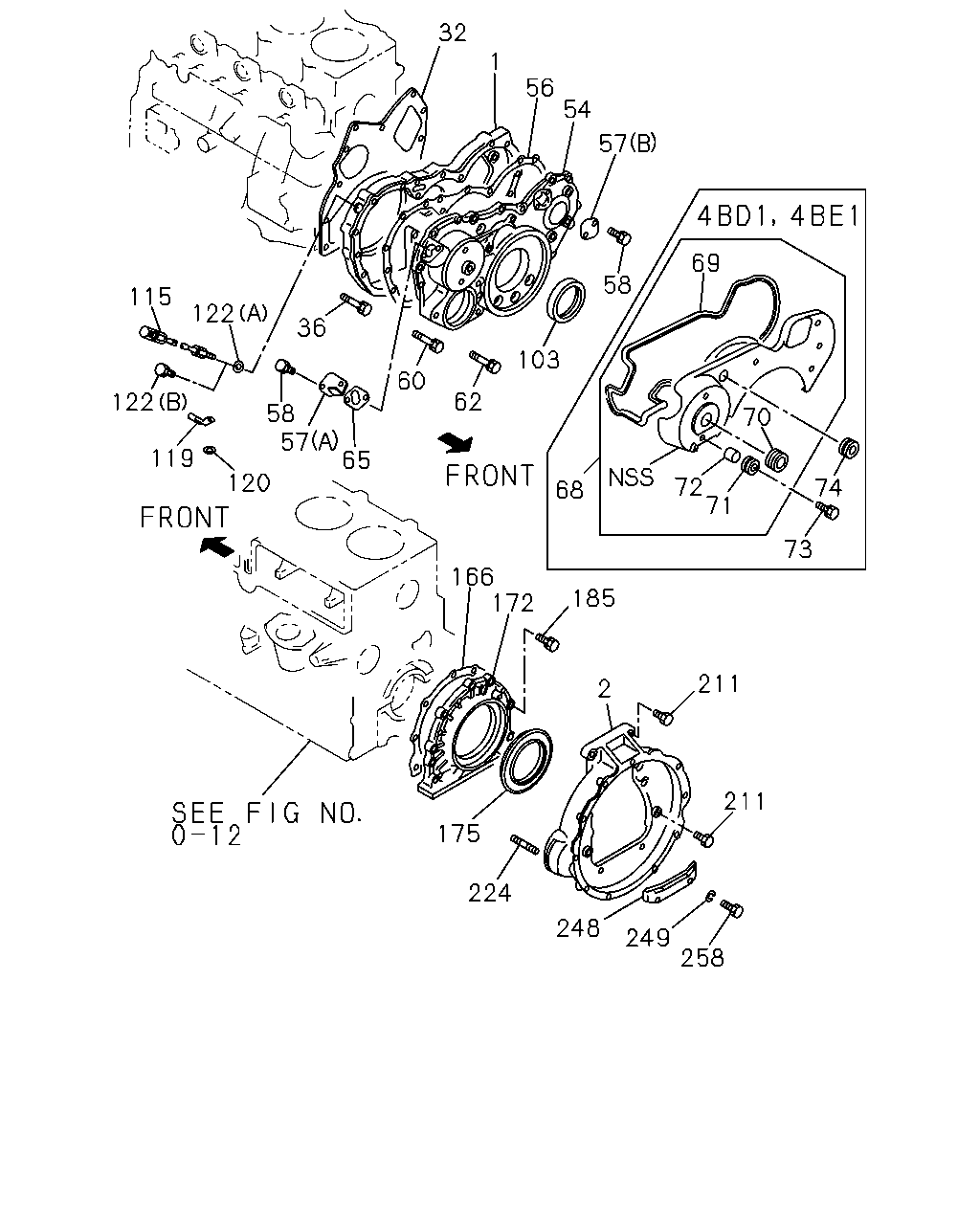

32 1 56 54 57 69 58 115 122 36 103 60 122 62 58 57 70 119 65 120 72 71 74 68 73 166 172 185 211 2 211 175 224 248 249 258

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	00.206 CASE; TIMING GEAR	8-94457-910-2	01	1	9312-9510	●	●	●
1	00.206 CASE; TIMING GEAR	8-94457-910-2	01	1	9511-9603		●	●
1	00.206 CASE; TIMING GEAR EXC. TACHOMETER<U16>	8-94457-910-2	01	1	9604-9608		●
1	00.206 CASE; TIMING GEAR	8-94457-910-2	01	1	9609-			●
1	00.206 CASE; TIMING GEAR TACHOMETER<U16>	8-94457-910-2	01	1	9609-		●
1	00.206 CASE; TIMING GEAR	8-97083-629-2	01	1	9312-9410				●
1	00.206 CASE; TIMING GEAR	8-97115-133-0	01	1	9411-9511				●
1	00.206 CASE; TIMING GEAR EXC. EURO2 SPECIFICATION<7AF>	8-97115-133-0	01	1	9512-9606				●
1	00.206 CASE; TIMING GEAR EXC. EURO2 SPECIFICATION<7AF>	8-97160-960-0	01	1	9607-9711				●
1	00.206 CASE; TIMING GEAR EURO2 SPECIFICATION<7AF>	8-97141-532-1	01	1	9512-9711				●
1	00.206 CASE; TIMING GEAR	8-97141-532-1	01	1	9712-				●
1	00.206 CASE; TIMING GEAR EXC. TACHOMETER<U16>	8-94450-975-2	01	1	9609-		●
2	00.683 HOUSING; FLYWHEEL	8-94327-481-1	01	1	9312-9510	●	●
2	00.683 HOUSING; FLYWHEEL	8-94327-481-1	01	1	9511-9605		●
2	00.683 HOUSING; FLYWHEEL	8-97146-428-0	01	1	9606-		●
2	00.683 HOUSING; FLYWHEEL	8-94360-560-1	01	1	9312-9605			●
2	00.683 HOUSING; FLYWHEEL	8-97146-429-0	01	1	9606-			●
2	00.683 HOUSING; FLYWHEEL	8-97071-848-5	01	1	9312-9407					●
2	00.683 HOUSING; FLYWHEEL	8-97112-139-2	01	1	9408-9711					●
2	00.683 HOUSING; FLYWHEEL	8-97112-139-4	01	1	9712-					●	●
2	00.683 HOUSING; FLYWHEEL	8-97181-089-1	01	1	9712-							●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-671-0	01	1	9312-9510	●	●	●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-671-0	01	1	9511-		●	●
36	00.206 BOLT; GEAR CASE 08.900 M8X20 W/LK WASHER	0-50040-820-0	04	1	9312-9510	●	●	●
36	00.206 BOLT; GEAR CASE 08.900 M8X20 W/LK WASHER	0-50040-820-0	04	1	9511-		●	●
36	00.206 BOLT; GEAR CASE 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	9312-9510	●	●	●
36	00.206 BOLT; GEAR CASE 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	9511-		●	●
54	00.206 COVER; GEAR CASE	8-94371-853-2	01	1	9312-9510	●		●
54	00.206 COVER; GEAR CASE POWER STEERING<N40>	8-94371-853-2	01	1	9312-9510		●
54	00.206 COVER; GEAR CASE	8-94371-853-2	01	1	9511-			●
54	00.206 COVER; GEAR CASE POWER STEERING<N40>	8-94371-853-2	01	1	9511-		●
54	00.206 COVER; GEAR CASE EXC. POWER STEERING<N40>	8-94465-434-2	01	1	9312-		●
56	00.207 GASKET; GEAR CASE TO COVER	8-94370-672-0	01	1	9312-9510	●	●	●
56	00.207 GASKET; GEAR CASE TO COVER	8-94370-672-0	01	1	9511-		●	●
57	00.206 COVER; TIMING CHECK HOLE (B)	5-11321-009-0	01	1	9312-9510	●	●	●
57	00.206 COVER; TIMING CHECK HOLE (B)	5-11321-009-0	01	1	9511-		●	●
57	00.206 COVER; TIMING CHECK HOLE (A)	8-94250-086-1	01	1	9312-9510	●	●	●
57	00.206 COVER; TIMING CHECK HOLE (A)	8-94250-086-1	01	1	9511-		●	●
58	00.206 BOLT; CHECK HOLE COVER M6X14 W/LK WASHER	0-50040-614-0	03	1	9312-9510	●		●
58	00.206 BOLT; CHECK HOLE COVER POWER STEERING<N40> M6X14 W/LK WASHER	0-50040-614-0	03	1	9312-9510		●
58	00.206 BOLT; CHECK HOLE COVER M6X14 W/LK WASHER	0-50040-614-0	03	1	9511-			●
58	00.206 BOLT; CHECK HOLE COVER POWER STEERING<N40> M6X14 W/LK WASHER	0-50040-614-0	03	1	9511-		●
58	00.206 BOLT; CHECK HOLE COVER EXC. POWER STEERING<N40> M6X14 W/LK WASHER	0-50040-614-0	04	1	9312-		●
60	00.206 BOLT; COVER TO CASE 01.073 M8X25 W/LK WASHER	0-50040-825-0	08	1	9312-9510	●	●	●
60	00.206 BOLT; COVER TO CASE 01.073 M8X25 W/LK WASHER	0-50040-825-0	08	1	9511-		●	●
60	00.206 BOLT; COVER TO CASE 01.252 M8X60 W/LK WASHER	0-50040-860-0	04	1	9312-9510	●	●	●
60	00.206 BOLT; COVER TO CASE 01.252 M8X60 W/LK WASHER	0-50040-860-0	04	1	9511-		●	●
60	00.206 BOLT; COVER TO CASE M8X80 W/LK WASHER	0-50040-880-0	01	1	9312-9510	●	●	●
60	00.206 BOLT; COVER TO CASE M8X80 W/LK WASHER	0-50040-880-0	01	1	9511-		●	●
62	00.206 BOLT; COVER EXC. POWER STEERING<N40> 00.386 M10X50 W/LK WASHER	0-50041-050-0	03	1	9312-		●
62	00.206 BOLT; COVER 08.900 M8X22 FLANGE	0-28080-822-0	07	1	9312-9504					●
62	00.206 BOLT; COVER EXC. EURO1 SPECIFICATION<6YW> 08.900 M8X22 FLANGE	0-28080-822-0	07	1	9505-9510					●
62	00.206 BOLT; COVER EXC. EURO1 SPECIFICATION<6YW> 08.900 M8X22 FLANGE	0-28080-822-0	01	1	9511-9511					●
62	00.206 BOLT; COVER 00.004 M8X32 FLANGE	0-28080-832-0	05	1	9312-9510					●
62	00.206 BOLT; COVER 02.183 M8X35 FLANGE	0-28680-835-0	05	1	9511-9711					●
62	00.206 BOLT; COVER 02.183 M8X35 FLANGE	0-28680-835-0	05	1	9712-					●	●	●
62	00.206 BOLT; COVER 00.349 M8X65	8-94158-393-1	03	1	9312-9402					●
62	00.206 BOLT; COVER 01.097 M8X65 FLANGE	1-09044-072-1	03	1	9403-9711					●
62	00.206 BOLT; COVER 01.097 M8X65 FLANGE	1-09044-072-1	03	1	9712-					●	●	●
62	00.206 BOLT; COVER EURO1 SPECIFICATION<6YW> 08.900 M8X22 FLANGE	0-28080-822-0	06	1	9505-9510					●
62	00.206 BOLT; COVER 02.559 M8X25 FLANGE	0-28680-825-0	06	1	9511-9711					●
62	00.206 BOLT; COVER 02.559 M8X25 FLANGE	0-28680-825-0	06	1	9712-					●	●	●
65	00.207 GASKET; COVER,TIMING CHECK HOLE	8-97045-362-1	02	1	9312-9510	●	●	●
65	00.207 GASKET; COVER,TIMING CHECK HOLE	8-97045-362-1	02	1	9511-		●	●
68	00.206 COVER ASM; GEAR CASE COVER	5-19380-023-2	01	1	9312-9510	●	●
68	00.206 COVER ASM; GEAR CASE COVER	5-19380-023-2	01	1	9511-		●
69	00.206 SEAL; RUBBER,COVER TO COVER	5-19387-005-1	01	1	9312-9510	●	●
69	00.206 SEAL; RUBBER,COVER TO COVER	5-19387-005-1	01	1	9511-		●
70	01.531 GROMMET; OIL PIPE SEAL 00.413	1-19389-004-0	01	1	9312-9510	●	●
70	01.531 GROMMET; OIL PIPE SEAL 00.413	1-19389-004-0	01	1	9511-		●
71	00.206 RUBBER; MTG,COVER	5-19389-002-0	07	1	9312-9510	●	●
71	00.206 RUBBER; MTG,COVER	5-19389-002-0	07	1	9511-		●
72	00.206 BUSHING; SPACER,COVER TO COVER	5-19389-009-0	07	1	9312-9510	●	●
72	00.206 BUSHING; SPACER,COVER TO COVER	5-19389-009-0	07	1	9511-		●
73	00.206 BOLT; COVER FIX 12.187 M6X16 W/LK&PL WASHER	0-50140-616-0	07	1	9312-9510	●	●
73	00.206 BOLT; COVER FIX 12.187 M6X16 W/LK&PL WASHER	0-50140-616-0	07	1	9511-		●
74	00.206 GROMMET; BOX COVER	8-94222-309-1	01	1	9312-9510	●	●
74	00.206 GROMMET; BOX COVER	8-94222-309-1	01	1	9511-		●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94373-765-0	01	1	9312-9510	●	●	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94373-765-0	01	1	9511-		●	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-560-1	01	1	9312-				●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94369-518-0	01	1	9312-9711					●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94369-518-0	01	1	9712-					●	●	●
115	09.761 SENSOR; REVOLUTION,ENG SPD	8-97021-162-1	01	1	9312-9510	●
115	09.761 SENSOR; REVOLUTION,ENG SPD TACHOMETER<U16>	8-97021-162-1	01	1	9312-9510		●
115	09.761 SENSOR; REVOLUTION,ENG SPD TACHOMETER<U16>	8-97021-162-1	01	1	9511-		●
115	09.761 SENSOR; REVOLUTION,ENG SPD	8-94451-274-0	01	1	9312-			●
119	09.762 CLIP; HARNESS,ENG SPD SENSOR 01.152 ID=8.5	5-09700-275-0	01	1	9312-9510	●		●
119	09.762 CLIP; HARNESS,ENG SPD SENSOR TACHOMETER<U16> 01.152 ID=8.5	5-09700-275-0	01	1	9312-9510		●
119	09.762 CLIP; HARNESS,ENG SPD SENSOR 01.152 ID=8.5	5-09700-275-0	01	1	9511-9511		●	●
119	09.762 CLIP; HARNESS,ENG SPD SENSOR 01.152 ID=8.5	5-09700-275-0	01	1	9511-		●	●
120	09.762 WASHER; PL,CLIP TACHOMETER<U16> EXC. POWER STEERING<N40> 00.206 ID=8.4	9-09164-508-0	01	1	9312-		●
122	09.762 GASKET; ENG SPD SENSOR 01.252 (A) ID=16.2 OD=24	9-09571-416-0	01	1	9312-9510	●	●	●
122	09.762 GASKET; ENG SPD SENSOR 01.252 (A) ID=16.2 OD=24	9-09571-416-0	01	1	9511-9702		●	●
122	09.762 GASKET; ENG SPD SENSOR 01.252 (A) ID=16.2 OD=24	9-09571-416-0	01	1	9703-			●
122	09.762 GASKET; ENG SPD SENSOR TACHOMETER<U16> 01.252 (A) ID=16.2 OD=24	9-09571-416-0	01	1	9703-		●
122	09.762 GASKET; ENG SPD SENSOR EXC. TACHOMETER<U16> (B)	1-09009-119-0	01	1	9312-9608		●
166	00.207 GASKET; RET TO C/BL	8-94370-664-0	01	1	9312-9510	●	●	●
166	00.207 GASKET; RET TO C/BL	8-94370-664-0	01	1	9511-		●	●
172	00.137 RETAINER; CR/SHF	8-97079-520-0	01	1	9312-9510	●	●	●
172	00.137 RETAINER; CR/SHF	8-97079-520-0	01	1	9511-		●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97072-823-1	01	1	9312-9510	●	●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97072-823-1	01	1	9511-		●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-561-1	01	1	9312-				●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-637-0	01	1	9312-9711					●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-637-0	01	1	9712-					●	●	●
185	00.727 BOLT; RET TO C/BL M8X22 W/LK WASHER	0-50040-822-0	07	1	9312-9510	●	●	●
185	00.727 BOLT; RET TO C/BL M8X22 W/LK WASHER	0-50040-822-0	07	1	9511-		●	●
211	00.669 BOLT; HSG M14X50	0-50041-450-0	04	1	9312-9510	●	●	●
211	00.669 BOLT; HSG M14X50	0-50041-450-0	04	1	9511-		●	●
211	00.669 BOLT; HSG M14X45	8-94341-374-1	02	1	9312-9510	●	●	●
211	00.669 BOLT; HSG M14X45	8-94341-374-1	02	1	9511-		●	●
211	00.669 BOLT; HSG M14X65	8-94341-376-1	02	1	9312-9510	●	●	●
211	00.669 BOLT; HSG M14X65	8-94341-376-1	02	1	9511-		●	●
211	00.669 BOLT; HSG 08.900 M10X50 FLANGE	0-28181-050-0	01	1	9312-9403					●
211	00.669 BOLT; HSG 04.510 M10X40 FLANGE	0-28181-040-0	01	1	9404-9606					●
211	00.669 BOLT; HSG M10X40 FLANGE	0-28781-040-0	01	1	9607-9711					●
211	00.669 BOLT; HSG M10X40 FLANGE	0-28781-040-0	01	1	9712-					●	●	●
211	00.669 BOLT; HSG 00.002 M12X30 FLANGE	8-94343-919-0	01	1	9312-9511					●
211	00.669 BOLT; HSG M12X30 FLANGE	8-97135-419-0	01	1	9512-9711					●
211	00.669 BOLT; HSG M12X30 FLANGE	8-97135-419-0	01	1	9712-					●	●	●
211	00.669 BOLT; HSG M8X65 W/PL WASHER	8-94388-781-0	02	1	9312-9711					●
211	00.669 BOLT; HSG M8X65 W/PL WASHER	8-94388-781-0	02	1	9712-					●	●
211	00.669 BOLT; HSG M12X70	8-94388-783-1	09	1	9312-9404					●
211	00.669 BOLT; HSG M12X70 FLANGE, W/PL WASHER	8-97114-779-0	09	1	9405-9711					●
211	00.669 BOLT; HSG M12X70 FLANGE, W/PL WASHER	8-97114-779-0	11	1	9712-							●
211	00.669 BOLT; HSG EXC. POWER STEERING<N40> M14X35 FLANGE	0-28791-435-0	01	1	9503-9510					●
211	00.669 BOLT; HSG EXC. POWER STEERING<N40>,TAIWAN EQUIPMENT(RWV),COLOMBIA EQUIPMENT(X74) M14X35 FLANGE	0-28791-435-0	01	1	9511-9711					●
211	00.669 BOLT; HSG EXC. POWER STEERING<N40> M14X35 FLANGE	0-28791-435-0	01	1	9712-					●	●
211	00.669 BOLT; HSG M12X70 FLANGE, W/PL WASHER	8-97114-779-0	09	1	9712-					●	●
224	02.042 STUD; STARTER M12X45 L=63	8-94139-529-0	01	1	9312-9510	●	●
224	02.042 STUD; STARTER M12X45 L=63	8-94139-529-0	01	1	9511-		●
224	02.042 STUD; STARTER M12X33 L=51	9-94411-233-0	01	1	9312-9510	●	●
224	02.042 STUD; STARTER M12X33 L=51	9-94411-233-0	01	1	9511-		●
224	02.042 STUD; STARTER M12X50 L=68	8-94411-008-0	01	1	9312-			●
224	02.042 STUD; STARTER M12X33 L=51	9-94411-233-0	02	1	9312-			●
248	00.669 COVER; DUST,FLYWHEEL HSG RET	8-97042-801-0	01	1	9312-9510	●	●	●
248	00.669 COVER; DUST,FLYWHEEL HSG RET	8-97042-801-0	01	1	9511-		●	●
249	00.669 WASHER; LK,DUST COVER 00.206 ID=6.1	9-09150-506-0	02	1	9312-9510	●	●	●
249	00.669 WASHER; LK,DUST COVER 00.206 ID=6.1	9-09150-506-0	02	1	9511-9605		●	●
258	00.669 BOLT; DUST COVER,RET M6X12	0-20800-612-0	02	1	9312-9510	●	●	●
258	00.669 BOLT; DUST COVER,RET M6X12	0-20800-612-0	02	1	9511-9605		●	●
258	00.669 BOLT; DUST COVER,RET 02.500 M6X10 FLANGE	0-28080-610-0	02	1	9606-		●	●

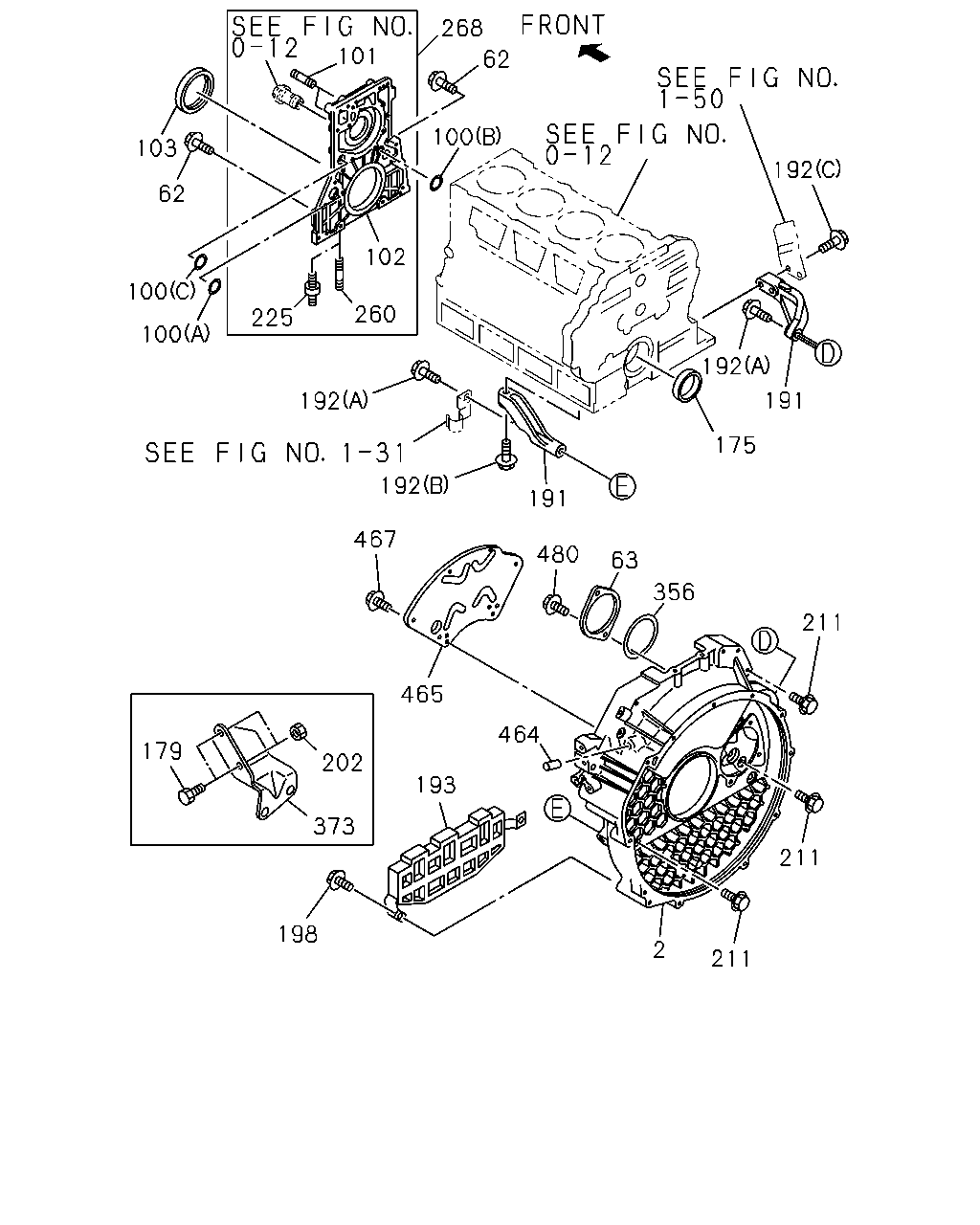

268 101 62 100 103 192 62 102 100 260 225 100 192 191 192 175 192 191 467 480 63 356 211 465 464 179 202 193 373 211 198 2 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
2	00.683 HOUSING; FLYWHEEL	8-94327-481-1	01	1	9312-9510	●	●
2	00.683 HOUSING; FLYWHEEL	8-94327-481-1	01	1	9511-9605		●
2	00.683 HOUSING; FLYWHEEL	8-97146-428-0	01	1	9606-		●
2	00.683 HOUSING; FLYWHEEL	8-94360-560-1	01	1	9312-9605			●
2	00.683 HOUSING; FLYWHEEL	8-97146-429-0	01	1	9606-			●
2	00.683 HOUSING; FLYWHEEL	8-97071-848-5	01	1	9312-9407					●
2	00.683 HOUSING; FLYWHEEL	8-97112-139-2	01	1	9408-9711					●
2	00.683 HOUSING; FLYWHEEL	8-97112-139-4	01	1	9712-					●	●
2	00.683 HOUSING; FLYWHEEL	8-97181-089-1	01	1	9712-							●
62	00.206 BOLT; COVER EXC. POWER STEERING<N40> 00.386 M10X50 W/LK WASHER	0-50041-050-0	03	1	9312-		●
62	00.206 BOLT; COVER 08.900 M8X22 FLANGE	0-28080-822-0	07	1	9312-9504					●
62	00.206 BOLT; COVER EXC. EURO1 SPECIFICATION<6YW> 08.900 M8X22 FLANGE	0-28080-822-0	07	1	9505-9510					●
62	00.206 BOLT; COVER EXC. EURO1 SPECIFICATION<6YW> 08.900 M8X22 FLANGE	0-28080-822-0	01	1	9511-9511					●
62	00.206 BOLT; COVER 00.004 M8X32 FLANGE	0-28080-832-0	05	1	9312-9510					●
62	00.206 BOLT; COVER 02.183 M8X35 FLANGE	0-28680-835-0	05	1	9511-9711					●
62	00.206 BOLT; COVER 02.183 M8X35 FLANGE	0-28680-835-0	05	1	9712-					●	●	●
62	00.206 BOLT; COVER 00.349 M8X65	8-94158-393-1	03	1	9312-9402					●
62	00.206 BOLT; COVER 01.097 M8X65 FLANGE	1-09044-072-1	03	1	9403-9711					●
62	00.206 BOLT; COVER 01.097 M8X65 FLANGE	1-09044-072-1	03	1	9712-					●	●	●
62	00.206 BOLT; COVER EURO1 SPECIFICATION<6YW> 08.900 M8X22 FLANGE	0-28080-822-0	06	1	9505-9510					●
62	00.206 BOLT; COVER 02.559 M8X25 FLANGE	0-28680-825-0	06	1	9511-9711					●
62	00.206 BOLT; COVER 02.559 M8X25 FLANGE	0-28680-825-0	06	1	9712-					●	●	●
63	00.206 COVER; P/S EXC. POWER STEERING<N40>	8-94360-201-0	01	1	9312-9412					●
63	00.206 COVER; P/S EXC. POWER STEERING<N40>	8-97126-392-0	01	1	9501-9711					●
63	00.206 COVER; P/S EXC. POWER STEERING<N40>	8-97126-392-0	01	1	9712-					●	●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). 00.206 (A) ID=35.1	8-97028-748-1	01	1	9312-9711					●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). 00.206 (A) ID=35.1	8-97028-748-1	01	1	9712-					●	●	●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). 04.439 (B) ID=17.8	9-09561-318-0	01	1	9312-9711					●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). 04.439 (B) ID=17.8	9-09561-318-0	01	1	9712-					●	●	●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). 00.206 (C) ID=27.7	9-09563-228-0	01	1	9503-9504					●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO1 SPECIFICATION<6YW> 00.206 (C) ID=27.7	9-09563-228-0	01	1	9505-9510					●
101	01.073 STUD; WATER PUMP 00.206 M8X18 L=29	8-97028-541-0	01	1	9312-9711					●
101	01.073 STUD; WATER PUMP 00.206 M8X18 L=29	8-97028-541-0	01	1	9712-					●	●	●
101	01.073 STUD; WATER PUMP 01.428 M8X18 L=30	9-04110-818-0	01	1	9312-9711					●
101	01.073 STUD; WATER PUMP 01.428 M8X18 L=30	9-04110-818-0	01	1	9712-					●	●	●
102	00.137 RETAINER; FRT	8-97094-943-2	01	1	9312-9711					●
102	00.137 RETAINER; FRT	8-97094-943-2	01	1	9712-					●	●
102	00.137 RETAINER; FRT EXC. CHARGE AIR COOLER<6PL>	8-97094-943-2	01	1	9712-							●
102	00.137 RETAINER; FRT CHARGE AIR COOLER<6PL>	8-97148-938-1	01	1	9712-							●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94373-765-0	01	1	9312-9510	●	●	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94373-765-0	01	1	9511-		●	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-560-1	01	1	9312-				●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94369-518-0	01	1	9312-9711					●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94369-518-0	01	1	9712-					●	●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97072-823-1	01	1	9312-9510	●	●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97072-823-1	01	1	9511-		●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-561-1	01	1	9312-				●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-637-0	01	1	9312-9711					●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-637-0	01	1	9712-					●	●	●
179	00.206 BOLT; BRKT CHARGE AIR COOLER<6PL> 00.004 M10X18 FLANGE	0-28181-018-0	02	1	9712-9712							●
179	00.206 BOLT; BRKT HYDRO BRAKE BOOSTER<7QQ> 00.004 M10X18 FLANGE	0-28181-018-0	02	1	9801-9801							●
179	00.206 BOLT; BRKT 00.004 M10X18 FLANGE	0-28181-018-0	02	1	9802-							●
191	00.669 STAY; FLYWHEEL HSG	8-97167-292-0	01	1	9712-							●
191	00.669 STAY; FLYWHEEL HSG	8-97167-291-0	01	1	9712-							●
192	00.206 BOLT; STAY TO HSG 00.685 (A) M12X50 FLANGE	0-28181-250-0	02	1	9712-							●
192	00.206 BOLT; STAY TO HSG (B) M12X100 FLANGE	0-28181-200-0	01	1	9712-							●
192	00.206 BOLT; STAY TO HSG 04.510 (C) M10X40 FLANGE	0-28181-040-0	02	1	9712-							●
193	01.428 SPACER; STAY TO OIL,PAN	8-97100-516-1	01	1	9312-9406					●
193	01.428 SPACER; STAY TO OIL,PAN CHARGE AIR COOLER<6PL> EUROPEAN BASIC EQUIPMENT(EK4)	8-97147-247-0	01	1	9712-9801					●		●
193	01.428 SPACER; STAY TO OIL,PAN CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF>	8-97147-247-0	01	1	9802-							●
198	01.428 BOLT; STAY TO OIL PAN 02.483 M12X20 FLANGE	0-28181-220-0	02	1	9312-9510					●
198	01.428 BOLT; STAY TO OIL PAN CHARGE AIR COOLER<6PL> EUROPEAN BASIC EQUIPMENT(EK4) 02.483 M12X20 FLANGE	0-28181-220-0	02	1	9712-9801					●		●
198	01.428 BOLT; STAY TO OIL PAN CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> 02.483 M12X20 FLANGE	0-28181-220-0	02	1	9802-							●
202	00.206 NUT; BRKT CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-							●
202	00.206 NUT; BRKT EXC. CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE	0-91150-110-0	02	1	9801-							●
211	00.669 BOLT; HSG M14X50	0-50041-450-0	04	1	9312-9510	●	●	●
211	00.669 BOLT; HSG M14X50	0-50041-450-0	04	1	9511-		●	●
211	00.669 BOLT; HSG M14X45	8-94341-374-1	02	1	9312-9510	●	●	●
211	00.669 BOLT; HSG M14X45	8-94341-374-1	02	1	9511-		●	●
211	00.669 BOLT; HSG M14X65	8-94341-376-1	02	1	9312-9510	●	●	●
211	00.669 BOLT; HSG M14X65	8-94341-376-1	02	1	9511-		●	●
211	00.669 BOLT; HSG 08.900 M10X50 FLANGE	0-28181-050-0	01	1	9312-9403					●
211	00.669 BOLT; HSG 04.510 M10X40 FLANGE	0-28181-040-0	01	1	9404-9606					●
211	00.669 BOLT; HSG M10X40 FLANGE	0-28781-040-0	01	1	9607-9711					●
211	00.669 BOLT; HSG M10X40 FLANGE	0-28781-040-0	01	1	9712-					●	●	●
211	00.669 BOLT; HSG 00.002 M12X30 FLANGE	8-94343-919-0	01	1	9312-9511					●
211	00.669 BOLT; HSG M12X30 FLANGE	8-97135-419-0	01	1	9512-9711					●
211	00.669 BOLT; HSG M12X30 FLANGE	8-97135-419-0	01	1	9712-					●	●	●
211	00.669 BOLT; HSG M8X65 W/PL WASHER	8-94388-781-0	02	1	9312-9711					●
211	00.669 BOLT; HSG M8X65 W/PL WASHER	8-94388-781-0	02	1	9712-					●	●
211	00.669 BOLT; HSG M12X70	8-94388-783-1	09	1	9312-9404					●
211	00.669 BOLT; HSG M12X70 FLANGE, W/PL WASHER	8-97114-779-0	09	1	9405-9711					●
211	00.669 BOLT; HSG M12X70 FLANGE, W/PL WASHER	8-97114-779-0	11	1	9712-							●
211	00.669 BOLT; HSG EXC. POWER STEERING<N40> M14X35 FLANGE	0-28791-435-0	01	1	9503-9510					●
211	00.669 BOLT; HSG EXC. POWER STEERING<N40>,TAIWAN EQUIPMENT(RWV),COLOMBIA EQUIPMENT(X74) M14X35 FLANGE	0-28791-435-0	01	1	9511-9711					●
211	00.669 BOLT; HSG EXC. POWER STEERING<N40> M14X35 FLANGE	0-28791-435-0	01	1	9712-					●	●
211	00.669 BOLT; HSG M12X70 FLANGE, W/PL WASHER	8-97114-779-0	09	1	9712-					●	●
225	01.428 STUD; OIL PAN EURO1 SPECIFICATION<6YW> M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBB ER	8-97087-632-1	04	1	9505-9510					●
225	01.428 STUD; OIL PAN M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBB ER	8-97087-632-2	04	1	9511-9711					●
225	01.428 STUD; OIL PAN M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBB ER	8-97087-632-2	04	1	9712-					●	●
225	01.428 STUD; OIL PAN EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) CHARGE AIR COOLER<6PL> M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBB ER	8-97087-632-2	04	1	9712-							●
260	01.428 STUD; OIL PAN M8X20 L=32	9-04110-820-0	04	1	9312-9504					●
260	01.428 STUD; OIL PAN EXC. EURO1 SPECIFICATION<6YW> M8X20 L=32	9-04110-820-0	04	1	9505-9510					●
268	00.206 COVER; FRT	8-97113-768-0	01	1	9312-9504					●
268	00.206 COVER; FRT EXC. EURO1 SPECIFICATION<6YW>	8-97113-768-0	01	1	9505-9510					●
268	00.206 COVER; FRT EURO1 SPECIFICATION<6YW>	8-97074-859-2	01	1	9505-9510					●
268	00.206 COVER; FRT	8-97074-859-2	01	1	9511-9711					●
268	00.206 COVER; FRT	8-97074-859-2	01	1	9712-					●	●
268	00.206 COVER; FRT CHARGE AIR COOLER<6PL> EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX)	8-97174-416-1	01	1	9712-							●
268	00.206 COVER; FRT CHARGE AIR COOLER<6PL> TAIWAN EQUIPMENT(RWV)	8-97148-937-1	01	1	9712-							●
268	00.206 COVER; FRT EXC. CHARGE AIR COOLER<6PL>	8-97113-768-1	01	1	9712-							●
356	00.207 GASKET; COVER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. POWER STEERING<N40> 06.673	8-97101-875-2	01	1	9312-9711					●
356	00.207 GASKET; COVER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. POWER STEERING<N40> 06.673	8-97101-875-2	01	1	9712-					●	●
373	00.206 BRACKET; PUMP HYDRO BRAKE BOOSTER<7QQ>	8-97149-333-0	01	1	9712-9801							●
373	00.206 BRACKET; PUMP	8-97149-333-0	01	1	9802-							●
464	00.686 PIPE; PCV,FLYWHEEL HSG 00.669	8-94373-246-3	01	1	9312-9711					●
464	00.686 PIPE; PCV,FLYWHEEL HSG 00.669	8-94373-246-3	01	1	9712-					●	●	●
465	00.686 PLATE; FLYWHEEL HSG 00.669	8-94370-384-2	01	1	9312-9711					●
465	00.686 PLATE; FLYWHEEL HSG 00.669	8-94370-384-3	01	1	9712-					●	●	●
467	00.686 BOLT; PLATE 02.500 M6X10 FLANGE	0-28080-610-0	06	1	9312-9711					●
467	00.686 BOLT; PLATE 02.500 M6X10 FLANGE	0-28080-610-0	06	1	9712-					●	●	●
480	00.206 BOLT; COVER EXC. POWER STEERING<N40> 04.525 M10X25 FLANGE	0-28181-025-0	02	1	9312-9510					●
480	00.206 BOLT; COVER EXC. POWER STEERING<N40>,TAIWAN EQUIPMENT(RWV),COLOMBIA EQUIPMENT(X74) 04.525 M10X25 FLANGE	0-28181-025-0	02	1	9511-9602					●
480	00.206 BOLT; COVER EXC. POWER STEERING<N40>,TAIWAN EQUIPMENT(RWV),COLOMBIA EQUIPMENT(X74) 00.685 M10X28 FLANGE	0-28181-028-0	02	1	9603-9711					●
480	00.206 BOLT; COVER EXC. POWER STEERING<N40> 00.685 M10X28 FLANGE	0-28181-028-0	02	1	9712-					●	●

15 11 97 1 175 162 162 109 99 98 50 162 145 103 123 129 129 137 137 139 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	00.206 CASE; TIMING GEAR	8-94457-910-2	01	1	9312-9510	●	●	●
1	00.206 CASE; TIMING GEAR	8-94457-910-2	01	1	9511-9603		●	●
1	00.206 CASE; TIMING GEAR EXC. TACHOMETER<U16>	8-94457-910-2	01	1	9604-9608		●
1	00.206 CASE; TIMING GEAR	8-94457-910-2	01	1	9609-			●
1	00.206 CASE; TIMING GEAR TACHOMETER<U16>	8-94457-910-2	01	1	9609-		●
1	00.206 CASE; TIMING GEAR	8-97083-629-2	01	1	9312-9410				●
1	00.206 CASE; TIMING GEAR	8-97115-133-0	01	1	9411-9511				●
1	00.206 CASE; TIMING GEAR EXC. EURO2 SPECIFICATION<7AF>	8-97115-133-0	01	1	9512-9606				●
1	00.206 CASE; TIMING GEAR EXC. EURO2 SPECIFICATION<7AF>	8-97160-960-0	01	1	9607-9711				●
1	00.206 CASE; TIMING GEAR EURO2 SPECIFICATION<7AF>	8-97141-532-1	01	1	9512-9711				●
1	00.206 CASE; TIMING GEAR	8-97141-532-1	01	1	9712-				●
1	00.206 CASE; TIMING GEAR EXC. TACHOMETER<U16>	8-94450-975-2	01	1	9609-		●
11	00.683 PLATE; RR,C/BL	8-94437-923-2	01	1	9312-				●
15	00.683 BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	9312-				●
50	00.206 STUD M8X42.5 L=69	8-97148-539-0	01	1	9606-				●
97	00.206 GASKET; BLOCK TO HSG ALSO INCLUDED IN GASKET SET(ENGINE).	8-97080-302-0	01	1	9312-9504				●
97	00.206 GASKET; BLOCK TO HSG ALSO INCLUDED IN GASKET SET(ENGINE).	8-97129-429-0	01	1	9505-				●
98	00.206 NUT; STUD,INJ PUMP 03.340 M8	8-94224-829-0	03	1	9312-9511				●
98	00.206 NUT; STUD,INJ PUMP EXC. EURO2 SPECIFICATION<7AF> 03.340 M8	8-94224-829-0	03	1	9512-9711				●
98	00.206 NUT; STUD,INJ PUMP EURO2 SPECIFICATION<7AF> 03.340 M8	8-94224-829-0	02	1	9512-9711				●
98	00.206 NUT; STUD,INJ PUMP 03.340 M8	8-94224-829-0	02	1	9712-				●
99	00.206 STUD; INJ PUMP M8X25 L=41	9-04020-825-0	03	1	9312-9406				●
99	00.206 STUD; INJ PUMP 00.004 M8X28 L=44	9-04020-828-0	03	1	9407-9511				●
99	00.206 STUD; INJ PUMP EXC. EURO2 SPECIFICATION<7AF> 00.004 M8X28 L=44	9-04020-828-0	03	1	9512-9711				●
99	00.206 STUD; INJ PUMP EURO2 SPECIFICATION<7AF> 00.004 M8X28 L=44	9-04020-828-0	02	1	9512-9711				●
99	00.206 STUD; INJ PUMP 00.004 M8X28 L=44	9-04020-828-0	02	1	9712-				●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94373-765-0	01	1	9312-9510	●	●	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94373-765-0	01	1	9511-		●	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-560-1	01	1	9312-				●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94369-518-0	01	1	9312-9711					●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94369-518-0	01	1	9712-					●	●	●
109	00.219 POINTER; TIMING M5X7.5	8-94133-500-0	01	1	9312-				●
123	00.206 COVER; TIMING,LWR	8-97038-105-1	01	1	9312-				●
129	00.207 GASKET; TIMING COVER,LWR ALSO INCLUDED IN GASKET SET(ENGINE). (A) L=560	8-94464-695-1	01	1	9312-				●
129	00.207 GASKET; TIMING COVER,LWR ALSO INCLUDED IN GASKET SET(ENGINE). (B) L=366	8-94464-696-0	01	1	9312-				●
132	00.206 COVER; TIMING,UPR	8-97038-103-1	01	1	9312-				●
137	00.206 BOLT; FRT PLATE (A) M6X35 W/LK&PL WASHER	0-50140-635-0	07	1	9312-				●
137	00.206 BOLT; FRT PLATE (B) M6X50 W/LK WASHER	8-94152-616-1	03	1	9312-				●
139	00.207 GASKET; TIMING COVER,UPR ALSO INCLUDED IN GASKET SET(ENGINE). L=215	8-94139-961-0	01	1	9312-				●
145	00.206 BOLT; TENSIONER GUIDE M8X20	8-94152-617-1	01	1	9312-				●
162	00.206 BOLT; FRT PLATE 01.252 (A) M8X45 W/LK WASHER	0-50040-845-0	03	1	9312-				●
162	00.206 BOLT; FRT PLATE (B) M8X19.5,M8X42.5 L=69	8-94167-314-1	01	1	9312-9605				●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97072-823-1	01	1	9312-9510	●	●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97072-823-1	01	1	9511-		●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-561-1	01	1	9312-				●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-637-0	01	1	9312-9711					●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-637-0	01	1	9712-					●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
