◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50697 - NPR/NQR-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-15 - CRANKSHAFT,PISTON AND FLYWHEEL ▶
0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#48925) — 731 parça

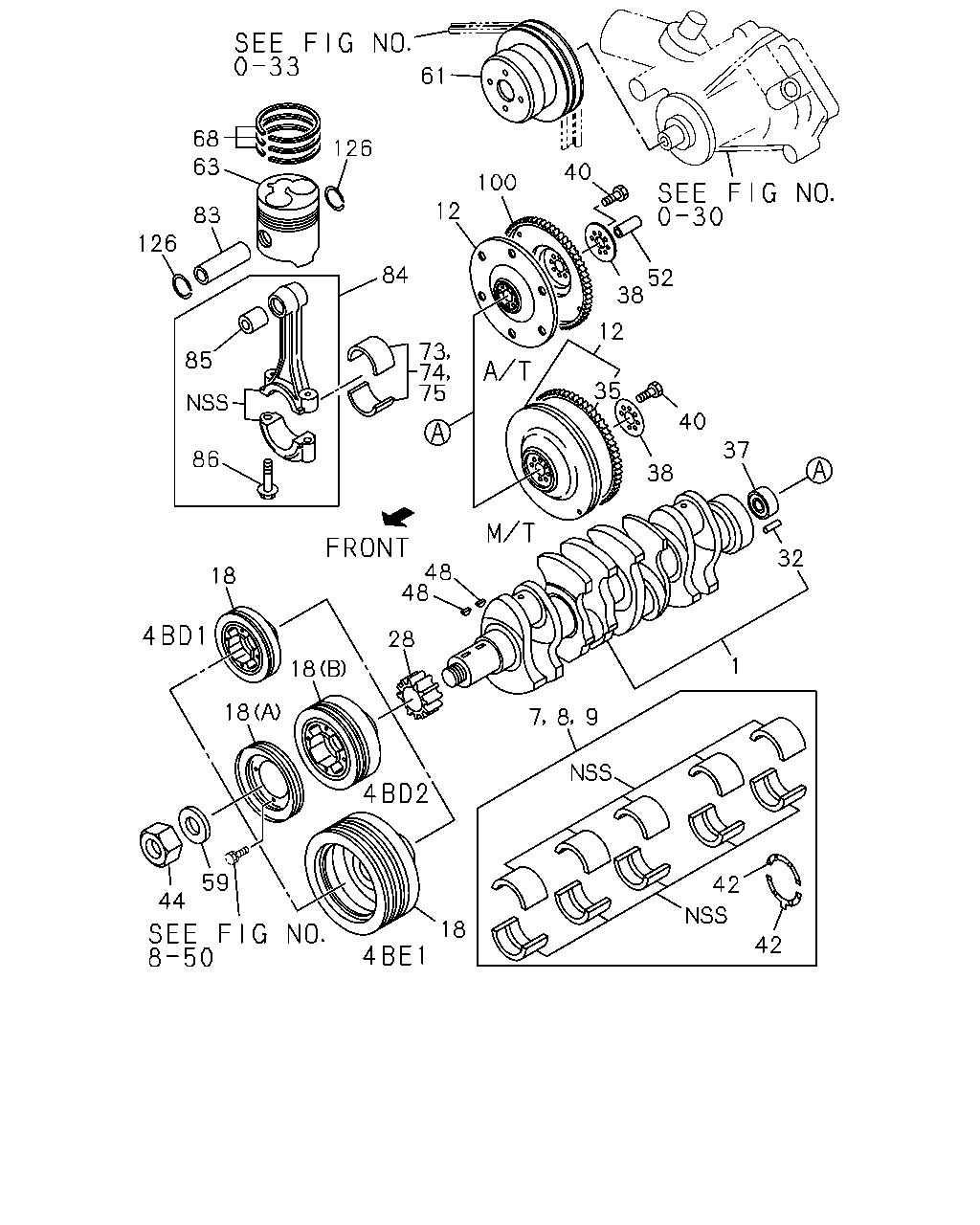

çizim 17021
61 68 63 126 40 100 12 83 126 84 52 38 12 73 74 75 85 35 40 37 86 38 32 48 48 18 28 1 18 18 9 7 8 59 42 44 18 42
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 00.646 CRANKSHAFT 5-12310-189-1 01 1 9312-9510 ● ●
1 00.646 CRANKSHAFT 5-12310-189-1 01 1 9511- ●
1 00.646 CRANKSHAFT 8-97023-182-1 01 1 9312- ●
1 00.646 CRANKSHAFT 8-94416-373-2 01 1 9312- ●
1 00.646 CRANKSHAFT 8-97033-171-2 01 1 9312-9408 ●
1 00.646 CRANKSHAFT 8-97112-981-0 01 1 9409-9711 ●
1 00.646 CRANKSHAFT 8-97112-981-1 01 1 9712- ● ●
1 00.646 CRANKSHAFT 8-97165-483-0 01 1 9712- ●
7 00.094 METAL KIT; CRANKSHAFT,STANDARD 8-97071-662-0 01 1 9312-9510 ● ●
7 00.094 METAL KIT; CRANKSHAFT,STANDARD 8-97071-662-0 01 1 9511- ●
7 00.094 METAL KIT; CRANKSHAFT,STANDARD 8-97071-660-0 01 1 9312- ●
8 00.094 METAL KIT; CRANKSHAFT,U/S=0.25 8-97064-883-0 01 1 9312- ●
8 00.094 METAL KIT; CRANKSHAFT,U/S=0.25 8-97174-988-0 01 1 9511-9711 ●
8 00.094 METAL KIT; CRANKSHAFT,U/S=0.25 8-97174-988-0 01 1 9712- ● ●
9 00.094 METAL KIT; CRANKSHAFT,U/S=0.50 8-97064-884-0 01 1 9312- ●
9 00.094 METAL KIT; CRANKSHAFT,U/S=0.50 8-97174-989-0 01 1 9511-9711 ●
9 00.094 METAL KIT; CRANKSHAFT,U/S=0.50 8-97174-989-0 01 1 9712- ● ●
12 00.666 FLYWHEEL 8-94343-053-1 01 1 9312-9504 ● ●
12 00.666 FLYWHEEL 8-94343-053-1 01 1 9505-9510 ●
12 00.666 FLYWHEEL
FLOOR REMOTE SHIFT<M11> 		8-94343-053-1 01 1 9505-9510 ●
12 00.666 FLYWHEEL
FLOOR REMOTE SHIFT<M11> 		8-94343-053-1 01 1 9511- ●
12 00.666 FLYWHEEL 8-97034-430-2 01 1 9312- ●
12 00.666 FLYWHEEL
A/T 4 SPEED-JATCO(RMK) 		8-94372-053-3 01 1 9505-9510 ●
12 00.666 FLYWHEEL
A/T 4 SPEED-JATCO(RMK) 		8-94372-053-3 01 1 9701- ●
12 00.666 FLYWHEEL 8-94372-128-1 01 1 9312- ●
12 00.666 FLYWHEEL 8-97077-585-1 01 1 9312-9408 ●
12 00.666 FLYWHEEL 8-97115-782-0 01 1 9409-9504 ●
12 00.666 FLYWHEEL
A/T 4 SPEED-JATCO(RMK) 		8-97027-933-1 01 1 9505-9711 ●
12 00.666 FLYWHEEL
A/T 4 SPEED-JATCO(RMK) 		8-97027-933-1 01 1 9712- ● ●
12 00.666 FLYWHEEL
FLOOR REMOTE SHIFT<M11> 		8-97115-782-0 01 1 9505-9612 ●
12 00.666 FLYWHEEL
FLOOR REMOTE SHIFT<M11> 		8-97169-129-0 01 1 9701-9711 ●
12 00.666 FLYWHEEL
FLOOR REMOTE SHIFT<M11> 		8-97169-129-0 01 1 9712-9801 ● ●
12 00.666 FLYWHEEL
FLOOR REMOTE SHIFT<M11> 		8-97169-129-2 01 1 9802- ● ●
12 00.666 FLYWHEEL
CHILE EQUIPMENT(6KB) 		8-97169-129-2 01 1 9802- ●
12 00.666 FLYWHEEL 8-97166-516-0 01 1 9712-9804 ●
12 00.666 FLYWHEEL
FLOOR REMOTE SHIFT<M11> 		8-97166-516-0 01 1 9805- ●
12 00.666 FLYWHEEL
VENEZUELA EQUIPMENT(S2L) A/T 4 SPEED-AISIN(RNJ) 		8-97170-778-0 01 1 9802- ●
18 00.659 PULLEY; CR/SHF 8-94100-454-0 01 1 9312-9509 ●
18 00.659 PULLEY; CR/SHF 8-97138-018-0 01 1 9510-9510 ●
18 00.659 PULLEY; CR/SHF
09.180 (A) 1-GROOVE YELLOW MARK 		8-94408-361-0 01 1 9312- ●
18 00.659 PULLEY; CR/SHF
02.270 (B) 3-GROOVE W/DAMPER 		8-97025-441-0 01 1 9312-9506 ●
18 00.659 PULLEY; CR/SHF
(B) 3-GROOVE W/DAMPER 		8-97135-549-0 01 1 9507- ●
18 00.659 PULLEY; CR/SHF
2-GROOVE 		8-94341-943-0 01 1 9312-9703 ●
18 00.659 PULLEY; CR/SHF
2-GROOVE 		8-97173-059-0 01 1 9704- ●
28 00.728 GEAR; CR/SHF
Z=25 		9-12521-043-0 01 1 9312-9510 ● ● ●
28 00.728 GEAR; CR/SHF
Z=25 		9-12521-043-0 01 1 9511-9511 ● ●
28 00.728 GEAR; CR/SHF
Z=25 		1-12521-008-0 01 1 9511-9806 ● ●
28 00.728 GEAR; CR/SHF
Z=25 		8-97137-910-1 01 1 9807- ● ●
28 00.728 GEAR; CR/SHF
Z=42 		8-94370-784-3 01 1 9312-9404 ●
28 00.728 GEAR; CR/SHF
Z=42 		8-97110-040-4 01 1 9405-9711 ●
28 00.728 GEAR; CR/SHF
Z=42 		8-97110-040-4 01 1 9712- ● ●
28 00.728 GEAR; CR/SHF
Z=42 		8-97110-041-4 01 1 9712- ●
32 00.669 PIN; FLYWHEEL
08.939 OD=12 L=20 		9-08161-220-0 01 1 9312-9510 ● ● ●
32 00.669 PIN; FLYWHEEL
08.939 OD=12 L=20 		9-08161-220-0 01 1 9511- ● ●
35 00.673 GEAR; RING 8-94468-412-0 01 1 9312-9504 ● ● ●
35 00.673 GEAR; RING 8-94468-412-0 01 1 9505-9509 ● ●
35 00.673 GEAR; RING
FLOOR REMOTE SHIFT<M11> 		8-94468-412-0 01 1 9505-9509 ●
35 00.673 GEAR; RING 8-94468-412-0 01 1 9510-9510 ● ● ●
35 00.673 GEAR; RING
FLOOR REMOTE SHIFT<M11> 		8-94468-412-0 01 1 9511-9612 ●
35 00.673 GEAR; RING 8-94468-412-0 01 1 9511-9612 ●
35 00.673 GEAR; RING 8-94468-412-0 01 1 9701- ● ●
35 00.673 GEAR; RING
Z=108 		8-94419-602-1 01 1 9312- ●
35 00.673 GEAR; RING
A/T 4 SPEED-JATCO(RMK) Z=128 		5-12333-002-0 01 1 9505-9509 ●
35 00.673 GEAR; RING
Z=138 		8-97046-366-0 01 1 9312-9504 ●
35 00.673 GEAR; RING
FLOOR REMOTE SHIFT<M11> Z=138 		8-97046-366-0 01 1 9505-9612 ●
35 00.673 GEAR; RING
FLOOR REMOTE SHIFT<M11> Z=138 		8-97169-134-0 01 1 9701-9711 ●
35 00.673 GEAR; RING
FLOOR REMOTE SHIFT<M11> Z=138 		8-97169-134-0 01 1 9712-9801 ● ●
35 00.673 GEAR; RING
FLOOR REMOTE SHIFT<M11> Z=138 		8-97169-134-0 01 1 9802- ● ●
35 00.673 GEAR; RING
CHILE EQUIPMENT(6KB) Z=138 		8-97169-134-0 01 1 9802- ●
35 00.673 GEAR; RING
Z=138 		8-97046-366-0 01 1 9712-9801 ●
35 00.673 GEAR; RING
VENEZUELA EQUIPMENT(S2L) FLOOR REMOTE SHIFT<M11> Z=138 		8-97046-366-0 01 1 9802-9804 ●
35 00.673 GEAR; RING
EXC. VENEZUELA EQUIPMENT(S2L),CHILE EQUIPMENT(6KB) Z=138 		8-97046-366-0 01 1 9802-9804 ●
35 00.673 GEAR; RING
FLOOR REMOTE SHIFT<M11> Z=138 		8-97046-366-0 01 1 9805- ●
37 00.096 BEARING; PILOT,TOP GEAR SHAFT
00.649 NSK 		9-00090-679-0 01 1 9312-9504 ● ● ● ●
37 00.096 BEARING; PILOT,TOP GEAR SHAFT
00.649 NSK 		9-00090-679-0 01 1 9505-9510 ● ● ●
37 00.096 BEARING; PILOT,TOP GEAR SHAFT
FLOOR REMOTE SHIFT<M11> 00.649 NSK 		9-00090-679-0 01 1 9505-9510 ●
37 00.096 BEARING; PILOT,TOP GEAR SHAFT
00.649 NSK 		9-00090-679-0 01 1 9511- ● ●
37 00.096 BEARING; PILOT,TOP GEAR SHAFT
FLOOR REMOTE SHIFT<M11> 00.649 NSK 		9-00090-679-0 01 1 9511- ●
38 00.862 WASHER; FLYWHEEL
00.669 		5-12336-003-0 01 1 9312-9504 ● ● ●
38 00.862 WASHER; FLYWHEEL
FLOOR REMOTE SHIFT<M11> 00.669 		5-12336-003-0 01 1 9505-9510 ●
38 00.862 WASHER; FLYWHEEL
00.669 		5-12336-003-0 01 1 9505-9510 ●
38 00.862 WASHER; FLYWHEEL
00.669 		5-12336-003-0 01 1 9511-9702 ● ●
38 00.862 WASHER; FLYWHEEL
FLOOR REMOTE SHIFT<M11> 00.669 		5-12336-003-0 01 1 9703- ●
38 00.862 WASHER; FLYWHEEL
00.669 		5-12336-003-0 01 1 9703- ●
38 00.862 WASHER; FLYWHEEL
00.669 		8-94133-970-0 01 1 9312- ●
38 00.862 WASHER; FLYWHEEL
A/T 4 SPEED-JATCO(RMK) 00.669 		8-94372-068-0 01 1 9505-9510 ●
38 00.862 WASHER; FLYWHEEL
A/T 4 SPEED-JATCO(RMK) 00.669 		8-94372-068-0 01 1 9701- ●
38 00.862 WASHER; FLYWHEEL
00.669 		8-94310-615-0 01 1 9312-9504 ●
38 00.862 WASHER; FLYWHEEL
FLOOR REMOTE SHIFT<M11> 00.669 		8-94310-615-0 01 1 9505-9711 ●
38 00.862 WASHER; FLYWHEEL
FLOOR REMOTE SHIFT<M11> 00.669 		8-94310-615-0 01 1 9712-9801 ● ●
38 00.862 WASHER; FLYWHEEL
FLOOR REMOTE SHIFT<M11> 00.669 		8-94310-615-0 01 1 9802- ● ●
38 00.862 WASHER; FLYWHEEL
CHILE EQUIPMENT(6KB) 00.669 		8-94310-615-0 01 1 9802- ●
38 00.862 WASHER; FLYWHEEL
A/T 4 SPEED-JATCO(RMK) 00.669 		8-97013-377-1 01 1 9505-9511 ●
38 00.862 WASHER; FLYWHEEL
A/T 4 SPEED-JATCO(RMK) 00.669 		8-97013-377-1 01 1 9511-9711 ●
38 00.862 WASHER; FLYWHEEL
A/T 4 SPEED-JATCO(RMK) 00.669 		8-97013-377-1 01 1 9712- ● ●
38 00.862 WASHER; FLYWHEEL
ID=55 OD=110 		8-94397-496-1 01 1 9712-9801 ●
38 00.862 WASHER; FLYWHEEL
VENEZUELA EQUIPMENT(S2L) FLOOR REMOTE SHIFT<M11> ID=55 OD=110 		8-94397-496-1 01 1 9802-9804 ●
38 00.862 WASHER; FLYWHEEL
EXC. VENEZUELA EQUIPMENT(S2L),CHILE EQUIPMENT(6KB) ID=55 OD=110 		8-94397-496-1 01 1 9802-9804 ●
38 00.862 WASHER; FLYWHEEL
FLOOR REMOTE SHIFT<M11> ID=55 OD=110 		8-94397-496-1 01 1 9805- ●
38 00.862 WASHER; FLYWHEEL
VENEZUELA EQUIPMENT(S2L) A/T 4 SPEED-AISIN(RNJ) 		8-97170-830-0 01 1 9802- ●
40 00.669 BOLT; FLYWHEEL
M14X36 		8-97028-730-0 06 1 9312-9504 ● ● ●
40 00.669 BOLT; FLYWHEEL
M14X36 		8-97028-730-0 06 1 9505-9510 ● ●
40 00.669 BOLT; FLYWHEEL
FLOOR REMOTE SHIFT<M11> M14X36 		8-97028-730-0 06 1 9505-9510 ●
40 00.669 BOLT; FLYWHEEL
M14X36 		8-97028-730-0 06 1 9511-9702 ● ●
40 00.669 BOLT; FLYWHEEL
FLOOR REMOTE SHIFT<M11> M14X36 		8-97028-730-0 06 1 9703- ●
40 00.669 BOLT; FLYWHEEL
M14X36 		8-97028-730-0 06 1 9703- ●
40 00.669 BOLT; FLYWHEEL
M13X36 		8-97065-984-1 08 1 9312- ●
40 00.669 BOLT; FLYWHEEL
A/T 4 SPEED-JATCO(RMK) M14X50 		8-97028-731-0 06 1 9505-9510 ●
40 00.669 BOLT; FLYWHEEL
A/T 4 SPEED-JATCO(RMK) M14X50 		8-97028-731-0 06 1 9701- ●
40 00.669 BOLT; FLYWHEEL
M16X62 		8-97065-517-1 08 1 9312-9408 ●
40 00.669 BOLT; FLYWHEEL
M18X33 		8-97112-999-0 08 1 9409-9504 ●
40 00.669 BOLT; FLYWHEEL
A/T 4 SPEED-JATCO(RMK) M16X51 		8-94334-870-1 08 1 9505-9711 ●
40 00.669 BOLT; FLYWHEEL
A/T 4 SPEED-JATCO(RMK) M16X51 		8-94334-870-1 08 1 9712-9801 ● ●
40 00.669 BOLT; FLYWHEEL
A/T 4 SPEED-JATCO(RMK) M16X51 		8-94334-870-1 08 1 9802- ● ●
40 00.669 BOLT; FLYWHEEL
VENEZUELA EQUIPMENT(S2L) A/T 4 SPEED-AISIN(RNJ) M16X51 		8-94334-870-1 08 1 9802- ●
40 00.669 BOLT; FLYWHEEL
FLOOR REMOTE SHIFT<M11> M18X33 		8-97112-999-0 08 1 9505-9702 ●
40 00.669 BOLT; FLYWHEEL
FLOOR REMOTE SHIFT<M11> M16X42 		8-97178-013-0 08 1 9703-9711 ●
40 00.669 BOLT; FLYWHEEL
FLOOR REMOTE SHIFT<M11> M16X42 		8-97178-013-0 08 1 9712-9801 ● ●
40 00.669 BOLT; FLYWHEEL
M16X42 		8-97178-013-0 08 1 9712-9801 ●
40 00.669 BOLT; FLYWHEEL
FLOOR REMOTE SHIFT<M11> M16X42 		8-97178-013-0 08 1 9802-9804 ● ●
40 00.669 BOLT; FLYWHEEL
VENEZUELA EQUIPMENT(S2L) FLOOR REMOTE SHIFT<M11> M16X42 		8-97178-013-0 08 1 9802-9804 ●
40 00.669 BOLT; FLYWHEEL
EXC. VENEZUELA EQUIPMENT(S2L) M16X42 		8-97178-013-0 08 1 9802-9804 ●
40 00.669 BOLT; FLYWHEEL
FLOOR REMOTE SHIFT<M11> M16X42 		8-97178-013-0 08 1 9805- ● ● ●
42 00.095 WASHER; THRUST,CR/SHF 8-97071-358-0 02 1 9402-9510 ● ● ●
42 00.095 WASHER; THRUST,CR/SHF 8-97071-358-0 02 1 9511-9511 ● ●
42 00.095 WASHER; THRUST,CR/SHF 8-97071-358-0 02 1 9511- ● ●
42 00.095 WASHER; THRUST,CR/SHF 8-94453-520-0 02 1 9312- ●
42 00.095 WASHER; THRUST,CR/SHF
(A) 		8-94399-277-0 01 1 9312-9711 ●
42 00.095 WASHER; THRUST,CR/SHF
(A) 		8-94399-277-0 01 1 9712- ● ● ●
42 00.095 WASHER; THRUST,CR/SHF
(B) 		8-94399-283-0 02 1 9312-9711 ●
42 00.095 WASHER; THRUST,CR/SHF
(B) 		8-94399-283-0 02 1 9712- ● ● ●
44 00.662 NUT; CR/SHF FRT
06.861 M27 		5-12378-002-0 01 1 9312-9510 ● ● ●
44 00.662 NUT; CR/SHF FRT
06.861 M27 		5-12378-002-0 01 1 9511- ● ●
48 00.662 KEY; WOODRUFF,CR/SHF 8-94107-597-0 02 1 9312-9510 ● ● ●
48 00.662 KEY; WOODRUFF,CR/SHF 8-94107-597-0 02 1 9511- ● ●
52 00.669 SLEEVE; CONV PILOT
A/T 4 SPEED-JATCO(RMK) 		8-94455-101-0 01 1 9505-9510 ●
52 00.669 SLEEVE; CONV PILOT
A/T 4 SPEED-JATCO(RMK) 		8-94455-101-0 01 1 9701- ●
52 00.669 SLEEVE; CONV PILOT
A/T 4 SPEED-JATCO(RMK) 		8-97026-319-1 01 1 9505-9711 ●
52 00.669 SLEEVE; CONV PILOT
A/T 4 SPEED-JATCO(RMK) 		8-97026-319-1 01 1 9712- ● ●
59 00.662 WASHER; CR/SHF PULLEY 5-09503-024-0 01 1 9312-9510 ● ● ●
59 00.662 WASHER; CR/SHF PULLEY 5-09503-024-0 01 1 9511- ● ●
61 00.659 PULLEY; FAN DRIVE
01.062 1-GROOVE 		5-13663-057-0 01 1 9312-9510 ● ●
61 00.659 PULLEY; FAN DRIVE
01.062 1-GROOVE 		5-13663-057-0 01 1 9511- ●
61 00.659 PULLEY; FAN DRIVE
1-GROOVE OD=120 		8-94459-815-3 01 1 9312- ●
61 00.659 PULLEY; FAN DRIVE
3-GROOVE 		8-97044-891-2 01 1 9312- ●
61 00.659 PULLEY; FAN DRIVE
2-GROOVE 		8-94389-413-1 01 1 9312- ●
61 00.659 PULLEY; FAN DRIVE
2-GROOVE 		8-97174-757-1 01 1 9712- ● ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. GRADE=AX 		8-97176-836-0 04 1 9312-9510 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. GRADE=CX 		8-97176-837-0 04 1 9312-9510 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. GRADE=AX 		8-97176-616-0 04 1 9312-9603 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. GRADE=CX 		8-97176-617-0 04 1 9312-9603 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. EURO2 SPECIFICATION<7AF> GRADE=AX 		8-97176-618-0 04 1 9604-9711 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. GRADE=AX 		8-97176-618-0 04 1 9712- ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. EURO2 SPECIFICATION<7AF> GRADE=CX 		8-97176-619-0 04 1 9604-9711 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. GRADE=CX 		8-97176-619-0 04 1 9712- ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. EXC. EURO2 SPECIFICATION<7AF> GRADE=AX 		8-97176-616-0 04 1 9604-9711 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		8-97183-666-0 04 1 9712- ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. EXC. EURO2 SPECIFICATION<7AF> GRADE=CX 		8-97176-617-0 04 1 9604-9711 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. EXC. CHARGE AIR COOLER<6PL> GRADE=AX 		8-97176-652-0 04 1 9712- ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. GRADE=AX 		8-97176-642-0 04 1 9312- ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. GRADE=CX 		8-97176-643-0 04 1 9312- ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. GRADE=AX 		8-97176-648-0 04 1 9312- ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. GRADE=CX 		8-97176-649-0 04 1 9312- ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		8-97176-657-0 04 1 9511-9704 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		8-97183-667-0 04 1 9705- ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. TAIWAN EQUIPMENT(RWV) NON GRADE 		8-97176-656-0 04 1 9312-9510 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. EXC. TAIWAN EQUIPMENT(RWV) NON GRADE 		8-97176-655-0 04 1 9312-9510 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL> GRADE=AX 		8-97183-664-0 04 1 9712- ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL> GRADE=CX 		8-97183-665-0 04 1 9712- ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. EXC. CHARGE AIR COOLER<6PL> GRADE=CX 		8-97176-653-0 04 1 9712- ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		5-12121-004-2 04 1 9312-9407 ● ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		5-12121-004-2 04 1 9408-9510 ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-97080-215-0 04 1 9312-9611 ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. EXC. EURO2 SPECIFICATION<7AF> 		8-97080-215-0 04 1 9612-9708 ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. EURO2 SPECIFICATION<7AF> 		8-97147-984-0 04 1 9612-9708 ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-97147-984-0 04 1 9709- ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-97117-686-0 04 1 9408-9511 ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-97117-686-0 04 1 9511- ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-94418-918-0 04 1 9312- ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-97028-691-0 04 1 9312-9504 ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. EXC. EURO1 SPECIFICATION<6YW> 		8-97028-691-0 04 1 9505-9510 ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-97109-462-0 04 1 9511- ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. EURO1 SPECIFICATION<6YW> 		8-97109-462-0 04 1 9505-9510 ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL> 		8-97166-992-0 04 1 9712- ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. EXC. CHARGE AIR COOLER<6PL> 		8-97078-779-0 04 1 9712- ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-97105-867-0 04 1 9712- ●
73 00.616 METAL SET; CONN ROD,STANDARD 8-97011-031-0 04 1 9312-9510 ● ● ●
73 00.616 METAL SET; CONN ROD,STANDARD 8-94372-193-1 04 1 9312- ●
73 00.616 METAL SET; CONN ROD,STANDARD 8-97011-031-0 04 1 9511-9511 ● ●
73 00.616 METAL SET; CONN ROD,STANDARD 8-97011-031-0 04 1 9511- ● ●
73 00.616 METAL SET; CONN ROD,STANDARD
YELLOW 		8-97045-800-0 04 1 9312-9504 ●
73 00.616 METAL SET; CONN ROD,STANDARD
GREEN 		8-97045-801-0 04 1 9312-9611 ●
73 00.616 METAL SET; CONN ROD,STANDARD
YELLOW 		8-97045-800-0 04 1 9505-9711 ●
73 00.616 METAL SET; CONN ROD,STANDARD
YELLOW 		8-97045-800-0 04 1 9712- ● ●
73 00.616 METAL SET; CONN ROD,STANDARD
GREEN 		8-97045-801-0 04 1 9612-9711 ●
73 00.616 METAL SET; CONN ROD,STANDARD
GREEN 		8-97045-801-0 04 1 9712- ● ●
73 00.616 METAL SET; CONN ROD,STANDARD
GREEN 		8-94395-757-0 04 1 9712- ●
73 00.616 METAL SET; CONN ROD,STANDARD
YELLOW 		8-97131-186-0 04 1 9712- ●
74 00.616 METAL SET; CONN ROD,U/S=0.25 5-87310-090-1 04 1 9312-9510 ● ● ●
74 00.616 METAL SET; CONN ROD,U/S=0.25 5-87310-090-1 04 1 9511- ● ●
74 00.616 METAL SET; CONN ROD,U/S=0.25 8-97175-127-0 04 1 9511-9711 ●
74 00.616 METAL SET; CONN ROD,U/S=0.25 8-97175-127-0 04 1 9712- ● ●
75 00.616 METAL SET; CONN ROD,U/S=0.50 5-87310-091-1 04 1 9312-9510 ● ● ●
75 00.616 METAL SET; CONN ROD,U/S=0.50 5-87310-091-1 04 1 9511- ● ●
75 00.616 METAL SET; CONN ROD,U/S=0.50 8-97175-128-0 04 1 9511-9711 ●
75 00.616 METAL SET; CONN ROD,U/S=0.50 8-97175-128-0 04 1 9712- ● ●
83 00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		9-12211-604-0 04 1 9312-9510 ● ●
83 00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		9-12211-604-0 04 1 9511- ●
83 00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		8-94457-008-1 04 1 9312- ●
83 00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		5-12211-022-0 04 1 9312- ●
83 00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		8-94396-589-0 04 1 9312-9711 ●
83 00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		8-94396-589-0 04 1 9712- ● ●
83 00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		8-94396-731-1 04 1 9712- ●
84 00.603 ROD ASM; CONN 1-12230-104-1 04 1 9312-9510 ● ●
84 00.603 ROD ASM; CONN 1-12230-104-1 04 1 9511- ●
84 00.603 ROD ASM; CONN 8-97062-300-0 04 1 9312- ●
84 00.603 ROD ASM; CONN 8-97011-030-0 04 1 9312- ●
84 00.603 ROD ASM; CONN 8-94473-443-6 04 1 9312-9506 ●
84 00.603 ROD ASM; CONN 8-97135-032-0 04 1 9507-9711 ●
84 00.603 ROD ASM; CONN 8-97135-032-0 04 1 9712- ● ●
84 00.603 ROD ASM; CONN 8-94399-661-1 04 1 9712- ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		1-12251-027-0 04 1 9312-9510 ● ● ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		1-12251-027-0 04 1 9511- ● ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		8-94457-158-0 04 1 9312- ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		1-12251-036-0 04 1 9312-9711 ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		1-12251-036-0 04 1 9712- ● ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		8-94394-613-0 04 1 9712- ●
86 00.623 BOLT; CONNROD
M20X49.5 		1-12235-027-1 08 1 9312-9510 ● ●
86 00.623 BOLT; CONNROD
M11X44.5 		8-97062-086-0 08 1 9312- ●
86 00.623 BOLT; CONNROD
M20X49.5 		1-12235-027-1 08 1 9511- ●
86 00.623 BOLT; CONNROD
M12X61 		8-97011-094-0 08 1 9312- ●
86 00.623 BOLT; CONNROD
M13X57 FLANGE 		1-12235-035-0 08 1 9312-9711 ●
86 00.623 BOLT; CONNROD
M13X57 FLANGE 		1-12235-035-0 08 1 9712- ● ● ●
100 00.666 PLATE; FLEX
A/T 4 SPEED-JATCO(RMK) 		8-97065-189-0 01 1 9505-9510 ●
100 00.666 PLATE; FLEX
A/T 4 SPEED-JATCO(RMK) 		8-97065-189-0 01 1 9701- ●
100 00.666 PLATE; FLEX
A/T 4 SPEED-JATCO(RMK) 		8-97046-365-2 01 1 9505-9711 ●
100 00.666 PLATE; FLEX
A/T 4 SPEED-JATCO(RMK) 		8-97046-365-2 01 1 9712- ● ●
100 00.666 PLATE; FLEX
VENEZUELA EQUIPMENT(S2L) A/T 4 SPEED-AISIN(RNJ) 		8-97170-780-0 01 1 9802- ●
126 00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. 		8-94107-575-0 08 1 9312-9510 ● ● ●
126 00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. 		8-94107-575-1 08 1 9511- ● ●
126 00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. 		8-94460-687-0 08 1 9312- ●
126 00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. 		8-94318-798-2 08 1 9312-9711 ●
126 00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. 		8-94318-798-2 08 1 9712- ● ●
126 00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. 		1-09587-081-1 08 1 9712- ●

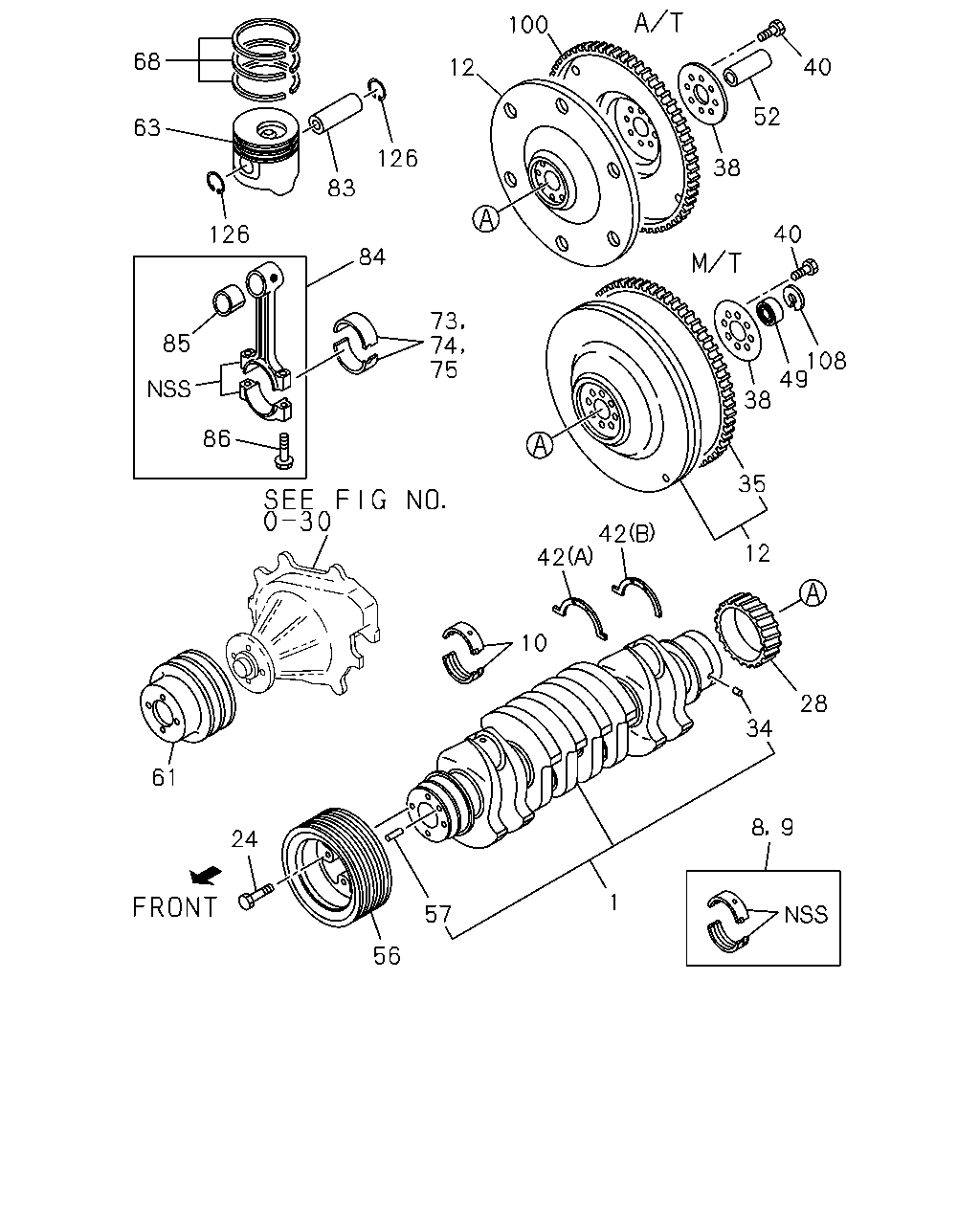

çizim 20250
100 68 40 12 52 63 126 38 83 40 126 84 73 74 75 85 108 49 38 86 35 42 12 42 10 28 34 61 8 9 24 1 57 56
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 00.646 CRANKSHAFT 5-12310-189-1 01 1 9312-9510 ● ●
1 00.646 CRANKSHAFT 5-12310-189-1 01 1 9511- ●
1 00.646 CRANKSHAFT 8-97023-182-1 01 1 9312- ●
1 00.646 CRANKSHAFT 8-94416-373-2 01 1 9312- ●
1 00.646 CRANKSHAFT 8-97033-171-2 01 1 9312-9408 ●
1 00.646 CRANKSHAFT 8-97112-981-0 01 1 9409-9711 ●
1 00.646 CRANKSHAFT 8-97112-981-1 01 1 9712- ● ●
1 00.646 CRANKSHAFT 8-97165-483-0 01 1 9712- ●
8 00.094 METAL KIT; CRANKSHAFT,U/S=0.25 8-97064-883-0 01 1 9312- ●
8 00.094 METAL KIT; CRANKSHAFT,U/S=0.25 8-97174-988-0 01 1 9511-9711 ●
8 00.094 METAL KIT; CRANKSHAFT,U/S=0.25 8-97174-988-0 01 1 9712- ● ●
9 00.094 METAL KIT; CRANKSHAFT,U/S=0.50 8-97064-884-0 01 1 9312- ●
9 00.094 METAL KIT; CRANKSHAFT,U/S=0.50 8-97174-989-0 01 1 9511-9711 ●
9 00.094 METAL KIT; CRANKSHAFT,U/S=0.50 8-97174-989-0 01 1 9712- ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLUE 		8-97063-258-0 05 1 9312-9510 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLACK 		8-97063-259-0 05 1 9312-9510 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GREEN 		8-97063-260-0 05 1 9312-9510 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLUE 		8-97063-258-0 05 1 9511-9711 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLACK 		8-97063-259-0 05 1 9511-9711 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GREEN 		8-97063-260-0 05 1 9511-9711 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLUE 		8-97063-258-0 05 1 9712- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLACK 		8-97063-259-0 05 1 9712- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GREEN 		8-97063-260-0 05 1 9712- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLUE 		8-97045-915-0 05 1 9312-9510 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLACK 		8-97045-916-0 05 1 9312-9510 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BROWN 		8-97045-917-0 05 1 9312-9510 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLUE 		8-97045-915-0 05 1 9511-9711 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLUE 		8-97045-915-0 05 1 9712- ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLACK 		8-97045-916-0 05 1 9511-9711 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLACK 		8-97045-916-0 05 1 9712- ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BROWN 		8-97045-917-0 05 1 9511-9711 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BROWN 		8-97045-917-0 05 1 9712- ● ● ●
12 00.666 FLYWHEEL 8-94343-053-1 01 1 9312-9504 ● ●
12 00.666 FLYWHEEL 8-94343-053-1 01 1 9505-9510 ●
12 00.666 FLYWHEEL
FLOOR REMOTE SHIFT<M11> 		8-94343-053-1 01 1 9505-9510 ●
12 00.666 FLYWHEEL
FLOOR REMOTE SHIFT<M11> 		8-94343-053-1 01 1 9511- ●
12 00.666 FLYWHEEL 8-97034-430-2 01 1 9312- ●
12 00.666 FLYWHEEL
A/T 4 SPEED-JATCO(RMK) 		8-94372-053-3 01 1 9505-9510 ●
12 00.666 FLYWHEEL
A/T 4 SPEED-JATCO(RMK) 		8-94372-053-3 01 1 9701- ●
12 00.666 FLYWHEEL 8-94372-128-1 01 1 9312- ●
12 00.666 FLYWHEEL 8-97077-585-1 01 1 9312-9408 ●
12 00.666 FLYWHEEL 8-97115-782-0 01 1 9409-9504 ●
12 00.666 FLYWHEEL
A/T 4 SPEED-JATCO(RMK) 		8-97027-933-1 01 1 9505-9711 ●
12 00.666 FLYWHEEL
A/T 4 SPEED-JATCO(RMK) 		8-97027-933-1 01 1 9712- ● ●
12 00.666 FLYWHEEL
FLOOR REMOTE SHIFT<M11> 		8-97115-782-0 01 1 9505-9612 ●
12 00.666 FLYWHEEL
FLOOR REMOTE SHIFT<M11> 		8-97169-129-0 01 1 9701-9711 ●

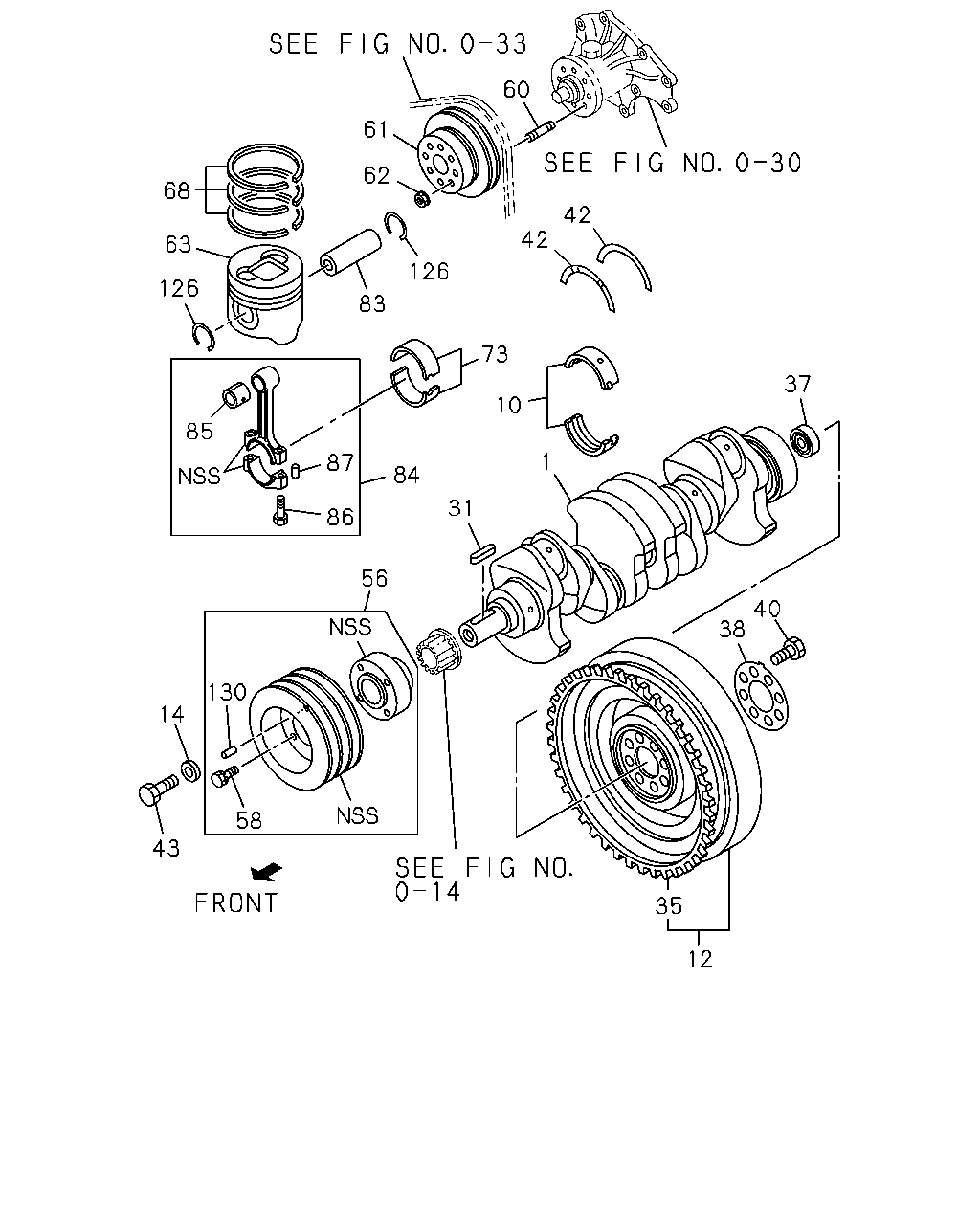

12 00.666 FLYWHEEL
FLOOR REMOTE SHIFT<M11> 		8-97169-129-0 01 1 9712-9801 ● ●
12 00.666 FLYWHEEL
FLOOR REMOTE SHIFT<M11> 		8-97169-129-2 01 1 9802- ● ●
12 00.666 FLYWHEEL
CHILE EQUIPMENT(6KB) 		8-97169-129-2 01 1 9802- ●
12 00.666 FLYWHEEL 8-97166-516-0 01 1 9712-9804 ●
12 00.666 FLYWHEEL
FLOOR REMOTE SHIFT<M11> 		8-97166-516-0 01 1 9805- ●
12 00.666 FLYWHEEL
VENEZUELA EQUIPMENT(S2L) A/T 4 SPEED-AISIN(RNJ) 		8-97170-778-0 01 1 9802- ●
24 00.659 BOLT; DAMPER
M16X42 		8-97028-733-0 04 1 9312-9711 ●
24 00.659 BOLT; DAMPER
M16X42 		8-97028-733-0 04 1 9712- ● ● ●
28 00.728 GEAR; CR/SHF
Z=25 		9-12521-043-0 01 1 9312-9510 ● ● ●
28 00.728 GEAR; CR/SHF
Z=25 		9-12521-043-0 01 1 9511-9511 ● ●
28 00.728 GEAR; CR/SHF
Z=25 		1-12521-008-0 01 1 9511-9806 ● ●
28 00.728 GEAR; CR/SHF
Z=25 		8-97137-910-1 01 1 9807- ● ●
28 00.728 GEAR; CR/SHF
Z=42 		8-94370-784-3 01 1 9312-9404 ●
28 00.728 GEAR; CR/SHF
Z=42 		8-97110-040-4 01 1 9405-9711 ●
28 00.728 GEAR; CR/SHF
Z=42 		8-97110-040-4 01 1 9712- ● ●
28 00.728 GEAR; CR/SHF
Z=42 		8-97110-041-4 01 1 9712- ●
34 00.738 PIN; GEAR SETTING
OD=5 L=6 		9-09878-626-0 01 1 9312-9711 ●
34 00.738 PIN; GEAR SETTING
OD=5 L=6 		9-09878-626-0 01 1 9712- ● ● ●
35 00.673 GEAR; RING 8-94468-412-0 01 1 9312-9504 ● ● ●
35 00.673 GEAR; RING 8-94468-412-0 01 1 9505-9509 ● ●
35 00.673 GEAR; RING
FLOOR REMOTE SHIFT<M11> 		8-94468-412-0 01 1 9505-9509 ●
35 00.673 GEAR; RING 8-94468-412-0 01 1 9510-9510 ● ● ●
35 00.673 GEAR; RING
FLOOR REMOTE SHIFT<M11> 		8-94468-412-0 01 1 9511-9612 ●
35 00.673 GEAR; RING 8-94468-412-0 01 1 9511-9612 ●
35 00.673 GEAR; RING 8-94468-412-0 01 1 9701- ● ●
35 00.673 GEAR; RING
Z=108 		8-94419-602-1 01 1 9312- ●
35 00.673 GEAR; RING
A/T 4 SPEED-JATCO(RMK) Z=128 		5-12333-002-0 01 1 9505-9509 ●
35 00.673 GEAR; RING
Z=138 		8-97046-366-0 01 1 9312-9504 ●
35 00.673 GEAR; RING
FLOOR REMOTE SHIFT<M11> Z=138 		8-97046-366-0 01 1 9505-9612 ●
35 00.673 GEAR; RING
FLOOR REMOTE SHIFT<M11> Z=138 		8-97169-134-0 01 1 9701-9711 ●
35 00.673 GEAR; RING
FLOOR REMOTE SHIFT<M11> Z=138 		8-97169-134-0 01 1 9712-9801 ● ●
35 00.673 GEAR; RING
FLOOR REMOTE SHIFT<M11> Z=138 		8-97169-134-0 01 1 9802- ● ●
35 00.673 GEAR; RING
CHILE EQUIPMENT(6KB) Z=138 		8-97169-134-0 01 1 9802- ●
35 00.673 GEAR; RING
Z=138 		8-97046-366-0 01 1 9712-9801 ●
35 00.673 GEAR; RING
VENEZUELA EQUIPMENT(S2L) FLOOR REMOTE SHIFT<M11> Z=138 		8-97046-366-0 01 1 9802-9804 ●
35 00.673 GEAR; RING
EXC. VENEZUELA EQUIPMENT(S2L),CHILE EQUIPMENT(6KB) Z=138 		8-97046-366-0 01 1 9802-9804 ●
35 00.673 GEAR; RING
FLOOR REMOTE SHIFT<M11> Z=138 		8-97046-366-0 01 1 9805- ●
38 00.862 WASHER; FLYWHEEL
00.669 		5-12336-003-0 01 1 9312-9504 ● ● ●
38 00.862 WASHER; FLYWHEEL
FLOOR REMOTE SHIFT<M11> 00.669 		5-12336-003-0 01 1 9505-9510 ●
38 00.862 WASHER; FLYWHEEL
00.669 		5-12336-003-0 01 1 9505-9510 ●
38 00.862 WASHER; FLYWHEEL
00.669 		5-12336-003-0 01 1 9511-9702 ● ●
38 00.862 WASHER; FLYWHEEL
FLOOR REMOTE SHIFT<M11> 00.669 		5-12336-003-0 01 1 9703- ●
38 00.862 WASHER; FLYWHEEL
00.669 		5-12336-003-0 01 1 9703- ●
38 00.862 WASHER; FLYWHEEL
00.669 		8-94133-970-0 01 1 9312- ●
38 00.862 WASHER; FLYWHEEL
A/T 4 SPEED-JATCO(RMK) 00.669 		8-94372-068-0 01 1 9505-9510 ●
38 00.862 WASHER; FLYWHEEL
A/T 4 SPEED-JATCO(RMK) 00.669 		8-94372-068-0 01 1 9701- ●
38 00.862 WASHER; FLYWHEEL
00.669 		8-94310-615-0 01 1 9312-9504 ●
38 00.862 WASHER; FLYWHEEL
FLOOR REMOTE SHIFT<M11> 00.669 		8-94310-615-0 01 1 9505-9711 ●
38 00.862 WASHER; FLYWHEEL
FLOOR REMOTE SHIFT<M11> 00.669 		8-94310-615-0 01 1 9712-9801 ● ●
38 00.862 WASHER; FLYWHEEL
FLOOR REMOTE SHIFT<M11> 00.669 		8-94310-615-0 01 1 9802- ● ●
38 00.862 WASHER; FLYWHEEL
CHILE EQUIPMENT(6KB) 00.669 		8-94310-615-0 01 1 9802- ●
38 00.862 WASHER; FLYWHEEL
A/T 4 SPEED-JATCO(RMK) 00.669 		8-97013-377-1 01 1 9505-9511 ●
38 00.862 WASHER; FLYWHEEL
A/T 4 SPEED-JATCO(RMK) 00.669 		8-97013-377-1 01 1 9511-9711 ●
38 00.862 WASHER; FLYWHEEL
A/T 4 SPEED-JATCO(RMK) 00.669 		8-97013-377-1 01 1 9712- ● ●
38 00.862 WASHER; FLYWHEEL
ID=55 OD=110 		8-94397-496-1 01 1 9712-9801 ●
38 00.862 WASHER; FLYWHEEL
VENEZUELA EQUIPMENT(S2L) FLOOR REMOTE SHIFT<M11> ID=55 OD=110 		8-94397-496-1 01 1 9802-9804 ●
38 00.862 WASHER; FLYWHEEL
EXC. VENEZUELA EQUIPMENT(S2L),CHILE EQUIPMENT(6KB) ID=55 OD=110 		8-94397-496-1 01 1 9802-9804 ●
38 00.862 WASHER; FLYWHEEL
FLOOR REMOTE SHIFT<M11> ID=55 OD=110 		8-94397-496-1 01 1 9805- ●
38 00.862 WASHER; FLYWHEEL
VENEZUELA EQUIPMENT(S2L) A/T 4 SPEED-AISIN(RNJ) 		8-97170-830-0 01 1 9802- ●
40 00.669 BOLT; FLYWHEEL
M14X36 		8-97028-730-0 06 1 9312-9504 ● ● ●
40 00.669 BOLT; FLYWHEEL
M14X36 		8-97028-730-0 06 1 9505-9510 ● ●
40 00.669 BOLT; FLYWHEEL
FLOOR REMOTE SHIFT<M11> M14X36 		8-97028-730-0 06 1 9505-9510 ●
40 00.669 BOLT; FLYWHEEL
M14X36 		8-97028-730-0 06 1 9511-9702 ● ●
40 00.669 BOLT; FLYWHEEL
FLOOR REMOTE SHIFT<M11> M14X36 		8-97028-730-0 06 1 9703- ●
40 00.669 BOLT; FLYWHEEL
M14X36 		8-97028-730-0 06 1 9703- ●
40 00.669 BOLT; FLYWHEEL
M13X36 		8-97065-984-1 08 1 9312- ●
40 00.669 BOLT; FLYWHEEL
A/T 4 SPEED-JATCO(RMK) M14X50 		8-97028-731-0 06 1 9505-9510 ●
40 00.669 BOLT; FLYWHEEL
A/T 4 SPEED-JATCO(RMK) M14X50 		8-97028-731-0 06 1 9701- ●
40 00.669 BOLT; FLYWHEEL
M16X62 		8-97065-517-1 08 1 9312-9408 ●
40 00.669 BOLT; FLYWHEEL
M18X33 		8-97112-999-0 08 1 9409-9504 ●
40 00.669 BOLT; FLYWHEEL
A/T 4 SPEED-JATCO(RMK) M16X51 		8-94334-870-1 08 1 9505-9711 ●
40 00.669 BOLT; FLYWHEEL
A/T 4 SPEED-JATCO(RMK) M16X51 		8-94334-870-1 08 1 9712-9801 ● ●
40 00.669 BOLT; FLYWHEEL
A/T 4 SPEED-JATCO(RMK) M16X51 		8-94334-870-1 08 1 9802- ● ●
40 00.669 BOLT; FLYWHEEL
VENEZUELA EQUIPMENT(S2L) A/T 4 SPEED-AISIN(RNJ) M16X51 		8-94334-870-1 08 1 9802- ●
40 00.669 BOLT; FLYWHEEL
FLOOR REMOTE SHIFT<M11> M18X33 		8-97112-999-0 08 1 9505-9702 ●
40 00.669 BOLT; FLYWHEEL
FLOOR REMOTE SHIFT<M11> M16X42 		8-97178-013-0 08 1 9703-9711 ●
40 00.669 BOLT; FLYWHEEL
FLOOR REMOTE SHIFT<M11> M16X42 		8-97178-013-0 08 1 9712-9801 ● ●
40 00.669 BOLT; FLYWHEEL
M16X42 		8-97178-013-0 08 1 9712-9801 ●
40 00.669 BOLT; FLYWHEEL
FLOOR REMOTE SHIFT<M11> M16X42 		8-97178-013-0 08 1 9802-9804 ● ●
40 00.669 BOLT; FLYWHEEL
VENEZUELA EQUIPMENT(S2L) FLOOR REMOTE SHIFT<M11> M16X42 		8-97178-013-0 08 1 9802-9804 ●
40 00.669 BOLT; FLYWHEEL
EXC. VENEZUELA EQUIPMENT(S2L) M16X42 		8-97178-013-0 08 1 9802-9804 ●
40 00.669 BOLT; FLYWHEEL
FLOOR REMOTE SHIFT<M11> M16X42 		8-97178-013-0 08 1 9805- ● ● ●
42 00.095 WASHER; THRUST,CR/SHF 8-97071-358-0 02 1 9402-9510 ● ● ●
42 00.095 WASHER; THRUST,CR/SHF 8-97071-358-0 02 1 9511-9511 ● ●
42 00.095 WASHER; THRUST,CR/SHF 8-97071-358-0 02 1 9511- ● ●
42 00.095 WASHER; THRUST,CR/SHF 8-94453-520-0 02 1 9312- ●
42 00.095 WASHER; THRUST,CR/SHF
(A) 		8-94399-277-0 01 1 9312-9711 ●
42 00.095 WASHER; THRUST,CR/SHF
(A) 		8-94399-277-0 01 1 9712- ● ● ●
42 00.095 WASHER; THRUST,CR/SHF
(B) 		8-94399-283-0 02 1 9312-9711 ●
42 00.095 WASHER; THRUST,CR/SHF
(B) 		8-94399-283-0 02 1 9712- ● ● ●
49 00.669 BEARING; PILOT
00.649 		8-97031-741-0 01 1 9312-9504 ●
49 00.669 BEARING; PILOT
FLOOR REMOTE SHIFT<M11> 00.649 		8-97031-741-0 01 1 9505-9711 ●
49 00.669 BEARING; PILOT
FLOOR REMOTE SHIFT<M11> 00.649 		8-97031-741-0 01 1 9712-9801 ● ●
49 00.669 BEARING; PILOT
FLOOR REMOTE SHIFT<M11> 00.649 		8-97031-741-0 01 1 9802- ● ●
49 00.669 BEARING; PILOT
CHILE EQUIPMENT(6KB) 00.649 		8-97031-741-0 01 1 9802- ●
49 00.669 BEARING; PILOT 8-97166-589-0 01 1 9712-9804 ●
49 00.669 BEARING; PILOT
FLOOR REMOTE SHIFT<M11> 		8-97166-589-0 01 1 9805- ●
52 00.669 SLEEVE; CONV PILOT
A/T 4 SPEED-JATCO(RMK) 		8-94455-101-0 01 1 9505-9510 ●
52 00.669 SLEEVE; CONV PILOT
A/T 4 SPEED-JATCO(RMK) 		8-94455-101-0 01 1 9701- ●
52 00.669 SLEEVE; CONV PILOT
A/T 4 SPEED-JATCO(RMK) 		8-97026-319-1 01 1 9505-9711 ●
52 00.669 SLEEVE; CONV PILOT
A/T 4 SPEED-JATCO(RMK) 		8-97026-319-1 01 1 9712- ● ●
56 00.659 PULLEY; CR/SHF DAMPER
3-GROOVE 		8-94460-623-1 01 1 9312-9707 ●
56 00.659 PULLEY; CR/SHF DAMPER
3-GROOVE 		8-97182-904-0 01 1 9708- ●
56 00.659 PULLEY; CR/SHF DAMPER
4-GROOVE 		8-97033-848-0 01 1 9312-9412 ●
56 00.659 PULLEY; CR/SHF DAMPER
4-GROOVE 		8-97088-478-2 01 1 9501-9504 ●
56 00.659 PULLEY; CR/SHF DAMPER
4-GROOVE 		8-97088-477-4 01 1 9712-9712 ●
56 00.659 PULLEY; CR/SHF DAMPER
4-GROOVE 		8-97088-477-4 01 1 9712- ● ● ●
57 00.662 PIN; PULLEY
08.939 OD=8 L=16 		9-08150-816-0 02 1 9312-9711 ●
57 00.662 PIN; PULLEY
08.939 OD=8 L=16 		9-08150-816-0 02 1 9712- ● ● ●
61 00.659 PULLEY; FAN DRIVE
01.062 1-GROOVE 		5-13663-057-0 01 1 9312-9510 ● ●
61 00.659 PULLEY; FAN DRIVE
01.062 1-GROOVE 		5-13663-057-0 01 1 9511- ●
61 00.659 PULLEY; FAN DRIVE
1-GROOVE OD=120 		8-94459-815-3 01 1 9312- ●
61 00.659 PULLEY; FAN DRIVE
3-GROOVE 		8-97044-891-2 01 1 9312- ●
61 00.659 PULLEY; FAN DRIVE
2-GROOVE 		8-94389-413-1 01 1 9312- ●
61 00.659 PULLEY; FAN DRIVE
2-GROOVE 		8-97174-757-1 01 1 9712- ● ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. GRADE=AX 		8-97176-836-0 04 1 9312-9510 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. GRADE=CX 		8-97176-837-0 04 1 9312-9510 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. GRADE=AX 		8-97176-616-0 04 1 9312-9603 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. GRADE=CX 		8-97176-617-0 04 1 9312-9603 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. EURO2 SPECIFICATION<7AF> GRADE=AX 		8-97176-618-0 04 1 9604-9711 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. GRADE=AX 		8-97176-618-0 04 1 9712- ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. EURO2 SPECIFICATION<7AF> GRADE=CX 		8-97176-619-0 04 1 9604-9711 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. GRADE=CX 		8-97176-619-0 04 1 9712- ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. EXC. EURO2 SPECIFICATION<7AF> GRADE=AX 		8-97176-616-0 04 1 9604-9711 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		8-97183-666-0 04 1 9712- ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. EXC. EURO2 SPECIFICATION<7AF> GRADE=CX 		8-97176-617-0 04 1 9604-9711 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. EXC. CHARGE AIR COOLER<6PL> GRADE=AX 		8-97176-652-0 04 1 9712- ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. GRADE=AX 		8-97176-642-0 04 1 9312- ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. GRADE=CX 		8-97176-643-0 04 1 9312- ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. GRADE=AX 		8-97176-648-0 04 1 9312- ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. GRADE=CX 		8-97176-649-0 04 1 9312- ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		8-97176-657-0 04 1 9511-9704 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		8-97183-667-0 04 1 9705- ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. TAIWAN EQUIPMENT(RWV) NON GRADE 		8-97176-656-0 04 1 9312-9510 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. EXC. TAIWAN EQUIPMENT(RWV) NON GRADE 		8-97176-655-0 04 1 9312-9510 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL> GRADE=AX 		8-97183-664-0 04 1 9712- ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL> GRADE=CX 		8-97183-665-0 04 1 9712- ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. EXC. CHARGE AIR COOLER<6PL> GRADE=CX 		8-97176-653-0 04 1 9712- ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		5-12121-004-2 04 1 9312-9407 ● ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		5-12121-004-2 04 1 9408-9510 ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-97080-215-0 04 1 9312-9611 ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. EXC. EURO2 SPECIFICATION<7AF> 		8-97080-215-0 04 1 9612-9708 ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. EURO2 SPECIFICATION<7AF> 		8-97147-984-0 04 1 9612-9708 ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-97147-984-0 04 1 9709- ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-97117-686-0 04 1 9408-9511 ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-97117-686-0 04 1 9511- ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-94418-918-0 04 1 9312- ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-97028-691-0 04 1 9312-9504 ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. EXC. EURO1 SPECIFICATION<6YW> 		8-97028-691-0 04 1 9505-9510 ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-97109-462-0 04 1 9511- ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. EURO1 SPECIFICATION<6YW> 		8-97109-462-0 04 1 9505-9510 ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL> 		8-97166-992-0 04 1 9712- ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. EXC. CHARGE AIR COOLER<6PL> 		8-97078-779-0 04 1 9712- ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-97105-867-0 04 1 9712- ●
73 00.616 METAL SET; CONN ROD,STANDARD 8-97011-031-0 04 1 9312-9510 ● ● ●
73 00.616 METAL SET; CONN ROD,STANDARD 8-94372-193-1 04 1 9312- ●
73 00.616 METAL SET; CONN ROD,STANDARD 8-97011-031-0 04 1 9511-9511 ● ●
73 00.616 METAL SET; CONN ROD,STANDARD 8-97011-031-0 04 1 9511- ● ●
73 00.616 METAL SET; CONN ROD,STANDARD
YELLOW 		8-97045-800-0 04 1 9312-9504 ●
73 00.616 METAL SET; CONN ROD,STANDARD
GREEN 		8-97045-801-0 04 1 9312-9611 ●
73 00.616 METAL SET; CONN ROD,STANDARD
YELLOW 		8-97045-800-0 04 1 9505-9711 ●
73 00.616 METAL SET; CONN ROD,STANDARD
YELLOW 		8-97045-800-0 04 1 9712- ● ●
73 00.616 METAL SET; CONN ROD,STANDARD
GREEN 		8-97045-801-0 04 1 9612-9711 ●
73 00.616 METAL SET; CONN ROD,STANDARD
GREEN 		8-97045-801-0 04 1 9712- ● ●
73 00.616 METAL SET; CONN ROD,STANDARD
GREEN 		8-94395-757-0 04 1 9712- ●
73 00.616 METAL SET; CONN ROD,STANDARD
YELLOW 		8-97131-186-0 04 1 9712- ●
74 00.616 METAL SET; CONN ROD,U/S=0.25 5-87310-090-1 04 1 9312-9510 ● ● ●
74 00.616 METAL SET; CONN ROD,U/S=0.25 5-87310-090-1 04 1 9511- ● ●
74 00.616 METAL SET; CONN ROD,U/S=0.25 8-97175-127-0 04 1 9511-9711 ●
74 00.616 METAL SET; CONN ROD,U/S=0.25 8-97175-127-0 04 1 9712- ● ●
75 00.616 METAL SET; CONN ROD,U/S=0.50 5-87310-091-1 04 1 9312-9510 ● ● ●
75 00.616 METAL SET; CONN ROD,U/S=0.50 5-87310-091-1 04 1 9511- ● ●
75 00.616 METAL SET; CONN ROD,U/S=0.50 8-97175-128-0 04 1 9511-9711 ●
75 00.616 METAL SET; CONN ROD,U/S=0.50 8-97175-128-0 04 1 9712- ● ●
83 00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		9-12211-604-0 04 1 9312-9510 ● ●
83 00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		9-12211-604-0 04 1 9511- ●
83 00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		8-94457-008-1 04 1 9312- ●
83 00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		5-12211-022-0 04 1 9312- ●
83 00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		8-94396-589-0 04 1 9312-9711 ●
83 00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		8-94396-589-0 04 1 9712- ● ●
83 00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		8-94396-731-1 04 1 9712- ●
84 00.603 ROD ASM; CONN 1-12230-104-1 04 1 9312-9510 ● ●
84 00.603 ROD ASM; CONN 1-12230-104-1 04 1 9511- ●
84 00.603 ROD ASM; CONN 8-97062-300-0 04 1 9312- ●
84 00.603 ROD ASM; CONN 8-97011-030-0 04 1 9312- ●
84 00.603 ROD ASM; CONN 8-94473-443-6 04 1 9312-9506 ●
84 00.603 ROD ASM; CONN 8-97135-032-0 04 1 9507-9711 ●
84 00.603 ROD ASM; CONN 8-97135-032-0 04 1 9712- ● ●
84 00.603 ROD ASM; CONN 8-94399-661-1 04 1 9712- ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		1-12251-027-0 04 1 9312-9510 ● ● ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		1-12251-027-0 04 1 9511- ● ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		8-94457-158-0 04 1 9312- ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		1-12251-036-0 04 1 9312-9711 ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		1-12251-036-0 04 1 9712- ● ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		8-94394-613-0 04 1 9712- ●
86 00.623 BOLT; CONNROD
M20X49.5 		1-12235-027-1 08 1 9312-9510 ● ●
86 00.623 BOLT; CONNROD
M11X44.5 		8-97062-086-0 08 1 9312- ●
86 00.623 BOLT; CONNROD
M20X49.5 		1-12235-027-1 08 1 9511- ●
86 00.623 BOLT; CONNROD
M12X61 		8-97011-094-0 08 1 9312- ●
86 00.623 BOLT; CONNROD
M13X57 FLANGE 		1-12235-035-0 08 1 9312-9711 ●
86 00.623 BOLT; CONNROD
M13X57 FLANGE 		1-12235-035-0 08 1 9712- ● ● ●
100 00.666 PLATE; FLEX
A/T 4 SPEED-JATCO(RMK) 		8-97065-189-0 01 1 9505-9510 ●
100 00.666 PLATE; FLEX
A/T 4 SPEED-JATCO(RMK) 		8-97065-189-0 01 1 9701- ●
100 00.666 PLATE; FLEX
A/T 4 SPEED-JATCO(RMK) 		8-97046-365-2 01 1 9505-9711 ●
100 00.666 PLATE; FLEX
A/T 4 SPEED-JATCO(RMK) 		8-97046-365-2 01 1 9712- ● ●
100 00.666 PLATE; FLEX
VENEZUELA EQUIPMENT(S2L) A/T 4 SPEED-AISIN(RNJ) 		8-97170-780-0 01 1 9802- ●
108 00.096 RING; SNAP,BRG SET
04.012 OD=45.5 		9-09180-142-0 01 1 9312-9406 ●
126 00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. 		8-94107-575-0 08 1 9312-9510 ● ● ●
126 00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. 		8-94107-575-1 08 1 9511- ● ●
126 00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. 		8-94460-687-0 08 1 9312- ●
126 00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. 		8-94318-798-2 08 1 9312-9711 ●
126 00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. 		8-94318-798-2 08 1 9712- ● ●
126 00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. 		1-09587-081-1 08 1 9712- ●
çizim 66696
60 61 62 68 42 42 63 126 126 83 73 37 10 85 1 87 84 31 86 56 40 38 130 14 58 43 35 12
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 00.646 CRANKSHAFT 5-12310-189-1 01 1 9312-9510 ● ●
1 00.646 CRANKSHAFT 5-12310-189-1 01 1 9511- ●
1 00.646 CRANKSHAFT 8-97023-182-1 01 1 9312- ●
1 00.646 CRANKSHAFT 8-94416-373-2 01 1 9312- ●
1 00.646 CRANKSHAFT 8-97033-171-2 01 1 9312-9408 ●
1 00.646 CRANKSHAFT 8-97112-981-0 01 1 9409-9711 ●
1 00.646 CRANKSHAFT 8-97112-981-1 01 1 9712- ● ●
1 00.646 CRANKSHAFT 8-97165-483-0 01 1 9712- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLUE 		8-97063-258-0 05 1 9312-9510 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLACK 		8-97063-259-0 05 1 9312-9510 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GREEN 		8-97063-260-0 05 1 9312-9510 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLUE 		8-97063-258-0 05 1 9511-9711 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLACK 		8-97063-259-0 05 1 9511-9711 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GREEN 		8-97063-260-0 05 1 9511-9711 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLUE 		8-97063-258-0 05 1 9712- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLACK 		8-97063-259-0 05 1 9712- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GREEN 		8-97063-260-0 05 1 9712- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLUE 		8-97045-915-0 05 1 9312-9510 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLACK 		8-97045-916-0 05 1 9312-9510 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BROWN 		8-97045-917-0 05 1 9312-9510 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLUE 		8-97045-915-0 05 1 9511-9711 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLUE 		8-97045-915-0 05 1 9712- ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLACK 		8-97045-916-0 05 1 9511-9711 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLACK 		8-97045-916-0 05 1 9712- ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BROWN 		8-97045-917-0 05 1 9511-9711 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BROWN 		8-97045-917-0 05 1 9712- ● ● ●
12 00.666 FLYWHEEL 8-94343-053-1 01 1 9312-9504 ● ●
12 00.666 FLYWHEEL 8-94343-053-1 01 1 9505-9510 ●
12 00.666 FLYWHEEL
FLOOR REMOTE SHIFT<M11> 		8-94343-053-1 01 1 9505-9510 ●
12 00.666 FLYWHEEL
FLOOR REMOTE SHIFT<M11> 		8-94343-053-1 01 1 9511- ●
12 00.666 FLYWHEEL 8-97034-430-2 01 1 9312- ●
12 00.666 FLYWHEEL
A/T 4 SPEED-JATCO(RMK) 		8-94372-053-3 01 1 9505-9510 ●
12 00.666 FLYWHEEL
A/T 4 SPEED-JATCO(RMK) 		8-94372-053-3 01 1 9701- ●
12 00.666 FLYWHEEL 8-94372-128-1 01 1 9312- ●
12 00.666 FLYWHEEL 8-97077-585-1 01 1 9312-9408 ●
12 00.666 FLYWHEEL 8-97115-782-0 01 1 9409-9504 ●
12 00.666 FLYWHEEL
A/T 4 SPEED-JATCO(RMK) 		8-97027-933-1 01 1 9505-9711 ●
12 00.666 FLYWHEEL
A/T 4 SPEED-JATCO(RMK) 		8-97027-933-1 01 1 9712- ● ●
12 00.666 FLYWHEEL
FLOOR REMOTE SHIFT<M11> 		8-97115-782-0 01 1 9505-9612 ●
12 00.666 FLYWHEEL
FLOOR REMOTE SHIFT<M11> 		8-97169-129-0 01 1 9701-9711 ●
12 00.666 FLYWHEEL
FLOOR REMOTE SHIFT<M11> 		8-97169-129-0 01 1 9712-9801 ● ●
12 00.666 FLYWHEEL
FLOOR REMOTE SHIFT<M11> 		8-97169-129-2 01 1 9802- ● ●
12 00.666 FLYWHEEL
CHILE EQUIPMENT(6KB) 		8-97169-129-2 01 1 9802- ●
12 00.666 FLYWHEEL 8-97166-516-0 01 1 9712-9804 ●
12 00.666 FLYWHEEL
FLOOR REMOTE SHIFT<M11> 		8-97166-516-0 01 1 9805- ●
12 00.666 FLYWHEEL
VENEZUELA EQUIPMENT(S2L) A/T 4 SPEED-AISIN(RNJ) 		8-97170-778-0 01 1 9802- ●
14 00.662 WASHER; PULLEY DAMPER
ID=16.5 OD=45 T=12 		5-09503-127-0 01 1 9407- ●
31 00.662 KEY; FEATHER,CR/SHF
00.729 		9-08030-743-0 01 1 9312- ●
35 00.673 GEAR; RING 8-94468-412-0 01 1 9312-9504 ● ● ●
35 00.673 GEAR; RING 8-94468-412-0 01 1 9505-9509 ● ●
35 00.673 GEAR; RING
FLOOR REMOTE SHIFT<M11> 		8-94468-412-0 01 1 9505-9509 ●
35 00.673 GEAR; RING 8-94468-412-0 01 1 9510-9510 ● ● ●
35 00.673 GEAR; RING
FLOOR REMOTE SHIFT<M11> 		8-94468-412-0 01 1 9511-9612 ●
35 00.673 GEAR; RING 8-94468-412-0 01 1 9511-9612 ●
35 00.673 GEAR; RING 8-94468-412-0 01 1 9701- ● ●
35 00.673 GEAR; RING
Z=108 		8-94419-602-1 01 1 9312- ●
35 00.673 GEAR; RING
A/T 4 SPEED-JATCO(RMK) Z=128 		5-12333-002-0 01 1 9505-9509 ●
35 00.673 GEAR; RING
Z=138 		8-97046-366-0 01 1 9312-9504 ●
35 00.673 GEAR; RING
FLOOR REMOTE SHIFT<M11> Z=138 		8-97046-366-0 01 1 9505-9612 ●
35 00.673 GEAR; RING
FLOOR REMOTE SHIFT<M11> Z=138 		8-97169-134-0 01 1 9701-9711 ●
35 00.673 GEAR; RING
FLOOR REMOTE SHIFT<M11> Z=138 		8-97169-134-0 01 1 9712-9801 ● ●
35 00.673 GEAR; RING
FLOOR REMOTE SHIFT<M11> Z=138 		8-97169-134-0 01 1 9802- ● ●
35 00.673 GEAR; RING
CHILE EQUIPMENT(6KB) Z=138 		8-97169-134-0 01 1 9802- ●
35 00.673 GEAR; RING
Z=138 		8-97046-366-0 01 1 9712-9801 ●
35 00.673 GEAR; RING
VENEZUELA EQUIPMENT(S2L) FLOOR REMOTE SHIFT<M11> Z=138 		8-97046-366-0 01 1 9802-9804 ●
35 00.673 GEAR; RING
EXC. VENEZUELA EQUIPMENT(S2L),CHILE EQUIPMENT(6KB) Z=138 		8-97046-366-0 01 1 9802-9804 ●
35 00.673 GEAR; RING
FLOOR REMOTE SHIFT<M11> Z=138 		8-97046-366-0 01 1 9805- ●
37 00.096 BEARING; PILOT,TOP GEAR SHAFT
00.649 NSK 		9-00090-679-0 01 1 9312-9504 ● ● ● ●
37 00.096 BEARING; PILOT,TOP GEAR SHAFT
00.649 NSK 		9-00090-679-0 01 1 9505-9510 ● ● ●
37 00.096 BEARING; PILOT,TOP GEAR SHAFT
FLOOR REMOTE SHIFT<M11> 00.649 NSK 		9-00090-679-0 01 1 9505-9510 ●
37 00.096 BEARING; PILOT,TOP GEAR SHAFT
00.649 NSK 		9-00090-679-0 01 1 9511- ● ●
37 00.096 BEARING; PILOT,TOP GEAR SHAFT
FLOOR REMOTE SHIFT<M11> 00.649 NSK 		9-00090-679-0 01 1 9511- ●
38 00.862 WASHER; FLYWHEEL
00.669 		5-12336-003-0 01 1 9312-9504 ● ● ●
38 00.862 WASHER; FLYWHEEL
FLOOR REMOTE SHIFT<M11> 00.669 		5-12336-003-0 01 1 9505-9510 ●
38 00.862 WASHER; FLYWHEEL
00.669 		5-12336-003-0 01 1 9505-9510 ●
38 00.862 WASHER; FLYWHEEL
00.669 		5-12336-003-0 01 1 9511-9702 ● ●
38 00.862 WASHER; FLYWHEEL
FLOOR REMOTE SHIFT<M11> 00.669 		5-12336-003-0 01 1 9703- ●
38 00.862 WASHER; FLYWHEEL
00.669 		5-12336-003-0 01 1 9703- ●
38 00.862 WASHER; FLYWHEEL
00.669 		8-94133-970-0 01 1 9312- ●
38 00.862 WASHER; FLYWHEEL
A/T 4 SPEED-JATCO(RMK) 00.669 		8-94372-068-0 01 1 9505-9510 ●
38 00.862 WASHER; FLYWHEEL
A/T 4 SPEED-JATCO(RMK) 00.669 		8-94372-068-0 01 1 9701- ●
38 00.862 WASHER; FLYWHEEL
00.669 		8-94310-615-0 01 1 9312-9504 ●
38 00.862 WASHER; FLYWHEEL
FLOOR REMOTE SHIFT<M11> 00.669 		8-94310-615-0 01 1 9505-9711 ●
38 00.862 WASHER; FLYWHEEL
FLOOR REMOTE SHIFT<M11> 00.669 		8-94310-615-0 01 1 9712-9801 ● ●
38 00.862 WASHER; FLYWHEEL
FLOOR REMOTE SHIFT<M11> 00.669 		8-94310-615-0 01 1 9802- ● ●
38 00.862 WASHER; FLYWHEEL
CHILE EQUIPMENT(6KB) 00.669 		8-94310-615-0 01 1 9802- ●
38 00.862 WASHER; FLYWHEEL
A/T 4 SPEED-JATCO(RMK) 00.669 		8-97013-377-1 01 1 9505-9511 ●
38 00.862 WASHER; FLYWHEEL
A/T 4 SPEED-JATCO(RMK) 00.669 		8-97013-377-1 01 1 9511-9711 ●
38 00.862 WASHER; FLYWHEEL
A/T 4 SPEED-JATCO(RMK) 00.669 		8-97013-377-1 01 1 9712- ● ●
38 00.862 WASHER; FLYWHEEL
ID=55 OD=110 		8-94397-496-1 01 1 9712-9801 ●
38 00.862 WASHER; FLYWHEEL
VENEZUELA EQUIPMENT(S2L) FLOOR REMOTE SHIFT<M11> ID=55 OD=110 		8-94397-496-1 01 1 9802-9804 ●
38 00.862 WASHER; FLYWHEEL
EXC. VENEZUELA EQUIPMENT(S2L),CHILE EQUIPMENT(6KB) ID=55 OD=110 		8-94397-496-1 01 1 9802-9804 ●
38 00.862 WASHER; FLYWHEEL
FLOOR REMOTE SHIFT<M11> ID=55 OD=110 		8-94397-496-1 01 1 9805- ●
38 00.862 WASHER; FLYWHEEL
VENEZUELA EQUIPMENT(S2L) A/T 4 SPEED-AISIN(RNJ) 		8-97170-830-0 01 1 9802- ●
40 00.669 BOLT; FLYWHEEL
M14X36 		8-97028-730-0 06 1 9312-9504 ● ● ●
40 00.669 BOLT; FLYWHEEL
M14X36 		8-97028-730-0 06 1 9505-9510 ● ●
40 00.669 BOLT; FLYWHEEL
FLOOR REMOTE SHIFT<M11> M14X36 		8-97028-730-0 06 1 9505-9510 ●
40 00.669 BOLT; FLYWHEEL
M14X36 		8-97028-730-0 06 1 9511-9702 ● ●
40 00.669 BOLT; FLYWHEEL
FLOOR REMOTE SHIFT<M11> M14X36 		8-97028-730-0 06 1 9703- ●
40 00.669 BOLT; FLYWHEEL
M14X36 		8-97028-730-0 06 1 9703- ●
40 00.669 BOLT; FLYWHEEL
M13X36 		8-97065-984-1 08 1 9312- ●
40 00.669 BOLT; FLYWHEEL
A/T 4 SPEED-JATCO(RMK) M14X50 		8-97028-731-0 06 1 9505-9510 ●
40 00.669 BOLT; FLYWHEEL
A/T 4 SPEED-JATCO(RMK) M14X50 		8-97028-731-0 06 1 9701- ●
40 00.669 BOLT; FLYWHEEL
M16X62 		8-97065-517-1 08 1 9312-9408 ●
40 00.669 BOLT; FLYWHEEL
M18X33 		8-97112-999-0 08 1 9409-9504 ●
40 00.669 BOLT; FLYWHEEL
A/T 4 SPEED-JATCO(RMK) M16X51 		8-94334-870-1 08 1 9505-9711 ●
40 00.669 BOLT; FLYWHEEL
A/T 4 SPEED-JATCO(RMK) M16X51 		8-94334-870-1 08 1 9712-9801 ● ●
40 00.669 BOLT; FLYWHEEL
A/T 4 SPEED-JATCO(RMK) M16X51 		8-94334-870-1 08 1 9802- ● ●
40 00.669 BOLT; FLYWHEEL
VENEZUELA EQUIPMENT(S2L) A/T 4 SPEED-AISIN(RNJ) M16X51 		8-94334-870-1 08 1 9802- ●
40 00.669 BOLT; FLYWHEEL
FLOOR REMOTE SHIFT<M11> M18X33 		8-97112-999-0 08 1 9505-9702 ●
40 00.669 BOLT; FLYWHEEL
FLOOR REMOTE SHIFT<M11> M16X42 		8-97178-013-0 08 1 9703-9711 ●
40 00.669 BOLT; FLYWHEEL
FLOOR REMOTE SHIFT<M11> M16X42 		8-97178-013-0 08 1 9712-9801 ● ●
40 00.669 BOLT; FLYWHEEL
M16X42 		8-97178-013-0 08 1 9712-9801 ●
40 00.669 BOLT; FLYWHEEL
FLOOR REMOTE SHIFT<M11> M16X42 		8-97178-013-0 08 1 9802-9804 ● ●
40 00.669 BOLT; FLYWHEEL
VENEZUELA EQUIPMENT(S2L) FLOOR REMOTE SHIFT<M11> M16X42 		8-97178-013-0 08 1 9802-9804 ●
40 00.669 BOLT; FLYWHEEL
EXC. VENEZUELA EQUIPMENT(S2L) M16X42 		8-97178-013-0 08 1 9802-9804 ●
40 00.669 BOLT; FLYWHEEL
FLOOR REMOTE SHIFT<M11> M16X42 		8-97178-013-0 08 1 9805- ● ● ●
42 00.095 WASHER; THRUST,CR/SHF 8-97071-358-0 02 1 9402-9510 ● ● ●
42 00.095 WASHER; THRUST,CR/SHF 8-97071-358-0 02 1 9511-9511 ● ●
42 00.095 WASHER; THRUST,CR/SHF 8-97071-358-0 02 1 9511- ● ●
42 00.095 WASHER; THRUST,CR/SHF 8-94453-520-0 02 1 9312- ●
42 00.095 WASHER; THRUST,CR/SHF
(A) 		8-94399-277-0 01 1 9312-9711 ●
42 00.095 WASHER; THRUST,CR/SHF
(A) 		8-94399-277-0 01 1 9712- ● ● ●
42 00.095 WASHER; THRUST,CR/SHF
(B) 		8-94399-283-0 02 1 9312-9711 ●
42 00.095 WASHER; THRUST,CR/SHF
(B) 		8-94399-283-0 02 1 9712- ● ● ●
43 00.662 BOLT; CR/SHF PULLEY
M16X29 FLANGE 		8-94433-406-0 01 1 9312-9312 ●
43 00.662 BOLT; CR/SHF PULLEY
M16X43 		5-09000-273-2 01 1 9401- ●
56 00.659 PULLEY; CR/SHF DAMPER
3-GROOVE 		8-94460-623-1 01 1 9312-9707 ●
56 00.659 PULLEY; CR/SHF DAMPER
3-GROOVE 		8-97182-904-0 01 1 9708- ●
56 00.659 PULLEY; CR/SHF DAMPER
4-GROOVE 		8-97033-848-0 01 1 9312-9412 ●
56 00.659 PULLEY; CR/SHF DAMPER
4-GROOVE 		8-97088-478-2 01 1 9501-9504 ●
56 00.659 PULLEY; CR/SHF DAMPER
4-GROOVE 		8-97088-477-4 01 1 9712-9712 ●
56 00.659 PULLEY; CR/SHF DAMPER
4-GROOVE 		8-97088-477-4 01 1 9712- ● ● ●
58 00.659 BOLT; CR/SHF PULLEY
04.785 M8X18 W/LK WASHER 		0-50040-818-0 04 1 9312-9707 ●
60 01.060 STUD; FAN FIX
01.073 M6X18 L=27 		9-04110-618-0 04 1 9312- ●
61 00.659 PULLEY; FAN DRIVE
01.062 1-GROOVE 		5-13663-057-0 01 1 9312-9510 ● ●
61 00.659 PULLEY; FAN DRIVE
01.062 1-GROOVE 		5-13663-057-0 01 1 9511- ●
61 00.659 PULLEY; FAN DRIVE
1-GROOVE OD=120 		8-94459-815-3 01 1 9312- ●
61 00.659 PULLEY; FAN DRIVE
3-GROOVE 		8-97044-891-2 01 1 9312- ●
61 00.659 PULLEY; FAN DRIVE
2-GROOVE 		8-94389-413-1 01 1 9312- ●
61 00.659 PULLEY; FAN DRIVE
2-GROOVE 		8-97174-757-1 01 1 9712- ● ●
62 01.060 NUT; FAN PULLEY
07.829 M6 FLANGE 		5-09440-004-0 04 1 9312- ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. GRADE=AX 		8-97176-836-0 04 1 9312-9510 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. GRADE=CX 		8-97176-837-0 04 1 9312-9510 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. GRADE=AX 		8-97176-616-0 04 1 9312-9603 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. GRADE=CX 		8-97176-617-0 04 1 9312-9603 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. EURO2 SPECIFICATION<7AF> GRADE=AX 		8-97176-618-0 04 1 9604-9711 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. GRADE=AX 		8-97176-618-0 04 1 9712- ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. EURO2 SPECIFICATION<7AF> GRADE=CX 		8-97176-619-0 04 1 9604-9711 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. GRADE=CX 		8-97176-619-0 04 1 9712- ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. EXC. EURO2 SPECIFICATION<7AF> GRADE=AX 		8-97176-616-0 04 1 9604-9711 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		8-97183-666-0 04 1 9712- ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. EXC. EURO2 SPECIFICATION<7AF> GRADE=CX 		8-97176-617-0 04 1 9604-9711 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. EXC. CHARGE AIR COOLER<6PL> GRADE=AX 		8-97176-652-0 04 1 9712- ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. GRADE=AX 		8-97176-642-0 04 1 9312- ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. GRADE=CX 		8-97176-643-0 04 1 9312- ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. GRADE=AX 		8-97176-648-0 04 1 9312- ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. GRADE=CX 		8-97176-649-0 04 1 9312- ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		8-97176-657-0 04 1 9511-9704 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		8-97183-667-0 04 1 9705- ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. TAIWAN EQUIPMENT(RWV) NON GRADE 		8-97176-656-0 04 1 9312-9510 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. EXC. TAIWAN EQUIPMENT(RWV) NON GRADE 		8-97176-655-0 04 1 9312-9510 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL> GRADE=AX 		8-97183-664-0 04 1 9712- ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL> GRADE=CX 		8-97183-665-0 04 1 9712- ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. EXC. CHARGE AIR COOLER<6PL> GRADE=CX 		8-97176-653-0 04 1 9712- ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		5-12121-004-2 04 1 9312-9407 ● ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		5-12121-004-2 04 1 9408-9510 ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-97080-215-0 04 1 9312-9611 ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. EXC. EURO2 SPECIFICATION<7AF> 		8-97080-215-0 04 1 9612-9708 ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. EURO2 SPECIFICATION<7AF> 		8-97147-984-0 04 1 9612-9708 ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-97147-984-0 04 1 9709- ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-97117-686-0 04 1 9408-9511 ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-97117-686-0 04 1 9511- ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-94418-918-0 04 1 9312- ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-97028-691-0 04 1 9312-9504 ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. EXC. EURO1 SPECIFICATION<6YW> 		8-97028-691-0 04 1 9505-9510 ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-97109-462-0 04 1 9511- ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. EURO1 SPECIFICATION<6YW> 		8-97109-462-0 04 1 9505-9510 ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL> 		8-97166-992-0 04 1 9712- ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. EXC. CHARGE AIR COOLER<6PL> 		8-97078-779-0 04 1 9712- ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-97105-867-0 04 1 9712- ●
73 00.616 METAL SET; CONN ROD,STANDARD 8-97011-031-0 04 1 9312-9510 ● ● ●
73 00.616 METAL SET; CONN ROD,STANDARD 8-94372-193-1 04 1 9312- ●
73 00.616 METAL SET; CONN ROD,STANDARD 8-97011-031-0 04 1 9511-9511 ● ●
73 00.616 METAL SET; CONN ROD,STANDARD 8-97011-031-0 04 1 9511- ● ●
73 00.616 METAL SET; CONN ROD,STANDARD
YELLOW 		8-97045-800-0 04 1 9312-9504 ●
73 00.616 METAL SET; CONN ROD,STANDARD
GREEN 		8-97045-801-0 04 1 9312-9611 ●
73 00.616 METAL SET; CONN ROD,STANDARD
YELLOW 		8-97045-800-0 04 1 9505-9711 ●
73 00.616 METAL SET; CONN ROD,STANDARD
YELLOW 		8-97045-800-0 04 1 9712- ● ●
73 00.616 METAL SET; CONN ROD,STANDARD
GREEN 		8-97045-801-0 04 1 9612-9711 ●
73 00.616 METAL SET; CONN ROD,STANDARD
GREEN 		8-97045-801-0 04 1 9712- ● ●
73 00.616 METAL SET; CONN ROD,STANDARD
GREEN 		8-94395-757-0 04 1 9712- ●
73 00.616 METAL SET; CONN ROD,STANDARD
YELLOW 		8-97131-186-0 04 1 9712- ●
83 00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		9-12211-604-0 04 1 9312-9510 ● ●
83 00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		9-12211-604-0 04 1 9511- ●
83 00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		8-94457-008-1 04 1 9312- ●
83 00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		5-12211-022-0 04 1 9312- ●
83 00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		8-94396-589-0 04 1 9312-9711 ●
83 00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		8-94396-589-0 04 1 9712- ● ●
83 00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		8-94396-731-1 04 1 9712- ●
84 00.603 ROD ASM; CONN 1-12230-104-1 04 1 9312-9510 ● ●
84 00.603 ROD ASM; CONN 1-12230-104-1 04 1 9511- ●
84 00.603 ROD ASM; CONN 8-97062-300-0 04 1 9312- ●
84 00.603 ROD ASM; CONN 8-97011-030-0 04 1 9312- ●
84 00.603 ROD ASM; CONN 8-94473-443-6 04 1 9312-9506 ●
84 00.603 ROD ASM; CONN 8-97135-032-0 04 1 9507-9711 ●
84 00.603 ROD ASM; CONN 8-97135-032-0 04 1 9712- ● ●
84 00.603 ROD ASM; CONN 8-94399-661-1 04 1 9712- ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		1-12251-027-0 04 1 9312-9510 ● ● ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		1-12251-027-0 04 1 9511- ● ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		8-94457-158-0 04 1 9312- ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		1-12251-036-0 04 1 9312-9711 ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		1-12251-036-0 04 1 9712- ● ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		8-94394-613-0 04 1 9712- ●
86 00.623 BOLT; CONNROD
M20X49.5 		1-12235-027-1 08 1 9312-9510 ● ●
86 00.623 BOLT; CONNROD
M11X44.5 		8-97062-086-0 08 1 9312- ●
86 00.623 BOLT; CONNROD
M20X49.5 		1-12235-027-1 08 1 9511- ●
86 00.623 BOLT; CONNROD
M12X61 		8-97011-094-0 08 1 9312- ●
86 00.623 BOLT; CONNROD
M13X57 FLANGE 		1-12235-035-0 08 1 9312-9711 ●
86 00.623 BOLT; CONNROD
M13X57 FLANGE 		1-12235-035-0 08 1 9712- ● ● ●
87 00.613 PIN; CONNROD BIG END
OD=5 L=8 		9-08160-508-0 08 1 9312- ●
126 00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. 		8-94107-575-0 08 1 9312-9510 ● ● ●
126 00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. 		8-94107-575-1 08 1 9511- ● ●
126 00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. 		8-94460-687-0 08 1 9312- ●
126 00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. 		8-94318-798-2 08 1 9312-9711 ●
126 00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. 		8-94318-798-2 08 1 9712- ● ●
126 00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. 		1-09587-081-1 08 1 9712- ●
130 00.662 PIN; STRAIGHT
08.939 OD=4 L=12 		9-08160-412-0 01 1 9312-9707 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
