Sayfa 0-13 - Isuzu EPC

0-13 — OIL PAN AND LEVEL GAUGE (#48923) — 852 parça

2 8 16 9 41 1 3 4 99 141

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	01.426 PAN ASM; OIL	8-94326-674-0	01	1	9312-9510	●
1	01.426 PAN ASM; OIL	8-97083-322-3	01	1	9312-		●
1	01.426 PAN ASM; OIL	8-97105-610-0	01	1	9312-9610			●
1	01.426 PAN ASM; OIL EXC. FRAME STRAIGHT TYPE<7KJ>	8-97105-610-0	01	1	9611-9703			●
1	01.426 PAN ASM; OIL FRAME STRAIGHT TYPE<7KJ>	8-97039-773-2	01	1	9611-9703			●
1	01.426 PAN ASM; OIL	8-97039-773-2	01	1	9704-			●
1	01.426 PAN ASM; OIL	8-94442-071-0	01	1	9312-				●
1	01.426 PAN ASM; OIL (A)	8-97095-100-0	01	1	9312-9504					●
1	01.426 PAN ASM; OIL EXC. EURO1 SPECIFICATION<6YW> (A)	8-97095-100-0	01	1	9505-9510					●
1	01.426 PAN ASM; OIL EURO1 SPECIFICATION<6YW> (B)	8-97087-642-1	01	1	9505-9510					●
1	01.426 PAN ASM; OIL (B)	8-97087-642-1	01	1	9511-9711					●
1	01.426 PAN ASM; OIL (B)	8-97087-642-1	01	1	9712-					●	●
1	01.426 PAN ASM; OIL CHARGE AIR COOLER<6PL> EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) (B)	8-97117-937-0	01	1	9712-							●
1	01.426 PAN ASM; OIL CHARGE AIR COOLER<6PL> TAIWAN EQUIPMENT(RWV) (B)	8-97149-314-0	01	1	9712-							●
1	01.426 PAN ASM; OIL EXC. CHARGE AIR COOLER<6PL> (A)	8-97075-348-1	01	1	9712-							●
2	01.516 GAUGE; OIL LEVEL	8-94462-052-1	01	1	9312-9510	●		●
2	01.516 GAUGE; OIL LEVEL	8-94462-052-1	01	1	9511-			●
2	01.516 GAUGE; OIL LEVEL	8-97092-924-0	01	1	9312-		●
2	01.516 GAUGE; OIL LEVEL	8-97108-689-0	01	1	9312-9702				●
2	01.516 GAUGE; OIL LEVEL	8-97177-983-0	01	1	9703-				●
2	01.516 GAUGE; OIL LEVEL	8-97094-460-2	01	1	9312-9711					●
2	01.516 GAUGE; OIL LEVEL	8-97094-460-2	01	1	9712-					●	●
2	01.516 GAUGE; OIL LEVEL	8-97019-885-1	01	1	9712-9808							●
2	01.516 GAUGE; OIL LEVEL CHARGE AIR COOLER<6PL> EXC. VENEZUELA EQUIPMENT(S2L)	8-97019-885-1	01	1	9809-							●
2	01.516 GAUGE; OIL LEVEL NQR EXTEND LONG(NP***N) VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL>	8-97184-694-1	01	1	9809-							●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE).	8-94107-564-0	01	1	9312-9510	●		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE).	8-94107-564-0	01	1	9511-			●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9312-9406		●		●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9407-9502		●		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9503-9711		●		●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9712-		●		●	●	●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9407-9502					●
4	01.453 PLUG; DRAIN,OIL	8-94107-557-0	01	1	9312-9510	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9312-9406		●		●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9407-9502		●		●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9503-9711		●		●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9712-		●		●	●	●	●
4	01.453 PLUG; DRAIN,OIL 05.400	8-97019-202-0	01	1	9312-			●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9407-9502					●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97106-965-0	01	1	9312-9510	●		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97106-965-0	01	1	9511-			●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97044-886-0	01	1	9312-		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97106-818-0	01	1	9312-				●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97101-907-1	01	1	9312-9711					●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97101-907-1	01	1	9712-					●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE CHARGE AIR COOLER<6PL>	8-97182-794-0	01	1	9712-9801							●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE CHARGE AIR COOLER<6PL> EXC. VENEZUELA EQUIPMENT(S2L)	8-97182-794-0	01	1	9802-							●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EXC. CHARGE AIR COOLER<6PL>	8-97130-265-0	01	1	9712-							●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL>	8-97165-493-2	01	1	9802-9807							●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL>	8-97184-685-1	01	1	9809-							●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9312-9406	●		●		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9407-9502	●		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9503-9510	●		●		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9511-9511			●		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9511-9711			●		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE).	5-09623-002-0	02	1	9712-			●		●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> ID=11	5-09623-002-0	02	1	9712-							●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	01	1	9312-9709		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9407-9502					●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> ID=11	5-09623-002-0	02	1	9712-							●
16	01.429 GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-666-0	01	1	9312-9510	●		●
16	01.429 GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-666-0	01	1	9511-			●
16	01.429 GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97080-194-0	01	1	9312-		●
16	01.429 GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-667-0	01	1	9312-				●
41	00.137 RUBBER; SPACE	8-97095-936-0	01	1	9312-		●
99	01.453 NUT; BRKT TO OIL PAN FIX 06.164 M8 FLANGE	5-09440-010-0	10	1	9312-9403		●
99	01.453 NUT; BRKT TO OIL PAN FIX 06.164 M8 FLANGE	5-09440-010-0	08	1	9404-9410		●
99	01.453 NUT; BRKT TO OIL PAN FIX 06.164 M8 FLANGE	5-09440-010-0	10	1	9411-		●
141	01.428 BOLT; BRKT TO OIL PAN FIX	8-94133-973-2	12	1	9312-9403		●
141	01.428 BOLT; BRKT TO OIL PAN FIX	8-94133-973-2	14	1	9404-9410		●
141	01.428 BOLT; BRKT TO OIL PAN FIX	8-94133-973-2	12	1	9411-		●

49 2 194 50 134 10 9 9 8 3 23 24 4 23 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	01.426 PAN ASM; OIL	8-94326-674-0	01	1	9312-9510	●
1	01.426 PAN ASM; OIL	8-97083-322-3	01	1	9312-		●
1	01.426 PAN ASM; OIL	8-97105-610-0	01	1	9312-9610			●
1	01.426 PAN ASM; OIL EXC. FRAME STRAIGHT TYPE<7KJ>	8-97105-610-0	01	1	9611-9703			●
1	01.426 PAN ASM; OIL FRAME STRAIGHT TYPE<7KJ>	8-97039-773-2	01	1	9611-9703			●
1	01.426 PAN ASM; OIL	8-97039-773-2	01	1	9704-			●
1	01.426 PAN ASM; OIL	8-94442-071-0	01	1	9312-				●
1	01.426 PAN ASM; OIL (A)	8-97095-100-0	01	1	9312-9504					●
1	01.426 PAN ASM; OIL EXC. EURO1 SPECIFICATION<6YW> (A)	8-97095-100-0	01	1	9505-9510					●
1	01.426 PAN ASM; OIL EURO1 SPECIFICATION<6YW> (B)	8-97087-642-1	01	1	9505-9510					●
1	01.426 PAN ASM; OIL (B)	8-97087-642-1	01	1	9511-9711					●
1	01.426 PAN ASM; OIL (B)	8-97087-642-1	01	1	9712-					●	●
1	01.426 PAN ASM; OIL CHARGE AIR COOLER<6PL> EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) (B)	8-97117-937-0	01	1	9712-							●
1	01.426 PAN ASM; OIL CHARGE AIR COOLER<6PL> TAIWAN EQUIPMENT(RWV) (B)	8-97149-314-0	01	1	9712-							●
1	01.426 PAN ASM; OIL EXC. CHARGE AIR COOLER<6PL> (A)	8-97075-348-1	01	1	9712-							●
2	01.516 GAUGE; OIL LEVEL	8-94462-052-1	01	1	9312-9510	●		●
2	01.516 GAUGE; OIL LEVEL	8-94462-052-1	01	1	9511-			●
2	01.516 GAUGE; OIL LEVEL	8-97092-924-0	01	1	9312-		●
2	01.516 GAUGE; OIL LEVEL	8-97108-689-0	01	1	9312-9702				●
2	01.516 GAUGE; OIL LEVEL	8-97177-983-0	01	1	9703-				●
2	01.516 GAUGE; OIL LEVEL	8-97094-460-2	01	1	9312-9711					●
2	01.516 GAUGE; OIL LEVEL	8-97094-460-2	01	1	9712-					●	●
2	01.516 GAUGE; OIL LEVEL	8-97019-885-1	01	1	9712-9808							●
2	01.516 GAUGE; OIL LEVEL CHARGE AIR COOLER<6PL> EXC. VENEZUELA EQUIPMENT(S2L)	8-97019-885-1	01	1	9809-							●
2	01.516 GAUGE; OIL LEVEL NQR EXTEND LONG(NP***N) VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL>	8-97184-694-1	01	1	9809-							●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE).	8-94107-564-0	01	1	9312-9510	●		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE).	8-94107-564-0	01	1	9511-			●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9312-9406		●		●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9407-9502		●		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9503-9711		●		●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9712-		●		●	●	●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9407-9502					●
4	01.453 PLUG; DRAIN,OIL	8-94107-557-0	01	1	9312-9510	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9312-9406		●		●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9407-9502		●		●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9503-9711		●		●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9712-		●		●	●	●	●
4	01.453 PLUG; DRAIN,OIL 05.400	8-97019-202-0	01	1	9312-			●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9407-9502					●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97106-965-0	01	1	9312-9510	●		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97106-965-0	01	1	9511-			●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97044-886-0	01	1	9312-		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97106-818-0	01	1	9312-				●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97101-907-1	01	1	9312-9711					●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97101-907-1	01	1	9712-					●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE CHARGE AIR COOLER<6PL>	8-97182-794-0	01	1	9712-9801							●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE CHARGE AIR COOLER<6PL> EXC. VENEZUELA EQUIPMENT(S2L)	8-97182-794-0	01	1	9802-							●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EXC. CHARGE AIR COOLER<6PL>	8-97130-265-0	01	1	9712-							●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL>	8-97165-493-2	01	1	9802-9807							●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL>	8-97184-685-1	01	1	9809-							●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9312-9406	●		●		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9407-9502	●		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9503-9510	●		●		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9511-9511			●		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9511-9711			●		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE).	5-09623-002-0	02	1	9712-			●		●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> ID=11	5-09623-002-0	02	1	9712-							●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	01	1	9312-9709		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9407-9502					●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> ID=11	5-09623-002-0	02	1	9712-							●
10	01.516 BOLT; GUIDE TUBE 08.900 M8X20 W/LK WASHER	0-50040-820-0	01	1	9312-9402	●		●
10	01.516 BOLT; GUIDE TUBE 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9403-9510	●		●
10	01.516 BOLT; GUIDE TUBE 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9511-9808			●
10	01.516 BOLT; GUIDE TUBE 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9809-			●
10	01.516 BOLT; GUIDE TUBE NQR EXTEND LONG(NP***N) VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9809-							●
10	01.516 BOLT; GUIDE TUBE 12.187 M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9312-				●
10	01.516 BOLT; GUIDE TUBE 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9312-9408					●
10	01.516 BOLT; GUIDE TUBE 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9409-9711					●
10	01.516 BOLT; GUIDE TUBE EXC. CHARGE AIR COOLER<6PL> 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9712-9807							●
10	01.516 BOLT; GUIDE TUBE 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9808-					●	●
10	01.516 BOLT; GUIDE TUBE EXC. CHARGE AIR COOLER<6PL> 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9808-							●
10	01.516 BOLT; GUIDE TUBE CHARGE AIR COOLER<6PL> 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9712-9801							●
10	01.516 BOLT; GUIDE TUBE CHARGE AIR COOLER<6PL> EXC. VENEZUELA EQUIPMENT(S2L) 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9802-							●
10	01.516 BOLT; GUIDE TUBE NQR EXTEND LONG(NP***N) VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9809-							●
23	01.428 BOLT; OIL PAN 08.900 M8X20 W/LK WASHER	0-50040-820-0	24	1	9312-9510	●
23	01.428 BOLT; OIL PAN 08.900 M8X20 W/LK WASHER	0-50040-820-0	21	1	9511-			●
23	01.428 BOLT; OIL PAN 08.900 M8X20 W/LK WASHER	0-50040-820-0	21	1	9312-9510			●
23	01.428 BOLT; OIL PAN M8X20 FLANGE W/LK WASHER	8-94130-281-1	03	1	9312-			●
23	01.428 BOLT; OIL PAN 08.900 M8X20 W/LK WASHER	0-50040-820-0	18	1	9312-				●
23	01.428 BOLT; OIL PAN (A) M8X14	8-97047-004-0	01	1	9312-9504					●
23	01.428 BOLT; OIL PAN EXC. EURO1 SPECIFICATION<6YW> (A) M8X14	8-97047-004-0	01	1	9505-9510					●
23	01.428 BOLT; OIL PAN (B) M8X14	8-97047-005-0	18	1	9312-9504					●
23	01.428 BOLT; OIL PAN EXC. EURO1 SPECIFICATION<6YW> (B) M8X14	8-97047-005-0	18	1	9505-9510					●
23	01.428 BOLT; OIL PAN EURO1 SPECIFICATION<6YW> (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	11	1	9505-9510					●
23	01.428 BOLT; OIL PAN (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	11	1	9511-9711					●
23	01.428 BOLT; OIL PAN (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	11	1	9712-					●	●
23	01.428 BOLT; OIL PAN EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) CHARGE AIR COOLER<6PL> (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	11	1	9712-							●
23	01.428 BOLT; OIL PAN EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) (A) M8X14	8-97047-004-1	01	1	9712-							●
23	01.428 BOLT; OIL PAN EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) (B) M8X14	8-97047-005-0	18	1	9712-							●
24	01.453 NUT; OIL PAN 07.833 M8 W/LK WASHER	8-94327-073-0	07	1	9312-9504					●
24	01.453 NUT; OIL PAN EXC. EURO1 SPECIFICATION<6YW> 07.833 M8 W/LK WASHER	8-94327-073-0	07	1	9505-9510					●
24	01.453 NUT; OIL PAN EURO1 SPECIFICATION<6YW> 01.540 M8 FLANGE	0-91150-208-0	15	1	9505-9510					●
24	01.453 NUT; OIL PAN 01.540 M8 FLANGE	0-91150-208-0	15	1	9511-9711					●
24	01.453 NUT; OIL PAN 01.540 M8 FLANGE	0-91150-208-0	15	1	9712-9801					●	●
24	01.453 NUT; OIL PAN EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) CHARGE AIR COOLER<6PL> 01.540 M8 FLANGE	0-91150-208-0	15	1	9712-9801							●
24	01.453 NUT; OIL PAN 07.633 M8 FLANGE	0-91150-108-0	15	1	9802-					●	●
24	01.453 NUT; OIL PAN EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	15	1	9802-							●
24	01.453 NUT; OIL PAN EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) 07.833 M8 W/LK WASHER	8-94327-073-0	07	1	9712-							●
49	01.516 NUT; GUIDE TUBE EXC. CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE	0-91150-110-0	01	1	9712-							●
49	01.516 NUT; GUIDE TUBE VENEZUELA EQUIPMENT(S2L) 07.633 M8 FLANGE	0-91150-108-0	01	1	9802-							●
50	01.516 WASHER; PL,GUIDE TUBE 04.085 ID=10.5 OD=22	9-09164-610-0	01	1	9503-9711					●
50	01.516 WASHER; PL,GUIDE TUBE EXC. CHARGE AIR COOLER<6PL> 04.085 ID=10.5 OD=26	9-09164-710-0	01	1	9712-							●
50	01.516 WASHER; PL,GUIDE TUBE 04.085 ID=10.5 OD=22	9-09164-610-0	01	1	9808-					●	●
134	01.516 WASHER; LK,GUIDE TUBE 04.085 ID=10.5 OD=22	9-09164-610-0	01	1	9312-9406					●
194	01.429 SPACER; GUIDE TUBE	8-97101-215-0	01	1	9312-9711					●
194	01.429 SPACER; GUIDE TUBE	8-97101-215-0	01	1	9712-					●	●

2 194 50 10 123 9 9 123 123 8 17 123 24 3 1 4 23 25

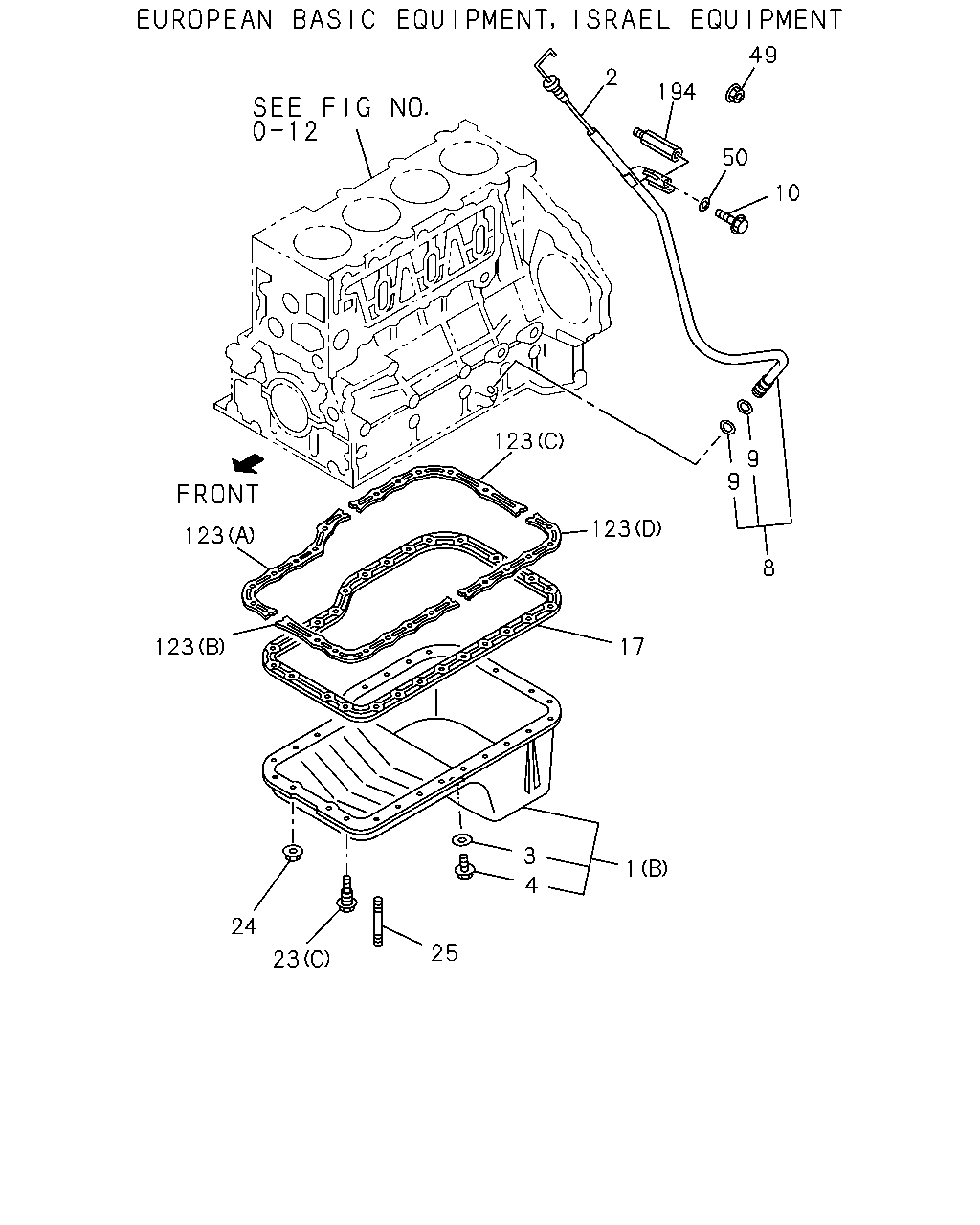

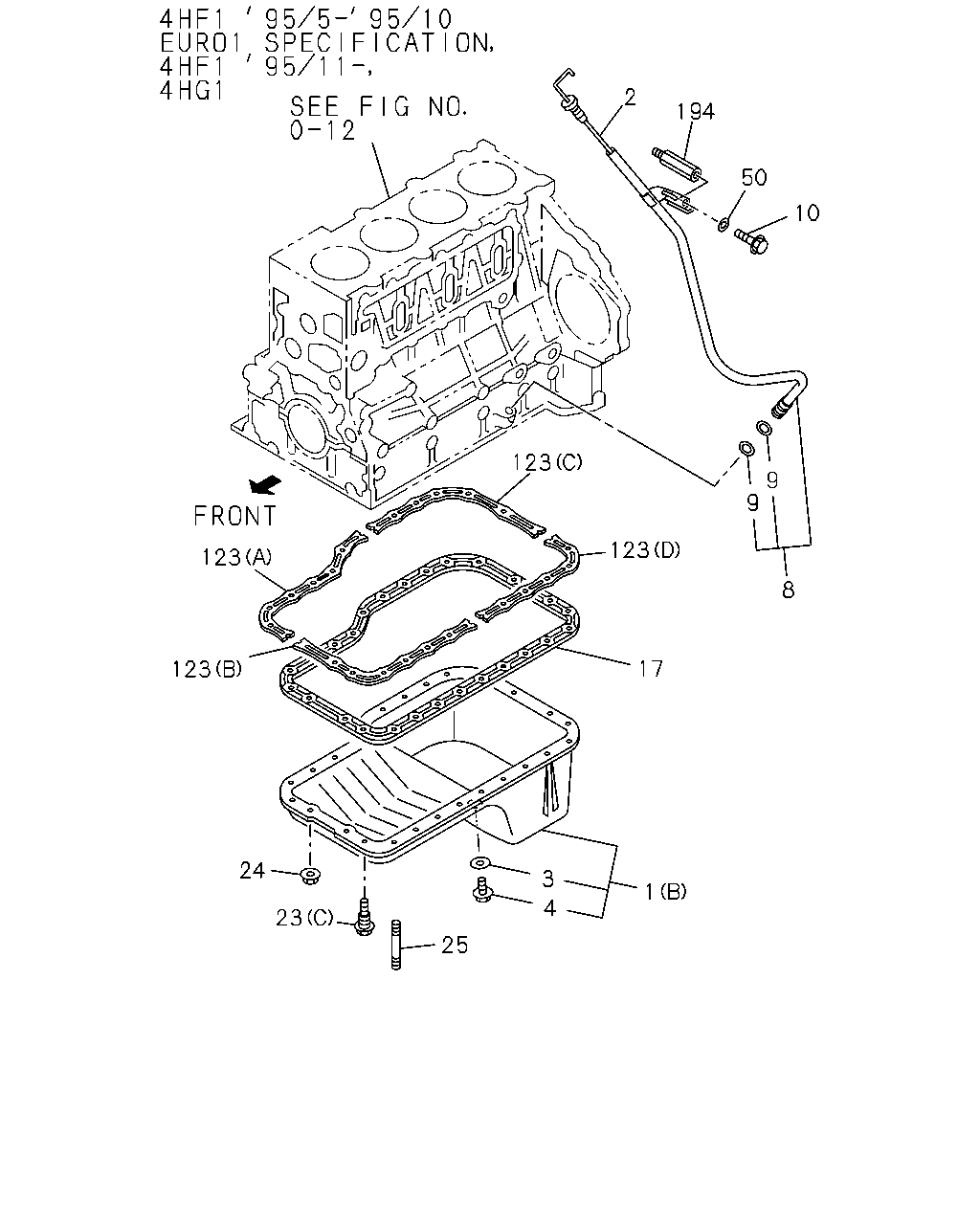

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	01.426 PAN ASM; OIL	8-94326-674-0	01	1	9312-9510	●
1	01.426 PAN ASM; OIL	8-97083-322-3	01	1	9312-		●
1	01.426 PAN ASM; OIL	8-97105-610-0	01	1	9312-9610			●
1	01.426 PAN ASM; OIL EXC. FRAME STRAIGHT TYPE<7KJ>	8-97105-610-0	01	1	9611-9703			●
1	01.426 PAN ASM; OIL FRAME STRAIGHT TYPE<7KJ>	8-97039-773-2	01	1	9611-9703			●
1	01.426 PAN ASM; OIL	8-97039-773-2	01	1	9704-			●
1	01.426 PAN ASM; OIL	8-94442-071-0	01	1	9312-				●
1	01.426 PAN ASM; OIL (A)	8-97095-100-0	01	1	9312-9504					●
1	01.426 PAN ASM; OIL EXC. EURO1 SPECIFICATION<6YW> (A)	8-97095-100-0	01	1	9505-9510					●
1	01.426 PAN ASM; OIL EURO1 SPECIFICATION<6YW> (B)	8-97087-642-1	01	1	9505-9510					●
1	01.426 PAN ASM; OIL (B)	8-97087-642-1	01	1	9511-9711					●
1	01.426 PAN ASM; OIL (B)	8-97087-642-1	01	1	9712-					●	●
1	01.426 PAN ASM; OIL CHARGE AIR COOLER<6PL> EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) (B)	8-97117-937-0	01	1	9712-							●
1	01.426 PAN ASM; OIL CHARGE AIR COOLER<6PL> TAIWAN EQUIPMENT(RWV) (B)	8-97149-314-0	01	1	9712-							●
1	01.426 PAN ASM; OIL EXC. CHARGE AIR COOLER<6PL> (A)	8-97075-348-1	01	1	9712-							●
2	01.516 GAUGE; OIL LEVEL	8-94462-052-1	01	1	9312-9510	●		●
2	01.516 GAUGE; OIL LEVEL	8-94462-052-1	01	1	9511-			●
2	01.516 GAUGE; OIL LEVEL	8-97092-924-0	01	1	9312-		●
2	01.516 GAUGE; OIL LEVEL	8-97108-689-0	01	1	9312-9702				●
2	01.516 GAUGE; OIL LEVEL	8-97177-983-0	01	1	9703-				●
2	01.516 GAUGE; OIL LEVEL	8-97094-460-2	01	1	9312-9711					●
2	01.516 GAUGE; OIL LEVEL	8-97094-460-2	01	1	9712-					●	●
2	01.516 GAUGE; OIL LEVEL	8-97019-885-1	01	1	9712-9808							●
2	01.516 GAUGE; OIL LEVEL CHARGE AIR COOLER<6PL> EXC. VENEZUELA EQUIPMENT(S2L)	8-97019-885-1	01	1	9809-							●
2	01.516 GAUGE; OIL LEVEL NQR EXTEND LONG(NP***N) VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL>	8-97184-694-1	01	1	9809-							●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE).	8-94107-564-0	01	1	9312-9510	●		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE).	8-94107-564-0	01	1	9511-			●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9312-9406		●		●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9407-9502		●		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9503-9711		●		●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9712-		●		●	●	●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9407-9502					●
4	01.453 PLUG; DRAIN,OIL	8-94107-557-0	01	1	9312-9510	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9312-9406		●		●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9407-9502		●		●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9503-9711		●		●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9712-		●		●	●	●	●
4	01.453 PLUG; DRAIN,OIL 05.400	8-97019-202-0	01	1	9312-			●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9407-9502					●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97106-965-0	01	1	9312-9510	●		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97106-965-0	01	1	9511-			●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97044-886-0	01	1	9312-		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97106-818-0	01	1	9312-				●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97101-907-1	01	1	9312-9711					●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97101-907-1	01	1	9712-					●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE CHARGE AIR COOLER<6PL>	8-97182-794-0	01	1	9712-9801							●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE CHARGE AIR COOLER<6PL> EXC. VENEZUELA EQUIPMENT(S2L)	8-97182-794-0	01	1	9802-							●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EXC. CHARGE AIR COOLER<6PL>	8-97130-265-0	01	1	9712-							●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL>	8-97165-493-2	01	1	9802-9807							●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL>	8-97184-685-1	01	1	9809-							●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9312-9406	●		●		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9407-9502	●		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9503-9510	●		●		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9511-9511			●		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9511-9711			●		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE).	5-09623-002-0	02	1	9712-			●		●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> ID=11	5-09623-002-0	02	1	9712-							●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	01	1	9312-9709		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9407-9502					●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> ID=11	5-09623-002-0	02	1	9712-							●
10	01.516 BOLT; GUIDE TUBE 08.900 M8X20 W/LK WASHER	0-50040-820-0	01	1	9312-9402	●		●
10	01.516 BOLT; GUIDE TUBE 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9403-9510	●		●
10	01.516 BOLT; GUIDE TUBE 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9511-9808			●
10	01.516 BOLT; GUIDE TUBE 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9809-			●
10	01.516 BOLT; GUIDE TUBE NQR EXTEND LONG(NP***N) VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9809-							●
10	01.516 BOLT; GUIDE TUBE 12.187 M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9312-				●
10	01.516 BOLT; GUIDE TUBE 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9312-9408					●
10	01.516 BOLT; GUIDE TUBE 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9409-9711					●
10	01.516 BOLT; GUIDE TUBE EXC. CHARGE AIR COOLER<6PL> 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9712-9807							●
10	01.516 BOLT; GUIDE TUBE 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9808-					●	●
10	01.516 BOLT; GUIDE TUBE EXC. CHARGE AIR COOLER<6PL> 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9808-							●
10	01.516 BOLT; GUIDE TUBE CHARGE AIR COOLER<6PL> 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9712-9801							●
10	01.516 BOLT; GUIDE TUBE CHARGE AIR COOLER<6PL> EXC. VENEZUELA EQUIPMENT(S2L) 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9802-							●
10	01.516 BOLT; GUIDE TUBE NQR EXTEND LONG(NP***N) VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9809-							●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE). EURO1 SPECIFICATION<6YW>	8-97106-747-2	01	1	9505-9510					●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE).	8-97106-747-2	01	1	9511-9602					●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE).	8-97146-148-1	01	1	9603-9711					●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE).	8-97146-148-1	01	1	9712-					●	●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE). EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) CHARGE AIR COOLER<6PL>	8-97146-148-1	01	1	9712-							●
23	01.428 BOLT; OIL PAN 08.900 M8X20 W/LK WASHER	0-50040-820-0	24	1	9312-9510	●
23	01.428 BOLT; OIL PAN 08.900 M8X20 W/LK WASHER	0-50040-820-0	21	1	9511-			●
23	01.428 BOLT; OIL PAN 08.900 M8X20 W/LK WASHER	0-50040-820-0	21	1	9312-9510			●
23	01.428 BOLT; OIL PAN M8X20 FLANGE W/LK WASHER	8-94130-281-1	03	1	9312-			●
23	01.428 BOLT; OIL PAN 08.900 M8X20 W/LK WASHER	0-50040-820-0	18	1	9312-				●
23	01.428 BOLT; OIL PAN (A) M8X14	8-97047-004-0	01	1	9312-9504					●
23	01.428 BOLT; OIL PAN EXC. EURO1 SPECIFICATION<6YW> (A) M8X14	8-97047-004-0	01	1	9505-9510					●
23	01.428 BOLT; OIL PAN (B) M8X14	8-97047-005-0	18	1	9312-9504					●
23	01.428 BOLT; OIL PAN EXC. EURO1 SPECIFICATION<6YW> (B) M8X14	8-97047-005-0	18	1	9505-9510					●
23	01.428 BOLT; OIL PAN EURO1 SPECIFICATION<6YW> (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	11	1	9505-9510					●
23	01.428 BOLT; OIL PAN (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	11	1	9511-9711					●
23	01.428 BOLT; OIL PAN (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	11	1	9712-					●	●
23	01.428 BOLT; OIL PAN EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) CHARGE AIR COOLER<6PL> (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	11	1	9712-							●
23	01.428 BOLT; OIL PAN EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) (A) M8X14	8-97047-004-1	01	1	9712-							●
23	01.428 BOLT; OIL PAN EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) (B) M8X14	8-97047-005-0	18	1	9712-							●
24	01.453 NUT; OIL PAN 07.833 M8 W/LK WASHER	8-94327-073-0	07	1	9312-9504					●
24	01.453 NUT; OIL PAN EXC. EURO1 SPECIFICATION<6YW> 07.833 M8 W/LK WASHER	8-94327-073-0	07	1	9505-9510					●
24	01.453 NUT; OIL PAN EURO1 SPECIFICATION<6YW> 01.540 M8 FLANGE	0-91150-208-0	15	1	9505-9510					●
24	01.453 NUT; OIL PAN 01.540 M8 FLANGE	0-91150-208-0	15	1	9511-9711					●
24	01.453 NUT; OIL PAN 01.540 M8 FLANGE	0-91150-208-0	15	1	9712-9801					●	●
24	01.453 NUT; OIL PAN EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) CHARGE AIR COOLER<6PL> 01.540 M8 FLANGE	0-91150-208-0	15	1	9712-9801							●
24	01.453 NUT; OIL PAN 07.633 M8 FLANGE	0-91150-108-0	15	1	9802-					●	●
24	01.453 NUT; OIL PAN EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	15	1	9802-							●
24	01.453 NUT; OIL PAN EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) 07.833 M8 W/LK WASHER	8-94327-073-0	07	1	9712-							●
25	01.453 STUD; OIL PAN EURO1 SPECIFICATION<6YW> 01.428 M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBB ER	8-97087-632-1	10	1	9505-9510					●
25	01.453 STUD; OIL PAN 01.428 M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBB ER	8-97087-632-2	10	1	9511-9711					●
25	01.453 STUD; OIL PAN 01.428 M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBB ER	8-97087-632-2	10	1	9712-					●	●
25	01.453 STUD; OIL PAN EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) CHARGE AIR COOLER<6PL> 01.428 M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBB ER	8-97087-632-2	10	1	9712-							●
25	01.453 STUD; OIL PAN EURO1 SPECIFICATION<6YW> M8X10.8 M8X16.5 L=41.1 W/WASHER&RUBB ER	8-97087-680-1	01	1	9505-9510					●
25	01.453 STUD; OIL PAN M8X10.8 M8X16.5 L=41.1 W/WASHER&RUBB ER	8-97087-680-2	01	1	9511-9711					●
25	01.453 STUD; OIL PAN M8X10.8 M8X16.5 L=41.1 W/WASHER&RUBB ER	8-97087-680-2	01	1	9712-					●	●
25	01.453 STUD; OIL PAN EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) CHARGE AIR COOLER<6PL> M8X10.8 M8X16.5 L=41.1 W/WASHER&RUBB ER	8-97087-680-2	01	1	9712-							●
50	01.516 WASHER; PL,GUIDE TUBE 04.085 ID=10.5 OD=22	9-09164-610-0	01	1	9503-9711					●
50	01.516 WASHER; PL,GUIDE TUBE EXC. CHARGE AIR COOLER<6PL> 04.085 ID=10.5 OD=26	9-09164-710-0	01	1	9712-							●
50	01.516 WASHER; PL,GUIDE TUBE 04.085 ID=10.5 OD=22	9-09164-610-0	01	1	9808-					●	●
123	01.516 RUBBER; SEAL OIL EURO1 SPECIFICATION<6YW> (A)	8-97087-619-1	01	1	9505-9510					●
123	01.516 RUBBER; SEAL OIL (A)	8-97087-619-2	01	1	9511-9711					●
123	01.516 RUBBER; SEAL OIL (A)	8-97087-619-2	01	1	9712-					●	●
123	01.516 RUBBER; SEAL OIL EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) CHARGE AIR COOLER<6PL> (A)	8-97087-619-2	01	1	9712-							●
123	01.516 RUBBER; SEAL OIL EURO1 SPECIFICATION<6YW> (B)	8-97087-622-1	01	1	9505-9510					●
123	01.516 RUBBER; SEAL OIL (B)	8-97087-622-2	01	1	9511-9711					●
123	01.516 RUBBER; SEAL OIL (B)	8-97087-622-2	01	1	9712-					●	●
123	01.516 RUBBER; SEAL OIL EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) CHARGE AIR COOLER<6PL> (B)	8-97087-622-2	01	1	9712-							●
123	01.516 RUBBER; SEAL OIL EURO1 SPECIFICATION<6YW> (C)	8-97087-625-1	01	1	9505-9510					●
123	01.516 RUBBER; SEAL OIL (C)	8-97087-625-2	01	1	9511-9711					●
123	01.516 RUBBER; SEAL OIL (C)	8-97087-625-2	01	1	9712-					●	●
123	01.516 RUBBER; SEAL OIL EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) CHARGE AIR COOLER<6PL> (C)	8-97087-625-2	01	1	9712-							●
123	01.516 RUBBER; SEAL OIL EURO1 SPECIFICATION<6YW> (D)	8-97087-628-1	01	1	9505-9510					●
123	01.516 RUBBER; SEAL OIL (D)	8-97087-628-2	01	1	9511-9711					●
123	01.516 RUBBER; SEAL OIL (D)	8-97087-628-2	01	1	9712-					●	●
123	01.516 RUBBER; SEAL OIL EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) CHARGE AIR COOLER<6PL> (D)	8-97087-628-2	01	1	9712-							●
194	01.429 SPACER; GUIDE TUBE	8-97101-215-0	01	1	9312-9711					●
194	01.429 SPACER; GUIDE TUBE	8-97101-215-0	01	1	9712-					●	●

2 194 10 9 9 8 292 3 23 24 4 23 1 50 134

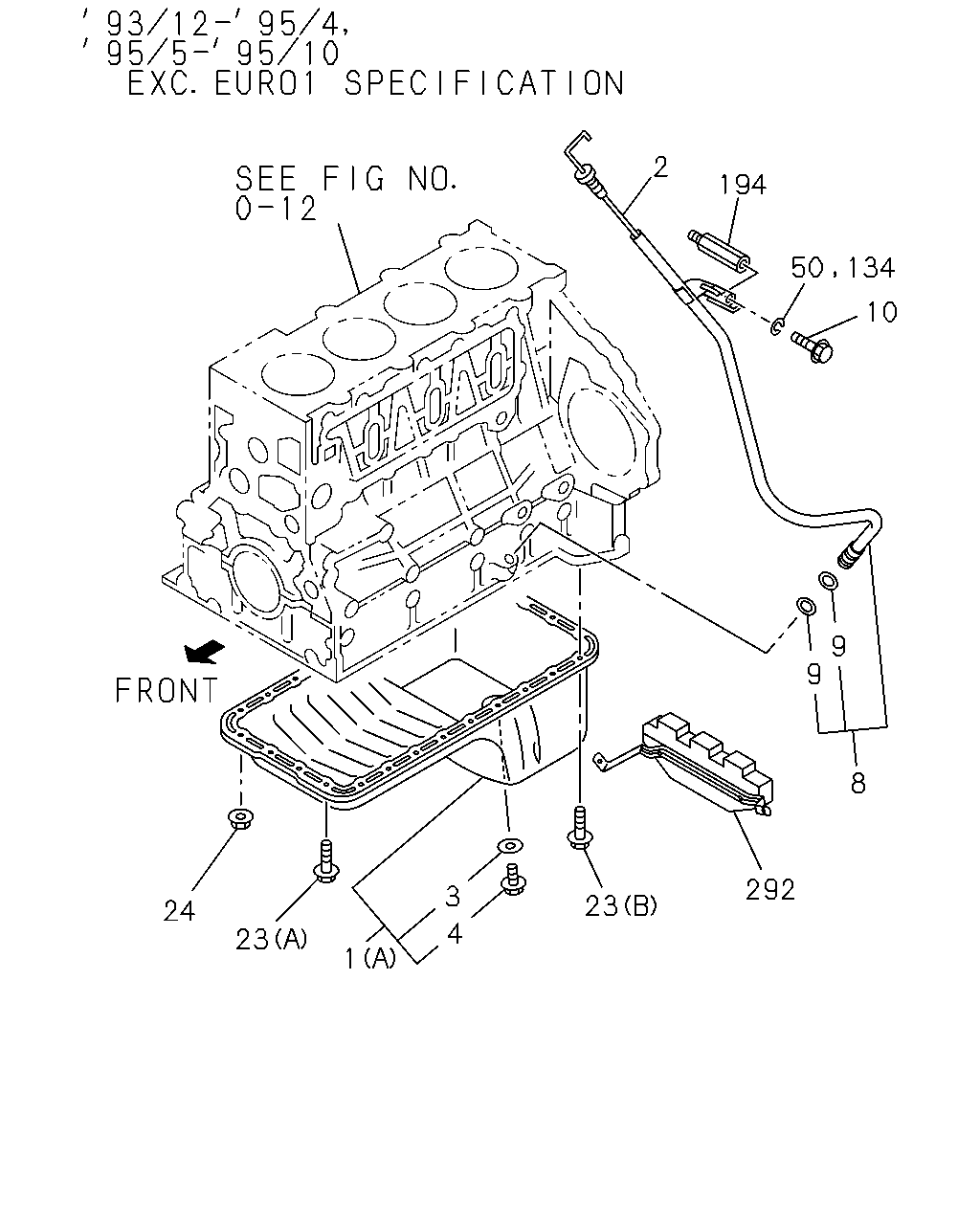

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	01.426 PAN ASM; OIL	8-94326-674-0	01	1	9312-9510	●
1	01.426 PAN ASM; OIL	8-97083-322-3	01	1	9312-		●
1	01.426 PAN ASM; OIL	8-97105-610-0	01	1	9312-9610			●
1	01.426 PAN ASM; OIL EXC. FRAME STRAIGHT TYPE<7KJ>	8-97105-610-0	01	1	9611-9703			●
1	01.426 PAN ASM; OIL FRAME STRAIGHT TYPE<7KJ>	8-97039-773-2	01	1	9611-9703			●
1	01.426 PAN ASM; OIL	8-97039-773-2	01	1	9704-			●
1	01.426 PAN ASM; OIL	8-94442-071-0	01	1	9312-				●
1	01.426 PAN ASM; OIL (A)	8-97095-100-0	01	1	9312-9504					●
1	01.426 PAN ASM; OIL EXC. EURO1 SPECIFICATION<6YW> (A)	8-97095-100-0	01	1	9505-9510					●
1	01.426 PAN ASM; OIL EURO1 SPECIFICATION<6YW> (B)	8-97087-642-1	01	1	9505-9510					●
1	01.426 PAN ASM; OIL (B)	8-97087-642-1	01	1	9511-9711					●
1	01.426 PAN ASM; OIL (B)	8-97087-642-1	01	1	9712-					●	●
1	01.426 PAN ASM; OIL CHARGE AIR COOLER<6PL> EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) (B)	8-97117-937-0	01	1	9712-							●
1	01.426 PAN ASM; OIL CHARGE AIR COOLER<6PL> TAIWAN EQUIPMENT(RWV) (B)	8-97149-314-0	01	1	9712-							●
1	01.426 PAN ASM; OIL EXC. CHARGE AIR COOLER<6PL> (A)	8-97075-348-1	01	1	9712-							●
2	01.516 GAUGE; OIL LEVEL	8-94462-052-1	01	1	9312-9510	●		●
2	01.516 GAUGE; OIL LEVEL	8-94462-052-1	01	1	9511-			●
2	01.516 GAUGE; OIL LEVEL	8-97092-924-0	01	1	9312-		●
2	01.516 GAUGE; OIL LEVEL	8-97108-689-0	01	1	9312-9702				●
2	01.516 GAUGE; OIL LEVEL	8-97177-983-0	01	1	9703-				●
2	01.516 GAUGE; OIL LEVEL	8-97094-460-2	01	1	9312-9711					●
2	01.516 GAUGE; OIL LEVEL	8-97094-460-2	01	1	9712-					●	●
2	01.516 GAUGE; OIL LEVEL	8-97019-885-1	01	1	9712-9808							●
2	01.516 GAUGE; OIL LEVEL CHARGE AIR COOLER<6PL> EXC. VENEZUELA EQUIPMENT(S2L)	8-97019-885-1	01	1	9809-							●
2	01.516 GAUGE; OIL LEVEL NQR EXTEND LONG(NP***N) VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL>	8-97184-694-1	01	1	9809-							●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE).	8-94107-564-0	01	1	9312-9510	●		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE).	8-94107-564-0	01	1	9511-			●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9312-9406		●		●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9407-9502		●		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9503-9711		●		●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9712-		●		●	●	●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9407-9502					●
4	01.453 PLUG; DRAIN,OIL	8-94107-557-0	01	1	9312-9510	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9312-9406		●		●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9407-9502		●		●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9503-9711		●		●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9712-		●		●	●	●	●
4	01.453 PLUG; DRAIN,OIL 05.400	8-97019-202-0	01	1	9312-			●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9407-9502					●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97106-965-0	01	1	9312-9510	●		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97106-965-0	01	1	9511-			●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97044-886-0	01	1	9312-		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97106-818-0	01	1	9312-				●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97101-907-1	01	1	9312-9711					●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97101-907-1	01	1	9712-					●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE CHARGE AIR COOLER<6PL>	8-97182-794-0	01	1	9712-9801							●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE CHARGE AIR COOLER<6PL> EXC. VENEZUELA EQUIPMENT(S2L)	8-97182-794-0	01	1	9802-							●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EXC. CHARGE AIR COOLER<6PL>	8-97130-265-0	01	1	9712-							●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL>	8-97165-493-2	01	1	9802-9807							●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL>	8-97184-685-1	01	1	9809-							●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9312-9406	●		●		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9407-9502	●		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9503-9510	●		●		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9511-9511			●		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9511-9711			●		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE).	5-09623-002-0	02	1	9712-			●		●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> ID=11	5-09623-002-0	02	1	9712-							●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	01	1	9312-9709		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9407-9502					●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> ID=11	5-09623-002-0	02	1	9712-							●
10	01.516 BOLT; GUIDE TUBE 08.900 M8X20 W/LK WASHER	0-50040-820-0	01	1	9312-9402	●		●
10	01.516 BOLT; GUIDE TUBE 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9403-9510	●		●
10	01.516 BOLT; GUIDE TUBE 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9511-9808			●
10	01.516 BOLT; GUIDE TUBE 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9809-			●
10	01.516 BOLT; GUIDE TUBE NQR EXTEND LONG(NP***N) VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9809-							●
10	01.516 BOLT; GUIDE TUBE 12.187 M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9312-				●
10	01.516 BOLT; GUIDE TUBE 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9312-9408					●
10	01.516 BOLT; GUIDE TUBE 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9409-9711					●
10	01.516 BOLT; GUIDE TUBE EXC. CHARGE AIR COOLER<6PL> 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9712-9807							●
10	01.516 BOLT; GUIDE TUBE 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9808-					●	●
10	01.516 BOLT; GUIDE TUBE EXC. CHARGE AIR COOLER<6PL> 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9808-							●
10	01.516 BOLT; GUIDE TUBE CHARGE AIR COOLER<6PL> 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9712-9801							●
10	01.516 BOLT; GUIDE TUBE CHARGE AIR COOLER<6PL> EXC. VENEZUELA EQUIPMENT(S2L) 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9802-							●
10	01.516 BOLT; GUIDE TUBE NQR EXTEND LONG(NP***N) VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9809-							●
23	01.428 BOLT; OIL PAN 08.900 M8X20 W/LK WASHER	0-50040-820-0	24	1	9312-9510	●
23	01.428 BOLT; OIL PAN 08.900 M8X20 W/LK WASHER	0-50040-820-0	21	1	9511-			●
23	01.428 BOLT; OIL PAN 08.900 M8X20 W/LK WASHER	0-50040-820-0	21	1	9312-9510			●
23	01.428 BOLT; OIL PAN M8X20 FLANGE W/LK WASHER	8-94130-281-1	03	1	9312-			●
23	01.428 BOLT; OIL PAN 08.900 M8X20 W/LK WASHER	0-50040-820-0	18	1	9312-				●
23	01.428 BOLT; OIL PAN (A) M8X14	8-97047-004-0	01	1	9312-9504					●
23	01.428 BOLT; OIL PAN EXC. EURO1 SPECIFICATION<6YW> (A) M8X14	8-97047-004-0	01	1	9505-9510					●
23	01.428 BOLT; OIL PAN (B) M8X14	8-97047-005-0	18	1	9312-9504					●
23	01.428 BOLT; OIL PAN EXC. EURO1 SPECIFICATION<6YW> (B) M8X14	8-97047-005-0	18	1	9505-9510					●
23	01.428 BOLT; OIL PAN EURO1 SPECIFICATION<6YW> (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	11	1	9505-9510					●
23	01.428 BOLT; OIL PAN (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	11	1	9511-9711					●
23	01.428 BOLT; OIL PAN (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	11	1	9712-					●	●
23	01.428 BOLT; OIL PAN EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) CHARGE AIR COOLER<6PL> (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	11	1	9712-							●
23	01.428 BOLT; OIL PAN EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) (A) M8X14	8-97047-004-1	01	1	9712-							●
23	01.428 BOLT; OIL PAN EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) (B) M8X14	8-97047-005-0	18	1	9712-							●
24	01.453 NUT; OIL PAN 07.833 M8 W/LK WASHER	8-94327-073-0	07	1	9312-9504					●
24	01.453 NUT; OIL PAN EXC. EURO1 SPECIFICATION<6YW> 07.833 M8 W/LK WASHER	8-94327-073-0	07	1	9505-9510					●
24	01.453 NUT; OIL PAN EURO1 SPECIFICATION<6YW> 01.540 M8 FLANGE	0-91150-208-0	15	1	9505-9510					●
24	01.453 NUT; OIL PAN 01.540 M8 FLANGE	0-91150-208-0	15	1	9511-9711					●
24	01.453 NUT; OIL PAN 01.540 M8 FLANGE	0-91150-208-0	15	1	9712-9801					●	●
24	01.453 NUT; OIL PAN EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) CHARGE AIR COOLER<6PL> 01.540 M8 FLANGE	0-91150-208-0	15	1	9712-9801							●
24	01.453 NUT; OIL PAN 07.633 M8 FLANGE	0-91150-108-0	15	1	9802-					●	●
24	01.453 NUT; OIL PAN EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	15	1	9802-							●
24	01.453 NUT; OIL PAN EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) 07.833 M8 W/LK WASHER	8-94327-073-0	07	1	9712-							●
50	01.516 WASHER; PL,GUIDE TUBE 04.085 ID=10.5 OD=22	9-09164-610-0	01	1	9503-9711					●
50	01.516 WASHER; PL,GUIDE TUBE EXC. CHARGE AIR COOLER<6PL> 04.085 ID=10.5 OD=26	9-09164-710-0	01	1	9712-							●
50	01.516 WASHER; PL,GUIDE TUBE 04.085 ID=10.5 OD=22	9-09164-610-0	01	1	9808-					●	●
134	01.516 WASHER; LK,GUIDE TUBE 04.085 ID=10.5 OD=22	9-09164-610-0	01	1	9312-9406					●
194	01.429 SPACER; GUIDE TUBE	8-97101-215-0	01	1	9312-9711					●
194	01.429 SPACER; GUIDE TUBE	8-97101-215-0	01	1	9712-					●	●
292	01.531 INSULATOR ASM; OIL PAN	8-97106-452-1	01	1	9407-9510					●

49 2 194 50 10 123 9 9 123 123 8 17 123 3 1 4 24 25 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	01.426 PAN ASM; OIL	8-94326-674-0	01	1	9312-9510	●
1	01.426 PAN ASM; OIL	8-97083-322-3	01	1	9312-		●
1	01.426 PAN ASM; OIL	8-97105-610-0	01	1	9312-9610			●
1	01.426 PAN ASM; OIL EXC. FRAME STRAIGHT TYPE<7KJ>	8-97105-610-0	01	1	9611-9703			●
1	01.426 PAN ASM; OIL FRAME STRAIGHT TYPE<7KJ>	8-97039-773-2	01	1	9611-9703			●
1	01.426 PAN ASM; OIL	8-97039-773-2	01	1	9704-			●
1	01.426 PAN ASM; OIL	8-94442-071-0	01	1	9312-				●
1	01.426 PAN ASM; OIL (A)	8-97095-100-0	01	1	9312-9504					●
1	01.426 PAN ASM; OIL EXC. EURO1 SPECIFICATION<6YW> (A)	8-97095-100-0	01	1	9505-9510					●
1	01.426 PAN ASM; OIL EURO1 SPECIFICATION<6YW> (B)	8-97087-642-1	01	1	9505-9510					●
1	01.426 PAN ASM; OIL (B)	8-97087-642-1	01	1	9511-9711					●
1	01.426 PAN ASM; OIL (B)	8-97087-642-1	01	1	9712-					●	●
1	01.426 PAN ASM; OIL CHARGE AIR COOLER<6PL> EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) (B)	8-97117-937-0	01	1	9712-							●
1	01.426 PAN ASM; OIL CHARGE AIR COOLER<6PL> TAIWAN EQUIPMENT(RWV) (B)	8-97149-314-0	01	1	9712-							●
1	01.426 PAN ASM; OIL EXC. CHARGE AIR COOLER<6PL> (A)	8-97075-348-1	01	1	9712-							●
2	01.516 GAUGE; OIL LEVEL	8-94462-052-1	01	1	9312-9510	●		●
2	01.516 GAUGE; OIL LEVEL	8-94462-052-1	01	1	9511-			●
2	01.516 GAUGE; OIL LEVEL	8-97092-924-0	01	1	9312-		●
2	01.516 GAUGE; OIL LEVEL	8-97108-689-0	01	1	9312-9702				●
2	01.516 GAUGE; OIL LEVEL	8-97177-983-0	01	1	9703-				●
2	01.516 GAUGE; OIL LEVEL	8-97094-460-2	01	1	9312-9711					●
2	01.516 GAUGE; OIL LEVEL	8-97094-460-2	01	1	9712-					●	●
2	01.516 GAUGE; OIL LEVEL	8-97019-885-1	01	1	9712-9808							●
2	01.516 GAUGE; OIL LEVEL CHARGE AIR COOLER<6PL> EXC. VENEZUELA EQUIPMENT(S2L)	8-97019-885-1	01	1	9809-							●
2	01.516 GAUGE; OIL LEVEL NQR EXTEND LONG(NP***N) VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL>	8-97184-694-1	01	1	9809-							●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE).	8-94107-564-0	01	1	9312-9510	●		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE).	8-94107-564-0	01	1	9511-			●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9312-9406		●		●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9407-9502		●		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9503-9711		●		●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9712-		●		●	●	●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9407-9502					●
4	01.453 PLUG; DRAIN,OIL	8-94107-557-0	01	1	9312-9510	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9312-9406		●		●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9407-9502		●		●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9503-9711		●		●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9712-		●		●	●	●	●
4	01.453 PLUG; DRAIN,OIL 05.400	8-97019-202-0	01	1	9312-			●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9407-9502					●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97106-965-0	01	1	9312-9510	●		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97106-965-0	01	1	9511-			●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97044-886-0	01	1	9312-		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97106-818-0	01	1	9312-				●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97101-907-1	01	1	9312-9711					●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97101-907-1	01	1	9712-					●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE CHARGE AIR COOLER<6PL>	8-97182-794-0	01	1	9712-9801							●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE CHARGE AIR COOLER<6PL> EXC. VENEZUELA EQUIPMENT(S2L)	8-97182-794-0	01	1	9802-							●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EXC. CHARGE AIR COOLER<6PL>	8-97130-265-0	01	1	9712-							●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL>	8-97165-493-2	01	1	9802-9807							●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL>	8-97184-685-1	01	1	9809-							●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9312-9406	●		●		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9407-9502	●		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9503-9510	●		●		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9511-9511			●		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9511-9711			●		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE).	5-09623-002-0	02	1	9712-			●		●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> ID=11	5-09623-002-0	02	1	9712-							●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	01	1	9312-9709		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9407-9502					●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> ID=11	5-09623-002-0	02	1	9712-							●
10	01.516 BOLT; GUIDE TUBE 08.900 M8X20 W/LK WASHER	0-50040-820-0	01	1	9312-9402	●		●
10	01.516 BOLT; GUIDE TUBE 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9403-9510	●		●
10	01.516 BOLT; GUIDE TUBE 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9511-9808			●
10	01.516 BOLT; GUIDE TUBE 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9809-			●
10	01.516 BOLT; GUIDE TUBE NQR EXTEND LONG(NP***N) VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9809-							●
10	01.516 BOLT; GUIDE TUBE 12.187 M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9312-				●
10	01.516 BOLT; GUIDE TUBE 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9312-9408					●
10	01.516 BOLT; GUIDE TUBE 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9409-9711					●
10	01.516 BOLT; GUIDE TUBE EXC. CHARGE AIR COOLER<6PL> 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9712-9807							●
10	01.516 BOLT; GUIDE TUBE 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9808-					●	●
10	01.516 BOLT; GUIDE TUBE EXC. CHARGE AIR COOLER<6PL> 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9808-							●
10	01.516 BOLT; GUIDE TUBE CHARGE AIR COOLER<6PL> 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9712-9801							●
10	01.516 BOLT; GUIDE TUBE CHARGE AIR COOLER<6PL> EXC. VENEZUELA EQUIPMENT(S2L) 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9802-							●
10	01.516 BOLT; GUIDE TUBE NQR EXTEND LONG(NP***N) VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9809-							●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE). EURO1 SPECIFICATION<6YW>	8-97106-747-2	01	1	9505-9510					●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE).	8-97106-747-2	01	1	9511-9602					●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE).	8-97146-148-1	01	1	9603-9711					●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE).	8-97146-148-1	01	1	9712-					●	●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE). EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) CHARGE AIR COOLER<6PL>	8-97146-148-1	01	1	9712-							●
23	01.428 BOLT; OIL PAN 08.900 M8X20 W/LK WASHER	0-50040-820-0	24	1	9312-9510	●
23	01.428 BOLT; OIL PAN 08.900 M8X20 W/LK WASHER	0-50040-820-0	21	1	9511-			●
23	01.428 BOLT; OIL PAN 08.900 M8X20 W/LK WASHER	0-50040-820-0	21	1	9312-9510			●
23	01.428 BOLT; OIL PAN M8X20 FLANGE W/LK WASHER	8-94130-281-1	03	1	9312-			●
23	01.428 BOLT; OIL PAN 08.900 M8X20 W/LK WASHER	0-50040-820-0	18	1	9312-				●
23	01.428 BOLT; OIL PAN (A) M8X14	8-97047-004-0	01	1	9312-9504					●
23	01.428 BOLT; OIL PAN EXC. EURO1 SPECIFICATION<6YW> (A) M8X14	8-97047-004-0	01	1	9505-9510					●
23	01.428 BOLT; OIL PAN (B) M8X14	8-97047-005-0	18	1	9312-9504					●
23	01.428 BOLT; OIL PAN EXC. EURO1 SPECIFICATION<6YW> (B) M8X14	8-97047-005-0	18	1	9505-9510					●
23	01.428 BOLT; OIL PAN EURO1 SPECIFICATION<6YW> (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	11	1	9505-9510					●
23	01.428 BOLT; OIL PAN (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	11	1	9511-9711					●
23	01.428 BOLT; OIL PAN (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	11	1	9712-					●	●
23	01.428 BOLT; OIL PAN EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) CHARGE AIR COOLER<6PL> (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	11	1	9712-							●
23	01.428 BOLT; OIL PAN EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) (A) M8X14	8-97047-004-1	01	1	9712-							●
23	01.428 BOLT; OIL PAN EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) (B) M8X14	8-97047-005-0	18	1	9712-							●
24	01.453 NUT; OIL PAN 07.833 M8 W/LK WASHER	8-94327-073-0	07	1	9312-9504					●
24	01.453 NUT; OIL PAN EXC. EURO1 SPECIFICATION<6YW> 07.833 M8 W/LK WASHER	8-94327-073-0	07	1	9505-9510					●
24	01.453 NUT; OIL PAN EURO1 SPECIFICATION<6YW> 01.540 M8 FLANGE	0-91150-208-0	15	1	9505-9510					●
24	01.453 NUT; OIL PAN 01.540 M8 FLANGE	0-91150-208-0	15	1	9511-9711					●
24	01.453 NUT; OIL PAN 01.540 M8 FLANGE	0-91150-208-0	15	1	9712-9801					●	●
24	01.453 NUT; OIL PAN EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) CHARGE AIR COOLER<6PL> 01.540 M8 FLANGE	0-91150-208-0	15	1	9712-9801							●
24	01.453 NUT; OIL PAN 07.633 M8 FLANGE	0-91150-108-0	15	1	9802-					●	●
24	01.453 NUT; OIL PAN EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	15	1	9802-							●
24	01.453 NUT; OIL PAN EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) 07.833 M8 W/LK WASHER	8-94327-073-0	07	1	9712-							●
25	01.453 STUD; OIL PAN EURO1 SPECIFICATION<6YW> 01.428 M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBB ER	8-97087-632-1	10	1	9505-9510					●
25	01.453 STUD; OIL PAN 01.428 M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBB ER	8-97087-632-2	10	1	9511-9711					●
25	01.453 STUD; OIL PAN 01.428 M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBB ER	8-97087-632-2	10	1	9712-					●	●
25	01.453 STUD; OIL PAN EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) CHARGE AIR COOLER<6PL> 01.428 M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBB ER	8-97087-632-2	10	1	9712-							●
25	01.453 STUD; OIL PAN EURO1 SPECIFICATION<6YW> M8X10.8 M8X16.5 L=41.1 W/WASHER&RUBB ER	8-97087-680-1	01	1	9505-9510					●
25	01.453 STUD; OIL PAN M8X10.8 M8X16.5 L=41.1 W/WASHER&RUBB ER	8-97087-680-2	01	1	9511-9711					●
25	01.453 STUD; OIL PAN M8X10.8 M8X16.5 L=41.1 W/WASHER&RUBB ER	8-97087-680-2	01	1	9712-					●	●
25	01.453 STUD; OIL PAN EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) CHARGE AIR COOLER<6PL> M8X10.8 M8X16.5 L=41.1 W/WASHER&RUBB ER	8-97087-680-2	01	1	9712-							●
49	01.516 NUT; GUIDE TUBE EXC. CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE	0-91150-110-0	01	1	9712-							●
49	01.516 NUT; GUIDE TUBE VENEZUELA EQUIPMENT(S2L) 07.633 M8 FLANGE	0-91150-108-0	01	1	9802-							●
50	01.516 WASHER; PL,GUIDE TUBE 04.085 ID=10.5 OD=22	9-09164-610-0	01	1	9503-9711					●
50	01.516 WASHER; PL,GUIDE TUBE EXC. CHARGE AIR COOLER<6PL> 04.085 ID=10.5 OD=26	9-09164-710-0	01	1	9712-							●
50	01.516 WASHER; PL,GUIDE TUBE 04.085 ID=10.5 OD=22	9-09164-610-0	01	1	9808-					●	●
123	01.516 RUBBER; SEAL OIL EURO1 SPECIFICATION<6YW> (A)	8-97087-619-1	01	1	9505-9510					●
123	01.516 RUBBER; SEAL OIL (A)	8-97087-619-2	01	1	9511-9711					●
123	01.516 RUBBER; SEAL OIL (A)	8-97087-619-2	01	1	9712-					●	●
123	01.516 RUBBER; SEAL OIL EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) CHARGE AIR COOLER<6PL> (A)	8-97087-619-2	01	1	9712-							●
123	01.516 RUBBER; SEAL OIL EURO1 SPECIFICATION<6YW> (B)	8-97087-622-1	01	1	9505-9510					●
123	01.516 RUBBER; SEAL OIL (B)	8-97087-622-2	01	1	9511-9711					●
123	01.516 RUBBER; SEAL OIL (B)	8-97087-622-2	01	1	9712-					●	●
123	01.516 RUBBER; SEAL OIL EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) CHARGE AIR COOLER<6PL> (B)	8-97087-622-2	01	1	9712-							●
123	01.516 RUBBER; SEAL OIL EURO1 SPECIFICATION<6YW> (C)	8-97087-625-1	01	1	9505-9510					●
123	01.516 RUBBER; SEAL OIL (C)	8-97087-625-2	01	1	9511-9711					●
123	01.516 RUBBER; SEAL OIL (C)	8-97087-625-2	01	1	9712-					●	●
123	01.516 RUBBER; SEAL OIL EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) CHARGE AIR COOLER<6PL> (C)	8-97087-625-2	01	1	9712-							●
123	01.516 RUBBER; SEAL OIL EURO1 SPECIFICATION<6YW> (D)	8-97087-628-1	01	1	9505-9510					●
123	01.516 RUBBER; SEAL OIL (D)	8-97087-628-2	01	1	9511-9711					●
123	01.516 RUBBER; SEAL OIL (D)	8-97087-628-2	01	1	9712-					●	●
123	01.516 RUBBER; SEAL OIL EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) CHARGE AIR COOLER<6PL> (D)	8-97087-628-2	01	1	9712-							●
194	01.429 SPACER; GUIDE TUBE	8-97101-215-0	01	1	9312-9711					●
194	01.429 SPACER; GUIDE TUBE	8-97101-215-0	01	1	9712-					●	●

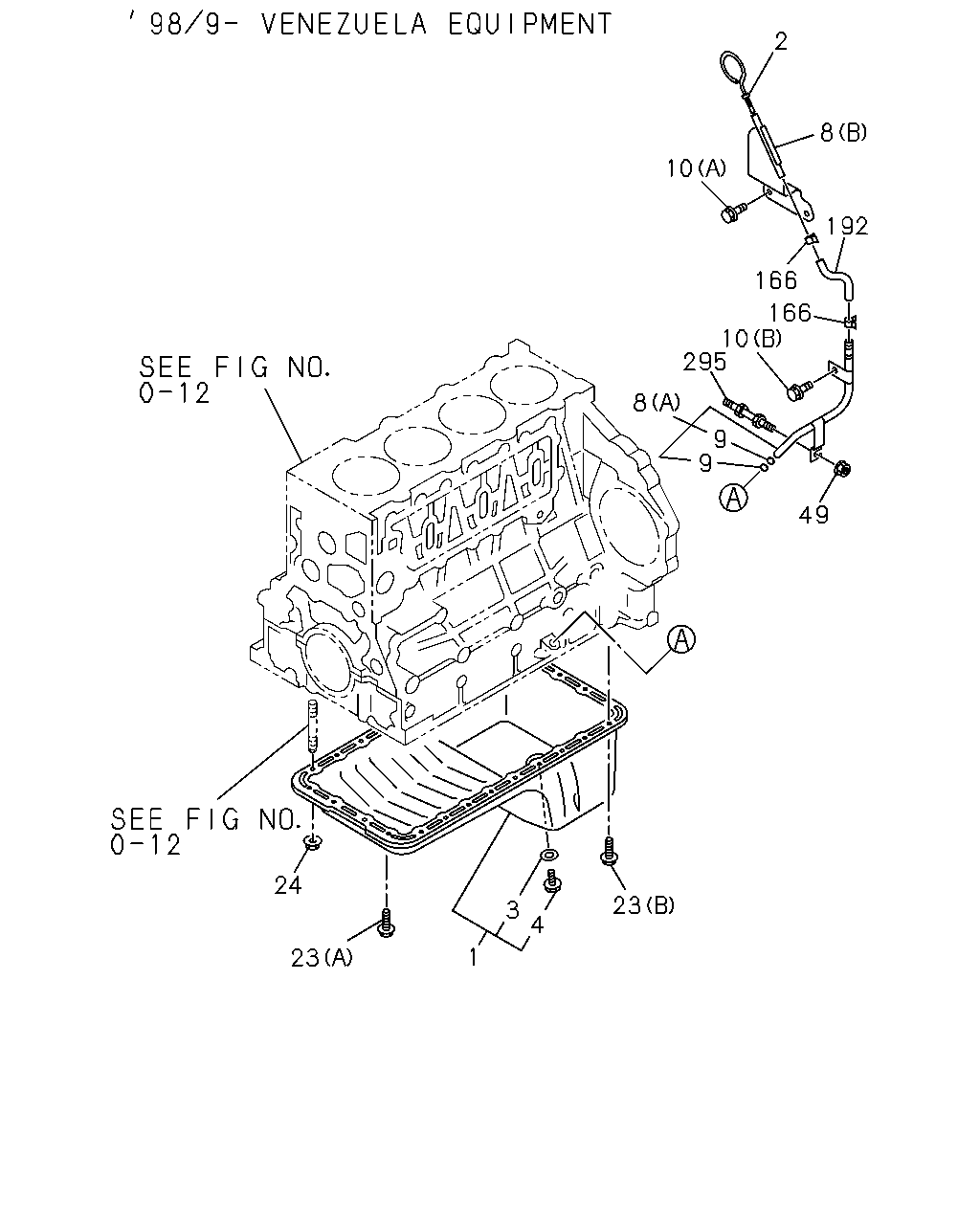

2 8 10 192 166 166 10 295 8 9 9 49 24 23 3 4 1 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	01.426 PAN ASM; OIL	8-94326-674-0	01	1	9312-9510	●
1	01.426 PAN ASM; OIL	8-97083-322-3	01	1	9312-		●
1	01.426 PAN ASM; OIL	8-97105-610-0	01	1	9312-9610			●
1	01.426 PAN ASM; OIL EXC. FRAME STRAIGHT TYPE<7KJ>	8-97105-610-0	01	1	9611-9703			●
1	01.426 PAN ASM; OIL FRAME STRAIGHT TYPE<7KJ>	8-97039-773-2	01	1	9611-9703			●
1	01.426 PAN ASM; OIL	8-97039-773-2	01	1	9704-			●
1	01.426 PAN ASM; OIL	8-94442-071-0	01	1	9312-				●
1	01.426 PAN ASM; OIL (A)	8-97095-100-0	01	1	9312-9504					●
1	01.426 PAN ASM; OIL EXC. EURO1 SPECIFICATION<6YW> (A)	8-97095-100-0	01	1	9505-9510					●
1	01.426 PAN ASM; OIL EURO1 SPECIFICATION<6YW> (B)	8-97087-642-1	01	1	9505-9510					●
1	01.426 PAN ASM; OIL (B)	8-97087-642-1	01	1	9511-9711					●
1	01.426 PAN ASM; OIL (B)	8-97087-642-1	01	1	9712-					●	●
1	01.426 PAN ASM; OIL CHARGE AIR COOLER<6PL> EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) (B)	8-97117-937-0	01	1	9712-							●
1	01.426 PAN ASM; OIL CHARGE AIR COOLER<6PL> TAIWAN EQUIPMENT(RWV) (B)	8-97149-314-0	01	1	9712-							●
1	01.426 PAN ASM; OIL EXC. CHARGE AIR COOLER<6PL> (A)	8-97075-348-1	01	1	9712-							●
2	01.516 GAUGE; OIL LEVEL	8-94462-052-1	01	1	9312-9510	●		●
2	01.516 GAUGE; OIL LEVEL	8-94462-052-1	01	1	9511-			●
2	01.516 GAUGE; OIL LEVEL	8-97092-924-0	01	1	9312-		●
2	01.516 GAUGE; OIL LEVEL	8-97108-689-0	01	1	9312-9702				●
2	01.516 GAUGE; OIL LEVEL	8-97177-983-0	01	1	9703-				●
2	01.516 GAUGE; OIL LEVEL	8-97094-460-2	01	1	9312-9711					●
2	01.516 GAUGE; OIL LEVEL	8-97094-460-2	01	1	9712-					●	●
2	01.516 GAUGE; OIL LEVEL	8-97019-885-1	01	1	9712-9808							●
2	01.516 GAUGE; OIL LEVEL CHARGE AIR COOLER<6PL> EXC. VENEZUELA EQUIPMENT(S2L)	8-97019-885-1	01	1	9809-							●
2	01.516 GAUGE; OIL LEVEL NQR EXTEND LONG(NP***N) VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL>	8-97184-694-1	01	1	9809-							●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE).	8-94107-564-0	01	1	9312-9510	●		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE).	8-94107-564-0	01	1	9511-			●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9312-9406		●		●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9407-9502		●		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9503-9711		●		●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9712-		●		●	●	●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9407-9502					●
4	01.453 PLUG; DRAIN,OIL	8-94107-557-0	01	1	9312-9510	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9312-9406		●		●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9407-9502		●		●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9503-9711		●		●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9712-		●		●	●	●	●
4	01.453 PLUG; DRAIN,OIL 05.400	8-97019-202-0	01	1	9312-			●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9407-9502					●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97106-965-0	01	1	9312-9510	●		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97106-965-0	01	1	9511-			●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97044-886-0	01	1	9312-		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97106-818-0	01	1	9312-				●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97101-907-1	01	1	9312-9711					●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97101-907-1	01	1	9712-					●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE CHARGE AIR COOLER<6PL>	8-97182-794-0	01	1	9712-9801							●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE CHARGE AIR COOLER<6PL> EXC. VENEZUELA EQUIPMENT(S2L)	8-97182-794-0	01	1	9802-							●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EXC. CHARGE AIR COOLER<6PL>	8-97130-265-0	01	1	9712-							●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL>	8-97165-493-2	01	1	9802-9807							●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL>	8-97184-685-1	01	1	9809-							●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9312-9406	●		●		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9407-9502	●		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9503-9510	●		●		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9511-9511			●		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9511-9711			●		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE).	5-09623-002-0	02	1	9712-			●		●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> ID=11	5-09623-002-0	02	1	9712-							●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	01	1	9312-9709		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9407-9502					●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> ID=11	5-09623-002-0	02	1	9712-							●
10	01.516 BOLT; GUIDE TUBE 08.900 M8X20 W/LK WASHER	0-50040-820-0	01	1	9312-9402	●		●
10	01.516 BOLT; GUIDE TUBE 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9403-9510	●		●
10	01.516 BOLT; GUIDE TUBE 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9511-9808			●
10	01.516 BOLT; GUIDE TUBE 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9809-			●
10	01.516 BOLT; GUIDE TUBE NQR EXTEND LONG(NP***N) VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9809-							●
10	01.516 BOLT; GUIDE TUBE 12.187 M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9312-				●
10	01.516 BOLT; GUIDE TUBE 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9312-9408					●
10	01.516 BOLT; GUIDE TUBE 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9409-9711					●
10	01.516 BOLT; GUIDE TUBE EXC. CHARGE AIR COOLER<6PL> 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9712-9807							●
10	01.516 BOLT; GUIDE TUBE 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9808-					●	●
10	01.516 BOLT; GUIDE TUBE EXC. CHARGE AIR COOLER<6PL> 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9808-							●
10	01.516 BOLT; GUIDE TUBE CHARGE AIR COOLER<6PL> 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9712-9801							●
10	01.516 BOLT; GUIDE TUBE CHARGE AIR COOLER<6PL> EXC. VENEZUELA EQUIPMENT(S2L) 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9802-							●
10	01.516 BOLT; GUIDE TUBE NQR EXTEND LONG(NP***N) VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9809-							●
23	01.428 BOLT; OIL PAN 08.900 M8X20 W/LK WASHER	0-50040-820-0	24	1	9312-9510	●
23	01.428 BOLT; OIL PAN 08.900 M8X20 W/LK WASHER	0-50040-820-0	21	1	9511-			●
23	01.428 BOLT; OIL PAN 08.900 M8X20 W/LK WASHER	0-50040-820-0	21	1	9312-9510			●
23	01.428 BOLT; OIL PAN M8X20 FLANGE W/LK WASHER	8-94130-281-1	03	1	9312-			●
23	01.428 BOLT; OIL PAN 08.900 M8X20 W/LK WASHER	0-50040-820-0	18	1	9312-				●
23	01.428 BOLT; OIL PAN (A) M8X14	8-97047-004-0	01	1	9312-9504					●
23	01.428 BOLT; OIL PAN EXC. EURO1 SPECIFICATION<6YW> (A) M8X14	8-97047-004-0	01	1	9505-9510					●
23	01.428 BOLT; OIL PAN (B) M8X14	8-97047-005-0	18	1	9312-9504					●
23	01.428 BOLT; OIL PAN EXC. EURO1 SPECIFICATION<6YW> (B) M8X14	8-97047-005-0	18	1	9505-9510					●
23	01.428 BOLT; OIL PAN EURO1 SPECIFICATION<6YW> (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	11	1	9505-9510					●
23	01.428 BOLT; OIL PAN (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	11	1	9511-9711					●
23	01.428 BOLT; OIL PAN (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	11	1	9712-					●	●
23	01.428 BOLT; OIL PAN EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) CHARGE AIR COOLER<6PL> (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	11	1	9712-							●
23	01.428 BOLT; OIL PAN EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) (A) M8X14	8-97047-004-1	01	1	9712-							●
23	01.428 BOLT; OIL PAN EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) (B) M8X14	8-97047-005-0	18	1	9712-							●
24	01.453 NUT; OIL PAN 07.833 M8 W/LK WASHER	8-94327-073-0	07	1	9312-9504					●
24	01.453 NUT; OIL PAN EXC. EURO1 SPECIFICATION<6YW> 07.833 M8 W/LK WASHER	8-94327-073-0	07	1	9505-9510					●
24	01.453 NUT; OIL PAN EURO1 SPECIFICATION<6YW> 01.540 M8 FLANGE	0-91150-208-0	15	1	9505-9510					●
24	01.453 NUT; OIL PAN 01.540 M8 FLANGE	0-91150-208-0	15	1	9511-9711					●
24	01.453 NUT; OIL PAN 01.540 M8 FLANGE	0-91150-208-0	15	1	9712-9801					●	●
24	01.453 NUT; OIL PAN EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) CHARGE AIR COOLER<6PL> 01.540 M8 FLANGE	0-91150-208-0	15	1	9712-9801							●
24	01.453 NUT; OIL PAN 07.633 M8 FLANGE	0-91150-108-0	15	1	9802-					●	●
24	01.453 NUT; OIL PAN EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	15	1	9802-							●
24	01.453 NUT; OIL PAN EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) 07.833 M8 W/LK WASHER	8-94327-073-0	07	1	9712-							●
49	01.516 NUT; GUIDE TUBE EXC. CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE	0-91150-110-0	01	1	9712-							●
49	01.516 NUT; GUIDE TUBE VENEZUELA EQUIPMENT(S2L) 07.633 M8 FLANGE	0-91150-108-0	01	1	9802-							●
166	01.453 CLIP; RUBBER HOSE NQR EXTEND LONG(NP***N) VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> 01.762 ID=19	8-94238-569-0	02	1	9809-							●
192	01.516 HOSE; GUIDE TUBE NQR EXTEND LONG(NP***N) VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL>	8-97184-693-0	01	1	9809-							●
295	01.516 STUD; GUIDE TUBE VENEZUELA EQUIPMENT(S2L)	8-97182-961-0	01	1	9802-							●

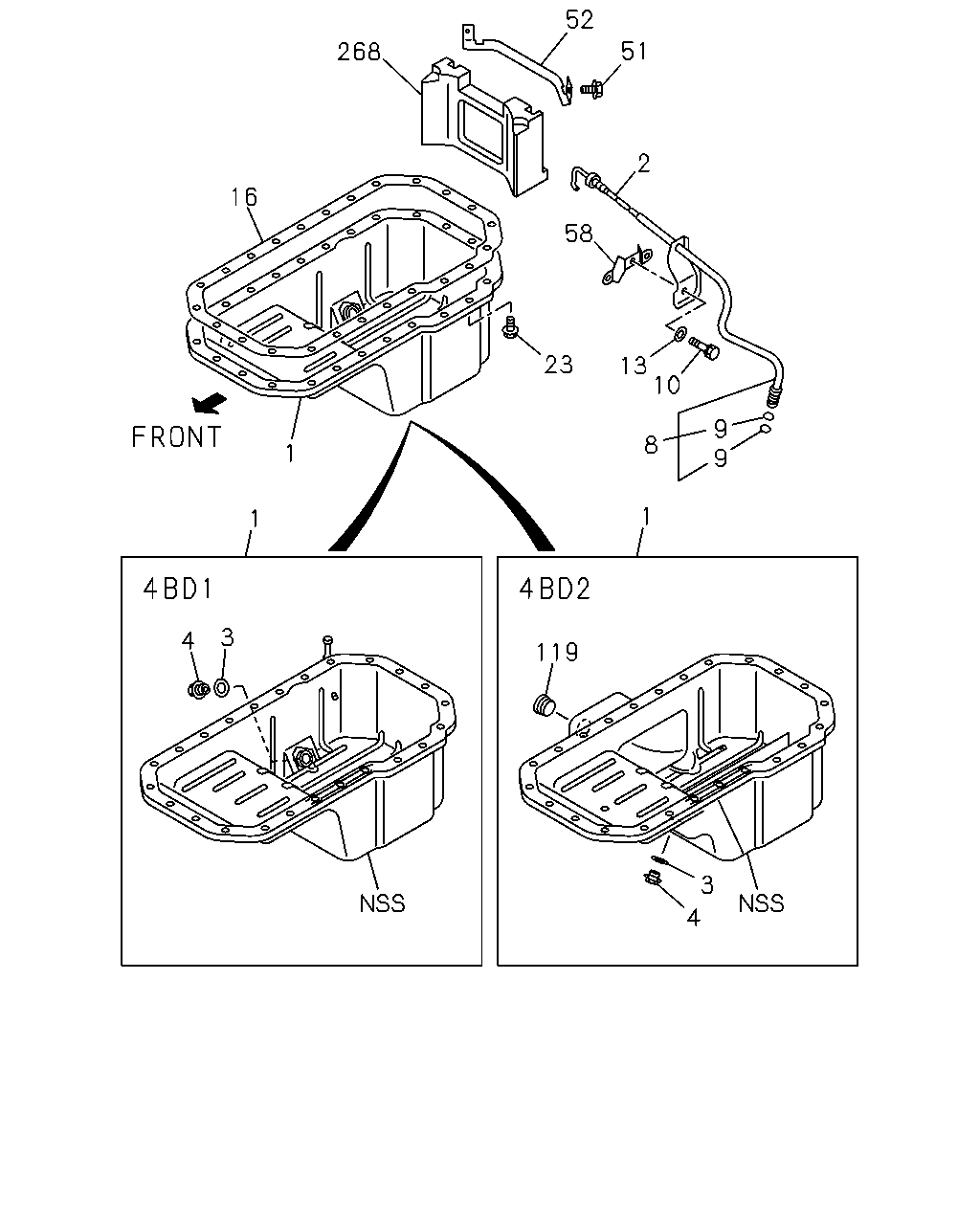

52 51 268 2 16 58 23 13 10 9 9 8 1 1 1 3 4 119 3 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	01.426 PAN ASM; OIL	8-94326-674-0	01	1	9312-9510	●
1	01.426 PAN ASM; OIL	8-97083-322-3	01	1	9312-		●
1	01.426 PAN ASM; OIL	8-97105-610-0	01	1	9312-9610			●
1	01.426 PAN ASM; OIL EXC. FRAME STRAIGHT TYPE<7KJ>	8-97105-610-0	01	1	9611-9703			●
1	01.426 PAN ASM; OIL FRAME STRAIGHT TYPE<7KJ>	8-97039-773-2	01	1	9611-9703			●
1	01.426 PAN ASM; OIL	8-97039-773-2	01	1	9704-			●
1	01.426 PAN ASM; OIL	8-94442-071-0	01	1	9312-				●
1	01.426 PAN ASM; OIL (A)	8-97095-100-0	01	1	9312-9504					●
1	01.426 PAN ASM; OIL EXC. EURO1 SPECIFICATION<6YW> (A)	8-97095-100-0	01	1	9505-9510					●
1	01.426 PAN ASM; OIL EURO1 SPECIFICATION<6YW> (B)	8-97087-642-1	01	1	9505-9510					●
1	01.426 PAN ASM; OIL (B)	8-97087-642-1	01	1	9511-9711					●
1	01.426 PAN ASM; OIL (B)	8-97087-642-1	01	1	9712-					●	●
1	01.426 PAN ASM; OIL CHARGE AIR COOLER<6PL> EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) (B)	8-97117-937-0	01	1	9712-							●
1	01.426 PAN ASM; OIL CHARGE AIR COOLER<6PL> TAIWAN EQUIPMENT(RWV) (B)	8-97149-314-0	01	1	9712-							●
1	01.426 PAN ASM; OIL EXC. CHARGE AIR COOLER<6PL> (A)	8-97075-348-1	01	1	9712-							●
2	01.516 GAUGE; OIL LEVEL	8-94462-052-1	01	1	9312-9510	●		●
2	01.516 GAUGE; OIL LEVEL	8-94462-052-1	01	1	9511-			●
2	01.516 GAUGE; OIL LEVEL	8-97092-924-0	01	1	9312-		●
2	01.516 GAUGE; OIL LEVEL	8-97108-689-0	01	1	9312-9702				●
2	01.516 GAUGE; OIL LEVEL	8-97177-983-0	01	1	9703-				●
2	01.516 GAUGE; OIL LEVEL	8-97094-460-2	01	1	9312-9711					●
2	01.516 GAUGE; OIL LEVEL	8-97094-460-2	01	1	9712-					●	●
2	01.516 GAUGE; OIL LEVEL	8-97019-885-1	01	1	9712-9808							●
2	01.516 GAUGE; OIL LEVEL CHARGE AIR COOLER<6PL> EXC. VENEZUELA EQUIPMENT(S2L)	8-97019-885-1	01	1	9809-							●
2	01.516 GAUGE; OIL LEVEL NQR EXTEND LONG(NP***N) VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL>	8-97184-694-1	01	1	9809-							●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE).	8-94107-564-0	01	1	9312-9510	●		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE).	8-94107-564-0	01	1	9511-			●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9312-9406		●		●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9407-9502		●		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9503-9711		●		●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9712-		●		●	●	●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9407-9502					●
4	01.453 PLUG; DRAIN,OIL	8-94107-557-0	01	1	9312-9510	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9312-9406		●		●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9407-9502		●		●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9503-9711		●		●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9712-		●		●	●	●	●
4	01.453 PLUG; DRAIN,OIL 05.400	8-97019-202-0	01	1	9312-			●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9407-9502					●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97106-965-0	01	1	9312-9510	●		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97106-965-0	01	1	9511-			●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97044-886-0	01	1	9312-		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97106-818-0	01	1	9312-				●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97101-907-1	01	1	9312-9711					●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97101-907-1	01	1	9712-					●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE CHARGE AIR COOLER<6PL>	8-97182-794-0	01	1	9712-9801							●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE CHARGE AIR COOLER<6PL> EXC. VENEZUELA EQUIPMENT(S2L)	8-97182-794-0	01	1	9802-							●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EXC. CHARGE AIR COOLER<6PL>	8-97130-265-0	01	1	9712-							●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL>	8-97165-493-2	01	1	9802-9807							●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL>	8-97184-685-1	01	1	9809-							●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9312-9406	●		●		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9407-9502	●		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9503-9510	●		●		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9511-9511			●		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9511-9711			●		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE).	5-09623-002-0	02	1	9712-			●		●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> ID=11	5-09623-002-0	02	1	9712-							●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	01	1	9312-9709		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9407-9502					●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> ID=11	5-09623-002-0	02	1	9712-							●
10	01.516 BOLT; GUIDE TUBE 08.900 M8X20 W/LK WASHER	0-50040-820-0	01	1	9312-9402	●		●
10	01.516 BOLT; GUIDE TUBE 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9403-9510	●		●
10	01.516 BOLT; GUIDE TUBE 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9511-9808			●
10	01.516 BOLT; GUIDE TUBE 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9809-			●
10	01.516 BOLT; GUIDE TUBE NQR EXTEND LONG(NP***N) VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9809-							●
10	01.516 BOLT; GUIDE TUBE 12.187 M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9312-				●
10	01.516 BOLT; GUIDE TUBE 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9312-9408					●
10	01.516 BOLT; GUIDE TUBE 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9409-9711					●
10	01.516 BOLT; GUIDE TUBE EXC. CHARGE AIR COOLER<6PL> 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9712-9807							●
10	01.516 BOLT; GUIDE TUBE 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9808-					●	●
10	01.516 BOLT; GUIDE TUBE EXC. CHARGE AIR COOLER<6PL> 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9808-							●
10	01.516 BOLT; GUIDE TUBE CHARGE AIR COOLER<6PL> 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9712-9801							●
10	01.516 BOLT; GUIDE TUBE CHARGE AIR COOLER<6PL> EXC. VENEZUELA EQUIPMENT(S2L) 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9802-							●
10	01.516 BOLT; GUIDE TUBE NQR EXTEND LONG(NP***N) VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9809-							●
13	01.516 WASHER; PL,GUIDE TUBE,OIL LEVEL 16.716 ID=8.4 OD=18	9-09160-608-0	01	1	9312-9510	●		●
13	01.516 WASHER; PL,GUIDE TUBE,OIL LEVEL 16.716 ID=8.4 OD=18	9-09160-608-0	01	1	9511-			●
16	01.429 GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-666-0	01	1	9312-9510	●		●
16	01.429 GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-666-0	01	1	9511-			●
16	01.429 GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97080-194-0	01	1	9312-		●
16	01.429 GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-667-0	01	1	9312-				●
23	01.428 BOLT; OIL PAN 08.900 M8X20 W/LK WASHER	0-50040-820-0	24	1	9312-9510	●
23	01.428 BOLT; OIL PAN 08.900 M8X20 W/LK WASHER	0-50040-820-0	21	1	9511-			●
23	01.428 BOLT; OIL PAN 08.900 M8X20 W/LK WASHER	0-50040-820-0	21	1	9312-9510			●
23	01.428 BOLT; OIL PAN M8X20 FLANGE W/LK WASHER	8-94130-281-1	03	1	9312-			●
23	01.428 BOLT; OIL PAN 08.900 M8X20 W/LK WASHER	0-50040-820-0	18	1	9312-				●
23	01.428 BOLT; OIL PAN (A) M8X14	8-97047-004-0	01	1	9312-9504					●
23	01.428 BOLT; OIL PAN EXC. EURO1 SPECIFICATION<6YW> (A) M8X14	8-97047-004-0	01	1	9505-9510					●
23	01.428 BOLT; OIL PAN (B) M8X14	8-97047-005-0	18	1	9312-9504					●
23	01.428 BOLT; OIL PAN EXC. EURO1 SPECIFICATION<6YW> (B) M8X14	8-97047-005-0	18	1	9505-9510					●
23	01.428 BOLT; OIL PAN EURO1 SPECIFICATION<6YW> (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	11	1	9505-9510					●
23	01.428 BOLT; OIL PAN (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	11	1	9511-9711					●
23	01.428 BOLT; OIL PAN (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	11	1	9712-					●	●
23	01.428 BOLT; OIL PAN EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) CHARGE AIR COOLER<6PL> (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	11	1	9712-							●
23	01.428 BOLT; OIL PAN EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) (A) M8X14	8-97047-004-1	01	1	9712-							●
23	01.428 BOLT; OIL PAN EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) (B) M8X14	8-97047-005-0	18	1	9712-							●
51	01.428 BOLT; BRKT,NOISE RUBBER AIR INTAKE REAR VERTICAL<KJ3> 00.206 M6X14 W/LK WASHER	0-50040-614-0	02	1	9312-9510	●
52	01.430 BRACKET; NOISE SPACER NPR/NQR SGL CAB&MIDDLE(NPC6SF) NPR/NQR SGL CAB&LONG(NPC6SK) AIR INTAKE REAR VERTICAL<KJ3>	8-94466-372-0	01	1	9312-9510	●
58	01.516 STAY; GUIDE TUBE	8-94320-437-0	01	1	9312-9510	●		●
58	01.516 STAY; GUIDE TUBE	8-94320-437-0	01	1	9511-			●
119	00.034 PLUG; OIL HTR BLIND NPTF1-11 1/2	1-09605-065-1	01	1	9312-9512			●
268	01.428 SPACER; RUBBER,NOISE,OIL PAN NPR/NQR SGL CAB&MIDDLE(NPC6SF) NPR/NQR SGL CAB&LONG(NPC6SK) AIR INTAKE REAR VERTICAL<KJ3>	8-94366-567-0	01	1	9312-9510	●

32 2 10 16 31 12 35 96 9 216 4 3 9 8 1 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	01.426 PAN ASM; OIL	8-94326-674-0	01	1	9312-9510	●
1	01.426 PAN ASM; OIL	8-97083-322-3	01	1	9312-		●
1	01.426 PAN ASM; OIL	8-97105-610-0	01	1	9312-9610			●
1	01.426 PAN ASM; OIL EXC. FRAME STRAIGHT TYPE<7KJ>	8-97105-610-0	01	1	9611-9703			●
1	01.426 PAN ASM; OIL FRAME STRAIGHT TYPE<7KJ>	8-97039-773-2	01	1	9611-9703			●
1	01.426 PAN ASM; OIL	8-97039-773-2	01	1	9704-			●
1	01.426 PAN ASM; OIL	8-94442-071-0	01	1	9312-				●
1	01.426 PAN ASM; OIL (A)	8-97095-100-0	01	1	9312-9504					●
1	01.426 PAN ASM; OIL EXC. EURO1 SPECIFICATION<6YW> (A)	8-97095-100-0	01	1	9505-9510					●
1	01.426 PAN ASM; OIL EURO1 SPECIFICATION<6YW> (B)	8-97087-642-1	01	1	9505-9510					●
1	01.426 PAN ASM; OIL (B)	8-97087-642-1	01	1	9511-9711					●
1	01.426 PAN ASM; OIL (B)	8-97087-642-1	01	1	9712-					●	●
1	01.426 PAN ASM; OIL CHARGE AIR COOLER<6PL> EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) (B)	8-97117-937-0	01	1	9712-							●
1	01.426 PAN ASM; OIL CHARGE AIR COOLER<6PL> TAIWAN EQUIPMENT(RWV) (B)	8-97149-314-0	01	1	9712-							●
1	01.426 PAN ASM; OIL EXC. CHARGE AIR COOLER<6PL> (A)	8-97075-348-1	01	1	9712-							●
2	01.516 GAUGE; OIL LEVEL	8-94462-052-1	01	1	9312-9510	●		●
2	01.516 GAUGE; OIL LEVEL	8-94462-052-1	01	1	9511-			●
2	01.516 GAUGE; OIL LEVEL	8-97092-924-0	01	1	9312-		●
2	01.516 GAUGE; OIL LEVEL	8-97108-689-0	01	1	9312-9702				●
2	01.516 GAUGE; OIL LEVEL	8-97177-983-0	01	1	9703-				●
2	01.516 GAUGE; OIL LEVEL	8-97094-460-2	01	1	9312-9711					●
2	01.516 GAUGE; OIL LEVEL	8-97094-460-2	01	1	9712-					●	●
2	01.516 GAUGE; OIL LEVEL	8-97019-885-1	01	1	9712-9808							●
2	01.516 GAUGE; OIL LEVEL CHARGE AIR COOLER<6PL> EXC. VENEZUELA EQUIPMENT(S2L)	8-97019-885-1	01	1	9809-							●
2	01.516 GAUGE; OIL LEVEL NQR EXTEND LONG(NP***N) VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL>	8-97184-694-1	01	1	9809-							●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE).	8-94107-564-0	01	1	9312-9510	●		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE).	8-94107-564-0	01	1	9511-			●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9312-9406		●		●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9407-9502		●		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9503-9711		●		●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9712-		●		●	●	●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9407-9502					●
4	01.453 PLUG; DRAIN,OIL	8-94107-557-0	01	1	9312-9510	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9312-9406		●		●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9407-9502		●		●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9503-9711		●		●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9712-		●		●	●	●	●
4	01.453 PLUG; DRAIN,OIL 05.400	8-97019-202-0	01	1	9312-			●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9407-9502					●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97106-965-0	01	1	9312-9510	●		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97106-965-0	01	1	9511-			●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97044-886-0	01	1	9312-		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97106-818-0	01	1	9312-				●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97101-907-1	01	1	9312-9711					●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97101-907-1	01	1	9712-					●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE CHARGE AIR COOLER<6PL>	8-97182-794-0	01	1	9712-9801							●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE CHARGE AIR COOLER<6PL> EXC. VENEZUELA EQUIPMENT(S2L)	8-97182-794-0	01	1	9802-							●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EXC. CHARGE AIR COOLER<6PL>	8-97130-265-0	01	1	9712-							●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL>	8-97165-493-2	01	1	9802-9807							●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL>	8-97184-685-1	01	1	9809-							●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9312-9406	●		●		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9407-9502	●		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9503-9510	●		●		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9511-9511			●		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9511-9711			●		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE).	5-09623-002-0	02	1	9712-			●		●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> ID=11	5-09623-002-0	02	1	9712-							●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	01	1	9312-9709		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9407-9502					●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> ID=11	5-09623-002-0	02	1	9712-							●
10	01.516 BOLT; GUIDE TUBE 08.900 M8X20 W/LK WASHER	0-50040-820-0	01	1	9312-9402	●		●
10	01.516 BOLT; GUIDE TUBE 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9403-9510	●		●
10	01.516 BOLT; GUIDE TUBE 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9511-9808			●
10	01.516 BOLT; GUIDE TUBE 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9809-			●
10	01.516 BOLT; GUIDE TUBE NQR EXTEND LONG(NP***N) VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9809-							●
10	01.516 BOLT; GUIDE TUBE 12.187 M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9312-				●
10	01.516 BOLT; GUIDE TUBE 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9312-9408					●
10	01.516 BOLT; GUIDE TUBE 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9409-9711					●
10	01.516 BOLT; GUIDE TUBE EXC. CHARGE AIR COOLER<6PL> 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9712-9807							●
10	01.516 BOLT; GUIDE TUBE 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9808-					●	●
10	01.516 BOLT; GUIDE TUBE EXC. CHARGE AIR COOLER<6PL> 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9808-							●
10	01.516 BOLT; GUIDE TUBE CHARGE AIR COOLER<6PL> 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9712-9801							●
10	01.516 BOLT; GUIDE TUBE CHARGE AIR COOLER<6PL> EXC. VENEZUELA EQUIPMENT(S2L) 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9802-							●
10	01.516 BOLT; GUIDE TUBE NQR EXTEND LONG(NP***N) VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9809-							●
12	01.516 BRACKET; TUBE,OIL LEVEL GAUGE	8-97106-819-0	01	1	9312-				●
16	01.429 GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-666-0	01	1	9312-9510	●		●
16	01.429 GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-666-0	01	1	9511-			●
16	01.429 GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97080-194-0	01	1	9312-		●
16	01.429 GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-667-0	01	1	9312-				●
23	01.428 BOLT; OIL PAN 08.900 M8X20 W/LK WASHER	0-50040-820-0	24	1	9312-9510	●
23	01.428 BOLT; OIL PAN 08.900 M8X20 W/LK WASHER	0-50040-820-0	21	1	9511-			●
23	01.428 BOLT; OIL PAN 08.900 M8X20 W/LK WASHER	0-50040-820-0	21	1	9312-9510			●
23	01.428 BOLT; OIL PAN M8X20 FLANGE W/LK WASHER	8-94130-281-1	03	1	9312-			●
23	01.428 BOLT; OIL PAN 08.900 M8X20 W/LK WASHER	0-50040-820-0	18	1	9312-				●
23	01.428 BOLT; OIL PAN (A) M8X14	8-97047-004-0	01	1	9312-9504					●
23	01.428 BOLT; OIL PAN EXC. EURO1 SPECIFICATION<6YW> (A) M8X14	8-97047-004-0	01	1	9505-9510					●
23	01.428 BOLT; OIL PAN (B) M8X14	8-97047-005-0	18	1	9312-9504					●
23	01.428 BOLT; OIL PAN EXC. EURO1 SPECIFICATION<6YW> (B) M8X14	8-97047-005-0	18	1	9505-9510					●
23	01.428 BOLT; OIL PAN EURO1 SPECIFICATION<6YW> (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	11	1	9505-9510					●
23	01.428 BOLT; OIL PAN (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	11	1	9511-9711					●
23	01.428 BOLT; OIL PAN (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	11	1	9712-					●	●
23	01.428 BOLT; OIL PAN EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) CHARGE AIR COOLER<6PL> (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	11	1	9712-							●
23	01.428 BOLT; OIL PAN EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) (A) M8X14	8-97047-004-1	01	1	9712-							●
23	01.428 BOLT; OIL PAN EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) (B) M8X14	8-97047-005-0	18	1	9712-							●
31	01.430 PLATE; BED,C/BL TO OIL PAN	8-94481-379-1	01	1	9312-				●
32	01.429 GASKET; C/BL TO BED PLATE	8-94370-666-0	01	1	9312-				●
35	01.430 NUT; BED PLATE FIX 07.633 M8 FLANGE	0-91150-108-0	04	1	9312-				●
96	01.428 BOLT; BED PLATE TO C/BL 03.706 M8X40 W/LK WASHER	0-50040-840-0	18	1	9312-				●
96	01.428 BOLT; BED PLATE TO C/BL 01.252 M8X60 W/LK WASHER	0-50040-860-0	02	1	9312-				●
216	01.429 BOLT; BRKT 01.252 M8X35 W/LK&PL WASHER	0-50140-835-0	02	1	9312-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
