Sayfa 9-33 - Isuzu EPC

9-33 — REAR BODY; GATE AND SIDE GUARD (#48917) — 285 parça

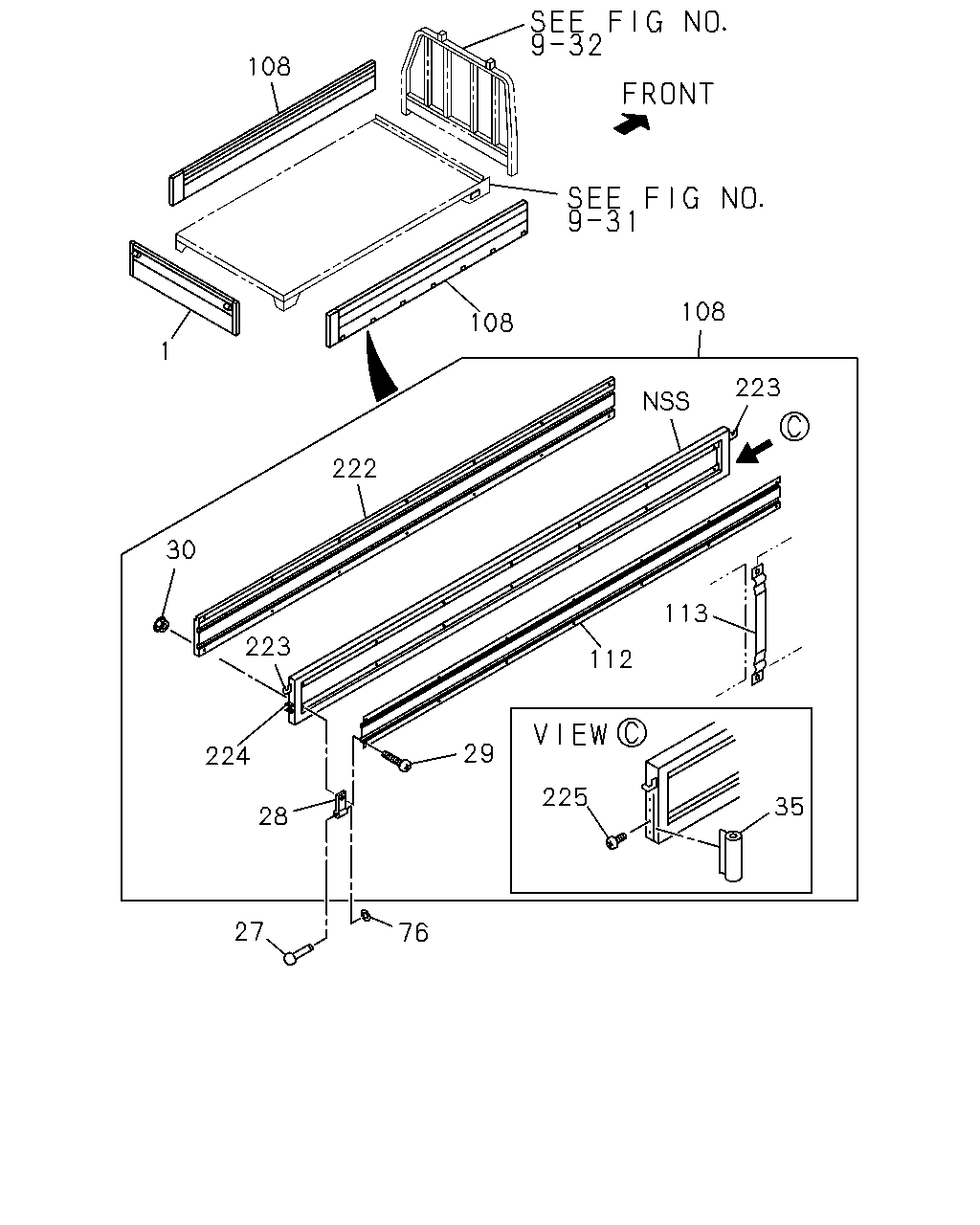

108 108 108 1 108 108 108 30 223 222 222 223 223 112 30 29 223 28 76 27 112 29 224 225 28 35 27 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	17.185 GATE ASM; RR RR BODY FLAT BED<RS6> L=2057 H=398 B=55 PLYWOOD	8-94193-819-1	01	1	9312-	●	●
27	17.208 PIN; HINGE,SIDE GATE RR BODY FLAT BED<RS6> OD=12 L=88.5	8-94193-932-0	14	1	9312-	●
27	17.208 PIN; HINGE,SIDE GATE RR BODY FLAT BED<RS6> OD=12 L=88.5	8-94193-932-0	16	1	9312-9609		●
27	17.208 PIN; HINGE,SIDE GATE RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> OD=12 L=88.5	8-94193-932-0	18	1	9610-		●
27	17.208 PIN; HINGE,SIDE GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> OD=12 L=88.5	8-94193-932-0	16	1	9610-		●
28	17.208 HINGE; UPR,SIDE GATE RR BODY FLAT BED<RS6>	8-94194-271-0	14	1	9312-	●
28	17.208 HINGE; UPR,SIDE GATE RR BODY FLAT BED<RS6>	8-94194-271-0	16	1	9312-9609		●
28	17.208 HINGE; UPR,SIDE GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ>	8-94194-271-0	16	1	9610-		●
28	17.208 HINGE; UPR,SIDE GATE RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ>	8-94194-271-0	18	1	9610-		●
29	17.455 SCREW; PANEL SIDE GATE RR BODY FLAT BED<RS6> 17.185 UPPER M8X16	8-94193-952-0	14	1	9312-	●
29	17.455 SCREW; PANEL SIDE GATE RR BODY FLAT BED<RS6> 17.185 LOWER M8X21	8-94193-953-0	14	1	9312-	●
29	17.455 SCREW; PANEL SIDE GATE RR BODY FLAT BED<RS6> 17.185 UPPER M8X16	8-94193-952-0	16	1	9312-9609		●
29	17.455 SCREW; PANEL SIDE GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> 17.185 UPPER M8X16	8-94193-952-0	16	1	9610-		●
29	17.455 SCREW; PANEL SIDE GATE RR BODY FLAT BED<RS6> 17.185 LOWER M8X21	8-94193-953-0	16	1	9312-9609		●
29	17.455 SCREW; PANEL SIDE GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> 17.185 LOWER M8X21	8-94193-953-0	16	1	9610-		●
29	17.455 SCREW; PANEL SIDE GATE RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> 17.185 UPPER M8X16	8-94193-952-0	18	1	9610-		●
29	17.455 SCREW; PANEL SIDE GATE RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> 17.185 LOWER M8X21	8-94193-953-0	18	1	9610-		●
30	17.455 NUT; PLATE,SIDE GATE RR BODY FLAT BED<RS6> 17.185 M8	8-94193-954-0	28	1	9312-9609	●
30	17.455 NUT; PLATE,SIDE GATE RR BODY FLAT BED<RS6> 17.185 M8	8-94193-954-0	28	1	9610-	●
30	17.455 NUT; PLATE,SIDE GATE RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> 17.185 M8	8-94193-954-0	28	1	9610-		●
30	17.455 NUT; PLATE,SIDE GATE RR BODY FLAT BED<RS6> 17.185 M8	8-94193-954-0	32	1	9312-9609		●
30	17.455 NUT; PLATE,SIDE GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> 17.185 M8	8-94193-954-0	32	1	9610-		●
35	17.455 WEATHERSTRIP; FRT SIDE GATE RR BODY FLAT BED<RS6>	8-94194-277-0	02	1	9312-9609	●
35	17.455 WEATHERSTRIP; FRT SIDE GATE RR BODY FLAT BED<RS6>	8-94194-277-0	02	1	9610-9711	●
35	17.455 WEATHERSTRIP; FRT SIDE GATE RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ>	8-94194-277-0	02	1	9610-9711		●
35	17.455 WEATHERSTRIP; FRT SIDE GATE RR BODY FLAT BED<RS6>	8-94194-277-0	02	1	9712-	●	●
35	17.455 WEATHERSTRIP; FRT SIDE GATE RR BODY FLAT BED<RS6>	8-94194-277-0	08	1	9312-9609		●
35	17.455 WEATHERSTRIP; FRT SIDE GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ>	8-94194-277-0	08	1	9610-9711		●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> SIDE ID=9	8-94194-116-0	28	1	9312-9711	●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> SIDE ID=9	8-94194-116-0	14	1	9712-	●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> REAR ID=8	8-94194-117-0	08	1	9312-9609	●	●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> REAR ID=8	8-94194-117-0	08	1	9610-9711	●	●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> SIDE ID=9	8-94194-116-0	34	1	9312-9609		●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> SIDE ID=9	8-94194-116-0	18	1	9610-		●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> REAR ID=8	8-94194-117-0	04	1	9610-9711		●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> REAR ID=8	8-94194-117-0	04	1	9712-	●	●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> SIDE ID=9	8-94194-116-0	34	1	9610-9711		●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> SIDE ID=9	8-94194-116-0	16	1	9712-		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> L=4366 H=398 B=55 PLYWOOD	8-94193-818-1	01	1	9312-	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> L=4366 H=398 B=55 PLYWOOD	8-94193-817-1	01	1	9312-	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> FRONT SIDE L=2381 H=398 B=55 PLYWOOD	8-94194-147-0	01	1	9407-9609		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> FRONT SIDE L=2381 H=398 B=55 PLYWOOD	8-94194-147-0	01	1	9610-9711		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> L=5016 H=398 B=55 PLYWOOD	8-94193-838-1	01	1	9712-		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> REAR SIDE L=2381 H=398 B=55 PLYWOOD	8-94194-149-0	01	1	9407-9609		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> REAR SIDE L=2381 H=398 B=55 PLYWOOD	8-94194-149-0	01	1	9610-9711		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> FRONT SIDE L=2381 H=398 B=55 PLYWOOD	8-94194-146-0	01	1	9407-9609		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> FRONT SIDE L=2381 H=398 B=55 PLYWOOD	8-94194-146-0	01	1	9610-9711		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> L=5016 H=398 B=55 PLYWOOD	8-94193-837-1	01	1	9712-		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> REAR SIDE L=2381 H=398 B=55 PLYWOOD	8-94194-148-0	01	1	9407-9609		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> REAR SIDE L=2381 H=398 B=55 PLYWOOD	8-94194-148-0	01	1	9610-9711		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> L=5016 H=398 B=55 PLYWOOD	8-94195-559-0	01	1	9610-		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> L=5016 H=398 B=55 PLYWOOD	8-94195-558-0	01	1	9610-		●
112	17.455 PANEL; SIDE GATE RR BODY FLAT BED<RS6> 16.575	8-94193-326-0	02	1	9312-	●
112	17.455 PANEL; SIDE GATE RR BODY FLAT BED<RS6>	8-94193-328-0	04	1	9312-9609		●
112	17.455 PANEL; SIDE GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ>	8-94193-328-0	04	1	9610-9711		●
112	17.455 PANEL; SIDE GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> FRONT SIDE	8-94193-330-0	01	1	9712-		●
112	17.455 PANEL; SIDE GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> FRONT SIDE	8-94193-331-0	01	1	9712-		●
112	17.455 PANEL; SIDE GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> REAR SIDE	8-94193-333-0	01	1	9712-		●
112	17.455 PANEL; SIDE GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> REAR SIDE	8-94193-332-0	01	1	9712-		●
222	17.505 BOARD; SIDE GATE RR BODY FLAT BED<RS6>	8-94194-408-0	02	1	9312-	●
222	17.505 BOARD; SIDE GATE RR BODY FLAT BED<RS6>	8-94194-420-0	04	1	9312-9609		●
222	17.505 BOARD; SIDE GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ>	8-94194-420-0	04	1	9610-9711		●
222	17.505 BOARD; SIDE GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ>	8-94194-426-0	02	1	9712-		●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> FRONT SIDE	8-94194-292-0	01	1	9312-9609	●	●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> FRONT SIDE	8-94194-292-0	01	1	9610-	●	●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> REAR SIDE TAKADA	8-94194-397-0	01	1	9312-9609	●	●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> REAR SIDE TAKADA	8-94194-397-0	01	1	9610-	●	●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> FRONT SIDE	8-94194-291-0	01	1	9312-9609	●	●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> FRONT SIDE	8-94194-291-0	01	1	9610-	●	●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> REAR SIDE TAKADA	8-94194-396-0	01	1	9312-9609	●	●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> REAR SIDE TAKADA	8-94194-396-0	01	1	9610-	●	●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> CENTER	8-94194-422-0	02	1	9312-9609		●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> CENTER	8-94194-422-0	02	1	9610-9711		●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> CENTER	8-94194-421-0	02	1	9312-9609		●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> CENTER	8-94194-421-0	02	1	9610-9711		●
224	17.505 HOOK; VERTICAL LOCK RR BODY FLAT BED<RS6>	8-94194-374-0	01	1	9312-9609	●	●
224	17.505 HOOK; VERTICAL LOCK RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ>	8-94194-374-0	01	1	9610-	●	●
224	17.505 HOOK; VERTICAL LOCK RR BODY FLAT BED<RS6>	8-94194-373-0	01	1	9312-9609	●	●
224	17.505 HOOK; VERTICAL LOCK RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ>	8-94194-373-0	01	1	9610-	●	●
225	17.505 CLIP; WEATHERSTRIP RR BODY FLAT BED<RS6>	8-94194-351-0	08	1	9312-9609	●
225	17.505 CLIP; WEATHERSTRIP RR BODY FLAT BED<RS6>	8-94194-351-0	08	1	9610-9711	●
225	17.505 CLIP; WEATHERSTRIP RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ>	8-94194-351-0	08	1	9610-9711		●
225	17.505 CLIP; WEATHERSTRIP RR BODY FLAT BED<RS6>	8-94194-351-0	08	1	9712-	●	●
225	17.505 CLIP; WEATHERSTRIP RR BODY FLAT BED<RS6>	8-94194-351-0	32	1	9312-9609		●
225	17.505 CLIP; WEATHERSTRIP RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ>	8-94194-351-0	32	1	9610-9711		●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-97594-466-0	01	1	9312-	●	●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-97594-465-0	01	1	9312-	●	●

40 38 70 37 40 40 70 70 37 36 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
36	17.202 RUBBER; STOPPER,RR GATE RR BODY FLAT BED<RS6>	8-94193-446-0	02	1	9312-9510	●	●
36	17.202 RUBBER; STOPPER,RR GATE RR BODY FLAT BED<RS6> 17.507 OD=45 H=22	5-66950-120-1	04	1	9511-9609		●
36	17.202 RUBBER; STOPPER,RR GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> 17.507 OD=45 H=22	5-66950-120-1	04	1	9610-9711		●
37	17.202 SCREW RR BODY FLAT BED<RS6> 17.447	8-94194-113-0	06	1	9312-9510	●
37	17.202 SCREW RR BODY FLAT BED<RS6>	8-94194-119-0	06	1	9511-9609	●
37	17.202 SCREW RR BODY FLAT BED<RS6>	8-94194-119-0	06	1	9610-9711	●
37	17.202 SCREW RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ>	8-94194-119-0	06	1	9610-9711		●
37	17.202 SCREW RR BODY FLAT BED<RS6>	8-94194-119-0	06	1	9312-9510		●
37	17.202 SCREW RR BODY FLAT BED<RS6>	8-94194-119-0	14	1	9511-9609		●
37	17.202 SCREW RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ>	8-94194-119-0	14	1	9610-9711		●
37	17.202 SCREW RR BODY FLAT BED<RS6>	8-94194-119-0	06	1	9712-	●	●
38	17.507 RUBBER; STOPPER,SIDE GATE RR BODY FLAT BED<RS6> OD=60 H=22	8-94193-455-0	02	1	9312-9510	●	●
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED<RS6> 17.447 (A) M12	9-09130-412-0	02	1	9312-	●	●
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED<RS6> 04.594 (B) M6 FLANGE	0-91150-106-0	08	1	9511-9609		●
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> 04.594 (B) M6 FLANGE	0-91150-106-0	06	1	9610-9711		●
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED<RS6> 04.594 (B) M6 FLANGE	0-91150-106-0	06	1	9712-	●	●
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (B) M6 FLANGE	0-91150-106-0	08	1	9610-9711		●
70	17.490 RUBBER; BUMPER RR BODY FLAT BED<RS6> 17.507 (A) OD=60 H=22	8-94193-455-0	02	1	9511-9609	●
70	17.490 RUBBER; BUMPER RR BODY FLAT BED<RS6> 17.507 (A) OD=60 H=22	8-94193-455-0	02	1	9610-9711	●
70	17.490 RUBBER; BUMPER RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> 17.507 (A) OD=60 H=22	8-94193-455-0	02	1	9610-9711		●
70	17.490 RUBBER; BUMPER RR BODY FLAT BED<RS6> 17.507 (A) OD=60 H=22	8-94193-455-0	02	1	9712-	●	●
70	17.490 RUBBER; BUMPER RR BODY FLAT BED<RS6> 17.202 (C) OD=45 H=28	8-94192-532-0	02	1	9511-	●	●
70	17.490 RUBBER; BUMPER RR BODY FLAT BED<RS6> (B) OD=60 H=28	8-94194-895-0	02	1	9511-	●	●
70	17.490 RUBBER; BUMPER RR BODY FLAT BED<RS6> (D)	8-94192-512-0	02	1	9312-9711		●
70	17.490 RUBBER; BUMPER RR BODY FLAT BED<RS6> 17.507 (A) OD=60 H=22	8-94193-455-0	04	1	9511-9609		●
70	17.490 RUBBER; BUMPER RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> 17.507 (A) OD=60 H=22	8-94193-455-0	04	1	9610-9711		●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-97594-466-0	01	1	9312-	●	●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-97594-465-0	01	1	9312-	●	●

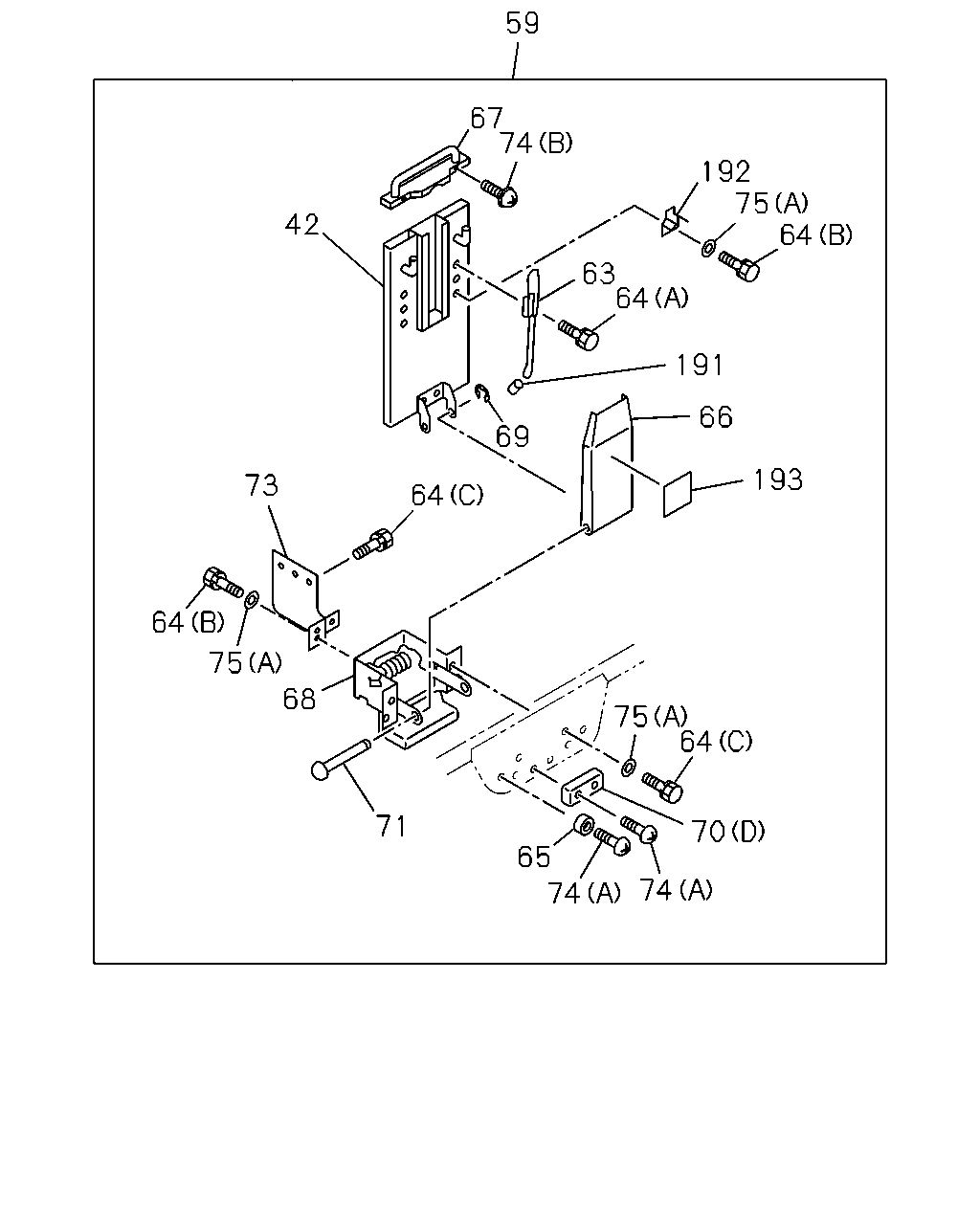

59 67 74 192 75 64 42 63 64 191 66 69 193 73 64 64 75 68 75 64 71 70 65 74 74

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
42	17.505 POST ASM; CENTER RR BODY FLAT BED<RS6>	8-94194-222-0	02	1	9312-9711		●
59	17.505 PILLAR; CENTER,RR BODY RR BODY FLAT BED<RS6>	8-94194-436-0	02	1	9312-9711		●
63	17.490 LOCK ASM; SIDE GATE RR BODY FLAT BED<RS6>	8-94193-936-0	04	1	9312-9711		●
64	17.490 BOLT; LOCK RR BODY FLAT BED<RS6> 00.785 (A) M8X45	9-01045-845-0	04	1	9312-9711		●
64	17.490 BOLT; LOCK RR BODY FLAT BED<RS6> 09.211 (B) M6X16 W/LK WASHER	9-01900-616-0	04	1	9312-9711		●
64	17.490 BOLT; LOCK RR BODY FLAT BED<RS6> 00.206 (C) M8X30	9-01970-830-0	08	1	9312-9711		●
65	17.490 RUBBER; BUMPER RR BODY FLAT BED<RS6> 17.507 OD=45 H=22	5-66950-120-1	04	1	9312-9711		●
66	17.505 PILLAR ASM; CENTER RR BODY FLAT BED<RS6>	8-94193-366-0	02	1	9312-9711		●
67	17.490 CAP; CENTER POST RR BODY FLAT BED<RS6>	8-94192-243-0	02	1	9312-9711		●
68	17.490 LOCK ASM; CENTER PILLAR RR BODY FLAT BED<RS6>	8-94192-244-0	02	1	9312-9711		●
69	17.490 RING; SNAP RR BODY FLAT BED<RS6> 16.717 ID=9	9-09185-409-0	04	1	9312-9711		●
70	17.490 RUBBER; BUMPER RR BODY FLAT BED<RS6> 17.507 (A) OD=60 H=22	8-94193-455-0	02	1	9511-9609	●
70	17.490 RUBBER; BUMPER RR BODY FLAT BED<RS6> 17.507 (A) OD=60 H=22	8-94193-455-0	02	1	9610-9711	●
70	17.490 RUBBER; BUMPER RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> 17.507 (A) OD=60 H=22	8-94193-455-0	02	1	9610-9711		●
70	17.490 RUBBER; BUMPER RR BODY FLAT BED<RS6> 17.507 (A) OD=60 H=22	8-94193-455-0	02	1	9712-	●	●
70	17.490 RUBBER; BUMPER RR BODY FLAT BED<RS6> 17.202 (C) OD=45 H=28	8-94192-532-0	02	1	9511-	●	●
70	17.490 RUBBER; BUMPER RR BODY FLAT BED<RS6> (B) OD=60 H=28	8-94194-895-0	02	1	9511-	●	●
70	17.490 RUBBER; BUMPER RR BODY FLAT BED<RS6> (D)	8-94192-512-0	02	1	9312-9711		●
70	17.490 RUBBER; BUMPER RR BODY FLAT BED<RS6> 17.507 (A) OD=60 H=22	8-94193-455-0	04	1	9511-9609		●
70	17.490 RUBBER; BUMPER RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> 17.507 (A) OD=60 H=22	8-94193-455-0	04	1	9610-9711		●
71	17.490 PIN; HINGE,CENTER PILLAR RR BODY FLAT BED<RS6> 17.505 ID=9	8-94194-116-0	02	1	9312-9711		●
73	17.490 BRACKET; CENTER LOCK RR BODY FLAT BED<RS6> 17.405	8-94193-516-0	01	1	9312-9711		●
73	17.490 BRACKET; CENTER LOCK RR BODY FLAT BED<RS6>	8-94193-515-0	01	1	9312-9711		●
74	17.490 SCREW; LOCK RR BODY FLAT BED<RS6> (B)	8-94192-479-0	04	1	9312-9711		●
74	17.490 SCREW; LOCK RR BODY FLAT BED<RS6> 02.892 (A) M6X16	9-03490-616-0	08	1	9312-9711		●
75	17.490 WASHER; PL RR BODY FLAT BED<RS6> 02.183 (B) ID=6.4 OD=14	9-09160-606-0	04	1	9312-9711		●
75	17.490 WASHER; PL RR BODY FLAT BED<RS6> 02.334 (A) ID=8.4 OD=26	9-09164-808-0	08	1	9312-9711		●
191	17.490 RUBBER; RR HANDLE RR BODY FLAT BED<RS6> 17.615 ID=12	9-61203-650-0	04	1	9312-9711		●
192	17.490 CATCHER; CENTER PILLAR RR BODY FLAT BED<RS6>	8-94192-513-0	04	1	9312-9711		●
193	17.490 PLATE; CAUTION RR BODY FLAT BED<RS6>	8-94192-852-0	02	1	9312-9711		●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-97594-466-0	01	1	9312-	●	●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-97594-465-0	01	1	9312-	●	●

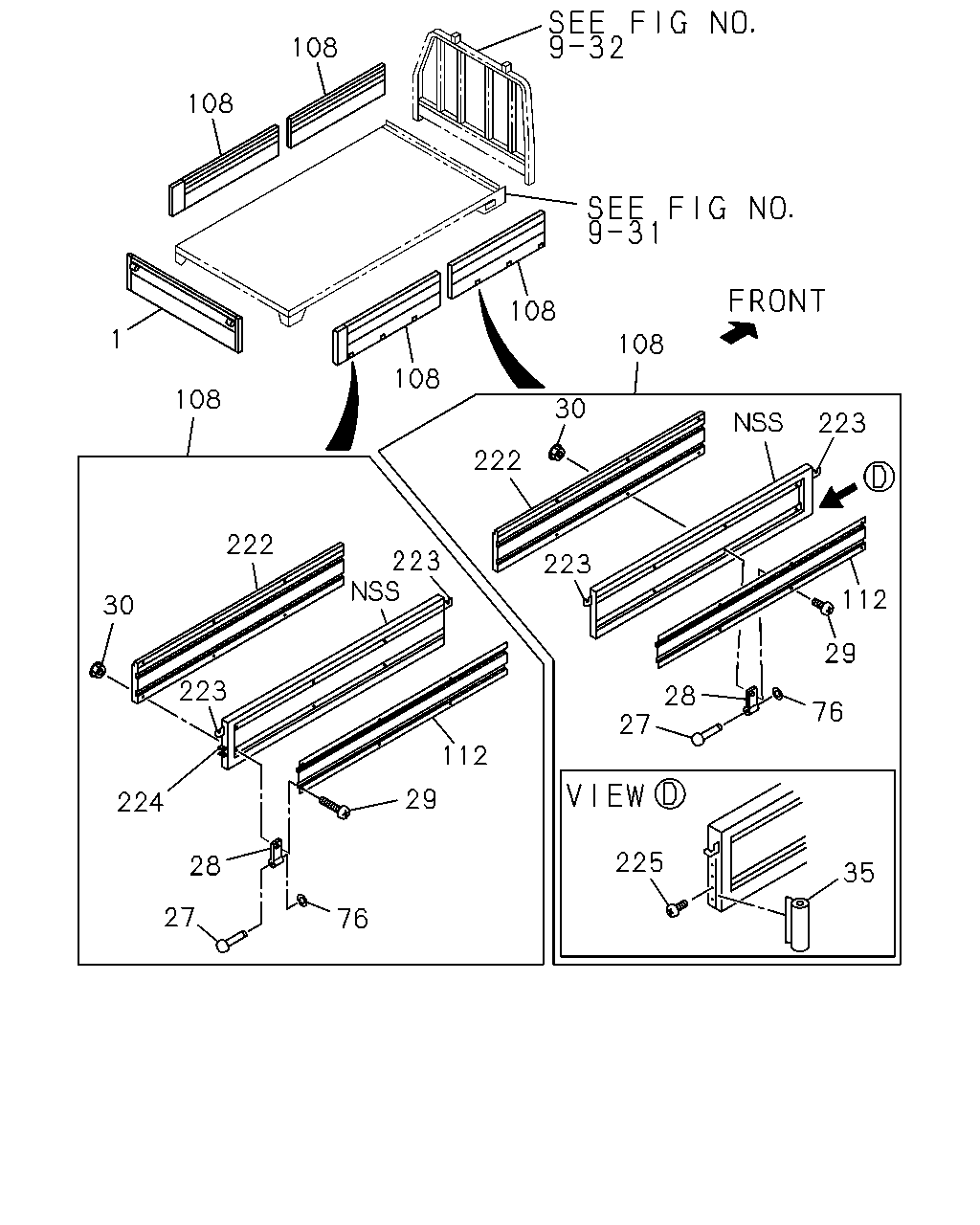

108 108 108 1 223 222 30 113 223 112 29 224 225 35 28 27 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	17.185 GATE ASM; RR RR BODY FLAT BED<RS6> L=2057 H=398 B=55 PLYWOOD	8-94193-819-1	01	1	9312-	●	●
27	17.208 PIN; HINGE,SIDE GATE RR BODY FLAT BED<RS6> OD=12 L=88.5	8-94193-932-0	14	1	9312-	●
27	17.208 PIN; HINGE,SIDE GATE RR BODY FLAT BED<RS6> OD=12 L=88.5	8-94193-932-0	16	1	9312-9609		●
27	17.208 PIN; HINGE,SIDE GATE RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> OD=12 L=88.5	8-94193-932-0	18	1	9610-		●
27	17.208 PIN; HINGE,SIDE GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> OD=12 L=88.5	8-94193-932-0	16	1	9610-		●
28	17.208 HINGE; UPR,SIDE GATE RR BODY FLAT BED<RS6>	8-94194-271-0	14	1	9312-	●
28	17.208 HINGE; UPR,SIDE GATE RR BODY FLAT BED<RS6>	8-94194-271-0	16	1	9312-9609		●
28	17.208 HINGE; UPR,SIDE GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ>	8-94194-271-0	16	1	9610-		●
28	17.208 HINGE; UPR,SIDE GATE RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ>	8-94194-271-0	18	1	9610-		●
29	17.455 SCREW; PANEL SIDE GATE RR BODY FLAT BED<RS6> 17.185 UPPER M8X16	8-94193-952-0	14	1	9312-	●
29	17.455 SCREW; PANEL SIDE GATE RR BODY FLAT BED<RS6> 17.185 LOWER M8X21	8-94193-953-0	14	1	9312-	●
29	17.455 SCREW; PANEL SIDE GATE RR BODY FLAT BED<RS6> 17.185 UPPER M8X16	8-94193-952-0	16	1	9312-9609		●
29	17.455 SCREW; PANEL SIDE GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> 17.185 UPPER M8X16	8-94193-952-0	16	1	9610-		●
29	17.455 SCREW; PANEL SIDE GATE RR BODY FLAT BED<RS6> 17.185 LOWER M8X21	8-94193-953-0	16	1	9312-9609		●
29	17.455 SCREW; PANEL SIDE GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> 17.185 LOWER M8X21	8-94193-953-0	16	1	9610-		●
29	17.455 SCREW; PANEL SIDE GATE RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> 17.185 UPPER M8X16	8-94193-952-0	18	1	9610-		●
29	17.455 SCREW; PANEL SIDE GATE RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> 17.185 LOWER M8X21	8-94193-953-0	18	1	9610-		●
30	17.455 NUT; PLATE,SIDE GATE RR BODY FLAT BED<RS6> 17.185 M8	8-94193-954-0	28	1	9312-9609	●
30	17.455 NUT; PLATE,SIDE GATE RR BODY FLAT BED<RS6> 17.185 M8	8-94193-954-0	28	1	9610-	●
30	17.455 NUT; PLATE,SIDE GATE RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> 17.185 M8	8-94193-954-0	28	1	9610-		●
30	17.455 NUT; PLATE,SIDE GATE RR BODY FLAT BED<RS6> 17.185 M8	8-94193-954-0	32	1	9312-9609		●
30	17.455 NUT; PLATE,SIDE GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> 17.185 M8	8-94193-954-0	32	1	9610-		●
35	17.455 WEATHERSTRIP; FRT SIDE GATE RR BODY FLAT BED<RS6>	8-94194-277-0	02	1	9312-9609	●
35	17.455 WEATHERSTRIP; FRT SIDE GATE RR BODY FLAT BED<RS6>	8-94194-277-0	02	1	9610-9711	●
35	17.455 WEATHERSTRIP; FRT SIDE GATE RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ>	8-94194-277-0	02	1	9610-9711		●
35	17.455 WEATHERSTRIP; FRT SIDE GATE RR BODY FLAT BED<RS6>	8-94194-277-0	02	1	9712-	●	●
35	17.455 WEATHERSTRIP; FRT SIDE GATE RR BODY FLAT BED<RS6>	8-94194-277-0	08	1	9312-9609		●
35	17.455 WEATHERSTRIP; FRT SIDE GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ>	8-94194-277-0	08	1	9610-9711		●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> SIDE ID=9	8-94194-116-0	28	1	9312-9711	●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> SIDE ID=9	8-94194-116-0	14	1	9712-	●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> REAR ID=8	8-94194-117-0	08	1	9312-9609	●	●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> REAR ID=8	8-94194-117-0	08	1	9610-9711	●	●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> SIDE ID=9	8-94194-116-0	34	1	9312-9609		●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> SIDE ID=9	8-94194-116-0	18	1	9610-		●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> REAR ID=8	8-94194-117-0	04	1	9610-9711		●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> REAR ID=8	8-94194-117-0	04	1	9712-	●	●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> SIDE ID=9	8-94194-116-0	34	1	9610-9711		●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> SIDE ID=9	8-94194-116-0	16	1	9712-		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> L=4366 H=398 B=55 PLYWOOD	8-94193-818-1	01	1	9312-	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> L=4366 H=398 B=55 PLYWOOD	8-94193-817-1	01	1	9312-	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> FRONT SIDE L=2381 H=398 B=55 PLYWOOD	8-94194-147-0	01	1	9407-9609		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> FRONT SIDE L=2381 H=398 B=55 PLYWOOD	8-94194-147-0	01	1	9610-9711		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> L=5016 H=398 B=55 PLYWOOD	8-94193-838-1	01	1	9712-		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> REAR SIDE L=2381 H=398 B=55 PLYWOOD	8-94194-149-0	01	1	9407-9609		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> REAR SIDE L=2381 H=398 B=55 PLYWOOD	8-94194-149-0	01	1	9610-9711		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> FRONT SIDE L=2381 H=398 B=55 PLYWOOD	8-94194-146-0	01	1	9407-9609		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> FRONT SIDE L=2381 H=398 B=55 PLYWOOD	8-94194-146-0	01	1	9610-9711		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> L=5016 H=398 B=55 PLYWOOD	8-94193-837-1	01	1	9712-		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> REAR SIDE L=2381 H=398 B=55 PLYWOOD	8-94194-148-0	01	1	9407-9609		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> REAR SIDE L=2381 H=398 B=55 PLYWOOD	8-94194-148-0	01	1	9610-9711		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> L=5016 H=398 B=55 PLYWOOD	8-94195-559-0	01	1	9610-		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> L=5016 H=398 B=55 PLYWOOD	8-94195-558-0	01	1	9610-		●
112	17.455 PANEL; SIDE GATE RR BODY FLAT BED<RS6> 16.575	8-94193-326-0	02	1	9312-	●
112	17.455 PANEL; SIDE GATE RR BODY FLAT BED<RS6>	8-94193-328-0	04	1	9312-9609		●
112	17.455 PANEL; SIDE GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ>	8-94193-328-0	04	1	9610-9711		●
112	17.455 PANEL; SIDE GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> FRONT SIDE	8-94193-330-0	01	1	9712-		●
112	17.455 PANEL; SIDE GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> FRONT SIDE	8-94193-331-0	01	1	9712-		●
112	17.455 PANEL; SIDE GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> REAR SIDE	8-94193-333-0	01	1	9712-		●
112	17.455 PANEL; SIDE GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> REAR SIDE	8-94193-332-0	01	1	9712-		●
113	17.505 BAR; SIDE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ>	8-94193-435-0	02	1	9712-		●
222	17.505 BOARD; SIDE GATE RR BODY FLAT BED<RS6>	8-94194-408-0	02	1	9312-	●
222	17.505 BOARD; SIDE GATE RR BODY FLAT BED<RS6>	8-94194-420-0	04	1	9312-9609		●
222	17.505 BOARD; SIDE GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ>	8-94194-420-0	04	1	9610-9711		●
222	17.505 BOARD; SIDE GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ>	8-94194-426-0	02	1	9712-		●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> FRONT SIDE	8-94194-292-0	01	1	9312-9609	●	●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> FRONT SIDE	8-94194-292-0	01	1	9610-	●	●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> REAR SIDE TAKADA	8-94194-397-0	01	1	9312-9609	●	●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> REAR SIDE TAKADA	8-94194-397-0	01	1	9610-	●	●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> FRONT SIDE	8-94194-291-0	01	1	9312-9609	●	●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> FRONT SIDE	8-94194-291-0	01	1	9610-	●	●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> REAR SIDE TAKADA	8-94194-396-0	01	1	9312-9609	●	●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> REAR SIDE TAKADA	8-94194-396-0	01	1	9610-	●	●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> CENTER	8-94194-422-0	02	1	9312-9609		●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> CENTER	8-94194-422-0	02	1	9610-9711		●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> CENTER	8-94194-421-0	02	1	9312-9609		●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> CENTER	8-94194-421-0	02	1	9610-9711		●
224	17.505 HOOK; VERTICAL LOCK RR BODY FLAT BED<RS6>	8-94194-374-0	01	1	9312-9609	●	●
224	17.505 HOOK; VERTICAL LOCK RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ>	8-94194-374-0	01	1	9610-	●	●
224	17.505 HOOK; VERTICAL LOCK RR BODY FLAT BED<RS6>	8-94194-373-0	01	1	9312-9609	●	●
224	17.505 HOOK; VERTICAL LOCK RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ>	8-94194-373-0	01	1	9610-	●	●
225	17.505 CLIP; WEATHERSTRIP RR BODY FLAT BED<RS6>	8-94194-351-0	08	1	9312-9609	●
225	17.505 CLIP; WEATHERSTRIP RR BODY FLAT BED<RS6>	8-94194-351-0	08	1	9610-9711	●
225	17.505 CLIP; WEATHERSTRIP RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ>	8-94194-351-0	08	1	9610-9711		●
225	17.505 CLIP; WEATHERSTRIP RR BODY FLAT BED<RS6>	8-94194-351-0	08	1	9712-	●	●
225	17.505 CLIP; WEATHERSTRIP RR BODY FLAT BED<RS6>	8-94194-351-0	32	1	9312-9609		●
225	17.505 CLIP; WEATHERSTRIP RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ>	8-94194-351-0	32	1	9610-9711		●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-97594-466-0	01	1	9312-	●	●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-97594-465-0	01	1	9312-	●	●

108 11 108 1 1 11 229 40 14 210 22 9 2 26 228 4 4 15 12 76 76 23 11

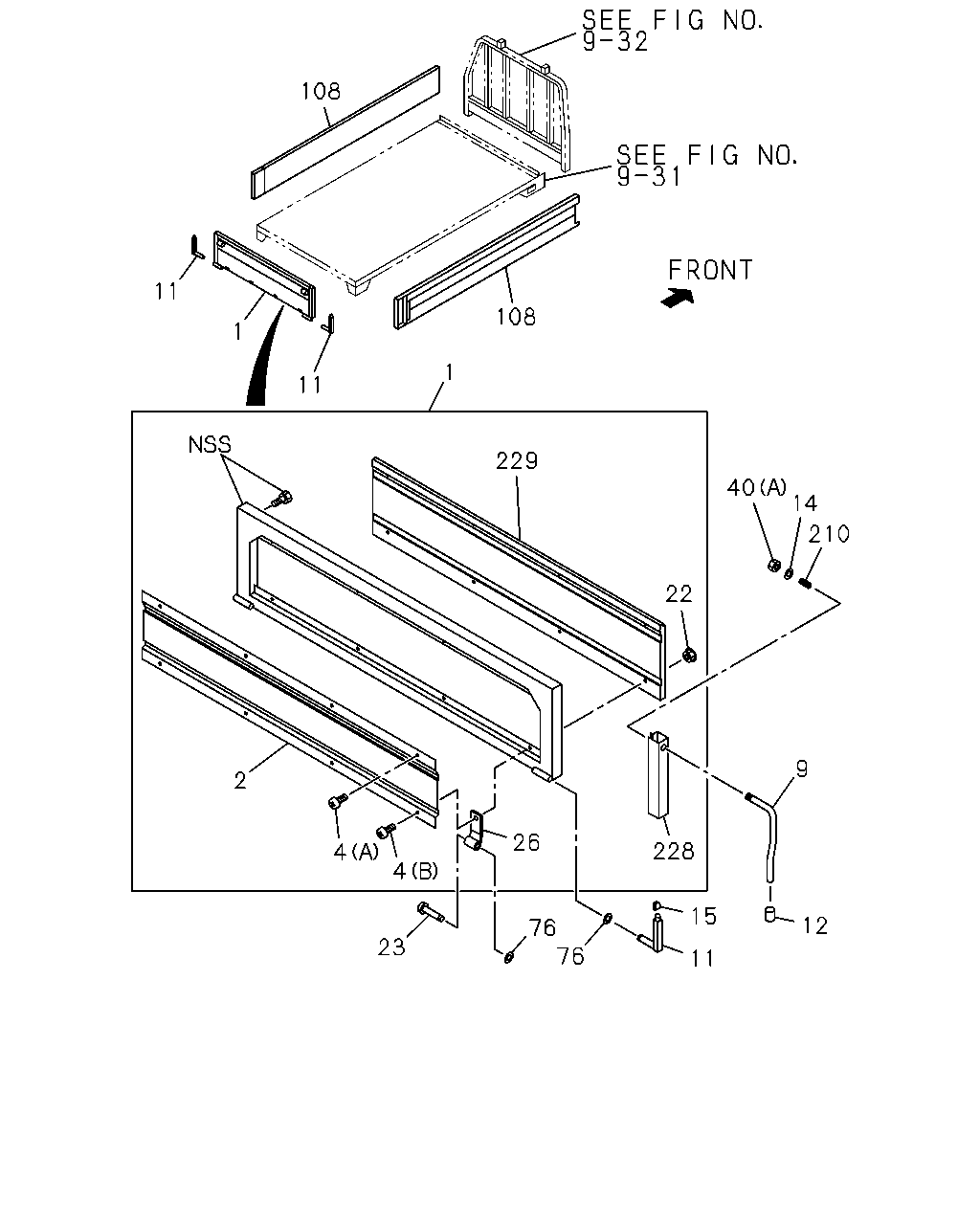

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	17.185 GATE ASM; RR RR BODY FLAT BED<RS6> L=2057 H=398 B=55 PLYWOOD	8-94193-819-1	01	1	9312-	●	●
2	17.185 PANEL; RR GATE RR BODY FLAT BED<RS6>	8-94194-027-0	01	1	9312-	●	●
4	17.185 SCREW; PANEL,RR GATE RR BODY FLAT BED<RS6> (A) M8X16	8-94193-952-0	04	1	9312-	●	●
4	17.185 SCREW; PANEL,RR GATE RR BODY FLAT BED<RS6> (B) M8X21	8-94193-953-0	04	1	9312-	●	●
9	17.204 HANDLE; LATCH,RR GATE RR BODY FLAT BED<RS6>	8-94193-795-0	01	1	9312-	●	●
9	17.204 HANDLE; LATCH,RR GATE RR BODY FLAT BED<RS6>	8-94193-794-0	01	1	9312-	●	●
11	17.198 LOCK ASM; VERTICAL RR BODY FLAT BED<RS6>	8-94193-347-0	01	1	9312-	●	●
11	17.198 LOCK ASM; VERTICAL RR BODY FLAT BED<RS6>	8-94193-346-0	01	1	9312-	●	●
12	17.204 PIECE; END,RR HANDLE RR BODY FLAT BED<RS6> TAKADA	8-94193-344-0	02	1	9312-9611	●	●
12	17.204 PIECE; END,RR HANDLE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> TAKADA	8-94193-344-0	02	1	9612-	●	●
14	17.204 WASHER; PL,HANDLE RR BODY FLAT BED<RS6> 06.172 ID=12.5	9-09164-512-0	02	1	9312-	●	●
15	17.198 CAP; VERTICAL LOCK RR BODY FLAT BED<RS6>	8-94194-022-0	02	1	9312-9606	●	●
22	17.185 NUT; PLATE,RR GATE RR BODY FLAT BED<RS6> M8	8-94193-954-0	08	1	9312-	●	●
23	17.208 PIN; HINGE,RR GATE RR BODY FLAT BED<RS6> OD=10 L=58.5	8-94193-933-0	04	1	9312-	●	●
26	17.208 HINGE; UPR,RR GATE RR BODY FLAT BED<RS6>	8-94194-377-0	04	1	9312-	●	●
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED<RS6> 17.447 (A) M12	9-09130-412-0	02	1	9312-	●	●
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED<RS6> 04.594 (B) M6 FLANGE	0-91150-106-0	08	1	9511-9609		●
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> 04.594 (B) M6 FLANGE	0-91150-106-0	06	1	9610-9711		●
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED<RS6> 04.594 (B) M6 FLANGE	0-91150-106-0	06	1	9712-	●	●
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (B) M6 FLANGE	0-91150-106-0	08	1	9610-9711		●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> SIDE ID=9	8-94194-116-0	28	1	9312-9711	●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> SIDE ID=9	8-94194-116-0	14	1	9712-	●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> REAR ID=8	8-94194-117-0	08	1	9312-9609	●	●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> REAR ID=8	8-94194-117-0	08	1	9610-9711	●	●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> SIDE ID=9	8-94194-116-0	34	1	9312-9609		●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> SIDE ID=9	8-94194-116-0	18	1	9610-		●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> REAR ID=8	8-94194-117-0	04	1	9610-9711		●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> REAR ID=8	8-94194-117-0	04	1	9712-	●	●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> SIDE ID=9	8-94194-116-0	34	1	9610-9711		●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> SIDE ID=9	8-94194-116-0	16	1	9712-		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> L=4366 H=398 B=55 PLYWOOD	8-94193-818-1	01	1	9312-	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> L=4366 H=398 B=55 PLYWOOD	8-94193-817-1	01	1	9312-	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> FRONT SIDE L=2381 H=398 B=55 PLYWOOD	8-94194-147-0	01	1	9407-9609		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> FRONT SIDE L=2381 H=398 B=55 PLYWOOD	8-94194-147-0	01	1	9610-9711		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> L=5016 H=398 B=55 PLYWOOD	8-94193-838-1	01	1	9712-		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> REAR SIDE L=2381 H=398 B=55 PLYWOOD	8-94194-149-0	01	1	9407-9609		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> REAR SIDE L=2381 H=398 B=55 PLYWOOD	8-94194-149-0	01	1	9610-9711		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> FRONT SIDE L=2381 H=398 B=55 PLYWOOD	8-94194-146-0	01	1	9407-9609		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> FRONT SIDE L=2381 H=398 B=55 PLYWOOD	8-94194-146-0	01	1	9610-9711		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> L=5016 H=398 B=55 PLYWOOD	8-94193-837-1	01	1	9712-		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> REAR SIDE L=2381 H=398 B=55 PLYWOOD	8-94194-148-0	01	1	9407-9609		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> REAR SIDE L=2381 H=398 B=55 PLYWOOD	8-94194-148-0	01	1	9610-9711		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> L=5016 H=398 B=55 PLYWOOD	8-94195-559-0	01	1	9610-		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> L=5016 H=398 B=55 PLYWOOD	8-94195-558-0	01	1	9610-		●
210	17.505 SPRING; LATCH HANDLE RR BODY FLAT BED<RS6> TAKADA	8-94194-192-1	02	1	9312-	●	●
228	17.505 BRACKET; LATCH HANDLE RR BODY FLAT BED<RS6>	8-94194-399-0	01	1	9312-	●	●
228	17.505 BRACKET; LATCH HANDLE RR BODY FLAT BED<RS6>	8-94194-398-0	01	1	9312-	●	●
229	17.505 BOARD; RR GATE RR BODY FLAT BED<RS6>	8-94194-416-0	01	1	9312-	●	●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-97594-466-0	01	1	9312-	●	●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-97594-465-0	01	1	9312-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
