9-31 — REAR BODY; FLOOR AND FENDER (#48915) — 105 parça

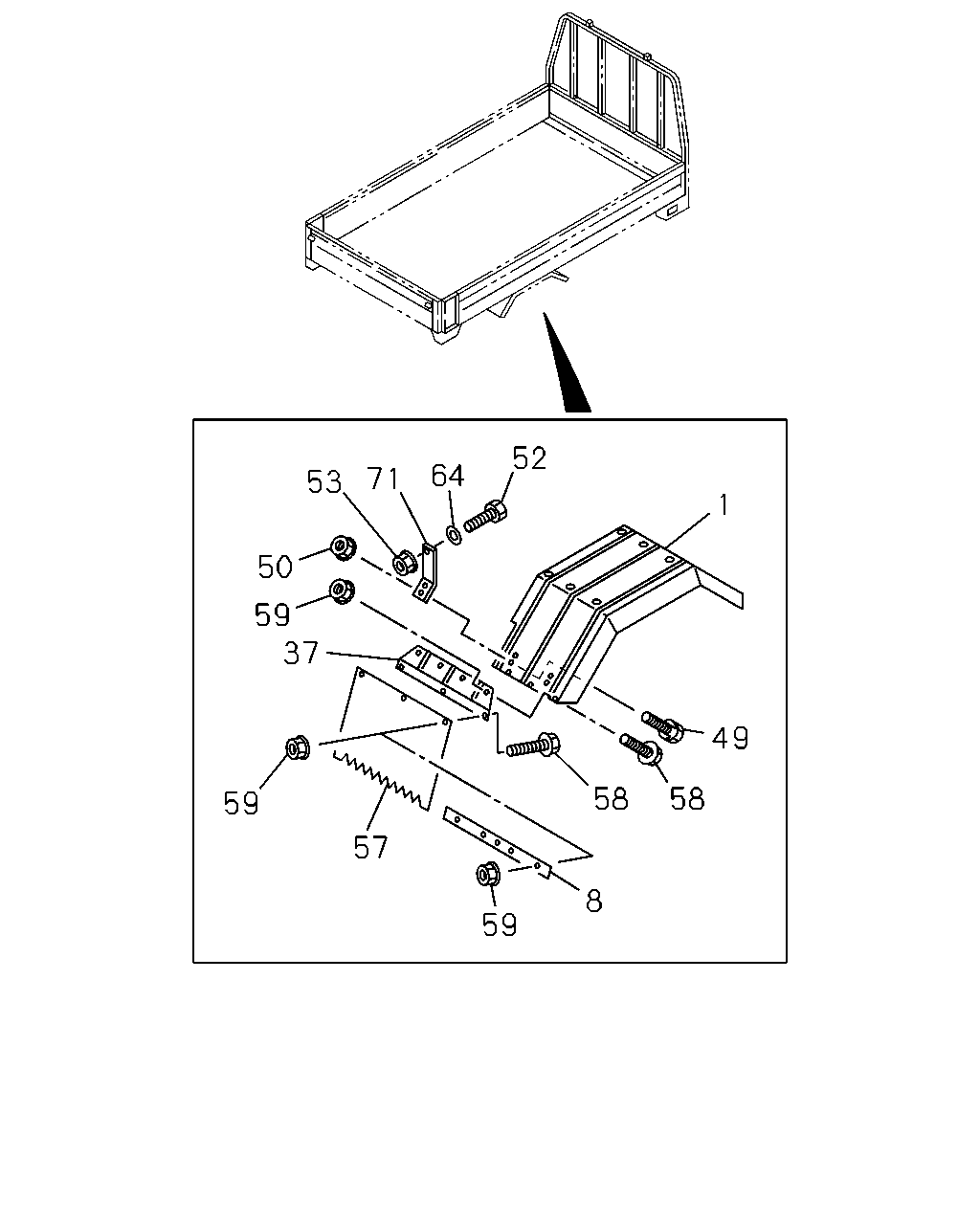

52 64 71 53 1 50 59 37 49 58 58 59 57 8 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	08.203 FENDER; RR,RR BODY RR BODY FLAT BED<RS6>	8-94193-928-0	01	1	9312-9510	●	●
1	08.203 FENDER; RR,RR BODY RR BODY FLAT BED<RS6>	8-94194-980-0	01	1	9511-9609	●	●
1	08.203 FENDER; RR,RR BODY RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ>	8-94194-980-0	01	1	9610-9704	●	●
1	08.203 FENDER; RR,RR BODY RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ>	8-94195-144-0	02	1	9705-	●	●
1	08.203 FENDER; RR,RR BODY RR BODY FLAT BED<RS6>	8-94193-927-0	01	1	9312-9510	●	●
1	08.203 FENDER; RR,RR BODY RR BODY FLAT BED<RS6>	8-94194-979-0	01	1	9511-9609	●	●
1	08.203 FENDER; RR,RR BODY RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ>	8-94194-979-0	01	1	9610-9704	●	●
1	08.203 FENDER; RR,RR BODY RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> MAKE HOLE FOR FIX	1-66900-796-1	01	1	9610-		●
1	08.203 FENDER; RR,RR BODY RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ>	1-66900-795-1	01	1	9610-		●
8	08.212 HOLDER; FLAP RUBBER RR BODY FLAT BED<RS6>	8-97036-012-0	02	1	9312-9609	●	●
8	08.212 HOLDER; FLAP RUBBER RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97036-012-0	02	1	9610-	●	●
8	08.212 HOLDER; FLAP RUBBER RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ>	1-66900-349-0	02	1	9610-		●
37	08.212 BRACKET; MUD COVER RR BODY FLAT BED<RS6>	8-97035-495-0	01	1	9312-9609	●	●
37	08.212 BRACKET; MUD COVER RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97035-495-0	01	1	9610-	●	●
37	08.212 BRACKET; MUD COVER RR BODY FLAT BED<RS6>	8-97035-494-0	01	1	9312-9609	●	●
37	08.212 BRACKET; MUD COVER RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97035-494-0	01	1	9610-	●	●
49	17.447 BOLT; RR FENDER RR BODY FLAT BED<RS6>	8-94194-113-0	16	1	9312-	●	●
50	17.447 NUT; RR FENDER RR BODY FLAT BED<RS6>	8-94194-114-0	16	1	9312-9711	●	●
50	17.447 NUT; RR FENDER RR BODY FLAT BED<RS6>	8-94194-114-0	08	1	9712-	●	●
52	17.447 BOLT; FENDER STAY,RR RR BODY FLAT BED<RS6>	8-94194-357-0	08	1	9312-	●	●
53	17.447 NUT; FENDER STAY,RR RR BODY FLAT BED<RS6> M8 FLANGE	8-94193-939-0	08	1	9312-	●	●
57	08.214 RUBBER; FLAP RR RR BODY FLAT BED<RS6>	8-97091-425-0	02	1	9312-9609	●	●
57	08.214 RUBBER; FLAP RR RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97091-425-0	02	1	9610-	●	●
57	08.214 RUBBER; FLAP RR RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> H=425 B=485	1-66901-621-1	02	1	9610-		●
58	17.208 BOLT; RUBBER,RR FENDER RR BODY FLAT BED<RS6> 08.212 M6X16 FLANGE	8-97065-432-1	16	1	9312-9408	●	●
58	17.208 BOLT; RUBBER,RR FENDER RR BODY FLAT BED<RS6> 08.212 M6X16 FLANGE	8-97065-432-1	14	1	9409-9609	●	●
58	17.208 BOLT; RUBBER,RR FENDER RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> 08.212 M6X16 FLANGE	8-97065-432-2	14	1	9610-	●	●
58	17.208 BOLT; RUBBER,RR FENDER RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> 08.212 M6X16 FLANGE	8-97065-432-2	08	1	9610-		●
59	17.208 NUT; RUBBER,RR FENDER RR BODY FLAT BED<RS6> 08.212 M6 FLANGE	8-97065-431-0	16	1	9312-9408	●	●
59	17.208 NUT; RUBBER,RR FENDER RR BODY FLAT BED<RS6> 08.212 M6 FLANGE	8-97065-431-0	14	1	9409-9609	●	●
59	17.208 NUT; RUBBER,RR FENDER RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> 08.212 M6 FLANGE	8-97065-431-0	14	1	9610-	●	●
59	17.208 NUT; RUBBER,RR FENDER RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> 08.212 M6 FLANGE	8-97065-431-0	08	1	9610-		●
64	17.447 WASHER; PL,RR FENDER,UPR RR BODY FLAT BED<RS6>	8-94194-112-0	08	1	9312-9609	●	●
64	17.447 WASHER; PL,RR FENDER,UPR RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ>	8-94194-112-0	08	1	9610-9711	●	●
64	17.447 WASHER; PL,RR FENDER,UPR RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ>	8-94194-112-0	08	1	9712-		●
71	08.212 STAY; RR FENDER RR BODY FLAT BED<RS6> FRONT SIDE	8-94194-074-0	04	1	9312-9510	●	●
71	08.212 STAY; RR FENDER RR BODY FLAT BED<RS6> FRONT SIDE	8-94194-892-0	04	1	9511-9609	●	●
71	08.212 STAY; RR FENDER RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> FRONT SIDE	8-94194-892-0	04	1	9610-	●	●
71	08.212 STAY; RR FENDER RR BODY FLAT BED<RS6> REAR SIDE	8-94194-075-0	04	1	9312-9510	●	●
71	08.212 STAY; RR FENDER RR BODY FLAT BED<RS6> REAR SIDE	8-94194-893-0	04	1	9511-9609	●	●
71	08.212 STAY; RR FENDER RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> REAR SIDE	8-94194-893-0	04	1	9610-	●	●
71	08.212 STAY; RR FENDER RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ>	8-94195-561-0	08	1	9610-		●

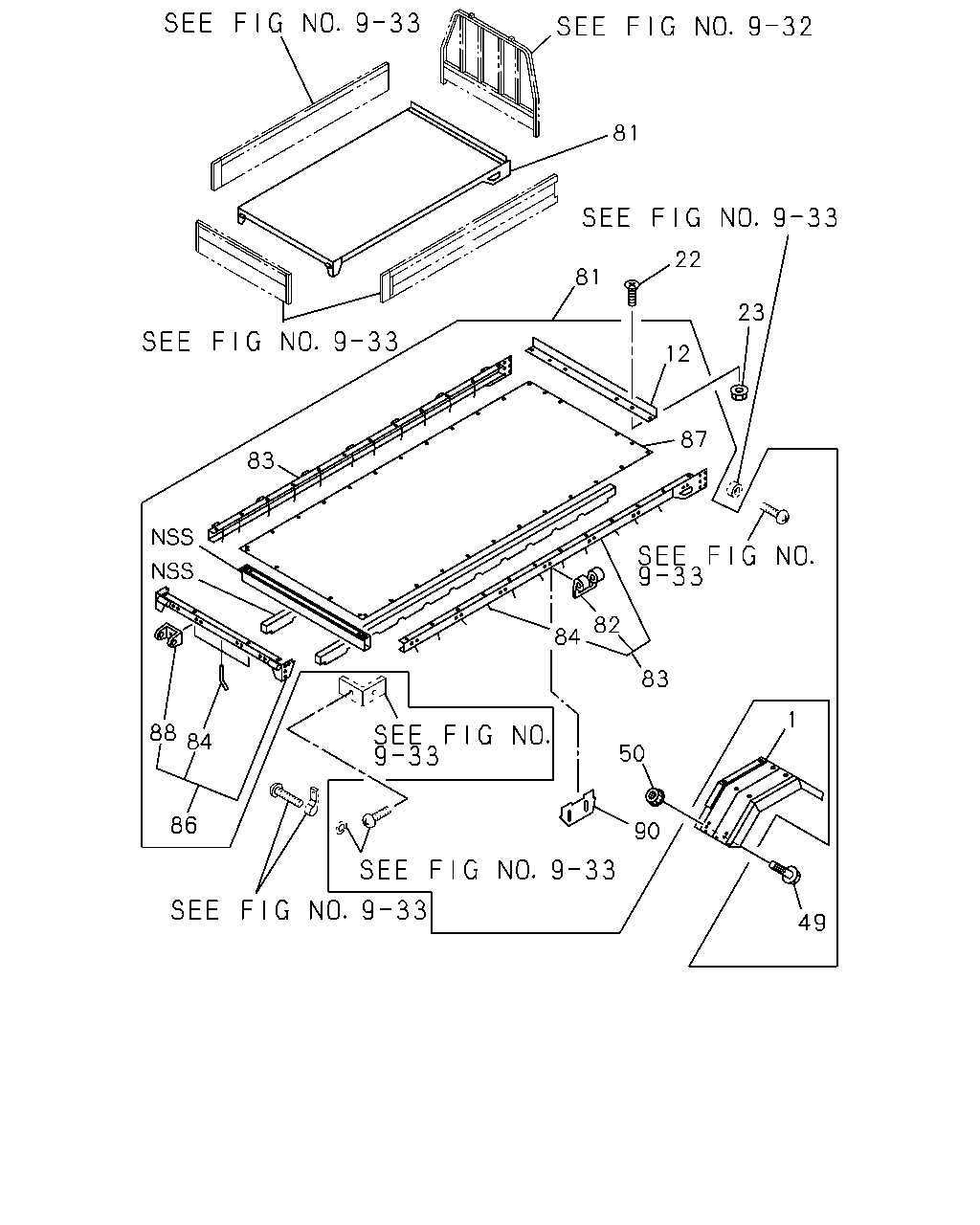

81 22 81 23 12 87 83 82 84 83 1 88 84 50 86 90 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	08.203 FENDER; RR,RR BODY RR BODY FLAT BED<RS6>	8-94193-928-0	01	1	9312-9510	●	●
1	08.203 FENDER; RR,RR BODY RR BODY FLAT BED<RS6>	8-94194-980-0	01	1	9511-9609	●	●
1	08.203 FENDER; RR,RR BODY RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ>	8-94194-980-0	01	1	9610-9704	●	●
1	08.203 FENDER; RR,RR BODY RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ>	8-94195-144-0	02	1	9705-	●	●
1	08.203 FENDER; RR,RR BODY RR BODY FLAT BED<RS6>	8-94193-927-0	01	1	9312-9510	●	●
1	08.203 FENDER; RR,RR BODY RR BODY FLAT BED<RS6>	8-94194-979-0	01	1	9511-9609	●	●
1	08.203 FENDER; RR,RR BODY RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ>	8-94194-979-0	01	1	9610-9704	●	●
1	08.203 FENDER; RR,RR BODY RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> MAKE HOLE FOR FIX	1-66900-796-1	01	1	9610-		●
1	08.203 FENDER; RR,RR BODY RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ>	1-66900-795-1	01	1	9610-		●
12	17.405 ANGLE; SETTING,RR BODY RR BODY FLAT BED<RS6>	8-94194-145-0	01	1	9312-9609	●	●
12	17.405 ANGLE; SETTING,RR BODY RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ>	8-94194-145-0	01	1	9610-9704	●	●
12	17.405 ANGLE; SETTING,RR BODY RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ>	8-94196-296-0	01	1	9705-	●	●
22	17.405 SCREW; ANGLE RR BODY FLAT BED<RS6>	8-97065-437-0	05	1	9312-	●	●
23	17.405 NUT; ANGLE RR BODY FLAT BED<RS6> 09.011 M8 W/LK WASHER	8-97065-435-0	05	1	9312-	●	●
49	17.447 BOLT; RR FENDER RR BODY FLAT BED<RS6>	8-94194-113-0	16	1	9312-	●	●
50	17.447 NUT; RR FENDER RR BODY FLAT BED<RS6>	8-94194-114-0	16	1	9312-9711	●	●
50	17.447 NUT; RR FENDER RR BODY FLAT BED<RS6>	8-94194-114-0	08	1	9712-	●	●
81	17.400 FLOOR ASM; RR BODY RR BODY FLAT BED<RS6>	8-94193-963-1	01	1	9312-9510	●
81	17.400 FLOOR ASM; RR BODY RR BODY FLAT BED<RS6>	8-94194-915-1	01	1	9511-9606	●
81	17.400 FLOOR ASM; RR BODY RR BODY FLAT BED<RS6>	8-94195-362-0	01	1	9607-9704	●
81	17.400 FLOOR ASM; RR BODY RR BODY FLAT BED<RS6>	8-94195-579-1	01	1	9705-	●
81	17.400 FLOOR ASM; RR BODY RR BODY FLAT BED<RS6>	8-94194-207-1	01	1	9312-9510		●
81	17.400 FLOOR ASM; RR BODY RR BODY FLAT BED<RS6>	8-94194-916-1	01	1	9511-9606		●
81	17.400 FLOOR ASM; RR BODY RR BODY FLAT BED<RS6>	8-94195-400-0	01	1	9607-9609		●
81	17.400 FLOOR ASM; RR BODY RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ>	8-94195-400-1	01	1	9610-9711		●
81	17.400 FLOOR ASM; RR BODY RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ>	8-94195-582-1	01	1	9712-		●
81	17.400 FLOOR ASM; RR BODY RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ>	8-94195-560-0	01	1	9610-		●
82	17.510 HINGE; SIDE GATE,LWR RR BODY FLAT BED<RS6> 17.208	8-94193-345-0	14	1	9312-	●
82	17.510 HINGE; SIDE GATE,LWR RR BODY FLAT BED<RS6> 17.208	8-94193-345-0	18	1	9312-9711		●
82	17.510 HINGE; SIDE GATE,LWR RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> 17.208	8-94193-345-0	18	1	9712-		●
82	17.510 HINGE; SIDE GATE,LWR RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> 17.208	8-94193-345-0	16	1	9712-		●
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6>	8-94194-410-0	01	1	9312-9704	●
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6>	8-94196-217-0	01	1	9705-	●
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6>	8-94194-409-0	01	1	9312-9704	●
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6>	8-94196-216-0	01	1	9705-	●
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6>	8-94194-446-0	01	1	9312-9609		●
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ>	8-94194-446-0	01	1	9610-9704		●
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ>	8-94196-226-0	01	1	9705-		●
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6>	8-94194-445-0	01	1	9312-9609		●
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ>	8-94194-445-0	01	1	9610-9704		●
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ>	8-94196-225-0	01	1	9705-		●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> SIDE HOOK BRACKET W/HOLE	8-94194-384-0	09	1	9312-	●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> SIDE HOOK BRACKET W/HOLE	8-94194-383-0	09	1	9312-	●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> REAR TAKADA	8-94194-318-0	03	1	9312-	●	●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> SIDE HOOK BRACKET WO/HOLE	8-94194-283-0	02	1	9312-9406		●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> SIDE HOOK BRACKET WO/HOLE	8-94194-283-0	02	1	9407-	●	●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> SIDE HOOK BRACKET W/HOLE	8-94194-384-0	10	1	9312-9711		●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> SIDE HOOK BRACKET W/HOLE	8-94194-384-0	10	1	9712-		●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> SIDE HOOK BRACKET W/HOLE	8-94194-383-0	10	1	9312-9711		●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> SIDE HOOK BRACKET W/HOLE	8-94194-383-0	10	1	9712-		●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> SIDE HOOK BRACKET W/HOLE	8-94194-384-0	11	1	9712-		●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> SIDE HOOK BRACKET W/HOLE	8-94194-383-0	11	1	9712-		●
86	17.202 FRAME; RR RR BODY FLAT BED<RS6>	8-94194-860-0	01	1	9312-9609	●	●
86	17.202 FRAME; RR RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ>	8-94194-860-0	01	1	9610-9704	●	●
86	17.202 FRAME; RR RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ>	8-94196-262-0	01	1	9705-	●	●
87	17.400 BOARD; FLOOR RR BODY FLAT BED<RS6>	8-94194-435-0	01	1	9312-9704	●
87	17.400 BOARD; FLOOR RR BODY FLAT BED<RS6>	8-94196-283-0	01	1	9705-	●
87	17.400 BOARD; FLOOR RR BODY FLAT BED<RS6>	8-94194-441-0	01	1	9312-9609		●
87	17.400 BOARD; FLOOR RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ>	8-94194-441-0	01	1	9610-9704		●
87	17.400 BOARD; FLOOR BODY COLOR ARC WHITE(729),BODY COLORADRIATIC BLUE(730),BODY COLOR MARIN E BLUE(890) RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ>	8-94196-285-0	01	1	9705-		●
88	17.208 HINGE; RR GATE,LWR RR BODY FLAT BED<RS6>	8-94193-520-0	04	1	9312-	●	●
90	17.405 GUSSET ASM; CENTER RR BODY FLAT BED<RS6>	8-94194-442-0	02	1	9312-9609		●
90	17.405 GUSSET ASM; CENTER RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ>	8-94194-442-0	02	1	9610-9711		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
