Sayfa 9-01 - Isuzu EPC

9-01 — TOOLS (#48913) — 227 parça

285 280 284

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
280	08.821 BOX; TOOL TOOL & STORAGE BOX<VK2>	8-94101-528-1	01	1	9312-9510	●
280	08.821 BOX; TOOL TOOL & STORAGE BOX<VK2> EXC. AUSTRALIA EQUIPMENT(RR3)	8-94101-528-1	01	1	9312-9510		●	●	●
280	08.821 BOX; TOOL TOOL & STORAGE BOX<VK2> EXC. AUSTRALIA EQUIPMENT(RR3)	8-94101-528-1	01	1	9511-9606		●	●	●
280	08.821 BOX; TOOL TOOL & STORAGE BOX<VK2> EXC. AUSTRALIA EQUIPMENT(RR3)	8-97161-497-0	01	1	9607-9611		●	●	●
280	08.821 BOX; TOOL TOOL & STORAGE BOX<VK2> EXC. AUSTRALIA EQUIPMENT(RR3)	8-97161-497-0	01	1	9612-9711		●	●	●
280	08.821 BOX; TOOL TOOL & STORAGE BOX<VK2>	8-97161-497-0	01	1	9612-9711					●
280	08.821 BOX; TOOL TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ>	8-97161-497-0	01	1	9712-9801		●	●			●	●
280	08.821 BOX; TOOL TOOL & STORAGE BOX<VK2> EXC. AUSTRALIA EQUIPMENT(RR3),FRAME STRAIGHT TYPE<7KJ>	8-97161-497-0	01	1	9712-9801		●	●				●
280	08.821 BOX; TOOL TOOL & STORAGE BOX<VK2> EXC. AUSTRALIA EQUIPMENT(RR3)	8-97161-497-0	01	1	9712-9801				●
280	08.821 BOX; TOOL TOOL & STORAGE BOX<VK2>	8-97161-497-0	01	1	9712-9801					●
280	08.821 BOX; TOOL TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ>	8-97161-497-0	01	1	9802-		●	●		●	●	●
280	08.821 BOX; TOOL TOOL & STORAGE BOX<VK2> EXC. AUSTRALIA EQUIPMENT(RR3),FRAME STRAIGHT TYPE<7KJ>	8-97161-497-0	01	1	9802-		●	●		●		●
280	08.821 BOX; TOOL TOOL & STORAGE BOX<VK2> EXC. AUSTRALIA EQUIPMENT(RR3)	8-97161-497-0	01	1	9802-				●
280	08.821 BOX; TOOL TOOL & STORAGE BOX<VK2> EXC. DUMP CHASSIS(V4D)	8-94123-034-1	01	1	9312-9711						●
280	08.821 BOX; TOOL AUSTRALIA EQUIPMENT(RR3) TOOL & STORAGE BOX<VK2>	8-94123-034-1	01	1	9312-9711		●	●	●
280	08.821 BOX; TOOL TOOL & STORAGE BOX<VK2> EXC. DUMP CHASSIS(V4D),FRAME STRAIGHT TYPE<7KJ>	8-94123-034-1	01	1	9712-						●
280	08.821 BOX; TOOL AUSTRALIA EQUIPMENT(RR3) TOOL & STORAGE BOX<VK2> EXC. FRAME STRAIGHT TYPE<7KJ>	8-94123-034-1	01	1	9712-		●	●	●
284	08.821 BOLT; TOOL BOX TOOL & STORAGE BOX<VK2> 01.531 M8X25 FLANGE	0-28080-825-0	04	1	9312-9505	●	●	●	●		●
284	08.821 BOLT; TOOL BOX TOOL & STORAGE BOX<VK2> 02.559 M8X25 FLANGE	0-28680-825-0	04	1	9506-9510	●	●	●	●		●
284	08.821 BOLT; TOOL BOX TOOL & STORAGE BOX<VK2> 02.559 M8X25 FLANGE	0-28680-825-0	04	1	9511-9611		●	●	●		●
284	08.821 BOLT; TOOL BOX TOOL & STORAGE BOX<VK2> 02.559 M8X25 FLANGE	0-28680-825-0	04	1	9612-9711		●	●	●	●	●
284	08.821 BOLT; TOOL BOX TOOL & STORAGE BOX<VK2> 02.559 M8X25 FLANGE	0-28680-825-0	04	1	9712-		●	●	●	●	●	●
285	08.821 NUT; TOOL BOX TOOL & STORAGE BOX<VK2> 07.633 M8 FLANGE	0-91150-108-0	04	1	9312-9510	●	●	●	●		●
285	08.821 NUT; TOOL BOX TOOL & STORAGE BOX<VK2> 07.633 M8 FLANGE	0-91150-108-0	04	1	9511-9611		●	●	●		●
285	08.821 NUT; TOOL BOX TOOL & STORAGE BOX<VK2> 07.633 M8 FLANGE	0-91150-108-0	04	1	9612-9711		●	●	●	●	●
285	08.821 NUT; TOOL BOX TOOL & STORAGE BOX<VK2> 07.633 M8 FLANGE	0-91150-108-0	04	1	9712-		●	●	●	●	●	●

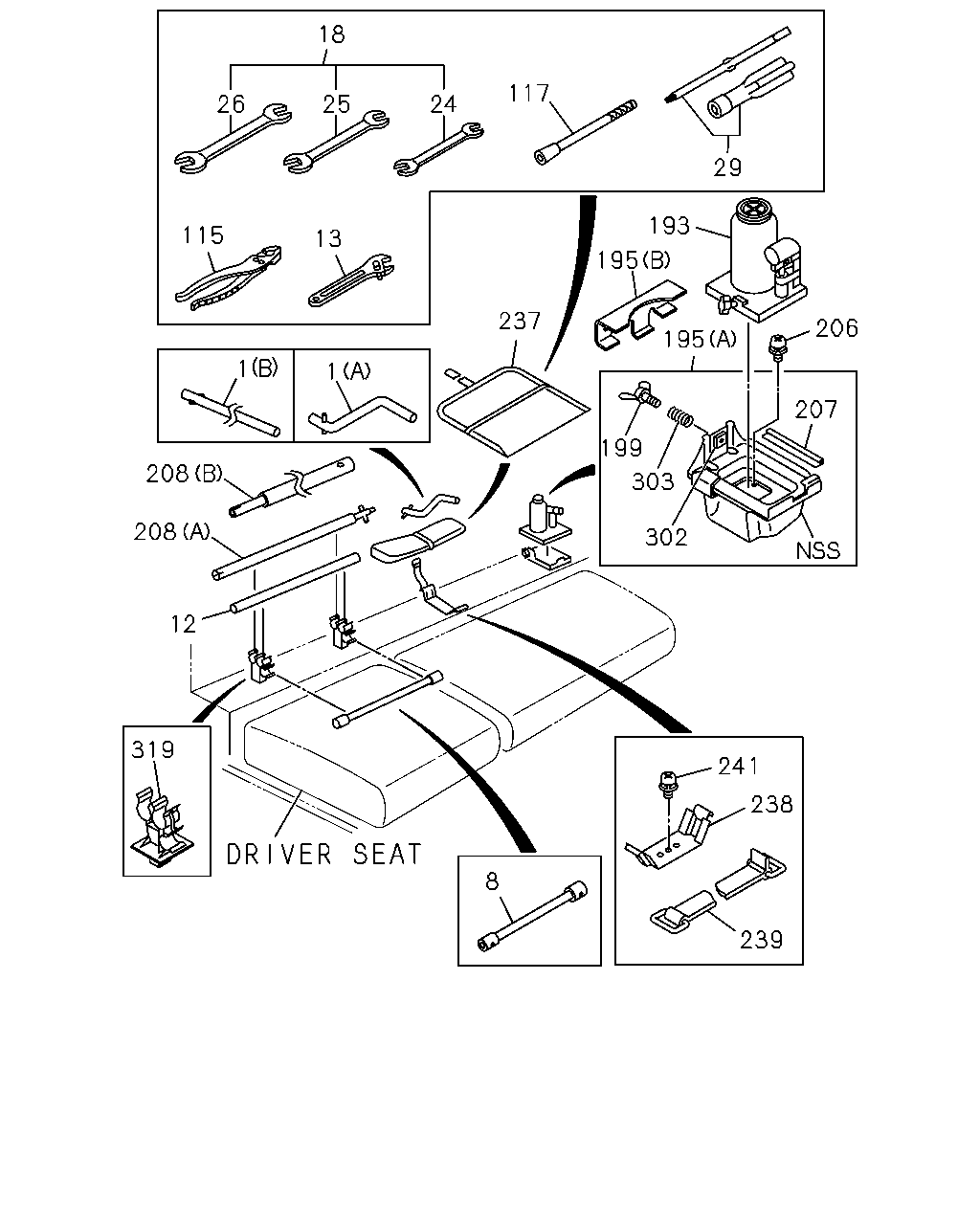

18 117 26 25 24 29 193 115 13 195 237 206 195 1 1 207 199 208 303 208 302 12 319 241 238 8 239

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	07.629 HANDLE; SPARE TIRE CARRIER 08.820 (A)	9-85512-608-0	01	1	9312-9510	●	●	●	●		●
1	07.629 HANDLE; SPARE TIRE CARRIER EXC. FRAME STRAIGHT TYPE<7KJ> 08.820 (A)	9-85512-608-0	01	1	9511-9611		●	●	●		●
1	07.629 HANDLE; SPARE TIRE CARRIER EXC. FRAME STRAIGHT TYPE<7KJ> 08.820 (A)	9-85512-608-0	01	1	9612-9711		●	●	●		●
1	07.629 HANDLE; SPARE TIRE CARRIER 08.820 (A)	9-85512-608-0	01	1	9612-9711					●
1	07.629 HANDLE; SPARE TIRE CARRIER EXC. FRAME STRAIGHT TYPE<7KJ> 08.820 (A)	9-85512-608-0	01	1	9712-		●	●			●
1	07.629 HANDLE; SPARE TIRE CARRIER 08.820 (A)	9-85512-608-0	01	1	9712-				●	●		●
1	07.629 HANDLE; SPARE TIRE CARRIER FRAME STRAIGHT TYPE<7KJ> 08.821 (B) L=280 L=280	1-85515-007-0	01	1	9511-9711		●	●
1	07.629 HANDLE; SPARE TIRE CARRIER FRAME STRAIGHT TYPE<7KJ> 08.821 (B) L=280 L=280	1-85515-007-0	01	1	9712-		●	●			●
8	08.821 WRENCH; WHEEL B=41X21 L=440	1-85113-015-0	01	1	9312-9312	●
8	08.821 WRENCH; WHEEL EUROPEAN BASIC EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1) B=41X21 L=440	1-85113-015-0	01	1	9312-9312		●	●	●		●
8	08.821 WRENCH; WHEEL G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. EUROPEAN BASIC EQUIPMENT(EK4), HONG KONG EQUIPMENT(PQ1) B=41X21 L=440	1-85113-015-0	01	1	9312-9312		●	●			●
8	08.821 WRENCH; WHEEL B=41X21 L=440	1-85113-015-0	01	1	9401-9506	●
8	08.821 WRENCH; WHEEL G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) B=41X21 L=440	1-85113-015-0	01	1	9401-9506		●	●			●
8	08.821 WRENCH; WHEEL DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) B=41X21 L=440	1-85113-015-0	01	1	9401-9506		●				●
8	08.821 WRENCH; WHEEL B=41X21 L=440	1-85113-015-0	01	1	9507-9510	●
8	08.821 WRENCH; WHEEL G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) B=41X21 L=440	1-85113-015-0	01	1	9507-9510		●	●			●
8	08.821 WRENCH; WHEEL DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) B=41X21 L=440	1-85113-015-0	01	1	9507-9510		●	●
8	08.821 WRENCH; WHEEL G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) B=41X21 L=440	1-85113-015-0	01	1	9511-9611		●	●			●
8	08.821 WRENCH; WHEEL DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) B=41X21 L=440	1-85113-015-0	01	1	9511-9611		●	●
8	08.821 WRENCH; WHEEL G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) B=41X21 L=440	1-85113-015-1	01	1	9612-9711		●	●		●	●
8	08.821 WRENCH; WHEEL DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> B=41X21 L=440	1-85113-015-1	01	1	9612-9711		●				●
8	08.821 WRENCH; WHEEL G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> B=41X21 L=440	1-85113-015-1	01	1	9612-9711		●				●
8	08.821 WRENCH; WHEEL HYDRO MASTER<7LT> B=41X21 L=440	1-85113-015-1	01	1	9712-9801		●	●		●
8	08.821 WRENCH; WHEEL (ASE),(ASG),(ASH),(AUH),(AUJ),(AUS), (AVK),(00C),(01C),(02C),(03C),(04C), (05C),(06C),(07C),(08C),(09C),(10C), (11C),(53C),(54C),(55C),(83V),(9BP), (9XB),(9ZM),(9ZP),(9ZQ),(95V),(97V) EXC. HYDRO MASTER<7LT> B=41X21 L=440	1-85113-015-1	01	1	9712-9801		●	●
8	08.821 WRENCH; WHEEL (ASE),(ASG),(ASH),(AUH),(AUJ),(AUS), (AVK),(00C),(01C),(02C),(03C),(04C), (05C),(06C),(07C),(08C),(09C),(10C), (11C),(53C),(54C),(55C),(83V),(9BP), (9XB),(9ZM),(9ZP),(9ZQ),(95V),(97V) EXC. HYDRO MASTER<7LT> B=41X21 L=440	1-85113-015-1	01	1	9802-9807		●	●		●	●	●
8	08.821 WRENCH; WHEEL HYDRO MASTER<7LT> B=41X21 L=440	1-85113-015-1	01	1	9802-9807		●	●		●
8	08.821 WRENCH; WHEEL (ASG),(ASH),(AUH),(AUJ),(AUS),(AVK), (00C),(01C),(02C),(03C),(04C),(05C), (06C),(07C),(08C),(09C),(10C),(11C), (53C),(54C),(55C),(83V),(9BP),(9XB), (9ZM),(9ZP),(9ZQ),(95V),(97V) EXC. HYDRO MASTER<7LT> B=41X21 L=440	1-85113-015-1	01	1	9808-		●	●		●	●	●
8	08.821 WRENCH; WHEEL HYDRO MASTER<7LT> B=41X21 L=440	1-85113-015-1	01	1	9808-		●	●		●
8	08.821 WRENCH; WHEEL (9XB) B=41X21 L=440	1-85113-015-1	01	1	9808-				●
8	08.821 WRENCH; WHEEL 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH FOR REAR V ERTICAL(S5Z) B=41X19 L=330	8-94386-490-1	01	1	9312-9312	●	●	●	●		●
8	08.821 WRENCH; WHEEL G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> B=41X19 L=330	8-94386-490-1	01	1	9401-9611		●	●	●		●
8	08.821 WRENCH; WHEEL G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) B=41X19 L=330	8-94386-490-1	01	1	9401-9611		●		●		●
8	08.821 WRENCH; WHEEL G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> B=41X19 L=330	8-94386-490-1	01	1	9612-9711		●	●	●		●
8	08.821 WRENCH; WHEEL G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) B=41X19 L=330	8-94386-490-1	01	1	9612-9711		●				●
8	08.821 WRENCH; WHEEL (ASF),(06H),(07H),(08H),(09H),(10H), (11H),(12H),(13H),(14H),(15H),(16H), (17H),(18H),(19H),(50C),(51C),(52C), (9HY),(94H),(95H),(96H),(97H),(98H), (99H) B=41X19 L=330	8-94386-490-1	01	1	9712-9807		●	●	●		●
8	08.821 WRENCH; WHEEL (ASE),(ASF),(06H),(07H),(08H),(09H), (10H),(11H),(12H),(13H),(14H),(15H), (16H),(17H),(18H),(19H),(50C),(51C), (52C),(9HE),(9HY),(94H),(95H),(96H), (97H),(98H),(99H) B=41X19 L=330	8-94386-490-1	01	1	9808-		●	●	●		●
8	08.821 WRENCH; WHEEL (ASE),(ASG),(ASH),(AUH),(AUJ),(AUS), (AVK),(00C),(01C),(02C),(03C),(04C), (05C),(06C),(07C),(08C),(09C),(10C), (11C),(53C),(54C),(55C),(83V),(9BP), (9XB),(9ZM),(9ZP),(9ZQ),(95V),(97V) EXC. HYDRO MASTER<7LT> B=41X21 L=445	8-97118-906-0	01	1	9802-9807		●	●		●	●	●
8	08.821 WRENCH; WHEEL HYDRO MASTER<7LT> B=41X21 L=445	8-97118-906-0	01	1	9802-9807		●	●		●
12	08.821 HANDLE; WRENCH,WHEEL PIN OD=25 L=590	8-94430-092-0	01	1	9312-9510	●	●	●	●		●
12	08.821 HANDLE; WRENCH,WHEEL PIN EXC. FRAME STRAIGHT TYPE<7KJ> OD=25 L=590	8-94430-092-0	01	1	9511-9611		●	●	●		●
12	08.821 HANDLE; WRENCH,WHEEL PIN EXC. FRAME STRAIGHT TYPE<7KJ> OD=25 L=590	8-94430-092-0	01	1	9612-9711		●	●	●		●
12	08.821 HANDLE; WRENCH,WHEEL PIN OD=25 L=590	8-94430-092-0	01	1	9612-9711					●
12	08.821 HANDLE; WRENCH,WHEEL PIN EXC. FRAME STRAIGHT TYPE<7KJ> OD=25 L=590	8-94430-092-0	01	1	9712-		●	●			●
12	08.821 HANDLE; WRENCH,WHEEL PIN OD=25 L=590	8-94430-092-0	01	1	9712-				●	●		●
13	08.821 WRENCH; MONKEY	8-94310-178-0	01	1	9312-9407	●	●	●	●		●
13	08.821 WRENCH; MONKEY G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) HYDRO MASTER<7LT>	8-94310-178-0	01	1	9612-9711		●			●
13	08.821 WRENCH; MONKEY HYDRO MASTER<7LT>	8-94310-178-0	01	1	9712-		●	●		●
18	08.821 WRENCH KIT	9-85161-902-0	01	1	9312-9510	●	●	●	●		●
18	08.821 WRENCH KIT	9-85161-902-0	01	1	9511-9611		●	●	●		●
18	08.821 WRENCH KIT	9-85161-902-0	01	1	9612-9711		●	●	●	●	●
18	08.821 WRENCH KIT	9-85161-902-0	01	1	9712-		●	●	●	●	●	●
24	08.821 WRENCH; 8X10 8X10	9-99592-108-0	01	1	9312-9507	●	●	●	●		●
25	08.821 WRENCH; 12X14 12X14	9-09592-112-0	01	1	9312-9507	●	●	●	●		●
26	08.821 WRENCH; 22X17 22X17	9-85162-101-0	01	1	9312-9507	●	●	●	●		●
29	08.821 DRIVER; SCREW <+>,<-> L=160	8-94242-798-1	01	1	9312-9510	●	●	●	●		●
29	08.821 DRIVER; SCREW <+>,<-> L=160	8-94242-798-1	01	1	9511-9611		●	●	●		●
29	08.821 DRIVER; SCREW <+>,<-> L=160	8-94242-798-1	01	1	9612-9711		●	●	●	●	●
29	08.821 DRIVER; SCREW <+>,<-> L=160	8-94242-798-1	01	1	9712-		●	●	●	●	●	●
115	08.821 PLIER	5-85171-002-0	01	1	9312-9510	●	●	●	●		●
115	08.821 PLIER	5-85171-002-0	01	1	9511-9611		●	●	●		●
115	08.821 PLIER	5-85171-002-0	01	1	9612-9711		●	●	●	●	●
115	08.821 PLIER	5-85171-002-0	01	1	9712-		●	●	●	●	●	●
117	08.821 WRENCH; VALVE CAP	9-85163-906-1	01	1	9312-9510	●	●	●	●		●
117	08.821 WRENCH; VALVE CAP	9-85163-906-1	01	1	9511-9611		●	●	●		●
117	08.821 WRENCH; VALVE CAP	9-85163-906-1	01	1	9612-9711		●	●	●	●	●
117	08.821 WRENCH; VALVE CAP	9-85163-906-1	01	1	9712-		●	●	●	●	●	●
193	08.820 JACK ASM	8-97064-605-1	01	1	9312-9501	●
193	08.820 JACK ASM EUROPEAN BASIC EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1)	8-97064-605-1	01	1	9312-9501		●	●	●		●
193	08.820 JACK ASM G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. EUROPEAN BASIC EQUIPMENT(EK4), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQ UIPMENT(RR3)	8-97064-605-1	01	1	9312-9501		●	●			●
193	08.820 JACK ASM (06C),(06H),(07C),(07H),(08C),(08H), (09C),(10C),(11C),(50C),(51C),(53C), (54C),(9HY),(9XB),(94H),(95H),(95V), (96H),(97H),(98H),(99H) EXC. AUSTRALIA EQUIPMENT(RR3)	8-97048-424-1	01	1	9502-9505	●	●	●	●		●
193	08.820 JACK ASM (06C),(06H),(07C),(07H),(08C),(08H), (09C),(10C),(11C),(50C),(51C),(53C), (54C),(9HY),(9XB),(94H),(95H),(96H), (97H),(98H),(99H) EXC. AUSTRALIA EQUIPMENT(RR3) 4TON	8-97131-075-1	01	1	9506-9510	●	●	●			●
193	08.820 JACK ASM (06C),(06H),(07C),(07H),(08C),(08H), (09C),(10C),(11C),(50C),(51C),(53C), (54C),(9HY),(9XB),(94H),(95H),(96H), (97H),(98H),(99H) EXC. AUSTRALIA EQUIPMENT(RR3) 4TON	8-97131-075-1	01	1	9511-9603		●	●	●		●
193	08.820 JACK ASM (ASE),(06C),(06H),(07C),(07H),(08C), (08H),(09C),(10C),(11C),(50C),(51C), (53C),(54C),(9HY),(9XB),(94H),(95H), (96H),(97H),(98H),(99H) EXC. AUSTRALIA EQUIPMENT(RR3) 4TON	8-97131-075-1	01	1	9604-9711		●	●	●		●
193	08.820 JACK ASM (ASE),(AUH),(AUJ),(AUS),(AVK),(06C), (06H),(07C),(07H),(08C),(08H),(09C), (10C),(11C),(50C),(51C),(53C),(54C), (9HE),(9HY),(9XB),(94H),(95H),(96H), (97H),(98H),(99H) EXC. AUSTRALIA EQUIPMENT(RR3) 4TON	8-97131-075-1	01	1	9712-		●	●	●	●	●	●
193	08.820 JACK ASM (06H),(07H),(08H),(95V) AUSTRALIA EQUIPMENT(RR3) 4TON	8-94438-019-0	01	1	9502-9508	●	●	●	●		●
193	08.820 JACK ASM (06H),(07H),(08H) AUSTRALIA EQUIPMENT(RR3) 4TON	8-94438-019-0	01	1	9509-9603		●	●	●		●
193	08.820 JACK ASM (ASE),(06H),(07H),(08H) AUSTRALIA EQUIPMENT(RR3) 4TON	8-94438-019-0	01	1	9604-9711		●	●	●		●
193	08.820 JACK ASM (ASE),(AUH),(AUJ),(AUS),(AVK),(06C), (06H),(07C),(07H),(08C),(08H),(09C), (10C),(11C),(50C),(51C),(53C),(54C), (9HE),(9HY),(9XB),(94H),(95H),(96H), (97H),(98H),(99H) AUSTRALIA EQUIPMENT(RR3) 4TON	8-94438-019-0	01	1	9712-		●	●	●	●	●	●
193	08.820 JACK ASM (ASF),(ASG),(ASH),(00C),(01C),(02C), (03C),(04C),(05C),(09H),(10H),(11H), (12H),(13H),(14H),(15H),(16H),(17H), (18H),(19H),(52C),(55C),(83V),(9BP), (95V),(97V) EXC. AUSTRALIA EQUIPMENT(RR3) 5TON	8-97131-076-1	01	1	9604-9611		●	●	●		●
193	08.820 JACK ASM (ASF),(ASG),(ASH),(00C),(01C),(02C), (03C),(04C),(05C),(09H),(10H),(11H), (12H),(13H),(14H),(15H),(16H),(17H), (18H),(19H),(52C),(55C),(83V),(9BP), (95V),(97V) EXC. AUSTRALIA EQUIPMENT(RR3) 5TON	8-97131-076-1	01	1	9612-9711		●	●	●	●	●
193	08.820 JACK ASM (ASF),(ASG),(ASH),(00C),(01C),(02C), (03C),(04C),(05C),(09H),(10H),(11H), (12H),(13H),(14H),(15H),(16H),(17H), (18H),(19H),(52C),(55C),(83V),(9BP), (9XB),(95V),(97V) EXC. AUSTRALIA EQUIPMENT(RR3) 5TON	8-97131-076-1	01	1	9712-9801		●	●	●	●	●	●
193	08.820 JACK ASM (9ZM),(9ZP),(9ZQ) EXC. AUSTRALIA EQUIPMENT(RR3),FRAME STRAIGHT TYPE<7KJ> 5TON	8-97131-076-1	01	1	9712-9801		●	●				●
193	08.820 JACK ASM (ASF),(ASG),(ASH),(00C),(01C),(02C), (03C),(04C),(05C),(09H),(10H),(11H), (12H),(13H),(14H),(15H),(16H),(17H), (18H),(19H),(52C),(55C),(83V),(9BP), (95V),(97V) EXC. AUSTRALIA EQUIPMENT(RR3) 5TON	8-97131-076-1	01	1	9802-		●	●	●	●	●	●
193	08.820 JACK ASM (9ZM),(9ZP),(9ZQ) EXC. AUSTRALIA EQUIPMENT(RR3),FRAME STRAIGHT TYPE<7KJ> 5TON	8-97131-076-1	01	1	9802-		●	●		●		●
193	08.820 JACK ASM (ASF),(ASG),(ASH),(02C),(05C),(17H), (83V),(95V) AUSTRALIA EQUIPMENT(RR3) 5TON	8-94438-021-0	01	1	9604-9711		●	●	●		●
193	08.820 JACK ASM (ASF),(ASG),(ASH),(00C),(01C),(02C), (03C),(04C),(05C),(09H),(10H),(11H), (12H),(13H),(14H),(15H),(16H),(17H), (18H),(19H),(52C),(55C),(83V),(9BP), (9XB),(95V),(97V) AUSTRALIA EQUIPMENT(RR3) 5TON	8-94438-021-0	01	1	9712-9801		●	●	●	●	●	●
193	08.820 JACK ASM (9ZM),(9ZP),(9ZQ) AUSTRALIA EQUIPMENT(RR3) EXC. FRAME STRAIGHT TYPE<7KJ> 5TON	8-94438-021-0	01	1	9712-9801		●	●				●
193	08.820 JACK ASM (ASF),(ASG),(ASH),(00C),(01C),(02C), (03C),(04C),(05C),(09H),(10H),(11H), (12H),(13H),(14H),(15H),(16H),(17H), (18H),(19H),(52C),(55C),(83V),(9BP), (95V),(97V) AUSTRALIA EQUIPMENT(RR3) 5TON	8-94438-021-0	01	1	9802-		●	●	●	●	●	●
193	08.820 JACK ASM (9ZM),(9ZP),(9ZQ) AUSTRALIA EQUIPMENT(RR3) EXC. FRAME STRAIGHT TYPE<7KJ> 5TON	8-94438-021-0	01	1	9802-		●	●		●		●
193	08.820 JACK ASM AUSTRALIA EQUIPMENT(RR3) 5TON	8-94438-021-0	01	1	9312-9501		●	●	●		●
193	08.820 JACK ASM (02C),(05C),(17H),(83V) AUSTRALIA EQUIPMENT(RR3) 5TON	8-94438-021-0	01	1	9502-9508	●	●	●	●		●
193	08.820 JACK ASM (02C),(05C),(17H),(83V),(95V) AUSTRALIA EQUIPMENT(RR3) 5TON	8-94438-021-0	01	1	9509-9603		●	●	●		●
193	08.820 JACK ASM G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) EXC. EUROPEAN BASIC EQUIPMENT(EK4), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQ UIPMENT(RR3) 5TON	8-97064-604-1	01	1	9312-9501		●	●	●		●
193	08.820 JACK ASM (00C),(01C),(02C),(03C),(04C),(05C), (09H),(10H),(11H),(12H),(13H),(14H), (15H),(16H),(17H),(18H),(19H),(52C), (55C),(83V),(9BP),(97V) EXC. AUSTRALIA EQUIPMENT(RR3) 5TON	8-97064-604-1	01	1	9502-9504	●	●	●	●		●
193	08.820 JACK ASM (00C),(01C),(02C),(03C),(04C),(05C), (09H),(10H),(11H),(12H),(13H),(14H), (15H),(16H),(17H),(18H),(19H),(52C), (55C),(83V),(9BP),(97V) EXC. AUSTRALIA EQUIPMENT(RR3) 5TON	8-97131-076-0	01	1	9505-9505	●	●	●	●		●
193	08.820 JACK ASM (00C),(01C),(02C),(03C),(04C),(05C), (09H),(10H),(11H),(12H),(13H),(14H), (15H),(16H),(17H),(18H),(19H),(52C), (55C),(83V),(9BP),(95V),(97V) EXC. AUSTRALIA EQUIPMENT(RR3) 5TON	8-97131-076-1	01	1	9506-9510	●	●	●	●		●
193	08.820 JACK ASM (00C),(01C),(02C),(03C),(04C),(05C), (09H),(10H),(11H),(12H),(13H),(14H), (15H),(16H),(17H),(18H),(19H),(52C), (55C),(83V),(9BP),(95V),(97V) EXC. AUSTRALIA EQUIPMENT(RR3) 5TON	8-97131-076-1	01	1	9511-9603		●	●	●		●
193	08.820 JACK ASM (9ZM),(9ZP),(9ZQ) FRAME STRAIGHT TYPE<7KJ> 5TON	8-97131-077-1	01	1	9604-9611		●	●
193	08.820 JACK ASM (9ZM),(9ZP),(9ZQ) FRAME STRAIGHT TYPE<7KJ> 5TON	8-97131-077-1	01	1	9612-9711		●	●
193	08.820 JACK ASM (9ZM),(9ZP),(9ZQ) 5TON	8-97131-077-1	01	1	9612-9711					●
193	08.820 JACK ASM (9ZM),(9ZP),(9ZQ) FRAME STRAIGHT TYPE<7KJ> 5TON	8-97131-077-1	01	1	9712-9801		●	●				●
193	08.820 JACK ASM (9ZM),(9ZP),(9ZQ) 5TON	8-97131-077-1	01	1	9712-9801					●
193	08.820 JACK ASM (9ZM),(9ZP),(9ZQ) FRAME STRAIGHT TYPE<7KJ> 5TON	8-97131-077-1	01	1	9802-		●	●		●		●
195	08.820 BRACKET; JACK EXC. AUSTRALIA EQUIPMENT(RR3) (A)	8-94262-068-2	01	1	9312-9510	●	●	●	●		●
195	08.820 BRACKET; JACK EXC. AUSTRALIA EQUIPMENT(RR3) (A)	8-94262-068-2	01	1	9511-9611		●	●	●		●
195	08.820 BRACKET; JACK EXC. AUSTRALIA EQUIPMENT(RR3) (A)	8-94262-068-2	01	1	9612-9711		●	●	●		●
195	08.820 BRACKET; JACK (A)	8-94262-068-2	01	1	9612-9711					●
195	08.820 BRACKET; JACK EXC. AUSTRALIA EQUIPMENT(RR3) (A)	8-94262-068-2	01	1	9712-		●	●	●	●	●	●
195	08.820 BRACKET; JACK (ASF),(ASG),(ASH),(02C),(05C),(17H), (83V) AUSTRALIA EQUIPMENT(RR3) (B)	8-97866-907-1	01	1	9604-9711		●	●			●
195	08.820 BRACKET; JACK (ASF),(ASG),(ASH),(02C),(03C),(05C), (17H),(83V) AUSTRALIA EQUIPMENT(RR3) (B)	8-97866-907-1	01	1	9712-9801		●	●			●	●
195	08.820 BRACKET; JACK (ASF),(ASG),(ASH),(02C),(03C),(05C), (17H),(83V) AUSTRALIA EQUIPMENT(RR3) (B)	8-97866-907-1	01	1	9802-9807		●	●		●	●	●
195	08.820 BRACKET; JACK (ASF),(ASG),(ASH),(AUS),(02C),(03C), (05C),(17H),(83V) AUSTRALIA EQUIPMENT(RR3) (B)	8-97866-907-1	01	1	9808-		●	●		●	●	●
195	08.820 BRACKET; JACK (02C),(05C),(17H),(83V) AUSTRALIA EQUIPMENT(RR3) (A)	8-97867-267-0	01	1	9603-9603		●	●			●
195	08.820 BRACKET; JACK (ASF),(ASG),(ASH),(02C),(05C),(17H), (83V) AUSTRALIA EQUIPMENT(RR3) (A)	8-97867-267-2	01	1	9604-9711		●	●			●
195	08.820 BRACKET; JACK (ASF),(ASG),(ASH),(AUS),(02C),(03C), (05C),(17H),(83V) AUSTRALIA EQUIPMENT(RR3) (A)	8-97867-267-2	01	1	9712-		●	●		●	●	●
195	08.820 BRACKET; JACK (06H),(07H),(08H),(95V) AUSTRALIA EQUIPMENT(RR3) (A)	8-97857-476-2	01	1	9502-9603		●	●			●
195	08.820 BRACKET; JACK (ASE),(06H),(07H),(08H),(95V) AUSTRALIA EQUIPMENT(RR3) (A)	8-97857-476-2	01	1	9604-9711		●	●			●
195	08.820 BRACKET; JACK (ASE),(06H),(07H),(08H),(95V) AUSTRALIA EQUIPMENT(RR3) (A)	8-97857-476-2	01	1	9712-9801		●	●			●	●
195	08.820 BRACKET; JACK (ASE),(06H),(07H),(08H),(95V) AUSTRALIA EQUIPMENT(RR3) (A)	8-97857-476-2	01	1	9802-		●	●		●	●	●
195	08.820 BRACKET; JACK AUSTRALIA EQUIPMENT(RR3) (A)	8-97857-483-2	01	1	9312-9501		●	●			●
195	08.820 BRACKET; JACK (02C),(05C),(17H),(83V) AUSTRALIA EQUIPMENT(RR3) (A)	8-97857-483-2	01	1	9502-9602		●	●			●
195	08.820 BRACKET; JACK (02C),(05C),(17H),(83V) AUSTRALIA EQUIPMENT(RR3) (B)	8-97866-907-0	01	1	9603-9603		●	●			●
195	08.820 BRACKET; JACK AUSTRALIA EQUIPMENT(RR3) (A)	8-94273-769-4	01	1	9312-				●
199	08.820 BOLT; JACK EXC. AUSTRALIA EQUIPMENT(RR3) M8X50 WING	8-94279-136-0	01	1	9312-9510	●	●	●	●		●
199	08.820 BOLT; JACK EXC. AUSTRALIA EQUIPMENT(RR3) M8X50 WING	8-94279-136-0	01	1	9511-9611		●	●	●		●
199	08.820 BOLT; JACK EXC. AUSTRALIA EQUIPMENT(RR3) M8X50 WING	8-94279-136-0	01	1	9612-9711		●	●	●		●
199	08.820 BOLT; JACK M8X50 WING	8-94279-136-0	01	1	9612-9711					●
199	08.820 BOLT; JACK EXC. AUSTRALIA EQUIPMENT(RR3) M8X50 WING	8-94279-136-0	01	1	9712-		●	●	●	●	●	●
199	08.820 BOLT; JACK AUSTRALIA EQUIPMENT(RR3) M8X30 WING	8-94279-018-1	01	1	9312-9711		●	●	●		●
199	08.820 BOLT; JACK AUSTRALIA EQUIPMENT(RR3) M8X30 WING	8-94279-018-1	01	1	9712-		●	●	●	●	●	●
206	08.820 SCREW; OIL JACK BRKT 16.320 M6X20 W/LK&PL WASHER	8-94279-403-0	01	1	9312-9510	●	●	●	●		●
206	08.820 SCREW; OIL JACK BRKT 16.320 M6X20 W/LK&PL WASHER	8-94279-403-0	01	1	9511-9611		●	●	●		●
206	08.820 SCREW; OIL JACK BRKT 16.320 M6X20 W/LK&PL WASHER	8-94279-403-0	01	1	9612-9711		●	●	●	●	●
206	08.820 SCREW; OIL JACK BRKT 16.320 M6X20 W/LK&PL WASHER	8-94279-403-0	01	1	9712-		●	●	●	●	●	●
207	08.820 PROTECTOR; JACK (02C),(05C),(17H),(83V) AUSTRALIA EQUIPMENT(RR3)	8-97866-908-0	01	1	9603-9603		●	●			●
207	08.820 PROTECTOR; JACK (ASF),(ASG),(ASH),(02C),(05C),(17H), (83V) AUSTRALIA EQUIPMENT(RR3)	8-97866-908-2	01	1	9604-9711		●	●			●
207	08.820 PROTECTOR; JACK (ASF),(ASG),(ASH),(AUS),(02C),(03C), (05C),(17H),(83V) AUSTRALIA EQUIPMENT(RR3)	8-97866-908-2	01	1	9712-		●	●		●	●	●
208	08.820 HANDLE; JACK (A)	9-85512-607-0	01	1	9312-9510	●	●	●	●		●
208	08.820 HANDLE; JACK EXC. FRAME STRAIGHT TYPE<7KJ> (A)	9-85512-607-0	01	1	9511-9611		●	●	●		●
208	08.820 HANDLE; JACK EXC. FRAME STRAIGHT TYPE<7KJ> (A)	9-85512-607-0	01	1	9612-9711		●	●	●		●
208	08.820 HANDLE; JACK (A)	9-85512-607-0	01	1	9612-9711					●
208	08.820 HANDLE; JACK EXC. FRAME STRAIGHT TYPE<7KJ> (A)	9-85512-607-0	01	1	9712-		●	●			●
208	08.820 HANDLE; JACK (A)	9-85512-607-0	01	1	9712-				●	●		●
208	08.820 HANDLE; JACK FRAME STRAIGHT TYPE<7KJ> (B) L=580	1-85515-005-1	01	1	9511-9711		●	●
208	08.820 HANDLE; JACK FRAME STRAIGHT TYPE<7KJ> (B) L=580	1-85515-005-1	01	1	9712-		●	●			●
237	08.821 BAG; TOOL	1-85565-012-0	01	1	9312-9312	●
237	08.821 BAG; TOOL EUROPEAN BASIC EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1)	1-85565-012-0	01	1	9312-9312		●	●	●		●
237	08.821 BAG; TOOL G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. EUROPEAN BASIC EQUIPMENT(EK4), HONG KONG EQUIPMENT(PQ1)	1-85565-012-0	01	1	9312-9312		●	●			●
237	08.821 BAG; TOOL	1-85565-012-0	01	1	9401-9506	●
237	08.821 BAG; TOOL G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)	1-85565-012-0	01	1	9401-9506		●	●			●
237	08.821 BAG; TOOL DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV)	1-85565-012-0	01	1	9401-9506		●				●
237	08.821 BAG; TOOL	1-85565-012-0	01	1	9507-9509	●
237	08.821 BAG; TOOL G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)	1-85565-012-0	01	1	9507-9509		●	●			●
237	08.821 BAG; TOOL DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV)	1-85565-012-0	01	1	9507-9509		●	●
237	08.821 BAG; TOOL	8-97130-903-0	01	1	9510-9510	●
237	08.821 BAG; TOOL G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)	8-97130-903-0	01	1	9510-9510		●	●			●
237	08.821 BAG; TOOL DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV)	8-97130-903-0	01	1	9510-9510		●	●
237	08.821 BAG; TOOL G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)	8-97130-903-0	01	1	9511-9611		●	●			●
237	08.821 BAG; TOOL DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV)	8-97130-903-0	01	1	9511-9611		●	●
237	08.821 BAG; TOOL G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)	8-97130-903-0	01	1	9612-9711		●	●		●	●
237	08.821 BAG; TOOL DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97130-903-0	01	1	9612-9711		●				●
237	08.821 BAG; TOOL G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ>	8-97130-903-0	01	1	9612-9711		●				●
237	08.821 BAG; TOOL HYDRO MASTER<7LT>	8-97130-903-0	01	1	9712-9801		●	●		●
237	08.821 BAG; TOOL (ASE),(ASG),(ASH),(AUH),(AUJ),(AUS), (AVK),(00C),(01C),(02C),(03C),(04C), (05C),(06C),(07C),(08C),(09C),(10C), (11C),(53C),(54C),(55C),(83V),(9BP), (9XB),(9ZM),(9ZP),(9ZQ),(95V),(97V) EXC. HYDRO MASTER<7LT>	8-97130-903-0	01	1	9712-9801		●	●
237	08.821 BAG; TOOL (ASE),(ASG),(ASH),(AUH),(AUJ),(AUS), (AVK),(00C),(01C),(02C),(03C),(04C), (05C),(06C),(07C),(08C),(09C),(10C), (11C),(53C),(54C),(55C),(83V),(9BP), (9XB),(9ZM),(9ZP),(9ZQ),(95V),(97V) EXC. HYDRO MASTER<7LT>	8-97130-903-0	01	1	9802-9807		●	●		●	●	●
237	08.821 BAG; TOOL HYDRO MASTER<7LT>	8-97130-903-0	01	1	9802-9807		●	●		●
237	08.821 BAG; TOOL (ASG),(ASH),(AUH),(AUJ),(AUS),(AVK), (00C),(01C),(02C),(03C),(04C),(05C), (06C),(07C),(08C),(09C),(10C),(11C), (53C),(54C),(55C),(83V),(9BP),(9XB), (9ZM),(9ZP),(9ZQ),(95V),(97V) EXC. HYDRO MASTER<7LT>	8-97130-903-0	01	1	9808-		●	●		●	●	●
237	08.821 BAG; TOOL HYDRO MASTER<7LT>	8-97130-903-0	01	1	9808-		●	●		●
237	08.821 BAG; TOOL (9XB)	8-97130-903-0	01	1	9808-				●
237	08.821 BAG; TOOL 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH FOR REAR V ERTICAL(S5Z)	8-94367-102-0	01	1	9312-9312	●	●	●	●		●
237	08.821 BAG; TOOL G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>	8-94367-102-0	01	1	9401-9509		●	●	●		●
237	08.821 BAG; TOOL G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT)	8-94367-102-0	01	1	9401-9509		●		●		●
237	08.821 BAG; TOOL G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>	8-97130-902-0	01	1	9510-9611		●	●	●		●
237	08.821 BAG; TOOL G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT)	8-97130-902-0	01	1	9510-9611		●		●		●
237	08.821 BAG; TOOL G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ>	8-97130-902-0	01	1	9612-9711		●	●	●		●
237	08.821 BAG; TOOL G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT)	8-97130-902-0	01	1	9612-9711		●				●
237	08.821 BAG; TOOL (ASF),(06H),(07H),(08H),(09H),(10H), (11H),(12H),(13H),(14H),(15H),(16H), (17H),(18H),(19H),(50C),(51C),(52C), (9HY),(94H),(95H),(96H),(97H),(98H), (99H)	8-97130-902-0	01	1	9712-9807		●	●	●		●
237	08.821 BAG; TOOL (ASE),(ASF),(06H),(07H),(08H),(09H), (10H),(11H),(12H),(13H),(14H),(15H), (16H),(17H),(18H),(19H),(50C),(51C), (52C),(9HE),(9HY),(94H),(95H),(96H), (97H),(98H),(99H)	8-97130-902-0	01	1	9808-		●	●	●		●
238	08.820 SUPPORT; TOOL BAG	8-94273-001-0	01	1	9312-9510		●	●			●
238	08.820 SUPPORT; TOOL BAG	8-97866-879-0	01	1	9511-9611		●	●			●
238	08.820 SUPPORT; TOOL BAG	8-97866-879-0	01	1	9612-9711		●	●		●	●
238	08.820 SUPPORT; TOOL BAG	8-97866-879-0	01	1	9712-		●	●		●	●	●
239	08.820 BAND; TOOL BAG L=100	5-73997-026-1	01	1	9312-9510	●	●	●	●		●
239	08.820 BAND; TOOL BAG L=100	5-73997-026-1	01	1	9511-9611		●	●	●		●
239	08.820 BAND; TOOL BAG L=100	5-73997-026-1	01	1	9612-9711		●	●	●	●	●
239	08.820 BAND; TOOL BAG L=100	5-73997-026-1	01	1	9712-		●	●	●	●	●	●
241	08.820 SCREW; TOOL BAG SUPPORT 16.320 M6X20 W/LK&PL WASHER	8-94279-403-0	01	1	9312-9611		●	●			●
241	08.820 SCREW; TOOL BAG SUPPORT 16.320 M6X20 W/LK&PL WASHER	8-94279-403-0	01	1	9612-9711		●	●		●	●
241	08.820 SCREW; TOOL BAG SUPPORT 16.320 M6X20 W/LK&PL WASHER	8-94279-403-0	01	1	9712-		●	●		●	●	●
302	08.820 NUT; JACK BRKT EXC. AUSTRALIA EQUIPMENT(RR3)	8-94279-522-0	01	1	9312-9510	●	●	●	●		●
302	08.820 NUT; JACK BRKT EXC. AUSTRALIA EQUIPMENT(RR3)	8-94279-522-0	01	1	9511-9602		●	●	●		●
302	08.820 NUT; JACK BRKT	8-94279-522-0	01	1	9603-9611		●	●	●		●
302	08.820 NUT; JACK BRKT	8-94279-522-0	01	1	9612-9711		●	●	●	●	●
302	08.820 NUT; JACK BRKT	8-94279-522-0	01	1	9712-		●	●	●	●	●	●
302	08.820 NUT; JACK BRKT AUSTRALIA EQUIPMENT(RR3) 16.085	8-94279-061-1	01	1	9312-9602		●	●	●		●
303	08.820 SPRING; WING BOLT EXC. AUSTRALIA EQUIPMENT(RR3)	8-94279-944-0	01	1	9312-9409	●	●	●	●		●
303	08.820 SPRING; WING BOLT AUSTRALIA EQUIPMENT(RR3)	8-94279-914-0	01	1	9312-9409		●	●	●		●
319	08.821 CLIP; TOOL BAR	8-97853-077-2	02	1	9312-9510	●	●	●	●		●
319	08.821 CLIP; TOOL BAR	8-97853-077-2	02	1	9511-9611		●	●	●		●
319	08.821 CLIP; TOOL BAR	8-97853-077-2	02	1	9612-9711		●	●	●	●	●
319	08.821 CLIP; TOOL BAR	8-97853-077-2	02	1	9712-		●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
