8-73 — BLOWER UNIT (#48910) — 101 parça

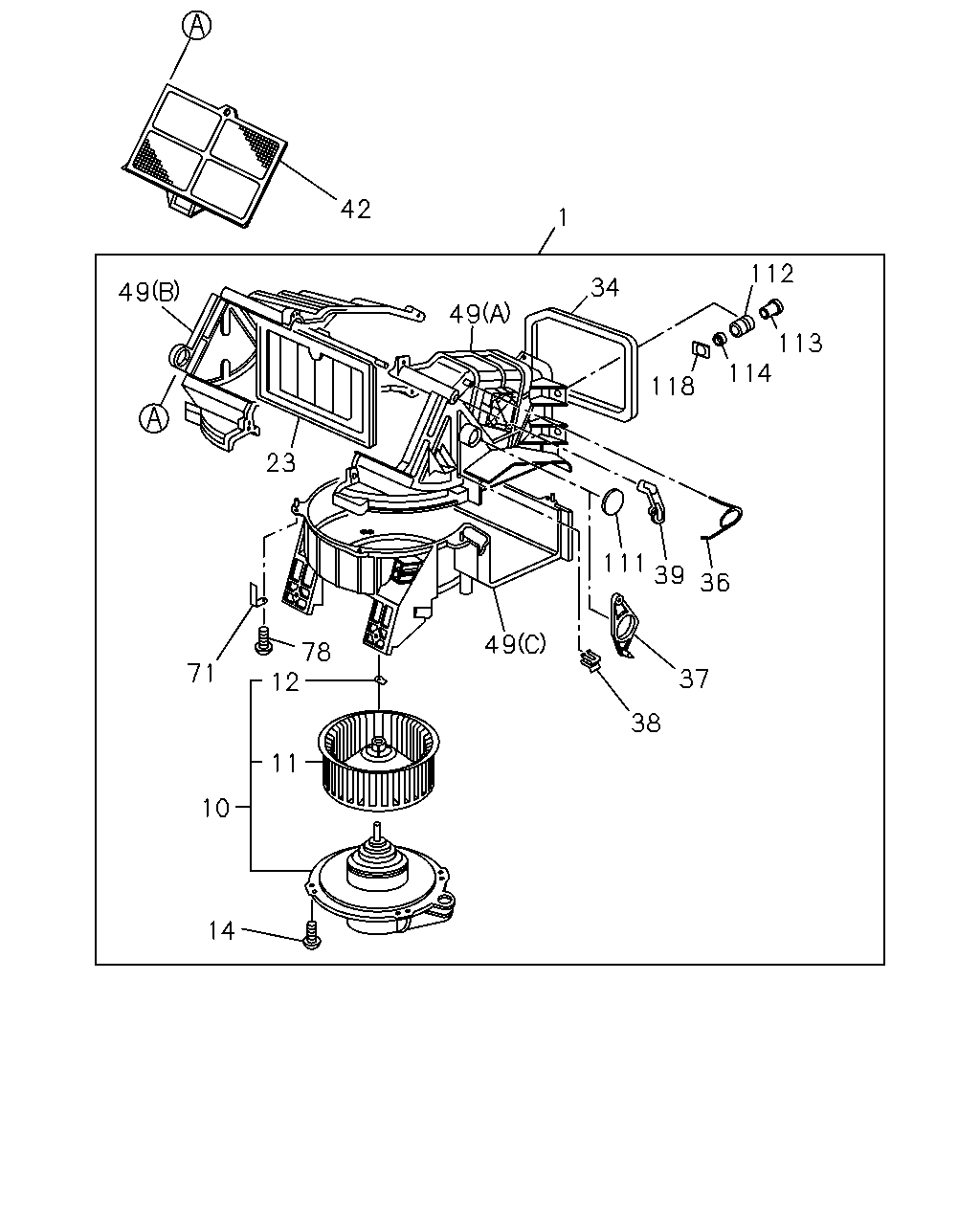

çizim 67546
42 1 112 34 49 49 113 114 118 23 111 39 36 49 78 12 71 37 38 11 10 14
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 08.855 BLOWER ASM
VOLTAGE 24V<7AE> 		8-97106-316-2 01 1 9312-9510 ● ● ● ● ●
1 08.855 BLOWER ASM
VOLTAGE 24V<7AE> 		8-97106-316-2 01 1 9511-9611 ● ● ● ●
1 08.855 BLOWER ASM
VOLTAGE 24V<7AE> 		8-97106-316-2 01 1 9612-9711 ● ● ● ● ●
1 08.855 BLOWER ASM
VOLTAGE 24V<7AE> 		8-97106-316-3 01 1 9712- ● ● ● ● ● ●
1 08.855 BLOWER ASM
EXC. VOLTAGE 24V<7AE> 		8-97106-315-2 01 1 9312-9506 ● ●
1 08.855 BLOWER ASM
EXC. VOLTAGE 24V<7AE> 		8-97106-315-2 01 1 9507-9606 ● ●
1 08.855 BLOWER ASM
EXC. VOLTAGE 24V<7AE> 		8-97106-315-2 01 1 9607-9705 ● ● ●
1 08.855 BLOWER ASM
EXC. VOLTAGE 24V<7AE> 		8-97106-315-3 01 1 9706- ● ● ● ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT
VOLTAGE 24V<7AE> 		8-97085-607-2 01 1 9312-9510 ● ● ● ● ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT
VOLTAGE 24V<7AE> 		8-97085-607-2 01 1 9511-9611 ● ● ● ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT
VOLTAGE 24V<7AE> 		8-97085-607-2 01 1 9612-9711 ● ● ● ● ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT
VOLTAGE 24V<7AE> 		8-97085-607-2 01 1 9712-9809 ● ● ● ● ● ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT
VOLTAGE 24V<7AE> 		8-97211-950-0 01 1 9810- ● ● ● ● ● ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT
EXC. VOLTAGE 24V<7AE> 		8-97085-614-3 01 1 9312-9506 ● ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT
EXC. VOLTAGE 24V<7AE> 		8-97085-614-3 01 1 9507-9606 ● ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT
EXC. VOLTAGE 24V<7AE> 		8-97085-614-3 01 1 9607-9705 ● ● ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT
EXC. VOLTAGE 24V<7AE> 		8-97085-614-3 01 1 9706-9809 ● ● ● ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT
EXC. VOLTAGE 24V<7AE> 		8-97211-952-0 01 1 9810- ● ● ● ●
11 08.857 IMPELLER; FAN MOTOR 8-97089-700-0 01 1 9312-9510 ● ● ● ● ●
11 08.857 IMPELLER; FAN MOTOR 8-97089-700-0 01 1 9511-9611 ● ● ● ●
11 08.857 IMPELLER; FAN MOTOR 8-97089-700-0 01 1 9612-9711 ● ● ● ● ●
11 08.857 IMPELLER; FAN MOTOR 8-97089-700-0 01 1 9712- ● ● ● ● ● ●
12 08.857 RING; SNAP,FAN MOTOR 8-94243-962-0 01 1 9312-9510 ● ● ● ● ●
12 08.857 RING; SNAP,FAN MOTOR 8-94243-962-0 01 1 9511-9611 ● ● ● ●
12 08.857 RING; SNAP,FAN MOTOR 8-94243-962-0 01 1 9612-9711 ● ● ● ● ●
12 08.857 RING; SNAP,FAN MOTOR 8-94243-962-0 01 1 9712- ● ● ● ● ● ●
14 08.857 SCREW; COVER TO CASE
08.846 M5X16 		8-94248-820-0 04 1 9312-9506 ● ● ● ● ●
14 08.857 SCREW; COVER TO CASE
10.240 M5X20 		9-09829-324-1 04 1 9507-9510 ● ● ● ● ●
14 08.857 SCREW; COVER TO CASE
10.240 M5X20 		9-09829-324-1 04 1 9511-9611 ● ● ● ●
14 08.857 SCREW; COVER TO CASE
10.240 M5X20 		9-09829-324-1 04 1 9612-9711 ● ● ● ● ●
14 08.857 SCREW; COVER TO CASE
10.240 M5X20 		9-09829-324-1 04 1 9712- ● ● ● ● ● ●
23 08.857 SHUTTER; BLOWER UNIT 8-97096-640-3 01 1 9312-9510 ● ● ● ● ●
23 08.857 SHUTTER; BLOWER UNIT 8-97096-640-3 01 1 9511-9611 ● ● ● ●
23 08.857 SHUTTER; BLOWER UNIT 8-97096-640-3 01 1 9612-9711 ● ● ● ● ●
23 08.857 SHUTTER; BLOWER UNIT 8-97096-640-3 01 1 9712- ● ● ● ● ● ●
34 08.856 LINING; BLOWER UNIT 8-97085-612-1 01 1 9312-9510 ● ● ● ● ●
34 08.856 LINING; BLOWER UNIT 8-97085-612-1 01 1 9511-9611 ● ● ● ●
34 08.856 LINING; BLOWER UNIT 8-97085-612-1 01 1 9612-9711 ● ● ● ● ●
34 08.856 LINING; BLOWER UNIT 8-97085-612-1 01 1 9712- ● ● ● ● ● ●
36 09.786 SPRING; BLOWER UNIT
08.846 		8-94233-123-0 01 1 9312-9510 ● ● ● ● ●
36 09.786 SPRING; BLOWER UNIT
08.846 		8-94233-123-0 01 1 9511-9611 ● ● ● ●
36 09.786 SPRING; BLOWER UNIT
08.846 		8-94233-123-0 01 1 9612-9711 ● ● ● ● ●
36 09.786 SPRING; BLOWER UNIT
08.846 		8-94233-123-0 01 1 9712-9809 ● ● ● ● ● ●
37 09.786 LEVER; MODE LEVER 8-97085-610-2 01 1 9312-9406 ● ● ● ● ●
37 09.786 LEVER; MODE LEVER 8-97085-610-2 01 1 9408-9510 ● ● ● ● ●
37 09.786 LEVER; MODE LEVER 8-97085-610-2 01 1 9511-9611 ● ● ● ●
37 09.786 LEVER; MODE LEVER 8-97085-610-2 01 1 9612-9711 ● ● ● ● ●
37 09.786 LEVER; MODE LEVER 8-97085-610-2 01 1 9712- ● ● ● ● ● ●
38 09.787 CLIP; BLOWER UNIT 8-94337-654-0 01 1 9312-9510 ● ● ● ● ●
38 09.787 CLIP; BLOWER UNIT 8-94337-654-0 01 1 9511-9611 ● ● ● ●
38 09.787 CLIP; BLOWER UNIT 8-94337-654-0 01 1 9612-9711 ● ● ● ● ●
38 09.787 CLIP; BLOWER UNIT 8-94337-654-0 01 1 9712- ● ● ● ● ● ●
39 09.786 LEVER; SHUTTER,BLOWER UNIT 8-97085-609-3 01 1 9312-9510 ● ● ● ● ●
39 09.786 LEVER; SHUTTER,BLOWER UNIT 8-97085-609-3 01 1 9511-9611 ● ● ● ●
39 09.786 LEVER; SHUTTER,BLOWER UNIT 8-97085-609-3 01 1 9612-9711 ● ● ● ● ●
39 09.786 LEVER; SHUTTER,BLOWER UNIT 8-97085-609-3 01 1 9712- ● ● ● ● ● ●
42 08.857 FILTER; BLOWER UNIT 8-97085-641-0 01 1 9312-9406 ● ● ● ● ●
42 08.857 FILTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONT(C60) 09.170 		8-97085-611-1 01 1 9407-9510 ● ● ● ● ●
42 08.857 FILTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONT(C60) 09.170 		8-97085-611-1 01 1 9511-9611 ● ● ● ●
42 08.857 FILTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONT(C60) 09.170 		8-97085-611-1 01 1 9612-9711 ● ● ● ● ●
42 08.857 FILTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONT(C60) 09.170 		8-97085-611-1 01 1 9712- ● ● ● ● ● ●
49 08.857 CASE; BLOWER UNIT
(C) 		8-97085-606-0 01 1 9312-9510 ● ● ● ● ●
49 08.857 CASE; BLOWER UNIT
(C) 		8-97085-606-0 01 1 9511-9611 ● ● ● ●
49 08.857 CASE; BLOWER UNIT
(C) 		8-97085-606-0 01 1 9612-9711 ● ● ● ● ●
49 08.857 CASE; BLOWER UNIT
(C) 		8-97085-606-0 01 1 9712- ● ● ● ● ● ●
49 08.857 CASE; BLOWER UNIT
(A) 		8-97089-698-3 01 1 9312-9510 ● ● ● ● ●
49 08.857 CASE; BLOWER UNIT
(A) 		8-97089-698-3 01 1 9511-9611 ● ● ● ●
49 08.857 CASE; BLOWER UNIT
(A) 		8-97089-698-3 01 1 9612-9711 ● ● ● ● ●
49 08.857 CASE; BLOWER UNIT
(A) 		8-97089-698-3 01 1 9712- ● ● ● ● ● ●
49 08.857 CASE; BLOWER UNIT
(B) 		8-97089-699-3 01 1 9312-9510 ● ● ● ● ●
49 08.857 CASE; BLOWER UNIT
(B) 		8-97089-699-3 01 1 9511-9611 ● ● ● ●
49 08.857 CASE; BLOWER UNIT
(B) 		8-97089-699-3 01 1 9612-9711 ● ● ● ● ●
49 08.857 CASE; BLOWER UNIT
(B) 		8-97089-699-3 01 1 9712- ● ● ● ● ● ●
71 08.857 CLIP; HARNESS
09.216 		8-97061-837-0 01 1 9312-9506 ● ● ● ● ●
71 08.857 CLIP; HARNESS 1-83574-080-0 01 1 9507-9510 ● ● ● ● ●
71 08.857 CLIP; HARNESS 1-83574-080-0 01 1 9511-9611 ● ● ● ●
71 08.857 CLIP; HARNESS 1-83574-080-0 01 1 9612-9711 ● ● ● ● ●
71 08.857 CLIP; HARNESS 1-83574-080-0 01 1 9712- ● ● ● ● ● ●
78 08.857 SCREW; CASE TO CASE
08.852 M4X16 		8-94324-850-0 11 1 9312-9406 ● ● ● ● ●
78 08.857 SCREW; CASE TO CASE
08.852 M4X16 		8-94324-850-0 09 1 9407-9506 ● ● ● ● ●
78 08.857 SCREW; CASE TO CASE
08.852 M4X16 		8-94324-850-0 08 1 9507-9510 ● ● ● ● ●
78 08.857 SCREW; CASE TO CASE
08.852 M4X16 		8-94324-850-0 08 1 9511-9611 ● ● ● ●
78 08.857 SCREW; CASE TO CASE
08.852 M4X16 		8-94324-850-0 08 1 9612-9711 ● ● ● ● ●
78 08.857 SCREW; CASE TO CASE
08.852 M4X16 		8-94324-850-0 08 1 9712- ● ● ● ● ● ●
111 08.856 PLUG; BLOWER UNIT
09.786 		8-97085-610-2 01 1 9407-9407 ● ● ● ● ●
112 08.857 ISOLATOR; CASE 8-97096-641-0 02 1 9312-9510 ● ● ● ● ●
112 08.857 ISOLATOR; CASE 8-97096-641-0 02 1 9511-9611 ● ● ● ●
112 08.857 ISOLATOR; CASE 8-97096-641-0 02 1 9612-9711 ● ● ● ● ●
112 08.857 ISOLATOR; CASE 8-97096-641-0 02 1 9712- ● ● ● ● ● ●
113 08.857 BUSHING; ISOLATOR 8-97096-642-0 02 1 9312-9510 ● ● ● ● ●
113 08.857 BUSHING; ISOLATOR 8-97096-642-0 02 1 9511-9611 ● ● ● ●
113 08.857 BUSHING; ISOLATOR 8-97096-642-0 02 1 9612-9711 ● ● ● ● ●
113 08.857 BUSHING; ISOLATOR 8-97096-642-0 02 1 9712- ● ● ● ● ● ●
114 08.857 NUT; ISOLATOR
00.854 M8 FLANGE 		5-09440-005-0 02 1 9312-9510 ● ● ● ● ●
114 08.857 NUT; ISOLATOR
00.854 M8 FLANGE 		5-09440-005-0 02 1 9511-9611 ● ● ● ●
114 08.857 NUT; ISOLATOR
00.854 M8 FLANGE 		5-09440-005-0 02 1 9612-9711 ● ● ● ● ●
114 08.857 NUT; ISOLATOR
00.854 M8 FLANGE 		5-09440-005-0 02 1 9712- ● ● ● ● ● ●
118 08.857 BRACKET; BUSHING 8-97107-979-0 02 1 9312-9510 ● ● ● ● ●
118 08.857 BRACKET; BUSHING 8-97107-979-0 02 1 9511-9611 ● ● ● ●
118 08.857 BRACKET; BUSHING 8-97107-979-0 02 1 9612-9711 ● ● ● ● ●
118 08.857 BRACKET; BUSHING 8-97107-979-0 02 1 9712- ● ● ● ● ● ●
