Isuzu WW
▶
TRUCKS
▶
EXR
▶
10724 - EXR RHD
▶
5 - Frame, Cab Mounting
▶
5-17 - CYLINDER; CAB TILT
▶
5-17 — CYLINDER; CAB TILT
(#4891) — 31 parça
◀

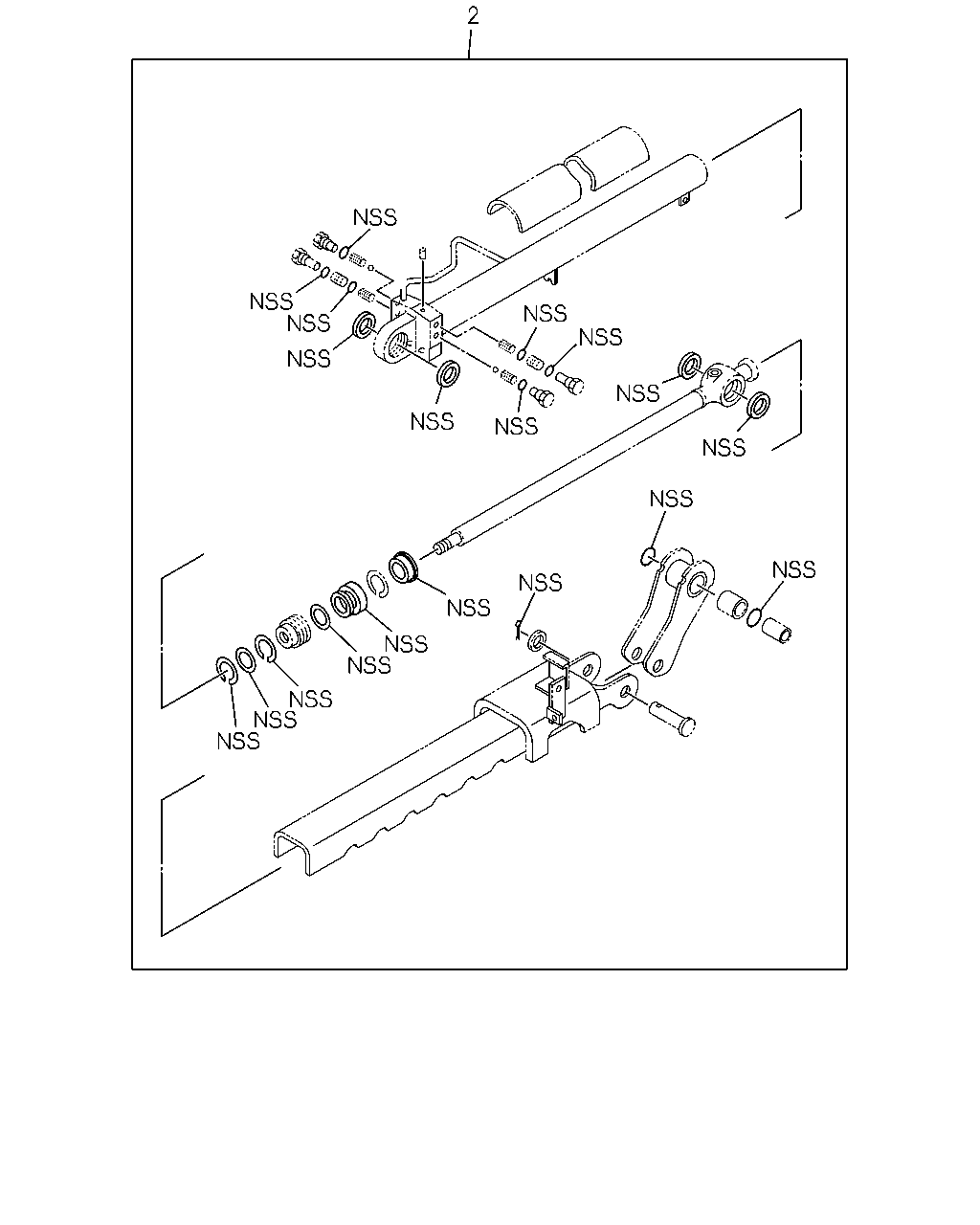

[517A] REPAIR KIT (2 parça)

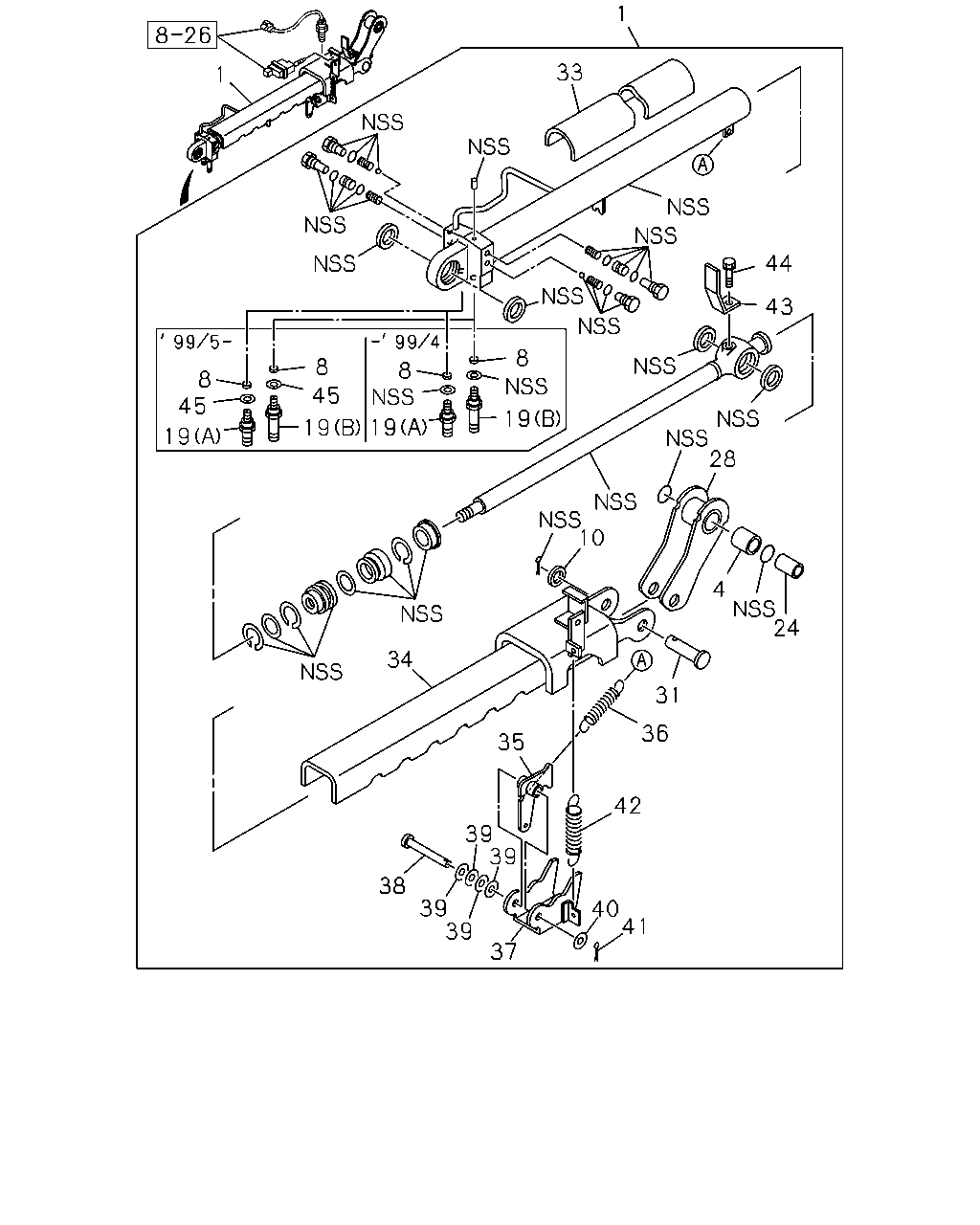

[517A] CYLINDER ASM (29 parça)
▶
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
REPAIR KIT; OIL CYL
1-85579-067-0
01
1
9905-
2
REPAIR KIT; OIL CYL
1-85579-055-0
01
1
9601-9904
1
33
1
44
43
8
8
8
8
45
45
19
28
19
19
19
10
4
24
34
31
36
35
42
39
39
38
39
39
40
41
37
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CYLINDER; OIL,CAB TILT
1-53458-692-0
01
1
9601-9608
1
CYLINDER; OIL,CAB TILT
1-53458-759-0
01
1
9609-9904
1
CYLINDER; OIL,CAB TILT
1-53458-917-0
01
1
9905-
4
BUSHING; OIL CYL
1-53458-405-0
01
1
9601-
8
FILTER; OIL CYL
1-53458-102-0
02
1
9601-
10
WASHER; OIL CYL
1-53458-401-0
01
1
9601-
19
NIPPLE; OIL CYL
(A)
1-53457-044-0
01
1
9905-
19
NIPPLE; OIL CYL
(B)
1-53457-045-0
01
1
9905-
19
NIPPLE; OIL CYL
(A)
1-53458-403-0
01
1
9601-9904
19
NIPPLE; OIL CYL
(B)
1-53458-404-0
01
1
9601-9904
24
COLLAR; LEVER
1-53458-398-0
01
1
9601-
28
LEVER; OIL CYL
1-53458-557-1
01
1
9601-
31
PIN; OIL CYL
1-53458-554-0
01
1
9601-
33
COVER; CYL
1-53458-556-0
01
1
9601-
34
STOPPER; OIL CYL
1-53458-555-0
01
1
9601-
35
LEVER; WIRE
1-53458-689-0
01
1
9601-
36
SPRING; WIRE LEVER
1-53458-552-0
01
1
9601-
37
LEVER; STOPPER
1-53458-551-0
01
1
9601-
38
PIN; STOPPER
1-53458-550-0
01
1
9601-
39
SHIM; LEVER
T=0.7
1-53458-546-0
AR
1
9601-
39
SHIM; LEVER
T=0.5
1-53458-547-0
AR
1
9601-
39
SHIM; LEVER
T=0.3
1-53458-548-0
AR
1
9601-
39
SHIM; LEVER
T=0.1
1-53458-549-0
AR
1
9601-
40
WASHER; STOPPER PIN
1-53458-045-0
01
1
9601-
41
PIN; SPLIT
1-53458-545-0
01
1
9601-
42
SPRING; LOCK LEVER
1-53458-544-0
01
1
9601-
43
PLATE; SW
1-53458-543-0
01
1
9601-
44
BOLT; SW PLATE
M6X12
1-53458-542-0
01
1
9601-
45
GASKET; OIL CYL
1-53458-073-0
02
1
9905-
