8-60 — HEATER UNIT; FRONT (#48908) — 275 parça

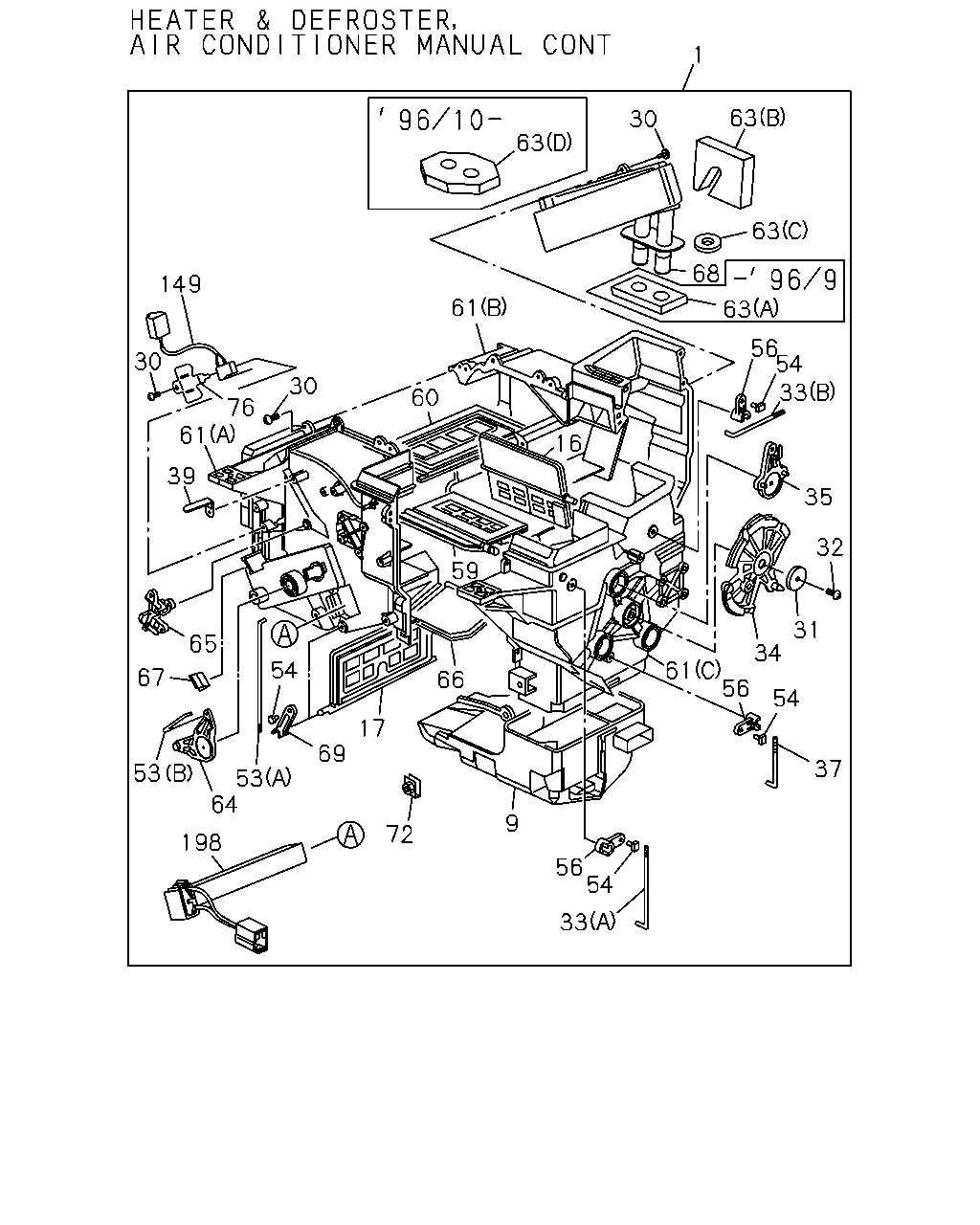

çizim 18531
1 63 30 63 63 68 149 61 63 56 54 33 30 30 60 76 61 16 39 35 32 59 31 65 34 54 61 56 67 66 54 17 69 37 53 53 64 9 72 198 56 54 33
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97035-220-2 01 1 9312-9406 ● ● ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97114-426-0 01 1 9407-9510 ● ● ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97114-426-0 01 1 9511-9609 ● ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97166-606-0 01 1 9610-9611 ● ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97166-606-0 01 1 9612-9701 ● ● ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97174-729-2 01 1 9702-9711 ● ● ● ● ●
1 08.845 HEATER UNIT
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97174-729-4 01 1 9712- ● ● ● ● ●
1 08.845 HEATER UNIT
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) 		8-97174-729-4 01 1 9712- ● ● ● ● ●
1 08.845 HEATER UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97071-698-0 01 1 9312-9510 ● ● ● ● ●
1 08.845 HEATER UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97071-698-0 01 1 9511-9609 ● ● ● ●
1 08.845 HEATER UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97166-608-1 01 1 9610-9611 ● ● ● ●
1 08.845 HEATER UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97166-608-1 01 1 9612-9711 ● ● ● ● ●
1 08.845 HEATER UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97166-608-3 01 1 9712- ● ● ● ● ● ●
1 08.845 HEATER UNIT
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> 		8-97174-731-4 01 1 9712- ● ● ●
9 08.854 DUCT; HTR UNIT 8-97087-555-0 01 1 9312-9510 ● ● ● ● ●
9 08.854 DUCT; HTR UNIT 8-97087-555-0 01 1 9511-9611 ● ● ● ●
9 08.854 DUCT; HTR UNIT 8-97087-555-0 01 1 9612-9711 ● ● ● ● ●
9 08.854 DUCT; HTR UNIT 8-97087-555-0 01 1 9712- ● ● ● ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR 8-97087-559-2 01 1 9312-9510 ● ● ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR 8-97087-559-2 01 1 9511-9611 ● ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR 8-97087-559-2 01 1 9612-9711 ● ● ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR 8-97087-559-2 01 1 9712- ● ● ● ● ● ●
17 09.786 SHUTTER; HTR UNIT,CENTER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97087-557-1 01 1 9312-9510 ● ● ● ● ●
17 09.786 SHUTTER; HTR UNIT,CENTER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97087-557-1 01 1 9511-9611 ● ● ● ●
17 09.786 SHUTTER; HTR UNIT,CENTER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97087-557-1 01 1 9612-9711 ● ● ● ● ●
17 09.786 SHUTTER; HTR UNIT,CENTER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97087-557-1 01 1 9712- ● ● ● ● ● ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 		8-94324-850-0 11 1 9312-9510 ● ● ● ● ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 		8-94324-850-0 11 1 9511-9611 ● ● ● ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 		8-94324-850-0 11 1 9612-9711 ● ● ● ● ●
30 08.845 SCREW; HTR UNIT
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> 08.852 M4X16 		8-94324-850-0 14 1 9712- ● ● ●
30 08.845 SCREW; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 		8-94324-850-0 10 1 9312-9510 ● ● ● ● ●
30 08.845 SCREW; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 		8-94324-850-0 10 1 9511-9611 ● ● ● ●
30 08.845 SCREW; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 		8-94324-850-0 10 1 9612-9711 ● ● ● ● ●
30 08.845 SCREW; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 		8-94324-850-0 10 1 9712- ● ● ● ● ● ●
30 08.845 SCREW; HTR UNIT
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 		8-94324-850-0 11 1 9712- ● ● ● ● ●
30 08.845 SCREW; HTR UNIT
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) 08.852 M4X16 		8-94324-850-0 11 1 9712- ● ● ● ● ●
31 08.852 WASHER; HTR UNIT 8-94129-950-0 01 1 9312-9510 ● ● ● ● ●
31 08.852 WASHER; HTR UNIT 8-94129-950-0 01 1 9511-9611 ● ● ● ●
31 08.852 WASHER; HTR UNIT 8-94129-950-0 01 1 9612-9711 ● ● ● ● ●
31 08.852 WASHER; HTR UNIT 8-94129-950-0 01 1 9712- ● ● ● ● ● ●
32 08.852 SCREW; HTR UNIT
08.846 M5X16 		8-94248-820-0 01 1 9312-9510 ● ● ● ● ●
32 08.852 SCREW; HTR UNIT
08.846 M5X16 		8-94248-820-0 01 1 9511-9609 ● ● ● ●
32 08.852 SCREW; HTR UNIT
10.240 M5X20 		9-09829-324-1 01 1 9610-9611 ● ● ● ●
32 08.852 SCREW; HTR UNIT
10.240 M5X20 		9-09829-324-1 01 1 9612-9711 ● ● ● ● ●
32 08.852 SCREW; HTR UNIT
10.240 M5X20 		9-09829-324-1 01 1 9712- ● ● ● ● ● ●
33 09.786 ROD; SHUTTER LEVER
(A) 		8-97087-568-1 01 1 9312-9510 ● ● ● ● ●
33 09.786 ROD; SHUTTER LEVER
(A) 		8-97087-568-1 01 1 9511-9611 ● ● ● ●
33 09.786 ROD; SHUTTER LEVER
(A) 		8-97087-568-1 01 1 9612-9711 ● ● ● ● ●
33 09.786 ROD; SHUTTER LEVER
(A) 		8-97087-568-1 01 1 9712- ● ● ● ● ● ●
33 09.786 ROD; SHUTTER LEVER
(B) 		8-97087-569-1 01 1 9312-9510 ● ● ● ● ●
33 09.786 ROD; SHUTTER LEVER
(B) 		8-97087-569-1 01 1 9511-9611 ● ● ● ●
33 09.786 ROD; SHUTTER LEVER
(B) 		8-97087-569-1 01 1 9612-9711 ● ● ● ● ●
33 09.786 ROD; SHUTTER LEVER
(B) 		8-97087-569-1 01 1 9712- ● ● ● ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT 8-97087-561-1 01 1 9312-9510 ● ● ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT 8-97087-561-1 01 1 9511-9609 ● ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT 8-97166-657-0 01 1 9610-9611 ● ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT 8-97166-657-0 01 1 9612-9711 ● ● ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT 8-97166-657-0 01 1 9712- ● ● ● ● ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT 8-97087-565-0 03 1 9312-9510 ● ● ● ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT 8-97087-565-0 03 1 9511-9611 ● ● ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT 8-97087-565-0 03 1 9612-9711 ● ● ● ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT 8-97087-565-0 03 1 9712- ● ● ● ● ● ●
37 08.852 ROD; LEVER 8-97087-570-1 01 1 9312-9510 ● ● ● ● ●
37 08.852 ROD; LEVER 8-97087-570-1 01 1 9511-9611 ● ● ● ●
37 08.852 ROD; LEVER 8-97087-570-1 01 1 9612-9711 ● ● ● ● ●
37 08.852 ROD; LEVER 8-97087-570-1 01 1 9712- ● ● ● ● ● ●
39 08.854 CLIP; HTR UNIT
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> 08.857 		8-97096-145-0 03 1 9712- ● ● ●
53 08.866 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97087-566-0 01 1 9312-9510 ● ● ● ● ●
53 08.866 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97087-566-0 01 1 9511-9611 ● ● ● ●
53 08.866 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97087-566-0 01 1 9612-9711 ● ● ● ● ●
53 08.866 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97087-566-0 01 1 9712- ● ● ● ● ● ●
53 08.866 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97087-567-1 01 1 9312-9510 ● ● ● ● ●
53 08.866 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97087-567-1 01 1 9511-9611 ● ● ● ●
53 08.866 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97087-567-1 01 1 9612-9711 ● ● ● ● ●
53 08.866 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97087-567-1 01 1 9712- ● ● ● ● ● ●
54 08.854 CLIP; SHUTTER LEVER 1-83574-136-0 03 1 9312-9510 ● ● ● ● ●
54 08.854 CLIP; SHUTTER LEVER 1-83574-136-0 03 1 9511-9611 ● ● ● ●
54 08.854 CLIP; SHUTTER LEVER 1-83574-136-0 03 1 9612-9711 ● ● ● ● ●
54 08.854 CLIP; SHUTTER LEVER 1-83574-136-0 03 1 9712- ● ● ● ● ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT 8-97096-142-0 03 1 9312-9510 ● ● ● ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT 8-97096-142-0 03 1 9511-9611 ● ● ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT 8-97096-142-0 03 1 9612-9711 ● ● ● ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT 8-97096-142-0 03 1 9712- ● ● ● ● ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE 8-97087-558-2 01 1 9312-9510 ● ● ● ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE 8-97087-558-2 01 1 9511-9611 ● ● ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE 8-97087-558-2 01 1 9612-9711 ● ● ● ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE 8-97087-558-2 01 1 9712- ● ● ● ● ● ●
60 08.854 DOOR; MIX,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97087-556-1 01 1 9312-9510 ● ● ● ● ●
60 08.854 DOOR; MIX,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97087-556-1 01 1 9511-9611 ● ● ● ●
60 08.854 DOOR; MIX,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97087-556-1 01 1 9612-9711 ● ● ● ● ●
60 08.854 DOOR; MIX,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97087-556-1 01 1 9712- ● ● ● ● ● ●
61 08.854 CASE; HTR UNIT
(B) 		8-97087-552-0 01 1 9312-9510 ● ● ● ● ●
61 08.854 CASE; HTR UNIT
(B) 		8-97087-552-0 01 1 9511-9611 ● ● ● ●
61 08.854 CASE; HTR UNIT
(B) 		8-97087-552-0 01 1 9612-9711 ● ● ● ● ●
61 08.854 CASE; HTR UNIT
(B) 		8-97087-552-0 01 1 9712- ● ● ● ● ● ●
61 08.854 CASE; HTR UNIT
(C) 		8-97087-553-0 01 1 9312-9510 ● ● ● ● ●
61 08.854 CASE; HTR UNIT
(C) 		8-97087-553-0 01 1 9511-9611 ● ● ● ●
61 08.854 CASE; HTR UNIT
(C) 		8-97087-553-0 01 1 9612-9711 ● ● ● ● ●
61 08.854 CASE; HTR UNIT
(C) 		8-97087-553-0 01 1 9712- ● ● ● ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97087-551-0 01 1 9312-9510 ● ● ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97087-551-1 01 1 9511-9611 ● ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97087-551-1 01 1 9612-9711 ● ● ● ● ●
61 08.854 CASE; HTR UNIT
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97087-551-3 01 1 9712- ● ● ● ● ●
61 08.854 CASE; HTR UNIT
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) (A) 		8-97087-551-3 01 1 9712- ● ● ● ● ●
61 08.854 CASE; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97102-660-0 01 1 9312-9510 ● ● ● ● ●
61 08.854 CASE; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97102-660-0 01 1 9511-9609 ● ● ● ●
61 08.854 CASE; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97115-147-1 01 1 9610-9611 ● ● ● ●
61 08.854 CASE; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97115-147-1 01 1 9612-9711 ● ● ● ● ●
61 08.854 CASE; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97115-147-3 01 1 9712- ● ● ● ● ● ●
61 08.854 CASE; HTR UNIT
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> (A) 		8-97087-580-3 01 1 9712- ● ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97087-571-0 01 1 9312-9510 ● ● ● ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97087-571-0 01 1 9511-9609 ● ● ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D) 		8-97131-580-0 01 1 9610-9611 ● ● ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D) 		8-97131-580-0 01 1 9612-9711 ● ● ● ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D) 		8-97131-580-0 01 1 9712- ● ● ● ● ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97093-678-0 01 1 9312-9406 ● ● ● ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97093-679-0 01 1 9312-9406 ● ● ● ● ●
64 09.786 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97087-562-0 01 1 9312-9510 ● ● ● ● ●
64 09.786 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97087-562-1 01 1 9511-9611 ● ● ● ●
64 09.786 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97087-562-1 01 1 9612-9711 ● ● ● ● ●
64 09.786 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97087-562-1 01 1 9712- ● ● ● ● ● ●
65 09.786 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97087-564-1 01 1 9312-9510 ● ● ● ● ●
65 09.786 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97087-564-1 01 1 9511-9611 ● ● ● ●
65 09.786 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97087-564-1 01 1 9612-9711 ● ● ● ● ●
65 09.786 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97087-564-1 01 1 9712- ● ● ● ● ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR 8-97087-560-2 01 1 9312-9510 ● ● ● ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR 8-97087-560-2 01 1 9511-9611 ● ● ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR 8-97087-560-2 01 1 9612-9711 ● ● ● ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR 8-97087-560-2 01 1 9712- ● ● ● ● ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.787 		8-94337-654-0 02 1 9312-9510 ● ● ● ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.787 		8-94337-654-0 02 1 9511-9611 ● ● ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.787 		8-94337-654-0 02 1 9612-9711 ● ● ● ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.787 		8-94337-654-0 02 1 9712- ● ● ● ● ● ●
67 08.854 CLIP; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.787 		8-94337-654-0 01 1 9312-9510 ● ● ● ● ●
67 08.854 CLIP; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.787 		8-94337-654-0 01 1 9511-9611 ● ● ● ●
67 08.854 CLIP; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.787 		8-94337-654-0 01 1 9612-9711 ● ● ● ● ●
67 08.854 CLIP; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.787 		8-94337-654-0 01 1 9712- ● ● ● ● ● ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97096-140-0 01 1 9312-9406 ● ● ● ● ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97114-499-0 01 1 9407-9510 ● ● ● ● ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97114-499-0 01 1 9511-9611 ● ● ● ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97114-499-0 01 1 9612-9701 ● ● ● ● ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97174-734-0 01 1 9702-9711 ● ● ● ● ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97174-734-0 01 1 9712- ● ● ● ● ● ●
69 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97087-563-1 01 1 9312-9510 ● ● ● ● ●
69 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97087-563-1 01 1 9511-9611 ● ● ● ●
69 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97087-563-1 01 1 9612-9711 ● ● ● ● ●
69 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97087-563-1 01 1 9712- ● ● ● ● ● ●
72 08.845 NUT; CASE,HTR UNIT 8-97085-613-0 02 1 9312-9510 ● ● ● ● ●
72 08.845 NUT; CASE,HTR UNIT 8-97085-613-0 02 1 9511-9611 ● ● ● ●
72 08.845 NUT; CASE,HTR UNIT 8-97085-613-0 02 1 9612-9711 ● ● ● ● ●
72 08.845 NUT; CASE,HTR UNIT 8-97085-613-0 02 1 9712- ● ● ● ● ● ●
76 08.854 BRACKET; HTR UNIT
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> 		8-97045-869-0 01 1 9712- ● ● ●
149 08.852 SWITCH ASM; HTR UNIT
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> 		8-97087-582-0 01 1 9712- ● ● ●
198 08.845 HEATER; ELEC
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> 		8-97087-581-0 01 1 9712- ● ● ●

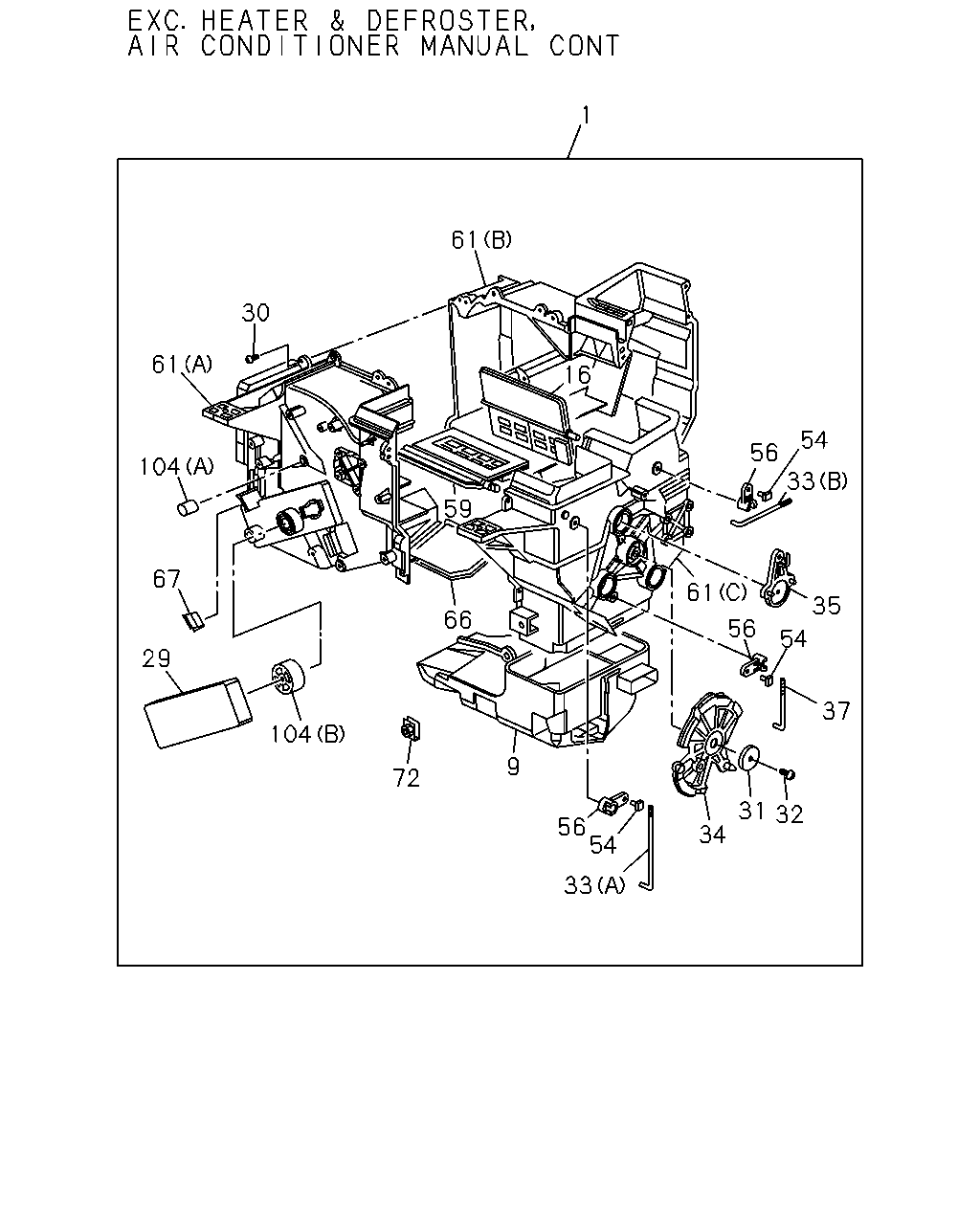

çizim 67630
1 61 30 61 16 54 56 33 104 59 67 61 35 66 56 54 29 37 104 9 72 31 32 56 54 34 33
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97035-220-2 01 1 9312-9406 ● ● ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97114-426-0 01 1 9407-9510 ● ● ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97114-426-0 01 1 9511-9609 ● ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97166-606-0 01 1 9610-9611 ● ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97166-606-0 01 1 9612-9701 ● ● ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97174-729-2 01 1 9702-9711 ● ● ● ● ●
1 08.845 HEATER UNIT
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97174-729-4 01 1 9712- ● ● ● ● ●
1 08.845 HEATER UNIT
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) 		8-97174-729-4 01 1 9712- ● ● ● ● ●
1 08.845 HEATER UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97071-698-0 01 1 9312-9510 ● ● ● ● ●
1 08.845 HEATER UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97071-698-0 01 1 9511-9609 ● ● ● ●
1 08.845 HEATER UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97166-608-1 01 1 9610-9611 ● ● ● ●
1 08.845 HEATER UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97166-608-1 01 1 9612-9711 ● ● ● ● ●
1 08.845 HEATER UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97166-608-3 01 1 9712- ● ● ● ● ● ●
1 08.845 HEATER UNIT
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> 		8-97174-731-4 01 1 9712- ● ● ●
9 08.854 DUCT; HTR UNIT 8-97087-555-0 01 1 9312-9510 ● ● ● ● ●
9 08.854 DUCT; HTR UNIT 8-97087-555-0 01 1 9511-9611 ● ● ● ●
9 08.854 DUCT; HTR UNIT 8-97087-555-0 01 1 9612-9711 ● ● ● ● ●
9 08.854 DUCT; HTR UNIT 8-97087-555-0 01 1 9712- ● ● ● ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR 8-97087-559-2 01 1 9312-9510 ● ● ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR 8-97087-559-2 01 1 9511-9611 ● ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR 8-97087-559-2 01 1 9612-9711 ● ● ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR 8-97087-559-2 01 1 9712- ● ● ● ● ● ●
29 08.857 COVER; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97102-661-0 01 1 9312-9510 ● ● ● ● ●
29 08.857 COVER; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97102-661-0 01 1 9511-9611 ● ● ● ●
29 08.857 COVER; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97102-661-0 01 1 9612-9711 ● ● ● ● ●
29 08.857 COVER; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97102-661-0 01 1 9712- ● ● ● ● ● ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 		8-94324-850-0 11 1 9312-9510 ● ● ● ● ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 		8-94324-850-0 11 1 9511-9611 ● ● ● ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 		8-94324-850-0 11 1 9612-9711 ● ● ● ● ●
30 08.845 SCREW; HTR UNIT
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> 08.852 M4X16 		8-94324-850-0 14 1 9712- ● ● ●
30 08.845 SCREW; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 		8-94324-850-0 10 1 9312-9510 ● ● ● ● ●
30 08.845 SCREW; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 		8-94324-850-0 10 1 9511-9611 ● ● ● ●
30 08.845 SCREW; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 		8-94324-850-0 10 1 9612-9711 ● ● ● ● ●
30 08.845 SCREW; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 		8-94324-850-0 10 1 9712- ● ● ● ● ● ●
30 08.845 SCREW; HTR UNIT
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 		8-94324-850-0 11 1 9712- ● ● ● ● ●
30 08.845 SCREW; HTR UNIT
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) 08.852 M4X16 		8-94324-850-0 11 1 9712- ● ● ● ● ●
31 08.852 WASHER; HTR UNIT 8-94129-950-0 01 1 9312-9510 ● ● ● ● ●
31 08.852 WASHER; HTR UNIT 8-94129-950-0 01 1 9511-9611 ● ● ● ●
31 08.852 WASHER; HTR UNIT 8-94129-950-0 01 1 9612-9711 ● ● ● ● ●
31 08.852 WASHER; HTR UNIT 8-94129-950-0 01 1 9712- ● ● ● ● ● ●
32 08.852 SCREW; HTR UNIT
08.846 M5X16 		8-94248-820-0 01 1 9312-9510 ● ● ● ● ●
32 08.852 SCREW; HTR UNIT
08.846 M5X16 		8-94248-820-0 01 1 9511-9609 ● ● ● ●
32 08.852 SCREW; HTR UNIT
10.240 M5X20 		9-09829-324-1 01 1 9610-9611 ● ● ● ●
32 08.852 SCREW; HTR UNIT
10.240 M5X20 		9-09829-324-1 01 1 9612-9711 ● ● ● ● ●
32 08.852 SCREW; HTR UNIT
10.240 M5X20 		9-09829-324-1 01 1 9712- ● ● ● ● ● ●
33 09.786 ROD; SHUTTER LEVER
(A) 		8-97087-568-1 01 1 9312-9510 ● ● ● ● ●
33 09.786 ROD; SHUTTER LEVER
(A) 		8-97087-568-1 01 1 9511-9611 ● ● ● ●
33 09.786 ROD; SHUTTER LEVER
(A) 		8-97087-568-1 01 1 9612-9711 ● ● ● ● ●
33 09.786 ROD; SHUTTER LEVER
(A) 		8-97087-568-1 01 1 9712- ● ● ● ● ● ●
33 09.786 ROD; SHUTTER LEVER
(B) 		8-97087-569-1 01 1 9312-9510 ● ● ● ● ●
33 09.786 ROD; SHUTTER LEVER
(B) 		8-97087-569-1 01 1 9511-9611 ● ● ● ●
33 09.786 ROD; SHUTTER LEVER
(B) 		8-97087-569-1 01 1 9612-9711 ● ● ● ● ●
33 09.786 ROD; SHUTTER LEVER
(B) 		8-97087-569-1 01 1 9712- ● ● ● ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT 8-97087-561-1 01 1 9312-9510 ● ● ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT 8-97087-561-1 01 1 9511-9609 ● ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT 8-97166-657-0 01 1 9610-9611 ● ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT 8-97166-657-0 01 1 9612-9711 ● ● ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT 8-97166-657-0 01 1 9712- ● ● ● ● ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT 8-97087-565-0 03 1 9312-9510 ● ● ● ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT 8-97087-565-0 03 1 9511-9611 ● ● ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT 8-97087-565-0 03 1 9612-9711 ● ● ● ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT 8-97087-565-0 03 1 9712- ● ● ● ● ● ●
37 08.852 ROD; LEVER 8-97087-570-1 01 1 9312-9510 ● ● ● ● ●
37 08.852 ROD; LEVER 8-97087-570-1 01 1 9511-9611 ● ● ● ●
37 08.852 ROD; LEVER 8-97087-570-1 01 1 9612-9711 ● ● ● ● ●
37 08.852 ROD; LEVER 8-97087-570-1 01 1 9712- ● ● ● ● ● ●
54 08.854 CLIP; SHUTTER LEVER 1-83574-136-0 03 1 9312-9510 ● ● ● ● ●
54 08.854 CLIP; SHUTTER LEVER 1-83574-136-0 03 1 9511-9611 ● ● ● ●
54 08.854 CLIP; SHUTTER LEVER 1-83574-136-0 03 1 9612-9711 ● ● ● ● ●
54 08.854 CLIP; SHUTTER LEVER 1-83574-136-0 03 1 9712- ● ● ● ● ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT 8-97096-142-0 03 1 9312-9510 ● ● ● ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT 8-97096-142-0 03 1 9511-9611 ● ● ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT 8-97096-142-0 03 1 9612-9711 ● ● ● ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT 8-97096-142-0 03 1 9712- ● ● ● ● ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE 8-97087-558-2 01 1 9312-9510 ● ● ● ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE 8-97087-558-2 01 1 9511-9611 ● ● ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE 8-97087-558-2 01 1 9612-9711 ● ● ● ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE 8-97087-558-2 01 1 9712- ● ● ● ● ● ●
61 08.854 CASE; HTR UNIT
(B) 		8-97087-552-0 01 1 9312-9510 ● ● ● ● ●
61 08.854 CASE; HTR UNIT
(B) 		8-97087-552-0 01 1 9511-9611 ● ● ● ●
61 08.854 CASE; HTR UNIT
(B) 		8-97087-552-0 01 1 9612-9711 ● ● ● ● ●
61 08.854 CASE; HTR UNIT
(B) 		8-97087-552-0 01 1 9712- ● ● ● ● ● ●
61 08.854 CASE; HTR UNIT
(C) 		8-97087-553-0 01 1 9312-9510 ● ● ● ● ●
61 08.854 CASE; HTR UNIT
(C) 		8-97087-553-0 01 1 9511-9611 ● ● ● ●
61 08.854 CASE; HTR UNIT
(C) 		8-97087-553-0 01 1 9612-9711 ● ● ● ● ●
61 08.854 CASE; HTR UNIT
(C) 		8-97087-553-0 01 1 9712- ● ● ● ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97087-551-0 01 1 9312-9510 ● ● ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97087-551-1 01 1 9511-9611 ● ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97087-551-1 01 1 9612-9711 ● ● ● ● ●
61 08.854 CASE; HTR UNIT
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97087-551-3 01 1 9712- ● ● ● ● ●
61 08.854 CASE; HTR UNIT
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) (A) 		8-97087-551-3 01 1 9712- ● ● ● ● ●
61 08.854 CASE; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97102-660-0 01 1 9312-9510 ● ● ● ● ●
61 08.854 CASE; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97102-660-0 01 1 9511-9609 ● ● ● ●
61 08.854 CASE; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97115-147-1 01 1 9610-9611 ● ● ● ●
61 08.854 CASE; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97115-147-1 01 1 9612-9711 ● ● ● ● ●
61 08.854 CASE; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97115-147-3 01 1 9712- ● ● ● ● ● ●
61 08.854 CASE; HTR UNIT
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> (A) 		8-97087-580-3 01 1 9712- ● ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR 8-97087-560-2 01 1 9312-9510 ● ● ● ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR 8-97087-560-2 01 1 9511-9611 ● ● ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR 8-97087-560-2 01 1 9612-9711 ● ● ● ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR 8-97087-560-2 01 1 9712- ● ● ● ● ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.787 		8-94337-654-0 02 1 9312-9510 ● ● ● ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.787 		8-94337-654-0 02 1 9511-9611 ● ● ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.787 		8-94337-654-0 02 1 9612-9711 ● ● ● ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.787 		8-94337-654-0 02 1 9712- ● ● ● ● ● ●
67 08.854 CLIP; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.787 		8-94337-654-0 01 1 9312-9510 ● ● ● ● ●
67 08.854 CLIP; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.787 		8-94337-654-0 01 1 9511-9611 ● ● ● ●
67 08.854 CLIP; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.787 		8-94337-654-0 01 1 9612-9711 ● ● ● ● ●
67 08.854 CLIP; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.787 		8-94337-654-0 01 1 9712- ● ● ● ● ● ●
72 08.845 NUT; CASE,HTR UNIT 8-97085-613-0 02 1 9312-9510 ● ● ● ● ●
72 08.845 NUT; CASE,HTR UNIT 8-97085-613-0 02 1 9511-9611 ● ● ● ●
72 08.845 NUT; CASE,HTR UNIT 8-97085-613-0 02 1 9612-9711 ● ● ● ● ●
72 08.845 NUT; CASE,HTR UNIT 8-97085-613-0 02 1 9712- ● ● ● ● ● ●
104 08.854 CAP; CASE,HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.845 (A) 		8-94328-657-0 04 1 9312-9510 ● ● ● ● ●
104 08.854 CAP; CASE,HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.845 (A) 		8-94328-657-0 04 1 9511-9611 ● ● ● ●
104 08.854 CAP; CASE,HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.845 (A) 		8-94328-657-0 04 1 9612-9711 ● ● ● ● ●
104 08.854 CAP; CASE,HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.845 (A) 		8-94328-657-0 04 1 9712- ● ● ● ● ● ●
104 08.854 CAP; CASE,HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-94387-703-0 01 1 9312-9510 ● ● ● ● ●
104 08.854 CAP; CASE,HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-94387-703-0 01 1 9511-9611 ● ● ● ●
104 08.854 CAP; CASE,HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-94387-703-0 01 1 9612-9711 ● ● ● ● ●
104 08.854 CAP; CASE,HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-94387-703-0 01 1 9712- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
