Sayfa 8-50 - Isuzu EPC

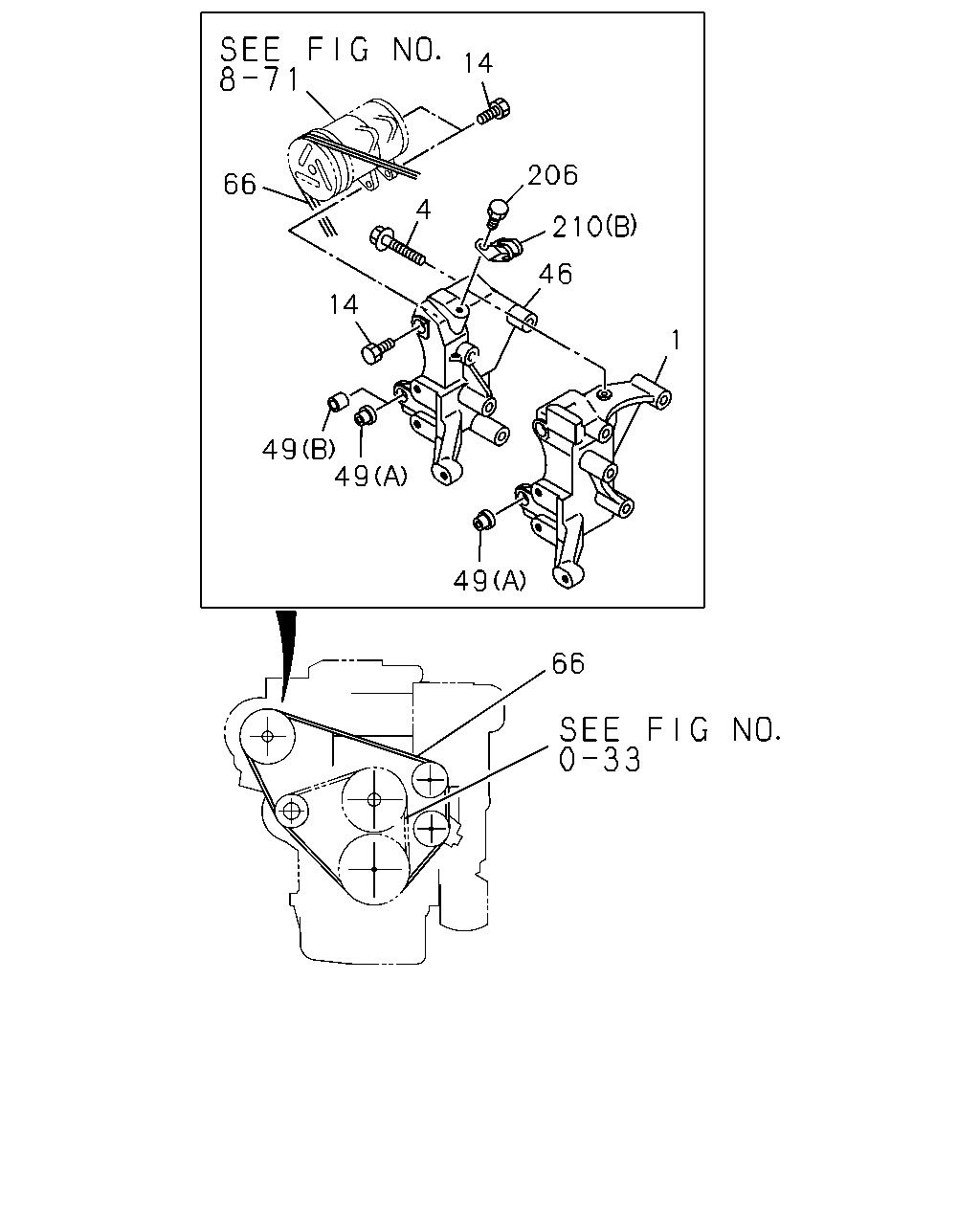

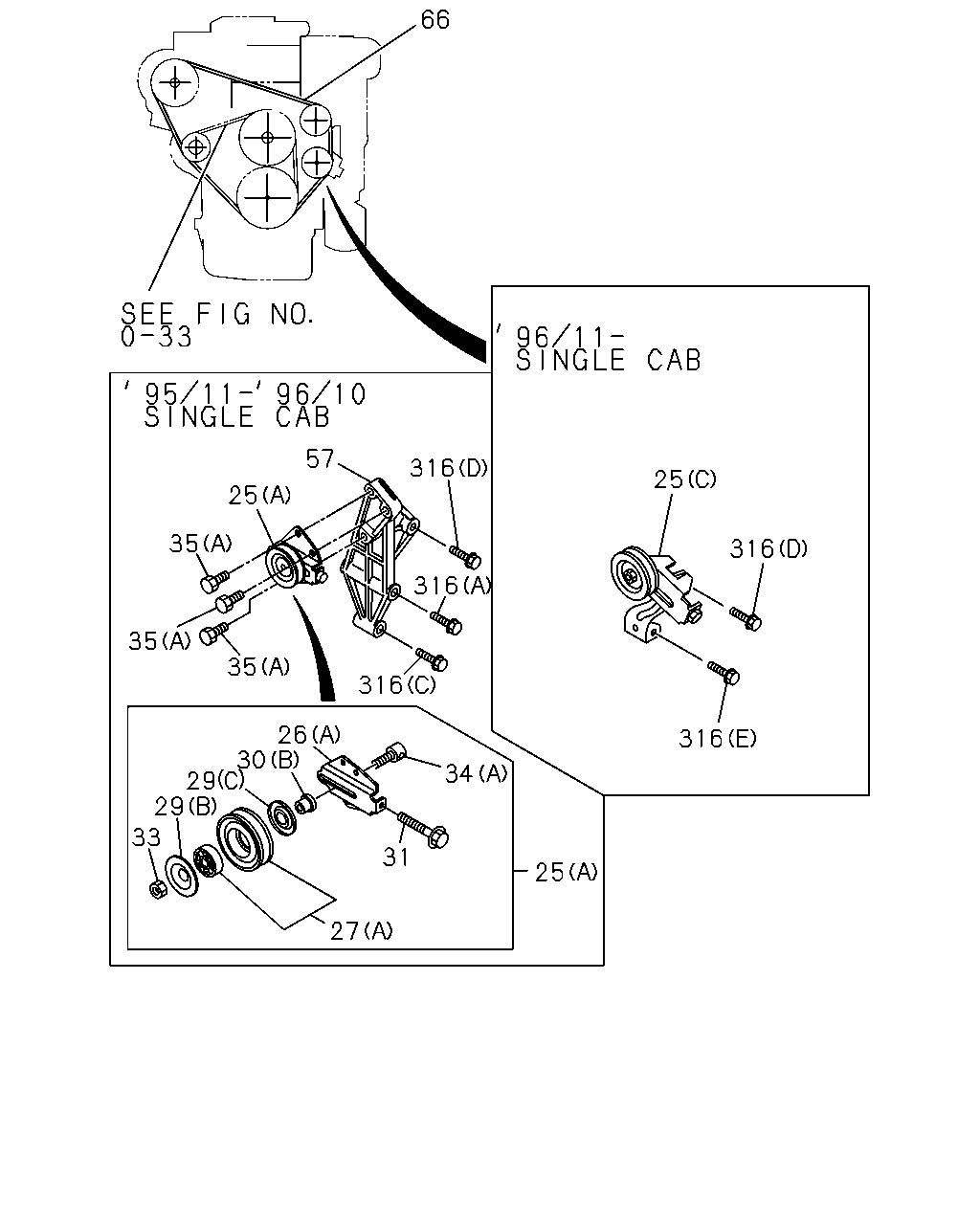

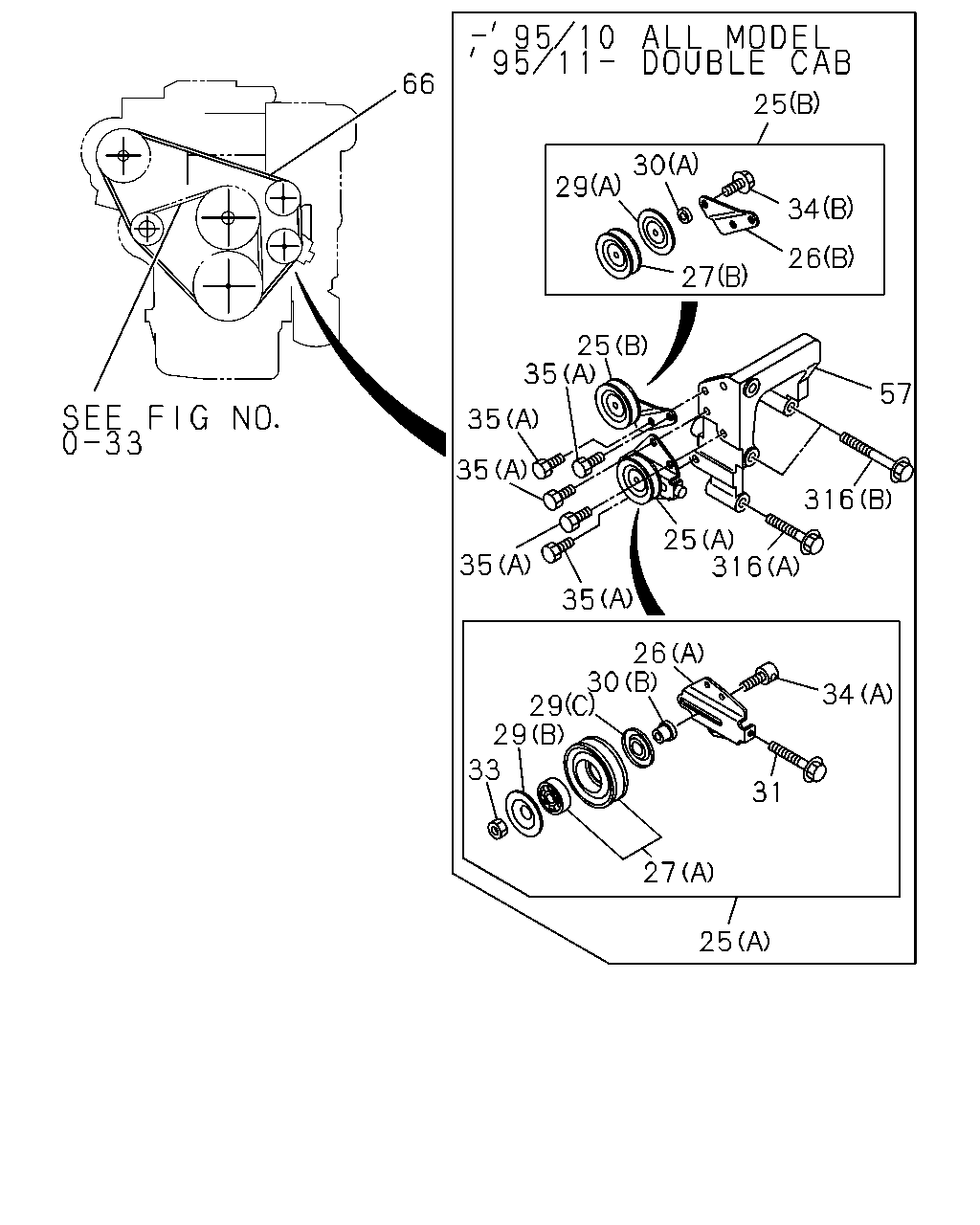

8-50 — AIR CONDITIONING SYSTEM; FRONT (#48907) — 313 parça

66 57 316 25 25 35 316 316 35 35 316 26 30 29 29 316 34 33 31 25 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
25	09.180 PULLEY ASM; IDLER,CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 1-GROOVE	8-94334-696-2	01	1	9312-9510	●	●	●	●	●
25	09.180 PULLEY ASM; IDLER,CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 1-GROOVE	8-94334-696-2	01	1	9511-9603	●	●	●	●
25	09.180 PULLEY ASM; IDLER,CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 1-GROOVE	8-94334-696-2	01	1	9604-9610	●	●	●	●
25	09.180 PULLEY ASM; IDLER,CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 1-GROOVE	8-94334-696-2	01	1	9611-9711				●
25	09.180 PULLEY ASM; IDLER,CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 1-GROOVE	8-94334-696-2	01	1	9712-				●
25	09.180 PULLEY ASM; IDLER,CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 1-GROOVE	8-94334-873-0	01	1	9312-9510	●	●	●	●	●
25	09.180 PULLEY ASM; IDLER,CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 1-GROOVE	8-94334-873-0	01	1	9511-9711				●
25	09.180 PULLEY ASM; IDLER,CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 1-GROOVE	8-94334-873-0	01	1	9712-				●
25	09.180 PULLEY ASM; IDLER,CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C) 1-GROOVE	8-97161-198-0	01	1	9611-9611	●	●	●
25	09.180 PULLEY ASM; IDLER,CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C) 1-GROOVE	8-97161-198-0	01	1	9612-9711	●	●	●			●
25	09.180 PULLEY ASM; IDLER,CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (C) 1-GROOVE	8-97161-198-0	01	1	9712-	●	●	●			●	●
26	09.180 BRACKET; IDLE PULLEY,A/C 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97060-362-0	01	1	9312-9510	●	●	●	●	●
26	09.180 BRACKET; IDLE PULLEY,A/C 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97060-362-0	01	1	9511-9711				●
26	09.180 BRACKET; IDLE PULLEY,A/C 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97060-362-0	01	1	9712-				●
26	09.180 BRACKET; IDLE PULLEY,A/C 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97126-633-0	01	1	9312-9510	●	●	●	●	●
26	09.180 BRACKET; IDLE PULLEY,A/C 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97126-633-0	01	1	9511-9603	●	●	●	●
26	09.180 BRACKET; IDLE PULLEY,A/C 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97126-633-0	01	1	9604-9610	●	●	●	●
26	09.180 BRACKET; IDLE PULLEY,A/C 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97126-633-0	01	1	9611-9711				●
26	09.180 BRACKET; IDLE PULLEY,A/C 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97126-633-0	01	1	9712-				●
27	09.180 PULLEY; IDLE,A/C 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	9-13663-606-0	01	1	9312-9510	●	●	●	●	●
27	09.180 PULLEY; IDLE,A/C 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	9-13663-606-0	01	1	9511-9711				●
27	09.180 PULLEY; IDLE,A/C 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	9-13663-606-0	01	1	9712-				●
27	09.180 PULLEY; IDLE,A/C 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97167-862-0	01	1	9312-9603	●	●	●	●
27	09.180 PULLEY; IDLE,A/C 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97167-862-0	01	1	9604-9610	●	●	●	●
27	09.180 PULLEY; IDLE,A/C 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97167-862-0	01	1	9611-9711				●
27	09.180 PULLEY; IDLE,A/C 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97167-862-0	01	1	9712-				●
29	09.181 COVER; DUST,IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97126-629-0	01	1	9312-9510	●	●	●	●	●
29	09.181 COVER; DUST,IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97126-629-0	01	1	9511-9603	●	●	●	●
29	09.181 COVER; DUST,IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97126-629-0	01	1	9604-9610	●	●	●	●
29	09.181 COVER; DUST,IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97126-629-0	01	1	9611-9711				●
29	09.181 COVER; DUST,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97126-629-0	01	1	9712-				●
29	09.181 COVER; DUST,IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97126-630-0	01	1	9312-9510	●	●	●	●	●
29	09.181 COVER; DUST,IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97126-630-0	01	1	9511-9603	●	●	●	●
29	09.181 COVER; DUST,IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97126-630-0	01	1	9604-9610	●	●	●	●
29	09.181 COVER; DUST,IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97126-630-0	01	1	9611-9711				●
29	09.181 COVER; DUST,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97126-630-0	01	1	9712-				●
29	09.181 COVER; DUST,IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	9-13369-603-0	01	1	9312-9510	●	●	●	●	●
29	09.181 COVER; DUST,IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	9-13669-603-0	02	1	9511-9711				●
29	09.181 COVER; DUST,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	9-13669-603-0	02	1	9712-				●
30	09.181 COLLAR; IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-94340-702-0	01	1	9312-9510	●	●	●	●	●
30	09.181 COLLAR; IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97126-632-0	01	1	9503-9510	●	●	●	●	●
30	09.181 COLLAR; IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97126-632-0	01	1	9511-9603	●	●	●	●
30	09.181 COLLAR; IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97126-632-0	01	1	9604-9610	●	●	●	●
30	09.181 COLLAR; IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97126-632-0	01	1	9611-9711				●
30	09.181 COLLAR; IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97126-632-0	01	1	9712-				●
30	09.181 COLLAR; IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-94207-192-0	01	1	9511-9711				●
30	09.181 COLLAR; IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-94207-192-0	01	1	9712-				●
31	09.181 BOLT; ADJ,IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 06.665	8-94238-324-0	01	1	9312-9502	●	●	●	●	●
31	09.181 BOLT; ADJ,IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97126-638-0	01	1	9503-9510	●	●	●	●	●
31	09.181 BOLT; ADJ,IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97126-638-0	01	1	9511-9603	●	●	●	●
31	09.181 BOLT; ADJ,IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97126-638-0	01	1	9604-9610	●	●	●	●
31	09.181 BOLT; ADJ,IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97126-638-0	01	1	9611-9711				●
31	09.181 BOLT; ADJ,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97126-638-0	01	1	9712-				●
33	09.181 NUT; IDLER PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97126-639-0	01	1	9312-9510	●	●	●	●	●
33	09.181 NUT; IDLER PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97126-639-0	01	1	9511-9603	●	●	●	●
33	09.181 NUT; IDLER PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97126-639-0	01	1	9604-9610	●	●	●	●
33	09.181 NUT; IDLER PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97126-639-0	01	1	9611-9711				●
33	09.181 NUT; IDLER PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97126-639-0	01	1	9712-				●
34	09.181 SHAFT; IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.277 (B) M10X30	0-28121-030-0	01	1	9312-9510	●	●	●	●	●
34	09.181 SHAFT; IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.277 (B) M10X30	0-28121-030-0	01	1	9511-9711				●
34	09.181 SHAFT; IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.277 (B) M10X30	0-28121-030-0	01	1	9712-				●
34	09.181 SHAFT; IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97060-285-0	01	1	9312-9502	●	●	●	●	●
34	09.181 SHAFT; IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97126-631-0	01	1	9503-9510	●	●	●	●	●
34	09.181 SHAFT; IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97126-631-0	01	1	9511-9603	●	●	●	●
34	09.181 SHAFT; IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97126-631-0	01	1	9604-9610	●	●	●	●
34	09.181 SHAFT; IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97126-631-0	01	1	9611-9711				●
34	09.181 SHAFT; IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97126-631-0	01	1	9712-				●
35	09.181 BOLT; IDLER PULLEY TO C/BL 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.062 (A) M8X16 FLANGE	0-28080-816-0	05	1	9312-9510	●	●	●	●	●
35	09.181 BOLT; IDLER PULLEY TO C/BL 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.062 (A) M8X16 FLANGE	0-28080-816-0	03	1	9511-9610	●	●	●
35	09.181 BOLT; IDLER PULLEY TO C/BL 4BD2 ENG(RLW) 03.704 (B) M8X16 W/LK WASHER	0-50040-816-0	04	1	9312-9506		●
35	09.181 BOLT; IDLER PULLEY TO C/BL 4BD2 ENG(RLW) HEATER & DEFROSTER(C41) 03.704 (B) M8X16 W/LK WASHER	0-50040-816-0	04	1	9507-9606		●	●
35	09.181 BOLT; IDLER PULLEY TO C/BL 4BD2 ENG(RLW) HEATER & DEFROSTER(C41) 03.704 (B) M8X16 W/LK WASHER	0-50040-816-0	04	1	9607-9711	●	●	●
35	09.181 BOLT; IDLER PULLEY TO C/BL 4BD2 ENG(RLW) HEATER & DEFROSTER(C41) 03.704 (B) M8X16 W/LK WASHER	0-50040-816-0	04	1	9712-	●	●	●	●
35	09.181 BOLT; IDLER PULLEY TO C/BL 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.062 (A) M8X16 FLANGE	0-28080-816-0	05	1	9511-9711				●
35	09.181 BOLT; IDLER PULLEY TO C/BL 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.062 (A) M8X16 FLANGE	0-28080-816-0	05	1	9712-				●
57	09.171 BRACKET; IDLER PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97081-262-2	01	1	9312-9510	●	●	●	●	●
57	09.171 BRACKET; IDLER PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97081-262-2	01	1	9511-9711				●
57	09.171 BRACKET; IDLER PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97100-809-0	01	1	9511-9511	●	●	●
57	09.171 BRACKET; IDLER PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97136-248-0	01	1	9512-9610	●	●	●
57	09.171 BRACKET; IDLER PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97081-262-2	01	1	9712-9803				●
57	09.171 BRACKET; IDLER PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97200-664-0	01	1	9804-9804				●
57	09.171 BRACKET; IDLER PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97081-262-2	01	1	9804-				●
66	01.066 BELT; A/C CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97014-702-2	01	1	9312-9407	●	●	●	●	●
66	01.066 BELT; A/C CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97094-448-1	01	1	9408-9510	●	●	●	●	●
66	01.066 BELT; A/C CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97094-448-1	01	1	9511-9603	●	●	●	●
66	01.066 BELT; A/C CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97094-448-1	01	1	9604-9611	●	●	●	●
66	01.066 BELT; A/C CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97094-448-1	01	1	9612-9706	●	●	●	●
66	01.066 BELT; A/C CMPR AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97094-448-1	01	1	9612-9706						●
66	01.066 BELT; A/C CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97180-183-0	01	1	9707-9711	●	●	●	●
66	01.066 BELT; A/C CMPR AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97180-183-0	01	1	9707-9711						●
66	01.066 BELT; A/C CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97180-183-0	01	1	9712-	●	●	●	●		●	●
316	09.242 BOLT; BRKT FIX 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.171 (A) M10X100 FLANGE	0-28181-000-0	01	1	9503-9510	●	●	●	●	●
316	09.242 BOLT; BRKT FIX 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.171 (A) M10X100 FLANGE	0-28181-000-0	01	1	9511-9603	●	●	●	●
316	09.242 BOLT; BRKT FIX 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.171 (A) M10X100 FLANGE	0-28181-000-0	01	1	9604-9610	●	●	●	●
316	09.242 BOLT; BRKT FIX 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.171 (A) M10X100 FLANGE	0-28181-000-0	01	1	9611-9711				●
316	09.242 BOLT; BRKT FIX 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.171 (A) M10X100 FLANGE	0-28181-000-0	01	1	9712-				●
316	09.242 BOLT; BRKT FIX 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 03.330 (B) M10X60 FLANGE	0-28181-060-0	02	1	9503-9510	●	●	●	●	●
316	09.242 BOLT; BRKT FIX 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 03.330 (B) M10X60 FLANGE	0-28181-060-0	02	1	9511-9711				●
316	09.242 BOLT; BRKT FIX 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.780 (D) M8X50 FLANGE	0-28080-850-0	01	1	9511-9611	●	●	●
316	09.242 BOLT; BRKT FIX 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.780 (D) M8X50 FLANGE	0-28080-850-0	01	1	9612-9711	●	●	●			●
316	09.242 BOLT; BRKT FIX 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 01.780 (D) M8X50 FLANGE	0-28080-850-0	01	1	9712-	●	●	●			●	●
316	09.242 BOLT; BRKT FIX 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 08.900 (C) M10X50 FLANGE	0-28181-050-0	01	1	9511-9511	●	●	●
316	09.242 BOLT; BRKT FIX 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 04.510 (E) M10X65 FLANGE	8-94344-540-1	01	1	9611-9611	●	●	●
316	09.242 BOLT; BRKT FIX 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 04.510 (E) M10X65 FLANGE	8-94344-540-1	01	1	9612-9711	●	●	●			●
316	09.242 BOLT; BRKT FIX 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 04.510 (E) M10X65 FLANGE	8-94344-540-1	01	1	9712-	●	●	●			●	●
316	09.242 BOLT; BRKT FIX 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 03.330 (B) M10X60 FLANGE	0-28181-060-0	02	1	9712-				●

66 25 30 29 34 26 27 25 35 57 35 35 316 25 316 35 26 30 29 29 34 33 31 27 25 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
25	09.180 PULLEY ASM; IDLER,CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 1-GROOVE	8-94334-696-2	01	1	9312-9510	●	●	●	●	●
25	09.180 PULLEY ASM; IDLER,CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 1-GROOVE	8-94334-696-2	01	1	9511-9603	●	●	●	●
25	09.180 PULLEY ASM; IDLER,CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 1-GROOVE	8-94334-696-2	01	1	9604-9610	●	●	●	●
25	09.180 PULLEY ASM; IDLER,CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 1-GROOVE	8-94334-696-2	01	1	9611-9711				●
25	09.180 PULLEY ASM; IDLER,CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 1-GROOVE	8-94334-696-2	01	1	9712-				●
25	09.180 PULLEY ASM; IDLER,CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 1-GROOVE	8-94334-873-0	01	1	9312-9510	●	●	●	●	●
25	09.180 PULLEY ASM; IDLER,CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 1-GROOVE	8-94334-873-0	01	1	9511-9711				●
25	09.180 PULLEY ASM; IDLER,CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 1-GROOVE	8-94334-873-0	01	1	9712-				●
25	09.180 PULLEY ASM; IDLER,CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C) 1-GROOVE	8-97161-198-0	01	1	9611-9611	●	●	●
25	09.180 PULLEY ASM; IDLER,CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C) 1-GROOVE	8-97161-198-0	01	1	9612-9711	●	●	●			●
25	09.180 PULLEY ASM; IDLER,CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (C) 1-GROOVE	8-97161-198-0	01	1	9712-	●	●	●			●	●
26	09.180 BRACKET; IDLE PULLEY,A/C 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97060-362-0	01	1	9312-9510	●	●	●	●	●
26	09.180 BRACKET; IDLE PULLEY,A/C 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97060-362-0	01	1	9511-9711				●
26	09.180 BRACKET; IDLE PULLEY,A/C 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97060-362-0	01	1	9712-				●
26	09.180 BRACKET; IDLE PULLEY,A/C 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97126-633-0	01	1	9312-9510	●	●	●	●	●
26	09.180 BRACKET; IDLE PULLEY,A/C 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97126-633-0	01	1	9511-9603	●	●	●	●
26	09.180 BRACKET; IDLE PULLEY,A/C 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97126-633-0	01	1	9604-9610	●	●	●	●
26	09.180 BRACKET; IDLE PULLEY,A/C 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97126-633-0	01	1	9611-9711				●
26	09.180 BRACKET; IDLE PULLEY,A/C 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97126-633-0	01	1	9712-				●
27	09.180 PULLEY; IDLE,A/C 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	9-13663-606-0	01	1	9312-9510	●	●	●	●	●
27	09.180 PULLEY; IDLE,A/C 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	9-13663-606-0	01	1	9511-9711				●
27	09.180 PULLEY; IDLE,A/C 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	9-13663-606-0	01	1	9712-				●
27	09.180 PULLEY; IDLE,A/C 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97167-862-0	01	1	9312-9603	●	●	●	●
27	09.180 PULLEY; IDLE,A/C 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97167-862-0	01	1	9604-9610	●	●	●	●
27	09.180 PULLEY; IDLE,A/C 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97167-862-0	01	1	9611-9711				●
27	09.180 PULLEY; IDLE,A/C 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97167-862-0	01	1	9712-				●
29	09.181 COVER; DUST,IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97126-629-0	01	1	9312-9510	●	●	●	●	●
29	09.181 COVER; DUST,IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97126-629-0	01	1	9511-9603	●	●	●	●
29	09.181 COVER; DUST,IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97126-629-0	01	1	9604-9610	●	●	●	●
29	09.181 COVER; DUST,IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97126-629-0	01	1	9611-9711				●
29	09.181 COVER; DUST,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97126-629-0	01	1	9712-				●
29	09.181 COVER; DUST,IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97126-630-0	01	1	9312-9510	●	●	●	●	●
29	09.181 COVER; DUST,IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97126-630-0	01	1	9511-9603	●	●	●	●
29	09.181 COVER; DUST,IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97126-630-0	01	1	9604-9610	●	●	●	●
29	09.181 COVER; DUST,IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97126-630-0	01	1	9611-9711				●
29	09.181 COVER; DUST,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97126-630-0	01	1	9712-				●
29	09.181 COVER; DUST,IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	9-13369-603-0	01	1	9312-9510	●	●	●	●	●
29	09.181 COVER; DUST,IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	9-13669-603-0	02	1	9511-9711				●
29	09.181 COVER; DUST,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	9-13669-603-0	02	1	9712-				●
30	09.181 COLLAR; IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-94340-702-0	01	1	9312-9510	●	●	●	●	●
30	09.181 COLLAR; IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97126-632-0	01	1	9503-9510	●	●	●	●	●
30	09.181 COLLAR; IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97126-632-0	01	1	9511-9603	●	●	●	●
30	09.181 COLLAR; IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97126-632-0	01	1	9604-9610	●	●	●	●
30	09.181 COLLAR; IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97126-632-0	01	1	9611-9711				●
30	09.181 COLLAR; IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97126-632-0	01	1	9712-				●
30	09.181 COLLAR; IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-94207-192-0	01	1	9511-9711				●
30	09.181 COLLAR; IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-94207-192-0	01	1	9712-				●
31	09.181 BOLT; ADJ,IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 06.665	8-94238-324-0	01	1	9312-9502	●	●	●	●	●
31	09.181 BOLT; ADJ,IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97126-638-0	01	1	9503-9510	●	●	●	●	●
31	09.181 BOLT; ADJ,IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97126-638-0	01	1	9511-9603	●	●	●	●
31	09.181 BOLT; ADJ,IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97126-638-0	01	1	9604-9610	●	●	●	●
31	09.181 BOLT; ADJ,IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97126-638-0	01	1	9611-9711				●
31	09.181 BOLT; ADJ,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97126-638-0	01	1	9712-				●
33	09.181 NUT; IDLER PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97126-639-0	01	1	9312-9510	●	●	●	●	●
33	09.181 NUT; IDLER PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97126-639-0	01	1	9511-9603	●	●	●	●
33	09.181 NUT; IDLER PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97126-639-0	01	1	9604-9610	●	●	●	●
33	09.181 NUT; IDLER PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97126-639-0	01	1	9611-9711				●
33	09.181 NUT; IDLER PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97126-639-0	01	1	9712-				●
34	09.181 SHAFT; IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.277 (B) M10X30	0-28121-030-0	01	1	9312-9510	●	●	●	●	●
34	09.181 SHAFT; IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.277 (B) M10X30	0-28121-030-0	01	1	9511-9711				●
34	09.181 SHAFT; IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.277 (B) M10X30	0-28121-030-0	01	1	9712-				●
34	09.181 SHAFT; IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97060-285-0	01	1	9312-9502	●	●	●	●	●
34	09.181 SHAFT; IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97126-631-0	01	1	9503-9510	●	●	●	●	●
34	09.181 SHAFT; IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97126-631-0	01	1	9511-9603	●	●	●	●
34	09.181 SHAFT; IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97126-631-0	01	1	9604-9610	●	●	●	●
34	09.181 SHAFT; IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97126-631-0	01	1	9611-9711				●
34	09.181 SHAFT; IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97126-631-0	01	1	9712-				●
35	09.181 BOLT; IDLER PULLEY TO C/BL 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.062 (A) M8X16 FLANGE	0-28080-816-0	05	1	9312-9510	●	●	●	●	●
35	09.181 BOLT; IDLER PULLEY TO C/BL 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.062 (A) M8X16 FLANGE	0-28080-816-0	03	1	9511-9610	●	●	●
35	09.181 BOLT; IDLER PULLEY TO C/BL 4BD2 ENG(RLW) 03.704 (B) M8X16 W/LK WASHER	0-50040-816-0	04	1	9312-9506		●
35	09.181 BOLT; IDLER PULLEY TO C/BL 4BD2 ENG(RLW) HEATER & DEFROSTER(C41) 03.704 (B) M8X16 W/LK WASHER	0-50040-816-0	04	1	9507-9606		●	●
35	09.181 BOLT; IDLER PULLEY TO C/BL 4BD2 ENG(RLW) HEATER & DEFROSTER(C41) 03.704 (B) M8X16 W/LK WASHER	0-50040-816-0	04	1	9607-9711	●	●	●
35	09.181 BOLT; IDLER PULLEY TO C/BL 4BD2 ENG(RLW) HEATER & DEFROSTER(C41) 03.704 (B) M8X16 W/LK WASHER	0-50040-816-0	04	1	9712-	●	●	●	●
35	09.181 BOLT; IDLER PULLEY TO C/BL 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.062 (A) M8X16 FLANGE	0-28080-816-0	05	1	9511-9711				●
35	09.181 BOLT; IDLER PULLEY TO C/BL 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.062 (A) M8X16 FLANGE	0-28080-816-0	05	1	9712-				●
57	09.171 BRACKET; IDLER PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97081-262-2	01	1	9312-9510	●	●	●	●	●
57	09.171 BRACKET; IDLER PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97081-262-2	01	1	9511-9711				●
57	09.171 BRACKET; IDLER PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97100-809-0	01	1	9511-9511	●	●	●
57	09.171 BRACKET; IDLER PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97136-248-0	01	1	9512-9610	●	●	●
57	09.171 BRACKET; IDLER PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97081-262-2	01	1	9712-9803				●
57	09.171 BRACKET; IDLER PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97200-664-0	01	1	9804-9804				●
57	09.171 BRACKET; IDLER PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97081-262-2	01	1	9804-				●
66	01.066 BELT; A/C CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97014-702-2	01	1	9312-9407	●	●	●	●	●
66	01.066 BELT; A/C CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97094-448-1	01	1	9408-9510	●	●	●	●	●
66	01.066 BELT; A/C CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97094-448-1	01	1	9511-9603	●	●	●	●
66	01.066 BELT; A/C CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97094-448-1	01	1	9604-9611	●	●	●	●
66	01.066 BELT; A/C CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97094-448-1	01	1	9612-9706	●	●	●	●
66	01.066 BELT; A/C CMPR AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97094-448-1	01	1	9612-9706						●
66	01.066 BELT; A/C CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97180-183-0	01	1	9707-9711	●	●	●	●
66	01.066 BELT; A/C CMPR AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97180-183-0	01	1	9707-9711						●
66	01.066 BELT; A/C CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97180-183-0	01	1	9712-	●	●	●	●		●	●
316	09.242 BOLT; BRKT FIX 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.171 (A) M10X100 FLANGE	0-28181-000-0	01	1	9503-9510	●	●	●	●	●
316	09.242 BOLT; BRKT FIX 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.171 (A) M10X100 FLANGE	0-28181-000-0	01	1	9511-9603	●	●	●	●
316	09.242 BOLT; BRKT FIX 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.171 (A) M10X100 FLANGE	0-28181-000-0	01	1	9604-9610	●	●	●	●
316	09.242 BOLT; BRKT FIX 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.171 (A) M10X100 FLANGE	0-28181-000-0	01	1	9611-9711				●
316	09.242 BOLT; BRKT FIX 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.171 (A) M10X100 FLANGE	0-28181-000-0	01	1	9712-				●
316	09.242 BOLT; BRKT FIX 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 03.330 (B) M10X60 FLANGE	0-28181-060-0	02	1	9503-9510	●	●	●	●	●
316	09.242 BOLT; BRKT FIX 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 03.330 (B) M10X60 FLANGE	0-28181-060-0	02	1	9511-9711				●
316	09.242 BOLT; BRKT FIX 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.780 (D) M8X50 FLANGE	0-28080-850-0	01	1	9511-9611	●	●	●
316	09.242 BOLT; BRKT FIX 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.780 (D) M8X50 FLANGE	0-28080-850-0	01	1	9612-9711	●	●	●			●
316	09.242 BOLT; BRKT FIX 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 01.780 (D) M8X50 FLANGE	0-28080-850-0	01	1	9712-	●	●	●			●	●
316	09.242 BOLT; BRKT FIX 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 08.900 (C) M10X50 FLANGE	0-28181-050-0	01	1	9511-9511	●	●	●
316	09.242 BOLT; BRKT FIX 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 04.510 (E) M10X65 FLANGE	8-94344-540-1	01	1	9611-9611	●	●	●
316	09.242 BOLT; BRKT FIX 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 04.510 (E) M10X65 FLANGE	8-94344-540-1	01	1	9612-9711	●	●	●			●
316	09.242 BOLT; BRKT FIX 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 04.510 (E) M10X65 FLANGE	8-94344-540-1	01	1	9712-	●	●	●			●	●
316	09.242 BOLT; BRKT FIX 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 03.330 (B) M10X60 FLANGE	0-28181-060-0	02	1	9712-				●

74 78 371 210 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
35	09.181 BOLT; IDLER PULLEY TO C/BL 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.062 (A) M8X16 FLANGE	0-28080-816-0	05	1	9312-9510	●	●	●	●	●
35	09.181 BOLT; IDLER PULLEY TO C/BL 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.062 (A) M8X16 FLANGE	0-28080-816-0	03	1	9511-9610	●	●	●
35	09.181 BOLT; IDLER PULLEY TO C/BL 4BD2 ENG(RLW) 03.704 (B) M8X16 W/LK WASHER	0-50040-816-0	04	1	9312-9506		●
35	09.181 BOLT; IDLER PULLEY TO C/BL 4BD2 ENG(RLW) HEATER & DEFROSTER(C41) 03.704 (B) M8X16 W/LK WASHER	0-50040-816-0	04	1	9507-9606		●	●
35	09.181 BOLT; IDLER PULLEY TO C/BL 4BD2 ENG(RLW) HEATER & DEFROSTER(C41) 03.704 (B) M8X16 W/LK WASHER	0-50040-816-0	04	1	9607-9711	●	●	●
35	09.181 BOLT; IDLER PULLEY TO C/BL 4BD2 ENG(RLW) HEATER & DEFROSTER(C41) 03.704 (B) M8X16 W/LK WASHER	0-50040-816-0	04	1	9712-	●	●	●	●
35	09.181 BOLT; IDLER PULLEY TO C/BL 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.062 (A) M8X16 FLANGE	0-28080-816-0	05	1	9511-9711				●
35	09.181 BOLT; IDLER PULLEY TO C/BL 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.062 (A) M8X16 FLANGE	0-28080-816-0	05	1	9712-				●
74	09.215 DUCT; EVAP TO HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-97042-260-3	01	1	9312-9510	●	●	●	●	●
74	09.215 DUCT; EVAP TO HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-97042-260-3	01	1	9511-9611	●	●	●	●
74	09.215 DUCT; EVAP TO HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-97042-260-3	01	1	9612-9711	●	●	●	●		●
74	09.215 DUCT; EVAP TO HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-97042-260-4	01	1	9712-	●	●	●	●		●	●
78	09.211 BOLT; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60) 01.540 M6X20	0-28280-620-0	02	1	9312-9510	●	●	●	●	●
78	09.211 BOLT; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60) 01.540 M6X20	0-28280-620-0	02	1	9511-9605	●	●	●	●
78	09.211 BOLT; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9606-9611	●	●	●	●
78	09.211 BOLT; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9612-9711	●	●	●	●		●
78	09.211 BOLT; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9712-	●	●	●	●		●	●
78	09.211 BOLT; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60) 16.335 M8X20 FLANGE	0-28280-820-0	01	1	9312-9404	●	●	●	●	●
78	09.211 BOLT; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60) 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9405-9510	●	●	●	●	●
78	09.211 BOLT; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60) 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9511-9605	●	●	●	●
78	09.211 BOLT; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60) 04.930 M6X20 FLANGE	0-28680-620-0	02	1	9606-9611	●	●	●	●
78	09.211 BOLT; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60) 04.930 M6X20 FLANGE	0-28680-620-0	02	1	9612-9711	●	●	●	●		●
78	09.211 BOLT; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60) 04.930 M6X20 FLANGE	0-28680-620-0	02	1	9712-	●	●	●	●		●	●
210	09.242 CLIP; HARNESS 4HF1 ENG(RLS) 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9312-9510	●	●	●	●	●
210	09.242 CLIP; HARNESS 4HF1 ENG(RLS) 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9511-9710	●	●	●	●
210	09.242 CLIP; HARNESS 4HF1 ENG(RLS) 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9711-9711	●	●	●	●		●
210	09.242 CLIP; HARNESS 4HF1 ENG(RLS),4HE1 ENG(RLY) 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9712-9712	●	●	●	●		●	●
210	09.242 CLIP; HARNESS 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9801-	●	●	●	●		●	●
210	09.242 CLIP; HARNESS 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	9312-9406	●	●	●	●	●
210	09.242 CLIP; HARNESS 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	9409-9510	●	●	●	●	●
210	09.242 CLIP; HARNESS 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	9511-9603	●	●	●	●
210	09.242 CLIP; HARNESS 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	9604-9611	●	●	●	●
210	09.242 CLIP; HARNESS 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	9612-9711	●	●	●	●
210	09.242 CLIP; HARNESS AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	9612-9711						●
210	09.242 CLIP; HARNESS 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	9712-	●	●	●	●		●	●
371	09.211 CLIP; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60) 04.594 GRAY	8-94350-828-0	01	1	9312-9504	●	●	●	●	●

14 206 66 4 210 46 14 1 4 49 49 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	09.242 BRACKET; A/C 4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60)	8-97116-230-2	01	1	9712-	●	●	●			●	●
4	09.171 BOLT; A/C CMPR BRKT 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.173 M10X90 FLANGE	0-28181-090-0	02	1	9503-9510	●	●	●	●	●
4	09.171 BOLT; A/C CMPR BRKT 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.173 M10X90 FLANGE	0-28181-090-0	02	1	9511-9511	●	●	●	●
4	09.171 BOLT; A/C CMPR BRKT 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.173 M10X90 FLANGE	0-28181-090-0	01	1	9512-9603	●	●	●	●
4	09.171 BOLT; A/C CMPR BRKT 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.173 M10X90 FLANGE	0-28181-090-0	01	1	9604-9611	●	●	●	●
4	09.171 BOLT; A/C CMPR BRKT 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.173 M10X90 FLANGE	0-28181-090-0	01	1	9612-9711	●	●	●	●
4	09.171 BOLT; A/C CMPR BRKT AIR CONDITIONER MANUAL CONT(C60) 09.173 M10X90 FLANGE	0-28181-090-0	01	1	9612-9711						●
4	09.171 BOLT; A/C CMPR BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.173 M10X90 FLANGE	0-28181-090-0	01	1	9712-	●	●	●	●		●
4	09.171 BOLT; A/C CMPR BRKT 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 00.683 M10X55 FLANGE	8-94399-863-1	02	1	9503-9510	●	●	●	●	●
4	09.171 BOLT; A/C CMPR BRKT 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 00.683 M10X55 FLANGE	8-94399-863-1	02	1	9511-9603	●	●	●	●
4	09.171 BOLT; A/C CMPR BRKT 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 00.683 M10X55 FLANGE	8-94399-863-1	02	1	9604-9611	●	●	●	●
4	09.171 BOLT; A/C CMPR BRKT 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 00.683 M10X55 FLANGE	8-94399-863-1	02	1	9612-9711	●	●	●	●
4	09.171 BOLT; A/C CMPR BRKT AIR CONDITIONER MANUAL CONT(C60) 00.683 M10X55 FLANGE	8-94399-863-1	02	1	9612-9711						●
4	09.171 BOLT; A/C CMPR BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 00.683 M10X55 FLANGE	8-94399-863-1	02	1	9712-	●	●	●	●		●	●
4	09.171 BOLT; A/C CMPR BRKT 4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 01.062 M10X85 FLANGE	8-94397-359-1	02	1	9712-	●	●	●			●	●
14	09.171 BOLT; CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 03.708 M10X40	0-28281-040-0	04	1	9312-9510	●	●	●	●	●
14	09.171 BOLT; CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 03.708 M10X40	0-28281-040-0	04	1	9511-9603	●	●	●	●
14	09.171 BOLT; CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 03.708 M10X40	0-28281-040-0	04	1	9604-9611	●	●	●	●
14	09.171 BOLT; CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 03.708 M10X40	0-28281-040-0	04	1	9612-9711	●	●	●	●
14	09.171 BOLT; CMPR AIR CONDITIONER MANUAL CONT(C60) 03.708 M10X40	0-28281-040-0	04	1	9612-9711						●
14	09.171 BOLT; CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 03.708 M10X40	0-28281-040-0	04	1	9712-	●	●	●	●		●	●
46	09.171 BRACKET; CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97106-228-0	01	1	9407-9412	●	●	●	●	●
46	09.171 BRACKET; CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97126-030-0	01	1	9501-9510	●	●	●	●	●
46	09.171 BRACKET; CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97126-030-0	01	1	9511-9511	●	●	●	●
46	09.171 BRACKET; CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97136-247-0	01	1	9512-9603	●	●	●	●
46	09.171 BRACKET; CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97147-029-0	01	1	9604-9611	●	●	●	●
46	09.171 BRACKET; CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97147-029-0	01	1	9612-9711	●	●	●	●
46	09.171 BRACKET; CMPR AIR CONDITIONER MANUAL CONT(C60)	8-97147-029-0	01	1	9612-9711						●
46	09.171 BRACKET; CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97147-029-0	01	1	9712-	●	●	●	●		●
49	09.171 COLLAR; BRKT,CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-94201-057-1	02	1	9312-9510	●	●	●	●	●
49	09.171 COLLAR; BRKT,CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-94201-057-1	02	1	9511-9603	●	●	●	●
49	09.171 COLLAR; BRKT,CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-94201-057-1	02	1	9604-9604	●	●	●	●
49	09.171 COLLAR; BRKT,CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97147-059-0	02	1	9604-9611	●	●	●	●
49	09.171 COLLAR; BRKT,CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97147-059-0	02	1	9612-9711	●	●	●	●
49	09.171 COLLAR; BRKT,CMPR AIR CONDITIONER MANUAL CONT(C60) (B)	8-97147-059-0	02	1	9612-9711						●
49	09.171 COLLAR; BRKT,CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97147-059-0	02	1	9712-	●	●	●	●		●
49	09.171 COLLAR; BRKT,CMPR 4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (A)	8-94201-057-1	02	1	9712-	●	●	●			●	●
66	01.066 BELT; A/C CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97014-702-2	01	1	9312-9407	●	●	●	●	●
66	01.066 BELT; A/C CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97094-448-1	01	1	9408-9510	●	●	●	●	●
66	01.066 BELT; A/C CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97094-448-1	01	1	9511-9603	●	●	●	●
66	01.066 BELT; A/C CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97094-448-1	01	1	9604-9611	●	●	●	●
66	01.066 BELT; A/C CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97094-448-1	01	1	9612-9706	●	●	●	●
66	01.066 BELT; A/C CMPR AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97094-448-1	01	1	9612-9706						●
66	01.066 BELT; A/C CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97180-183-0	01	1	9707-9711	●	●	●	●
66	01.066 BELT; A/C CMPR AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97180-183-0	01	1	9707-9711						●
66	01.066 BELT; A/C CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97180-183-0	01	1	9712-	●	●	●	●		●	●
206	09.242 BOLT; CLIP BRKT 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.812 M6X12 FLANGE	0-28280-612-0	01	1	9312-9406	●	●	●	●	●
206	09.242 BOLT; CLIP BRKT 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.812 M6X12 FLANGE	0-28280-612-0	01	1	9409-9510	●	●	●	●	●
206	09.242 BOLT; CLIP BRKT 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.812 M6X12 FLANGE	0-28280-612-0	01	1	9511-9603	●	●	●	●
206	09.242 BOLT; CLIP BRKT 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.812 M6X12 FLANGE	0-28280-612-0	01	1	9604-9611	●	●	●	●
206	09.242 BOLT; CLIP BRKT 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.812 M6X12 FLANGE	0-28280-612-0	01	1	9612-9711	●	●	●	●
206	09.242 BOLT; CLIP BRKT AIR CONDITIONER MANUAL CONT(C60) 02.812 M6X12 FLANGE	0-28280-612-0	01	1	9612-9711						●
206	09.242 BOLT; CLIP BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 02.812 M6X12 FLANGE	0-28280-612-0	01	1	9712-	●	●	●	●		●	●
210	09.242 CLIP; HARNESS 4HF1 ENG(RLS) 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9312-9510	●	●	●	●	●
210	09.242 CLIP; HARNESS 4HF1 ENG(RLS) 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9511-9710	●	●	●	●
210	09.242 CLIP; HARNESS 4HF1 ENG(RLS) 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9711-9711	●	●	●	●		●
210	09.242 CLIP; HARNESS 4HF1 ENG(RLS),4HE1 ENG(RLY) 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9712-9712	●	●	●	●		●	●
210	09.242 CLIP; HARNESS 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9801-	●	●	●	●		●	●
210	09.242 CLIP; HARNESS 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	9312-9406	●	●	●	●	●
210	09.242 CLIP; HARNESS 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	9409-9510	●	●	●	●	●
210	09.242 CLIP; HARNESS 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	9511-9603	●	●	●	●
210	09.242 CLIP; HARNESS 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	9604-9611	●	●	●	●
210	09.242 CLIP; HARNESS 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	9612-9711	●	●	●	●
210	09.242 CLIP; HARNESS AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	9612-9711						●
210	09.242 CLIP; HARNESS 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	9712-	●	●	●	●		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
