Sayfa 8-45 - Isuzu EPC

8-45 — HEATER PIPING (#48906) — 413 parça

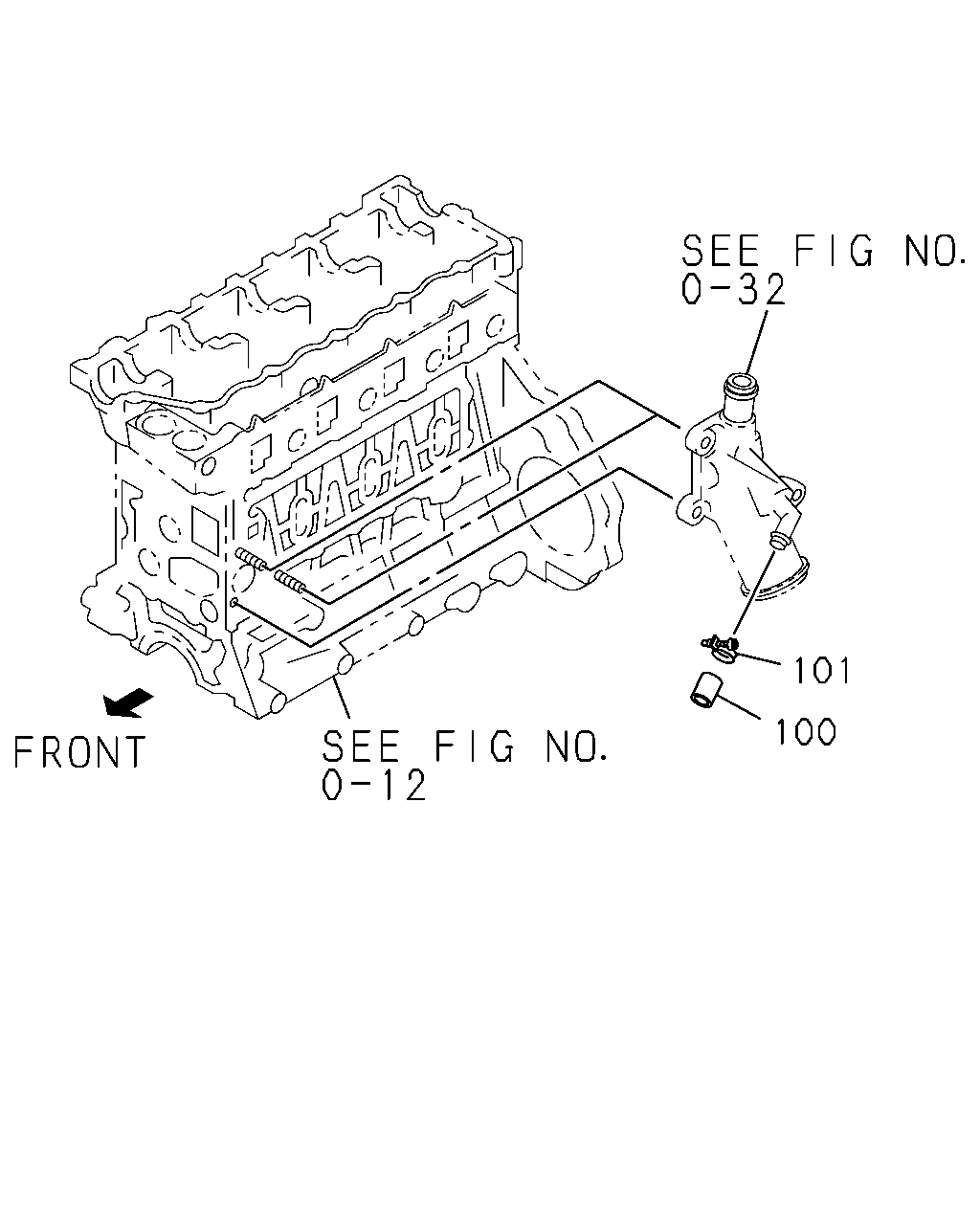

101 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
100	08.846 CAP; RUBBER,WATER PIPE 4HF1 ENG(RLS) FAN FLUID DRIVE<KA3> 01.166	8-94107-793-0	01	1	9312-9611	●	●	●	●
100	08.846 CAP; RUBBER,WATER PIPE 4HF1 ENG(RLS) FAN FLUID DRIVE<KA3> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166	8-94107-793-0	01	1	9612-9711	●	●	●	●	●
100	08.846 CAP; RUBBER,WATER PIPE 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166	8-94107-793-0	01	1	9712-	●	●	●	●	●	●
101	08.846 CLIP; CAP,WATER PIPE 4HF1 ENG(RLS) FAN FLUID DRIVE<KA3> 01.166 ID=25	8-94233-115-0	01	1	9312-9611	●	●	●	●
101	08.846 CLIP; CAP,WATER PIPE 4HF1 ENG(RLS) FAN FLUID DRIVE<KA3> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 ID=25	8-94233-115-0	01	1	9612-9711	●	●	●	●	●
101	08.846 CLIP; CAP,WATER PIPE 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 ID=25	8-94233-115-0	01	1	9712-	●	●	●	●	●	●

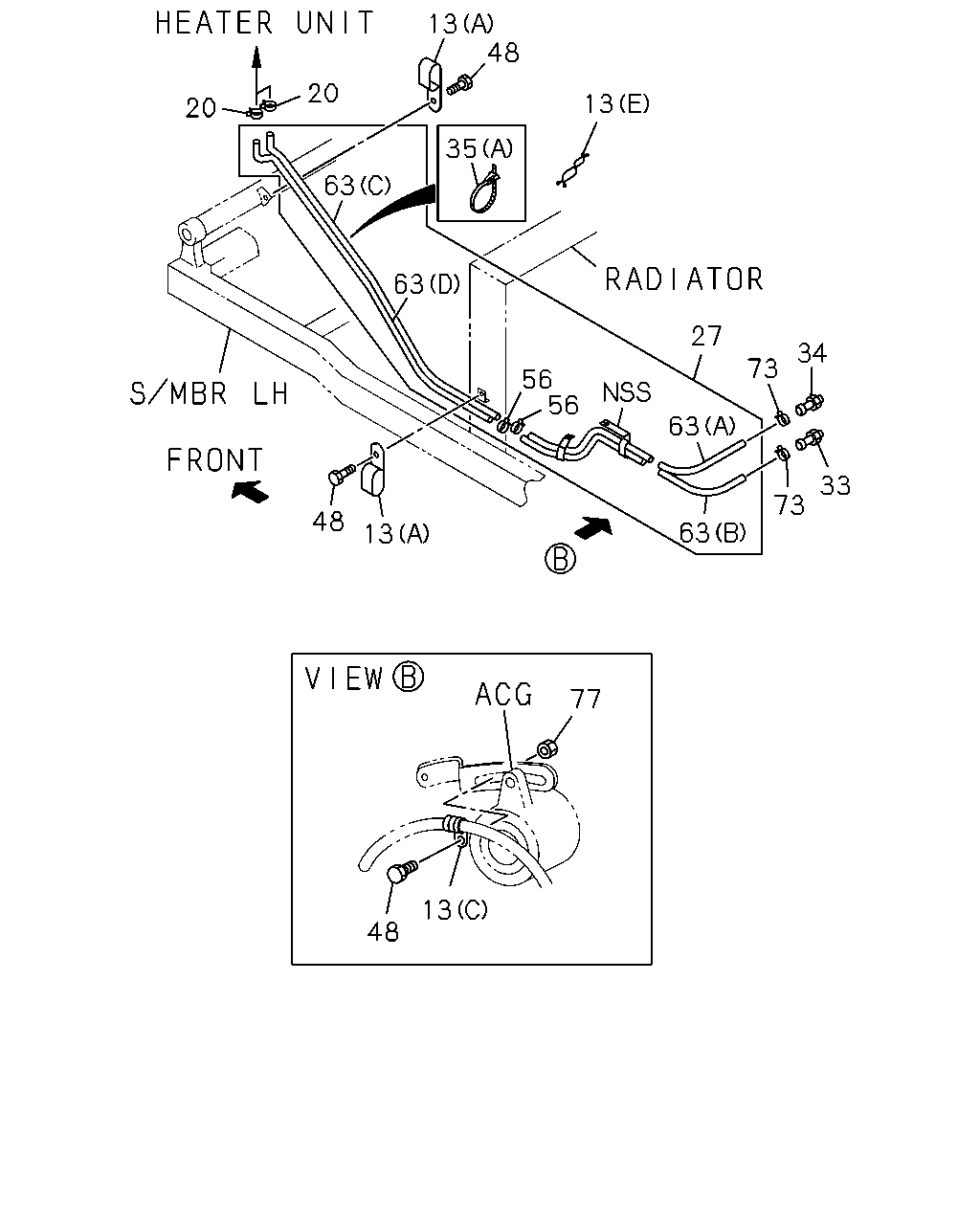

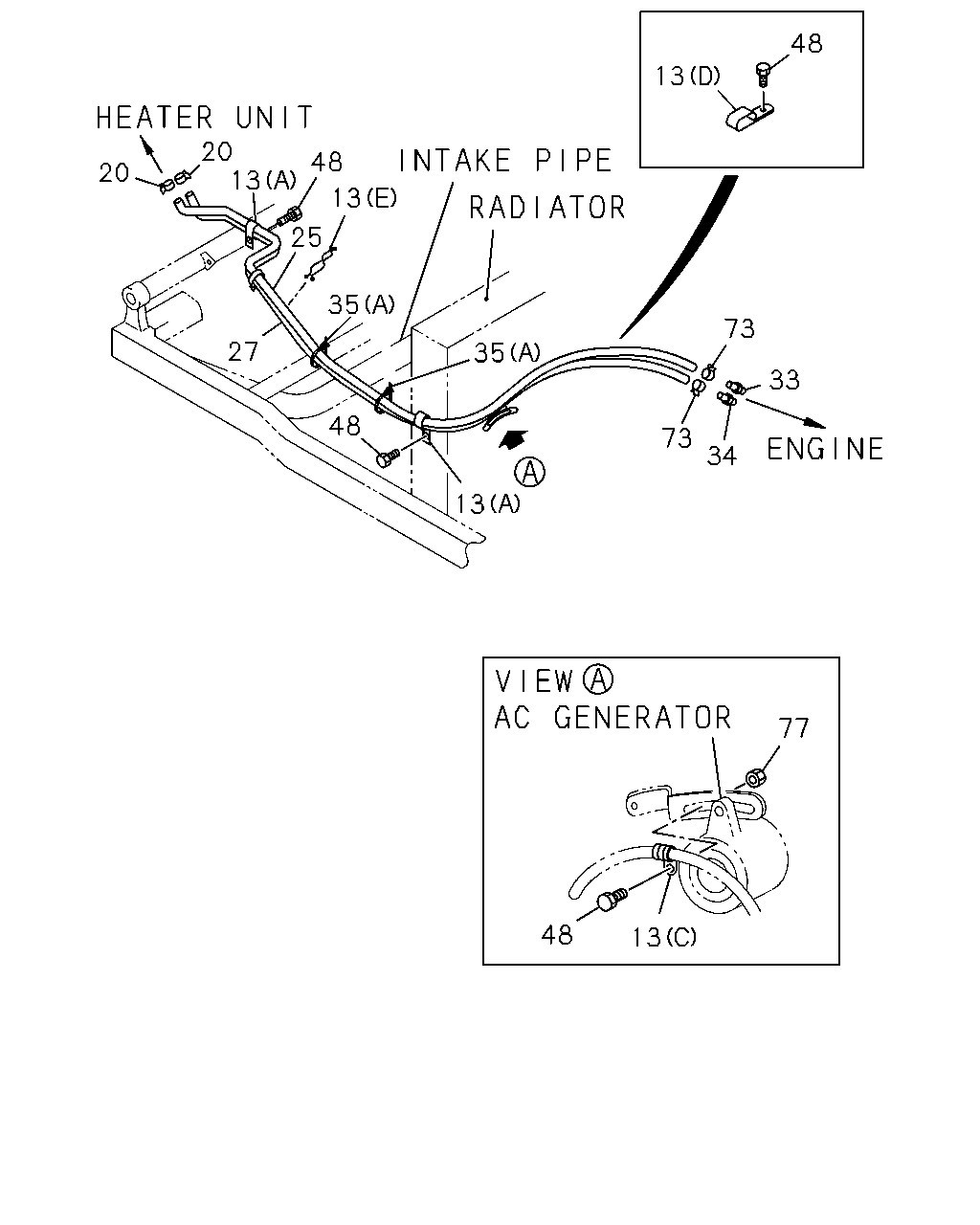

48 13 20 13 48 20 13 25 35 73 35 27 33 48 73 34 13 77 48 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
13	08.846 CLIP; HTR HOSE 4BD1 ENG(LJ6),4HF1 ENG(RLS),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) B=18	9-83651-948-1	AR	1	9312-9404	●	●	●	●			●
13	08.846 CLIP; HTR HOSE 4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) B=18	9-83651-948-1	01	1	9405-9407		●	●
13	08.846 CLIP; HTR HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41) (A) B=18	9-83651-948-1	01	1	9408-9510	●	●	●	●			●
13	08.846 CLIP; HTR HOSE 4BD1 ENG(LJ6),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) B=18	9-83651-948-1	01	1	9408-9510		●	●
13	08.846 CLIP; HTR HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41) (A) B=18	9-83651-948-1	01	1	9511-9606	●	●	●	●
13	08.846 CLIP; HTR HOSE 4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) B=18	9-83651-948-1	01	1	9511-9606		●	●
13	08.846 CLIP; HTR HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41) (A) B=18	9-83651-948-1	01	1	9607-9611	●	●	●	●
13	08.846 CLIP; HTR HOSE 4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) B=18	9-83651-948-1	01	1	9607-9611	●	●	●
13	08.846 CLIP; HTR HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41) (A) B=18	9-83651-948-1	01	1	9612-9707	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) B=18	9-83651-948-1	01	1	9612-9707	●	●	●
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4HF1 ENG(RLS) HEATER & DEFROSTER(C41) (A) B=18	9-83651-948-1	01	1	9708-9709	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) B=18	9-83651-948-1	01	1	9708-9709	●	●	●	●
13	08.846 CLIP; HTR HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) ID=22X44 OVAL	8-94259-882-1	01	1	9312-9510	●	●	●	●			●
13	08.846 CLIP; HTR HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) ID=22X44 OVAL	8-94259-882-1	01	1	9511-9611	●	●	●	●
13	08.846 CLIP; HTR HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) ID=22X44 OVAL	8-94259-882-1	01	1	9612-9706	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (F)	5-83574-006-0	01	1	9707-9707	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (F)	5-83574-006-0	01	1	9708-9711	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (F)	5-83574-006-0	01	1	9712-	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (F)	5-83574-006-0	01	1	9712-	●	●	●		●	●
13	08.846 CLIP; HTR HOSE 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41) 08.866 (E) L=116	8-94148-972-0	01	1	9312-9404	●	●	●	●
13	08.846 CLIP; HTR HOSE 4BD1 ENG(LJ6),4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 08.866 (E) L=116	8-94148-972-0	01	1	9405-9510	●	●	●	●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 08.866 (E) L=116	8-94148-972-0	01	1	9511-9602	●	●	●	●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41) 08.866 (E) L=116	8-94148-972-0	01	1	9603-	●	●	●	●
13	08.846 CLIP; HTR HOSE 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-94480-291-0	01	1	9312-9405	●	●	●	●
13	08.846 CLIP; HTR HOSE 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.866 (C) ID=24.5 H=23 L=25	1-09700-862-0	01	1	9406-9510	●	●	●	●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.866 (C) ID=24.5 H=23 L=25	1-09700-862-0	01	1	9511-	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) B=18	9-83651-948-1	02	1	9312-9707	●	●	●	●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) B=18	9-83651-948-1	02	1	9708-9709	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) B=18	9-83651-948-1	01	1	9710-9711	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) B=18	9-83651-948-1	01	1	9710-9711	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) B=18	9-83651-948-1	01	1	9712-	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (A) B=18	9-83651-948-1	01	1	9712-	●	●	●		●	●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) B=18	9-83651-948-1	01	1	9712-	●	●	●
13	08.846 CLIP; HTR HOSE 4BD1 ENG(LJ6) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	5-83574-003-0	01	1	9312-9510			●
20	08.866 CLIP; WATER HOSE TO HTR PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 ID=22	8-94382-401-0	02	1	9312-9510	●	●	●	●			●
20	08.866 CLIP; WATER HOSE TO HTR PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 ID=22	8-94382-401-0	02	1	9511-9611	●	●	●	●
20	08.866 CLIP; WATER HOSE TO HTR PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 ID=22	8-94382-401-0	02	1	9612-9711	●	●	●	●	●
20	08.866 CLIP; WATER HOSE TO HTR PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 ID=22	8-94382-401-0	02	1	9712-	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4HF1 ENG(RLS) HEATER & DEFROSTER(C41)	8-97064-610-6	01	1	9312-9502	●	●	●	●			●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97064-610-6	01	1	9503-9504	●	●	●	●			●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97129-209-1	01	1	9505-9510	●	●	●	●			●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97129-209-1	01	1	9511-9611	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97129-209-1	01	1	9612-9711	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4HG1 ENG(RJH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97129-209-1	01	1	9712-9804	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-97129-209-1	01	1	9712-9804	●	●	●		●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4HG1 ENG(RJH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97166-099-1	01	1	9805-	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-97166-099-1	01	1	9805-	●	●	●		●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JG2 ENG(RJC) POWER STEERING<N40>	8-97102-363-1	01	1	9312-9504	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JG2 ENG(RJC) POWER STEERING<N40>	8-97129-231-0	01	1	9505-9711	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JG2 ENG(RJC) HEATER & DEFROSTER(C41)	8-97129-231-0	01	1	9712-		●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4BD1 ENG(LJ6),4BE1 ENG(RLH) HEATER & DEFROSTER(C41)	8-97073-456-1	01	1	9312-9504	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4BD1 ENG(LJ6),4BE1 ENG(RLH) HEATER & DEFROSTER(C41)	8-97129-246-0	01	1	9505-9510	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4BE1 ENG(RLH) HEATER & DEFROSTER(C41)	8-97129-246-0	01	1	9511-9711	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4BE1 ENG(RLH) HEATER & DEFROSTER(C41)	8-97129-246-0	01	1	9712-	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL>	8-97149-152-4	01	1	9712-	●	●	●		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1 ENG(RLS) HEATER & DEFROSTER(C41)	8-97040-291-5	01	1	9312-9502	●	●	●	●			●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97040-291-5	01	1	9503-9504	●	●	●	●			●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97129-208-1	01	1	9505-9510	●	●	●	●			●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97129-208-1	01	1	9511-9611	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97129-208-1	01	1	9612-9711	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HG1 ENG(RJH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97129-208-1	01	1	9712-9804	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-97129-208-1	01	1	9712-9804	●	●	●		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HG1 ENG(RJH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97166-098-1	01	1	9805-	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-97166-098-1	01	1	9805-	●	●	●		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC) POWER STEERING<N40>	8-97102-364-2	01	1	9312-9504	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC) POWER STEERING<N40>	8-97129-238-0	01	1	9505-9711	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC) HEATER & DEFROSTER(C41)	8-97129-238-0	01	1	9712-		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4BD1 ENG(LJ6),4BE1 ENG(RLH) HEATER & DEFROSTER(C41)	8-97073-461-2	01	1	9312-9504	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4BD1 ENG(LJ6),4BE1 ENG(RLH) HEATER & DEFROSTER(C41)	8-97129-251-0	01	1	9505-9510	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4BE1 ENG(RLH) HEATER & DEFROSTER(C41)	8-97129-251-0	01	1	9511-9711	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4BE1 ENG(RLH) HEATER & DEFROSTER(C41)	8-97129-251-0	01	1	9712-	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL>	8-97149-153-2	01	1	9712-	●	●	●		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4BD2 ENG(RLW)	8-97093-355-3	01	1	9312-9504		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4BD2 ENG(RLW)	8-97129-199-0	01	1	9505-9506		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4BD2 ENG(RLW)	8-97129-199-0	01	1	9507-9606		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4BD2 ENG(RLW)	8-97129-199-0	01	1	9607-9705	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4BD2 ENG(RLW)	8-97129-199-0	01	1	9706-	●	●	●	●
33	08.866 UNION; WATER HOSE,ENG OUT 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41) 01.540	9-09903-497-1	01	1	9312-9510	●	●	●	●
33	08.866 UNION; WATER HOSE,ENG OUT 4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41) 01.540	9-09903-497-1	01	1	9511-	●	●	●	●
34	08.866 UNION; WATER HOSE,ENG IN 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41) 01.540	9-09903-497-1	01	1	9312-9510	●	●	●	●
34	08.866 UNION; WATER HOSE,ENG IN 4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41) 01.540	9-09903-497-1	01	1	9511-	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-0	02	1	9312-9510	●	●	●	●			●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-0	02	1	9511-9611	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-0	02	1	9612-9711	●	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	02	1	9712-	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) ID=22	8-94382-401-0	02	1	9503-9510	●	●	●	●			●
35	08.852 CLIP; WATER HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) ID=22	8-94382-401-0	02	1	9511-9611	●	●	●	●
35	08.852 CLIP; WATER HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) ID=22	8-94382-401-0	02	1	9612-9711	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) ID=22	8-94382-401-0	02	1	9712-	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> 02.559 (A) L=250	5-09707-030-0	01	1	9405-9506	●	●	●	●
35	08.852 CLIP; WATER HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> 02.559 (A) L=250	5-09707-030-0	01	1	9507-9510		●	●	●
35	08.852 CLIP; WATER HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> 02.559 (A) L=250	5-09707-030-0	01	1	9511-9601		●		●
35	08.852 CLIP; WATER HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> 02.559 (A) L=250	5-09707-030-0	01	1	9602-9711		●	●	●
35	08.852 CLIP; WATER HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> 02.559 (A) L=250	5-09707-030-1	01	1	9712-		●	●
48	09.262 BOLT; CLIP FIX 4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 00.738 M6X16 FLANGE	0-28080-616-0	01	1	9312-9312	●	●	●	●			●
48	09.262 BOLT; CLIP FIX 4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.656 M6X14	8-94479-695-1	02	1	9401-9410	●	●	●	●			●
48	09.262 BOLT; CLIP FIX 4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.686 M6X14 FLANGE	0-28080-614-0	02	1	9411-9510	●	●	●	●			●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.686 M6X14 FLANGE	0-28080-614-0	02	1	9511-9611	●	●	●	●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.686 M6X14 FLANGE	0-28080-614-0	02	1	9612-9706	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.686 M6X14 FLANGE	0-28080-614-0	01	1	9707-9711	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 00.738 M6X16 FLANGE	0-28080-616-0	02	1	9312-9312	●	●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) 01.656 M6X14	8-94479-695-1	03	1	9401-9410	●	●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) 04.686 M6X14 FLANGE	0-28080-614-0	03	1	9411-9506	●	●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) 04.686 M6X14 FLANGE	0-28080-614-0	03	1	9507-9706		●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9707-9711	●	●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9712-9712	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9712-9712	●	●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 '97/12/15- M6X12 FLANGE	0-28080-612-0	01	1	9712-	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 '97/12/15- M6X12 FLANGE	0-28080-612-0	01	1	9712-	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 01.428 '97/12/15- M6X12 FLANGE	0-28080-612-0	01	1	9712-	●	●	●		●	●
48	09.262 BOLT; CLIP FIX 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9312-9409	●	●	●	●
48	09.262 BOLT; CLIP FIX 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9410-9502	●	●	●	●
48	09.262 BOLT; CLIP FIX 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9503-9510	●	●	●	●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9511-9711	●	●	●	●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9712-	●	●	●	●
48	09.262 BOLT; CLIP FIX 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 02.500 M6X10 FLANGE	0-28080-610-0	01	1	9712-	●	●	●		●	●
48	09.262 BOLT; CLIP FIX 4BD2 ENG(RLW) HEATER & DEFROSTER(C41) 01.656 M6X14	8-94479-695-1	01	1	9405-9410		●
48	09.262 BOLT; CLIP FIX 4BD2 ENG(RLW) HEATER & DEFROSTER(C41) 04.686 M6X14 FLANGE	0-28080-614-0	01	1	9411-9506		●
48	09.262 BOLT; CLIP FIX 4BD2 ENG(RLW) HEATER & DEFROSTER(C41) 04.686 M6X14 FLANGE	0-28080-614-0	01	1	9507-9606		●	●
48	09.262 BOLT; CLIP FIX 4BD2 ENG(RLW) HEATER & DEFROSTER(C41) 04.686 M6X14 FLANGE	0-28080-614-0	01	1	9607-9705	●	●	●
48	09.262 BOLT; CLIP FIX 4BD2 ENG(RLW) HEATER & DEFROSTER(C41) 04.686 M6X14 FLANGE	0-28080-614-0	01	1	9706-9706	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.686 M6X14 FLANGE	0-28080-614-0	02	1	9707-9711		●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9712-		●
48	09.262 BOLT; CLIP FIX 4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.680 M6X12 W/LK&PL WASHER	0-50140-612-0	02	1	9312-9506		●
48	09.262 BOLT; CLIP FIX 4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.680 M6X12 W/LK&PL WASHER	0-50140-612-0	02	1	9507-9606		●	●
48	09.262 BOLT; CLIP FIX 4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.500 M6X10 FLANGE	0-28080-610-0	02	1	9607-9607		●	●
48	09.262 BOLT; CLIP FIX 4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.500 M6X10 FLANGE	0-28080-610-0	02	1	9607-9705	●	●	●
48	09.262 BOLT; CLIP FIX 4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.500 M6X10 FLANGE	0-28080-610-0	02	1	9706-	●	●	●	●
73	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=22	8-94382-401-0	02	1	9312-9406	●	●	●	●			●
73	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	02	1	9407-9504	●	●	●	●			●
73	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	02	1	9505-9601	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	02	1	9602-	●	●	●	●
77	08.866 NUT; WATER HOSE 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE	0-91150-208-0	01	1	9312-9510	●	●	●	●
77	08.866 NUT; WATER HOSE 4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE	0-91150-208-0	01	1	9511-	●	●	●	●

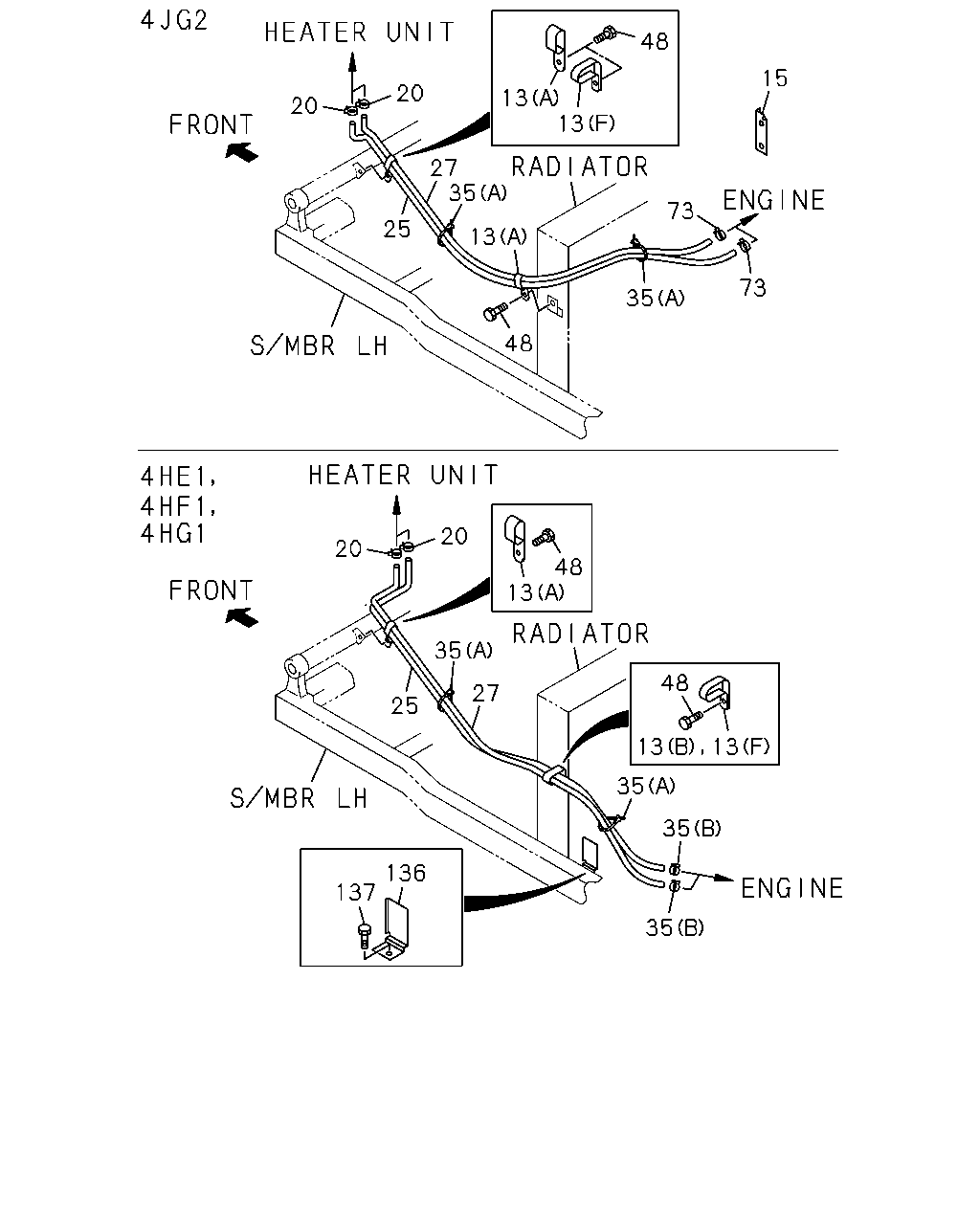

48 15 20 13 13 20 27 35 73 25 13 73 35 48 20 20 48 13 35 48 27 25 13 13 35 35 136 137 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
13	08.846 CLIP; HTR HOSE 4BD1 ENG(LJ6),4HF1 ENG(RLS),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) B=18	9-83651-948-1	AR	1	9312-9404	●	●	●	●			●
13	08.846 CLIP; HTR HOSE 4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) B=18	9-83651-948-1	01	1	9405-9407		●	●
13	08.846 CLIP; HTR HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41) (A) B=18	9-83651-948-1	01	1	9408-9510	●	●	●	●			●
13	08.846 CLIP; HTR HOSE 4BD1 ENG(LJ6),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) B=18	9-83651-948-1	01	1	9408-9510		●	●
13	08.846 CLIP; HTR HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41) (A) B=18	9-83651-948-1	01	1	9511-9606	●	●	●	●
13	08.846 CLIP; HTR HOSE 4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) B=18	9-83651-948-1	01	1	9511-9606		●	●
13	08.846 CLIP; HTR HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41) (A) B=18	9-83651-948-1	01	1	9607-9611	●	●	●	●
13	08.846 CLIP; HTR HOSE 4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) B=18	9-83651-948-1	01	1	9607-9611	●	●	●
13	08.846 CLIP; HTR HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41) (A) B=18	9-83651-948-1	01	1	9612-9707	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) B=18	9-83651-948-1	01	1	9612-9707	●	●	●
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4HF1 ENG(RLS) HEATER & DEFROSTER(C41) (A) B=18	9-83651-948-1	01	1	9708-9709	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) B=18	9-83651-948-1	01	1	9708-9709	●	●	●	●
13	08.846 CLIP; HTR HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) ID=22X44 OVAL	8-94259-882-1	01	1	9312-9510	●	●	●	●			●
13	08.846 CLIP; HTR HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) ID=22X44 OVAL	8-94259-882-1	01	1	9511-9611	●	●	●	●
13	08.846 CLIP; HTR HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) ID=22X44 OVAL	8-94259-882-1	01	1	9612-9706	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (F)	5-83574-006-0	01	1	9707-9707	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (F)	5-83574-006-0	01	1	9708-9711	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (F)	5-83574-006-0	01	1	9712-	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (F)	5-83574-006-0	01	1	9712-	●	●	●		●	●
13	08.846 CLIP; HTR HOSE 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41) 08.866 (E) L=116	8-94148-972-0	01	1	9312-9404	●	●	●	●
13	08.846 CLIP; HTR HOSE 4BD1 ENG(LJ6),4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 08.866 (E) L=116	8-94148-972-0	01	1	9405-9510	●	●	●	●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 08.866 (E) L=116	8-94148-972-0	01	1	9511-9602	●	●	●	●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41) 08.866 (E) L=116	8-94148-972-0	01	1	9603-	●	●	●	●
13	08.846 CLIP; HTR HOSE 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-94480-291-0	01	1	9312-9405	●	●	●	●
13	08.846 CLIP; HTR HOSE 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.866 (C) ID=24.5 H=23 L=25	1-09700-862-0	01	1	9406-9510	●	●	●	●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.866 (C) ID=24.5 H=23 L=25	1-09700-862-0	01	1	9511-	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) B=18	9-83651-948-1	02	1	9312-9707	●	●	●	●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) B=18	9-83651-948-1	02	1	9708-9709	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) B=18	9-83651-948-1	01	1	9710-9711	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) B=18	9-83651-948-1	01	1	9710-9711	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) B=18	9-83651-948-1	01	1	9712-	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (A) B=18	9-83651-948-1	01	1	9712-	●	●	●		●	●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) B=18	9-83651-948-1	01	1	9712-	●	●	●
13	08.846 CLIP; HTR HOSE 4BD1 ENG(LJ6) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	5-83574-003-0	01	1	9312-9510			●
15	08.846 BRACKET; WATER HOSE 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97108-713-0	01	1	9312-9506	●	●
15	08.846 BRACKET; WATER HOSE 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97108-713-0	01	1	9507-		●
20	08.866 CLIP; WATER HOSE TO HTR PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 ID=22	8-94382-401-0	02	1	9312-9510	●	●	●	●			●
20	08.866 CLIP; WATER HOSE TO HTR PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 ID=22	8-94382-401-0	02	1	9511-9611	●	●	●	●
20	08.866 CLIP; WATER HOSE TO HTR PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 ID=22	8-94382-401-0	02	1	9612-9711	●	●	●	●	●
20	08.866 CLIP; WATER HOSE TO HTR PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 ID=22	8-94382-401-0	02	1	9712-	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4HF1 ENG(RLS) HEATER & DEFROSTER(C41)	8-97064-610-6	01	1	9312-9502	●	●	●	●			●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97064-610-6	01	1	9503-9504	●	●	●	●			●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97129-209-1	01	1	9505-9510	●	●	●	●			●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97129-209-1	01	1	9511-9611	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97129-209-1	01	1	9612-9711	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4HG1 ENG(RJH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97129-209-1	01	1	9712-9804	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-97129-209-1	01	1	9712-9804	●	●	●		●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4HG1 ENG(RJH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97166-099-1	01	1	9805-	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-97166-099-1	01	1	9805-	●	●	●		●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JG2 ENG(RJC) POWER STEERING<N40>	8-97102-363-1	01	1	9312-9504	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JG2 ENG(RJC) POWER STEERING<N40>	8-97129-231-0	01	1	9505-9711	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JG2 ENG(RJC) HEATER & DEFROSTER(C41)	8-97129-231-0	01	1	9712-		●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4BD1 ENG(LJ6),4BE1 ENG(RLH) HEATER & DEFROSTER(C41)	8-97073-456-1	01	1	9312-9504	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4BD1 ENG(LJ6),4BE1 ENG(RLH) HEATER & DEFROSTER(C41)	8-97129-246-0	01	1	9505-9510	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4BE1 ENG(RLH) HEATER & DEFROSTER(C41)	8-97129-246-0	01	1	9511-9711	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4BE1 ENG(RLH) HEATER & DEFROSTER(C41)	8-97129-246-0	01	1	9712-	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL>	8-97149-152-4	01	1	9712-	●	●	●		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1 ENG(RLS) HEATER & DEFROSTER(C41)	8-97040-291-5	01	1	9312-9502	●	●	●	●			●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97040-291-5	01	1	9503-9504	●	●	●	●			●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97129-208-1	01	1	9505-9510	●	●	●	●			●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97129-208-1	01	1	9511-9611	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97129-208-1	01	1	9612-9711	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HG1 ENG(RJH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97129-208-1	01	1	9712-9804	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-97129-208-1	01	1	9712-9804	●	●	●		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HG1 ENG(RJH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97166-098-1	01	1	9805-	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-97166-098-1	01	1	9805-	●	●	●		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC) POWER STEERING<N40>	8-97102-364-2	01	1	9312-9504	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC) POWER STEERING<N40>	8-97129-238-0	01	1	9505-9711	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC) HEATER & DEFROSTER(C41)	8-97129-238-0	01	1	9712-		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4BD1 ENG(LJ6),4BE1 ENG(RLH) HEATER & DEFROSTER(C41)	8-97073-461-2	01	1	9312-9504	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4BD1 ENG(LJ6),4BE1 ENG(RLH) HEATER & DEFROSTER(C41)	8-97129-251-0	01	1	9505-9510	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4BE1 ENG(RLH) HEATER & DEFROSTER(C41)	8-97129-251-0	01	1	9511-9711	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4BE1 ENG(RLH) HEATER & DEFROSTER(C41)	8-97129-251-0	01	1	9712-	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL>	8-97149-153-2	01	1	9712-	●	●	●		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4BD2 ENG(RLW)	8-97093-355-3	01	1	9312-9504		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4BD2 ENG(RLW)	8-97129-199-0	01	1	9505-9506		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4BD2 ENG(RLW)	8-97129-199-0	01	1	9507-9606		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4BD2 ENG(RLW)	8-97129-199-0	01	1	9607-9705	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4BD2 ENG(RLW)	8-97129-199-0	01	1	9706-	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-0	02	1	9312-9510	●	●	●	●			●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-0	02	1	9511-9611	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-0	02	1	9612-9711	●	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	02	1	9712-	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) ID=22	8-94382-401-0	02	1	9503-9510	●	●	●	●			●
35	08.852 CLIP; WATER HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) ID=22	8-94382-401-0	02	1	9511-9611	●	●	●	●
35	08.852 CLIP; WATER HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) ID=22	8-94382-401-0	02	1	9612-9711	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) ID=22	8-94382-401-0	02	1	9712-	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> 02.559 (A) L=250	5-09707-030-0	01	1	9405-9506	●	●	●	●
35	08.852 CLIP; WATER HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> 02.559 (A) L=250	5-09707-030-0	01	1	9507-9510		●	●	●
35	08.852 CLIP; WATER HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> 02.559 (A) L=250	5-09707-030-0	01	1	9511-9601		●		●
35	08.852 CLIP; WATER HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> 02.559 (A) L=250	5-09707-030-0	01	1	9602-9711		●	●	●
35	08.852 CLIP; WATER HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> 02.559 (A) L=250	5-09707-030-1	01	1	9712-		●	●
48	09.262 BOLT; CLIP FIX 4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 00.738 M6X16 FLANGE	0-28080-616-0	01	1	9312-9312	●	●	●	●			●
48	09.262 BOLT; CLIP FIX 4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.656 M6X14	8-94479-695-1	02	1	9401-9410	●	●	●	●			●
48	09.262 BOLT; CLIP FIX 4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.686 M6X14 FLANGE	0-28080-614-0	02	1	9411-9510	●	●	●	●			●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.686 M6X14 FLANGE	0-28080-614-0	02	1	9511-9611	●	●	●	●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.686 M6X14 FLANGE	0-28080-614-0	02	1	9612-9706	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.686 M6X14 FLANGE	0-28080-614-0	01	1	9707-9711	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 00.738 M6X16 FLANGE	0-28080-616-0	02	1	9312-9312	●	●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) 01.656 M6X14	8-94479-695-1	03	1	9401-9410	●	●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) 04.686 M6X14 FLANGE	0-28080-614-0	03	1	9411-9506	●	●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) 04.686 M6X14 FLANGE	0-28080-614-0	03	1	9507-9706		●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9707-9711	●	●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9712-9712	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9712-9712	●	●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 '97/12/15- M6X12 FLANGE	0-28080-612-0	01	1	9712-	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 '97/12/15- M6X12 FLANGE	0-28080-612-0	01	1	9712-	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 01.428 '97/12/15- M6X12 FLANGE	0-28080-612-0	01	1	9712-	●	●	●		●	●
48	09.262 BOLT; CLIP FIX 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9312-9409	●	●	●	●
48	09.262 BOLT; CLIP FIX 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9410-9502	●	●	●	●
48	09.262 BOLT; CLIP FIX 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9503-9510	●	●	●	●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9511-9711	●	●	●	●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9712-	●	●	●	●
48	09.262 BOLT; CLIP FIX 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 02.500 M6X10 FLANGE	0-28080-610-0	01	1	9712-	●	●	●		●	●
48	09.262 BOLT; CLIP FIX 4BD2 ENG(RLW) HEATER & DEFROSTER(C41) 01.656 M6X14	8-94479-695-1	01	1	9405-9410		●
48	09.262 BOLT; CLIP FIX 4BD2 ENG(RLW) HEATER & DEFROSTER(C41) 04.686 M6X14 FLANGE	0-28080-614-0	01	1	9411-9506		●
48	09.262 BOLT; CLIP FIX 4BD2 ENG(RLW) HEATER & DEFROSTER(C41) 04.686 M6X14 FLANGE	0-28080-614-0	01	1	9507-9606		●	●
48	09.262 BOLT; CLIP FIX 4BD2 ENG(RLW) HEATER & DEFROSTER(C41) 04.686 M6X14 FLANGE	0-28080-614-0	01	1	9607-9705	●	●	●
48	09.262 BOLT; CLIP FIX 4BD2 ENG(RLW) HEATER & DEFROSTER(C41) 04.686 M6X14 FLANGE	0-28080-614-0	01	1	9706-9706	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.686 M6X14 FLANGE	0-28080-614-0	02	1	9707-9711		●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9712-		●
48	09.262 BOLT; CLIP FIX 4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.680 M6X12 W/LK&PL WASHER	0-50140-612-0	02	1	9312-9506		●
48	09.262 BOLT; CLIP FIX 4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.680 M6X12 W/LK&PL WASHER	0-50140-612-0	02	1	9507-9606		●	●
48	09.262 BOLT; CLIP FIX 4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.500 M6X10 FLANGE	0-28080-610-0	02	1	9607-9607		●	●
48	09.262 BOLT; CLIP FIX 4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.500 M6X10 FLANGE	0-28080-610-0	02	1	9607-9705	●	●	●
48	09.262 BOLT; CLIP FIX 4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.500 M6X10 FLANGE	0-28080-610-0	02	1	9706-	●	●	●	●
73	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=22	8-94382-401-0	02	1	9312-9406	●	●	●	●			●
73	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	02	1	9407-9504	●	●	●	●			●
73	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	02	1	9505-9601	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	02	1	9602-	●	●	●	●
136	08.846 GUIDE; WATER HOSE 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL>	8-97183-818-2	01	1	9712-	●	●	●		●	●
137	08.846 BOLT; GUIDE 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9712-	●	●	●		●	●

13 48 20 13 20 35 63 63 27 34 73 56 56 63 33 73 48 63 13 77 13 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
13	08.846 CLIP; HTR HOSE 4BD1 ENG(LJ6),4HF1 ENG(RLS),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) B=18	9-83651-948-1	AR	1	9312-9404	●	●	●	●			●
13	08.846 CLIP; HTR HOSE 4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) B=18	9-83651-948-1	01	1	9405-9407		●	●
13	08.846 CLIP; HTR HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41) (A) B=18	9-83651-948-1	01	1	9408-9510	●	●	●	●			●
13	08.846 CLIP; HTR HOSE 4BD1 ENG(LJ6),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) B=18	9-83651-948-1	01	1	9408-9510		●	●
13	08.846 CLIP; HTR HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41) (A) B=18	9-83651-948-1	01	1	9511-9606	●	●	●	●
13	08.846 CLIP; HTR HOSE 4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) B=18	9-83651-948-1	01	1	9511-9606		●	●
13	08.846 CLIP; HTR HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41) (A) B=18	9-83651-948-1	01	1	9607-9611	●	●	●	●
13	08.846 CLIP; HTR HOSE 4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) B=18	9-83651-948-1	01	1	9607-9611	●	●	●
13	08.846 CLIP; HTR HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41) (A) B=18	9-83651-948-1	01	1	9612-9707	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) B=18	9-83651-948-1	01	1	9612-9707	●	●	●
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4HF1 ENG(RLS) HEATER & DEFROSTER(C41) (A) B=18	9-83651-948-1	01	1	9708-9709	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) B=18	9-83651-948-1	01	1	9708-9709	●	●	●	●
13	08.846 CLIP; HTR HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) ID=22X44 OVAL	8-94259-882-1	01	1	9312-9510	●	●	●	●			●
13	08.846 CLIP; HTR HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) ID=22X44 OVAL	8-94259-882-1	01	1	9511-9611	●	●	●	●
13	08.846 CLIP; HTR HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) ID=22X44 OVAL	8-94259-882-1	01	1	9612-9706	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (F)	5-83574-006-0	01	1	9707-9707	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (F)	5-83574-006-0	01	1	9708-9711	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (F)	5-83574-006-0	01	1	9712-	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (F)	5-83574-006-0	01	1	9712-	●	●	●		●	●
13	08.846 CLIP; HTR HOSE 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41) 08.866 (E) L=116	8-94148-972-0	01	1	9312-9404	●	●	●	●
13	08.846 CLIP; HTR HOSE 4BD1 ENG(LJ6),4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 08.866 (E) L=116	8-94148-972-0	01	1	9405-9510	●	●	●	●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 08.866 (E) L=116	8-94148-972-0	01	1	9511-9602	●	●	●	●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41) 08.866 (E) L=116	8-94148-972-0	01	1	9603-	●	●	●	●
13	08.846 CLIP; HTR HOSE 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-94480-291-0	01	1	9312-9405	●	●	●	●
13	08.846 CLIP; HTR HOSE 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.866 (C) ID=24.5 H=23 L=25	1-09700-862-0	01	1	9406-9510	●	●	●	●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.866 (C) ID=24.5 H=23 L=25	1-09700-862-0	01	1	9511-	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) B=18	9-83651-948-1	02	1	9312-9707	●	●	●	●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) B=18	9-83651-948-1	02	1	9708-9709	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) B=18	9-83651-948-1	01	1	9710-9711	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) B=18	9-83651-948-1	01	1	9710-9711	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) B=18	9-83651-948-1	01	1	9712-	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (A) B=18	9-83651-948-1	01	1	9712-	●	●	●		●	●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) B=18	9-83651-948-1	01	1	9712-	●	●	●
13	08.846 CLIP; HTR HOSE 4BD1 ENG(LJ6) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	5-83574-003-0	01	1	9312-9510			●
20	08.866 CLIP; WATER HOSE TO HTR PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 ID=22	8-94382-401-0	02	1	9312-9510	●	●	●	●			●
20	08.866 CLIP; WATER HOSE TO HTR PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 ID=22	8-94382-401-0	02	1	9511-9611	●	●	●	●
20	08.866 CLIP; WATER HOSE TO HTR PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 ID=22	8-94382-401-0	02	1	9612-9711	●	●	●	●	●
20	08.866 CLIP; WATER HOSE TO HTR PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 ID=22	8-94382-401-0	02	1	9712-	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1 ENG(RLS) HEATER & DEFROSTER(C41)	8-97040-291-5	01	1	9312-9502	●	●	●	●			●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97040-291-5	01	1	9503-9504	●	●	●	●			●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97129-208-1	01	1	9505-9510	●	●	●	●			●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97129-208-1	01	1	9511-9611	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97129-208-1	01	1	9612-9711	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HG1 ENG(RJH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97129-208-1	01	1	9712-9804	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-97129-208-1	01	1	9712-9804	●	●	●		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HG1 ENG(RJH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97166-098-1	01	1	9805-	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-97166-098-1	01	1	9805-	●	●	●		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC) POWER STEERING<N40>	8-97102-364-2	01	1	9312-9504	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC) POWER STEERING<N40>	8-97129-238-0	01	1	9505-9711	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC) HEATER & DEFROSTER(C41)	8-97129-238-0	01	1	9712-		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4BD1 ENG(LJ6),4BE1 ENG(RLH) HEATER & DEFROSTER(C41)	8-97073-461-2	01	1	9312-9504	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4BD1 ENG(LJ6),4BE1 ENG(RLH) HEATER & DEFROSTER(C41)	8-97129-251-0	01	1	9505-9510	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4BE1 ENG(RLH) HEATER & DEFROSTER(C41)	8-97129-251-0	01	1	9511-9711	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4BE1 ENG(RLH) HEATER & DEFROSTER(C41)	8-97129-251-0	01	1	9712-	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL>	8-97149-153-2	01	1	9712-	●	●	●		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4BD2 ENG(RLW)	8-97093-355-3	01	1	9312-9504		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4BD2 ENG(RLW)	8-97129-199-0	01	1	9505-9506		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4BD2 ENG(RLW)	8-97129-199-0	01	1	9507-9606		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4BD2 ENG(RLW)	8-97129-199-0	01	1	9607-9705	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4BD2 ENG(RLW)	8-97129-199-0	01	1	9706-	●	●	●	●
33	08.866 UNION; WATER HOSE,ENG OUT 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41) 01.540	9-09903-497-1	01	1	9312-9510	●	●	●	●
33	08.866 UNION; WATER HOSE,ENG OUT 4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41) 01.540	9-09903-497-1	01	1	9511-	●	●	●	●
34	08.866 UNION; WATER HOSE,ENG IN 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41) 01.540	9-09903-497-1	01	1	9312-9510	●	●	●	●
34	08.866 UNION; WATER HOSE,ENG IN 4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41) 01.540	9-09903-497-1	01	1	9511-	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-0	02	1	9312-9510	●	●	●	●			●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-0	02	1	9511-9611	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-0	02	1	9612-9711	●	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	02	1	9712-	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) ID=22	8-94382-401-0	02	1	9503-9510	●	●	●	●			●
35	08.852 CLIP; WATER HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) ID=22	8-94382-401-0	02	1	9511-9611	●	●	●	●
35	08.852 CLIP; WATER HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) ID=22	8-94382-401-0	02	1	9612-9711	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) ID=22	8-94382-401-0	02	1	9712-	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> 02.559 (A) L=250	5-09707-030-0	01	1	9405-9506	●	●	●	●
35	08.852 CLIP; WATER HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> 02.559 (A) L=250	5-09707-030-0	01	1	9507-9510		●	●	●
35	08.852 CLIP; WATER HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> 02.559 (A) L=250	5-09707-030-0	01	1	9511-9601		●		●
35	08.852 CLIP; WATER HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> 02.559 (A) L=250	5-09707-030-0	01	1	9602-9711		●	●	●
35	08.852 CLIP; WATER HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> 02.559 (A) L=250	5-09707-030-1	01	1	9712-		●	●
48	09.262 BOLT; CLIP FIX 4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 00.738 M6X16 FLANGE	0-28080-616-0	01	1	9312-9312	●	●	●	●			●
48	09.262 BOLT; CLIP FIX 4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.656 M6X14	8-94479-695-1	02	1	9401-9410	●	●	●	●			●
48	09.262 BOLT; CLIP FIX 4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.686 M6X14 FLANGE	0-28080-614-0	02	1	9411-9510	●	●	●	●			●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.686 M6X14 FLANGE	0-28080-614-0	02	1	9511-9611	●	●	●	●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.686 M6X14 FLANGE	0-28080-614-0	02	1	9612-9706	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.686 M6X14 FLANGE	0-28080-614-0	01	1	9707-9711	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 00.738 M6X16 FLANGE	0-28080-616-0	02	1	9312-9312	●	●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) 01.656 M6X14	8-94479-695-1	03	1	9401-9410	●	●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) 04.686 M6X14 FLANGE	0-28080-614-0	03	1	9411-9506	●	●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) 04.686 M6X14 FLANGE	0-28080-614-0	03	1	9507-9706		●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9707-9711	●	●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9712-9712	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9712-9712	●	●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 '97/12/15- M6X12 FLANGE	0-28080-612-0	01	1	9712-	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 '97/12/15- M6X12 FLANGE	0-28080-612-0	01	1	9712-	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 01.428 '97/12/15- M6X12 FLANGE	0-28080-612-0	01	1	9712-	●	●	●		●	●
48	09.262 BOLT; CLIP FIX 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9312-9409	●	●	●	●
48	09.262 BOLT; CLIP FIX 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9410-9502	●	●	●	●
48	09.262 BOLT; CLIP FIX 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9503-9510	●	●	●	●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9511-9711	●	●	●	●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9712-	●	●	●	●
48	09.262 BOLT; CLIP FIX 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 02.500 M6X10 FLANGE	0-28080-610-0	01	1	9712-	●	●	●		●	●
48	09.262 BOLT; CLIP FIX 4BD2 ENG(RLW) HEATER & DEFROSTER(C41) 01.656 M6X14	8-94479-695-1	01	1	9405-9410		●
48	09.262 BOLT; CLIP FIX 4BD2 ENG(RLW) HEATER & DEFROSTER(C41) 04.686 M6X14 FLANGE	0-28080-614-0	01	1	9411-9506		●
48	09.262 BOLT; CLIP FIX 4BD2 ENG(RLW) HEATER & DEFROSTER(C41) 04.686 M6X14 FLANGE	0-28080-614-0	01	1	9507-9606		●	●
48	09.262 BOLT; CLIP FIX 4BD2 ENG(RLW) HEATER & DEFROSTER(C41) 04.686 M6X14 FLANGE	0-28080-614-0	01	1	9607-9705	●	●	●
48	09.262 BOLT; CLIP FIX 4BD2 ENG(RLW) HEATER & DEFROSTER(C41) 04.686 M6X14 FLANGE	0-28080-614-0	01	1	9706-9706	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.686 M6X14 FLANGE	0-28080-614-0	02	1	9707-9711		●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9712-		●
48	09.262 BOLT; CLIP FIX 4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.680 M6X12 W/LK&PL WASHER	0-50140-612-0	02	1	9312-9506		●
48	09.262 BOLT; CLIP FIX 4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.680 M6X12 W/LK&PL WASHER	0-50140-612-0	02	1	9507-9606		●	●
48	09.262 BOLT; CLIP FIX 4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.500 M6X10 FLANGE	0-28080-610-0	02	1	9607-9607		●	●
48	09.262 BOLT; CLIP FIX 4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.500 M6X10 FLANGE	0-28080-610-0	02	1	9607-9705	●	●	●
48	09.262 BOLT; CLIP FIX 4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.500 M6X10 FLANGE	0-28080-610-0	02	1	9706-	●	●	●	●
56	08.846 CLAMP; HTR HOSE 4BD2 ENG(RLW) ID=22	8-94382-401-0	04	1	9312-9506		●
56	08.846 CLAMP; HTR HOSE 4BD2 ENG(RLW) ID=22	8-94382-401-0	04	1	9507-9606		●	●
56	08.846 CLAMP; HTR HOSE 4BD2 ENG(RLW) ID=22	8-94382-401-0	04	1	9607-9705	●	●	●
56	08.846 CLAMP; HTR HOSE 4BD2 ENG(RLW) ID=22	8-94382-401-0	04	1	9706-	●	●	●	●
63	08.846 HOSE; WATER 4BD2 ENG(RLW) (A)	8-97107-198-0	01	1	9312-9312		●
63	08.846 HOSE; WATER 4BD2 ENG(RLW) (A) '93/12/20-	8-97106-969-0	01	1	9312-9506		●
63	08.846 HOSE; WATER 4BD2 ENG(RLW) (A)	8-97106-969-0	01	1	9507-9606		●	●
63	08.846 HOSE; WATER 4BD2 ENG(RLW) (A)	8-97106-969-0	01	1	9607-9705	●	●	●
63	08.846 HOSE; WATER 4BD2 ENG(RLW) (A)	8-97106-969-0	01	1	9706-	●	●	●	●
63	08.846 HOSE; WATER 4BD2 ENG(RLW) (B)	8-97107-199-0	01	1	9312-9312		●
63	08.846 HOSE; WATER 4BD2 ENG(RLW) (B) '93/12/20-	8-97106-970-0	01	1	9312-9506		●
63	08.846 HOSE; WATER 4BD2 ENG(RLW) (B)	8-97106-970-0	01	1	9507-9606		●	●
63	08.846 HOSE; WATER 4BD2 ENG(RLW) (B)	8-97106-970-0	01	1	9607-9705	●	●	●
63	08.846 HOSE; WATER 4BD2 ENG(RLW) (B)	8-97106-970-0	01	1	9706-	●	●	●	●
63	08.846 HOSE; WATER 4BD2 ENG(RLW) (C)	8-97107-200-0	01	1	9312-9312		●
63	08.846 HOSE; WATER 4BD2 ENG(RLW) (C) '93/12/20-	8-97109-132-0	01	1	9312-9506		●
63	08.846 HOSE; WATER 4BD2 ENG(RLW) (C)	8-97109-132-0	01	1	9507-9606		●	●
63	08.846 HOSE; WATER 4BD2 ENG(RLW) (C)	8-97109-132-0	01	1	9607-9705	●	●	●
63	08.846 HOSE; WATER 4BD2 ENG(RLW) (C)	8-97109-132-0	01	1	9706-	●	●	●	●
63	08.846 HOSE; WATER 4BD2 ENG(RLW) (D)	8-97107-202-0	01	1	9312-9312		●
63	08.846 HOSE; WATER 4BD2 ENG(RLW) (D) '93/12/20-	8-97109-134-0	01	1	9312-9506		●
63	08.846 HOSE; WATER 4BD2 ENG(RLW) (D)	8-97109-134-0	01	1	9507-9606		●	●
63	08.846 HOSE; WATER 4BD2 ENG(RLW) (D)	8-97109-134-0	01	1	9607-9705	●	●	●
63	08.846 HOSE; WATER 4BD2 ENG(RLW) (D)	8-97109-134-0	01	1	9706-	●	●	●	●
73	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=22	8-94382-401-0	02	1	9312-9406	●	●	●	●			●
73	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	02	1	9407-9504	●	●	●	●			●
73	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	02	1	9505-9601	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	02	1	9602-	●	●	●	●
77	08.866 NUT; WATER HOSE 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE	0-91150-208-0	01	1	9312-9510	●	●	●	●
77	08.866 NUT; WATER HOSE 4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE	0-91150-208-0	01	1	9511-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
