8-28 — CHASSIS ELECTRICAL (#48904) — 225 parça
çizim 20382
72 45 44 46
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
44 02.810 HORN; HIGH NOTE
DUAL HEAVY DUTY HORN<6KK> VOLTAGE 24V<7AE> 		8-97091-306-0 01 1 9312-9404 ● ● ● ● ●
44 02.810 HORN; HIGH NOTE
DUAL HEAVY DUTY HORN<6KK> VOLTAGE 24V<7AE> 		8-97109-363-0 01 1 9405-9510 ● ● ● ● ●
44 02.810 HORN; HIGH NOTE
DUAL HEAVY DUTY HORN<6KK> VOLTAGE 24V<7AE> 		8-97109-363-0 01 1 9511-9611 ● ● ● ●
44 02.810 HORN; HIGH NOTE
DUAL HEAVY DUTY HORN<6KK> VOLTAGE 24V<7AE> 		8-97109-363-0 01 1 9612-9711 ● ● ● ● ●
44 02.810 HORN; HIGH NOTE
DUAL HEAVY DUTY HORN<6KK> VOLTAGE 24V<7AE> 		8-97109-363-0 01 1 9712- ● ● ● ● ● ●
44 02.810 HORN; HIGH NOTE
DUAL HEAVY DUTY HORN<6KK> EXC. VOLTAGE 24V<7AE> 		8-97091-305-0 01 1 9312-9404 ● ●
44 02.810 HORN; HIGH NOTE
DUAL HEAVY DUTY HORN<6KK> EXC. VOLTAGE 24V<7AE> 		8-97109-361-0 01 1 9405-9506 ● ●
44 02.810 HORN; HIGH NOTE
DUAL HEAVY DUTY HORN<6KK> EXC. VOLTAGE 24V<7AE> 		8-97109-361-0 01 1 9507-9606 ● ●
44 02.810 HORN; HIGH NOTE
DUAL HEAVY DUTY HORN<6KK> EXC. VOLTAGE 24V<7AE> 		8-97109-361-0 01 1 9607-9705 ● ● ●
44 02.810 HORN; HIGH NOTE
DUAL HEAVY DUTY HORN<6KK> EXC. VOLTAGE 24V<7AE> 		8-97109-361-0 01 1 9706- ● ● ● ●
45 02.810 HORN; LOW NOTE
SINGLE HEAVY DUTY HORN<6HG>,DUAL HEAVY DUTY HORN<6KK> VOLTAGE 24V<7AE> 		8-97091-307-0 01 1 9312-9404 ● ● ● ● ●
45 02.810 HORN; LOW NOTE
SINGLE HEAVY DUTY HORN<6HG>,DUAL HEAVY DUTY HORN<6KK> VOLTAGE 24V<7AE> 		8-97109-364-0 01 1 9405-9510 ● ● ● ● ●
45 02.810 HORN; LOW NOTE
SINGLE HEAVY DUTY HORN<6HG>,DUAL HEAVY DUTY HORN<6KK> VOLTAGE 24V<7AE> 		8-97109-364-1 01 1 9511-9611 ● ● ● ●
45 02.810 HORN; LOW NOTE
SINGLE HEAVY DUTY HORN<6HG>,DUAL HEAVY DUTY HORN<6KK> VOLTAGE 24V<7AE> 		8-97109-364-1 01 1 9612-9711 ● ● ● ● ●
45 02.810 HORN; LOW NOTE
SINGLE HEAVY DUTY HORN<6HG>,DUAL HEAVY DUTY HORN<6KK> VOLTAGE 24V<7AE> 		8-97109-364-1 01 1 9712- ● ● ● ● ● ●
45 02.810 HORN; LOW NOTE
SINGLE HEAVY DUTY HORN<6HG>,DUAL HEAVY DUTY HORN<6KK> EXC. VOLTAGE 24V<7AE> 		8-97091-303-0 01 1 9312-9404 ● ●
45 02.810 HORN; LOW NOTE
SINGLE HEAVY DUTY HORN<6HG>,DUAL HEAVY DUTY HORN<6KK> EXC. VOLTAGE 24V<7AE> 		8-97109-362-0 01 1 9405-9506 ● ●
45 02.810 HORN; LOW NOTE
SINGLE HEAVY DUTY HORN<6HG>,DUAL HEAVY DUTY HORN<6KK> EXC. VOLTAGE 24V<7AE> 		8-97109-362-1 01 1 9507-9606 ● ●
45 02.810 HORN; LOW NOTE
SINGLE HEAVY DUTY HORN<6HG>,DUAL HEAVY DUTY HORN<6KK> EXC. VOLTAGE 24V<7AE> 		8-97109-362-1 01 1 9607-9705 ● ● ●
45 02.810 HORN; LOW NOTE
SINGLE HEAVY DUTY HORN<6HG>,DUAL HEAVY DUTY HORN<6KK> EXC. VOLTAGE 24V<7AE> 		8-97109-362-1 01 1 9706- ● ● ● ●
46 02.812 BOLT; HORN TO BODY
SINGLE HEAVY DUTY HORN<6HG>,DUAL HEAVY DUTY HORN<6KK> 02.559 M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 9312-9406 ● ● ● ● ●
46 02.812 BOLT; HORN TO BODY
SINGLE HEAVY DUTY HORN<6HG>,DUAL HEAVY DUTY HORN<6KK> 02.559 M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9407-9510 ● ● ● ● ●
46 02.812 BOLT; HORN TO BODY
DUAL HEAVY DUTY HORN<6KK> 02.559 M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9511-9611 ● ● ● ●
46 02.812 BOLT; HORN TO BODY
SINGLE HEAVY DUTY HORN<6HG>,DUAL HEAVY DUTY HORN<6KK> 02.559 M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9511-9611 ● ● ● ●
46 02.812 BOLT; HORN TO BODY
DUAL HEAVY DUTY HORN<6KK> 02.559 M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9612-9711 ● ● ● ● ●
46 02.812 BOLT; HORN TO BODY
SINGLE HEAVY DUTY HORN<6HG>,DUAL HEAVY DUTY HORN<6KK> 02.559 M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9612-9711 ● ● ● ● ●
46 02.812 BOLT; HORN TO BODY
DUAL HEAVY DUTY HORN<6KK> 02.559 M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9712- ● ● ● ● ● ●
46 02.812 BOLT; HORN TO BODY
SINGLE HEAVY DUTY HORN<6HG>,DUAL HEAVY DUTY HORN<6KK> 02.559 M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9712- ● ● ● ● ● ●
72 02.760 PROTECTOR; RELAY
PTO TRANSMISSION SIDE(V66) 02.530 L=65 		8-94235-856-0 01 1 9411-9504 ● ● ● ● ●
72 02.760 PROTECTOR; RELAY
FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) 02.530 L=65 		8-94235-856-0 01 1 9505-9510 ● ● ● ● ●
72 02.760 PROTECTOR; RELAY
FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) 02.530 L=65 		8-94235-856-0 01 1 9511-9611 ● ● ● ●
72 02.760 PROTECTOR; RELAY
FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) 02.530 L=65 		8-94235-856-0 01 1 9612-9711 ● ● ● ● ●
72 02.760 PROTECTOR; RELAY
FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) 02.530 L=65 		8-94235-856-0 01 1 9712- ● ● ● ● ● ●
72 02.760 PROTECTOR; RELAY
PTO TRANSMISSION SIDE(V66) 16.225 L=200 SERVICED BY L=3060 		9-65731-223-1 01 1 9411-9504 ● ● ● ● ●
72 02.760 PROTECTOR; RELAY
FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) 16.225 L=200 SERVICED BY L=3060 		9-65731-223-1 01 1 9505-9510 ● ● ● ● ●
72 02.760 PROTECTOR; RELAY
FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 16.225 L=200 SERVICED BY L=3060 		9-65731-223-1 01 1 9511-9711 ● ● ● ●
72 02.760 PROTECTOR; RELAY
FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 16.225 L=200 SERVICED BY L=3060 		9-65731-223-1 01 1 9712- ● ● ● ● ●
çizim 67810
312 361
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
312 09.765 BOLT; BUZZER
A/T 4 SPEED-JATCO(RMK) AUSTRALIA EQUIPMENT(RR3) 10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 01 1 9312-9711 ●
312 09.765 BOLT; BUZZER
A/T 4 SPEED-JATCO(RMK) 10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 01 1 9712-9801 ●
312 09.765 BOLT; BUZZER
EXC. FLOOR REMOTE SHIFT<M11> 10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 01 1 9802- ● ● ● ● ●
361 02.559 BOLT; CONNECTOR
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 9312-9510 ● ● ● ● ●
361 02.559 BOLT; CONNECTOR
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 9511-9611 ● ● ● ●
361 02.559 BOLT; CONNECTOR
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 9612-9711 ● ● ● ● ●
361 02.559 BOLT; CONNECTOR
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 9712- ● ● ● ● ● ●
361 02.559 BOLT; CONNECTOR
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9312-9510 ● ● ● ● ●
361 02.559 BOLT; CONNECTOR
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9511-9611 ● ● ● ●
361 02.559 BOLT; CONNECTOR
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9612-9711 ● ● ● ● ●
361 02.559 BOLT; CONNECTOR
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9712- ● ● ● ● ● ●

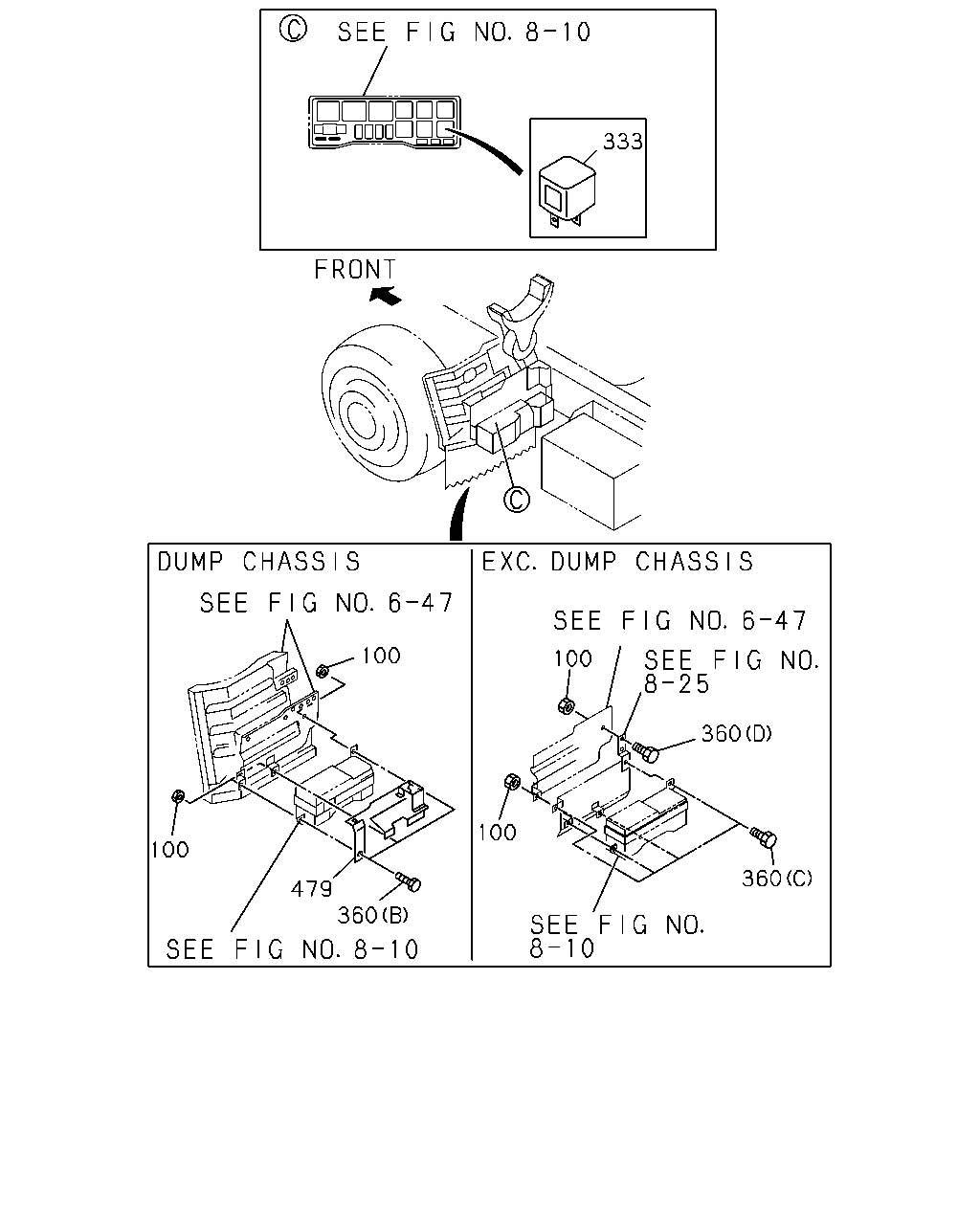

çizim 67848
333 100 100 360 100 100 360 479 360
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
100 09.277 NUT; RELAY BOX COVER
4HF1 ENG(RLS) 07.633 M8 FLANGE 		0-91150-108-0 02 1 9312-9510 ● ● ● ● ●
100 09.277 NUT; RELAY BOX COVER
4HF1 ENG(RLS) 07.633 M8 FLANGE 		0-91150-108-0 02 1 9511-9603 ● ● ● ●
100 09.277 NUT; RELAY BOX COVER
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9604-9611 ● ● ●
100 09.277 NUT; RELAY BOX COVER
4BD2 ENG(RLW) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9604-9611 ● ●
100 09.277 NUT; RELAY BOX COVER
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9612-9704 ● ● ● ●
100 09.277 NUT; RELAY BOX COVER
4BD2 ENG(RLW) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9612-9704 ● ●
100 09.277 NUT; RELAY BOX COVER
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TIRE SIZE 8.25-16<7QP> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9705-9711 ● ● ● ●
100 09.277 NUT; RELAY BOX COVER
4BD2 ENG(RLW) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9705-9711 ● ●
100 09.277 NUT; RELAY BOX COVER
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TIRE SIZE 8.25-16<7QP> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9712-9801 ● ● ● ● ●
100 09.277 NUT; RELAY BOX COVER
4BD2 ENG(RLW) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9712-9801 ● ●
100 09.277 NUT; RELAY BOX COVER
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>,TIRE SIZE 8.25-16<7QP> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9802- ● ● ● ● ●
100 09.277 NUT; RELAY BOX COVER
4BD2 ENG(RLW) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9802- ● ●
100 09.277 NUT; RELAY BOX COVER
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) 07.633 M8 FLANGE 		0-91150-108-0 03 1 9312-9510 ● ● ● ●
100 09.277 NUT; RELAY BOX COVER
4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) 07.633 M8 FLANGE 		0-91150-108-0 03 1 9511-9603 ● ● ● ●
100 09.277 NUT; RELAY BOX COVER
4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 03 1 9604-9711 ● ● ● ●
100 09.277 NUT; RELAY BOX COVER
4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 07.633 M8 FLANGE 		0-91150-108-0 03 1 9604-9711 ● ●
100 09.277 NUT; RELAY BOX COVER
4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 03 1 9712-9802 ● ● ● ●
100 09.277 NUT; RELAY BOX COVER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE 		0-91150-108-0 03 1 9712-9802 ● ● ● ● ●
100 09.277 NUT; RELAY BOX COVER
4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 07.633 M8 FLANGE 		0-91150-108-0 03 1 9712-9802 ● ● ●
100 09.277 NUT; RELAY BOX COVER
4HG1 ENG(RJH),4HF1 ENG(RLS) TIRE SIZE 8.25-16<7QP> 07.633 M8 FLANGE 		0-91150-108-0 03 1 9712-9802 ● ● ●
100 09.277 NUT; RELAY BOX COVER
4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 03 1 9803- ● ● ● ●
100 09.277 NUT; RELAY BOX COVER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE 		0-91150-108-0 03 1 9803- ● ● ● ● ●
100 09.277 NUT; RELAY BOX COVER
4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 07.633 M8 FLANGE 		0-91150-108-0 03 1 9803- ● ● ●
333 09.277 RELAY; MARKER LAMP
EUROPEAN BASIC EQUIPMENT(EK4) 08.852 12V 20A 		8-97060-926-0 01 1 9312-9506 ●
333 09.277 RELAY; MARKER LAMP
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 08.852 12V 20A 		8-97060-926-1 01 1 9507-9711 ● ●
333 09.277 RELAY; MARKER LAMP
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 9712-9807 ● ●
333 09.277 RELAY; MARKER LAMP
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 9808- ● ● ●
333 09.277 RELAY; MARKER LAMP
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) VOLTAGE 24V<7AE> 02.510 24V 12.5A JIDECO 		8-97062-815-1 01 1 9712-9807 ● ● ●
333 09.277 RELAY; MARKER LAMP
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) VOLTAGE 24V<7AE> 02.510 24V 12.5A JIDECO 		8-97062-815-1 01 1 9808- ● ● ● ●
360 02.483 BOLT; RELAY BOX
08.225 (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9312-9510 ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
08.225 (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9511-9604 ● ● ● ●
360 02.483 BOLT; RELAY BOX
10.230 (A) M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 9604-9611 ● ● ● ●
360 02.483 BOLT; RELAY BOX
10.230 (A) M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 9612-9704 ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
EXC. THAILAND EQUIPMENT(PM9) 10.230 (A) M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 9705-9711 ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
EXC. THAILAND EQUIPMENT(PM9) 10.230 (A) M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 9712- ● ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
4HF1 ENG(RLS) 01.062 (D) M8X16 FLANGE 		0-28080-816-0 01 1 9312-9510 ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
4HF1 ENG(RLS) 01.062 (D) M8X16 FLANGE 		0-28080-816-0 01 1 9511-9603 ● ● ● ●
360 02.483 BOLT; RELAY BOX
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 01.062 (D) M8X16 FLANGE 		0-28080-816-0 01 1 9604-9611 ● ● ●
360 02.483 BOLT; RELAY BOX
4BD2 ENG(RLW) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 01.062 (D) M8X16 FLANGE 		0-28080-816-0 01 1 9604-9611 ● ●
360 02.483 BOLT; RELAY BOX
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 01.062 (D) M8X16 FLANGE 		0-28080-816-0 01 1 9612-9704 ● ● ● ●
360 02.483 BOLT; RELAY BOX
4BD2 ENG(RLW) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 01.062 (D) M8X16 FLANGE 		0-28080-816-0 01 1 9612-9704 ● ●
360 02.483 BOLT; RELAY BOX
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TIRE SIZE 8.25-16<7QP> 01.062 (D) M8X16 FLANGE 		0-28080-816-0 01 1 9705-9711 ● ● ● ●
360 02.483 BOLT; RELAY BOX
4BD2 ENG(RLW) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 01.062 (D) M8X16 FLANGE 		0-28080-816-0 01 1 9705-9711 ● ●
360 02.483 BOLT; RELAY BOX
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TIRE SIZE 8.25-16<7QP> 01.062 (D) M8X16 FLANGE 		0-28080-816-0 01 1 9712-9801 ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
4BD2 ENG(RLW) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 01.062 (D) M8X16 FLANGE 		0-28080-816-0 01 1 9712-9801 ● ●
360 02.483 BOLT; RELAY BOX
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>,TIRE SIZE 8.25-16<7QP> 01.062 (D) M8X16 FLANGE 		0-28080-816-0 01 1 9802- ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
4BD2 ENG(RLW) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 01.062 (D) M8X16 FLANGE 		0-28080-816-0 01 1 9802- ● ●
360 02.483 BOLT; RELAY BOX
4HF1 ENG(RLS) 01.531 (C) M8X25 FLANGE 		0-28080-825-0 04 1 9312-9503 ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
4HF1 ENG(RLS) 02.559 (C) M8X25 FLANGE 		0-28680-825-0 04 1 9504-9510 ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
4HF1 ENG(RLS) 02.559 (C) M8X25 FLANGE 		0-28680-825-0 04 1 9511-9603 ● ● ● ●
360 02.483 BOLT; RELAY BOX
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 02.559 (C) M8X25 FLANGE 		0-28680-825-0 04 1 9604-9611 ● ● ●
360 02.483 BOLT; RELAY BOX
4BD2 ENG(RLW) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 02.559 (C) M8X25 FLANGE 		0-28680-825-0 04 1 9604-9611 ● ●
360 02.483 BOLT; RELAY BOX
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 02.559 (C) M8X25 FLANGE 		0-28680-825-0 04 1 9612-9704 ● ● ● ●
360 02.483 BOLT; RELAY BOX
4BD2 ENG(RLW) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 02.559 (C) M8X25 FLANGE 		0-28680-825-0 04 1 9612-9704 ● ●
360 02.483 BOLT; RELAY BOX
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TIRE SIZE 8.25-16<7QP> 02.559 (C) M8X25 FLANGE 		0-28680-825-0 04 1 9705-9711 ● ● ● ●
360 02.483 BOLT; RELAY BOX
4BD2 ENG(RLW) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 02.559 (C) M8X25 FLANGE 		0-28680-825-0 04 1 9705-9711 ● ●
360 02.483 BOLT; RELAY BOX
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TIRE SIZE 8.25-16<7QP> 02.559 (C) M8X25 FLANGE 		0-28680-825-0 04 1 9712-9801 ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
4BD2 ENG(RLW) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 02.559 (C) M8X25 FLANGE 		0-28680-825-0 04 1 9712-9801 ● ●
360 02.483 BOLT; RELAY BOX
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>,TIRE SIZE 8.25-16<7QP> 02.559 (C) M8X25 FLANGE 		0-28680-825-0 04 1 9802- ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
4BD2 ENG(RLW) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 02.559 (C) M8X25 FLANGE 		0-28680-825-0 04 1 9802- ● ●
360 02.483 BOLT; RELAY BOX
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) 01.531 (B) M8X25 FLANGE 		0-28080-825-0 03 1 9312-9503 ● ● ● ●
360 02.483 BOLT; RELAY BOX
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) 02.559 (B) M8X25 FLANGE 		0-28680-825-0 03 1 9504-9510 ● ● ● ●
360 02.483 BOLT; RELAY BOX
4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) 02.559 (B) M8X25 FLANGE 		0-28680-825-0 03 1 9511-9603 ● ● ● ●
360 02.483 BOLT; RELAY BOX
4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 03 1 9705-9705 ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 03 1 9705-9705 ● ●
360 02.483 BOLT; RELAY BOX
4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 03 1 9706-9706 ● ● ● ●
360 02.483 BOLT; RELAY BOX
4HF1 ENG(RLS) TIRE SIZE 8.25-16<7QP> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 03 1 9706-9706 ● ● ●
360 02.483 BOLT; RELAY BOX
4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 03 1 9706-9706 ● ●
360 02.483 BOLT; RELAY BOX
4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 03 1 9706-9711 ● ● ● ●
360 02.483 BOLT; RELAY BOX
4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 03 1 9706-9711 ● ●
360 02.483 BOLT; RELAY BOX
4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 03 1 9712- ● ● ● ●
360 02.483 BOLT; RELAY BOX
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 03 1 9712- ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 03 1 9712- ● ● ●
360 02.483 BOLT; RELAY BOX
THAILAND EQUIPMENT(PM9) 10.230 (A) M6X16 W/LK&PL WASHER 		8-94139-963-0 02 1 9705- ● ● ●
360 02.483 BOLT; RELAY BOX
4HF1 ENG(RLS) TIRE SIZE 8.25-16<7QP> 07.010 (B) M8X20 FLANGE 		0-28080-820-0 03 1 9706-9711 ● ● ●
360 02.483 BOLT; RELAY BOX
4HG1 ENG(RJH),4HF1 ENG(RLS) TIRE SIZE 8.25-16<7QP> 07.010 (B) M8X20 FLANGE 		0-28080-820-0 03 1 9712- ● ● ●
479 09.277 PROTECTOR; RELAY BOX
DUMP CHASSIS(V4D) 		8-97072-505-2 01 1 9312-9406 ●
479 09.277 PROTECTOR; RELAY BOX
DUMP CHASSIS(V4D) 		8-97072-505-2 01 1 9407-9505 ●
479 09.277 PROTECTOR; RELAY BOX
DUMP CHASSIS(V4D) 		8-97114-263-0 01 1 9506- ●

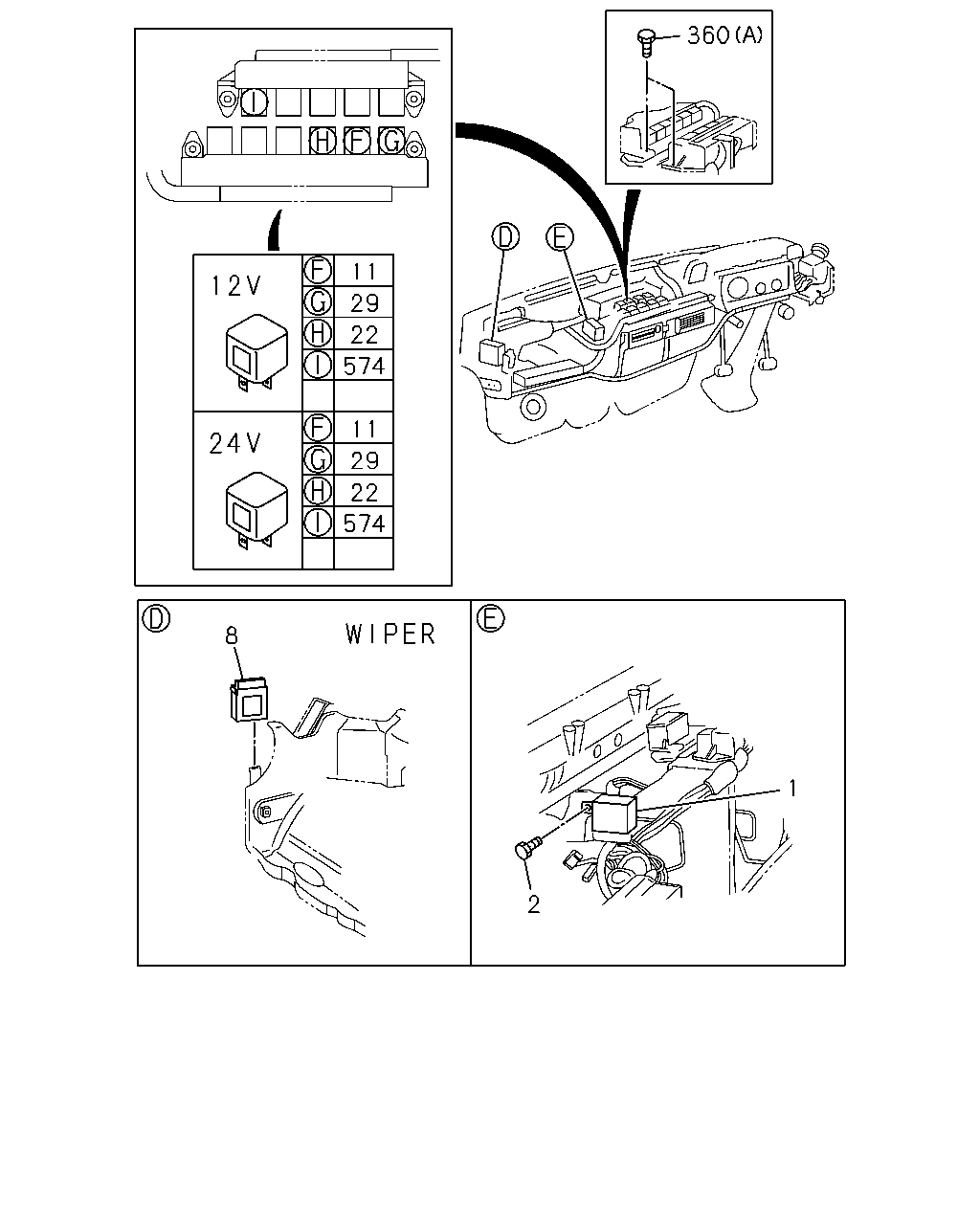

çizim 70418
360 11 29 22 574 11 29 22 574 8 1 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 02.575 UNIT; FLASHER
VOLTAGE 24V<7AE> 		8-97086-508-1 01 1 9312-9510 ● ● ● ● ●
1 02.575 UNIT; FLASHER
VOLTAGE 24V<7AE> 		8-97086-508-1 01 1 9511-9611 ● ● ● ●
1 02.575 UNIT; FLASHER
VOLTAGE 24V<7AE> 		8-97086-508-1 01 1 9612-9711 ● ● ● ● ●
1 02.575 UNIT; FLASHER
VOLTAGE 24V<7AE> 		8-97086-508-1 01 1 9712- ● ● ● ● ● ●
1 02.575 UNIT; FLASHER
EXC. VOLTAGE 24V<7AE> 		8-97086-509-1 01 1 9312-9506 ● ●
1 02.575 UNIT; FLASHER
EXC. VOLTAGE 24V<7AE> 		8-97086-509-1 01 1 9507-9606 ● ●
1 02.575 UNIT; FLASHER
EXC. VOLTAGE 24V<7AE> 		8-97086-509-1 01 1 9607-9705 ● ● ●
1 02.575 UNIT; FLASHER
EXC. VOLTAGE 24V<7AE> 		8-97086-509-1 01 1 9706- ● ● ● ●
2 02.892 BOLT; FLASHER UNIT
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 9312-9510 ● ● ● ● ●
2 02.892 BOLT; FLASHER UNIT
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 9511-9604 ● ● ● ●
2 02.892 BOLT; FLASHER UNIT
10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 01 1 9604-9611 ● ● ● ●
2 02.892 BOLT; FLASHER UNIT
10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 01 1 9612-9711 ● ● ● ● ●
2 02.892 BOLT; FLASHER UNIT
10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 01 1 9712- ● ● ● ● ● ●
8 16.067 RELAY; WIPER
INTERMITTENT WIPER<C13> VOLTAGE 24V<7AE> 		8-97855-015-0 01 1 9312-9510 ● ● ● ● ●
8 16.067 RELAY; WIPER
INTERMITTENT WIPER<C13> VOLTAGE 24V<7AE> 		8-97855-015-0 01 1 9511-9611 ● ● ● ●
8 16.067 RELAY; WIPER
INTERMITTENT WIPER<C13> VOLTAGE 24V<7AE> 		8-97855-015-0 01 1 9612-9711 ● ● ● ● ●
8 16.067 RELAY; WIPER
INTERMITTENT WIPER<C13> VOLTAGE 24V<7AE> 		8-97184-233-0 01 1 9712- ● ● ● ● ● ●
8 16.067 RELAY; WIPER
INTERMITTENT WIPER<C13> EXC. VOLTAGE 24V<7AE> 		8-97855-014-0 01 1 9312-9506 ● ●
8 16.067 RELAY; WIPER
INTERMITTENT WIPER<C13> EXC. VOLTAGE 24V<7AE> 		8-97855-014-0 01 1 9507-9606 ● ●
8 16.067 RELAY; WIPER
INTERMITTENT WIPER<C13> EXC. VOLTAGE 24V<7AE> 		8-97855-014-0 01 1 9607-9705 ● ● ●
8 16.067 RELAY; WIPER
INTERMITTENT WIPER<C13> EXC. VOLTAGE 24V<7AE> 		8-97855-014-0 01 1 9706-9711 ● ● ● ●
8 16.067 RELAY; WIPER
INTERMITTENT WIPER<C13> EXC. VOLTAGE 24V<7AE> 		8-97855-186-0 01 1 9712- ● ● ● ●
11 02.485 RELAY; DIMMER
VOLTAGE 24V<7AE> 02.510 24V 12.5A JIDECO 		8-97062-815-0 01 1 9312-9510 ● ● ● ● ●
11 02.485 RELAY; DIMMER
VOLTAGE 24V<7AE> 02.510 24V 12.5A JIDECO 		8-97062-815-1 01 1 9511-9611 ● ● ● ●
11 02.485 RELAY; DIMMER
VOLTAGE 24V<7AE> 02.510 24V 12.5A JIDECO 		8-97062-815-1 01 1 9612-9711 ● ● ● ● ●
11 02.485 RELAY; DIMMER
VOLTAGE 24V<7AE> 02.510 24V 12.5A JIDECO 		8-97062-815-1 01 1 9712- ● ● ● ● ● ●
11 02.485 RELAY; DIMMER
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-0 01 1 9312-9506 ● ●
11 02.485 RELAY; DIMMER
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 9507-9606 ● ●
11 02.485 RELAY; DIMMER
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 9607-9705 ● ● ●
11 02.485 RELAY; DIMMER
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 9706- ● ● ● ●
22 02.679 RELAY; STOP LAMP
VOLTAGE 24V<7AE> 02.510 24V 12.5A JIDECO 		8-97062-815-0 01 1 9312-9510 ● ● ● ● ●
22 02.679 RELAY; STOP LAMP
VOLTAGE 24V<7AE> 02.510 24V 12.5A JIDECO 		8-97062-815-1 01 1 9511-9611 ● ● ● ●
22 02.679 RELAY; STOP LAMP
VOLTAGE 24V<7AE> 02.510 24V 12.5A JIDECO 		8-97062-815-1 01 1 9612-9711 ● ● ● ● ●
22 02.679 RELAY; STOP LAMP
VOLTAGE 24V<7AE> 02.510 24V 12.5A JIDECO 		8-97062-815-1 01 1 9712- ● ● ● ● ● ●
22 02.679 RELAY; STOP LAMP
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-0 01 1 9312-9506 ● ●
22 02.679 RELAY; STOP LAMP
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 9507-9606 ● ●
22 02.679 RELAY; STOP LAMP
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 9607-9705 ● ● ●
22 02.679 RELAY; STOP LAMP
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 9706- ● ● ● ●
29 02.815 RELAY; HORN
VOLTAGE 24V<7AE> 02.510 24V 12.5A JIDECO 		8-97062-815-0 01 1 9312-9510 ● ● ● ● ●
29 02.815 RELAY; HORN
VOLTAGE 24V<7AE> 02.510 24V 12.5A JIDECO 		8-97062-815-1 01 1 9511-9611 ● ● ● ●
29 02.815 RELAY; HORN
VOLTAGE 24V<7AE> 02.510 24V 12.5A JIDECO 		8-97062-815-1 01 1 9612-9711 ● ● ● ● ●
29 02.815 RELAY; HORN
VOLTAGE 24V<7AE> 02.510 24V 12.5A JIDECO 		8-97062-815-1 01 1 9712- ● ● ● ● ● ●
29 02.815 RELAY; HORN
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-0 01 1 9312-9506 ● ●
29 02.815 RELAY; HORN
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 9507-9606 ● ●
29 02.815 RELAY; HORN
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 9607-9705 ● ● ●
29 02.815 RELAY; HORN
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 9706- ● ● ● ●
360 02.483 BOLT; RELAY BOX
08.225 (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9312-9510 ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
08.225 (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9511-9604 ● ● ● ●
360 02.483 BOLT; RELAY BOX
10.230 (A) M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 9604-9611 ● ● ● ●
360 02.483 BOLT; RELAY BOX
10.230 (A) M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 9612-9704 ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
EXC. THAILAND EQUIPMENT(PM9) 10.230 (A) M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 9705-9711 ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
EXC. THAILAND EQUIPMENT(PM9) 10.230 (A) M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 9712- ● ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
4HF1 ENG(RLS) 01.062 (D) M8X16 FLANGE 		0-28080-816-0 01 1 9312-9510 ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
4HF1 ENG(RLS) 01.062 (D) M8X16 FLANGE 		0-28080-816-0 01 1 9511-9603 ● ● ● ●
360 02.483 BOLT; RELAY BOX
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 01.062 (D) M8X16 FLANGE 		0-28080-816-0 01 1 9604-9611 ● ● ●
360 02.483 BOLT; RELAY BOX
4BD2 ENG(RLW) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 01.062 (D) M8X16 FLANGE 		0-28080-816-0 01 1 9604-9611 ● ●
360 02.483 BOLT; RELAY BOX
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 01.062 (D) M8X16 FLANGE 		0-28080-816-0 01 1 9612-9704 ● ● ● ●
360 02.483 BOLT; RELAY BOX
4BD2 ENG(RLW) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 01.062 (D) M8X16 FLANGE 		0-28080-816-0 01 1 9612-9704 ● ●
360 02.483 BOLT; RELAY BOX
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TIRE SIZE 8.25-16<7QP> 01.062 (D) M8X16 FLANGE 		0-28080-816-0 01 1 9705-9711 ● ● ● ●
360 02.483 BOLT; RELAY BOX
4BD2 ENG(RLW) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 01.062 (D) M8X16 FLANGE 		0-28080-816-0 01 1 9705-9711 ● ●
360 02.483 BOLT; RELAY BOX
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TIRE SIZE 8.25-16<7QP> 01.062 (D) M8X16 FLANGE 		0-28080-816-0 01 1 9712-9801 ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
4BD2 ENG(RLW) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 01.062 (D) M8X16 FLANGE 		0-28080-816-0 01 1 9712-9801 ● ●
360 02.483 BOLT; RELAY BOX
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>,TIRE SIZE 8.25-16<7QP> 01.062 (D) M8X16 FLANGE 		0-28080-816-0 01 1 9802- ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
4BD2 ENG(RLW) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 01.062 (D) M8X16 FLANGE 		0-28080-816-0 01 1 9802- ● ●
360 02.483 BOLT; RELAY BOX
4HF1 ENG(RLS) 01.531 (C) M8X25 FLANGE 		0-28080-825-0 04 1 9312-9503 ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
4HF1 ENG(RLS) 02.559 (C) M8X25 FLANGE 		0-28680-825-0 04 1 9504-9510 ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
4HF1 ENG(RLS) 02.559 (C) M8X25 FLANGE 		0-28680-825-0 04 1 9511-9603 ● ● ● ●
360 02.483 BOLT; RELAY BOX
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 02.559 (C) M8X25 FLANGE 		0-28680-825-0 04 1 9604-9611 ● ● ●
360 02.483 BOLT; RELAY BOX
4BD2 ENG(RLW) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 02.559 (C) M8X25 FLANGE 		0-28680-825-0 04 1 9604-9611 ● ●
360 02.483 BOLT; RELAY BOX
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 02.559 (C) M8X25 FLANGE 		0-28680-825-0 04 1 9612-9704 ● ● ● ●
360 02.483 BOLT; RELAY BOX
4BD2 ENG(RLW) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 02.559 (C) M8X25 FLANGE 		0-28680-825-0 04 1 9612-9704 ● ●
360 02.483 BOLT; RELAY BOX
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TIRE SIZE 8.25-16<7QP> 02.559 (C) M8X25 FLANGE 		0-28680-825-0 04 1 9705-9711 ● ● ● ●
360 02.483 BOLT; RELAY BOX
4BD2 ENG(RLW) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 02.559 (C) M8X25 FLANGE 		0-28680-825-0 04 1 9705-9711 ● ●
360 02.483 BOLT; RELAY BOX
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TIRE SIZE 8.25-16<7QP> 02.559 (C) M8X25 FLANGE 		0-28680-825-0 04 1 9712-9801 ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
4BD2 ENG(RLW) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 02.559 (C) M8X25 FLANGE 		0-28680-825-0 04 1 9712-9801 ● ●
360 02.483 BOLT; RELAY BOX
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>,TIRE SIZE 8.25-16<7QP> 02.559 (C) M8X25 FLANGE 		0-28680-825-0 04 1 9802- ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
4BD2 ENG(RLW) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 02.559 (C) M8X25 FLANGE 		0-28680-825-0 04 1 9802- ● ●
360 02.483 BOLT; RELAY BOX
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) 01.531 (B) M8X25 FLANGE 		0-28080-825-0 03 1 9312-9503 ● ● ● ●
360 02.483 BOLT; RELAY BOX
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) 02.559 (B) M8X25 FLANGE 		0-28680-825-0 03 1 9504-9510 ● ● ● ●
360 02.483 BOLT; RELAY BOX
4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) 02.559 (B) M8X25 FLANGE 		0-28680-825-0 03 1 9511-9603 ● ● ● ●
360 02.483 BOLT; RELAY BOX
4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 03 1 9705-9705 ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 03 1 9705-9705 ● ●
360 02.483 BOLT; RELAY BOX
4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 03 1 9706-9706 ● ● ● ●
360 02.483 BOLT; RELAY BOX
4HF1 ENG(RLS) TIRE SIZE 8.25-16<7QP> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 03 1 9706-9706 ● ● ●
360 02.483 BOLT; RELAY BOX
4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 03 1 9706-9706 ● ●
360 02.483 BOLT; RELAY BOX
4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 03 1 9706-9711 ● ● ● ●
360 02.483 BOLT; RELAY BOX
4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 03 1 9706-9711 ● ●
360 02.483 BOLT; RELAY BOX
4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 03 1 9712- ● ● ● ●
360 02.483 BOLT; RELAY BOX
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 03 1 9712- ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 03 1 9712- ● ● ●
360 02.483 BOLT; RELAY BOX
THAILAND EQUIPMENT(PM9) 10.230 (A) M6X16 W/LK&PL WASHER 		8-94139-963-0 02 1 9705- ● ● ●
360 02.483 BOLT; RELAY BOX
4HF1 ENG(RLS) TIRE SIZE 8.25-16<7QP> 07.010 (B) M8X20 FLANGE 		0-28080-820-0 03 1 9706-9711 ● ● ●
360 02.483 BOLT; RELAY BOX
4HG1 ENG(RJH),4HF1 ENG(RLS) TIRE SIZE 8.25-16<7QP> 07.010 (B) M8X20 FLANGE 		0-28080-820-0 03 1 9712- ● ● ●
574 02.510 RELAY; CANCEL,BUZZER
HYDRO BRAKE BOOSTER<7QQ> 24V 12.5A JIDECO 		8-97062-815-1 01 1 9712-9804 ● ● ● ● ●
574 02.510 RELAY; CANCEL,BUZZER
VOLTAGE 24V<7AE> HYDRO BRAKE BOOSTER<7QQ> 24V 12.5A JIDECO 		8-97062-815-1 01 1 9805- ● ●
574 02.510 RELAY; CANCEL,BUZZER
HYDRO BRAKE BOOSTER<7QQ> 24V 12.5A JIDECO 		8-97062-815-1 01 1 9805- ●
574 02.510 RELAY; CANCEL,BUZZER
24V 12.5A JIDECO 		8-97062-815-1 01 1 9805- ●
574 02.510 RELAY; CANCEL,BUZZER
HYDRO BRAKE BOOSTER<7QQ> EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 9805- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
