Sayfa 8-26 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50696 - NPR/NQR-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶

8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#48903) — 116 parça

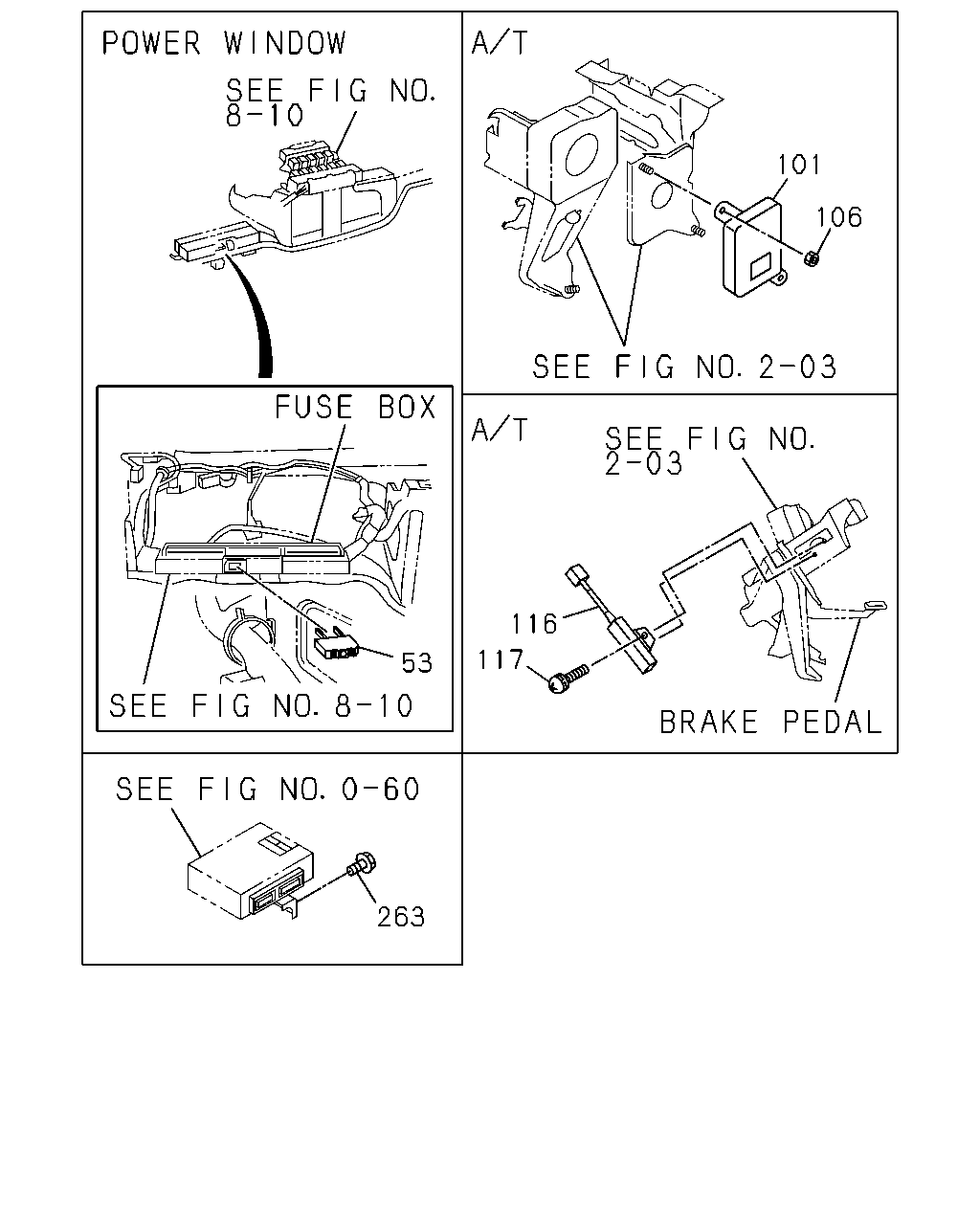

101 106 116 117 53 263

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
53	02.510 BREAKER; ELEC CIRCUIT POWER WINDOW FRT DOOR<A32> 20A	8-94447-470-0	01	1	9312-9510	●	●	●	●	●
53	02.510 BREAKER; ELEC CIRCUIT POWER WINDOW FRT DOOR<A32> 20A	8-94447-470-0	01	1	9511-9611	●	●	●	●
53	02.510 BREAKER; ELEC CIRCUIT POWER WINDOW FRT DOOR<A32> 20A	8-94447-470-0	01	1	9612-9711	●	●	●	●		●
101	04.115 CONTROL UNIT; ELEC,A/T 4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK)	8-97095-898-1	01	1	9312-9510		●
101	04.115 CONTROL UNIT; ELEC,A/T 4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK)	8-97115-794-0	01	1	9511-9711		●
101	04.115 CONTROL UNIT; ELEC,A/T 4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK)	8-97166-978-0	01	1	9712-		●
101	04.115 CONTROL UNIT; ELEC,A/T 4HG1 ENG(RJH) A/T 4 SPEED-JATCO(RMK)	8-97166-980-0	01	1	9712-		●
106	04.115 NUT; ELEC CONT UNIT 4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) 04.594 M6 FLANGE	0-91150-106-0	02	1	9312-9504		●
106	04.115 NUT; ELEC CONT UNIT A/T 4 SPEED-JATCO(RMK) 04.594 M6 FLANGE	0-91150-106-0	02	1	9505-		●
116	02.510 RESISTOR; DROPPING,A/T 4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK)	8-97017-146-1	01	1	9312-9711		●
116	02.510 RESISTOR; DROPPING,A/T 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) A/T 4 SPEED-JATCO(RMK)	8-97017-146-1	01	1	9712-		●
117	02.500 BOLT; DROPPING RESISTOR 4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) 03.680 M6X12 W/LK&PL WASHER	0-50140-612-0	01	1	9312-9504		●
117	02.500 BOLT; DROPPING RESISTOR A/T 4 SPEED-JATCO(RMK) 03.680 M6X12 W/LK&PL WASHER	0-50140-612-0	01	1	9505-9604		●
117	02.500 BOLT; DROPPING RESISTOR A/T 4 SPEED-JATCO(RMK) 04.439 M6X16 FLANGE	0-28680-616-0	01	1	9604-		●
263	04.115 BOLT; CONT UNIT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 04.930 M6X20 FLANGE	0-28680-620-0	02	1	9712-	●	●	●			●	●

204 21 21 2 3 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	09.709 LIGHTER; CIGAR VOLTAGE 24V<7AE>	8-97064-970-0	01	1	9312-9510	●	●	●	●	●
1	09.709 LIGHTER; CIGAR VOLTAGE 24V<7AE>	8-97064-970-1	01	1	9511-9611	●	●	●	●
1	09.709 LIGHTER; CIGAR VOLTAGE 24V<7AE>	8-97064-970-1	01	1	9612-9711	●	●	●	●		●
1	09.709 LIGHTER; CIGAR VOLTAGE 24V<7AE>	8-97064-970-1	01	1	9712-	●	●	●	●		●	●
1	09.709 LIGHTER; CIGAR EXC. VOLTAGE 24V<7AE>	8-97073-936-0	01	1	9312-9506	●	●
1	09.709 LIGHTER; CIGAR EXC. VOLTAGE 24V<7AE>	8-97073-936-1	01	1	9507-9606		●	●
1	09.709 LIGHTER; CIGAR EXC. VOLTAGE 24V<7AE>	8-97073-936-1	01	1	9607-9705	●	●	●
1	09.709 LIGHTER; CIGAR EXC. VOLTAGE 24V<7AE>	8-97073-936-1	01	1	9706-	●	●	●	●
2	09.709 BEZEL; CIGAR LIGHTER	8-97853-159-1	01	1	9312-9510	●	●	●	●	●
2	09.709 BEZEL; CIGAR LIGHTER	8-97853-159-1	01	1	9511-9611	●	●	●	●
2	09.709 BEZEL; CIGAR LIGHTER	8-97853-159-1	01	1	9612-9711	●	●	●	●		●
2	09.709 BEZEL; CIGAR LIGHTER	8-97853-159-1	01	1	9712-	●	●	●	●		●	●
3	08.991 BULB; CIGAR LIGHTER VOLTAGE 24V<7AE>	8-97092-962-0	01	1	9312-9510	●	●	●	●	●
3	08.991 BULB; CIGAR LIGHTER VOLTAGE 24V<7AE>	8-97092-962-0	01	1	9511-9611	●	●	●	●
3	08.991 BULB; CIGAR LIGHTER VOLTAGE 24V<7AE>	8-97092-962-0	01	1	9612-9612	●	●	●	●		●
3	08.991 BULB; CIGAR LIGHTER VOLTAGE 24V<7AE> 28V 1.8W	8-97173-159-0	01	1	9701-9711	●	●	●	●		●
3	08.991 BULB; CIGAR LIGHTER VOLTAGE 24V<7AE> 28V 1.8W	8-97173-159-0	01	1	9712-	●	●	●	●		●	●
3	08.991 BULB; CIGAR LIGHTER EXC. VOLTAGE 24V<7AE>	8-97092-963-0	01	1	9312-9506	●	●
3	08.991 BULB; CIGAR LIGHTER EXC. VOLTAGE 24V<7AE>	8-97092-963-0	01	1	9507-9606		●	●
3	08.991 BULB; CIGAR LIGHTER EXC. VOLTAGE 24V<7AE>	8-97092-963-0	01	1	9607-9612	●	●	●
3	08.991 BULB; CIGAR LIGHTER EXC. VOLTAGE 24V<7AE> 14V 1.4W	8-97173-160-0	01	1	9701-9705	●	●	●
3	08.991 BULB; CIGAR LIGHTER EXC. VOLTAGE 24V<7AE> 14V 1.4W	8-97173-160-0	01	1	9706-	●	●	●	●
21	09.744 COVER; HOLE 09.778 (A)	8-97047-694-1	AR	1	9312-9510	●	●	●	●	●	●	●
21	09.744 COVER; HOLE 09.778 (A)	8-97047-694-1	01	1	9511-9611	●	●	●	●
21	09.744 COVER; HOLE M/T MXA5D(RMF),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSB5S(R45),M/T MSA5G(S7G) 09.778 (A)	8-97047-694-1	01	1	9511-9611	●	●	●	●
21	09.744 COVER; HOLE EXC. RR FOG LAMP<T79> 09.778 (A)	8-97047-694-1	01	1	9511-9611	●	●	●	●
21	09.744 COVER; HOLE 4BD2 ENG(RLW) A/T 4 SPEED-JATCO(RMK) 09.778 (A)	8-97047-694-1	01	1	9511-9611		●
21	09.744 COVER; HOLE 09.778 (A)	8-97047-694-1	01	1	9612-9711	●	●	●	●		●
21	09.744 COVER; HOLE M/T MXA5D(RMF),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSB5S(R45),M/T MSA5G(S7G) 09.778 (A)	8-97047-694-1	01	1	9612-9711	●	●	●	●		●
21	09.744 COVER; HOLE EXC. RR FOG LAMP<T79> 09.778 (A)	8-97047-694-1	01	1	9612-9711	●	●	●	●		●
21	09.744 COVER; HOLE 4BD2 ENG(RLW) A/T 4 SPEED-JATCO(RMK) 09.778 (A)	8-97047-694-1	01	1	9612-9711		●
21	09.744 COVER; HOLE FLOOR REMOTE SHIFT<M11> (A)	8-97136-694-0	01	1	9712-9807	●	●	●	●		●
21	09.744 COVER; HOLE (A)	8-97136-694-0	01	1	9712-9807	●			●		●	●
21	09.744 COVER; HOLE EXC. RR FOG LAMP<T79> (A)	8-97136-694-0	01	1	9712-9807		●	●				●
21	09.744 COVER; HOLE 4HE1 ENG(RLY) EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) (A)	8-97136-694-0	01	1	9712-9807		●	●				●
21	09.744 COVER; HOLE FLOOR REMOTE SHIFT<M11> (A)	8-97136-694-0	01	1	9808-	●	●	●	●		●
21	09.744 COVER; HOLE (A)	8-97136-694-0	01	1	9808-	●			●		●	●
21	09.744 COVER; HOLE EXC. RR FOG LAMP<T79> (A)	8-97136-694-0	01	1	9808-		●	●	●			●
21	09.744 COVER; HOLE 4HE1 ENG(RLY) EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) (A)	8-97136-694-0	01	1	9808-		●	●				●
21	09.744 COVER; HOLE 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. AIR CONDITIONER MANUAL CONT(C60),HONG KONG EQUIPMENT(PQ1),TACHOMETE R<U16> 09.748 (C)	8-97101-974-0	01	1	9604-9710	●	●	●	●
21	09.744 COVER; HOLE 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. AIR CONDITIONER MANUAL CONT(C60),HONG KONG EQUIPMENT(PQ1),TACHOMETE R<U16> 09.748 (C)	8-97101-974-0	01	1	9711-9711	●	●	●	●		●
21	09.744 COVER; HOLE 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. AIR CONDITIONER MANUAL CONT(C60),TACHOMETER<U16> 09.748 (C)	8-97101-974-0	01	1	9712-	●	●	●	●		●
21	09.744 COVER; HOLE 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> EXC. TACHOMETER<U16> 09.748 (C)	8-97101-974-0	01	1	9712-		●	●	●		●
21	09.744 COVER; HOLE FLOOR REMOTE SHIFT<M11> ADJUST HEADLAMP<6RC> EXC. PTO TRANSMISSION SIDE(V66) 02.485 (B)	8-94310-890-0	01	1	9507-9603		●	●
21	09.744 COVER; HOLE A/T 4 SPEED-JATCO(RMK) ADJUST HEADLAMP<6RC> 02.485 (B)	8-94310-890-0	01	1	9507-9603		●
21	09.744 COVER; HOLE ADJUST HEADLAMP<6RC> EXC. PTO TRANSMISSION SIDE(V66) 02.485 (B)	8-94310-890-0	01	1	9604-9711		●	●
21	09.744 COVER; HOLE ADJUST HEADLAMP<6RC> EXC. PTO TRANSMISSION SIDE(V66) 02.485 (B)	8-94310-890-0	01	1	9712-9807		●	●				●
21	09.744 COVER; HOLE ADJUST HEADLAMP<6RC> EXC. PTO TRANSMISSION SIDE(V66) 02.485 (B)	8-94310-890-0	01	1	9808-		●	●	●			●
204	02.195 BUZZER; KEY REMIND A/T 4 SPEED-JATCO(RMK) AUSTRALIA EQUIPMENT(RR3) 09.765	8-97036-649-0	01	1	9312-9711		●
204	02.195 BUZZER; KEY REMIND A/T 4 SPEED-JATCO(RMK) 09.765	8-97036-649-0	01	1	9712-9801		●
204	02.195 BUZZER; KEY REMIND EXC. FLOOR REMOTE SHIFT<M11> 09.765	8-97036-649-0	01	1	9802-	●	●	●	●		●

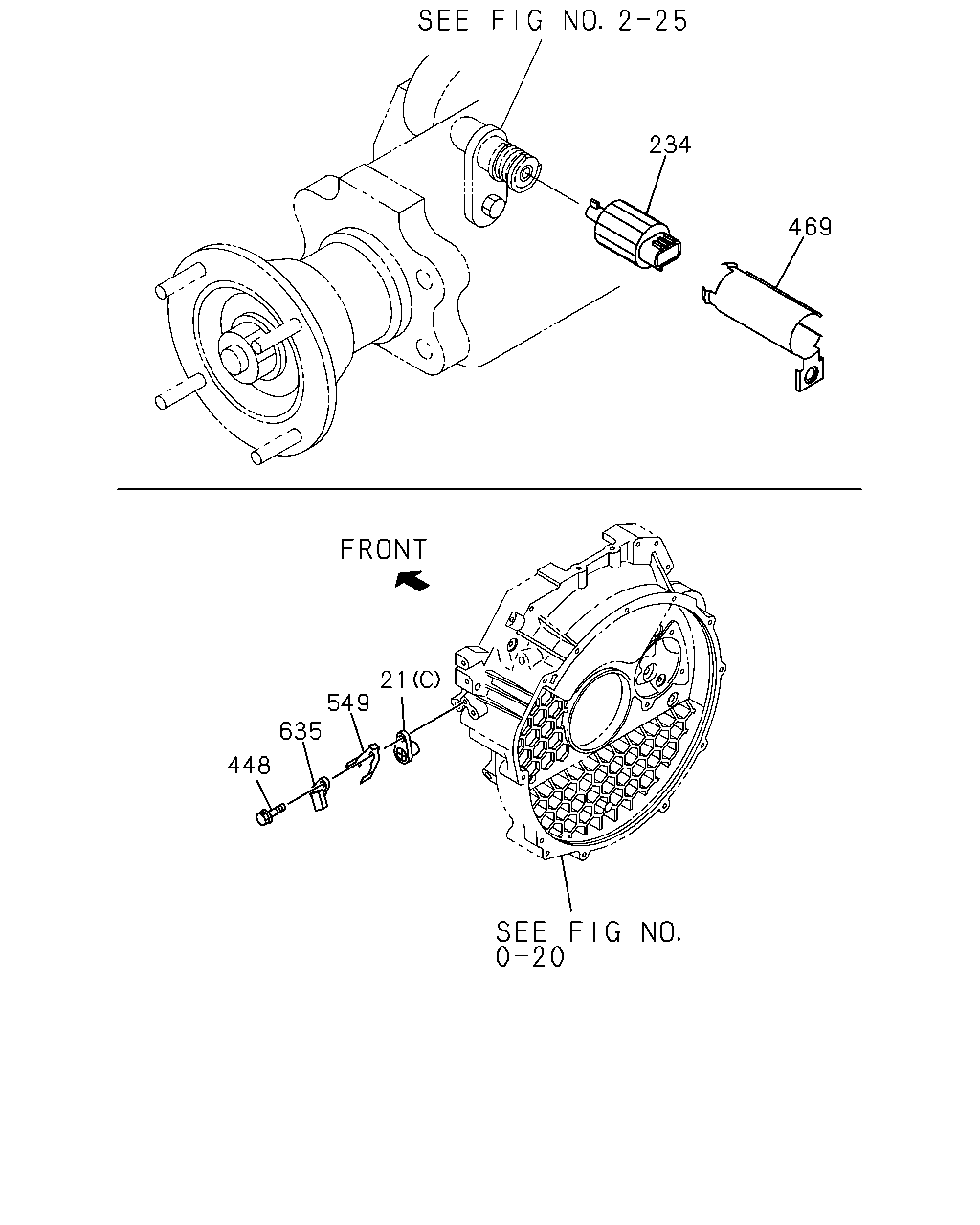

234 469 21 549 635 448

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
21	09.744 COVER; HOLE 09.778 (A)	8-97047-694-1	AR	1	9312-9510	●	●	●	●	●	●	●
21	09.744 COVER; HOLE 09.778 (A)	8-97047-694-1	01	1	9511-9611	●	●	●	●
21	09.744 COVER; HOLE M/T MXA5D(RMF),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSB5S(R45),M/T MSA5G(S7G) 09.778 (A)	8-97047-694-1	01	1	9511-9611	●	●	●	●
21	09.744 COVER; HOLE EXC. RR FOG LAMP<T79> 09.778 (A)	8-97047-694-1	01	1	9511-9611	●	●	●	●
21	09.744 COVER; HOLE 4BD2 ENG(RLW) A/T 4 SPEED-JATCO(RMK) 09.778 (A)	8-97047-694-1	01	1	9511-9611		●
21	09.744 COVER; HOLE 09.778 (A)	8-97047-694-1	01	1	9612-9711	●	●	●	●		●
21	09.744 COVER; HOLE M/T MXA5D(RMF),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSB5S(R45),M/T MSA5G(S7G) 09.778 (A)	8-97047-694-1	01	1	9612-9711	●	●	●	●		●
21	09.744 COVER; HOLE EXC. RR FOG LAMP<T79> 09.778 (A)	8-97047-694-1	01	1	9612-9711	●	●	●	●		●
21	09.744 COVER; HOLE 4BD2 ENG(RLW) A/T 4 SPEED-JATCO(RMK) 09.778 (A)	8-97047-694-1	01	1	9612-9711		●
21	09.744 COVER; HOLE FLOOR REMOTE SHIFT<M11> (A)	8-97136-694-0	01	1	9712-9807	●	●	●	●		●
21	09.744 COVER; HOLE (A)	8-97136-694-0	01	1	9712-9807	●			●		●	●
21	09.744 COVER; HOLE EXC. RR FOG LAMP<T79> (A)	8-97136-694-0	01	1	9712-9807		●	●				●
21	09.744 COVER; HOLE 4HE1 ENG(RLY) EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) (A)	8-97136-694-0	01	1	9712-9807		●	●				●
21	09.744 COVER; HOLE FLOOR REMOTE SHIFT<M11> (A)	8-97136-694-0	01	1	9808-	●	●	●	●		●
21	09.744 COVER; HOLE (A)	8-97136-694-0	01	1	9808-	●			●		●	●
21	09.744 COVER; HOLE EXC. RR FOG LAMP<T79> (A)	8-97136-694-0	01	1	9808-		●	●	●			●
21	09.744 COVER; HOLE 4HE1 ENG(RLY) EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) (A)	8-97136-694-0	01	1	9808-		●	●				●
21	09.744 COVER; HOLE 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. AIR CONDITIONER MANUAL CONT(C60),HONG KONG EQUIPMENT(PQ1),TACHOMETE R<U16> 09.748 (C)	8-97101-974-0	01	1	9604-9710	●	●	●	●
21	09.744 COVER; HOLE 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. AIR CONDITIONER MANUAL CONT(C60),HONG KONG EQUIPMENT(PQ1),TACHOMETE R<U16> 09.748 (C)	8-97101-974-0	01	1	9711-9711	●	●	●	●		●
21	09.744 COVER; HOLE 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. AIR CONDITIONER MANUAL CONT(C60),TACHOMETER<U16> 09.748 (C)	8-97101-974-0	01	1	9712-	●	●	●	●		●
21	09.744 COVER; HOLE 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> EXC. TACHOMETER<U16> 09.748 (C)	8-97101-974-0	01	1	9712-		●	●	●		●
21	09.744 COVER; HOLE FLOOR REMOTE SHIFT<M11> ADJUST HEADLAMP<6RC> EXC. PTO TRANSMISSION SIDE(V66) 02.485 (B)	8-94310-890-0	01	1	9507-9603		●	●
21	09.744 COVER; HOLE A/T 4 SPEED-JATCO(RMK) ADJUST HEADLAMP<6RC> 02.485 (B)	8-94310-890-0	01	1	9507-9603		●
21	09.744 COVER; HOLE ADJUST HEADLAMP<6RC> EXC. PTO TRANSMISSION SIDE(V66) 02.485 (B)	8-94310-890-0	01	1	9604-9711		●	●
21	09.744 COVER; HOLE ADJUST HEADLAMP<6RC> EXC. PTO TRANSMISSION SIDE(V66) 02.485 (B)	8-94310-890-0	01	1	9712-9807		●	●				●
21	09.744 COVER; HOLE ADJUST HEADLAMP<6RC> EXC. PTO TRANSMISSION SIDE(V66) 02.485 (B)	8-94310-890-0	01	1	9808-		●	●	●			●
234	03.682 SENSOR; VEHICLE SPD 4 PULSE PPS RESIN DARK GRAY	8-97065-834-0	01	1	9312-9502	●	●	●	●	●
234	03.682 SENSOR; VEHICLE SPD 4 PULSE PPS RESIN BLACK	8-97129-704-0	01	1	9503-9510	●	●	●	●	●
234	03.682 SENSOR; VEHICLE SPD 4 PULSE PPS RESIN BLACK	8-97129-704-0	01	1	9511-9611	●	●	●	●
234	03.682 SENSOR; VEHICLE SPD 4 PULSE PPS RESIN BLACK	8-97129-704-0	01	1	9612-9711	●	●	●	●		●
234	03.682 SENSOR; VEHICLE SPD 4 PULSE PPS RESIN BLACK	8-97129-704-0	01	1	9712-	●	●	●	●		●	●
448	02.500 BOLT; SENSOR 4HF1 ENG(RLS) 00.738 M6X16 FLANGE	0-28080-616-0	01	1	9604-9611	●	●	●	●
448	02.500 BOLT; SENSOR 4HF1 ENG(RLS) 00.738 M6X16 FLANGE	0-28080-616-0	01	1	9612-9711	●	●	●	●		●
448	02.500 BOLT; SENSOR 4HF1 ENG(RLS) 00.738 M6X16 FLANGE	0-28080-616-0	01	1	9712-9712	●	●	●	●		●	●
448	02.500 BOLT; SENSOR 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 00.738 M6X16 FLANGE	0-28080-616-0	01	1	9801-9801	●	●	●	●		●	●
448	02.500 BOLT; SENSOR 00.738 M6X16 FLANGE	0-28080-616-0	01	1	9802-	●	●	●	●		●	●
469	03.682 PROTECTOR; SPEED SENSOR	8-97094-699-2	01	1	9312-9510	●	●	●	●	●
469	03.682 PROTECTOR; SPEED SENSOR FLOOR REMOTE SHIFT<M11>	8-97094-699-2	01	1	9511-9611	●	●	●	●
469	03.682 PROTECTOR; SPEED SENSOR FLOOR REMOTE SHIFT<M11>	8-97094-699-2	01	1	9612-9701	●	●	●	●		●
469	03.682 PROTECTOR; SPEED SENSOR FLOOR REMOTE SHIFT<M11>	8-97168-308-0	01	1	9702-9711	●	●	●	●		●
469	03.682 PROTECTOR; SPEED SENSOR FLOOR REMOTE SHIFT<M11>	8-97168-308-0	01	1	9712-	●	●	●	●		●	●
549	02.510 SHEET 4HF1 ENG(RLS) 09.743	8-97130-170-0	01	1	9604-9710	●	●	●	●
549	02.510 SHEET 4HF1 ENG(RLS) 09.743	8-97130-170-0	01	1	9711-9711	●	●	●	●		●
549	02.510 SHEET 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 09.743	8-97161-633-2	01	1	9712-	●	●	●	●		●	●
635	09.750 SENSOR; TACHOMETER 4HF1 ENG(RLS)	8-97122-324-0	01	1	9604-9710	●	●	●	●
635	09.750 SENSOR; TACHOMETER 4HF1 ENG(RLS)	8-97122-324-0	01	1	9711-9711	●	●	●	●		●
635	09.750 SENSOR; TACHOMETER 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) YAZAKI	8-97161-655-0	01	1	9712-9809	●	●	●	●		●	●
635	09.750 SENSOR; TACHOMETER 4HE1 ENG(RLY) HONG KONG EQUIPMENT(PQ1),UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> YAZAKI	8-97214-325-0	01	1	9810-	●	●	●			●	●
635	09.750 SENSOR; TACHOMETER 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) KANSEI	8-97163-104-0	01	1	9712-9809	●	●	●	●		●	●
635	09.750 SENSOR; TACHOMETER 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> KANSEI	8-97163-104-0	01	1	9810-	●	●	●	●		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
