◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50696 - NPR/NQR-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#48902) — 350 parça

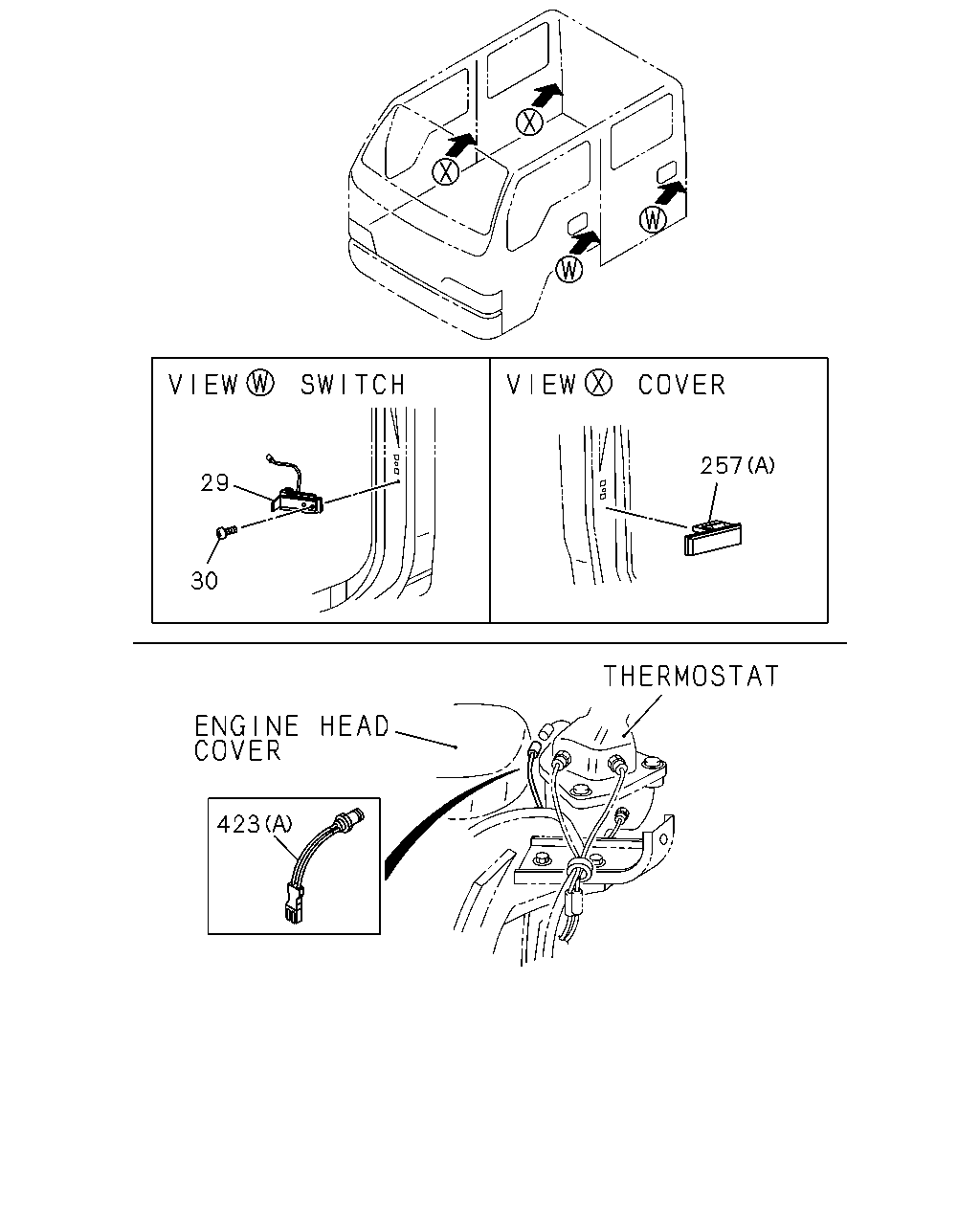

çizim 20214
257 29 30 423
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
29 16.263 SWITCH; DOOR 8-97855-032-1 02 1 9312-9404 ● ● ● ● ●
29 16.263 SWITCH; DOOR 8-97855-032-2 01 1 9405-9611 ● ● ●
29 16.263 SWITCH; DOOR 8-97855-032-2 01 1 9612-9711 ● ● ● ●
29 16.263 SWITCH; DOOR 8-97855-032-2 01 1 9712- ● ● ● ● ●
29 16.263 SWITCH; DOOR 8-97855-032-1 02 1 9405-9510 ● ●
29 16.263 SWITCH; DOOR 8-97855-032-2 02 1 9511- ●
30 16.263 SCREW; DOOR SW
M5X16 		8-94279-341-0 02 1 9312-9404 ● ● ● ● ●
30 16.263 SCREW; DOOR SW
M5X16 		8-94279-341-0 01 1 9405-9611 ● ● ●
30 16.263 SCREW; DOOR SW
M5X16 		8-94279-341-0 01 1 9612-9711 ● ● ● ●
30 16.263 SCREW; DOOR SW
M5X16 		8-94279-341-0 01 1 9712- ● ● ● ● ●
30 16.263 SCREW; DOOR SW
M5X16 		8-94279-341-0 02 1 9405-9510 ● ●
30 16.263 SCREW; DOOR SW
M5X16 		8-94279-341-0 02 1 9511- ●
257 16.081 COVER; HOLE,SW
EXC. ADJUST HEADLAMP<6RC> 02.485 (B) 		8-94310-890-0 01 1 9312-9409 ● ● ● ● ●
257 16.081 COVER; HOLE,SW
PTO TRANSMISSION SIDE(V66) EXC. ADJUST HEADLAMP<6RC> 02.485 (B) 		8-94310-890-0 01 1 9410-9504 ● ● ● ● ●
257 16.081 COVER; HOLE,SW
ADJUST HEADLAMP<6RC> EXC. PTO TRANSMISSION SIDE(V66) 02.485 (B) 		8-94310-890-0 01 1 9410-9504 ● ●
257 16.081 COVER; HOLE,SW
FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. ADJUST HEADLAMP<6RC> 02.485 (B) 		8-94310-890-0 01 1 9505-9506 ● ● ● ● ●
257 16.081 COVER; HOLE,SW
ADJUST HEADLAMP<6RC> EXC. PTO TRANSMISSION SIDE(V66) 02.485 (B) 		8-94310-890-0 01 1 9505-9506 ● ●
257 16.081 COVER; HOLE,SW
PTO TRANSMISSION SIDE(V66) EXC. ADJUST HEADLAMP<6RC> 02.485 (B) 		8-94310-890-0 01 1 9507-9510 ● ● ● ● ●
257 16.081 COVER; HOLE,SW
PTO TRANSMISSION SIDE(V66) EXC. ADJUST HEADLAMP<6RC> 02.485 (B) 		8-94310-890-0 01 1 9511-9611 ● ● ● ●
257 16.081 COVER; HOLE,SW
PTO TRANSMISSION SIDE(V66) EXC. ADJUST HEADLAMP<6RC> 02.485 (B) 		8-94310-890-0 01 1 9612-9711 ● ● ● ● ●
257 16.081 COVER; HOLE,SW
PTO TRANSMISSION SIDE(V66) EXC. ADJUST HEADLAMP<6RC> 02.485 (B) 		8-94310-890-0 01 1 9712-9807 ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
PTO TRANSMISSION SIDE(V66) 02.485 (B) 		8-94310-890-0 01 1 9808- ● ●
257 16.081 COVER; HOLE,SW
PTO TRANSMISSION SIDE(V66) EXC. ADJUST HEADLAMP<6RC> 02.485 (B) 		8-94310-890-0 01 1 9808- ● ● ● ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 02 1 9312-9510 ● ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 02 1 9511- ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 01 1 9405-9611 ● ● ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 01 1 9612-9711 ● ● ● ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 01 1 9712- ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> 09.778 (C) 		8-97047-694-1 01 1 9412-9510 ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> 09.778 (C) 		8-97047-694-1 01 1 9511-9611 ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> 09.778 (C) 		8-97047-694-1 01 1 9612-9711 ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> 09.744 (C) 		8-97136-694-0 01 1 9712- ● ● ● ● ● ●
423 03.883 SWITCH; ENG WARMING
4BD2 ENG(RLW) (A) 		8-97038-625-0 01 1 9312-9506 ●
423 03.883 SWITCH; ENG WARMING
4BD2 ENG(RLW) (A) 		8-97038-625-0 01 1 9507-9606 ● ●
423 03.883 SWITCH; ENG WARMING
4BD2 ENG(RLW) (A) 		8-97038-625-0 01 1 9607-9705 ● ● ●
423 03.883 SWITCH; ENG WARMING
4BD2 ENG(RLW) (A) 		8-97038-625-0 01 1 9706-9711 ● ● ● ●
423 03.883 SWITCH; ENG WARMING
4BD2 ENG(RLW) (A) 		8-97038-625-0 01 1 9712- ● ● ● ●
423 03.883 SWITCH; ENG WARMING
4HE1 ENG(RLY) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) (B) 		8-97136-814-0 01 1 9712- ● ● ●

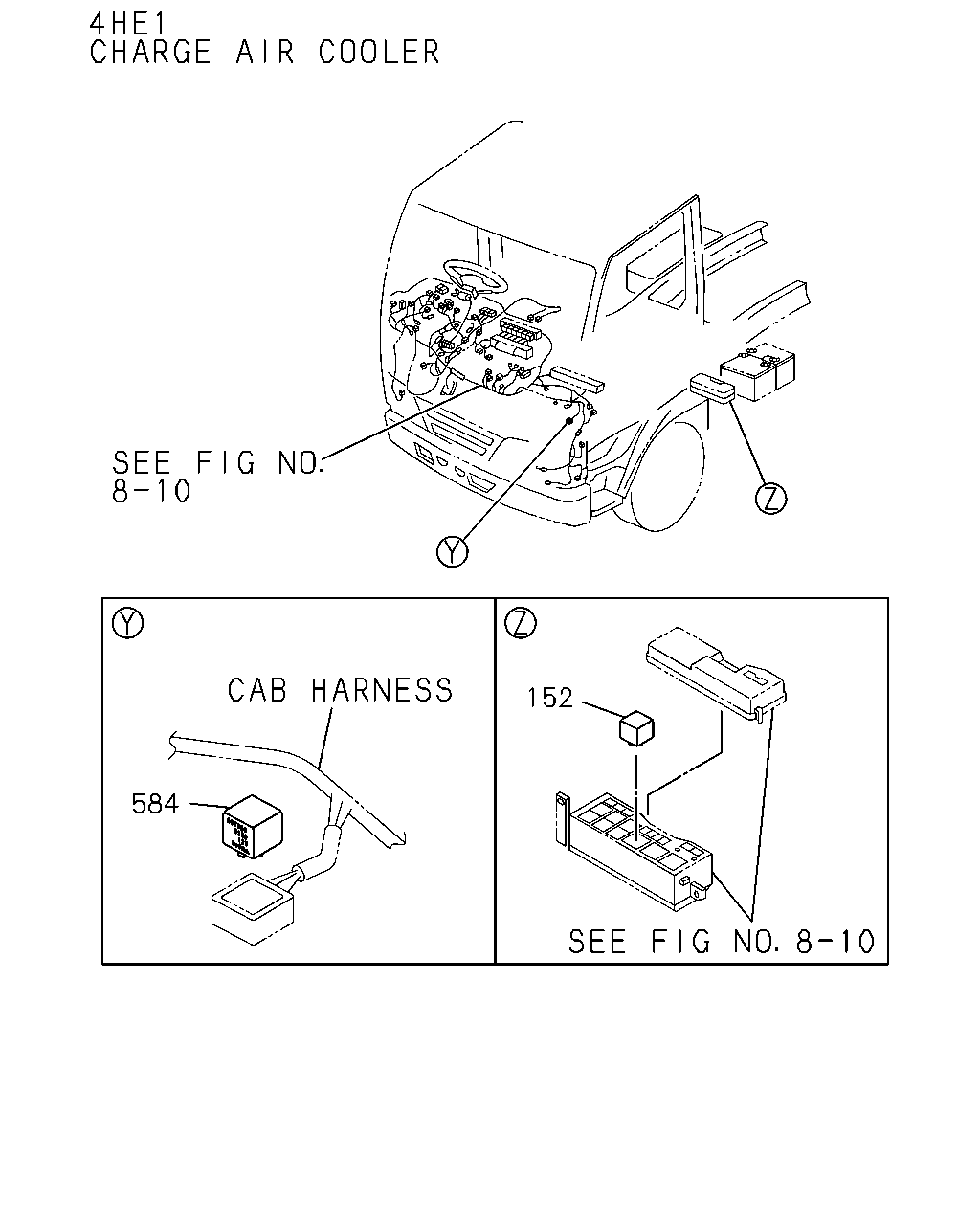

çizim 20476
152 584
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
152 02.510 RELAY; CERAMIC HTR
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. HONG KONG EQUIPMENT(PQ1) 24V 50A 		8-97173-947-0 01 1 9712-9801 ● ● ● ● ●
152 02.510 RELAY; CERAMIC HTR
4HE1 ENG(RLY) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> 24V 50A 		8-97173-947-0 01 1 9802- ● ● ●
584 02.510 RELAY; TIMING
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 24V 12.5A JIDECO 		8-97062-815-1 01 1 9712- ● ● ● ● ●

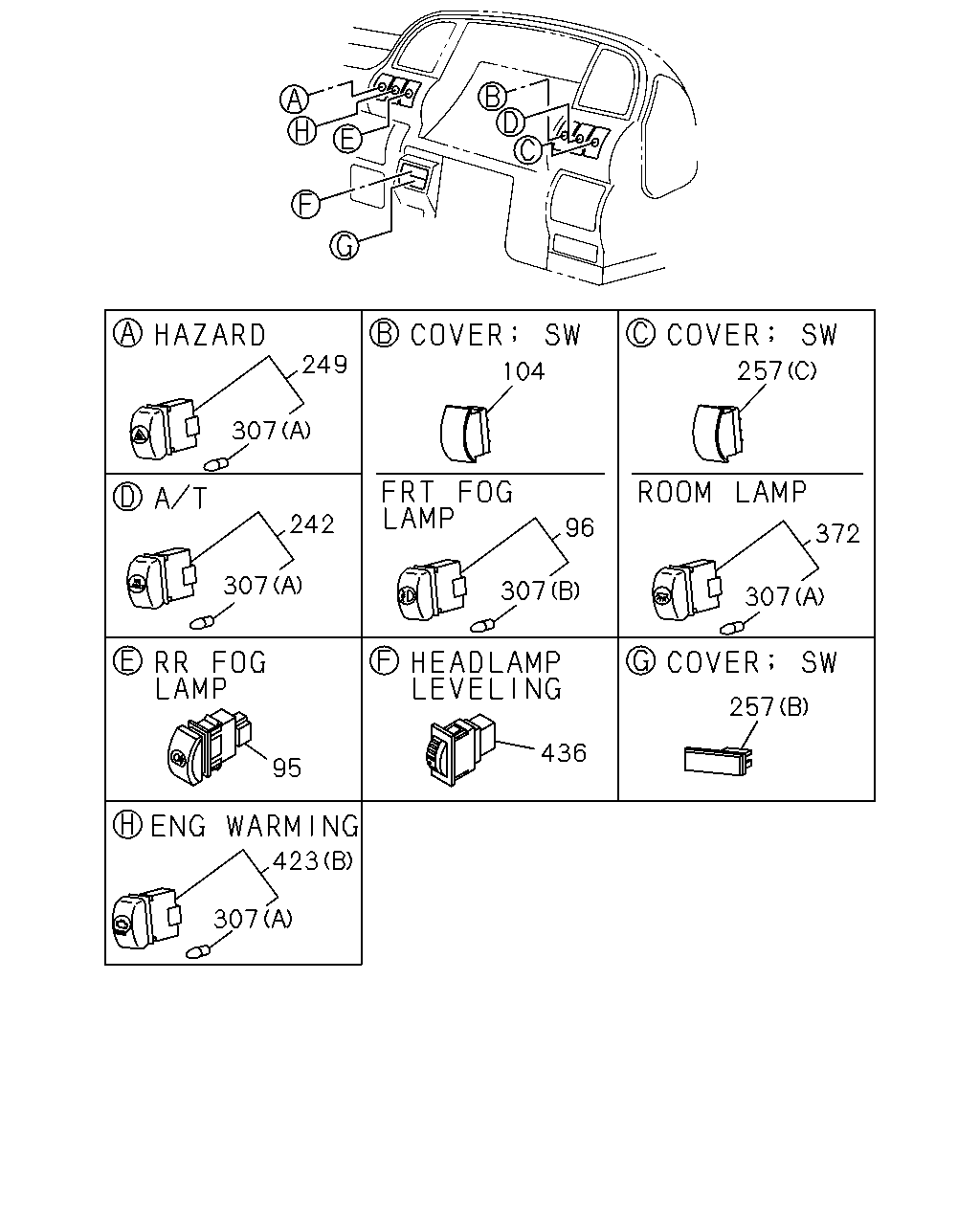

çizim 66459
249 257 104 307 242 96 372 307 307 307 257 436 95 423 307
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
95 02.575 SWITCH; RR FOG LAMP
RR FOG LAMP<T79> EXC. VOLTAGE 24V<7AE> 		8-97071-795-0 01 1 9312-9506 ● ●
95 02.575 SWITCH; RR FOG LAMP
RR FOG LAMP<T79> EXC. VOLTAGE 24V<7AE> 		8-97071-795-0 01 1 9507-9711 ● ●
95 02.575 SWITCH; RR FOG LAMP
RR FOG LAMP<T79> EXC. VOLTAGE 24V<7AE> 		8-97170-429-0 01 1 9712-9807 ● ●
95 02.575 SWITCH; RR FOG LAMP
RR FOG LAMP<T79> EXC. VOLTAGE 24V<7AE> 		8-97170-429-0 01 1 9808- ● ● ●
95 02.575 SWITCH; RR FOG LAMP
RR FOG LAMP<T79> VOLTAGE 24V<7AE> 		8-97170-447-0 01 1 9712-9807 ● ● ●
95 02.575 SWITCH; RR FOG LAMP
RR FOG LAMP<T79> VOLTAGE 24V<7AE> 		8-97170-447-0 01 1 9808- ● ● ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-97076-350-4 01 1 9312-9401 ● ●
96 02.485 SWITCH; FOG LAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. FOG LAMP<T96>,VOLTAGE 24V<7AE> 		8-97076-350-4 01 1 9402-9506 ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-97076-350-4 01 1 9402-9506 ● ●
96 02.485 SWITCH; FOG LAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. FOG LAMP<T96>,VOLTAGE 24V<7AE> 		8-97076-350-4 01 1 9507-9606 ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-97076-350-4 01 1 9507-9606 ● ●
96 02.485 SWITCH; FOG LAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. FOG LAMP<T96>,VOLTAGE 24V<7AE> 		8-97076-350-4 01 1 9607-9705 ● ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-97076-350-4 01 1 9607-9705 ● ● ●
96 02.485 SWITCH; FOG LAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. FOG LAMP<T96>,VOLTAGE 24V<7AE> 		8-97076-350-4 01 1 9706-9711 ● ● ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-97076-350-4 01 1 9706-9711 ● ● ● ●
96 02.485 SWITCH; FOG LAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. FOG LAMP<T96>,VOLTAGE 24V<7AE> 		8-97140-964-0 01 1 9712- ● ● ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-97140-964-0 01 1 9712- ● ● ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> VOLTAGE 24V<7AE> 		8-97076-351-3 01 1 9312-9401 ● ● ● ●
96 02.485 SWITCH; FOG LAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> VOLTAGE 24V<7AE> EXC. FOG LAMP<T96> 		8-97076-351-3 01 1 9402-9506 ● ● ● ● ● ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> VOLTAGE 24V<7AE> 		8-97076-351-3 01 1 9402-9506 ● ● ● ● ● ● ●
96 02.485 SWITCH; FOG LAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> VOLTAGE 24V<7AE> EXC. FOG LAMP<T96> 		8-97076-351-3 01 1 9507-9510 ● ● ● ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> VOLTAGE 24V<7AE> 		8-97076-351-3 01 1 9507-9510 ● ● ● ● ●
96 02.485 SWITCH; FOG LAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> VOLTAGE 24V<7AE> EXC. FOG LAMP<T96> 		8-97076-351-3 01 1 9511-9611 ● ● ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> VOLTAGE 24V<7AE> 		8-97076-351-3 01 1 9511-9611 ● ● ● ●
96 02.485 SWITCH; FOG LAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> VOLTAGE 24V<7AE> EXC. FOG LAMP<T96> 		8-97076-351-3 01 1 9612-9705 ● ● ● ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> VOLTAGE 24V<7AE> 		8-97076-351-3 01 1 9612-9705 ● ● ● ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> VOLTAGE 24V<7AE> 		8-97076-351-3 01 1 9706-9711 ● ● ● ● ●
96 02.485 SWITCH; FOG LAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> VOLTAGE 24V<7AE> EXC. FOG LAMP<T96> 		8-97076-351-3 01 1 9706-9711 ● ● ● ●
96 02.485 SWITCH; FOG LAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> VOLTAGE 24V<7AE> EXC. FOG LAMP<T96> 		8-97170-441-0 01 1 9712- ● ● ● ● ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> VOLTAGE 24V<7AE> 		8-97170-441-0 01 1 9712- ● ● ● ● ● ●
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 		8-97047-694-1 01 1 9312-9401 ● ● ● ● ●
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>,FOG LAMP<T96> 		8-97047-694-1 01 1 9402-9611 ● ● ● ●
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>,FOG LAMP<T96> 		8-97047-694-1 01 1 9612-9711 ● ● ● ● ●
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>,FOG LAMP<T96> 09.744 		8-97136-694-0 01 1 9712- ● ● ● ● ● ●
242 04.054 SWITCH
A/T 4 SPEED-JATCO(RMK) VOLTAGE 24V<7AE> 		8-97102-419-0 01 1 9312-9703 ●
242 04.054 SWITCH
A/T 4 SPEED-JATCO(RMK) VOLTAGE 24V<7AE> 		8-97117-654-0 01 1 9704-9711 ●
242 04.054 SWITCH
A/T 4 SPEED-JATCO(RMK) VOLTAGE 24V<7AE> 		8-97171-167-0 01 1 9712-9801 ●
242 04.054 SWITCH
A/T 4 SPEED-JATCO(RMK) VOLTAGE 24V<7AE> 		8-97171-167-0 01 1 9802- ●
242 04.054 SWITCH
A/T 4 SPEED-JATCO(RMK) EXC. VOLTAGE 24V<7AE> 		8-97102-418-0 01 1 9312-9504 ●
249 02.485 SWITCH; HAZARD
VOLTAGE 24V<7AE> 		8-97076-345-2 01 1 9312-9510 ● ● ● ● ●
249 02.485 SWITCH; HAZARD
VOLTAGE 24V<7AE> 		8-97076-345-2 01 1 9511-9611 ● ● ● ●
249 02.485 SWITCH; HAZARD
VOLTAGE 24V<7AE> 		8-97076-345-2 01 1 9612-9703 ● ● ● ● ●
249 02.485 SWITCH; HAZARD
VOLTAGE 24V<7AE> 		8-97117-658-0 01 1 9704-9711 ● ● ● ● ●
249 02.485 SWITCH; HAZARD
VOLTAGE 24V<7AE> 		8-97136-690-0 01 1 9712-9807 ● ● ● ● ● ●
249 02.485 SWITCH; HAZARD
VOLTAGE 24V<7AE> 		8-97202-475-0 01 1 9808- ● ● ● ● ● ●
249 02.485 SWITCH; HAZARD
EXC. VOLTAGE 24V<7AE> 		8-97076-344-2 01 1 9312-9506 ● ●
249 02.485 SWITCH; HAZARD
EXC. VOLTAGE 24V<7AE> 		8-97076-344-2 01 1 9507-9606 ● ●
249 02.485 SWITCH; HAZARD
EXC. VOLTAGE 24V<7AE> 		8-97076-344-2 01 1 9607-9703 ● ● ●
249 02.485 SWITCH; HAZARD
EXC. VOLTAGE 24V<7AE> 		8-97117-657-0 01 1 9704-9705 ● ● ●
249 02.485 SWITCH; HAZARD
EXC. VOLTAGE 24V<7AE> 		8-97117-657-0 01 1 9706-9711 ● ● ● ●
249 02.485 SWITCH; HAZARD
EXC. VOLTAGE 24V<7AE> 		8-97136-691-1 01 1 9712-9807 ● ● ● ●
249 02.485 SWITCH; HAZARD
EXC. VOLTAGE 24V<7AE> 		8-97202-476-0 01 1 9808- ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ADJUST HEADLAMP<6RC> 02.485 (B) 		8-94310-890-0 01 1 9312-9409 ● ● ● ● ●
257 16.081 COVER; HOLE,SW
PTO TRANSMISSION SIDE(V66) EXC. ADJUST HEADLAMP<6RC> 02.485 (B) 		8-94310-890-0 01 1 9410-9504 ● ● ● ● ●
257 16.081 COVER; HOLE,SW
ADJUST HEADLAMP<6RC> EXC. PTO TRANSMISSION SIDE(V66) 02.485 (B) 		8-94310-890-0 01 1 9410-9504 ● ●
257 16.081 COVER; HOLE,SW
FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. ADJUST HEADLAMP<6RC> 02.485 (B) 		8-94310-890-0 01 1 9505-9506 ● ● ● ● ●
257 16.081 COVER; HOLE,SW
ADJUST HEADLAMP<6RC> EXC. PTO TRANSMISSION SIDE(V66) 02.485 (B) 		8-94310-890-0 01 1 9505-9506 ● ●
257 16.081 COVER; HOLE,SW
PTO TRANSMISSION SIDE(V66) EXC. ADJUST HEADLAMP<6RC> 02.485 (B) 		8-94310-890-0 01 1 9507-9510 ● ● ● ● ●
257 16.081 COVER; HOLE,SW
PTO TRANSMISSION SIDE(V66) EXC. ADJUST HEADLAMP<6RC> 02.485 (B) 		8-94310-890-0 01 1 9511-9611 ● ● ● ●
257 16.081 COVER; HOLE,SW
PTO TRANSMISSION SIDE(V66) EXC. ADJUST HEADLAMP<6RC> 02.485 (B) 		8-94310-890-0 01 1 9612-9711 ● ● ● ● ●
257 16.081 COVER; HOLE,SW
PTO TRANSMISSION SIDE(V66) EXC. ADJUST HEADLAMP<6RC> 02.485 (B) 		8-94310-890-0 01 1 9712-9807 ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
PTO TRANSMISSION SIDE(V66) 02.485 (B) 		8-94310-890-0 01 1 9808- ● ●
257 16.081 COVER; HOLE,SW
PTO TRANSMISSION SIDE(V66) EXC. ADJUST HEADLAMP<6RC> 02.485 (B) 		8-94310-890-0 01 1 9808- ● ● ● ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 02 1 9312-9510 ● ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 02 1 9511- ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 01 1 9405-9611 ● ● ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 01 1 9612-9711 ● ● ● ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 01 1 9712- ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> 09.778 (C) 		8-97047-694-1 01 1 9412-9510 ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> 09.778 (C) 		8-97047-694-1 01 1 9511-9611 ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> 09.778 (C) 		8-97047-694-1 01 1 9612-9711 ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> 09.744 (C) 		8-97136-694-0 01 1 9712- ● ● ● ● ● ●
307 08.991 BULB ASM; SW
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. FOG LAMP<T96>,VOLTAGE 24V<7AE> (B) 14V 60MA 		8-97116-329-0 01 1 9808- ● ● ● ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> (B) 14V 60MA 		8-97116-329-0 01 1 9808- ● ● ● ●
307 08.991 BULB ASM; SW
ROOM LAMP SWITCH<7KL> EXC. VOLTAGE 24V<7AE> (B) 14V 60MA 		8-97116-329-0 01 1 9808- ● ● ● ●
307 08.991 BULB ASM; SW
HALOGEN HEAD LAMP RECTANGULAR<TR4> VOLTAGE 24V<7AE> EXC. FOG LAMP<T96> (B) 28V 40MA 		8-97116-331-0 01 1 9511-9611 ● ● ● ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> VOLTAGE 24V<7AE> (B) 28V 40MA 		8-97116-331-0 01 1 9511-9611 ● ● ● ●
307 08.991 BULB ASM; SW
HALOGEN HEAD LAMP RECTANGULAR<TR4> VOLTAGE 24V<7AE> EXC. FOG LAMP<T96> (B) 28V 40MA 		8-97116-331-0 01 1 9612-9703 ● ● ● ● ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> VOLTAGE 24V<7AE> (B) 28V 40MA 		8-97116-331-0 01 1 9612-9703 ● ● ● ● ●
307 08.991 BULB ASM; SW
VOLTAGE 24V<7AE> (B) 28V 40MA 		8-97116-331-0 01 1 9704-9705 ● ● ●
307 08.991 BULB ASM; SW
HALOGEN HEAD LAMP RECTANGULAR<TR4> VOLTAGE 24V<7AE> EXC. FOG LAMP<T96> (B) 28V 40MA 		8-97116-331-0 01 1 9704-9705 ● ● ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> VOLTAGE 24V<7AE> (B) 28V 40MA 		8-97116-331-0 01 1 9704-9705 ● ● ●
307 08.991 BULB ASM; SW
VOLTAGE 24V<7AE> ROOM LAMP SWITCH<7KL> (B) 28V 40MA 		8-97116-331-0 01 1 9704-9705 ● ● ●
307 08.991 BULB ASM; SW
(B) 28V 40MA 		8-97116-331-0 01 1 9704-9705 ● ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> VOLTAGE 24V<7AE> (B) 28V 40MA 		8-97116-331-0 01 1 9706-9711 ● ● ● ● ●
307 08.991 BULB ASM; SW
VOLTAGE 24V<7AE> ROOM LAMP SWITCH<7KL> (B) 28V 40MA 		8-97116-331-0 01 1 9706-9711 ● ● ● ● ●
307 08.991 BULB ASM; SW
VOLTAGE 24V<7AE> (B) 28V 40MA 		8-97116-331-0 01 1 9706-9711 ● ● ● ●
307 08.991 BULB ASM; SW
HALOGEN HEAD LAMP RECTANGULAR<TR4> VOLTAGE 24V<7AE> EXC. FOG LAMP<T96> (B) 28V 40MA 		8-97116-331-0 01 1 9706-9711 ● ● ● ●
307 08.991 BULB ASM; SW
A/T 4 SPEED-JATCO(RMK) VOLTAGE 24V<7AE> (B) 28V 40MA 		8-97116-331-0 01 1 9706-9711 ●
307 08.991 BULB ASM; SW
(B) 28V 40MA 		8-97116-331-0 01 1 9706-9711 ●
307 08.991 BULB ASM; SW
VOLTAGE 24V<7AE> (B) 28V 40MA 		8-97116-331-0 01 1 9712-9801 ● ● ● ● ● ●
307 08.991 BULB ASM; SW
HALOGEN HEAD LAMP RECTANGULAR<TR4> VOLTAGE 24V<7AE> EXC. FOG LAMP<T96> (B) 28V 40MA 		8-97116-331-0 01 1 9712-9801 ● ● ● ● ● ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> VOLTAGE 24V<7AE> (B) 28V 40MA 		8-97116-331-0 01 1 9712-9801 ● ● ● ● ● ●
307 08.991 BULB ASM; SW
VOLTAGE 24V<7AE> ROOM LAMP SWITCH<7KL> (B) 28V 40MA 		8-97116-331-0 01 1 9712-9801 ● ● ● ● ● ●
307 08.991 BULB ASM; SW
A/T 4 SPEED-JATCO(RMK) VOLTAGE 24V<7AE> (B) 28V 40MA 		8-97116-331-0 01 1 9712-9801 ●
307 08.991 BULB ASM; SW
VOLTAGE 24V<7AE> (B) 28V 40MA 		8-97116-331-0 01 1 9802-9807 ● ● ● ● ● ●
307 08.991 BULB ASM; SW
HALOGEN HEAD LAMP RECTANGULAR<TR4> VOLTAGE 24V<7AE> EXC. FOG LAMP<T96> (B) 28V 40MA 		8-97116-331-0 01 1 9802-9807 ● ● ● ● ● ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> VOLTAGE 24V<7AE> (B) 28V 40MA 		8-97116-331-0 01 1 9802-9807 ● ● ● ● ● ●
307 08.991 BULB ASM; SW
VOLTAGE 24V<7AE> ROOM LAMP SWITCH<7KL> (B) 28V 40MA 		8-97116-331-0 01 1 9802-9807 ● ● ● ● ● ●
307 08.991 BULB ASM; SW
VOLTAGE 24V<7AE> EXC. FLOOR REMOTE SHIFT<M11> (B) 28V 40MA 		8-97116-331-0 01 1 9802-9807 ● ● ● ● ●
307 08.991 BULB ASM; SW
HALOGEN HEAD LAMP RECTANGULAR<TR4> VOLTAGE 24V<7AE> EXC. FOG LAMP<T96> (B) 28V 40MA 		8-97116-331-0 01 1 9808- ● ● ● ● ● ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> VOLTAGE 24V<7AE> (B) 28V 40MA 		8-97116-331-0 01 1 9808- ● ● ● ● ● ●
307 08.991 BULB ASM; SW
VOLTAGE 24V<7AE> ROOM LAMP SWITCH<7KL> (B) 28V 40MA 		8-97116-331-0 01 1 9808- ● ● ● ● ● ●
307 08.991 BULB ASM; SW
VOLTAGE 24V<7AE> EXC. FLOOR REMOTE SHIFT<M11> (B) 28V 40MA 		8-97116-331-0 01 1 9808- ● ● ● ● ●
307 08.991 BULB ASM; SW
VOLTAGE 24V<7AE> (A) 28V 40MA 		8-97116-330-0 01 1 9511-9611 ● ● ● ●
307 08.991 BULB ASM; SW
VOLTAGE 24V<7AE> ROOM LAMP SWITCH<7KL> (A) 28V 40MA 		8-97116-330-0 01 1 9511-9611 ● ● ● ●
307 08.991 BULB ASM; SW
A/T 4 SPEED-JATCO(RMK) VOLTAGE 24V<7AE> (A) 28V 40MA 		8-97116-330-0 01 1 9511-9611 ●
307 08.991 BULB ASM; SW
VOLTAGE 24V<7AE> (A) 28V 40MA 		8-97116-330-0 01 1 9612-9703 ● ● ● ● ●
307 08.991 BULB ASM; SW
VOLTAGE 24V<7AE> ROOM LAMP SWITCH<7KL> (A) 28V 40MA 		8-97116-330-0 01 1 9612-9703 ● ● ● ● ●
307 08.991 BULB ASM; SW
A/T 4 SPEED-JATCO(RMK) VOLTAGE 24V<7AE> (A) 28V 40MA 		8-97116-330-0 01 1 9612-9703 ●
307 08.991 BULB ASM; SW
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. FOG LAMP<T96>,VOLTAGE 24V<7AE> (B) 14V 60MA 		8-97116-329-0 01 1 9511-9606 ● ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> (B) 14V 60MA 		8-97116-329-0 01 1 9511-9606 ● ●
307 08.991 BULB ASM; SW
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. FOG LAMP<T96>,VOLTAGE 24V<7AE> (B) 14V 60MA 		8-97116-329-0 01 1 9607-9703 ● ● ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> (B) 14V 60MA 		8-97116-329-0 01 1 9607-9703 ● ● ●
307 08.991 BULB ASM; SW
EXC. VOLTAGE 24V<7AE> (B) 14V 60MA 		8-97116-329-0 01 1 9704-9705 ● ● ●
307 08.991 BULB ASM; SW
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. FOG LAMP<T96>,VOLTAGE 24V<7AE> (B) 14V 60MA 		8-97116-329-0 01 1 9704-9705 ● ● ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> (B) 14V 60MA 		8-97116-329-0 01 1 9704-9705 ● ● ●
307 08.991 BULB ASM; SW
ROOM LAMP SWITCH<7KL> EXC. VOLTAGE 24V<7AE> (B) 14V 60MA 		8-97116-329-0 01 1 9704-9705 ● ● ●
307 08.991 BULB ASM; SW
EXC. VOLTAGE 24V<7AE> (B) 14V 60MA 		8-97116-329-0 01 1 9706-9807 ● ● ● ●
307 08.991 BULB ASM; SW
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. FOG LAMP<T96>,VOLTAGE 24V<7AE> (B) 14V 60MA 		8-97116-329-0 01 1 9706-9807 ● ● ● ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> (B) 14V 60MA 		8-97116-329-0 01 1 9706-9807 ● ● ● ●
307 08.991 BULB ASM; SW
ROOM LAMP SWITCH<7KL> EXC. VOLTAGE 24V<7AE> (B) 14V 60MA 		8-97116-329-0 01 1 9706-9807 ● ● ● ●
307 08.991 BULB ASM; SW
EXC. VOLTAGE 24V<7AE> (B) 14V 60MA 		8-97116-329-0 02 1 9808- ● ● ● ●
307 08.991 BULB ASM; SW
EXC. VOLTAGE 24V<7AE> (A) 14V 60MA 		8-97116-328-0 01 1 9511-9606 ● ●
307 08.991 BULB ASM; SW
ROOM LAMP SWITCH<7KL> EXC. VOLTAGE 24V<7AE> (A) 14V 60MA 		8-97116-328-0 01 1 9511-9606 ● ●
307 08.991 BULB ASM; SW
EXC. VOLTAGE 24V<7AE> (A) 14V 60MA 		8-97116-328-0 01 1 9607-9703 ● ● ●
307 08.991 BULB ASM; SW
ROOM LAMP SWITCH<7KL> EXC. VOLTAGE 24V<7AE> (A) 14V 60MA 		8-97116-328-0 01 1 9607-9703 ● ● ●
307 08.991 BULB ASM; SW
4HE1 ENG(RLY) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) (B) 28V 40MA 		8-97116-331-0 02 1 9712-9807 ● ● ●
307 08.991 BULB ASM; SW
VOLTAGE 24V<7AE> (B) 28V 40MA 		8-97116-331-0 02 1 9808- ● ● ● ● ● ●
307 08.991 BULB ASM; SW
4HE1 ENG(RLY) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) (B) 28V 40MA 		8-97116-331-0 02 1 9808- ● ● ●
372 08.852 SWITCH; ROOM LAMP
VOLTAGE 24V<7AE> 		8-97076-361-2 01 1 9312-9411 ● ● ● ● ●
372 08.852 SWITCH; ROOM LAMP
VOLTAGE 24V<7AE> ROOM LAMP SWITCH<7KL> 		8-97076-361-2 01 1 9412-9510 ● ● ● ● ●
372 08.852 SWITCH; ROOM LAMP
VOLTAGE 24V<7AE> ROOM LAMP SWITCH<7KL> 		8-97076-361-2 01 1 9511-9611 ● ● ● ●
372 08.852 SWITCH; ROOM LAMP
VOLTAGE 24V<7AE> ROOM LAMP SWITCH<7KL> 		8-97076-361-2 01 1 9612-9703 ● ● ● ● ●
372 08.852 SWITCH; ROOM LAMP
VOLTAGE 24V<7AE> ROOM LAMP SWITCH<7KL> 		8-97122-193-0 01 1 9704-9711 ● ● ● ● ●
372 08.852 SWITCH; ROOM LAMP
VOLTAGE 24V<7AE> ROOM LAMP SWITCH<7KL> 		8-97136-693-0 01 1 9712- ● ● ● ● ● ●
372 08.852 SWITCH; ROOM LAMP
EXC. VOLTAGE 24V<7AE> 		8-97076-360-2 01 1 9312-9411 ● ●
372 08.852 SWITCH; ROOM LAMP
ROOM LAMP SWITCH<7KL> EXC. VOLTAGE 24V<7AE> 		8-97076-360-2 01 1 9412-9506 ● ●
372 08.852 SWITCH; ROOM LAMP
ROOM LAMP SWITCH<7KL> EXC. VOLTAGE 24V<7AE> 		8-97076-360-2 01 1 9507-9606 ● ●
372 08.852 SWITCH; ROOM LAMP
ROOM LAMP SWITCH<7KL> EXC. VOLTAGE 24V<7AE> 		8-97076-360-2 01 1 9607-9703 ● ● ●
372 08.852 SWITCH; ROOM LAMP
ROOM LAMP SWITCH<7KL> EXC. VOLTAGE 24V<7AE> 		8-97117-660-0 01 1 9704-9705 ● ● ●
372 08.852 SWITCH; ROOM LAMP
ROOM LAMP SWITCH<7KL> EXC. VOLTAGE 24V<7AE> 		8-97117-660-0 01 1 9706-9711 ● ● ● ●
372 08.852 SWITCH; ROOM LAMP
ROOM LAMP SWITCH<7KL> EXC. VOLTAGE 24V<7AE> 		8-97136-692-0 01 1 9712- ● ● ● ●
423 03.883 SWITCH; ENG WARMING
4BD2 ENG(RLW) (A) 		8-97038-625-0 01 1 9312-9506 ●
423 03.883 SWITCH; ENG WARMING
4BD2 ENG(RLW) (A) 		8-97038-625-0 01 1 9507-9606 ● ●
423 03.883 SWITCH; ENG WARMING
4BD2 ENG(RLW) (A) 		8-97038-625-0 01 1 9607-9705 ● ● ●
423 03.883 SWITCH; ENG WARMING
4BD2 ENG(RLW) (A) 		8-97038-625-0 01 1 9706-9711 ● ● ● ●
423 03.883 SWITCH; ENG WARMING
4BD2 ENG(RLW) (A) 		8-97038-625-0 01 1 9712- ● ● ● ●
423 03.883 SWITCH; ENG WARMING
4HE1 ENG(RLY) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) (B) 		8-97136-814-0 01 1 9712- ● ● ●
436 02.485 SWITCH; HEADLAMP LEVELING
ADJUST HEADLAMP<6RC> 		8-97105-971-0 01 1 9312-9506 ● ●
436 02.485 SWITCH; HEADLAMP LEVELING
ADJUST HEADLAMP<6RC> 		8-97105-971-0 01 1 9507-9711 ● ●
436 02.485 SWITCH; HEADLAMP LEVELING
ADJUST HEADLAMP<6RC> 		8-97105-971-0 01 1 9712-9807 ● ● ●
436 02.485 SWITCH; HEADLAMP LEVELING
ADJUST HEADLAMP<6RC> 		8-97105-971-0 01 1 9808- ● ● ● ●

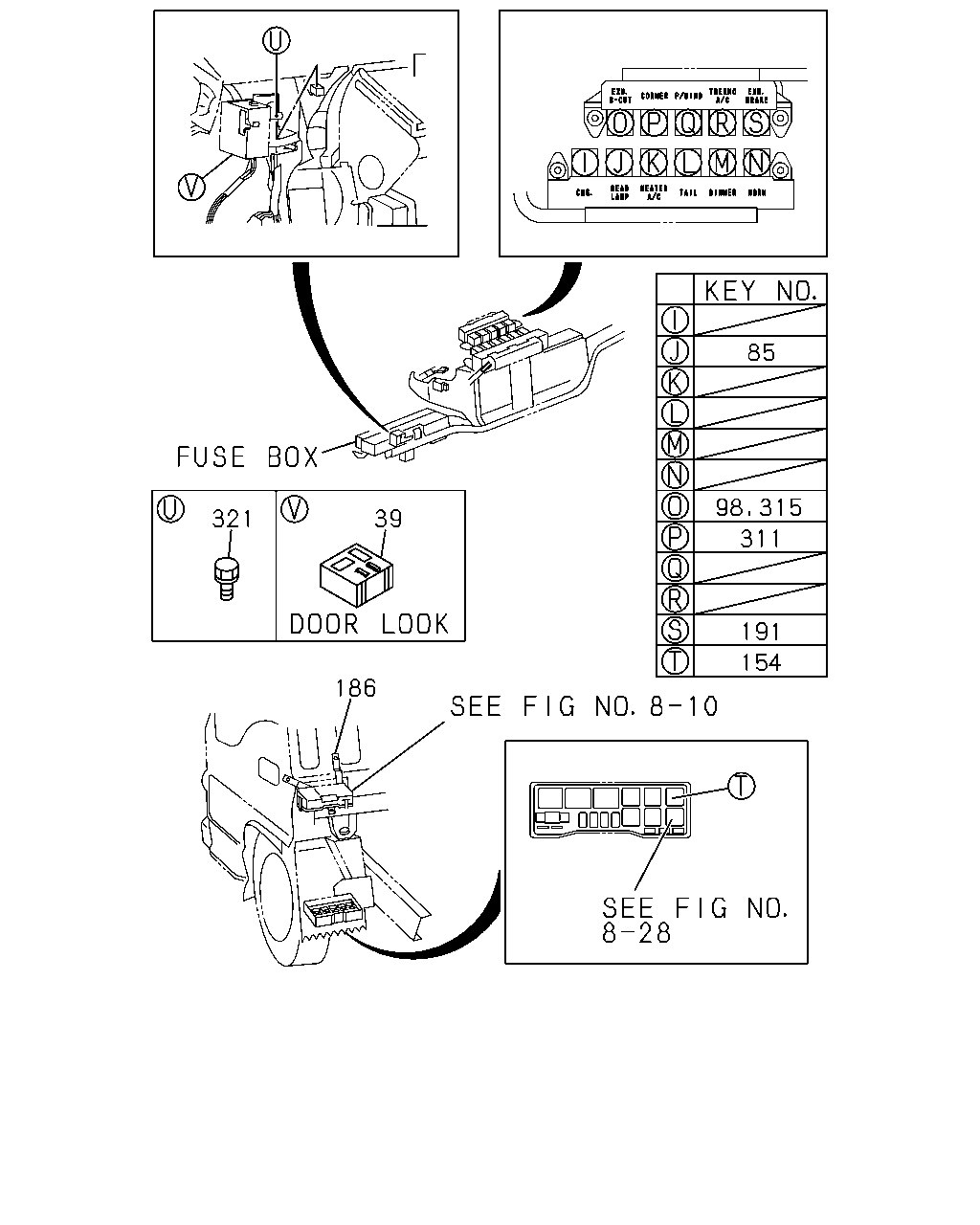

çizim 68081
85 98 315 321 39 311 191 154 186
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> 		8-97063-659-1 01 1 9312-9408 ● ● ● ● ●
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> VOLTAGE 24V<7AE> 		8-97063-659-1 01 1 9409-9510 ● ● ● ● ●
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> VOLTAGE 24V<7AE> 		8-97063-659-1 01 1 9511-9611 ● ● ● ●
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> VOLTAGE 24V<7AE> 		8-97063-659-1 01 1 9612-9705 ● ● ● ● ●
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> VOLTAGE 24V<7AE> 		8-97177-214-0 01 1 9706-9706 ● ● ● ● ●
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> VOLTAGE 24V<7AE> 		8-97177-214-0 01 1 9706-9711 ● ● ● ● ●
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> VOLTAGE 24V<7AE> 		8-97177-214-0 01 1 9712- ● ● ● ● ● ●
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> EXC. VOLTAGE 24V<7AE> 		8-97063-658-0 01 1 9409-9506 ● ●
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> EXC. VOLTAGE 24V<7AE> 		8-97063-658-0 01 1 9507-9606 ● ●
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> EXC. VOLTAGE 24V<7AE> 		8-97063-658-0 01 1 9607-9705 ● ● ●
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> EXC. VOLTAGE 24V<7AE> 		8-97177-215-0 01 1 9706-9706 ● ● ●
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> EXC. VOLTAGE 24V<7AE> 		8-97177-215-0 01 1 9706- ● ● ● ●
85 02.485 RELAY; HEADLAMP
VOLTAGE 24V<7AE> 02.510 24V 12.5A JIDECO 		8-97062-815-0 01 1 9312-9510 ● ● ● ● ●
85 02.485 RELAY; HEADLAMP
VOLTAGE 24V<7AE> 02.510 24V 12.5A JIDECO 		8-97062-815-1 01 1 9511-9611 ● ● ● ●
85 02.485 RELAY; HEADLAMP
VOLTAGE 24V<7AE> 02.510 24V 12.5A JIDECO 		8-97062-815-1 01 1 9612-9711 ● ● ● ● ●
85 02.485 RELAY; HEADLAMP
VOLTAGE 24V<7AE> 02.510 24V 12.5A JIDECO 		8-97062-815-1 01 1 9712- ● ● ● ● ● ●
85 02.485 RELAY; HEADLAMP
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-0 01 1 9312-9506 ● ●
85 02.485 RELAY; HEADLAMP
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 9507-9606 ● ●
85 02.485 RELAY; HEADLAMP
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 9607-9705 ● ● ●
85 02.485 RELAY; HEADLAMP
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 9706- ● ● ● ●
98 02.485 RELAY; RR FOG LAMP
RR FOG LAMP<T79> 08.852 12V 20A 		8-97060-926-0 01 1 9312-9506 ● ●
98 02.485 RELAY; RR FOG LAMP
RR FOG LAMP<T79> 08.852 12V 20A 		8-97060-926-1 01 1 9507-9711 ● ●
154 09.277 RELAY; CONDENSER FAN
AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE> 02.510 24V 12.5A JIDECO 		8-97062-815-0 01 1 9312-9405 ● ● ● ● ●
154 09.277 RELAY; CONDENSER FAN
AIR CONDITIONER MANUAL CONT(C60) EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-0 01 1 9312-9405 ● ●
154 09.277 RELAY; CONDENSER FAN
4BD2 ENG(RLW) AIR CONDITIONER MANUAL CONT(C60) EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-0 01 1 9406-9506 ●
154 09.277 RELAY; CONDENSER FAN
4BD2 ENG(RLW) AIR CONDITIONER MANUAL CONT(C60) EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 9507-9606 ● ●
154 09.277 RELAY; CONDENSER FAN
4BD2 ENG(RLW) AIR CONDITIONER MANUAL CONT(C60) EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 9607-9705 ● ● ●
154 09.277 RELAY; CONDENSER FAN
4BD2 ENG(RLW) AIR CONDITIONER MANUAL CONT(C60) EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 9706- ● ● ● ●
186 09.277 BRACKET; RELAY BOX
4HF1 ENG(RLS) 		8-97065-157-2 01 1 9312-9312 ● ● ● ● ●
186 09.277 BRACKET; RELAY BOX
4HF1 ENG(RLS) 		8-97088-652-1 01 1 9401-9510 ● ● ● ● ●
186 09.277 BRACKET; RELAY BOX
4HF1 ENG(RLS) 		8-97088-652-1 01 1 9511-9603 ● ● ● ●
186 09.277 BRACKET; RELAY BOX
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 		8-97088-652-1 01 1 9604-9611 ● ● ●
186 09.277 BRACKET; RELAY BOX
4BD2 ENG(RLW) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 		8-97088-652-1 01 1 9604-9611 ● ●
186 09.277 BRACKET; RELAY BOX
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 		8-97088-652-1 01 1 9612-9704 ● ● ● ●
186 09.277 BRACKET; RELAY BOX
4BD2 ENG(RLW) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 		8-97088-652-1 01 1 9612-9704 ● ●
186 09.277 BRACKET; RELAY BOX
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TIRE SIZE 8.25-16<7QP> 		8-97088-652-1 01 1 9705-9711 ● ● ● ●
186 09.277 BRACKET; RELAY BOX
4BD2 ENG(RLW) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 		8-97088-652-1 01 1 9705-9711 ● ●
186 09.277 BRACKET; RELAY BOX
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TIRE SIZE 8.25-16<7QP> 		8-97088-652-1 01 1 9712-9801 ● ● ● ● ●
186 09.277 BRACKET; RELAY BOX
4BD2 ENG(RLW) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 		8-97088-652-1 01 1 9712-9801 ● ●
186 09.277 BRACKET; RELAY BOX
EXC. MANUAL TILT CAB<RWZ> 		8-97088-652-1 01 1 9802- ● ● ● ● ●
186 09.277 BRACKET; RELAY BOX
MANUAL TILT CAB<RWZ> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU),FRAME STRAIGHT T YPE<7KJ> 		8-97088-652-1 01 1 9802- ● ● ● ● ●
186 09.277 BRACKET; RELAY BOX
EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU),FRAME STRAIGHT TYPE<7KJ> 		8-97088-652-1 01 1 9802- ● ● ● ● ●
186 09.277 BRACKET; RELAY BOX 8-97088-652-1 01 1 9802- ●
186 09.277 BRACKET; RELAY BOX 8-97088-652-1 01 1 9802- ●
191 02.510 RELAY; EXH BRK CUT
EXHAUST BRAKE<NF8> VOLTAGE 24V<7AE> 24V 12.5A JIDECO 		8-97062-815-0 01 1 9312-9510 ● ● ● ● ●
191 02.510 RELAY; EXH BRK CUT
EXHAUST BRAKE<NF8> VOLTAGE 24V<7AE> 24V 12.5A JIDECO 		8-97062-815-1 01 1 9511-9611 ● ● ● ●
191 02.510 RELAY; EXH BRK CUT
EXHAUST BRAKE<NF8> VOLTAGE 24V<7AE> 24V 12.5A JIDECO 		8-97062-815-1 01 1 9612-9711 ● ● ● ● ●
191 02.510 RELAY; EXH BRK CUT
VOLTAGE 24V<7AE> 24V 12.5A JIDECO 		8-97062-815-1 01 1 9712- ● ● ● ● ● ●
191 02.510 RELAY; EXH BRK CUT
EXHAUST BRAKE<NF8> EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-0 01 1 9312-9506 ● ●
191 02.510 RELAY; EXH BRK CUT
EXHAUST BRAKE<NF8> EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 9507-9606 ● ●
191 02.510 RELAY; EXH BRK CUT
EXHAUST BRAKE<NF8> EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 9607-9705 ● ● ●
191 02.510 RELAY; EXH BRK CUT
EXHAUST BRAKE<NF8> EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 9706-9711 ● ● ● ●
191 02.510 RELAY; EXH BRK CUT
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 9712- ● ● ● ●
311 02.596 RELAY; CORNERING LAMP
VOLTAGE 24V<7AE> EXC. AUSTRALIA EQUIPMENT(RR3) 02.510 24V 12.5A JIDECO 		8-97062-815-0 01 1 9312-9510 ● ● ● ● ●
311 02.596 RELAY; CORNERING LAMP
VOLTAGE 24V<7AE> EXC. AUSTRALIA EQUIPMENT(RR3) 02.510 24V 12.5A JIDECO 		8-97062-815-1 01 1 9511-9611 ● ● ● ●
311 02.596 RELAY; CORNERING LAMP
VOLTAGE 24V<7AE> EXC. AUSTRALIA EQUIPMENT(RR3) 02.510 24V 12.5A JIDECO 		8-97062-815-1 01 1 9612-9711 ● ● ● ● ●
311 02.596 RELAY; CORNERING LAMP
VOLTAGE 24V<7AE> EXC. AUSTRALIA EQUIPMENT(RR3), UNITEDKINGDOM EQUIPMENT(6AA),IRISH EQUIPM ENT(6CU) 02.510 24V 12.5A JIDECO 		8-97062-815-1 01 1 9712- ● ● ● ● ● ●
311 02.596 RELAY; CORNERING LAMP
EXC. EUROPEAN BASIC EQUIPMENT(EK4), VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-0 01 1 9312-9506 ● ●
311 02.596 RELAY; CORNERING LAMP
EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU),VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-0 01 1 9507-9510 ● ●
311 02.596 RELAY; CORNERING LAMP
EXC. AUSTRALIA EQUIPMENT(RR3), UNITEDKINGDOM EQUIPMENT(6AA),IRISH EQUIPM ENT(6CU),VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 9511-9606 ● ●
311 02.596 RELAY; CORNERING LAMP
EXC. AUSTRALIA EQUIPMENT(RR3), UNITEDKINGDOM EQUIPMENT(6AA),IRISH EQUIPM ENT(6CU),VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 9607-9705 ● ● ●
311 02.596 RELAY; CORNERING LAMP
EXC. AUSTRALIA EQUIPMENT(RR3), UNITEDKINGDOM EQUIPMENT(6AA),IRISH EQUIPM ENT(6CU),VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 9706- ● ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
VOLTAGE 24V<7AE> 02.510 24V 12.5A JIDECO 		8-97062-815-0 01 1 9312-9506 ● ● ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
EXHAUST BRAKE<NF8> VOLTAGE 24V<7AE> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 02.510 24V 12.5A JIDECO 		8-97062-815-0 01 1 9507-9510 ● ● ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
FUEL SEDIMENTER WITH HEATER<6HU> VOLTAGE 24V<7AE> 02.510 24V 12.5A JIDECO 		8-97062-815-0 01 1 9507-9510 ● ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
EXHAUST BRAKE<NF8> VOLTAGE 24V<7AE> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 02.510 24V 12.5A JIDECO 		8-97062-815-0 01 1 9511-9611 ● ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
FUEL SEDIMENTER WITH HEATER<6HU> VOLTAGE 24V<7AE> 02.510 24V 12.5A JIDECO 		8-97062-815-0 01 1 9511-9611 ● ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
EXHAUST BRAKE<NF8> VOLTAGE 24V<7AE> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 02.510 24V 12.5A JIDECO 		8-97062-815-0 01 1 9612-9707 ● ● ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
FUEL SEDIMENTER WITH HEATER<6HU> VOLTAGE 24V<7AE> 02.510 24V 12.5A JIDECO 		8-97062-815-0 01 1 9612-9707 ● ● ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
EXHAUST BRAKE<NF8> VOLTAGE 24V<7AE> EXC. THAILAND EQUIPMENT(PM9),FUEL SEDIMENTER WITH HEATER<6HU> 02.510 24V 12.5A JIDECO 		8-97062-815-1 01 1 9708-9711 ● ● ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
FUEL SEDIMENTER WITH HEATER<6HU> VOLTAGE 24V<7AE> EXC. THAILAND EQUIPMENT(PM9) 02.510 24V 12.5A JIDECO 		8-97062-815-1 01 1 9708-9711 ● ● ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
VOLTAGE 24V<7AE> 02.510 24V 12.5A JIDECO 		8-97062-815-1 01 1 9712- ● ● ● ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-0 01 1 9312-9506 ● ●
315 09.277 RELAY; EXH BRAKE CONT
EXHAUST BRAKE<NF8> EXC. FUEL SEDIMENTER WITH HEATER<6HU>,VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 9507-9606 ● ●
315 09.277 RELAY; EXH BRAKE CONT
FUEL SEDIMENTER WITH HEATER<6HU> EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 9507-9606 ● ●
315 09.277 RELAY; EXH BRAKE CONT
EXHAUST BRAKE<NF8> EXC. FUEL SEDIMENTER WITH HEATER<6HU>,VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 9607-9705 ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
FUEL SEDIMENTER WITH HEATER<6HU> EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 9607-9705 ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
EXHAUST BRAKE<NF8> EXC. FUEL SEDIMENTER WITH HEATER<6HU>,VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 9706-9711 ● ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
FUEL SEDIMENTER WITH HEATER<6HU> EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 9706-9711 ● ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 9712- ● ● ● ●
321 16.341 BOLT; RELAY
AUTO DOOR LOCK<AU4> 01.269 M5X20 		8-94436-927-0 01 1 9312-9510 ● ● ● ● ●
321 16.341 BOLT; RELAY
AUTO DOOR LOCK<AU4> 01.269 M5X20 		8-94436-927-0 01 1 9511-9611 ● ● ● ●
321 16.341 BOLT; RELAY
AUTO DOOR LOCK<AU4> 01.269 M5X20 		8-94436-927-0 01 1 9612-9711 ● ● ● ● ●
321 16.341 BOLT; RELAY
AUTO DOOR LOCK<AU4> 01.269 M5X20 		8-94436-927-0 01 1 9712- ● ● ● ● ● ●

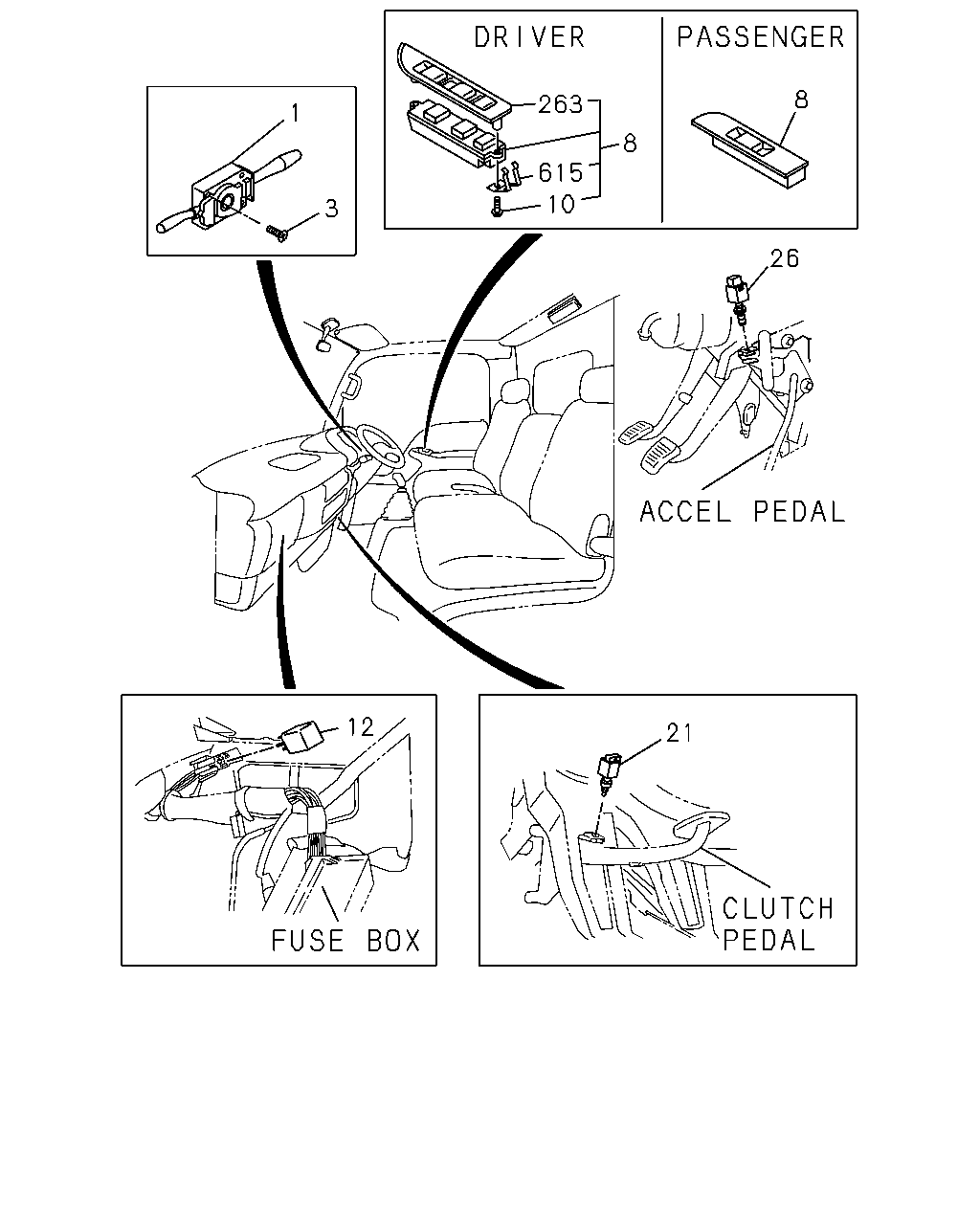

çizim 70518
8 263 1 8 615 10 3 26 12 21
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 02.895 SWITCH; COMB
EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13> 		8-97071-217-1 01 1 9312-9510 ● ● ● ● ●
1 02.895 SWITCH; COMB
EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13> 		8-97071-217-1 01 1 9511-9611 ● ● ● ●
1 02.895 SWITCH; COMB
EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13> 		8-97071-217-1 01 1 9612-9711 ● ● ● ● ●
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13> 		8-97071-217-1 01 1 9712- ● ● ● ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> 		8-97071-215-1 01 1 9312-9510 ● ● ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> 		8-97071-215-1 01 1 9511-9611 ● ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> 		8-97071-215-1 01 1 9612-9711 ● ● ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> 		8-97170-393-0 01 1 9712- ● ● ● ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. EXHAUST BRAKE<NF8> 		8-97071-216-1 01 1 9312-9510 ● ● ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. EXHAUST BRAKE<NF8> 		8-97071-216-1 01 1 9511-9611 ● ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. EXHAUST BRAKE<NF8> 		8-97071-216-1 01 1 9612-9711 ● ● ● ● ●
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13>, EXHAUSTBRAKE<NF8> 		8-97071-218-1 01 1 9312-9510 ● ● ● ● ●
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13>, EXHAUSTBRAKE<NF8> 		8-97071-218-1 01 1 9511-9611 ● ● ● ●
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13>, EXHAUSTBRAKE<NF8> 		8-97071-218-1 01 1 9612-9711 ● ● ● ● ●
3 02.897 SCREW; COMB SW
M5X20 W/LK WASHER 		9-03910-520-0 04 1 9312-9510 ● ● ● ● ●
3 02.897 SCREW; COMB SW
M5X20 W/LK WASHER 		9-03910-520-0 04 1 9511-9611 ● ● ● ●
3 02.897 SCREW; COMB SW
M5X20 W/LK WASHER 		9-03910-520-0 04 1 9612-9711 ● ● ● ● ●
3 02.897 SCREW; COMB SW
M5X20 W/LK WASHER 		9-03910-520-0 04 1 9712- ● ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-97043-748-2 01 1 9312-9510 ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-97043-748-2 01 1 9511-9611 ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-97043-748-2 01 1 9612-9711 ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-97136-761-0 01 1 9712-9805 ● ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-97205-726-0 01 1 9806- ● ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> VOLTAGE 24V<7AE> DRIVER SIDE 		8-97073-836-2 01 1 9312-9510 ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> VOLTAGE 24V<7AE> DRIVER SIDE 		8-97073-836-2 01 1 9511-9610 ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> VOLTAGE 24V<7AE> DRIVER SIDE 		8-97166-336-0 01 1 9611-9611 ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> VOLTAGE 24V<7AE> DRIVER SIDE 		8-97166-336-0 01 1 9612-9711 ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> VOLTAGE 24V<7AE> DRIVER SIDE 		8-97166-342-0 01 1 9712- ● ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> EXC. VOLTAGE 24V<7AE> DRIVER SIDE 		8-97073-930-2 01 1 9312-9506 ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> EXC. VOLTAGE 24V<7AE> DRIVER SIDE 		8-97073-930-2 01 1 9507-9606 ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> EXC. VOLTAGE 24V<7AE> DRIVER SIDE 		8-97073-930-2 01 1 9607-9611 ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> EXC. VOLTAGE 24V<7AE> DRIVER SIDE 		8-97166-337-0 01 1 9612-9705 ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> EXC. VOLTAGE 24V<7AE> DRIVER SIDE 		8-97166-337-0 01 1 9706-9711 ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> EXC. VOLTAGE 24V<7AE> DRIVER SIDE 		8-97166-343-0 01 1 9712- ● ● ● ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 		8-97219-239-0 02 1 9312-9510 ● ● ● ● ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 		8-97219-239-0 02 1 9511-9611 ● ● ● ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 		8-97219-239-0 02 1 9612-9711 ● ● ● ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 		8-97219-239-0 02 1 9712- ● ● ● ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> VOLTAGE 24V<7AE> 02.510 24V 12.5A JIDECO 		8-97062-815-0 01 1 9312-9510 ● ● ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> VOLTAGE 24V<7AE> 02.510 24V 12.5A JIDECO 		8-97062-815-1 01 1 9511-9611 ● ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> VOLTAGE 24V<7AE> 02.510 24V 12.5A JIDECO 		8-97062-815-1 01 1 9612-9711 ● ● ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> VOLTAGE 24V<7AE> 02.510 24V 12.5A JIDECO 		8-97062-815-1 01 1 9712- ● ● ● ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-0 01 1 9312-9506 ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-1 01 1 9507-9606 ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-1 01 1 9607-9705 ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-1 01 1 9706- ● ● ● ●
21 02.575 SWITCH; CLU
EXHAUST BRAKE<NF8> 04.054 		8-94331-723-1 01 1 9312-9503 ● ● ● ● ●
21 02.575 SWITCH; CLU
FLOOR REMOTE SHIFT<M11> EXHAUST BRAKE<NF8> 04.054 		8-94331-723-1 01 1 9504-9510 ● ● ● ● ●
21 02.575 SWITCH; CLU
FLOOR REMOTE SHIFT<M11> EXHAUST BRAKE<NF8> 04.054 		8-94331-723-1 01 1 9511-9611 ● ● ● ●
21 02.575 SWITCH; CLU
FLOOR REMOTE SHIFT<M11> EXHAUST BRAKE<NF8> 04.054 		8-94331-723-1 01 1 9612-9711 ● ● ● ● ●
21 02.575 SWITCH; CLU
FLOOR REMOTE SHIFT<M11> 04.054 		8-94331-723-1 01 1 9712- ● ● ● ● ● ●
26 03.636 SWITCH; ACCEL
EXHAUST BRAKE<NF8> 04.054 		8-94368-343-0 01 1 9312-9312 ● ● ● ● ●
26 03.636 SWITCH; ACCEL
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 04.054 		8-94368-343-0 01 1 9401-9510 ● ● ● ● ●
26 03.636 SWITCH; ACCEL
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 04.054 		8-94368-343-0 01 1 9511-9611 ● ● ● ●
26 03.636 SWITCH; ACCEL
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 04.054 		8-94368-343-0 01 1 9612-9711 ● ● ● ● ●
26 03.636 SWITCH; ACCEL
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4HE1 ENG(RLY) 04.054 		8-94368-343-0 01 1 9712- ● ● ● ● ● ●
26 03.636 SWITCH; ACCEL
4BD2 ENG(RLW) EXHAUST BRAKE<NF8> 02.447 		8-94109-863-0 01 1 9401-9406 ●
26 03.636 SWITCH; ACCEL
4BD2 ENG(RLW) EXHAUST BRAKE<NF8> 		1-82440-049-1 01 1 9407-9407 ●
26 03.636 SWITCH; ACCEL
4BD2 ENG(RLW) EXHAUST BRAKE<NF8> 02.447 '94/7/27- 		8-94109-863-0 01 1 9407-9407 ●
26 03.636 SWITCH; ACCEL
4BD2 ENG(RLW) EXHAUST BRAKE<NF8> 		1-82440-049-1 01 1 9408-9506 ●
26 03.636 SWITCH; ACCEL
4BD2 ENG(RLW) EXHAUST BRAKE<NF8> 		1-82440-049-1 01 1 9507-9606 ● ●
26 03.636 SWITCH; ACCEL
4BD2 ENG(RLW) EXHAUST BRAKE<NF8> 		1-82440-049-1 01 1 9607-9705 ● ● ●
26 03.636 SWITCH; ACCEL
4BD2 ENG(RLW) EXHAUST BRAKE<NF8> 		1-82440-049-1 01 1 9706-9711 ● ● ● ●
26 03.636 SWITCH; ACCEL
4BD2 ENG(RLW) 		1-82440-049-1 01 1 9712- ● ● ● ●
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> 		8-97219-235-0 01 1 9312-9510 ● ● ● ● ●
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> 		8-97219-235-0 01 1 9511-9611 ● ● ● ●
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> 		8-97219-235-0 01 1 9612-9711 ● ● ● ●
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> 		8-97219-234-0 01 1 9712- ● ● ● ● ● ●
615 16.263 SPRING; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 		8-97219-238-0 01 1 9312-9510 ● ● ● ● ●
615 16.263 SPRING; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 		8-97219-238-0 01 1 9511-9611 ● ● ● ●
615 16.263 SPRING; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 		8-97219-238-0 01 1 9612-9711 ● ● ● ●
615 16.263 SPRING; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 		8-97219-238-0 01 1 9712- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
