2-05 — CLUTCH PIPING (#489) — 345 parça

49 47 47 131 126 34 35 33 128 136 129 106 53 53 52 132 133 170 49 27 26 30 25 28 29 4 44 45 46 115 116 47 47 48 104 153

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
4	CLIP; FLEX HOSE,CLU CONT L=250	5-09707-030-0	01	1	8712-	●	●	●	●	●	●
4	CLIP; FLEX HOSE,CLU CONT L=140	5-09707-031-0	01	1	8712-	●	●	●			●
25	BRACKET; OIL PIPE	1-47475-904-0	01	1	8712-9306	●		●	●	●	●
25	BRACKET; OIL PIPE EXC. NYLON TUBE AIR PIPING<Z29>	1-47475-904-0	01	1	8712-9306		●
25	BRACKET; OIL PIPE	1-47476-835-0	01	1	9307-	●			●
25	BRACKET; OIL PIPE EXC. NYLON TUBE AIR PIPING<Z29>	1-47476-835-0	01	1	9307-		●
25	BRACKET; OIL PIPE NYLON TUBE AIR PIPING<Z29>	1-47476-036-0	01	1	8712-		●
26	NUT; CLIP,OIL PIPE M8	9-09110-408-0	01	1	8712-				●	●
26	NUT; CLIP,OIL PIPE NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	04	1	8712-9010		●
26	NUT; CLIP,OIL PIPE NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	03	1	9011-		●
27	NUT; BRKT M8	9-09110-408-0	02	1	8712-	●	●	●	●	●	●
28	CLIP; OIL PIPE (C) ID=13 & 9 L=18 & 17	1-09700-667-0	01	1	8712-				●	●
28	CLIP; OIL PIPE NYLON TUBE AIR PIPING<Z29> (B) ID=8 H=20 L=20	1-09700-604-0	01	1	8712-9008		●
28	CLIP; OIL PIPE NYLON TUBE AIR PIPING<Z29> (B) ID=8 H=20 L=20	1-09700-604-0	02	1	9009-		●
28	CLIP; OIL PIPE NYLON TUBE AIR PIPING<Z29> (A) ID=9	9-09524-825-0	01	1	8712-		●
29	BOLT; CLIP,OIL PIPE M8X20 W/LK WASHER	9-01900-820-0	01	1	8712-9204				●	●
29	BOLT; CLIP,OIL PIPE M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302				●
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28080-820-0	01	1	9303-				●
29	BOLT; CLIP,OIL PIPE NYLON TUBE AIR PIPING<Z29> M8X20 W/LK WASHER	9-01900-820-0	01	1	8712-9001		●
29	BOLT; CLIP,OIL PIPE NYLON TUBE AIR PIPING<Z29> M8X16 W/LK WASHER	9-01900-816-0	01	1	9002-9010		●
29	BOLT; CLIP,OIL PIPE NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	9-01900-825-0	02	1	8712-9008		●
29	BOLT; CLIP,OIL PIPE NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	9-01900-825-0	03	1	9009-9204		●
29	BOLT; CLIP,OIL PIPE NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	0-50040-825-0	03	1	9205-9302		●
29	BOLT; CLIP,OIL PIPE NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	03	1	9303-		●
30	BOLT; BRKT M8X30 W/LK WASHER	9-01900-830-0	02	1	8712-9204	●	●	●	●	●	●
30	BOLT; BRKT M8X30 W/LK WASHER	0-50040-830-0	02	1	9205-9302	●	●		●		●
30	BOLT; BRKT M8X30 FLANGE	0-28080-830-0	02	1	9303-9306	●	●		●		●
30	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	02	1	9307-	●	●		●
33	CLIP; OIL PIPE HONG KONG EQUIPMENT(PQ1) ID=8 H=20 L=20	1-09700-604-0	01	1	8712-9306			●	●	●
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	01	1	9307-				●
33	CLIP; OIL PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> ID=8 H=20 L=20	1-09700-604-0	03	1	8712-9001		●	●
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	03	1	9002-	●	●				●
34	BOLT; PIPE CLIP M8X20 W/LK WASHER	9-01900-820-0	01	1	8712-9001		●	●		●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28010-830-0	01	1	9002-9204				●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28080-830-0	01	1	9205-				●
34	BOLT; PIPE CLIP M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204	●	●				●
34	BOLT; PIPE CLIP M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302	●	●				●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28080-820-0	01	1	9303-	●	●				●
34	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28010-825-0	03	1	9002-9204	●	●				●
34	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	03	1	9205-	●	●				●
35	NUT; PIPE CLIP HONG KONG EQUIPMENT(PQ1) M8	9-09110-408-0	01	1	8712-9306			●	●	●
35	NUT; PIPE CLIP M8	9-09110-408-0	01	1	9307-				●
35	NUT; PIPE CLIP EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	03	1	8712-9001		●	●
35	NUT; PIPE CLIP M8	9-09110-408-0	03	1	9002-	●	●				●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8	9-09110-408-0	02	1	8712-	●	●	●	●	●	●
45	NUT; FLEX HOSE,CLU CONT M16	9-99111-416-0	02	1	8902-				●	●
45	NUT; FLEX HOSE,CLU CONT EXC. NYLON TUBE AIR PIPING<Z29> M12	9-09840-280-0	02	1	8712-	●	●	●			●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=16.2	9-09150-516-0	02	1	8902-				●	●
46	WASHER; LK,FLEX HOSE,CLU CONT EXC. NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	02	1	8712-	●	●	●			●
47	HOSE; FLEX,CLU CONT (B) L=590	0-07424-590-0	01	1	8902-9001					●
47	HOSE; FLEX,CLU CONT (A) L=500	1-09364-329-0	01	1	8902-				●	●
47	HOSE; FLEX,CLU CONT ASSISTER SHIFT CONTROL<WX8> (B) L=500	0-07472-500-1	01	1	9002-9306				●
47	HOSE; FLEX,CLU CONT ASSISTER SHIFT CONTROL<WX8> (B) L=460	0-07472-460-1	01	1	9307-				●
47	HOSE; FLEX,CLU CONT EXC. ASSISTER SHIFT CONTROL<WX8> (B) L=590	0-07424-590-0	01	1	9002-				●
47	HOSE; FLEX,CLU CONT HONG KONG EQUIPMENT(PQ1) (B) L=680	0-07030-680-0	01	1	8712-8802			●
47	HOSE; FLEX,CLU CONT HONG KONG EQUIPMENT(PQ1) (A) L=690	1-09364-504-0	01	1	8712-8802			●
47	HOSE; FLEX,CLU CONT HONG KONG EQUIPMENT(PQ1) (A) L=640	0-05555-640-0	01	1	8803-8804			●
47	HOSE; FLEX,CLU CONT HONG KONG EQUIPMENT(PQ1) (B) L=620	0-07030-620-0	01	1	8803-9001			●
47	HOSE; FLEX,CLU CONT HONG KONG EQUIPMENT(PQ1) (A) L=640	0-05566-640-0	01	1	8805-9001			●
47	HOSE; FLEX,CLU CONT EXC. HONG KONG EQUIPMENT(PQ1) (B) L=450	0-07030-450-0	01	1	8712-			●
47	HOSE; FLEX,CLU CONT EXC. NYLON TUBE AIR PIPING<Z29> (B) L=450	0-07030-450-0	01	1	8712-	●	●				●
47	HOSE; FLEX,CLU CONT EXC. HONG KONG EQUIPMENT(PQ1) (A) L=445	1-09364-478-0	01	1	8712-			●
47	HOSE; FLEX,CLU CONT EXC. NYLON TUBE AIR PIPING<Z29> (A) L=445	1-09364-478-0	01	1	8712-	●	●				●
48	GASKET; FLEX HOSE,CLU CONT (A) ID=10.2 OD=16.0	9-09571-410-0	01	1	8905-9001					●
48	GASKET; FLEX HOSE,CLU CONT (A),(B) ID=10.2 OD=16.0	9-09571-410-0	01	1	9002-9412				●
48	GASKET; FLEX HOSE,CLU CONT ASSISTER SHIFT CONTROL<WX8> (A),(B) ID=10.2 OD=16.0	9-09571-410-0	01	1	9002-9412				●
48	GASKET; FLEX HOSE,CLU CONT (A) ID=10.2 OD=16.0	9-09571-410-0	01	1	9501-				●
48	GASKET; FLEX HOSE,CLU CONT ASSISTER SHIFT CONTROL<WX8> (B) ID=11 OD=18	9-09572-510-0	01	1	9501-				●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (C)	1-47481-060-0	01	1	8902-9001					●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (C) L=254	1-47487-082-0	01	1	9002-9212				●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (C) L=254	1-47498-136-0	01	1	9301-9301				●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (C) L=254	1-47487-082-0	01	1	9302-9306				●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (C) L=254	1-47496-282-0	01	1	9307-				●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (A) L=615 SERVICED BY L=660	1-47437-954-0	01	1	8712-9306	●	●	●			●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (A) L=632 SERVICED BY L=660	1-47426-381-0	01	1	9307-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER EXC. NYLON TUBE AIR PIPING<Z29> (B) L=206	1-47439-426-1	01	1	8712-	●	●	●			●
52	BOLT; EYE,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M14X27 FLANGE	1-09675-086-0	01	1	8712-	●	●	●	●	●	●
53	GASKET; JOINT BOLT EXC. NYLON TUBE AIR PIPING<Z29> ID=14.2 OD=19.2	1-09630-085-0	02	1	8712-	●	●	●	●	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1659 SERVICED BY L=1700	1-47434-412-0	01	1	8712-9306				●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR HONG KONG EQUIPMENT(PQ1) L=1659 SERVICED BY L=1700	1-47434-412-0	01	1	8712-9306			●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1597 SERVICED BY L=1700	1-47426-391-0	01	1	9307-				●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1984 SERVICED BY L=2150	1-47437-958-0	01	1	8712-9306	●	●	●			●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR NYLON TUBE AIR PIPING<Z29> L=1861 SERVICED BY L=1950	1-47434-414-0	01	1	8712-9008	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR NYLON TUBE AIR PIPING<Z29> L=1893 SERVICED BY L=1950	1-47434-414-0	01	1	9009-9306	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR NYLON TUBE AIR PIPING<Z29> L=1880 SERVICED BY L=1950	1-47426-393-0	01	1	9307-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR EXC. NYLON TUBE AIR PIPING<Z29> L=1908 SERVICED BY L=1950	1-47426-393-0	01	1	9307-	●	●
106	UNION; OIL PIPE M14 STRAIGHT	9-09223-008-1	01	1	8712-	●	●	●	●	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	8905-				●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	02	1	8712-	●	●	●			●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	8712-				●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	02	1	8905-	●	●	●			●
126	PIPE; AIR,UNION TO UNION L=960 SERVICED BY L=1000	1-47434-485-1	01	1	8902-9001					●
126	PIPE; AIR,UNION TO UNION L=965 SERVICED BY L=1000	1-47434-476-0	01	1	9002-9306				●
126	PIPE; AIR,UNION TO UNION L=965	1-49111-036-0	01	1	9307-				●
126	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) L=962 SERVICED BY L=1000	1-47434-386-0	01	1	8712-8901			●
126	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) L=969 SERVICED BY L=1000	1-47434-386-0	01	1	8902-9001			●
126	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=900 SERVICED BY L=900	1-47437-981-0	01	1	8902-9001		●	●
126	PIPE; AIR,UNION TO UNION L=1526 SERVICED BY L=1600	1-47437-985-0	01	1	9002-9306	●	●	●			●
126	PIPE; AIR,UNION TO UNION EXC. NYLON TUBE AIR PIPING<Z29> L=1553 SERVICED BY L=1600	1-49111-448-0	01	1	9307-	●	●
128	CLIP; AIR PIPE ID=11 H=20 L=20	5-09700-351-0	01	1	8902-				●	●
128	CLIP; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> ID=6 H=20 L=20	1-09700-603-0	01	1	8712-	●	●	●			●
129	BOLT; PIPE CLIP M8X30 FLANGE	0-28010-830-0	01	1	8712-9204				●	●
129	BOLT; PIPE CLIP M8X30 FLANGE	0-28080-830-0	01	1	9205-				●
129	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28010-825-0	01	1	8712-9204	●	●	●			●
129	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	01	1	9205-	●	●				●
131	PIPE; AIR,UNION TO FLEX HOSE L=974 SERVICED BY L=1000	1-47434-485-1	01	1	8902-9306				●	●
131	PIPE; AIR,UNION TO FLEX HOSE L=1001 SERVICED BY L=1100	1-47426-415-0	01	1	9307-				●
131	PIPE; AIR,UNION TO FLEX HOSE HONG KONG EQUIPMENT(PQ1) L=540 SERVICED BY L=550	9-47415-351-0	01	1	8712-8901			●
131	PIPE; AIR,UNION TO FLEX HOSE HONG KONG EQUIPMENT(PQ1) L=539 SERVICED BY L=550	9-47415-351-0	01	1	8902-9001			●
131	PIPE; AIR,UNION TO FLEX HOSE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=662 SERVICED BY L=700	1-47434-466-0	01	1	8712-9306	●	●	●			●
131	PIPE; AIR,UNION TO FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> L=671 SERVICED BY L=700	1-47426-347-0	01	1	9307-	●	●
132	NUT; UNION,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M12	9-99111-412-0	01	1	8712-	●	●	●	●	●	●
133	WASHER; LK,UNION EXC. NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	8712-9312	●	●	●	●	●	●
136	NUT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	01	1	8712-	●	●	●	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX L=1461 SERVICED BY L=1550	1-47437-957-0	01	1	8902-9001					●
153	PIPE ASM; CLU,UNION TO FLEX L=1449 SERVICED BY L=1550	1-47437-957-0	01	1	9002-9306				●
153	PIPE ASM; CLU,UNION TO FLEX L=1487 SERVICED BY L=1550	1-47426-390-0	01	1	9307-9412				●
153	PIPE ASM; CLU,UNION TO FLEX L=1496 SERVICED BY L=1550	1-47426-390-0	01	1	9501-				●
153	PIPE ASM; CLU,UNION TO FLEX HONG KONG EQUIPMENT(PQ1) L=1622 SERVICED BY L=1700	1-47434-412-0	01	1	8712-9001			●
153	PIPE ASM; CLU,UNION TO FLEX EXC. HONG KONG EQUIPMENT(PQ1) L=1415 SERVICED BY L=1550	1-47437-957-0	01	1	8712-8901		●	●
153	PIPE ASM; CLU,UNION TO FLEX EXC. HONG KONG EQUIPMENT(PQ1) L=1402 SERVICED BY L=1550	1-47437-957-0	01	1	8902-9306	●	●	●			●
153	PIPE ASM; CLU,UNION TO FLEX L=1411 SERVICED BY L=1550	1-47426-390-0	01	1	9307-	●	●
170	UNION; AIR PIPE (A) M16 2WAY	1-09650-182-1	01	1	8902-				●	●
170	UNION; AIR PIPE ASSISTER SHIFT CONTROL<WX8> (D)	1-09656-173-1	01	1	9104-				●
170	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (B) M12 2WAY	1-09654-059-0	01	1	8712-9001			●
170	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (C)	1-09656-424-0	01	1	8712-9001		●	●
170	UNION; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (C)	1-09656-424-1	01	1	9002-	●	●				●

122 126 131 153 104 47 49 47 168 131 126 29 25 30 28 27 26 171 39 4 128 28 26 136 129 33 34 35 106 47 47 116 115 44 45 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
4	CLIP; FLEX HOSE,CLU CONT L=250	5-09707-030-0	01	1	8712-	●	●	●	●	●	●
4	CLIP; FLEX HOSE,CLU CONT L=140	5-09707-031-0	01	1	8712-	●	●	●			●
25	BRACKET; OIL PIPE	1-47475-904-0	01	1	8712-9306	●		●	●	●	●
25	BRACKET; OIL PIPE EXC. NYLON TUBE AIR PIPING<Z29>	1-47475-904-0	01	1	8712-9306		●
25	BRACKET; OIL PIPE	1-47476-835-0	01	1	9307-	●			●
25	BRACKET; OIL PIPE EXC. NYLON TUBE AIR PIPING<Z29>	1-47476-835-0	01	1	9307-		●
25	BRACKET; OIL PIPE NYLON TUBE AIR PIPING<Z29>	1-47476-036-0	01	1	8712-		●
26	NUT; CLIP,OIL PIPE M8	9-09110-408-0	01	1	8712-				●	●
26	NUT; CLIP,OIL PIPE NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	04	1	8712-9010		●
26	NUT; CLIP,OIL PIPE NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	03	1	9011-		●
27	NUT; BRKT M8	9-09110-408-0	02	1	8712-	●	●	●	●	●	●
28	CLIP; OIL PIPE (C) ID=13 & 9 L=18 & 17	1-09700-667-0	01	1	8712-				●	●
28	CLIP; OIL PIPE NYLON TUBE AIR PIPING<Z29> (B) ID=8 H=20 L=20	1-09700-604-0	01	1	8712-9008		●
28	CLIP; OIL PIPE NYLON TUBE AIR PIPING<Z29> (B) ID=8 H=20 L=20	1-09700-604-0	02	1	9009-		●
28	CLIP; OIL PIPE NYLON TUBE AIR PIPING<Z29> (A) ID=9	9-09524-825-0	01	1	8712-		●
29	BOLT; CLIP,OIL PIPE M8X20 W/LK WASHER	9-01900-820-0	01	1	8712-9204				●	●
29	BOLT; CLIP,OIL PIPE M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302				●
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28080-820-0	01	1	9303-				●
29	BOLT; CLIP,OIL PIPE NYLON TUBE AIR PIPING<Z29> M8X20 W/LK WASHER	9-01900-820-0	01	1	8712-9001		●
29	BOLT; CLIP,OIL PIPE NYLON TUBE AIR PIPING<Z29> M8X16 W/LK WASHER	9-01900-816-0	01	1	9002-9010		●
29	BOLT; CLIP,OIL PIPE NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	9-01900-825-0	02	1	8712-9008		●
29	BOLT; CLIP,OIL PIPE NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	9-01900-825-0	03	1	9009-9204		●
29	BOLT; CLIP,OIL PIPE NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	0-50040-825-0	03	1	9205-9302		●
29	BOLT; CLIP,OIL PIPE NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	03	1	9303-		●
30	BOLT; BRKT M8X30 W/LK WASHER	9-01900-830-0	02	1	8712-9204	●	●	●	●	●	●
30	BOLT; BRKT M8X30 W/LK WASHER	0-50040-830-0	02	1	9205-9302	●	●		●		●
30	BOLT; BRKT M8X30 FLANGE	0-28080-830-0	02	1	9303-9306	●	●		●		●
30	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	02	1	9307-	●	●		●
33	CLIP; OIL PIPE HONG KONG EQUIPMENT(PQ1) ID=8 H=20 L=20	1-09700-604-0	01	1	8712-9306			●	●	●
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	01	1	9307-				●
33	CLIP; OIL PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> ID=8 H=20 L=20	1-09700-604-0	03	1	8712-9001		●	●
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	03	1	9002-	●	●				●
34	BOLT; PIPE CLIP M8X20 W/LK WASHER	9-01900-820-0	01	1	8712-9001		●	●		●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28010-830-0	01	1	9002-9204				●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28080-830-0	01	1	9205-				●
34	BOLT; PIPE CLIP M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204	●	●				●
34	BOLT; PIPE CLIP M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302	●	●				●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28080-820-0	01	1	9303-	●	●				●
34	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28010-825-0	03	1	9002-9204	●	●				●
34	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	03	1	9205-	●	●				●
35	NUT; PIPE CLIP HONG KONG EQUIPMENT(PQ1) M8	9-09110-408-0	01	1	8712-9306			●	●	●
35	NUT; PIPE CLIP M8	9-09110-408-0	01	1	9307-				●
35	NUT; PIPE CLIP EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	03	1	8712-9001		●	●
35	NUT; PIPE CLIP M8	9-09110-408-0	03	1	9002-	●	●				●
39	GASKET; CONNECTOR ID=10.2 OD=16.0	9-09571-410-0	01	1	8712-	●	●	●			●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8	9-09110-408-0	02	1	8712-	●	●	●	●	●	●
45	NUT; FLEX HOSE,CLU CONT M16	9-99111-416-0	02	1	8902-				●	●
45	NUT; FLEX HOSE,CLU CONT EXC. NYLON TUBE AIR PIPING<Z29> M12	9-09840-280-0	02	1	8712-	●	●	●			●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=16.2	9-09150-516-0	02	1	8902-				●	●
46	WASHER; LK,FLEX HOSE,CLU CONT EXC. NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	02	1	8712-	●	●	●			●
47	HOSE; FLEX,CLU CONT (B) L=590	0-07424-590-0	01	1	8902-9001					●
47	HOSE; FLEX,CLU CONT (A) L=500	1-09364-329-0	01	1	8902-				●	●
47	HOSE; FLEX,CLU CONT ASSISTER SHIFT CONTROL<WX8> (B) L=500	0-07472-500-1	01	1	9002-9306				●
47	HOSE; FLEX,CLU CONT ASSISTER SHIFT CONTROL<WX8> (B) L=460	0-07472-460-1	01	1	9307-				●
47	HOSE; FLEX,CLU CONT EXC. ASSISTER SHIFT CONTROL<WX8> (B) L=590	0-07424-590-0	01	1	9002-				●
47	HOSE; FLEX,CLU CONT HONG KONG EQUIPMENT(PQ1) (B) L=680	0-07030-680-0	01	1	8712-8802			●
47	HOSE; FLEX,CLU CONT HONG KONG EQUIPMENT(PQ1) (A) L=690	1-09364-504-0	01	1	8712-8802			●
47	HOSE; FLEX,CLU CONT HONG KONG EQUIPMENT(PQ1) (A) L=640	0-05555-640-0	01	1	8803-8804			●
47	HOSE; FLEX,CLU CONT HONG KONG EQUIPMENT(PQ1) (B) L=620	0-07030-620-0	01	1	8803-9001			●
47	HOSE; FLEX,CLU CONT HONG KONG EQUIPMENT(PQ1) (A) L=640	0-05566-640-0	01	1	8805-9001			●
47	HOSE; FLEX,CLU CONT EXC. HONG KONG EQUIPMENT(PQ1) (B) L=450	0-07030-450-0	01	1	8712-			●
47	HOSE; FLEX,CLU CONT EXC. NYLON TUBE AIR PIPING<Z29> (B) L=450	0-07030-450-0	01	1	8712-	●	●				●
47	HOSE; FLEX,CLU CONT EXC. HONG KONG EQUIPMENT(PQ1) (A) L=445	1-09364-478-0	01	1	8712-			●
47	HOSE; FLEX,CLU CONT EXC. NYLON TUBE AIR PIPING<Z29> (A) L=445	1-09364-478-0	01	1	8712-	●	●				●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (C)	1-47481-060-0	01	1	8902-9001					●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (C) L=254	1-47487-082-0	01	1	9002-9212				●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (C) L=254	1-47498-136-0	01	1	9301-9301				●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (C) L=254	1-47487-082-0	01	1	9302-9306				●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (C) L=254	1-47496-282-0	01	1	9307-				●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (A) L=615 SERVICED BY L=660	1-47437-954-0	01	1	8712-9306	●	●	●			●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (A) L=632 SERVICED BY L=660	1-47426-381-0	01	1	9307-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER EXC. NYLON TUBE AIR PIPING<Z29> (B) L=206	1-47439-426-1	01	1	8712-	●	●	●			●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1659 SERVICED BY L=1700	1-47434-412-0	01	1	8712-9306				●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR HONG KONG EQUIPMENT(PQ1) L=1659 SERVICED BY L=1700	1-47434-412-0	01	1	8712-9306			●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1597 SERVICED BY L=1700	1-47426-391-0	01	1	9307-				●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1984 SERVICED BY L=2150	1-47437-958-0	01	1	8712-9306	●	●	●			●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR NYLON TUBE AIR PIPING<Z29> L=1861 SERVICED BY L=1950	1-47434-414-0	01	1	8712-9008	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR NYLON TUBE AIR PIPING<Z29> L=1893 SERVICED BY L=1950	1-47434-414-0	01	1	9009-9306	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR NYLON TUBE AIR PIPING<Z29> L=1880 SERVICED BY L=1950	1-47426-393-0	01	1	9307-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR EXC. NYLON TUBE AIR PIPING<Z29> L=1908 SERVICED BY L=1950	1-47426-393-0	01	1	9307-	●	●
106	UNION; OIL PIPE M14 STRAIGHT	9-09223-008-1	01	1	8712-	●	●	●	●	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	8905-				●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	02	1	8712-	●	●	●			●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	8712-				●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	02	1	8905-	●	●	●			●
122	PIPE; AIR,AIR VLV TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=535 SERVICED BY L=550	1-47437-976-0	01	1	8712-9306	●	●	●			●
122	PIPE; AIR,AIR VLV TO UNION EXC. NYLON TUBE AIR PIPING<Z29> L=535 SERVICED BY L=550	1-49111-436-0	01	1	9307-	●	●
126	PIPE; AIR,UNION TO UNION L=960 SERVICED BY L=1000	1-47434-485-1	01	1	8902-9001					●
126	PIPE; AIR,UNION TO UNION L=965 SERVICED BY L=1000	1-47434-476-0	01	1	9002-9306				●
126	PIPE; AIR,UNION TO UNION L=965	1-49111-036-0	01	1	9307-				●
126	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) L=962 SERVICED BY L=1000	1-47434-386-0	01	1	8712-8901			●
126	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) L=969 SERVICED BY L=1000	1-47434-386-0	01	1	8902-9001			●
126	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=900 SERVICED BY L=900	1-47437-981-0	01	1	8902-9001		●	●
126	PIPE; AIR,UNION TO UNION L=1526 SERVICED BY L=1600	1-47437-985-0	01	1	9002-9306	●	●	●			●
126	PIPE; AIR,UNION TO UNION EXC. NYLON TUBE AIR PIPING<Z29> L=1553 SERVICED BY L=1600	1-49111-448-0	01	1	9307-	●	●
128	CLIP; AIR PIPE ID=11 H=20 L=20	5-09700-351-0	01	1	8902-				●	●
128	CLIP; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> ID=6 H=20 L=20	1-09700-603-0	01	1	8712-	●	●	●			●
129	BOLT; PIPE CLIP M8X30 FLANGE	0-28010-830-0	01	1	8712-9204				●	●
129	BOLT; PIPE CLIP M8X30 FLANGE	0-28080-830-0	01	1	9205-				●
129	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28010-825-0	01	1	8712-9204	●	●	●			●
129	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	01	1	9205-	●	●				●
131	PIPE; AIR,UNION TO FLEX HOSE L=974 SERVICED BY L=1000	1-47434-485-1	01	1	8902-9306				●	●
131	PIPE; AIR,UNION TO FLEX HOSE L=1001 SERVICED BY L=1100	1-47426-415-0	01	1	9307-				●
131	PIPE; AIR,UNION TO FLEX HOSE HONG KONG EQUIPMENT(PQ1) L=540 SERVICED BY L=550	9-47415-351-0	01	1	8712-8901			●
131	PIPE; AIR,UNION TO FLEX HOSE HONG KONG EQUIPMENT(PQ1) L=539 SERVICED BY L=550	9-47415-351-0	01	1	8902-9001			●
131	PIPE; AIR,UNION TO FLEX HOSE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=662 SERVICED BY L=700	1-47434-466-0	01	1	8712-9306	●	●	●			●
131	PIPE; AIR,UNION TO FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> L=671 SERVICED BY L=700	1-47426-347-0	01	1	9307-	●	●
136	NUT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	01	1	8712-	●	●	●	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX L=1461 SERVICED BY L=1550	1-47437-957-0	01	1	8902-9001					●
153	PIPE ASM; CLU,UNION TO FLEX L=1449 SERVICED BY L=1550	1-47437-957-0	01	1	9002-9306				●
153	PIPE ASM; CLU,UNION TO FLEX L=1487 SERVICED BY L=1550	1-47426-390-0	01	1	9307-9412				●
153	PIPE ASM; CLU,UNION TO FLEX L=1496 SERVICED BY L=1550	1-47426-390-0	01	1	9501-				●
153	PIPE ASM; CLU,UNION TO FLEX HONG KONG EQUIPMENT(PQ1) L=1622 SERVICED BY L=1700	1-47434-412-0	01	1	8712-9001			●
153	PIPE ASM; CLU,UNION TO FLEX EXC. HONG KONG EQUIPMENT(PQ1) L=1415 SERVICED BY L=1550	1-47437-957-0	01	1	8712-8901		●	●
153	PIPE ASM; CLU,UNION TO FLEX EXC. HONG KONG EQUIPMENT(PQ1) L=1402 SERVICED BY L=1550	1-47437-957-0	01	1	8902-9306	●	●	●			●
153	PIPE ASM; CLU,UNION TO FLEX L=1411 SERVICED BY L=1550	1-47426-390-0	01	1	9307-	●	●
168	PIPE; AIR,FLEX HOSE TO UNION EXC. NYLON TUBE AIR PIPING<Z29> L=693 SERVICED BY L=700	1-47434-466-0	01	1	8712-	●	●	●			●
171	CONNECTOR; CLU BOOSTER	1-09650-256-1	01	1	8712-	●	●	●			●

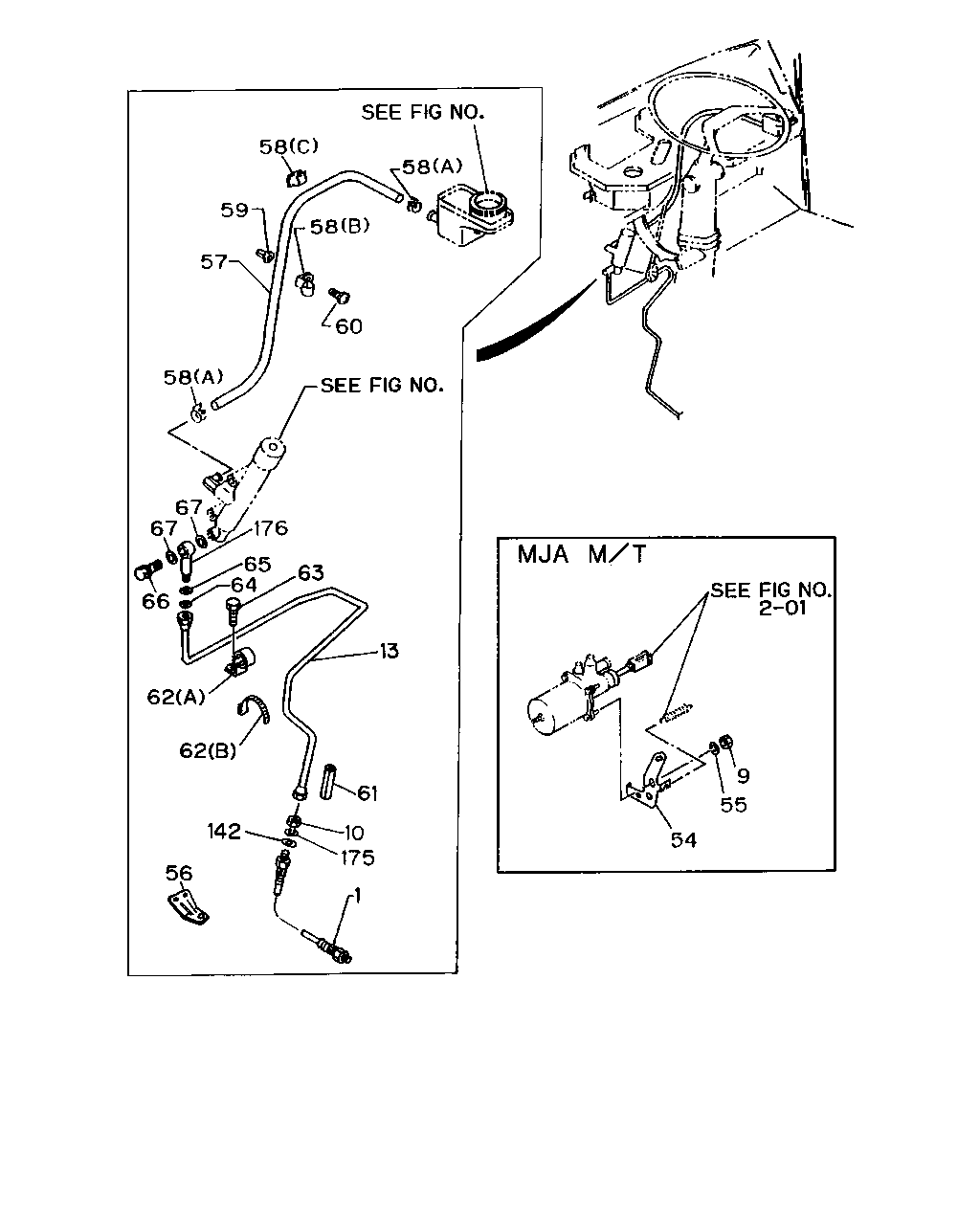

58 58 58 59 57 60 58 67 67 176 65 64 63 66 62 62 13 61 10 175 1 142 56 9 55 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	HOSE; FLEX,CLU CONT L=840	1-09364-466-0	01	1	8712-				●	●
1	HOSE; FLEX,CLU CONT EXC. CAB UP +50MM<W60>,NYLON TUBE AIR PIPING<Z29> L=840	1-09364-466-0	01	1	8712-	●	●	●			●
1	HOSE; FLEX,CLU CONT CAB UP +50MM<W60> EXC. NYLON TUBE AIR PIPING<Z29> L=950	1-09364-469-0	01	1	8712-	●	●	●			●
1	HOSE; FLEX,CLU CONT NYLON TUBE AIR PIPING<Z29> L=580	1-09364-429-0	01	1	8712-		●
9	NUT; BRKT,FLEX HOSE M10	9-09110-410-0	02	1	8712-9205				●	●
9	NUT; BRKT,FLEX HOSE M10 FLANGE	0-91150-210-0	02	1	9206-				●
9	NUT; BRKT,FLEX HOSE M8	9-09110-408-0	02	1	8712-	●	●	●			●
10	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	02	1	8712-	●	●	●	●	●	●
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL L=716	1-47416-575-1	01	1	8712-9306	●		●	●	●	●
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL EXC. NYLON TUBE AIR PIPING<Z29> L=716	1-47416-575-1	01	1	8712-9306		●
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL L=716	1-47425-253-1	01	1	9307-	●			●
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL EXC. NYLON TUBE AIR PIPING<Z29> L=716	1-47425-253-1	01	1	9307-		●
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL NYLON TUBE AIR PIPING<Z29> L=717	1-47418-759-0	01	1	8712-9306		●
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL NYLON TUBE AIR PIPING<Z29> L=717	1-47425-254-1	01	1	9307-		●
54	BRACKET; AIR,FLEX HOSE	1-47475-751-1	01	1	8712-9001					●
54	BRACKET; AIR,FLEX HOSE	1-47476-304-0	01	1	9002-9306				●
54	BRACKET; AIR,FLEX HOSE	1-47476-801-0	01	1	9307-				●
54	BRACKET; AIR,FLEX HOSE	1-47465-890-0	01	1	8712-	●	●	●			●
55	WASHER; LK,BRKT,FLEX HOSE ID=10.2	9-09150-510-0	02	1	8712-9205				●	●
55	WASHER; LK,BRKT,FLEX HOSE ID=8.2	9-09150-508-0	02	1	8712-	●	●	●			●
56	BRACKET; FLEX HOSE NYLON TUBE AIR PIPING<Z29>	1-47475-919-0	01	1	9307-		●
57	HOSE; CLU M/CYL TO OIL TANK L=570 SERVICED BY L=1800	1-09360-320-0	01	1	8712-	●	●	●	●	●	●
58	CLIP; RUBBER HOSE TO M/CYL (A) ID=15	1-09704-018-1	02	1	9002-9006	●	●	●	●	●	●
58	CLIP; RUBBER HOSE TO M/CYL (A) ID=16	1-09707-171-0	02	1	9007-	●	●		●		●
58	CLIP; RUBBER HOSE TO M/CYL (C) ID=15	1-09987-115-0	01	1	9002-	●	●		●		●
58	CLIP; RUBBER HOSE TO M/CYL (B) ID=16 H=24 L=20	9-09527-015-0	01	1	9002-	●	●		●		●
59	GROMMET; SCREW,RUBBER HOSE CLIP,CLU	5-09983-012-0	01	1	8712-	●	●	●	●	●	●
60	SCREW; RUBBER HOSE CLIP,CLU CONT M5X16 TAPPING W/PL WASHER	0-74100-516-0	01	1	8712-	●	●	●	●	●	●
61	SLEEVE; RUBBER,CLU PIPE NYLON TUBE AIR PIPING<Z29> OD=16.8 L=50	1-09369-010-0	02	1	8712-9409	●	●
62	CLIP; CLU PIPE (A) ID=8 H=30 L=20	8-94220-978-0	01	1	8712-	●	●	●	●	●	●
62	CLIP; CLU PIPE (A) ID=9 H=20 L=20	9-09527-008-0	01	1	8712-	●	●	●	●	●	●
62	CLIP; CLU PIPE NYLON TUBE AIR PIPING<Z29> (B) L=140	5-09707-031-0	02	1	8712-	●	●
63	BOLT; CLIP,PIPE M6X16 W/LK&PL WASHER	1-09980-497-0	01	1	8712-	●	●	●	●	●	●
64	SEAL; EYE JOINT,CLU M/CYL	1-73998-453-0	01	1	8712-	●	●	●	●	●	●
65	WASHER; PL,SEAL,CLU M/CYL ID=15 OD=30	9-09160-614-0	01	1	8712-	●	●	●	●	●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	8712-	●	●	●	●	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=20.0	9-09571-414-0	02	1	8712-	●	●	●	●	●	●
142	WASHER; PL,FLEX HOSE ID=15	9-09160-514-0	01	1	9307-				●
142	WASHER; PL,FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> ID=15	9-09160-514-0	01	1	9307-	●	●				●
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	02	1	8712-	●	●	●	●	●	●
176	JOINT; EYE,CLU M/CYL FLUID	1-09674-088-0	01	1	8712-	●	●	●	●	●	●

50 51 22 48 173 51 50 170 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
22	UNION; CLU PIPE ASSISTER SHIFT CONTROL<WX8>	1-09656-459-0	01	1	9002-9103				●
48	GASKET; FLEX HOSE,CLU CONT (A) ID=10.2 OD=16.0	9-09571-410-0	01	1	8905-9001					●
48	GASKET; FLEX HOSE,CLU CONT (A),(B) ID=10.2 OD=16.0	9-09571-410-0	01	1	9002-9412				●
48	GASKET; FLEX HOSE,CLU CONT ASSISTER SHIFT CONTROL<WX8> (A),(B) ID=10.2 OD=16.0	9-09571-410-0	01	1	9002-9412				●
48	GASKET; FLEX HOSE,CLU CONT (A) ID=10.2 OD=16.0	9-09571-410-0	01	1	9501-				●
48	GASKET; FLEX HOSE,CLU CONT ASSISTER SHIFT CONTROL<WX8> (B) ID=11 OD=18	9-09572-510-0	01	1	9501-				●
50	NUT; UNION ASSISTER SHIFT CONTROL<WX8> M16	9-99111-416-0	01	1	9002-				●
51	WASHER; LK ASSISTER SHIFT CONTROL<WX8> ID=16.2	9-09150-516-0	01	1	9002-				●
170	UNION; AIR PIPE (A) M16 2WAY	1-09650-182-1	01	1	8902-				●	●
170	UNION; AIR PIPE ASSISTER SHIFT CONTROL<WX8> (D)	1-09656-173-1	01	1	9104-				●
170	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (B) M12 2WAY	1-09654-059-0	01	1	8712-9001			●
170	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (C)	1-09656-424-0	01	1	8712-9001		●	●
170	UNION; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (C)	1-09656-424-1	01	1	9002-	●	●				●
173	CONNECTOR ASSISTER SHIFT CONTROL<WX8> M20 & PT1/4 ELBOW	1-09660-137-0	01	1	9104-9302				●
173	CONNECTOR ASSISTER SHIFT CONTROL<WX8> M20 & PT1/4 ELBOW	1-09660-681-0	01	1	9303-				●

53 53 9 55 54 41 40 38 49 52 133 132 170 124 132 125 123 170 73 34 73 83

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
9	NUT; BRKT,FLEX HOSE M10	9-09110-410-0	02	1	8712-9205				●	●
9	NUT; BRKT,FLEX HOSE M10 FLANGE	0-91150-210-0	02	1	9206-				●
9	NUT; BRKT,FLEX HOSE M8	9-09110-408-0	02	1	8712-	●	●	●			●
34	BOLT; PIPE CLIP M8X20 W/LK WASHER	9-01900-820-0	01	1	8712-9001		●	●		●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28010-830-0	01	1	9002-9204				●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28080-830-0	01	1	9205-				●
34	BOLT; PIPE CLIP M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204	●	●				●
34	BOLT; PIPE CLIP M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302	●	●				●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28080-820-0	01	1	9303-	●	●				●
34	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28010-825-0	03	1	9002-9204	●	●				●
34	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	03	1	9205-	●	●				●
38	NUT; CLIP BRKT EXC. NYLON TUBE AIR PIPING<Z29> M12	9-09840-280-0	01	1	8712-	●	●	●			●
40	WASHER; LK,PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	8712-	●	●	●			●
41	UNION; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M12 L=62.5	9-09223-206-1	01	1	8712-	●	●	●			●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (C)	1-47481-060-0	01	1	8902-9001					●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (C) L=254	1-47487-082-0	01	1	9002-9212				●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (C) L=254	1-47498-136-0	01	1	9301-9301				●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (C) L=254	1-47487-082-0	01	1	9302-9306				●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (C) L=254	1-47496-282-0	01	1	9307-				●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (A) L=615 SERVICED BY L=660	1-47437-954-0	01	1	8712-9306	●	●	●			●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (A) L=632 SERVICED BY L=660	1-47426-381-0	01	1	9307-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER EXC. NYLON TUBE AIR PIPING<Z29> (B) L=206	1-47439-426-1	01	1	8712-	●	●	●			●
52	BOLT; EYE,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M14X27 FLANGE	1-09675-086-0	01	1	8712-	●	●	●	●	●	●
53	GASKET; JOINT BOLT EXC. NYLON TUBE AIR PIPING<Z29> ID=14.2 OD=19.2	1-09630-085-0	02	1	8712-	●	●	●	●	●	●
54	BRACKET; AIR,FLEX HOSE	1-47475-751-1	01	1	8712-9001					●
54	BRACKET; AIR,FLEX HOSE	1-47476-304-0	01	1	9002-9306				●
54	BRACKET; AIR,FLEX HOSE	1-47476-801-0	01	1	9307-				●
54	BRACKET; AIR,FLEX HOSE	1-47465-890-0	01	1	8712-	●	●	●			●
55	WASHER; LK,BRKT,FLEX HOSE ID=10.2	9-09150-510-0	02	1	8712-9205				●	●
55	WASHER; LK,BRKT,FLEX HOSE ID=8.2	9-09150-508-0	02	1	8712-	●	●	●			●
73	CLIP; OIL PIPE (A) ID=9 & 7 L=15 & 15	1-09700-653-0	01	1	8712-	●	●	●			●
73	CLIP; OIL PIPE (B) ID=35 L=35 W/NUT	1-09700-684-0	01	1	8712-9208	●	●	●			●
73	CLIP; OIL PIPE (B) ID=35 H=45 L=33	1-09700-947-0	01	1	9209-	●	●				●
83	NUT; PIPE CLIP M8	9-09110-408-0	01	1	8712-	●	●	●			●
123	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29>	1-09656-381-1	01	1	8712-	●	●	●			●
124	NUT; PIPE UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M20	9-99111-420-0	01	1	8712-	●	●	●			●
125	WASHER; LK,PIPE UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> ID=20.2	9-09150-520-0	01	1	8712-	●	●	●			●
132	NUT; UNION,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M12	9-99111-412-0	01	1	8712-	●	●	●	●	●	●
133	WASHER; LK,UNION EXC. NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	8712-9312	●	●	●	●	●	●
170	UNION; AIR PIPE (A) M16 2WAY	1-09650-182-1	01	1	8902-				●	●
170	UNION; AIR PIPE ASSISTER SHIFT CONTROL<WX8> (D)	1-09656-173-1	01	1	9104-				●
170	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (B) M12 2WAY	1-09654-059-0	01	1	8712-9001			●
170	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (C)	1-09656-424-0	01	1	8712-9001		●	●
170	UNION; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (C)	1-09656-424-1	01	1	9002-	●	●				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
