◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50696 - NPR/NQR-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#48899) — 631 parça

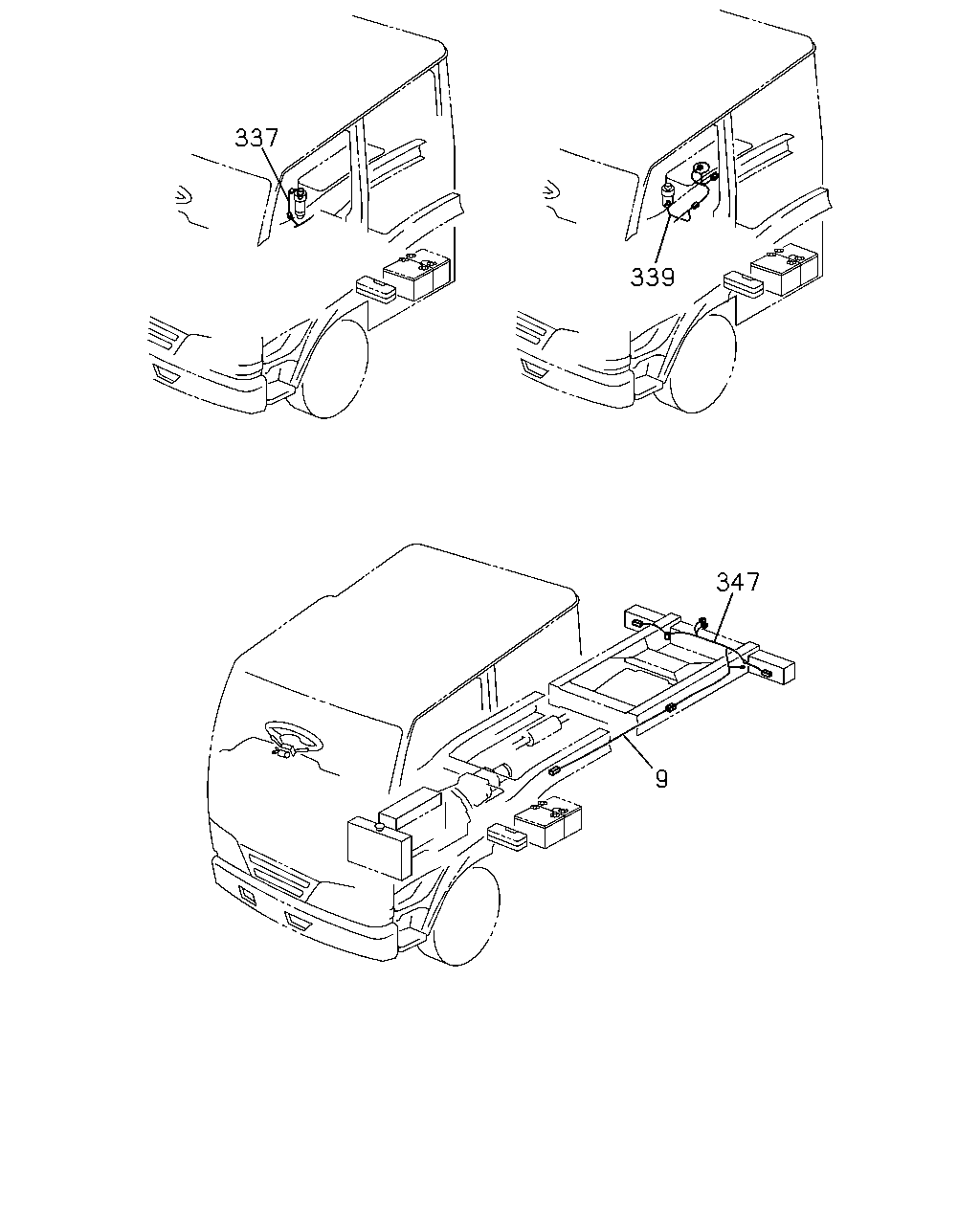

çizim 18723
337 339 347 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
9 02.480 HARNESS; FRAME,RR 8-97066-528-2 01 1 9312-9510 ● ●
9 02.480 HARNESS; FRAME,RR 8-97126-402-2 01 1 9511- ●
9 02.480 HARNESS; FRAME,RR
DUMP CHASSIS(V4D) 		8-97066-537-1 01 1 9312-9510 ●
9 02.480 HARNESS; FRAME,RR
DUMP CHASSIS(V4D) 		8-97126-410-1 01 1 9511- ●
9 02.480 HARNESS; FRAME,RR
EXC. DUMP CHASSIS(V4D) 		8-97066-536-2 01 1 9312-9510 ●
9 02.480 HARNESS; FRAME,RR
EXC. DUMP CHASSIS(V4D) 		8-97126-400-1 01 1 9511- ●
9 02.480 HARNESS; FRAME,RR 8-97063-154-2 01 1 9312-9510 ● ●
9 02.480 HARNESS; FRAME,RR 8-97126-401-2 01 1 9511- ● ●
9 02.480 HARNESS; FRAME,RR 8-97139-532-1 01 1 9612- ●
9 02.480 HARNESS; FRAME,RR 8-97139-533-1 01 1 9712- ●
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> 		8-94470-823-0 01 1 9312-9312 ● ● ● ●
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> EXC. MINI BUS CHASSIS<V4B> 		8-94470-821-0 01 1 9401-9603 ● ● ● ●
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> 		8-94470-821-0 01 1 9604-9611 ● ● ● ●
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> EXC. HYDRO MASTER<7LT> 		8-94470-821-0 01 1 9612-9711 ● ● ● ●
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> EXC. HYDRO MASTER<7LT> 		8-94470-821-0 01 1 9712- ● ● ● ● ● ●
337 02.530 HARNESS; EXT,HTR
MINI BUS CHASSIS<V4B> FUEL SEDIMENTER WITH HEATER<6HU> 		8-94310-644-0 01 1 9401-9510 ● ●
337 02.530 HARNESS; EXT,HTR
MINI BUS CHASSIS<V4B> FUEL SEDIMENTER WITH HEATER<6HU> 		8-94310-644-0 01 1 9511-9601 ●
337 02.530 HARNESS; EXT,HTR
MINI BUS CHASSIS<V4B> FUEL SEDIMENTER WITH HEATER<6HU> 		8-94310-644-0 01 1 9602-9603 ● ●
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> HYDRO MASTER<7LT> 		8-94310-644-0 01 1 9612- ● ● ●
339 02.530 HARNESS; EXT,FUEL 8-94318-760-0 01 1 9312-9510 ● ●
339 02.530 HARNESS; EXT,FUEL 8-94318-760-0 01 1 9511-9703 ●
339 02.530 HARNESS; EXT,FUEL
02.480 		8-94318-759-0 01 1 9704- ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. EUROPEAN BASIC EQUIPMENT(EK4), RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 		8-97066-547-1 01 1 9312-9506 ● ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D),UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 		8-97066-547-1 01 1 9507-9510 ● ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
EUROPEAN BASIC EQUIPMENT(EK4) 		8-97107-345-0 01 1 9312-9506 ● ●
347 02.480 HARNESS; CABLE,RR BODY
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 		8-97107-345-0 01 1 9507-9510 ● ●
347 02.480 HARNESS; CABLE,RR BODY
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 		8-97133-587-0 01 1 9511-9705 ● ●
347 02.480 HARNESS; CABLE,RR BODY
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 		8-97147-861-1 01 1 9706-9711 ● ●
347 02.480 HARNESS; CABLE,RR BODY
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) EXC. DOOR MIRROR WIDE ANGLE<7QF> 		8-97147-861-1 01 1 9712-9807 ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) EXC. DOOR MIRROR WIDE ANGLE<7QF> 		8-97147-861-1 01 1 9808- ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D),UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 		8-97126-418-0 01 1 9703-9705 ● ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D),UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 		8-97147-858-1 01 1 9706-9711 ● ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D),UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 		8-97147-858-1 01 1 9712- ● ● ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED<RS6> EXC. EUROPEAN BASIC EQUIPMENT(EK4) 		8-97066-540-1 01 1 9312-9506 ● ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED<RS6> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) 		8-97066-540-1 01 1 9507-9510 ● ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED<RS6> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) 		8-97126-416-0 01 1 9511-9705 ● ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED<RS6> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) 		8-97147-856-1 01 1 9706- ● ●
347 02.480 HARNESS; CABLE,RR BODY
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) DOOR MIRROR WIDE ANGLE<7QF> 		8-97189-784-0 01 1 9712-9807 ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) DOOR MIRROR WIDE ANGLE<7QF> 		8-97189-784-0 01 1 9808- ● ● ● ●

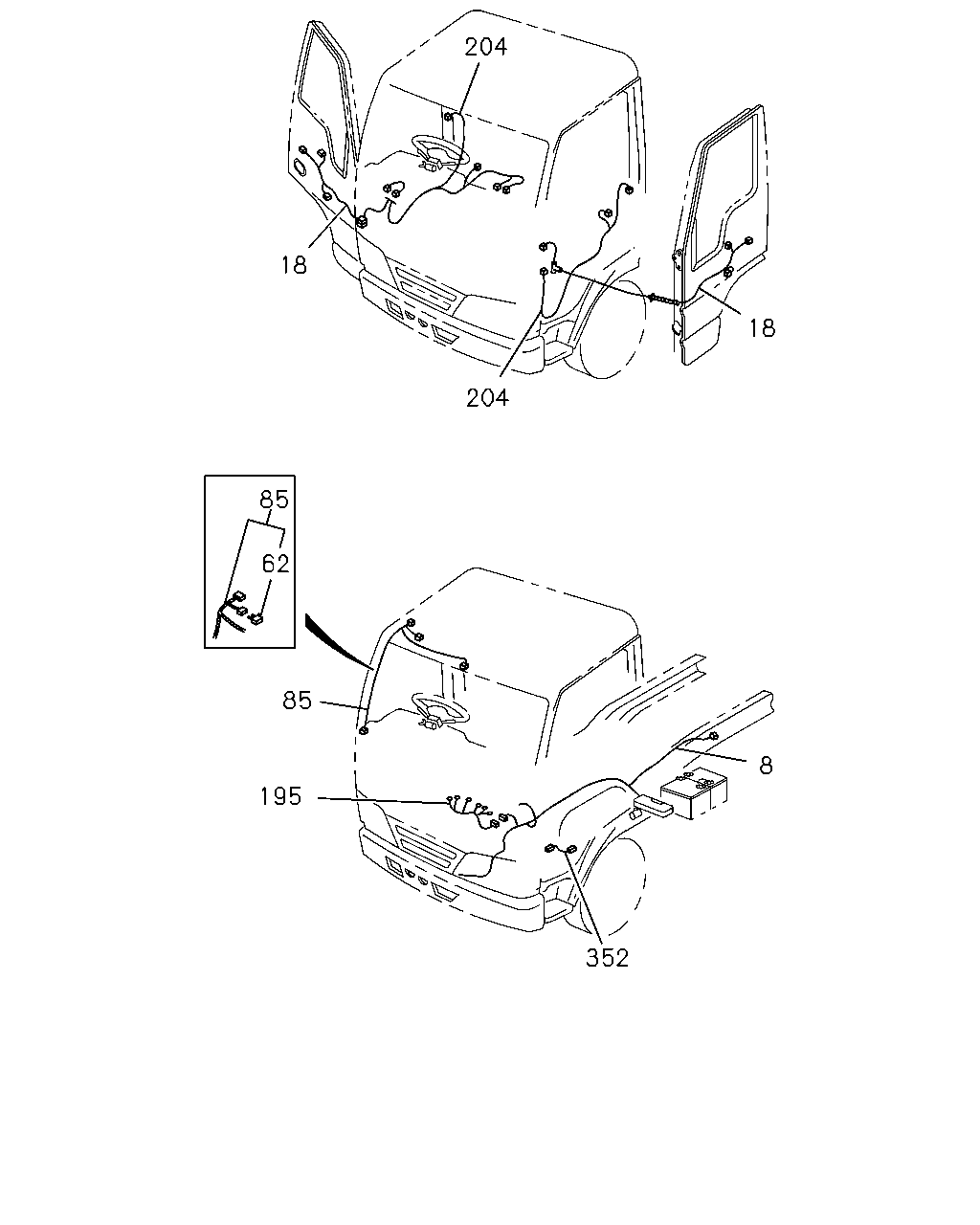

çizim 19344
204 18 18 204 85 62 85 8 195 352
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA) 		8-97106-634-1 01 1 9312-9410 ● ● ● ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA) 		8-97121-621-1 01 1 9411-9510 ● ● ● ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97131-788-0 01 1 9511-9711 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97187-900-0 01 1 9712-9801 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97187-900-0 01 1 9802- ● ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) 		8-97106-625-2 01 1 9312-9506 ● ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) 		8-97106-625-2 01 1 9507-9510 ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) 		8-97131-781-0 01 1 9511-9711 ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) 		8-97187-916-1 01 1 9712- ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) EXC. EAST MALAYSIA EQUIPMENT(PM6), WEST MALAYSIA EQUIPMENT(RWP) 		8-97106-627-3 01 1 9312-9505 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) EXC. EAST MALAYSIA EQUIPMENT(PM6), WEST MALAYSIA EQUIPMENT(RWP) 		8-97122-686-0 01 1 9506-9510 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) EXC. EAST MALAYSIA EQUIPMENT(PM6), WEST MALAYSIA EQUIPMENT(RWP) 		8-97131-783-1 01 1 9511-9711 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) 		8-97187-893-0 01 1 9712- ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 		8-97187-895-2 01 1 9712- ● ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4BD2 ENG(RLW) 		8-97106-632-3 01 1 9312-9404 ●
8 02.480 HARNESS; FRAME,FRT
4BD2 ENG(RLW) 		8-97114-290-0 01 1 9405-9506 ●
8 02.480 HARNESS; FRAME,FRT
4BD2 ENG(RLW) 		8-97114-290-0 01 1 9507-9510 ● ●
8 02.480 HARNESS; FRAME,FRT
4BD2 ENG(RLW) 		8-97131-786-1 01 1 9511-9606 ● ●
8 02.480 HARNESS; FRAME,FRT
4BD2 ENG(RLW) 		8-97131-786-1 01 1 9607-9611 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4BD2 ENG(RLW) 		8-97173-414-0 01 1 9612-9705 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4BD2 ENG(RLW) 		8-97173-414-0 01 1 9706-9711 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4BD2 ENG(RLW) 		8-97187-911-1 01 1 9712- ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) 		8-97106-635-3 01 1 9312-9410 ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) 		8-97121-622-1 01 1 9411-9510 ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) 		8-97131-790-0 01 1 9511-9711 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. ENGINE POWER N-SPEC<7QV> 		8-97187-896-2 01 1 9712-9801 ● ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. ENGINE POWER N-SPEC<7QV> 		8-97187-896-4 01 1 9802- ● ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) FRAME STRAIGHT TYPE<7KJ> 		8-97187-910-1 01 1 9712- ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(RWP) 		8-97106-628-3 01 1 9312-9405 ● ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(RWP) 		8-97116-370-0 01 1 9406-9505 ● ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(RWP) 		8-97122-694-0 01 1 9506-9510 ● ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(RWP) 		8-97131-785-1 01 1 9511-9711 ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> ENGINE POWER N-SPEC<7QV> 		8-97187-899-4 01 1 9712- ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 		8-97146-087-0 01 1 9604-9611 ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 		8-97146-087-0 01 1 9612-9711 ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 		8-97187-906-1 01 1 9712-9801 ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 		8-97187-906-1 01 1 9802- ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 		8-97131-795-3 01 1 9612-9711 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 		8-97187-905-1 01 1 9712- ● ● ●
8 02.480 HARNESS; FRAME,FRT
4BD1 ENG(LJ6) 		8-97106-630-3 01 1 9312-9510 ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> 		8-97131-792-1 01 1 9511-9603 ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 		8-97131-792-1 01 1 9604-9611 ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT> 		8-97131-792-1 01 1 9612-9711 ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT> 		8-97187-904-1 01 1 9712-9801 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 		8-97187-904-1 01 1 9802- ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97100-295-1 01 1 9312-9510 ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97100-295-1 01 1 9511-9611 ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97100-295-1 01 1 9612-9708 ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97185-144-0 01 1 9709-9711 ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97185-144-1 01 1 9712- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97100-293-0 01 1 9312-9510 ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97100-293-0 01 1 9511-9611 ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97100-293-0 01 1 9612-9708 ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97185-142-0 01 1 9709-9711 ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97185-142-0 01 1 9712- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32>, AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97105-572-1 01 1 9312-9510 ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32>, AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97105-572-1 01 1 9511-9606 ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>, AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97105-572-1 01 1 9607-9611 ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97105-572-1 01 1 9607-9611 ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(RR3),RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97105-572-1 01 1 9607-9611 ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>, AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97105-572-1 01 1 9612-9711 ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97105-572-1 01 1 9612-9711 ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(RR3),RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97105-572-1 01 1 9612-9711 ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>, AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97105-572-1 01 1 9712- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97105-572-1 01 1 9712- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(RR3),RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97105-572-1 01 1 9712- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32>, AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97105-571-0 01 1 9312-9510 ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32>, AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97105-571-0 01 1 9511-9606 ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>, AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97105-571-0 01 1 9607-9611 ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97105-571-0 01 1 9607-9611 ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(RR3),RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97105-571-0 01 1 9607-9611 ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>, AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97105-571-0 01 1 9612-9711 ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97105-571-0 01 1 9612-9711 ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(RR3),RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97105-571-0 01 1 9612-9711 ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>, AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97105-571-0 01 1 9712- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97105-571-0 01 1 9712- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(RR3),RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97105-571-0 01 1 9712- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> REAR DOOR 		8-97075-738-2 02 1 9312-9510 ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> REAR DOOR 		8-97075-738-2 02 1 9511- ●
18 02.480 HARNESS; DOOR
AUSTRALIA EQUIPMENT(RR3) EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97104-618-1 01 1 9312-9711 ● ● ● ●
18 02.480 HARNESS; DOOR
AUSTRALIA EQUIPMENT(RR3) EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97104-618-1 01 1 9712- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUSTRALIA EQUIPMENT(RR3) EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97104-616-0 01 1 9312-9711 ● ● ● ●
18 02.480 HARNESS; DOOR
AUSTRALIA EQUIPMENT(RR3) EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97104-616-0 01 1 9712- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97104-619-1 01 1 9312-9708 ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97185-146-0 01 1 9709-9711 ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97185-146-0 01 1 9712- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97104-617-0 01 1 9312-9708 ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97185-145-0 01 1 9709-9711 ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97185-145-0 01 1 9712- ● ● ● ● ● ●
62 02.530 DIODE; HARNESS
02.483 BLACK 2P-1.5A 		8-94422-639-1 01 1 9312-9510 ● ● ● ● ●
62 02.530 DIODE; HARNESS
02.483 BLACK 2P-1.5A 		8-94422-639-1 01 1 9511-9604 ● ● ● ●
62 02.530 DIODE; HARNESS
02.483 BLACK 2P-1.5A 		8-94422-639-1 01 1 9604- ●
85 06.495 HARNESS; ROOM LAMP 8-97075-745-3 01 1 9312-9510 ● ● ● ● ●
85 06.495 HARNESS; ROOM LAMP 8-97075-745-3 01 1 9511-9603 ● ● ● ●
85 06.495 HARNESS; ROOM LAMP 8-97075-745-3 01 1 9604-9705 ●
85 06.495 HARNESS; ROOM LAMP 8-97162-627-2 01 1 9706- ●
85 06.495 HARNESS; ROOM LAMP 8-97145-826-0 01 1 9605-9705 ● ● ● ●
85 06.495 HARNESS; ROOM LAMP 8-97164-611-1 01 1 9706-9711 ● ● ● ●
85 06.495 HARNESS; ROOM LAMP 8-97164-611-1 01 1 9712- ● ● ● ● ●
195 01.150 HARNESS; EXT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. HONG KONG EQUIPMENT(PQ1) 		8-97172-039-3 01 1 9712-9804 ● ● ● ● ●
195 01.150 HARNESS; EXT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> 		8-97172-039-3 01 1 9805- ● ● ● ● ●
195 01.150 HARNESS; EXT
4HE1 ENG(RLY) HONG KONG EQUIPMENT(PQ1) CHARGE AIR COOLER<6PL> 		8-97171-205-3 01 1 9712-9804 ● ● ● ● ●
195 01.150 HARNESS; EXT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 		8-97171-205-3 01 1 9805- ● ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97093-904-1 01 1 9312-9510 ●
204 02.559 HARNESS; CABLE,FLOOR
FLOOR REMOTE SHIFT<M11> 		8-97093-904-1 01 1 9312-9510 ●
204 02.559 HARNESS; CABLE,FLOOR
FLOOR REMOTE SHIFT<M11> 		8-97093-904-2 01 1 9511-9705 ●
204 02.559 HARNESS; CABLE,FLOOR
FLOOR REMOTE SHIFT<M11> 		8-97162-626-1 01 1 9706- ●
204 02.559 HARNESS; CABLE,FLOOR 8-97093-907-1 01 1 9312-9510 ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97093-907-1 01 1 9511-9705 ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-632-0 01 1 9706- ●
204 02.559 HARNESS; CABLE,FLOOR 8-97093-906-0 01 1 9312-9404 ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
FLOOR REMOTE SHIFT<M11> 		8-97095-382-2 01 1 9312-9611 ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
FLOOR REMOTE SHIFT<M11> 		8-97095-382-2 01 1 9612-9705 ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
FLOOR REMOTE SHIFT<M11> 		8-97162-629-1 01 1 9706-9711 ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
FLOOR REMOTE SHIFT<M11> 		8-97162-629-1 01 1 9712- ● ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
A/T 4 SPEED-JATCO(RMK) 		8-97093-903-1 01 1 9312-9504 ●
204 02.559 HARNESS; CABLE,FLOOR
4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) 		8-97093-903-2 01 1 9505-9705 ●
204 02.559 HARNESS; CABLE,FLOOR
4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) 		8-97162-625-1 01 1 9706-9711 ●
204 02.559 HARNESS; CABLE,FLOOR
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) 		8-97162-625-1 01 1 9712- ●
204 02.559 HARNESS; CABLE,FLOOR
4BD2 ENG(RLW) A/T 4 SPEED-JATCO(RMK) 02.480 		8-97105-934-2 01 1 9505-9705 ●
204 02.559 HARNESS; CABLE,FLOOR
4BD2 ENG(RLW) A/T 4 SPEED-JATCO(RMK) 		8-97162-630-1 01 1 9706- ●
352 02.480 HARNESS; CABLE,VSV
4BD1 ENG(LJ6),4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 		8-97102-244-0 01 1 9312-9510 ● ● ● ●

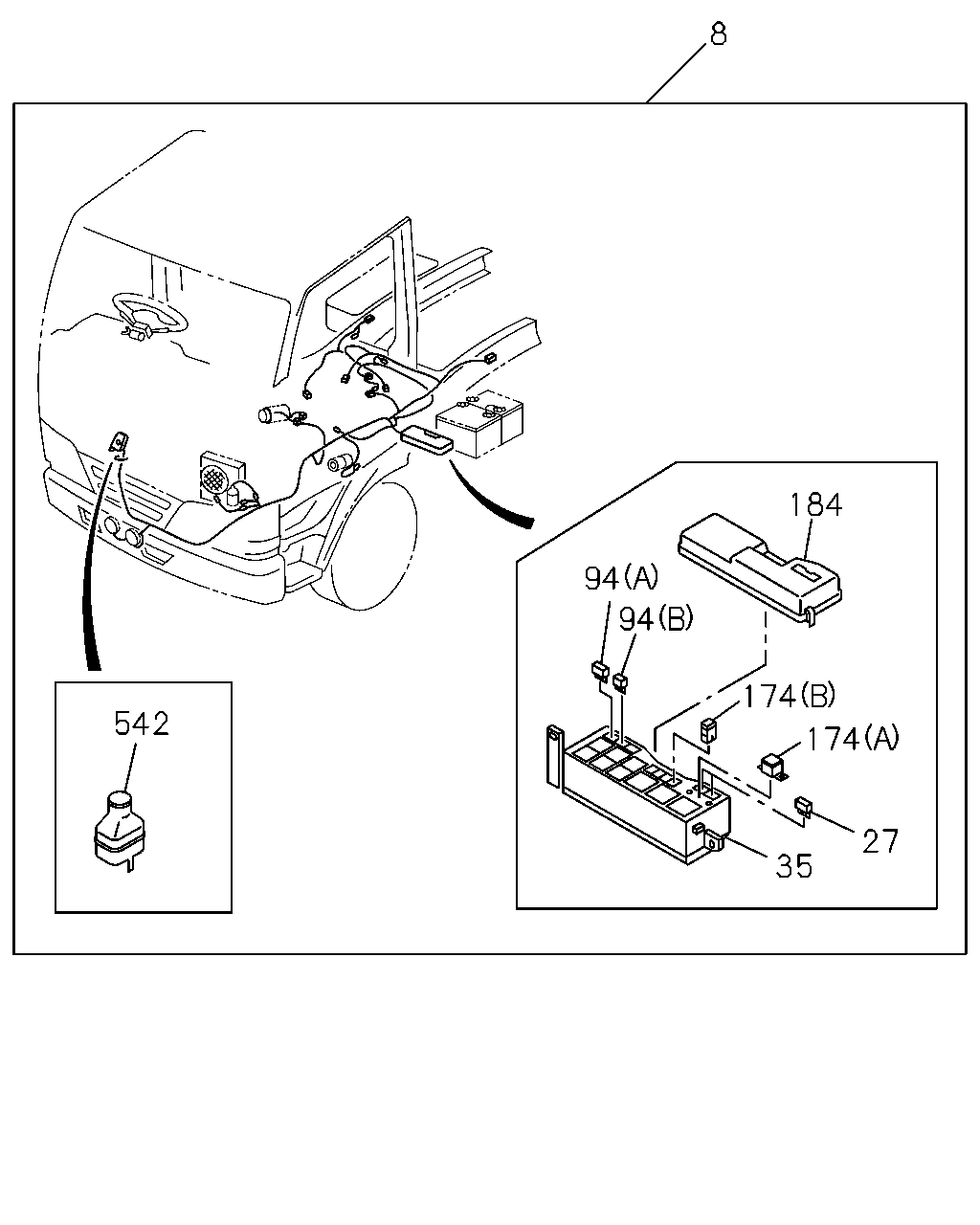

çizim 66765
8 184 94 94 174 542 174 27 35
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA) 		8-97106-634-1 01 1 9312-9410 ● ● ● ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA) 		8-97121-621-1 01 1 9411-9510 ● ● ● ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97131-788-0 01 1 9511-9711 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97187-900-0 01 1 9712-9801 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97187-900-0 01 1 9802- ● ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) 		8-97106-625-2 01 1 9312-9506 ● ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) 		8-97106-625-2 01 1 9507-9510 ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) 		8-97131-781-0 01 1 9511-9711 ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) 		8-97187-916-1 01 1 9712- ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) EXC. EAST MALAYSIA EQUIPMENT(PM6), WEST MALAYSIA EQUIPMENT(RWP) 		8-97106-627-3 01 1 9312-9505 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) EXC. EAST MALAYSIA EQUIPMENT(PM6), WEST MALAYSIA EQUIPMENT(RWP) 		8-97122-686-0 01 1 9506-9510 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) EXC. EAST MALAYSIA EQUIPMENT(PM6), WEST MALAYSIA EQUIPMENT(RWP) 		8-97131-783-1 01 1 9511-9711 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) 		8-97187-893-0 01 1 9712- ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 		8-97187-895-2 01 1 9712- ● ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4BD2 ENG(RLW) 		8-97106-632-3 01 1 9312-9404 ●
8 02.480 HARNESS; FRAME,FRT
4BD2 ENG(RLW) 		8-97114-290-0 01 1 9405-9506 ●
8 02.480 HARNESS; FRAME,FRT
4BD2 ENG(RLW) 		8-97114-290-0 01 1 9507-9510 ● ●
8 02.480 HARNESS; FRAME,FRT
4BD2 ENG(RLW) 		8-97131-786-1 01 1 9511-9606 ● ●
8 02.480 HARNESS; FRAME,FRT
4BD2 ENG(RLW) 		8-97131-786-1 01 1 9607-9611 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4BD2 ENG(RLW) 		8-97173-414-0 01 1 9612-9705 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4BD2 ENG(RLW) 		8-97173-414-0 01 1 9706-9711 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4BD2 ENG(RLW) 		8-97187-911-1 01 1 9712- ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) 		8-97106-635-3 01 1 9312-9410 ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) 		8-97121-622-1 01 1 9411-9510 ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) 		8-97131-790-0 01 1 9511-9711 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. ENGINE POWER N-SPEC<7QV> 		8-97187-896-2 01 1 9712-9801 ● ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. ENGINE POWER N-SPEC<7QV> 		8-97187-896-4 01 1 9802- ● ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) FRAME STRAIGHT TYPE<7KJ> 		8-97187-910-1 01 1 9712- ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(RWP) 		8-97106-628-3 01 1 9312-9405 ● ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(RWP) 		8-97116-370-0 01 1 9406-9505 ● ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(RWP) 		8-97122-694-0 01 1 9506-9510 ● ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(RWP) 		8-97131-785-1 01 1 9511-9711 ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> ENGINE POWER N-SPEC<7QV> 		8-97187-899-4 01 1 9712- ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 		8-97146-087-0 01 1 9604-9611 ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 		8-97146-087-0 01 1 9612-9711 ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 		8-97187-906-1 01 1 9712-9801 ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 		8-97187-906-1 01 1 9802- ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 		8-97131-795-3 01 1 9612-9711 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 		8-97187-905-1 01 1 9712- ● ● ●
8 02.480 HARNESS; FRAME,FRT
4BD1 ENG(LJ6) 		8-97106-630-3 01 1 9312-9510 ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> 		8-97131-792-1 01 1 9511-9603 ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 		8-97131-792-1 01 1 9604-9611 ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT> 		8-97131-792-1 01 1 9612-9711 ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT> 		8-97187-904-1 01 1 9712-9801 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 		8-97187-904-1 01 1 9802- ● ● ●
27 08.965 FUSE UNIT
10A RED 		5-82516-002-0 AR 1 9312- ● ● ● ● ● ● ●
27 08.965 FUSE UNIT
15A BLUE 		5-82516-003-0 AR 1 9312- ● ● ● ● ● ● ●
27 08.965 FUSE UNIT
25A CLEAR 		5-82516-005-0 AR 1 9312- ● ● ● ● ● ● ●
35 02.530 BOX; RELAY & FUSE 8-97063-150-1 01 1 9312-9510 ● ● ● ● ●
35 02.530 BOX; RELAY & FUSE
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97063-150-1 01 1 9511-9611 ● ● ● ●
35 02.530 BOX; RELAY & FUSE
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97063-150-1 01 1 9612-9711 ● ● ● ● ●
35 02.530 BOX; RELAY & FUSE
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW), 4HE1 ENG(RLY) 		8-97063-150-1 01 1 9712- ● ● ● ● ● ●
94 02.483 DIODE; FRAME HARNESS
(A) BLACK 4P-1.5A 		8-94381-730-0 01 1 9712- ● ● ● ● ● ●
94 02.483 DIODE; FRAME HARNESS
(B) BLACK 3P-1.5A 		8-94422-640-1 01 1 9712- ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(A) 60A YELLOW 		8-94388-303-0 01 1 9312- ● ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(A) 80A BLACK 		8-94388-305-0 01 1 9312- ● ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(B) 40A GREEN 		8-94468-662-0 01 1 9312- ● ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
02.483 (B) 50A RED 		8-94468-663-0 01 1 9312- ● ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
02.483 (B) 60A YELLOW 		8-94468-664-0 AR 1 9312- ● ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX 8-97063-152-1 01 1 9312-9510 ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97063-152-1 01 1 9511-9611 ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97063-152-1 01 1 9612-9711 ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW), 4HE1 ENG(RLY) 		8-97063-152-1 01 1 9712- ● ● ● ● ● ●
542 02.483 GROMMET; HARNESS 8-97041-956-1 01 1 9312-9510 ● ● ● ● ●
542 02.483 GROMMET; HARNESS 8-97041-956-1 01 1 9511-9611 ● ● ● ●
542 02.483 GROMMET; HARNESS 8-97041-956-1 01 1 9612-9711 ● ● ● ● ●
542 02.483 GROMMET; HARNESS 8-97041-956-1 01 1 9712- ● ● ● ● ● ●

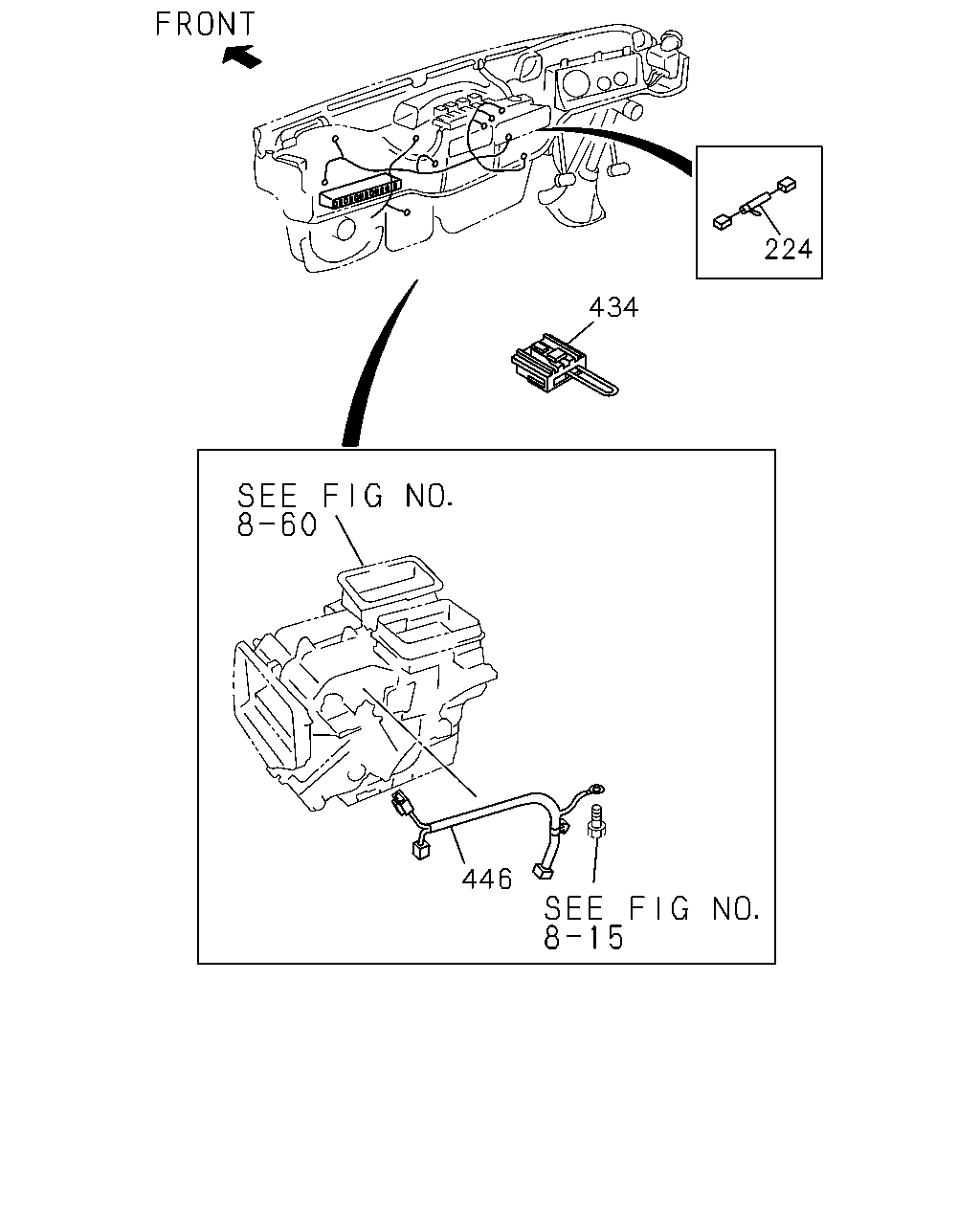

çizim 66871
224 434 446
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
224 02.480 HARNESS; EXT,HEADLAMP
ADJUST HEADLAMP<6RC> 		8-97113-544-0 01 1 9407-9711 ● ●
224 02.480 HARNESS; EXT,HEADLAMP
ADJUST HEADLAMP<6RC> 		8-97113-544-0 01 1 9712-9807 ● ● ●
224 02.480 HARNESS; EXT,HEADLAMP
ADJUST HEADLAMP<6RC> 		8-97113-544-0 01 1 9808- ● ● ● ●
434 02.559 CONNECTOR; SHORT CIRCUIT
FLOOR REMOTE SHIFT<M11> ENGINE POWER N-SPEC<7QV> 		8-97140-182-0 01 1 9712- ● ● ●
446 02.480 HARNESS; EXT,CERAMIC HEATER
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> 		8-97080-280-2 01 1 9712- ● ● ●

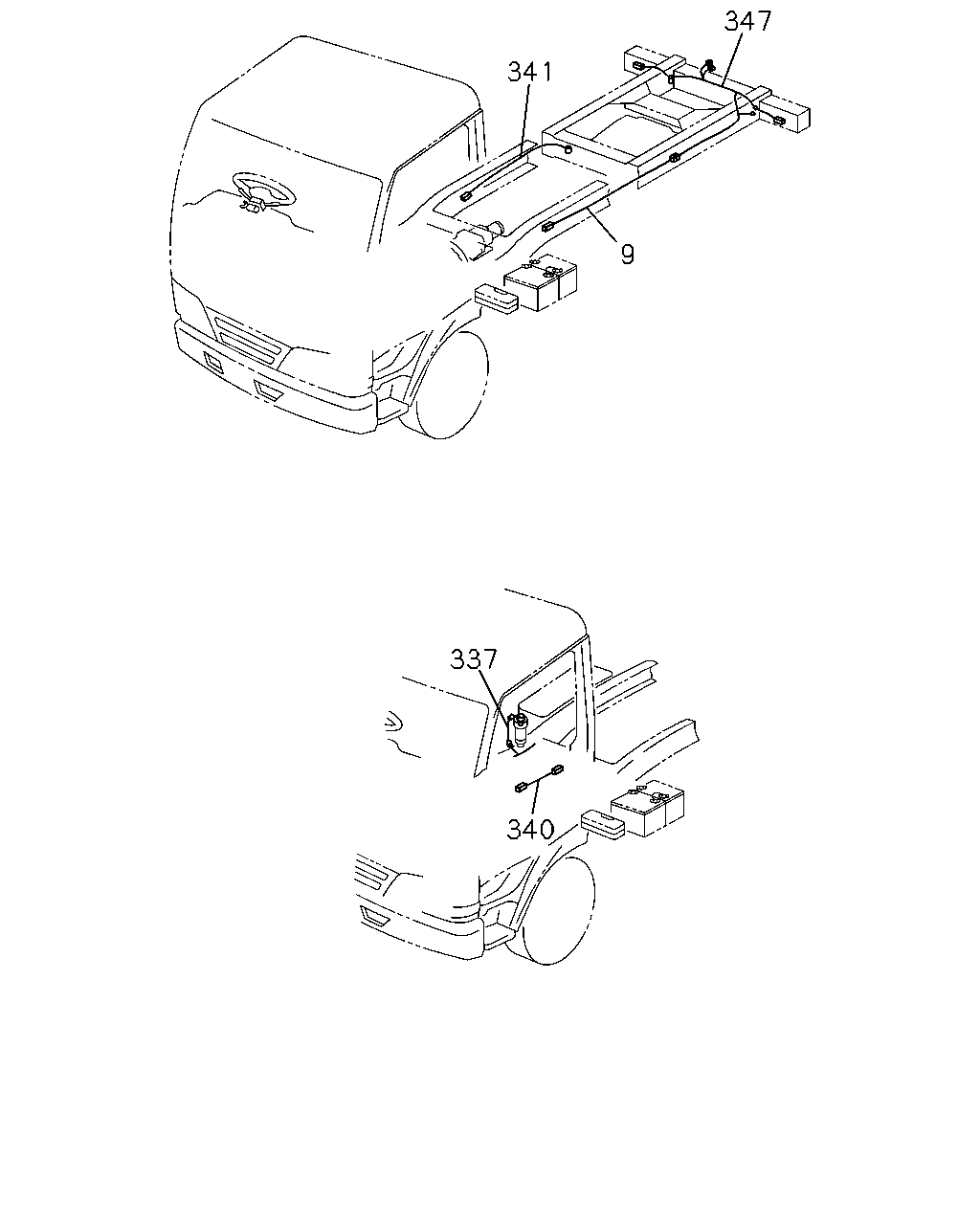

çizim 66905
347 341 9 337 340
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
9 02.480 HARNESS; FRAME,RR 8-97066-528-2 01 1 9312-9510 ● ●
9 02.480 HARNESS; FRAME,RR 8-97126-402-2 01 1 9511- ●
9 02.480 HARNESS; FRAME,RR
DUMP CHASSIS(V4D) 		8-97066-537-1 01 1 9312-9510 ●
9 02.480 HARNESS; FRAME,RR
DUMP CHASSIS(V4D) 		8-97126-410-1 01 1 9511- ●
9 02.480 HARNESS; FRAME,RR
EXC. DUMP CHASSIS(V4D) 		8-97066-536-2 01 1 9312-9510 ●
9 02.480 HARNESS; FRAME,RR
EXC. DUMP CHASSIS(V4D) 		8-97126-400-1 01 1 9511- ●
9 02.480 HARNESS; FRAME,RR 8-97063-154-2 01 1 9312-9510 ● ●
9 02.480 HARNESS; FRAME,RR 8-97126-401-2 01 1 9511- ● ●
9 02.480 HARNESS; FRAME,RR 8-97139-532-1 01 1 9612- ●
9 02.480 HARNESS; FRAME,RR 8-97139-533-1 01 1 9712- ●
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> 		8-94470-823-0 01 1 9312-9312 ● ● ● ●
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> EXC. MINI BUS CHASSIS<V4B> 		8-94470-821-0 01 1 9401-9603 ● ● ● ●
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> 		8-94470-821-0 01 1 9604-9611 ● ● ● ●
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> EXC. HYDRO MASTER<7LT> 		8-94470-821-0 01 1 9612-9711 ● ● ● ●
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> EXC. HYDRO MASTER<7LT> 		8-94470-821-0 01 1 9712- ● ● ● ● ● ●
337 02.530 HARNESS; EXT,HTR
MINI BUS CHASSIS<V4B> FUEL SEDIMENTER WITH HEATER<6HU> 		8-94310-644-0 01 1 9401-9510 ● ●
337 02.530 HARNESS; EXT,HTR
MINI BUS CHASSIS<V4B> FUEL SEDIMENTER WITH HEATER<6HU> 		8-94310-644-0 01 1 9511-9601 ●
337 02.530 HARNESS; EXT,HTR
MINI BUS CHASSIS<V4B> FUEL SEDIMENTER WITH HEATER<6HU> 		8-94310-644-0 01 1 9602-9603 ● ●
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> HYDRO MASTER<7LT> 		8-94310-644-0 01 1 9612- ● ● ●
340 02.525 HARNESS; CABLE,SEDIMENTER
MINI BUS CHASSIS<V4B> 		8-94463-144-0 01 1 9401-9510 ● ●
340 02.525 HARNESS; CABLE,SEDIMENTER
MINI BUS CHASSIS<V4B> 		8-94463-144-0 01 1 9511-9601 ●
340 02.525 HARNESS; CABLE,SEDIMENTER
MINI BUS CHASSIS<V4B> 		8-94463-144-0 01 1 9602-9603 ● ●
341 02.530 HARNESS; CABLE,MAG VLV
4JG2 ENG(RJC) EXHAUST BRAKE<NF8> 		8-97081-340-2 01 1 9312-9506 ● ●
341 02.530 HARNESS; CABLE,MAG VLV
4JG2 ENG(RJC) EXHAUST BRAKE<NF8> 		8-97081-340-2 01 1 9507-9711 ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. EUROPEAN BASIC EQUIPMENT(EK4), RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 		8-97066-547-1 01 1 9312-9506 ● ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D),UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 		8-97066-547-1 01 1 9507-9510 ● ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
EUROPEAN BASIC EQUIPMENT(EK4) 		8-97107-345-0 01 1 9312-9506 ● ●
347 02.480 HARNESS; CABLE,RR BODY
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 		8-97107-345-0 01 1 9507-9510 ● ●
347 02.480 HARNESS; CABLE,RR BODY
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 		8-97133-587-0 01 1 9511-9705 ● ●
347 02.480 HARNESS; CABLE,RR BODY
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 		8-97147-861-1 01 1 9706-9711 ● ●
347 02.480 HARNESS; CABLE,RR BODY
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) EXC. DOOR MIRROR WIDE ANGLE<7QF> 		8-97147-861-1 01 1 9712-9807 ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) EXC. DOOR MIRROR WIDE ANGLE<7QF> 		8-97147-861-1 01 1 9808- ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D),UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 		8-97126-418-0 01 1 9703-9705 ● ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D),UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 		8-97147-858-1 01 1 9706-9711 ● ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D),UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 		8-97147-858-1 01 1 9712- ● ● ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED<RS6> EXC. EUROPEAN BASIC EQUIPMENT(EK4) 		8-97066-540-1 01 1 9312-9506 ● ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED<RS6> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) 		8-97066-540-1 01 1 9507-9510 ● ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED<RS6> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) 		8-97126-416-0 01 1 9511-9705 ● ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED<RS6> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) 		8-97147-856-1 01 1 9706- ● ●
347 02.480 HARNESS; CABLE,RR BODY
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) DOOR MIRROR WIDE ANGLE<7QF> 		8-97189-784-0 01 1 9712-9807 ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) DOOR MIRROR WIDE ANGLE<7QF> 		8-97189-784-0 01 1 9808- ● ● ● ●

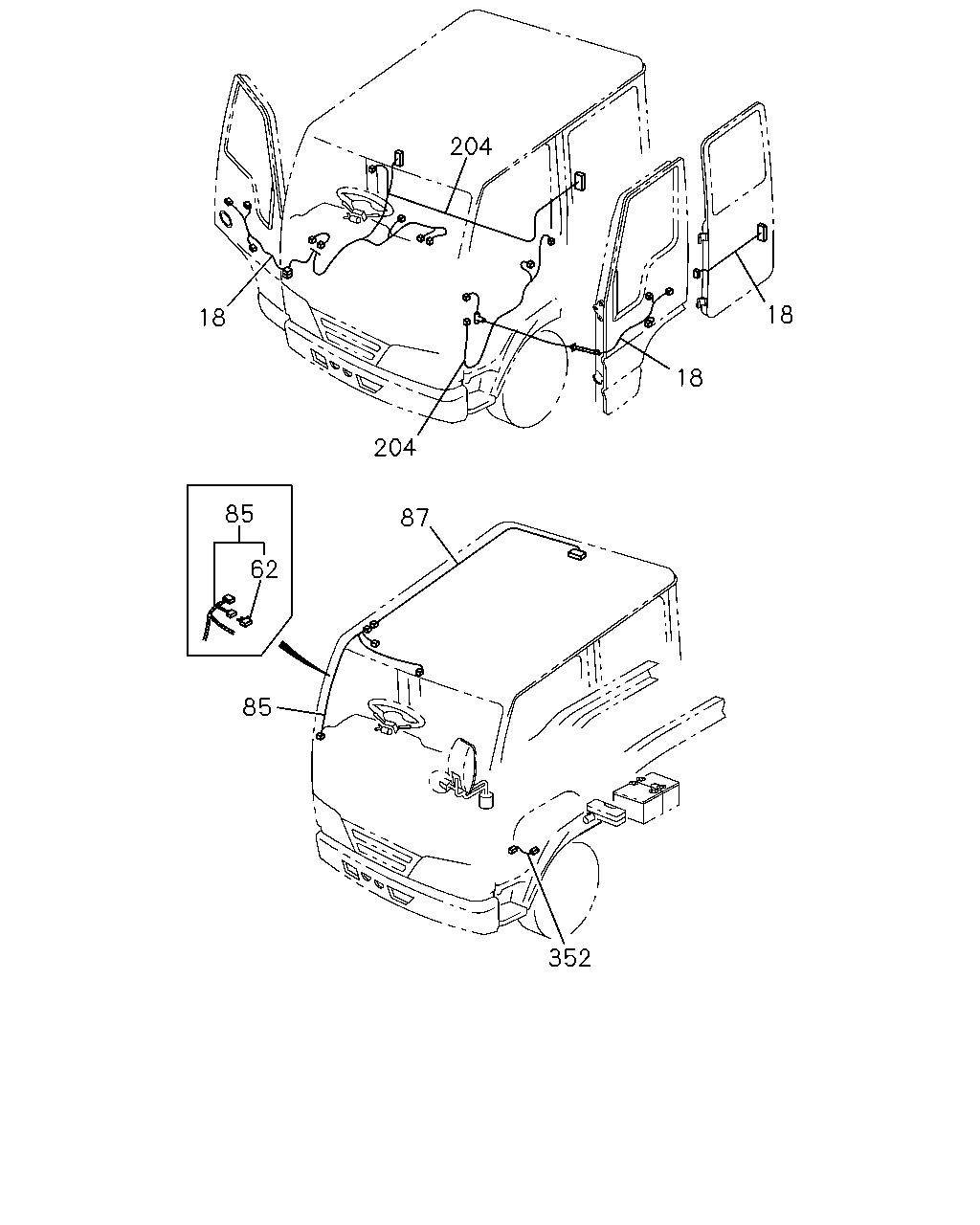

çizim 67015
204 18 18 18 204 85 87 62 85 352
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97100-295-1 01 1 9312-9510 ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97100-295-1 01 1 9511-9611 ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97100-295-1 01 1 9612-9708 ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97185-144-0 01 1 9709-9711 ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97185-144-1 01 1 9712- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97100-293-0 01 1 9312-9510 ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97100-293-0 01 1 9511-9611 ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97100-293-0 01 1 9612-9708 ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97185-142-0 01 1 9709-9711 ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97185-142-0 01 1 9712- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32>, AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97105-572-1 01 1 9312-9510 ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32>, AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97105-572-1 01 1 9511-9606 ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>, AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97105-572-1 01 1 9607-9611 ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97105-572-1 01 1 9607-9611 ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(RR3),RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97105-572-1 01 1 9607-9611 ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>, AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97105-572-1 01 1 9612-9711 ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97105-572-1 01 1 9612-9711 ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(RR3),RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97105-572-1 01 1 9612-9711 ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>, AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97105-572-1 01 1 9712- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97105-572-1 01 1 9712- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(RR3),RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97105-572-1 01 1 9712- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32>, AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97105-571-0 01 1 9312-9510 ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32>, AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97105-571-0 01 1 9511-9606 ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>, AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97105-571-0 01 1 9607-9611 ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97105-571-0 01 1 9607-9611 ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(RR3),RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97105-571-0 01 1 9607-9611 ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>, AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97105-571-0 01 1 9612-9711 ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97105-571-0 01 1 9612-9711 ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(RR3),RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97105-571-0 01 1 9612-9711 ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>, AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97105-571-0 01 1 9712- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97105-571-0 01 1 9712- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(RR3),RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97105-571-0 01 1 9712- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> REAR DOOR 		8-97075-738-2 02 1 9312-9510 ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> REAR DOOR 		8-97075-738-2 02 1 9511- ●
18 02.480 HARNESS; DOOR
AUSTRALIA EQUIPMENT(RR3) EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97104-618-1 01 1 9312-9711 ● ● ● ●
18 02.480 HARNESS; DOOR
AUSTRALIA EQUIPMENT(RR3) EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97104-618-1 01 1 9712- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUSTRALIA EQUIPMENT(RR3) EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97104-616-0 01 1 9312-9711 ● ● ● ●
18 02.480 HARNESS; DOOR
AUSTRALIA EQUIPMENT(RR3) EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97104-616-0 01 1 9712- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97104-619-1 01 1 9312-9708 ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97185-146-0 01 1 9709-9711 ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97185-146-0 01 1 9712- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97104-617-0 01 1 9312-9708 ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97185-145-0 01 1 9709-9711 ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97185-145-0 01 1 9712- ● ● ● ● ● ●
62 02.530 DIODE; HARNESS
02.483 BLACK 2P-1.5A 		8-94422-639-1 01 1 9312-9510 ● ● ● ● ●
62 02.530 DIODE; HARNESS
02.483 BLACK 2P-1.5A 		8-94422-639-1 01 1 9511-9604 ● ● ● ●
62 02.530 DIODE; HARNESS
02.483 BLACK 2P-1.5A 		8-94422-639-1 01 1 9604- ●
85 06.495 HARNESS; ROOM LAMP 8-97075-745-3 01 1 9312-9510 ● ● ● ● ●
85 06.495 HARNESS; ROOM LAMP 8-97075-745-3 01 1 9511-9603 ● ● ● ●
85 06.495 HARNESS; ROOM LAMP 8-97075-745-3 01 1 9604-9705 ●
85 06.495 HARNESS; ROOM LAMP 8-97162-627-2 01 1 9706- ●
85 06.495 HARNESS; ROOM LAMP 8-97145-826-0 01 1 9605-9705 ● ● ● ●
85 06.495 HARNESS; ROOM LAMP 8-97164-611-1 01 1 9706-9711 ● ● ● ●
85 06.495 HARNESS; ROOM LAMP 8-97164-611-1 01 1 9712- ● ● ● ● ●
87 02.480 HARNESS; EXT,ROOM LAMP 8-97075-747-0 01 1 9312-9510 ● ●
87 02.480 HARNESS; EXT,ROOM LAMP 8-97075-747-0 01 1 9511- ●
204 02.559 HARNESS; CABLE,FLOOR 8-97093-904-1 01 1 9312-9510 ●
204 02.559 HARNESS; CABLE,FLOOR
FLOOR REMOTE SHIFT<M11> 		8-97093-904-1 01 1 9312-9510 ●
204 02.559 HARNESS; CABLE,FLOOR
FLOOR REMOTE SHIFT<M11> 		8-97093-904-2 01 1 9511-9705 ●
204 02.559 HARNESS; CABLE,FLOOR
FLOOR REMOTE SHIFT<M11> 		8-97162-626-1 01 1 9706- ●
204 02.559 HARNESS; CABLE,FLOOR 8-97093-907-1 01 1 9312-9510 ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97093-907-1 01 1 9511-9705 ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-632-0 01 1 9706- ●
204 02.559 HARNESS; CABLE,FLOOR 8-97093-906-0 01 1 9312-9404 ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
FLOOR REMOTE SHIFT<M11> 		8-97095-382-2 01 1 9312-9611 ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
FLOOR REMOTE SHIFT<M11> 		8-97095-382-2 01 1 9612-9705 ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
FLOOR REMOTE SHIFT<M11> 		8-97162-629-1 01 1 9706-9711 ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
FLOOR REMOTE SHIFT<M11> 		8-97162-629-1 01 1 9712- ● ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
A/T 4 SPEED-JATCO(RMK) 		8-97093-903-1 01 1 9312-9504 ●
204 02.559 HARNESS; CABLE,FLOOR
4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) 		8-97093-903-2 01 1 9505-9705 ●
204 02.559 HARNESS; CABLE,FLOOR
4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) 		8-97162-625-1 01 1 9706-9711 ●
204 02.559 HARNESS; CABLE,FLOOR
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) 		8-97162-625-1 01 1 9712- ●
204 02.559 HARNESS; CABLE,FLOOR
4BD2 ENG(RLW) A/T 4 SPEED-JATCO(RMK) 02.480 		8-97105-934-2 01 1 9505-9705 ●
204 02.559 HARNESS; CABLE,FLOOR
4BD2 ENG(RLW) A/T 4 SPEED-JATCO(RMK) 		8-97162-630-1 01 1 9706- ●
352 02.480 HARNESS; CABLE,VSV
4BD1 ENG(LJ6),4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 		8-97102-244-0 01 1 9312-9510 ● ● ● ●

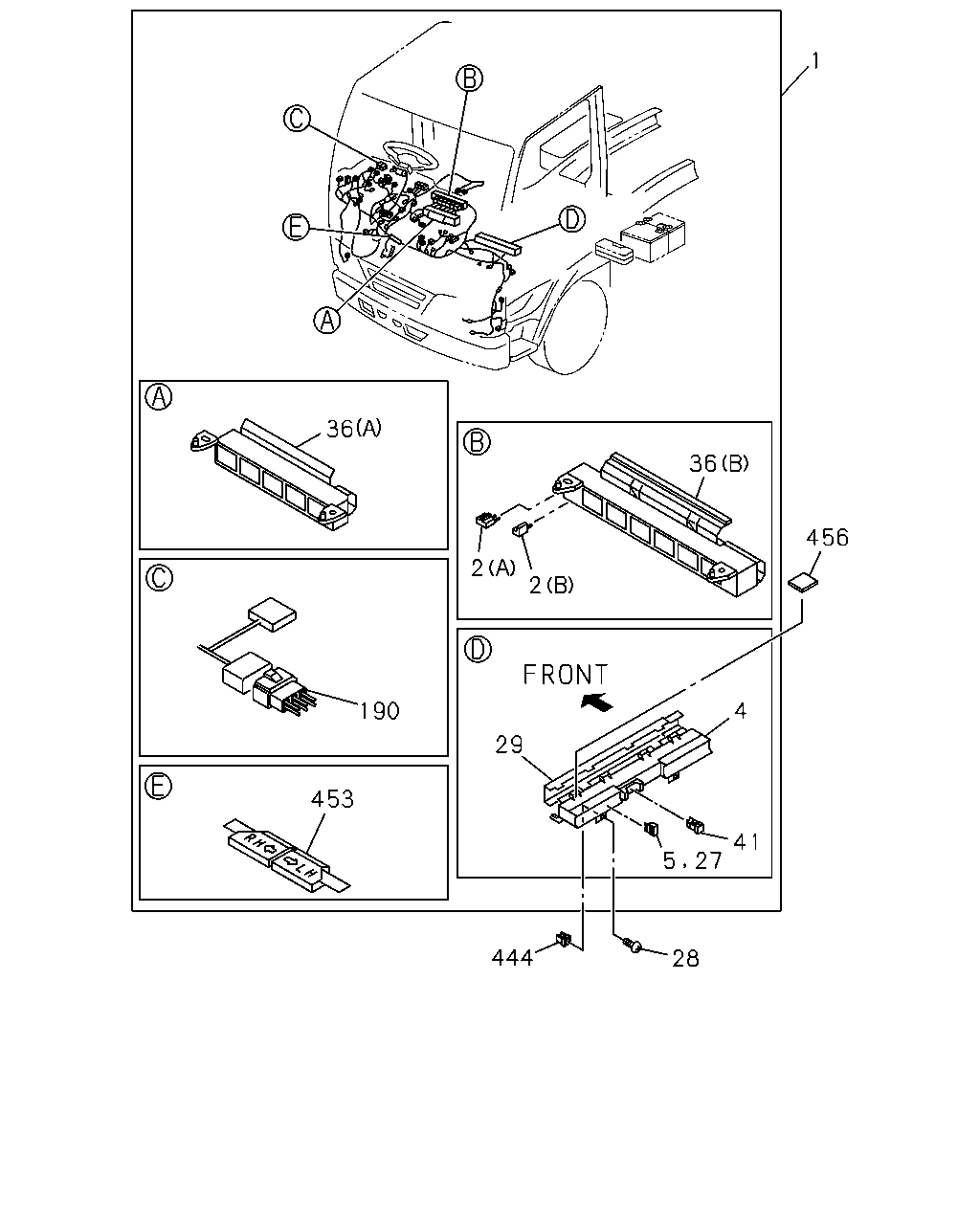

çizim 67584
1 36 36 456 2 2 190 4 29 453 41 5 27 444 28
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 02.480 HARNESS; CAB
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97101-534-2 01 1 9312-9510 ● ● ● ● ● ● ●
1 02.480 HARNESS; CAB
4BE1 ENG(RLH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97132-922-1 01 1 9511-9611 ● ● ● ●
1 02.480 HARNESS; CAB
4BE1 ENG(RLH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97132-922-1 01 1 9612-9711 ● ● ● ● ●
1 02.480 HARNESS; CAB
4BE1 ENG(RLH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97185-311-0 01 1 9712- ● ● ● ● ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) 		8-97101-540-2 01 1 9312-9404 ● ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) 		8-97113-543-1 01 1 9405-9506 ● ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 		8-97113-543-1 01 1 9507-9510 ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 		8-97132-927-0 01 1 9511-9711 ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 		8-97185-316-1 01 1 9712- ●
1 02.480 HARNESS; CAB
4BD2 ENG(RLW) HONG KONG EQUIPMENT(PQ1) 		8-97162-271-0 01 1 9607-9711 ● ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97185-310-0 01 1 9712- ● ● ● ● ●
1 02.480 HARNESS; CAB
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) 		8-97101-533-2 01 1 9312-9510 ● ● ● ●
1 02.480 HARNESS; CAB
4BE1 ENG(RLH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) 		8-97132-920-0 01 1 9511-9711 ● ● ● ●
1 02.480 HARNESS; CAB
4BE1 ENG(RLH) 		8-97185-318-0 01 1 9712- ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU),HYDRO BRAKE BOOS TER<7QQ> 		8-97192-260-2 01 1 9712- ● ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. AUSTRALIA EQUIPMENT(RR3), CHARGEAIR COOLER<6PL> 		8-97185-303-0 01 1 9712- ● ● ● ● ●
1 02.480 HARNESS; CAB
4BD2 ENG(RLW) EUROPEAN BASIC EQUIPMENT(EK4) 		8-97101-535-2 01 1 9312-9404 ●
1 02.480 HARNESS; CAB
4BD2 ENG(RLW) EUROPEAN BASIC EQUIPMENT(EK4) 		8-97113-542-1 01 1 9405-9506 ●
1 02.480 HARNESS; CAB
4BD2 ENG(RLW) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 		8-97113-542-1 01 1 9507-9510 ● ●
1 02.480 HARNESS; CAB
4BD2 ENG(RLW) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 		8-97132-923-0 01 1 9511-9711 ● ●
1 02.480 HARNESS; CAB
4BD2 ENG(RLW) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 		8-97185-323-0 01 1 9712-9801 ● ●
1 02.480 HARNESS; CAB
4BD2 ENG(RLW) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 		8-97205-056-1 01 1 9802-9807 ● ●
1 02.480 HARNESS; CAB
4BD2 ENG(RLW) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 		8-97205-056-1 01 1 9808- ● ● ●
1 02.480 HARNESS; CAB
4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) 		8-97101-539-2 01 1 9312-9510 ●
1 02.480 HARNESS; CAB
4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) 		8-97180-278-0 01 1 9703-9703 ●
1 02.480 HARNESS; CAB
4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) 		8-97132-926-0 01 1 9703-9711 ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) AUSTRALIA EQUIPMENT(RR3) 		8-97185-312-0 01 1 9712- ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) 		8-97185-305-2 01 1 9712- ● ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> 		8-97185-304-2 01 1 9712- ● ● ●
1 02.480 HARNESS; CAB
4BD2 ENG(RLW) AUSTRALIA EQUIPMENT(RR3) 		8-97132-919-0 01 1 9511-9711 ●
1 02.480 HARNESS; CAB
4BD2 ENG(RLW) HONG KONG EQUIPMENT(PQ1) 		8-97185-320-0 01 1 9712-9801 ● ● ● ●
1 02.480 HARNESS; CAB
4BD2 ENG(RLW) HONG KONG EQUIPMENT(PQ1) 		8-97204-868-0 01 1 9802- ● ● ● ●
1 02.480 HARNESS; CAB
4BD2 ENG(RLW) NEW ZEALAND EQUIPMENT(PK5) 		8-97132-921-0 01 1 9511-9711 ●
1 02.480 HARNESS; CAB
4BD2 ENG(RLW) NEW ZEALAND EQUIPMENT(PK5) 		8-97185-322-0 01 1 9712-9801 ●
1 02.480 HARNESS; CAB
4BD2 ENG(RLW) NEW ZEALAND EQUIPMENT(PK5) 		8-97205-055-0 01 1 9802- ●
1 02.480 HARNESS; CAB
4BD2 ENG(RLW) HONG KONG EQUIPMENT(PQ1) 		8-97180-736-0 01 1 9706-9711 ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) EXC. CHARGE AIR COOLER<6PL> 		8-97185-302-0 01 1 9712- ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 9312-9510 ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 9511-9611 ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 9612-9705 ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94422-640-1 AR 1 9312-9510 ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94422-640-1 AR 1 9511-9611 ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94422-640-1 AR 1 9612-9711 ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 9706-9711 ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 9712- ● ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94422-640-1 AR 1 9712- ● ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS 8-97077-664-0 01 1 9312-9510 ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4BE1 ENG(RLH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> 		8-97077-664-0 01 1 9511-9606 ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4JG2 ENG(RJC),4BD2 ENG(RLW) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 		8-97077-664-0 01 1 9511-9606 ●
4 02.483 BOX ASM; FUSE,HARNESS
4BD2 ENG(RLW) NEW ZEALAND EQUIPMENT(PK5), AUSTRALIAEQUIPMENT(RR3),UNITED KINGDOM EQUIP MENT(6AA) 		8-97077-664-0 01 1 9511-9606 ●
4 02.483 BOX ASM; FUSE,HARNESS
4BE1 ENG(RLH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> 		8-97077-664-0 01 1 9607-9611 ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4BD2 ENG(RLW) HONG KONG EQUIPMENT(PQ1) 		8-97077-664-0 01 1 9607-9611 ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4JG2 ENG(RJC),4BD2 ENG(RLW) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 		8-97077-664-0 01 1 9607-9611 ●
4 02.483 BOX ASM; FUSE,HARNESS
4BD2 ENG(RLW) NEW ZEALAND EQUIPMENT(PK5),HONG KONGEQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),UNITED KINGDOM EQUIPMENT(6AA) 		8-97077-664-0 01 1 9607-9611 ●
4 02.483 BOX ASM; FUSE,HARNESS
4BE1 ENG(RLH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> 		8-97077-664-0 01 1 9612-9702 ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4BD2 ENG(RLW) HONG KONG EQUIPMENT(PQ1) 		8-97077-664-0 01 1 9612-9702 ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4JG2 ENG(RJC),4BD2 ENG(RLW) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 		8-97077-664-0 01 1 9612-9702 ●
4 02.483 BOX ASM; FUSE,HARNESS
4BD2 ENG(RLW) NEW ZEALAND EQUIPMENT(PK5),HONG KONGEQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),UNITED KINGDOM EQUIPMENT(6AA) 		8-97077-664-0 01 1 9612-9702 ●
4 02.483 BOX ASM; FUSE,HARNESS 8-97077-664-0 01 1 9612-9702 ●
4 02.483 BOX ASM; FUSE,HARNESS
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97077-664-0 01 1 9703-9711 ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS 8-97077-664-0 01 1 9712- ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 10A RED 		5-82516-002-0 AR 1 9312- ● ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 15A BLUE 		5-82516-003-0 AR 1 9312- ● ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 25A CLEAR 		5-82516-005-0 AR 1 9312- ● ● ● ● ● ● ●
27 08.965 FUSE UNIT
10A RED 		5-82516-002-0 AR 1 9312- ● ● ● ● ● ● ●
27 08.965 FUSE UNIT
15A BLUE 		5-82516-003-0 AR 1 9312- ● ● ● ● ● ● ●
27 08.965 FUSE UNIT
25A CLEAR 		5-82516-005-0 AR 1 9312- ● ● ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9312-9510 ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9511-9611 ● ● ● ●
28 02.483 SCREW; FUSE BOX
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9612-9711 ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9712- ● ● ● ● ● ●
29 02.483 COVER; FUSE BOX 8-97074-955-0 01 1 9312-9510 ● ● ● ● ●
29 02.483 COVER; FUSE BOX
4BE1 ENG(RLH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> 		8-97074-955-0 01 1 9511-9606 ● ● ● ●
29 02.483 COVER; FUSE BOX
4JG2 ENG(RJC),4BD2 ENG(RLW) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 		8-97074-955-0 01 1 9511-9606 ●
29 02.483 COVER; FUSE BOX
4BD2 ENG(RLW) NEW ZEALAND EQUIPMENT(PK5), AUSTRALIAEQUIPMENT(RR3),UNITED KINGDOM EQUIP MENT(6AA) 		8-97074-955-0 01 1 9511-9606 ●
29 02.483 COVER; FUSE BOX
4BE1 ENG(RLH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> 		8-97074-955-0 01 1 9607-9611 ● ● ● ●
29 02.483 COVER; FUSE BOX
4BD2 ENG(RLW) HONG KONG EQUIPMENT(PQ1) 		8-97074-955-0 01 1 9607-9611 ● ●
29 02.483 COVER; FUSE BOX
4JG2 ENG(RJC),4BD2 ENG(RLW) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 		8-97074-955-0 01 1 9607-9611 ●
29 02.483 COVER; FUSE BOX
4BD2 ENG(RLW) NEW ZEALAND EQUIPMENT(PK5),HONG KONGEQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),UNITED KINGDOM EQUIPMENT(6AA) 		8-97074-955-0 01 1 9607-9611 ●
29 02.483 COVER; FUSE BOX
4BE1 ENG(RLH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> 		8-97074-955-0 01 1 9612-9702 ● ● ● ●
29 02.483 COVER; FUSE BOX
4BD2 ENG(RLW) HONG KONG EQUIPMENT(PQ1) 		8-97074-955-0 01 1 9612-9702 ● ●
29 02.483 COVER; FUSE BOX
4JG2 ENG(RJC),4BD2 ENG(RLW) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 		8-97074-955-0 01 1 9612-9702 ●
29 02.483 COVER; FUSE BOX
4BD2 ENG(RLW) NEW ZEALAND EQUIPMENT(PK5),HONG KONGEQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),UNITED KINGDOM EQUIPMENT(6AA) 		8-97074-955-0 01 1 9612-9702 ●
29 02.483 COVER; FUSE BOX 8-97074-955-0 01 1 9612-9702 ●
29 02.483 COVER; FUSE BOX
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97074-955-0 01 1 9703-9711 ● ● ● ● ●
36 02.530 BOX; RELAY
(A) 		8-97087-638-1 01 1 9312-9510 ● ● ● ● ●
36 02.530 BOX; RELAY
4BE1 ENG(RLH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> (A) 		8-97087-638-1 01 1 9511-9606 ● ● ● ●
36 02.530 BOX; RELAY
4JG2 ENG(RJC),4BD2 ENG(RLW) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) (A) 		8-97087-638-1 01 1 9511-9606 ●
36 02.530 BOX; RELAY
4BD2 ENG(RLW) NEW ZEALAND EQUIPMENT(PK5), AUSTRALIAEQUIPMENT(RR3),UNITED KINGDOM EQUIP MENT(6AA) (A) 		8-97087-638-1 01 1 9511-9606 ●
36 02.530 BOX; RELAY
4BE1 ENG(RLH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> (A) 		8-97087-638-1 01 1 9607-9611 ● ● ● ●
36 02.530 BOX; RELAY
4BD2 ENG(RLW) HONG KONG EQUIPMENT(PQ1) (A) 		8-97087-638-1 01 1 9607-9611 ● ●
36 02.530 BOX; RELAY
4JG2 ENG(RJC),4BD2 ENG(RLW) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) (A) 		8-97087-638-1 01 1 9607-9611 ●
36 02.530 BOX; RELAY
4BD2 ENG(RLW) NEW ZEALAND EQUIPMENT(PK5),HONG KONGEQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),UNITED KINGDOM EQUIPMENT(6AA) (A) 		8-97087-638-1 01 1 9607-9611 ●
36 02.530 BOX; RELAY
4BE1 ENG(RLH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> (A) 		8-97087-638-1 01 1 9612-9702 ● ● ● ●
36 02.530 BOX; RELAY
4BD2 ENG(RLW) HONG KONG EQUIPMENT(PQ1) (A) 		8-97087-638-1 01 1 9612-9702 ● ●
36 02.530 BOX; RELAY
4JG2 ENG(RJC),4BD2 ENG(RLW) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) (A) 		8-97087-638-1 01 1 9612-9702 ●
36 02.530 BOX; RELAY
4BD2 ENG(RLW) NEW ZEALAND EQUIPMENT(PK5),HONG KONGEQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),UNITED KINGDOM EQUIPMENT(6AA) (A) 		8-97087-638-1 01 1 9612-9702 ●
36 02.530 BOX; RELAY
(A) 		8-97087-638-1 01 1 9612-9702 ●
36 02.530 BOX; RELAY
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) (A) 		8-97087-638-1 01 1 9703-9711 ● ● ● ● ●
36 02.530 BOX; RELAY
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) (A) 		8-97087-638-1 01 1 9712- ● ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A) 		8-97087-638-1 01 1 9712- ● ● ● ● ●
36 02.530 BOX; RELAY
(B) 		8-97087-639-1 01 1 9312-9510 ● ● ● ● ●
36 02.530 BOX; RELAY
4BE1 ENG(RLH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> (B) 		8-97087-639-1 01 1 9511-9606 ● ● ● ●
36 02.530 BOX; RELAY
4JG2 ENG(RJC),4BD2 ENG(RLW) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) (B) 		8-97087-639-1 01 1 9511-9606 ●
36 02.530 BOX; RELAY
4BD2 ENG(RLW) NEW ZEALAND EQUIPMENT(PK5), AUSTRALIAEQUIPMENT(RR3),UNITED KINGDOM EQUIP MENT(6AA) (B) 		8-97087-639-1 01 1 9511-9606 ●
36 02.530 BOX; RELAY
4BE1 ENG(RLH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> (B) 		8-97087-639-1 01 1 9607-9611 ● ● ● ●
36 02.530 BOX; RELAY
4BD2 ENG(RLW) HONG KONG EQUIPMENT(PQ1) (B) 		8-97087-639-1 01 1 9607-9611 ● ●
36 02.530 BOX; RELAY
4JG2 ENG(RJC),4BD2 ENG(RLW) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) (B) 		8-97087-639-1 01 1 9607-9611 ●
36 02.530 BOX; RELAY
4BD2 ENG(RLW) NEW ZEALAND EQUIPMENT(PK5),HONG KONGEQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),UNITED KINGDOM EQUIPMENT(6AA) (B) 		8-97087-639-1 01 1 9607-9611 ●
36 02.530 BOX; RELAY
4BE1 ENG(RLH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> (B) 		8-97087-639-1 01 1 9612-9702 ● ● ● ●
36 02.530 BOX; RELAY
4BD2 ENG(RLW) HONG KONG EQUIPMENT(PQ1) (B) 		8-97087-639-1 01 1 9612-9702 ● ●
36 02.530 BOX; RELAY
4JG2 ENG(RJC),4BD2 ENG(RLW) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) (B) 		8-97087-639-1 01 1 9612-9702 ●
36 02.530 BOX; RELAY
4BD2 ENG(RLW) NEW ZEALAND EQUIPMENT(PK5),HONG KONGEQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),UNITED KINGDOM EQUIPMENT(6AA) (B) 		8-97087-639-1 01 1 9612-9702 ●
36 02.530 BOX; RELAY
(B) 		8-97087-639-1 01 1 9612-9702 ●
36 02.530 BOX; RELAY
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) (B) 		8-97087-639-1 01 1 9703-9711 ● ● ● ● ●
36 02.530 BOX; RELAY
(B) 		8-97087-639-1 01 1 9712- ● ● ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A) 		8-97184-367-0 01 1 9712- ● ● ● ● ●
41 08.821 PULLER; FUSE
02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 9312-9510 ● ● ● ● ●
41 08.821 PULLER; FUSE
4BE1 ENG(RLH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> 02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 9511-9606 ● ● ● ●
41 08.821 PULLER; FUSE
4JG2 ENG(RJC),4BD2 ENG(RLW) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 9511-9606 ●
41 08.821 PULLER; FUSE
4BD2 ENG(RLW) NEW ZEALAND EQUIPMENT(PK5), AUSTRALIAEQUIPMENT(RR3),UNITED KINGDOM EQUIP MENT(6AA) 02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 9511-9606 ●
41 08.821 PULLER; FUSE
4BE1 ENG(RLH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> 02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 9607-9611 ● ● ● ●
41 08.821 PULLER; FUSE
4BD2 ENG(RLW) HONG KONG EQUIPMENT(PQ1) 02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 9607-9611 ● ●
41 08.821 PULLER; FUSE
4JG2 ENG(RJC),4BD2 ENG(RLW) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 9607-9611 ●
41 08.821 PULLER; FUSE
4BD2 ENG(RLW) NEW ZEALAND EQUIPMENT(PK5),HONG KONGEQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),UNITED KINGDOM EQUIPMENT(6AA) 02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 9607-9611 ●
41 08.821 PULLER; FUSE
4BE1 ENG(RLH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> 02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 9612-9702 ● ● ● ●
41 08.821 PULLER; FUSE
4BD2 ENG(RLW) HONG KONG EQUIPMENT(PQ1) 02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 9612-9702 ● ●
41 08.821 PULLER; FUSE
4JG2 ENG(RJC),4BD2 ENG(RLW) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 9612-9702 ●
41 08.821 PULLER; FUSE
4BD2 ENG(RLW) NEW ZEALAND EQUIPMENT(PK5),HONG KONGEQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),UNITED KINGDOM EQUIPMENT(6AA) 02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 9612-9702 ●
41 08.821 PULLER; FUSE
02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 9612-9702 ●
41 08.821 PULLER; FUSE
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 9703-9711 ● ● ● ● ●
41 08.821 PULLER; FUSE
02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 9712- ● ● ● ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT 5-82690-411-0 01 1 9312-9510 ● ● ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4BE1 ENG(RLH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> 		5-82690-411-0 01 1 9511-9606 ● ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4JG2 ENG(RJC),4BD2 ENG(RLW) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 		5-82690-411-0 01 1 9511-9606 ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4BD2 ENG(RLW) NEW ZEALAND EQUIPMENT(PK5), AUSTRALIAEQUIPMENT(RR3),UNITED KINGDOM EQUIP MENT(6AA) 		5-82690-411-0 01 1 9511-9606 ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4BE1 ENG(RLH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> 		5-82690-411-0 01 1 9607-9611 ● ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4BD2 ENG(RLW) HONG KONG EQUIPMENT(PQ1) 		5-82690-411-0 01 1 9607-9611 ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4JG2 ENG(RJC),4BD2 ENG(RLW) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 		5-82690-411-0 01 1 9607-9611 ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4BD2 ENG(RLW) NEW ZEALAND EQUIPMENT(PK5),HONG KONGEQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),UNITED KINGDOM EQUIPMENT(6AA) 		5-82690-411-0 01 1 9607-9611 ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4BE1 ENG(RLH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> 		5-82690-411-0 01 1 9612-9702 ● ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4BD2 ENG(RLW) HONG KONG EQUIPMENT(PQ1) 		5-82690-411-0 01 1 9612-9702 ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4JG2 ENG(RJC),4BD2 ENG(RLW) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 		5-82690-411-0 01 1 9612-9702 ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4BD2 ENG(RLW) NEW ZEALAND EQUIPMENT(PK5),HONG KONGEQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),UNITED KINGDOM EQUIPMENT(6AA) 		5-82690-411-0 01 1 9612-9702 ●
190 02.559 CONNECTOR; SHORT CIRCUIT 5-82690-411-0 01 1 9612-9702 ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		5-82690-411-0 01 1 9703-9711 ● ● ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		5-82690-411-0 01 1 9712-9807 ● ● ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT 5-82690-411-0 01 1 9808- ● ● ● ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> EXC. UNITED KINGDOM EQUIPMENT(6AA) 		8-94363-367-0 01 1 9712- ● ● ● ● ●
444 02.483 GROMMET; SCREW,FUSE BOX
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9312-9510 ● ● ● ● ●
444 02.483 GROMMET; SCREW,FUSE BOX
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9511-9611 ● ● ● ●
444 02.483 GROMMET; SCREW,FUSE BOX
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9612-9711 ● ● ● ● ●
444 02.483 GROMMET; SCREW,FUSE BOX
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9712- ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4BE1 ENG(RLH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> 		8-97074-957-0 01 1 9511-9606 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4BD2 ENG(RLW) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 		8-97074-957-0 01 1 9511-9606 ●
453 02.483 PROTECTOR; HARNESS
4BD2 ENG(RLW) NEW ZEALAND EQUIPMENT(PK5), AUSTRALIAEQUIPMENT(RR3),UNITED KINGDOM EQUIP MENT(6AA) 		8-97074-957-0 01 1 9511-9606 ●
453 02.483 PROTECTOR; HARNESS
4BE1 ENG(RLH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> 		8-97074-957-0 01 1 9607-9611 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4BD2 ENG(RLW) HONG KONG EQUIPMENT(PQ1) 		8-97074-957-0 01 1 9607-9611 ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4BD2 ENG(RLW) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 		8-97074-957-0 01 1 9607-9611 ●
453 02.483 PROTECTOR; HARNESS
4BD2 ENG(RLW) NEW ZEALAND EQUIPMENT(PK5),HONG KONGEQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),UNITED KINGDOM EQUIPMENT(6AA) 		8-97074-957-0 01 1 9607-9611 ●
453 02.483 PROTECTOR; HARNESS
4BE1 ENG(RLH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> 		8-97074-957-0 01 1 9612-9702 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4BD2 ENG(RLW) HONG KONG EQUIPMENT(PQ1) 		8-97074-957-0 01 1 9612-9702 ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4BD2 ENG(RLW) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 		8-97074-957-0 01 1 9612-9702 ●
453 02.483 PROTECTOR; HARNESS
4BD2 ENG(RLW) NEW ZEALAND EQUIPMENT(PK5),HONG KONGEQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),UNITED KINGDOM EQUIPMENT(6AA) 		8-97074-957-0 01 1 9612-9702 ●
453 02.483 PROTECTOR; HARNESS 8-97074-957-0 01 1 9612-9702 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97074-957-0 01 1 9703-9711 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS 8-97074-957-0 01 1 9712- ● ● ● ● ● ●
456 02.483 CUSHION; FUSE BOX
16.085 15X30 T=5 		8-94270-366-2 02 1 9312-9509 ● ● ● ● ●
456 02.483 CUSHION; FUSE BOX
16.085 15X30 T=5 		8-94270-366-2 01 1 9510-9510 ● ● ● ● ●
456 02.483 CUSHION; FUSE BOX
16.085 15X30 T=5 		8-94270-366-2 01 1 9511-9611 ● ● ● ●
456 02.483 CUSHION; FUSE BOX
16.085 15X30 T=5 		8-94270-366-2 01 1 9612-9711 ● ● ● ● ●
456 02.483 CUSHION; FUSE BOX
16.085 15X30 T=5 		8-94270-366-2 01 1 9712- ● ● ● ● ● ●
çizim 69261
416 13 208 8 107 329
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA) 		8-97106-634-1 01 1 9312-9410 ● ● ● ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA) 		8-97121-621-1 01 1 9411-9510 ● ● ● ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97131-788-0 01 1 9511-9711 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97187-900-0 01 1 9712-9801 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97187-900-0 01 1 9802- ● ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) 		8-97106-625-2 01 1 9312-9506 ● ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) 		8-97106-625-2 01 1 9507-9510 ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) 		8-97131-781-0 01 1 9511-9711 ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) 		8-97187-916-1 01 1 9712- ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) EXC. EAST MALAYSIA EQUIPMENT(PM6), WEST MALAYSIA EQUIPMENT(RWP) 		8-97106-627-3 01 1 9312-9505 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) EXC. EAST MALAYSIA EQUIPMENT(PM6), WEST MALAYSIA EQUIPMENT(RWP) 		8-97122-686-0 01 1 9506-9510 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) EXC. EAST MALAYSIA EQUIPMENT(PM6), WEST MALAYSIA EQUIPMENT(RWP) 		8-97131-783-1 01 1 9511-9711 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) 		8-97187-893-0 01 1 9712- ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 		8-97187-895-2 01 1 9712- ● ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4BD2 ENG(RLW) 		8-97106-632-3 01 1 9312-9404 ●
8 02.480 HARNESS; FRAME,FRT
4BD2 ENG(RLW) 		8-97114-290-0 01 1 9405-9506 ●
8 02.480 HARNESS; FRAME,FRT
4BD2 ENG(RLW) 		8-97114-290-0 01 1 9507-9510 ● ●
8 02.480 HARNESS; FRAME,FRT
4BD2 ENG(RLW) 		8-97131-786-1 01 1 9511-9606 ● ●
8 02.480 HARNESS; FRAME,FRT
4BD2 ENG(RLW) 		8-97131-786-1 01 1 9607-9611 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4BD2 ENG(RLW) 		8-97173-414-0 01 1 9612-9705 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4BD2 ENG(RLW) 		8-97173-414-0 01 1 9706-9711 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4BD2 ENG(RLW) 		8-97187-911-1 01 1 9712- ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) 		8-97106-635-3 01 1 9312-9410 ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) 		8-97121-622-1 01 1 9411-9510 ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) 		8-97131-790-0 01 1 9511-9711 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. ENGINE POWER N-SPEC<7QV> 		8-97187-896-2 01 1 9712-9801 ● ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. ENGINE POWER N-SPEC<7QV> 		8-97187-896-4 01 1 9802- ● ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) FRAME STRAIGHT TYPE<7KJ> 		8-97187-910-1 01 1 9712- ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(RWP) 		8-97106-628-3 01 1 9312-9405 ● ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(RWP) 		8-97116-370-0 01 1 9406-9505 ● ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(RWP) 		8-97122-694-0 01 1 9506-9510 ● ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(RWP) 		8-97131-785-1 01 1 9511-9711 ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> ENGINE POWER N-SPEC<7QV> 		8-97187-899-4 01 1 9712- ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 		8-97146-087-0 01 1 9604-9611 ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 		8-97146-087-0 01 1 9612-9711 ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 		8-97187-906-1 01 1 9712-9801 ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 		8-97187-906-1 01 1 9802- ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 		8-97131-795-3 01 1 9612-9711 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 		8-97187-905-1 01 1 9712- ● ● ●
8 02.480 HARNESS; FRAME,FRT
4BD1 ENG(LJ6) 		8-97106-630-3 01 1 9312-9510 ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> 		8-97131-792-1 01 1 9511-9603 ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 		8-97131-792-1 01 1 9604-9611 ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT> 		8-97131-792-1 01 1 9612-9711 ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT> 		8-97187-904-1 01 1 9712-9801 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 		8-97187-904-1 01 1 9802- ● ● ●
13 02.525 HARNESS; ENG
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> 		8-97061-733-3 01 1 9312-9510 ● ● ● ● ● ● ●
13 02.525 HARNESS; ENG
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> 		8-97131-758-1 01 1 9511-9611 ● ● ● ●
13 02.525 HARNESS; ENG
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> 		8-97131-758-1 01 1 9612-9705 ● ● ● ● ●
13 02.525 HARNESS; ENG
4HF1 ENG(RLS) 		8-97131-758-1 01 1 9706-9710 ● ● ● ● ●
13 02.525 HARNESS; ENG
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> 		8-97131-758-1 01 1 9711-9711 ● ● ● ● ●
13 02.525 HARNESS; ENG
4HF1 ENG(RLS) FAST GLOW SYSTEM<KM6> FLOOR REMOTE SHIFT<M11> EXC. GENERATOR DENSO(7KH) 		8-97170-515-1 01 1 9712-9801 ●
13 02.525 HARNESS; ENG
4HG1 ENG(RJH),4HF1 ENG(RLS) FAST GLOW SYSTEM<KM6> FLOOR REMOTE SHIFT<M11> EXC. GENERATOR DENSO(7KH) 		8-97170-515-1 01 1 9712-9801 ● ● ● ●
13 02.525 HARNESS; ENG
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FAST GLOW SYSTEM<KM6> EXC. GENERATOR DENSO(7KH) 		8-97170-515-1 01 1 9802- ● ● ● ● ●
13 02.525 HARNESS; ENG
4JG2 ENG(RJC) POWER STEERING<N40> 		8-97068-756-3 01 1 9312-9410 ● ●
13 02.525 HARNESS; ENG
4JG2 ENG(RJC) POWER STEERING<N40> 		8-97121-892-2 01 1 9411-9711 ● ●
13 02.525 HARNESS; ENG
4JG2 ENG(RJC) HEATER & DEFROSTER(C41) FAN FLUID DRIVE<KA3> POWER STEERING<N40> EURO2 SPECIFICATION<7AF> 		8-97173-696-1 01 1 9712- ●
13 02.525 HARNESS; ENG
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> HONG KONG EQUIPMENT(PQ1) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC<7QV> EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97166-704-2 01 1 9712- ● ● ●
13 02.525 HARNESS; ENG
4BD1 ENG(LJ6),4BE1 ENG(RLH) 		8-97066-583-3 01 1 9312-9510 ● ● ● ●
13 02.525 HARNESS; ENG
4BE1 ENG(RLH) 		8-97131-761-0 01 1 9511-9705 ● ● ● ●
13 02.525 HARNESS; ENG
4BE1 ENG(RLH) 		8-97131-761-0 01 1 9706-9711 ● ● ● ●
13 02.525 HARNESS; ENG
4BE1 ENG(RLH) HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3>,AIR INTAKE SYSTEM FRONT<6PC> POWER STEERING<N40> EXC. HIGH ALTITUDE COMPENSATOR(EE2), NEW ZEALAND EQUIPMENT(PK5), SINGAPOREEQUIPMENT(S9Y) 		8-97131-761-0 01 1 9712- ● ● ●
13 02.525 HARNESS; ENG
4BD2 ENG(RLW) 		8-97073-320-3 01 1 9312-9506 ●
13 02.525 HARNESS; ENG
4BD2 ENG(RLW) 		8-97073-320-3 01 1 9507-9510 ● ●
13 02.525 HARNESS; ENG
4BD2 ENG(RLW) 		8-97116-609-2 01 1 9511-9606 ● ●
13 02.525 HARNESS; ENG
4BD2 ENG(RLW) 		8-97116-609-2 01 1 9607-9705 ● ● ●
13 02.525 HARNESS; ENG
4BD2 ENG(RLW) 		8-97116-609-2 01 1 9706-9711 ● ● ● ●
13 02.525 HARNESS; ENG
4BD2 ENG(RLW) 		8-97116-609-2 01 1 9712- ● ● ● ●
13 02.525 HARNESS; ENG
4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) 		8-97061-732-4 01 1 9312-9510 ●
13 02.525 HARNESS; ENG
4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) 		8-97131-760-1 01 1 9511-9711 ●
13 02.525 HARNESS; ENG
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C41) FAST GLOW SYSTEM<KM6> POWER STEERING<N40> EXC. HIGH ALTITUDE COMPENSATOR(EE2), FLOOR REMOTE SHIFT<M11>,SINGAPORE EQUIPMENT(S9Y),GENERATOR DENSO(7KH),VE HICLE CATEGORY NQR<7NQ> 		8-97170-518-1 01 1 9712- ●
13 02.525 HARNESS; ENG
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. FAST GLOW SYSTEM<KM6> 		8-97170-517-1 01 1 9712- ● ● ●
13 02.525 HARNESS; ENG
4HE1 ENG(RLY) FAST GLOW SYSTEM<KM6> FLOOR REMOTE SHIFT<M11> POWER STEERING<N40> VEHICLE CATEGORY NQR<7NQ> HYDRO BRAKE BOOSTER<7QQ> EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL> 		8-97170-519-1 01 1 9712-9712 ● ● ● ●
13 02.525 HARNESS; ENG
4HE1 ENG(RLY) POWER STEERING<N40> VEHICLE CATEGORY NQR<7NQ> HYDRO BRAKE BOOSTER<7QQ> EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL> 		8-97170-519-1 01 1 9801- ● ● ● ●
13 02.525 HARNESS; ENG
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> HONG KONG EQUIPMENT(PQ1),UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> EXC. ENGINE POWER N-SPEC<7QV> 		8-97172-971-2 01 1 9712- ● ● ● ●
107 02.559 COVER; CONNECTOR
4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) 		8-97061-284-0 01 1 9312-9504 ●
107 02.559 COVER; CONNECTOR
A/T 4 SPEED-JATCO(RMK) 		8-97061-284-0 01 1 9505- ●
208 02.483 HOLDER; CONNECTOR
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> HONG KONG EQUIPMENT(PQ1) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> EXC. ENG QUICK WARM UP SYSTEM<6JZ> 		8-94459-973-1 01 1 9712-9712 ● ● ● ● ●
208 02.483 HOLDER; CONNECTOR
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FAST GLOW SYSTEM<KM6> POWER STEERING<N40> VEHICLE CATEGORY NQR<7NQ> HYDRO BRAKE BOOSTER<7QQ> EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL> 		8-94459-973-1 01 1 9712-9712 ● ● ● ●
208 02.483 HOLDER; CONNECTOR
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> HONG KONG EQUIPMENT(PQ1) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> EXC. ENG QUICK WARM UP SYSTEM<6JZ> 		8-94459-973-1 01 1 9712-9712 ● ● ●
208 02.483 HOLDER; CONNECTOR
4HE1 ENG(RLY) HONG KONG EQUIPMENT(PQ1),UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> 		8-94459-973-1 01 1 9801- ● ● ● ● ●
208 02.483 HOLDER; CONNECTOR
4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL> 		8-94459-973-1 01 1 9801- ● ● ● ●
329 02.480 CABLE; ENG TO FRAME
4HF1 ENG(RLS) 		8-97065-249-1 01 1 9312-9510 ● ● ● ● ●
329 02.480 CABLE; ENG TO FRAME
4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97065-249-1 01 1 9511-9711 ● ● ● ●
329 02.480 CABLE; ENG TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97065-249-1 01 1 9712-9801 ● ● ● ● ●
329 02.480 CABLE; ENG TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) VOLTAGE 24V<7AE> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97065-249-1 01 1 9802- ● ● ● ● ● ●
329 02.480 CABLE; ENG TO FRAME
4JG2 ENG(RJC) 		8-97073-190-0 01 1 9312-9506 ● ●
329 02.480 CABLE; ENG TO FRAME
4JG2 ENG(RJC) 		8-97073-190-0 01 1 9507- ●
329 02.480 CABLE; ENG TO FRAME
4BE1 ENG(RLH) 		8-94446-706-1 01 1 9312-9711 ● ● ● ●
329 02.480 CABLE; ENG TO FRAME
4BE1 ENG(RLH) 		8-94446-706-1 01 1 9712- ● ● ●
329 02.480 CABLE; ENG TO FRAME
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97182-112-0 01 1 9712-9801 ● ● ● ● ●
329 02.480 CABLE; ENG TO FRAME
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 		8-97182-112-0 01 1 9802- ● ● ● ● ●
329 02.480 CABLE; ENG TO FRAME
4BD2 ENG(RLW) 02.341 		8-94171-822-0 01 1 9312-9506 ●
329 02.480 CABLE; ENG TO FRAME
4BD2 ENG(RLW) 02.341 		8-94171-822-0 01 1 9507-9510 ● ●
329 02.480 CABLE; ENG TO FRAME
4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> 02.341 		8-94171-822-0 01 1 9511-9606 ● ●
329 02.480 CABLE; ENG TO FRAME
4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> 02.341 		8-94171-822-0 01 1 9607-9705 ● ● ●
329 02.480 CABLE; ENG TO FRAME
4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> 02.341 		8-94171-822-0 01 1 9706- ● ● ● ●
329 02.480 CABLE; ENG TO FRAME
4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> 		8-97113-785-0 01 1 9604-9711 ● ●
329 02.480 CABLE; ENG TO FRAME
4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> 		8-97113-785-0 01 1 9712- ● ● ●
329 02.480 CABLE; ENG TO FRAME
4BD1 ENG(LJ6) 		8-94150-258-2 01 1 9312-9510 ●
329 02.480 CABLE; ENG TO FRAME
4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97113-787-0 01 1 9511-9611 ● ●
329 02.480 CABLE; ENG TO FRAME
4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97113-787-0 01 1 9612-9711 ● ● ●
329 02.480 CABLE; ENG TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 		8-97113-787-0 01 1 9712- ● ● ● ● ●
416 02.559 NUT; TERMINAL
4HF1 ENG(RLS) 02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 9312-9510 ● ● ● ● ●
416 02.559 NUT; TERMINAL
4HF1 ENG(RLS) 02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 9511-9611 ● ● ● ●
416 02.559 NUT; TERMINAL
4HF1 ENG(RLS) 02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 9612-9711 ● ● ● ● ●
416 02.559 NUT; TERMINAL
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 9712-9801 ● ● ● ● ● ●
416 02.559 NUT; TERMINAL
4HG1 ENG(RJH),4HF1 ENG(RLS) 02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 9802- ● ● ● ● ●
416 02.559 NUT; TERMINAL
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE> 02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 9802- ● ● ●
416 02.559 NUT; TERMINAL
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) M5 W/LK WASHER 		8-94424-178-0 01 1 9312-9510 ● ● ● ●
416 02.559 NUT; TERMINAL
4BE1 ENG(RLH),4BD2 ENG(RLW) M5 W/LK WASHER 		8-94424-178-0 01 1 9511- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
