7-60 — SEAT BELT (#48895) — 165 parça

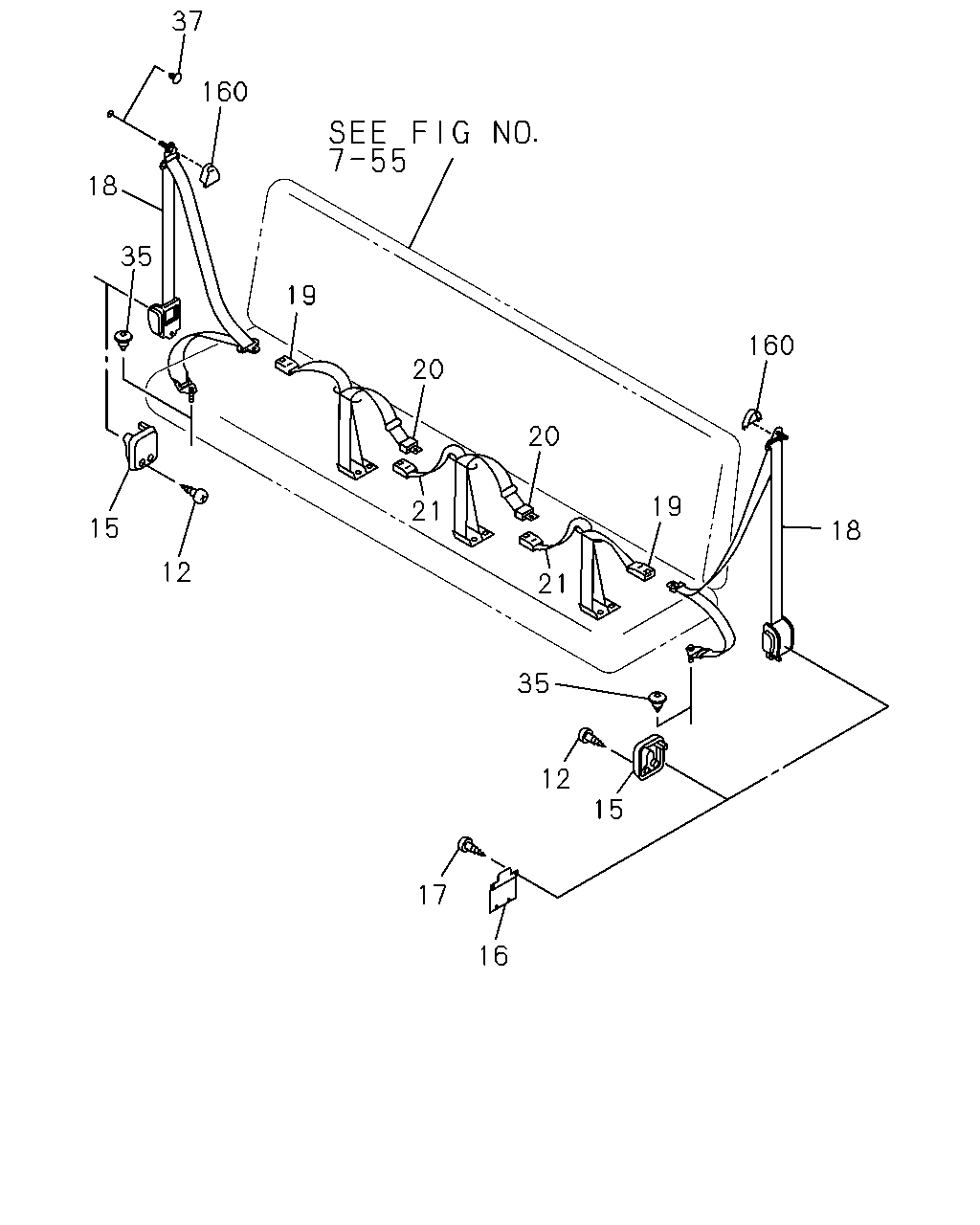

çizim 66941
37 160 18 35 19 160 20 20 19 21 15 18 12 21 35 12 15 17 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
12 16.714 SCREW; RETRACTOR COVER,SEAT BELT
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> 16.584 M6X13 		5-09981-074-0 04 1 9312-9510 ● ●
12 16.714 SCREW; RETRACTOR COVER,SEAT BELT
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> 16.584 M6X13 		5-09981-074-0 04 1 9511- ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK BEIGE 		8-97854-154-1 02 1 9312-9510 ● ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK BEIGE 		8-97854-154-2 02 1 9511-9711 ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-94351-619-3 02 1 9712- ●
16 16.714 COVER; HOLE,SEAT BELT
EXC. SEAT BELT FRT 3 POINT W/RETRACT OR<A49> 		8-97854-868-1 02 1 9312- ●
17 16.714 SCREW; HOLE COVER,SEAT BELT
EXC. SEAT BELT FRT 3 POINT W/RETRACT OR<A49> 16.584 M6X13 		5-09981-074-0 08 1 9312- ●
18 16.714 BELT; SEAT,RR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97854-990-0 02 1 9312-9711 ●
18 16.714 BELT; SEAT,RR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97868-490-0 02 1 9712- ●
19 16.714 BELT; RR SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97859-043-0 02 1 9312-9711 ●
19 16.714 BELT; RR SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97868-489-0 02 1 9712- ●
20 16.714 BELT; RR SEAT CTR,TONGUE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> AUSTRALIA EQUIPMENT(RR3) 16.570 DARK BEIGE 		8-97859-051-0 01 1 9312-9711 ●
20 16.714 BELT; RR SEAT CTR,TONGUE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97868-494-0 01 1 9712- ●
20 16.714 BELT; RR SEAT CTR,TONGUE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97859-049-0 01 1 9312-9711 ●
20 16.714 BELT; RR SEAT CTR,TONGUE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97868-493-0 01 1 9712- ●
21 16.714 BELT; RR SEAT CTR,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97859-045-0 01 1 9312-9711 ●
21 16.714 BELT; RR SEAT CTR,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97868-491-0 01 1 9712- ●
21 16.714 BELT; RR SEAT CTR,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97859-047-0 01 1 9312-9711 ●
21 16.714 BELT; RR SEAT CTR,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97868-492-0 01 1 9712- ●
35 16.714 GROMMET; SEAT BELT ANCHOR
SEAT BELT DRIVER & ASSIST 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> OD=22 		9-61168-535-0 01 1 9406-9510 ● ● ● ● ●
35 16.714 GROMMET; SEAT BELT ANCHOR
SEAT BELT DRIVER & ASSIST 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> OD=22 		9-61168-535-0 01 1 9511-9611 ● ● ● ●
35 16.714 GROMMET; SEAT BELT ANCHOR
SEAT BELT DRIVER & ASSIST 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> OD=22 		9-61168-535-0 01 1 9612-9711 ● ● ● ● ●
35 16.714 GROMMET; SEAT BELT ANCHOR
SEAT BELT DRIVER & ASSIST 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> OD=22 		9-61168-535-0 01 1 9712- ● ● ● ● ● ●
35 16.714 GROMMET; SEAT BELT ANCHOR
EXC. AUSTRALIA EQUIPMENT(RR3) OD=22 		9-61168-535-0 06 1 9312-9510 ● ●
35 16.714 GROMMET; SEAT BELT ANCHOR
EXC. AUSTRALIA EQUIPMENT(RR3) OD=22 		9-61168-535-0 06 1 9511- ●
35 16.714 GROMMET; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & ASSIST 2 POI NT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> OD=22 		9-61168-535-0 04 1 9312-9611 ● ● ● ●
35 16.714 GROMMET; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & ASSIST 2 POI NT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> OD=22 		9-61168-535-0 04 1 9612-9711 ● ● ● ● ●
35 16.714 GROMMET; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & ASSIST 2 POI NT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> OD=22 		9-61168-535-0 04 1 9712- ● ● ● ● ● ●
37 16.714 PLUG; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & ASSIST 2 POI NT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49>,AUSTRALIA EQUIPMENT(RR3) L=18.5 		8-94279-726-0 02 1 9312-9510 ● ● ● ● ●
37 16.714 PLUG; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & ASSIST 2 POI NT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49>,AUSTRALIA EQUIPMENT(RR3) L=18.5 		8-94279-726-0 02 1 9511-9611 ● ● ● ●
37 16.714 PLUG; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & ASSIST 2 POI NT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49>,AUSTRALIA EQUIPMENT(RR3) L=18.5 		8-94279-726-0 02 1 9612-9711 ● ● ● ● ●
37 16.714 PLUG; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & ASSIST 2 POI NT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49>,AUSTRALIA EQUIPMENT(RR3) L=18.5 		8-94279-726-0 02 1 9712- ● ● ● ● ● ●
160 16.714 COVER; THROUGH ANCHOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK BEIGE 		8-97854-145-0 01 1 9312-9510 ● ● ● ● ●
160 16.714 COVER; THROUGH ANCHOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK BEIGE 		8-97854-145-0 01 1 9511-9611 ● ● ● ●
160 16.714 COVER; THROUGH ANCHOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK BEIGE 		8-97854-145-0 01 1 9612-9711 ● ● ● ● ●
160 16.714 COVER; THROUGH ANCHOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-97854-897-0 01 1 9712- ● ● ● ● ● ●

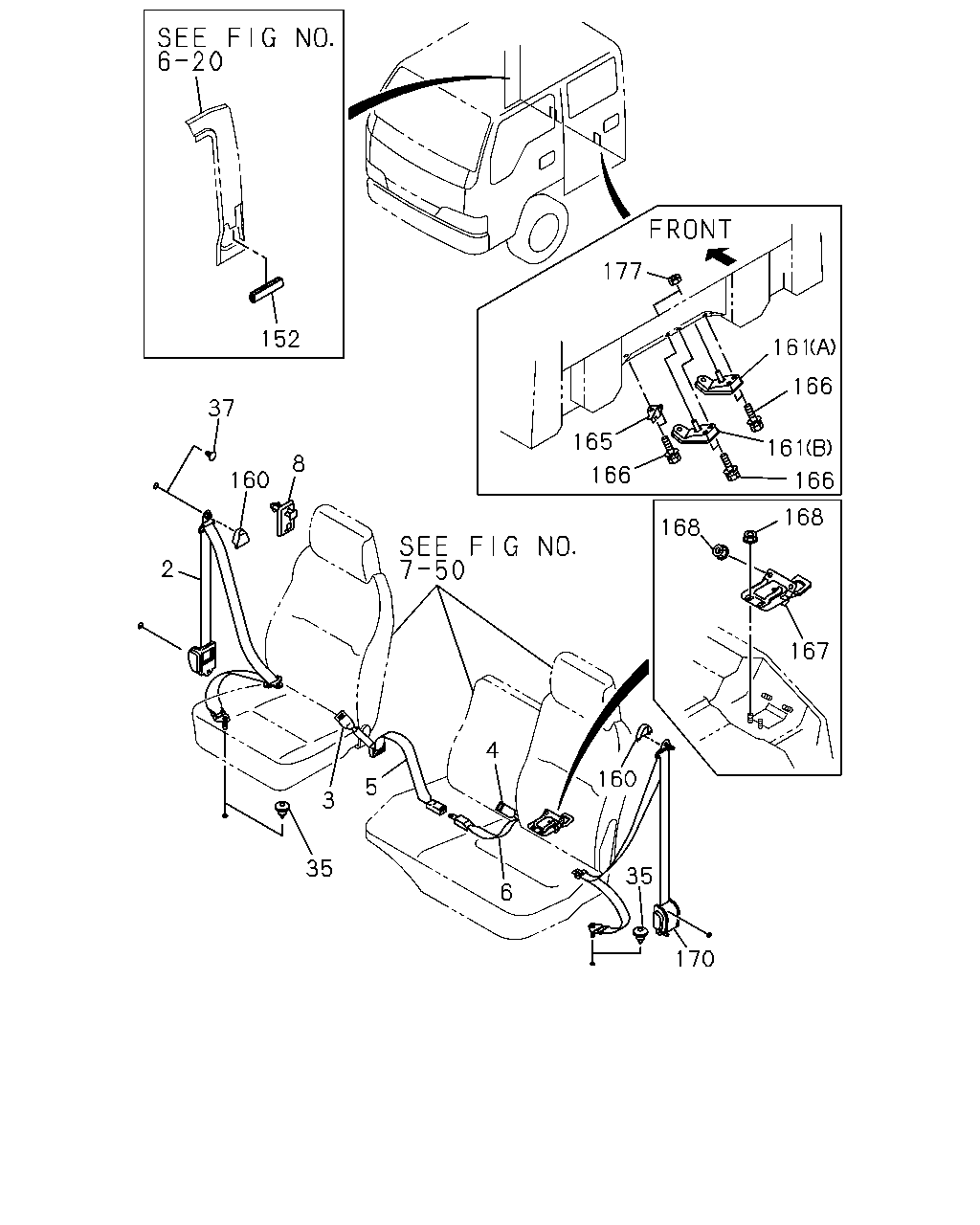

çizim 70815
177 152 161 166 37 165 161 8 166 160 166 168 168 2 167 4 160 5 3 35 35 6 170
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. EUROPEAN BASIC EQUIPMENT(EK4), AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97854-867-1 01 1 9312-9506 ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. AUSTRALIA EQUIPMENT(RR3), UNITEDKINGDOM EQUIPMENT(6AA),IRISH EQUIPM ENT(6CU) DARK BEIGE 		8-97854-867-1 01 1 9507-9510 ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. AUSTRALIA EQUIPMENT(RR3), UNITEDKINGDOM EQUIPMENT(6AA),IRISH EQUIPM ENT(6CU) DARK BEIGE 		8-97854-867-1 01 1 9511-9611 ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. AUSTRALIA EQUIPMENT(RR3), UNITEDKINGDOM EQUIPMENT(6AA),IRISH EQUIPM ENT(6CU) DARK BEIGE 		8-97854-867-1 01 1 9612-9711 ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. AUSTRALIA EQUIPMENT(RR3), UNITEDKINGDOM EQUIPMENT(6AA),IRISH EQUIPM ENT(6CU) DARK GRAY 		8-97868-469-1 01 1 9712- ● ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EUROPEAN BASIC EQUIPMENT(EK4) DARK BEIGE 		8-97854-860-0 01 1 9312-9506 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) DARK BEIGE 		8-97854-860-0 01 1 9507-9711 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) DARK GRAY 		8-97868-459-0 01 1 9712-9809 ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) DARK GRAY 		8-97868-459-0 01 1 9810- ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT DRIVER & ASSIST 2 POINT<AS6> DARK BEIGE 		8-97854-768-1 01 1 9312-9611 ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT DRIVER & ASSIST 2 POINT<AS6> DARK BEIGE 		8-97854-768-1 01 1 9612-9711 ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT DRIVER & ASSIST 2 POINT<AS6> DARK GRAY 		8-97868-467-1 01 1 9712- ● ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97854-845-1 01 1 9312-9711 ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97868-468-1 01 1 9712- ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT DRIVER & ASSIST 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. EUROPEAN BASIC EQUIPMENT(EK4) DARK BEIGE 		8-97854-759-0 01 1 9312-9506 ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT DRIVER & ASSIST 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) DARK BEIGE 		8-97854-759-0 01 1 9507-9510 ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT DRIVER & ASSIST 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) DARK BEIGE 		8-97854-759-0 01 1 9511-9611 ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT DRIVER & ASSIST 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) DARK BEIGE 		8-97854-759-0 01 1 9612-9711 ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT DRIVER & ASSIST 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) DARK GRAY 		8-97868-362-0 01 1 9712- ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EUROPEAN BASIC EQUIPMENT(EK4) DARK BEIGE 		8-97854-946-0 01 1 9312-9506 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) DARK BEIGE 		8-97854-946-0 01 1 9507-9711 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) DARK GRAY 		8-97868-363-0 01 1 9712-9807 ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) DARK GRAY 		8-97868-363-0 01 1 9808- ● ● ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT DRIVER & ASSIST 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SEAT BELT FRT SEAT CTR 2 POINT<A38> EXC. EUROPEAN BASIC EQUIPMENT(EK4) DARK BEIGE 		8-97854-146-1 01 1 9312-9506 ● ● ● ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT DRIVER & ASSIST 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SEAT BELT FRT SEAT CTR 2 POINT<A38> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) DARK BEIGE 		8-97854-146-1 01 1 9507-9510 ● ● ● ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT DRIVER & ASSIST 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SEAT BELT FRT SEAT CTR 2 POINT<A38> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) DARK BEIGE 		8-97854-146-1 01 1 9511-9611 ● ● ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT DRIVER & ASSIST 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SEAT BELT FRT SEAT CTR 2 POINT<A38> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) DARK BEIGE 		8-97854-146-1 01 1 9612-9711 ● ● ● ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT DRIVER & ASSIST 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SEAT BELT FRT SEAT CTR 2 POINT<A38> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) DARK GRAY 		8-97854-893-1 01 1 9712-9712 ● ● ● ● ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT DRIVER & ASSIST 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SEAT BELT FRT SEAT CTR 2 POINT<A38> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) DARK GRAY 		8-97868-475-1 01 1 9801- ● ● ● ● ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT DRIVER & ASSIST 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK BEIGE 		8-97854-766-0 01 1 9312-9510 ● ● ● ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT DRIVER & ASSIST 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK BEIGE 		8-97854-766-0 01 1 9511-9611 ● ● ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT DRIVER & ASSIST 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK BEIGE 		8-97854-766-0 01 1 9612-9711 ● ● ● ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT DRIVER & ASSIST 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK GRAY 		8-97868-479-0 01 1 9712- ● ● ● ● ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EUROPEAN BASIC EQUIPMENT(EK4) DARK BEIGE 		8-97854-854-0 01 1 9312-9506 ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) DARK BEIGE 		8-97854-854-0 01 1 9507-9711 ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) DARK GRAY 		8-97868-525-0 01 1 9712-9809 ● ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) DARK GRAY 		8-97868-525-0 01 1 9810- ● ● ● ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK BEIGE 		8-97854-147-1 01 1 9312-9510 ● ● ● ● ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK BEIGE 		8-97854-147-1 01 1 9511-9611 ● ● ● ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK BEIGE 		8-97854-147-1 01 1 9612-9711 ● ● ● ● ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK GRAY 		8-97854-895-1 01 1 9712-9712 ● ● ● ● ● ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK GRAY 		8-97890-431-1 01 1 9801-9809 ● ● ● ● ● ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK GRAY 		8-97890-431-1 01 1 9810- ● ● ● ● ● ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> EXC. EUROPEAN BASIC EQUIPMENT(EK4) DARK BEIGE 		8-97854-148-0 01 1 9312-9506 ● ● ● ● ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) DARK BEIGE 		8-97854-148-0 01 1 9507-9510 ● ● ● ● ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) DARK BEIGE 		8-97854-148-0 01 1 9511-9611 ● ● ● ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) DARK BEIGE 		8-97854-148-0 01 1 9612-9711 ● ● ● ● ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) DARK GRAY 		8-97863-754-0 01 1 9712-9712 ● ● ● ● ● ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) DARK GRAY 		8-97868-897-0 01 1 9801- ● ● ● ● ● ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> EUROPEAN BASIC EQUIPMENT(EK4) DARK BEIGE 		8-97854-862-0 01 1 9312-9506 ● ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) DARK BEIGE 		8-97854-862-0 01 1 9507-9711 ● ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) DARK GRAY 		8-97868-488-0 01 1 9712-9809 ● ● ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> EUROPEAN BASIC EQUIPMENT(EK4), UNITEDKINGDOM EQUIPMENT(6AA),IRISH EQUIPM ENT(6CU) DARK GRAY 		8-97868-488-0 01 1 9810- ● ● ● ● ● ●
8 16.714 HOOK; SEAT BELT
SEAT BELT DRIVER & ASSIST 2 POINT<AS6> 		8-94276-268-1 02 1 9404-9611 ● ● ● ●
8 16.714 HOOK; SEAT BELT
SEAT BELT DRIVER & ASSIST 2 POINT<AS6> 		8-94276-268-1 02 1 9612-9711 ● ● ● ● ●
8 16.714 HOOK; SEAT BELT
SEAT BELT DRIVER & ASSIST 2 POINT<AS6> 		8-94276-268-1 02 1 9712- ● ● ● ● ● ●
35 16.714 GROMMET; SEAT BELT ANCHOR
SEAT BELT DRIVER & ASSIST 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> OD=22 		9-61168-535-0 01 1 9406-9510 ● ● ● ● ●
35 16.714 GROMMET; SEAT BELT ANCHOR
SEAT BELT DRIVER & ASSIST 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> OD=22 		9-61168-535-0 01 1 9511-9611 ● ● ● ●
35 16.714 GROMMET; SEAT BELT ANCHOR
SEAT BELT DRIVER & ASSIST 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> OD=22 		9-61168-535-0 01 1 9612-9711 ● ● ● ● ●
35 16.714 GROMMET; SEAT BELT ANCHOR
SEAT BELT DRIVER & ASSIST 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> OD=22 		9-61168-535-0 01 1 9712- ● ● ● ● ● ●
35 16.714 GROMMET; SEAT BELT ANCHOR
EXC. AUSTRALIA EQUIPMENT(RR3) OD=22 		9-61168-535-0 06 1 9312-9510 ● ●
35 16.714 GROMMET; SEAT BELT ANCHOR
EXC. AUSTRALIA EQUIPMENT(RR3) OD=22 		9-61168-535-0 06 1 9511- ●
35 16.714 GROMMET; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & ASSIST 2 POI NT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> OD=22 		9-61168-535-0 04 1 9312-9611 ● ● ● ●
35 16.714 GROMMET; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & ASSIST 2 POI NT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> OD=22 		9-61168-535-0 04 1 9612-9711 ● ● ● ● ●
35 16.714 GROMMET; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & ASSIST 2 POI NT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> OD=22 		9-61168-535-0 04 1 9712- ● ● ● ● ● ●
37 16.714 PLUG; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & ASSIST 2 POI NT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49>,AUSTRALIA EQUIPMENT(RR3) L=18.5 		8-94279-726-0 02 1 9312-9510 ● ● ● ● ●
37 16.714 PLUG; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & ASSIST 2 POI NT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49>,AUSTRALIA EQUIPMENT(RR3) L=18.5 		8-94279-726-0 02 1 9511-9611 ● ● ● ●
37 16.714 PLUG; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & ASSIST 2 POI NT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49>,AUSTRALIA EQUIPMENT(RR3) L=18.5 		8-94279-726-0 02 1 9612-9711 ● ● ● ● ●
37 16.714 PLUG; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & ASSIST 2 POI NT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49>,AUSTRALIA EQUIPMENT(RR3) L=18.5 		8-94279-726-0 02 1 9712- ● ● ● ● ● ●
152 16.714 PROTECTOR
16.570 L=30 SERVICED BY L=190 		1-71998-300-0 02 1 9407-9510 ●
152 16.714 PROTECTOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> 16.570 L=30 SERVICED BY L=190 		1-71998-300-0 02 1 9407-9510 ● ● ● ●
152 16.714 PROTECTOR
AUSTRALIA EQUIPMENT(RR3) 16.570 L=30 SERVICED BY L=190 		1-71998-300-0 02 1 9407-9510 ●
152 16.714 PROTECTOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> 16.570 L=30 SERVICED BY L=190 		1-71998-300-0 02 1 9511-9611 ● ● ● ●
152 16.714 PROTECTOR
AUSTRALIA EQUIPMENT(RR3) 16.570 L=30 SERVICED BY L=190 		1-71998-300-0 02 1 9511-9611 ●
152 16.714 PROTECTOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> 16.570 L=30 SERVICED BY L=190 		1-71998-300-0 02 1 9612-9711 ● ● ● ● ●
152 16.714 PROTECTOR
AUSTRALIA EQUIPMENT(RR3) 16.570 L=30 SERVICED BY L=190 		1-71998-300-0 02 1 9612-9711 ●
152 16.714 PROTECTOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> 16.570 L=30 SERVICED BY L=190 		1-71998-300-0 02 1 9712- ● ● ● ● ● ●
152 16.714 PROTECTOR
AUSTRALIA EQUIPMENT(RR3) 16.570 L=30 SERVICED BY L=190 		1-71998-300-0 02 1 9712- ●
160 16.714 COVER; THROUGH ANCHOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK BEIGE 		8-97854-145-0 01 1 9312-9510 ● ● ● ● ●
160 16.714 COVER; THROUGH ANCHOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK BEIGE 		8-97854-145-0 01 1 9511-9611 ● ● ● ●
160 16.714 COVER; THROUGH ANCHOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK BEIGE 		8-97854-145-0 01 1 9612-9711 ● ● ● ● ●
160 16.714 COVER; THROUGH ANCHOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-97854-897-0 01 1 9712- ● ● ● ● ● ●
161 16.714 REINFORCEMENT; SEAT BELT ANCHOR
(B)CENTER 		8-97850-329-4 01 1 9312-9510 ● ● ● ● ●
161 16.714 REINFORCEMENT; SEAT BELT ANCHOR
(B)CENTER 		8-97850-329-4 01 1 9511-9611 ● ● ● ●
161 16.714 REINFORCEMENT; SEAT BELT ANCHOR
(B)CENTER 		8-97850-329-4 01 1 9612-9711 ● ● ● ● ●
161 16.714 REINFORCEMENT; SEAT BELT ANCHOR
(B)CENTER 		8-97850-329-4 01 1 9712- ● ● ● ● ● ●
161 16.714 REINFORCEMENT; SEAT BELT ANCHOR
(A) 		8-97850-286-5 01 1 9312-9510 ● ● ● ● ●
161 16.714 REINFORCEMENT; SEAT BELT ANCHOR
(A) 		8-97850-286-5 01 1 9511-9611 ● ● ● ●
161 16.714 REINFORCEMENT; SEAT BELT ANCHOR
(A) 		8-97850-286-5 01 1 9612-9711 ● ● ● ● ●
161 16.714 REINFORCEMENT; SEAT BELT ANCHOR
(A) 		8-97850-286-5 01 1 9712- ● ● ● ● ● ●
165 16.714 HOOK; SEAT BELT ANCHOR 8-97850-288-4 01 1 9312-9510 ● ● ● ● ●
165 16.714 HOOK; SEAT BELT ANCHOR 8-97850-288-5 01 1 9511-9611 ● ● ● ●
165 16.714 HOOK; SEAT BELT ANCHOR 8-97850-288-5 01 1 9612-9710 ● ● ● ● ●
165 16.714 HOOK; SEAT BELT ANCHOR 8-97869-415-0 01 1 9711-9711 ● ● ● ● ●
165 16.714 HOOK; SEAT BELT ANCHOR 8-97869-415-0 01 1 9712- ● ● ● ● ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 06 1 9312-9510 ● ● ● ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 06 1 9511-9604 ● ● ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
02.559 M8X25 FLANGE 		0-28680-825-0 06 1 9604-9611 ● ● ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
02.559 M8X25 FLANGE 		0-28680-825-0 06 1 9612-9711 ● ● ● ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
02.559 M8X25 FLANGE 		0-28680-825-0 06 1 9712- ● ● ● ● ● ●
167 16.714 PLATE; ANCHOR 8-97853-700-5 01 1 9312-9510 ● ● ● ● ●
167 16.714 PLATE; ANCHOR 8-97853-700-5 01 1 9511-9611 ● ● ● ●
167 16.714 PLATE; ANCHOR 8-97853-700-5 01 1 9612-9710 ● ● ● ● ●
167 16.714 PLATE; ANCHOR 8-97869-412-0 01 1 9711-9711 ● ● ● ● ●
167 16.714 PLATE; ANCHOR 8-97869-412-0 01 1 9712- ● ● ● ● ● ●
168 16.714 NUT; ANCHOR PLATE
00.854 M8 FLANGE 		5-09440-005-0 04 1 9312-9510 ● ● ● ● ●
168 16.714 NUT; ANCHOR PLATE
00.854 M8 FLANGE 		5-09440-005-0 04 1 9511-9611 ● ● ● ●
168 16.714 NUT; ANCHOR PLATE
00.854 M8 FLANGE 		5-09440-005-0 04 1 9612-9711 ● ● ● ● ●
168 16.714 NUT; ANCHOR PLATE
00.854 M8 FLANGE 		5-09440-005-0 04 1 9712- ● ● ● ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. EUROPEAN BASIC EQUIPMENT(EK4), AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97854-143-0 01 1 9312-9506 ● ● ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. AUSTRALIA EQUIPMENT(RR3), UNITEDKINGDOM EQUIPMENT(6AA),IRISH EQUIPM ENT(6CU) DARK BEIGE 		8-97854-143-0 01 1 9507-9510 ● ● ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. AUSTRALIA EQUIPMENT(RR3), UNITEDKINGDOM EQUIPMENT(6AA),IRISH EQUIPM ENT(6CU) DARK BEIGE 		8-97854-143-0 01 1 9511-9611 ● ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. AUSTRALIA EQUIPMENT(RR3), UNITEDKINGDOM EQUIPMENT(6AA),IRISH EQUIPM ENT(6CU) DARK BEIGE 		8-97854-143-0 01 1 9612-9711 ● ● ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. AUSTRALIA EQUIPMENT(RR3), UNITEDKINGDOM EQUIPMENT(6AA),IRISH EQUIPM ENT(6CU) DARK GRAY 		8-97863-751-0 01 1 9712-9712 ● ● ● ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. AUSTRALIA EQUIPMENT(RR3), UNITEDKINGDOM EQUIPMENT(6AA),IRISH EQUIPM ENT(6CU) DARK GRAY 		8-97868-487-0 01 1 9801- ● ● ● ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EUROPEAN BASIC EQUIPMENT(EK4) DARK BEIGE 		8-97854-859-0 01 1 9312-9506 ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) DARK BEIGE 		8-97854-859-0 01 1 9507-9711 ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) DARK GRAY 		8-97868-451-0 01 1 9712-9809 ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) DARK GRAY 		8-97868-451-0 01 1 9810- ● ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT DRIVER & ASSIST 2 POINT<AS6> DARK BEIGE 		8-97854-768-1 01 1 9312-9611 ● ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT DRIVER & ASSIST 2 POINT<AS6> DARK BEIGE 		8-97854-768-1 01 1 9612-9711 ● ● ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT DRIVER & ASSIST 2 POINT<AS6> DARK GRAY 		8-97868-467-1 01 1 9712- ● ● ● ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97854-988-0 01 1 9312-9711 ● ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97868-486-0 01 1 9712- ● ● ● ● ● ●
177 16.714 NUT
03.417 M8 FLANGE 		8-94279-517-0 02 1 9312-9510 ● ● ● ● ●
177 16.714 NUT
03.417 M8 FLANGE 		8-94279-517-0 02 1 9511-9609 ● ● ● ●
177 16.714 NUT
07.833 M8 W/LK WASHER 		8-94327-073-0 02 1 9610-9611 ● ● ● ●
177 16.714 NUT
07.833 M8 W/LK WASHER 		8-94327-073-0 02 1 9612-9711 ● ● ● ● ●
177 16.714 NUT
07.833 M8 W/LK WASHER 		8-94327-073-0 02 1 9712- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
