◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50696 - NPR/NQR-RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#48893) — 330 parça

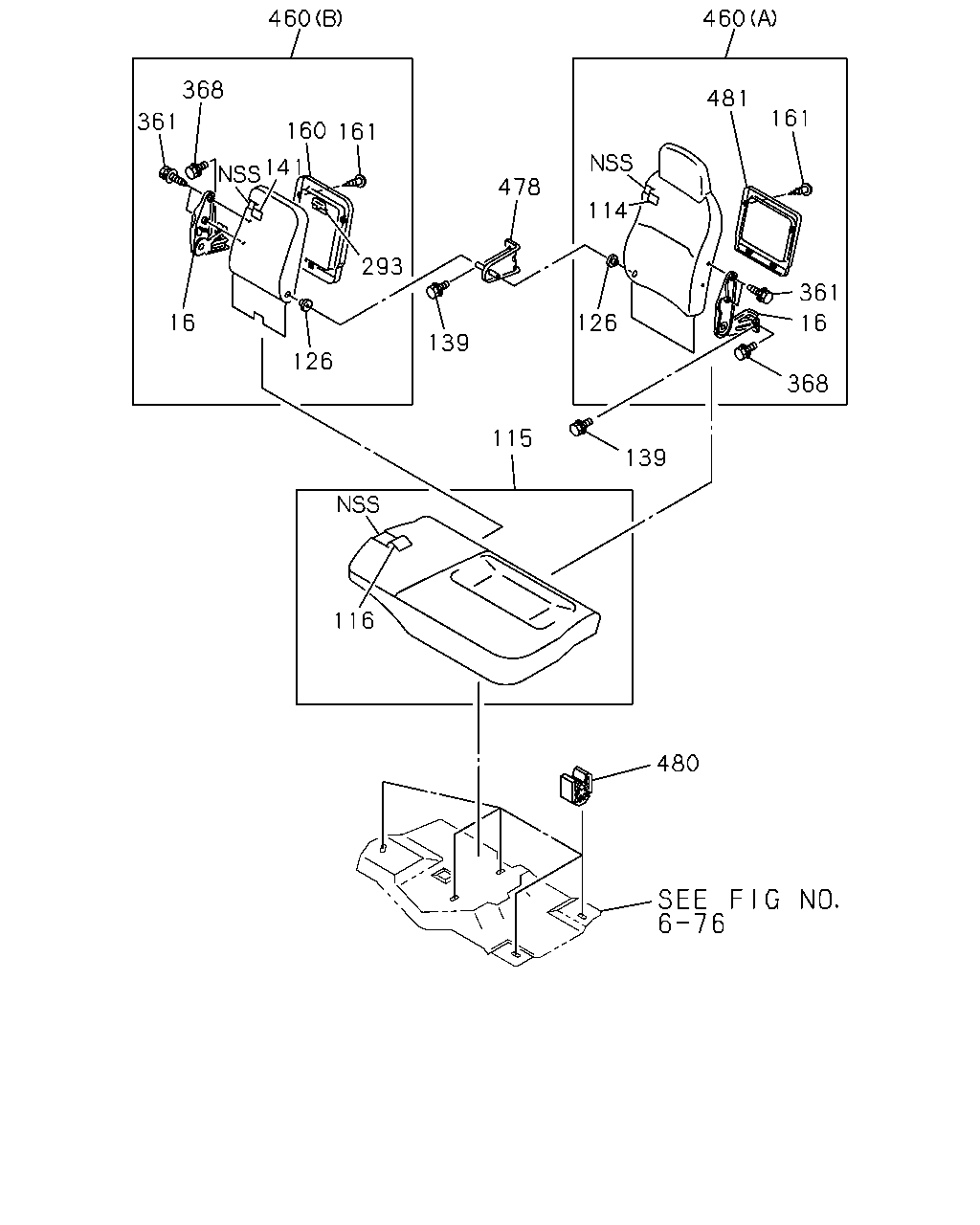

çizim 67176
460 460 368 481 161 361 160 161 141 478 114 293 361 16 126 16 139 126 368 115 139 116 480
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
16 16.682 ADJUSTER ASM; RECLINING
DRIVER 		8-97854-057-1 01 1 9312-9510 ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
DRIVER 		8-97854-057-2 01 1 9511-9611 ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
DRIVER 		8-97854-057-2 01 1 9612-9711 ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
DRIVER 		8-97854-057-2 01 1 9712- ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER DARK BEIGE 		8-97854-266-1 01 1 9312-9405 ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER BLACK 		8-97859-273-1 01 1 9406-9510 ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER BLACK 		8-97859-273-3 01 1 9511-9611 ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER BLACK 		8-97859-273-3 01 1 9612-9711 ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER BLACK 		8-97859-273-3 01 1 9712- ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER CENTER DARK BEIGE 		8-97854-276-1 01 1 9312-9405 ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER CENTER BLACK 		8-97859-274-1 01 1 9406-9510 ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER CENTER BLACK 		8-97859-274-3 01 1 9511-9611 ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER CENTER BLACK 		8-97859-274-3 01 1 9612-9711 ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER CENTER BLACK 		8-97859-274-3 01 1 9712- ● ● ● ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
EXC. EUROPEAN BASIC EQUIPMENT(EK4), SEAT CLOTH<7FL> DARK BEIGE 		8-97854-264-3 01 1 9312-9506 ● ● ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU),SEAT CLOTH<7FL> DARK BEIGE 		8-97854-264-3 01 1 9507-9510 ● ● ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU),SEAT CLOTH<7FL> DARK BEIGE 		8-97854-264-4 01 1 9511-9611 ● ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU),SEAT CLOTH<7FL> DARK BEIGE 		8-97854-264-4 01 1 9612-9711 ● ● ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU),SEAT CLOTH<7FL> DARK GRAY 		8-97867-093-2 01 1 9712- ● ● ● ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> EXC. EUROPEAN BASIC EQUIPMENT(EK4) DARK BEIGE 		8-97854-267-3 01 1 9312-9506 ● ● ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) DARK BEIGE 		8-97854-267-3 01 1 9507-9510 ● ● ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) DARK BEIGE 		8-97854-267-4 01 1 9511-9611 ● ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) DARK BEIGE 		8-97854-267-4 01 1 9612-9711 ● ● ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) DARK GRAY 		8-97869-380-1 01 1 9712- ● ● ● ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
EUROPEAN BASIC EQUIPMENT(EK4) SEAT CLOTH<7FL> DARK BEIGE 		8-97854-961-2 01 1 9312-9506 ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) SEAT CLOTH<7FL> DARK BEIGE 		8-97854-961-3 01 1 9507-9711 ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) SEAT CLOTH<7FL> DARK GRAY 		8-97869-358-1 01 1 9712-9807 ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) SEAT CLOTH<7FL> DARK GRAY 		8-97869-358-1 01 1 9808- ● ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
EUROPEAN BASIC EQUIPMENT(EK4) EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-826-3 01 1 9312-9506 ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-826-4 01 1 9507-9711 ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97869-357-2 01 1 9712-9807 ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97869-357-2 01 1 9808- ● ● ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> DARK BEIGE 		8-97854-322-6 01 1 9312-9510 ● ● ● ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> DARK BEIGE 		8-97854-322-6 01 1 9511-9611 ● ● ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> DARK BEIGE 		8-97854-322-6 01 1 9612-9711 ● ● ● ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97868-477-1 01 1 9712- ● ● ● ● ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-611-3 01 1 9312-9510 ● ● ● ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-611-3 01 1 9511-9611 ● ● ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-611-3 01 1 9612-9711 ● ● ● ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97868-480-2 01 1 9712- ● ● ● ● ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> DARK BEIGE 		8-97854-358-5 01 1 9312-9510 ● ● ● ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> DARK BEIGE 		8-97854-358-5 01 1 9511-9611 ● ● ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> DARK BEIGE 		8-97854-358-5 01 1 9612-9711 ● ● ● ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> DARK GRAY 		8-97869-363-0 01 1 9712- ● ● ● ● ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-354-5 01 1 9312-9510 ● ● ● ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-354-5 01 1 9511-9611 ● ● ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-354-5 01 1 9612-9711 ● ● ● ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97867-467-1 01 1 9712- ● ● ● ● ● ●
126 16.686 BUSHING; HINGE,RECLINING 8-97854-900-0 01 1 9312-9510 ● ● ● ● ●
126 16.686 BUSHING; HINGE,RECLINING 8-97854-900-0 01 1 9511-9611 ● ● ● ●
126 16.686 BUSHING; HINGE,RECLINING 8-97854-900-0 01 1 9612-9711 ● ● ● ● ●
126 16.686 BUSHING; HINGE,RECLINING 8-97854-900-0 01 1 9712- ● ● ● ● ● ●
139 16.679 BOLT; PASSENGER SEAT
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 04 1 9312-9510 ● ● ● ● ●
139 16.679 BOLT; PASSENGER SEAT
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 04 1 9511-9611 ● ● ● ●
139 16.679 BOLT; PASSENGER SEAT
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 04 1 9612-9711 ● ● ● ● ●
139 16.679 BOLT; PASSENGER SEAT
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 04 1 9712- ● ● ● ● ● ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
SEAT CLOTH<7FL> DARK BEIGE 		8-97854-350-3 01 1 9312-9510 ● ● ● ● ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
SEAT CLOTH<7FL> DARK BEIGE 		8-97854-350-4 01 1 9511-9611 ● ● ● ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
SEAT CLOTH<7FL> DARK BEIGE 		8-97854-350-4 01 1 9612-9711 ● ● ● ● ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97869-359-1 01 1 9712- ● ● ● ● ● ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-346-3 01 1 9312-9510 ● ● ● ● ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-346-4 01 1 9511-9611 ● ● ● ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-346-4 01 1 9612-9711 ● ● ● ● ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97867-464-1 01 1 9712- ● ● ● ● ● ●
160 16.650 CONSOLE; UPR,BACK CENTER
DARK BEIGE 		8-97854-345-1 01 1 9312-9510 ● ● ● ● ●
160 16.650 CONSOLE; UPR,BACK CENTER
DARK BEIGE 		8-97854-345-1 01 1 9511-9611 ● ● ● ●
160 16.650 CONSOLE; UPR,BACK CENTER
DARK BEIGE 		8-97854-345-1 01 1 9612-9711 ● ● ● ● ●
160 16.650 CONSOLE; UPR,BACK CENTER
DARK GRAY 		8-97859-028-1 01 1 9712- ● ● ● ● ● ●
161 16.650 SCREW; CONSOLE
M4X12 		8-94279-351-0 08 1 9312-9406 ● ● ● ● ●
161 16.650 SCREW; CONSOLE
M4X12 		8-94279-351-0 04 1 9407-9510 ● ● ● ● ●
161 16.650 SCREW; CONSOLE
M4X12 		8-94279-351-0 04 1 9511-9611 ● ● ● ●
161 16.650 SCREW; CONSOLE
M4X12 		8-94279-351-0 04 1 9612-9711 ● ● ● ● ●
161 16.650 SCREW; CONSOLE
M4X12 		8-94279-351-0 04 1 9712- ● ● ● ● ● ●
293 16.650 BINDER; CENTER CONSOLE 8-97854-344-1 01 1 9312-9510 ● ● ● ● ●
293 16.650 BINDER; CENTER CONSOLE 8-97854-344-1 01 1 9511-9611 ● ● ● ●
293 16.650 BINDER; CENTER CONSOLE 8-97854-344-1 01 1 9612-9711 ● ● ● ● ●
293 16.650 BINDER; CENTER CONSOLE 8-97854-344-1 01 1 9712- ● ● ● ● ● ●
361 16.682 BOLT; ADJ,RECLINING
M8X18 		8-94279-109-1 02 1 9312-9510 ● ● ● ● ●
361 16.682 BOLT; ADJ,RECLINING
M8X18 		8-94279-109-1 02 1 9511-9611 ● ● ● ●
361 16.682 BOLT; ADJ,RECLINING
M8X18 		8-94279-109-1 02 1 9612-9711 ● ● ● ● ●
361 16.682 BOLT; ADJ,RECLINING
M8X18 		8-94279-109-1 02 1 9712- ● ● ● ● ● ●
368 16.682 BOLT; SEAT
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 9312-9510 ● ● ● ● ●
368 16.682 BOLT; SEAT
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 9511-9611 ● ● ● ●
368 16.682 BOLT; SEAT
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 9612-9711 ● ● ● ● ●
368 16.682 BOLT; SEAT
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 9712- ● ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
EXC. EUROPEAN BASIC EQUIPMENT(EK4), SEAT CLOTH<7FL> (A) DARK BEIGE 		8-97854-775-2 01 1 9312-9506 ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU),SEAT CLOTH<7FL> (A) DARK BEIGE 		8-97854-775-2 01 1 9507-9510 ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU),SEAT CLOTH<7FL> (A) DARK BEIGE 		8-97854-775-5 01 1 9511-9611 ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU),SEAT CLOTH<7FL> (A) DARK BEIGE 		8-97854-775-5 01 1 9612-9711 ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU),SEAT CLOTH<7FL> (A) DARK GRAY 		8-97868-514-2 01 1 9712- ● ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> (B) DARK BEIGE 		8-97854-319-6 01 1 9312-9510 ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> (B) DARK BEIGE 		8-97854-319-9 01 1 9511-9611 ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> (B) DARK BEIGE 		8-97854-319-9 01 1 9612-9711 ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> (B) DARK GRAY 		8-97868-472-1 01 1 9712- ● ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> EXC. EUROPEAN BASIC EQUIPMENT(EK4) (A) DARK BEIGE 		8-97854-180-8 01 1 9312-9506 ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) (A) DARK BEIGE 		8-97854-180-8 01 1 9507-9510 ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) (A) DARK BEIGE 		8-97854-180-9 01 1 9511-9611 ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) (A) DARK BEIGE 		8-97854-180-9 01 1 9612-9704 ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) (A) DARK BEIGE 		8-97869-089-1 01 1 9705-9711 ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) (A) DARK GRAY 		8-97868-512-1 01 1 9712- ● ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> (B) DARK BEIGE 		8-97854-780-2 01 1 9312-9510 ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> (B) DARK BEIGE 		8-97854-780-5 01 1 9511-9611 ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> (B) DARK BEIGE 		8-97854-780-5 01 1 9612-9711 ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> (B) DARK GRAY 		8-97868-474-1 01 1 9712- ● ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
EUROPEAN BASIC EQUIPMENT(EK4) SEAT CLOTH<7FL> (A) DARK BEIGE 		8-97854-955-3 01 1 9312-9506 ● ●
460 16.670 BACK ASM; PASSENGER SEAT
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) SEAT CLOTH<7FL> (A) DARK BEIGE 		8-97854-955-6 01 1 9507-9711 ● ●
460 16.670 BACK ASM; PASSENGER SEAT
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) SEAT CLOTH<7FL> (A) DARK GRAY 		8-97868-471-1 01 1 9712-9807 ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) SEAT CLOTH<7FL> (A) DARK GRAY 		8-97868-471-1 01 1 9808- ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
EUROPEAN BASIC EQUIPMENT(EK4) EXC. SEAT CLOTH<7FL> (A) DARK BEIGE 		8-97854-802-4 01 1 9312-9506 ● ●
460 16.670 BACK ASM; PASSENGER SEAT
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) EXC. SEAT CLOTH<7FL> (A) DARK BEIGE 		8-97854-802-7 01 1 9507-9711 ● ●
460 16.670 BACK ASM; PASSENGER SEAT
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) EXC. SEAT CLOTH<7FL> (A) DARK GRAY 		8-97868-470-2 01 1 9712-9807 ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) EXC. SEAT CLOTH<7FL> (A) DARK GRAY 		8-97868-470-2 01 1 9808- ● ● ● ●
478 16.716 BRACKET ASM; HINGE,PASSENGER SEA
DARK BEIGE 		8-97854-188-0 01 1 9312-9510 ● ● ● ● ●
478 16.716 BRACKET ASM; HINGE,PASSENGER SEA
DARK BEIGE 		8-97854-188-0 01 1 9511-9610 ● ● ● ●
478 16.716 BRACKET ASM; HINGE,PASSENGER SEA 8-97868-184-0 01 1 9611-9611 ● ● ● ●
478 16.716 BRACKET ASM; HINGE,PASSENGER SEA 8-97868-184-0 01 1 9612-9711 ● ● ● ● ●
478 16.716 BRACKET ASM; HINGE,PASSENGER SEA 8-97868-184-0 01 1 9712- ● ● ● ● ● ●
480 16.716 CLIP; CUSHION 8-94279-977-0 05 1 9312-9510 ● ● ● ● ●
480 16.716 CLIP; CUSHION 8-94279-977-0 05 1 9511-9611 ● ● ● ●
480 16.716 CLIP; CUSHION 8-94279-977-0 05 1 9612-9711 ● ● ● ● ●
480 16.716 CLIP; CUSHION 8-94279-977-0 05 1 9712- ● ● ● ● ● ●
481 16.120 TRAY; SEAT BACK
DARK BEIGE 		8-97854-265-0 01 1 9312-9510 ● ● ● ● ●
481 16.120 TRAY; SEAT BACK
DARK BEIGE 		8-97854-265-0 01 1 9511-9611 ● ● ● ●
481 16.120 TRAY; SEAT BACK
DARK BEIGE 		8-97854-265-0 01 1 9612-9711 ● ● ● ● ●
481 16.120 TRAY; SEAT BACK
DARK GRAY 		8-97859-024-0 01 1 9712- ● ● ● ● ● ●
çizim 67595
1 18 228 24 2 16 99 17 19 12 13 15 69 382 67 71 63
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> DARK BEIGE 		8-97854-631-3 01 1 9312-9510 ● ●
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> DARK BEIGE 		8-97854-631-5 01 1 9511-9711 ●
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97869-321-1 01 1 9712-9712 ●
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97869-321-2 01 1 9801- ●
1 16.720 BACK ASM; SEAT
EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-630-1 01 1 9312-9510 ● ●
1 16.720 BACK ASM; SEAT
EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-630-3 01 1 9511-9711 ●
1 16.720 BACK ASM; SEAT
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97869-338-1 01 1 9712-9712 ●
1 16.720 BACK ASM; SEAT
EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> DARK GRAY 		8-97869-338-2 01 1 9801- ●
1 16.720 BACK ASM; SEAT
EUROPEAN BASIC EQUIPMENT(EK4) SEAT CLOTH<7FL> DARK BEIGE 		8-97854-957-3 01 1 9312-9506 ● ●
1 16.720 BACK ASM; SEAT
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) SEAT CLOTH<7FL> DARK BEIGE 		8-97854-957-5 01 1 9507-9711 ● ●
1 16.720 BACK ASM; SEAT
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) SEAT CLOTH<7FL> DARK GRAY 		8-97869-333-1 01 1 9712-9712 ● ● ●
1 16.720 BACK ASM; SEAT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97196-307-0 01 1 9801- ● ● ● ● ●
1 16.720 BACK ASM; SEAT
AUSTRALIA EQUIPMENT(RR3),UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) SEAT CLOTH<7FL> DARK GRAY 		8-97196-307-0 01 1 9801- ● ● ● ● ●
1 16.720 BACK ASM; SEAT
EUROPEAN BASIC EQUIPMENT(EK4) EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-830-3 01 1 9312-9506 ● ●
1 16.720 BACK ASM; SEAT
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-830-5 01 1 9507-9711 ● ●
1 16.720 BACK ASM; SEAT
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97869-340-1 01 1 9712-9712 ● ● ●
1 16.720 BACK ASM; SEAT
AUSTRALIA EQUIPMENT(RR3) EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97196-229-0 01 1 9801-9801 ● ● ● ●
1 16.720 BACK ASM; SEAT
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97196-229-0 01 1 9801-9801 ● ●
1 16.720 BACK ASM; SEAT
AUSTRALIA EQUIPMENT(RR3),UNITED KINGDOM EQUIPMENT(6AA) EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97196-229-0 01 1 9801-9801 ●
1 16.720 BACK ASM; SEAT
AUSTRALIA EQUIPMENT(RR3) EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97196-229-0 01 1 9802- ● ● ● ● ●
1 16.720 BACK ASM; SEAT
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97196-229-0 01 1 9802- ● ● ●
1 16.720 BACK ASM; SEAT
EXC. EUROPEAN BASIC EQUIPMENT(EK4), SEAT CLOTH<7FL> DARK BEIGE 		8-97854-234-2 01 1 9312-9506 ● ● ●
1 16.720 BACK ASM; SEAT
EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU),SEAT CLOTH<7FL> DARK BEIGE 		8-97854-234-4 01 1 9507-9611 ● ● ●
1 16.720 BACK ASM; SEAT
EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU),SEAT CLOTH<7FL> DARK BEIGE 		8-97854-234-4 01 1 9612-9711 ● ● ● ●
1 16.720 BACK ASM; SEAT
EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU),SEAT CLOTH<7FL> DARK GRAY 		8-97866-980-2 01 1 9712-9712 ● ● ● ● ●
1 16.720 BACK ASM; SEAT
HONG KONG EQUIPMENT(PQ1) EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97866-980-3 01 1 9801-9801 ● ● ● ●
1 16.720 BACK ASM; SEAT
MANUAL TILT CAB<RWZ> EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3),UNITED KINGDOM EQ UIPMENT(6AA),IRISH EQUIPMENT(6CU), SEAT CLOTH<7FL> DARK GRAY 		8-97866-980-3 01 1 9801-9801 ● ● ●
1 16.720 BACK ASM; SEAT
HONG KONG EQUIPMENT(PQ1) EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97866-980-3 01 1 9802- ● ● ● ● ●
1 16.720 BACK ASM; SEAT
MANUAL TILT CAB<RWZ> EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3),UNITED KINGDOM EQ UIPMENT(6AA),IRISH EQUIPMENT(6CU), SEAT CLOTH<7FL> DARK GRAY 		8-97866-980-3 01 1 9802- ● ● ● ● ●
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> EXC. EUROPEAN BASIC EQUIPMENT(EK4) DARK BEIGE 		8-97854-245-3 01 1 9312-9506 ● ● ●
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) DARK BEIGE 		8-97854-245-5 01 1 9507-9611 ● ● ●
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) DARK BEIGE 		8-97854-245-5 01 1 9612-9711 ● ● ● ●
1 16.720 BACK ASM; SEAT
HONG KONG EQUIPMENT(PQ1) SEAT CLOTH<7FL> DARK GRAY 		8-97869-351-2 01 1 9712- ● ● ● ● ●
1 16.720 BACK ASM; SEAT
INTERIOR COLOR GRAY(153) SEAT CLOTH<7FL> EXC. HONG KONG EQUIPMENT(PQ1), UNITEDKINGDOM EQUIPMENT(6AA),IRISH EQUIPM ENT(6CU) DARK GRAY 		8-97866-983-2 01 1 9712-9712 ● ● ● ● ●
1 16.720 BACK ASM; SEAT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3),UNITED KINGDOM EQ UIPMENT(6AA),IRISH EQUIPMENT(6CU), SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97866-983-2 01 1 9801- ● ● ● ● ●
1 16.720 BACK ASM; SEAT
AUSTRALIA EQUIPMENT(RR3) SEAT CLOTH<7FL> DARK GRAY 		8-97196-221-0 01 1 9801- ●
1 16.720 BACK ASM; SEAT
AUSTRALIA EQUIPMENT(RR3) EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97196-303-0 01 1 9801- ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> DARK BEIGE 		8-97854-645-2 01 1 9312-9510 ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> DARK BEIGE 		8-97854-645-3 01 1 9511-9711 ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97869-322-1 01 1 9712-9712 ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97869-322-2 01 1 9801- ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-644-0 01 1 9312-9510 ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-644-1 01 1 9511-9711 ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97869-339-1 01 1 9712-9712 ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> DARK GRAY 		8-97869-339-2 01 1 9801- ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
EUROPEAN BASIC EQUIPMENT(EK4) SEAT CLOTH<7FL> DARK BEIGE 		8-97854-959-2 01 1 9312-9506 ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) SEAT CLOTH<7FL> DARK BEIGE 		8-97854-959-3 01 1 9507-9711 ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) SEAT CLOTH<7FL> DARK GRAY 		8-97869-334-1 01 1 9712-9712 ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97196-214-0 01 1 9801- ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
AUSTRALIA EQUIPMENT(RR3),UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) SEAT CLOTH<7FL> DARK GRAY 		8-97196-214-0 01 1 9801- ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
EUROPEAN BASIC EQUIPMENT(EK4) EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-833-2 01 1 9312-9506 ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-833-3 01 1 9507-9711 ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97869-341-1 01 1 9712-9712 ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
AUSTRALIA EQUIPMENT(RR3) EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97196-300-0 01 1 9801-9801 ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97196-300-0 01 1 9801-9801 ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
AUSTRALIA EQUIPMENT(RR3),UNITED KINGDOM EQUIPMENT(6AA) EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97196-300-0 01 1 9801-9801 ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
AUSTRALIA EQUIPMENT(RR3) EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97196-300-0 01 1 9802- ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97196-300-0 01 1 9802- ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
EXC. EUROPEAN BASIC EQUIPMENT(EK4), SEAT CLOTH<7FL> DARK BEIGE 		8-97854-237-1 01 1 9312-9506 ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU),SEAT CLOTH<7FL> DARK BEIGE 		8-97854-237-2 01 1 9507-9611 ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU),SEAT CLOTH<7FL> DARK BEIGE 		8-97854-237-2 01 1 9612-9711 ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU),SEAT CLOTH<7FL> DARK GRAY 		8-97867-065-1 01 1 9712-9712 ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
HONG KONG EQUIPMENT(PQ1) EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97867-065-2 01 1 9801-9801 ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
MANUAL TILT CAB<RWZ> EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3),UNITED KINGDOM EQ UIPMENT(6AA),IRISH EQUIPMENT(6CU), SEAT CLOTH<7FL> DARK GRAY 		8-97867-065-2 01 1 9801-9801 ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
HONG KONG EQUIPMENT(PQ1) EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97867-065-2 01 1 9802- ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
MANUAL TILT CAB<RWZ> EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3),UNITED KINGDOM EQ UIPMENT(6AA),IRISH EQUIPMENT(6CU), SEAT CLOTH<7FL> DARK GRAY 		8-97867-065-2 01 1 9802- ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> EXC. EUROPEAN BASIC EQUIPMENT(EK4) DARK BEIGE 		8-97854-248-2 01 1 9312-9506 ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) DARK BEIGE 		8-97854-248-3 01 1 9507-9611 ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) DARK BEIGE 		8-97854-248-3 01 1 9612-9711 ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
HONG KONG EQUIPMENT(PQ1) SEAT CLOTH<7FL> DARK GRAY 		8-97869-352-1 01 1 9712- ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3),UNITED KINGDOM EQ UIPMENT(6AA),IRISH EQUIPMENT(6CU), SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97867-066-1 01 1 9801- ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> EXC. HONG KONG EQUIPMENT(PQ1), UNITEDKINGDOM EQUIPMENT(6AA),IRISH EQUIPM ENT(6CU) DARK GRAY 		8-97867-066-1 01 1 9712-9712 ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
AUSTRALIA EQUIPMENT(RR3) SEAT CLOTH<7FL> DARK GRAY 		8-97196-222-0 01 1 9801- ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
AUSTRALIA EQUIPMENT(RR3) EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97196-304-0 01 1 9801- ●
12 16.670 CUSHION; SEAT,FRT
EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> DARK BEIGE 		8-97854-487-2 01 1 9312-9510 ● ●
12 16.670 CUSHION; SEAT,FRT
EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> DARK BEIGE 		8-97854-487-2 01 1 9511-9711 ●
12 16.670 CUSHION; SEAT,FRT
HONG KONG EQUIPMENT(PQ1) EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97867-011-1 01 1 9712- ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> DARK GRAY 		8-97867-011-1 01 1 9712- ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97854-406-4 01 1 9312-9510 ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97854-406-4 01 1 9511-9711 ●
12 16.670 CUSHION; SEAT,FRT
HONG KONG EQUIPMENT(PQ1) SEAT CLOTH<7FL> DARK GRAY 		8-97869-323-1 01 1 9712- ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97869-323-1 01 1 9712- ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> DARK BEIGE 		8-97854-249-7 01 1 9312-9611 ● ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> DARK BEIGE 		8-97854-249-7 01 1 9612-9711 ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) SEAT CLOTH<7FL> DARK GRAY 		8-97869-335-1 01 1 9712-9712 ● ● ●
12 16.670 CUSHION; SEAT,FRT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97196-215-0 01 1 9801- ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
AUSTRALIA EQUIPMENT(RR3),UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) SEAT CLOTH<7FL> DARK GRAY 		8-97196-215-0 01 1 9801- ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-238-6 01 1 9312-9611 ● ● ●
12 16.670 CUSHION; SEAT,FRT
EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-238-6 01 1 9612-9711 ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
EXC. HONG KONG EQUIPMENT(PQ1),SEAT CLOTH<7FL> DARK GRAY 		8-97866-998-1 01 1 9712-9712 ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
MANUAL TILT CAB<RWZ> EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3),UNITED KINGDOM EQ UIPMENT(6AA),IRISH EQUIPMENT(6CU), SEAT CLOTH<7FL> DARK GRAY 		8-97866-998-2 01 1 9801- ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
AUSTRALIA EQUIPMENT(RR3) EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97196-301-0 01 1 9801-9801 ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97196-301-0 01 1 9801-9801 ● ●
12 16.670 CUSHION; SEAT,FRT
AUSTRALIA EQUIPMENT(RR3),UNITED KINGDOM EQUIPMENT(6AA) EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97196-301-0 01 1 9801-9801 ●
12 16.670 CUSHION; SEAT,FRT
AUSTRALIA EQUIPMENT(RR3) EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97196-301-0 01 1 9802- ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97196-301-0 01 1 9802- ● ● ●
12 16.670 CUSHION; SEAT,FRT
INTERIOR COLOR GRAY(153) SEAT CLOTH<7FL> EXC. HONG KONG EQUIPMENT(PQ1), UNITEDKINGDOM EQUIPMENT(6AA),IRISH EQUIPM ENT(6CU) DARK GRAY 		8-97867-002-1 01 1 9712-9712 ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3),UNITED KINGDOM EQ UIPMENT(6AA),IRISH EQUIPMENT(6CU), SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97867-002-1 01 1 9801- ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
AUSTRALIA EQUIPMENT(RR3) SEAT CLOTH<7FL> DARK BEIGE 		8-97854-985-2 01 1 9312-9711 ●
12 16.670 CUSHION; SEAT,FRT
AUSTRALIA EQUIPMENT(RR3) SEAT CLOTH<7FL> DARK GRAY 		8-97869-337-0 01 1 9712-9712 ●
12 16.670 CUSHION; SEAT,FRT
AUSTRALIA EQUIPMENT(RR3) SEAT CLOTH<7FL> DARK GRAY 		8-97196-223-0 01 1 9801- ●
12 16.670 CUSHION; SEAT,FRT
AUSTRALIA EQUIPMENT(RR3) EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-984-1 01 1 9312-9711 ●
12 16.670 CUSHION; SEAT,FRT
AUSTRALIA EQUIPMENT(RR3) EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97869-350-0 01 1 9712-9712 ●
12 16.670 CUSHION; SEAT,FRT
AUSTRALIA EQUIPMENT(RR3) EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97196-305-0 01 1 9801- ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> DARK BEIGE 		8-97854-412-4 01 1 9312-9510 ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> DARK BEIGE 		8-97854-412-4 01 1 9511-9711 ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
HONG KONG EQUIPMENT(PQ1) SEAT CLOTH<7FL> DARK GRAY 		8-97869-324-0 01 1 9712-9712 ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> DARK GRAY 		8-97869-324-0 01 1 9712-9712 ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
HONG KONG EQUIPMENT(PQ1) SEAT CLOTH<7FL> DARK GRAY 		8-97869-324-1 01 1 9801- ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97869-324-1 01 1 9801- ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-490-2 01 1 9312-9510 ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-490-2 01 1 9511-9711 ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
HONG KONG EQUIPMENT(PQ1) EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97867-086-0 01 1 9712-9712 ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97867-086-0 01 1 9712-9712 ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
HONG KONG EQUIPMENT(PQ1) EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97867-086-1 01 1 9801- ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> DARK GRAY 		8-97867-086-1 01 1 9801- ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> DARK BEIGE 		8-97854-252-6 01 1 9312-9611 ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> DARK BEIGE 		8-97854-252-6 01 1 9612-9711 ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) SEAT CLOTH<7FL> DARK GRAY 		8-97869-336-1 01 1 9712-9712 ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97196-216-0 01 1 9801- ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
AUSTRALIA EQUIPMENT(RR3),UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) SEAT CLOTH<7FL> DARK GRAY 		8-97196-216-0 01 1 9801- ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-241-4 01 1 9312-9611 ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-241-4 01 1 9612-9711 ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. HONG KONG EQUIPMENT(PQ1),SEAT CLOTH<7FL> DARK GRAY 		8-97867-078-1 01 1 9712-9712 ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
MANUAL TILT CAB<RWZ> EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3),UNITED KINGDOM EQ UIPMENT(6AA),IRISH EQUIPMENT(6CU), SEAT CLOTH<7FL> DARK GRAY 		8-97867-078-2 01 1 9801- ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
AUSTRALIA EQUIPMENT(RR3) EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97196-302-0 01 1 9801-9801 ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97196-302-0 01 1 9801-9801 ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
AUSTRALIA EQUIPMENT(RR3),UNITED KINGDOM EQUIPMENT(6AA) EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97196-302-0 01 1 9801-9801 ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
AUSTRALIA EQUIPMENT(RR3) EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97196-302-0 01 1 9802- ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97196-302-0 01 1 9802- ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
INTERIOR COLOR GRAY(153) SEAT CLOTH<7FL> EXC. HONG KONG EQUIPMENT(PQ1), UNITEDKINGDOM EQUIPMENT(6AA),IRISH EQUIPM ENT(6CU) DARK GRAY 		8-97867-080-1 01 1 9712-9712 ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3),UNITED KINGDOM EQ UIPMENT(6AA),IRISH EQUIPMENT(6CU), SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97867-080-1 01 1 9801- ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
AUSTRALIA EQUIPMENT(RR3) SEAT CLOTH<7FL> DARK GRAY 		8-97196-224-0 01 1 9801- ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
AUSTRALIA EQUIPMENT(RR3) EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97196-306-0 01 1 9801- ●
15 16.716 FRAME; CUSHION,FRT SEAT 8-97854-055-0 01 1 9312-9510 ●
15 16.716 FRAME; CUSHION,FRT SEAT
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97854-055-0 01 1 9312-9510 ●
15 16.716 FRAME; CUSHION,FRT SEAT
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97854-055-0 01 1 9511-9711 ●
15 16.716 FRAME; CUSHION,FRT SEAT
HONG KONG EQUIPMENT(PQ1) 		8-97854-055-0 01 1 9712- ● ● ● ● ●
15 16.716 FRAME; CUSHION,FRT SEAT
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97854-055-0 01 1 9712- ●
15 16.716 FRAME; CUSHION,FRT SEAT
AUSTRALIA EQUIPMENT(RR3) 		8-97854-986-0 01 1 9312-9510 ●
15 16.716 FRAME; CUSHION,FRT SEAT
AUSTRALIA EQUIPMENT(RR3) 		8-97854-986-0 01 1 9511- ●
16 16.682 ADJUSTER ASM; RECLINING
DRIVER 		8-97854-057-1 01 1 9312-9510 ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
DRIVER 		8-97854-057-2 01 1 9511-9611 ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
DRIVER 		8-97854-057-2 01 1 9612-9711 ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
DRIVER 		8-97854-057-2 01 1 9712- ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER DARK BEIGE 		8-97854-266-1 01 1 9312-9405 ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER BLACK 		8-97859-273-1 01 1 9406-9510 ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER BLACK 		8-97859-273-3 01 1 9511-9611 ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER BLACK 		8-97859-273-3 01 1 9612-9711 ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER BLACK 		8-97859-273-3 01 1 9712- ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER CENTER DARK BEIGE 		8-97854-276-1 01 1 9312-9405 ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER CENTER BLACK 		8-97859-274-1 01 1 9406-9510 ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER CENTER BLACK 		8-97859-274-3 01 1 9511-9611 ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER CENTER BLACK 		8-97859-274-3 01 1 9612-9711 ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER CENTER BLACK 		8-97859-274-3 01 1 9712- ● ● ● ● ● ●
17 16.682 BOLT; RECLINING
M8X18 		8-94279-109-1 02 1 9312-9510 ● ● ● ● ●
17 16.682 BOLT; RECLINING
M8X18 		8-94279-109-1 02 1 9511-9611 ● ● ● ●
17 16.682 BOLT; RECLINING
M8X18 		8-94279-109-1 02 1 9612-9711 ● ● ● ● ●
17 16.682 BOLT; RECLINING
M8X18 		8-94279-109-1 02 1 9712- ● ● ● ● ● ●
18 16.682 COVER; RECLINING
DARK BEIGE 		8-97854-243-0 01 1 9312-9510 ● ● ● ● ●
18 16.682 COVER; RECLINING
DARK BEIGE 		8-97854-243-0 01 1 9511-9611 ● ● ● ●
18 16.682 COVER; RECLINING
DARK BEIGE 		8-97854-243-0 01 1 9612-9711 ● ● ● ● ●
18 16.682 COVER; RECLINING
DARK GRAY 		8-97867-020-0 01 1 9712- ● ● ● ● ● ●
19 16.686 SCREW; COVER
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9312-9510 ● ● ● ● ●
19 16.686 SCREW; COVER
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9511-9611 ● ● ● ●
19 16.686 SCREW; COVER
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9612-9711 ● ● ● ● ●
19 16.686 SCREW; COVER
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9712- ● ● ● ● ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
DARK BEIGE 		8-97854-244-0 01 1 9312-9510 ● ● ● ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
DARK BEIGE 		8-97854-244-0 01 1 9511-9611 ● ● ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
DARK BEIGE 		8-97854-244-0 01 1 9612-9711 ● ● ● ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
DARK GRAY 		8-97867-021-0 01 1 9712- ● ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
EXC. EUROPEAN BASIC EQUIPMENT(EK4) 		8-97854-059-3 01 1 9312-9506 ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) 		8-97854-059-3 01 1 9507-9510 ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) 		8-97854-059-3 01 1 9511-9611 ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) 		8-97854-059-3 01 1 9612-9711 ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) 		8-97854-059-3 01 1 9712-9712 ● ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU),SEAT FRT,LONG SIZE<7UG> 		8-97854-059-3 01 1 9801- ● ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
EUROPEAN BASIC EQUIPMENT(EK4) 		8-97854-834-3 01 1 9312-9506 ● ●
63 16.682 ADJUSTER; SEAT SLIDE
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 		8-97854-834-3 01 1 9507-9711 ● ●
63 16.682 ADJUSTER; SEAT SLIDE
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 		8-97869-043-0 01 1 9712-9712 ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) SEAT FRT,LONG SIZE<7UG> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97869-043-0 01 1 9801- ● ● ● ● ●
67 16.682 BOLT; FRT SEAT TO BODY
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 9312-9510 ● ● ● ● ●
67 16.682 BOLT; FRT SEAT TO BODY
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 9511-9611 ● ● ● ●
67 16.682 BOLT; FRT SEAT TO BODY
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 9612-9711 ● ● ● ● ●
67 16.682 BOLT; FRT SEAT TO BODY
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 9712- ● ● ● ● ● ●
69 16.682 NUT; FRT SEAT
M8 		1-09984-109-0 01 1 9312-9510 ● ● ● ● ●
69 16.682 NUT; FRT SEAT
M8 		1-09984-109-0 01 1 9511-9611 ● ● ● ●
69 16.682 NUT; FRT SEAT
M8 		1-09984-109-0 01 1 9612-9711 ● ● ● ● ●
69 16.682 NUT; FRT SEAT
M8 		1-09984-109-0 01 1 9712- ● ● ● ● ● ●
71 16.682 BOLT; ADJ TO SEAT
M8X18 		8-94279-109-1 02 1 9312-9510 ● ● ● ● ●
71 16.682 BOLT; ADJ TO SEAT
M8X18 		8-94279-109-1 02 1 9511-9611 ● ● ● ●
71 16.682 BOLT; ADJ TO SEAT
M8X18 		8-94279-109-1 02 1 9612-9711 ● ● ● ● ●
71 16.682 BOLT; ADJ TO SEAT
M8X18 		8-94279-109-1 02 1 9712- ● ● ● ● ● ●
99 16.716 BUSHING; SEAT BACK 8-97854-087-0 01 1 9312-9510 ● ● ● ● ●
99 16.716 BUSHING; SEAT BACK 8-97854-087-0 01 1 9511-9611 ● ● ● ●
99 16.716 BUSHING; SEAT BACK 8-97854-087-0 01 1 9612-9711 ● ● ● ● ●
99 16.716 BUSHING; SEAT BACK 8-97854-087-0 01 1 9712- ● ● ● ● ● ●
228 16.714 SCREW; KNOB
11.377 M4X6 		8-97042-273-0 01 1 9312-9510 ● ● ● ● ●
228 16.714 SCREW; KNOB
11.377 M4X6 		8-97042-273-0 01 1 9511-9611 ● ● ● ●
228 16.714 SCREW; KNOB
11.377 M4X6 		8-97042-273-0 01 1 9612-9711 ● ● ● ● ●
228 16.714 SCREW; KNOB
11.377 M4X6 		8-97042-273-0 01 1 9712- ● ● ● ● ● ●
382 16.682 WASHER; PL,DRIVER SEAT
06.514 ID=8.4 OD=22 		8-94127-883-1 01 1 9312-9510 ● ● ● ● ●
382 16.682 WASHER; PL,DRIVER SEAT
06.514 ID=8.4 OD=22 		8-94127-883-1 01 1 9511-9611 ● ● ● ●
382 16.682 WASHER; PL,DRIVER SEAT
06.514 ID=8.4 OD=22 		8-94127-883-1 01 1 9612-9711 ● ● ● ● ●
382 16.682 WASHER; PL,DRIVER SEAT
06.514 ID=8.4 OD=22 		8-94127-883-1 01 1 9712- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
