5-15 — CAB MOUNTING; CAB SIDE (#4889) — 179 parça

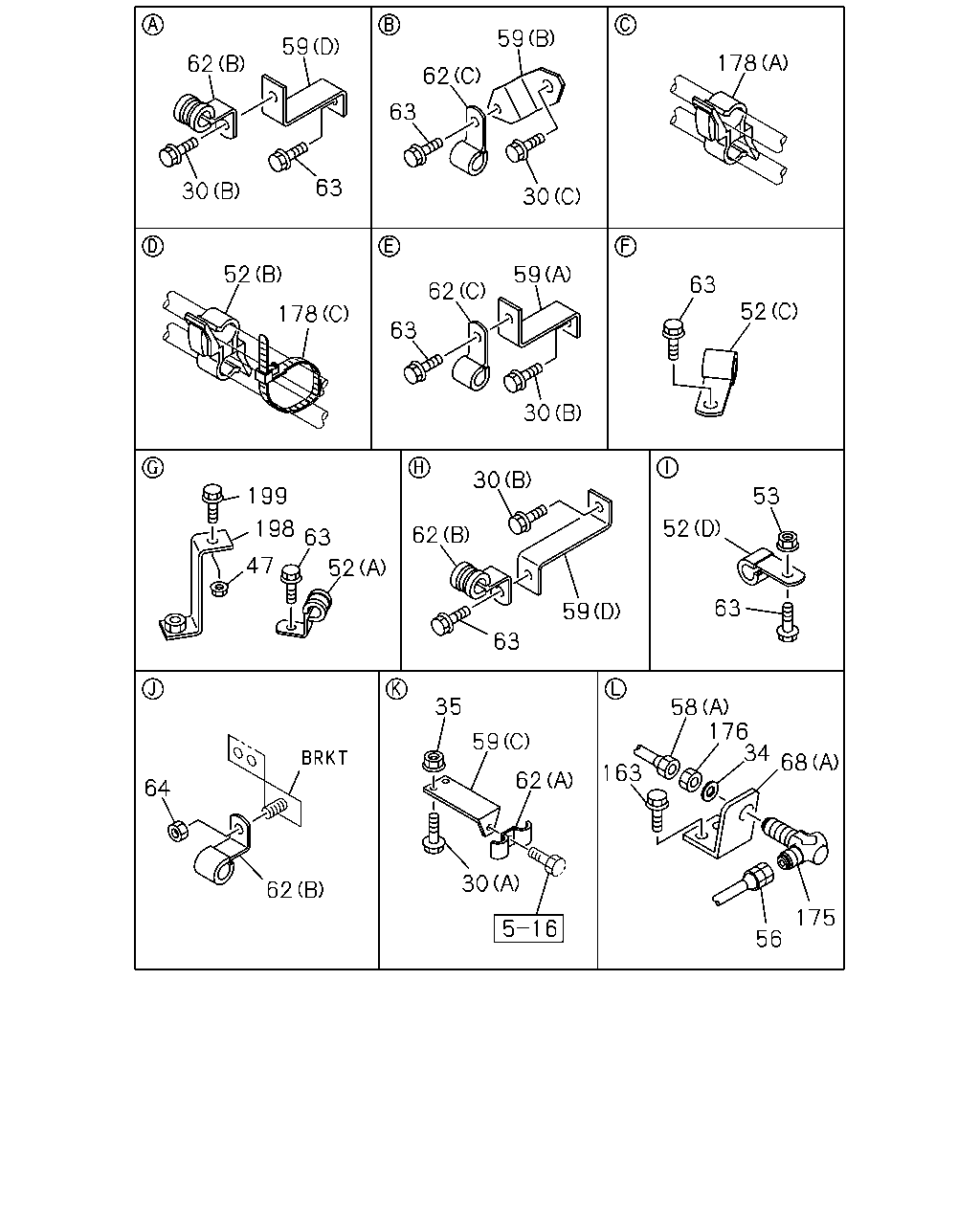

çizim 9157
59 59 178 62 62 63 63 30 30 52 59 63 62 52 178 63 30 30 199 53 52 198 62 63 47 52 63 59 63 35 58 176 34 59 68 163 62 64 30 62 175 56
BalonParca AdiParca NoAdetTipApplied Date
30 BOLT; BRKT FIX
(A) M8X20 FLANGE 		0-28080-820-0 02 1 9601-9606
30 BOLT; BRKT FIX
(A) M8X25 FLANGE 		0-28680-825-0 02 1 9607-9904
30 BOLT; BRKT FIX
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9905-
30 BOLT; BRKT FIX
(B) M8X25 FLANGE 		0-28080-825-0 03 1 9601-9606
30 BOLT; BRKT FIX
(B) M8X25 FLANGE 		0-28680-825-0 03 1 9607-
30 BOLT; BRKT FIX
(C) M12X25 FLANGE 		0-28081-225-0 01 1 9601-9606
30 BOLT; BRKT FIX
(C) M12X25 FLANGE 		0-28681-225-0 01 1 9607-
34 WASHER; LK
ID=14.2 		9-09150-514-0 01 1 9601-9610
35 NUT; BRKT
M8 		9-09110-408-0 02 1 9601-9606
35 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9607-
47 NUT; BRKT
6WA1 TC-S(56L) EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91150-108-0 01 1 9601-9601
52 CLIP; CONT CABLE
(A) ID=6 H=20 L=20 		1-09700-603-0 01 1 9601-
52 CLIP; CONT CABLE
(B) ID=6-10 & 10-14 		1-09709-201-1 02 1 9601-9907
52 CLIP; CONT CABLE
(B) ID=6-10 & 10-14 		1-09709-201-1 01 1 9908-
52 CLIP; CONT CABLE
(C) ID=7 L=20 		9-09524-635-0 01 1 9601-
52 CLIP; CONT CABLE
(D) ID=7 L=50 		9-09524-685-0 01 1 9601-
52 CLIP; CONT CABLE
6WA1 TC-S(56L) EXC. ANTI NOISE EQUIPMENT<SV9> (B) ID=6-10 & 10-14 		1-09709-201-1 01 1 9601-9610
52 CLIP; CONT CABLE
6WA1 TC-C(55L),6WA1 TC-S(56L) EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (B) ID=6-10 & 10-14 		1-09709-201-1 01 1 9611-9904
52 CLIP; CONT CABLE
L TYPE ENG<90L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (B) ID=6-10 & 10-14 		1-09709-201-1 01 1 9905-9907
53 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 9601-
56 HOSE; FLEX,OIL PIPE
L=300 		1-09364-545-1 01 1 9601-9610
56 HOSE; FLEX,OIL PIPE
L=650 		1-09364-432-3 01 1 9611-9904
56 HOSE; FLEX,OIL PIPE
L=650 		1-09365-053-0 01 1 9905-
58 PIPE; OIL,POWER UNIT
(A) 		1-47424-665-1 01 1 9601-9610
58 PIPE; OIL,POWER UNIT
(B) 		1-47428-473-0 01 1 9601-9904
58 PIPE; OIL,POWER UNIT
(B) 		1-49163-336-0 01 1 9905-
58 PIPE; OIL,POWER UNIT
(C) 		1-47428-474-0 01 1 9601-9904
58 PIPE; OIL,POWER UNIT
(C) 		1-49163-342-0 01 1 9905-
59 BRACKET; CLIP
(A) 		1-47476-200-0 01 1 9601-
59 BRACKET; CLIP
(C) 		1-47477-317-0 01 1 9601-
59 BRACKET; CLIP
(B) 		1-47477-631-1 01 1 9601-
59 BRACKET; CLIP
(D) L=90 		1-82699-856-0 02 1 9601-
62 CLIP; OIL PIPE
(A) ID=9 & 9 L=17 & 17 		1-09700-651-0 02 1 9601-9904
62 CLIP; OIL PIPE
(A) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 02 1 9905-
62 CLIP; OIL PIPE
(B) ID=25 H=30 L=35 		1-09700-875-0 02 1 9601-9905
62 CLIP; OIL PIPE
(B) ID=18 H=23 L=28 		1-09700-860-0 02 1 9906-
62 CLIP; OIL PIPE
(C) ID=11X2 L=16 		9-09535-025-0 02 1 9601-9904
62 CLIP; OIL PIPE
(C) ID=9X2 L=16 		9-09534-825-0 02 1 9905-
62 CLIP; OIL PIPE
BRAKE SYSTEM SPRING BRAKE(BCR) (B) ID=25 H=30 L=35 		1-09700-875-0 01 1 9611-9905
62 CLIP; OIL PIPE
BRAKE SYSTEM SPRING BRAKE(BCR) (B) ID=18 H=23 L=28 		1-09700-860-0 01 1 9906-
63 BOLT; CLIP
M8X20 FLANGE 		0-28080-820-0 06 1 9601-9606
63 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 06 1 9607-
64 NUT; CLIP
BRAKE SYSTEM SPRING BRAKE(BCR) M8 FLANGE 		0-91150-108-0 01 1 9611-
68 BRACKET; UNION
(A) 		1-47476-898-0 01 1 9601-9610
68 BRACKET; UNION
(B) 		1-47477-454-0 01 1 9601-9602
68 BRACKET; UNION
(B) 		1-47477-750-0 01 1 9603-9902
68 BRACKET; UNION
(B) 		1-47478-383-0 01 1 9903-9903
68 BRACKET; UNION
(B) 		1-47478-499-0 01 1 9904-9904
68 BRACKET; UNION
(B) 		1-47478-383-0 01 1 9905-
163 BOLT; BRKT FIX
M8X20 FLANGE 		0-28080-820-0 02 1 9601-9606
163 BOLT; BRKT FIX
M8X20 FLANGE 		0-28680-820-0 02 1 9607-9610
175 UNION; FLEX HOSE
M14 		9-09225-208-1 01 1 9601-9610
176 NUT; UNION
M14 		9-99111-414-0 01 1 9601-9610
176 NUT; UNION
M14 		9-99111-414-0 02 1 9611-9904
176 NUT; UNION
M12 		9-09840-280-0 02 1 9905-
178 CLIP; FLEX HOSE
(A) ID=12-16 & 12-16 		1-09709-191-0 02 1 9601-9610
178 CLIP; FLEX HOSE
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A) ID=12-16 & 12-16 		1-09709-191-0 02 1 9611-9706
178 CLIP; FLEX HOSE
(B) ID=11 H=20 L=20 		5-09700-351-0 02 1 9611-9904
178 CLIP; FLEX HOSE
(B) ID=8 H=20 L=20 		1-09700-604-0 02 1 9905-
178 CLIP; FLEX HOSE
BRAKE SYSTEM SPRING BRAKE(BCR) ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> (C) L=140 		5-09707-031-1 01 1 9908-
178 CLIP; FLEX HOSE
V TYPE ENG<91L> (C) L=140 		5-09707-031-1 01 1 9908-
178 CLIP; FLEX HOSE
L TYPE ENG<90L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (C) L=140 		5-09707-031-1 02 1 9908-
198 BRACKET; CABLE
6WA1 TC-S(56L) EXC. ANTI NOISE EQUIPMENT<SV9> 		1-46147-101-0 01 1 9601-9601
199 BOLT; BRKT
6WA1 TC-S(56L) EXC. ANTI NOISE EQUIPMENT<SV9> M8X20 FLANGE 		0-28080-820-0 01 1 9601-9601

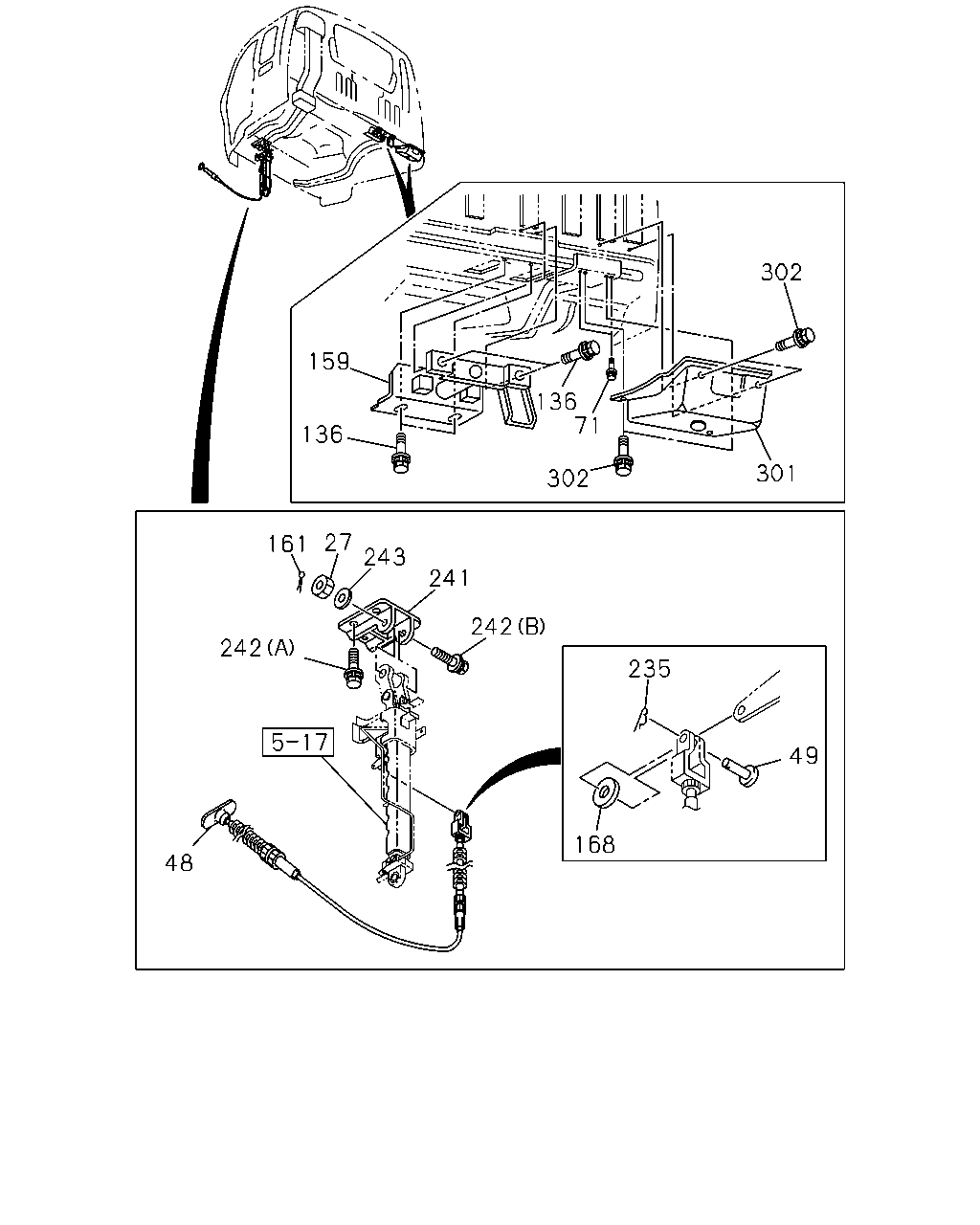

çizim 42455
302 159 136 71 136 301 302 27 161 243 241 242 242 235 49 168 48
BalonParca AdiParca NoAdetTipApplied Date
27 NUT; OIL CYL
M14 		9-99116-414-0 01 1 9601-
48 CABLE ASM; CONT
6WA1 TC-S(56L) ANTI NOISE EQUIPMENT<SV9> L=2457 		1-62500-670-6 01 1 9601-9610
48 CABLE ASM; CONT
10PE1S(60L) L=2457 		1-62500-670-6 01 1 9601-9610
48 CABLE ASM; CONT
6WA1 TC-C(55L),6WA1 TC-S(56L) ANTI NOISE EQUIPMENT<SV9> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) L=2457 		1-62500-670-6 01 1 9611-9711
48 CABLE ASM; CONT
10PE1S(60L) EXC. BRAKE SYSTEM SPRING BRAKE(BCR) L=2457 		1-62500-670-6 01 1 9611-9711
48 CABLE ASM; CONT
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) L=2457 		1-62500-670-6 01 1 9712-9910
48 CABLE ASM; CONT
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) L=2457 		1-62500-730-0 01 1 9911-
48 CABLE ASM; CONT
6WA1 TC-S(56L) EXC. ANTI NOISE EQUIPMENT<SV9> L=2688 		1-62500-684-2 01 1 9601-9610
48 CABLE ASM; CONT
6WA1 TC-C(55L),6WA1 TC-S(56L) EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> L=2688 		1-62500-684-2 01 1 9611-9711
48 CABLE ASM; CONT
BRAKE SYSTEM SPRING BRAKE(BCR) L=2688 		1-62500-684-2 01 1 9611-9711
48 CABLE ASM; CONT
BRAKE SYSTEM SPRING BRAKE(BCR) L=2688 		1-62500-684-2 01 1 9712-
49 PIN; JAW FIX
OD=6 L=17 		9-08223-617-0 01 1 9601-
71 BOLT
M10X25 W/LK&PL WASHER 		8-94279-220-0 02 1 9601-
136 BOLT; CAB LK
M8X24.5 W/LK&PL WASHER 		8-94279-217-0 04 1 9601-
159 PIN 1-79717-615-2 01 1 9601-9609
159 PIN 1-79717-627-1 01 1 9610-
161 PIN; SPLIT
OD=2.8 L=25 		9-08113-025-0 01 1 9601-
168 WASHER; PL
ID=6.4 		9-09160-506-0 01 1 9601-
235 PIN; SNAP
L=21.2 		8-94157-840-0 01 1 9601-
241 BRACKET; POWER CYL UPR,CAB TILT 1-53458-338-0 01 1 9601-
242 BOLT; POWER CYL BRKT,CAB TILT
(A) M10X30 		1-09980-546-0 05 1 9601-
242 BOLT; POWER CYL BRKT,CAB TILT
(B) M14X70 		1-53458-633-0 01 1 9601-
243 WASHER; LK,POWER CYL BRKT
ID=14.2 		9-09150-514-0 01 1 9601-
301 BRACKET; RR MTG,CAB 1-62570-866-1 02 1 9601-
302 BOLT; BRKT,CAB
M10X25 W/LK&PL WASHER 		8-94279-220-0 08 1 9601-

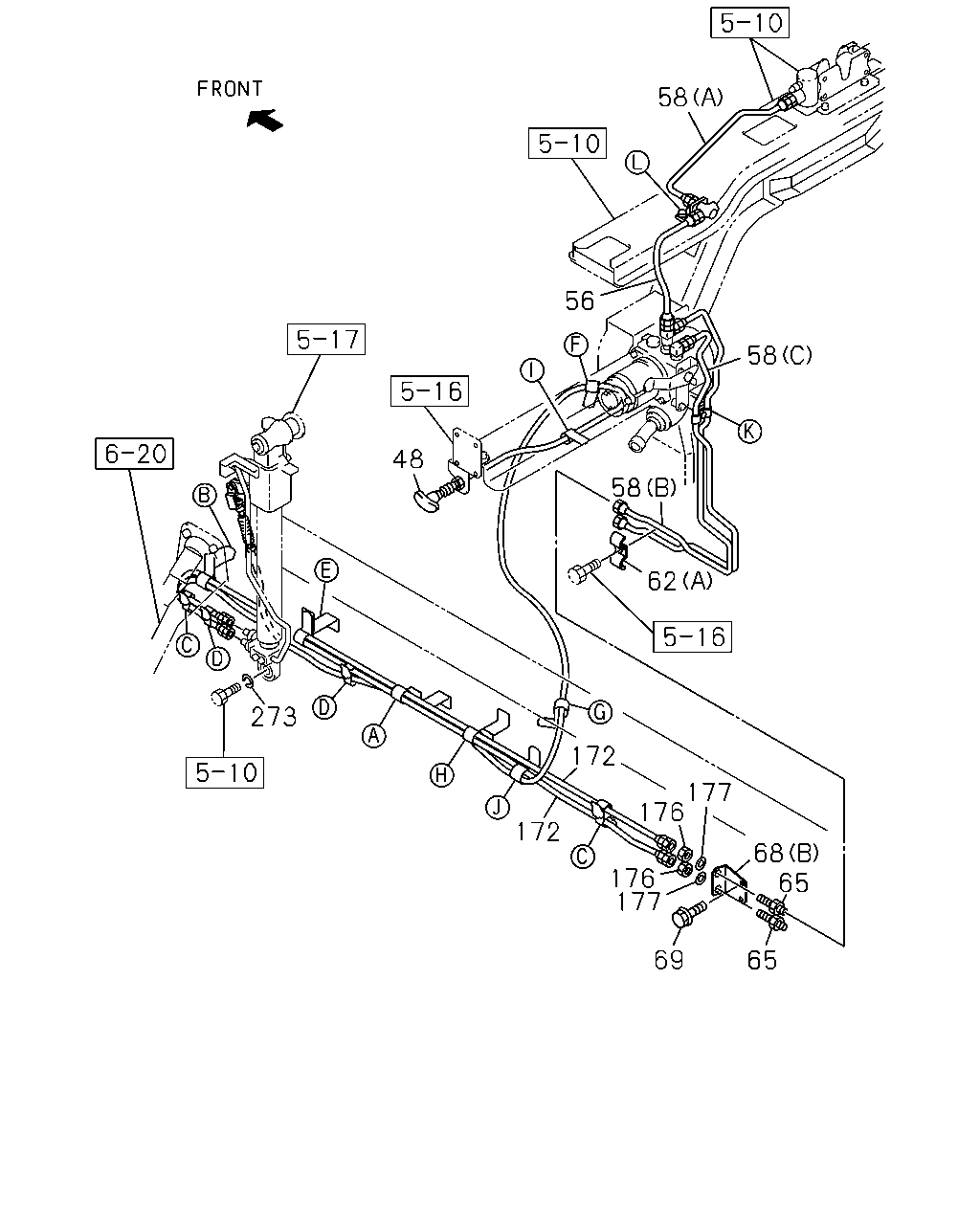

çizim 42500
58 56 58 48 58 62 273 172 177 176 172 68 65 176 177 69 65
BalonParca AdiParca NoAdetTipApplied Date
48 CABLE ASM; CONT
6WA1 TC-S(56L) ANTI NOISE EQUIPMENT<SV9> L=2457 		1-62500-670-6 01 1 9601-9610
48 CABLE ASM; CONT
10PE1S(60L) L=2457 		1-62500-670-6 01 1 9601-9610
48 CABLE ASM; CONT
6WA1 TC-C(55L),6WA1 TC-S(56L) ANTI NOISE EQUIPMENT<SV9> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) L=2457 		1-62500-670-6 01 1 9611-9711
48 CABLE ASM; CONT
10PE1S(60L) EXC. BRAKE SYSTEM SPRING BRAKE(BCR) L=2457 		1-62500-670-6 01 1 9611-9711
48 CABLE ASM; CONT
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) L=2457 		1-62500-670-6 01 1 9712-9910
48 CABLE ASM; CONT
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) L=2457 		1-62500-730-0 01 1 9911-
48 CABLE ASM; CONT
6WA1 TC-S(56L) EXC. ANTI NOISE EQUIPMENT<SV9> L=2688 		1-62500-684-2 01 1 9601-9610
48 CABLE ASM; CONT
6WA1 TC-C(55L),6WA1 TC-S(56L) EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> L=2688 		1-62500-684-2 01 1 9611-9711
48 CABLE ASM; CONT
BRAKE SYSTEM SPRING BRAKE(BCR) L=2688 		1-62500-684-2 01 1 9611-9711
48 CABLE ASM; CONT
BRAKE SYSTEM SPRING BRAKE(BCR) L=2688 		1-62500-684-2 01 1 9712-
56 HOSE; FLEX,OIL PIPE
L=300 		1-09364-545-1 01 1 9601-9610
56 HOSE; FLEX,OIL PIPE
L=650 		1-09364-432-3 01 1 9611-9904
56 HOSE; FLEX,OIL PIPE
L=650 		1-09365-053-0 01 1 9905-
58 PIPE; OIL,POWER UNIT
(A) 		1-47424-665-1 01 1 9601-9610
58 PIPE; OIL,POWER UNIT
(B) 		1-47428-473-0 01 1 9601-9904
58 PIPE; OIL,POWER UNIT
(B) 		1-49163-336-0 01 1 9905-
58 PIPE; OIL,POWER UNIT
(C) 		1-47428-474-0 01 1 9601-9904
58 PIPE; OIL,POWER UNIT
(C) 		1-49163-342-0 01 1 9905-
62 CLIP; OIL PIPE
(A) ID=9 & 9 L=17 & 17 		1-09700-651-0 02 1 9601-9904
62 CLIP; OIL PIPE
(A) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 02 1 9905-
62 CLIP; OIL PIPE
(B) ID=25 H=30 L=35 		1-09700-875-0 02 1 9601-9905
62 CLIP; OIL PIPE
(B) ID=18 H=23 L=28 		1-09700-860-0 02 1 9906-
62 CLIP; OIL PIPE
(C) ID=11X2 L=16 		9-09535-025-0 02 1 9601-9904
62 CLIP; OIL PIPE
(C) ID=9X2 L=16 		9-09534-825-0 02 1 9905-
62 CLIP; OIL PIPE
BRAKE SYSTEM SPRING BRAKE(BCR) (B) ID=25 H=30 L=35 		1-09700-875-0 01 1 9611-9905
62 CLIP; OIL PIPE
BRAKE SYSTEM SPRING BRAKE(BCR) (B) ID=18 H=23 L=28 		1-09700-860-0 01 1 9906-
65 UNION; OIL PIPE
M14 		9-09223-308-1 02 1 9601-9904
65 UNION; OIL PIPE
M12 L=66.5 		9-09223-306-1 02 1 9905-
68 BRACKET; UNION
(A) 		1-47476-898-0 01 1 9601-9610
68 BRACKET; UNION
(B) 		1-47477-454-0 01 1 9601-9602
68 BRACKET; UNION
(B) 		1-47477-750-0 01 1 9603-9902
68 BRACKET; UNION
(B) 		1-47478-383-0 01 1 9903-9903
68 BRACKET; UNION
(B) 		1-47478-499-0 01 1 9904-9904
68 BRACKET; UNION
(B) 		1-47478-383-0 01 1 9905-
69 BOLT; BRKT
M8X25 FLANGE 		0-28080-825-0 02 1 9601-9602
69 BOLT; BRKT
M8X30 FLANGE 		0-28080-830-0 02 1 9603-9606
69 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 9607-
172 HOSE; FLEX,OIL TILT
L=1600 		1-09364-825-1 02 1 9601-9904
172 HOSE; FLEX,OIL TILT
L=1600 		1-09365-052-1 02 1 9905-
176 NUT; UNION
M14 		9-99111-414-0 01 1 9601-9610
176 NUT; UNION
M14 		9-99111-414-0 02 1 9611-9904
176 NUT; UNION
M12 		9-09840-280-0 02 1 9905-
177 WASHER; LK,UNION
ID=14.2 		9-09150-514-0 02 1 9601-9904
177 WASHER; LK,UNION
ID=12.2 		9-09150-512-0 02 1 9905-
273 WASHER; PL,OIL CYL
ID=10.5 OD=32 		9-09164-810-0 01 1 9601-

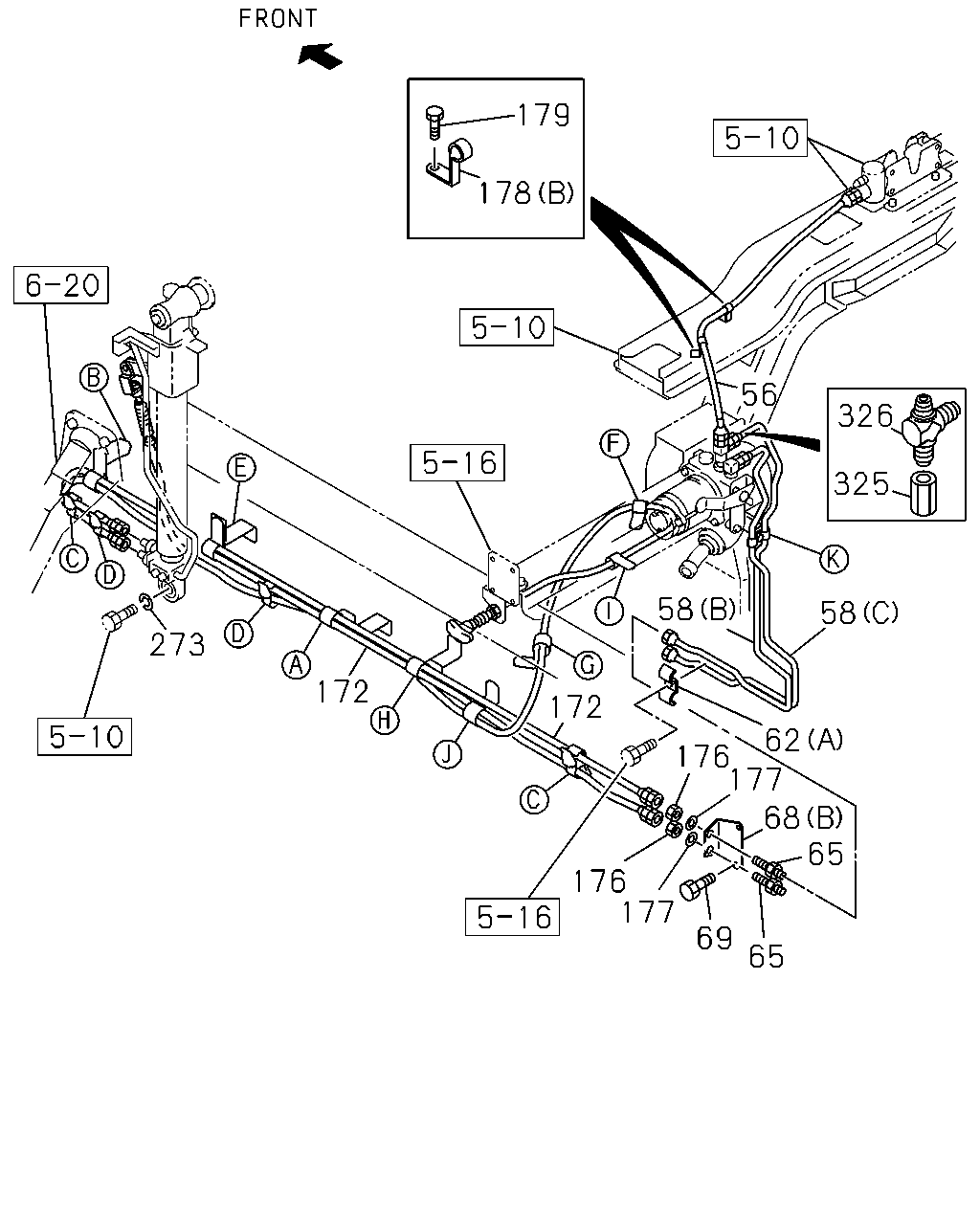

çizim 42501
179 178 56 326 325 58 58 273 172 172 62 176 177 68 65 176 177 69 65
BalonParca AdiParca NoAdetTipApplied Date
56 HOSE; FLEX,OIL PIPE
L=300 		1-09364-545-1 01 1 9601-9610
56 HOSE; FLEX,OIL PIPE
L=650 		1-09364-432-3 01 1 9611-9904
56 HOSE; FLEX,OIL PIPE
L=650 		1-09365-053-0 01 1 9905-
58 PIPE; OIL,POWER UNIT
(A) 		1-47424-665-1 01 1 9601-9610
58 PIPE; OIL,POWER UNIT
(B) 		1-47428-473-0 01 1 9601-9904
58 PIPE; OIL,POWER UNIT
(B) 		1-49163-336-0 01 1 9905-
58 PIPE; OIL,POWER UNIT
(C) 		1-47428-474-0 01 1 9601-9904
58 PIPE; OIL,POWER UNIT
(C) 		1-49163-342-0 01 1 9905-
62 CLIP; OIL PIPE
(A) ID=9 & 9 L=17 & 17 		1-09700-651-0 02 1 9601-9904
62 CLIP; OIL PIPE
(A) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 02 1 9905-
62 CLIP; OIL PIPE
(B) ID=25 H=30 L=35 		1-09700-875-0 02 1 9601-9905
62 CLIP; OIL PIPE
(B) ID=18 H=23 L=28 		1-09700-860-0 02 1 9906-
62 CLIP; OIL PIPE
(C) ID=11X2 L=16 		9-09535-025-0 02 1 9601-9904
62 CLIP; OIL PIPE
(C) ID=9X2 L=16 		9-09534-825-0 02 1 9905-
62 CLIP; OIL PIPE
BRAKE SYSTEM SPRING BRAKE(BCR) (B) ID=25 H=30 L=35 		1-09700-875-0 01 1 9611-9905
62 CLIP; OIL PIPE
BRAKE SYSTEM SPRING BRAKE(BCR) (B) ID=18 H=23 L=28 		1-09700-860-0 01 1 9906-
65 UNION; OIL PIPE
M14 		9-09223-308-1 02 1 9601-9904
65 UNION; OIL PIPE
M12 L=66.5 		9-09223-306-1 02 1 9905-
68 BRACKET; UNION
(A) 		1-47476-898-0 01 1 9601-9610
68 BRACKET; UNION
(B) 		1-47477-454-0 01 1 9601-9602
68 BRACKET; UNION
(B) 		1-47477-750-0 01 1 9603-9902
68 BRACKET; UNION
(B) 		1-47478-383-0 01 1 9903-9903
68 BRACKET; UNION
(B) 		1-47478-499-0 01 1 9904-9904
68 BRACKET; UNION
(B) 		1-47478-383-0 01 1 9905-
69 BOLT; BRKT
M8X25 FLANGE 		0-28080-825-0 02 1 9601-9602
69 BOLT; BRKT
M8X30 FLANGE 		0-28080-830-0 02 1 9603-9606
69 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 9607-
172 HOSE; FLEX,OIL TILT
L=1600 		1-09364-825-1 02 1 9601-9904
172 HOSE; FLEX,OIL TILT
L=1600 		1-09365-052-1 02 1 9905-
176 NUT; UNION
M14 		9-99111-414-0 01 1 9601-9610
176 NUT; UNION
M14 		9-99111-414-0 02 1 9611-9904
176 NUT; UNION
M12 		9-09840-280-0 02 1 9905-
177 WASHER; LK,UNION
ID=14.2 		9-09150-514-0 02 1 9601-9904
177 WASHER; LK,UNION
ID=12.2 		9-09150-512-0 02 1 9905-
178 CLIP; FLEX HOSE
(A) ID=12-16 & 12-16 		1-09709-191-0 02 1 9601-9610
178 CLIP; FLEX HOSE
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A) ID=12-16 & 12-16 		1-09709-191-0 02 1 9611-9706
178 CLIP; FLEX HOSE
(B) ID=11 H=20 L=20 		5-09700-351-0 02 1 9611-9904
178 CLIP; FLEX HOSE
(B) ID=8 H=20 L=20 		1-09700-604-0 02 1 9905-
178 CLIP; FLEX HOSE
BRAKE SYSTEM SPRING BRAKE(BCR) ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> (C) L=140 		5-09707-031-1 01 1 9908-
178 CLIP; FLEX HOSE
V TYPE ENG<91L> (C) L=140 		5-09707-031-1 01 1 9908-
178 CLIP; FLEX HOSE
L TYPE ENG<90L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (C) L=140 		5-09707-031-1 02 1 9908-
179 BOLT; CLIP,FLEX HOSE
M8X20 FLANGE 		0-28680-820-0 02 1 9611-
273 WASHER; PL,OIL CYL
ID=10.5 OD=32 		9-09164-810-0 01 1 9601-
325 ADAPTER; PUMP
M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 9905-
326 UNION; PUMP
M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 9905-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
