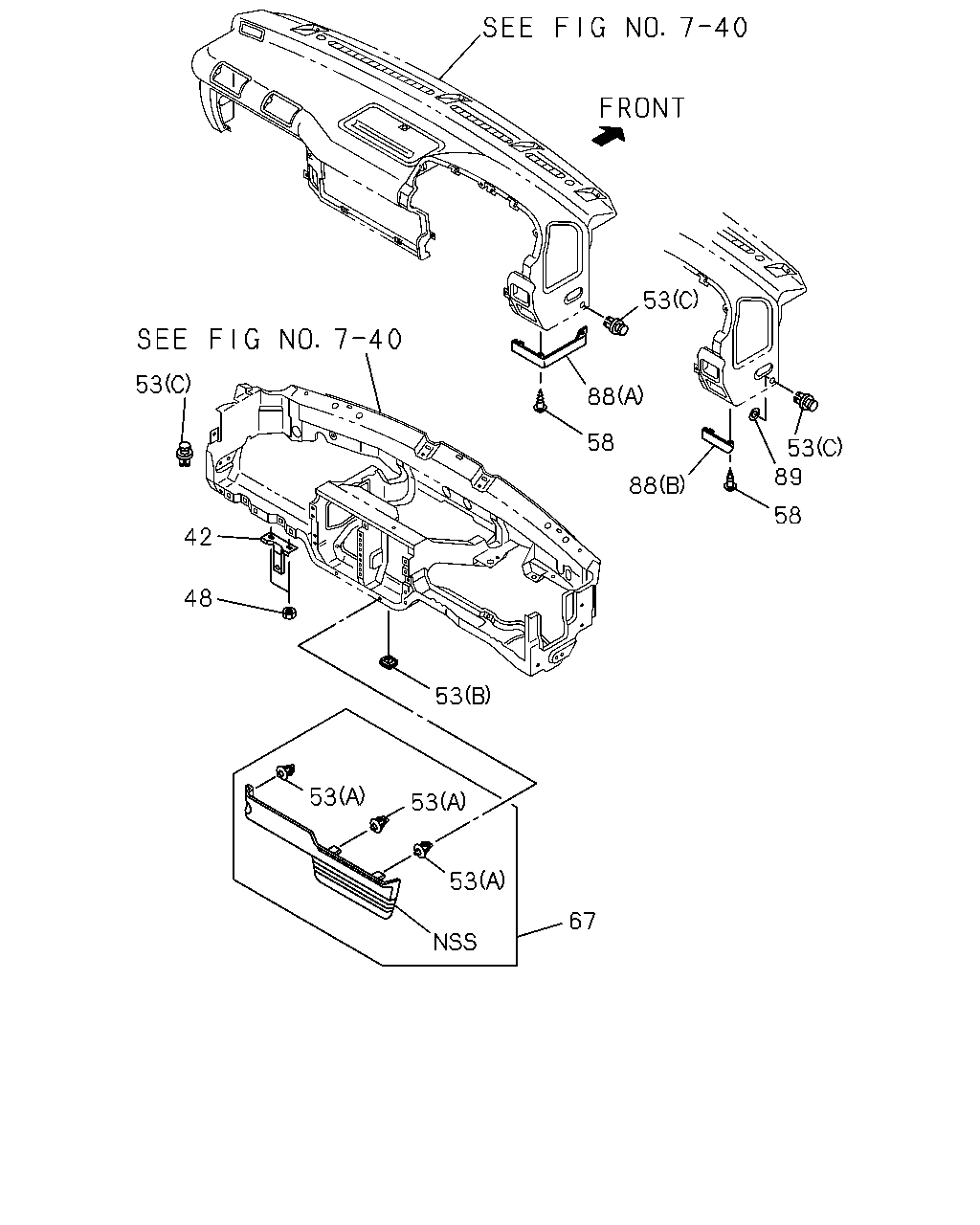

7-41 — UNDER COVER; INSTRUMENT (#48889) — 37 parça

53 53 88 58 53 89 88 58 42 48 53 53 53 53 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
42	16.110 BRACKET; UNDER COVER	8-97853-724-2	01	1	9312-9510	●	●	●	●	●
42	16.110 BRACKET; UNDER COVER	8-97853-724-2	01	1	9511-9611	●	●	●	●
42	16.110 BRACKET; UNDER COVER	8-97853-724-2	01	1	9612-9711	●	●	●	●		●
42	16.110 BRACKET; UNDER COVER	8-97853-724-2	01	1	9712-	●	●	●	●		●	●
48	16.081 NUT; UNDER COVER 04.594 M6 FLANGE	0-91150-106-0	02	1	9312-9510	●	●	●	●	●
48	16.081 NUT; UNDER COVER 04.594 M6 FLANGE	0-91150-106-0	02	1	9511-9611	●	●	●	●
48	16.081 NUT; UNDER COVER 04.594 M6 FLANGE	0-91150-106-0	02	1	9612-9711	●	●	●	●		●
48	16.081 NUT; UNDER COVER 04.594 M6 FLANGE	0-91150-106-0	02	1	9712-	●	●	●	●		●	●
53	16.085 CLIP; UNDER COVER 16.100 (A)	8-97853-169-0	04	1	9312-9510	●	●	●	●	●
53	16.085 CLIP; UNDER COVER 16.100 (A)	8-97853-169-0	04	1	9511-9611	●	●	●	●
53	16.085 CLIP; UNDER COVER 16.100 (A)	8-97853-169-0	04	1	9612-9711	●	●	●	●		●
53	16.085 CLIP; UNDER COVER 16.100 (A)	8-97853-169-0	04	1	9712-	●	●	●	●		●	●
53	16.085 CLIP; UNDER COVER (B)	8-97853-249-5	03	1	9312-9510	●	●	●	●	●
53	16.085 CLIP; UNDER COVER (B)	8-97853-249-5	03	1	9511-9611	●	●	●	●
53	16.085 CLIP; UNDER COVER (B)	8-97853-249-5	03	1	9612-9711	●	●	●	●		●
53	16.085 CLIP; UNDER COVER (B)	8-97853-249-5	03	1	9712-	●	●	●	●		●	●
53	16.085 CLIP; UNDER COVER 06.521 (C) DARK BEIGE	8-97856-011-0	01	1	9312-9506	●	●	●	●	●
53	16.085 CLIP; UNDER COVER EXC. DUMP CHASSIS(V4D) 06.521 (C) DARK BEIGE	8-97856-011-0	01	1	9507-9510	●	●	●	●	●
53	16.085 CLIP; UNDER COVER EXC. DUMP CHASSIS(V4D) 06.521 (C) DARK BEIGE	8-97856-011-0	01	1	9511-9611	●	●	●	●
53	16.085 CLIP; UNDER COVER EXC. DUMP CHASSIS(V4D) 06.521 (C) DARK BEIGE	8-97856-011-0	01	1	9612-9711	●	●	●	●		●
53	16.085 CLIP; UNDER COVER EXC. DUMP CHASSIS(V4D) 06.521 (C) DARK GRAY	8-97857-542-0	01	1	9712-	●	●	●	●		●	●
53	16.085 CLIP; UNDER COVER DUMP CHASSIS(V4D) 16.800 (C) BLACK	8-94493-404-0	01	1	9507-	●
58	09.264 SCREW; UNDER COVER 16.067 M5X14	8-94279-325-0	02	1	9312-9510	●	●	●	●	●
58	09.264 SCREW; UNDER COVER 16.067 M5X14	8-94279-325-0	02	1	9511-9611	●	●	●	●
58	09.264 SCREW; UNDER COVER 16.067 M5X14	8-94279-325-0	02	1	9612-9711	●	●	●	●		●
58	09.264 SCREW; UNDER COVER 16.067 M5X14	8-94279-325-0	02	1	9712-	●	●	●	●		●	●
67	16.081 COVER; UNDER,INST PNL	8-97856-661-3	01	1	9312-9510	●	●	●	●	●
67	16.081 COVER; UNDER,INST PNL	8-97856-661-4	01	1	9511-9611	●	●	●	●
67	16.081 COVER; UNDER,INST PNL	8-97856-661-4	01	1	9612-9711	●	●	●	●		●
67	16.081 COVER; UNDER,INST PNL	8-97856-661-4	01	1	9712-	●	●	●	●		●	●
88	16.081 COVER; UNDER,INST PNL SIDE EXC. DUMP CHASSIS(V4D) (A) DARK BEIGE	8-97853-888-2	01	1	9312-9510	●	●	●	●	●
88	16.081 COVER; UNDER,INST PNL SIDE EXC. DUMP CHASSIS(V4D) (A) DARK BEIGE	8-97853-888-2	01	1	9511-9611	●	●	●	●
88	16.081 COVER; UNDER,INST PNL SIDE EXC. DUMP CHASSIS(V4D) (A) DARK BEIGE	8-97853-888-2	01	1	9612-9711	●	●	●	●		●
88	16.081 COVER; UNDER,INST PNL SIDE EXC. DUMP CHASSIS(V4D) (A) DARK GRAY	8-97859-801-2	01	1	9712-	●	●	●	●		●	●
88	16.081 COVER; UNDER,INST PNL SIDE DUMP CHASSIS(V4D) (B) DARK BEIGE	8-97853-889-2	01	1	9312-9711	●
88	16.081 COVER; UNDER,INST PNL SIDE DUMP CHASSIS(V4D) (B) DARK GRAY	8-97859-803-2	01	1	9712-	●
89	16.081 WASHER; UNDER COVER DUMP CHASSIS(V4D) 02.334 ID=6.4 OD=18	9-09164-706-0	02	1	9312-9506	●
