◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50696 - NPR/NQR-RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#48888) — 298 parça

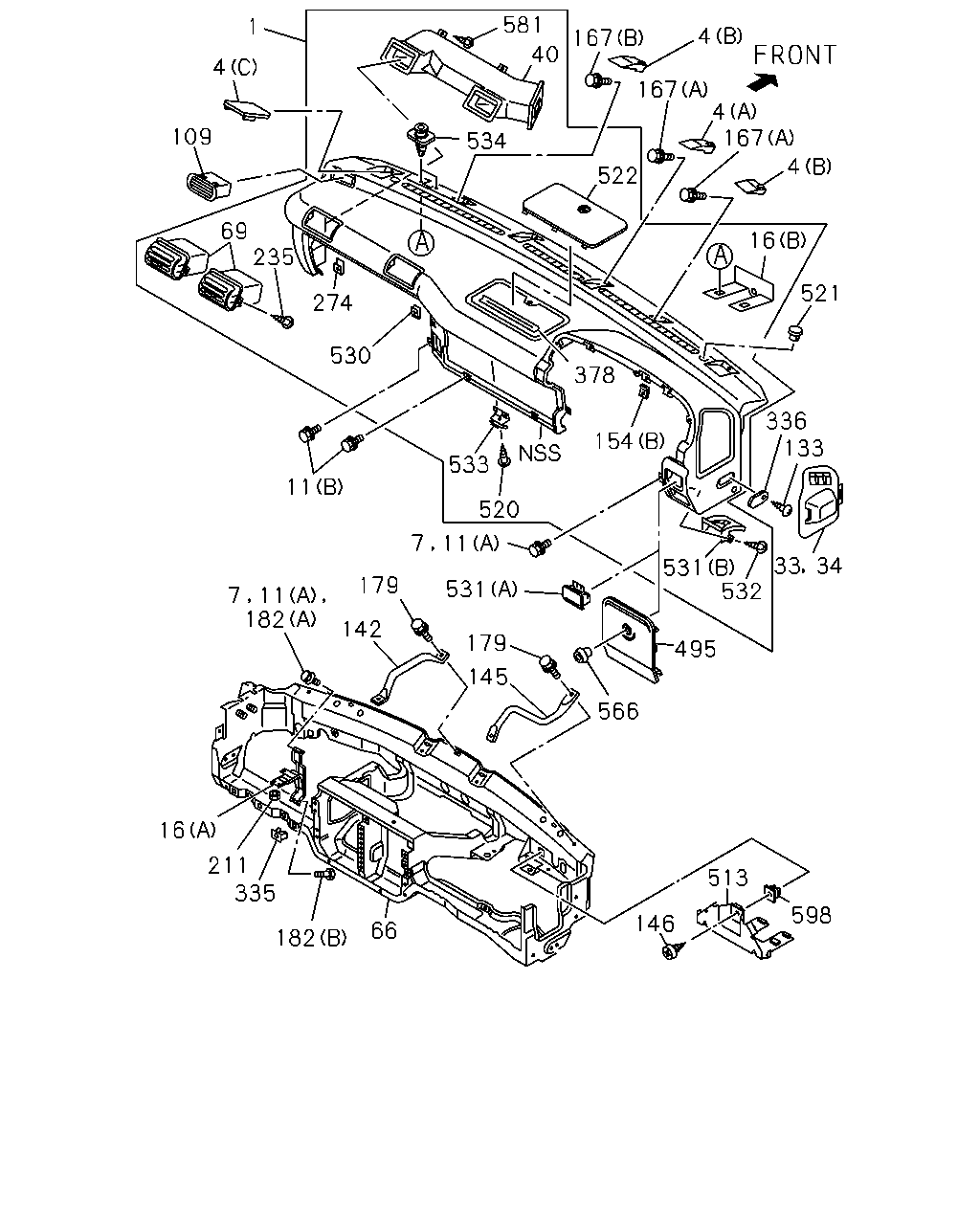

çizim 18530
581 1 4 167 40 4 167 4 167 109 534 4 522 69 235 16 521 274 530 378 336 133 154 533 11 520 7 11 33 34 531 532 179 531 7 182 142 179 495 145 566 16 211 335 513 598 146 66 182 11
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 16.080 PANEL; INST
DARK BEIGE 		8-97856-667-0 01 1 9312-9411 ● ● ● ● ●
1 16.080 PANEL; INST
ASH TRAY DRIVER SIDE<7KU> DARK BEIGE 		8-97856-667-2 01 1 9412-9510 ● ● ● ● ●
1 16.080 PANEL; INST
DARK BEIGE 		8-97855-245-2 01 1 9511-9602 ● ● ● ●
1 16.080 PANEL; INST
DARK BEIGE 		8-97855-245-4 01 1 9603-9611 ● ● ● ●
1 16.080 PANEL; INST
DARK BEIGE 		8-97855-245-4 01 1 9612-9711 ● ● ● ● ●
1 16.080 PANEL; INST
DARK GRAY 		8-97195-959-0 01 1 9712- ● ● ● ● ● ●
1 16.080 PANEL; INST
IDENTIFICATION LABEL FOR KD<6UT> EXC. ASH TRAY DRIVER SIDE<7KU> DARK BEIGE 		8-97855-240-4 01 1 9412-9510 ● ●
4 16.080 COVER; INST PNL
(A) DARK BEIGE 		8-97853-880-2 02 1 9312-9510 ● ● ● ● ●
4 16.080 COVER; INST PNL
(A) DARK BEIGE 		8-97853-880-3 02 1 9511-9611 ● ● ● ●
4 16.080 COVER; INST PNL
(A) DARK BEIGE 		8-97853-880-3 02 1 9612-9711 ● ● ● ● ●
4 16.080 COVER; INST PNL
(A) DARK GRAY 		8-97857-523-3 02 1 9712- ● ● ● ● ● ●
4 16.080 COVER; INST PNL
(B) DARK BEIGE 		8-97853-882-2 01 1 9312-9510 ● ● ● ● ●
4 16.080 COVER; INST PNL
(B) DARK BEIGE 		8-97853-882-3 01 1 9511-9611 ● ● ● ●
4 16.080 COVER; INST PNL
(B) DARK BEIGE 		8-97853-882-3 01 1 9612-9711 ● ● ● ● ●
4 16.080 COVER; INST PNL
(B) DARK GRAY 		8-97857-525-3 01 1 9712- ● ● ● ● ● ●
4 16.080 COVER; INST PNL
(C) DARK BEIGE 		8-97856-155-0 01 1 9312-9510 ● ● ● ● ●
4 16.080 COVER; INST PNL
(C) DARK BEIGE 		8-97856-155-1 01 1 9511-9611 ● ● ● ●
4 16.080 COVER; INST PNL
(C) DARK BEIGE 		8-97856-155-1 01 1 9612-9711 ● ● ● ● ●
4 16.080 COVER; INST PNL
(C) DARK GRAY 		8-97857-527-1 01 1 9712- ● ● ● ● ● ●
4 16.080 COVER; INST PNL
(B) DARK BEIGE 		8-97853-881-2 01 1 9312-9510 ● ● ● ● ●
4 16.080 COVER; INST PNL
(B) DARK BEIGE 		8-97853-881-3 01 1 9511-9611 ● ● ● ●
4 16.080 COVER; INST PNL
(B) DARK BEIGE 		8-97853-881-3 01 1 9612-9711 ● ● ● ● ●
4 16.080 COVER; INST PNL
(B) DARK GRAY 		8-97857-524-3 01 1 9712- ● ● ● ● ● ●
4 16.080 COVER; INST PNL
(C) DARK BEIGE 		8-97856-154-0 01 1 9312-9510 ● ● ● ● ●
4 16.080 COVER; INST PNL
(C) DARK BEIGE 		8-97856-154-1 01 1 9511-9611 ● ● ● ●
4 16.080 COVER; INST PNL
(C) DARK BEIGE 		8-97856-154-1 01 1 9612-9711 ● ● ● ● ●
4 16.080 COVER; INST PNL
(C) DARK GRAY 		8-97857-526-1 01 1 9712- ● ● ● ● ● ●
7 16.085 BOLT; SUPPORT,INST PNL
M8X20 FLANGE 		8-97114-431-0 06 1 9407-9510 ● ● ● ● ●
7 16.085 BOLT; SUPPORT,INST PNL
M8X20 FLANGE 		8-97114-431-0 06 1 9511-9603 ● ● ● ●
7 16.085 BOLT; SUPPORT,INST PNL
M8X20 FLANGE 		8-97114-431-0 04 1 9604-9611 ● ● ● ●
7 16.085 BOLT; SUPPORT,INST PNL
M8X20 FLANGE 		8-97114-431-0 04 1 9612-9711 ● ● ● ● ●
7 16.085 BOLT; SUPPORT,INST PNL
M8X20 FLANGE 		8-97114-431-0 04 1 9712- ● ● ● ● ● ●
7 16.085 BOLT; SUPPORT,INST PNL
02.664 M8X20 FLANGE 		0-28680-820-0 02 1 9604-9611 ● ● ● ●
7 16.085 BOLT; SUPPORT,INST PNL
02.664 M8X20 FLANGE 		0-28680-820-0 02 1 9612-9711 ● ● ● ● ●
7 16.085 BOLT; SUPPORT,INST PNL
02.664 M8X20 FLANGE 		0-28680-820-0 02 1 9712- ● ● ● ● ● ●
11 16.090 BOLT; INST PNL
02.343 (A) M8X22 		8-94122-771-0 04 1 9312-9405 ● ● ● ● ●
11 16.090 BOLT; INST PNL
16.085 (A) M8X20 FLANGE 		8-97114-431-0 06 1 9406-9406 ● ● ● ● ●
11 16.090 BOLT; INST PNL
08.225 (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 9312-9510 ● ● ● ● ●
11 16.090 BOLT; INST PNL
08.225 (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 9511-9611 ● ● ● ●
11 16.090 BOLT; INST PNL
08.225 (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 9612-9711 ● ● ● ● ●
11 16.090 BOLT; INST PNL
08.225 (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 9712- ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
(A) 		8-97853-306-3 01 1 9312-9510 ● ● ● ● ●
16 16.085 BRACKET; INST PNL
(A) 		8-97853-306-3 01 1 9511-9611 ● ● ● ●
16 16.085 BRACKET; INST PNL
(A) 		8-97853-306-3 01 1 9612-9711 ● ● ● ● ●
16 16.085 BRACKET; INST PNL
(A) 		8-97853-306-7 01 1 9712- ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
(B) 		8-97856-132-0 01 1 9312-9510 ● ● ● ● ●
16 16.085 BRACKET; INST PNL
(B) 		8-97856-132-0 01 1 9511-9602 ● ● ● ●
16 16.085 BRACKET; INST PNL
(B) 		8-97856-132-0 01 1 9604-9611 ● ● ● ●
16 16.085 BRACKET; INST PNL
(B) 		8-97856-132-0 01 1 9612-9711 ● ● ● ● ●
16 16.085 BRACKET; INST PNL
(B) 		8-97856-132-0 01 1 9712- ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
(B) 		8-97856-131-0 01 1 9312-9510 ● ● ● ● ●
16 16.085 BRACKET; INST PNL
(B) 		8-97856-131-0 01 1 9511-9602 ● ● ● ●
16 16.085 BRACKET; INST PNL
(B) 		8-97856-131-0 01 1 9603-9611 ● ● ● ●
16 16.085 BRACKET; INST PNL
(B) 		8-97856-131-0 01 1 9612-9711 ● ● ● ● ●
16 16.085 BRACKET; INST PNL
(B) 		8-97856-131-0 01 1 9712- ● ● ● ● ● ●
33 16.081 LID; CHECK HOLE,CLU FLUID
THAILAND EQUIPMENT(PM9) DARK BEIGE 		8-97853-887-5 01 1 9604-9611 ● ●
33 16.081 LID; CHECK HOLE,CLU FLUID
THAILAND EQUIPMENT(PM9) DARK BEIGE 		8-97853-887-5 01 1 9612-9711 ● ● ●
33 16.081 LID; CHECK HOLE,CLU FLUID
THAILAND EQUIPMENT(PM9) DARK GRAY 		8-97859-824-5 01 1 9712- ● ● ●
34 16.085 LID; OIL TANK
DARK BEIGE 		8-97853-886-6 01 1 9312-9510 ● ● ● ● ●
34 16.085 LID; OIL TANK
DARK BEIGE 		8-97853-886-7 01 1 9511-9603 ● ● ● ●
34 16.085 LID; OIL TANK
EXC. THAILAND EQUIPMENT(PM9) DARK BEIGE 		8-97853-886-7 01 1 9604-9611 ● ● ● ●
34 16.085 LID; OIL TANK
EXC. THAILAND EQUIPMENT(PM9) DARK BEIGE 		8-97853-886-7 01 1 9612-9711 ● ● ● ● ●
34 16.085 LID; OIL TANK
EXC. THAILAND EQUIPMENT(PM9) DARK GRAY 		8-97859-800-7 01 1 9712- ● ● ● ● ● ●
40 09.264 DUCT; VENT,SIDE CLUSTER BEZEL
09.786 		8-97039-991-0 01 1 9405-9510 ● ● ● ● ●
40 09.264 DUCT; VENT,SIDE CLUSTER BEZEL
09.786 		8-97039-991-0 01 1 9511-9611 ● ● ● ●
40 09.264 DUCT; VENT,SIDE CLUSTER BEZEL
09.786 		8-97039-991-0 01 1 9612-9711 ● ● ● ● ●
40 09.264 DUCT; VENT,SIDE CLUSTER BEZEL
09.786 		8-97039-991-0 01 1 9712- ● ● ● ● ● ●
66 16.085 REINFORCEMENT; INST PANEL 8-97853-290-9 01 1 9312-9407 ● ● ● ● ●
66 16.085 REINFORCEMENT; INST PANEL 8-97859-285-3 01 1 9408-9510 ● ● ● ● ●
66 16.085 REINFORCEMENT; INST PANEL 8-97859-285-7 01 1 9511-9611 ● ● ● ●
66 16.085 REINFORCEMENT; INST PANEL 8-97859-285-7 01 1 9612-9711 ● ● ● ● ●
66 16.085 REINFORCEMENT; INST PANEL
EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97859-285-7 01 1 9712-9804 ● ● ● ● ●
66 16.085 REINFORCEMENT; INST PANEL 8-97859-285-9 01 1 9805-9808 ● ● ● ● ● ●
66 16.085 REINFORCEMENT; INST PANEL 8-97213-341-1 01 1 9809- ● ● ● ● ● ●
66 16.085 REINFORCEMENT; INST PANEL
HYDRO BRAKE BOOSTER<7QQ> 		8-97191-508-0 01 1 9712-9804 ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
DARK BEIGE 		8-97853-878-2 02 1 9312-9510 ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
DARK BEIGE 		8-97853-878-2 02 1 9511-9611 ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
DARK BEIGE 		8-97853-878-2 02 1 9612-9711 ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
DARK GRAY 		8-97890-631-0 02 1 9712- ● ● ● ● ● ●
109 16.081 GRILLE; INST PNL SIDE,UPR
DARK BEIGE 		8-97853-879-0 01 1 9312-9510 ● ● ● ● ●
109 16.081 GRILLE; INST PNL SIDE,UPR
DARK BEIGE 		8-97853-879-0 01 1 9511-9611 ● ● ● ●
109 16.081 GRILLE; INST PNL SIDE,UPR
DARK BEIGE 		8-97853-879-0 01 1 9612-9711 ● ● ● ● ●
109 16.081 GRILLE; INST PNL SIDE,UPR
DARK GRAY 		8-97859-795-0 01 1 9712- ● ● ● ● ● ●
133 16.081 SCREW; COVER,INST PNL
09.744 M5X20 TAPPING W/PL WASHER 		0-74110-520-0 02 1 9312-9510 ● ● ● ● ●
133 16.081 SCREW; COVER,INST PNL
09.744 M5X20 TAPPING W/PL WASHER 		0-74110-520-0 02 1 9511-9611 ● ● ● ●
133 16.081 SCREW; COVER,INST PNL
09.744 M5X20 TAPPING W/PL WASHER 		0-74110-520-0 02 1 9612-9711 ● ● ● ● ●
133 16.081 SCREW; COVER,INST PNL
09.744 M5X20 TAPPING W/PL WASHER 		0-74110-520-0 02 1 9712- ● ● ● ● ● ●
142 16.085 STAY; INST PANEL 8-97853-624-2 01 1 9312-9510 ● ● ● ● ●
142 16.085 STAY; INST PANEL 8-97853-624-2 01 1 9511-9611 ● ● ● ●
142 16.085 STAY; INST PANEL 8-97853-624-2 01 1 9612-9711 ● ● ● ● ●
142 16.085 STAY; INST PANEL 8-97853-624-2 01 1 9712- ● ● ● ● ● ●
145 16.085 STAY; INST PANEL SIDE 8-97853-625-2 01 1 9312-9510 ● ● ● ● ●
145 16.085 STAY; INST PANEL SIDE 8-97853-625-2 01 1 9511-9611 ● ● ● ●
145 16.085 STAY; INST PANEL SIDE 8-97853-625-2 01 1 9612-9711 ● ● ● ● ●
145 16.085 STAY; INST PANEL SIDE 8-97853-625-2 01 1 9712- ● ● ● ● ● ●
146 16.100 SCREW; TAP
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9712- ● ● ● ● ●
154 16.085 NUT
16.081 (A) M5 SPIRE NUT 		8-94279-051-0 01 1 9312-9510 ● ● ● ● ●
154 16.085 NUT
16.081 (A) M5 SPIRE NUT 		8-94279-051-0 01 1 9511-9603 ● ● ● ●
154 16.085 NUT
16.081 (A) M5 SPIRE NUT 		8-94279-051-0 01 1 9604-9612 ● ● ● ● ●
154 16.085 NUT
16.742 (A) M6 SPIRE NUT 		8-94291-960-0 01 1 9701-9711 ● ● ● ● ●
154 16.085 NUT
16.742 (A) M6 SPIRE NUT 		8-94291-960-0 01 1 9712- ● ● ● ● ● ●
154 16.085 NUT
16.742 (B) M6 SPIRE NUT 		8-94291-960-0 03 1 9312-9510 ● ● ● ● ●
154 16.085 NUT
16.742 (B) M6 SPIRE NUT 		8-94291-960-0 03 1 9511-9611 ● ● ● ●
154 16.085 NUT
16.742 (B) M6 SPIRE NUT 		8-94291-960-0 03 1 9612-9711 ● ● ● ● ●
154 16.085 NUT
16.742 (B) M6 SPIRE NUT 		8-94291-960-0 03 1 9712-9806 ● ● ● ● ● ●
154 16.085 NUT
M6 SPIRE NUT 		8-97210-973-1 03 1 9807- ● ● ● ● ● ●
167 16.085 BOLT; REINF TO INST
06.500 (A) M6X25 		8-94279-204-0 04 1 9312-9510 ● ● ● ● ●
167 16.085 BOLT; REINF TO INST
06.500 (A) M6X25 		8-94279-204-0 04 1 9511-9611 ● ● ● ●
167 16.085 BOLT; REINF TO INST
06.500 (A) M6X25 		8-94279-204-0 04 1 9612-9711 ● ● ● ● ●
167 16.085 BOLT; REINF TO INST
06.500 (A) M6X25 		8-94279-204-0 04 1 9712- ● ● ● ● ● ●
167 16.085 BOLT; REINF TO INST
(B) M6X24 FLANGE 		8-94279-231-1 02 1 9312-9510 ● ● ● ● ●
167 16.085 BOLT; REINF TO INST
(B) M6X24 FLANGE 		8-94279-231-1 02 1 9511-9611 ● ● ● ●
167 16.085 BOLT; REINF TO INST
(B) M6X24 FLANGE 		8-94279-231-1 02 1 9612-9711 ● ● ● ● ●
167 16.085 BOLT; REINF TO INST
(B) M6X24 FLANGE 		8-94279-231-1 02 1 9712- ● ● ● ● ● ●
179 16.085 BOLT; STAY,INST PANEL
16.350 M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 9312-9510 ● ● ● ● ●
179 16.085 BOLT; STAY,INST PANEL
16.350 M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 9511-9611 ● ● ● ●
179 16.085 BOLT; STAY,INST PANEL
16.350 M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 9612-9711 ● ● ● ● ●
179 16.085 BOLT; STAY,INST PANEL
16.350 M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 9712- ● ● ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
02.343 (A) M8X22 		8-94122-771-0 02 1 9312-9405 ● ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
03.483 (B) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 9312-9510 ● ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
03.483 (B) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 9511-9604 ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.550 (B) M8X16 W/LK&PL WASHER 		8-94310-730-0 02 1 9604-9611 ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.550 (B) M8X16 W/LK&PL WASHER 		8-94310-730-0 02 1 9612-9711 ● ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.550 (B) M8X16 W/LK&PL WASHER 		8-94310-730-0 02 1 9712- ● ● ● ● ● ●
211 16.120 NUT; BRKT TO INST
04.594 M6 FLANGE 		0-91150-106-0 02 1 9312-9510 ● ● ● ● ●
211 16.120 NUT; BRKT TO INST
04.594 M6 FLANGE 		0-91150-106-0 02 1 9511-9611 ● ● ● ●
211 16.120 NUT; BRKT TO INST
04.594 M6 FLANGE 		0-91150-106-0 02 1 9612-9711 ● ● ● ● ●
211 16.120 NUT; BRKT TO INST
04.594 M6 FLANGE 		0-91150-106-0 02 1 9712- ● ● ● ● ● ●
235 16.081 SCREW; GRILLE
16.067 M5X14 		8-94279-325-0 04 1 9312-9510 ● ● ● ● ●
235 16.081 SCREW; GRILLE
16.067 M5X14 		8-94279-325-0 04 1 9511-9603 ● ● ● ●
235 16.081 SCREW; GRILLE
16.067 M5X14 		8-94279-325-0 04 1 9604-9611 ● ● ● ●
235 16.081 SCREW; GRILLE
16.067 M5X14 		8-94279-325-0 04 1 9612-9711 ● ● ● ● ●
235 16.081 SCREW; GRILLE
16.067 M5X14 		8-94279-325-0 04 1 9712- ● ● ● ● ● ●
274 16.100 NUT; GLOVE BOX
16.081 M5 SPIRE NUT 		8-94279-051-0 02 1 9312-9510 ● ● ● ● ●
274 16.100 NUT; GLOVE BOX
16.081 M5 SPIRE NUT 		8-94279-051-0 02 1 9511-9603 ● ● ● ●
274 16.100 NUT; GLOVE BOX
16.081 M5 SPIRE NUT 		8-94279-051-0 02 1 9604-9611 ● ● ● ●
274 16.100 NUT; GLOVE BOX
16.081 M5 SPIRE NUT 		8-94279-051-0 02 1 9612-9711 ● ● ● ● ●
274 16.100 NUT; GLOVE BOX
16.081 M5 SPIRE NUT 		8-94279-051-0 02 1 9712- ● ● ● ● ● ●
335 16.115 GROMMET; GLOVE BOX LK
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9312-9510 ● ● ● ● ●
335 16.115 GROMMET; GLOVE BOX LK
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9511-9611 ● ● ● ●
335 16.115 GROMMET; GLOVE BOX LK
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9612-9711 ● ● ● ● ●
335 16.115 GROMMET; GLOVE BOX LK
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9712- ● ● ● ● ● ●
336 16.081 COVER; INST PANEL SIDE
DARK BEIGE 		8-97853-885-4 02 1 9312-9510 ● ● ● ● ●
336 16.081 COVER; INST PANEL SIDE
DARK BEIGE 		8-97853-885-4 02 1 9511-9611 ● ● ● ●
336 16.081 COVER; INST PANEL SIDE
DARK BEIGE 		8-97853-885-4 02 1 9612-9711 ● ● ● ● ●
336 16.081 COVER; INST PANEL SIDE
DARK GRAY 		8-97857-528-4 02 1 9712- ● ● ● ● ● ●
378 09.743 SEAL; INST PANEL 8-97853-938-0 01 1 9312-9510 ● ● ● ● ●
378 09.743 SEAL; INST PANEL 8-97853-938-0 01 1 9511-9603 ● ● ● ●
378 09.743 SEAL; INST PANEL 8-97853-938-0 01 1 9604-9611 ● ● ● ●
378 09.743 SEAL; INST PANEL 8-97853-938-0 01 1 9612-9711 ● ● ● ● ●
378 09.743 SEAL; INST PANEL 8-97853-938-0 01 1 9712- ● ● ● ● ● ●
495 09.743 BEZEL; SW
IDENTIFICATION LABEL FOR KD<6UT> EXC. ASH TRAY DRIVER SIDE<7KU> DARK BEIGE 		8-97859-977-4 01 1 9412-9510 ● ●
495 09.743 BEZEL; SW
EXC. ASH TRAY DRIVER SIDE<7KU> DARK BEIGE 		8-97859-977-4 01 1 9511-9611 ● ● ● ●
495 09.743 BEZEL; SW
EXC. ASH TRAY DRIVER SIDE<7KU> DARK BEIGE 		8-97859-977-4 01 1 9612-9711 ● ● ● ● ●
495 09.743 BEZEL; SW
EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY 		8-97857-548-4 01 1 9712- ● ● ● ● ● ●
513 16.120 BRACKET; RELAY
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97859-391-2 01 1 9712- ● ● ● ● ●
520 16.085 SCREW; CLIP,SPRING
16.067 M5X14 		8-94279-325-0 03 1 9312-9406 ● ● ● ● ●
520 16.085 SCREW; CLIP,SPRING
16.067 M5X14 		8-94279-325-0 02 1 9407-9510 ● ● ● ● ●
520 16.085 SCREW; CLIP,SPRING
16.067 M5X14 		8-94279-325-0 02 1 9511-9603 ● ● ● ●
520 16.085 SCREW; CLIP,SPRING
16.067 M5X14 		8-94279-325-0 02 1 9604-9611 ● ● ● ●
520 16.085 SCREW; CLIP,SPRING
16.067 M5X14 		8-94279-325-0 02 1 9612-9711 ● ● ● ● ●
520 16.085 SCREW; CLIP,SPRING
16.067 M5X14 		8-94279-325-0 02 1 9712- ● ● ● ● ● ●
521 16.081 COVER; SUN SENSOR
DARK BEIGE 		8-97853-890-2 01 1 9312-9510 ● ● ● ● ●
521 16.081 COVER; SUN SENSOR
DARK BEIGE 		8-97853-890-2 01 1 9511-9611 ● ● ● ●
521 16.081 COVER; SUN SENSOR
DARK BEIGE 		8-97853-890-2 01 1 9612-9711 ● ● ● ● ●
521 16.081 COVER; SUN SENSOR
DARK GRAY 		8-97857-529-2 01 1 9712- ● ● ● ● ● ●
522 16.085 LID; RELAY BOX
DARK BEIGE 		8-97853-876-2 01 1 9312-9410 ● ● ● ● ●
522 16.085 LID; RELAY BOX
DARK BEIGE 		8-97853-876-4 01 1 9507-9510 ● ● ● ● ●
522 16.085 LID; RELAY BOX
DARK BEIGE 		8-97853-876-4 01 1 9511-9603 ● ● ● ●
522 16.085 LID; RELAY BOX
DARK BEIGE 		8-97853-876-4 01 1 9604-9611 ● ● ● ●
522 16.085 LID; RELAY BOX
DARK BEIGE 		8-97853-876-4 01 1 9612-9711 ● ● ● ● ●
522 16.085 LID; RELAY BOX
DARK GRAY 		8-97857-520-5 01 1 9712- ● ● ● ● ● ●
530 16.100 CLIP; GLOVE BOX 8-97856-135-0 01 1 9312-9510 ● ● ● ● ●
530 16.100 CLIP; GLOVE BOX 8-97856-135-0 01 1 9511-9611 ● ● ● ●
530 16.100 CLIP; GLOVE BOX 8-97856-135-0 01 1 9612-9711 ● ● ● ● ●
530 16.100 CLIP; GLOVE BOX 8-97856-135-0 01 1 9712- ● ● ● ● ● ●
531 16.100 CASE; ASH TRAY
(B) 		8-97853-130-0 01 1 9312-9411 ● ● ● ● ●
531 16.100 CASE; ASH TRAY
ASH TRAY DRIVER SIDE<7KU> (B) 		8-97853-130-0 01 1 9412-9510 ● ● ● ● ●
531 16.100 CASE; ASH TRAY
ASH TRAY DRIVER SIDE<7KU> (B) 		8-97853-130-0 01 1 9511-9611 ● ● ● ●
531 16.100 CASE; ASH TRAY
ASH TRAY DRIVER SIDE<7KU> (B) 		8-97853-130-0 01 1 9612-9711 ● ● ● ● ●
531 16.100 CASE; ASH TRAY
ASH TRAY DRIVER SIDE<7KU> (B) 		8-97853-130-0 01 1 9712- ● ● ● ● ● ●
531 16.100 CASE; ASH TRAY
(A) DARK BEIGE 		8-97853-892-2 01 1 9312-9411 ● ● ● ● ●
531 16.100 CASE; ASH TRAY
ASH TRAY DRIVER SIDE<7KU> (A) DARK BEIGE 		8-97853-892-2 01 1 9412-9510 ● ● ● ● ●
532 16.100 SCREW; ASH TRAY
16.067 M5X14 		8-94279-325-0 02 1 9312-9411 ● ● ● ● ●
532 16.100 SCREW; ASH TRAY
ASH TRAY DRIVER SIDE<7KU> 16.067 M5X14 		8-94279-325-0 02 1 9412-9510 ● ● ● ● ●
532 16.100 SCREW; ASH TRAY
ASH TRAY DRIVER SIDE<7KU> 16.067 M5X14 		8-94279-325-0 02 1 9511-9611 ● ● ● ●
532 16.100 SCREW; ASH TRAY
ASH TRAY DRIVER SIDE<7KU> 16.067 M5X14 		8-94279-325-0 02 1 9612-9711 ● ● ● ● ●
532 16.100 SCREW; ASH TRAY
ASH TRAY DRIVER SIDE<7KU> 16.067 M5X14 		8-94279-325-0 02 1 9712- ● ● ● ● ● ●
533 16.100 CLIP; SPRING,CTR CLUSTER 8-97853-170-2 03 1 9312-9406 ● ● ● ● ●
533 16.100 CLIP; SPRING,CTR CLUSTER 8-97853-170-4 02 1 9407-9510 ● ● ● ● ●
533 16.100 CLIP; SPRING,CTR CLUSTER 8-97853-170-4 02 1 9511-9611 ● ● ● ●
533 16.100 CLIP; SPRING,CTR CLUSTER 8-97853-170-4 02 1 9612-9711 ● ● ● ● ●
533 16.100 CLIP; SPRING,CTR CLUSTER 8-97853-170-5 02 1 9712- ● ● ● ● ● ●
534 16.100 CLIP; BRKT 8-97856-276-0 04 1 9312-9510 ● ● ● ● ●
534 16.100 CLIP; BRKT 8-97856-276-0 04 1 9511-9611 ● ● ● ●
534 16.100 CLIP; BRKT 8-97856-276-0 04 1 9612-9711 ● ● ● ● ●
534 16.100 CLIP; BRKT 8-97856-276-0 04 1 9712- ● ● ● ● ● ●
566 16.085 PLUG; HOLE
IDENTIFICATION LABEL FOR KD<6UT> EXC. ASH TRAY DRIVER SIDE<7KU> 		8-97859-978-0 01 1 9412-9507 ● ●
566 16.085 PLUG; HOLE
IDENTIFICATION LABEL FOR KD<6UT> EXC. ASH TRAY DRIVER SIDE<7KU> DARK BEIGE 		8-97863-839-0 01 1 9508-9510 ● ●
566 16.085 PLUG; HOLE
EXC. ASH TRAY DRIVER SIDE<7KU> DARK BEIGE 		8-97863-839-0 01 1 9511-9611 ● ● ● ●
566 16.085 PLUG; HOLE
EXC. ASH TRAY DRIVER SIDE<7KU> DARK BEIGE 		8-97863-839-0 01 1 9612-9711 ● ● ● ● ●
566 16.085 PLUG; HOLE
EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY 		8-97868-413-0 01 1 9712- ● ● ● ● ● ●
581 09.744 SCREW
16.067 M5X14 		8-94279-325-0 03 1 9405-9510 ● ● ● ● ●
581 09.744 SCREW
16.067 M5X14 		8-94279-325-0 03 1 9511-9611 ● ● ● ●
581 09.744 SCREW
16.067 M5X14 		8-94279-325-0 03 1 9612-9711 ● ● ● ● ●
581 09.744 SCREW
16.067 M5X14 		8-94279-325-0 03 1 9712- ● ● ● ● ● ●
598 09.262 GROMMET; SCREW
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 01 1 9712- ● ● ● ● ●

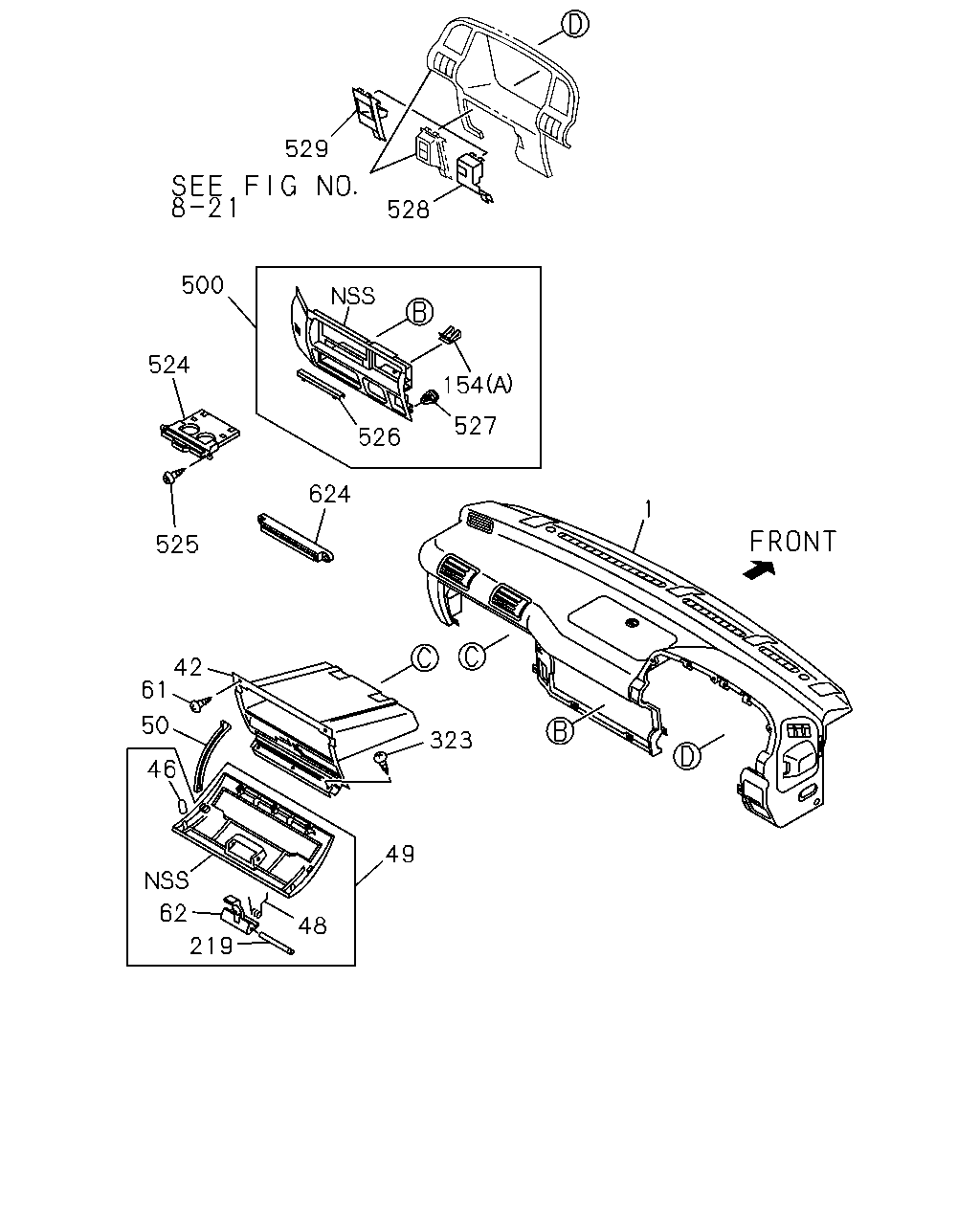

çizim 68176
529 528 500 524 154 527 526 624 1 525 42 61 50 323 46 49 62 48 219
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 16.080 PANEL; INST
DARK BEIGE 		8-97856-667-0 01 1 9312-9411 ● ● ● ● ●
1 16.080 PANEL; INST
ASH TRAY DRIVER SIDE<7KU> DARK BEIGE 		8-97856-667-2 01 1 9412-9510 ● ● ● ● ●
1 16.080 PANEL; INST
DARK BEIGE 		8-97855-245-2 01 1 9511-9602 ● ● ● ●
1 16.080 PANEL; INST
DARK BEIGE 		8-97855-245-4 01 1 9603-9611 ● ● ● ●
1 16.080 PANEL; INST
DARK BEIGE 		8-97855-245-4 01 1 9612-9711 ● ● ● ● ●
1 16.080 PANEL; INST
DARK GRAY 		8-97195-959-0 01 1 9712- ● ● ● ● ● ●
1 16.080 PANEL; INST
IDENTIFICATION LABEL FOR KD<6UT> EXC. ASH TRAY DRIVER SIDE<7KU> DARK BEIGE 		8-97855-240-4 01 1 9412-9510 ● ●
42 16.100 BOX; GLOVE,INST PNL 8-97853-281-3 01 1 9312-9510 ● ● ● ● ●
42 16.100 BOX; GLOVE,INST PNL 8-97853-281-3 01 1 9511-9611 ● ● ● ●
42 16.100 BOX; GLOVE,INST PNL 8-97853-281-3 01 1 9612-9711 ● ● ● ● ●
42 16.100 BOX; GLOVE,INST PNL 8-97853-281-4 01 1 9712- ● ● ● ● ● ●
46 16.110 CAP; GLOVE BOX STOPPER 8-94270-538-0 02 1 9312-9510 ● ● ● ● ●
46 16.110 CAP; GLOVE BOX STOPPER 8-94270-538-0 02 1 9511-9611 ● ● ● ●
46 16.110 CAP; GLOVE BOX STOPPER 8-94270-538-0 02 1 9612-9711 ● ● ● ● ●
46 16.110 CAP; GLOVE BOX STOPPER 8-94270-538-0 02 1 9712- ● ● ● ● ● ●
48 16.110 SPRING; GLOVE BOX LID 8-97853-750-1 01 1 9312-9510 ● ● ● ● ●
48 16.110 SPRING; GLOVE BOX LID 8-97853-750-1 01 1 9511-9611 ● ● ● ●
48 16.110 SPRING; GLOVE BOX LID 8-97853-750-1 01 1 9612-9711 ● ● ● ● ●
48 16.110 SPRING; GLOVE BOX LID 8-97853-750-1 01 1 9712- ● ● ● ● ● ●
49 16.110 LID; GLOVE BOX
DARK BEIGE 		8-97856-166-2 01 1 9312-9510 ● ● ● ● ●
49 16.110 LID; GLOVE BOX
DARK BEIGE 		8-97856-166-2 01 1 9511-9611 ● ● ● ●
49 16.110 LID; GLOVE BOX
DARK BEIGE 		8-97856-166-2 01 1 9612-9711 ● ● ● ● ●
49 16.110 LID; GLOVE BOX
DARK GRAY 		8-97857-496-2 01 1 9712- ● ● ● ● ● ●
50 16.110 STOPPER; LID,GLOVE BOX,INST CLUS 8-97853-152-0 02 1 9312-9510 ● ● ● ● ●
50 16.110 STOPPER; LID,GLOVE BOX,INST CLUS 8-97853-152-0 02 1 9511-9611 ● ● ● ●
50 16.110 STOPPER; LID,GLOVE BOX,INST CLUS 8-97853-152-0 02 1 9612-9711 ● ● ● ● ●
50 16.110 STOPPER; LID,GLOVE BOX,INST CLUS 8-97853-152-0 02 1 9712- ● ● ● ● ● ●
61 16.100 SCREW; GLOVE BOX
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 9312-9510 ● ● ● ● ●
61 16.100 SCREW; GLOVE BOX
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 9511-9611 ● ● ● ●
61 16.100 SCREW; GLOVE BOX
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 9612-9711 ● ● ● ● ●
61 16.100 SCREW; GLOVE BOX
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 9712- ● ● ● ● ● ●
62 16.110 KNOB; GLOVE BOX LID
DARK BEIGE 		8-97853-861-1 01 1 9312-9510 ● ● ● ● ●
62 16.110 KNOB; GLOVE BOX LID
DARK BEIGE 		8-97853-861-1 01 1 9511-9611 ● ● ● ●
62 16.110 KNOB; GLOVE BOX LID
DARK BEIGE 		8-97853-861-1 01 1 9612-9711 ● ● ● ● ●
62 16.110 KNOB; GLOVE BOX LID
DARK GRAY 		8-97857-498-1 01 1 9712- ● ● ● ● ● ●
154 16.085 NUT
16.081 (A) M5 SPIRE NUT 		8-94279-051-0 01 1 9312-9510 ● ● ● ● ●
154 16.085 NUT
16.081 (A) M5 SPIRE NUT 		8-94279-051-0 01 1 9511-9603 ● ● ● ●
154 16.085 NUT
16.081 (A) M5 SPIRE NUT 		8-94279-051-0 01 1 9604-9612 ● ● ● ● ●
154 16.085 NUT
16.742 (A) M6 SPIRE NUT 		8-94291-960-0 01 1 9701-9711 ● ● ● ● ●
154 16.085 NUT
16.742 (A) M6 SPIRE NUT 		8-94291-960-0 01 1 9712- ● ● ● ● ● ●
154 16.085 NUT
16.742 (B) M6 SPIRE NUT 		8-94291-960-0 03 1 9312-9510 ● ● ● ● ●
154 16.085 NUT
16.742 (B) M6 SPIRE NUT 		8-94291-960-0 03 1 9511-9611 ● ● ● ●
154 16.085 NUT
16.742 (B) M6 SPIRE NUT 		8-94291-960-0 03 1 9612-9711 ● ● ● ● ●
154 16.085 NUT
16.742 (B) M6 SPIRE NUT 		8-94291-960-0 03 1 9712-9806 ● ● ● ● ● ●
154 16.085 NUT
M6 SPIRE NUT 		8-97210-973-1 03 1 9807- ● ● ● ● ● ●
219 09.744 SHAFT; GLOVE BOX LID 5-72547-059-1 01 1 9312-9510 ● ● ● ● ●
219 09.744 SHAFT; GLOVE BOX LID 5-72547-059-1 01 1 9511-9611 ● ● ● ●
219 09.744 SHAFT; GLOVE BOX LID 5-72547-059-1 01 1 9612-9711 ● ● ● ● ●
219 09.744 SHAFT; GLOVE BOX LID 5-72547-059-1 01 1 9712- ● ● ● ● ● ●
323 16.110 SCREW; GLOVE BOX LK
16.067 M5X14 		8-94279-325-0 03 1 9312-9510 ● ● ● ● ●
323 16.110 SCREW; GLOVE BOX LK
16.067 M5X14 		8-94279-325-0 03 1 9511-9611 ● ● ● ●
323 16.110 SCREW; GLOVE BOX LK
16.067 M5X14 		8-94279-325-0 03 1 9612-9711 ● ● ● ● ●
323 16.110 SCREW; GLOVE BOX LK
16.067 M5X14 		8-94279-325-0 03 1 9712- ● ● ● ● ● ●
500 16.081 CLUSTER; INST CENTER
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) DARK BEIGE 		8-97856-162-8 01 1 9312-9510 ● ● ● ● ●
500 16.081 CLUSTER; INST CENTER
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) DARK BEIGE 		8-97856-162-9 01 1 9511-9611 ● ● ● ●
500 16.081 CLUSTER; INST CENTER
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) DARK BEIGE 		8-97856-162-9 01 1 9612-9711 ● ● ● ● ●
500 16.081 CLUSTER; INST CENTER
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) DARK GRAY 		8-97859-815-9 01 1 9712- ● ● ● ● ● ●
500 16.081 CLUSTER; INST CENTER
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKE RS(6VL) DARK BEIGE 		8-97856-161-8 01 1 9312-9510 ● ● ● ● ●
500 16.081 CLUSTER; INST CENTER
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKE RS(6VL) DARK BEIGE 		8-97856-161-9 01 1 9511-9611 ● ● ● ●
500 16.081 CLUSTER; INST CENTER
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKE RS(6VL) DARK BEIGE 		8-97856-161-9 01 1 9612-9711 ● ● ● ● ●
500 16.081 CLUSTER; INST CENTER
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKE RS(6VL) DARK GRAY 		8-97859-814-9 01 1 9712- ● ● ● ● ● ●
524 16.100 STAND ASM; CUP,INST 8-97853-172-5 01 1 9312-9510 ● ● ● ● ●
524 16.100 STAND ASM; CUP,INST
CUP HOLDER<7KZ> 		8-97853-172-5 01 1 9511-9611 ● ● ● ●
524 16.100 STAND ASM; CUP,INST
CUP HOLDER<7KZ> 		8-97853-172-5 01 1 9612-9711 ● ● ● ● ●
524 16.100 STAND ASM; CUP,INST
CUP HOLDER<7KZ> 		8-97853-172-7 01 1 9712- ● ● ● ● ● ●
525 16.100 SCREW; CUP STAND
16.067 M5X14 		8-94279-325-0 02 1 9312-9510 ● ● ● ● ●
525 16.100 SCREW; CUP STAND
16.067 M5X14 		8-94279-325-0 02 1 9511-9611 ● ● ● ●
525 16.100 SCREW; CUP STAND
16.067 M5X14 		8-94279-325-0 02 1 9612-9711 ● ● ● ● ●
525 16.100 SCREW; CUP STAND
16.067 M5X14 		8-94279-325-0 02 1 9712- ● ● ● ● ● ●
526 16.100 GUIDE; POCKET,INST CLUSTER
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKE RS(6VL) DARK BEIGE 		8-97853-896-1 01 1 9312-9510 ● ● ● ● ●
526 16.100 GUIDE; POCKET,INST CLUSTER
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKE RS(6VL) DARK BEIGE 		8-97853-896-1 01 1 9511-9611 ● ● ● ●
526 16.100 GUIDE; POCKET,INST CLUSTER
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKE RS(6VL) DARK BEIGE 		8-97853-896-1 01 1 9612-9711 ● ● ● ● ●
526 16.100 GUIDE; POCKET,INST CLUSTER
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKE RS(6VL) DARK GRAY 		8-97857-503-1 01 1 9712- ● ● ● ● ● ●
527 16.100 CLIP; INST CLUSTER 8-97853-169-0 04 1 9312-9510 ● ● ● ● ●
527 16.100 CLIP; INST CLUSTER 8-97853-169-0 04 1 9511-9611 ● ● ● ●
527 16.100 CLIP; INST CLUSTER 8-97853-169-0 04 1 9612-9711 ● ● ● ● ●
527 16.100 CLIP; INST CLUSTER 8-97853-169-0 04 1 9712- ● ● ● ● ● ●
528 16.081 COVER; PTO LEVER
PTO TRANSMISSION SIDE(V66) DARK BEIGE 		8-97856-095-4 01 1 9312-9406 ● ● ● ● ●
528 16.081 COVER; PTO LEVER
PTO TRANSMISSION SIDE(V66) EXC. ADJUST HEADLAMP<6RC> DARK BEIGE 		8-97856-095-4 01 1 9407-9510 ● ● ● ● ●
528 16.081 COVER; PTO LEVER
PTO TRANSMISSION SIDE(V66) EXC. ADJUST HEADLAMP<6RC> DARK BEIGE 		8-97856-095-4 01 1 9511-9611 ● ● ● ●
528 16.081 COVER; PTO LEVER
PTO TRANSMISSION SIDE(V66) EXC. ADJUST HEADLAMP<6RC> DARK BEIGE 		8-97856-095-4 01 1 9612-9711 ● ● ● ● ●
528 16.081 COVER; PTO LEVER
PTO TRANSMISSION SIDE(V66) EXC. ADJUST HEADLAMP<6RC> BLACK 		8-97867-544-5 01 1 9712- ● ● ● ● ● ●
529 16.100 POCKET; COIN
EXC. PTO TRANSMISSION SIDE(V66) 		8-97856-091-4 01 1 9312-9403 ● ● ● ● ●
529 16.100 POCKET; COIN
EXC. PTO TRANSMISSION SIDE(V66), ADJUST HEADLAMP<6RC> DARK BEIGE 		8-97856-091-4 01 1 9404-9406 ● ● ● ● ● ● ●
529 16.100 POCKET; COIN
EXC. PTO TRANSMISSION SIDE(V66), ADJUST HEADLAMP<6RC> DARK BEIGE 		8-97856-091-4 01 1 9407-9510 ● ● ● ● ●
529 16.100 POCKET; COIN
EXC. PTO TRANSMISSION SIDE(V66), ADJUST HEADLAMP<6RC> DARK BEIGE 		8-97856-091-4 01 1 9511-9611 ● ● ● ●
529 16.100 POCKET; COIN
EXC. PTO TRANSMISSION SIDE(V66), ADJUST HEADLAMP<6RC> DARK BEIGE 		8-97856-091-4 01 1 9612-9711 ● ● ● ● ●
529 16.100 POCKET; COIN
EXC. PTO TRANSMISSION SIDE(V66), ADJUST HEADLAMP<6RC> BLACK 		8-97867-543-5 01 1 9712- ● ● ● ● ● ●
624 16.085 COVER; CUP STAND
EXC. CUP HOLDER<7KZ> 		1-72438-139-0 01 1 9511-9611 ● ● ● ●
624 16.085 COVER; CUP STAND
EXC. CUP HOLDER<7KZ> 		1-72438-139-0 01 1 9612-9711 ● ● ● ● ●
624 16.085 COVER; CUP STAND
EXC. CUP HOLDER<7KZ> 		1-72438-139-0 01 1 9712- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
