◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50696 - NPR/NQR-RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#48885) — 164 parça
çizim 20478
130 201 7 7 135 7
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
7 03.680 LABEL; EMISSION
4HF1 ENG(RLS) SINGAPORE EQUIPMENT(S9Y) (A) 		8-94391-418-0 01 1 9703- ● ● ● ●
7 03.680 LABEL; EMISSION
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. HONG KONG EQUIPMENT(PQ1) (D) 		8-97203-477-2 01 1 9802- ● ● ● ● ●
7 03.680 LABEL; EMISSION
4BD2 ENG(RLW) (A) 135X70 		8-97081-082-0 01 1 9312-9312 ●
7 03.680 LABEL; EMISSION
4BD2 ENG(RLW) (C) 		8-97110-094-0 01 1 9401-9506 ●
7 03.680 LABEL; EMISSION
4BD2 ENG(RLW) (C) 		8-97110-094-0 01 1 9507-9807 ● ●
7 03.680 LABEL; EMISSION
4BD2 ENG(RLW) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) (C) 		8-97110-094-0 01 1 9808- ● ● ●
7 03.680 LABEL; EMISSION
4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> (B) 		8-97170-219-0 01 1 9610- ●
7 03.680 LABEL; EMISSION
4BD1 ENG(LJ6) (A) 		8-97100-864-1 01 1 9312-9510 ●
130 08.808 PLATE; CAUTION,GUARD FRAME
BODY COLOR ARC WHITE(729),BODY COLORADRIATIC BLUE(730),BODY COLOR MARIN E BLUE(890) RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94192-480-0 02 1 9712- ● ●
135 08.808 PLATE; CAUTION,ENGINE
4HF1 ENG(RLS) HEATER & DEFROSTER(C41) (A) 		8-97109-187-0 01 1 9312-9510 ● ● ● ● ●
135 08.808 PLATE; CAUTION,ENGINE
4JG2 ENG(RJC) HEATER & DEFROSTER(C41) EUROPEAN BASIC EQUIPMENT(EK4) FAN FLUID DRIVE<KA3> POWER STEERING<N40> (B) 		8-97109-154-0 01 1 9312-9506 ● ●
135 08.808 PLATE; CAUTION,ENGINE
4JG2 ENG(RJC) HEATER & DEFROSTER(C41) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) FAN FLUID DRIVE<KA3> POWER STEERING<N40> (B) 		8-97109-154-0 01 1 9507-9601 ●
135 08.808 PLATE; CAUTION,ENGINE
4JG2 ENG(RJC) HEATER & DEFROSTER(C41) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) FAN FLUID DRIVE<KA3> POWER STEERING<N40> EXC. EURO2 SPECIFICATION<7AF> (B) 		8-97109-154-0 01 1 9602-9711 ●
201 08.808 PLATE; CAUTION,BLEED BOLT
4HE1 ENG(RLY) 		8-97192-288-0 01 1 9801- ● ● ● ● ●
çizim 66699
35 35 112 116 2 96 85 5 5
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
2 03.680 LABEL; FUEL CAUTION
4JG2 ENG(RJC) 		8-94246-254-0 01 1 9312-9410 ● ●
5 05.880 LABEL; TIRE AIR PRESSURE
(AUH),(AUJ),(AUS),(AVK) CAUTION SPANISH<YN1> (A) 		8-97188-835-0 01 1 9712- ● ● ● ●
5 05.880 LABEL; TIRE AIR PRESSURE
(AUH),(AUJ),(AUS),(AVK) EXC. CAUTION SPANISH<YN1> (B) 		8-97188-834-0 01 1 9712- ● ● ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> CAUTION SPANISH<YN1> (B) 		5-85881-331-1 01 1 9312-9711 ● ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> CAUTION SPANISH<YN1> (B) 		5-85881-331-1 01 1 9712-9801 ● ● ● ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> CAUTION SPANISH<YN1> (A) 		8-97857-419-0 01 1 9312-9611 ● ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> CAUTION SPANISH<YN1> (A) 		8-97857-419-0 01 1 9612-9711 ● ● ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> CAUTION SPANISH<YN1> (A) 		8-97857-419-0 01 1 9712- ● ● ● ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> (B) 		5-85881-328-1 01 1 9312-9611 ● ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> (B) 		5-85881-328-1 01 1 9612-9711 ● ● ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> (B) 		5-85881-328-1 01 1 9712- ● ● ● ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> (A) 		8-97856-228-0 01 1 9312-9611 ● ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> (A) 		8-97856-228-0 01 1 9612-9711 ● ● ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> (A) 		8-97856-228-0 01 1 9712- ● ● ● ● ●
85 08.808 PLATE; NAME,HEAD COVER
4BD1 ENG(LJ6) 		8-94365-034-0 01 1 9312-9510 ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JG2 ENG(RJC) HEATER & DEFROSTER(C41) EUROPEAN BASIC EQUIPMENT(EK4) FAN FLUID DRIVE<KA3> POWER STEERING<N40> 		8-97092-930-0 01 1 9312-9506 ● ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JG2 ENG(RJC) HEATER & DEFROSTER(C41) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) FAN FLUID DRIVE<KA3> POWER STEERING<N40> 		8-97092-930-0 01 1 9507-9601 ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JG2 ENG(RJC) 		8-97092-930-0 01 1 9602-9711 ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> 		8-97092-930-0 01 1 9712- ●
112 08.808 PLATE; CAUTION,T/M
4HF1 ENG(RLS) M/T MXA5R(RMT) (A) 		8-97037-377-0 01 1 9312-9406 ● ● ●
112 08.808 PLATE; CAUTION,T/M
4BD2 ENG(RLW) M/T MXA5D(RMF) TURBOCHARGER(K51) (A) 		8-97117-724-0 01 1 9511-9711 ● ●
112 08.808 PLATE; CAUTION,T/M
A/T 4 SPEED-JATCO(RMK) (B) 		8-97173-353-0 01 1 9712- ●
116 08.808 LABEL; CAUTION,SEDIMENTER
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-94153-282-1 01 1 9312-9510 ● ● ● ● ●
116 08.808 LABEL; CAUTION,SEDIMENTER
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-94153-282-1 01 1 9511-9611 ● ● ● ●
116 08.808 LABEL; CAUTION,SEDIMENTER
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-94153-282-1 01 1 9612-9711 ● ● ● ● ●

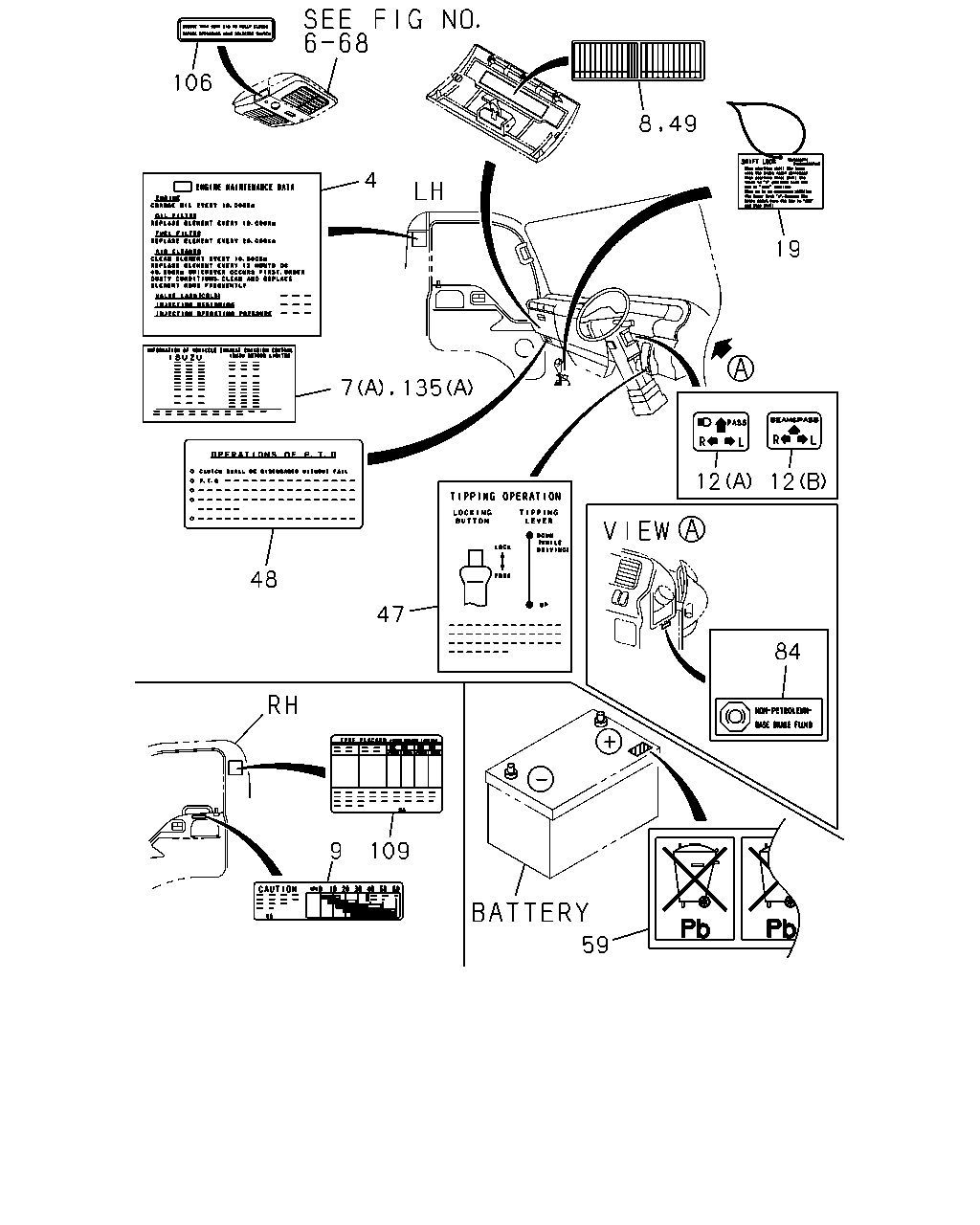

çizim 66904
106 8 49 4 19 135 7 12 12 48 47 84 9 109 59
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
4 00.004 LABEL; ENG MAINTENANCE
4HF1 ENG(RLS) CAUTION SPANISH<YN1> 		8-97093-308-0 01 1 9312-9510 ● ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HF1 ENG(RLS) CAUTION SPANISH<YN1> 		8-97133-030-0 01 1 9511-9611 ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HF1 ENG(RLS) CAUTION SPANISH<YN1> 		8-97133-030-0 01 1 9612-9711 ● ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HF1 ENG(RLS) CAUTION SPANISH<YN1> 		8-97133-030-0 01 1 9712-9803 ● ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HF1 ENG(RLS) CAUTION SPANISH<YN1> 		8-97189-399-0 01 1 9804- ● ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HF1 ENG(RLS) EXC. CAUTION SPANISH<YN1> 		8-97093-307-0 01 1 9312-9510 ● ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HF1 ENG(RLS) EXC. CAUTION SPANISH<YN1> 		8-97133-029-0 01 1 9511-9611 ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HF1 ENG(RLS) EXC. CAUTION SPANISH<YN1> 		8-97133-029-0 01 1 9612-9711 ● ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HF1 ENG(RLS) EXC. CAUTION SPANISH<YN1> 		8-97133-029-0 01 1 9712-9803 ● ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HF1 ENG(RLS) EXC. CAUTION SPANISH<YN1> 		8-97189-398-0 01 1 9804- ● ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JG2 ENG(RJC) EUROPEAN BASIC EQUIPMENT(EK4) 		8-97102-129-0 01 1 9312-9506 ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JG2 ENG(RJC) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 		8-97102-129-0 01 1 9507-9602 ●
4 00.004 LABEL; ENG MAINTENANCE
4JG2 ENG(RJC) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) EXC. EURO2 SPECIFICATION<7AF> 		8-97102-129-0 01 1 9603-9711 ●
4 00.004 LABEL; ENG MAINTENANCE
4HE1 ENG(RLY) CAUTION SPANISH<YN1> CHARGE AIR COOLER<6PL> 		8-97189-406-0 01 1 9712- ● ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4BE1 ENG(RLH) CAUTION SPANISH<YN1> 		8-97095-113-0 01 1 9312-9711 ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4BE1 ENG(RLH) CAUTION SPANISH<YN1> 		8-97095-113-0 01 1 9712-9712 ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4BE1 ENG(RLH) CAUTION SPANISH<YN1> 		8-97189-408-0 01 1 9801- ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4BE1 ENG(RLH) EXC. CAUTION SPANISH<YN1> 		8-97095-112-0 01 1 9312-9711 ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4BE1 ENG(RLH) EXC. CAUTION SPANISH<YN1> 		8-97095-112-0 01 1 9712-9712 ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4BE1 ENG(RLH) EXC. CAUTION SPANISH<YN1> 		8-97189-407-0 01 1 9801- ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HE1 ENG(RLY) CAUTION SPANISH<YN1> EXC. CHARGE AIR COOLER<6PL> 		8-97189-404-0 01 1 9712- ● ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HE1 ENG(RLY) EXC. CAUTION SPANISH<YN1>,CHARGE AIRCOOLER<6PL> 		8-97189-403-0 01 1 9712- ● ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. CAUTION SPANISH<YN1> 		8-97189-405-0 01 1 9712- ● ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4BD2 ENG(RLW) CAUTION SPANISH<YN1> 		8-97103-002-0 01 1 9312-9506 ●
4 00.004 LABEL; ENG MAINTENANCE
4BD2 ENG(RLW) CAUTION SPANISH<YN1> 		8-97103-002-0 01 1 9507-9606 ● ●
4 00.004 LABEL; ENG MAINTENANCE
4BD2 ENG(RLW) CAUTION SPANISH<YN1> 		8-97103-002-0 01 1 9607-9705 ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4BD2 ENG(RLW) CAUTION SPANISH<YN1> 		8-97103-002-0 01 1 9706-9712 ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4BD2 ENG(RLW) CAUTION SPANISH<YN1> 		8-97189-410-0 01 1 9801- ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4BD2 ENG(RLW) EXC. CAUTION SPANISH<YN1> 		8-97103-000-0 01 1 9312-9506 ●
4 00.004 LABEL; ENG MAINTENANCE
4BD2 ENG(RLW) EXC. CAUTION SPANISH<YN1> 		8-97103-000-0 01 1 9507-9606 ● ●
4 00.004 LABEL; ENG MAINTENANCE
4BD2 ENG(RLW) EXC. CAUTION SPANISH<YN1> 		8-97103-000-0 01 1 9607-9705 ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4BD2 ENG(RLW) EXC. CAUTION SPANISH<YN1> 		8-97103-000-0 01 1 9706-9712 ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4BD2 ENG(RLW) EXC. CAUTION SPANISH<YN1> 		8-97189-409-0 01 1 9801- ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> 		8-97148-299-0 01 1 9602-9609 ●
4 00.004 LABEL; ENG MAINTENANCE
4JG2 ENG(RJC) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) EURO2 SPECIFICATION<7AF> 		8-97148-678-0 01 1 9603-9711 ●
4 00.004 LABEL; ENG MAINTENANCE
4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> 		8-97148-678-0 01 1 9712-9712 ●
4 00.004 LABEL; ENG MAINTENANCE
4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> 		8-97189-419-0 01 1 9801- ●
4 00.004 LABEL; ENG MAINTENANCE
4HG1 ENG(RJH) CAUTION SPANISH<YN1> 		8-97189-402-0 01 1 9712- ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HG1 ENG(RJH) EXC. CAUTION SPANISH<YN1> 		8-97189-401-0 01 1 9712- ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4BD1 ENG(LJ6) TURBOCHARGER(K51) CAUTION SPANISH<YN1> 		8-97095-114-0 01 1 9312-9510 ●
4 00.004 LABEL; ENG MAINTENANCE
4BD1 ENG(LJ6) TURBOCHARGER(K51) EXC. CAUTION SPANISH<YN1> 		8-97095-126-0 01 1 9312-9510 ●
7 03.680 LABEL; EMISSION
4HF1 ENG(RLS) SINGAPORE EQUIPMENT(S9Y) (A) 		8-94391-418-0 01 1 9703- ● ● ● ●
7 03.680 LABEL; EMISSION
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. HONG KONG EQUIPMENT(PQ1) (D) 		8-97203-477-2 01 1 9802- ● ● ● ● ●
7 03.680 LABEL; EMISSION
4BD2 ENG(RLW) (A) 135X70 		8-97081-082-0 01 1 9312-9312 ●
7 03.680 LABEL; EMISSION
4BD2 ENG(RLW) (C) 		8-97110-094-0 01 1 9401-9506 ●
7 03.680 LABEL; EMISSION
4BD2 ENG(RLW) (C) 		8-97110-094-0 01 1 9507-9807 ● ●
7 03.680 LABEL; EMISSION
4BD2 ENG(RLW) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) (C) 		8-97110-094-0 01 1 9808- ● ● ●
7 03.680 LABEL; EMISSION
4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> (B) 		8-97170-219-0 01 1 9610- ●
7 03.680 LABEL; EMISSION
4BD1 ENG(LJ6) (A) 		8-97100-864-1 01 1 9312-9510 ●
8 03.680 LABEL; FUSE
VOLTAGE 24V<7AE> 		8-97857-283-0 01 1 9312-9510 ● ● ● ● ●
8 03.680 LABEL; FUSE
VOLTAGE 24V<7AE> 		8-97857-283-0 01 1 9511-9611 ● ● ● ●
8 03.680 LABEL; FUSE
VOLTAGE 24V<7AE> 		8-97857-283-0 01 1 9612-9711 ● ● ● ● ●
8 03.680 LABEL; FUSE
EXC. VOLTAGE 24V<7AE> 		8-97857-282-0 01 1 9312-9504 ● ●
8 03.680 LABEL; FUSE
FLOOR REMOTE SHIFT<M11> EXC. VOLTAGE 24V<7AE> 		8-97857-282-0 01 1 9505-9506 ● ●
8 03.680 LABEL; FUSE
FLOOR REMOTE SHIFT<M11> EXC. VOLTAGE 24V<7AE> 		8-97857-282-0 01 1 9507-9606 ● ●
8 03.680 LABEL; FUSE
FLOOR REMOTE SHIFT<M11> EXC. VOLTAGE 24V<7AE> 		8-97857-282-0 01 1 9607-9705 ● ● ●
8 03.680 LABEL; FUSE
FLOOR REMOTE SHIFT<M11> EXC. VOLTAGE 24V<7AE> 		8-97857-282-0 01 1 9706-9711 ● ● ● ●
8 03.680 LABEL; FUSE
A/T 4 SPEED-JATCO(RMK) EXC. VOLTAGE 24V<7AE> 		8-97131-171-0 01 1 9505-9711 ●
9 08.808 PLATE; NAME,SPD RANGE
4JG2 ENG(RJC) 		8-94158-936-0 01 1 9312-9506 ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JG2 ENG(RJC) 		8-94158-936-0 01 1 9507-9509 ●
12 02.459 LABEL; TURN
(A) 		8-97853-934-0 01 1 9312-9402 ● ● ● ● ●
12 02.459 LABEL; TURN
(B) 		8-94273-445-0 01 1 9403-9510 ● ● ● ● ●
12 02.459 LABEL; TURN
(B) 		8-94273-445-0 01 1 9511-9611 ● ● ● ●
12 02.459 LABEL; TURN
(B) 		8-94273-445-0 01 1 9612-9711 ● ● ● ● ●
12 02.459 LABEL; TURN
(B) 		8-94273-445-0 01 1 9712- ● ● ● ● ● ●
19 08.808 TAG; CAUTION,A/T SHIFT LK
A/T 4 SPEED-JATCO(RMK) 		8-97048-714-0 01 1 9312-9312 ●
47 08.808 PLATE; CAUTION,DUMP CONT
DUMP BODY LONG SHINMEIWA(RS9) 		8-97091-248-1 01 1 9312-9412 ●
47 08.808 PLATE; CAUTION,DUMP CONT
DUMP BODY LONG SHINMEIWA(RS9) 		8-97115-792-0 01 1 9501- ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) CAUTION SPANISH<YN1> 		8-94313-054-0 01 1 9312-9504 ● ● ● ● ●
48 08.808 PLATE; CAUTION,PTO
FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) CAUTION SPANISH<YN1> 		8-94313-054-0 01 1 9505-9510 ● ● ● ● ●
48 08.808 PLATE; CAUTION,PTO
FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) CAUTION SPANISH<YN1> 		8-94313-054-0 01 1 9511-9611 ● ● ● ●
48 08.808 PLATE; CAUTION,PTO
FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) CAUTION SPANISH<YN1> 		8-94313-054-0 01 1 9612-9711 ● ● ● ● ●
48 08.808 PLATE; CAUTION,PTO
FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) CAUTION SPANISH<YN1> 		8-94313-054-0 01 1 9712- ● ● ● ● ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) EXC. CAUTION SPANISH<YN1> 		8-94469-277-0 01 1 9312-9504 ● ● ● ● ●
48 08.808 PLATE; CAUTION,PTO
FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. CAUTION SPANISH<YN1> 		8-94469-277-0 01 1 9505-9510 ● ● ● ● ●
48 08.808 PLATE; CAUTION,PTO
FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. CAUTION SPANISH<YN1> 		8-94469-277-0 01 1 9511-9611 ● ● ● ●
48 08.808 PLATE; CAUTION,PTO
FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. CAUTION SPANISH<YN1> 		8-94469-277-0 01 1 9612-9711 ● ● ● ● ●
48 08.808 PLATE; CAUTION,PTO
FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. CAUTION SPANISH<YN1> 		8-94469-277-0 01 1 9712- ● ● ● ● ● ●
49 08.808 PLATE; CAUTION,FUSE BOX
EXC. VOLTAGE 24V<7AE> 		8-97182-190-0 01 1 9712-9801 ● ● ● ●
49 08.808 PLATE; CAUTION,FUSE BOX
EXC. CHARGE AIR COOLER<6PL>,VOLTAGE 24V<7AE> 		8-97182-190-0 01 1 9802- ● ● ● ●
49 08.808 PLATE; CAUTION,FUSE BOX
VOLTAGE 24V<7AE> EXC. CHARGE AIR COOLER<6PL> 		8-97182-191-0 01 1 9712- ● ● ● ● ● ●
49 08.808 PLATE; CAUTION,FUSE BOX
CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> 		8-97182-192-0 01 1 9712- ● ● ● ● ●
59 08.808 PLATE; CAUTION,BATTERY
EUROPEAN BASIC EQUIPMENT(EK4) IDENTIFICATION LABEL FOR KD<6UT> 10 PER 1 SHEET 		8-97116-760-0 01 1 9410-9504 ● ●
59 08.808 PLATE; CAUTION,BATTERY
EUROPEAN BASIC EQUIPMENT(EK4) 10 PER 1 SHEET 		8-97116-760-0 01 1 9505-9506 ● ●
59 08.808 PLATE; CAUTION,BATTERY
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 10 PER 1 SHEET 		8-97116-760-0 02 1 9507-9604 ● ●
59 08.808 PLATE; CAUTION,BATTERY
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) EXC. LEYLAND EQUIPMENT<S9Z> 10 PER 1 SHEET 		8-97116-760-0 02 1 9604-9711 ● ●
59 08.808 PLATE; CAUTION,BATTERY
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) EXC. LEYLAND EQUIPMENT<S9Z> 10 PER 1 SHEET 		8-97116-760-0 02 1 9712-9807 ● ● ●
59 08.808 PLATE; CAUTION,BATTERY
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) EXC. LEYLAND EQUIPMENT<S9Z> 10 PER 1 SHEET 		8-97116-760-0 02 1 9808- ● ● ● ●
84 08.808 PLATE; CAUTION,BRAKE FLUID
EUROPEAN BASIC EQUIPMENT(EK4) 		8-97062-755-2 01 1 9401-9506 ● ●
84 08.808 PLATE; CAUTION,BRAKE FLUID
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 		8-97062-755-2 01 1 9507-9711 ● ●
84 08.808 PLATE; CAUTION,BRAKE FLUID
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 		8-97062-755-2 01 1 9712-9807 ● ● ●
84 08.808 PLATE; CAUTION,BRAKE FLUID
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 		8-97062-755-2 01 1 9808- ● ● ● ●
106 08.808 PLATE; CAUTION,ROOF VENT
ROOF VENTILATOR<C55> CAUTION SPANISH<YN1> 		8-97856-820-0 01 1 9312-9510 ● ● ● ● ●
106 08.808 PLATE; CAUTION,ROOF VENT
ROOF VENTILATOR<C55> CAUTION SPANISH<YN1> 		8-97856-820-0 01 1 9511-9611 ● ● ● ●
106 08.808 PLATE; CAUTION,ROOF VENT
ROOF VENTILATOR<C55> CAUTION SPANISH<YN1> 		8-97856-820-0 01 1 9612-9711 ● ● ● ● ●
106 08.808 PLATE; CAUTION,ROOF VENT
ROOF VENTILATOR<C55> CAUTION SPANISH<YN1> 		8-97856-820-0 01 1 9712- ● ● ● ● ● ●
106 08.808 PLATE; CAUTION,ROOF VENT
ROOF VENTILATOR<C55> EXC. CAUTION SPANISH<YN1> 		8-94273-602-0 01 1 9312-9510 ● ● ● ● ●
106 08.808 PLATE; CAUTION,ROOF VENT
ROOF VENTILATOR<C55> EXC. CAUTION SPANISH<YN1> 		8-94273-602-0 01 1 9511-9611 ● ● ● ●
106 08.808 PLATE; CAUTION,ROOF VENT
ROOF VENTILATOR<C55> EXC. CAUTION SPANISH<YN1> 		8-94273-602-0 01 1 9612-9711 ● ● ● ● ●
106 08.808 PLATE; CAUTION,ROOF VENT
ROOF VENTILATOR<C55> EXC. CAUTION SPANISH<YN1> 		8-94273-602-0 01 1 9712- ● ● ● ● ● ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
4BE1 ENG(RLH) AUSTRALIA EQUIPMENT(RR3) 		8-97022-729-1 01 1 9312-9404 ● ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
4HF1 ENG(RLS) G.V.W. 4.0-4.5TON(RPR) AUSTRALIA EQUIPMENT(RR3) 		8-97022-729-1 01 1 9312-9404 ● ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
4BD1 ENG(LJ6),4HF1 ENG(RLS) G.V.W. 7.0-7.5TON(RPX) AUSTRALIA EQUIPMENT(RR3) EXC. TURBOCHARGER(K51) 		8-97022-732-1 01 1 9312-9404 ● ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) 		8-97022-731-1 01 1 9312-9404 ● ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
4BD1 ENG(LJ6) TURBOCHARGER(K51) G.V.W. 7.0-7.5TON(RPX) AUSTRALIA EQUIPMENT(RR3) 		8-97022-733-1 01 1 9312-9404 ●
135 08.808 PLATE; CAUTION,ENGINE
4HF1 ENG(RLS) HEATER & DEFROSTER(C41) (A) 		8-97109-187-0 01 1 9312-9510 ● ● ● ● ●
135 08.808 PLATE; CAUTION,ENGINE
4JG2 ENG(RJC) HEATER & DEFROSTER(C41) EUROPEAN BASIC EQUIPMENT(EK4) FAN FLUID DRIVE<KA3> POWER STEERING<N40> (B) 		8-97109-154-0 01 1 9312-9506 ● ●
135 08.808 PLATE; CAUTION,ENGINE
4JG2 ENG(RJC) HEATER & DEFROSTER(C41) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) FAN FLUID DRIVE<KA3> POWER STEERING<N40> (B) 		8-97109-154-0 01 1 9507-9601 ●
135 08.808 PLATE; CAUTION,ENGINE
4JG2 ENG(RJC) HEATER & DEFROSTER(C41) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) FAN FLUID DRIVE<KA3> POWER STEERING<N40> EXC. EURO2 SPECIFICATION<7AF> (B) 		8-97109-154-0 01 1 9602-9711 ●

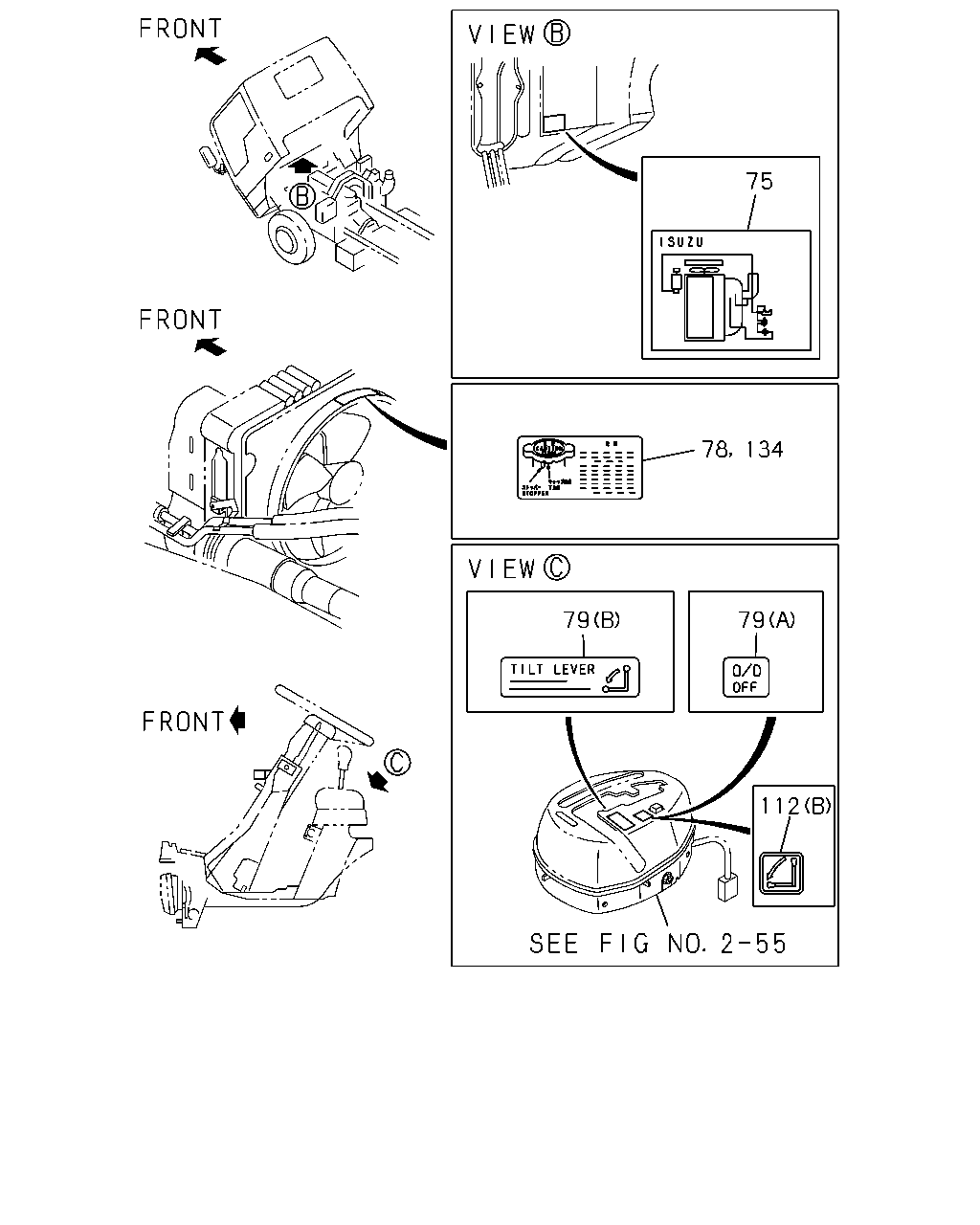

çizim 67553
75 78 134 79 79 112
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
75 03.680 PLATE; CAUTION,HOSE ROUTING
4BD2 ENG(RLW) 		8-97110-725-0 01 1 9401-9506 ●
75 03.680 PLATE; CAUTION,HOSE ROUTING
4BD2 ENG(RLW) 		8-97110-725-0 01 1 9507-9606 ● ●
75 03.680 PLATE; CAUTION,HOSE ROUTING
4BD2 ENG(RLW) 		8-97110-725-0 01 1 9607-9705 ● ● ●
75 03.680 PLATE; CAUTION,HOSE ROUTING
4BD2 ENG(RLW) 		8-97110-725-0 01 1 9706- ● ● ● ●
78 08.808 PLATE; CAUTION,ENG COOLAN
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97109-623-0 01 1 9401-9502 ● ● ● ● ● ● ●
78 08.808 PLATE; CAUTION,ENG COOLAN
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97109-623-0 01 1 9503-9510 ● ● ● ● ●
78 08.808 PLATE; CAUTION,ENG COOLAN
4BE1 ENG(RLH),4HF1 ENG(RLS) 		8-97109-623-0 01 1 9511-9604 ● ● ● ●
79 04.017 PLATE; CAUTION,A/T
A/T 4 SPEED-JATCO(RMK) (A) 		8-97100-707-0 01 1 9407-9711 ●
79 04.017 PLATE; CAUTION,A/T
A/T 4 SPEED-JATCO(RMK) (B) 		8-97106-859-0 01 1 9407-9711 ●
112 08.808 PLATE; CAUTION,T/M
4HF1 ENG(RLS) M/T MXA5R(RMT) (A) 		8-97037-377-0 01 1 9312-9406 ● ● ●
112 08.808 PLATE; CAUTION,T/M
4BD2 ENG(RLW) M/T MXA5D(RMF) TURBOCHARGER(K51) (A) 		8-97117-724-0 01 1 9511-9711 ● ●
112 08.808 PLATE; CAUTION,T/M
A/T 4 SPEED-JATCO(RMK) (B) 		8-97173-353-0 01 1 9712- ●
134 08.808 PLATE; CAUTION,ENGINE O/FILTER
4JG2 ENG(RJC) 		8-97109-623-0 01 1 9402-9506 ● ●
134 08.808 PLATE; CAUTION,ENGINE O/FILTER
4JG2 ENG(RJC) 		8-97109-623-0 01 1 9507-9602 ●
134 08.808 PLATE; CAUTION,ENGINE O/FILTER
4JG2 ENG(RJC) EXC. EURO2 SPECIFICATION<7AF> 		8-97109-623-0 01 1 9603-9604 ●
134 08.808 PLATE; CAUTION,ENGINE O/FILTER
4JG2 ENG(RJC) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) EXC. EURO2 SPECIFICATION<7AF> 		8-97109-623-0 01 1 9604-9607 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
