6-80 — BACK PANEL (#48880) — 281 parça

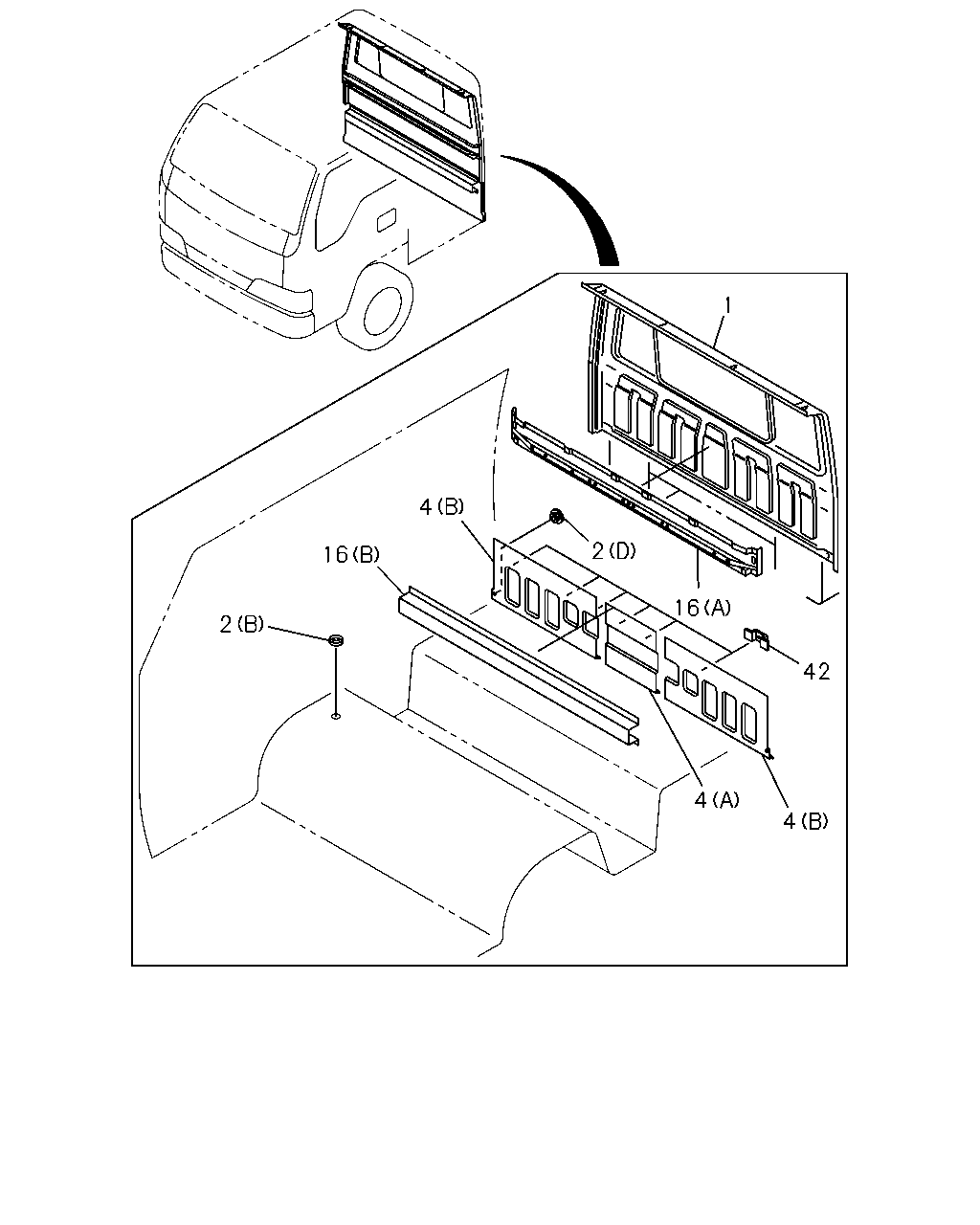

çizim 17177
1 4 2 16 16 2 42 4 4
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 16.587 PANEL; BACK OUTER 8-97851-267-6 01 1 9312-9510 ● ●
1 16.587 PANEL; BACK OUTER 8-97851-267-6 01 1 9511- ●
1 16.587 PANEL; BACK OUTER
EXC. EUROPEAN BASIC EQUIPMENT(EK4), AUSTRALIA EQUIPMENT(RR3) 		8-97851-460-3 01 1 9312-9506 ● ● ●
1 16.587 PANEL; BACK OUTER
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. AIR INTAKE REAR VERTICAL<KJ3>, INTERIOR DELUXE<RBB>,AUSTRALIA EQUIPM ENT(RR3) 		8-97851-460-3 01 1 9507-9510 ● ●
1 16.587 PANEL; BACK OUTER
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) AIR INTAKE REAR VERTICAL<KJ3> INTERIOR DELUXE<RBB>,AUSTRALIA EQUIPMENT(RR3),AUSTRALIA EQUIPMENT(RR3) 		8-97851-465-3 01 1 9312-9510 ● ● ●
1 16.587 PANEL; BACK OUTER
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) AIR INTAKE REAR VERTICAL<KJ3> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97851-481-3 01 1 9312-9506 ● ● ●
1 16.587 PANEL; BACK OUTER
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) AIR INTAKE REAR VERTICAL<KJ3> EXC. INTERIOR DELUXE<RBB>,AUSTRALIA EQUIPMENT(RR3) 		8-97851-481-3 01 1 9507-9510 ● ● ●
1 16.587 PANEL; BACK OUTER
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> AUSTRALIA EQUIPMENT(RR3) 		8-97851-466-3 01 1 9312-9506 ● ● ●
1 16.587 PANEL; BACK OUTER
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> AUSTRALIA EQUIPMENT(RR3) 		8-97851-466-3 01 1 9507-9510 ● ● ●
1 16.587 PANEL; BACK OUTER
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97851-482-3 01 1 9312-9506 ● ● ●
1 16.587 PANEL; BACK OUTER
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97851-482-3 01 1 9507-9510 ● ● ●
1 16.587 PANEL; BACK OUTER 8-97859-127-0 01 1 9511-9711 ● ● ● ●
1 16.587 PANEL; BACK OUTER 8-97859-127-0 01 1 9712-9809 ● ● ● ● ●
1 16.587 PANEL; BACK OUTER
4JG2 ENG(RJC) INTERIOR DELUXE<RBB> 		8-97851-134-7 01 1 9507-9510 ●
1 16.587 PANEL; BACK OUTER
4BD2 ENG(RLW) INTERIOR DELUXE<RBB> AIR INTAKE REAR VERTICAL<KJ3> 		8-97850-739-0 01 1 9507-9510 ● ●
1 16.587 PANEL; BACK OUTER 8-97859-127-0 01 1 9810- ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
00.785 (B) OD=16.2 		8-94492-493-0 02 1 9312-9510 ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
00.785 (B) OD=16.2 		8-94492-493-0 02 1 9511-9611 ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
00.785 (B) OD=16.2 		8-94492-493-0 02 1 9612-9711 ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
00.785 (B) OD=16.2 		8-94492-493-0 02 1 9712- ● ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
15.222 (D) OD=35 		8-94122-971-0 04 1 9312-9510 ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
15.222 (D) OD=35 		8-94122-971-0 04 1 9511- ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (C) OD=36 BLACK 		1-76798-018-0 02 1 9312-9611 ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (C) OD=36 BLACK 		1-76798-018-0 02 1 9612-9711 ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (C) OD=36 BLACK 		1-76798-018-0 02 1 9712- ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK 		1-76798-019-0 04 1 9312-9611 ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK 		1-76798-019-0 04 1 9612-9711 ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK 		1-76798-019-0 04 1 9712- ● ● ● ● ●
4 16.575 PANEL; CAB BACK LWR
(B) 		8-97851-292-5 01 1 9511-9711 ● ● ● ● ● ● ●
4 16.575 PANEL; CAB BACK LWR
(B) 		8-97851-293-5 01 1 9511-9711 ● ● ● ● ● ● ●
4 16.575 PANEL; CAB BACK LWR
(B) 		8-97851-293-5 01 1 9511-9711 ● ● ● ● ● ● ●
4 16.575 PANEL; CAB BACK LWR
(A) 		8-97851-268-3 01 1 9312-9510 ● ●
4 16.575 PANEL; CAB BACK LWR
(A) 		8-97851-268-3 01 1 9511- ●
4 16.575 PANEL; CAB BACK LWR
(B) 		8-97851-293-5 01 1 9312-9510 ● ●
4 16.575 PANEL; CAB BACK LWR
(B) 		8-97851-292-5 01 1 9312-9510 ● ●
4 16.575 PANEL; CAB BACK LWR
(B) 		8-97851-293-5 01 1 9712- ●
4 16.575 PANEL; CAB BACK LWR
(B) 		8-97851-292-5 01 1 9712- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97851-106-7 01 1 9312-9406 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
AIR INTAKE REAR VERTICAL<KJ3> AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-106-7 01 1 9312-9406 ● ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-106-7 01 1 9312-9406 ● ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97851-106-8 01 1 9407-9410 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
AIR INTAKE REAR VERTICAL<KJ3> AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-106-8 01 1 9407-9410 ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-106-8 01 1 9407-9410 ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97851-106-8 01 1 9411-9506 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4BD1 ENG(LJ6),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-106-8 01 1 9411-9506 ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH) EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-106-8 01 1 9411-9506 ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97851-106-8 01 1 9507-9510 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4BE1 ENG(RLH) (A) 		8-97851-106-8 01 1 9507-9510 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4BD1 ENG(LJ6),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-106-8 01 1 9507-9510 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH) EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-106-8 01 1 9507-9510 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4JG2 ENG(RJC),4BE1 ENG(RLH) EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-106-9 01 1 9511-9601 ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4BE1 ENG(RLH) (A) 		8-97851-106-9 01 1 9602-9602 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4BE1 ENG(RLH) EXC. AIR INTAKE REAR VERTICAL<KJ3>, AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-106-9 01 1 9602-9602 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97851-106-9 01 1 9602-9602 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4JG2 ENG(RJC) (A) 		8-97851-106-9 01 1 9602-9602 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97851-106-9 01 1 9602-9602 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4BE1 ENG(RLH) (A) 		8-97851-106-9 01 1 9603-9606 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4BE1 ENG(RLH) EXC. AIR INTAKE REAR VERTICAL<KJ3>, AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-106-9 01 1 9603-9606 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97851-106-9 01 1 9603-9606 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4JG2 ENG(RJC) EXC. INTERIOR DELUXE<RBB> (A) 		8-97851-106-9 01 1 9603-9606 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97851-106-9 01 1 9603-9606 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4BE1 ENG(RLH) EXC. AIR INTAKE REAR VERTICAL<KJ3>, AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-106-9 01 1 9607-9711 ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97851-106-9 01 1 9607-9711 ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4JG2 ENG(RJC) EXC. INTERIOR DELUXE<RBB> (A) 		8-97851-106-9 01 1 9607-9711 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97851-106-9 01 1 9607-9711 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. INTERIOR DELUXE<RBB> (A) 		8-97851-106-9 01 1 9712- ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HF1 ENG(RLS) INTERIOR DELUXE<RBB> EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-106-9 01 1 9712- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS) INTERIOR DELUXE<RBB> EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-106-9 01 1 9712- ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97851-106-9 01 1 9712- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(B) 		8-97851-415-1 01 1 9312-9510 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(B) 		8-97851-415-1 01 1 9511- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. AIR INTAKE REAR VERTICAL<KJ3>, AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-501-5 01 1 9411-9506 ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HF1 ENG(RLS),4BD2 ENG(RLW) AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97851-501-5 01 1 9411-9506 ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HF1 ENG(RLS) (A) 		8-97851-501-5 01 1 9507-9510 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. AIR INTAKE REAR VERTICAL<KJ3>, AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-501-5 01 1 9507-9510 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-501-5 01 1 9507-9510 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4BD2 ENG(RLW) AIR INTAKE REAR VERTICAL<KJ3> EXC. INTERIOR DELUXE<RBB>,AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-501-5 01 1 9507-9510 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4BD2 ENG(RLW) INTERIOR DELUXE<RBB> AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97851-501-5 01 1 9507-9510 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HF1 ENG(RLS),4BD2 ENG(RLW) AIR INTAKE REAR VERTICAL<KJ3> AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-501-5 01 1 9507-9510 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HF1 ENG(RLS) (A) 		8-97851-501-6 01 1 9511-9601 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. AIR INTAKE REAR VERTICAL<KJ3>, AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-501-6 01 1 9511-9601 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-501-6 01 1 9511-9601 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4BD2 ENG(RLW) AIR INTAKE REAR VERTICAL<KJ3> EXC. INTERIOR DELUXE<RBB>,AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-501-6 01 1 9511-9601 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4BD2 ENG(RLW) INTERIOR DELUXE<RBB> AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97851-501-6 01 1 9511-9601 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HF1 ENG(RLS),4BD2 ENG(RLW) AIR INTAKE REAR VERTICAL<KJ3> AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-501-6 01 1 9511-9601 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HF1 ENG(RLS) EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-501-6 01 1 9511-9601 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4BD2 ENG(RLW) EXC. INTERIOR DELUXE<RBB>,AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-501-6 01 1 9511-9601 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4BD2 ENG(RLW) INTERIOR DELUXE<RBB> (A) 		8-97851-501-6 01 1 9511-9601 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HF1 ENG(RLS),4BD2 ENG(RLW) AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-501-6 01 1 9511-9601 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HF1 ENG(RLS) (A) 		8-97851-501-6 01 1 9602-9602 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. AIR INTAKE REAR VERTICAL<KJ3>, AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-501-6 01 1 9602-9602 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-501-6 01 1 9602-9602 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4BD2 ENG(RLW) AIR INTAKE REAR VERTICAL<KJ3> EXC. INTERIOR DELUXE<RBB>,AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-501-6 01 1 9602-9602 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4BD2 ENG(RLW) INTERIOR DELUXE<RBB> AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97851-501-6 01 1 9602-9602 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HF1 ENG(RLS),4BD2 ENG(RLW) AIR INTAKE REAR VERTICAL<KJ3> AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-501-6 01 1 9602-9602 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HF1 ENG(RLS) (A) 		8-97851-501-6 01 1 9603-9606 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. AIR INTAKE REAR VERTICAL<KJ3>, AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-501-6 01 1 9603-9606 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-501-6 01 1 9603-9606 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4BD2 ENG(RLW) AIR INTAKE REAR VERTICAL<KJ3> EXC. INTERIOR DELUXE<RBB>,AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-501-6 01 1 9603-9606 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4BD2 ENG(RLW) INTERIOR DELUXE<RBB> AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97851-501-6 01 1 9603-9606 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HF1 ENG(RLS),4BD2 ENG(RLW) AIR INTAKE REAR VERTICAL<KJ3> AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-501-6 01 1 9603-9606 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4JG2 ENG(RJC) INTERIOR DELUXE<RBB> (A) 		8-97851-501-6 01 1 9603-9606 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HF1 ENG(RLS),4BD2 ENG(RLW) AIR INTAKE REAR VERTICAL<KJ3> AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-501-6 01 1 9607-9611 ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-501-6 01 1 9607-9611 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. AIR INTAKE REAR VERTICAL<KJ3>, AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-501-6 01 1 9607-9611 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-501-6 01 1 9607-9611 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4BD2 ENG(RLW) AIR INTAKE REAR VERTICAL<KJ3> EXC. INTERIOR DELUXE<RBB>,AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-501-6 01 1 9607-9611 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4BD2 ENG(RLW) INTERIOR DELUXE<RBB> AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97851-501-6 01 1 9607-9611 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4JG2 ENG(RJC) INTERIOR DELUXE<RBB> (A) 		8-97851-501-6 01 1 9607-9611 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97851-501-6 01 1 9612-9711 ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4BD2 ENG(RLW),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97851-501-6 01 1 9712- ● ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1 ENG(RJH),4HF1 ENG(RLS) INTERIOR DELUXE<RBB> AIR INTAKE REAR VERTICAL<KJ3>,AIR INTAKE SYSTEM FRONT<6PC> AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-501-6 01 1 9712- ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (A) 		8-97890-837-1 01 1 9810- ● ● ● ● ●
42 16.587 BRACKET; HEAT PROTECTOR
16.588 		8-94265-170-1 04 1 9312-9510 ● ●
42 16.587 BRACKET; HEAT PROTECTOR
16.588 		8-94265-170-1 04 1 9511- ●

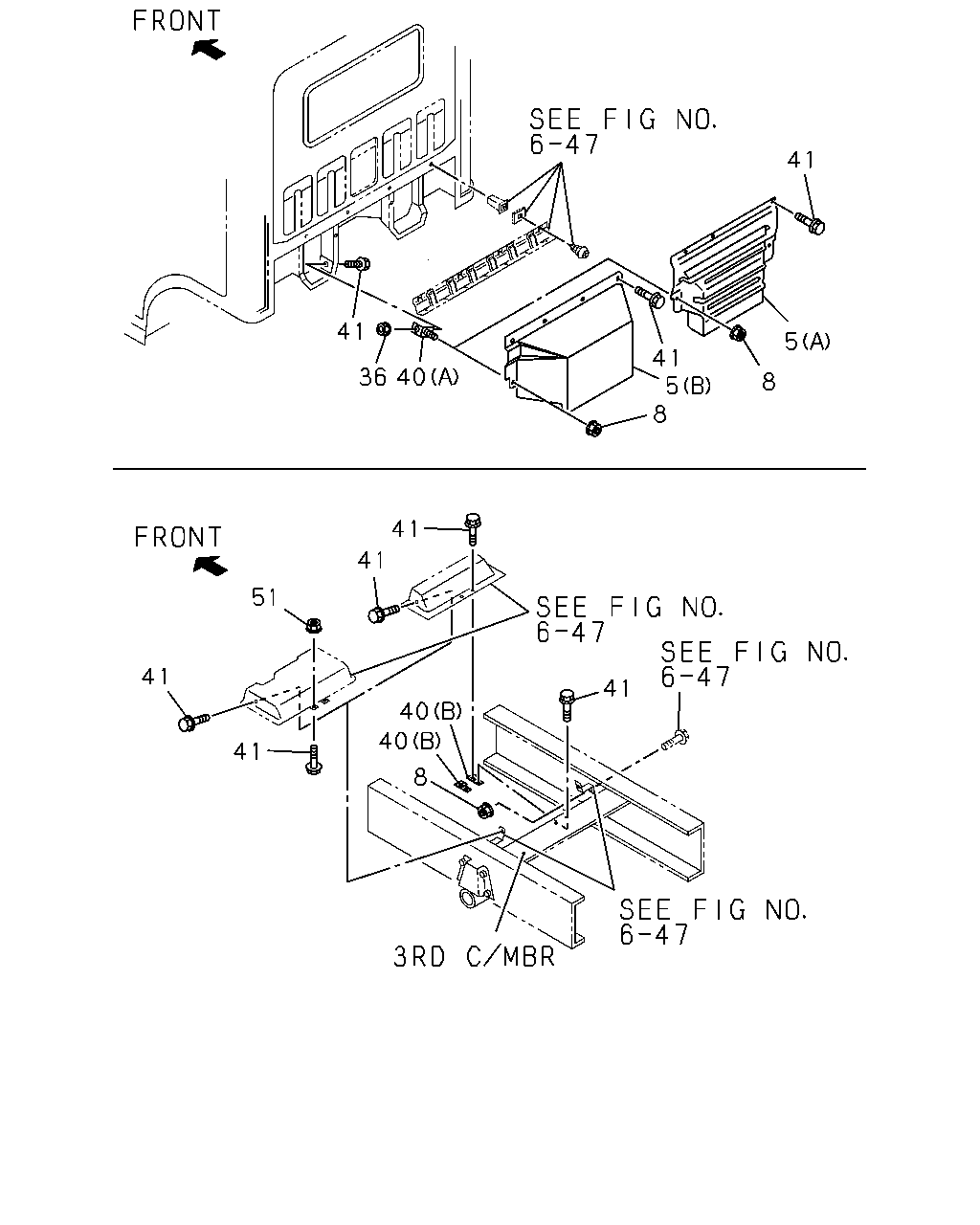

çizim 67839
41 41 5 41 5 8 36 8 41 41 51 41 41 40 40 41 8 40
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
5 16.587 PANEL; CAB BACK
4JG2 ENG(RJC) EUROPEAN BASIC EQUIPMENT(EK4) (A) 		8-97104-191-0 01 1 9312-9506 ● ●
5 16.587 PANEL; CAB BACK
4JG2 ENG(RJC) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) (A) 		8-97104-191-0 01 1 9507-9511 ●
5 16.587 PANEL; CAB BACK
4JG2 ENG(RJC) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) EXC. EURO2 SPECIFICATION<7AF> (A) 		8-97104-191-0 01 1 9512-9711 ●
5 16.587 PANEL; CAB BACK
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> (B) 		8-97180-930-4 01 1 9712- ● ● ●
5 16.587 PANEL; CAB BACK
4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> (A) 		8-97143-431-2 01 1 9512-9711 ●
5 16.587 PANEL; CAB BACK
4JG2 ENG(RJC) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97143-431-2 01 1 9712- ●
5 16.587 PANEL; CAB BACK
4BD2 ENG(RLW) EURO2 SPECIFICATION<7AF> (A) 		8-97143-430-2 01 1 9512-9605 ● ●
5 16.587 PANEL; CAB BACK
4HF1 ENG(RLS) M/T MXA5R(RMT) AUSTRALIA EQUIPMENT(RR3) (A) 		8-97092-187-1 01 1 9312-9402 ● ●
5 16.587 PANEL; CAB BACK
4HF1 ENG(RLS) M/T MXA5R(RMT) NOISE PACK FOR REGULATION<6VD> (A) 		8-97092-187-1 01 1 9403-9504 ● ● ●
8 16.587 NUT; BACK PANEL
4HF1 ENG(RLS) M/T MXA5R(RMT) AUSTRALIA EQUIPMENT(RR3) NOISE PACK FOR REGULATION<6VD> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9312-9402 ● ● ●
8 16.587 NUT; BACK PANEL
4JG2 ENG(RJC) EUROPEAN BASIC EQUIPMENT(EK4) 07.633 M8 FLANGE 		0-91150-108-0 02 1 9312-9402 ● ●
8 16.587 NUT; BACK PANEL
4HF1 ENG(RLS) M/T MXA5R(RMT) NOISE PACK FOR REGULATION<6VD> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9403-9504 ● ● ●
8 16.587 NUT; BACK PANEL
4JG2 ENG(RJC) EUROPEAN BASIC EQUIPMENT(EK4) 07.633 M8 FLANGE 		0-91150-108-0 02 1 9403-9504 ● ●
8 16.587 NUT; BACK PANEL
4JG2 ENG(RJC) EUROPEAN BASIC EQUIPMENT(EK4) 07.633 M8 FLANGE 		0-91150-108-0 02 1 9505-9506 ● ●
8 16.587 NUT; BACK PANEL
4JG2 ENG(RJC) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 07.633 M8 FLANGE 		0-91150-108-0 02 1 9507-9511 ●
8 16.587 NUT; BACK PANEL
EURO2 SPECIFICATION<7AF> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9512-9605 ● ●
8 16.587 NUT; BACK PANEL
4BD2 ENG(RLW) EURO2 SPECIFICATION<7AF> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9512-9605 ● ●
8 16.587 NUT; BACK PANEL
4JG2 ENG(RJC) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) EXC. EURO2 SPECIFICATION<7AF> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9512-9605 ●
8 16.587 NUT; BACK PANEL
4JG2 ENG(RJC) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) EXC. EURO2 SPECIFICATION<7AF> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9606-9711 ●
8 16.587 NUT; BACK PANEL
4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9606-9711 ●
8 16.587 NUT; BACK PANEL
4JG2 ENG(RJC) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9712- ●
8 16.587 NUT; BACK PANEL
4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9603-9711 ●
8 16.587 NUT; BACK PANEL
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9712- ● ● ●
8 16.587 NUT; BACK PANEL
4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9712- ●
36 16.587 NUT; BRKT
4HF1 ENG(RLS) M/T MXA5R(RMT) AUSTRALIA EQUIPMENT(RR3) 07.633 M8 FLANGE 		0-91150-108-0 02 1 9312-9504 ● ● ●
40 16.587 BRACKET; BACK PANEL
4HF1 ENG(RLS) M/T MXA5R(RMT) AUSTRALIA EQUIPMENT(RR3) (A) 		8-97083-313-1 02 1 9312-9504 ● ● ●
40 16.587 BRACKET; BACK PANEL
4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> 16.545 (B) 		8-97103-549-1 04 1 9512-9602 ●
40 16.587 BRACKET; BACK PANEL
4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> 16.545 (B) 		8-97103-549-1 02 1 9603-9711 ●
40 16.587 BRACKET; BACK PANEL
4JG2 ENG(RJC) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 16.545 (B) 		8-97103-549-1 02 1 9712- ●
40 16.587 BRACKET; BACK PANEL
4HF1 ENG(RLS) M/T MXA5R(RMT) AUSTRALIA EQUIPMENT(RR3) 16.545 (B) 		8-97103-549-1 04 1 9312-9402 ● ●
40 16.587 BRACKET; BACK PANEL
4HF1 ENG(RLS) M/T MXA5R(RMT) NOISE PACK FOR REGULATION<6VD> 16.545 (B) 		8-97103-549-1 04 1 9403-9504 ● ● ●
41 16.587 BOLT
4HF1 ENG(RLS) M/T MXA5R(RMT) AUSTRALIA EQUIPMENT(RR3) 07.010 M8X20 FLANGE 		0-28080-820-0 02 1 9312-9504 ● ● ●
41 16.587 BOLT
4HF1 ENG(RLS) M/T MXA5R(RMT) AUSTRALIA EQUIPMENT(RR3) NOISE PACK FOR REGULATION<6VD> 16.345 M5X16 W/PL WASHER TAPPING 		8-94279-123-0 04 1 9312-9402 ● ● ●
41 16.587 BOLT
4JG2 ENG(RJC) EUROPEAN BASIC EQUIPMENT(EK4) 16.345 M5X16 W/PL WASHER TAPPING 		8-94279-123-0 04 1 9312-9402 ● ●
41 16.587 BOLT
4HF1 ENG(RLS) M/T MXA5R(RMT) NOISE PACK FOR REGULATION<6VD> 16.345 M5X16 W/PL WASHER TAPPING 		8-94279-123-0 04 1 9403-9504 ● ● ●
41 16.587 BOLT
4JG2 ENG(RJC) EUROPEAN BASIC EQUIPMENT(EK4) 16.345 M5X16 W/PL WASHER TAPPING 		8-94279-123-0 04 1 9403-9504 ● ●
41 16.587 BOLT
4JG2 ENG(RJC) EUROPEAN BASIC EQUIPMENT(EK4) 16.345 M5X16 W/PL WASHER TAPPING 		8-94279-123-0 04 1 9505-9506 ● ●
41 16.587 BOLT
4JG2 ENG(RJC) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 16.345 M5X16 W/PL WASHER TAPPING 		8-94279-123-0 04 1 9507-9511 ●
41 16.587 BOLT
EURO2 SPECIFICATION<7AF> 16.345 M5X16 W/PL WASHER TAPPING 		8-94279-123-0 04 1 9512-9605 ● ●
41 16.587 BOLT
4JG2 ENG(RJC) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) EXC. EURO2 SPECIFICATION<7AF> 16.345 M5X16 W/PL WASHER TAPPING 		8-94279-123-0 04 1 9512-9605 ●
41 16.587 BOLT
4JG2 ENG(RJC) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) EXC. EURO2 SPECIFICATION<7AF> 16.345 M5X16 W/PL WASHER TAPPING 		8-94279-123-0 04 1 9606-9711 ●
41 16.587 BOLT
4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> 16.345 M5X16 W/PL WASHER TAPPING 		8-94279-123-0 04 1 9606-9711 ●
41 16.587 BOLT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 08.155 M5X16 TAPPING W/PL WASHER 		8-94496-177-1 04 1 9712- ● ● ●
41 16.587 BOLT
4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> 08.155 M5X16 TAPPING W/PL WASHER 		8-94496-177-1 04 1 9712- ●
41 16.587 BOLT
4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 9512-9602 ●
41 16.587 BOLT
4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9603-9711 ●
41 16.587 BOLT
4JG2 ENG(RJC) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9712- ●
41 16.587 BOLT
4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> 07.633 M8X28 W/LK&PL WASHER 		8-94438-324-1 06 1 9512-9602 ●
41 16.587 BOLT
4JG2 ENG(RJC),4BD2 ENG(RLW) EURO2 SPECIFICATION<7AF> 07.633 M8X28 W/LK&PL WASHER 		8-94438-324-1 04 1 9603-9605 ●
41 16.587 BOLT
4BD2 ENG(RLW) EURO2 SPECIFICATION<7AF> 07.633 M8X28 W/LK&PL WASHER 		8-94438-324-1 04 1 9603-9605 ●
41 16.587 BOLT
4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> 07.633 M8X28 W/LK&PL WASHER 		8-94438-324-1 04 1 9606-9711 ●
41 16.587 BOLT
4JG2 ENG(RJC) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8X28 W/LK&PL WASHER 		8-94438-324-1 04 1 9712- ●
41 16.587 BOLT
4BD2 ENG(RLW) EURO2 SPECIFICATION<7AF> 07.633 M8X28 W/LK&PL WASHER 		8-94438-324-1 04 1 9512-9602 ● ●
41 16.587 BOLT
4HF1 ENG(RLS) M/T MXA5R(RMT) AUSTRALIA EQUIPMENT(RR3) 01.531 M8X25 FLANGE 		0-28080-825-0 02 1 9312-9402 ● ●
41 16.587 BOLT
4HF1 ENG(RLS) M/T MXA5R(RMT) NOISE PACK FOR REGULATION<6VD> 01.531 M8X25 FLANGE 		0-28080-825-0 02 1 9403-9411 ● ● ●
41 16.587 BOLT
4HF1 ENG(RLS) M/T MXA5R(RMT) NOISE PACK FOR REGULATION<6VD> 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9412-9504 ● ● ●
41 16.587 BOLT
4HF1 ENG(RLS) M/T MXA5R(RMT) AUSTRALIA EQUIPMENT(RR3) 03.704 M8X16 W/LK WASHER 		0-50040-816-0 02 1 9312-9402 ● ●
41 16.587 BOLT
4HF1 ENG(RLS) M/T MXA5R(RMT) NOISE PACK FOR REGULATION<6VD> 03.704 M8X16 W/LK WASHER 		0-50040-816-0 02 1 9403-9504 ● ● ●
41 16.587 BOLT
4HF1 ENG(RLS) M/T MXA5R(RMT) AUSTRALIA EQUIPMENT(RR3) 07.633 M8X28 W/LK&PL WASHER 		8-94438-324-1 06 1 9312-9402 ● ●
41 16.587 BOLT
4HF1 ENG(RLS) M/T MXA5R(RMT) NOISE PACK FOR REGULATION<6VD> 07.633 M8X28 W/LK&PL WASHER 		8-94438-324-1 06 1 9403-9504 ● ● ●
41 16.587 BOLT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 9712- ● ● ●
51 16.587 NUT; PANEL
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9712- ● ● ●

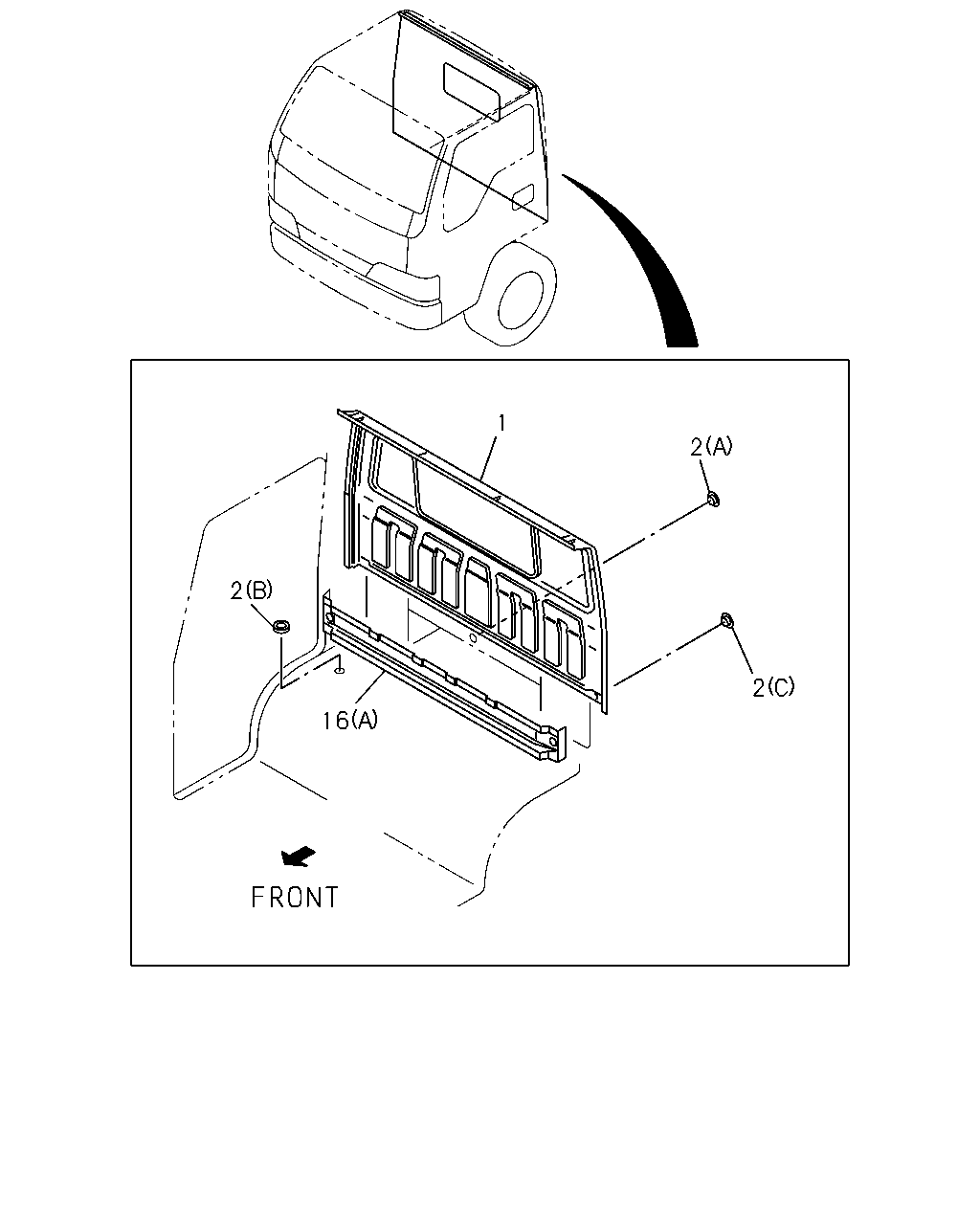

çizim 70852
1 2 2 2 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 16.587 PANEL; BACK OUTER 8-97851-267-6 01 1 9312-9510 ● ●
1 16.587 PANEL; BACK OUTER 8-97851-267-6 01 1 9511- ●
1 16.587 PANEL; BACK OUTER
EXC. EUROPEAN BASIC EQUIPMENT(EK4), AUSTRALIA EQUIPMENT(RR3) 		8-97851-460-3 01 1 9312-9506 ● ● ●
1 16.587 PANEL; BACK OUTER
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. AIR INTAKE REAR VERTICAL<KJ3>, INTERIOR DELUXE<RBB>,AUSTRALIA EQUIPM ENT(RR3) 		8-97851-460-3 01 1 9507-9510 ● ●
1 16.587 PANEL; BACK OUTER
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) AIR INTAKE REAR VERTICAL<KJ3> INTERIOR DELUXE<RBB>,AUSTRALIA EQUIPMENT(RR3),AUSTRALIA EQUIPMENT(RR3) 		8-97851-465-3 01 1 9312-9510 ● ● ●
1 16.587 PANEL; BACK OUTER
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) AIR INTAKE REAR VERTICAL<KJ3> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97851-481-3 01 1 9312-9506 ● ● ●
1 16.587 PANEL; BACK OUTER
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) AIR INTAKE REAR VERTICAL<KJ3> EXC. INTERIOR DELUXE<RBB>,AUSTRALIA EQUIPMENT(RR3) 		8-97851-481-3 01 1 9507-9510 ● ● ●
1 16.587 PANEL; BACK OUTER
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> AUSTRALIA EQUIPMENT(RR3) 		8-97851-466-3 01 1 9312-9506 ● ● ●
1 16.587 PANEL; BACK OUTER
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> AUSTRALIA EQUIPMENT(RR3) 		8-97851-466-3 01 1 9507-9510 ● ● ●
1 16.587 PANEL; BACK OUTER
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97851-482-3 01 1 9312-9506 ● ● ●
1 16.587 PANEL; BACK OUTER
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97851-482-3 01 1 9507-9510 ● ● ●
1 16.587 PANEL; BACK OUTER 8-97859-127-0 01 1 9511-9711 ● ● ● ●
1 16.587 PANEL; BACK OUTER 8-97859-127-0 01 1 9712-9809 ● ● ● ● ●
1 16.587 PANEL; BACK OUTER
4JG2 ENG(RJC) INTERIOR DELUXE<RBB> 		8-97851-134-7 01 1 9507-9510 ●
1 16.587 PANEL; BACK OUTER
4BD2 ENG(RLW) INTERIOR DELUXE<RBB> AIR INTAKE REAR VERTICAL<KJ3> 		8-97850-739-0 01 1 9507-9510 ● ●
1 16.587 PANEL; BACK OUTER 8-97859-127-0 01 1 9810- ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
00.785 (B) OD=16.2 		8-94492-493-0 02 1 9312-9510 ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
00.785 (B) OD=16.2 		8-94492-493-0 02 1 9511-9611 ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
00.785 (B) OD=16.2 		8-94492-493-0 02 1 9612-9711 ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
00.785 (B) OD=16.2 		8-94492-493-0 02 1 9712- ● ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
15.222 (D) OD=35 		8-94122-971-0 04 1 9312-9510 ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
15.222 (D) OD=35 		8-94122-971-0 04 1 9511- ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (C) OD=36 BLACK 		1-76798-018-0 02 1 9312-9611 ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (C) OD=36 BLACK 		1-76798-018-0 02 1 9612-9711 ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (C) OD=36 BLACK 		1-76798-018-0 02 1 9712- ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK 		1-76798-019-0 04 1 9312-9611 ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK 		1-76798-019-0 04 1 9612-9711 ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK 		1-76798-019-0 04 1 9712- ● ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97851-106-7 01 1 9312-9406 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
AIR INTAKE REAR VERTICAL<KJ3> AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-106-7 01 1 9312-9406 ● ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-106-7 01 1 9312-9406 ● ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97851-106-8 01 1 9407-9410 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
AIR INTAKE REAR VERTICAL<KJ3> AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-106-8 01 1 9407-9410 ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-106-8 01 1 9407-9410 ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97851-106-8 01 1 9411-9506 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4BD1 ENG(LJ6),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-106-8 01 1 9411-9506 ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH) EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-106-8 01 1 9411-9506 ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97851-106-8 01 1 9507-9510 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4BE1 ENG(RLH) (A) 		8-97851-106-8 01 1 9507-9510 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4BD1 ENG(LJ6),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-106-8 01 1 9507-9510 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH) EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-106-8 01 1 9507-9510 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4JG2 ENG(RJC),4BE1 ENG(RLH) EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-106-9 01 1 9511-9601 ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4BE1 ENG(RLH) (A) 		8-97851-106-9 01 1 9602-9602 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4BE1 ENG(RLH) EXC. AIR INTAKE REAR VERTICAL<KJ3>, AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-106-9 01 1 9602-9602 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97851-106-9 01 1 9602-9602 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4JG2 ENG(RJC) (A) 		8-97851-106-9 01 1 9602-9602 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97851-106-9 01 1 9602-9602 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4BE1 ENG(RLH) (A) 		8-97851-106-9 01 1 9603-9606 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4BE1 ENG(RLH) EXC. AIR INTAKE REAR VERTICAL<KJ3>, AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-106-9 01 1 9603-9606 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97851-106-9 01 1 9603-9606 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4JG2 ENG(RJC) EXC. INTERIOR DELUXE<RBB> (A) 		8-97851-106-9 01 1 9603-9606 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97851-106-9 01 1 9603-9606 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4BE1 ENG(RLH) EXC. AIR INTAKE REAR VERTICAL<KJ3>, AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-106-9 01 1 9607-9711 ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97851-106-9 01 1 9607-9711 ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4JG2 ENG(RJC) EXC. INTERIOR DELUXE<RBB> (A) 		8-97851-106-9 01 1 9607-9711 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97851-106-9 01 1 9607-9711 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. INTERIOR DELUXE<RBB> (A) 		8-97851-106-9 01 1 9712- ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HF1 ENG(RLS) INTERIOR DELUXE<RBB> EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-106-9 01 1 9712- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS) INTERIOR DELUXE<RBB> EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-106-9 01 1 9712- ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97851-106-9 01 1 9712- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(B) 		8-97851-415-1 01 1 9312-9510 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(B) 		8-97851-415-1 01 1 9511- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. AIR INTAKE REAR VERTICAL<KJ3>, AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-501-5 01 1 9411-9506 ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HF1 ENG(RLS),4BD2 ENG(RLW) AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97851-501-5 01 1 9411-9506 ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HF1 ENG(RLS) (A) 		8-97851-501-5 01 1 9507-9510 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. AIR INTAKE REAR VERTICAL<KJ3>, AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-501-5 01 1 9507-9510 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-501-5 01 1 9507-9510 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4BD2 ENG(RLW) AIR INTAKE REAR VERTICAL<KJ3> EXC. INTERIOR DELUXE<RBB>,AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-501-5 01 1 9507-9510 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4BD2 ENG(RLW) INTERIOR DELUXE<RBB> AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97851-501-5 01 1 9507-9510 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HF1 ENG(RLS),4BD2 ENG(RLW) AIR INTAKE REAR VERTICAL<KJ3> AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-501-5 01 1 9507-9510 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HF1 ENG(RLS) (A) 		8-97851-501-6 01 1 9511-9601 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. AIR INTAKE REAR VERTICAL<KJ3>, AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-501-6 01 1 9511-9601 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-501-6 01 1 9511-9601 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4BD2 ENG(RLW) AIR INTAKE REAR VERTICAL<KJ3> EXC. INTERIOR DELUXE<RBB>,AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-501-6 01 1 9511-9601 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4BD2 ENG(RLW) INTERIOR DELUXE<RBB> AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97851-501-6 01 1 9511-9601 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HF1 ENG(RLS),4BD2 ENG(RLW) AIR INTAKE REAR VERTICAL<KJ3> AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-501-6 01 1 9511-9601 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HF1 ENG(RLS) EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-501-6 01 1 9511-9601 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4BD2 ENG(RLW) EXC. INTERIOR DELUXE<RBB>,AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-501-6 01 1 9511-9601 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4BD2 ENG(RLW) INTERIOR DELUXE<RBB> (A) 		8-97851-501-6 01 1 9511-9601 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HF1 ENG(RLS),4BD2 ENG(RLW) AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-501-6 01 1 9511-9601 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HF1 ENG(RLS) (A) 		8-97851-501-6 01 1 9602-9602 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. AIR INTAKE REAR VERTICAL<KJ3>, AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-501-6 01 1 9602-9602 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-501-6 01 1 9602-9602 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4BD2 ENG(RLW) AIR INTAKE REAR VERTICAL<KJ3> EXC. INTERIOR DELUXE<RBB>,AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-501-6 01 1 9602-9602 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4BD2 ENG(RLW) INTERIOR DELUXE<RBB> AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97851-501-6 01 1 9602-9602 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HF1 ENG(RLS),4BD2 ENG(RLW) AIR INTAKE REAR VERTICAL<KJ3> AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-501-6 01 1 9602-9602 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HF1 ENG(RLS) (A) 		8-97851-501-6 01 1 9603-9606 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. AIR INTAKE REAR VERTICAL<KJ3>, AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-501-6 01 1 9603-9606 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-501-6 01 1 9603-9606 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4BD2 ENG(RLW) AIR INTAKE REAR VERTICAL<KJ3> EXC. INTERIOR DELUXE<RBB>,AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-501-6 01 1 9603-9606 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4BD2 ENG(RLW) INTERIOR DELUXE<RBB> AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97851-501-6 01 1 9603-9606 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HF1 ENG(RLS),4BD2 ENG(RLW) AIR INTAKE REAR VERTICAL<KJ3> AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-501-6 01 1 9603-9606 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4JG2 ENG(RJC) INTERIOR DELUXE<RBB> (A) 		8-97851-501-6 01 1 9603-9606 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HF1 ENG(RLS),4BD2 ENG(RLW) AIR INTAKE REAR VERTICAL<KJ3> AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-501-6 01 1 9607-9611 ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-501-6 01 1 9607-9611 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. AIR INTAKE REAR VERTICAL<KJ3>, AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-501-6 01 1 9607-9611 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-501-6 01 1 9607-9611 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4BD2 ENG(RLW) AIR INTAKE REAR VERTICAL<KJ3> EXC. INTERIOR DELUXE<RBB>,AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-501-6 01 1 9607-9611 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4BD2 ENG(RLW) INTERIOR DELUXE<RBB> AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97851-501-6 01 1 9607-9611 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4JG2 ENG(RJC) INTERIOR DELUXE<RBB> (A) 		8-97851-501-6 01 1 9607-9611 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97851-501-6 01 1 9612-9711 ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4BD2 ENG(RLW),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97851-501-6 01 1 9712- ● ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1 ENG(RJH),4HF1 ENG(RLS) INTERIOR DELUXE<RBB> AIR INTAKE REAR VERTICAL<KJ3>,AIR INTAKE SYSTEM FRONT<6PC> AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-501-6 01 1 9712- ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (A) 		8-97890-837-1 01 1 9810- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
