5-10 — CAB MOUNTING; FRAME SIDE (#4888) — 479 parça

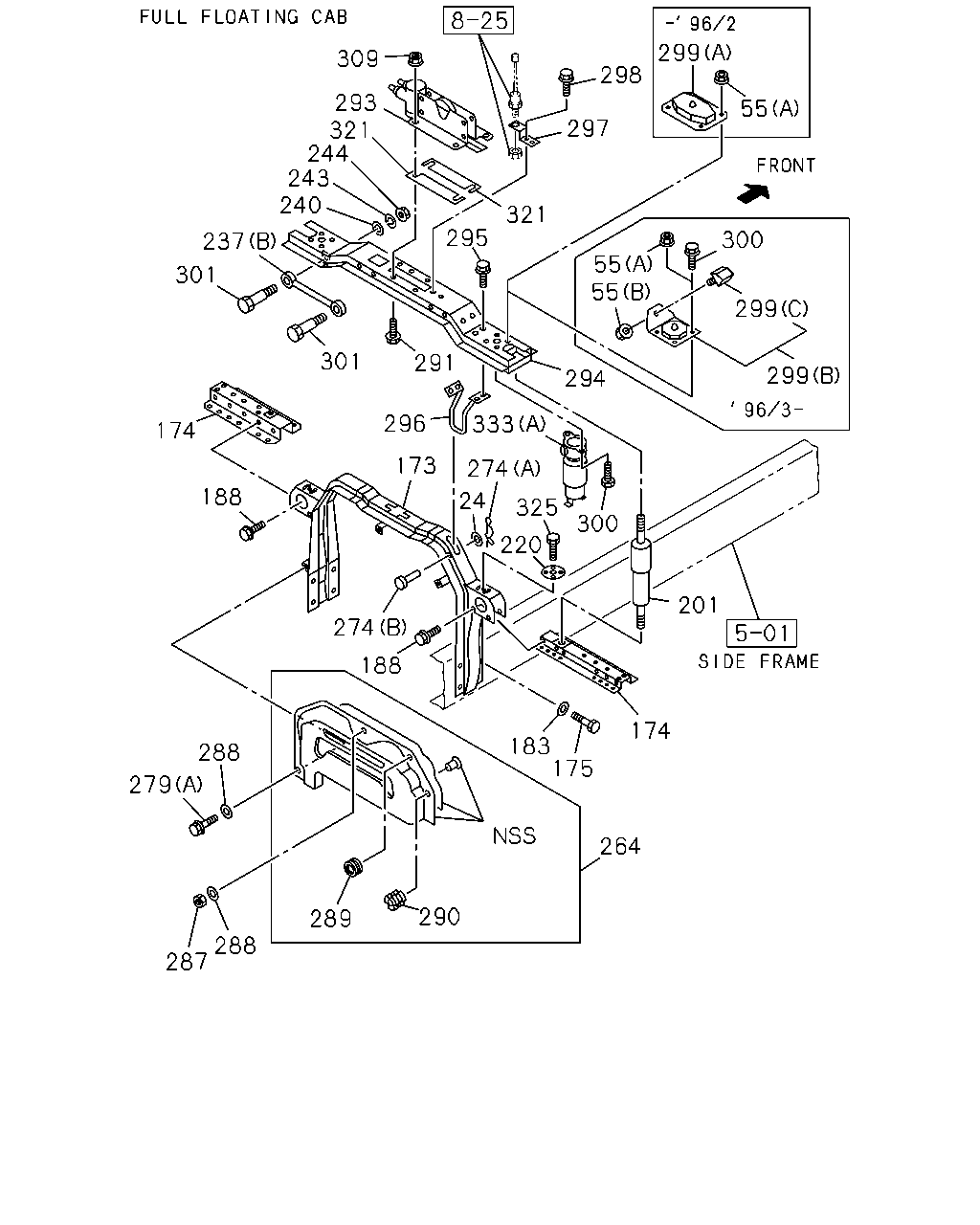

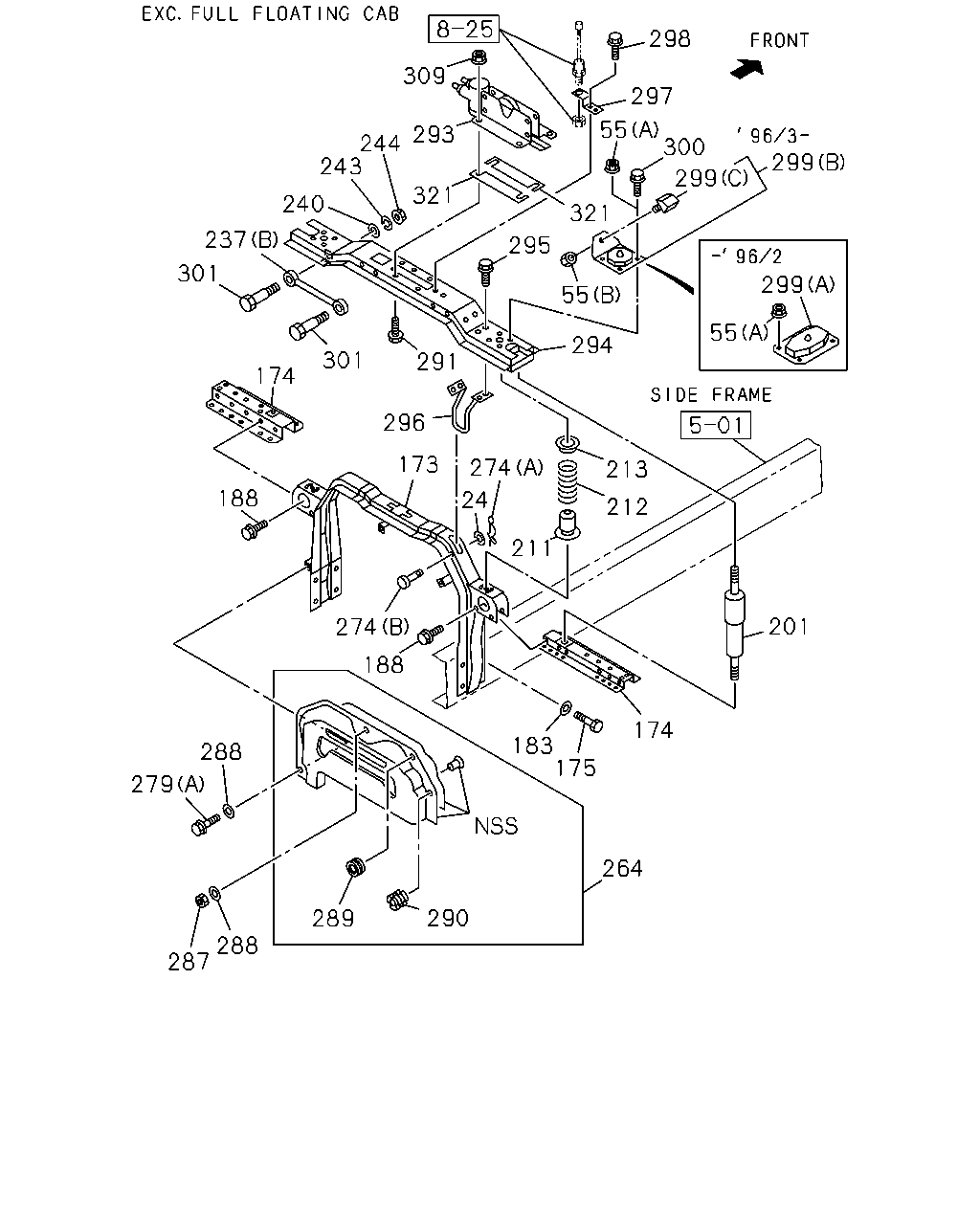

298 309 297 55 300 293 299 244 243 299 321 240 321 295 237 301 299 55 55 294 301 291 174 296 173 274 213 188 24 212 211 201 274 188 174 183 175 288 279 264 290 289 288 287

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	WASHER; PL ID=12.5	9-09160-512-0	01	1	9601-
55	NUT; RUBBER (A) M8	9-09110-508-0	04	1	9601-9602
55	NUT; RUBBER FULL FLOATING CAB<W16> (A) M8	9-09110-408-0	08	1	9603-9606
55	NUT; RUBBER FULL FLOATING CAB<W16> (A) M8 FLANGE	0-91150-108-0	08	1	9607-9607
55	NUT; RUBBER (B) M8 FLANGE	0-91150-108-0	02	1	9603-9607
55	NUT; RUBBER (B) M8 FLANGE	0-91150-108-0	06	1	9608-
55	NUT; RUBBER EXC. FULL FLOATING CAB<W16> (A) M8	9-09110-408-0	04	1	9603-9606
55	NUT; RUBBER EXC. FULL FLOATING CAB<W16> (A) M8 FLANGE	0-91150-108-0	04	1	9607-9607
173	MEMBER; CAB MTG RR FULL FLOATING CAB<W16>	1-53450-545-6	01	1	9601-
173	MEMBER; CAB MTG RR EXC. FULL FLOATING CAB<W16>	1-53450-564-0	01	1	9601-9903
173	MEMBER; CAB MTG RR EXC. FULL FLOATING CAB<W16>	1-53450-617-2	01	1	9904-
174	OUTRIGGER	1-53456-246-6	02	1	9601-9607
174	OUTRIGGER	1-53456-277-3	01	1	9608-
174	OUTRIGGER	1-53456-278-3	01	1	9608-
175	BOLT; MEMBER TO FRAME M14X35	9-92061-435-0	08	1	9601-
183	WASHER; PL,MEMBER ID=15	9-09651-069-0	08	1	9601-
188	BOLT; OUTRIGGER M10X20 FLANGE	0-28081-020-0	08	1	9601-9606
188	BOLT; OUTRIGGER M10X20 FLANGE	0-28681-020-0	08	1	9607-9609
188	BOLT; OUTRIGGER M10X25 FLANGE	0-28681-025-0	08	1	9610-
201	ABSORBER ASM; SHOCK,RR MTG FULL FLOATING CAB<W16>	1-51630-523-0	02	1	9601-9703
201	ABSORBER ASM; SHOCK,RR MTG FULL FLOATING CAB<W16>	1-51630-624-0	02	1	9704-9904
201	ABSORBER ASM; SHOCK,RR MTG EXC. FULL FLOATING CAB<W16>	1-51630-480-0	02	1	9601-9703
201	ABSORBER ASM; SHOCK,RR MTG EXC. FULL FLOATING CAB<W16>	1-51630-607-0	02	1	9704-9904
201	ABSORBER ASM; SHOCK,RR MTG	1-51630-607-0	02	1	9905-
211	RUBBER; CUSHION,S/ABS EXC. FULL FLOATING CAB<W16>	1-53366-128-0	02	1	9601-
212	SPRING; COIL EXC. FULL FLOATING CAB<W16>	1-09580-515-0	02	1	9601-
213	SEAT; SPR,S/ABS EXC. FULL FLOATING CAB<W16>	1-53366-132-1	02	1	9601-
237	ROD ASM; LATERAL (B)	1-53458-343-0	01	1	9601-
237	ROD ASM; LATERAL FULL FLOATING CAB<W16> (A)	1-33670-407-0	01	1	9601-
237	ROD ASM; LATERAL FULL FLOATING CAB<W16> (C)	1-33670-773-0	01	1	9601-
240	WASHER; PL,BRKT ID=10.5 OD=18	1-09985-173-0	01	1	9601-
240	WASHER; PL,BRKT ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	9601-
240	WASHER; PL,BRKT ID=12.5	9-09160-512-0	02	1	9706-
243	WASHER; LK,LATERAL ROD ID=12.2	9-09150-512-0	02	1	9601-
244	NUT; LATERAL ROD M12	9-99110-412-0	02	1	9601-9606
244	NUT; LATERAL ROD M12 FLANGE	0-91150-212-0	02	1	9607-9705
244	NUT; LATERAL ROD M12	9-99110-512-0	02	1	9706-
264	PANEL; BACK ANTI NOISE EQUIPMENT<SV9>	1-53192-606-2	01	1	9601-
274	PIN (A)	1-09987-158-1	01	1	9601-
274	PIN (B) OD=12 L=72	9-08234-272-0	01	1	9601-
279	BOLT (B) M12X40	9-92061-240-0	04	1	9601-9605
279	BOLT (B) M12X40 FLANGE	0-28091-240-0	04	1	9606-
279	BOLT ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28080-825-0	02	1	9601-9606
279	BOLT ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-
279	BOLT FULL FLOATING CAB<W16> (C) M8X16 FLANGE	0-28080-816-0	04	1	9601-
279	BOLT FULL FLOATING CAB<W16> (D) M8X20 FLANGE	0-28080-820-0	06	1	9601-9606
279	BOLT FULL FLOATING CAB<W16> (D) M8X20 FLANGE	0-28680-820-0	06	1	9607-
279	BOLT FULL FLOATING CAB<W16> (D) M8X20 FLANGE	0-28080-820-0	01	1	9601-9606
279	BOLT FULL FLOATING CAB<W16> (D) M8X20 FLANGE	0-28680-820-0	01	1	9607-
279	BOLT FULL FLOATING CAB<W16> (E) M8X60 FLANGE	0-28080-860-0	02	1	9601-
279	BOLT FULL FLOATING CAB<W16> (F)	1-09980-511-0	03	1	9601-9602
279	BOLT FULL FLOATING CAB<W16> (F)	1-09980-511-0	02	1	9603-9711
279	BOLT FULL FLOATING CAB<W16> (F)	1-09980-548-0	02	1	9712-9905
279	BOLT DELUXE CAB(W14) FULL FLOATING CAB<W16> (F) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	9906-
279	BOLT FULL FLOATING CAB<W16> EXC. DELUXE CAB(W14) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	9906-
287	NUT ANTI NOISE EQUIPMENT<SV9> M8	0-91150-108-0	01	1	9601-
288	WASHER; PL ANTI NOISE EQUIPMENT<SV9> ID=8.4 OD=26	9-09164-808-0	03	1	9601-
289	GROMMET ANTI NOISE EQUIPMENT<SV9> OD=40 T=4.8	9-09576-198-0	01	1	9601-
290	RUBBER; MTG ANTI NOISE EQUIPMENT<SV9>	1-53459-702-1	04	1	9601-9608
290	RUBBER; MTG ANTI NOISE EQUIPMENT<SV9>	1-53459-702-1	03	1	9609-
291	BOLT; RATCH M10X20 FLANGE	0-28081-020-0	04	1	9601-9606
291	BOLT; RATCH M10X20 FLANGE	0-28681-020-0	04	1	9607-9609
291	BOLT; RATCH M10X25 FLANGE	0-28681-025-0	04	1	9610-

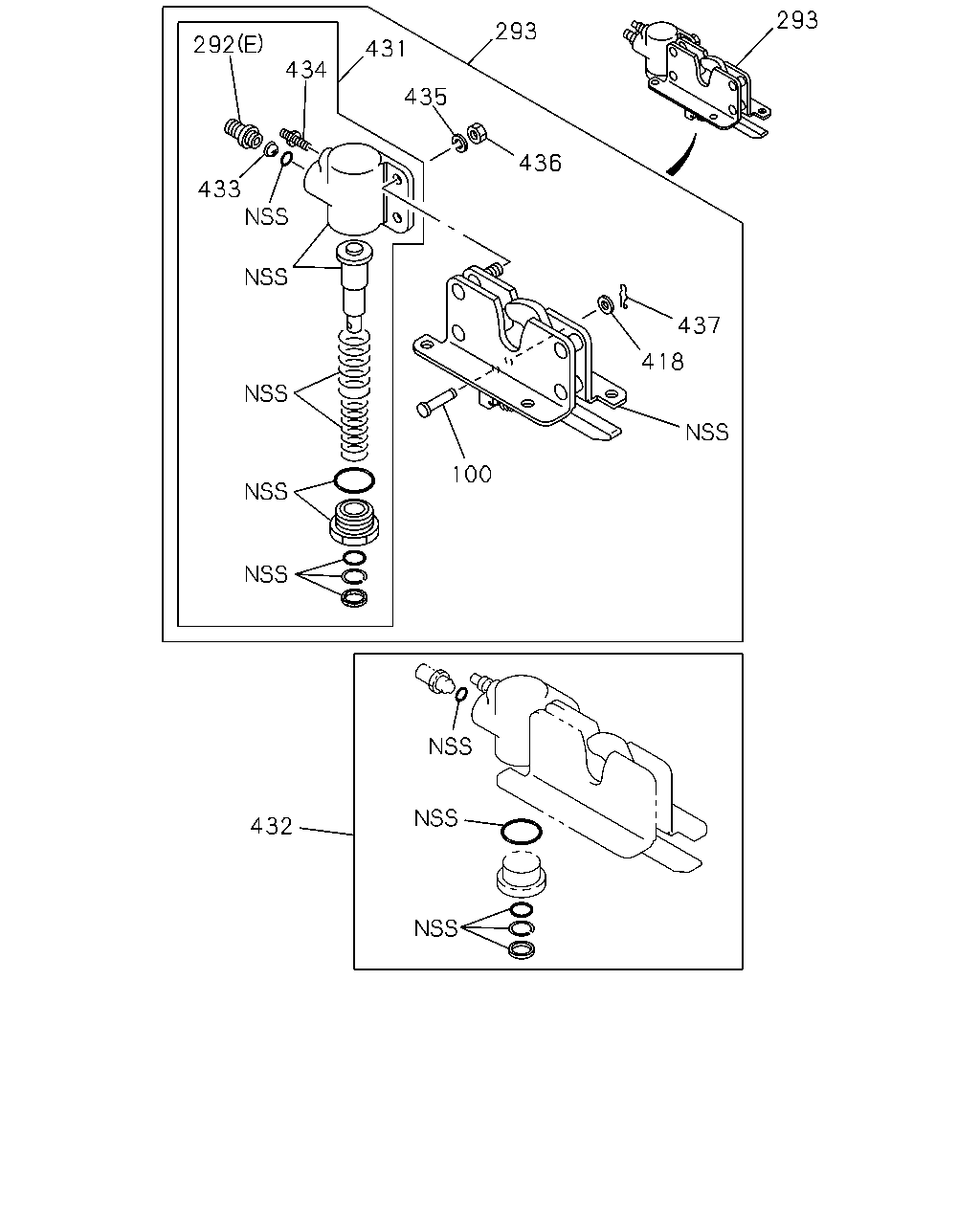

293	RATCH; CAB SUSP,RR	1-53458-346-0	01	1	9601-9705
293	RATCH; CAB SUSP,RR	1-53458-826-0	01	1	9706-9904
293	RATCH; CAB SUSP,RR	1-53458-923-0	01	1	9905-
294	MEMBER; FLOATING FULL FLOATING CAB<W16>	1-53454-561-4	01	1	9601-9607
294	MEMBER; FLOATING FULL FLOATING CAB<W16>	1-53454-692-1	01	1	9608-9803
294	MEMBER; FLOATING FULL FLOATING CAB<W16>	1-53454-737-1	01	1	9804-9904
294	MEMBER; FLOATING FULL FLOATING CAB<W16>	1-53454-828-2	01	1	9905-
294	MEMBER; FLOATING EXC. FULL FLOATING CAB<W16>	1-53454-629-3	01	1	9601-9607
294	MEMBER; FLOATING EXC. FULL FLOATING CAB<W16>	1-53454-695-1	01	1	9608-9803
294	MEMBER; FLOATING EXC. FULL FLOATING CAB<W16>	1-53454-740-1	01	1	9804-9904
294	MEMBER; FLOATING EXC. FULL FLOATING CAB<W16>	1-53454-831-2	01	1	9905-
295	BOLT; STOPPER,UPR M8X20 FLANGE	0-28080-820-0	04	1	9601-9606
295	BOLT; STOPPER,UPR M8X20 FLANGE	0-28680-820-0	04	1	9607-
296	STOPPER; UPR	1-53458-382-0	01	1	9601-
297	BRACKET; LIMIT SW	1-53458-348-0	01	1	9601-9901
297	BRACKET; LIMIT SW	1-53458-782-0	01	1	9902-
298	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	02	1	9601-9606
298	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	02	1	9607-9901
298	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	01	1	9902-
299	RUBBER; MTG (A)	1-53366-130-1	02	1	9601-9602
299	RUBBER; MTG (B)	1-53366-156-0	02	1	9603-
299	RUBBER; MTG (C)	1-53366-155-0	02	1	9603-
300	BOLT; MTG RUBBER M8X25 W/LK&PL WASHER	1-09030-027-0	08	1	9603-9607
300	BOLT; MTG RUBBER M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	9608-9612
300	BOLT; MTG RUBBER FULL FLOATING CAB<W16> M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	9701-
300	BOLT; MTG RUBBER FULL FLOATING CAB<W16> M8X16 FLANGE	0-28080-816-0	04	1	9608-
300	BOLT; MTG RUBBER EXC. FULL FLOATING CAB<W16> M8X25 W/LK&PL WASHER	1-09030-027-0	08	1	9701-
301	PIN; LATERAL ROD M12X57.5	1-53459-498-1	02	1	9601-
309	NUT M10	9-09110-510-0	04	1	9601-9606
309	NUT M10 FLANGE	0-91150-210-0	04	1	9607-
321	SHIM; FRT CAB MTG	1-53458-629-1	04	1	9601-

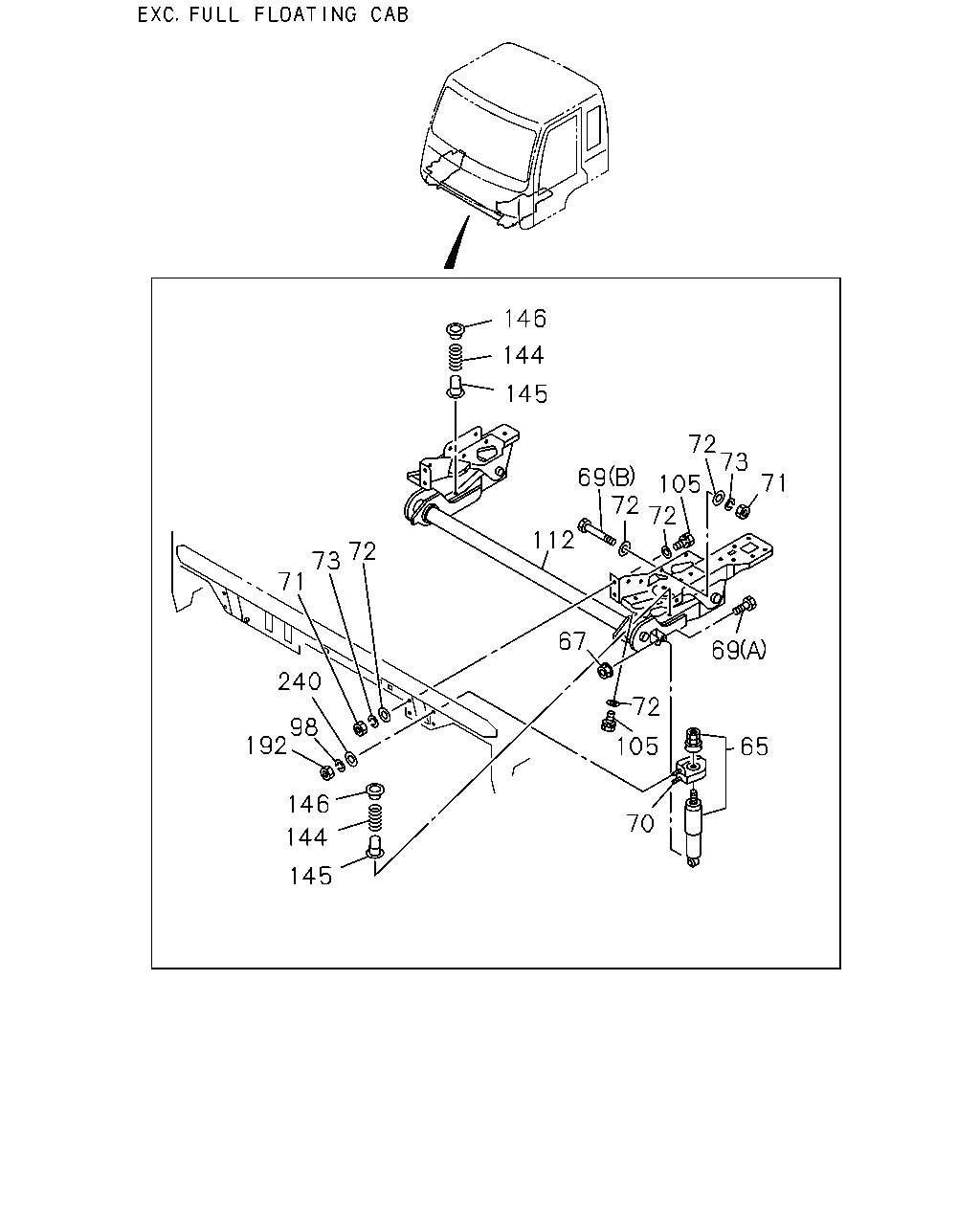

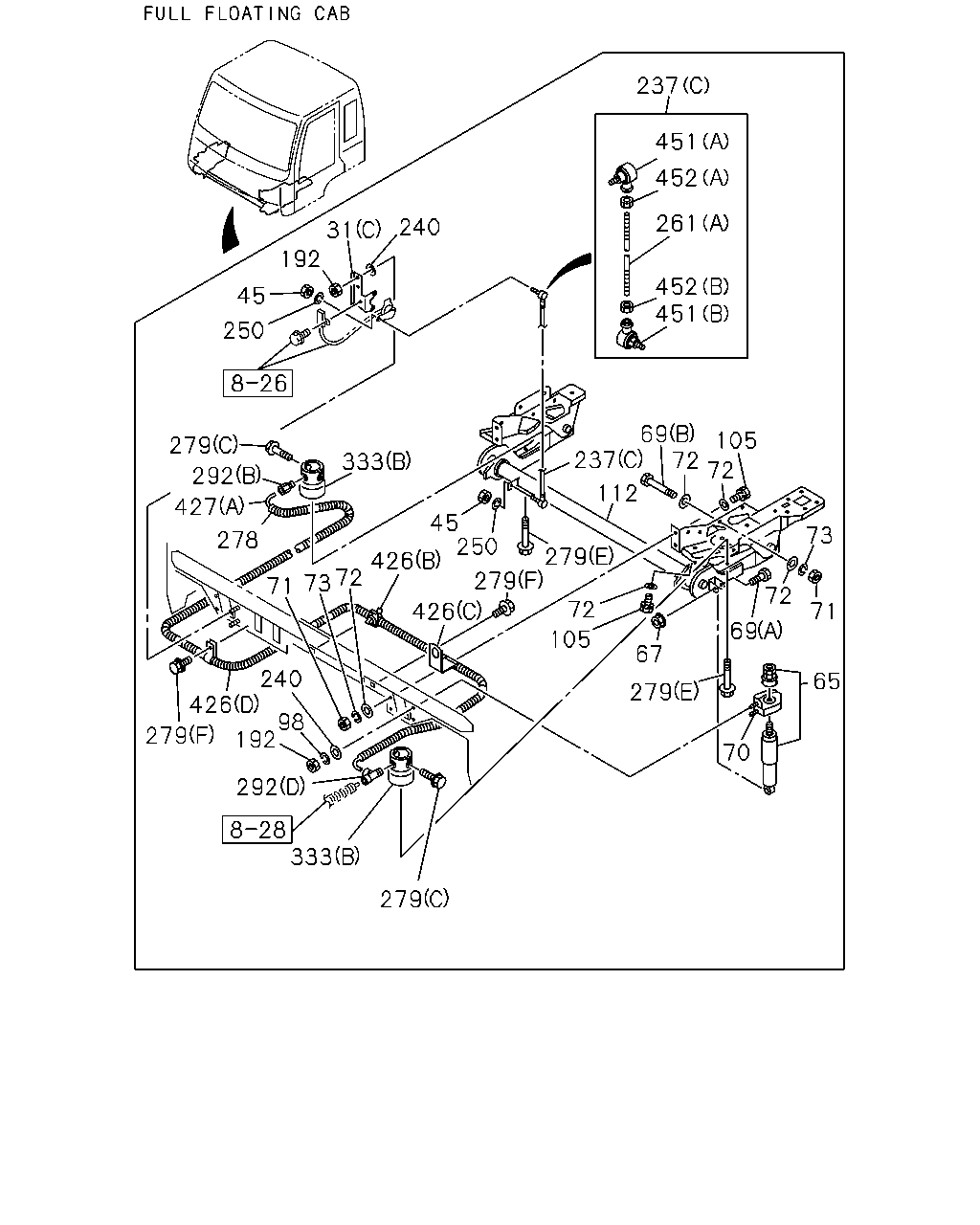

237 451 452 261 240 31 192 452 451 45 250 69 72 105 279 333 292 112 427 45 250 73 278 279 279 426 72 73 71 72 72 71 426 69 105 67 240 426 65 279 98 192 279 70 292 333 279 237 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

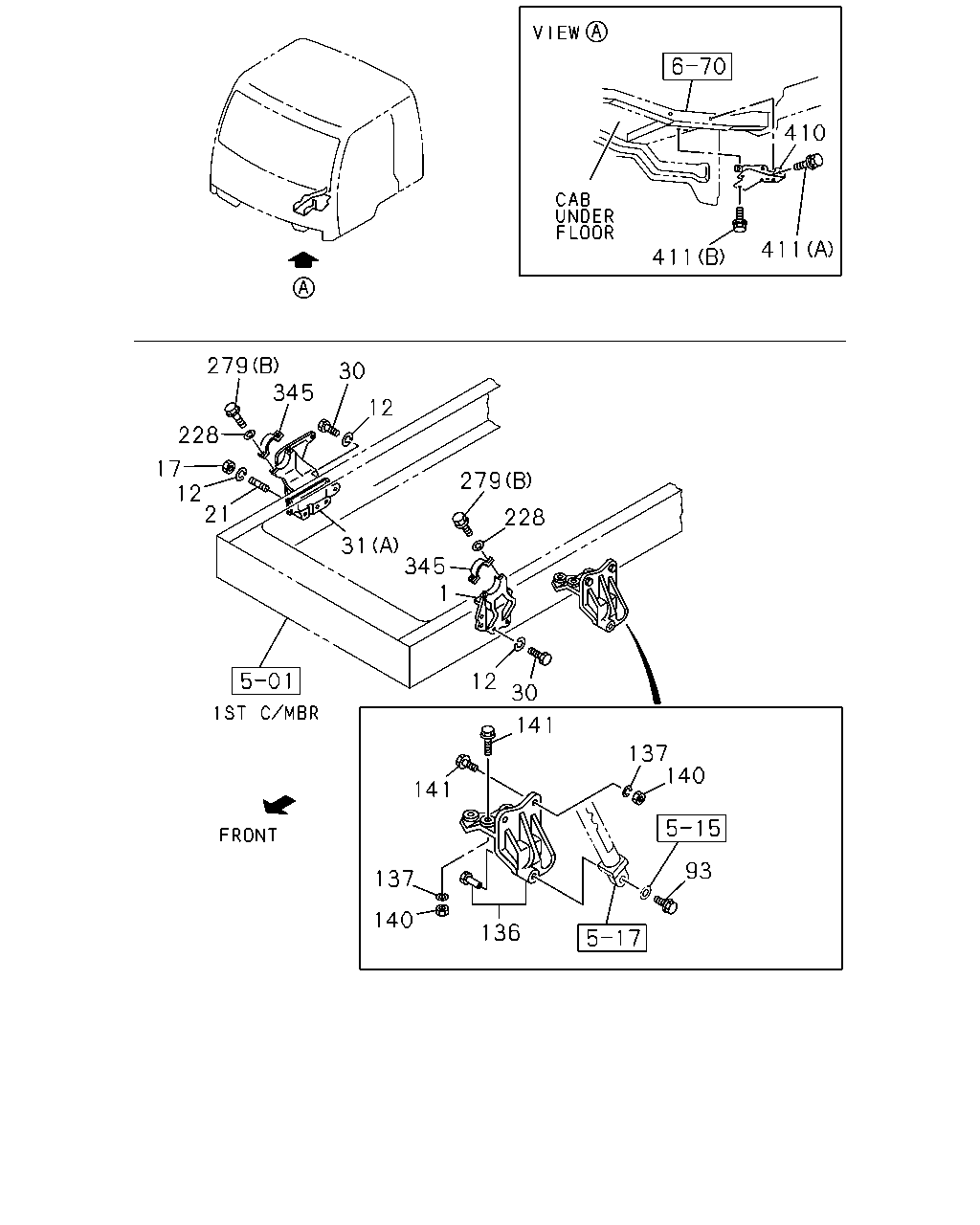

31	BRACKET; CAB (A)	1-44226-146-2	01	1	9601-
31	BRACKET; CAB FULL FLOATING CAB<W16> (B)	1-53458-374-1	01	1	9601-
31	BRACKET; CAB FULL FLOATING CAB<W16> (C)	1-81549-016-0	01	1	9601-
31	BRACKET; CAB FULL FLOATING CAB<W16> (D)	1-53453-225-3	01	1	9601-
31	BRACKET; CAB FULL FLOATING CAB<W16> (D)	1-53453-224-4	01	1	9601-
31	BRACKET; CAB EXC. FULL FLOATING CAB<W16> (D)	1-53453-274-1	01	1	9601-
31	BRACKET; CAB EXC. FULL FLOATING CAB<W16> (D)	1-53453-273-1	01	1	9601-
45	NUT FULL FLOATING CAB<W16> M5	9-99110-405-0	04	1	9601-
65	ABSORBER; SHOCK,CAB FRT SUSPENSION FULL FLOATING CAB<W16>	1-51630-522-0	02	1	9601-9610
65	ABSORBER; SHOCK,CAB FRT SUSPENSION FULL FLOATING CAB<W16>	1-51630-551-0	02	1	9611-9703
65	ABSORBER; SHOCK,CAB FRT SUSPENSION FULL FLOATING CAB<W16>	1-51630-623-0	02	1	9704-9904
65	ABSORBER; SHOCK,CAB FRT SUSPENSION EXC. FULL FLOATING CAB<W16>	1-51630-472-0	02	1	9601-9610
65	ABSORBER; SHOCK,CAB FRT SUSPENSION EXC. FULL FLOATING CAB<W16>	1-51630-546-0	02	1	9611-9703
65	ABSORBER; SHOCK,CAB FRT SUSPENSION EXC. FULL FLOATING CAB<W16>	1-51630-603-0	02	1	9704-9904
65	ABSORBER; SHOCK,CAB FRT SUSPENSION	1-51630-603-0	02	1	9905-
67	NUT; S/ABS,CAB FRT SUSPENSION M12 FLANGE	0-91150-112-0	02	1	9601-9606
67	NUT; S/ABS,CAB FRT SUSPENSION M12 FLANGE	0-91150-212-0	02	1	9607-
69	BOLT; S/ABS,CAB FRT SUSPENSION (A) M12X60	0-20801-260-0	02	1	9601-
69	BOLT; S/ABS,CAB FRT SUSPENSION (B) M10X100	1-09980-547-0	08	1	9601-
70	BRACKET; S/ABS,CAB FRT SUSP	1-53458-493-1	01	1	9601-
70	BRACKET; S/ABS,CAB FRT SUSP	1-53458-492-1	01	1	9601-
71	NUT; BRKT TO CAB FRAME M10	1-09984-142-0	06	1	9601-
72	WASHER; PL,BRKT TO FRAME ID=10.5 OD=26 T=2.6	1-09985-184-0	24	1	9601-
73	WASHER; LK,BRKT TO CAB FRAME ID=10	1-09985-185-0	12	1	9601-
98	WASHER; LK,BRKT ID=10	1-09985-185-0	04	1	9601-
105	BOLT; BRKT TO CAB FRAME M10X30	1-09980-546-0	08	1	9601-
112	ARM ASM; LINK,CAB FRT SUSP FULL FLOATING CAB<W16>	1-53450-568-4	01	1	9601-0105
112	ARM ASM; LINK,CAB FRT SUSP FULL FLOATING CAB<W16>	1-53450-645-1	01	1	0106-
112	ARM ASM; LINK,CAB FRT SUSP EXC. FULL FLOATING CAB<W16>	1-53450-565-6	01	1	9601-
192	NUT; BRKT FIX M10	1-09984-142-0	02	1	9601-
192	NUT; BRKT FIX M10	1-09984-142-0	04	1	9601-
237	ROD ASM; LATERAL (B)	1-53458-343-0	01	1	9601-
237	ROD ASM; LATERAL FULL FLOATING CAB<W16> (A)	1-33670-407-0	01	1	9601-
237	ROD ASM; LATERAL FULL FLOATING CAB<W16> (C)	1-33670-773-0	01	1	9601-
240	WASHER; PL,BRKT ID=10.5 OD=18	1-09985-173-0	01	1	9601-
240	WASHER; PL,BRKT ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	9601-
240	WASHER; PL,BRKT ID=12.5	9-09160-512-0	02	1	9706-
250	WASHER; LK FULL FLOATING CAB<W16> ID=5.1	9-09150-505-0	04	1	9601-
261	ROD; LINK FULL FLOATING CAB<W16> (A)	9-08410-507-0	01	1	9601-
261	ROD; LINK FULL FLOATING CAB<W16> (B)	9-08410-514-0	01	1	9601-
278	COVER DELUXE CAB(W14) FULL FLOATING CAB<W16> SERVICED BY L=800 ID=7	1-83129-031-1	01	1	9906-
278	COVER FULL FLOATING CAB<W16> L=2000	1-83129-335-0	01	1	9601-9602
278	COVER FULL FLOATING CAB<W16> L=1300	1-87410-085-0	01	1	9603-9711
278	COVER FULL FLOATING CAB<W16> L=1200	1-87410-085-0	01	1	9712-9904
278	COVER FULL FLOATING CAB<W16> L=1200	1-87411-016-0	01	1	9905-9905
278	COVER FULL FLOATING CAB<W16> EXC. DELUXE CAB(W14) L=1200 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	9906-
279	BOLT (B) M12X40	9-92061-240-0	04	1	9601-9605
279	BOLT (B) M12X40 FLANGE	0-28091-240-0	04	1	9606-
279	BOLT ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28080-825-0	02	1	9601-9606
279	BOLT ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-
279	BOLT FULL FLOATING CAB<W16> (C) M8X16 FLANGE	0-28080-816-0	04	1	9601-
279	BOLT FULL FLOATING CAB<W16> (D) M8X20 FLANGE	0-28080-820-0	06	1	9601-9606
279	BOLT FULL FLOATING CAB<W16> (D) M8X20 FLANGE	0-28680-820-0	06	1	9607-
279	BOLT FULL FLOATING CAB<W16> (D) M8X20 FLANGE	0-28080-820-0	01	1	9601-9606
279	BOLT FULL FLOATING CAB<W16> (D) M8X20 FLANGE	0-28680-820-0	01	1	9607-
279	BOLT FULL FLOATING CAB<W16> (E) M8X60 FLANGE	0-28080-860-0	02	1	9601-
279	BOLT FULL FLOATING CAB<W16> (F)	1-09980-511-0	03	1	9601-9602
279	BOLT FULL FLOATING CAB<W16> (F)	1-09980-511-0	02	1	9603-9711
279	BOLT FULL FLOATING CAB<W16> (F)	1-09980-548-0	02	1	9712-9905
279	BOLT DELUXE CAB(W14) FULL FLOATING CAB<W16> (F) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	9906-
279	BOLT FULL FLOATING CAB<W16> EXC. DELUXE CAB(W14) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	9906-

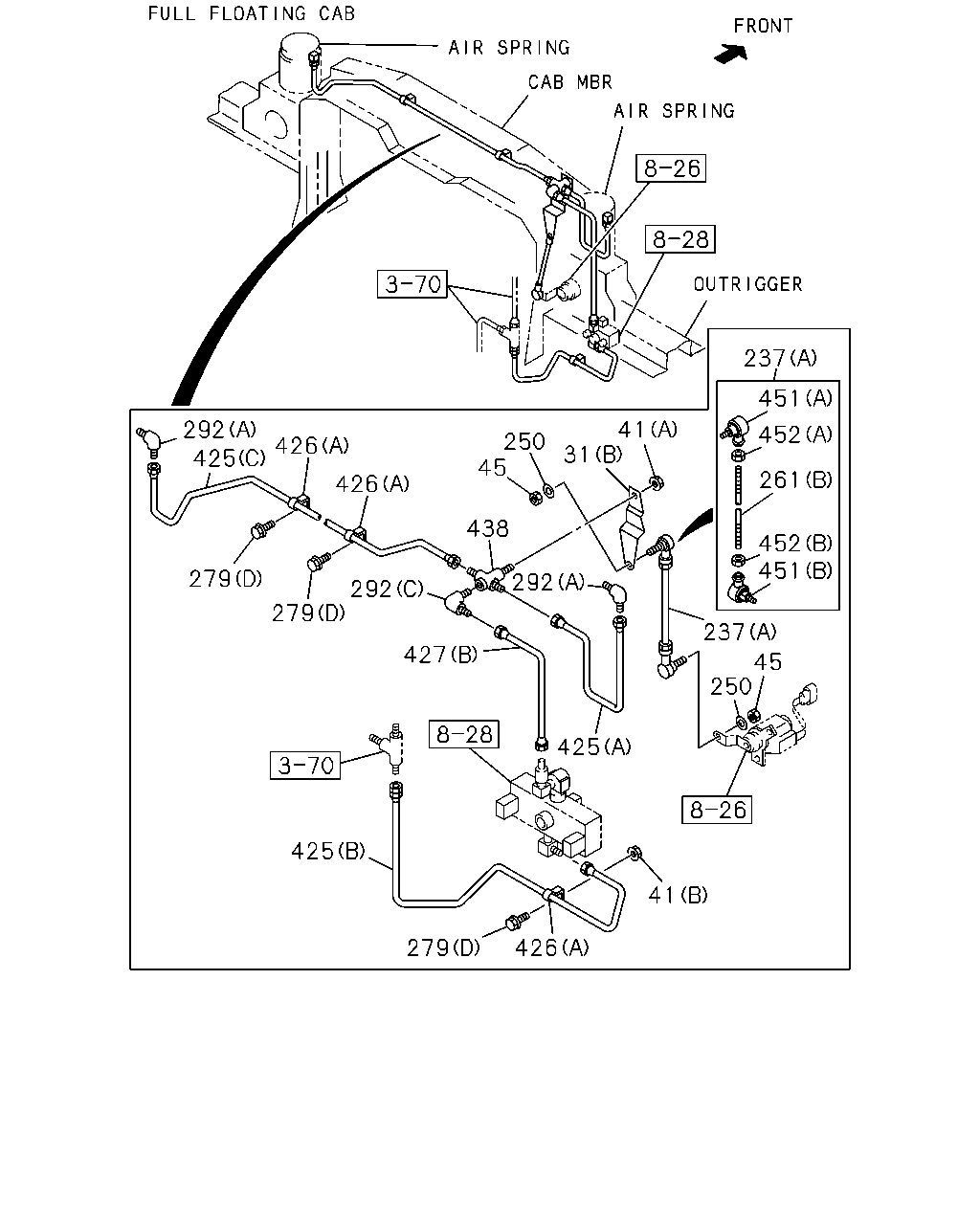

292	CONNECTOR; CAB SUSPENSION (E) M14	1-53458-047-0	01	1	9601-9904
292	CONNECTOR; CAB SUSPENSION (E) M12	1-53458-941-0	01	1	9905-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB<W16> (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	9601-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB<W16> (B) DIN6 R1/8 STRAIGHT	1-09660-759-1	01	1	9601-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB<W16> (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	9601-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB<W16> (D) DIN6X2 & R1/8 3WAY	1-09660-761-1	01	1	9601-
333	SPRING FULL FLOATING CAB<W16> (B)	1-52110-142-1	02	1	9601-
333	SPRING FULL FLOATING CAB<W16> (A)	1-52110-143-1	02	1	9601-
426	CLIP DELUXE CAB(W14) FULL FLOATING CAB<W16> (B) ID=5.8 L=8	8-94155-681-0	02	1	9906-
426	CLIP FULL FLOATING CAB<W16> (C)	1-09700-559-0	02	1	9601-9602
426	CLIP FULL FLOATING CAB<W16> (C) ID=11 H=20 L=20	5-09700-351-0	01	1	9603-9905
426	CLIP FULL FLOATING CAB<W16> EXC. DELUXE CAB(W14) (C) ID=11 H=20 L=20	5-09700-351-0	01	1	9906-
426	CLIP FULL FLOATING CAB<W16> (A) ID=6 H=20 L=20	1-09700-603-0	02	1	9601-
426	CLIP FULL FLOATING CAB<W16> (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9601-9912
426	CLIP FULL FLOATING CAB<W16> (A) ID=7 L=32	9-09524-665-0	01	1	0001-
426	CLIP FULL FLOATING CAB<W16> (B) ID=9.5	5-09709-020-0	01	1	9601-
426	CLIP FULL FLOATING CAB<W16> (D) ID=11 L=16	9-09525-025-0	01	1	9601-
427	TUBE FULL FLOATING CAB<W16> (B) L=1300	1-09368-930-0	01	1	9601-9904
427	TUBE FULL FLOATING CAB<W16> (B) L=400 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	9905-
427	TUBE FULL FLOATING CAB<W16> (A) L=1300 SERVICED BY L=2000 OD=6	1-87410-081-0	01	1	9601-9904
427	TUBE FULL FLOATING CAB<W16> (A) L=1300 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	9905-
451	JOINT; BALL FULL FLOATING CAB<W16> (A)	1-09760-103-1	02	1	9601-
451	JOINT; BALL FULL FLOATING CAB<W16> (B)	1-09760-104-1	02	1	9601-
452	NUT; BALL JOINT FULL FLOATING CAB<W16> (B) M5 LH THREAD	9-09840-277-0	02	1	9601-
452	NUT; BALL JOINT FULL FLOATING CAB<W16> (A) M5	9-99110-405-0	02	1	9601-

299 309 298 293 321 244 243 240 55 297 321 295 300 237 55 55 301 299 301 291 299 294 296 333 174 173 274 188 24 325 300 220 201 274 188 174 183 175 288 279 264 290 289 288 287

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	WASHER; PL ID=12.5	9-09160-512-0	01	1	9601-
55	NUT; RUBBER (A) M8	9-09110-508-0	04	1	9601-9602
55	NUT; RUBBER FULL FLOATING CAB<W16> (A) M8	9-09110-408-0	08	1	9603-9606
55	NUT; RUBBER FULL FLOATING CAB<W16> (A) M8 FLANGE	0-91150-108-0	08	1	9607-9607
55	NUT; RUBBER (B) M8 FLANGE	0-91150-108-0	02	1	9603-9607
55	NUT; RUBBER (B) M8 FLANGE	0-91150-108-0	06	1	9608-
55	NUT; RUBBER EXC. FULL FLOATING CAB<W16> (A) M8	9-09110-408-0	04	1	9603-9606
55	NUT; RUBBER EXC. FULL FLOATING CAB<W16> (A) M8 FLANGE	0-91150-108-0	04	1	9607-9607
173	MEMBER; CAB MTG RR FULL FLOATING CAB<W16>	1-53450-545-6	01	1	9601-
173	MEMBER; CAB MTG RR EXC. FULL FLOATING CAB<W16>	1-53450-564-0	01	1	9601-9903
173	MEMBER; CAB MTG RR EXC. FULL FLOATING CAB<W16>	1-53450-617-2	01	1	9904-
174	OUTRIGGER	1-53456-246-6	02	1	9601-9607
174	OUTRIGGER	1-53456-277-3	01	1	9608-
174	OUTRIGGER	1-53456-278-3	01	1	9608-
175	BOLT; MEMBER TO FRAME M14X35	9-92061-435-0	08	1	9601-
183	WASHER; PL,MEMBER ID=15	9-09651-069-0	08	1	9601-
188	BOLT; OUTRIGGER M10X20 FLANGE	0-28081-020-0	08	1	9601-9606
188	BOLT; OUTRIGGER M10X20 FLANGE	0-28681-020-0	08	1	9607-9609
188	BOLT; OUTRIGGER M10X25 FLANGE	0-28681-025-0	08	1	9610-
201	ABSORBER ASM; SHOCK,RR MTG FULL FLOATING CAB<W16>	1-51630-523-0	02	1	9601-9703
201	ABSORBER ASM; SHOCK,RR MTG FULL FLOATING CAB<W16>	1-51630-624-0	02	1	9704-9904
201	ABSORBER ASM; SHOCK,RR MTG EXC. FULL FLOATING CAB<W16>	1-51630-480-0	02	1	9601-9703
201	ABSORBER ASM; SHOCK,RR MTG EXC. FULL FLOATING CAB<W16>	1-51630-607-0	02	1	9704-9904
201	ABSORBER ASM; SHOCK,RR MTG	1-51630-607-0	02	1	9905-
220	GUIDE; SPR FULL FLOATING CAB<W16>	1-53458-648-1	02	1	9601-
237	ROD ASM; LATERAL (B)	1-53458-343-0	01	1	9601-
237	ROD ASM; LATERAL FULL FLOATING CAB<W16> (A)	1-33670-407-0	01	1	9601-
237	ROD ASM; LATERAL FULL FLOATING CAB<W16> (C)	1-33670-773-0	01	1	9601-
240	WASHER; PL,BRKT ID=10.5 OD=18	1-09985-173-0	01	1	9601-
240	WASHER; PL,BRKT ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	9601-
240	WASHER; PL,BRKT ID=12.5	9-09160-512-0	02	1	9706-
243	WASHER; LK,LATERAL ROD ID=12.2	9-09150-512-0	02	1	9601-
244	NUT; LATERAL ROD M12	9-99110-412-0	02	1	9601-9606
244	NUT; LATERAL ROD M12 FLANGE	0-91150-212-0	02	1	9607-9705
244	NUT; LATERAL ROD M12	9-99110-512-0	02	1	9706-
264	PANEL; BACK ANTI NOISE EQUIPMENT<SV9>	1-53192-606-2	01	1	9601-
274	PIN (A)	1-09987-158-1	01	1	9601-
274	PIN (B) OD=12 L=72	9-08234-272-0	01	1	9601-
279	BOLT (B) M12X40	9-92061-240-0	04	1	9601-9605
279	BOLT (B) M12X40 FLANGE	0-28091-240-0	04	1	9606-
279	BOLT ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28080-825-0	02	1	9601-9606
279	BOLT ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-
279	BOLT FULL FLOATING CAB<W16> (C) M8X16 FLANGE	0-28080-816-0	04	1	9601-
279	BOLT FULL FLOATING CAB<W16> (D) M8X20 FLANGE	0-28080-820-0	06	1	9601-9606
279	BOLT FULL FLOATING CAB<W16> (D) M8X20 FLANGE	0-28680-820-0	06	1	9607-
279	BOLT FULL FLOATING CAB<W16> (D) M8X20 FLANGE	0-28080-820-0	01	1	9601-9606
279	BOLT FULL FLOATING CAB<W16> (D) M8X20 FLANGE	0-28680-820-0	01	1	9607-
279	BOLT FULL FLOATING CAB<W16> (E) M8X60 FLANGE	0-28080-860-0	02	1	9601-
279	BOLT FULL FLOATING CAB<W16> (F)	1-09980-511-0	03	1	9601-9602
279	BOLT FULL FLOATING CAB<W16> (F)	1-09980-511-0	02	1	9603-9711
279	BOLT FULL FLOATING CAB<W16> (F)	1-09980-548-0	02	1	9712-9905
279	BOLT DELUXE CAB(W14) FULL FLOATING CAB<W16> (F) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	9906-
279	BOLT FULL FLOATING CAB<W16> EXC. DELUXE CAB(W14) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	9906-
287	NUT ANTI NOISE EQUIPMENT<SV9> M8	0-91150-108-0	01	1	9601-
288	WASHER; PL ANTI NOISE EQUIPMENT<SV9> ID=8.4 OD=26	9-09164-808-0	03	1	9601-
289	GROMMET ANTI NOISE EQUIPMENT<SV9> OD=40 T=4.8	9-09576-198-0	01	1	9601-
290	RUBBER; MTG ANTI NOISE EQUIPMENT<SV9>	1-53459-702-1	04	1	9601-9608
290	RUBBER; MTG ANTI NOISE EQUIPMENT<SV9>	1-53459-702-1	03	1	9609-
291	BOLT; RATCH M10X20 FLANGE	0-28081-020-0	04	1	9601-9606
291	BOLT; RATCH M10X20 FLANGE	0-28681-020-0	04	1	9607-9609
291	BOLT; RATCH M10X25 FLANGE	0-28681-025-0	04	1	9610-
293	RATCH; CAB SUSP,RR	1-53458-346-0	01	1	9601-9705
293	RATCH; CAB SUSP,RR	1-53458-826-0	01	1	9706-9904
293	RATCH; CAB SUSP,RR	1-53458-923-0	01	1	9905-
294	MEMBER; FLOATING FULL FLOATING CAB<W16>	1-53454-561-4	01	1	9601-9607
294	MEMBER; FLOATING FULL FLOATING CAB<W16>	1-53454-692-1	01	1	9608-9803
294	MEMBER; FLOATING FULL FLOATING CAB<W16>	1-53454-737-1	01	1	9804-9904
294	MEMBER; FLOATING FULL FLOATING CAB<W16>	1-53454-828-2	01	1	9905-
294	MEMBER; FLOATING EXC. FULL FLOATING CAB<W16>	1-53454-629-3	01	1	9601-9607
294	MEMBER; FLOATING EXC. FULL FLOATING CAB<W16>	1-53454-695-1	01	1	9608-9803
294	MEMBER; FLOATING EXC. FULL FLOATING CAB<W16>	1-53454-740-1	01	1	9804-9904
294	MEMBER; FLOATING EXC. FULL FLOATING CAB<W16>	1-53454-831-2	01	1	9905-
295	BOLT; STOPPER,UPR M8X20 FLANGE	0-28080-820-0	04	1	9601-9606
295	BOLT; STOPPER,UPR M8X20 FLANGE	0-28680-820-0	04	1	9607-
296	STOPPER; UPR	1-53458-382-0	01	1	9601-
297	BRACKET; LIMIT SW	1-53458-348-0	01	1	9601-9901
297	BRACKET; LIMIT SW	1-53458-782-0	01	1	9902-
298	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	02	1	9601-9606
298	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	02	1	9607-9901
298	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	01	1	9902-
299	RUBBER; MTG (A)	1-53366-130-1	02	1	9601-9602
299	RUBBER; MTG (B)	1-53366-156-0	02	1	9603-
299	RUBBER; MTG (C)	1-53366-155-0	02	1	9603-
300	BOLT; MTG RUBBER M8X25 W/LK&PL WASHER	1-09030-027-0	08	1	9603-9607
300	BOLT; MTG RUBBER M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	9608-9612
300	BOLT; MTG RUBBER FULL FLOATING CAB<W16> M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	9701-
300	BOLT; MTG RUBBER FULL FLOATING CAB<W16> M8X16 FLANGE	0-28080-816-0	04	1	9608-
300	BOLT; MTG RUBBER EXC. FULL FLOATING CAB<W16> M8X25 W/LK&PL WASHER	1-09030-027-0	08	1	9701-
301	PIN; LATERAL ROD M12X57.5	1-53459-498-1	02	1	9601-
309	NUT M10	9-09110-510-0	04	1	9601-9606
309	NUT M10 FLANGE	0-91150-210-0	04	1	9607-
321	SHIM; FRT CAB MTG	1-53458-629-1	04	1	9601-
325	BOLT; GUIDE NUT FULL FLOATING CAB<W16> M8X20 FLANGE	0-28080-820-0	02	1	9601-9606
325	BOLT; GUIDE NUT FULL FLOATING CAB<W16> M8X20 FLANGE	0-28680-820-0	02	1	9607-
333	SPRING FULL FLOATING CAB<W16> (B)	1-52110-142-1	02	1	9601-
333	SPRING FULL FLOATING CAB<W16> (A)	1-52110-143-1	02	1	9601-

293 293 292 431 434 435 436 433 437 418 100 432

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
100	PIN; JOINT	1-53458-527-0	01	1	9601-9705
100	PIN; JOINT	1-53458-831-0	01	1	9706-
292	CONNECTOR; CAB SUSPENSION (E) M14	1-53458-047-0	01	1	9601-9904
292	CONNECTOR; CAB SUSPENSION (E) M12	1-53458-941-0	01	1	9905-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB<W16> (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	9601-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB<W16> (B) DIN6 R1/8 STRAIGHT	1-09660-759-1	01	1	9601-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB<W16> (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	9601-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB<W16> (D) DIN6X2 & R1/8 3WAY	1-09660-761-1	01	1	9601-
293	RATCH; CAB SUSP,RR	1-53458-346-0	01	1	9601-9705
293	RATCH; CAB SUSP,RR	1-53458-826-0	01	1	9706-9904
293	RATCH; CAB SUSP,RR	1-53458-923-0	01	1	9905-
418	WASHER; PL,PIN	1-53458-059-0	01	1	9601-
431	CYLINDER; AIR,RATCH	1-53458-539-0	01	1	9601-9904
431	CYLINDER; AIR,RATCH	1-53457-013-0	01	1	9905-
432	REPAIR KIT; AIR CYL	1-85579-052-0	01	1	9601-
433	FILTER; AIR CYL	1-53458-048-0	01	1	9601-
434	SCREW; AIR BLEEDER	1-53458-529-0	01	1	9601-
435	WASHER; LK,AIR CYL ID=10.2	9-09150-510-0	02	1	9601-
436	NUT; AIR CYL	1-53458-528-0	02	1	9601-
437	PIN; SNAP	1-53458-526-0	01	1	9601-

201 202 202 203 204 205 204 203 203 204 205 205 204 203 202 202

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
201	ABSORBER ASM; SHOCK,RR MTG FULL FLOATING CAB<W16>	1-51630-523-0	02	1	9601-9703
201	ABSORBER ASM; SHOCK,RR MTG FULL FLOATING CAB<W16>	1-51630-624-0	02	1	9704-9904
201	ABSORBER ASM; SHOCK,RR MTG EXC. FULL FLOATING CAB<W16>	1-51630-480-0	02	1	9601-9703
201	ABSORBER ASM; SHOCK,RR MTG EXC. FULL FLOATING CAB<W16>	1-51630-607-0	02	1	9704-9904
201	ABSORBER ASM; SHOCK,RR MTG	1-51630-607-0	02	1	9905-
202	NUT; S/ABS (A) M10	9-09110-410-0	06	1	9601-9610
202	NUT; S/ABS (A) M10	9-09110-410-0	04	1	9611-
202	NUT; S/ABS (B) M10	9-09111-410-0	06	1	9601-
202	NUT; S/ABS (A) M10 FLANGE	0-91150-110-0	02	1	9611-
203	WASHER; RUBBER,SHOCK OD=38 ID=10.5 T=6	1-51631-005-0	12	1	9601-9610
203	WASHER; RUBBER,SHOCK OD=38 ID=10.5 T=6	1-51631-005-0	10	1	9611-
203	WASHER; RUBBER,SHOCK OD=38 ID=10 T=5	1-51631-104-0	02	1	9611-
204	RUBBER; CUSHION,SHOCK	1-51631-004-0	12	1	9601-
205	WASHER; RUBBER,SHOCK	1-51631-079-0	08	1	9601-

410 411 411 279 345 30 12 228 17 12 21 279 228 31 345 1 12 30 141 137 140 141 93 137 140 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BRACKET; CAB MTG	1-53453-214-2	01	1	9601-
12	WASHER; LK,BRKT ID=15	9-09651-069-0	11	1	9601-
17	NUT; BRKT,CAB TILT M14	9-99110-514-0	01	1	9601-
21	STUD; BRKT,CAB TILT M14X48 L=75	1-09300-094-0	01	1	9601-
30	BOLT; CAB FRT FOOT M14X45	9-92061-445-0	10	1	9601-
31	BRACKET; CAB (A)	1-44226-146-2	01	1	9601-
31	BRACKET; CAB FULL FLOATING CAB<W16> (B)	1-53458-374-1	01	1	9601-
31	BRACKET; CAB FULL FLOATING CAB<W16> (C)	1-81549-016-0	01	1	9601-
31	BRACKET; CAB FULL FLOATING CAB<W16> (D)	1-53453-225-3	01	1	9601-
31	BRACKET; CAB FULL FLOATING CAB<W16> (D)	1-53453-224-4	01	1	9601-
31	BRACKET; CAB EXC. FULL FLOATING CAB<W16> (D)	1-53453-274-1	01	1	9601-
31	BRACKET; CAB EXC. FULL FLOATING CAB<W16> (D)	1-53453-273-1	01	1	9601-
93	BOLT; PIN M10X20 W/LK WASHER	0-50041-020-0	01	1	9601-9606
93	BOLT; PIN M10X20 FLANGE	0-28681-020-0	01	1	9607-
136	BRACKET; OIL CYL W/PIN	1-53458-623-0	01	1	9601-
137	WASHER; PL,BRKT ID=15	9-09651-069-0	04	1	9601-
140	NUT; BRKT M14	9-99110-514-0	02	1	9601-
141	BOLT; BRKT M14X50	9-92061-450-0	04	1	9601-
228	WASHER; PL ID=12.5	9-09164-512-0	04	1	9601-9605
279	BOLT (B) M12X40	9-92061-240-0	04	1	9601-9605
279	BOLT (B) M12X40 FLANGE	0-28091-240-0	04	1	9606-
279	BOLT ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28080-825-0	02	1	9601-9606
279	BOLT ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-
279	BOLT FULL FLOATING CAB<W16> (C) M8X16 FLANGE	0-28080-816-0	04	1	9601-
279	BOLT FULL FLOATING CAB<W16> (D) M8X20 FLANGE	0-28080-820-0	06	1	9601-9606
279	BOLT FULL FLOATING CAB<W16> (D) M8X20 FLANGE	0-28680-820-0	06	1	9607-
279	BOLT FULL FLOATING CAB<W16> (D) M8X20 FLANGE	0-28080-820-0	01	1	9601-9606
279	BOLT FULL FLOATING CAB<W16> (D) M8X20 FLANGE	0-28680-820-0	01	1	9607-
279	BOLT FULL FLOATING CAB<W16> (E) M8X60 FLANGE	0-28080-860-0	02	1	9601-
279	BOLT FULL FLOATING CAB<W16> (F)	1-09980-511-0	03	1	9601-9602
279	BOLT FULL FLOATING CAB<W16> (F)	1-09980-511-0	02	1	9603-9711
279	BOLT FULL FLOATING CAB<W16> (F)	1-09980-548-0	02	1	9712-9905
279	BOLT DELUXE CAB(W14) FULL FLOATING CAB<W16> (F) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	9906-
279	BOLT FULL FLOATING CAB<W16> EXC. DELUXE CAB(W14) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	9906-
345	CAP; CAB	1-53458-336-3	02	1	9601-
410	REINFORCEMENT; CAB TILT	1-62570-864-0	01	1	9601-
411	BOLT; REINFORCEMENT (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	9601-
411	BOLT; REINFORCEMENT (B) M10X20 W/LK&PL WASHER	8-94279-211-0	01	1	9601-

146 144 145 72 73 69 72 72 71 105 112 72 73 71 69 67 240 72 98 192 105 65 146 70 144 145

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
65	ABSORBER; SHOCK,CAB FRT SUSPENSION FULL FLOATING CAB<W16>	1-51630-522-0	02	1	9601-9610
65	ABSORBER; SHOCK,CAB FRT SUSPENSION FULL FLOATING CAB<W16>	1-51630-551-0	02	1	9611-9703
65	ABSORBER; SHOCK,CAB FRT SUSPENSION FULL FLOATING CAB<W16>	1-51630-623-0	02	1	9704-9904
65	ABSORBER; SHOCK,CAB FRT SUSPENSION EXC. FULL FLOATING CAB<W16>	1-51630-472-0	02	1	9601-9610
65	ABSORBER; SHOCK,CAB FRT SUSPENSION EXC. FULL FLOATING CAB<W16>	1-51630-546-0	02	1	9611-9703
65	ABSORBER; SHOCK,CAB FRT SUSPENSION EXC. FULL FLOATING CAB<W16>	1-51630-603-0	02	1	9704-9904
65	ABSORBER; SHOCK,CAB FRT SUSPENSION	1-51630-603-0	02	1	9905-
67	NUT; S/ABS,CAB FRT SUSPENSION M12 FLANGE	0-91150-112-0	02	1	9601-9606
67	NUT; S/ABS,CAB FRT SUSPENSION M12 FLANGE	0-91150-212-0	02	1	9607-
69	BOLT; S/ABS,CAB FRT SUSPENSION (A) M12X60	0-20801-260-0	02	1	9601-
69	BOLT; S/ABS,CAB FRT SUSPENSION (B) M10X100	1-09980-547-0	08	1	9601-
70	BRACKET; S/ABS,CAB FRT SUSP	1-53458-493-1	01	1	9601-
70	BRACKET; S/ABS,CAB FRT SUSP	1-53458-492-1	01	1	9601-
71	NUT; BRKT TO CAB FRAME M10	1-09984-142-0	06	1	9601-
72	WASHER; PL,BRKT TO FRAME ID=10.5 OD=26 T=2.6	1-09985-184-0	24	1	9601-
73	WASHER; LK,BRKT TO CAB FRAME ID=10	1-09985-185-0	12	1	9601-
98	WASHER; LK,BRKT ID=10	1-09985-185-0	04	1	9601-
105	BOLT; BRKT TO CAB FRAME M10X30	1-09980-546-0	08	1	9601-
112	ARM ASM; LINK,CAB FRT SUSP FULL FLOATING CAB<W16>	1-53450-568-4	01	1	9601-0105
112	ARM ASM; LINK,CAB FRT SUSP FULL FLOATING CAB<W16>	1-53450-645-1	01	1	0106-
112	ARM ASM; LINK,CAB FRT SUSP EXC. FULL FLOATING CAB<W16>	1-53450-565-6	01	1	9601-
144	SPRING; COIL,CAB FRT SUSPENSION EXC. FULL FLOATING CAB<W16>	1-09580-537-0	02	1	9601-
145	RUBBER; CUSHION,CAB FRT SUSPENSION EXC. FULL FLOATING CAB<W16>	1-53366-139-0	02	1	9601-
146	SEAT; SPRING,CAB FRT SUSPENSION EXC. FULL FLOATING CAB<W16>	1-53366-138-0	02	1	9601-
192	NUT; BRKT FIX M10	1-09984-142-0	02	1	9601-
192	NUT; BRKT FIX M10	1-09984-142-0	04	1	9601-
240	WASHER; PL,BRKT ID=10.5 OD=18	1-09985-173-0	01	1	9601-
240	WASHER; PL,BRKT ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	9601-
240	WASHER; PL,BRKT ID=12.5	9-09160-512-0	02	1	9706-

112 31 120 31 118 27 315 113 315 113 27 118 65 202 202 69 72 203 204 205 204 203 69 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
27	BOLT; BUSHING EXC. FULL FLOATING CAB<W16> (A) M18X90	9-91066-890-0	02	1	0105-0105
27	BOLT; BUSHING (A) M18X90	9-91066-890-0	02	1	0105-
27	BOLT; BUSHING (B) M18X120	1-09000-442-1	02	1	9601-
27	BOLT; BUSHING (A) M18X100	9-91066-800-0	02	1	9601-0104
27	BOLT; BUSHING FULL FLOATING CAB<W16> (A) M18X100	9-91066-800-0	02	1	0105-0105
31	BRACKET; CAB (A)	1-44226-146-2	01	1	9601-
31	BRACKET; CAB FULL FLOATING CAB<W16> (B)	1-53458-374-1	01	1	9601-
31	BRACKET; CAB FULL FLOATING CAB<W16> (C)	1-81549-016-0	01	1	9601-
31	BRACKET; CAB FULL FLOATING CAB<W16> (D)	1-53453-225-3	01	1	9601-
31	BRACKET; CAB FULL FLOATING CAB<W16> (D)	1-53453-224-4	01	1	9601-
31	BRACKET; CAB EXC. FULL FLOATING CAB<W16> (D)	1-53453-274-1	01	1	9601-
31	BRACKET; CAB EXC. FULL FLOATING CAB<W16> (D)	1-53453-273-1	01	1	9601-
65	ABSORBER; SHOCK,CAB FRT SUSPENSION FULL FLOATING CAB<W16>	1-51630-522-0	02	1	9601-9610
65	ABSORBER; SHOCK,CAB FRT SUSPENSION FULL FLOATING CAB<W16>	1-51630-551-0	02	1	9611-9703
65	ABSORBER; SHOCK,CAB FRT SUSPENSION FULL FLOATING CAB<W16>	1-51630-623-0	02	1	9704-9904
65	ABSORBER; SHOCK,CAB FRT SUSPENSION EXC. FULL FLOATING CAB<W16>	1-51630-472-0	02	1	9601-9610
65	ABSORBER; SHOCK,CAB FRT SUSPENSION EXC. FULL FLOATING CAB<W16>	1-51630-546-0	02	1	9611-9703
65	ABSORBER; SHOCK,CAB FRT SUSPENSION EXC. FULL FLOATING CAB<W16>	1-51630-603-0	02	1	9704-9904
65	ABSORBER; SHOCK,CAB FRT SUSPENSION	1-51630-603-0	02	1	9905-
67	NUT; S/ABS,CAB FRT SUSPENSION M12 FLANGE	0-91150-112-0	02	1	9601-9606
67	NUT; S/ABS,CAB FRT SUSPENSION M12 FLANGE	0-91150-212-0	02	1	9607-
69	BOLT; S/ABS,CAB FRT SUSPENSION (A) M12X60	0-20801-260-0	02	1	9601-
69	BOLT; S/ABS,CAB FRT SUSPENSION (B) M10X100	1-09980-547-0	08	1	9601-
72	WASHER; PL,BRKT TO FRAME ID=10.5 OD=26 T=2.6	1-09985-184-0	24	1	9601-
112	ARM ASM; LINK,CAB FRT SUSP FULL FLOATING CAB<W16>	1-53450-568-4	01	1	9601-0105
112	ARM ASM; LINK,CAB FRT SUSP FULL FLOATING CAB<W16>	1-53450-645-1	01	1	0106-
112	ARM ASM; LINK,CAB FRT SUSP EXC. FULL FLOATING CAB<W16>	1-53450-565-6	01	1	9601-
113	BUSHING; RUBBER,FLOATING LINK ARM,W/PI (A)	1-53458-333-3	02	1	9601-
113	BUSHING; RUBBER,FLOATING LINK ARM,W/PI (B)	1-53458-714-0	02	1	9601-
118	WASHER; PL,STOPPER RUBBER,LINK ARM ID=19 OD=30	1-09503-279-0	04	1	9601-
120	NUT; STOPPER RUBBER,LINK ARM M18	9-99110-518-0	02	1	9601-
202	NUT; S/ABS (A) M10	9-09110-410-0	06	1	9601-9610
202	NUT; S/ABS (A) M10	9-09110-410-0	04	1	9611-
202	NUT; S/ABS (B) M10	9-09111-410-0	06	1	9601-
202	NUT; S/ABS (A) M10 FLANGE	0-91150-110-0	02	1	9611-
203	WASHER; RUBBER,SHOCK OD=38 ID=10.5 T=6	1-51631-005-0	12	1	9601-9610
203	WASHER; RUBBER,SHOCK OD=38 ID=10.5 T=6	1-51631-005-0	10	1	9611-
203	WASHER; RUBBER,SHOCK OD=38 ID=10 T=5	1-51631-104-0	02	1	9611-
204	RUBBER; CUSHION,SHOCK	1-51631-004-0	12	1	9601-
205	WASHER; RUBBER,SHOCK	1-51631-079-0	08	1	9601-
315	WASHER; CAB MTG ID=34.5	1-53458-281-1	04	1	9601-

237 451 292 426 425 41 31 452 250 45 261 426 438 452 451 279 292 292 279 237 427 45 250 425 425 41 279 426

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	BRACKET; CAB (A)	1-44226-146-2	01	1	9601-
31	BRACKET; CAB FULL FLOATING CAB<W16> (B)	1-53458-374-1	01	1	9601-
31	BRACKET; CAB FULL FLOATING CAB<W16> (C)	1-81549-016-0	01	1	9601-
31	BRACKET; CAB FULL FLOATING CAB<W16> (D)	1-53453-225-3	01	1	9601-
31	BRACKET; CAB FULL FLOATING CAB<W16> (D)	1-53453-224-4	01	1	9601-
31	BRACKET; CAB EXC. FULL FLOATING CAB<W16> (D)	1-53453-274-1	01	1	9601-
31	BRACKET; CAB EXC. FULL FLOATING CAB<W16> (D)	1-53453-273-1	01	1	9601-
41	NUT FULL FLOATING CAB<W16> (A) M12 FLANGE	0-91150-112-0	01	1	9601-9606
41	NUT FULL FLOATING CAB<W16> (A) M12 FLANGE	0-91150-212-0	01	1	9607-
41	NUT FULL FLOATING CAB<W16> (B) M8	9-09110-508-0	01	1	9601-9606
41	NUT FULL FLOATING CAB<W16> (B) M8 FLANGE	0-91150-108-0	01	1	9607-
45	NUT FULL FLOATING CAB<W16> M5	9-99110-405-0	04	1	9601-
237	ROD ASM; LATERAL (B)	1-53458-343-0	01	1	9601-
237	ROD ASM; LATERAL FULL FLOATING CAB<W16> (A)	1-33670-407-0	01	1	9601-
237	ROD ASM; LATERAL FULL FLOATING CAB<W16> (C)	1-33670-773-0	01	1	9601-
250	WASHER; LK FULL FLOATING CAB<W16> ID=5.1	9-09150-505-0	04	1	9601-
261	ROD; LINK FULL FLOATING CAB<W16> (A)	9-08410-507-0	01	1	9601-
261	ROD; LINK FULL FLOATING CAB<W16> (B)	9-08410-514-0	01	1	9601-
279	BOLT (B) M12X40	9-92061-240-0	04	1	9601-9605
279	BOLT (B) M12X40 FLANGE	0-28091-240-0	04	1	9606-
279	BOLT ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28080-825-0	02	1	9601-9606
279	BOLT ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-
279	BOLT FULL FLOATING CAB<W16> (C) M8X16 FLANGE	0-28080-816-0	04	1	9601-
279	BOLT FULL FLOATING CAB<W16> (D) M8X20 FLANGE	0-28080-820-0	06	1	9601-9606
279	BOLT FULL FLOATING CAB<W16> (D) M8X20 FLANGE	0-28680-820-0	06	1	9607-
279	BOLT FULL FLOATING CAB<W16> (D) M8X20 FLANGE	0-28080-820-0	01	1	9601-9606
279	BOLT FULL FLOATING CAB<W16> (D) M8X20 FLANGE	0-28680-820-0	01	1	9607-
279	BOLT FULL FLOATING CAB<W16> (E) M8X60 FLANGE	0-28080-860-0	02	1	9601-
279	BOLT FULL FLOATING CAB<W16> (F)	1-09980-511-0	03	1	9601-9602
279	BOLT FULL FLOATING CAB<W16> (F)	1-09980-511-0	02	1	9603-9711
279	BOLT FULL FLOATING CAB<W16> (F)	1-09980-548-0	02	1	9712-9905
279	BOLT DELUXE CAB(W14) FULL FLOATING CAB<W16> (F) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	9906-
279	BOLT FULL FLOATING CAB<W16> EXC. DELUXE CAB(W14) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	9906-
292	CONNECTOR; CAB SUSPENSION (E) M14	1-53458-047-0	01	1	9601-9904
292	CONNECTOR; CAB SUSPENSION (E) M12	1-53458-941-0	01	1	9905-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB<W16> (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	9601-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB<W16> (B) DIN6 R1/8 STRAIGHT	1-09660-759-1	01	1	9601-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB<W16> (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	9601-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB<W16> (D) DIN6X2 & R1/8 3WAY	1-09660-761-1	01	1	9601-
425	PIPE ASM; AIR FULL FLOATING CAB<W16> (A) L=298	1-47494-961-1	01	1	9601-
425	PIPE ASM; AIR FULL FLOATING CAB<W16> (B)	1-47499-071-0	01	1	9601-9912
425	PIPE ASM; AIR FULL FLOATING CAB<W16> (B) L=510	1-49122-367-0	01	1	0001-
425	PIPE ASM; AIR FULL FLOATING CAB<W16> (C)	1-49113-541-0	01	1	9601-
426	CLIP DELUXE CAB(W14) FULL FLOATING CAB<W16> (B) ID=5.8 L=8	8-94155-681-0	02	1	9906-
426	CLIP FULL FLOATING CAB<W16> (C)	1-09700-559-0	02	1	9601-9602
426	CLIP FULL FLOATING CAB<W16> (C) ID=11 H=20 L=20	5-09700-351-0	01	1	9603-9905
426	CLIP FULL FLOATING CAB<W16> EXC. DELUXE CAB(W14) (C) ID=11 H=20 L=20	5-09700-351-0	01	1	9906-
426	CLIP FULL FLOATING CAB<W16> (A) ID=6 H=20 L=20	1-09700-603-0	02	1	9601-
426	CLIP FULL FLOATING CAB<W16> (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9601-9912
426	CLIP FULL FLOATING CAB<W16> (A) ID=7 L=32	9-09524-665-0	01	1	0001-
426	CLIP FULL FLOATING CAB<W16> (B) ID=9.5	5-09709-020-0	01	1	9601-
426	CLIP FULL FLOATING CAB<W16> (D) ID=11 L=16	9-09525-025-0	01	1	9601-
427	TUBE FULL FLOATING CAB<W16> (B) L=1300	1-09368-930-0	01	1	9601-9904
427	TUBE FULL FLOATING CAB<W16> (B) L=400 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	9905-
427	TUBE FULL FLOATING CAB<W16> (A) L=1300 SERVICED BY L=2000 OD=6	1-87410-081-0	01	1	9601-9904
427	TUBE FULL FLOATING CAB<W16> (A) L=1300 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	9905-
438	UNION FULL FLOATING CAB<W16> M12X2 & PT1/8 3WAY	1-09656-655-0	01	1	9601-
451	JOINT; BALL FULL FLOATING CAB<W16> (A)	1-09760-103-1	02	1	9601-
451	JOINT; BALL FULL FLOATING CAB<W16> (B)	1-09760-104-1	02	1	9601-
452	NUT; BALL JOINT FULL FLOATING CAB<W16> (B) M5 LH THREAD	9-09840-277-0	02	1	9601-
452	NUT; BALL JOINT FULL FLOATING CAB<W16> (A) M5	9-99110-405-0	02	1	9601-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
