◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50696 - NPR/NQR-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-78 - FLOOR HOLE PLUG ▶
6-78 — FLOOR HOLE PLUG (#48879) — 67 parça

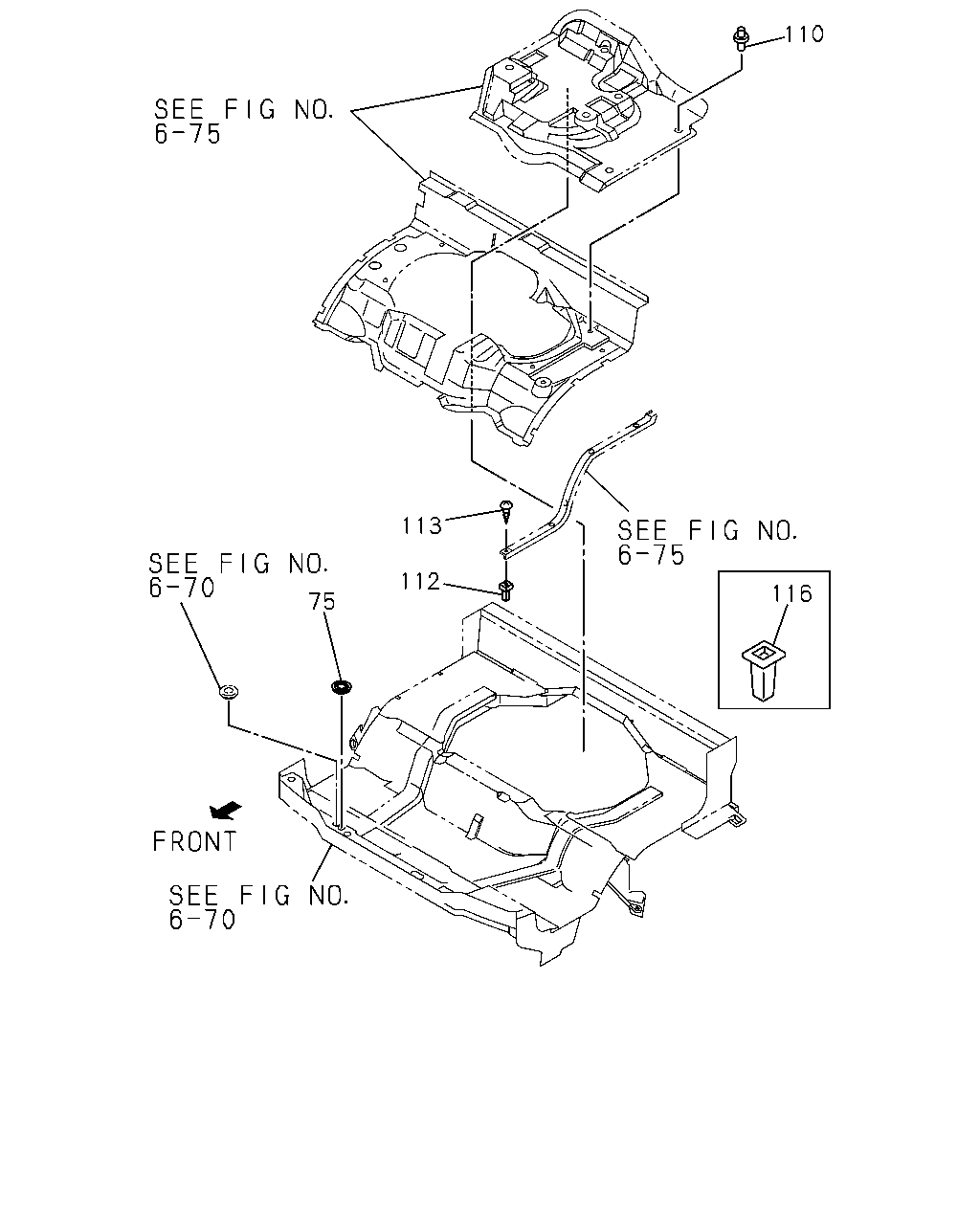

çizim 19172
110 113 112 116 75
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
75 09.775 PLUG; RUBBER,FLOOR
EXC. DUMP BODY LONG SHINMEIWA(RS9) 16.549 OD=38 		8-94159-507-0 01 1 9312-9510 ● ● ● ● ●
75 09.775 PLUG; RUBBER,FLOOR
EXC. DUMP BODY LONG SHINMEIWA(RS9) 16.549 OD=38 		8-94159-507-0 01 1 9511-9611 ● ● ● ●
75 09.775 PLUG; RUBBER,FLOOR
EXC. DUMP BODY LONG SHINMEIWA(RS9) 16.549 OD=38 		8-94159-507-0 01 1 9612-9711 ● ● ● ● ● ●
75 09.775 PLUG; RUBBER,FLOOR
EXC. DUMP BODY LONG SHINMEIWA(RS9), HYDRO BRAKE BOOSTER<7QQ> 16.549 OD=38 		8-94159-507-0 01 1 9712- ● ● ● ● ●
110 16.802 FASTENER; FLOOR MAT
EXC. AUSTRALIA EQUIPMENT(RR3) BLACK 		8-94279-089-0 13 1 9312-9510 ● ● ● ● ●
110 16.802 FASTENER; FLOOR MAT
G.V.W. 7.0-7.5TON(RPX) AUSTRALIA EQUIPMENT(RR3) BLACK 		8-94279-089-0 13 1 9312-9510 ● ● ●
110 16.802 FASTENER; FLOOR MAT
EXC. AUSTRALIA EQUIPMENT(RR3) BLACK 		8-94279-089-0 13 1 9511-9611 ● ● ● ●
110 16.802 FASTENER; FLOOR MAT
G.V.W. 7.0-7.5TON(RPX) AUSTRALIA EQUIPMENT(RR3) BLACK 		8-94279-089-0 13 1 9511-9611 ● ● ●
110 16.802 FASTENER; FLOOR MAT
EXC. AUSTRALIA EQUIPMENT(RR3) BLACK 		8-94279-089-0 13 1 9612-9711 ● ● ● ●
110 16.802 FASTENER; FLOOR MAT
G.V.W. 7.0-7.5TON(RPX) AUSTRALIA EQUIPMENT(RR3) BLACK 		8-94279-089-0 13 1 9612-9711 ● ● ●
110 16.802 FASTENER; FLOOR MAT
BLACK 		8-94279-089-0 13 1 9612-9711 ●
110 16.802 FASTENER; FLOOR MAT
EXC. AUSTRALIA EQUIPMENT(RR3) BLACK 		8-94279-089-0 13 1 9712-9801 ● ● ● ● ●
110 16.802 FASTENER; FLOOR MAT
G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) BLACK 		8-94279-089-0 13 1 9712-9801 ● ● ● ●
110 16.802 FASTENER; FLOOR MAT
BLACK 		8-94279-089-0 13 1 9712-9801 ●
110 16.802 FASTENER; FLOOR MAT
HONG KONG EQUIPMENT(PQ1) MANUAL TILT CAB<RWZ> BLACK 		8-94279-089-0 13 1 9802- ● ● ● ● ● ●
110 16.802 FASTENER; FLOOR MAT
EXC. MANUAL TILT CAB<RWZ> BLACK 		8-94279-089-0 13 1 9802- ● ● ● ● ● ●
110 16.802 FASTENER; FLOOR MAT
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) BLACK 		8-94279-089-0 14 1 9312-9711 ● ● ● ●
110 16.802 FASTENER; FLOOR MAT
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) BLACK 		8-94279-089-0 15 1 9712- ● ● ● ●
112 16.800 GROMMET; SCREW,TRIM COVER
04.931 H=15 		8-94463-268-1 10 1 9312-9510 ● ● ● ● ●
112 16.800 GROMMET; SCREW,TRIM COVER
04.931 H=15 		8-94463-268-1 10 1 9511-9611 ● ● ● ●
112 16.800 GROMMET; SCREW,TRIM COVER
04.931 H=15 		8-94463-268-1 10 1 9612-9711 ● ● ● ● ●
112 16.800 GROMMET; SCREW,TRIM COVER
04.931 H=15 		8-94463-268-1 10 1 9712- ● ● ● ● ● ●
113 16.800 SCREW; TRIM COVER
08.845 M5X14 TAPPING W/PL WASHER 		0-74110-514-0 10 1 9312-9510 ● ● ● ● ●
113 16.800 SCREW; TRIM COVER
08.845 M5X14 TAPPING W/PL WASHER 		0-74110-514-0 10 1 9511-9611 ● ● ● ●
113 16.800 SCREW; TRIM COVER
08.845 M5X14 TAPPING W/PL WASHER 		0-74110-514-0 10 1 9612-9711 ● ● ● ● ●
113 16.800 SCREW; TRIM COVER
08.845 M5X14 TAPPING W/PL WASHER 		0-74110-514-0 10 1 9712- ● ● ● ● ● ●
116 16.547 GROMMET; SCREW,FLOOR MAT
16.802 D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 08 1 9312-9406 ● ● ● ● ●
116 16.547 GROMMET; SCREW,FLOOR MAT
16.802 D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 08 1 9407-9510 ● ●
116 16.547 GROMMET; SCREW,FLOOR MAT
16.802 D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 08 1 9511- ●

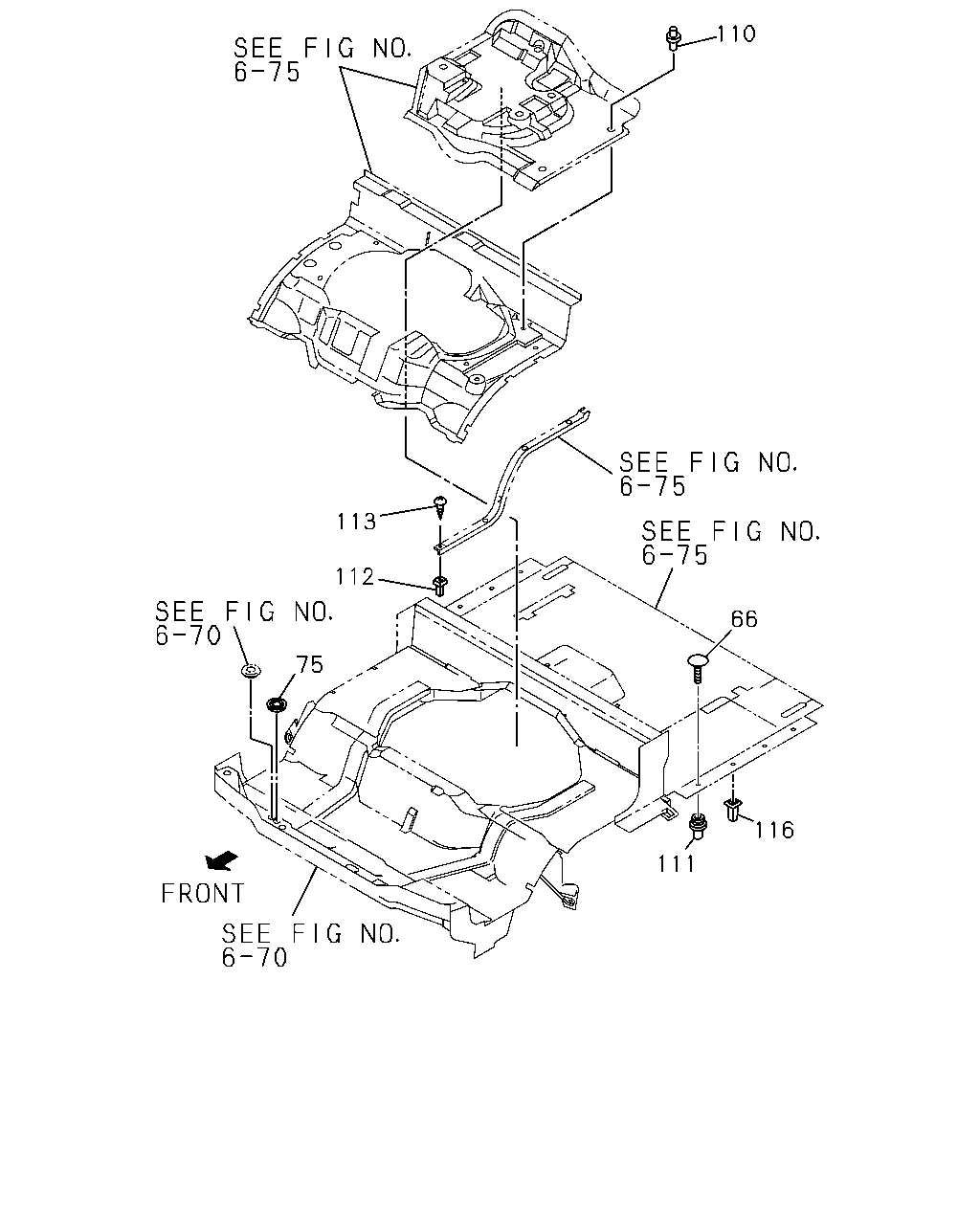

çizim 67315
110 113 112 66 75 116 111
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
66 16.800 PLUG; FLOOR MAT,CAB RR FLOOR 8-97853-955-0 04 1 9312-9510 ● ●
66 16.800 PLUG; FLOOR MAT,CAB RR FLOOR
DARK BEIGE 		8-97853-955-0 04 1 9511-9711 ●
66 16.800 PLUG; FLOOR MAT,CAB RR FLOOR
DARK GRAY 		8-97867-158-0 04 1 9712- ●
75 09.775 PLUG; RUBBER,FLOOR
EXC. DUMP BODY LONG SHINMEIWA(RS9) 16.549 OD=38 		8-94159-507-0 01 1 9312-9510 ● ● ● ● ●
75 09.775 PLUG; RUBBER,FLOOR
EXC. DUMP BODY LONG SHINMEIWA(RS9) 16.549 OD=38 		8-94159-507-0 01 1 9511-9611 ● ● ● ●
75 09.775 PLUG; RUBBER,FLOOR
EXC. DUMP BODY LONG SHINMEIWA(RS9) 16.549 OD=38 		8-94159-507-0 01 1 9612-9711 ● ● ● ● ● ●
75 09.775 PLUG; RUBBER,FLOOR
EXC. DUMP BODY LONG SHINMEIWA(RS9), HYDRO BRAKE BOOSTER<7QQ> 16.549 OD=38 		8-94159-507-0 01 1 9712- ● ● ● ● ●
110 16.802 FASTENER; FLOOR MAT
EXC. AUSTRALIA EQUIPMENT(RR3) BLACK 		8-94279-089-0 13 1 9312-9510 ● ● ● ● ●
110 16.802 FASTENER; FLOOR MAT
G.V.W. 7.0-7.5TON(RPX) AUSTRALIA EQUIPMENT(RR3) BLACK 		8-94279-089-0 13 1 9312-9510 ● ● ●
110 16.802 FASTENER; FLOOR MAT
EXC. AUSTRALIA EQUIPMENT(RR3) BLACK 		8-94279-089-0 13 1 9511-9611 ● ● ● ●
110 16.802 FASTENER; FLOOR MAT
G.V.W. 7.0-7.5TON(RPX) AUSTRALIA EQUIPMENT(RR3) BLACK 		8-94279-089-0 13 1 9511-9611 ● ● ●
110 16.802 FASTENER; FLOOR MAT
EXC. AUSTRALIA EQUIPMENT(RR3) BLACK 		8-94279-089-0 13 1 9612-9711 ● ● ● ●
110 16.802 FASTENER; FLOOR MAT
G.V.W. 7.0-7.5TON(RPX) AUSTRALIA EQUIPMENT(RR3) BLACK 		8-94279-089-0 13 1 9612-9711 ● ● ●
110 16.802 FASTENER; FLOOR MAT
BLACK 		8-94279-089-0 13 1 9612-9711 ●
110 16.802 FASTENER; FLOOR MAT
EXC. AUSTRALIA EQUIPMENT(RR3) BLACK 		8-94279-089-0 13 1 9712-9801 ● ● ● ● ●
110 16.802 FASTENER; FLOOR MAT
G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) BLACK 		8-94279-089-0 13 1 9712-9801 ● ● ● ●
110 16.802 FASTENER; FLOOR MAT
BLACK 		8-94279-089-0 13 1 9712-9801 ●
110 16.802 FASTENER; FLOOR MAT
HONG KONG EQUIPMENT(PQ1) MANUAL TILT CAB<RWZ> BLACK 		8-94279-089-0 13 1 9802- ● ● ● ● ● ●
110 16.802 FASTENER; FLOOR MAT
EXC. MANUAL TILT CAB<RWZ> BLACK 		8-94279-089-0 13 1 9802- ● ● ● ● ● ●
110 16.802 FASTENER; FLOOR MAT
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) BLACK 		8-94279-089-0 14 1 9312-9711 ● ● ● ●
110 16.802 FASTENER; FLOOR MAT
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) BLACK 		8-94279-089-0 15 1 9712- ● ● ● ●
111 16.800 FASTENER; FLOOR MAT,CAB RR MTG
16.802 BLACK 		8-94279-089-0 12 1 9312-9510 ● ●
111 16.800 FASTENER; FLOOR MAT,CAB RR MTG
16.802 BLACK 		8-94279-089-0 12 1 9511-9707 ●
111 16.800 FASTENER; FLOOR MAT,CAB RR MTG
4BE1 ENG(RLH),4HF1 ENG(RLS) 16.802 BLACK 		8-94279-089-0 12 1 9708-9711 ●
111 16.800 FASTENER; FLOOR MAT,CAB RR MTG
4HF1 ENG(RLS) 16.802 BLACK 		8-94279-089-0 12 1 9712-9802 ●
111 16.800 FASTENER; FLOOR MAT,CAB RR MTG
4HG1 ENG(RJH),4HF1 ENG(RLS) 16.802 BLACK 		8-94279-089-0 12 1 9803- ●
111 16.800 FASTENER; FLOOR MAT,CAB RR MTG
4BD2 ENG(RLW) 16.802 BLACK 		8-94279-089-0 10 1 9708- ●
112 16.800 GROMMET; SCREW,TRIM COVER
04.931 H=15 		8-94463-268-1 10 1 9312-9510 ● ● ● ● ●
112 16.800 GROMMET; SCREW,TRIM COVER
04.931 H=15 		8-94463-268-1 10 1 9511-9611 ● ● ● ●
112 16.800 GROMMET; SCREW,TRIM COVER
04.931 H=15 		8-94463-268-1 10 1 9612-9711 ● ● ● ● ●
112 16.800 GROMMET; SCREW,TRIM COVER
04.931 H=15 		8-94463-268-1 10 1 9712- ● ● ● ● ● ●
113 16.800 SCREW; TRIM COVER
08.845 M5X14 TAPPING W/PL WASHER 		0-74110-514-0 10 1 9312-9510 ● ● ● ● ●
113 16.800 SCREW; TRIM COVER
08.845 M5X14 TAPPING W/PL WASHER 		0-74110-514-0 10 1 9511-9611 ● ● ● ●
113 16.800 SCREW; TRIM COVER
08.845 M5X14 TAPPING W/PL WASHER 		0-74110-514-0 10 1 9612-9711 ● ● ● ● ●
113 16.800 SCREW; TRIM COVER
08.845 M5X14 TAPPING W/PL WASHER 		0-74110-514-0 10 1 9712- ● ● ● ● ● ●
116 16.547 GROMMET; SCREW,FLOOR MAT
16.802 D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 08 1 9312-9406 ● ● ● ● ●
116 16.547 GROMMET; SCREW,FLOOR MAT
16.802 D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 08 1 9407-9510 ● ●
116 16.547 GROMMET; SCREW,FLOOR MAT
16.802 D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 08 1 9511- ●
