Sayfa 6-76 - Isuzu EPC

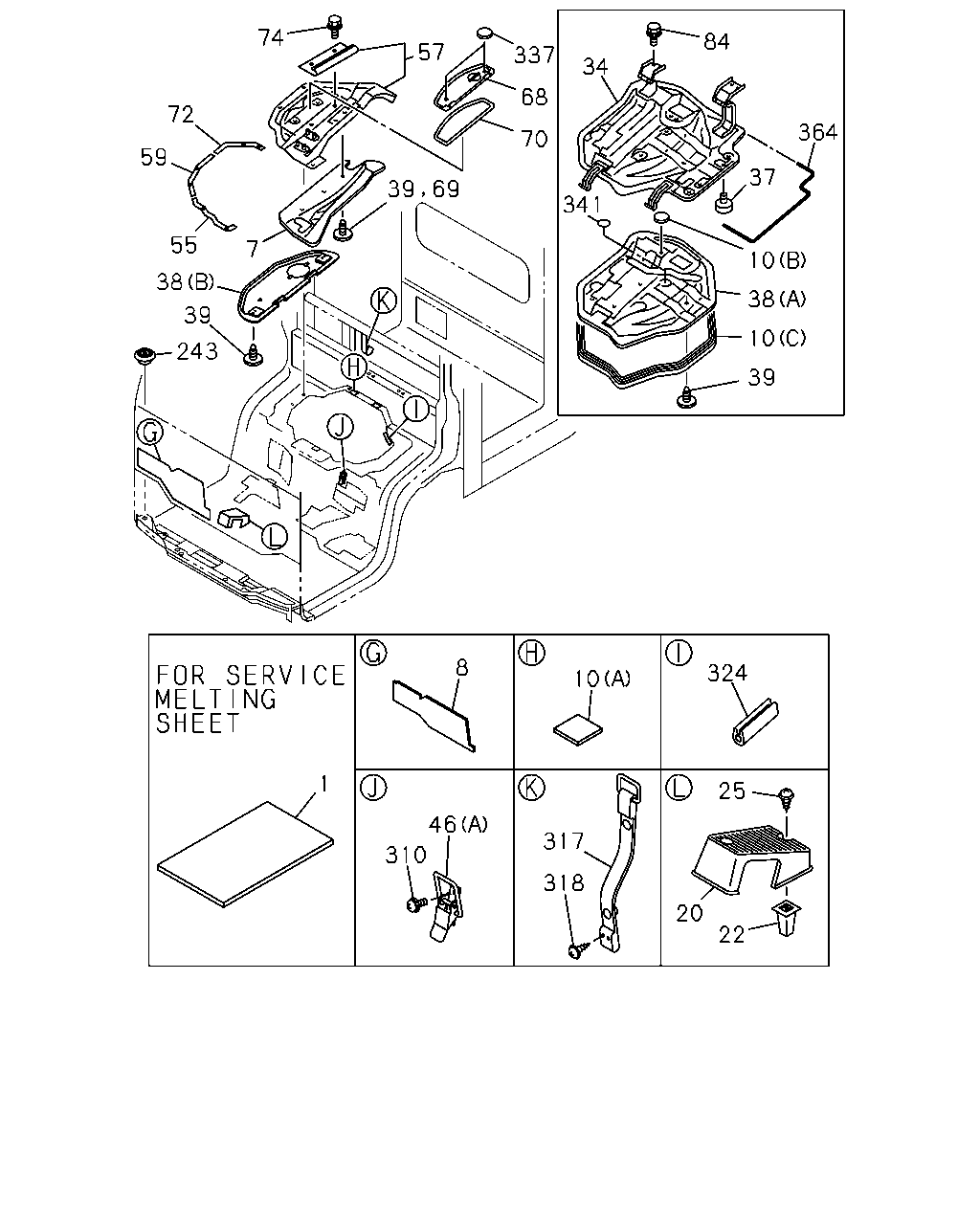

6-76 — FLOOR EQUIPMENT AND SEALING (#48878) — 450 parça

74 84 57 37 34 68 72 364 70 59 37 39 69 341 55 7 10 38 38 39 10 243 39 8 324 10 1 25 46 317 310 318 20 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	16.850 SHEET; MELTING,FLOOR NON ASBESTOS 1000X600 T=1.5; PARTS O NLY	8-94262-093-0	01	1	9312-	●	●	●	●	●	●
7	16.545 INSULATOR; SUPPORT COVER EXC. MANUAL TILT CAB<RWZ>	8-97853-641-1	01	1	9312-9510	●	●	●		●	●
7	16.545 INSULATOR; SUPPORT COVER EXC. MANUAL TILT CAB<RWZ>	8-97853-641-1	01	1	9511-9711	●	●	●		●
7	16.545 INSULATOR; SUPPORT COVER HONG KONG EQUIPMENT(PQ1)	8-97853-641-2	01	1	9712-9801	●	●	●	●			●
7	16.545 INSULATOR; SUPPORT COVER EXC. MANUAL TILT CAB<RWZ>	8-97853-641-2	01	1	9712-9801	●	●	●	●
7	16.545 INSULATOR; SUPPORT COVER	8-97853-641-2	01	1	9712-9801					●
7	16.545 INSULATOR; SUPPORT COVER HONG KONG EQUIPMENT(PQ1)	8-97853-641-2	01	1	9802-	●	●	●	●			●
7	16.545 INSULATOR; SUPPORT COVER EXC. MANUAL TILT CAB<RWZ>	8-97853-641-2	01	1	9802-	●	●	●	●			●
7	16.545 INSULATOR; SUPPORT COVER	8-97853-641-2	01	1	9802-					●
7	16.545 INSULATOR; SUPPORT COVER MANUAL TILT CAB<RWZ>	8-97853-629-1	01	1	9312-9611	●	●	●
7	16.545 INSULATOR; SUPPORT COVER MANUAL TILT CAB<RWZ>	8-97853-629-1	01	1	9612-9711	●	●	●
7	16.545 INSULATOR; SUPPORT COVER	8-97853-629-1	01	1	9612-9711				●
7	16.545 INSULATOR; SUPPORT COVER MANUAL TILT CAB<RWZ> EXC. HONG KONG EQUIPMENT(PQ1)	8-97853-629-2	01	1	9712-	●	●	●	●			●
8	16.802 MAT; SILENCER,FRT PANEL	8-97853-606-0	01	1	9312-9510	●	●	●		●	●
8	16.802 MAT; SILENCER,FRT PANEL	8-97853-606-1	01	1	9511-9611	●	●	●		●
8	16.802 MAT; SILENCER,FRT PANEL	8-97853-606-1	01	1	9612-9711	●	●	●	●	●
8	16.802 MAT; SILENCER,FRT PANEL	8-97853-606-1	01	1	9712-	●	●	●	●	●		●
8	16.802 MAT; SILENCER,FRT PANEL	8-97853-605-1	01	1	9312-9510	●	●	●		●	●
8	16.802 MAT; SILENCER,FRT PANEL	8-97853-605-2	01	1	9511-9611	●	●	●		●
8	16.802 MAT; SILENCER,FRT PANEL	8-97853-605-2	01	1	9612-9711	●	●	●	●	●
8	16.802 MAT; SILENCER,FRT PANEL	8-97853-605-2	01	1	9712-	●	●	●	●	●		●
10	16.549 SEAL; ENG COVER (C)	8-97853-267-4	01	1	9312-9510	●	●	●		●	●
10	16.549 SEAL; ENG COVER (C)	8-97853-267-4	01	1	9511-9611	●	●	●		●
10	16.549 SEAL; ENG COVER (C)	8-97853-267-4	01	1	9612-9711	●	●	●	●	●
10	16.549 SEAL; ENG COVER (C)	8-97853-267-4	01	1	9712-	●	●	●	●	●		●
10	16.549 SEAL; ENG COVER (A)	8-97857-240-0	03	1	9312-9403	●	●	●		●	●
10	16.549 SEAL; ENG COVER EXC. MANUAL TILT CAB<RWZ> (A)	8-97857-240-0	02	1	9404-9510	●	●	●		●	●
10	16.549 SEAL; ENG COVER EXC. MANUAL TILT CAB<RWZ> (A)	8-97857-240-0	02	1	9511-9605	●	●	●		●
10	16.549 SEAL; ENG COVER BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) 16.592 (B) OD=36 T=0.05 BLACK OD=36 WHITE	1-76778-007-0	01	1	9312-9603	●	●	●
10	16.549 SEAL; ENG COVER BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) 16.547 (B) OD=36 T=0.05 BLACK OD=36 BLACK	1-76798-018-0	01	1	9604-9604	●	●	●
10	16.549 SEAL; ENG COVER BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) INTERIOR DELUXE<RBB> 16.547 (B) OD=36 T=0.05 BLACK OD=36 BLACK	1-76798-018-0	01	1	9604-9711		●	●
10	16.549 SEAL; ENG COVER BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) INTERIOR DELUXE<RBB> 02.580 (B) OD=36 T=0.05 BLACK	5-76777-035-0	01	1	9712-9804	●	●	●	●			●
10	16.549 SEAL; ENG COVER BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY OR ANGE(944) INTERIOR DELUXE<RBB> 02.580 (B) OD=36 T=0.05 BLACK	5-76777-035-0	01	1	9805-	●	●	●	●			●
10	16.549 SEAL; ENG COVER BODY COLOR ARC WHITE(729) 16.592 (B) OD=36 WHITE	1-76778-007-0	01	1	9312-9604	●	●	●
10	16.549 SEAL; ENG COVER BODY COLOR ARC WHITE(729) INTERIOR DELUXE<RBB> 16.592 (B) OD=36 WHITE	1-76778-007-0	01	1	9604-9711		●	●
10	16.549 SEAL; ENG COVER BODY COLOR ARC WHITE(729) INTERIOR DELUXE<RBB> 16.592 (B) OD=36 WHITE	1-76778-007-0	01	1	9712-	●	●	●	●			●
20	16.547 REST; FOOT A/T 4 SPEED-JATCO(RMK)	8-97853-767-1	01	1	9312-		●
22	16.547 GROMMET; SCREW,FOOT REST A/T 4 SPEED-JATCO(RMK) 16.802 D=7.8X7.8 L=18 NATURAL	8-94279-043-0	02	1	9312-9409		●
22	16.547 GROMMET; SCREW,FOOT REST A/T 4 SPEED-JATCO(RMK) 04.931 H=15	8-94463-268-1	02	1	9410-		●
25	16.549 SCREW; FOOT REST A/T 4 SPEED-JATCO(RMK) 16.802 M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	9312-		●
34	16.549 COVER ASM; ENG,CAB FLOOR EXC. AUSTRALIA EQUIPMENT(RR3)	8-97850-110-5	01	1	9312-9507	●	●	●		●	●
34	16.549 COVER ASM; ENG,CAB FLOOR G.V.W. 7.0-7.5TON(RPX) AUSTRALIA EQUIPMENT(RR3)	8-97850-110-5	01	1	9312-9507	●	●	●
34	16.549 COVER ASM; ENG,CAB FLOOR EXC. AUSTRALIA EQUIPMENT(RR3)	8-97850-676-0	01	1	9508-9510	●	●	●		●	●
34	16.549 COVER ASM; ENG,CAB FLOOR G.V.W. 7.0-7.5TON(RPX) AUSTRALIA EQUIPMENT(RR3)	8-97850-676-0	01	1	9508-9510	●	●	●
34	16.549 COVER ASM; ENG,CAB FLOOR EXC. AUSTRALIA EQUIPMENT(RR3)	8-97850-676-0	01	1	9511-9611	●	●	●		●
34	16.549 COVER ASM; ENG,CAB FLOOR G.V.W. 7.0-7.5TON(RPX) AUSTRALIA EQUIPMENT(RR3)	8-97850-676-0	01	1	9511-9611	●	●	●
34	16.549 COVER ASM; ENG,CAB FLOOR EXC. AUSTRALIA EQUIPMENT(RR3)	8-97850-676-0	01	1	9612-9711	●	●	●		●
34	16.549 COVER ASM; ENG,CAB FLOOR G.V.W. 7.0-7.5TON(RPX) AUSTRALIA EQUIPMENT(RR3)	8-97850-676-0	01	1	9612-9711	●	●	●
34	16.549 COVER ASM; ENG,CAB FLOOR	8-97850-676-0	01	1	9612-9711				●
34	16.549 COVER ASM; ENG,CAB FLOOR EXC. AUSTRALIA EQUIPMENT(RR3)	8-97850-676-0	01	1	9712-9801	●	●	●		●		●
34	16.549 COVER ASM; ENG,CAB FLOOR G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3)	8-97850-676-0	01	1	9712-9801	●	●	●				●
34	16.549 COVER ASM; ENG,CAB FLOOR	8-97850-676-0	01	1	9712-9801				●
34	16.549 COVER ASM; ENG,CAB FLOOR EXC. AUSTRALIA EQUIPMENT(RR3)	8-97850-676-0	01	1	9802-	●	●	●	●	●		●
34	16.549 COVER ASM; ENG,CAB FLOOR G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3)	8-97850-676-0	01	1	9802-	●	●	●	●			●
34	16.549 COVER ASM; ENG,CAB FLOOR G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3)	8-97850-601-1	01	1	9312-9507	●	●	●		●
34	16.549 COVER ASM; ENG,CAB FLOOR G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3)	8-97850-681-1	01	1	9508-9710	●	●	●		●
34	16.549 COVER ASM; ENG,CAB FLOOR G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3)	8-97850-906-0	01	1	9711-	●	●	●		●
37	16.549 RUBBER; BUFFER,ENG COVER 16.155 OD=30 T=10	5-74917-001-2	02	1	9312-9510	●	●	●		●	●
37	16.549 RUBBER; BUFFER,ENG COVER 16.155 OD=30 T=10	5-74917-001-2	02	1	9511-9611	●	●	●		●
37	16.549 RUBBER; BUFFER,ENG COVER 16.155 OD=30 T=10	5-74917-001-2	02	1	9612-9711	●	●	●	●	●
37	16.549 RUBBER; BUFFER,ENG COVER 16.155 OD=30 T=10	5-74917-001-2	02	1	9712-	●	●	●	●	●		●
38	16.549 INSULATOR; ENG COVER (A)	8-97853-266-5	01	1	9312-9510	●	●	●		●	●
38	16.549 INSULATOR; ENG COVER (A)	8-97853-266-5	01	1	9511-9611	●	●	●		●
38	16.549 INSULATOR; ENG COVER (A)	8-97853-266-5	01	1	9612-9711	●	●	●	●	●
38	16.549 INSULATOR; ENG COVER (A)	8-97853-266-5	01	1	9712-	●	●	●	●	●		●
38	16.549 INSULATOR; ENG COVER EXC. MANUAL TILT CAB<RWZ> (B)	8-97856-803-0	01	1	9312-9409	●	●	●		●	●
38	16.549 INSULATOR; ENG COVER 4JG2 ENG(RJC),4HF1 ENG(RLS) EXC. MANUAL TILT CAB<RWZ> (B)	8-97856-803-0	01	1	9410-9510	●	●	●		●	●
38	16.549 INSULATOR; ENG COVER 4HF1 ENG(RLS) (B)	8-97856-803-0	01	1	9511-9708					●
38	16.549 INSULATOR; ENG COVER 4JG2 ENG(RJC),4HF1 ENG(RLS) EXC. MANUAL TILT CAB<RWZ> (B)	8-97856-803-0	01	1	9709-9711	●	●	●		●
38	16.549 INSULATOR; ENG COVER 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. MANUAL TILT CAB<RWZ> (B)	8-97856-803-0	01	1	9712-	●	●	●	●	●
38	16.549 INSULATOR; ENG COVER 4HE1 ENG(RLY) HONG KONG EQUIPMENT(PQ1) MANUAL TILT CAB<RWZ> (B)	8-97856-803-0	01	1	9712-	●	●	●	●			●
39	16.549 CLIP; INSULATOR,COVER OD=30	8-94279-952-0	06	1	9312-9403	●	●	●		●	●
39	16.549 CLIP; INSULATOR,COVER OD=28 BLACK	8-94279-997-0	06	1	9404-9406	●	●	●		●	●
39	16.549 CLIP; INSULATOR,COVER OD=28 BLACK	8-94279-997-0	05	1	9407-9407	●	●	●		●	●
39	16.549 CLIP; INSULATOR,COVER MANUAL TILT CAB<RWZ> OD=28 BLACK	8-94279-997-0	08	1	9407-9611	●	●	●
39	16.549 CLIP; INSULATOR,COVER MANUAL TILT CAB<RWZ> OD=28 BLACK	8-94279-997-0	08	1	9612-9711	●	●	●
39	16.549 CLIP; INSULATOR,COVER OD=28 BLACK	8-94279-997-0	08	1	9612-9711				●
39	16.549 CLIP; INSULATOR,COVER MANUAL TILT CAB<RWZ> EXC. HONG KONG EQUIPMENT(PQ1) OD=28 BLACK	8-94279-997-0	08	1	9712-	●	●	●	●			●
39	16.549 CLIP; INSULATOR,COVER OD=28 BLACK	8-94279-997-0	05	1	9407-9510	●	●	●		●	●
39	16.549 CLIP; INSULATOR,COVER EXC. MANUAL TILT CAB<RWZ> OD=28 BLACK	8-94279-997-0	05	1	9407-9510	●	●	●		●	●
39	16.549 CLIP; INSULATOR,COVER OD=28 BLACK	8-94279-997-0	05	1	9511-9611	●	●	●		●
39	16.549 CLIP; INSULATOR,COVER EXC. MANUAL TILT CAB<RWZ> OD=28 BLACK	8-94279-997-0	05	1	9511-9611	●	●	●		●
39	16.549 CLIP; INSULATOR,COVER OD=28 BLACK	8-94279-997-0	05	1	9612-9711	●	●	●	●	●
39	16.549 CLIP; INSULATOR,COVER EXC. MANUAL TILT CAB<RWZ> OD=28 BLACK	8-94279-997-0	05	1	9612-9711	●	●	●		●
39	16.549 CLIP; INSULATOR,COVER EXC. MANUAL TILT CAB<RWZ> OD=30	8-94279-952-0	02	1	9312-9403	●	●	●		●	●
39	16.549 CLIP; INSULATOR,COVER EXC. MANUAL TILT CAB<RWZ> OD=28 BLACK	8-94279-997-0	02	1	9404-9406	●	●	●		●	●
39	16.549 CLIP; INSULATOR,COVER 4JG2 ENG(RJC),4HF1 ENG(RLS) EXC. MANUAL TILT CAB<RWZ> OD=28 BLACK	8-94279-997-0	02	1	9410-9510	●	●	●		●	●
39	16.549 CLIP; INSULATOR,COVER 4HF1 ENG(RLS) OD=28 BLACK	8-94279-997-0	02	1	9511-9708					●
39	16.549 CLIP; INSULATOR,COVER 4JG2 ENG(RJC),4HF1 ENG(RLS) EXC. MANUAL TILT CAB<RWZ> OD=28 BLACK	8-94279-997-0	02	1	9709-9711	●	●	●		●
39	16.549 CLIP; INSULATOR,COVER 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. MANUAL TILT CAB<RWZ> OD=28 BLACK	8-94279-997-0	02	1	9712-	●	●	●	●	●
39	16.549 CLIP; INSULATOR,COVER 4HE1 ENG(RLY) HONG KONG EQUIPMENT(PQ1) MANUAL TILT CAB<RWZ> OD=28 BLACK	8-94279-997-0	02	1	9712-	●	●	●	●			●
39	16.549 CLIP; INSULATOR,COVER OD=28 BLACK	8-94279-997-0	05	1	9712-9801	●	●	●	●	●		●
39	16.549 CLIP; INSULATOR,COVER EXC. MANUAL TILT CAB<RWZ> OD=28 BLACK	8-94279-997-0	05	1	9712-9801	●	●	●	●	●
39	16.549 CLIP; INSULATOR,COVER HONG KONG EQUIPMENT(PQ1) OD=28 BLACK	8-94279-997-0	05	1	9712-9801	●	●	●	●			●
39	16.549 CLIP; INSULATOR,COVER OD=28 BLACK	8-94279-997-0	05	1	9802-	●	●	●	●	●		●
39	16.549 CLIP; INSULATOR,COVER HONG KONG EQUIPMENT(PQ1) OD=28 BLACK	8-94279-997-0	05	1	9802-	●	●	●	●			●
39	16.549 CLIP; INSULATOR,COVER EXC. MANUAL TILT CAB<RWZ> OD=28 BLACK	8-94279-997-0	05	1	9802-	●	●	●	●			●
39	16.549 CLIP; INSULATOR,COVER OD=28 BLACK	8-94279-997-0	05	1	9802-					●
46	16.549 HOOK ASM; ENG COVER EXC. AUSTRALIA EQUIPMENT(RR3) (A)	8-97853-632-2	02	1	9312-9510	●	●	●		●	●
46	16.549 HOOK ASM; ENG COVER G.V.W. 7.0-7.5TON(RPX) AUSTRALIA EQUIPMENT(RR3) (A)	8-97853-632-2	02	1	9312-9510	●	●	●
46	16.549 HOOK ASM; ENG COVER EXC. AUSTRALIA EQUIPMENT(RR3) (A)	8-97853-632-2	02	1	9511-9611	●	●	●		●
46	16.549 HOOK ASM; ENG COVER G.V.W. 7.0-7.5TON(RPX) AUSTRALIA EQUIPMENT(RR3) (A)	8-97853-632-2	02	1	9511-9611	●	●	●
46	16.549 HOOK ASM; ENG COVER EXC. AUSTRALIA EQUIPMENT(RR3) (A)	8-97853-632-2	02	1	9612-9711	●	●	●		●
46	16.549 HOOK ASM; ENG COVER G.V.W. 7.0-7.5TON(RPX) AUSTRALIA EQUIPMENT(RR3) (A)	8-97853-632-2	02	1	9612-9711	●	●	●
46	16.549 HOOK ASM; ENG COVER (A)	8-97853-632-2	02	1	9612-9711				●
46	16.549 HOOK ASM; ENG COVER EXC. AUSTRALIA EQUIPMENT(RR3) (A)	8-97853-632-2	02	1	9712-9801	●	●	●		●		●
46	16.549 HOOK ASM; ENG COVER G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) (A)	8-97853-632-2	02	1	9712-9801	●	●	●				●
46	16.549 HOOK ASM; ENG COVER (A)	8-97853-632-2	02	1	9712-9801				●
46	16.549 HOOK ASM; ENG COVER EXC. AUSTRALIA EQUIPMENT(RR3) (A)	8-97853-632-2	02	1	9802-	●	●	●	●	●		●
46	16.549 HOOK ASM; ENG COVER G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) (A)	8-97853-632-2	02	1	9802-	●	●	●	●			●
46	16.549 HOOK ASM; ENG COVER G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) (B)	8-97850-594-2	02	1	9312-	●	●	●		●
55	16.549 SEAL; SUPPORT COVER EXC. MANUAL TILT CAB<RWZ>	8-97853-727-1	01	1	9312-9510	●	●	●		●	●
55	16.549 SEAL; SUPPORT COVER EXC. MANUAL TILT CAB<RWZ>	8-97853-727-1	01	1	9511-9605	●	●	●		●
57	16.549 COVER ASM; SUPPORT,CAB FLOOR EXC. MANUAL TILT CAB<RWZ>	8-97850-290-7	01	1	9312-9509	●	●	●		●	●
57	16.549 COVER ASM; SUPPORT,CAB FLOOR EXC. MANUAL TILT CAB<RWZ>	8-97866-685-0	01	1	9510-9510	●	●	●		●	●
57	16.549 COVER ASM; SUPPORT,CAB FLOOR EXC. MANUAL TILT CAB<RWZ>	8-97866-685-1	01	1	9511-9711	●	●	●		●
57	16.549 COVER ASM; SUPPORT,CAB FLOOR EXC. MANUAL TILT CAB<RWZ>	8-97866-685-1	01	1	9712-9801	●	●	●	●	●
57	16.549 COVER ASM; SUPPORT,CAB FLOOR HONG KONG EQUIPMENT(PQ1)	8-97866-685-1	01	1	9712-9801	●	●	●	●			●
57	16.549 COVER ASM; SUPPORT,CAB FLOOR HONG KONG EQUIPMENT(PQ1) MANUAL TILT CAB<RWZ>	8-97866-685-1	01	1	9802-	●	●	●	●	●		●
57	16.549 COVER ASM; SUPPORT,CAB FLOOR EXC. MANUAL TILT CAB<RWZ>	8-97866-685-1	01	1	9802-	●	●	●	●	●		●
57	16.549 COVER ASM; SUPPORT,CAB FLOOR MANUAL TILT CAB<RWZ>	8-97850-109-7	01	1	9312-9509	●	●	●
57	16.549 COVER ASM; SUPPORT,CAB FLOOR MANUAL TILT CAB<RWZ>	8-97866-684-1	01	1	9510-9611	●	●	●
57	16.549 COVER ASM; SUPPORT,CAB FLOOR MANUAL TILT CAB<RWZ>	8-97866-684-1	01	1	9612-9711	●	●	●
57	16.549 COVER ASM; SUPPORT,CAB FLOOR	8-97866-684-1	01	1	9612-9711				●
57	16.549 COVER ASM; SUPPORT,CAB FLOOR MANUAL TILT CAB<RWZ> EXC. HONG KONG EQUIPMENT(PQ1)	8-97866-684-1	01	1	9712-	●	●	●	●			●
59	16.549 SEAL; SUPPORT COVER EXC. MANUAL TILT CAB<RWZ>	8-97853-046-1	01	1	9312-9510	●	●	●		●	●
59	16.549 SEAL; SUPPORT COVER EXC. MANUAL TILT CAB<RWZ>	8-97853-046-1	01	1	9511-9605	●	●	●		●
68	16.549 COVER ASM; SUB,ENG COVER EXC. MANUAL TILT CAB<RWZ>	8-97853-712-3	01	1	9312-9708	●	●	●		●	●
68	16.549 COVER ASM; SUB,ENG COVER EXC. MANUAL TILT CAB<RWZ>	8-97853-712-3	01	1	9709-9711	●	●	●		●
68	16.549 COVER ASM; SUB,ENG COVER EXC. MANUAL TILT CAB<RWZ>	8-97853-712-3	01	1	9712-9801	●	●	●	●	●
68	16.549 COVER ASM; SUB,ENG COVER HONG KONG EQUIPMENT(PQ1)	8-97853-712-3	01	1	9712-9801	●	●	●	●			●
68	16.549 COVER ASM; SUB,ENG COVER HONG KONG EQUIPMENT(PQ1) MANUAL TILT CAB<RWZ>	8-97853-712-3	01	1	9802-	●	●	●	●	●		●
68	16.549 COVER ASM; SUB,ENG COVER EXC. MANUAL TILT CAB<RWZ>	8-97853-712-3	01	1	9802-	●	●	●	●	●		●
69	16.549 BOLT; TRANS COVER EXC. MANUAL TILT CAB<RWZ> OD=30	8-94279-952-0	05	1	9312-9403	●	●	●		●	●
69	16.549 BOLT; TRANS COVER EXC. MANUAL TILT CAB<RWZ> OD=28 BLACK	8-94279-997-0	05	1	9404-9406	●	●	●		●	●
69	16.549 BOLT; TRANS COVER MANUAL TILT CAB<RWZ> OD=30	8-94279-952-0	07	1	9312-9403	●	●	●
69	16.549 BOLT; TRANS COVER MANUAL TILT CAB<RWZ> OD=28 BLACK	8-94279-997-0	07	1	9404-9406	●	●	●
70	16.549 SEAL; ENG SUB COVER,CAB FLOOR EXC. MANUAL TILT CAB<RWZ>	8-97853-050-1	01	1	9312-9408	●	●	●		●	●
70	16.549 SEAL; ENG SUB COVER,CAB FLOOR EXC. MANUAL TILT CAB<RWZ>	8-97853-050-1	01	1	9709-9711	●	●	●		●
70	16.549 SEAL; ENG SUB COVER,CAB FLOOR EXC. MANUAL TILT CAB<RWZ>	8-97853-050-1	01	1	9712-9801	●	●	●	●	●
70	16.549 SEAL; ENG SUB COVER,CAB FLOOR HONG KONG EQUIPMENT(PQ1)	8-97853-050-1	01	1	9712-9801	●	●	●	●			●
70	16.549 SEAL; ENG SUB COVER,CAB FLOOR HONG KONG EQUIPMENT(PQ1) MANUAL TILT CAB<RWZ>	8-97853-050-1	01	1	9802-	●	●	●	●	●		●
70	16.549 SEAL; ENG SUB COVER,CAB FLOOR EXC. MANUAL TILT CAB<RWZ>	8-97853-050-1	01	1	9802-	●	●	●	●	●		●
72	16.549 SEAL; SUPPORT COVER EXC. MANUAL TILT CAB<RWZ>	8-97853-726-1	01	1	9312-9510	●	●	●		●	●
72	16.549 SEAL; SUPPORT COVER EXC. MANUAL TILT CAB<RWZ>	8-97853-726-1	01	1	9511-9605	●	●	●		●
74	16.549 BOLT; SUPPORT COVER TO FLOOR 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	05	1	9312-9407	●	●	●		●	●
74	16.549 BOLT; SUPPORT COVER TO FLOOR 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	05	1	9408-9510					●	●
74	16.549 BOLT; SUPPORT COVER TO FLOOR MANUAL TILT CAB<RWZ> 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	05	1	9408-9510	●	●	●
74	16.549 BOLT; SUPPORT COVER TO FLOOR MANUAL TILT CAB<RWZ> 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	05	1	9511-9605	●	●	●
74	16.549 BOLT; SUPPORT COVER TO FLOOR 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	05	1	9511-9605					●
74	16.549 BOLT; SUPPORT COVER TO FLOOR 02.664 M8X20 FLANGE	0-28680-820-0	05	1	9606-9611	●	●	●		●
74	16.549 BOLT; SUPPORT COVER TO FLOOR 02.664 M8X20 FLANGE	0-28680-820-0	05	1	9612-9711	●	●	●	●	●
74	16.549 BOLT; SUPPORT COVER TO FLOOR 02.664 M8X20 FLANGE	0-28680-820-0	05	1	9712-	●	●	●	●	●		●
74	16.549 BOLT; SUPPORT COVER TO FLOOR M8X29.5 W/LK+PL WASHER	8-94279-218-0	01	1	9312-9510	●	●	●		●	●
74	16.549 BOLT; SUPPORT COVER TO FLOOR M8X29.5 W/LK+PL WASHER	8-94279-218-0	01	1	9511-9605	●	●	●		●
74	16.549 BOLT; SUPPORT COVER TO FLOOR 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9606-9611	●	●	●		●
74	16.549 BOLT; SUPPORT COVER TO FLOOR 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9612-9711	●	●	●	●	●
74	16.549 BOLT; SUPPORT COVER TO FLOOR 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9712-	●	●	●	●	●		●
74	16.549 BOLT; SUPPORT COVER TO FLOOR EXC. MANUAL TILT CAB<RWZ> 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	04	1	9408-9605	●	●	●
84	16.549 BOLT; ENG COVER HINGE 04.634 M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	9312-9510	●	●	●		●	●
84	16.549 BOLT; ENG COVER HINGE 04.634 M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	9511-9604	●	●	●		●
84	16.549 BOLT; ENG COVER HINGE 02.664 M8X20 FLANGE	0-28680-820-0	04	1	9604-9611	●	●	●		●
84	16.549 BOLT; ENG COVER HINGE 02.664 M8X20 FLANGE	0-28680-820-0	04	1	9612-9711	●	●	●	●	●
84	16.549 BOLT; ENG COVER HINGE 02.664 M8X20 FLANGE	0-28680-820-0	04	1	9712-	●	●	●	●	●		●
243	16.547 GROMMET; STOPPER,CHECK HOLE LID 16.549 OD=12.1	8-94279-716-0	01	1	9410-9510	●	●	●		●	●
243	16.547 GROMMET; STOPPER,CHECK HOLE LID 16.549 OD=12.1	8-94279-716-0	01	1	9511-9611	●	●	●		●
243	16.547 GROMMET; STOPPER,CHECK HOLE LID 16.549 OD=12.1	8-94279-716-0	01	1	9612-9711	●	●	●	●	●
243	16.547 GROMMET; STOPPER,CHECK HOLE LID 16.549 OD=12.1	8-94279-716-0	01	1	9712-	●	●	●	●	●		●
310	16.549 SCREW; ENG COVER HOOK EXC. AUSTRALIA EQUIPMENT(RR3) 16.320 M6X20 W/LK&PL WASHER	8-94279-403-0	04	1	9312-9510	●	●	●		●	●
310	16.549 SCREW; ENG COVER HOOK G.V.W. 7.0-7.5TON(RPX) AUSTRALIA EQUIPMENT(RR3) 16.320 M6X20 W/LK&PL WASHER	8-94279-403-0	04	1	9312-9510	●	●	●
310	16.549 SCREW; ENG COVER HOOK EXC. AUSTRALIA EQUIPMENT(RR3) 16.320 M6X20 W/LK&PL WASHER	8-94279-403-0	04	1	9511-9611	●	●	●		●
310	16.549 SCREW; ENG COVER HOOK G.V.W. 7.0-7.5TON(RPX) AUSTRALIA EQUIPMENT(RR3) 16.320 M6X20 W/LK&PL WASHER	8-94279-403-0	04	1	9511-9611	●	●	●
310	16.549 SCREW; ENG COVER HOOK EXC. AUSTRALIA EQUIPMENT(RR3) 16.320 M6X20 W/LK&PL WASHER	8-94279-403-0	04	1	9612-9711	●	●	●		●
310	16.549 SCREW; ENG COVER HOOK G.V.W. 7.0-7.5TON(RPX) AUSTRALIA EQUIPMENT(RR3) 16.320 M6X20 W/LK&PL WASHER	8-94279-403-0	04	1	9612-9711	●	●	●
310	16.549 SCREW; ENG COVER HOOK 16.320 M6X20 W/LK&PL WASHER	8-94279-403-0	04	1	9612-9711				●
310	16.549 SCREW; ENG COVER HOOK EXC. AUSTRALIA EQUIPMENT(RR3) 16.320 M6X20 W/LK&PL WASHER	8-94279-403-0	04	1	9712-9801	●	●	●		●		●
310	16.549 SCREW; ENG COVER HOOK G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) 16.320 M6X20 W/LK&PL WASHER	8-94279-403-0	04	1	9712-9801	●	●	●				●
310	16.549 SCREW; ENG COVER HOOK 16.320 M6X20 W/LK&PL WASHER	8-94279-403-0	04	1	9712-9801				●
310	16.549 SCREW; ENG COVER HOOK EXC. AUSTRALIA EQUIPMENT(RR3) 16.320 M6X20 W/LK&PL WASHER	8-94279-403-0	04	1	9802-	●	●	●	●	●		●
310	16.549 SCREW; ENG COVER HOOK G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) 16.320 M6X20 W/LK&PL WASHER	8-94279-403-0	04	1	9802-	●	●	●	●			●
310	16.549 SCREW; ENG COVER HOOK G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) 16.320 M6X20 W/LK&PL WASHER	8-94279-403-0	09	1	9312-	●	●	●		●
317	16.549 BAND; ENGINE COVER L=535 DARK BEIGE	8-97853-607-3	01	1	9312-9510	●	●	●		●	●
317	16.549 BAND; ENGINE COVER L=535 DARK BEIGE	8-97853-607-3	01	1	9511-9611	●	●	●		●
317	16.549 BAND; ENGINE COVER L=535 DARK BEIGE	8-97853-607-3	01	1	9612-9711	●	●	●	●	●
317	16.549 BAND; ENGINE COVER L=535 BLACK	8-97867-201-0	01	1	9712-	●	●	●	●	●		●
318	16.549 SCREW; BAND 15.222 M5X25 TAPPING W/PL WASHER	0-74310-525-0	02	1	9312-9401	●	●	●		●	●
318	16.549 SCREW; BAND 15.222 M5X25 TAPPING W/PL WASHER	0-74310-525-0	02	1	9402-9409	●	●	●
318	16.549 SCREW; BAND 16.802 M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	9402-9409					●	●
318	16.549 SCREW; BAND 16.802 M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	9410-9510	●	●	●		●	●
318	16.549 SCREW; BAND 16.802 M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	9511-9611	●	●	●		●
318	16.549 SCREW; BAND 16.802 M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	9612-9711	●	●	●	●	●
318	16.549 SCREW; BAND 16.802 M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	9712-	●	●	●	●	●		●
324	16.545 FINISHER; FLOOR PANEL 4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) L=140	8-97867-865-0	01	1	9608-9611	●	●	●		●
324	16.545 FINISHER; FLOOR PANEL 4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) L=140	8-97867-865-0	01	1	9612-9707	●	●	●	●	●
324	16.545 FINISHER; FLOOR PANEL 4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) L=140	8-97867-865-0	01	1	9708-9711	●	●	●	●	●
324	16.545 FINISHER; FLOOR PANEL 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW), 4HE1 ENG(RLY) L=140	8-97867-865-0	01	1	9712-	●	●	●	●	●		●
341	16.549 SEAL; INSULATOR HOLE EXC. MANUAL TILT CAB<RWZ> 16.570 OD=20 T=0.05 WHITE	8-97856-832-1	01	1	9312-9510	●	●	●		●	●
341	16.549 SEAL; INSULATOR HOLE EXC. MANUAL TILT CAB<RWZ> 16.570 OD=20 T=0.05 WHITE	8-97856-832-1	01	1	9511-9711	●	●	●		●
341	16.549 SEAL; INSULATOR HOLE EXC. MANUAL TILT CAB<RWZ> 16.570 OD=20 T=0.05 WHITE	8-97856-832-1	01	1	9712-9801	●	●	●	●
341	16.549 SEAL; INSULATOR HOLE 16.570 OD=20 T=0.05 WHITE	8-97856-832-1	01	1	9712-9801					●
341	16.549 SEAL; INSULATOR HOLE EXC. MANUAL TILT CAB<RWZ> 16.570 OD=20 T=0.05 WHITE	8-97856-832-1	01	1	9802-	●	●	●	●			●
341	16.549 SEAL; INSULATOR HOLE 16.570 OD=20 T=0.05 WHITE	8-97856-832-1	01	1	9802-					●
364	16.545 FINISHER; ENG COVER SIDE L=1000	8-97890-597-0	01	1	9709-9711	●	●	●	●	●
364	16.545 FINISHER; ENG COVER SIDE L=1000	8-97890-597-0	01	1	9712-	●	●	●	●	●		●

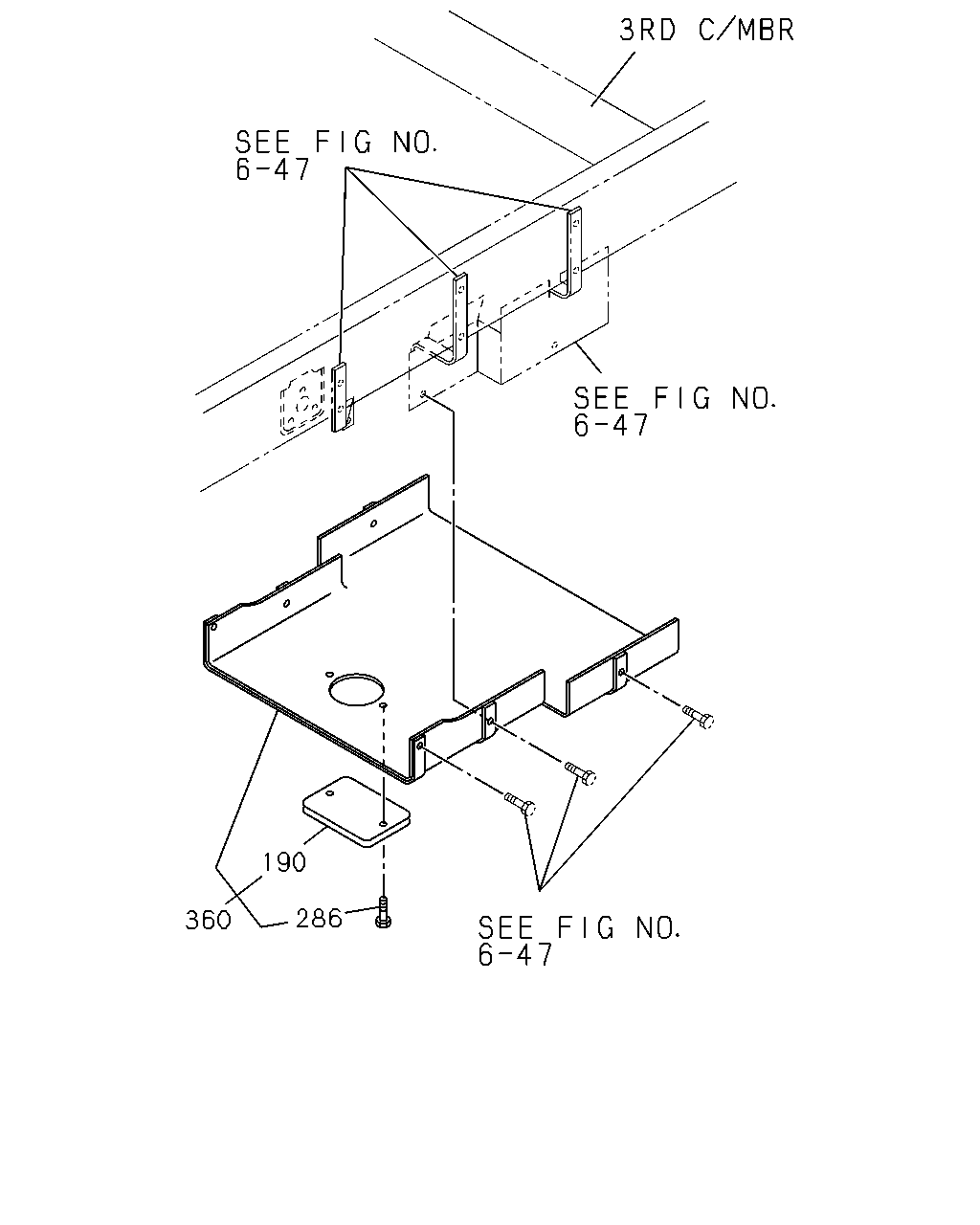

190 286 360

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C	G
190	16.549 LID 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF>	8-97180-904-1	01	1	9712-	●	●	●
286	16.545 BOLT; LID 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 04.439 M6X16 FLANGE	0-28680-616-0	02	1	9712-	●	●	●
360	16.549 COVER; LWR 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF>	8-97183-607-2	01	1	9712-	●	●	●

74 84 57 34 364 7 37 39 69 10 38 38 10 39 39 243 310 166 310 46 10 1 310 46 179 25 20 324 317 8 318 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	16.850 SHEET; MELTING,FLOOR NON ASBESTOS 1000X600 T=1.5; PARTS O NLY	8-94262-093-0	01	1	9312-	●	●	●	●	●	●
7	16.545 INSULATOR; SUPPORT COVER EXC. MANUAL TILT CAB<RWZ>	8-97853-641-1	01	1	9312-9510	●	●	●		●	●
7	16.545 INSULATOR; SUPPORT COVER EXC. MANUAL TILT CAB<RWZ>	8-97853-641-1	01	1	9511-9711	●	●	●		●
7	16.545 INSULATOR; SUPPORT COVER HONG KONG EQUIPMENT(PQ1)	8-97853-641-2	01	1	9712-9801	●	●	●	●			●
7	16.545 INSULATOR; SUPPORT COVER EXC. MANUAL TILT CAB<RWZ>	8-97853-641-2	01	1	9712-9801	●	●	●	●
7	16.545 INSULATOR; SUPPORT COVER	8-97853-641-2	01	1	9712-9801					●
7	16.545 INSULATOR; SUPPORT COVER HONG KONG EQUIPMENT(PQ1)	8-97853-641-2	01	1	9802-	●	●	●	●			●
7	16.545 INSULATOR; SUPPORT COVER EXC. MANUAL TILT CAB<RWZ>	8-97853-641-2	01	1	9802-	●	●	●	●			●
7	16.545 INSULATOR; SUPPORT COVER	8-97853-641-2	01	1	9802-					●
7	16.545 INSULATOR; SUPPORT COVER MANUAL TILT CAB<RWZ>	8-97853-629-1	01	1	9312-9611	●	●	●
7	16.545 INSULATOR; SUPPORT COVER MANUAL TILT CAB<RWZ>	8-97853-629-1	01	1	9612-9711	●	●	●
7	16.545 INSULATOR; SUPPORT COVER	8-97853-629-1	01	1	9612-9711				●
7	16.545 INSULATOR; SUPPORT COVER MANUAL TILT CAB<RWZ> EXC. HONG KONG EQUIPMENT(PQ1)	8-97853-629-2	01	1	9712-	●	●	●	●			●
8	16.802 MAT; SILENCER,FRT PANEL	8-97853-606-0	01	1	9312-9510	●	●	●		●	●
8	16.802 MAT; SILENCER,FRT PANEL	8-97853-606-1	01	1	9511-9611	●	●	●		●
8	16.802 MAT; SILENCER,FRT PANEL	8-97853-606-1	01	1	9612-9711	●	●	●	●	●
8	16.802 MAT; SILENCER,FRT PANEL	8-97853-606-1	01	1	9712-	●	●	●	●	●		●
8	16.802 MAT; SILENCER,FRT PANEL	8-97853-605-1	01	1	9312-9510	●	●	●		●	●
8	16.802 MAT; SILENCER,FRT PANEL	8-97853-605-2	01	1	9511-9611	●	●	●		●
8	16.802 MAT; SILENCER,FRT PANEL	8-97853-605-2	01	1	9612-9711	●	●	●	●	●
8	16.802 MAT; SILENCER,FRT PANEL	8-97853-605-2	01	1	9712-	●	●	●	●	●		●
10	16.549 SEAL; ENG COVER (C)	8-97853-267-4	01	1	9312-9510	●	●	●		●	●
10	16.549 SEAL; ENG COVER (C)	8-97853-267-4	01	1	9511-9611	●	●	●		●
10	16.549 SEAL; ENG COVER (C)	8-97853-267-4	01	1	9612-9711	●	●	●	●	●
10	16.549 SEAL; ENG COVER (C)	8-97853-267-4	01	1	9712-	●	●	●	●	●		●
10	16.549 SEAL; ENG COVER (A)	8-97857-240-0	03	1	9312-9403	●	●	●		●	●
10	16.549 SEAL; ENG COVER EXC. MANUAL TILT CAB<RWZ> (A)	8-97857-240-0	02	1	9404-9510	●	●	●		●	●
10	16.549 SEAL; ENG COVER EXC. MANUAL TILT CAB<RWZ> (A)	8-97857-240-0	02	1	9511-9605	●	●	●		●
10	16.549 SEAL; ENG COVER BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) 16.592 (B) OD=36 T=0.05 BLACK OD=36 WHITE	1-76778-007-0	01	1	9312-9603	●	●	●
10	16.549 SEAL; ENG COVER BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) 16.547 (B) OD=36 T=0.05 BLACK OD=36 BLACK	1-76798-018-0	01	1	9604-9604	●	●	●
10	16.549 SEAL; ENG COVER BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) INTERIOR DELUXE<RBB> 16.547 (B) OD=36 T=0.05 BLACK OD=36 BLACK	1-76798-018-0	01	1	9604-9711		●	●
10	16.549 SEAL; ENG COVER BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) INTERIOR DELUXE<RBB> 02.580 (B) OD=36 T=0.05 BLACK	5-76777-035-0	01	1	9712-9804	●	●	●	●			●
10	16.549 SEAL; ENG COVER BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY OR ANGE(944) INTERIOR DELUXE<RBB> 02.580 (B) OD=36 T=0.05 BLACK	5-76777-035-0	01	1	9805-	●	●	●	●			●
10	16.549 SEAL; ENG COVER BODY COLOR ARC WHITE(729) 16.592 (B) OD=36 WHITE	1-76778-007-0	01	1	9312-9604	●	●	●
10	16.549 SEAL; ENG COVER BODY COLOR ARC WHITE(729) INTERIOR DELUXE<RBB> 16.592 (B) OD=36 WHITE	1-76778-007-0	01	1	9604-9711		●	●
10	16.549 SEAL; ENG COVER BODY COLOR ARC WHITE(729) INTERIOR DELUXE<RBB> 16.592 (B) OD=36 WHITE	1-76778-007-0	01	1	9712-	●	●	●	●			●
20	16.547 REST; FOOT A/T 4 SPEED-JATCO(RMK)	8-97853-767-1	01	1	9312-		●
22	16.547 GROMMET; SCREW,FOOT REST A/T 4 SPEED-JATCO(RMK) 16.802 D=7.8X7.8 L=18 NATURAL	8-94279-043-0	02	1	9312-9409		●
22	16.547 GROMMET; SCREW,FOOT REST A/T 4 SPEED-JATCO(RMK) 04.931 H=15	8-94463-268-1	02	1	9410-		●
25	16.549 SCREW; FOOT REST A/T 4 SPEED-JATCO(RMK) 16.802 M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	9312-		●
34	16.549 COVER ASM; ENG,CAB FLOOR EXC. AUSTRALIA EQUIPMENT(RR3)	8-97850-110-5	01	1	9312-9507	●	●	●		●	●
34	16.549 COVER ASM; ENG,CAB FLOOR G.V.W. 7.0-7.5TON(RPX) AUSTRALIA EQUIPMENT(RR3)	8-97850-110-5	01	1	9312-9507	●	●	●
34	16.549 COVER ASM; ENG,CAB FLOOR EXC. AUSTRALIA EQUIPMENT(RR3)	8-97850-676-0	01	1	9508-9510	●	●	●		●	●
34	16.549 COVER ASM; ENG,CAB FLOOR G.V.W. 7.0-7.5TON(RPX) AUSTRALIA EQUIPMENT(RR3)	8-97850-676-0	01	1	9508-9510	●	●	●
34	16.549 COVER ASM; ENG,CAB FLOOR EXC. AUSTRALIA EQUIPMENT(RR3)	8-97850-676-0	01	1	9511-9611	●	●	●		●
34	16.549 COVER ASM; ENG,CAB FLOOR G.V.W. 7.0-7.5TON(RPX) AUSTRALIA EQUIPMENT(RR3)	8-97850-676-0	01	1	9511-9611	●	●	●
34	16.549 COVER ASM; ENG,CAB FLOOR EXC. AUSTRALIA EQUIPMENT(RR3)	8-97850-676-0	01	1	9612-9711	●	●	●		●
34	16.549 COVER ASM; ENG,CAB FLOOR G.V.W. 7.0-7.5TON(RPX) AUSTRALIA EQUIPMENT(RR3)	8-97850-676-0	01	1	9612-9711	●	●	●
34	16.549 COVER ASM; ENG,CAB FLOOR	8-97850-676-0	01	1	9612-9711				●
34	16.549 COVER ASM; ENG,CAB FLOOR EXC. AUSTRALIA EQUIPMENT(RR3)	8-97850-676-0	01	1	9712-9801	●	●	●		●		●
34	16.549 COVER ASM; ENG,CAB FLOOR G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3)	8-97850-676-0	01	1	9712-9801	●	●	●				●
34	16.549 COVER ASM; ENG,CAB FLOOR	8-97850-676-0	01	1	9712-9801				●
34	16.549 COVER ASM; ENG,CAB FLOOR EXC. AUSTRALIA EQUIPMENT(RR3)	8-97850-676-0	01	1	9802-	●	●	●	●	●		●
34	16.549 COVER ASM; ENG,CAB FLOOR G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3)	8-97850-676-0	01	1	9802-	●	●	●	●			●
34	16.549 COVER ASM; ENG,CAB FLOOR G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3)	8-97850-601-1	01	1	9312-9507	●	●	●		●
34	16.549 COVER ASM; ENG,CAB FLOOR G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3)	8-97850-681-1	01	1	9508-9710	●	●	●		●
34	16.549 COVER ASM; ENG,CAB FLOOR G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3)	8-97850-906-0	01	1	9711-	●	●	●		●
37	16.549 RUBBER; BUFFER,ENG COVER 16.155 OD=30 T=10	5-74917-001-2	02	1	9312-9510	●	●	●		●	●
37	16.549 RUBBER; BUFFER,ENG COVER 16.155 OD=30 T=10	5-74917-001-2	02	1	9511-9611	●	●	●		●
37	16.549 RUBBER; BUFFER,ENG COVER 16.155 OD=30 T=10	5-74917-001-2	02	1	9612-9711	●	●	●	●	●
37	16.549 RUBBER; BUFFER,ENG COVER 16.155 OD=30 T=10	5-74917-001-2	02	1	9712-	●	●	●	●	●		●
38	16.549 INSULATOR; ENG COVER (A)	8-97853-266-5	01	1	9312-9510	●	●	●		●	●
38	16.549 INSULATOR; ENG COVER (A)	8-97853-266-5	01	1	9511-9611	●	●	●		●
38	16.549 INSULATOR; ENG COVER (A)	8-97853-266-5	01	1	9612-9711	●	●	●	●	●
38	16.549 INSULATOR; ENG COVER (A)	8-97853-266-5	01	1	9712-	●	●	●	●	●		●
38	16.549 INSULATOR; ENG COVER EXC. MANUAL TILT CAB<RWZ> (B)	8-97856-803-0	01	1	9312-9409	●	●	●		●	●
38	16.549 INSULATOR; ENG COVER 4JG2 ENG(RJC),4HF1 ENG(RLS) EXC. MANUAL TILT CAB<RWZ> (B)	8-97856-803-0	01	1	9410-9510	●	●	●		●	●
38	16.549 INSULATOR; ENG COVER 4HF1 ENG(RLS) (B)	8-97856-803-0	01	1	9511-9708					●
38	16.549 INSULATOR; ENG COVER 4JG2 ENG(RJC),4HF1 ENG(RLS) EXC. MANUAL TILT CAB<RWZ> (B)	8-97856-803-0	01	1	9709-9711	●	●	●		●
38	16.549 INSULATOR; ENG COVER 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. MANUAL TILT CAB<RWZ> (B)	8-97856-803-0	01	1	9712-	●	●	●	●	●
38	16.549 INSULATOR; ENG COVER 4HE1 ENG(RLY) HONG KONG EQUIPMENT(PQ1) MANUAL TILT CAB<RWZ> (B)	8-97856-803-0	01	1	9712-	●	●	●	●			●
39	16.549 CLIP; INSULATOR,COVER OD=30	8-94279-952-0	06	1	9312-9403	●	●	●		●	●
39	16.549 CLIP; INSULATOR,COVER OD=28 BLACK	8-94279-997-0	06	1	9404-9406	●	●	●		●	●
39	16.549 CLIP; INSULATOR,COVER OD=28 BLACK	8-94279-997-0	05	1	9407-9407	●	●	●		●	●
39	16.549 CLIP; INSULATOR,COVER MANUAL TILT CAB<RWZ> OD=28 BLACK	8-94279-997-0	08	1	9407-9611	●	●	●
39	16.549 CLIP; INSULATOR,COVER MANUAL TILT CAB<RWZ> OD=28 BLACK	8-94279-997-0	08	1	9612-9711	●	●	●
39	16.549 CLIP; INSULATOR,COVER OD=28 BLACK	8-94279-997-0	08	1	9612-9711				●
39	16.549 CLIP; INSULATOR,COVER MANUAL TILT CAB<RWZ> EXC. HONG KONG EQUIPMENT(PQ1) OD=28 BLACK	8-94279-997-0	08	1	9712-	●	●	●	●			●
39	16.549 CLIP; INSULATOR,COVER OD=28 BLACK	8-94279-997-0	05	1	9407-9510	●	●	●		●	●
39	16.549 CLIP; INSULATOR,COVER EXC. MANUAL TILT CAB<RWZ> OD=28 BLACK	8-94279-997-0	05	1	9407-9510	●	●	●		●	●
39	16.549 CLIP; INSULATOR,COVER OD=28 BLACK	8-94279-997-0	05	1	9511-9611	●	●	●		●
39	16.549 CLIP; INSULATOR,COVER EXC. MANUAL TILT CAB<RWZ> OD=28 BLACK	8-94279-997-0	05	1	9511-9611	●	●	●		●
39	16.549 CLIP; INSULATOR,COVER OD=28 BLACK	8-94279-997-0	05	1	9612-9711	●	●	●	●	●
39	16.549 CLIP; INSULATOR,COVER EXC. MANUAL TILT CAB<RWZ> OD=28 BLACK	8-94279-997-0	05	1	9612-9711	●	●	●		●
39	16.549 CLIP; INSULATOR,COVER EXC. MANUAL TILT CAB<RWZ> OD=30	8-94279-952-0	02	1	9312-9403	●	●	●		●	●
39	16.549 CLIP; INSULATOR,COVER EXC. MANUAL TILT CAB<RWZ> OD=28 BLACK	8-94279-997-0	02	1	9404-9406	●	●	●		●	●
39	16.549 CLIP; INSULATOR,COVER 4JG2 ENG(RJC),4HF1 ENG(RLS) EXC. MANUAL TILT CAB<RWZ> OD=28 BLACK	8-94279-997-0	02	1	9410-9510	●	●	●		●	●
39	16.549 CLIP; INSULATOR,COVER 4HF1 ENG(RLS) OD=28 BLACK	8-94279-997-0	02	1	9511-9708					●
39	16.549 CLIP; INSULATOR,COVER 4JG2 ENG(RJC),4HF1 ENG(RLS) EXC. MANUAL TILT CAB<RWZ> OD=28 BLACK	8-94279-997-0	02	1	9709-9711	●	●	●		●
39	16.549 CLIP; INSULATOR,COVER 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. MANUAL TILT CAB<RWZ> OD=28 BLACK	8-94279-997-0	02	1	9712-	●	●	●	●	●
39	16.549 CLIP; INSULATOR,COVER 4HE1 ENG(RLY) HONG KONG EQUIPMENT(PQ1) MANUAL TILT CAB<RWZ> OD=28 BLACK	8-94279-997-0	02	1	9712-	●	●	●	●			●
39	16.549 CLIP; INSULATOR,COVER OD=28 BLACK	8-94279-997-0	05	1	9712-9801	●	●	●	●	●		●
39	16.549 CLIP; INSULATOR,COVER EXC. MANUAL TILT CAB<RWZ> OD=28 BLACK	8-94279-997-0	05	1	9712-9801	●	●	●	●	●
39	16.549 CLIP; INSULATOR,COVER HONG KONG EQUIPMENT(PQ1) OD=28 BLACK	8-94279-997-0	05	1	9712-9801	●	●	●	●			●
39	16.549 CLIP; INSULATOR,COVER OD=28 BLACK	8-94279-997-0	05	1	9802-	●	●	●	●	●		●
39	16.549 CLIP; INSULATOR,COVER HONG KONG EQUIPMENT(PQ1) OD=28 BLACK	8-94279-997-0	05	1	9802-	●	●	●	●			●
39	16.549 CLIP; INSULATOR,COVER EXC. MANUAL TILT CAB<RWZ> OD=28 BLACK	8-94279-997-0	05	1	9802-	●	●	●	●			●
39	16.549 CLIP; INSULATOR,COVER OD=28 BLACK	8-94279-997-0	05	1	9802-					●
46	16.549 HOOK ASM; ENG COVER EXC. AUSTRALIA EQUIPMENT(RR3) (A)	8-97853-632-2	02	1	9312-9510	●	●	●		●	●
46	16.549 HOOK ASM; ENG COVER G.V.W. 7.0-7.5TON(RPX) AUSTRALIA EQUIPMENT(RR3) (A)	8-97853-632-2	02	1	9312-9510	●	●	●
46	16.549 HOOK ASM; ENG COVER EXC. AUSTRALIA EQUIPMENT(RR3) (A)	8-97853-632-2	02	1	9511-9611	●	●	●		●
46	16.549 HOOK ASM; ENG COVER G.V.W. 7.0-7.5TON(RPX) AUSTRALIA EQUIPMENT(RR3) (A)	8-97853-632-2	02	1	9511-9611	●	●	●
46	16.549 HOOK ASM; ENG COVER EXC. AUSTRALIA EQUIPMENT(RR3) (A)	8-97853-632-2	02	1	9612-9711	●	●	●		●
46	16.549 HOOK ASM; ENG COVER G.V.W. 7.0-7.5TON(RPX) AUSTRALIA EQUIPMENT(RR3) (A)	8-97853-632-2	02	1	9612-9711	●	●	●
46	16.549 HOOK ASM; ENG COVER (A)	8-97853-632-2	02	1	9612-9711				●
46	16.549 HOOK ASM; ENG COVER EXC. AUSTRALIA EQUIPMENT(RR3) (A)	8-97853-632-2	02	1	9712-9801	●	●	●		●		●
46	16.549 HOOK ASM; ENG COVER G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) (A)	8-97853-632-2	02	1	9712-9801	●	●	●				●
46	16.549 HOOK ASM; ENG COVER (A)	8-97853-632-2	02	1	9712-9801				●
46	16.549 HOOK ASM; ENG COVER EXC. AUSTRALIA EQUIPMENT(RR3) (A)	8-97853-632-2	02	1	9802-	●	●	●	●	●		●
46	16.549 HOOK ASM; ENG COVER G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) (A)	8-97853-632-2	02	1	9802-	●	●	●	●			●
46	16.549 HOOK ASM; ENG COVER G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) (B)	8-97850-594-2	02	1	9312-	●	●	●		●
57	16.549 COVER ASM; SUPPORT,CAB FLOOR EXC. MANUAL TILT CAB<RWZ>	8-97850-290-7	01	1	9312-9509	●	●	●		●	●
57	16.549 COVER ASM; SUPPORT,CAB FLOOR EXC. MANUAL TILT CAB<RWZ>	8-97866-685-0	01	1	9510-9510	●	●	●		●	●
57	16.549 COVER ASM; SUPPORT,CAB FLOOR EXC. MANUAL TILT CAB<RWZ>	8-97866-685-1	01	1	9511-9711	●	●	●		●
57	16.549 COVER ASM; SUPPORT,CAB FLOOR EXC. MANUAL TILT CAB<RWZ>	8-97866-685-1	01	1	9712-9801	●	●	●	●	●
57	16.549 COVER ASM; SUPPORT,CAB FLOOR HONG KONG EQUIPMENT(PQ1)	8-97866-685-1	01	1	9712-9801	●	●	●	●			●
57	16.549 COVER ASM; SUPPORT,CAB FLOOR HONG KONG EQUIPMENT(PQ1) MANUAL TILT CAB<RWZ>	8-97866-685-1	01	1	9802-	●	●	●	●	●		●
57	16.549 COVER ASM; SUPPORT,CAB FLOOR EXC. MANUAL TILT CAB<RWZ>	8-97866-685-1	01	1	9802-	●	●	●	●	●		●
57	16.549 COVER ASM; SUPPORT,CAB FLOOR MANUAL TILT CAB<RWZ>	8-97850-109-7	01	1	9312-9509	●	●	●
57	16.549 COVER ASM; SUPPORT,CAB FLOOR MANUAL TILT CAB<RWZ>	8-97866-684-1	01	1	9510-9611	●	●	●
57	16.549 COVER ASM; SUPPORT,CAB FLOOR MANUAL TILT CAB<RWZ>	8-97866-684-1	01	1	9612-9711	●	●	●
57	16.549 COVER ASM; SUPPORT,CAB FLOOR	8-97866-684-1	01	1	9612-9711				●
57	16.549 COVER ASM; SUPPORT,CAB FLOOR MANUAL TILT CAB<RWZ> EXC. HONG KONG EQUIPMENT(PQ1)	8-97866-684-1	01	1	9712-	●	●	●	●			●
69	16.549 BOLT; TRANS COVER EXC. MANUAL TILT CAB<RWZ> OD=30	8-94279-952-0	05	1	9312-9403	●	●	●		●	●
69	16.549 BOLT; TRANS COVER EXC. MANUAL TILT CAB<RWZ> OD=28 BLACK	8-94279-997-0	05	1	9404-9406	●	●	●		●	●
69	16.549 BOLT; TRANS COVER MANUAL TILT CAB<RWZ> OD=30	8-94279-952-0	07	1	9312-9403	●	●	●
69	16.549 BOLT; TRANS COVER MANUAL TILT CAB<RWZ> OD=28 BLACK	8-94279-997-0	07	1	9404-9406	●	●	●
74	16.549 BOLT; SUPPORT COVER TO FLOOR 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	05	1	9312-9407	●	●	●		●	●
74	16.549 BOLT; SUPPORT COVER TO FLOOR 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	05	1	9408-9510					●	●
74	16.549 BOLT; SUPPORT COVER TO FLOOR MANUAL TILT CAB<RWZ> 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	05	1	9408-9510	●	●	●
74	16.549 BOLT; SUPPORT COVER TO FLOOR MANUAL TILT CAB<RWZ> 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	05	1	9511-9605	●	●	●
74	16.549 BOLT; SUPPORT COVER TO FLOOR 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	05	1	9511-9605					●
74	16.549 BOLT; SUPPORT COVER TO FLOOR 02.664 M8X20 FLANGE	0-28680-820-0	05	1	9606-9611	●	●	●		●
74	16.549 BOLT; SUPPORT COVER TO FLOOR 02.664 M8X20 FLANGE	0-28680-820-0	05	1	9612-9711	●	●	●	●	●
74	16.549 BOLT; SUPPORT COVER TO FLOOR 02.664 M8X20 FLANGE	0-28680-820-0	05	1	9712-	●	●	●	●	●		●
74	16.549 BOLT; SUPPORT COVER TO FLOOR M8X29.5 W/LK+PL WASHER	8-94279-218-0	01	1	9312-9510	●	●	●		●	●
74	16.549 BOLT; SUPPORT COVER TO FLOOR M8X29.5 W/LK+PL WASHER	8-94279-218-0	01	1	9511-9605	●	●	●		●
74	16.549 BOLT; SUPPORT COVER TO FLOOR 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9606-9611	●	●	●		●
74	16.549 BOLT; SUPPORT COVER TO FLOOR 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9612-9711	●	●	●	●	●
74	16.549 BOLT; SUPPORT COVER TO FLOOR 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9712-	●	●	●	●	●		●
74	16.549 BOLT; SUPPORT COVER TO FLOOR EXC. MANUAL TILT CAB<RWZ> 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	04	1	9408-9605	●	●	●
84	16.549 BOLT; ENG COVER HINGE 04.634 M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	9312-9510	●	●	●		●	●
84	16.549 BOLT; ENG COVER HINGE 04.634 M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	9511-9604	●	●	●		●
84	16.549 BOLT; ENG COVER HINGE 02.664 M8X20 FLANGE	0-28680-820-0	04	1	9604-9611	●	●	●		●
84	16.549 BOLT; ENG COVER HINGE 02.664 M8X20 FLANGE	0-28680-820-0	04	1	9612-9711	●	●	●	●	●
84	16.549 BOLT; ENG COVER HINGE 02.664 M8X20 FLANGE	0-28680-820-0	04	1	9712-	●	●	●	●	●		●
166	16.549 LOCK; ENG COVER G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3)	8-97850-587-2	02	1	9312-9705	●	●	●		●
166	16.549 LOCK; ENG COVER G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3)	8-97850-875-0	02	1	9706-9710	●	●	●		●
166	16.549 LOCK; ENG COVER G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3)	8-97850-915-0	02	1	9711-	●	●	●		●
179	16.549 REINFORCEMENT; COVER G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3)	8-97857-865-2	01	1	9312-	●	●	●		●
243	16.547 GROMMET; STOPPER,CHECK HOLE LID 16.549 OD=12.1	8-94279-716-0	01	1	9410-9510	●	●	●		●	●
243	16.547 GROMMET; STOPPER,CHECK HOLE LID 16.549 OD=12.1	8-94279-716-0	01	1	9511-9611	●	●	●		●
243	16.547 GROMMET; STOPPER,CHECK HOLE LID 16.549 OD=12.1	8-94279-716-0	01	1	9612-9711	●	●	●	●	●
243	16.547 GROMMET; STOPPER,CHECK HOLE LID 16.549 OD=12.1	8-94279-716-0	01	1	9712-	●	●	●	●	●		●
310	16.549 SCREW; ENG COVER HOOK EXC. AUSTRALIA EQUIPMENT(RR3) 16.320 M6X20 W/LK&PL WASHER	8-94279-403-0	04	1	9312-9510	●	●	●		●	●
310	16.549 SCREW; ENG COVER HOOK G.V.W. 7.0-7.5TON(RPX) AUSTRALIA EQUIPMENT(RR3) 16.320 M6X20 W/LK&PL WASHER	8-94279-403-0	04	1	9312-9510	●	●	●
310	16.549 SCREW; ENG COVER HOOK EXC. AUSTRALIA EQUIPMENT(RR3) 16.320 M6X20 W/LK&PL WASHER	8-94279-403-0	04	1	9511-9611	●	●	●		●
310	16.549 SCREW; ENG COVER HOOK G.V.W. 7.0-7.5TON(RPX) AUSTRALIA EQUIPMENT(RR3) 16.320 M6X20 W/LK&PL WASHER	8-94279-403-0	04	1	9511-9611	●	●	●
310	16.549 SCREW; ENG COVER HOOK EXC. AUSTRALIA EQUIPMENT(RR3) 16.320 M6X20 W/LK&PL WASHER	8-94279-403-0	04	1	9612-9711	●	●	●		●
310	16.549 SCREW; ENG COVER HOOK G.V.W. 7.0-7.5TON(RPX) AUSTRALIA EQUIPMENT(RR3) 16.320 M6X20 W/LK&PL WASHER	8-94279-403-0	04	1	9612-9711	●	●	●
310	16.549 SCREW; ENG COVER HOOK 16.320 M6X20 W/LK&PL WASHER	8-94279-403-0	04	1	9612-9711				●
310	16.549 SCREW; ENG COVER HOOK EXC. AUSTRALIA EQUIPMENT(RR3) 16.320 M6X20 W/LK&PL WASHER	8-94279-403-0	04	1	9712-9801	●	●	●		●		●
310	16.549 SCREW; ENG COVER HOOK G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) 16.320 M6X20 W/LK&PL WASHER	8-94279-403-0	04	1	9712-9801	●	●	●				●
310	16.549 SCREW; ENG COVER HOOK 16.320 M6X20 W/LK&PL WASHER	8-94279-403-0	04	1	9712-9801				●
310	16.549 SCREW; ENG COVER HOOK EXC. AUSTRALIA EQUIPMENT(RR3) 16.320 M6X20 W/LK&PL WASHER	8-94279-403-0	04	1	9802-	●	●	●	●	●		●
310	16.549 SCREW; ENG COVER HOOK G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) 16.320 M6X20 W/LK&PL WASHER	8-94279-403-0	04	1	9802-	●	●	●	●			●
310	16.549 SCREW; ENG COVER HOOK G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) 16.320 M6X20 W/LK&PL WASHER	8-94279-403-0	09	1	9312-	●	●	●		●
317	16.549 BAND; ENGINE COVER L=535 DARK BEIGE	8-97853-607-3	01	1	9312-9510	●	●	●		●	●
317	16.549 BAND; ENGINE COVER L=535 DARK BEIGE	8-97853-607-3	01	1	9511-9611	●	●	●		●
317	16.549 BAND; ENGINE COVER L=535 DARK BEIGE	8-97853-607-3	01	1	9612-9711	●	●	●	●	●
317	16.549 BAND; ENGINE COVER L=535 BLACK	8-97867-201-0	01	1	9712-	●	●	●	●	●		●
318	16.549 SCREW; BAND 15.222 M5X25 TAPPING W/PL WASHER	0-74310-525-0	02	1	9312-9401	●	●	●		●	●
318	16.549 SCREW; BAND 15.222 M5X25 TAPPING W/PL WASHER	0-74310-525-0	02	1	9402-9409	●	●	●
318	16.549 SCREW; BAND 16.802 M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	9402-9409					●	●
318	16.549 SCREW; BAND 16.802 M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	9410-9510	●	●	●		●	●
318	16.549 SCREW; BAND 16.802 M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	9511-9611	●	●	●		●
318	16.549 SCREW; BAND 16.802 M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	9612-9711	●	●	●	●	●
318	16.549 SCREW; BAND 16.802 M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	9712-	●	●	●	●	●		●
324	16.545 FINISHER; FLOOR PANEL 4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) L=140	8-97867-865-0	01	1	9608-9611	●	●	●		●
324	16.545 FINISHER; FLOOR PANEL 4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) L=140	8-97867-865-0	01	1	9612-9707	●	●	●	●	●
324	16.545 FINISHER; FLOOR PANEL 4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) L=140	8-97867-865-0	01	1	9708-9711	●	●	●	●	●
324	16.545 FINISHER; FLOOR PANEL 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW), 4HE1 ENG(RLY) L=140	8-97867-865-0	01	1	9712-	●	●	●	●	●		●
364	16.545 FINISHER; ENG COVER SIDE L=1000	8-97890-597-0	01	1	9709-9711	●	●	●	●	●
364	16.545 FINISHER; ENG COVER SIDE L=1000	8-97890-597-0	01	1	9712-	●	●	●	●	●		●

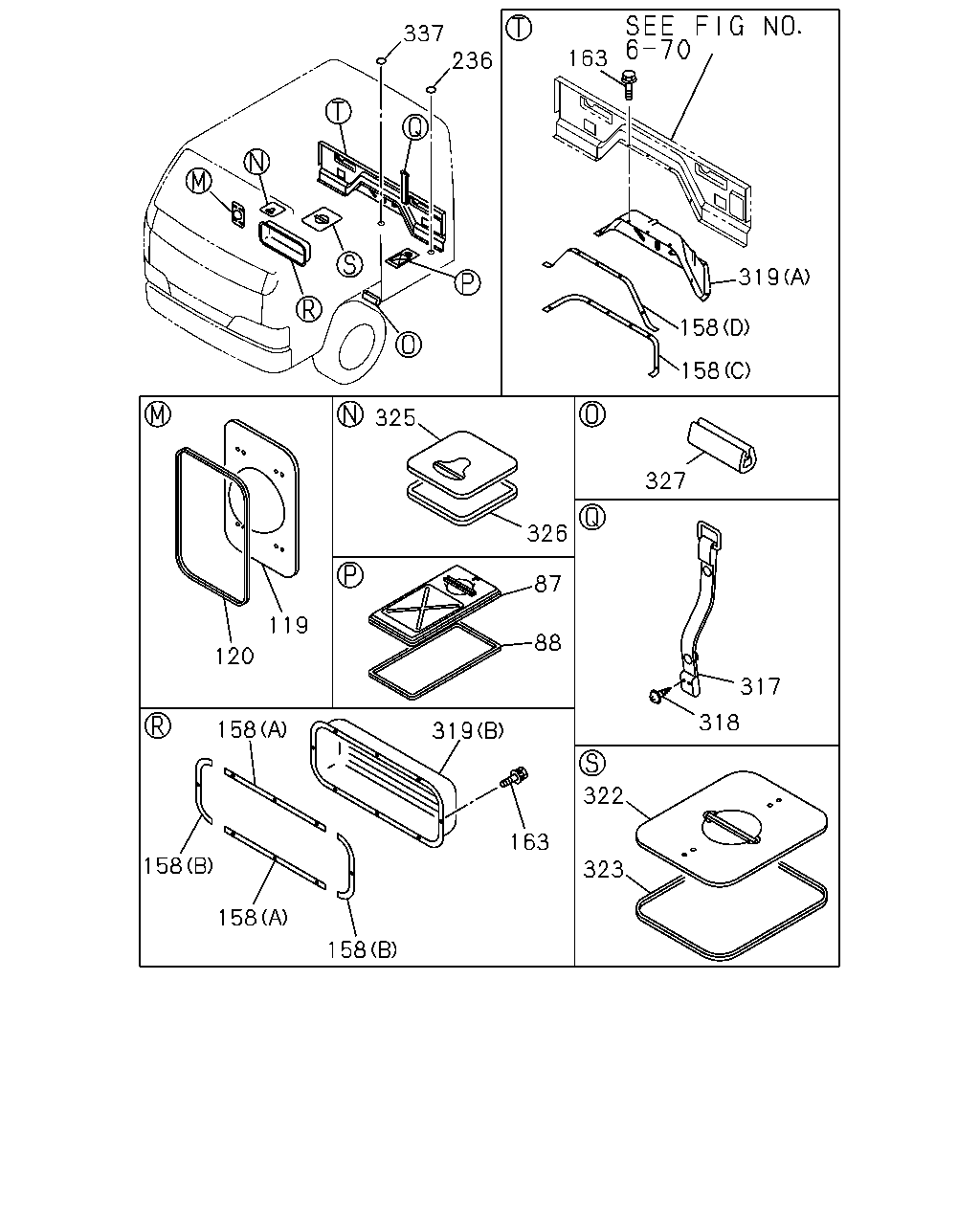

337 236 163 319 158 158 325 327 326 87 119 88 120 317 318 158 319 322 163 158 323 158 158

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
87	16.549 COVER; BATTERY CHECK HOLE	8-97856-332-3	01	1	9312-9510					●	●
87	16.549 COVER; BATTERY CHECK HOLE	8-97856-332-3	01	1	9511-					●
88	16.549 SEAL; BATTERY CHECK HOLE COVER	8-97853-725-1	01	1	9312-9510					●	●
88	16.549 SEAL; BATTERY CHECK HOLE COVER	8-97853-725-1	01	1	9511-					●
119	16.090 LID; P/S OIL TANK	8-97853-440-2	02	1	9312-9410					●	●
119	16.090 LID; P/S OIL TANK	8-97853-440-2	01	1	9411-9510					●	●
119	16.090 LID; P/S OIL TANK	8-97853-440-2	01	1	9511-					●
120	16.090 SEAL; LID,P/S	8-97853-441-1	02	1	9312-9410					●	●
120	16.090 SEAL; LID,P/S	8-97853-441-1	01	1	9411-9510					●	●
120	16.090 SEAL; LID,P/S	8-97853-441-1	01	1	9511-					●
158	16.549 SEAL; RR,ENG COVER,FRT (A)	8-97853-660-0	02	1	9312-9510					●	●
158	16.549 SEAL; RR,ENG COVER,FRT (A)	8-97853-660-0	02	1	9511-9704					●
158	16.549 SEAL; RR,ENG COVER,FRT 4BE1 ENG(RLH),4HF1 ENG(RLS) (A)	8-97853-660-0	02	1	9705-9711					●
158	16.549 SEAL; RR,ENG COVER,FRT 4HF1 ENG(RLS) (A)	8-97853-660-0	02	1	9712-9802					●
158	16.549 SEAL; RR,ENG COVER,FRT 4HG1 ENG(RJH),4HF1 ENG(RLS) (A)	8-97853-660-0	02	1	9803-					●
158	16.549 SEAL; RR,ENG COVER,FRT (B)	8-97853-661-0	02	1	9312-9510					●	●
158	16.549 SEAL; RR,ENG COVER,FRT (B)	8-97853-661-0	02	1	9511-9704					●
158	16.549 SEAL; RR,ENG COVER,FRT 4BE1 ENG(RLH),4HF1 ENG(RLS) (B)	8-97853-661-0	02	1	9705-9711					●
158	16.549 SEAL; RR,ENG COVER,FRT 4HF1 ENG(RLS) (B)	8-97853-661-0	02	1	9712-9802					●
158	16.549 SEAL; RR,ENG COVER,FRT 4HG1 ENG(RJH),4HF1 ENG(RLS) (B)	8-97853-661-0	02	1	9803-					●
158	16.549 SEAL; RR,ENG COVER,FRT 4BD2 ENG(RLW) (C)	8-97890-263-0	01	1	9706-					●
158	16.549 SEAL; RR,ENG COVER,FRT 4BD2 ENG(RLW) (D)	8-97890-269-0	01	1	9706-					●
163	16.549 BOLT; RR,ENG COVER,FRT 08.225 M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	9312-9510					●	●
163	16.549 BOLT; RR,ENG COVER,FRT 08.225 M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	9511-9604					●
163	16.549 BOLT; RR,ENG COVER,FRT 04.439 M6X16 FLANGE	0-28680-616-0	08	1	9604-9704					●
163	16.549 BOLT; RR,ENG COVER,FRT 4BE1 ENG(RLH),4HF1 ENG(RLS) 04.439 M6X16 FLANGE	0-28680-616-0	08	1	9705-9711					●
163	16.549 BOLT; RR,ENG COVER,FRT 4HF1 ENG(RLS) 04.439 M6X16 FLANGE	0-28680-616-0	08	1	9712-9802					●
163	16.549 BOLT; RR,ENG COVER,FRT 4HG1 ENG(RJH),4HF1 ENG(RLS) 04.439 M6X16 FLANGE	0-28680-616-0	08	1	9803-					●
163	16.549 BOLT; RR,ENG COVER,FRT 4BD2 ENG(RLW) 04.439 M6X16 FLANGE	0-28680-616-0	11	1	9706-					●
236	16.549 SEAL; CHECK HOLE 16.592 OD=20 T=0.4 BLACK	1-76798-020-0	02	1	9412-9510					●	●
236	16.549 SEAL; CHECK HOLE 16.592 OD=20 T=0.4 BLACK	1-76798-020-0	02	1	9511-					●
317	16.549 BAND; ENGINE COVER L=535 DARK BEIGE	8-97853-607-3	01	1	9312-9510	●	●	●		●	●
317	16.549 BAND; ENGINE COVER L=535 DARK BEIGE	8-97853-607-3	01	1	9511-9611	●	●	●		●
317	16.549 BAND; ENGINE COVER L=535 DARK BEIGE	8-97853-607-3	01	1	9612-9711	●	●	●	●	●
317	16.549 BAND; ENGINE COVER L=535 BLACK	8-97867-201-0	01	1	9712-	●	●	●	●	●		●
318	16.549 SCREW; BAND 15.222 M5X25 TAPPING W/PL WASHER	0-74310-525-0	02	1	9312-9401	●	●	●		●	●
318	16.549 SCREW; BAND 15.222 M5X25 TAPPING W/PL WASHER	0-74310-525-0	02	1	9402-9409	●	●	●
318	16.549 SCREW; BAND 16.802 M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	9402-9409					●	●
318	16.549 SCREW; BAND 16.802 M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	9410-9510	●	●	●		●	●
318	16.549 SCREW; BAND 16.802 M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	9511-9611	●	●	●		●
318	16.549 SCREW; BAND 16.802 M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	9612-9711	●	●	●	●	●
318	16.549 SCREW; BAND 16.802 M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	9712-	●	●	●	●	●		●
319	16.549 COVER; ENG RR,FLOOR (B)	8-97850-241-3	01	1	9312-9510					●	●
319	16.549 COVER; ENG RR,FLOOR (B)	8-97850-241-3	01	1	9511-9704					●
319	16.549 COVER; ENG RR,FLOOR 4BE1 ENG(RLH),4HF1 ENG(RLS) (B)	8-97850-241-3	01	1	9705-9711					●
319	16.549 COVER; ENG RR,FLOOR 4HF1 ENG(RLS) (B)	8-97850-241-3	01	1	9712-9802					●
319	16.549 COVER; ENG RR,FLOOR 4HG1 ENG(RJH),4HF1 ENG(RLS) (B)	8-97850-241-3	01	1	9803-					●
319	16.549 COVER; ENG RR,FLOOR 4BD2 ENG(RLW) (A)	8-97890-253-1	01	1	9706-					●
322	16.549 COVER; A/T OIL	8-97853-442-2	01	1	9312-9404					●	●
323	16.549 SEAL; COVER,A/T OIL	8-97853-443-2	01	1	9312-9404					●	●
325	16.549 COVER; LLC	8-97856-974-0	01	1	9312-9404					●	●
326	16.549 SEAL; COVER	8-97856-975-1	01	1	9312-9404					●	●
327	16.545 FINISHER; CTR PILLAR,LWR	8-97857-257-0	02	1	9312-9510					●	●
327	16.545 FINISHER; CTR PILLAR,LWR	8-97857-257-1	02	1	9511-					●
337	16.545 SEAL; CLIP HOLE 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. MANUAL TILT CAB<RWZ> 16.570 OD=20 T=0.05 WHITE	8-97856-832-1	02	1	9410-9708	●	●	●		●
337	16.545 SEAL; CLIP HOLE 4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. MANUAL TILT CAB<RWZ> 16.570 OD=20 T=0.05 WHITE	8-97856-832-1	02	1	9709-9711	●	●	●
337	16.545 SEAL; CLIP HOLE 4BE1 ENG(RLH),4BD2 ENG(RLW) 16.570 OD=20 T=0.05 WHITE	8-97856-832-1	02	1	9709-9711					●
337	16.545 SEAL; CLIP HOLE 4BD2 ENG(RLW) HONG KONG EQUIPMENT(PQ1) MANUAL TILT CAB<RWZ> 16.570 OD=20 T=0.05 WHITE	8-97856-832-1	02	1	9712-	●	●	●
337	16.545 SEAL; CLIP HOLE 4BD2 ENG(RLW) 16.570 OD=20 T=0.05 WHITE	8-97856-832-1	02	1	9712-					●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
