◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50696 - NPR/NQR-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#48877) — 175 parça

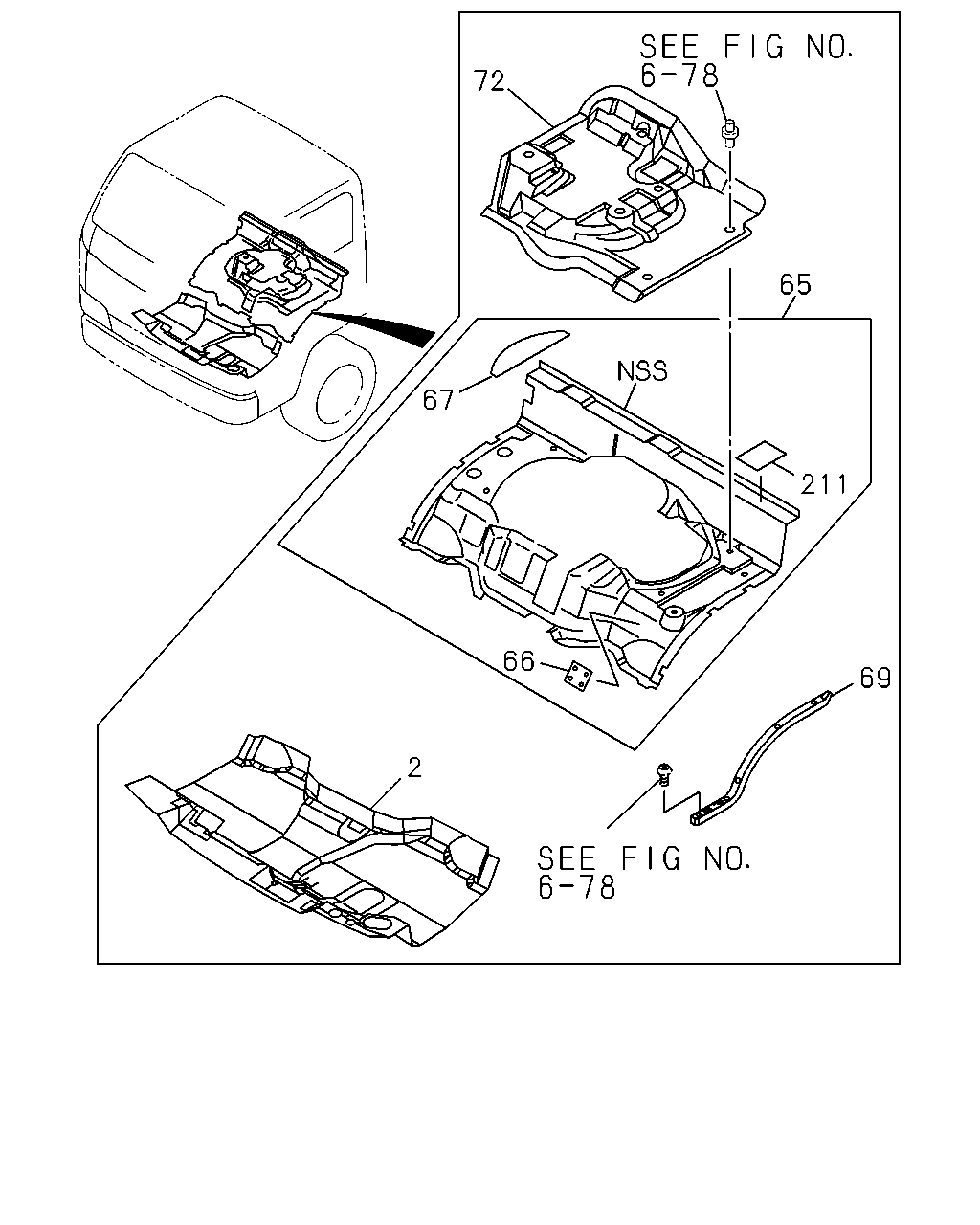

çizim 66868
72 65 67 211 66 69 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
2 16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) DARK BEIGE 		8-97009-701-4 01 1 9312-9510 ● ● ● ● ●
2 16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) DARK BEIGE 		8-97009-701-4 01 1 9511-9608 ● ● ● ●
2 16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) EXC. AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97009-701-4 01 1 9609-9611 ● ● ● ●
2 16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) EXC. AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97009-701-4 01 1 9612-9711 ● ● ● ● ●
2 16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97867-568-5 01 1 9712- ● ● ● ● ● ●
2 16.800 MAT; FLOOR
EXC. AIR CONDITIONER MANUAL CONT(C60) DARK BEIGE 		8-97097-211-4 01 1 9312-9510 ● ● ● ● ●
2 16.800 MAT; FLOOR
EXC. AIR CONDITIONER MANUAL CONT(C60) DARK BEIGE 		8-97097-211-4 01 1 9511-9608 ● ● ● ●
2 16.800 MAT; FLOOR
EXC. AIR CONDITIONER MANUAL CONT(C60),AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97097-211-4 01 1 9609-9611 ● ● ● ●
2 16.800 MAT; FLOOR
EXC. AIR CONDITIONER MANUAL CONT(C60),AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97097-211-4 01 1 9612-9711 ● ● ● ● ●
2 16.800 MAT; FLOOR
EXC. AIR CONDITIONER MANUAL CONT(C60),AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97867-567-5 01 1 9712- ● ● ● ● ● ●
2 16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97850-793-0 01 1 9609-9711 ● ● ● ●
2 16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97868-333-1 01 1 9712- ● ● ● ● ● ●
2 16.800 MAT; FLOOR
AUSTRALIA EQUIPMENT(RR3) EXC. AIR CONDITIONER MANUAL CONT(C60) DARK BEIGE 		8-97850-792-0 01 1 9609-9711 ● ● ● ●
2 16.800 MAT; FLOOR
AUSTRALIA EQUIPMENT(RR3) EXC. AIR CONDITIONER MANUAL CONT(C60) DARK GRAY 		8-97868-332-1 01 1 9712- ● ● ● ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
EXC. AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97856-171-6 01 1 9312-9510 ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
EXC. AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97856-171-6 01 1 9511-9711 ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97867-590-6 01 1 9712- ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
G.V.W. 7.0-7.5TON(RPX) AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> DARK BEIGE 		8-97850-796-0 01 1 9609-9711 ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> DARK GRAY 		8-97868-354-0 01 1 9712- ● ● ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97857-381-4 01 1 9312-9608 ● ● ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97850-783-0 01 1 9609-9711 ● ● ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97890-573-0 01 1 9712-9712 ● ● ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97890-575-0 01 1 9712- ● ● ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
G.V.W. 7.0-7.5TON(RPX) AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97856-169-7 01 1 9312-9608 ● ● ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
EXC. AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97856-169-7 01 1 9312-9608 ● ● ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
MANUAL TILT CAB<RWZ> EXC. AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97856-169-7 01 1 9609-9611 ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
MANUAL TILT CAB<RWZ> EXC. AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97856-169-7 01 1 9612-9711 ● ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
MANUAL TILT CAB<RWZ> EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97867-589-7 01 1 9712- ● ● ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
HONG KONG EQUIPMENT(PQ1) DARK GRAY 		8-97890-604-0 01 1 9712- ● ● ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97857-383-3 01 1 9312-9510 ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97857-383-3 01 1 9511-9608 ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97850-784-0 01 1 9609-9711 ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
AUSTRALIA EQUIPMENT(RR3) 		8-97890-574-0 01 1 9712-9712 ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97890-576-0 01 1 9712- ●
66 16.549 HOOK; COVER
EXC. AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97857-192-0 02 1 9312-9510 ● ● ● ● ●
66 16.549 HOOK; COVER
G.V.W. 7.0-7.5TON(RPX) AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97857-192-0 02 1 9312-9510 ● ● ●
66 16.549 HOOK; COVER
G.V.W. 7.0-7.5TON(RPX) AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> DARK BEIGE 		8-97857-192-0 02 1 9511-9611 ● ● ●
66 16.549 HOOK; COVER
MANUAL TILT CAB<RWZ> EXC. AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97857-192-0 02 1 9511-9611 ● ● ●
66 16.549 HOOK; COVER
EXC. AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97857-192-0 02 1 9511-9611 ●
66 16.549 HOOK; COVER
MANUAL TILT CAB<RWZ> EXC. AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97857-192-0 02 1 9612-9711 ● ● ●
66 16.549 HOOK; COVER
G.V.W. 7.0-7.5TON(RPX) AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> DARK BEIGE 		8-97857-192-0 02 1 9612-9711 ● ● ●
66 16.549 HOOK; COVER
EXC. AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97857-192-0 02 1 9612-9711 ●
66 16.549 HOOK; COVER
DARK BEIGE 		8-97857-192-0 02 1 9612-9711 ●
66 16.549 HOOK; COVER
MANUAL TILT CAB<RWZ> EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97859-705-0 02 1 9712-9801 ● ● ● ● ● ●
66 16.549 HOOK; COVER
HONG KONG EQUIPMENT(PQ1) DARK GRAY 		8-97859-705-0 02 1 9712-9801 ● ● ● ●
66 16.549 HOOK; COVER
G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> DARK GRAY 		8-97859-705-0 02 1 9712-9801 ● ● ● ●
66 16.549 HOOK; COVER
MANUAL TILT CAB<RWZ> EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97859-705-0 02 1 9802- ● ● ● ● ● ●
66 16.549 HOOK; COVER
HONG KONG EQUIPMENT(PQ1) DARK GRAY 		8-97859-705-0 02 1 9802- ● ● ● ● ●
66 16.549 HOOK; COVER
G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> DARK GRAY 		8-97859-705-0 02 1 9802- ● ● ● ● ●
67 16.549 LID; COVER
DARK BEIGE 		8-97857-193-0 01 1 9312-9510 ● ●
67 16.549 LID; COVER
AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97868-005-0 01 1 9511-9711 ●
67 16.549 LID; COVER
HONG KONG EQUIPMENT(PQ1) DARK GRAY 		8-97868-006-0 01 1 9712- ● ● ● ● ●
67 16.549 LID; COVER
DARK GRAY 		8-97868-006-0 01 1 9712- ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
DARK BEIGE 		8-97853-958-0 01 1 9312-9510 ● ● ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
DARK BEIGE 		8-97853-958-0 01 1 9511-9611 ● ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
DARK BEIGE 		8-97853-958-0 01 1 9612-9711 ● ● ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
DARK GRAY 		8-97857-552-0 01 1 9712- ● ● ● ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
DARK BEIGE 		8-97853-957-0 01 1 9312-9510 ● ● ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
DARK BEIGE 		8-97853-957-0 01 1 9511-9611 ● ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
DARK BEIGE 		8-97853-957-0 01 1 9612-9711 ● ● ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
DARK GRAY 		8-97857-551-0 01 1 9712- ● ● ● ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
EXC. AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97856-175-3 01 1 9312-9510 ● ● ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
G.V.W. 7.0-7.5TON(RPX) AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97856-175-3 01 1 9312-9510 ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
EXC. AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97856-175-3 01 1 9511-9611 ● ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
G.V.W. 7.0-7.5TON(RPX) AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97856-175-3 01 1 9511-9611 ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
EXC. AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97856-175-3 01 1 9612-9711 ● ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
G.V.W. 7.0-7.5TON(RPX) AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97856-175-3 01 1 9612-9711 ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
DARK BEIGE 		8-97856-175-3 01 1 9612-9711 ●
72 16.800 MAT; SILENCER,ENG COVER
EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97867-596-0 01 1 9712-9801 ● ● ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97867-596-0 01 1 9712-9801 ● ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
DARK GRAY 		8-97867-596-0 01 1 9712-9801 ●
72 16.800 MAT; SILENCER,ENG COVER
EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97867-596-0 01 1 9802- ● ● ● ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97867-596-0 01 1 9802- ● ● ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97857-922-1 01 1 9312-9710 ● ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97890-592-0 01 1 9711-9711 ● ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97890-386-1 01 1 9712- ● ● ● ●
211 16.800 COVER; HINGE 8-97857-191-1 02 1 9312-9405 ● ●
211 16.800 COVER; HINGE
MANUAL TILT CAB<RWZ> 		8-97857-191-1 02 1 9312-9405 ● ● ●
211 16.800 COVER; HINGE
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) 		8-97857-191-1 02 1 9502-9510 ● ● ●

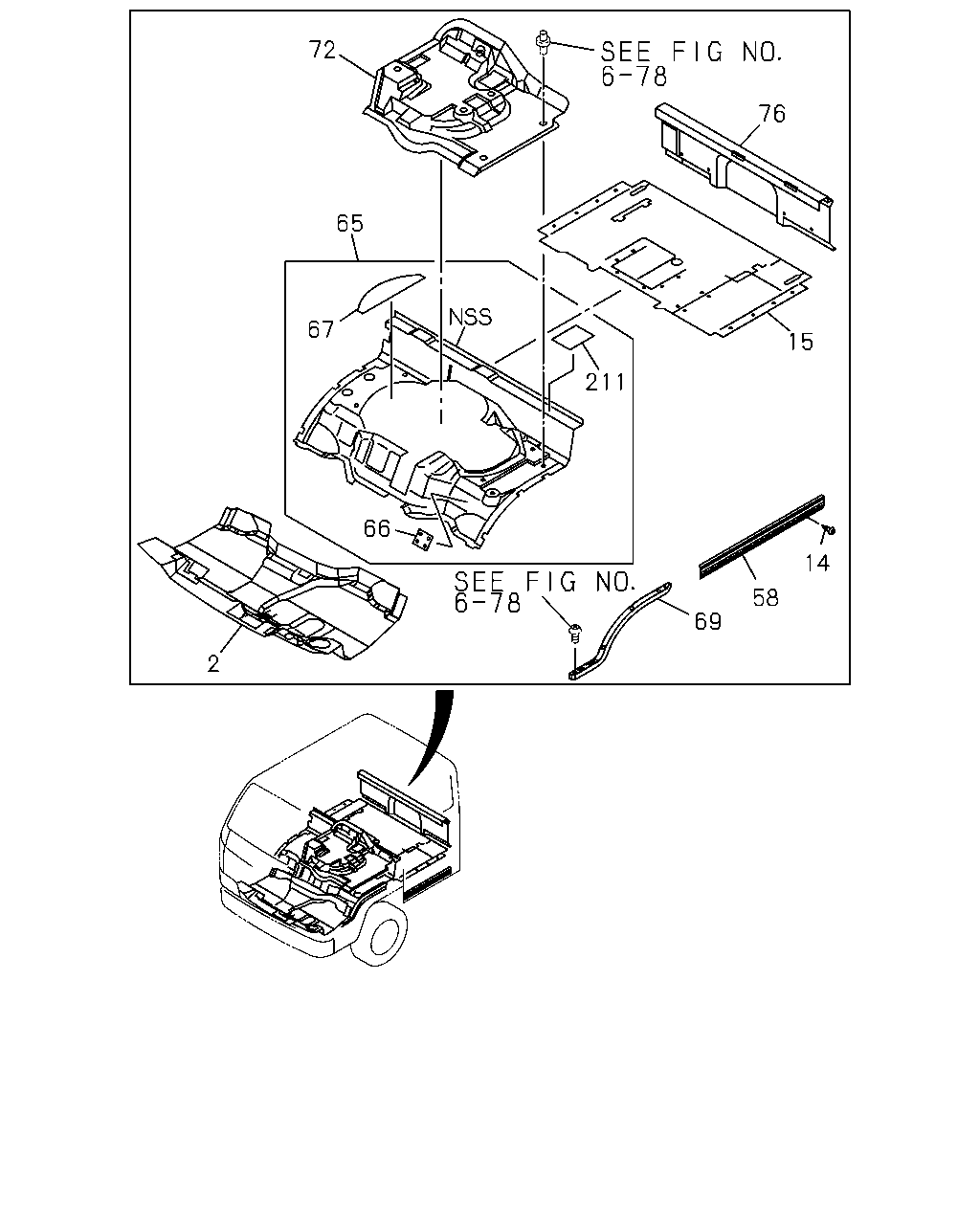

çizim 68161
72 76 65 67 15 211 66 14 58 69 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
2 16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) DARK BEIGE 		8-97009-701-4 01 1 9312-9510 ● ● ● ● ●
2 16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) DARK BEIGE 		8-97009-701-4 01 1 9511-9608 ● ● ● ●
2 16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) EXC. AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97009-701-4 01 1 9609-9611 ● ● ● ●
2 16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) EXC. AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97009-701-4 01 1 9612-9711 ● ● ● ● ●
2 16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97867-568-5 01 1 9712- ● ● ● ● ● ●
2 16.800 MAT; FLOOR
EXC. AIR CONDITIONER MANUAL CONT(C60) DARK BEIGE 		8-97097-211-4 01 1 9312-9510 ● ● ● ● ●
2 16.800 MAT; FLOOR
EXC. AIR CONDITIONER MANUAL CONT(C60) DARK BEIGE 		8-97097-211-4 01 1 9511-9608 ● ● ● ●
2 16.800 MAT; FLOOR
EXC. AIR CONDITIONER MANUAL CONT(C60),AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97097-211-4 01 1 9609-9611 ● ● ● ●
2 16.800 MAT; FLOOR
EXC. AIR CONDITIONER MANUAL CONT(C60),AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97097-211-4 01 1 9612-9711 ● ● ● ● ●
2 16.800 MAT; FLOOR
EXC. AIR CONDITIONER MANUAL CONT(C60),AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97867-567-5 01 1 9712- ● ● ● ● ● ●
2 16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97850-793-0 01 1 9609-9711 ● ● ● ●
2 16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97868-333-1 01 1 9712- ● ● ● ● ● ●
2 16.800 MAT; FLOOR
AUSTRALIA EQUIPMENT(RR3) EXC. AIR CONDITIONER MANUAL CONT(C60) DARK BEIGE 		8-97850-792-0 01 1 9609-9711 ● ● ● ●
2 16.800 MAT; FLOOR
AUSTRALIA EQUIPMENT(RR3) EXC. AIR CONDITIONER MANUAL CONT(C60) DARK GRAY 		8-97868-332-1 01 1 9712- ● ● ● ● ● ●
14 16.870 SCREW; PLATE
16.345 M5X16 W/PL WASHER TAPPING 		8-94279-123-0 08 1 9312-9510 ● ●
14 16.870 SCREW; PLATE
16.345 M5X16 W/PL WASHER TAPPING 		8-94279-123-0 08 1 9511- ●
15 16.800 MAT; FLOOR REAR
DARK BEIGE 		8-97098-712-0 01 1 9312-9510 ● ●
15 16.800 MAT; FLOOR REAR
DARK BEIGE 		8-97098-712-0 01 1 9511-9704 ●
15 16.800 MAT; FLOOR REAR
4BE1 ENG(RLH),4HF1 ENG(RLS) DARK BEIGE 		8-97098-712-0 01 1 9705-9711 ●
15 16.800 MAT; FLOOR REAR
4HF1 ENG(RLS) 		8-97868-334-0 01 1 9712-9801 ●
15 16.800 MAT; FLOOR REAR
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97868-334-0 01 1 9802- ●
15 16.800 MAT; FLOOR REAR
4BD2 ENG(RLW) 		8-97890-274-0 01 1 9706-9711 ●
15 16.800 MAT; FLOOR REAR
4BD2 ENG(RLW) 		8-97890-276-0 01 1 9712- ●
58 08.153 PLATE; GUARD,RR FLOOR MAT 8-97081-344-3 02 1 9312-9510 ● ●
58 08.153 PLATE; GUARD,RR FLOOR MAT 8-97081-344-3 02 1 9511- ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
EXC. AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97856-171-6 01 1 9312-9510 ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
EXC. AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97856-171-6 01 1 9511-9711 ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97867-590-6 01 1 9712- ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
G.V.W. 7.0-7.5TON(RPX) AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> DARK BEIGE 		8-97850-796-0 01 1 9609-9711 ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> DARK GRAY 		8-97868-354-0 01 1 9712- ● ● ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97857-381-4 01 1 9312-9608 ● ● ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97850-783-0 01 1 9609-9711 ● ● ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97890-573-0 01 1 9712-9712 ● ● ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97890-575-0 01 1 9712- ● ● ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
G.V.W. 7.0-7.5TON(RPX) AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97856-169-7 01 1 9312-9608 ● ● ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
EXC. AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97856-169-7 01 1 9312-9608 ● ● ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
MANUAL TILT CAB<RWZ> EXC. AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97856-169-7 01 1 9609-9611 ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
MANUAL TILT CAB<RWZ> EXC. AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97856-169-7 01 1 9612-9711 ● ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
MANUAL TILT CAB<RWZ> EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97867-589-7 01 1 9712- ● ● ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
HONG KONG EQUIPMENT(PQ1) DARK GRAY 		8-97890-604-0 01 1 9712- ● ● ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97857-383-3 01 1 9312-9510 ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97857-383-3 01 1 9511-9608 ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97850-784-0 01 1 9609-9711 ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
AUSTRALIA EQUIPMENT(RR3) 		8-97890-574-0 01 1 9712-9712 ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97890-576-0 01 1 9712- ●
66 16.549 HOOK; COVER
EXC. AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97857-192-0 02 1 9312-9510 ● ● ● ● ●
66 16.549 HOOK; COVER
G.V.W. 7.0-7.5TON(RPX) AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97857-192-0 02 1 9312-9510 ● ● ●
66 16.549 HOOK; COVER
G.V.W. 7.0-7.5TON(RPX) AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> DARK BEIGE 		8-97857-192-0 02 1 9511-9611 ● ● ●
66 16.549 HOOK; COVER
MANUAL TILT CAB<RWZ> EXC. AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97857-192-0 02 1 9511-9611 ● ● ●
66 16.549 HOOK; COVER
EXC. AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97857-192-0 02 1 9511-9611 ●
66 16.549 HOOK; COVER
MANUAL TILT CAB<RWZ> EXC. AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97857-192-0 02 1 9612-9711 ● ● ●
66 16.549 HOOK; COVER
G.V.W. 7.0-7.5TON(RPX) AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> DARK BEIGE 		8-97857-192-0 02 1 9612-9711 ● ● ●
66 16.549 HOOK; COVER
EXC. AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97857-192-0 02 1 9612-9711 ●
66 16.549 HOOK; COVER
DARK BEIGE 		8-97857-192-0 02 1 9612-9711 ●
66 16.549 HOOK; COVER
MANUAL TILT CAB<RWZ> EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97859-705-0 02 1 9712-9801 ● ● ● ● ● ●
66 16.549 HOOK; COVER
HONG KONG EQUIPMENT(PQ1) DARK GRAY 		8-97859-705-0 02 1 9712-9801 ● ● ● ●
66 16.549 HOOK; COVER
G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> DARK GRAY 		8-97859-705-0 02 1 9712-9801 ● ● ● ●
66 16.549 HOOK; COVER
MANUAL TILT CAB<RWZ> EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97859-705-0 02 1 9802- ● ● ● ● ● ●
66 16.549 HOOK; COVER
HONG KONG EQUIPMENT(PQ1) DARK GRAY 		8-97859-705-0 02 1 9802- ● ● ● ● ●
66 16.549 HOOK; COVER
G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> DARK GRAY 		8-97859-705-0 02 1 9802- ● ● ● ● ●
67 16.549 LID; COVER
DARK BEIGE 		8-97857-193-0 01 1 9312-9510 ● ●
67 16.549 LID; COVER
AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97868-005-0 01 1 9511-9711 ●
67 16.549 LID; COVER
HONG KONG EQUIPMENT(PQ1) DARK GRAY 		8-97868-006-0 01 1 9712- ● ● ● ● ●
67 16.549 LID; COVER
DARK GRAY 		8-97868-006-0 01 1 9712- ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
DARK BEIGE 		8-97853-958-0 01 1 9312-9510 ● ● ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
DARK BEIGE 		8-97853-958-0 01 1 9511-9611 ● ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
DARK BEIGE 		8-97853-958-0 01 1 9612-9711 ● ● ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
DARK GRAY 		8-97857-552-0 01 1 9712- ● ● ● ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
DARK BEIGE 		8-97853-957-0 01 1 9312-9510 ● ● ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
DARK BEIGE 		8-97853-957-0 01 1 9511-9611 ● ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
DARK BEIGE 		8-97853-957-0 01 1 9612-9711 ● ● ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
DARK GRAY 		8-97857-551-0 01 1 9712- ● ● ● ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
EXC. AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97856-175-3 01 1 9312-9510 ● ● ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
G.V.W. 7.0-7.5TON(RPX) AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97856-175-3 01 1 9312-9510 ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
EXC. AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97856-175-3 01 1 9511-9611 ● ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
G.V.W. 7.0-7.5TON(RPX) AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97856-175-3 01 1 9511-9611 ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
EXC. AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97856-175-3 01 1 9612-9711 ● ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
G.V.W. 7.0-7.5TON(RPX) AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97856-175-3 01 1 9612-9711 ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
DARK BEIGE 		8-97856-175-3 01 1 9612-9711 ●
72 16.800 MAT; SILENCER,ENG COVER
EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97867-596-0 01 1 9712-9801 ● ● ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97867-596-0 01 1 9712-9801 ● ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
DARK GRAY 		8-97867-596-0 01 1 9712-9801 ●
72 16.800 MAT; SILENCER,ENG COVER
EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97867-596-0 01 1 9802- ● ● ● ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97867-596-0 01 1 9802- ● ● ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97857-922-1 01 1 9312-9710 ● ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97890-592-0 01 1 9711-9711 ● ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97890-386-1 01 1 9712- ● ● ● ●
76 16.800 MAT; FLOOR,REINF,CAB RR MTG 8-97856-174-4 01 1 9312-9510 ● ●
76 16.800 MAT; FLOOR,REINF,CAB RR MTG 8-97856-174-4 01 1 9511-9705 ●
76 16.800 MAT; FLOOR,REINF,CAB RR MTG
4BE1 ENG(RLH),4HF1 ENG(RLS) 		8-97856-174-4 01 1 9706-9711 ●
76 16.800 MAT; FLOOR,REINF,CAB RR MTG
4HG1 ENG(RJH),4HF1 ENG(RLS) DARK GRAY 		8-97867-594-4 01 1 9712- ●
76 16.800 MAT; FLOOR,REINF,CAB RR MTG
4BD2 ENG(RLW) 		8-97890-464-0 01 1 9706-9711 ●
76 16.800 MAT; FLOOR,REINF,CAB RR MTG
4BD2 ENG(RLW) 		8-97890-465-0 01 1 9712- ●
211 16.800 COVER; HINGE 8-97857-191-1 02 1 9312-9405 ● ●
211 16.800 COVER; HINGE
MANUAL TILT CAB<RWZ> 		8-97857-191-1 02 1 9312-9405 ● ● ●
211 16.800 COVER; HINGE
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) 		8-97857-191-1 02 1 9502-9510 ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
