6-70 — FLOOR PANEL (#48876) — 354 parça
çizim 19382
377 378 380 398 381 380 378
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
377 16.545 RAIL ASM; MTG,FRT
FLOOR REMOTE SHIFT<M11> 		8-97850-127-8 01 1 9407-9510 ● ● ● ● ●
377 16.545 RAIL ASM; MTG,FRT 8-97850-128-7 01 1 9312-9406 ● ●
377 16.545 RAIL ASM; MTG,FRT
FLOOR REMOTE SHIFT<M11> 		8-97850-128-7 01 1 9312-9406 ● ● ●
377 16.545 RAIL ASM; MTG,FRT
EXC. FLOOR REMOTE SHIFT<M11> 		8-97850-150-7 01 1 9312-9406 ● ● ●
377 16.545 RAIL ASM; MTG,FRT
EXC. FLOOR REMOTE SHIFT<M11> 		8-97850-149-8 01 1 9407-9510 ● ● ●
377 16.545 RAIL ASM; MTG,FRT
EXC. FLOOR REMOTE SHIFT<M11> 		8-97850-150-8 01 1 9511-9603 ● ● ●
377 16.545 RAIL ASM; MTG,FRT
EXC. FLOOR REMOTE SHIFT<M11> 		8-97850-128-8 01 1 9604-9708 ● ● ●
377 16.545 RAIL ASM; MTG,FRT
EXC. FLOOR REMOTE SHIFT<M11> 		8-97850-807-0 01 1 9709-9711 ● ● ●
377 16.545 RAIL ASM; MTG,FRT
EXC. FLOOR REMOTE SHIFT<M11> 		8-97850-807-0 01 1 9712- ● ● ● ●
377 16.545 RAIL ASM; MTG,FRT
FLOOR REMOTE SHIFT<M11> 		8-97850-128-8 01 1 9511-9708 ● ● ● ●
377 16.545 RAIL ASM; MTG,FRT
FLOOR REMOTE SHIFT<M11> 		8-97850-807-0 01 1 9709-9711 ● ● ● ●
377 16.545 RAIL ASM; MTG,FRT
FLOOR REMOTE SHIFT<M11> 		8-97850-807-0 01 1 9712- ● ● ● ● ● ●
378 16.545 GASSET; LWR 8-97850-052-9 01 1 9312-9407 ● ● ● ● ●
378 16.545 GASSET; LWR 8-97850-672-1 01 1 9408-9510 ● ● ● ● ●
378 16.545 GASSET; LWR 8-97850-672-1 01 1 9511-9611 ● ● ● ●
378 16.545 GASSET; LWR 8-97850-672-1 01 1 9612-9711 ● ● ● ● ●
378 16.545 GASSET; LWR 8-97850-672-1 01 1 9712- ● ● ● ● ● ●
378 16.545 GASSET; LWR 8-97850-051-9 01 1 9312-9407 ● ● ● ● ●
378 16.545 GASSET; LWR 8-97850-671-0 01 1 9408-9510 ● ● ● ● ●
378 16.545 GASSET; LWR 8-97850-671-0 01 1 9511-9611 ● ● ● ●
378 16.545 GASSET; LWR 8-97850-671-0 01 1 9612-9711 ● ● ● ● ●
378 16.545 GASSET; LWR 8-97850-671-0 01 1 9712- ● ● ● ● ● ●
380 16.545 BRACKET; HEAD LAMP 8-97850-091-6 01 1 9312-9501 ● ● ● ● ●
380 16.545 BRACKET; HEAD LAMP 8-97850-705-0 01 1 9502-9510 ● ● ● ● ●
380 16.545 BRACKET; HEAD LAMP 8-97850-705-0 01 1 9511-9611 ● ● ● ●
380 16.545 BRACKET; HEAD LAMP 8-97850-705-0 01 1 9612-9711 ● ● ● ● ●
380 16.545 BRACKET; HEAD LAMP
MANUAL TILT CAB<RWZ> 		8-97850-705-0 01 1 9712-9801 ● ● ● ●
380 16.545 BRACKET; HEAD LAMP 8-97850-705-0 01 1 9712-9801 ● ●
380 16.545 BRACKET; HEAD LAMP 8-97850-705-0 01 1 9802- ● ● ● ● ● ●
380 16.545 BRACKET; HEAD LAMP 8-97850-090-2 01 1 9312-9510 ● ● ● ● ●
380 16.545 BRACKET; HEAD LAMP 8-97850-090-2 01 1 9511-9611 ● ● ● ●
380 16.545 BRACKET; HEAD LAMP 8-97850-090-2 01 1 9612-9711 ● ● ● ● ●
380 16.545 BRACKET; HEAD LAMP 8-97850-090-2 01 1 9712- ● ● ● ● ● ●
380 16.545 BRACKET; HEAD LAMP
FLOOR REMOTE SHIFT<M11> THAILAND EQUIPMENT(PM9) MANUAL TILT CAB<RWZ> 		8-97850-767-0 01 1 9605-9611 ● ●
380 16.545 BRACKET; HEAD LAMP
FLOOR REMOTE SHIFT<M11> THAILAND EQUIPMENT(PM9) MANUAL TILT CAB<RWZ> 		8-97850-767-0 01 1 9612-9711 ● ●
380 16.545 BRACKET; HEAD LAMP
THAILAND EQUIPMENT(PM9) 		8-97850-767-0 01 1 9612-9711 ●
380 16.545 BRACKET; HEAD LAMP
FLOOR REMOTE SHIFT<M11> THAILAND EQUIPMENT(PM9) MANUAL TILT CAB<RWZ> 		8-97850-767-0 01 1 9712- ● ● ●
381 16.545 BRACKET; AIR INTAKE DUCT,FRT 8-97850-221-5 01 1 9312-9510 ● ● ● ● ●
381 16.545 BRACKET; AIR INTAKE DUCT,FRT 8-97850-221-5 01 1 9511-9611 ● ● ● ●
381 16.545 BRACKET; AIR INTAKE DUCT,FRT 8-97850-221-5 01 1 9612-9711 ● ● ● ● ●
381 16.545 BRACKET; AIR INTAKE DUCT,FRT
MANUAL TILT CAB<RWZ> 		8-97850-221-5 01 1 9712-9801 ● ● ● ●
381 16.545 BRACKET; AIR INTAKE DUCT,FRT 8-97850-221-5 01 1 9712-9801 ● ●
381 16.545 BRACKET; AIR INTAKE DUCT,FRT 8-97850-221-5 01 1 9802- ● ● ● ● ● ●
398 16.545 BRACKET; PIPE SUPPORT 8-97850-318-1 01 1 9312-9510 ● ● ● ● ●
398 16.545 BRACKET; PIPE SUPPORT 8-97850-318-1 01 1 9511-9611 ● ● ● ●
398 16.545 BRACKET; PIPE SUPPORT 8-97850-318-1 01 1 9612-9711 ● ● ● ● ●
398 16.545 BRACKET; PIPE SUPPORT 8-97850-318-1 01 1 9712- ● ● ● ● ● ●

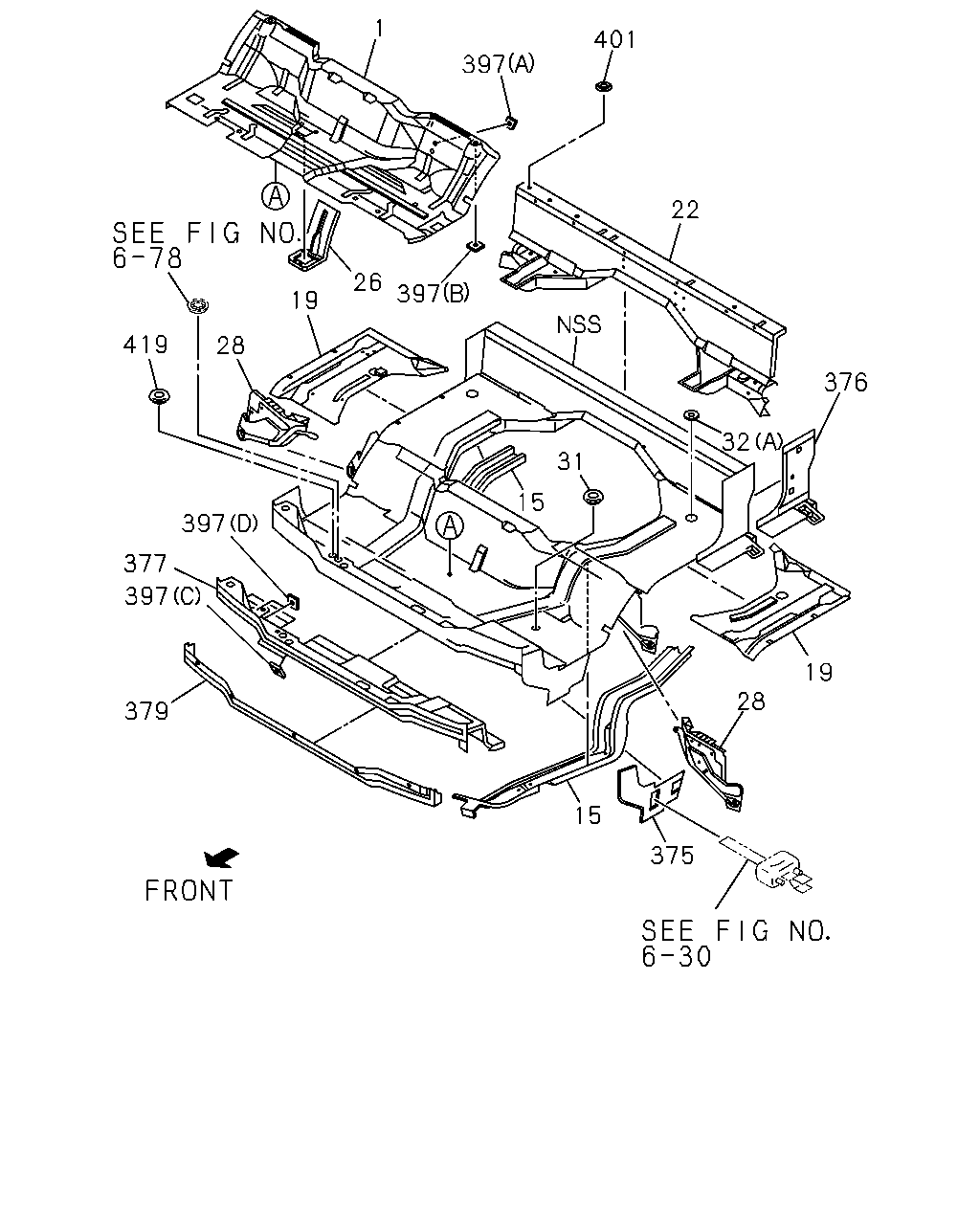

çizim 66956
1 401 397 22 26 397 19 419 28 376 32 31 15 397 377 397 19 28 379 15 375
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 16.545 PANEL; FLOOR 8-97850-117-7 01 1 9312-9406 ● ●
1 16.545 PANEL; FLOOR
FLOOR REMOTE SHIFT<M11> 		8-97850-117-7 01 1 9312-9406 ● ● ●
1 16.545 PANEL; FLOOR
FLOOR REMOTE SHIFT<M11> 		8-97850-117-7 01 1 9407-9510 ● ● ● ● ●
1 16.545 PANEL; FLOOR
FLOOR REMOTE SHIFT<M11> 		8-97850-117-8 01 1 9511-9711 ● ● ● ●
1 16.545 PANEL; FLOOR
FLOOR REMOTE SHIFT<M11> 		8-97850-117-8 01 1 9712- ● ● ● ● ● ●
1 16.545 PANEL; FLOOR
EXC. FLOOR REMOTE SHIFT<M11> 		8-97850-153-8 01 1 9312-9603 ● ● ●
1 16.545 PANEL; FLOOR
EXC. FLOOR REMOTE SHIFT<M11> 		8-97850-117-8 01 1 9604-9711 ● ● ●
1 16.545 PANEL; FLOOR
EXC. FLOOR REMOTE SHIFT<M11> 		8-97850-117-8 01 1 9712- ● ● ● ●
15 16.545 FRAME; UNDER 8-97850-060-7 01 1 9312-9312 ● ● ● ● ●
15 16.545 FRAME; UNDER 8-97850-060-9 01 1 9312-9510 ● ● ● ● ●
15 16.545 FRAME; UNDER 8-97850-060-9 01 1 9511-9611 ● ● ● ●
15 16.545 FRAME; UNDER 8-97850-060-9 01 1 9612-9711 ● ● ● ● ●
15 16.545 FRAME; UNDER 8-97850-060-9 01 1 9712- ● ● ● ● ● ●
15 16.545 FRAME; UNDER 8-97850-059-8 01 1 9312-9312 ● ● ● ● ●
15 16.545 FRAME; UNDER 8-97850-059-9 01 1 9312-9510 ● ● ● ● ●
15 16.545 FRAME; UNDER 8-97850-059-9 01 1 9511-9611 ● ● ● ●
15 16.545 FRAME; UNDER 8-97850-059-9 01 1 9612-9711 ● ● ● ● ●
15 16.545 FRAME; UNDER 8-97850-059-9 01 1 9712- ● ● ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-008-2 01 1 9312-9510 ● ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-008-3 01 1 9511-9611 ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-008-3 01 1 9612-9711 ● ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-008-4 01 1 9712- ● ● ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-118-4 01 1 9312-9510 ● ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-118-5 01 1 9511-9611 ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-118-5 01 1 9612-9711 ● ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-118-6 01 1 9712- ● ● ● ● ● ●
22 16.545 FRAME; FLOOR REAR 8-97850-227-9 01 1 9312-9510 ● ●
22 16.545 FRAME; FLOOR REAR 8-97850-227-9 01 1 9511-9602 ●
22 16.545 FRAME; FLOOR REAR 8-97850-764-0 01 1 9603-9711 ●
22 16.545 FRAME; FLOOR REAR 8-97850-764-0 01 1 9712- ●
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> 		8-97850-111-9 01 1 9312-9312 ● ● ●
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> 		8-97850-111-9 01 1 9312-9408 ● ● ●
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> 		8-97850-657-2 01 1 9409-9611 ● ● ●
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> 		8-97850-657-2 01 1 9612-9711 ● ● ● ●
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> 		8-97850-657-2 01 1 9712- ● ● ● ●
22 16.545 FRAME; FLOOR REAR 8-97850-657-2 01 1 9712- ●
22 16.545 FRAME; FLOOR REAR
EXC. MANUAL TILT CAB<RWZ> 		8-97850-538-4 01 1 9312-9510 ● ● ●
22 16.545 FRAME; FLOOR REAR
EXC. MANUAL TILT CAB<RWZ> 		8-97850-538-5 01 1 9511-9711 ● ● ● ●
26 16.545 PANEL; GEAR CONT REINF 8-97850-140-3 01 1 9312-9312 ● ● ● ● ●
26 16.545 PANEL; GEAR CONT REINF 8-97850-140-3 01 1 9312-9510 ● ● ● ● ●
26 16.545 PANEL; GEAR CONT REINF 8-97850-140-3 01 1 9511-9611 ● ● ● ●
26 16.545 PANEL; GEAR CONT REINF 8-97850-140-3 01 1 9612-9711 ● ● ● ● ●
26 16.545 PANEL; GEAR CONT REINF 8-97850-140-3 01 1 9712- ● ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-017-5 01 1 9312-9510 ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-017-6 01 1 9511-9611 ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-017-6 01 1 9612-9711 ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-017-7 01 1 9712- ● ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-016-6 01 1 9312-9403 ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-338-3 01 1 9404-9510 ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-338-4 01 1 9511-9611 ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-338-4 01 1 9612-9711 ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-338-5 01 1 9712- ● ● ● ● ● ●
31 16.547 GROMMET; LOCATION HOLE,CAB FLOOR
08.155 OD=28.5 		8-94279-711-0 02 1 9312-9510 ● ● ● ● ●
31 16.547 GROMMET; LOCATION HOLE,CAB FLOOR
08.155 OD=28.5 		8-94279-711-0 02 1 9511-9611 ● ● ● ●
31 16.547 GROMMET; LOCATION HOLE,CAB FLOOR
08.155 OD=28.5 		8-94279-711-0 02 1 9612-9711 ● ● ● ● ●
31 16.547 GROMMET; LOCATION HOLE,CAB FLOOR
08.155 OD=28.5 		8-94279-711-0 02 1 9712- ● ● ● ● ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
08.131 (A) OD=53.5 		8-94356-253-0 02 1 9312-9510 ● ● ● ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
08.131 (A) OD=53.5 		8-94356-253-0 02 1 9511-9611 ● ● ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
08.131 (A) OD=53.5 		8-94356-253-0 02 1 9612-9711 ● ● ● ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
08.131 (A) OD=53.5 		8-94356-253-0 02 1 9712- ● ● ● ● ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
15.222 (B) OD=35 		8-94122-971-0 04 1 9312-9510 ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
15.222 (B) OD=35 		8-94122-971-0 04 1 9511- ●
375 16.545 CLOSING; PILLAR 8-97850-087-3 01 1 9312-9510 ● ● ● ● ●
375 16.545 CLOSING; PILLAR 8-97850-087-3 01 1 9511-9611 ● ● ● ●
375 16.545 CLOSING; PILLAR 8-97850-087-3 01 1 9612-9711 ● ● ● ● ●
375 16.545 CLOSING; PILLAR 8-97850-087-3 01 1 9712- ● ● ● ● ● ●
375 16.545 CLOSING; PILLAR 8-97850-086-4 01 1 9312-9510 ● ● ● ● ●
375 16.545 CLOSING; PILLAR 8-97850-086-4 01 1 9511-9611 ● ● ● ●
375 16.545 CLOSING; PILLAR 8-97850-086-4 01 1 9612-9711 ● ● ● ● ●
375 16.545 CLOSING; PILLAR 8-97850-086-4 01 1 9712- ● ● ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-187-3 01 1 9312-9510 ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-187-3 01 1 9511- ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-186-3 01 1 9312-9510 ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-186-3 01 1 9511- ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-320-6 01 1 9312-9611 ● ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-320-6 01 1 9612-9711 ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR
MANUAL TILT CAB<RWZ> 		8-97850-320-6 01 1 9712- ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-320-6 01 1 9712- ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-024-6 01 1 9312-9611 ● ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-024-6 01 1 9612-9711 ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR
MANUAL TILT CAB<RWZ> 		8-97850-024-6 01 1 9712- ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-024-6 01 1 9712- ●
377 16.545 RAIL ASM; MTG,FRT
FLOOR REMOTE SHIFT<M11> 		8-97850-127-8 01 1 9407-9510 ● ● ● ● ●
377 16.545 RAIL ASM; MTG,FRT 8-97850-128-7 01 1 9312-9406 ● ●
377 16.545 RAIL ASM; MTG,FRT
FLOOR REMOTE SHIFT<M11> 		8-97850-128-7 01 1 9312-9406 ● ● ●
377 16.545 RAIL ASM; MTG,FRT
EXC. FLOOR REMOTE SHIFT<M11> 		8-97850-150-7 01 1 9312-9406 ● ● ●
377 16.545 RAIL ASM; MTG,FRT
EXC. FLOOR REMOTE SHIFT<M11> 		8-97850-149-8 01 1 9407-9510 ● ● ●
377 16.545 RAIL ASM; MTG,FRT
EXC. FLOOR REMOTE SHIFT<M11> 		8-97850-150-8 01 1 9511-9603 ● ● ●
377 16.545 RAIL ASM; MTG,FRT
EXC. FLOOR REMOTE SHIFT<M11> 		8-97850-128-8 01 1 9604-9708 ● ● ●
377 16.545 RAIL ASM; MTG,FRT
EXC. FLOOR REMOTE SHIFT<M11> 		8-97850-807-0 01 1 9709-9711 ● ● ●
377 16.545 RAIL ASM; MTG,FRT
EXC. FLOOR REMOTE SHIFT<M11> 		8-97850-807-0 01 1 9712- ● ● ● ●
377 16.545 RAIL ASM; MTG,FRT
FLOOR REMOTE SHIFT<M11> 		8-97850-128-8 01 1 9511-9708 ● ● ● ●
377 16.545 RAIL ASM; MTG,FRT
FLOOR REMOTE SHIFT<M11> 		8-97850-807-0 01 1 9709-9711 ● ● ● ●
377 16.545 RAIL ASM; MTG,FRT
FLOOR REMOTE SHIFT<M11> 		8-97850-807-0 01 1 9712- ● ● ● ● ● ●
379 16.545 PANEL 8-97850-129-2 01 1 9312-9312 ● ● ● ● ●
379 16.545 PANEL 8-97850-129-2 01 1 9312-9510 ● ● ● ● ●
379 16.545 PANEL 8-97850-129-2 01 1 9511-9611 ● ● ● ●
379 16.545 PANEL 8-97850-129-2 01 1 9612-9711 ● ● ● ● ●
379 16.545 PANEL 8-97850-129-2 01 1 9712- ● ● ● ● ● ●
397 16.545 NUT; PIERCE
(A) 		8-94279-531-0 04 1 9312-9406 ● ● ● ● ●
397 16.545 NUT; PIERCE
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> (A) M6 		9-09114-046-0 05 1 9312- ● ● ●
397 16.545 NUT; PIERCE
AUSTRALIA EQUIPMENT(RR3) (A) M6 		9-09114-046-0 05 1 9312- ●
397 16.545 NUT; PIERCE
16.588 (B) M8 		9-09114-048-0 06 1 9312-9611 ● ● ● ●
397 16.545 NUT; PIERCE
16.588 (B) M8 		9-09114-048-0 06 1 9612-9711 ● ● ● ● ●
397 16.545 NUT; PIERCE
(D) M10 		9-09114-030-0 03 1 9511-9611 ● ● ● ●
397 16.545 NUT; PIERCE
(D) M10 		9-09114-030-0 03 1 9612-9711 ● ● ● ● ●
397 16.545 NUT; PIERCE
16.588 (C) M8 		9-09114-048-0 04 1 9511-9611 ● ● ● ●
397 16.545 NUT; PIERCE
16.588 (C) M8 		9-09114-048-0 04 1 9612-9711 ● ● ● ● ●
397 16.545 NUT; PIERCE
EXC. AUSTRALIA EQUIPMENT(RR3) (A) M6 		9-09114-046-0 04 1 9312-9611 ● ● ● ●
397 16.545 NUT; PIERCE
G.V.W. 7.0-7.5TON(RPX) AUSTRALIA EQUIPMENT(RR3) (A) M6 		9-09114-046-0 04 1 9312-9611 ● ● ●
397 16.545 NUT; PIERCE
EXC. AUSTRALIA EQUIPMENT(RR3) (A) M6 		9-09114-046-0 04 1 9612-9711 ● ● ● ●
397 16.545 NUT; PIERCE
G.V.W. 7.0-7.5TON(RPX) AUSTRALIA EQUIPMENT(RR3) (A) M6 		9-09114-046-0 04 1 9612-9711 ● ● ●
397 16.545 NUT; PIERCE
(A) M6 		9-09114-046-0 04 1 9612-9711 ●
397 16.545 NUT; PIERCE
(D) M10 		9-09114-030-0 03 1 9712- ● ● ● ● ● ●
397 16.545 NUT; PIERCE
16.588 (B) M8 		9-09114-048-0 06 1 9712-9804 ● ● ● ● ● ●
397 16.545 NUT; PIERCE
FLOOR REMOTE SHIFT<M11> 16.588 (B) M8 		9-09114-048-0 02 1 9805-9805 ● ● ● ● ● ●
397 16.545 NUT; PIERCE
16.588 (B) M8 		9-09114-048-0 06 1 9805-9805 ● ● ● ● ● ●
397 16.545 NUT; PIERCE
FLOOR REMOTE SHIFT<M11> 16.588 (B) M8 		9-09114-048-0 02 1 9806-9807 ● ● ● ● ● ●
397 16.545 NUT; PIERCE
FLOOR REMOTE SHIFT<M11> G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> 16.588 (B) M8 		9-09114-048-0 02 1 9808- ● ●
397 16.545 NUT; PIERCE
FLOOR REMOTE SHIFT<M11> G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> 16.588 (B) M8 		9-09114-048-0 02 1 9808- ●
397 16.545 NUT; PIERCE
16.588 (C) M8 		9-09114-048-0 04 1 9712- ● ● ● ● ● ●
397 16.545 NUT; PIERCE
FLOOR REMOTE SHIFT<M11> 16.588 (B) M8 		9-09114-048-0 04 1 9805-9805 ● ● ● ● ● ●
397 16.545 NUT; PIERCE
FLOOR REMOTE SHIFT<M11> 16.588 (B) M8 		9-09114-048-0 04 1 9806-9807 ● ● ● ● ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> EXC. AUSTRALIA EQUIPMENT(RR3) 16.588 (B) M8 		9-09114-048-0 06 1 9808- ● ● ● ● ●
397 16.545 NUT; PIERCE
FLOOR REMOTE SHIFT<M11> G.V.W. 7.0-7.5TON(RPX) AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> 16.588 (B) M8 		9-09114-048-0 06 1 9808- ●
397 16.545 NUT; PIERCE
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> EXC. FLOOR REMOTE SHIFT<M11> 16.588 (B) M8 		9-09114-048-0 06 1 9808- ●
397 16.545 NUT; PIERCE
FLOOR REMOTE SHIFT<M11> G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> 16.588 (B) M8 		9-09114-048-0 06 1 9808- ● ●
397 16.545 NUT; PIERCE
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX), G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> EXC. FLOOR REMOTE SHIFT<M11> 16.588 (B) M8 		9-09114-048-0 06 1 9808- ●
397 16.545 NUT; PIERCE
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> EXC. FLOOR REMOTE SHIFT<M11> 16.588 (B) M8 		9-09114-048-0 06 1 9808- ●
397 16.545 NUT; PIERCE
16.588 (B) M8 		9-09114-048-0 06 1 9808- ●
397 16.545 NUT; PIERCE
G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> 16.588 (B) M8 		9-09114-048-0 06 1 9808- ● ●
397 16.545 NUT; PIERCE
EXC. FLOOR REMOTE SHIFT<M11> 16.588 (B) M8 		9-09114-048-0 06 1 9805-9805 ● ● ● ●
397 16.545 NUT; PIERCE
EXC. FLOOR REMOTE SHIFT<M11> 16.588 (B) M8 		9-09114-048-0 06 1 9806-9807 ● ● ● ●
397 16.545 NUT; PIERCE
FLOOR REMOTE SHIFT<M11> G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> 16.588 (B) M8 		9-09114-048-0 04 1 9808- ● ●
397 16.545 NUT; PIERCE
FLOOR REMOTE SHIFT<M11> G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> 16.588 (B) M8 		9-09114-048-0 04 1 9808- ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> EXC. AUSTRALIA EQUIPMENT(RR3) (A) M6 		9-09114-046-0 04 1 9712-9801 ● ● ● ●
397 16.545 NUT; PIERCE
G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) MANUAL TILT CAB<RWZ> AUSTRALIA EQUIPMENT(RR3) (A) M6 		9-09114-046-0 04 1 9712-9801 ● ● ● ●
397 16.545 NUT; PIERCE
(A) M6 		9-09114-046-0 04 1 9712-9801 ● ●
397 16.545 NUT; PIERCE
EXC. AUSTRALIA EQUIPMENT(RR3) (A) M6 		9-09114-046-0 04 1 9802- ● ● ● ● ● ●
397 16.545 NUT; PIERCE
G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) (A) M6 		9-09114-046-0 04 1 9802- ● ● ● ● ●
401 16.545 GROMMET; HOLE
OD=26.1 T=7.8 		8-94279-963-0 01 1 9312-9611 ● ● ●
401 16.545 GROMMET; HOLE
OD=26.1 T=7.8 		8-94279-963-0 01 1 9612-9711 ● ● ● ●
401 16.545 GROMMET; HOLE
OD=26.1 T=7.8 		8-94279-963-0 01 1 9712- ● ● ● ● ●
401 16.545 GROMMET; HOLE
THAILAND EQUIPMENT(PM9) 16.549 OD=12.1 		8-94279-716-0 01 1 9605-9611 ● ●
401 16.545 GROMMET; HOLE
THAILAND EQUIPMENT(PM9) 16.549 OD=12.1 		8-94279-716-0 01 1 9612- ● ● ●
419 04.012 GROMMET; CONT SHAFT,FLOOR PANEL
16.802 OD=36 		1-09983-092-0 01 1 9312-9412 ● ● ● ● ●
419 04.012 GROMMET; CONT SHAFT,FLOOR PANEL
EXC. PTO TRANSMISSION SIDE(V66) 16.802 OD=36 		1-09983-092-0 01 1 9501-9510 ● ● ● ● ●
419 04.012 GROMMET; CONT SHAFT,FLOOR PANEL
EXC. PTO TRANSMISSION SIDE(V66) 16.802 OD=36 		1-09983-092-0 01 1 9511-9611 ● ● ● ●
419 04.012 GROMMET; CONT SHAFT,FLOOR PANEL
EXC. PTO TRANSMISSION SIDE(V66) 16.802 OD=36 		1-09983-092-0 01 1 9612-9711 ● ● ● ● ●
419 04.012 GROMMET; CONT SHAFT,FLOOR PANEL
EXC. PTO TRANSMISSION SIDE(V66) 16.802 OD=36 		1-09983-092-0 01 1 9712- ● ● ● ● ● ●

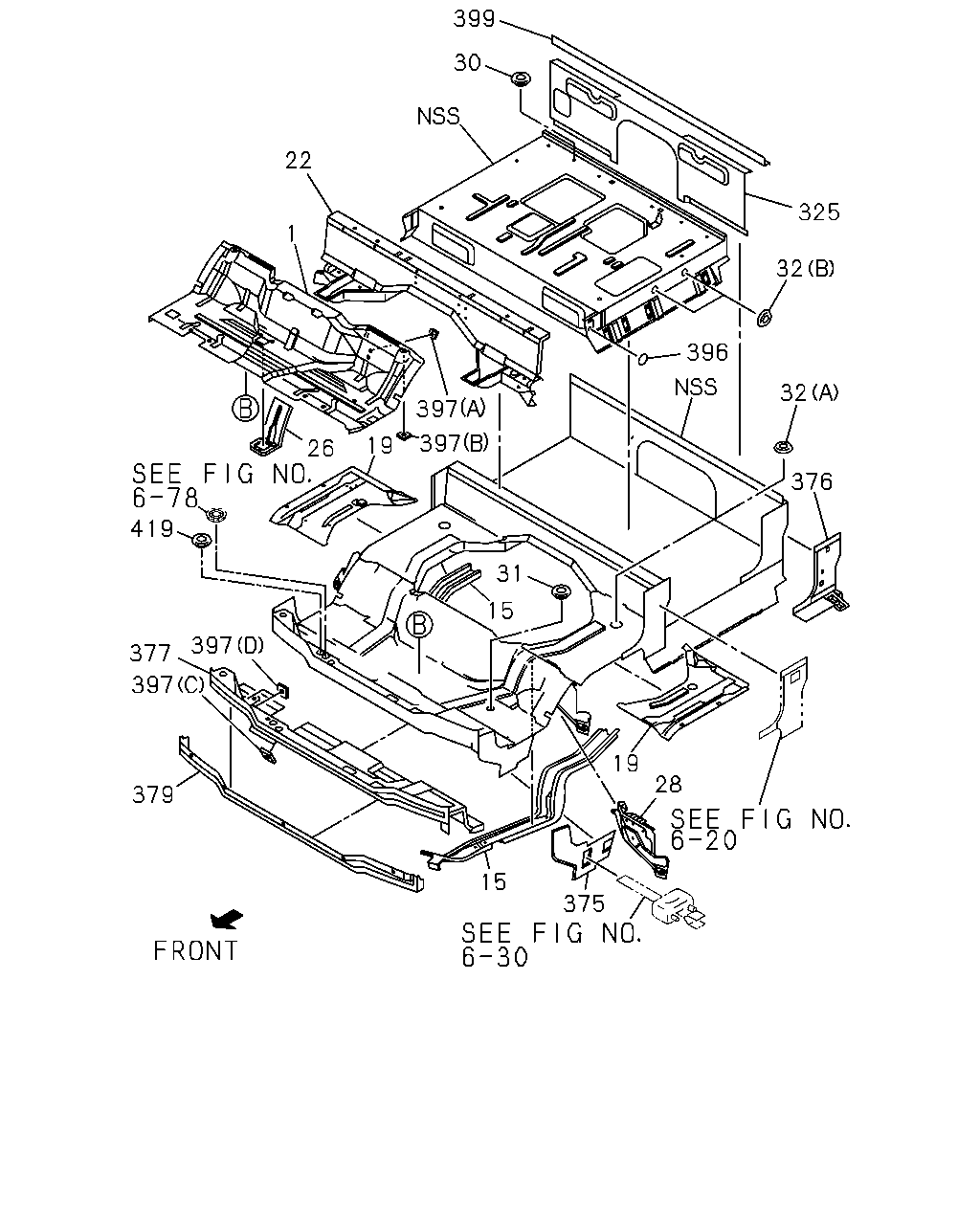

çizim 70857
399 30 22 325 1 32 396 32 397 397 19 26 376 419 31 15 397 377 397 19 28 379 15 375
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 16.545 PANEL; FLOOR 8-97850-117-7 01 1 9312-9406 ● ●
1 16.545 PANEL; FLOOR
FLOOR REMOTE SHIFT<M11> 		8-97850-117-7 01 1 9312-9406 ● ● ●
1 16.545 PANEL; FLOOR
FLOOR REMOTE SHIFT<M11> 		8-97850-117-7 01 1 9407-9510 ● ● ● ● ●
1 16.545 PANEL; FLOOR
FLOOR REMOTE SHIFT<M11> 		8-97850-117-8 01 1 9511-9711 ● ● ● ●
1 16.545 PANEL; FLOOR
FLOOR REMOTE SHIFT<M11> 		8-97850-117-8 01 1 9712- ● ● ● ● ● ●
1 16.545 PANEL; FLOOR
EXC. FLOOR REMOTE SHIFT<M11> 		8-97850-153-8 01 1 9312-9603 ● ● ●
1 16.545 PANEL; FLOOR
EXC. FLOOR REMOTE SHIFT<M11> 		8-97850-117-8 01 1 9604-9711 ● ● ●
1 16.545 PANEL; FLOOR
EXC. FLOOR REMOTE SHIFT<M11> 		8-97850-117-8 01 1 9712- ● ● ● ●
15 16.545 FRAME; UNDER 8-97850-060-7 01 1 9312-9312 ● ● ● ● ●
15 16.545 FRAME; UNDER 8-97850-060-9 01 1 9312-9510 ● ● ● ● ●
15 16.545 FRAME; UNDER 8-97850-060-9 01 1 9511-9611 ● ● ● ●
15 16.545 FRAME; UNDER 8-97850-060-9 01 1 9612-9711 ● ● ● ● ●
15 16.545 FRAME; UNDER 8-97850-060-9 01 1 9712- ● ● ● ● ● ●
15 16.545 FRAME; UNDER 8-97850-059-8 01 1 9312-9312 ● ● ● ● ●
15 16.545 FRAME; UNDER 8-97850-059-9 01 1 9312-9510 ● ● ● ● ●
15 16.545 FRAME; UNDER 8-97850-059-9 01 1 9511-9611 ● ● ● ●
15 16.545 FRAME; UNDER 8-97850-059-9 01 1 9612-9711 ● ● ● ● ●
15 16.545 FRAME; UNDER 8-97850-059-9 01 1 9712- ● ● ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-008-2 01 1 9312-9510 ● ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-008-3 01 1 9511-9611 ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-008-3 01 1 9612-9711 ● ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-008-4 01 1 9712- ● ● ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-118-4 01 1 9312-9510 ● ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-118-5 01 1 9511-9611 ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-118-5 01 1 9612-9711 ● ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-118-6 01 1 9712- ● ● ● ● ● ●
22 16.545 FRAME; FLOOR REAR 8-97850-227-9 01 1 9312-9510 ● ●
22 16.545 FRAME; FLOOR REAR 8-97850-227-9 01 1 9511-9602 ●
22 16.545 FRAME; FLOOR REAR 8-97850-764-0 01 1 9603-9711 ●
22 16.545 FRAME; FLOOR REAR 8-97850-764-0 01 1 9712- ●
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> 		8-97850-111-9 01 1 9312-9312 ● ● ●
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> 		8-97850-111-9 01 1 9312-9408 ● ● ●
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> 		8-97850-657-2 01 1 9409-9611 ● ● ●
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> 		8-97850-657-2 01 1 9612-9711 ● ● ● ●
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> 		8-97850-657-2 01 1 9712- ● ● ● ●
22 16.545 FRAME; FLOOR REAR 8-97850-657-2 01 1 9712- ●
22 16.545 FRAME; FLOOR REAR
EXC. MANUAL TILT CAB<RWZ> 		8-97850-538-4 01 1 9312-9510 ● ● ●
22 16.545 FRAME; FLOOR REAR
EXC. MANUAL TILT CAB<RWZ> 		8-97850-538-5 01 1 9511-9711 ● ● ● ●
26 16.545 PANEL; GEAR CONT REINF 8-97850-140-3 01 1 9312-9312 ● ● ● ● ●
26 16.545 PANEL; GEAR CONT REINF 8-97850-140-3 01 1 9312-9510 ● ● ● ● ●
26 16.545 PANEL; GEAR CONT REINF 8-97850-140-3 01 1 9511-9611 ● ● ● ●
26 16.545 PANEL; GEAR CONT REINF 8-97850-140-3 01 1 9612-9711 ● ● ● ● ●
26 16.545 PANEL; GEAR CONT REINF 8-97850-140-3 01 1 9712- ● ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-017-5 01 1 9312-9510 ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-017-6 01 1 9511-9611 ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-017-6 01 1 9612-9711 ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-017-7 01 1 9712- ● ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-016-6 01 1 9312-9403 ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-338-3 01 1 9404-9510 ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-338-4 01 1 9511-9611 ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-338-4 01 1 9612-9711 ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-338-5 01 1 9712- ● ● ● ● ● ●
30 16.547 GROMMET; CAB MTG RAIL
OD=74 		8-94279-731-0 02 1 9312-9510 ● ●
30 16.547 GROMMET; CAB MTG RAIL
OD=74 		8-94279-731-0 02 1 9511- ●
31 16.547 GROMMET; LOCATION HOLE,CAB FLOOR
08.155 OD=28.5 		8-94279-711-0 02 1 9312-9510 ● ● ● ● ●
31 16.547 GROMMET; LOCATION HOLE,CAB FLOOR
08.155 OD=28.5 		8-94279-711-0 02 1 9511-9611 ● ● ● ●
31 16.547 GROMMET; LOCATION HOLE,CAB FLOOR
08.155 OD=28.5 		8-94279-711-0 02 1 9612-9711 ● ● ● ● ●
31 16.547 GROMMET; LOCATION HOLE,CAB FLOOR
08.155 OD=28.5 		8-94279-711-0 02 1 9712- ● ● ● ● ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
08.131 (A) OD=53.5 		8-94356-253-0 02 1 9312-9510 ● ● ● ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
08.131 (A) OD=53.5 		8-94356-253-0 02 1 9511-9611 ● ● ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
08.131 (A) OD=53.5 		8-94356-253-0 02 1 9612-9711 ● ● ● ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
08.131 (A) OD=53.5 		8-94356-253-0 02 1 9712- ● ● ● ● ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
15.222 (B) OD=35 		8-94122-971-0 04 1 9312-9510 ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
15.222 (B) OD=35 		8-94122-971-0 04 1 9511- ●
325 16.545 REINFORCEMENT ASM; RR MTG 8-97850-242-7 01 1 9312-9510 ● ●
325 16.545 REINFORCEMENT ASM; RR MTG 8-97850-242-7 01 1 9511-9704 ●
325 16.545 REINFORCEMENT ASM; RR MTG
4BE1 ENG(RLH),4HF1 ENG(RLS) 		8-97850-242-7 01 1 9705-9711 ●
325 16.545 REINFORCEMENT ASM; RR MTG
4HF1 ENG(RLS) 		8-97850-242-7 01 1 9712-9802 ●
325 16.545 REINFORCEMENT ASM; RR MTG
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97850-242-7 01 1 9803- ●
325 16.545 REINFORCEMENT ASM; RR MTG
4BD2 ENG(RLW) 		8-97890-252-2 01 1 9706- ●
375 16.545 CLOSING; PILLAR 8-97850-087-3 01 1 9312-9510 ● ● ● ● ●
375 16.545 CLOSING; PILLAR 8-97850-087-3 01 1 9511-9611 ● ● ● ●
375 16.545 CLOSING; PILLAR 8-97850-087-3 01 1 9612-9711 ● ● ● ● ●
375 16.545 CLOSING; PILLAR 8-97850-087-3 01 1 9712- ● ● ● ● ● ●
375 16.545 CLOSING; PILLAR 8-97850-086-4 01 1 9312-9510 ● ● ● ● ●
375 16.545 CLOSING; PILLAR 8-97850-086-4 01 1 9511-9611 ● ● ● ●
375 16.545 CLOSING; PILLAR 8-97850-086-4 01 1 9612-9711 ● ● ● ● ●
375 16.545 CLOSING; PILLAR 8-97850-086-4 01 1 9712- ● ● ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-187-3 01 1 9312-9510 ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-187-3 01 1 9511- ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-186-3 01 1 9312-9510 ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-186-3 01 1 9511- ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-320-6 01 1 9312-9611 ● ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-320-6 01 1 9612-9711 ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR
MANUAL TILT CAB<RWZ> 		8-97850-320-6 01 1 9712- ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-320-6 01 1 9712- ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-024-6 01 1 9312-9611 ● ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-024-6 01 1 9612-9711 ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR
MANUAL TILT CAB<RWZ> 		8-97850-024-6 01 1 9712- ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-024-6 01 1 9712- ●
377 16.545 RAIL ASM; MTG,FRT
FLOOR REMOTE SHIFT<M11> 		8-97850-127-8 01 1 9407-9510 ● ● ● ● ●
377 16.545 RAIL ASM; MTG,FRT 8-97850-128-7 01 1 9312-9406 ● ●
377 16.545 RAIL ASM; MTG,FRT
FLOOR REMOTE SHIFT<M11> 		8-97850-128-7 01 1 9312-9406 ● ● ●
377 16.545 RAIL ASM; MTG,FRT
EXC. FLOOR REMOTE SHIFT<M11> 		8-97850-150-7 01 1 9312-9406 ● ● ●
377 16.545 RAIL ASM; MTG,FRT
EXC. FLOOR REMOTE SHIFT<M11> 		8-97850-149-8 01 1 9407-9510 ● ● ●
377 16.545 RAIL ASM; MTG,FRT
EXC. FLOOR REMOTE SHIFT<M11> 		8-97850-150-8 01 1 9511-9603 ● ● ●
377 16.545 RAIL ASM; MTG,FRT
EXC. FLOOR REMOTE SHIFT<M11> 		8-97850-128-8 01 1 9604-9708 ● ● ●
377 16.545 RAIL ASM; MTG,FRT
EXC. FLOOR REMOTE SHIFT<M11> 		8-97850-807-0 01 1 9709-9711 ● ● ●
377 16.545 RAIL ASM; MTG,FRT
EXC. FLOOR REMOTE SHIFT<M11> 		8-97850-807-0 01 1 9712- ● ● ● ●
377 16.545 RAIL ASM; MTG,FRT
FLOOR REMOTE SHIFT<M11> 		8-97850-128-8 01 1 9511-9708 ● ● ● ●
377 16.545 RAIL ASM; MTG,FRT
FLOOR REMOTE SHIFT<M11> 		8-97850-807-0 01 1 9709-9711 ● ● ● ●
377 16.545 RAIL ASM; MTG,FRT
FLOOR REMOTE SHIFT<M11> 		8-97850-807-0 01 1 9712- ● ● ● ● ● ●
379 16.545 PANEL 8-97850-129-2 01 1 9312-9312 ● ● ● ● ●
379 16.545 PANEL 8-97850-129-2 01 1 9312-9510 ● ● ● ● ●
379 16.545 PANEL 8-97850-129-2 01 1 9511-9611 ● ● ● ●
379 16.545 PANEL 8-97850-129-2 01 1 9612-9711 ● ● ● ● ●
379 16.545 PANEL 8-97850-129-2 01 1 9712- ● ● ● ● ● ●
396 16.547 GROMMET; LOCATION HOLE 1-09983-049-0 02 1 9312-9510 ● ●
396 16.547 GROMMET; LOCATION HOLE 1-09983-049-0 02 1 9511- ●
397 16.545 NUT; PIERCE
(A) 		8-94279-531-0 04 1 9312-9406 ● ● ● ● ●
397 16.545 NUT; PIERCE
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> (A) M6 		9-09114-046-0 05 1 9312- ● ● ●
397 16.545 NUT; PIERCE
AUSTRALIA EQUIPMENT(RR3) (A) M6 		9-09114-046-0 05 1 9312- ●
397 16.545 NUT; PIERCE
16.588 (B) M8 		9-09114-048-0 06 1 9312-9611 ● ● ● ●
397 16.545 NUT; PIERCE
16.588 (B) M8 		9-09114-048-0 06 1 9612-9711 ● ● ● ● ●
397 16.545 NUT; PIERCE
(D) M10 		9-09114-030-0 03 1 9511-9611 ● ● ● ●
397 16.545 NUT; PIERCE
(D) M10 		9-09114-030-0 03 1 9612-9711 ● ● ● ● ●
397 16.545 NUT; PIERCE
16.588 (C) M8 		9-09114-048-0 04 1 9511-9611 ● ● ● ●
397 16.545 NUT; PIERCE
16.588 (C) M8 		9-09114-048-0 04 1 9612-9711 ● ● ● ● ●
397 16.545 NUT; PIERCE
EXC. AUSTRALIA EQUIPMENT(RR3) (A) M6 		9-09114-046-0 04 1 9312-9611 ● ● ● ●
397 16.545 NUT; PIERCE
G.V.W. 7.0-7.5TON(RPX) AUSTRALIA EQUIPMENT(RR3) (A) M6 		9-09114-046-0 04 1 9312-9611 ● ● ●
397 16.545 NUT; PIERCE
EXC. AUSTRALIA EQUIPMENT(RR3) (A) M6 		9-09114-046-0 04 1 9612-9711 ● ● ● ●
397 16.545 NUT; PIERCE
G.V.W. 7.0-7.5TON(RPX) AUSTRALIA EQUIPMENT(RR3) (A) M6 		9-09114-046-0 04 1 9612-9711 ● ● ●
397 16.545 NUT; PIERCE
(A) M6 		9-09114-046-0 04 1 9612-9711 ●
397 16.545 NUT; PIERCE
(D) M10 		9-09114-030-0 03 1 9712- ● ● ● ● ● ●
397 16.545 NUT; PIERCE
16.588 (B) M8 		9-09114-048-0 06 1 9712-9804 ● ● ● ● ● ●
397 16.545 NUT; PIERCE
FLOOR REMOTE SHIFT<M11> 16.588 (B) M8 		9-09114-048-0 02 1 9805-9805 ● ● ● ● ● ●
397 16.545 NUT; PIERCE
16.588 (B) M8 		9-09114-048-0 06 1 9805-9805 ● ● ● ● ● ●
397 16.545 NUT; PIERCE
FLOOR REMOTE SHIFT<M11> 16.588 (B) M8 		9-09114-048-0 02 1 9806-9807 ● ● ● ● ● ●
397 16.545 NUT; PIERCE
FLOOR REMOTE SHIFT<M11> G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> 16.588 (B) M8 		9-09114-048-0 02 1 9808- ● ●
397 16.545 NUT; PIERCE
FLOOR REMOTE SHIFT<M11> G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> 16.588 (B) M8 		9-09114-048-0 02 1 9808- ●
397 16.545 NUT; PIERCE
16.588 (C) M8 		9-09114-048-0 04 1 9712- ● ● ● ● ● ●
397 16.545 NUT; PIERCE
FLOOR REMOTE SHIFT<M11> 16.588 (B) M8 		9-09114-048-0 04 1 9805-9805 ● ● ● ● ● ●
397 16.545 NUT; PIERCE
FLOOR REMOTE SHIFT<M11> 16.588 (B) M8 		9-09114-048-0 04 1 9806-9807 ● ● ● ● ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> EXC. AUSTRALIA EQUIPMENT(RR3) 16.588 (B) M8 		9-09114-048-0 06 1 9808- ● ● ● ● ●
397 16.545 NUT; PIERCE
FLOOR REMOTE SHIFT<M11> G.V.W. 7.0-7.5TON(RPX) AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> 16.588 (B) M8 		9-09114-048-0 06 1 9808- ●
397 16.545 NUT; PIERCE
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> EXC. FLOOR REMOTE SHIFT<M11> 16.588 (B) M8 		9-09114-048-0 06 1 9808- ●
397 16.545 NUT; PIERCE
FLOOR REMOTE SHIFT<M11> G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> 16.588 (B) M8 		9-09114-048-0 06 1 9808- ● ●
397 16.545 NUT; PIERCE
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX), G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> EXC. FLOOR REMOTE SHIFT<M11> 16.588 (B) M8 		9-09114-048-0 06 1 9808- ●
397 16.545 NUT; PIERCE
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> EXC. FLOOR REMOTE SHIFT<M11> 16.588 (B) M8 		9-09114-048-0 06 1 9808- ●
397 16.545 NUT; PIERCE
16.588 (B) M8 		9-09114-048-0 06 1 9808- ●
397 16.545 NUT; PIERCE
G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> 16.588 (B) M8 		9-09114-048-0 06 1 9808- ● ●
397 16.545 NUT; PIERCE
EXC. FLOOR REMOTE SHIFT<M11> 16.588 (B) M8 		9-09114-048-0 06 1 9805-9805 ● ● ● ●
397 16.545 NUT; PIERCE
EXC. FLOOR REMOTE SHIFT<M11> 16.588 (B) M8 		9-09114-048-0 06 1 9806-9807 ● ● ● ●
397 16.545 NUT; PIERCE
FLOOR REMOTE SHIFT<M11> G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> 16.588 (B) M8 		9-09114-048-0 04 1 9808- ● ●
397 16.545 NUT; PIERCE
FLOOR REMOTE SHIFT<M11> G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> 16.588 (B) M8 		9-09114-048-0 04 1 9808- ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> EXC. AUSTRALIA EQUIPMENT(RR3) (A) M6 		9-09114-046-0 04 1 9712-9801 ● ● ● ●
397 16.545 NUT; PIERCE
G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) MANUAL TILT CAB<RWZ> AUSTRALIA EQUIPMENT(RR3) (A) M6 		9-09114-046-0 04 1 9712-9801 ● ● ● ●
397 16.545 NUT; PIERCE
(A) M6 		9-09114-046-0 04 1 9712-9801 ● ●
397 16.545 NUT; PIERCE
EXC. AUSTRALIA EQUIPMENT(RR3) (A) M6 		9-09114-046-0 04 1 9802- ● ● ● ● ● ●
397 16.545 NUT; PIERCE
G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) (A) M6 		9-09114-046-0 04 1 9802- ● ● ● ● ●
399 16.545 PANEL; EXTENSION,RR MTG RAIL 8-97850-224-1 01 1 9312-9510 ● ●
399 16.545 PANEL; EXTENSION,RR MTG RAIL 8-97850-224-1 01 1 9511- ●
419 04.012 GROMMET; CONT SHAFT,FLOOR PANEL
16.802 OD=36 		1-09983-092-0 01 1 9312-9412 ● ● ● ● ●
419 04.012 GROMMET; CONT SHAFT,FLOOR PANEL
EXC. PTO TRANSMISSION SIDE(V66) 16.802 OD=36 		1-09983-092-0 01 1 9501-9510 ● ● ● ● ●
419 04.012 GROMMET; CONT SHAFT,FLOOR PANEL
EXC. PTO TRANSMISSION SIDE(V66) 16.802 OD=36 		1-09983-092-0 01 1 9511-9611 ● ● ● ●
419 04.012 GROMMET; CONT SHAFT,FLOOR PANEL
EXC. PTO TRANSMISSION SIDE(V66) 16.802 OD=36 		1-09983-092-0 01 1 9612-9711 ● ● ● ● ●
419 04.012 GROMMET; CONT SHAFT,FLOOR PANEL
EXC. PTO TRANSMISSION SIDE(V66) 16.802 OD=36 		1-09983-092-0 01 1 9712- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
