6-60 — ROOF PANEL (#48873) — 82 parça

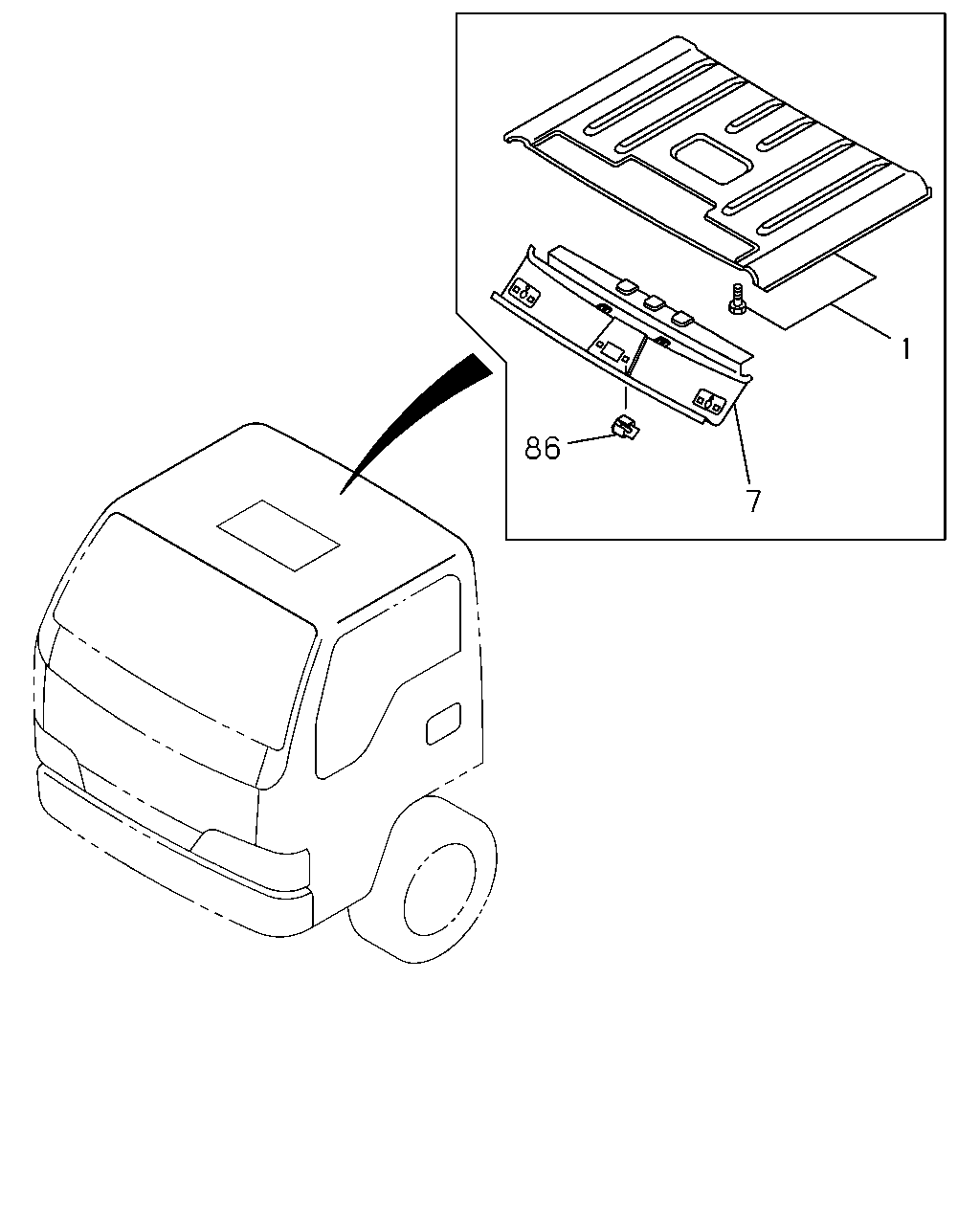

çizim 70028
1 86 7
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> 		8-97851-258-4 01 1 9312-9406 ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> TRAY ROOF HEAD<7EJ> 		8-97851-258-4 01 1 9312-9406 ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> 		8-97851-258-7 01 1 9407- ● ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97851-403-2 01 1 9312-9510 ● ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97851-403-5 01 1 9511- ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97851-489-2 01 1 9312-9510 ● ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97851-489-5 01 1 9511- ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> 		8-97851-098-0 01 1 9312- ● ● ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97851-402-0 01 1 9312-9611 ● ● ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97851-402-0 01 1 9612-9711 ● ● ● ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97851-402-0 01 1 9712- ● ● ● ● ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97851-488-0 01 1 9312-9611 ● ● ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97851-488-0 01 1 9612-9711 ● ● ● ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97851-488-0 01 1 9712- ● ● ● ● ●
7 16.585 PANEL; FRT WINDSHIELD UPR 8-97851-276-4 01 1 9312-9510 ● ● ● ● ●
7 16.585 PANEL; FRT WINDSHIELD UPR 8-97851-276-4 01 1 9511-9604 ● ● ● ●
7 16.585 PANEL; FRT WINDSHIELD UPR 8-97859-768-0 01 1 9605-9611 ● ● ● ●
7 16.585 PANEL; FRT WINDSHIELD UPR 8-97859-768-0 01 1 9612-9711 ● ● ● ● ●
7 16.585 PANEL; FRT WINDSHIELD UPR 8-97859-768-0 01 1 9712- ● ● ● ● ● ●
86 16.585 NUT; ROOF
16.069 M5 		8-94279-075-1 01 1 9312-9510 ● ● ● ● ●
86 16.585 NUT; ROOF
16.069 M5 		8-94279-075-1 01 1 9511-9611 ● ● ● ●
86 16.585 NUT; ROOF
16.069 M5 		8-94279-075-1 01 1 9612-9711 ● ● ● ● ●
86 16.585 NUT; ROOF
16.069 M5 		8-94279-075-1 01 1 9712- ● ● ● ● ● ●

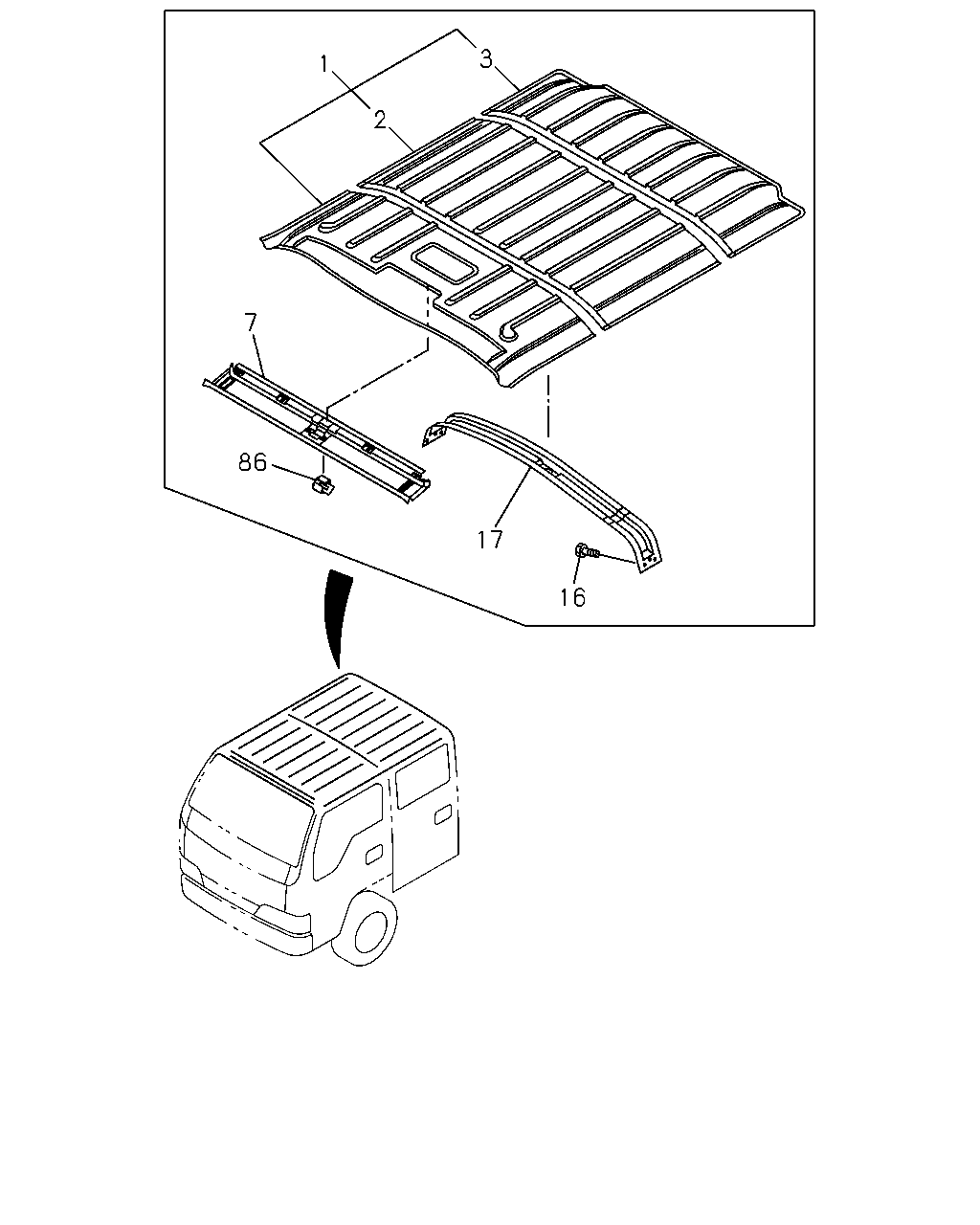

çizim 70602
3 1 2 7 86 17 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> 		8-97851-258-4 01 1 9312-9406 ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> TRAY ROOF HEAD<7EJ> 		8-97851-258-4 01 1 9312-9406 ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> 		8-97851-258-7 01 1 9407- ● ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97851-403-2 01 1 9312-9510 ● ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97851-403-5 01 1 9511- ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97851-489-2 01 1 9312-9510 ● ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97851-489-5 01 1 9511- ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> 		8-97851-098-0 01 1 9312- ● ● ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97851-402-0 01 1 9312-9611 ● ● ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97851-402-0 01 1 9612-9711 ● ● ● ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97851-402-0 01 1 9712- ● ● ● ● ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97851-488-0 01 1 9312-9611 ● ● ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97851-488-0 01 1 9612-9711 ● ● ● ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97851-488-0 01 1 9712- ● ● ● ● ●
2 16.585 PANEL; ROOF,CENTER 8-97851-256-0 01 1 9312-9510 ● ●
2 16.585 PANEL; ROOF,CENTER 8-97851-256-1 01 1 9511- ●
3 16.585 PANEL; ROOF,RR 8-97851-257-4 01 1 9606- ●
7 16.585 PANEL; FRT WINDSHIELD UPR 8-97851-276-4 01 1 9312-9510 ● ● ● ● ●
7 16.585 PANEL; FRT WINDSHIELD UPR 8-97851-276-4 01 1 9511-9604 ● ● ● ●
7 16.585 PANEL; FRT WINDSHIELD UPR 8-97859-768-0 01 1 9605-9611 ● ● ● ●
7 16.585 PANEL; FRT WINDSHIELD UPR 8-97859-768-0 01 1 9612-9711 ● ● ● ● ●
7 16.585 PANEL; FRT WINDSHIELD UPR 8-97859-768-0 01 1 9712- ● ● ● ● ● ●
16 16.585 SCREW; ROOF SUPPORT
16.085 M6X16 W/LK&PL WASHER 		1-09981-141-0 04 1 9312-9510 ● ●
16 16.585 SCREW; ROOF SUPPORT
16.085 M6X16 W/LK&PL WASHER 		1-09981-141-0 04 1 9511- ●
17 16.570 REINFORCEMENT; ROOF PNL CENTER 8-97853-626-3 01 1 9312-9510 ● ●
17 16.570 REINFORCEMENT; ROOF PNL CENTER 8-97853-626-3 01 1 9511- ●
86 16.585 NUT; ROOF
16.069 M5 		8-94279-075-1 01 1 9312-9510 ● ● ● ● ●
86 16.585 NUT; ROOF
16.069 M5 		8-94279-075-1 01 1 9511-9611 ● ● ● ●
86 16.585 NUT; ROOF
16.069 M5 		8-94279-075-1 01 1 9612-9711 ● ● ● ● ●
86 16.585 NUT; ROOF
16.069 M5 		8-94279-075-1 01 1 9712- ● ● ● ● ● ●

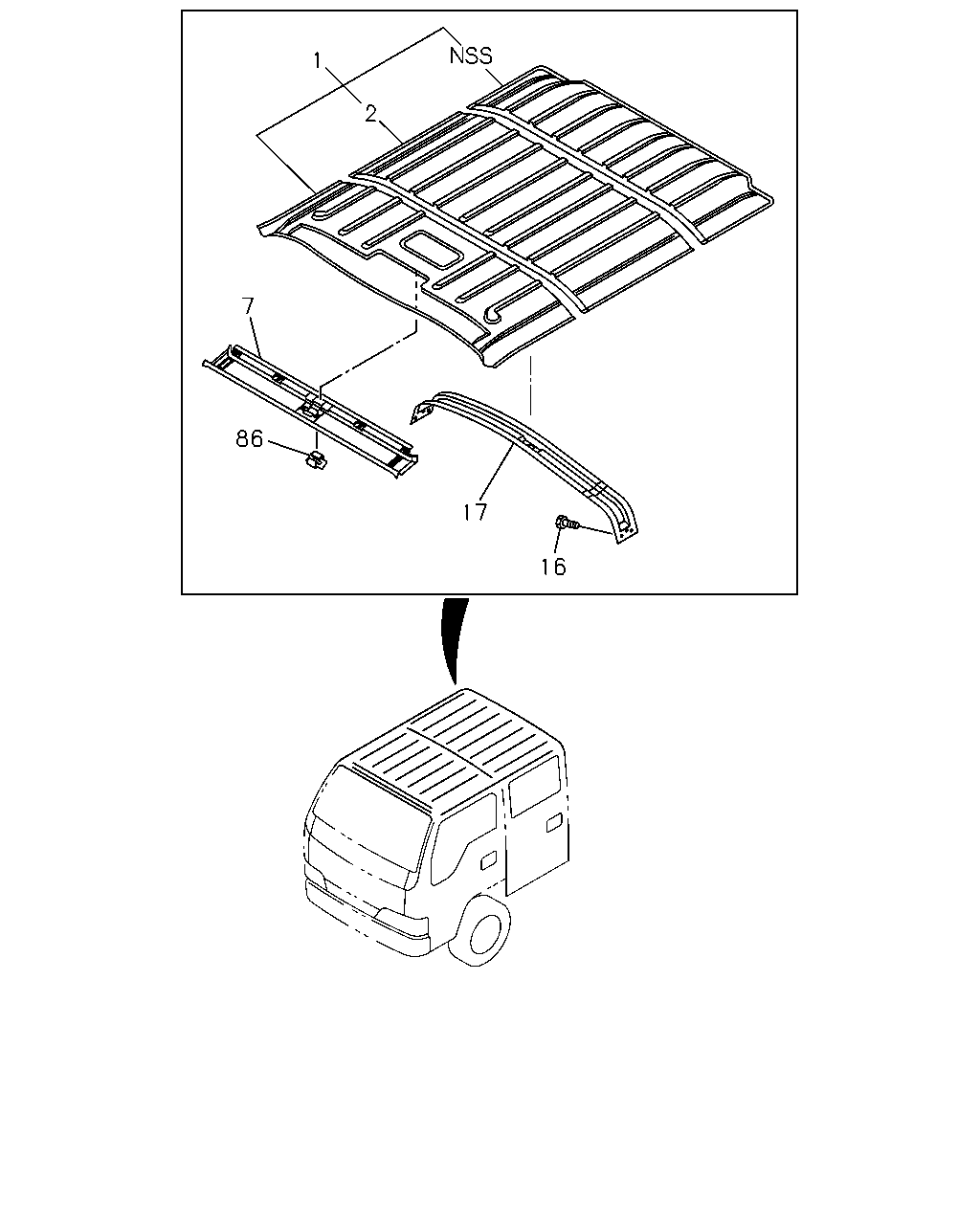

çizim 70790
1 2 7 86 17 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> 		8-97851-258-4 01 1 9312-9406 ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> TRAY ROOF HEAD<7EJ> 		8-97851-258-4 01 1 9312-9406 ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> 		8-97851-258-7 01 1 9407- ● ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97851-403-2 01 1 9312-9510 ● ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97851-403-5 01 1 9511- ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97851-489-2 01 1 9312-9510 ● ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97851-489-5 01 1 9511- ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> 		8-97851-098-0 01 1 9312- ● ● ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97851-402-0 01 1 9312-9611 ● ● ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97851-402-0 01 1 9612-9711 ● ● ● ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97851-402-0 01 1 9712- ● ● ● ● ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97851-488-0 01 1 9312-9611 ● ● ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97851-488-0 01 1 9612-9711 ● ● ● ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97851-488-0 01 1 9712- ● ● ● ● ●
2 16.585 PANEL; ROOF,CENTER 8-97851-256-0 01 1 9312-9510 ● ●
2 16.585 PANEL; ROOF,CENTER 8-97851-256-1 01 1 9511- ●
7 16.585 PANEL; FRT WINDSHIELD UPR 8-97851-276-4 01 1 9312-9510 ● ● ● ● ●
7 16.585 PANEL; FRT WINDSHIELD UPR 8-97851-276-4 01 1 9511-9604 ● ● ● ●
7 16.585 PANEL; FRT WINDSHIELD UPR 8-97859-768-0 01 1 9605-9611 ● ● ● ●
7 16.585 PANEL; FRT WINDSHIELD UPR 8-97859-768-0 01 1 9612-9711 ● ● ● ● ●
7 16.585 PANEL; FRT WINDSHIELD UPR 8-97859-768-0 01 1 9712- ● ● ● ● ● ●
16 16.585 SCREW; ROOF SUPPORT
16.085 M6X16 W/LK&PL WASHER 		1-09981-141-0 04 1 9312-9510 ● ●
16 16.585 SCREW; ROOF SUPPORT
16.085 M6X16 W/LK&PL WASHER 		1-09981-141-0 04 1 9511- ●
17 16.570 REINFORCEMENT; ROOF PNL CENTER 8-97853-626-3 01 1 9312-9510 ● ●
17 16.570 REINFORCEMENT; ROOF PNL CENTER 8-97853-626-3 01 1 9511- ●
86 16.585 NUT; ROOF
16.069 M5 		8-94279-075-1 01 1 9312-9510 ● ● ● ● ●
86 16.585 NUT; ROOF
16.069 M5 		8-94279-075-1 01 1 9511-9611 ● ● ● ●
86 16.585 NUT; ROOF
16.069 M5 		8-94279-075-1 01 1 9612-9711 ● ● ● ● ●
86 16.585 NUT; ROOF
16.069 M5 		8-94279-075-1 01 1 9712- ● ● ● ● ● ●
