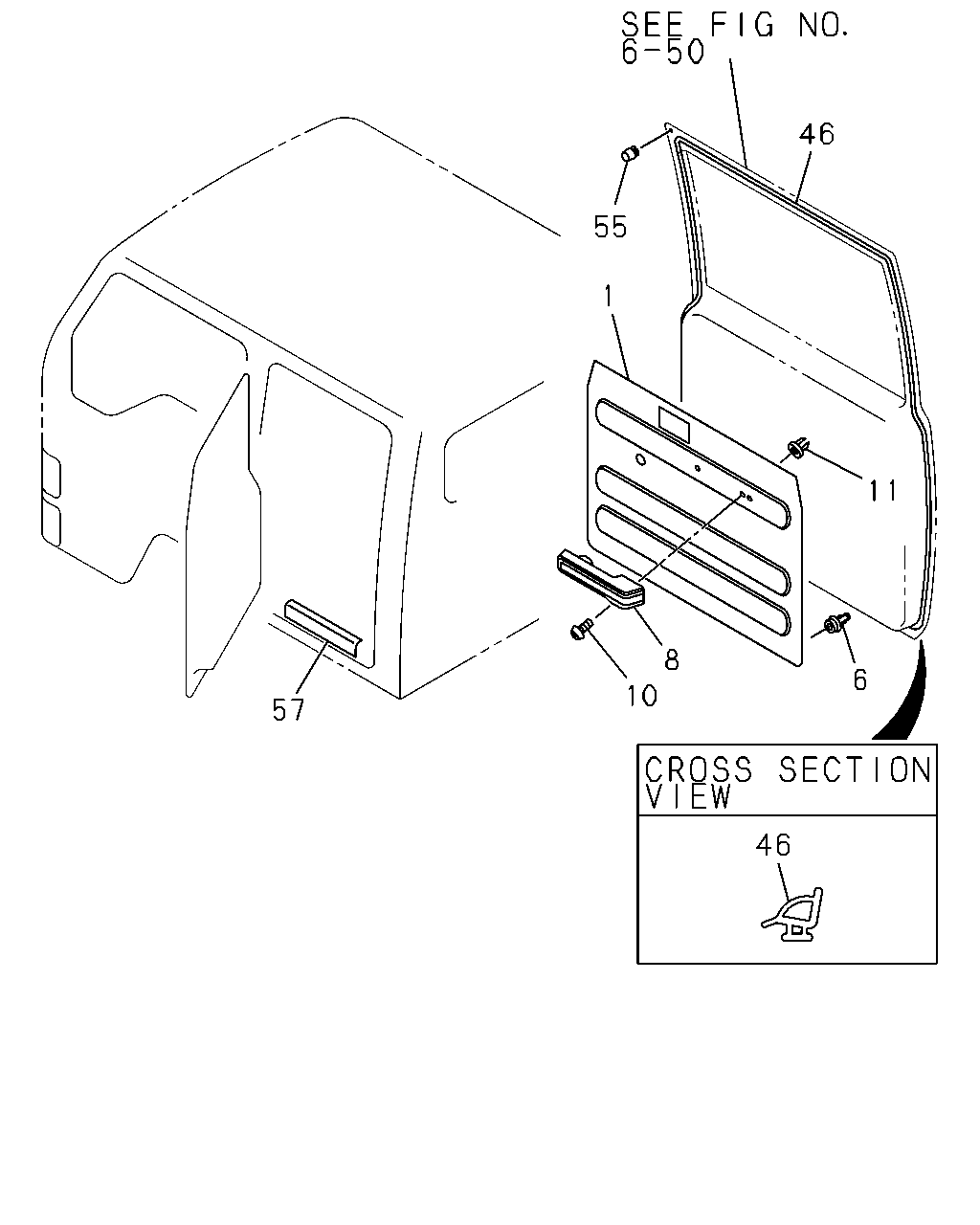

6-55 — REAR DOOR TRIM (#48872) — 25 parça

46 55 1 11 8 10 6 57 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	16.165 PAD; TRIM,RR DOOR DARK BEIGE	8-97852-441-5	01	1	9312-9510	●	●
1	16.165 PAD; TRIM,RR DOOR DARK BEIGE	8-97852-441-5	01	1	9511-9711	●
1	16.165 PAD; TRIM,RR DOOR DARK GRAY	8-97867-203-5	01	1	9712-	●
1	16.165 PAD; TRIM,RR DOOR DARK BEIGE	8-97852-440-5	01	1	9312-9510	●	●
1	16.165 PAD; TRIM,RR DOOR DARK BEIGE	8-97852-440-5	01	1	9511-9711	●
1	16.165 PAD; TRIM,RR DOOR DARK GRAY	8-97867-202-5	01	1	9712-	●
6	16.165 CLIP; DOOR PAD 16.166	8-94226-492-0	20	1	9312-9404	●	●
6	16.165 CLIP; DOOR PAD 16.166	8-94226-492-0	22	1	9405-9510	●	●
6	16.165 CLIP; DOOR PAD 16.166	8-94226-492-0	22	1	9511-	●
8	16.155 REST; ARM,RR DOOR DARK BEIGE	8-94345-854-0	01	1	9312-9510	●	●
8	16.155 REST; ARM,RR DOOR DARK BEIGE	8-94345-854-0	01	1	9511-9711	●
8	16.155 REST; ARM,RR DOOR DARK GRAY	8-97867-207-0	01	1	9712-	●
8	16.155 REST; ARM,RR DOOR DARK BEIGE	8-94345-852-0	01	1	9312-9510	●	●
8	16.155 REST; ARM,RR DOOR DARK BEIGE	8-94345-852-0	01	1	9511-9711	●
8	16.155 REST; ARM,RR DOOR DARK GRAY	8-97867-206-0	01	1	9712-	●
10	16.155 SCREW; ARM REST 02.483 M6X30 TAPPING	9-07066-630-0	04	1	9312-9510	●	●
10	16.155 SCREW; ARM REST 02.483 M6X30 TAPPING	9-07066-630-0	04	1	9511-	●
11	16.155 NUT; ARM REST 14.686 SCREW GROMMET	8-06698-938-1	04	1	9312-9510	●	●
11	16.155 NUT; ARM REST 14.686 SCREW GROMMET	8-06698-938-1	04	1	9511-	●
46	16.225 SEAL; DOOR,UPR,CAB SIDE	8-97852-364-6	02	1	9312-9510	●	●
46	16.225 SEAL; DOOR,UPR,CAB SIDE	8-97852-364-8	02	1	9511-	●
55	16.165 RUBBER; STOPPER,DOOR INNER 16.225	8-97852-022-1	04	1	9312-9510	●	●
55	16.165 RUBBER; STOPPER,DOOR INNER 16.225	8-97852-022-1	04	1	9511-	●
57	16.445 PROTECTOR; STEP RR	8-97852-871-0	02	1	9312-9510	●	●
57	16.445 PROTECTOR; STEP RR	8-97852-871-0	02	1	9511-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
