◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50696 - NPR/NQR-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-52 - REAR DOOR LOCK AND HANDLE ▶
6-52 — REAR DOOR LOCK AND HANDLE (#48871) — 96 parça
çizim 67046
52 15 29 17 27 16 20 17 29 16 20
BalonParca AdiParca NoAdetTipApplied Date A B
15 16.341 LINK; RR DOOR LK
EXC. AUTO DOOR LOCK<AU4> DARK BEIGE 		8-97857-920-0 01 1 9312-9510 ● ●
15 16.341 LINK; RR DOOR LK
EXC. AUTO DOOR LOCK<AU4> DARK BEIGE 		8-97857-920-0 01 1 9511-9711 ●
15 16.341 LINK; RR DOOR LK
EXC. AUTO DOOR LOCK<AU4> DARK GRAY 		8-97868-444-0 01 1 9712- ●
15 16.341 LINK; RR DOOR LK
EXC. AUTO DOOR LOCK<AU4> DARK BEIGE 		8-97857-919-0 01 1 9312-9510 ● ●
15 16.341 LINK; RR DOOR LK
EXC. AUTO DOOR LOCK<AU4> DARK BEIGE 		8-97857-919-0 01 1 9511-9711 ●
15 16.341 LINK; RR DOOR LK
EXC. AUTO DOOR LOCK<AU4> DARK GRAY 		8-97868-443-0 01 1 9712- ●
16 16.345 CLIP; DOOR LK LINK
AUTO DOOR LOCK<AU4> 		8-97852-868-0 01 1 9312-9312 ● ●
16 16.345 CLIP; DOOR LK LINK
AUTO DOOR LOCK<AU4> 16.335 		8-97859-069-0 01 1 9401-9404 ● ●
16 16.345 CLIP; DOOR LK LINK
16.335 		8-97859-069-0 01 1 9405-9510 ● ●
16 16.345 CLIP; DOOR LK LINK
16.335 		8-97859-069-0 01 1 9511-9705 ●
16 16.345 CLIP; DOOR LK LINK
EXC. AUTO DOOR LOCK<AU4> 16.335 		8-97859-069-0 01 1 9706-9706 ●
16 16.345 CLIP; DOOR LK LINK
AUTO DOOR LOCK<AU4> VOLTAGE 24V<7AE> 16.335 		8-97859-069-0 01 1 9706-9706 ●
16 16.345 CLIP; DOOR LK LINK
16.335 		8-97859-069-0 01 1 9707- ●
16 16.345 CLIP; DOOR LK LINK
AUTO DOOR LOCK<AU4> 		8-97852-643-0 01 1 9312-9404 ● ●
16 16.345 CLIP; DOOR LK LINK 8-97852-643-0 01 1 9405-9510 ● ●
16 16.345 CLIP; DOOR LK LINK 8-97852-643-0 01 1 9511-9705 ●
16 16.345 CLIP; DOOR LK LINK
EXC. AUTO DOOR LOCK<AU4> 		8-97852-643-0 01 1 9706-9706 ●
16 16.345 CLIP; DOOR LK LINK
AUTO DOOR LOCK<AU4> VOLTAGE 24V<7AE> 		8-97852-643-0 01 1 9706-9706 ●
16 16.345 CLIP; DOOR LK LINK 8-97852-643-0 01 1 9707- ●
16 16.345 CLIP; DOOR LK LINK
EXC. AUTO DOOR LOCK<AU4> 		1-74517-134-0 03 1 9312-9404 ● ●
16 16.345 CLIP; DOOR LK LINK
EXC. AUTO DOOR LOCK<AU4> 		1-74517-135-0 03 1 9312-9404 ● ●
17 16.330 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4> DARK BEIGE 		8-97852-445-5 01 1 9312-9510 ● ●
17 16.330 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4> DARK BEIGE 		8-97852-445-5 01 1 9511-9705 ●
17 16.330 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4> VOLTAGE 24V<7AE> DARK BEIGE 		8-97852-445-5 01 1 9706-9711 ●
17 16.330 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4> VOLTAGE 24V<7AE> DARK GRAY 		8-97867-205-5 01 1 9712- ●
17 16.330 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4> DARK BEIGE 		8-97852-444-5 01 1 9312-9510 ● ●
17 16.330 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4> DARK BEIGE 		8-97852-444-5 01 1 9511-9705 ●
17 16.330 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4> VOLTAGE 24V<7AE> DARK BEIGE 		8-97852-444-5 01 1 9706-9711 ●
17 16.330 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4> VOLTAGE 24V<7AE> DARK GRAY 		8-97867-204-5 01 1 9712- ●
17 16.330 LOCK; DOOR,RR DOOR
EXC. AUTO DOOR LOCK<AU4> 		8-97852-474-2 01 1 9312-9510 ● ●
17 16.330 LOCK; DOOR,RR DOOR
EXC. AUTO DOOR LOCK<AU4> 		8-97852-474-2 01 1 9511- ●
17 16.330 LOCK; DOOR,RR DOOR
EXC. AUTO DOOR LOCK<AU4> 		8-97852-473-2 01 1 9312-9510 ● ●
17 16.330 LOCK; DOOR,RR DOOR
EXC. AUTO DOOR LOCK<AU4> 		8-97852-473-2 01 1 9511- ●
17 16.330 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4> EXC. VOLTAGE 24V<7AE> DARK BEIGE 		8-97852-443-5 01 1 9707-9711 ●
17 16.330 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4> EXC. VOLTAGE 24V<7AE> DARK GRAY 		8-97867-801-5 01 1 9712- ●
17 16.330 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4> EXC. VOLTAGE 24V<7AE> DARK BEIGE 		8-97852-442-5 01 1 9707-9711 ●
17 16.330 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4> EXC. VOLTAGE 24V<7AE> DARK GRAY 		8-97867-800-5 01 1 9712- ●
20 16.330 SCREW; DOOR LK
M6X16 		1-09981-447-1 06 1 9312-9510 ● ●
20 16.330 SCREW; DOOR LK
M6X16 		1-09981-447-1 06 1 9511- ●
27 16.330 SCREW; RR DOOR LOCK
EXC. AUTO DOOR LOCK<AU4> 16.183 M6X16 W/LK&PL WASHER 		8-94279-402-0 04 1 9312-9510 ● ●
27 16.330 SCREW; RR DOOR LOCK
EXC. AUTO DOOR LOCK<AU4> 16.183 M6X16 W/LK&PL WASHER 		8-94279-402-0 04 1 9511- ●
29 16.345 KNOB; LK LINK,RR DOOR
16.157 DARK GRAY DARK GRAY 		8-97098-574-0 02 1 9511- ●
29 16.345 KNOB; LK LINK,RR DOOR
16.157 DARK BEIGE DARK BEIGE 		8-97859-070-0 02 1 9511- ●
29 16.345 KNOB; LK LINK,RR DOOR
16.157 DARK GRAY DARK GRAY 		8-97098-574-0 02 1 9312-9510 ● ●
29 16.345 KNOB; LK LINK,RR DOOR
16.157 DARK BEIGE DARK BEIGE 		8-97859-070-0 02 1 9312-9510 ● ●
52 16.341 BELL CRANK ASM; RR DOOR
EXC. AUTO DOOR LOCK<AU4> 		8-97857-874-1 01 1 9312-9510 ● ●
52 16.341 BELL CRANK ASM; RR DOOR
EXC. AUTO DOOR LOCK<AU4> 		8-97857-874-1 01 1 9511- ●
52 16.341 BELL CRANK ASM; RR DOOR
EXC. AUTO DOOR LOCK<AU4> 		8-97857-873-1 01 1 9312-9510 ● ●
52 16.341 BELL CRANK ASM; RR DOOR
EXC. AUTO DOOR LOCK<AU4> 		8-97857-873-1 01 1 9511- ●

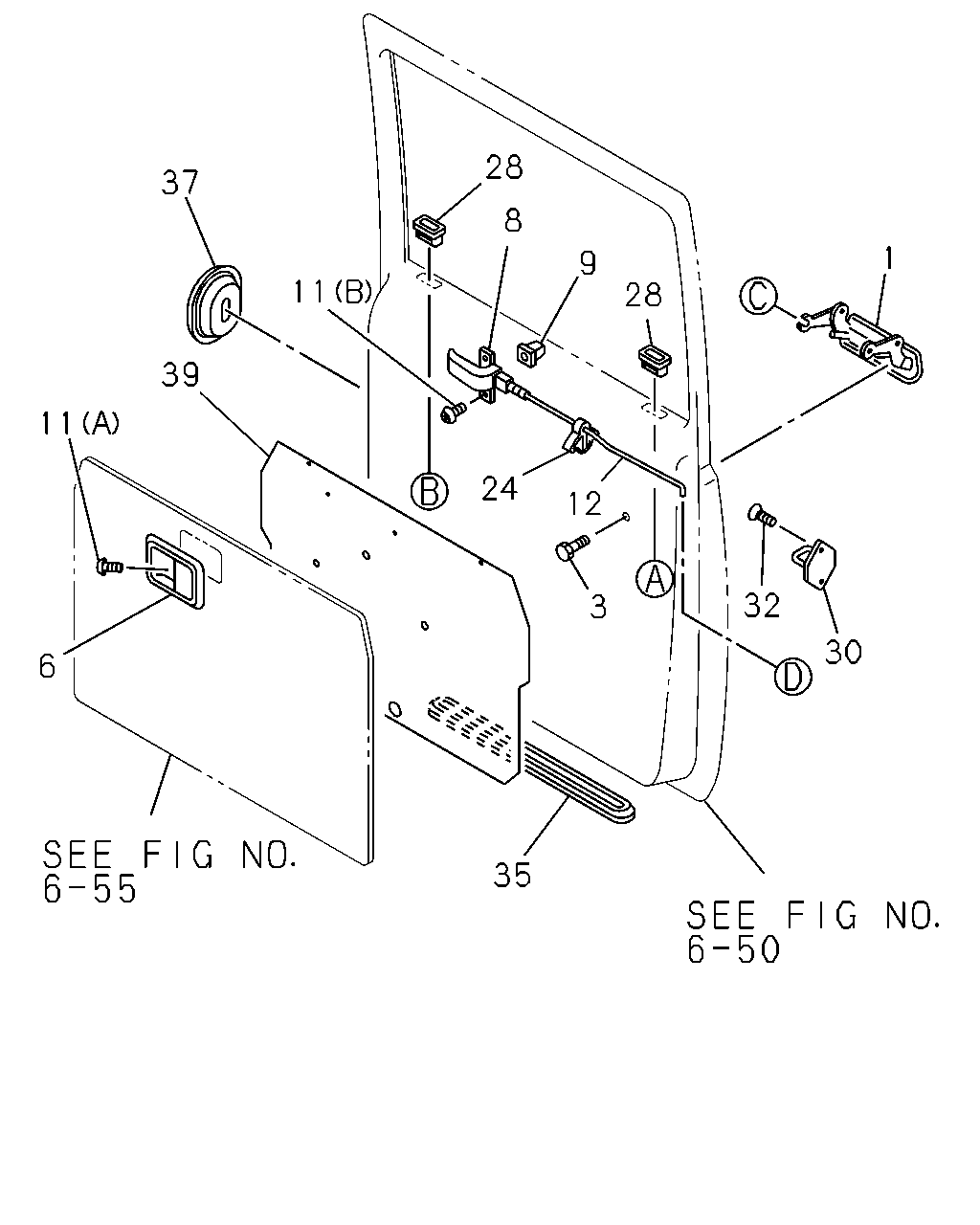

çizim 69229
28 37 8 1 9 11 28 39 11 24 12 32 3 30 6 35
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.360 HANDLE; OUTSIDE,RR DOOR
16.350 		8-97852-108-5 01 1 9312-9510 ● ●
1 16.360 HANDLE; OUTSIDE,RR DOOR
16.350 		8-97852-108-5 01 1 9511-9607 ●
1 16.360 HANDLE; OUTSIDE,RR DOOR
16.350 		8-97867-722-1 01 1 9608- ●
1 16.360 HANDLE; OUTSIDE,RR DOOR
16.350 		8-97852-107-5 01 1 9312-9510 ● ●
1 16.360 HANDLE; OUTSIDE,RR DOOR
16.350 		8-97852-107-5 01 1 9511-9607 ●
1 16.360 HANDLE; OUTSIDE,RR DOOR
16.350 		8-97867-721-1 01 1 9608- ●
3 16.350 BOLT; DOOR OUTSIDE HANDLE
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 9312-9510 ● ●
3 16.350 BOLT; DOOR OUTSIDE HANDLE
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 9511- ●
6 16.345 BEZEL; INSIDE HANDLE,DOOR LOCK
DARK BEIGE 		8-94345-844-2 01 1 9312-9510 ● ●
6 16.345 BEZEL; INSIDE HANDLE,DOOR LOCK
DARK BEIGE 		8-94345-844-2 01 1 9511-9711 ●
6 16.345 BEZEL; INSIDE HANDLE,DOOR LOCK
DARK GRAY 		8-97867-236-2 01 1 9712- ●
6 16.345 BEZEL; INSIDE HANDLE,DOOR LOCK
DARK BEIGE 		8-94345-841-2 01 1 9312-9510 ● ●
6 16.345 BEZEL; INSIDE HANDLE,DOOR LOCK
DARK BEIGE 		8-94345-841-2 01 1 9511-9711 ●
6 16.345 BEZEL; INSIDE HANDLE,DOOR LOCK
DARK GRAY 		8-97867-235-2 01 1 9712- ●
8 16.345 HANDLE; INSIDE,RR DOOR
DARK BEIGE 		8-94345-838-3 01 1 9312-9510 ● ●
8 16.345 HANDLE; INSIDE,RR DOOR
DARK BEIGE 		8-94345-838-3 01 1 9511-9711 ●
8 16.345 HANDLE; INSIDE,RR DOOR
DARK GRAY 		8-97867-234-3 01 1 9712- ●
8 16.345 HANDLE; INSIDE,RR DOOR
DARK BEIGE 		8-94345-835-3 01 1 9312-9510 ● ●
8 16.345 HANDLE; INSIDE,RR DOOR
DARK BEIGE 		8-94345-835-3 01 1 9511-9711 ●
8 16.345 HANDLE; INSIDE,RR DOOR
DARK GRAY 		8-97867-233-3 01 1 9712- ●
9 16.345 GROMMET; SCREW,INSIDE HANDLE
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 04 1 9312-9510 ● ●
9 16.345 GROMMET; SCREW,INSIDE HANDLE
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 04 1 9511- ●
11 16.345 SCREW; INSIDE HANDLE
(A) M4X10 TAPPING OVAL-HEAD 		0-70680-410-0 02 1 9312-9510 ● ●
11 16.345 SCREW; INSIDE HANDLE
(A) M4X10 TAPPING OVAL-HEAD 		0-70680-410-0 02 1 9511- ●
11 16.345 SCREW; INSIDE HANDLE
16.802 (B) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 9312-9510 ● ●
11 16.345 SCREW; INSIDE HANDLE
16.802 (B) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 9511- ●
12 16.350 ROD; DOOR LK RR 8-97852-226-1 01 1 9312-9510 ● ●
12 16.350 ROD; DOOR LK RR 8-97852-226-1 01 1 9511- ●
12 16.350 ROD; DOOR LK RR 8-97852-225-1 01 1 9312-9510 ● ●
12 16.350 ROD; DOOR LK RR 8-97852-225-1 01 1 9511- ●
24 16.345 ANTIRATTLER; DOOR INSIDE HANDLE
AUTO DOOR LOCK<AU4> 16.341 ID=3.8 WHITE 		8-94217-699-0 02 1 9312-9510 ● ●
24 16.345 ANTIRATTLER; DOOR INSIDE HANDLE
AUTO DOOR LOCK<AU4> 16.341 ID=3.8 WHITE 		8-94217-699-0 02 1 9511- ●
24 16.345 ANTIRATTLER; DOOR INSIDE HANDLE
EXC. AUTO DOOR LOCK<AU4> 16.341 ID=3.8 WHITE 		8-94217-699-0 06 1 9312-9510 ● ●
24 16.345 ANTIRATTLER; DOOR INSIDE HANDLE
EXC. AUTO DOOR LOCK<AU4> 16.341 ID=3.8 WHITE 		8-94217-699-0 06 1 9511- ●
28 16.157 ESCUTCHEON; LK BUTTON,RR DOOR
DARK BEIGE 		8-97852-453-1 02 1 9312-9510 ● ●
28 16.157 ESCUTCHEON; LK BUTTON,RR DOOR
DARK BEIGE 		8-97852-453-1 02 1 9511-9711 ●
28 16.157 ESCUTCHEON; LK BUTTON,RR DOOR
DARK GRAY 		8-97867-208-1 02 1 9712- ●
30 16.335 STRIKER; RR DOOR 8-97852-106-1 02 1 9312-9510 ● ●
30 16.335 STRIKER; RR DOOR 8-97852-106-1 02 1 9511- ●
32 16.335 SCREW; DOOR STRIKER
M8X20 		1-09981-450-1 04 1 9312-9510 ● ●
32 16.335 SCREW; DOOR STRIKER
M8X20 		1-09981-450-3 04 1 9511- ●
35 16.155 PLUG; RR DOOR LWR HOLE 8-97852-222-1 02 1 9312-9510 ● ●
35 16.155 PLUG; RR DOOR LWR HOLE 8-97852-222-1 02 1 9511- ●
37 16.157 GROMMET; RR DOOR
EXC. AUTO DOOR LOCK<AU4> 16.570 		8-94279-724-0 02 1 9312-9510 ● ●
37 16.157 GROMMET; RR DOOR
EXC. AUTO DOOR LOCK<AU4> 16.570 		8-94279-724-0 02 1 9511- ●
39 16.350 SEAL; INSIDE HANDLE,RR DOOR
16.345 		8-94271-609-0 02 1 9312-9510 ● ●
39 16.350 SEAL; INSIDE HANDLE,RR DOOR
16.345 		8-94271-609-0 02 1 9511- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
