◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10724 - EXR RHD ▶ 5 - Frame, Cab Mounting ▶ 5-01 - FRAME AND OTHER PARTS ▶
5-01 — FRAME AND OTHER PARTS (#4887) — 95 parça

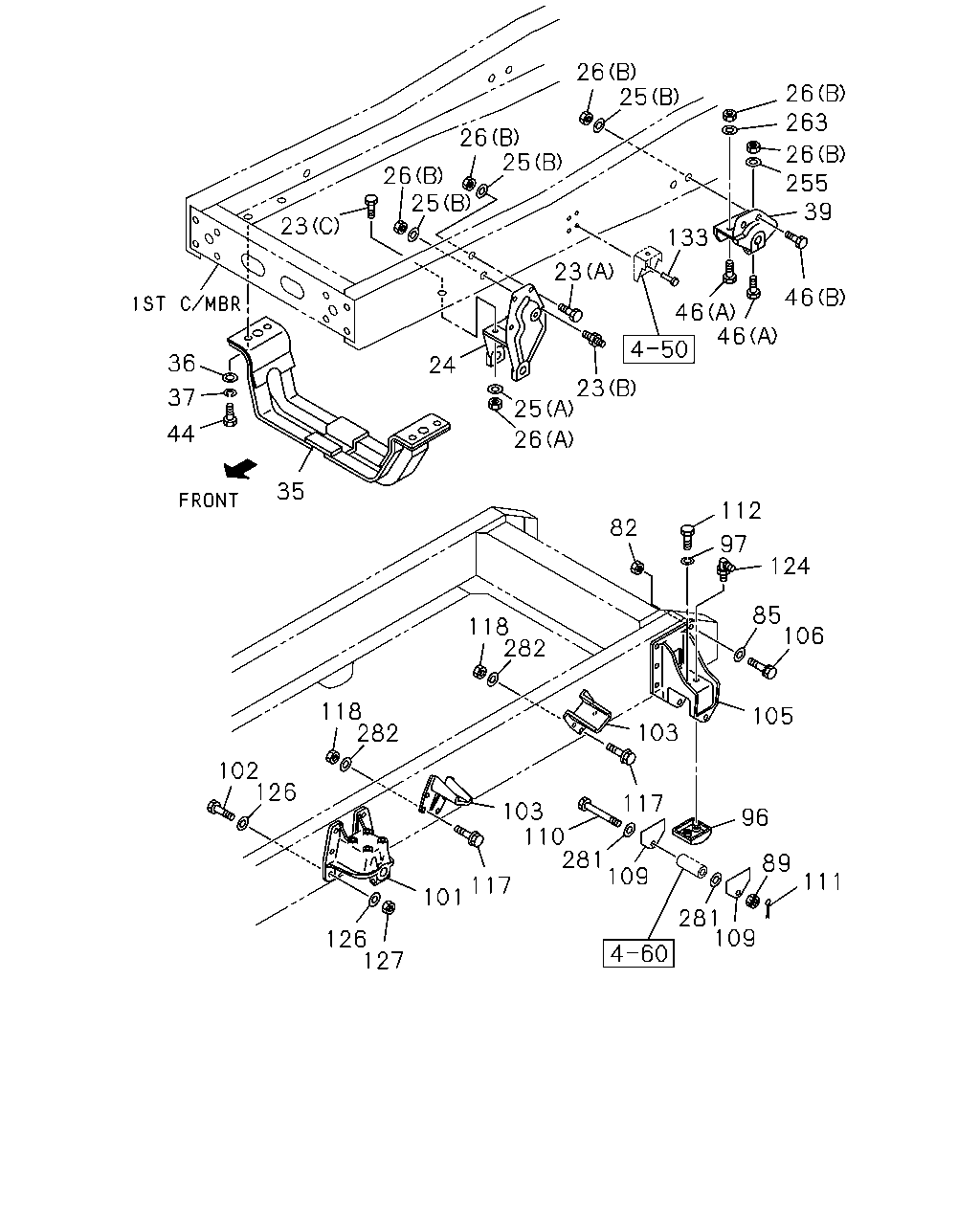

çizim 9151
26 25 26 263 26 25 26 255 39 26 25 133 23 23 46 46 46 36 24 23 37 25 44 26 35 112 82 97 124 85 106 118 282 118 282 105 103 102 126 117 103 110 281 109 96 89 111 117 101 281 109 126 127
BalonParca AdiParca NoAdetTipApplied Date
23 BOLT; BRKT,SPR
(B) M12X35,M14X45 L=100 		1-09029-075-0 04 1 9601-
23 BOLT; BRKT,SPR
(A) M14X40 		9-92061-440-0 04 1 9601-
23 BOLT; BRKT,SPR
(C) M16X50 		9-92061-650-0 04 1 9601-
24 BRACKET; FRT SPR,FRT 1-53351-220-0 01 1 9601-
24 BRACKET; FRT SPR,FRT 1-53351-219-0 01 1 9601-
25 WASHER; PL,BRKT
(B) ID=15 		9-09651-069-0 24 1 9601-9904
25 WASHER; PL,BRKT
(B) ID=15 		9-09651-069-0 32 1 9905-
25 WASHER; PL,BRKT
L TYPE ENG<90L> (A) ID=16.2 		1-09503-223-0 08 1 9601-
25 WASHER; PL,BRKT
V TYPE ENG<91L> (A) ID=16.2 		1-09503-223-0 06 1 9601-
26 NUT; BRKT,SPR
(B) M14 		9-99110-514-0 08 1 9601-
26 NUT; BRKT,SPR
L TYPE ENG<90L> (A) M16 		9-99110-516-0 04 1 9601-
26 NUT; BRKT,SPR
V TYPE ENG<91L> (A) M16 		9-99110-516-0 02 1 9601-
35 MEMBER; UNDER 1-53174-214-2 01 1 9601-
36 WASHER; PL,UNDER MBR
ID=17 		9-09164-516-0 04 1 9601-
37 WASHER; LK,UNDER MBR
ID=16.2 		9-09150-816-0 04 1 9601-
39 BRACKET; FRT SPR,RR 1-53352-153-0 01 1 9601-
39 BRACKET; FRT SPR,RR 1-53352-152-0 01 1 9601-
44 BOLT; UNDER MBR
M16X50 		9-92061-650-0 04 1 9601-9606
44 BOLT; UNDER MBR
M16X45 		9-92061-645-0 04 1 9607-
46 BOLT; BRKT FIX
(B) M14X40 		9-92061-440-0 04 1 9601-
46 BOLT; BRKT FIX
(A) M14X50 		9-92061-450-0 04 1 9601-
82 NUT; BRKT
M14 		9-99110-514-0 12 1 9601-9904
85 WASHER; PL,BRKT
ID=15 		9-09651-069-0 12 1 9601-9904
89 NUT; LEAF SPR STOPPER
M14 		9-99116-414-0 02 1 9601-
96 PAD; RR SPR 1-53359-047-0 02 1 9601-
97 WASHER; LK,PAD
ID=14.2 		9-09150-514-0 04 1 9601-9606
97 WASHER; LK,PAD
ID=14.2 		9-09150-514-0 04 1 9609-
101 BRACKET; RR SPR,FRT 1-53353-081-2 02 1 9601-
102 BOLT; BRKT,RR SPR
M14X40 		9-92061-440-0 12 1 9601-9912
102 BOLT; BRKT,RR SPR
6WA1 TC-N(54L),6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> EXC. FRONT STABILIZER SHAFT<F59>,REAR STABILIZER SHAFT<F61> M14X40 		9-92061-440-0 12 1 0001-
102 BOLT; BRKT,RR SPR
M14X50 		9-92061-450-0 12 1 0001-
103 STOPPER; SUB SPR 1-53356-057-0 04 1 9601-
105 BRACKET; RR SPR,RR 1-53354-066-2 02 1 9601-
106 BOLT; BRKT
M14X40 		9-92061-440-0 12 1 9601-9912
106 BOLT; BRKT
6WA1 TC-N(54L),6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> EXC. FRONT STABILIZER SHAFT<F59>,REAR STABILIZER SHAFT<F61> M14X40 		9-92061-440-0 12 1 0001-
106 BOLT; BRKT
M14X50 		9-92061-450-0 12 1 0001-
109 SHIM; RR SPR
T=4.5 		1-53359-061-1 02 1 9601-
109 SHIM; RR SPR
T=3.2 		1-53359-062-1 02 1 9601-
110 BOLT; LEAF SPR STOPPER
M14X167 		1-09000-007-0 02 1 9601-
111 PIN; SPLIT,LEAF SPR STOPPER
OD=2.8 L=28 		9-08113-028-0 02 1 9601-
112 BOLT; PAD
M14X35 		0-20801-435-0 04 1 9601-9606
112 BOLT; PAD
M14X30 FLANGE 		0-28681-430-0 04 1 9607-9608
112 BOLT; PAD
M14X35 		9-92061-435-0 04 1 9609-
117 BOLT; STOPPER
M14X40 		9-92061-440-0 16 1 9601-
118 NUT; STOPPER
M14 		9-99110-514-0 16 1 9601-
124 NIPPLE; GREASE
PT1/8 ELBOW 		9-09031-210-0 02 1 9601-
126 WASHER; PL,BRKT
ID=15 		9-09651-069-0 24 1 9601-
127 NUT; BRKT
M14 		9-99110-514-0 12 1 9601-9904
127 NUT; BRKT
M14 		9-99110-514-0 24 1 9905-
133 RIVET; BRKT
D13X36 PLATED TAPER END 		9-06771-336-0 08 1 9905-
255 WASHER; PL,BRKT
ID=15 		9-09651-069-0 12 1 9905-9912
255 WASHER; PL,BRKT
6WA1 TC-N(54L),6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> EXC. FRONT STABILIZER SHAFT<F59>,REAR STABILIZER SHAFT<F61> ID=15 		9-09651-069-0 12 1 0001-
255 WASHER; PL,BRKT
ID=15 		9-09651-069-0 24 1 0001-
263 WASHER; PL,SUB FRAME
FRONT STABILIZER SHAFT<F59> ID=15 		9-09651-069-0 04 1 9905-
281 WASHER; LEAF SPR STOPPER
ID=15 OD=30 		9-09160-614-0 04 1 9601-
282 WASHER; PL,STOPPER
ID=15 		9-09651-069-0 16 1 9601-

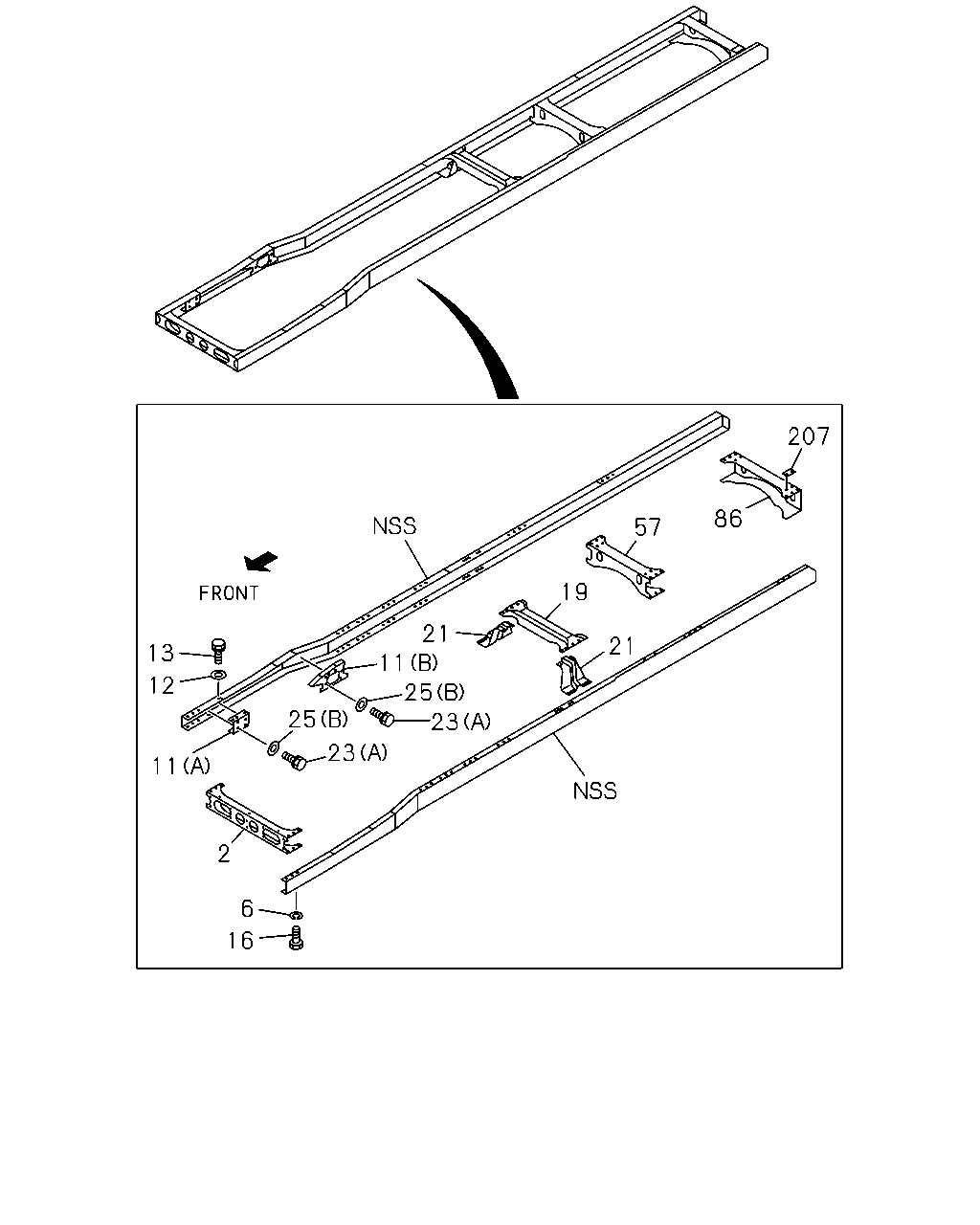

çizim 40953
207 86 57 19 2 21 13 11 12 25 25 23 23 11 2 6 16
BalonParca AdiParca NoAdetTipApplied Date
2 MEMBER; CROSS,1ST 1-53181-526-4 01 1 9601-
6 WASHER; LK,1ST C/MBR
EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> ID=16.2 		9-09150-616-0 02 1 9601-9904
6 WASHER; LK,1ST C/MBR
EXC. BUMPER W/HEADLAMPS<SLB> ID=16.2 		9-09150-616-0 02 1 9905-
11 BRACKET; ENG MTG
L TYPE ENG<90L> (A) 		1-53219-472-1 01 1 9601-9904
11 BRACKET; ENG MTG
L TYPE ENG<90L> (B) 		1-53219-577-2 01 1 9601-9904
11 BRACKET; ENG MTG
L TYPE ENG<90L> (A) 		1-53219-471-0 01 1 9601-9904
11 BRACKET; ENG MTG
L TYPE ENG<90L> (B) 		1-53219-576-2 01 1 9601-9904
11 BRACKET; ENG MTG
V TYPE ENG<91L> (A) 		1-53219-583-0 01 1 9905-
11 BRACKET; ENG MTG
V TYPE ENG<91L> (B) 		1-53219-585-3 01 1 9905-
11 BRACKET; ENG MTG
V TYPE ENG<91L> (A) 		1-53219-582-0 01 1 9905-
11 BRACKET; ENG MTG
V TYPE ENG<91L> (B) 		1-53219-584-3 01 1 9905-
11 BRACKET; ENG MTG
L TYPE ENG<90L> (A) 		1-53219-472-1 01 1 9905-
11 BRACKET; ENG MTG
10PE1S(60L) (A) 		1-53219-583-0 01 1 9601-9904
11 BRACKET; ENG MTG
10PE1S(60L) (B) 		1-53219-585-3 01 1 9601-9904
11 BRACKET; ENG MTG
10PE1S(60L) (A) 		1-53219-582-0 01 1 9601-9904
11 BRACKET; ENG MTG
10PE1S(60L) (B) 		1-53219-584-3 01 1 9601-9904
11 BRACKET; ENG MTG
L TYPE ENG<90L> (B) 		1-53219-577-2 01 1 9905-
11 BRACKET; ENG MTG
L TYPE ENG<90L> (A) 		1-53219-471-0 01 1 9905-
11 BRACKET; ENG MTG
L TYPE ENG<90L> (B) 		1-53219-576-2 01 1 9905-
12 WASHER; PL,BRKT,ENG MTG
L TYPE ENG<90L> ID=15 		9-09651-069-0 02 1 9601-9904
12 WASHER; PL,BRKT,ENG MTG
V TYPE ENG<91L> ID=15 		9-09651-069-0 01 1 9601-
12 WASHER; PL,BRKT,ENG MTG
L TYPE ENG<90L> ID=15 		9-09651-069-0 02 1 9905-
13 BOLT; BRKT,ENG MTG
L TYPE ENG<90L> M14X40 		9-92061-440-0 02 1 9601-9904
13 BOLT; BRKT,ENG MTG
V TYPE ENG<91L> M14X40 		9-92061-440-0 01 1 9601-
13 BOLT; BRKT,ENG MTG
L TYPE ENG<90L> M14X40 		9-92061-440-0 02 1 9905-
16 BOLT; 1ST C/MBR TO S/MBR
EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X40 		0-20801-640-0 02 1 9601-9904
16 BOLT; 1ST C/MBR TO S/MBR
EXC. BUMPER W/HEADLAMPS<SLB> M16X40 		0-20801-640-0 02 1 9905-
19 MEMBER; CROSS,2ND 1-53174-231-1 01 1 9601-
21 GUSSET; 2ND CROSS 1-53164-212-0 02 1 9601-
23 BOLT; BRKT,SPR
(B) M12X35,M14X45 L=100 		1-09029-075-0 04 1 9601-
23 BOLT; BRKT,SPR
(A) M14X40 		9-92061-440-0 04 1 9601-
23 BOLT; BRKT,SPR
(C) M16X50 		9-92061-650-0 04 1 9601-
25 WASHER; PL,BRKT
(B) ID=15 		9-09651-069-0 24 1 9601-9904
25 WASHER; PL,BRKT
(B) ID=15 		9-09651-069-0 32 1 9905-
25 WASHER; PL,BRKT
L TYPE ENG<90L> (A) ID=16.2 		1-09503-223-0 08 1 9601-
25 WASHER; PL,BRKT
V TYPE ENG<91L> (A) ID=16.2 		1-09503-223-0 06 1 9601-
57 MEMBER; CROSS,RR SUSP FRT 1-53181-319-6 01 1 9601-
86 MEMBER; CROSS,RR SUSP RR 1-53181-319-6 01 1 9601-
207 SPACER; 4TH C/MBR 1-53168-171-1 02 1 9601-
