6-32 — FRONT DOOR LOCK AND HANDLE (#48865) — 144 parça

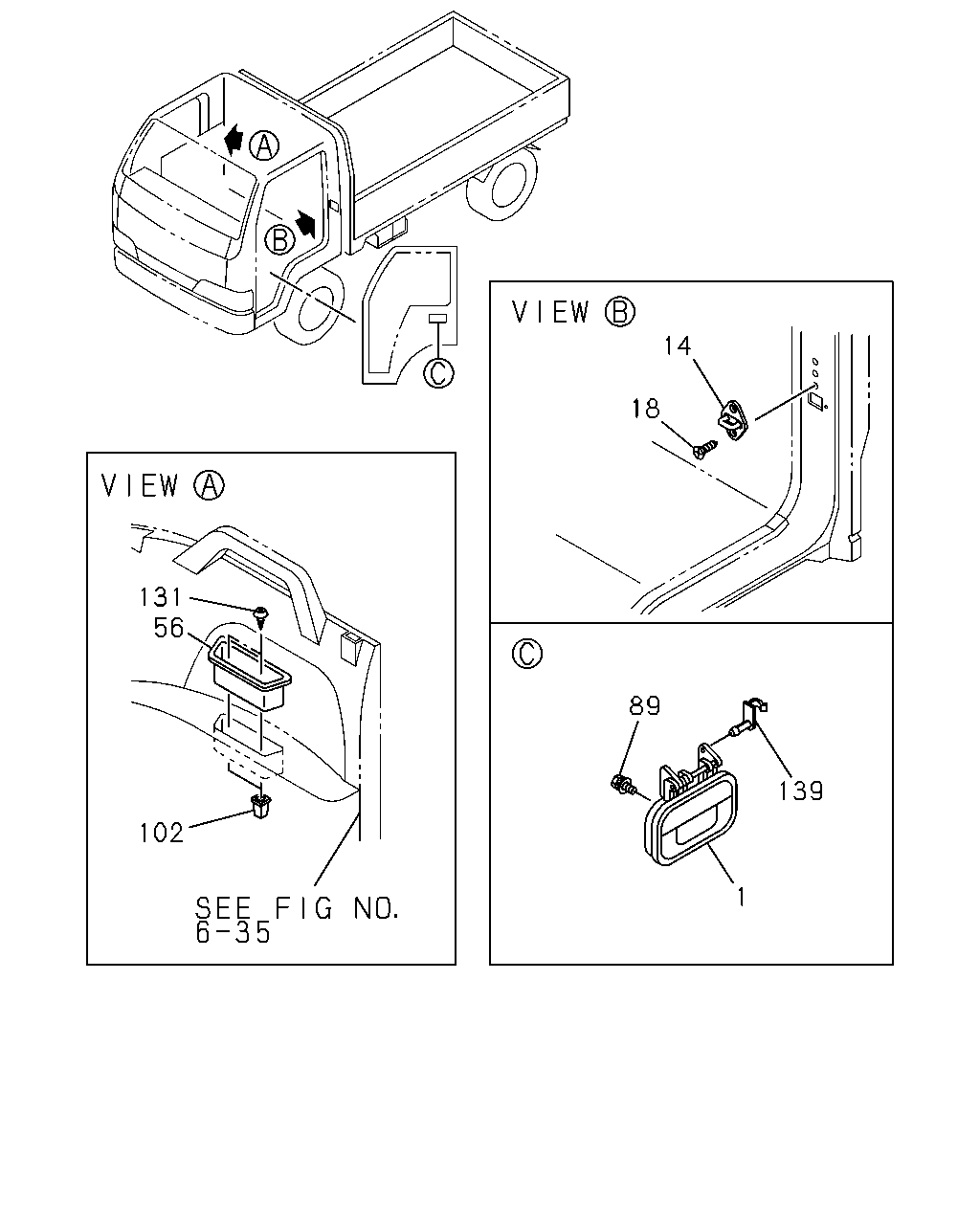

çizim 17020
14 18 131 56 89 139 102 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 16.350 HANDLE; OUTSIDE,FRT DOOR 8-97852-108-5 01 1 9312-9510 ● ● ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR 8-97852-108-5 01 1 9511-9607 ● ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR 8-97867-722-0 01 1 9608-9611 ● ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR 8-97867-722-0 01 1 9612-9711 ● ● ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR 8-97867-722-1 01 1 9712- ● ● ● ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR 8-97852-107-5 01 1 9312-9510 ● ● ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR 8-97852-107-5 01 1 9511-9607 ● ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR 8-97867-721-0 01 1 9608-9611 ● ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR 8-97867-721-0 01 1 9612-9711 ● ● ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR 8-97867-721-1 01 1 9712- ● ● ● ● ● ●
14 16.335 STRIKER; FRT DOOR 8-97852-106-1 02 1 9312-9510 ● ● ● ● ●
14 16.335 STRIKER; FRT DOOR 8-97852-106-1 02 1 9511-9611 ● ● ● ●
14 16.335 STRIKER; FRT DOOR 8-97852-106-1 02 1 9612-9711 ● ● ● ● ●
14 16.335 STRIKER; FRT DOOR 8-97852-106-1 02 1 9712- ● ● ● ● ● ●
18 16.335 SCREW; DOOR STRIKER
M8X20 		1-09981-450-1 04 1 9312-9510 ● ● ● ● ●
18 16.335 SCREW; DOOR STRIKER
M8X20 		1-09981-450-3 04 1 9511-9611 ● ● ● ●
18 16.335 SCREW; DOOR STRIKER
M8X20 		1-09981-450-3 04 1 9612-9711 ● ● ● ● ●
18 16.335 SCREW; DOOR STRIKER
M8X20 		1-09981-450-3 04 1 9712- ● ● ● ● ● ●
56 16.157 ESCUTCHEON; LOCK KNOB
DARK BEIGE 		8-97852-421-3 02 1 9312-9510 ● ● ● ● ●
56 16.157 ESCUTCHEON; LOCK KNOB
DARK BEIGE 		8-97852-421-3 02 1 9511-9611 ● ● ● ●
56 16.157 ESCUTCHEON; LOCK KNOB
DARK BEIGE 		8-97852-421-3 02 1 9612-9711 ● ● ● ● ●
56 16.157 ESCUTCHEON; LOCK KNOB
DARK GRAY 		8-97852-669-3 02 1 9712- ● ● ● ● ● ●
89 16.350 BOLT; DOOR OUTSIDE HANDLE
03.680 M6X12 W/LK&PL WASHER 		0-50140-612-0 04 1 9312-9410 ● ● ● ● ●
89 16.350 BOLT; DOOR OUTSIDE HANDLE
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 9411-9510 ● ● ● ● ●
89 16.350 BOLT; DOOR OUTSIDE HANDLE
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 9511-9611 ● ● ● ●
89 16.350 BOLT; DOOR OUTSIDE HANDLE
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 9612-9711 ● ● ● ● ●
89 16.350 BOLT; DOOR OUTSIDE HANDLE
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 9712- ● ● ● ● ● ●
102 16.345 GROMMET; SCREW,ESCUTCHEON,DOOR P
D=8X8 L=7.5 M5 YELLOW 		8-94279-740-0 06 1 9312-9510 ● ● ● ● ●
102 16.345 GROMMET; SCREW,ESCUTCHEON,DOOR P
D=8X8 L=7.5 M5 YELLOW 		8-94279-740-0 06 1 9511-9611 ● ● ● ●
102 16.345 GROMMET; SCREW,ESCUTCHEON,DOOR P
D=8X8 L=7.5 M5 YELLOW 		8-94279-740-0 06 1 9612-9705 ● ● ● ● ●
102 16.345 GROMMET; SCREW,ESCUTCHEON,DOOR P
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 9706-9711 ● ● ● ● ●
102 16.345 GROMMET; SCREW,ESCUTCHEON,DOOR P
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 9712- ● ● ● ● ● ●
131 16.345 SCREW; ESCUTCHEON,DOOR PULL
09.663 M5X12 TAPPING W/PL WASHER 		0-74110-512-0 06 1 9312-9510 ● ● ● ● ●
131 16.345 SCREW; ESCUTCHEON,DOOR PULL
09.663 M5X12 TAPPING W/PL WASHER 		0-74110-512-0 06 1 9511-9611 ● ● ● ●
131 16.345 SCREW; ESCUTCHEON,DOOR PULL
09.663 M5X12 TAPPING W/PL WASHER 		0-74110-512-0 06 1 9612-9711 ● ● ● ● ●
131 16.345 SCREW; ESCUTCHEON,DOOR PULL
09.663 M5X12 TAPPING W/PL WASHER 		0-74110-512-0 06 1 9712- ● ● ● ● ● ●
139 16.350 HOLDER; ROD,DOOR HANDLE 8-97852-652-1 01 1 9312-9510 ● ● ● ● ●
139 16.350 HOLDER; ROD,DOOR HANDLE 8-97852-652-1 01 1 9511-9611 ● ● ● ●
139 16.350 HOLDER; ROD,DOOR HANDLE 8-97852-652-1 01 1 9612-9711 ● ● ● ● ●
139 16.350 HOLDER; ROD,DOOR HANDLE 8-97852-652-1 01 1 9712- ● ● ● ● ● ●
139 16.350 HOLDER; ROD,DOOR HANDLE 8-97852-651-1 01 1 9312-9510 ● ● ● ● ●
139 16.350 HOLDER; ROD,DOOR HANDLE 8-97852-651-1 01 1 9511-9611 ● ● ● ●
139 16.350 HOLDER; ROD,DOOR HANDLE 8-97852-651-1 01 1 9612-9711 ● ● ● ● ●
139 16.350 HOLDER; ROD,DOOR HANDLE 8-97852-651-1 01 1 9712- ● ● ● ● ● ●

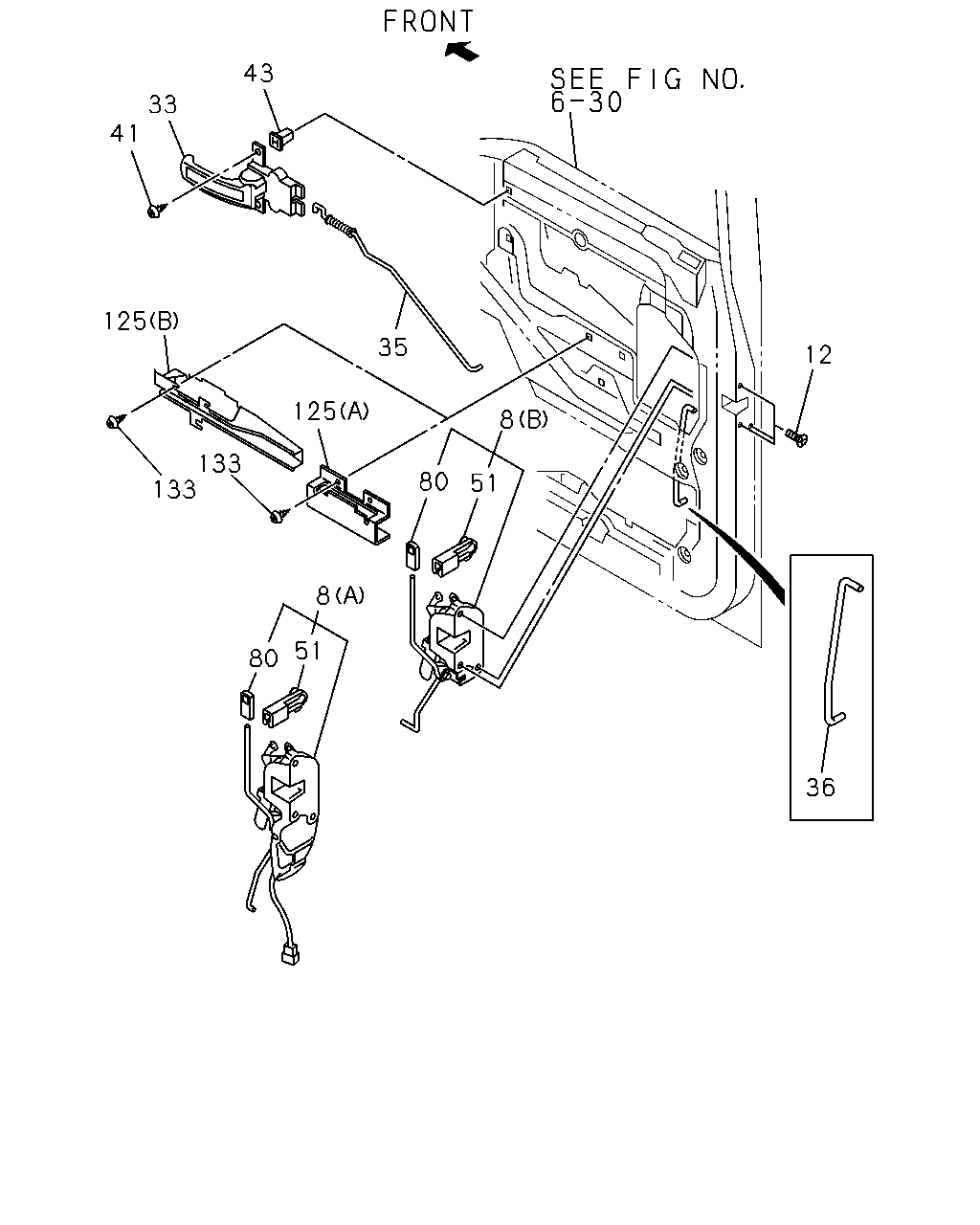

çizim 66773
43 33 41 125 35 12 125 8 133 133 80 51 8 51 80 36
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> VOLTAGE 24V<7AE> (A) DARK BEIGE 		8-97852-415-5 01 1 9312-9510 ● ● ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> VOLTAGE 24V<7AE> (A) DARK BEIGE 		8-97852-415-6 01 1 9511-9606 ● ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> VOLTAGE 24V<7AE> (A) DARK BEIGE 		8-97852-415-6 01 1 9607-9611 ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> (A) DARK BEIGE 		8-97852-415-6 01 1 9607-9611 ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> VOLTAGE 24V<7AE> (A) DARK BEIGE 		8-97852-415-6 01 1 9612-9705 ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> (A) DARK BEIGE 		8-97852-415-6 01 1 9612-9705 ● ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> VOLTAGE 24V<7AE> (A) DARK BEIGE 		8-97852-415-6 01 1 9706-9711 ● ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> (A) DARK BEIGE 		8-97852-415-6 01 1 9706-9711 ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> VOLTAGE 24V<7AE> (A) DARK GRAY 		8-97859-747-6 01 1 9712- ● ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> (A) DARK GRAY 		8-97859-747-6 01 1 9712- ● ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> VOLTAGE 24V<7AE> (A) DARK BEIGE 		8-97852-414-5 01 1 9312-9510 ● ● ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> VOLTAGE 24V<7AE> (A) DARK BEIGE 		8-97852-414-5 01 1 9511-9601 ● ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> (A) DARK BEIGE 		8-97852-414-6 01 1 9602-9611 ● ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> (A) DARK BEIGE 		8-97852-414-6 01 1 9612-9711 ● ● ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> (A) DARK GRAY 		8-97859-746-6 01 1 9712- ● ● ● ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> (B) DARK BEIGE 		8-97852-413-3 01 1 9312-9510 ● ● ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> (B) DARK BEIGE 		8-97852-413-3 01 1 9511-9611 ● ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> (B) DARK BEIGE 		8-97852-413-3 01 1 9612-9711 ● ● ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> (B) DARK GRAY 		8-97857-566-3 01 1 9712- ● ● ● ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> (B) DARK BEIGE 		8-97852-412-3 01 1 9312-9510 ● ● ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> (B) DARK BEIGE 		8-97852-412-3 01 1 9511-9611 ● ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> (B) DARK BEIGE 		8-97852-412-3 01 1 9612-9711 ● ● ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> (B) DARK GRAY 		8-97857-565-3 01 1 9712- ● ● ● ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> EXC. VOLTAGE 24V<7AE> (A) DARK BEIGE 		8-97852-416-5 01 1 9312-9506 ● ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> EXC. VOLTAGE 24V<7AE> (A) DARK BEIGE 		8-97852-416-6 01 1 9507-9606 ● ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> EXC. VOLTAGE 24V<7AE> (A) DARK BEIGE 		8-97852-416-6 01 1 9607-9705 ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> EXC. VOLTAGE 24V<7AE> (A) DARK BEIGE 		8-97852-416-6 01 1 9706-9711 ● ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> EXC. VOLTAGE 24V<7AE> (A) DARK GRAY 		8-97859-748-6 01 1 9712- ● ● ● ●
12 16.330 SCREW; DOOR LK
M6X16 		1-09981-447-1 06 1 9312-9510 ● ● ● ● ●
12 16.330 SCREW; DOOR LK
M6X16 		1-09981-447-1 06 1 9511-9611 ● ● ● ●
12 16.330 SCREW; DOOR LK
M6X16 		1-09981-447-1 06 1 9612-9711 ● ● ● ● ●
12 16.330 SCREW; DOOR LK
M6X16 		1-09981-447-1 06 1 9712- ● ● ● ● ● ●
33 16.345 LEVER ASM; INSIDE,FRT DOOR
DARK BEIGE 		8-97852-615-0 01 1 9312-9506 ● ● ● ● ●
33 16.345 LEVER ASM; INSIDE,FRT DOOR
DARK BEIGE 		8-97866-600-0 01 1 9507-9510 ● ● ● ● ●
33 16.345 LEVER ASM; INSIDE,FRT DOOR
DARK BEIGE 		8-97866-600-1 01 1 9511-9611 ● ● ● ●
33 16.345 LEVER ASM; INSIDE,FRT DOOR
DARK BEIGE 		8-97866-600-1 01 1 9612-9711 ● ● ● ● ●
33 16.345 LEVER ASM; INSIDE,FRT DOOR
DARK GRAY 		8-97866-602-1 01 1 9712- ● ● ● ● ● ●
33 16.345 LEVER ASM; INSIDE,FRT DOOR
DARK BEIGE 		8-97852-614-0 01 1 9312-9506 ● ● ● ● ●
33 16.345 LEVER ASM; INSIDE,FRT DOOR
DARK BEIGE 		8-97866-599-0 01 1 9507-9510 ● ● ● ● ●
33 16.345 LEVER ASM; INSIDE,FRT DOOR
DARK BEIGE 		8-97866-599-1 01 1 9511-9611 ● ● ● ●
33 16.345 LEVER ASM; INSIDE,FRT DOOR
DARK BEIGE 		8-97866-599-1 01 1 9612-9711 ● ● ● ● ●
33 16.345 LEVER ASM; INSIDE,FRT DOOR
DARK GRAY 		8-97866-601-1 01 1 9712- ● ● ● ● ● ●
35 16.341 LINK; DOOR LOCK,INSIDE 8-97852-110-0 01 1 9312-9510 ● ● ● ● ●
35 16.341 LINK; DOOR LOCK,INSIDE 8-97852-110-0 01 1 9511-9611 ● ● ● ●
35 16.341 LINK; DOOR LOCK,INSIDE 8-97852-110-0 01 1 9612-9711 ● ● ● ● ●
35 16.341 LINK; DOOR LOCK,INSIDE 8-97852-110-1 01 1 9712- ● ● ● ● ● ●
35 16.341 LINK; DOOR LOCK,INSIDE 8-97852-109-0 01 1 9312-9510 ● ● ● ● ●
35 16.341 LINK; DOOR LOCK,INSIDE 8-97852-109-0 01 1 9511-9611 ● ● ● ●
35 16.341 LINK; DOOR LOCK,INSIDE 8-97852-109-0 01 1 9612-9711 ● ● ● ● ●
35 16.341 LINK; DOOR LOCK,INSIDE 8-97852-109-1 01 1 9712- ● ● ● ● ● ●
36 16.332 LINK; DOOR LOCK,OUTSIDE 8-97852-335-0 01 1 9312-9510 ● ● ● ● ●
36 16.332 LINK; DOOR LOCK,OUTSIDE 8-97852-335-0 01 1 9511-9611 ● ● ● ●
36 16.332 LINK; DOOR LOCK,OUTSIDE 8-97852-335-0 01 1 9612-9711 ● ● ● ● ●
36 16.332 LINK; DOOR LOCK,OUTSIDE 8-97852-335-0 01 1 9712- ● ● ● ● ● ●
36 16.332 LINK; DOOR LOCK,OUTSIDE 8-97852-334-0 01 1 9312-9510 ● ● ● ● ●
36 16.332 LINK; DOOR LOCK,OUTSIDE 8-97852-334-0 01 1 9511-9611 ● ● ● ●
36 16.332 LINK; DOOR LOCK,OUTSIDE 8-97852-334-0 01 1 9612-9711 ● ● ● ● ●
36 16.332 LINK; DOOR LOCK,OUTSIDE 8-97852-334-0 01 1 9712- ● ● ● ● ● ●
41 16.345 SCREW; INSIDE HANDLE
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 9312-9510 ● ● ● ● ●
41 16.345 SCREW; INSIDE HANDLE
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 9511-9611 ● ● ● ●
41 16.345 SCREW; INSIDE HANDLE
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 9612-9711 ● ● ● ● ●
41 16.345 SCREW; INSIDE HANDLE
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 9712- ● ● ● ● ● ●
43 16.345 GROMMET; SCREW,INSIDE LEVER,DOOR
D=8X8 L=7.5 M5 YELLOW 		8-94279-740-0 04 1 9312-9510 ● ● ● ● ●
43 16.345 GROMMET; SCREW,INSIDE LEVER,DOOR
D=8X8 L=7.5 M5 YELLOW 		8-94279-740-0 04 1 9511-9611 ● ● ● ●
43 16.345 GROMMET; SCREW,INSIDE LEVER,DOOR
D=8X8 L=7.5 M5 YELLOW 		8-94279-740-0 04 1 9612-9705 ● ● ● ● ●
43 16.345 GROMMET; SCREW,INSIDE LEVER,DOOR
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 04 1 9706-9711 ● ● ● ● ●
43 16.345 GROMMET; SCREW,INSIDE LEVER,DOOR
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 04 1 9712- ● ● ● ● ● ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD
AUTO DOOR LOCK<AU4> 		8-97859-069-0 01 1 9312-9406 ● ● ● ● ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD 8-97859-069-0 01 1 9407-9510 ● ● ● ● ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD 8-97859-069-0 01 1 9511-9611 ● ● ● ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD 8-97859-069-0 01 1 9612-9711 ● ● ● ● ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD 8-97859-069-0 01 1 9712- ● ● ● ● ● ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD
AUTO DOOR LOCK<AU4> VOLTAGE 24V<7AE> 16.345 		8-97852-643-0 01 1 9312-9406 ● ● ● ● ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD
16.345 		8-97852-643-0 01 1 9407-9510 ● ● ● ● ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD
16.345 		8-97852-643-0 01 1 9511-9601 ● ● ● ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD
16.345 		8-97852-643-0 01 1 9602-9611 ● ● ● ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD
16.345 		8-97852-643-0 01 1 9612-9711 ● ● ● ● ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD
16.345 		8-97852-643-0 01 1 9712- ● ● ● ● ● ●
80 16.157 KNOB; DOOR LOCK 8-97852-656-0 02 1 9312-9510 ● ● ● ● ●
80 16.157 KNOB; DOOR LOCK 8-97852-656-0 02 1 9511-9601 ● ● ● ●
80 16.157 KNOB; DOOR LOCK
EXC. AUTO DOOR LOCK<AU4> 		8-97852-656-0 02 1 9602-9611 ● ● ● ●
80 16.157 KNOB; DOOR LOCK
EXC. AUTO DOOR LOCK<AU4> 		8-97852-656-0 02 1 9612-9711 ● ● ● ● ●
80 16.157 KNOB; DOOR LOCK
EXC. AUTO DOOR LOCK<AU4> DARK GRAY 		8-97098-574-0 02 1 9712- ● ● ● ● ● ●
80 16.157 KNOB; DOOR LOCK
AUTO DOOR LOCK<AU4> DARK BEIGE 		8-97859-070-0 01 1 9602-9611 ● ● ● ●
80 16.157 KNOB; DOOR LOCK
AUTO DOOR LOCK<AU4> DARK BEIGE 		8-97859-070-0 01 1 9602-9611 ● ● ● ●
80 16.157 KNOB; DOOR LOCK
AUTO DOOR LOCK<AU4> DARK BEIGE 		8-97859-070-0 01 1 9612-9711 ● ● ● ● ●
80 16.157 KNOB; DOOR LOCK
AUTO DOOR LOCK<AU4> DARK BEIGE 		8-97859-070-0 01 1 9612-9711 ● ● ● ● ●
80 16.157 KNOB; DOOR LOCK
AUTO DOOR LOCK<AU4> DARK GRAY 		8-97098-574-0 01 1 9712- ● ● ● ● ● ●
80 16.157 KNOB; DOOR LOCK
AUTO DOOR LOCK<AU4> DARK GRAY 		8-97098-574-0 01 1 9712- ● ● ● ● ● ●
125 16.341 BRACKET; DOOR PULL
(A) 		8-97852-125-1 02 1 9312-9510 ● ● ● ● ●
125 16.341 BRACKET; DOOR PULL
(A) 		8-97852-125-1 02 1 9511-9611 ● ● ● ●
125 16.341 BRACKET; DOOR PULL
(A) 		8-97852-125-1 02 1 9612-9710 ● ● ● ● ●
125 16.341 BRACKET; DOOR PULL
(B) 		8-97869-459-0 01 1 9711-9711 ● ● ● ● ●
125 16.341 BRACKET; DOOR PULL
(B) 		8-97869-459-0 01 1 9712- ● ● ● ● ● ●
125 16.341 BRACKET; DOOR PULL
(B) 		8-97869-460-0 01 1 9711-9711 ● ● ● ● ●
125 16.341 BRACKET; DOOR PULL
(B) 		8-97869-460-0 01 1 9712- ● ● ● ● ● ●
133 16.345 SCREW; DOOR PULL STAY
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 9312-9510 ● ● ● ● ●
133 16.345 SCREW; DOOR PULL STAY
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 9511-9611 ● ● ● ●
133 16.345 SCREW; DOOR PULL STAY
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 9612-9711 ● ● ● ● ●
133 16.345 SCREW; DOOR PULL STAY
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 9712- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
