6-30 — FRONT DOOR AND HINGE (#48863) — 101 parça

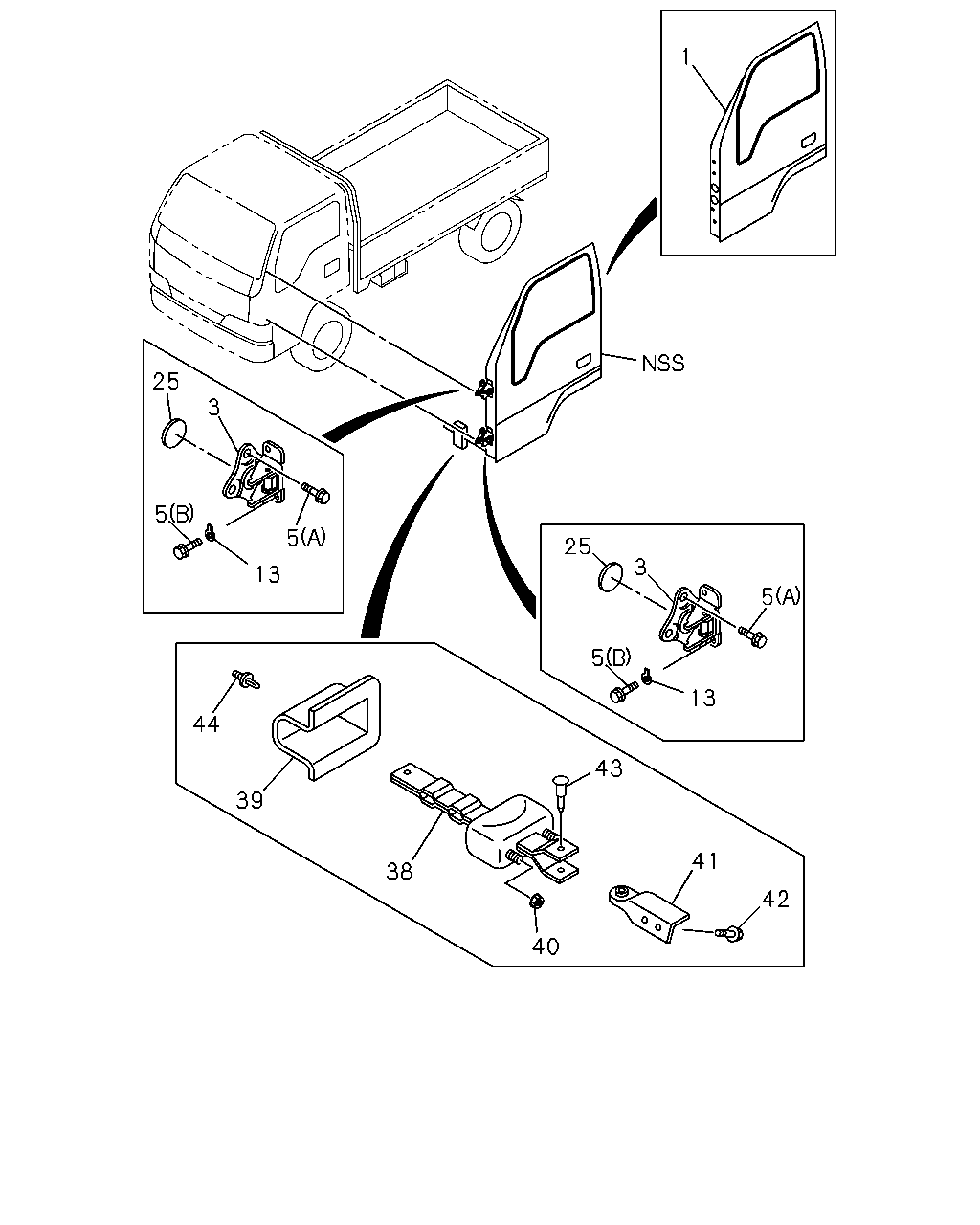

çizim 67014
1 25 3 5 5 25 3 13 5 5 13 44 43 39 41 38 42 40
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. EUROPEAN BASIC EQUIPMENT(EK4), AUSTRALIA EQUIPMENT(RR3) 		8-97852-378-1 01 1 9312-9506 ● ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97852-378-1 01 1 9507-9507 ● ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. DOOR MIRROR<6VE> 		8-97852-378-1 01 1 9507-9508 ● ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. DOOR MIRROR<6VE> 		8-97863-848-0 01 1 9509-9510 ● ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. DOOR MIRROR<6VE> 		8-97863-848-0 01 1 9511-9601 ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 		8-97863-848-0 01 1 9602-9611 ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 		8-97863-848-0 01 1 9612-9711 ● ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 		8-97863-848-0 01 1 9712-9801 ● ● ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. AUSTRALIA EQUIPMENT(RR3),DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 		8-97863-848-0 01 1 9802-9807 ● ● ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97863-848-0 01 1 9808- ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. AUSTRALIA EQUIPMENT(RR3),DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 		8-97863-848-0 01 1 9808- ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. EUROPEAN BASIC EQUIPMENT(EK4), AUSTRALIA EQUIPMENT(RR3) 		8-97852-377-1 01 1 9312-9506 ● ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97852-377-1 01 1 9507-9507 ● ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. DOOR MIRROR<6VE> 		8-97852-377-1 01 1 9507-9508 ● ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. DOOR MIRROR<6VE> 		8-97863-847-0 01 1 9509-9510 ● ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. DOOR MIRROR<6VE> 		8-97863-847-0 01 1 9511-9601 ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 		8-97863-847-0 01 1 9602-9611 ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 		8-97863-847-0 01 1 9612-9711 ● ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 		8-97863-847-0 01 1 9712-9801 ● ● ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. AUSTRALIA EQUIPMENT(RR3),DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 		8-97863-847-0 01 1 9802-9807 ● ● ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97863-847-0 01 1 9808- ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. AUSTRALIA EQUIPMENT(RR3),DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 		8-97863-847-0 01 1 9808- ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EUROPEAN BASIC EQUIPMENT(EK4), AUSTRALIA EQUIPMENT(RR3) 		8-97852-624-0 01 1 9312-9506 ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
AUSTRALIA EQUIPMENT(RR3) 		8-97852-624-0 01 1 9507-9507 ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<6VE> 		8-97852-624-0 01 1 9507-9508 ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<6VE> 		8-97863-850-0 01 1 9509-9601 ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 		8-97863-850-0 01 1 9602-9711 ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 		8-97863-850-0 01 1 9712-9801 ● ● ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
AUSTRALIA EQUIPMENT(RR3) 		8-97863-850-0 01 1 9802-9807 ● ● ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 		8-97863-850-0 01 1 9802-9807 ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
AUSTRALIA EQUIPMENT(RR3) 		8-97863-850-0 01 1 9808- ● ● ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 		8-97863-850-0 01 1 9808- ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EUROPEAN BASIC EQUIPMENT(EK4), AUSTRALIA EQUIPMENT(RR3) 		8-97852-623-0 01 1 9312-9506 ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
AUSTRALIA EQUIPMENT(RR3) 		8-97852-623-0 01 1 9507-9507 ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<6VE> 		8-97852-623-0 01 1 9507-9508 ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<6VE> 		8-97863-849-0 01 1 9509-9601 ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 		8-97863-849-0 01 1 9602-9711 ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 		8-97863-849-0 01 1 9712-9801 ● ● ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
AUSTRALIA EQUIPMENT(RR3) 		8-97863-849-0 01 1 9802-9807 ● ● ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 		8-97863-849-0 01 1 9802-9807 ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
AUSTRALIA EQUIPMENT(RR3) 		8-97863-849-0 01 1 9808- ● ● ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 		8-97863-849-0 01 1 9808- ● ● ● ●
3 16.320 HINGE; DOOR FRT 8-97852-007-3 04 1 9312-9510 ● ● ● ● ●
3 16.320 HINGE; DOOR FRT 8-97852-007-4 04 1 9511-9611 ● ● ● ●
3 16.320 HINGE; DOOR FRT 8-97852-007-4 04 1 9612-9711 ● ● ● ● ●
3 16.320 HINGE; DOOR FRT 8-97852-007-4 04 1 9712- ● ● ● ● ● ●
5 16.320 BOLT; HINGE
(B) M8X24.5 W/LK&PL WASHER 		8-94279-217-0 08 1 9312-9406 ● ● ● ● ●
5 16.320 BOLT; HINGE
(B) M8X24.5 W/LK&PL WASHER 		8-94279-217-0 08 1 9407-9510 ● ●
5 16.320 BOLT; HINGE
(B) M8X24.5 W/LK&PL WASHER 		8-94279-217-0 08 1 9511- ●
5 16.320 BOLT; HINGE
(A) M8X18 W/LK&PL WASHER 		8-94279-232-0 12 1 9312-9510 ● ● ● ● ●
5 16.320 BOLT; HINGE
(A) M8X18 W/LK&PL WASHER 		8-94279-232-0 12 1 9511-9611 ● ● ● ●
5 16.320 BOLT; HINGE
(A) M8X18 W/LK&PL WASHER 		8-94279-232-0 12 1 9612-9711 ● ● ● ● ●
5 16.320 BOLT; HINGE
(A) M8X18 W/LK&PL WASHER 		8-94279-232-0 12 1 9712- ● ● ● ● ● ●
5 16.320 BOLT; HINGE
10.463 (B) M8X23 FLANGE 		8-94174-559-2 08 1 9407-9410 ● ● ●
5 16.320 BOLT; HINGE
(B) M8X23 FLANGE 		8-97114-288-0 08 1 9407-9408 ● ● ●
5 16.320 BOLT; HINGE
(B) M8X23 FLANGE 		8-94279-097-0 08 1 9409-9504 ● ● ●
5 16.320 BOLT; HINGE
(B) M8X22 FLANGE 		8-94279-098-1 08 1 9505-9611 ● ● ●
5 16.320 BOLT; HINGE
(B) M8X22 FLANGE 		8-94279-098-1 08 1 9612-9711 ● ● ● ●
5 16.320 BOLT; HINGE
(B) M8X22 FLANGE 		8-94279-098-1 08 1 9712- ● ● ● ● ●
13 16.320 WASHER; HINGE
W/PLAIN WASHER SEAL ID=8.1 		8-97859-295-1 04 1 9407-9605 ● ● ●
13 16.320 WASHER; HINGE
W/PLAIN WASHER SEAL ID=8.1 		8-97142-090-0 04 1 9606-9611 ● ● ●
13 16.320 WASHER; HINGE
W/PLAIN WASHER SEAL ID=8.1 		8-97142-090-0 04 1 9612-9711 ● ● ● ●
13 16.320 WASHER; HINGE
W/PLAIN WASHER SEAL ID=8.1 		8-97142-090-0 04 1 9712- ● ● ● ● ●
25 16.320 SEAL; HINGE 8-97856-591-0 04 1 9312-9407 ● ● ● ● ●
25 16.320 SEAL; HINGE 8-97856-591-0 04 1 9408-9510 ● ●
25 16.320 SEAL; HINGE 8-97856-591-0 04 1 9511- ●
25 16.320 SEAL; HINGE 8-97859-505-0 04 1 9408-9501 ● ● ●
38 16.320 CHECKER ASM; DOOR 8-97852-122-5 02 1 9312-9510 ● ● ● ● ●
38 16.320 CHECKER ASM; DOOR 8-97852-122-5 02 1 9511-9608 ● ● ● ●
38 16.320 CHECKER ASM; DOOR 8-97867-841-0 02 1 9609-9611 ● ● ● ●
38 16.320 CHECKER ASM; DOOR 8-97867-841-0 02 1 9612-9711 ● ● ● ● ●
38 16.320 CHECKER ASM; DOOR 8-97867-841-1 02 1 9712- ● ● ● ● ● ●
39 16.320 COVER; CHECKER 8-97852-365-2 02 1 9312-9510 ● ● ● ● ●
39 16.320 COVER; CHECKER 8-97852-365-3 02 1 9511-9611 ● ● ● ●
39 16.320 COVER; CHECKER 8-97852-365-3 02 1 9612-9711 ● ● ● ● ●
39 16.320 COVER; CHECKER 8-97852-365-3 02 1 9712- ● ● ● ● ● ●
40 16.320 NUT; CHECKER
07.633 M8 FLANGE 		0-91150-108-0 04 1 9312-9510 ● ● ● ● ●
40 16.320 NUT; CHECKER
07.633 M8 FLANGE 		0-91150-108-0 04 1 9511-9611 ● ● ● ●
40 16.320 NUT; CHECKER
07.633 M8 FLANGE 		0-91150-108-0 04 1 9612-9711 ● ● ● ● ●
40 16.320 NUT; CHECKER
07.633 M8 FLANGE 		0-91150-108-0 04 1 9712- ● ● ● ● ● ●
41 16.320 BRACKET; CHECKER 8-97852-403-1 01 1 9312-9510 ● ● ● ● ●
41 16.320 BRACKET; CHECKER 8-97852-403-1 01 1 9511-9611 ● ● ● ●
41 16.320 BRACKET; CHECKER 8-97852-403-1 01 1 9612-9711 ● ● ● ● ●
41 16.320 BRACKET; CHECKER 8-97852-403-1 01 1 9712- ● ● ● ● ● ●
41 16.320 BRACKET; CHECKER 8-97852-402-1 01 1 9312-9510 ● ● ● ● ●
41 16.320 BRACKET; CHECKER 8-97852-402-1 01 1 9511-9611 ● ● ● ●
41 16.320 BRACKET; CHECKER 8-97852-402-1 01 1 9612-9711 ● ● ● ● ●
41 16.320 BRACKET; CHECKER 8-97852-402-1 01 1 9712- ● ● ● ● ● ●
42 16.320 BOLT; BRKT
07.874 M8X20 W/LK&PL WASHER 		1-09980-512-0 04 1 9312-9405 ● ● ● ● ●
42 16.320 BOLT; BRKT
04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9406-9510 ● ● ● ● ●
42 16.320 BOLT; BRKT
04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9511-9611 ● ● ● ●
42 16.320 BOLT; BRKT
04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9612-9711 ● ● ● ● ●
42 16.320 BOLT; BRKT
04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9712- ● ● ● ● ● ●
43 16.320 PIN 8-97852-057-1 02 1 9312-9510 ● ● ● ● ●
43 16.320 PIN 8-97852-057-1 02 1 9511-9611 ● ● ● ●
43 16.320 PIN 8-97852-057-1 02 1 9612-9711 ● ● ● ● ●
43 16.320 PIN 8-97852-057-1 02 1 9712- ● ● ● ● ● ●
44 16.320 FASTENER; COVER
OD=8.3 		8-94279-989-0 02 1 9312-9510 ● ● ● ● ●
44 16.320 FASTENER; COVER
OD=8.3 		8-94279-989-0 02 1 9511-9611 ● ● ● ●
44 16.320 FASTENER; COVER
OD=8.3 		8-94279-989-0 02 1 9612-9711 ● ● ● ● ●
44 16.320 FASTENER; COVER
OD=8.3 		8-94279-989-0 02 1 9712- ● ● ● ● ● ●
