6-07 — FRONT WINDOW GLASS AND WEATHERSTRIP (#48861) — 60 parça

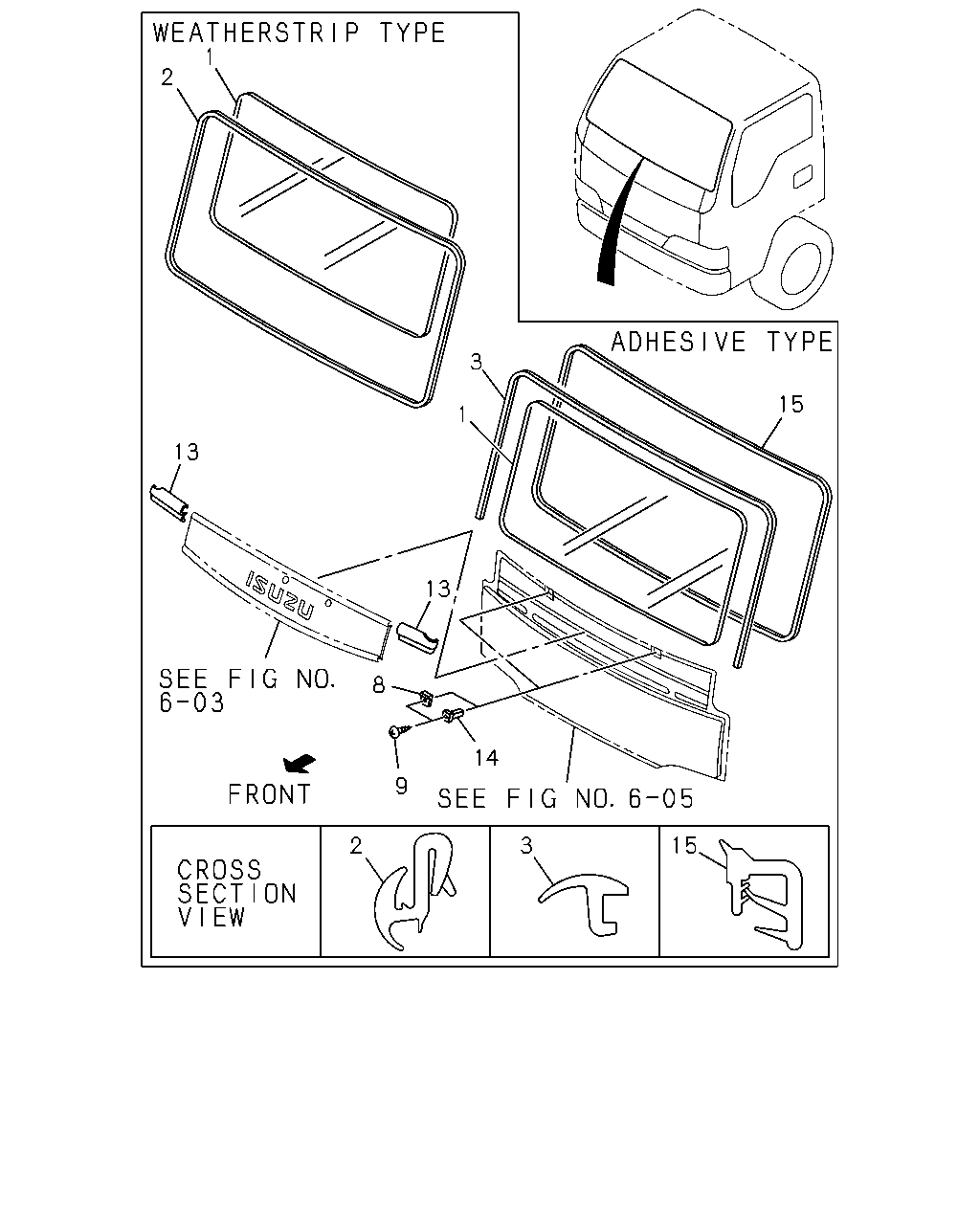

çizim 66817
1 2 3 15 1 13 13 8 14 9 2 3 15
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 16.005 GLASS; WINDSHIELD
EXC. EUROPEAN BASIC EQUIPMENT(EK4), AUSTRALIA EQUIPMENT(RR3) T=5.8 		8-97040-274-2 01 1 9312-9407 ● ● ● ● ●
1 16.005 GLASS; WINDSHIELD
EXC. EUROPEAN BASIC EQUIPMENT(EK4), THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S) T=5.8 		8-97040-274-2 01 1 9408-9501 ● ● ● ● ●
1 16.005 GLASS; WINDSHIELD
EXC. EUROPEAN BASIC EQUIPMENT(EK4), THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S) T=5.8 		8-97123-527-0 01 1 9502-9506 ● ● ● ● ●
1 16.005 GLASS; WINDSHIELD
EXC. THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S),UNITED KINGDOM EQUIPMENT(6AA) ,IRISH EQUIPMENT(6CU) T=5.8 		8-97123-527-0 01 1 9507-9510 ● ● ● ● ●
1 16.005 GLASS; WINDSHIELD
EXC. THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3),UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) T=5.8 		8-97123-527-0 01 1 9511-9608 ● ● ● ●
1 16.005 GLASS; WINDSHIELD
EXC. THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3),UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) T=5.8 		8-97114-297-0 01 1 9609-9611 ● ● ● ●
1 16.005 GLASS; WINDSHIELD
EXC. THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3),UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) T=5.8 		8-97114-297-0 01 1 9612-9711 ● ● ● ● ●
1 16.005 GLASS; WINDSHIELD
EXC. THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3),UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) T=5.8 		8-97114-297-0 01 1 9712-9802 ● ● ● ● ● ●
1 16.005 GLASS; WINDSHIELD
EXC. THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3),UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) T=6.3 		8-97869-126-0 01 1 9803- ● ● ● ● ● ●
1 16.005 GLASS; WINDSHIELD
AUSTRALIA EQUIPMENT(RR3),UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 		8-97123-528-0 01 1 9707-9708 ● ● ● ●
1 16.005 GLASS; WINDSHIELD
AUSTRALIA EQUIPMENT(RR3),UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 		8-97867-742-0 01 1 9709-9711 ● ● ● ●
1 16.005 GLASS; WINDSHIELD
AUSTRALIA EQUIPMENT(RR3),UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 		8-97867-742-0 01 1 9712-9802 ● ● ● ● ● ●
1 16.005 GLASS; WINDSHIELD
AUSTRALIA EQUIPMENT(RR3),UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) T=6.3 		8-97869-127-0 01 1 9803- ● ● ● ● ● ●
1 16.005 GLASS; WINDSHIELD
EUROPEAN BASIC EQUIPMENT(EK4), AUSTRALIA EQUIPMENT(RR3) 		8-97084-090-1 01 1 9312-9501 ● ● ● ●
1 16.005 GLASS; WINDSHIELD
EUROPEAN BASIC EQUIPMENT(EK4), AUSTRALIA EQUIPMENT(RR3) 		8-97123-528-0 01 1 9502-9506 ● ● ● ●
1 16.005 GLASS; WINDSHIELD
AUSTRALIA EQUIPMENT(RR3),UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 		8-97123-528-0 01 1 9507-9603 ● ● ● ●
1 16.005 GLASS; WINDSHIELD
INDONESIA EQUIPMENT(S4S) 		8-97117-891-0 01 1 9408-9510 ●
1 16.005 GLASS; WINDSHIELD
THAILAND EQUIPMENT(PM9) 		8-97114-299-0 01 1 9408-9611 ● ●
1 16.005 GLASS; WINDSHIELD
THAILAND EQUIPMENT(PM9) 		8-97114-299-0 01 1 9612- ● ● ●
2 16.040 WEATHERSTRIP; WINDSHIELD GLASS
WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97856-350-3 01 1 9312-9611 ● ● ● ●
2 16.040 WEATHERSTRIP; WINDSHIELD GLASS
WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97856-350-3 01 1 9612-9711 ● ● ● ● ●
2 16.040 WEATHERSTRIP; WINDSHIELD GLASS
WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97856-350-3 01 1 9712- ● ● ● ● ● ●
3 16.470 MOLDING; WINDSHIELD
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97853-092-3 01 1 9312-9312 ● ● ● ● ●
3 16.470 MOLDING; WINDSHIELD
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97857-908-0 01 1 9401-9510 ● ● ● ● ●
3 16.470 MOLDING; WINDSHIELD
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97857-908-1 01 1 9511-9611 ● ● ● ●
3 16.470 MOLDING; WINDSHIELD
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97857-908-1 01 1 9612-9711 ● ● ● ● ●
3 16.470 MOLDING; WINDSHIELD
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97857-908-1 01 1 9712-9802 ● ● ● ● ● ●
3 16.470 MOLDING; WINDSHIELD
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97890-215-1 01 1 9803- ● ● ● ● ● ●
8 16.041 STOPPER; WINDSHIELD GLASS
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97857-143-0 02 1 9312-9404 ● ●
8 16.041 STOPPER; WINDSHIELD GLASS
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97853-733-0 02 1 9312-9404 ● ● ●
8 16.041 STOPPER; WINDSHIELD GLASS 8-97853-733-0 02 1 9405-9406 ●
8 16.041 STOPPER; WINDSHIELD GLASS
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97853-733-0 02 1 9405-9406 ● ● ● ●
8 16.041 STOPPER; WINDSHIELD GLASS
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97853-733-0 02 1 9407-9510 ● ●
8 16.041 STOPPER; WINDSHIELD GLASS
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97853-733-0 02 1 9511- ●
8 16.041 STOPPER; WINDSHIELD GLASS
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97859-215-0 02 1 9407-9611 ● ● ●
8 16.041 STOPPER; WINDSHIELD GLASS
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97859-215-0 02 1 9612-9711 ● ● ● ●
8 16.041 STOPPER; WINDSHIELD GLASS
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97859-215-0 02 1 9712- ● ● ● ● ●
9 16.041 SCREW; STOPPER
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.067 M5X14 		8-94279-325-0 02 1 9312-9510 ● ● ● ● ●
9 16.041 SCREW; STOPPER
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.067 M5X14 		8-94279-325-0 02 1 9511-9611 ● ● ● ●
9 16.041 SCREW; STOPPER
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.067 M5X14 		8-94279-325-0 02 1 9612-9711 ● ● ● ● ●
9 16.041 SCREW; STOPPER
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.067 M5X14 		8-94279-325-0 02 1 9712- ● ● ● ● ● ●
13 16.041 MOLDING; BRKT,OUTSIDE MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97853-787-4 01 1 9312-9510 ● ● ● ● ●
13 16.041 MOLDING; BRKT,OUTSIDE MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97853-787-4 01 1 9511-9611 ● ● ● ●
13 16.041 MOLDING; BRKT,OUTSIDE MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97853-787-4 01 1 9612-9711 ● ● ● ● ●
13 16.041 MOLDING; BRKT,OUTSIDE MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97853-787-4 01 1 9712- ● ● ● ● ● ●
13 16.041 MOLDING; BRKT,OUTSIDE MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97853-786-3 01 1 9312-9510 ● ● ● ● ●
13 16.041 MOLDING; BRKT,OUTSIDE MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97853-786-3 01 1 9511-9611 ● ● ● ●
13 16.041 MOLDING; BRKT,OUTSIDE MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97853-786-3 01 1 9612-9711 ● ● ● ● ●
13 16.041 MOLDING; BRKT,OUTSIDE MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97853-786-3 01 1 9712- ● ● ● ● ● ●
14 16.041 GROMMET; SCREW,STOPPER
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.802 D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 9312-9406 ● ● ● ● ●
14 16.041 GROMMET; SCREW,STOPPER
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.802 D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 9407-9510 ● ●
14 16.041 GROMMET; SCREW,STOPPER
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.802 D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 9511- ●
14 16.041 GROMMET; SCREW,STOPPER
WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.547 14.5X14.5 BLACK 		8-94279-714-0 02 1 9312-9408 ● ● ● ●
14 16.041 GROMMET; SCREW,STOPPER
WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.547 14.5X14.5 BLACK 		8-94279-714-0 04 1 9409-9611 ● ● ● ●
14 16.041 GROMMET; SCREW,STOPPER
WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.547 14.5X14.5 BLACK 		8-94279-714-0 04 1 9612-9711 ● ● ● ● ●
14 16.041 GROMMET; SCREW,STOPPER
WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.547 14.5X14.5 BLACK 		8-94279-714-0 04 1 9712- ● ● ● ● ● ●
15 16.041 FINISHER; WINDSHIELD
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> DARK BEIGE 		8-97856-152-4 01 1 9312-9510 ● ● ● ● ●
15 16.041 FINISHER; WINDSHIELD
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> DARK BEIGE 		8-97856-152-4 01 1 9511-9611 ● ● ● ●
15 16.041 FINISHER; WINDSHIELD
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> DARK BEIGE 		8-97856-152-4 01 1 9612-9711 ● ● ● ● ●
15 16.041 FINISHER; WINDSHIELD
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> DARK GRAY 		8-97857-048-4 01 1 9712- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
