5-15 — CAB MOUNTING; CAB SIDE (#48854) — 556 parça

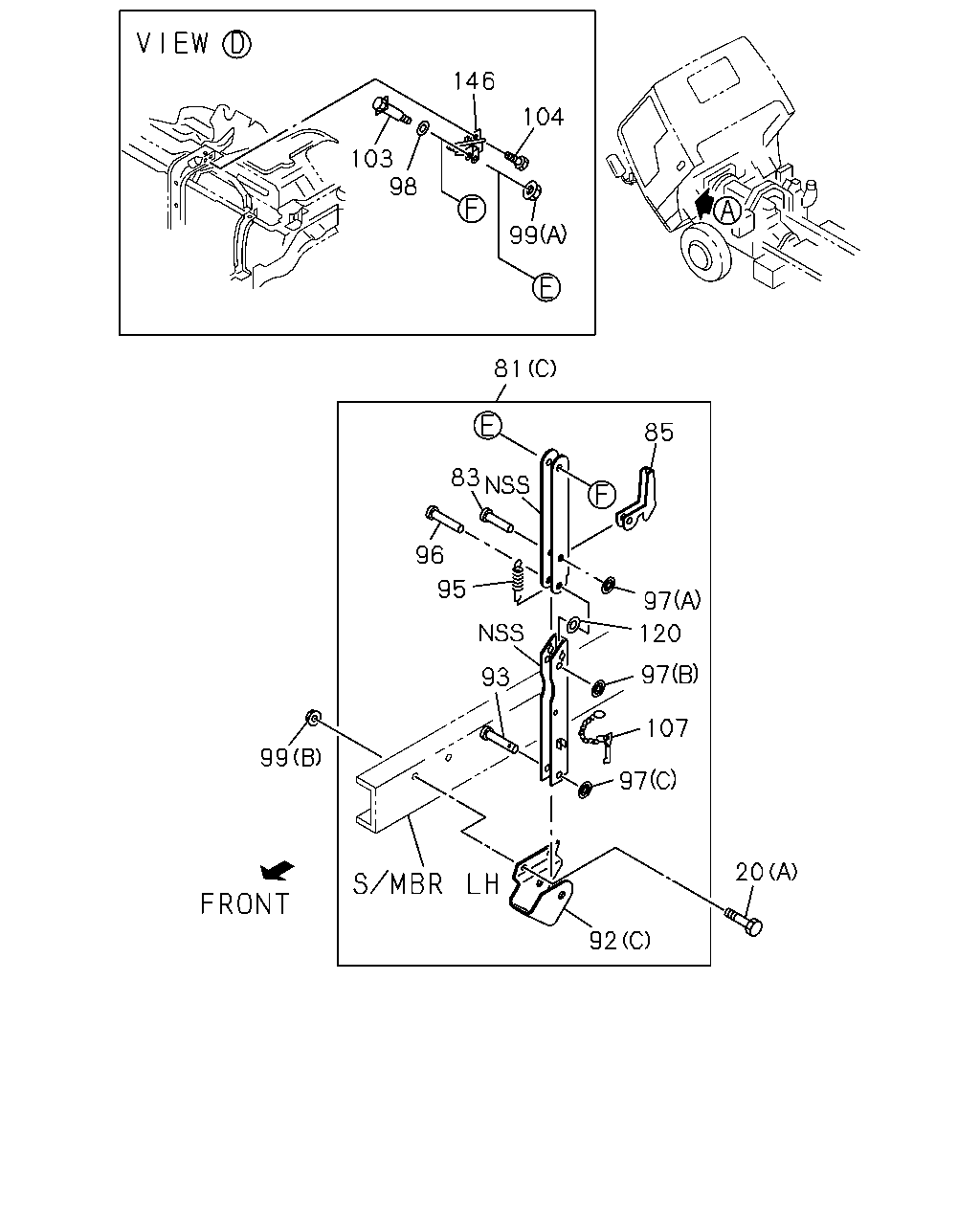

çizim 66867
146 104 103 98 99 81 85 83 96 95 97 120 97 93 107 99 97 20 92
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
20 09.003 BOLT
EUROPEAN BASIC EQUIPMENT(EK4) 00.669 (B) M12X30 FLANGE 		0-28081-230-0 04 1 9312-9506 ● ●
20 09.003 BOLT
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 00.669 (B) M12X30 FLANGE 		0-28081-230-0 04 1 9507-9711 ● ●
20 09.003 BOLT
FRAME STRAIGHT TYPE<7KJ> (A) M10X40 W/WASHER 		8-94411-010-0 02 1 9512-9611 ● ●
20 09.003 BOLT
FRAME STRAIGHT TYPE<7KJ> (A) M10X40 W/WASHER 		8-94411-010-0 02 1 9612-9711 ● ● ●
20 09.003 BOLT
FRAME STRAIGHT TYPE<7KJ> (A) M10X40 W/WASHER 		8-94411-010-0 02 1 9712-9802 ● ● ● ● ●
20 09.003 BOLT
MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> (A) M10X40 W/WASHER 		8-94411-010-0 02 1 9803- ● ● ● ● ●
81 09.003 STAY ASM; CAB TILT
AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97080-008-4 01 1 9312-9410 ● ● ●
81 09.003 STAY ASM; CAB TILT
AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97120-943-0 01 1 9411-9510 ● ● ●
81 09.003 STAY ASM; CAB TILT
AIR INTAKE REAR VERTICAL<KJ3> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97120-943-0 01 1 9511-9611 ● ● ●
81 09.003 STAY ASM; CAB TILT
AIR INTAKE REAR VERTICAL<KJ3> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97120-943-0 01 1 9612-9711 ● ● ●
81 09.003 STAY ASM; CAB TILT
AIR INTAKE REAR VERTICAL<KJ3> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97120-943-0 01 1 9712-9801 ● ● ● ●
81 09.003 STAY ASM; CAB TILT
AIR INTAKE REAR VERTICAL<KJ3> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97120-943-0 01 1 9802- ● ● ● ● ●
81 09.003 STAY ASM; CAB TILT
EXC. AIR INTAKE REAR VERTICAL<KJ3> (B) 		8-97035-275-4 01 1 9312-9410 ● ● ●
81 09.003 STAY ASM; CAB TILT
EXC. AIR INTAKE REAR VERTICAL<KJ3> (B) 		8-97120-942-0 01 1 9411-9506 ● ● ●
81 09.003 STAY ASM; CAB TILT
EXC. AIR INTAKE REAR VERTICAL<KJ3> (B) 		8-97120-942-0 01 1 9507-9510 ● ●
81 09.003 STAY ASM; CAB TILT
EXC. AIR INTAKE REAR VERTICAL<KJ3>, FRAME STRAIGHT TYPE<7KJ> (B) 		8-97120-942-0 01 1 9511-9601 ●
81 09.003 STAY ASM; CAB TILT
EXC. AIR INTAKE REAR VERTICAL<KJ3>, FRAME STRAIGHT TYPE<7KJ> (B) 		8-97120-942-0 01 1 9602-9606 ● ●
81 09.003 STAY ASM; CAB TILT
EXC. AIR INTAKE REAR VERTICAL<KJ3>, FRAME STRAIGHT TYPE<7KJ> (B) 		8-97120-942-0 01 1 9607-9611 ● ● ●
81 09.003 STAY ASM; CAB TILT
MANUAL TILT CAB<RWZ> EXC. AIR INTAKE REAR VERTICAL<KJ3>, FRAME STRAIGHT TYPE<7KJ> (B) 		8-97120-942-0 01 1 9612-9704 ● ● ●
81 09.003 STAY ASM; CAB TILT
MANUAL TILT CAB<RWZ> AIR INTAKE SYSTEM FRONT<6PC> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97120-942-0 01 1 9705-9801 ● ●
81 09.003 STAY ASM; CAB TILT
MANUAL TILT CAB<RWZ> AIR INTAKE SYSTEM FRONT<6PC> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97120-942-0 01 1 9802- ● ● ●
81 09.003 STAY ASM; CAB TILT
FRAME STRAIGHT TYPE<7KJ> (C) 		8-97073-880-1 01 1 9511-9611 ● ●
81 09.003 STAY ASM; CAB TILT
FRAME STRAIGHT TYPE<7KJ> (C) 		8-97073-880-1 01 1 9612-9711 ● ● ●
81 09.003 STAY ASM; CAB TILT
FRAME STRAIGHT TYPE<7KJ> (C) 		8-97073-880-1 01 1 9712-9801 ● ● ● ●
81 09.003 STAY ASM; CAB TILT
FRAME STRAIGHT TYPE<7KJ> (C) 		8-97073-880-1 01 1 9802-9802 ● ● ● ● ●
81 09.003 STAY ASM; CAB TILT
MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> 		8-97073-880-1 01 1 9803- ● ● ● ● ●
83 09.003 PIN; JOINT,CAB STAY
OD=8 L=32 		8-97039-548-0 01 1 9312-9611 ● ● ●
83 09.003 PIN; JOINT,CAB STAY
MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> OD=8 L=32 		8-97039-548-0 01 1 9612-9704 ● ● ●
83 09.003 PIN; JOINT,CAB STAY
FRAME STRAIGHT TYPE<7KJ> OD=8 L=32 		8-97039-548-0 01 1 9612-9704 ● ● ●
83 09.003 PIN; JOINT,CAB STAY
AIR INTAKE REAR VERTICAL<KJ3>,AIR INTAKE SYSTEM FRONT<6PC> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> OD=8 L=32 		8-97039-548-0 01 1 9705-9711 ● ● ●
83 09.003 PIN; JOINT,CAB STAY
FRAME STRAIGHT TYPE<7KJ> OD=8 L=32 		8-97039-548-0 01 1 9705-9711 ● ● ●
83 09.003 PIN; JOINT,CAB STAY
AIR INTAKE REAR VERTICAL<KJ3>,AIR INTAKE SYSTEM FRONT<6PC> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> OD=8 L=32 		8-97039-548-0 01 1 9712-9801 ● ● ● ●
83 09.003 PIN; JOINT,CAB STAY
FRAME STRAIGHT TYPE<7KJ> OD=8 L=32 		8-97039-548-0 01 1 9712-9801 ● ● ● ●
83 09.003 PIN; JOINT,CAB STAY
FRAME STRAIGHT TYPE<7KJ> OD=8 L=32 		8-97039-548-0 01 1 9802-9802 ● ● ● ● ●
83 09.003 PIN; JOINT,CAB STAY
MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> OD=8 L=32 		8-97039-548-0 01 1 9802-9802 ● ●
83 09.003 PIN; JOINT,CAB STAY
AIR INTAKE REAR VERTICAL<KJ3>,AIR INTAKE SYSTEM FRONT<6PC> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> OD=8 L=32 		8-97039-548-0 01 1 9802-9802 ● ● ●
83 09.003 PIN; JOINT,CAB STAY
MANUAL TILT CAB<RWZ> OD=8 L=32 		8-97039-548-0 01 1 9803- ● ●
83 09.003 PIN; JOINT,CAB STAY
MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> OD=8 L=32 		8-97039-548-0 01 1 9803- ● ● ●
83 09.003 PIN; JOINT,CAB STAY
AIR INTAKE REAR VERTICAL<KJ3>,AIR INTAKE SYSTEM FRONT<6PC> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> OD=8 L=32 		8-97039-548-0 01 1 9803- ● ● ●
85 09.003 LEVER; LOCK,CAB STAY 8-94331-481-0 01 1 9312-9611 ● ● ●
85 09.003 LEVER; LOCK,CAB STAY
MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94331-481-0 01 1 9612-9704 ● ● ●
85 09.003 LEVER; LOCK,CAB STAY
FRAME STRAIGHT TYPE<7KJ> 		8-94331-481-0 01 1 9612-9704 ● ● ●
85 09.003 LEVER; LOCK,CAB STAY
AIR INTAKE REAR VERTICAL<KJ3>,AIR INTAKE SYSTEM FRONT<6PC> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94331-481-0 01 1 9705-9711 ● ● ●
85 09.003 LEVER; LOCK,CAB STAY
FRAME STRAIGHT TYPE<7KJ> 		8-94331-481-0 01 1 9705-9711 ● ● ●
85 09.003 LEVER; LOCK,CAB STAY
AIR INTAKE REAR VERTICAL<KJ3>,AIR INTAKE SYSTEM FRONT<6PC> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94331-481-0 01 1 9712-9801 ● ● ● ●
85 09.003 LEVER; LOCK,CAB STAY
FRAME STRAIGHT TYPE<7KJ> 		8-94331-481-0 01 1 9712-9801 ● ● ● ●
85 09.003 LEVER; LOCK,CAB STAY
FRAME STRAIGHT TYPE<7KJ> 		8-94331-481-0 01 1 9802-9802 ● ● ● ● ●
85 09.003 LEVER; LOCK,CAB STAY
MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94331-481-0 01 1 9802-9802 ● ●
85 09.003 LEVER; LOCK,CAB STAY
AIR INTAKE REAR VERTICAL<KJ3>,AIR INTAKE SYSTEM FRONT<6PC> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94331-481-0 01 1 9802-9802 ● ● ●
85 09.003 LEVER; LOCK,CAB STAY
MANUAL TILT CAB<RWZ> 		8-94331-481-0 01 1 9803- ● ●
85 09.003 LEVER; LOCK,CAB STAY
MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> 		8-94331-481-0 01 1 9803- ● ● ●
85 09.003 LEVER; LOCK,CAB STAY
AIR INTAKE REAR VERTICAL<KJ3>,AIR INTAKE SYSTEM FRONT<6PC> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94331-481-0 01 1 9803- ● ● ●
92 09.003 BRACKET; CAB STAY TO FRAME
AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97096-653-0 01 1 9312-9510 ● ● ●
92 09.003 BRACKET; CAB STAY TO FRAME
AIR INTAKE REAR VERTICAL<KJ3> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97096-653-0 01 1 9511-9611 ● ● ●
92 09.003 BRACKET; CAB STAY TO FRAME
AIR INTAKE REAR VERTICAL<KJ3> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97096-653-0 01 1 9612-9711 ● ● ●
92 09.003 BRACKET; CAB STAY TO FRAME
AIR INTAKE REAR VERTICAL<KJ3> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97096-653-0 01 1 9712-9801 ● ● ● ●
92 09.003 BRACKET; CAB STAY TO FRAME
AIR INTAKE REAR VERTICAL<KJ3> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97096-653-0 01 1 9802- ● ● ● ● ●
92 09.003 BRACKET; CAB STAY TO FRAME
EXC. AIR INTAKE REAR VERTICAL<KJ3> (B) 		8-97096-650-0 01 1 9312-9510 ● ● ●
92 09.003 BRACKET; CAB STAY TO FRAME
EXC. AIR INTAKE REAR VERTICAL<KJ3>, FRAME STRAIGHT TYPE<7KJ> (B) 		8-97096-650-0 01 1 9511-9611 ● ● ●
92 09.003 BRACKET; CAB STAY TO FRAME
MANUAL TILT CAB<RWZ> EXC. AIR INTAKE REAR VERTICAL<KJ3>, FRAME STRAIGHT TYPE<7KJ> (B) 		8-97096-650-0 01 1 9612-9704 ● ● ●
92 09.003 BRACKET; CAB STAY TO FRAME
MANUAL TILT CAB<RWZ> AIR INTAKE SYSTEM FRONT<6PC> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97096-650-0 01 1 9705-9801 ● ●
92 09.003 BRACKET; CAB STAY TO FRAME
MANUAL TILT CAB<RWZ> AIR INTAKE SYSTEM FRONT<6PC> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97096-650-0 01 1 9802- ● ● ●
92 09.003 BRACKET; CAB STAY TO FRAME
FRAME STRAIGHT TYPE<7KJ> (C) 		8-97108-760-1 01 1 9511-9611 ● ●
92 09.003 BRACKET; CAB STAY TO FRAME
FRAME STRAIGHT TYPE<7KJ> (C) 		8-97108-760-1 01 1 9612-9711 ● ● ●
92 09.003 BRACKET; CAB STAY TO FRAME
FRAME STRAIGHT TYPE<7KJ> (C) 		8-97108-760-1 01 1 9712-9801 ● ● ● ●
92 09.003 BRACKET; CAB STAY TO FRAME
FRAME STRAIGHT TYPE<7KJ> (C) 		8-97108-760-1 01 1 9802-9802 ● ● ● ● ●
92 09.003 BRACKET; CAB STAY TO FRAME
MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97108-760-1 01 1 9803- ● ● ● ● ●
93 09.003 PIN; CAB STAY 8-97039-549-0 01 1 9312-9611 ● ● ●
93 09.003 PIN; CAB STAY 8-97039-549-0 01 1 9612-9612 ● ● ● ●
93 09.003 PIN; CAB STAY
MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97039-549-0 01 1 9612-9704 ● ● ●
93 09.003 PIN; CAB STAY
FRAME STRAIGHT TYPE<7KJ> 		8-97039-549-0 01 1 9612-9704 ● ● ●
93 09.003 PIN; CAB STAY
AIR INTAKE REAR VERTICAL<KJ3>,AIR INTAKE SYSTEM FRONT<6PC> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97039-549-0 01 1 9705-9711 ● ● ●
93 09.003 PIN; CAB STAY
FRAME STRAIGHT TYPE<7KJ> 		8-97039-549-0 01 1 9705-9711 ● ● ●
93 09.003 PIN; CAB STAY
AIR INTAKE REAR VERTICAL<KJ3>,AIR INTAKE SYSTEM FRONT<6PC> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97039-549-0 01 1 9712-9801 ● ● ● ●
93 09.003 PIN; CAB STAY
FRAME STRAIGHT TYPE<7KJ> 		8-97039-549-0 01 1 9712-9801 ● ● ● ●
93 09.003 PIN; CAB STAY
FRAME STRAIGHT TYPE<7KJ> 		8-97039-549-0 01 1 9802-9802 ● ● ● ● ●
93 09.003 PIN; CAB STAY
MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97039-549-0 01 1 9802-9802 ● ●
93 09.003 PIN; CAB STAY
AIR INTAKE REAR VERTICAL<KJ3>,AIR INTAKE SYSTEM FRONT<6PC> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97039-549-0 01 1 9802-9802 ● ● ●
93 09.003 PIN; CAB STAY
MANUAL TILT CAB<RWZ> 		8-97039-549-0 01 1 9803- ● ●
93 09.003 PIN; CAB STAY
MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> 		8-97039-549-0 01 1 9803- ● ● ●
93 09.003 PIN; CAB STAY
AIR INTAKE REAR VERTICAL<KJ3>,AIR INTAKE SYSTEM FRONT<6PC> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97039-549-0 01 1 9803- ● ● ●
95 09.003 SPRING; RETURN,CAB STAY 8-94160-167-2 01 1 9312-9611 ● ● ●
95 09.003 SPRING; RETURN,CAB STAY 8-94160-167-2 01 1 9612-9612 ● ● ● ●
95 09.003 SPRING; RETURN,CAB STAY
MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94160-167-2 01 1 9612-9704 ● ● ●
95 09.003 SPRING; RETURN,CAB STAY
FRAME STRAIGHT TYPE<7KJ> 		8-94160-167-2 01 1 9612-9704 ● ● ●
95 09.003 SPRING; RETURN,CAB STAY
AIR INTAKE REAR VERTICAL<KJ3>,AIR INTAKE SYSTEM FRONT<6PC> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94160-167-2 01 1 9705-9711 ● ● ●
95 09.003 SPRING; RETURN,CAB STAY
FRAME STRAIGHT TYPE<7KJ> 		8-94160-167-2 01 1 9705-9711 ● ● ●
95 09.003 SPRING; RETURN,CAB STAY
AIR INTAKE REAR VERTICAL<KJ3>,AIR INTAKE SYSTEM FRONT<6PC> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94160-167-2 01 1 9712-9801 ● ● ● ●
95 09.003 SPRING; RETURN,CAB STAY
FRAME STRAIGHT TYPE<7KJ> 		8-94160-167-2 01 1 9712-9801 ● ● ● ●
95 09.003 SPRING; RETURN,CAB STAY
FRAME STRAIGHT TYPE<7KJ> 		8-94160-167-2 01 1 9802-9802 ● ● ● ● ●
95 09.003 SPRING; RETURN,CAB STAY
MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94160-167-2 01 1 9802-9802 ● ●
95 09.003 SPRING; RETURN,CAB STAY
AIR INTAKE REAR VERTICAL<KJ3>,AIR INTAKE SYSTEM FRONT<6PC> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94160-167-2 01 1 9802-9802 ● ● ●
95 09.003 SPRING; RETURN,CAB STAY
MANUAL TILT CAB<RWZ> 		8-94160-167-2 01 1 9803- ● ●
95 09.003 SPRING; RETURN,CAB STAY
MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> 		8-94160-167-2 01 1 9803- ● ● ●
95 09.003 SPRING; RETURN,CAB STAY
AIR INTAKE REAR VERTICAL<KJ3>,AIR INTAKE SYSTEM FRONT<6PC> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94160-167-2 01 1 9803- ● ● ●
96 09.003 PIN; JOINT
OD=10 L=36 		8-97096-661-0 01 1 9312-9611 ● ● ●
96 09.003 PIN; JOINT
OD=10 L=36 		8-97096-661-0 01 1 9612-9612 ● ● ● ●
96 09.003 PIN; JOINT
MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> OD=10 L=36 		8-97096-661-0 01 1 9612-9704 ● ● ●
96 09.003 PIN; JOINT
FRAME STRAIGHT TYPE<7KJ> OD=10 L=36 		8-97096-661-0 01 1 9612-9704 ● ● ●
96 09.003 PIN; JOINT
AIR INTAKE REAR VERTICAL<KJ3>,AIR INTAKE SYSTEM FRONT<6PC> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> OD=10 L=36 		8-97096-661-0 01 1 9705-9711 ● ● ●
96 09.003 PIN; JOINT
FRAME STRAIGHT TYPE<7KJ> OD=10 L=36 		8-97096-661-0 01 1 9705-9711 ● ● ●
96 09.003 PIN; JOINT
AIR INTAKE REAR VERTICAL<KJ3>,AIR INTAKE SYSTEM FRONT<6PC> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> OD=10 L=36 		8-97096-661-0 01 1 9712-9801 ● ● ● ●
96 09.003 PIN; JOINT
FRAME STRAIGHT TYPE<7KJ> OD=10 L=36 		8-97096-661-0 01 1 9712-9801 ● ● ● ●
96 09.003 PIN; JOINT
FRAME STRAIGHT TYPE<7KJ> OD=10 L=36 		8-97096-661-0 01 1 9802-9802 ● ● ● ● ●
96 09.003 PIN; JOINT
MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> OD=10 L=36 		8-97096-661-0 01 1 9802-9802 ● ●
96 09.003 PIN; JOINT
AIR INTAKE REAR VERTICAL<KJ3>,AIR INTAKE SYSTEM FRONT<6PC> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> OD=10 L=36 		8-97096-661-0 01 1 9802-9802 ● ● ●
96 09.003 PIN; JOINT
MANUAL TILT CAB<RWZ> OD=10 L=36 		8-97096-661-0 01 1 9803- ● ●
96 09.003 PIN; JOINT
MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> OD=10 L=36 		8-97096-661-0 01 1 9803- ● ● ●
96 09.003 PIN; JOINT
AIR INTAKE REAR VERTICAL<KJ3>,AIR INTAKE SYSTEM FRONT<6PC> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> OD=10 L=36 		8-97096-661-0 01 1 9803- ● ● ●
97 09.011 NUT; CAB STAY PIN
(A) ID=7.9 PUSH NUT 		8-97022-565-0 01 1 9312-9611 ● ● ●
97 09.011 NUT; CAB STAY PIN
(A) ID=7.9 PUSH NUT 		8-97022-565-0 01 1 9612-9612 ● ● ● ●
97 09.011 NUT; CAB STAY PIN
MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=7.9 PUSH NUT 		8-97022-565-0 01 1 9612-9704 ● ● ●
97 09.011 NUT; CAB STAY PIN
FRAME STRAIGHT TYPE<7KJ> (A) ID=7.9 PUSH NUT 		8-97022-565-0 01 1 9612-9704 ● ● ●
97 09.011 NUT; CAB STAY PIN
AIR INTAKE REAR VERTICAL<KJ3>,AIR INTAKE SYSTEM FRONT<6PC> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=7.9 PUSH NUT 		8-97022-565-0 01 1 9705-9711 ● ● ●
97 09.011 NUT; CAB STAY PIN
FRAME STRAIGHT TYPE<7KJ> (A) ID=7.9 PUSH NUT 		8-97022-565-0 01 1 9705-9711 ● ● ●
97 09.011 NUT; CAB STAY PIN
AIR INTAKE REAR VERTICAL<KJ3>,AIR INTAKE SYSTEM FRONT<6PC> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=7.9 PUSH NUT 		8-97022-565-0 01 1 9712-9801 ● ● ● ●
97 09.011 NUT; CAB STAY PIN
FRAME STRAIGHT TYPE<7KJ> (A) ID=7.9 PUSH NUT 		8-97022-565-0 01 1 9712-9801 ● ● ● ●
97 09.011 NUT; CAB STAY PIN
FRAME STRAIGHT TYPE<7KJ> (A) ID=7.9 PUSH NUT 		8-97022-565-0 01 1 9802-9802 ● ● ● ● ●
97 09.011 NUT; CAB STAY PIN
MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=7.9 PUSH NUT 		8-97022-565-0 01 1 9802-9802 ● ●
97 09.011 NUT; CAB STAY PIN
AIR INTAKE REAR VERTICAL<KJ3>,AIR INTAKE SYSTEM FRONT<6PC> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=7.9 PUSH NUT 		8-97022-565-0 01 1 9802-9802 ● ● ●
97 09.011 NUT; CAB STAY PIN
MANUAL TILT CAB<RWZ> (A) ID=7.9 PUSH NUT 		8-97022-565-0 01 1 9803- ● ●
97 09.011 NUT; CAB STAY PIN
MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> (A) ID=7.9 PUSH NUT 		8-97022-565-0 01 1 9803- ● ● ●
97 09.011 NUT; CAB STAY PIN
AIR INTAKE REAR VERTICAL<KJ3>,AIR INTAKE SYSTEM FRONT<6PC> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=7.9 PUSH NUT 		8-97022-565-0 01 1 9803- ● ● ●
97 09.011 NUT; CAB STAY PIN
(B) ID=9.9 PUSH NUT 		8-97022-566-0 01 1 9312-9611 ● ● ●
97 09.011 NUT; CAB STAY PIN
(B) ID=9.9 PUSH NUT 		8-97022-566-0 01 1 9612-9612 ● ● ● ●
97 09.011 NUT; CAB STAY PIN
MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=9.9 PUSH NUT 		8-97022-566-0 01 1 9612-9704 ● ● ●
97 09.011 NUT; CAB STAY PIN
FRAME STRAIGHT TYPE<7KJ> (B) ID=9.9 PUSH NUT 		8-97022-566-0 01 1 9612-9704 ● ● ●
97 09.011 NUT; CAB STAY PIN
AIR INTAKE REAR VERTICAL<KJ3>,AIR INTAKE SYSTEM FRONT<6PC> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=9.9 PUSH NUT 		8-97022-566-0 01 1 9705-9711 ● ● ●
97 09.011 NUT; CAB STAY PIN
FRAME STRAIGHT TYPE<7KJ> (B) ID=9.9 PUSH NUT 		8-97022-566-0 01 1 9705-9711 ● ● ●
97 09.011 NUT; CAB STAY PIN
AIR INTAKE REAR VERTICAL<KJ3>,AIR INTAKE SYSTEM FRONT<6PC> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=9.9 PUSH NUT 		8-97022-566-0 01 1 9712-9801 ● ● ● ●
97 09.011 NUT; CAB STAY PIN
FRAME STRAIGHT TYPE<7KJ> (B) ID=9.9 PUSH NUT 		8-97022-566-0 01 1 9712-9801 ● ● ● ●
97 09.011 NUT; CAB STAY PIN
FRAME STRAIGHT TYPE<7KJ> (B) ID=9.9 PUSH NUT 		8-97022-566-0 01 1 9802-9802 ● ● ● ● ●
97 09.011 NUT; CAB STAY PIN
MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=9.9 PUSH NUT 		8-97022-566-0 01 1 9802-9802 ● ●
97 09.011 NUT; CAB STAY PIN
AIR INTAKE REAR VERTICAL<KJ3>,AIR INTAKE SYSTEM FRONT<6PC> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=9.9 PUSH NUT 		8-97022-566-0 01 1 9802-9802 ● ● ●
97 09.011 NUT; CAB STAY PIN
MANUAL TILT CAB<RWZ> (B) ID=9.9 PUSH NUT 		8-97022-566-0 01 1 9803- ● ●
97 09.011 NUT; CAB STAY PIN
MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> (B) ID=9.9 PUSH NUT 		8-97022-566-0 01 1 9803- ● ● ●
97 09.011 NUT; CAB STAY PIN
AIR INTAKE REAR VERTICAL<KJ3>,AIR INTAKE SYSTEM FRONT<6PC> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=9.9 PUSH NUT 		8-97022-566-0 01 1 9803- ● ● ●
97 09.011 NUT; CAB STAY PIN
(C) ID=11.9 PUSH NUT 		8-97022-567-0 01 1 9312-9611 ● ● ●
97 09.011 NUT; CAB STAY PIN
(C) ID=11.9 PUSH NUT 		8-97022-567-0 01 1 9612-9612 ● ● ● ●
97 09.011 NUT; CAB STAY PIN
MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=11.9 PUSH NUT 		8-97022-567-0 01 1 9612-9704 ● ● ●
97 09.011 NUT; CAB STAY PIN
FRAME STRAIGHT TYPE<7KJ> (C) ID=11.9 PUSH NUT 		8-97022-567-0 01 1 9612-9704 ● ● ●
97 09.011 NUT; CAB STAY PIN
AIR INTAKE REAR VERTICAL<KJ3>,AIR INTAKE SYSTEM FRONT<6PC> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=11.9 PUSH NUT 		8-97022-567-0 01 1 9705-9711 ● ● ●
97 09.011 NUT; CAB STAY PIN
FRAME STRAIGHT TYPE<7KJ> (C) ID=11.9 PUSH NUT 		8-97022-567-0 01 1 9705-9711 ● ● ●
97 09.011 NUT; CAB STAY PIN
AIR INTAKE REAR VERTICAL<KJ3>,AIR INTAKE SYSTEM FRONT<6PC> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=11.9 PUSH NUT 		8-97022-567-0 01 1 9712-9801 ● ● ● ●
97 09.011 NUT; CAB STAY PIN
FRAME STRAIGHT TYPE<7KJ> (C) ID=11.9 PUSH NUT 		8-97022-567-0 01 1 9712-9801 ● ● ● ●
97 09.011 NUT; CAB STAY PIN
FRAME STRAIGHT TYPE<7KJ> (C) ID=11.9 PUSH NUT 		8-97022-567-0 01 1 9802-9802 ● ● ● ● ●
97 09.011 NUT; CAB STAY PIN
MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=11.9 PUSH NUT 		8-97022-567-0 01 1 9802-9802 ● ●
97 09.011 NUT; CAB STAY PIN
AIR INTAKE REAR VERTICAL<KJ3>,AIR INTAKE SYSTEM FRONT<6PC> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=11.9 PUSH NUT 		8-97022-567-0 01 1 9802-9802 ● ● ●
97 09.011 NUT; CAB STAY PIN
MANUAL TILT CAB<RWZ> (C) ID=11.9 PUSH NUT 		8-97022-567-0 01 1 9803- ● ●
97 09.011 NUT; CAB STAY PIN
MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> (C) ID=11.9 PUSH NUT 		8-97022-567-0 01 1 9803- ● ● ●
97 09.011 NUT; CAB STAY PIN
AIR INTAKE REAR VERTICAL<KJ3>,AIR INTAKE SYSTEM FRONT<6PC> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=11.9 PUSH NUT 		8-97022-567-0 01 1 9803- ● ● ●
98 09.003 WASHER; CAB STAY
ID=6.5 OD=28.0 		8-97076-467-0 01 1 9312-9611 ● ● ●
98 09.003 WASHER; CAB STAY
ID=6.5 OD=28.0 		8-97076-467-0 01 1 9612-9612 ● ● ● ●
98 09.003 WASHER; CAB STAY
MANUAL TILT CAB<RWZ> ID=6.5 OD=28.0 		8-97076-467-0 01 1 9612-9707 ● ● ● ●
98 09.003 WASHER; CAB STAY
MANUAL TILT CAB<RWZ> ID=10.5 OD=28.0 		8-97184-701-0 01 1 9708-9711 ● ● ● ●
98 09.003 WASHER; CAB STAY
MANUAL TILT CAB<RWZ> ID=10.5 OD=28.0 		8-97184-701-0 01 1 9712- ● ● ● ● ●
99 09.003 NUT; CAB STAY
04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 9312-9611 ● ● ●
99 09.003 NUT; CAB STAY
04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 9612-9612 ● ● ● ●
99 09.003 NUT; CAB STAY
MANUAL TILT CAB<RWZ> 04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 9612-9707 ● ● ● ●
99 09.003 NUT; CAB STAY
04.785 (B) M10 FLANGE 		0-91150-110-0 02 1 9312-9511 ● ● ●
99 09.003 NUT; CAB STAY
04.785 (B) M10 FLANGE 		0-91150-110-0 02 1 9512-9603 ●
99 09.003 NUT; CAB STAY
EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 (B) M10 FLANGE 		0-91150-110-0 02 1 9512-9603 ● ●
99 09.003 NUT; CAB STAY
MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 (B) M10 FLANGE 		0-91150-110-0 02 1 9604-9711 ● ● ●
99 09.003 NUT; CAB STAY
MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 (B) M10 FLANGE 		0-91150-110-0 02 1 9712-9801 ● ● ● ●
99 09.003 NUT; CAB STAY
MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 (B) M10 FLANGE 		0-91150-110-0 02 1 9802- ● ● ● ● ●
99 09.003 NUT; CAB STAY
MANUAL TILT CAB<RWZ> 07.389 (A) M10 		8-94317-772-0 01 1 9708-9711 ● ● ● ●
99 09.003 NUT; CAB STAY
MANUAL TILT CAB<RWZ> 07.389 (A) M10 		8-94317-772-0 01 1 9712-9712 ● ● ● ● ●
99 09.003 NUT; CAB STAY
MANUAL TILT CAB<RWZ> (A) M10 		8-97185-205-1 01 1 9712- ● ● ● ● ●
103 09.003 PIN; JOINT,CAB STAY
M6X29.5 		8-97076-843-1 01 1 9312-9611 ● ● ●
103 09.003 PIN; JOINT,CAB STAY
MANUAL TILT CAB<RWZ> M6X29.5 		8-97076-843-1 01 1 9612-9707 ● ● ● ●
103 09.003 PIN; JOINT,CAB STAY
MANUAL TILT CAB<RWZ> M10X40 		8-97184-683-0 01 1 9708-9711 ● ● ● ●
103 09.003 PIN; JOINT,CAB STAY
MANUAL TILT CAB<RWZ> M10X40 		8-97184-683-0 01 1 9712- ● ● ● ● ●
104 09.003 BOLT; CAB STAY BRKT
M8X20 FLANGE 		0-28290-820-0 03 1 9312-9611 ● ● ●
104 09.003 BOLT; CAB STAY BRKT
MANUAL TILT CAB<RWZ> M8X20 FLANGE 		0-28690-820-0 03 1 9612-9711 ● ● ● ●
104 09.003 BOLT; CAB STAY BRKT
MANUAL TILT CAB<RWZ> M8X20 FLANGE 		0-28690-820-0 03 1 9712- ● ● ● ● ●
107 09.005 PIN; LK LEVER
FRAME STRAIGHT TYPE<7KJ> 		8-94331-482-0 01 1 9511-9611 ● ●
107 09.005 PIN; LK LEVER
FRAME STRAIGHT TYPE<7KJ> 		8-94331-482-0 01 1 9612-9711 ● ● ●
107 09.005 PIN; LK LEVER
FRAME STRAIGHT TYPE<7KJ> 		8-94331-482-0 01 1 9712-9801 ● ● ● ●
107 09.005 PIN; LK LEVER
FRAME STRAIGHT TYPE<7KJ> 		8-94331-482-0 01 1 9802-9802 ● ● ● ● ●
107 09.005 PIN; LK LEVER
MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> 		8-94331-482-0 01 1 9803- ● ● ● ● ●
120 09.003 WASHER; NYLON
ID=10 OD=20 		8-97103-223-0 01 1 9312-9611 ● ● ●
120 09.003 WASHER; NYLON
MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> ID=10 OD=20 		8-97103-223-0 01 1 9612-9704 ● ● ●
120 09.003 WASHER; NYLON
FRAME STRAIGHT TYPE<7KJ> ID=10 OD=20 		8-97103-223-0 01 1 9612-9704 ● ● ●
120 09.003 WASHER; NYLON
AIR INTAKE REAR VERTICAL<KJ3>,AIR INTAKE SYSTEM FRONT<6PC> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> ID=10 OD=20 		8-97103-223-0 01 1 9705-9711 ● ● ●
120 09.003 WASHER; NYLON
FRAME STRAIGHT TYPE<7KJ> ID=10 OD=20 		8-97103-223-0 01 1 9705-9711 ● ● ●
120 09.003 WASHER; NYLON
AIR INTAKE REAR VERTICAL<KJ3>,AIR INTAKE SYSTEM FRONT<6PC> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> ID=10 OD=20 		8-97103-223-0 01 1 9712-9801 ● ● ● ●
120 09.003 WASHER; NYLON
FRAME STRAIGHT TYPE<7KJ> ID=10 OD=20 		8-97103-223-0 01 1 9712-9801 ● ● ● ●
120 09.003 WASHER; NYLON
FRAME STRAIGHT TYPE<7KJ> ID=10 OD=20 		8-97103-223-0 01 1 9802-9802 ● ● ● ● ●
120 09.003 WASHER; NYLON
MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> ID=10 OD=20 		8-97103-223-0 01 1 9802-9802 ● ●
120 09.003 WASHER; NYLON
AIR INTAKE REAR VERTICAL<KJ3>,AIR INTAKE SYSTEM FRONT<6PC> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> ID=10 OD=20 		8-97103-223-0 01 1 9802-9802 ● ● ●
120 09.003 WASHER; NYLON
MANUAL TILT CAB<RWZ> ID=10 OD=20 		8-97103-223-0 01 1 9803- ● ●
120 09.003 WASHER; NYLON
MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> ID=10 OD=20 		8-97103-223-0 01 1 9803- ● ● ●
120 09.003 WASHER; NYLON
AIR INTAKE REAR VERTICAL<KJ3>,AIR INTAKE SYSTEM FRONT<6PC> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> ID=10 OD=20 		8-97103-223-0 01 1 9803- ● ● ●
146 09.003 BRACKET ASM; CAB STAY UPR 8-97076-588-2 01 1 9312-9611 ● ● ●
146 09.003 BRACKET ASM; CAB STAY UPR
MANUAL TILT CAB<RWZ> 		8-97076-588-2 01 1 9612-9711 ● ● ● ●
146 09.003 BRACKET ASM; CAB STAY UPR
MANUAL TILT CAB<RWZ> 		8-97076-588-2 01 1 9712- ● ● ● ● ●

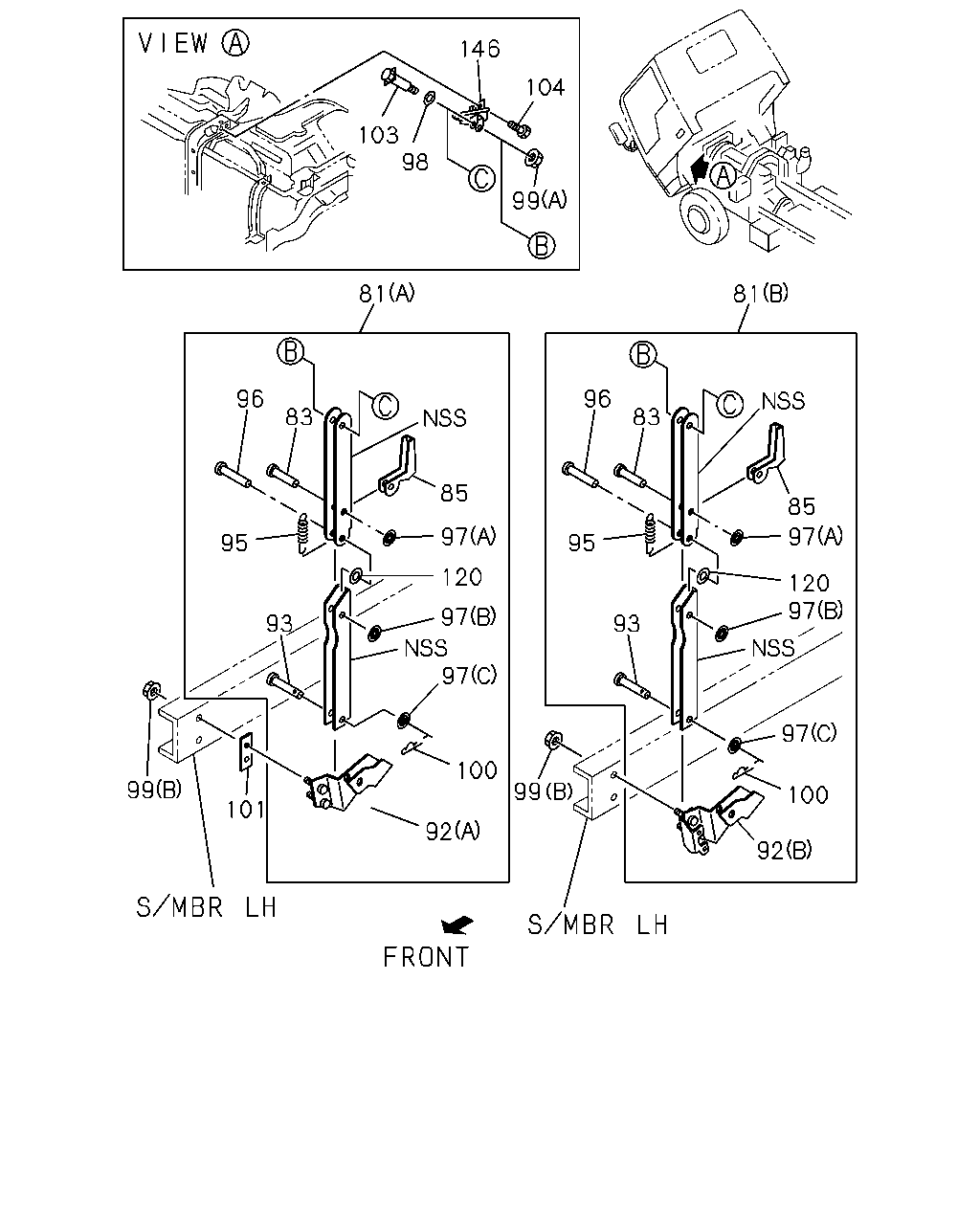

çizim 66965
146 104 103 98 99 81 81 96 96 83 83 85 85 97 97 95 95 120 120 97 97 93 93 97 97 100 99 99 100 101 92 92
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
81 09.003 STAY ASM; CAB TILT
AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97080-008-4 01 1 9312-9410 ● ● ●
81 09.003 STAY ASM; CAB TILT
AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97120-943-0 01 1 9411-9510 ● ● ●
81 09.003 STAY ASM; CAB TILT
AIR INTAKE REAR VERTICAL<KJ3> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97120-943-0 01 1 9511-9611 ● ● ●
81 09.003 STAY ASM; CAB TILT
AIR INTAKE REAR VERTICAL<KJ3> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97120-943-0 01 1 9612-9711 ● ● ●
81 09.003 STAY ASM; CAB TILT
AIR INTAKE REAR VERTICAL<KJ3> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97120-943-0 01 1 9712-9801 ● ● ● ●
81 09.003 STAY ASM; CAB TILT
AIR INTAKE REAR VERTICAL<KJ3> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97120-943-0 01 1 9802- ● ● ● ● ●
81 09.003 STAY ASM; CAB TILT
EXC. AIR INTAKE REAR VERTICAL<KJ3> (B) 		8-97035-275-4 01 1 9312-9410 ● ● ●
81 09.003 STAY ASM; CAB TILT
EXC. AIR INTAKE REAR VERTICAL<KJ3> (B) 		8-97120-942-0 01 1 9411-9506 ● ● ●
81 09.003 STAY ASM; CAB TILT
EXC. AIR INTAKE REAR VERTICAL<KJ3> (B) 		8-97120-942-0 01 1 9507-9510 ● ●
81 09.003 STAY ASM; CAB TILT
EXC. AIR INTAKE REAR VERTICAL<KJ3>, FRAME STRAIGHT TYPE<7KJ> (B) 		8-97120-942-0 01 1 9511-9601 ●
81 09.003 STAY ASM; CAB TILT
EXC. AIR INTAKE REAR VERTICAL<KJ3>, FRAME STRAIGHT TYPE<7KJ> (B) 		8-97120-942-0 01 1 9602-9606 ● ●
81 09.003 STAY ASM; CAB TILT
EXC. AIR INTAKE REAR VERTICAL<KJ3>, FRAME STRAIGHT TYPE<7KJ> (B) 		8-97120-942-0 01 1 9607-9611 ● ● ●
81 09.003 STAY ASM; CAB TILT
MANUAL TILT CAB<RWZ> EXC. AIR INTAKE REAR VERTICAL<KJ3>, FRAME STRAIGHT TYPE<7KJ> (B) 		8-97120-942-0 01 1 9612-9704 ● ● ●
81 09.003 STAY ASM; CAB TILT
MANUAL TILT CAB<RWZ> AIR INTAKE SYSTEM FRONT<6PC> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97120-942-0 01 1 9705-9801 ● ●
81 09.003 STAY ASM; CAB TILT
MANUAL TILT CAB<RWZ> AIR INTAKE SYSTEM FRONT<6PC> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97120-942-0 01 1 9802- ● ● ●
81 09.003 STAY ASM; CAB TILT
FRAME STRAIGHT TYPE<7KJ> (C) 		8-97073-880-1 01 1 9511-9611 ● ●
81 09.003 STAY ASM; CAB TILT
FRAME STRAIGHT TYPE<7KJ> (C) 		8-97073-880-1 01 1 9612-9711 ● ● ●
81 09.003 STAY ASM; CAB TILT
FRAME STRAIGHT TYPE<7KJ> (C) 		8-97073-880-1 01 1 9712-9801 ● ● ● ●
81 09.003 STAY ASM; CAB TILT
FRAME STRAIGHT TYPE<7KJ> (C) 		8-97073-880-1 01 1 9802-9802 ● ● ● ● ●
81 09.003 STAY ASM; CAB TILT
MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> 		8-97073-880-1 01 1 9803- ● ● ● ● ●
83 09.003 PIN; JOINT,CAB STAY
OD=8 L=32 		8-97039-548-0 01 1 9312-9611 ● ● ●
83 09.003 PIN; JOINT,CAB STAY
MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> OD=8 L=32 		8-97039-548-0 01 1 9612-9704 ● ● ●
83 09.003 PIN; JOINT,CAB STAY
FRAME STRAIGHT TYPE<7KJ> OD=8 L=32 		8-97039-548-0 01 1 9612-9704 ● ● ●
83 09.003 PIN; JOINT,CAB STAY
AIR INTAKE REAR VERTICAL<KJ3>,AIR INTAKE SYSTEM FRONT<6PC> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> OD=8 L=32 		8-97039-548-0 01 1 9705-9711 ● ● ●
83 09.003 PIN; JOINT,CAB STAY
FRAME STRAIGHT TYPE<7KJ> OD=8 L=32 		8-97039-548-0 01 1 9705-9711 ● ● ●
83 09.003 PIN; JOINT,CAB STAY
AIR INTAKE REAR VERTICAL<KJ3>,AIR INTAKE SYSTEM FRONT<6PC> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> OD=8 L=32 		8-97039-548-0 01 1 9712-9801 ● ● ● ●
83 09.003 PIN; JOINT,CAB STAY
FRAME STRAIGHT TYPE<7KJ> OD=8 L=32 		8-97039-548-0 01 1 9712-9801 ● ● ● ●
83 09.003 PIN; JOINT,CAB STAY
FRAME STRAIGHT TYPE<7KJ> OD=8 L=32 		8-97039-548-0 01 1 9802-9802 ● ● ● ● ●
83 09.003 PIN; JOINT,CAB STAY
MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> OD=8 L=32 		8-97039-548-0 01 1 9802-9802 ● ●
83 09.003 PIN; JOINT,CAB STAY
AIR INTAKE REAR VERTICAL<KJ3>,AIR INTAKE SYSTEM FRONT<6PC> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> OD=8 L=32 		8-97039-548-0 01 1 9802-9802 ● ● ●
83 09.003 PIN; JOINT,CAB STAY
MANUAL TILT CAB<RWZ> OD=8 L=32 		8-97039-548-0 01 1 9803- ● ●
83 09.003 PIN; JOINT,CAB STAY
MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> OD=8 L=32 		8-97039-548-0 01 1 9803- ● ● ●
83 09.003 PIN; JOINT,CAB STAY
AIR INTAKE REAR VERTICAL<KJ3>,AIR INTAKE SYSTEM FRONT<6PC> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> OD=8 L=32 		8-97039-548-0 01 1 9803- ● ● ●
85 09.003 LEVER; LOCK,CAB STAY 8-94331-481-0 01 1 9312-9611 ● ● ●
85 09.003 LEVER; LOCK,CAB STAY
MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94331-481-0 01 1 9612-9704 ● ● ●
85 09.003 LEVER; LOCK,CAB STAY
FRAME STRAIGHT TYPE<7KJ> 		8-94331-481-0 01 1 9612-9704 ● ● ●
85 09.003 LEVER; LOCK,CAB STAY
AIR INTAKE REAR VERTICAL<KJ3>,AIR INTAKE SYSTEM FRONT<6PC> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94331-481-0 01 1 9705-9711 ● ● ●
85 09.003 LEVER; LOCK,CAB STAY
FRAME STRAIGHT TYPE<7KJ> 		8-94331-481-0 01 1 9705-9711 ● ● ●
85 09.003 LEVER; LOCK,CAB STAY
AIR INTAKE REAR VERTICAL<KJ3>,AIR INTAKE SYSTEM FRONT<6PC> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94331-481-0 01 1 9712-9801 ● ● ● ●
85 09.003 LEVER; LOCK,CAB STAY
FRAME STRAIGHT TYPE<7KJ> 		8-94331-481-0 01 1 9712-9801 ● ● ● ●
85 09.003 LEVER; LOCK,CAB STAY
FRAME STRAIGHT TYPE<7KJ> 		8-94331-481-0 01 1 9802-9802 ● ● ● ● ●
85 09.003 LEVER; LOCK,CAB STAY
MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94331-481-0 01 1 9802-9802 ● ●
85 09.003 LEVER; LOCK,CAB STAY
AIR INTAKE REAR VERTICAL<KJ3>,AIR INTAKE SYSTEM FRONT<6PC> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94331-481-0 01 1 9802-9802 ● ● ●
85 09.003 LEVER; LOCK,CAB STAY
MANUAL TILT CAB<RWZ> 		8-94331-481-0 01 1 9803- ● ●
85 09.003 LEVER; LOCK,CAB STAY
MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> 		8-94331-481-0 01 1 9803- ● ● ●
85 09.003 LEVER; LOCK,CAB STAY
AIR INTAKE REAR VERTICAL<KJ3>,AIR INTAKE SYSTEM FRONT<6PC> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94331-481-0 01 1 9803- ● ● ●
92 09.003 BRACKET; CAB STAY TO FRAME
AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97096-653-0 01 1 9312-9510 ● ● ●
92 09.003 BRACKET; CAB STAY TO FRAME
AIR INTAKE REAR VERTICAL<KJ3> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97096-653-0 01 1 9511-9611 ● ● ●
92 09.003 BRACKET; CAB STAY TO FRAME
AIR INTAKE REAR VERTICAL<KJ3> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97096-653-0 01 1 9612-9711 ● ● ●
92 09.003 BRACKET; CAB STAY TO FRAME
AIR INTAKE REAR VERTICAL<KJ3> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97096-653-0 01 1 9712-9801 ● ● ● ●
92 09.003 BRACKET; CAB STAY TO FRAME
AIR INTAKE REAR VERTICAL<KJ3> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97096-653-0 01 1 9802- ● ● ● ● ●
92 09.003 BRACKET; CAB STAY TO FRAME
EXC. AIR INTAKE REAR VERTICAL<KJ3> (B) 		8-97096-650-0 01 1 9312-9510 ● ● ●
92 09.003 BRACKET; CAB STAY TO FRAME
EXC. AIR INTAKE REAR VERTICAL<KJ3>, FRAME STRAIGHT TYPE<7KJ> (B) 		8-97096-650-0 01 1 9511-9611 ● ● ●
92 09.003 BRACKET; CAB STAY TO FRAME
MANUAL TILT CAB<RWZ> EXC. AIR INTAKE REAR VERTICAL<KJ3>, FRAME STRAIGHT TYPE<7KJ> (B) 		8-97096-650-0 01 1 9612-9704 ● ● ●
92 09.003 BRACKET; CAB STAY TO FRAME
MANUAL TILT CAB<RWZ> AIR INTAKE SYSTEM FRONT<6PC> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97096-650-0 01 1 9705-9801 ● ●
92 09.003 BRACKET; CAB STAY TO FRAME
MANUAL TILT CAB<RWZ> AIR INTAKE SYSTEM FRONT<6PC> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97096-650-0 01 1 9802- ● ● ●
92 09.003 BRACKET; CAB STAY TO FRAME
FRAME STRAIGHT TYPE<7KJ> (C) 		8-97108-760-1 01 1 9511-9611 ● ●
92 09.003 BRACKET; CAB STAY TO FRAME
FRAME STRAIGHT TYPE<7KJ> (C) 		8-97108-760-1 01 1 9612-9711 ● ● ●
92 09.003 BRACKET; CAB STAY TO FRAME
FRAME STRAIGHT TYPE<7KJ> (C) 		8-97108-760-1 01 1 9712-9801 ● ● ● ●
92 09.003 BRACKET; CAB STAY TO FRAME
FRAME STRAIGHT TYPE<7KJ> (C) 		8-97108-760-1 01 1 9802-9802 ● ● ● ● ●
92 09.003 BRACKET; CAB STAY TO FRAME
MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97108-760-1 01 1 9803- ● ● ● ● ●
93 09.003 PIN; CAB STAY 8-97039-549-0 01 1 9312-9611 ● ● ●
93 09.003 PIN; CAB STAY 8-97039-549-0 01 1 9612-9612 ● ● ● ●
93 09.003 PIN; CAB STAY
MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97039-549-0 01 1 9612-9704 ● ● ●
93 09.003 PIN; CAB STAY
FRAME STRAIGHT TYPE<7KJ> 		8-97039-549-0 01 1 9612-9704 ● ● ●
93 09.003 PIN; CAB STAY
AIR INTAKE REAR VERTICAL<KJ3>,AIR INTAKE SYSTEM FRONT<6PC> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97039-549-0 01 1 9705-9711 ● ● ●
93 09.003 PIN; CAB STAY
FRAME STRAIGHT TYPE<7KJ> 		8-97039-549-0 01 1 9705-9711 ● ● ●
93 09.003 PIN; CAB STAY
AIR INTAKE REAR VERTICAL<KJ3>,AIR INTAKE SYSTEM FRONT<6PC> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97039-549-0 01 1 9712-9801 ● ● ● ●
93 09.003 PIN; CAB STAY
FRAME STRAIGHT TYPE<7KJ> 		8-97039-549-0 01 1 9712-9801 ● ● ● ●
93 09.003 PIN; CAB STAY
FRAME STRAIGHT TYPE<7KJ> 		8-97039-549-0 01 1 9802-9802 ● ● ● ● ●
93 09.003 PIN; CAB STAY
MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97039-549-0 01 1 9802-9802 ● ●
93 09.003 PIN; CAB STAY
AIR INTAKE REAR VERTICAL<KJ3>,AIR INTAKE SYSTEM FRONT<6PC> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97039-549-0 01 1 9802-9802 ● ● ●
93 09.003 PIN; CAB STAY
MANUAL TILT CAB<RWZ> 		8-97039-549-0 01 1 9803- ● ●
93 09.003 PIN; CAB STAY
MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> 		8-97039-549-0 01 1 9803- ● ● ●
93 09.003 PIN; CAB STAY
AIR INTAKE REAR VERTICAL<KJ3>,AIR INTAKE SYSTEM FRONT<6PC> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97039-549-0 01 1 9803- ● ● ●
95 09.003 SPRING; RETURN,CAB STAY 8-94160-167-2 01 1 9312-9611 ● ● ●
95 09.003 SPRING; RETURN,CAB STAY 8-94160-167-2 01 1 9612-9612 ● ● ● ●
95 09.003 SPRING; RETURN,CAB STAY
MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94160-167-2 01 1 9612-9704 ● ● ●
95 09.003 SPRING; RETURN,CAB STAY
FRAME STRAIGHT TYPE<7KJ> 		8-94160-167-2 01 1 9612-9704 ● ● ●
95 09.003 SPRING; RETURN,CAB STAY
AIR INTAKE REAR VERTICAL<KJ3>,AIR INTAKE SYSTEM FRONT<6PC> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94160-167-2 01 1 9705-9711 ● ● ●
95 09.003 SPRING; RETURN,CAB STAY
FRAME STRAIGHT TYPE<7KJ> 		8-94160-167-2 01 1 9705-9711 ● ● ●
95 09.003 SPRING; RETURN,CAB STAY
AIR INTAKE REAR VERTICAL<KJ3>,AIR INTAKE SYSTEM FRONT<6PC> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94160-167-2 01 1 9712-9801 ● ● ● ●
95 09.003 SPRING; RETURN,CAB STAY
FRAME STRAIGHT TYPE<7KJ> 		8-94160-167-2 01 1 9712-9801 ● ● ● ●
95 09.003 SPRING; RETURN,CAB STAY
FRAME STRAIGHT TYPE<7KJ> 		8-94160-167-2 01 1 9802-9802 ● ● ● ● ●
95 09.003 SPRING; RETURN,CAB STAY
MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94160-167-2 01 1 9802-9802 ● ●
95 09.003 SPRING; RETURN,CAB STAY
AIR INTAKE REAR VERTICAL<KJ3>,AIR INTAKE SYSTEM FRONT<6PC> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94160-167-2 01 1 9802-9802 ● ● ●
95 09.003 SPRING; RETURN,CAB STAY
MANUAL TILT CAB<RWZ> 		8-94160-167-2 01 1 9803- ● ●
95 09.003 SPRING; RETURN,CAB STAY
MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> 		8-94160-167-2 01 1 9803- ● ● ●
95 09.003 SPRING; RETURN,CAB STAY
AIR INTAKE REAR VERTICAL<KJ3>,AIR INTAKE SYSTEM FRONT<6PC> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94160-167-2 01 1 9803- ● ● ●
96 09.003 PIN; JOINT
OD=10 L=36 		8-97096-661-0 01 1 9312-9611 ● ● ●
96 09.003 PIN; JOINT
OD=10 L=36 		8-97096-661-0 01 1 9612-9612 ● ● ● ●
96 09.003 PIN; JOINT
MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> OD=10 L=36 		8-97096-661-0 01 1 9612-9704 ● ● ●
96 09.003 PIN; JOINT
FRAME STRAIGHT TYPE<7KJ> OD=10 L=36 		8-97096-661-0 01 1 9612-9704 ● ● ●
96 09.003 PIN; JOINT
AIR INTAKE REAR VERTICAL<KJ3>,AIR INTAKE SYSTEM FRONT<6PC> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> OD=10 L=36 		8-97096-661-0 01 1 9705-9711 ● ● ●
96 09.003 PIN; JOINT
FRAME STRAIGHT TYPE<7KJ> OD=10 L=36 		8-97096-661-0 01 1 9705-9711 ● ● ●
96 09.003 PIN; JOINT
AIR INTAKE REAR VERTICAL<KJ3>,AIR INTAKE SYSTEM FRONT<6PC> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> OD=10 L=36 		8-97096-661-0 01 1 9712-9801 ● ● ● ●
96 09.003 PIN; JOINT
FRAME STRAIGHT TYPE<7KJ> OD=10 L=36 		8-97096-661-0 01 1 9712-9801 ● ● ● ●
96 09.003 PIN; JOINT
FRAME STRAIGHT TYPE<7KJ> OD=10 L=36 		8-97096-661-0 01 1 9802-9802 ● ● ● ● ●
96 09.003 PIN; JOINT
MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> OD=10 L=36 		8-97096-661-0 01 1 9802-9802 ● ●
96 09.003 PIN; JOINT
AIR INTAKE REAR VERTICAL<KJ3>,AIR INTAKE SYSTEM FRONT<6PC> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> OD=10 L=36 		8-97096-661-0 01 1 9802-9802 ● ● ●
96 09.003 PIN; JOINT
MANUAL TILT CAB<RWZ> OD=10 L=36 		8-97096-661-0 01 1 9803- ● ●
96 09.003 PIN; JOINT
MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> OD=10 L=36 		8-97096-661-0 01 1 9803- ● ● ●
96 09.003 PIN; JOINT
AIR INTAKE REAR VERTICAL<KJ3>,AIR INTAKE SYSTEM FRONT<6PC> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> OD=10 L=36 		8-97096-661-0 01 1 9803- ● ● ●
97 09.011 NUT; CAB STAY PIN
(A) ID=7.9 PUSH NUT 		8-97022-565-0 01 1 9312-9611 ● ● ●
97 09.011 NUT; CAB STAY PIN
(A) ID=7.9 PUSH NUT 		8-97022-565-0 01 1 9612-9612 ● ● ● ●
97 09.011 NUT; CAB STAY PIN
MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=7.9 PUSH NUT 		8-97022-565-0 01 1 9612-9704 ● ● ●
97 09.011 NUT; CAB STAY PIN
FRAME STRAIGHT TYPE<7KJ> (A) ID=7.9 PUSH NUT 		8-97022-565-0 01 1 9612-9704 ● ● ●
97 09.011 NUT; CAB STAY PIN
AIR INTAKE REAR VERTICAL<KJ3>,AIR INTAKE SYSTEM FRONT<6PC> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=7.9 PUSH NUT 		8-97022-565-0 01 1 9705-9711 ● ● ●
97 09.011 NUT; CAB STAY PIN
FRAME STRAIGHT TYPE<7KJ> (A) ID=7.9 PUSH NUT 		8-97022-565-0 01 1 9705-9711 ● ● ●
97 09.011 NUT; CAB STAY PIN
AIR INTAKE REAR VERTICAL<KJ3>,AIR INTAKE SYSTEM FRONT<6PC> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=7.9 PUSH NUT 		8-97022-565-0 01 1 9712-9801 ● ● ● ●
97 09.011 NUT; CAB STAY PIN
FRAME STRAIGHT TYPE<7KJ> (A) ID=7.9 PUSH NUT 		8-97022-565-0 01 1 9712-9801 ● ● ● ●
97 09.011 NUT; CAB STAY PIN
FRAME STRAIGHT TYPE<7KJ> (A) ID=7.9 PUSH NUT 		8-97022-565-0 01 1 9802-9802 ● ● ● ● ●
97 09.011 NUT; CAB STAY PIN
MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=7.9 PUSH NUT 		8-97022-565-0 01 1 9802-9802 ● ●
97 09.011 NUT; CAB STAY PIN
AIR INTAKE REAR VERTICAL<KJ3>,AIR INTAKE SYSTEM FRONT<6PC> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=7.9 PUSH NUT 		8-97022-565-0 01 1 9802-9802 ● ● ●
97 09.011 NUT; CAB STAY PIN
MANUAL TILT CAB<RWZ> (A) ID=7.9 PUSH NUT 		8-97022-565-0 01 1 9803- ● ●
97 09.011 NUT; CAB STAY PIN
MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> (A) ID=7.9 PUSH NUT 		8-97022-565-0 01 1 9803- ● ● ●
97 09.011 NUT; CAB STAY PIN
AIR INTAKE REAR VERTICAL<KJ3>,AIR INTAKE SYSTEM FRONT<6PC> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=7.9 PUSH NUT 		8-97022-565-0 01 1 9803- ● ● ●
97 09.011 NUT; CAB STAY PIN
(B) ID=9.9 PUSH NUT 		8-97022-566-0 01 1 9312-9611 ● ● ●
97 09.011 NUT; CAB STAY PIN
(B) ID=9.9 PUSH NUT 		8-97022-566-0 01 1 9612-9612 ● ● ● ●
97 09.011 NUT; CAB STAY PIN
MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=9.9 PUSH NUT 		8-97022-566-0 01 1 9612-9704 ● ● ●
97 09.011 NUT; CAB STAY PIN
FRAME STRAIGHT TYPE<7KJ> (B) ID=9.9 PUSH NUT 		8-97022-566-0 01 1 9612-9704 ● ● ●
97 09.011 NUT; CAB STAY PIN
AIR INTAKE REAR VERTICAL<KJ3>,AIR INTAKE SYSTEM FRONT<6PC> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=9.9 PUSH NUT 		8-97022-566-0 01 1 9705-9711 ● ● ●
97 09.011 NUT; CAB STAY PIN
FRAME STRAIGHT TYPE<7KJ> (B) ID=9.9 PUSH NUT 		8-97022-566-0 01 1 9705-9711 ● ● ●
97 09.011 NUT; CAB STAY PIN
AIR INTAKE REAR VERTICAL<KJ3>,AIR INTAKE SYSTEM FRONT<6PC> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=9.9 PUSH NUT 		8-97022-566-0 01 1 9712-9801 ● ● ● ●
97 09.011 NUT; CAB STAY PIN
FRAME STRAIGHT TYPE<7KJ> (B) ID=9.9 PUSH NUT 		8-97022-566-0 01 1 9712-9801 ● ● ● ●
97 09.011 NUT; CAB STAY PIN
FRAME STRAIGHT TYPE<7KJ> (B) ID=9.9 PUSH NUT 		8-97022-566-0 01 1 9802-9802 ● ● ● ● ●
97 09.011 NUT; CAB STAY PIN
MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=9.9 PUSH NUT 		8-97022-566-0 01 1 9802-9802 ● ●
97 09.011 NUT; CAB STAY PIN
AIR INTAKE REAR VERTICAL<KJ3>,AIR INTAKE SYSTEM FRONT<6PC> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=9.9 PUSH NUT 		8-97022-566-0 01 1 9802-9802 ● ● ●
97 09.011 NUT; CAB STAY PIN
MANUAL TILT CAB<RWZ> (B) ID=9.9 PUSH NUT 		8-97022-566-0 01 1 9803- ● ●
97 09.011 NUT; CAB STAY PIN
MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> (B) ID=9.9 PUSH NUT 		8-97022-566-0 01 1 9803- ● ● ●
97 09.011 NUT; CAB STAY PIN
AIR INTAKE REAR VERTICAL<KJ3>,AIR INTAKE SYSTEM FRONT<6PC> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=9.9 PUSH NUT 		8-97022-566-0 01 1 9803- ● ● ●
97 09.011 NUT; CAB STAY PIN
(C) ID=11.9 PUSH NUT 		8-97022-567-0 01 1 9312-9611 ● ● ●
97 09.011 NUT; CAB STAY PIN
(C) ID=11.9 PUSH NUT 		8-97022-567-0 01 1 9612-9612 ● ● ● ●
97 09.011 NUT; CAB STAY PIN
MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=11.9 PUSH NUT 		8-97022-567-0 01 1 9612-9704 ● ● ●
97 09.011 NUT; CAB STAY PIN
FRAME STRAIGHT TYPE<7KJ> (C) ID=11.9 PUSH NUT 		8-97022-567-0 01 1 9612-9704 ● ● ●
97 09.011 NUT; CAB STAY PIN
AIR INTAKE REAR VERTICAL<KJ3>,AIR INTAKE SYSTEM FRONT<6PC> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=11.9 PUSH NUT 		8-97022-567-0 01 1 9705-9711 ● ● ●
97 09.011 NUT; CAB STAY PIN
FRAME STRAIGHT TYPE<7KJ> (C) ID=11.9 PUSH NUT 		8-97022-567-0 01 1 9705-9711 ● ● ●
97 09.011 NUT; CAB STAY PIN
AIR INTAKE REAR VERTICAL<KJ3>,AIR INTAKE SYSTEM FRONT<6PC> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=11.9 PUSH NUT 		8-97022-567-0 01 1 9712-9801 ● ● ● ●
97 09.011 NUT; CAB STAY PIN
FRAME STRAIGHT TYPE<7KJ> (C) ID=11.9 PUSH NUT 		8-97022-567-0 01 1 9712-9801 ● ● ● ●
97 09.011 NUT; CAB STAY PIN
FRAME STRAIGHT TYPE<7KJ> (C) ID=11.9 PUSH NUT 		8-97022-567-0 01 1 9802-9802 ● ● ● ● ●
97 09.011 NUT; CAB STAY PIN
MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=11.9 PUSH NUT 		8-97022-567-0 01 1 9802-9802 ● ●
97 09.011 NUT; CAB STAY PIN
AIR INTAKE REAR VERTICAL<KJ3>,AIR INTAKE SYSTEM FRONT<6PC> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=11.9 PUSH NUT 		8-97022-567-0 01 1 9802-9802 ● ● ●
97 09.011 NUT; CAB STAY PIN
MANUAL TILT CAB<RWZ> (C) ID=11.9 PUSH NUT 		8-97022-567-0 01 1 9803- ● ●
97 09.011 NUT; CAB STAY PIN
MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> (C) ID=11.9 PUSH NUT 		8-97022-567-0 01 1 9803- ● ● ●
97 09.011 NUT; CAB STAY PIN
AIR INTAKE REAR VERTICAL<KJ3>,AIR INTAKE SYSTEM FRONT<6PC> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=11.9 PUSH NUT 		8-97022-567-0 01 1 9803- ● ● ●
98 09.003 WASHER; CAB STAY
ID=6.5 OD=28.0 		8-97076-467-0 01 1 9312-9611 ● ● ●
98 09.003 WASHER; CAB STAY
ID=6.5 OD=28.0 		8-97076-467-0 01 1 9612-9612 ● ● ● ●
98 09.003 WASHER; CAB STAY
MANUAL TILT CAB<RWZ> ID=6.5 OD=28.0 		8-97076-467-0 01 1 9612-9707 ● ● ● ●
98 09.003 WASHER; CAB STAY
MANUAL TILT CAB<RWZ> ID=10.5 OD=28.0 		8-97184-701-0 01 1 9708-9711 ● ● ● ●
98 09.003 WASHER; CAB STAY
MANUAL TILT CAB<RWZ> ID=10.5 OD=28.0 		8-97184-701-0 01 1 9712- ● ● ● ● ●
99 09.003 NUT; CAB STAY
04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 9312-9611 ● ● ●
99 09.003 NUT; CAB STAY
04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 9612-9612 ● ● ● ●
99 09.003 NUT; CAB STAY
MANUAL TILT CAB<RWZ> 04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 9612-9707 ● ● ● ●
99 09.003 NUT; CAB STAY
04.785 (B) M10 FLANGE 		0-91150-110-0 02 1 9312-9511 ● ● ●
99 09.003 NUT; CAB STAY
04.785 (B) M10 FLANGE 		0-91150-110-0 02 1 9512-9603 ●
99 09.003 NUT; CAB STAY
EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 (B) M10 FLANGE 		0-91150-110-0 02 1 9512-9603 ● ●
99 09.003 NUT; CAB STAY
MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 (B) M10 FLANGE 		0-91150-110-0 02 1 9604-9711 ● ● ●
99 09.003 NUT; CAB STAY
MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 (B) M10 FLANGE 		0-91150-110-0 02 1 9712-9801 ● ● ● ●
99 09.003 NUT; CAB STAY
MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 (B) M10 FLANGE 		0-91150-110-0 02 1 9802- ● ● ● ● ●
99 09.003 NUT; CAB STAY
MANUAL TILT CAB<RWZ> 07.389 (A) M10 		8-94317-772-0 01 1 9708-9711 ● ● ● ●
99 09.003 NUT; CAB STAY
MANUAL TILT CAB<RWZ> 07.389 (A) M10 		8-94317-772-0 01 1 9712-9712 ● ● ● ● ●
99 09.003 NUT; CAB STAY
MANUAL TILT CAB<RWZ> (A) M10 		8-97185-205-1 01 1 9712- ● ● ● ● ●
100 09.003 PIN; SNAP,CAB STAY TO CAB 1-09987-158-1 01 1 9312-9406 ● ● ●
101 09.003 SPACER
AIR INTAKE REAR VERTICAL<KJ3> 		8-94121-864-1 01 1 9312-9510 ● ● ●
101 09.003 SPACER
AIR INTAKE REAR VERTICAL<KJ3> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94121-864-1 01 1 9511-9611 ● ● ●
101 09.003 SPACER
AIR INTAKE REAR VERTICAL<KJ3> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94121-864-1 01 1 9612-9711 ● ● ●
101 09.003 SPACER
AIR INTAKE REAR VERTICAL<KJ3> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94121-864-1 01 1 9712-9801 ● ● ● ●
101 09.003 SPACER
AIR INTAKE REAR VERTICAL<KJ3> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94121-864-1 01 1 9802- ● ● ● ● ●
103 09.003 PIN; JOINT,CAB STAY
M6X29.5 		8-97076-843-1 01 1 9312-9611 ● ● ●
103 09.003 PIN; JOINT,CAB STAY
MANUAL TILT CAB<RWZ> M6X29.5 		8-97076-843-1 01 1 9612-9707 ● ● ● ●
103 09.003 PIN; JOINT,CAB STAY
MANUAL TILT CAB<RWZ> M10X40 		8-97184-683-0 01 1 9708-9711 ● ● ● ●
103 09.003 PIN; JOINT,CAB STAY
MANUAL TILT CAB<RWZ> M10X40 		8-97184-683-0 01 1 9712- ● ● ● ● ●
104 09.003 BOLT; CAB STAY BRKT
M8X20 FLANGE 		0-28290-820-0 03 1 9312-9611 ● ● ●
104 09.003 BOLT; CAB STAY BRKT
MANUAL TILT CAB<RWZ> M8X20 FLANGE 		0-28690-820-0 03 1 9612-9711 ● ● ● ●
104 09.003 BOLT; CAB STAY BRKT
MANUAL TILT CAB<RWZ> M8X20 FLANGE 		0-28690-820-0 03 1 9712- ● ● ● ● ●
120 09.003 WASHER; NYLON
ID=10 OD=20 		8-97103-223-0 01 1 9312-9611 ● ● ●
120 09.003 WASHER; NYLON
MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> ID=10 OD=20 		8-97103-223-0 01 1 9612-9704 ● ● ●
120 09.003 WASHER; NYLON
FRAME STRAIGHT TYPE<7KJ> ID=10 OD=20 		8-97103-223-0 01 1 9612-9704 ● ● ●
120 09.003 WASHER; NYLON
AIR INTAKE REAR VERTICAL<KJ3>,AIR INTAKE SYSTEM FRONT<6PC> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> ID=10 OD=20 		8-97103-223-0 01 1 9705-9711 ● ● ●
120 09.003 WASHER; NYLON
FRAME STRAIGHT TYPE<7KJ> ID=10 OD=20 		8-97103-223-0 01 1 9705-9711 ● ● ●
120 09.003 WASHER; NYLON
AIR INTAKE REAR VERTICAL<KJ3>,AIR INTAKE SYSTEM FRONT<6PC> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> ID=10 OD=20 		8-97103-223-0 01 1 9712-9801 ● ● ● ●
120 09.003 WASHER; NYLON
FRAME STRAIGHT TYPE<7KJ> ID=10 OD=20 		8-97103-223-0 01 1 9712-9801 ● ● ● ●
120 09.003 WASHER; NYLON
FRAME STRAIGHT TYPE<7KJ> ID=10 OD=20 		8-97103-223-0 01 1 9802-9802 ● ● ● ● ●
120 09.003 WASHER; NYLON
MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> ID=10 OD=20 		8-97103-223-0 01 1 9802-9802 ● ●
120 09.003 WASHER; NYLON
AIR INTAKE REAR VERTICAL<KJ3>,AIR INTAKE SYSTEM FRONT<6PC> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> ID=10 OD=20 		8-97103-223-0 01 1 9802-9802 ● ● ●
120 09.003 WASHER; NYLON
MANUAL TILT CAB<RWZ> ID=10 OD=20 		8-97103-223-0 01 1 9803- ● ●
120 09.003 WASHER; NYLON
MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> ID=10 OD=20 		8-97103-223-0 01 1 9803- ● ● ●
120 09.003 WASHER; NYLON
AIR INTAKE REAR VERTICAL<KJ3>,AIR INTAKE SYSTEM FRONT<6PC> MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> ID=10 OD=20 		8-97103-223-0 01 1 9803- ● ● ●
146 09.003 BRACKET ASM; CAB STAY UPR 8-97076-588-2 01 1 9312-9611 ● ● ●
146 09.003 BRACKET ASM; CAB STAY UPR
MANUAL TILT CAB<RWZ> 		8-97076-588-2 01 1 9612-9711 ● ● ● ●
146 09.003 BRACKET ASM; CAB STAY UPR
MANUAL TILT CAB<RWZ> 		8-97076-588-2 01 1 9712- ● ● ● ● ●
çizim 66992
17 275 17 16 17 16 275 275 18 18 275 18
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
16 09.007 DAMPER; DYNAMIC
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) (A) 		8-97031-817-2 01 1 9312-9506 ● ● ● ● ●
16 09.007 DAMPER; DYNAMIC
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) (A) 		8-97031-817-2 01 1 9507-9601 ● ● ● ●
16 09.007 DAMPER; DYNAMIC
4BE1 ENG(RLH) AUSTRALIA EQUIPMENT(RR3) (A) 		8-97031-817-2 01 1 9602-9611 ● ● ● ●
16 09.007 DAMPER; DYNAMIC
4JG2 ENG(RJC),4HF1 ENG(RLS) (A) 		8-97031-817-2 01 1 9602-9611 ● ● ●
16 09.007 DAMPER; DYNAMIC
4BD1 ENG(LJ6),4JG2 ENG(RJC),4HF1 ENG(RLS) (A) 		8-97031-817-2 01 1 9602-9611 ●
16 09.007 DAMPER; DYNAMIC
4JG2 ENG(RJC),4HF1 ENG(RLS) (A) 		8-97031-817-2 01 1 9612-9711 ● ● ● ● ●
16 09.007 DAMPER; DYNAMIC
4BE1 ENG(RLH) AUSTRALIA EQUIPMENT(RR3) (A) 		8-97031-817-2 01 1 9612-9711 ● ● ● ●
16 09.007 DAMPER; DYNAMIC
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A) 		8-97031-817-2 01 1 9712- ● ● ● ● ● ●
16 09.007 DAMPER; DYNAMIC
4BE1 ENG(RLH) AUSTRALIA EQUIPMENT(RR3) (A) 		8-97031-817-2 01 1 9712- ● ● ● ●
16 09.007 DAMPER; DYNAMIC
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A) 		8-97187-575-0 01 1 9712- ● ● ● ●
16 09.007 DAMPER; DYNAMIC
CHARGE AIR COOLER<6PL> (A) 		8-97187-575-0 01 1 9712- ●
16 09.007 DAMPER; DYNAMIC
4BD1 ENG(LJ6) (B) 		8-94148-383-1 01 1 9312-9510 ●
17 09.007 BOLT; DAMPER
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) 00.780 (A) M8X30 W/LK WASHER 		0-50040-830-0 02 1 9312-9506 ● ● ● ● ●
17 09.007 BOLT; DAMPER
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) 00.780 (A) M8X30 W/LK WASHER 		0-50040-830-0 02 1 9507-9508 ● ● ● ●
17 09.007 BOLT; DAMPER
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) 02.183 (A) M8X35 FLANGE 		0-28680-835-0 02 1 9509-9601 ● ● ● ●
17 09.007 BOLT; DAMPER
4BE1 ENG(RLH) AUSTRALIA EQUIPMENT(RR3) 02.183 (A) M8X35 FLANGE 		0-28680-835-0 02 1 9602-9611 ● ● ● ●
17 09.007 BOLT; DAMPER
4JG2 ENG(RJC),4HF1 ENG(RLS) 02.183 (A) M8X35 FLANGE 		0-28680-835-0 02 1 9602-9611 ● ● ●
17 09.007 BOLT; DAMPER
4BD1 ENG(LJ6),4JG2 ENG(RJC),4HF1 ENG(RLS) 02.183 (A) M8X35 FLANGE 		0-28680-835-0 02 1 9602-9611 ●
17 09.007 BOLT; DAMPER
4JG2 ENG(RJC),4HF1 ENG(RLS) 02.183 (A) M8X35 FLANGE 		0-28680-835-0 02 1 9612-9711 ● ● ● ● ●
17 09.007 BOLT; DAMPER
4BE1 ENG(RLH) AUSTRALIA EQUIPMENT(RR3) 02.183 (A) M8X35 FLANGE 		0-28680-835-0 02 1 9612-9711 ● ● ● ●
17 09.007 BOLT; DAMPER
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 02.183 (A) M8X35 FLANGE 		0-28680-835-0 02 1 9712- ● ● ● ● ● ●
17 09.007 BOLT; DAMPER
4BE1 ENG(RLH) AUSTRALIA EQUIPMENT(RR3) 02.183 (A) M8X35 FLANGE 		0-28680-835-0 02 1 9712- ● ● ● ●
17 09.007 BOLT; DAMPER
4BD1 ENG(LJ6) 00.780 (B) M8X30 W/LK WASHER 		0-50040-830-0 01 1 9312-9508 ●
17 09.007 BOLT; DAMPER
4BD1 ENG(LJ6) 02.183 (B) M8X35 FLANGE 		0-28680-835-0 01 1 9509-9510 ●
18 09.007 NUT; DAMPER
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) 02.559 (A) M8 		9-09110-408-0 02 1 9312-9506 ● ● ● ● ●
18 09.007 NUT; DAMPER
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) 02.559 (A) M8 		9-09110-408-0 02 1 9507-9601 ● ● ● ●
18 09.007 NUT; DAMPER
4BE1 ENG(RLH) AUSTRALIA EQUIPMENT(RR3) 02.559 (A) M8 		9-09110-408-0 02 1 9602-9611 ● ● ● ●
18 09.007 NUT; DAMPER
4JG2 ENG(RJC),4HF1 ENG(RLS) 02.559 (A) M8 		9-09110-408-0 02 1 9602-9611 ● ● ●
18 09.007 NUT; DAMPER
4BD1 ENG(LJ6),4JG2 ENG(RJC),4HF1 ENG(RLS) 02.559 (A) M8 		9-09110-408-0 02 1 9602-9611 ●
18 09.007 NUT; DAMPER
4JG2 ENG(RJC),4HF1 ENG(RLS) 02.559 (A) M8 		9-09110-408-0 02 1 9612-9711 ● ● ● ● ●
18 09.007 NUT; DAMPER
4BE1 ENG(RLH) AUSTRALIA EQUIPMENT(RR3) 02.559 (A) M8 		9-09110-408-0 02 1 9612-9711 ● ● ● ●
18 09.007 NUT; DAMPER
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 02.559 (A) M8 		9-09110-408-0 02 1 9712- ● ● ● ● ● ●
18 09.007 NUT; DAMPER
4BE1 ENG(RLH) AUSTRALIA EQUIPMENT(RR3) 02.559 (A) M8 		9-09110-408-0 02 1 9712- ● ● ● ●
18 09.007 NUT; DAMPER
4BD1 ENG(LJ6) 02.559 (B) M8 		9-09110-408-0 01 1 9312-9510 ●
275 09.007 BRACKET; DYNAMIC DAMPER
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) (A) 		8-97031-818-0 02 1 9312-9506 ● ● ● ● ●
275 09.007 BRACKET; DYNAMIC DAMPER
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) (A) 		8-97031-818-0 02 1 9507-9601 ● ● ● ●
275 09.007 BRACKET; DYNAMIC DAMPER
4BE1 ENG(RLH) AUSTRALIA EQUIPMENT(RR3) (A) 		8-97031-818-0 02 1 9602-9611 ● ● ● ●
275 09.007 BRACKET; DYNAMIC DAMPER
4JG2 ENG(RJC),4HF1 ENG(RLS) (A) 		8-97031-818-0 02 1 9602-9611 ● ● ●
275 09.007 BRACKET; DYNAMIC DAMPER
4BD1 ENG(LJ6),4JG2 ENG(RJC),4HF1 ENG(RLS) (A) 		8-97031-818-0 02 1 9602-9611 ●
275 09.007 BRACKET; DYNAMIC DAMPER
4JG2 ENG(RJC),4HF1 ENG(RLS) (A) 		8-97031-818-0 02 1 9612-9711 ● ● ● ● ●
275 09.007 BRACKET; DYNAMIC DAMPER
4BE1 ENG(RLH) AUSTRALIA EQUIPMENT(RR3) (A) 		8-97031-818-0 02 1 9612-9711 ● ● ● ●
275 09.007 BRACKET; DYNAMIC DAMPER
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A) 		8-97031-818-0 02 1 9712- ● ● ● ● ● ●
275 09.007 BRACKET; DYNAMIC DAMPER
4BE1 ENG(RLH) AUSTRALIA EQUIPMENT(RR3) (A) 		8-97031-818-0 02 1 9712- ● ● ● ●
275 09.007 BRACKET; DYNAMIC DAMPER
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) (B) 		8-97032-026-0 02 1 9312-9506 ● ● ● ● ●
275 09.007 BRACKET; DYNAMIC DAMPER
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) (B) 		8-97032-026-0 02 1 9507-9601 ● ● ● ●
275 09.007 BRACKET; DYNAMIC DAMPER
4BE1 ENG(RLH) AUSTRALIA EQUIPMENT(RR3) (B) 		8-97032-026-0 02 1 9602-9611 ● ● ● ●
275 09.007 BRACKET; DYNAMIC DAMPER
4JG2 ENG(RJC),4HF1 ENG(RLS) (B) 		8-97032-026-0 02 1 9602-9611 ● ● ●
275 09.007 BRACKET; DYNAMIC DAMPER
4BD1 ENG(LJ6),4JG2 ENG(RJC),4HF1 ENG(RLS) (B) 		8-97032-026-0 02 1 9602-9611 ●
275 09.007 BRACKET; DYNAMIC DAMPER
4JG2 ENG(RJC),4HF1 ENG(RLS) (B) 		8-97032-026-0 02 1 9612-9711 ● ● ● ● ●
275 09.007 BRACKET; DYNAMIC DAMPER
4BE1 ENG(RLH) AUSTRALIA EQUIPMENT(RR3) (B) 		8-97032-026-0 02 1 9612-9711 ● ● ● ●
275 09.007 BRACKET; DYNAMIC DAMPER
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (B) 		8-97032-026-0 02 1 9712- ● ● ● ● ● ●
275 09.007 BRACKET; DYNAMIC DAMPER
4BE1 ENG(RLH) AUSTRALIA EQUIPMENT(RR3) (B) 		8-97032-026-0 02 1 9712- ● ● ● ●
275 09.007 BRACKET; DYNAMIC DAMPER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A) 		8-97187-576-0 02 1 9712- ● ● ● ●
275 09.007 BRACKET; DYNAMIC DAMPER
CHARGE AIR COOLER<6PL> (A) 		8-97187-576-0 02 1 9712- ●
275 09.007 BRACKET; DYNAMIC DAMPER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) 		8-97187-577-0 02 1 9712- ● ● ● ●
275 09.007 BRACKET; DYNAMIC DAMPER
CHARGE AIR COOLER<6PL> (B) 		8-97187-577-0 02 1 9712- ●
çizim 66998
145 144 320 20 21 320 152
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
20 09.003 BOLT
EUROPEAN BASIC EQUIPMENT(EK4) 00.669 (B) M12X30 FLANGE 		0-28081-230-0 04 1 9312-9506 ● ●
20 09.003 BOLT
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 00.669 (B) M12X30 FLANGE 		0-28081-230-0 04 1 9507-9711 ● ●
20 09.003 BOLT
FRAME STRAIGHT TYPE<7KJ> (A) M10X40 W/WASHER 		8-94411-010-0 02 1 9512-9611 ● ●
20 09.003 BOLT
FRAME STRAIGHT TYPE<7KJ> (A) M10X40 W/WASHER 		8-94411-010-0 02 1 9612-9711 ● ● ●
20 09.003 BOLT
FRAME STRAIGHT TYPE<7KJ> (A) M10X40 W/WASHER 		8-94411-010-0 02 1 9712-9802 ● ● ● ● ●
20 09.003 BOLT
MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> (A) M10X40 W/WASHER 		8-94411-010-0 02 1 9803- ● ● ● ● ●
21 09.005 NUT
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 07.243 M12 FLANGE 		0-91150-212-0 04 1 9712- ● ● ●
144 09.009 BRACKET ASM; CAB RR MTG 8-97853-060-4 02 1 9312-9510 ● ●
144 09.009 BRACKET ASM; CAB RR MTG 8-97853-060-4 02 1 9511- ●
144 09.009 BRACKET ASM; CAB RR MTG
EXC. MANUAL TILT CAB<RWZ> 		8-97853-066-4 02 1 9312-9711 ● ● ●
144 09.009 BRACKET ASM; CAB RR MTG
EXC. MANUAL TILT CAB<RWZ> 		8-97853-066-4 02 1 9712-9801 ● ● ● ●
144 09.009 BRACKET ASM; CAB RR MTG
EXC. MANUAL TILT CAB<RWZ> 		8-97853-066-4 02 1 9802- ● ● ● ● ●
145 09.008 BOLT; CAB RR MTG BRKT
EXC. MANUAL TILT CAB<RWZ> 09.005 M8X20 W/LK&PL WASHER 		8-94279-131-0 12 1 9312-9510 ● ● ● ● ● ● ●
145 09.008 BOLT; CAB RR MTG BRKT
EXC. MANUAL TILT CAB<RWZ> 04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 12 1 9511-9711 ● ● ● ●
145 09.008 BOLT; CAB RR MTG BRKT
EXC. MANUAL TILT CAB<RWZ> 04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 12 1 9712-9801 ● ● ● ● ●
145 09.008 BOLT; CAB RR MTG BRKT
EXC. MANUAL TILT CAB<RWZ> 04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 12 1 9802- ● ● ● ● ● ●
152 09.003 GROMMET; DUMMY HOLE,CAB TILT LOC
OD=19 		8-94279-055-0 02 1 9312-9611 ● ● ●
152 09.003 GROMMET; DUMMY HOLE,CAB TILT LOC
OD=19 		8-94279-055-0 02 1 9612-9711 ● ● ● ●
152 09.003 GROMMET; DUMMY HOLE,CAB TILT LOC
OD=19 		8-94279-055-0 02 1 9712- ● ● ● ● ●
320 09.001 ANCHOR; CAB RR
EUROPEAN BASIC EQUIPMENT(EK4) 		8-97108-551-0 02 1 9312-9506 ● ●
320 09.001 ANCHOR; CAB RR
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 		8-97108-551-2 02 1 9507-9711 ● ●
320 09.001 ANCHOR; CAB RR
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 		8-97181-722-0 01 1 9712- ● ● ●
320 09.001 ANCHOR; CAB RR
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 		8-97184-188-0 01 1 9712- ● ● ●
çizim 67000
212 133 140 122 141 212 142 143 148 138 122 139 140 122 141 133 143 141 122 140 150 149 122 138 137
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
122 09.005 WASHER; PL,CAB LOCK ROD
MANUAL TILT CAB<RWZ> 09.003 ID=12.5 OD=22 		8-94279-627-0 05 1 9312-9611 ● ● ●
122 09.005 WASHER; PL,CAB LOCK ROD
MANUAL TILT CAB<RWZ> 09.003 ID=12.5 OD=22 		8-94279-627-0 05 1 9612-9711 ● ● ● ●
122 09.005 WASHER; PL,CAB LOCK ROD
MANUAL TILT CAB<RWZ> 09.003 ID=12.5 OD=22 		8-94279-627-0 05 1 9712- ● ● ● ● ●
133 09.005 LOCK ASM; CAB
MANUAL TILT CAB<RWZ> 		8-97853-056-4 01 1 9312-9611 ● ● ●
133 09.005 LOCK ASM; CAB
MANUAL TILT CAB<RWZ> 		8-97853-056-4 01 1 9612-9711 ● ● ● ●
133 09.005 LOCK ASM; CAB
MANUAL TILT CAB<RWZ> 		8-97853-056-5 01 1 9712- ● ● ● ● ●
133 09.005 LOCK ASM; CAB
MANUAL TILT CAB<RWZ> 		8-97853-055-5 01 1 9312-9611 ● ● ●
133 09.005 LOCK ASM; CAB
MANUAL TILT CAB<RWZ> 		8-97853-055-5 01 1 9612-9711 ● ● ● ●
133 09.005 LOCK ASM; CAB
MANUAL TILT CAB<RWZ> 		8-97853-055-6 01 1 9712- ● ● ● ● ●
137 09.005 CONTROL UNIT; CAB LOCK
MANUAL TILT CAB<RWZ> 		8-97853-051-4 01 1 9312-9611 ● ● ●
137 09.005 CONTROL UNIT; CAB LOCK
MANUAL TILT CAB<RWZ> 		8-97853-051-4 01 1 9612-9711 ● ● ●
137 09.005 CONTROL UNIT; CAB LOCK 8-97853-051-4 01 1 9612-9711 ●
137 09.005 CONTROL UNIT; CAB LOCK
MANUAL TILT CAB<RWZ> 		8-97853-051-6 01 1 9712- ● ● ● ● ●
138 09.005 BOLT; CAB LOCK CONT UNIT
MANUAL TILT CAB<RWZ> 03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9312-9611 ● ● ●
138 09.005 BOLT; CAB LOCK CONT UNIT
MANUAL TILT CAB<RWZ> 03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9612-9711 ● ● ● ●
138 09.005 BOLT; CAB LOCK CONT UNIT
MANUAL TILT CAB<RWZ> 03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9712- ● ● ● ● ●
139 09.005 ROD; CAB LOCK,LEVER TO HOOK
MANUAL TILT CAB<RWZ> 		8-97853-053-0 01 1 9312-9611 ● ● ●
139 09.005 ROD; CAB LOCK,LEVER TO HOOK
MANUAL TILT CAB<RWZ> 		8-97853-053-0 01 1 9612-9711 ● ● ● ●
139 09.005 ROD; CAB LOCK,LEVER TO HOOK
MANUAL TILT CAB<RWZ> 		8-97853-053-0 01 1 9712- ● ● ● ● ●
140 09.005 WASHER; LK,CAB LOCK ROD
MANUAL TILT CAB<RWZ> ID=13 OD=22 		8-94279-629-0 03 1 9312-9611 ● ● ●
140 09.005 WASHER; LK,CAB LOCK ROD
MANUAL TILT CAB<RWZ> ID=13 OD=22 		8-94279-629-0 03 1 9612-9711 ● ● ● ●
140 09.005 WASHER; LK,CAB LOCK ROD
MANUAL TILT CAB<RWZ> ID=13 OD=22 		8-94279-629-0 03 1 9712- ● ● ● ● ●
141 09.005 PIN; SNAP,CAB LOCK ROD
MANUAL TILT CAB<RWZ> 09.003 		1-09987-158-1 03 1 9312-9611 ● ● ●
141 09.005 PIN; SNAP,CAB LOCK ROD
MANUAL TILT CAB<RWZ> 09.003 		1-09987-158-1 03 1 9612-9711 ● ● ● ●
141 09.005 PIN; SNAP,CAB LOCK ROD
MANUAL TILT CAB<RWZ> 09.003 		1-09987-158-1 03 1 9712- ● ● ● ● ●
142 09.005 ROD; HOOK TO HOOK
MANUAL TILT CAB<RWZ> 		8-97856-103-1 01 1 9312-9407 ● ● ●
142 09.005 ROD; HOOK TO HOOK
MANUAL TILT CAB<RWZ> 		1-79718-581-0 01 1 9408-9611 ● ● ●
142 09.005 ROD; HOOK TO HOOK
MANUAL TILT CAB<RWZ> 		1-79718-581-0 01 1 9612-9711 ● ● ● ●
142 09.005 ROD; HOOK TO HOOK
MANUAL TILT CAB<RWZ> 		1-79718-581-0 01 1 9712- ● ● ● ● ●
143 09.005 NUT; JAW JOINT,HOOK TO HOOK
MANUAL TILT CAB<RWZ> 09.008 M10 		1-09984-142-0 02 1 9312-9611 ● ● ●
143 09.005 NUT; JAW JOINT,HOOK TO HOOK
MANUAL TILT CAB<RWZ> 09.008 M10 		1-09984-142-0 02 1 9612-9711 ● ● ● ●
143 09.005 NUT; JAW JOINT,HOOK TO HOOK
MANUAL TILT CAB<RWZ> 09.008 M10 		1-09984-142-0 02 1 9712- ● ● ● ● ●
148 09.005 JOINT; JAW,HOOK TO HOOK
MANUAL TILT CAB<RWZ> 		8-97856-106-0 01 1 9312-9611 ● ● ●
148 09.005 JOINT; JAW,HOOK TO HOOK
MANUAL TILT CAB<RWZ> 		8-97856-106-0 01 1 9612-9711 ● ● ● ●
148 09.005 JOINT; JAW,HOOK TO HOOK
MANUAL TILT CAB<RWZ> 		8-97856-106-0 01 1 9712- ● ● ● ● ●
149 16.450 HANDLE; TILT
MANUAL TILT CAB<RWZ> 		8-97853-054-4 01 1 9312-9611 ● ● ●
149 16.450 HANDLE; TILT
MANUAL TILT CAB<RWZ> 		8-97853-054-4 01 1 9612-9711 ● ● ●
149 16.450 HANDLE; TILT 8-97853-054-4 01 1 9612-9711 ●
149 16.450 HANDLE; TILT
MANUAL TILT CAB<RWZ> 		8-97853-054-4 01 1 9712- ● ● ● ● ●
150 16.450 BOLT; TILT HANDLE
MANUAL TILT CAB<RWZ> 04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 9312-9604 ● ● ●
150 16.450 BOLT; TILT HANDLE
MANUAL TILT CAB<RWZ> 02.559 M8X25 FLANGE 		0-28680-825-0 03 1 9604-9611 ● ● ●
150 16.450 BOLT; TILT HANDLE
MANUAL TILT CAB<RWZ> 02.559 M8X25 FLANGE 		0-28680-825-0 03 1 9612-9711 ● ● ● ●
150 16.450 BOLT; TILT HANDLE
MANUAL TILT CAB<RWZ> 02.559 M8X25 FLANGE 		0-28680-825-0 03 1 9712- ● ● ● ● ●
212 09.005 NUT; BRKT,CAB LOCK
MANUAL TILT CAB<RWZ> 03.417 M8 FLANGE 		8-94279-517-0 08 1 9312-9611 ● ● ●
212 09.005 NUT; BRKT,CAB LOCK
MANUAL TILT CAB<RWZ> M8 CUTTING NUT W/FLANGE 		1-09985-340-0 08 1 9612-9711 ● ● ● ●
212 09.005 NUT; BRKT,CAB LOCK
MANUAL TILT CAB<RWZ> M8 CUTTING NUT W/FLANGE 		1-09985-340-0 08 1 9712- ● ● ● ● ●
çizim 67346
15 12 1 15 3 1 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 09.003 LEVER; TORSION BAR 8-97061-485-8 01 1 9312-9405 ● ●
1 09.003 LEVER; TORSION BAR 8-97114-084-0 01 1 9406-9510 ● ●
1 09.003 LEVER; TORSION BAR 8-97114-084-0 01 1 9511-9611 ●
1 09.003 LEVER; TORSION BAR
EXC. MANUAL TILT CAB<RWZ> 		8-97114-084-1 01 1 9612-9711 ● ● ● ●
1 09.003 LEVER; TORSION BAR
EXC. MANUAL TILT CAB<RWZ> 		8-97114-084-1 01 1 9712-9801 ● ● ● ● ●
1 09.003 LEVER; TORSION BAR
EXC. MANUAL TILT CAB<RWZ> 		8-97114-084-1 01 1 9802- ● ● ● ● ● ●
1 09.003 LEVER; TORSION BAR 8-97035-283-6 01 1 9312-9405 ● ● ●
1 09.003 LEVER; TORSION BAR 8-97114-077-1 01 1 9406-9611 ● ● ●
1 09.003 LEVER; TORSION BAR
MANUAL TILT CAB<RWZ> EXC. HYDRO MASTER<7LT> 		8-97114-077-1 01 1 9612-9712 ● ● ●
1 09.003 LEVER; TORSION BAR
MANUAL TILT CAB<RWZ> EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97188-908-1 01 1 9801- ● ● ● ●
1 09.003 LEVER; TORSION BAR
MANUAL TILT CAB<RWZ> HYDRO MASTER<7LT> 		8-97169-979-0 01 1 9612-9711 ● ● ●
1 09.003 LEVER; TORSION BAR
MANUAL TILT CAB<RWZ> HYDRO MASTER<7LT> 		8-97179-944-1 01 1 9712-9712 ● ● ●
1 09.003 LEVER; TORSION BAR
MANUAL TILT CAB<RWZ> HYDRO MASTER<7LT> 		8-97188-907-1 01 1 9801- ● ● ●
1 09.003 LEVER; TORSION BAR
MANUAL TILT CAB<RWZ> HYDRO BRAKE BOOSTER<7QQ> 		8-97188-906-1 01 1 9801- ● ● ● ●
3 09.003 BOLT; LEVER
M12X50 		8-94401-729-1 04 1 9312-9510 ● ●
3 09.003 BOLT; LEVER
M12X50 		8-94401-729-1 04 1 9511-9611 ●
3 09.003 BOLT; LEVER
EXC. MANUAL TILT CAB<RWZ> M12X50 		8-94401-729-1 04 1 9612-9711 ● ● ● ●
3 09.003 BOLT; LEVER
EXC. MANUAL TILT CAB<RWZ> M12X50 		8-94401-729-1 04 1 9712-9801 ● ● ● ● ●
3 09.003 BOLT; LEVER
EXC. MANUAL TILT CAB<RWZ> M12X50 		8-94401-729-1 04 1 9802- ● ● ● ● ● ●
3 09.003 BOLT; LEVER
M12X50 		8-94401-729-1 06 1 9312-9611 ● ● ●
3 09.003 BOLT; LEVER
MANUAL TILT CAB<RWZ> M12X50 		8-94401-729-1 06 1 9612-9711 ● ● ● ●
3 09.003 BOLT; LEVER
MANUAL TILT CAB<RWZ> M12X50 		8-94401-729-1 06 1 9712- ● ● ● ● ●
12 09.003 BAR; TORSION,UPR 8-97061-818-0 01 1 9312-9611 ● ● ●
12 09.003 BAR; TORSION,UPR
MANUAL TILT CAB<RWZ> 		8-97061-818-0 01 1 9612-9711 ● ● ● ●
12 09.003 BAR; TORSION,UPR
MANUAL TILT CAB<RWZ> 		8-97061-818-0 01 1 9712-9802 ● ● ● ● ●
12 09.003 BAR; TORSION,UPR
MANUAL TILT CAB<RWZ> 		8-97180-747-0 01 1 9803- ● ● ● ● ●
15 09.003 RING; SNAP,TORSION BAR 8-94258-173-0 02 1 9312-9611 ● ● ●
15 09.003 RING; SNAP,TORSION BAR
MANUAL TILT CAB<RWZ> 		8-94258-173-0 02 1 9612-9711 ● ● ● ●
15 09.003 RING; SNAP,TORSION BAR
MANUAL TILT CAB<RWZ> 		8-94258-173-0 02 1 9712- ● ● ● ● ●
çizim 69932
145 14 14 308 14 144 14 308
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
14 09.009 COVER; MTG,CAB
(A) BLACK L=125 		8-94273-738-3 02 1 9312-9510 ● ●
14 09.009 COVER; MTG,CAB
(A) BLACK L=125 		8-94273-738-3 02 1 9511- ●
14 09.009 COVER; MTG,CAB
(B) BLACK L=124 		8-94273-857-3 02 1 9312-9510 ● ●
14 09.009 COVER; MTG,CAB
(B) BLACK L=124 		8-94273-857-3 02 1 9511- ●
144 09.009 BRACKET ASM; CAB RR MTG 8-97853-060-4 02 1 9312-9510 ● ●
144 09.009 BRACKET ASM; CAB RR MTG 8-97853-060-4 02 1 9511- ●
144 09.009 BRACKET ASM; CAB RR MTG
EXC. MANUAL TILT CAB<RWZ> 		8-97853-066-4 02 1 9312-9711 ● ● ●
144 09.009 BRACKET ASM; CAB RR MTG
EXC. MANUAL TILT CAB<RWZ> 		8-97853-066-4 02 1 9712-9801 ● ● ● ●
144 09.009 BRACKET ASM; CAB RR MTG
EXC. MANUAL TILT CAB<RWZ> 		8-97853-066-4 02 1 9802- ● ● ● ● ●
145 09.008 BOLT; CAB RR MTG BRKT
EXC. MANUAL TILT CAB<RWZ> 09.005 M8X20 W/LK&PL WASHER 		8-94279-131-0 12 1 9312-9510 ● ● ● ● ● ● ●
145 09.008 BOLT; CAB RR MTG BRKT
EXC. MANUAL TILT CAB<RWZ> 04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 12 1 9511-9711 ● ● ● ●
145 09.008 BOLT; CAB RR MTG BRKT
EXC. MANUAL TILT CAB<RWZ> 04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 12 1 9712-9801 ● ● ● ● ●
145 09.008 BOLT; CAB RR MTG BRKT
EXC. MANUAL TILT CAB<RWZ> 04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 12 1 9802- ● ● ● ● ● ●
308 09.003 RIVET; COVER
03.602 D6X12.5 		8-94146-425-0 06 1 9312-9510 ● ●
308 09.003 RIVET; COVER
03.602 D6X12.5 		8-94146-425-0 06 1 9511- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
