6-47 — MUD GUARD AND INSULATOR (#48849) — 98 parça

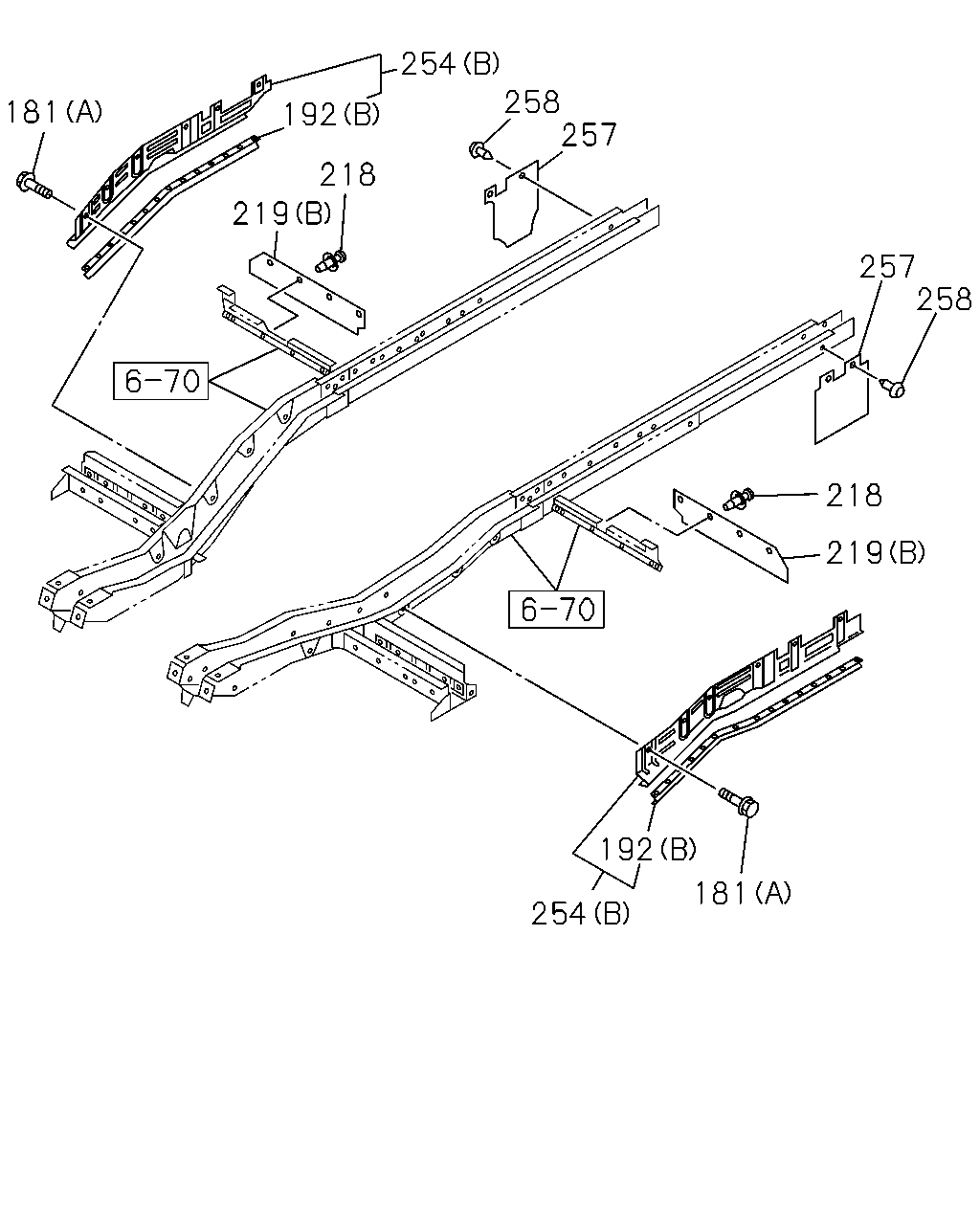

çizim 22648
254 258 257 181 192 218 219 257 258 218 219 192 181 254
BalonParca AdiParca NoAdetTipApplied Date A B
181 BOLT; COVER,SIDE
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 16 1 0712- ● ●
181 BOLT; COVER,SIDE
(A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 12 1 0712-0904 ●
181 BOLT; COVER,SIDE
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 12 1 0905- ●
192 SEAL; MUD COVER
(A) 		8-98041-159-2 01 1 0712- ●
192 SEAL; MUD COVER
(A) 		8-98041-158-1 01 1 0712- ●
192 SEAL; MUD COVER
(B) 		8-98061-555-1 01 1 0712- ●
192 SEAL; MUD COVER
(B) 		8-98061-554-1 01 1 0712- ●
218 FASTENER; RUBBER
D8X13.5 		1-09987-248-1 08 1 1205- ●
218 FASTENER; RUBBER
D8X13.5 		1-09987-248-1 10 1 0712- ●
219 FLAP; MUD GUARD
(A) 		8-98041-151-1 02 1 0712- ●
219 FLAP; MUD GUARD
(B) 		8-98061-668-0 02 1 0712- ●
254 COVER; MUD,VALANCE
(A) 		8-98039-926-1 01 1 0712- ●
254 COVER; MUD,VALANCE
(A) 		8-98039-925-2 01 1 0712- ●
254 COVER; MUD,VALANCE
(B) 		8-98058-186-1 01 1 0712- ●
254 COVER; MUD,VALANCE
(B) 		8-98058-185-1 01 1 0712- ●
257 SHUTTER; RUBBER,SIDE COVER REAR 8-98064-286-1 01 1 0712- ●
257 SHUTTER; RUBBER,SIDE COVER REAR 8-98064-285-2 01 1 0712- ●
258 RIVET; SCREW,SHUTTER
D6X16 PUSH RIVET 		1-09983-105-0 04 1 0712- ●

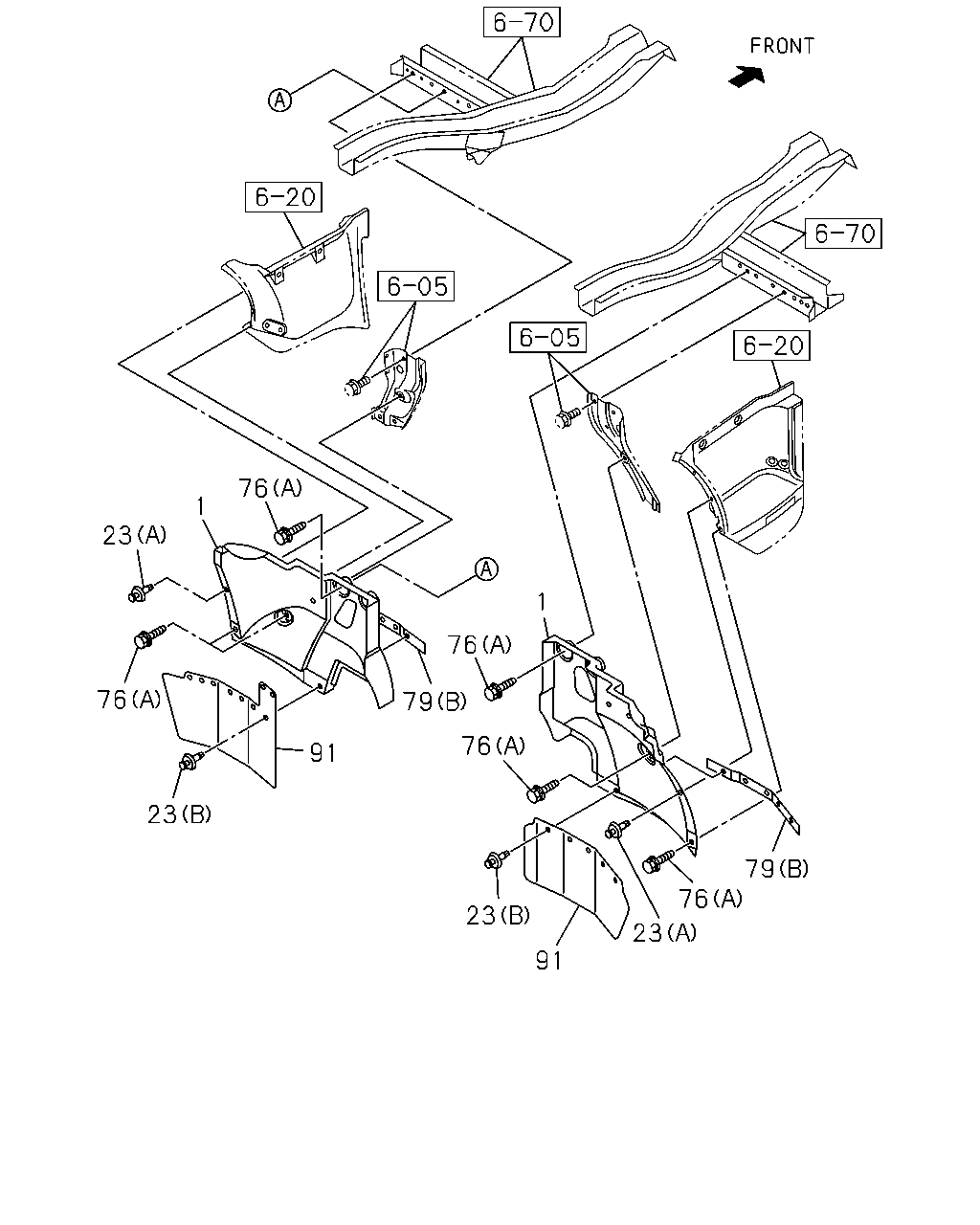

çizim 24361
76 1 23 1 76 76 79 76 91 23 79 76 23 23 91
BalonParca AdiParca NoAdetTipApplied Date A B
1 GUARD; MUD,FRT 8-98039-848-2 01 1 0712-0908 ● ●
1 GUARD; MUD,FRT 8-98152-649-0 01 1 0909- ● ●
1 GUARD; MUD,FRT 8-98039-847-2 01 1 0712-0908 ● ●
1 GUARD; MUD,FRT 8-98152-648-0 01 1 0909- ● ●
23 FASTENER; MUD COVER
(B) 		1-09470-001-0 10 1 0712- ● ●
23 FASTENER; MUD COVER
(A) D8X13.5 		1-09987-248-1 04 1 0712- ● ●
76 BOLT; MUD GUARD
(B) M8X25 W/LK&PL WASHER 		1-09030-093-0 09 1 0712-1009 ● ●
76 BOLT; MUD GUARD
(B) M8X25 W/LK&PL WASHER 		1-09030-093-0 07 1 1010-1211 ● ●
76 BOLT; MUD GUARD
(B) M8X30 W/LK&PL WASHER 		1-09030-095-0 07 1 1212- ● ●
76 BOLT; MUD GUARD
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 10 1 0712-0908 ● ●
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		8-94331-747-1 10 1 0909- ● ●
79 RETAINER; MUD COVER
(B) 		8-98041-218-1 02 1 0712- ● ●
79 RETAINER; MUD COVER
(A) 		8-98102-106-0 01 1 0712-0712 ● ●
79 RETAINER; MUD COVER
(A) 		8-97625-882-0 01 1 0801-0812 ● ●
79 RETAINER; MUD COVER
(A) 		8-98137-130-0 01 1 0901- ● ●
79 RETAINER; MUD COVER
(A) 		8-98102-105-0 01 1 0712-0712 ● ●
79 RETAINER; MUD COVER
(A) 		8-97625-881-0 01 1 0801-0812 ● ●
79 RETAINER; MUD COVER
(A) 		8-98137-129-0 01 1 0901- ● ●
91 COVER; MUD,FRT 8-98057-433-2 01 1 0712- ● ●
91 COVER; MUD,FRT 8-98057-431-2 01 1 0712- ● ●

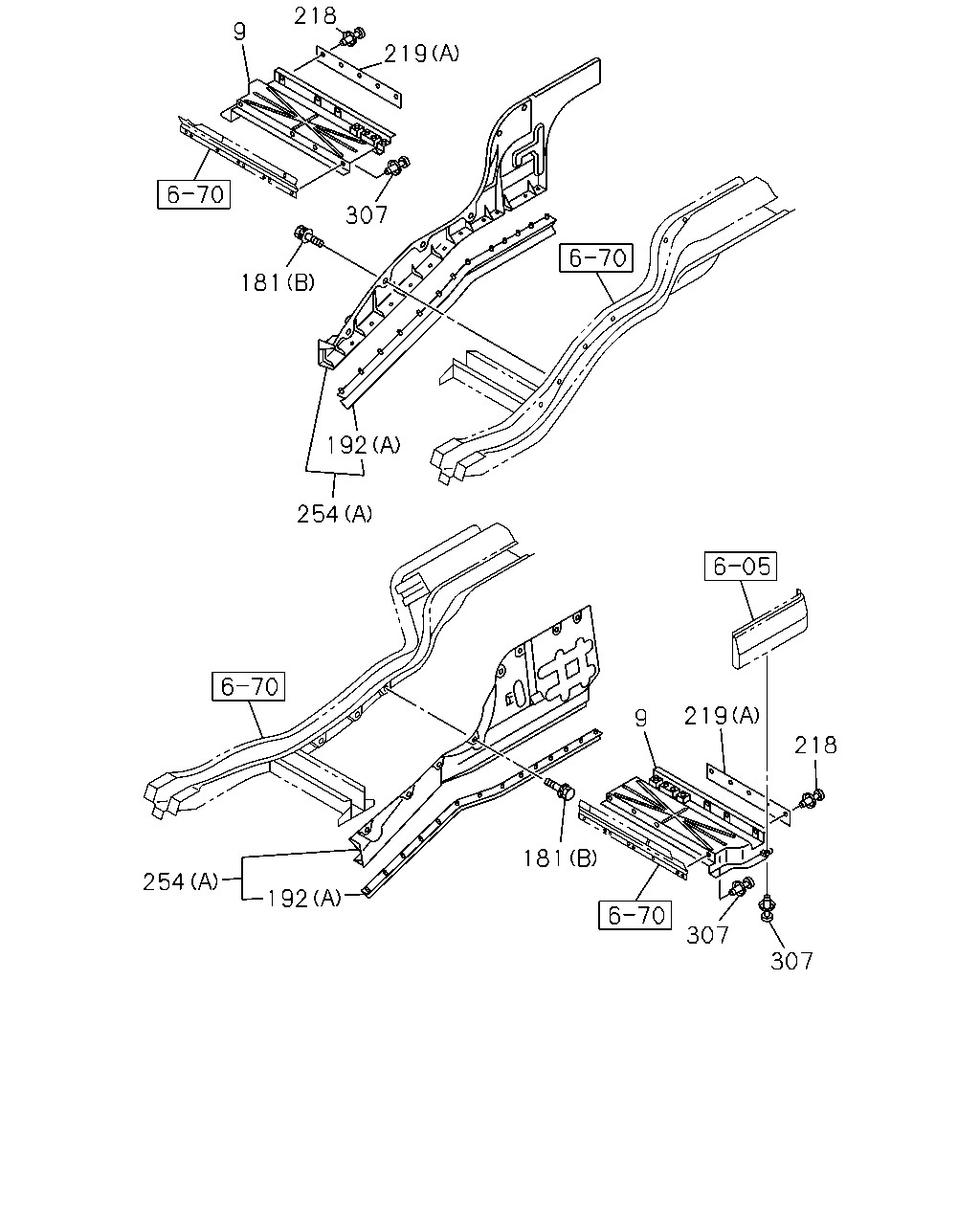

çizim 25330
218 9 219 307 181 192 254 219 9 218 181 254 192 307 307
BalonParca AdiParca NoAdetTipApplied Date A B
9 GUARD; SPLASH,WHEEL HOUSE 8-98057-963-0 01 1 0712- ●
9 GUARD; SPLASH,WHEEL HOUSE 8-98057-962-0 01 1 0712- ●
181 BOLT; COVER,SIDE
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 16 1 0712- ● ●
181 BOLT; COVER,SIDE
(A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 12 1 0712-0904 ●
181 BOLT; COVER,SIDE
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 12 1 0905- ●
192 SEAL; MUD COVER
(A) 		8-98041-159-2 01 1 0712- ●
192 SEAL; MUD COVER
(A) 		8-98041-158-1 01 1 0712- ●
192 SEAL; MUD COVER
(B) 		8-98061-555-1 01 1 0712- ●
192 SEAL; MUD COVER
(B) 		8-98061-554-1 01 1 0712- ●
218 FASTENER; RUBBER
D8X13.5 		1-09987-248-1 08 1 1205- ●
218 FASTENER; RUBBER
D8X13.5 		1-09987-248-1 10 1 0712- ●
219 FLAP; MUD GUARD
(A) 		8-98041-151-1 02 1 0712- ●
219 FLAP; MUD GUARD
(B) 		8-98061-668-0 02 1 0712- ●
254 COVER; MUD,VALANCE
(A) 		8-98039-926-1 01 1 0712- ●
254 COVER; MUD,VALANCE
(A) 		8-98039-925-2 01 1 0712- ●
254 COVER; MUD,VALANCE
(B) 		8-98058-186-1 01 1 0712- ●
254 COVER; MUD,VALANCE
(B) 		8-98058-185-1 01 1 0712- ●
307 RETAINER
D8X13.5 		1-09987-248-1 10 1 0712- ●

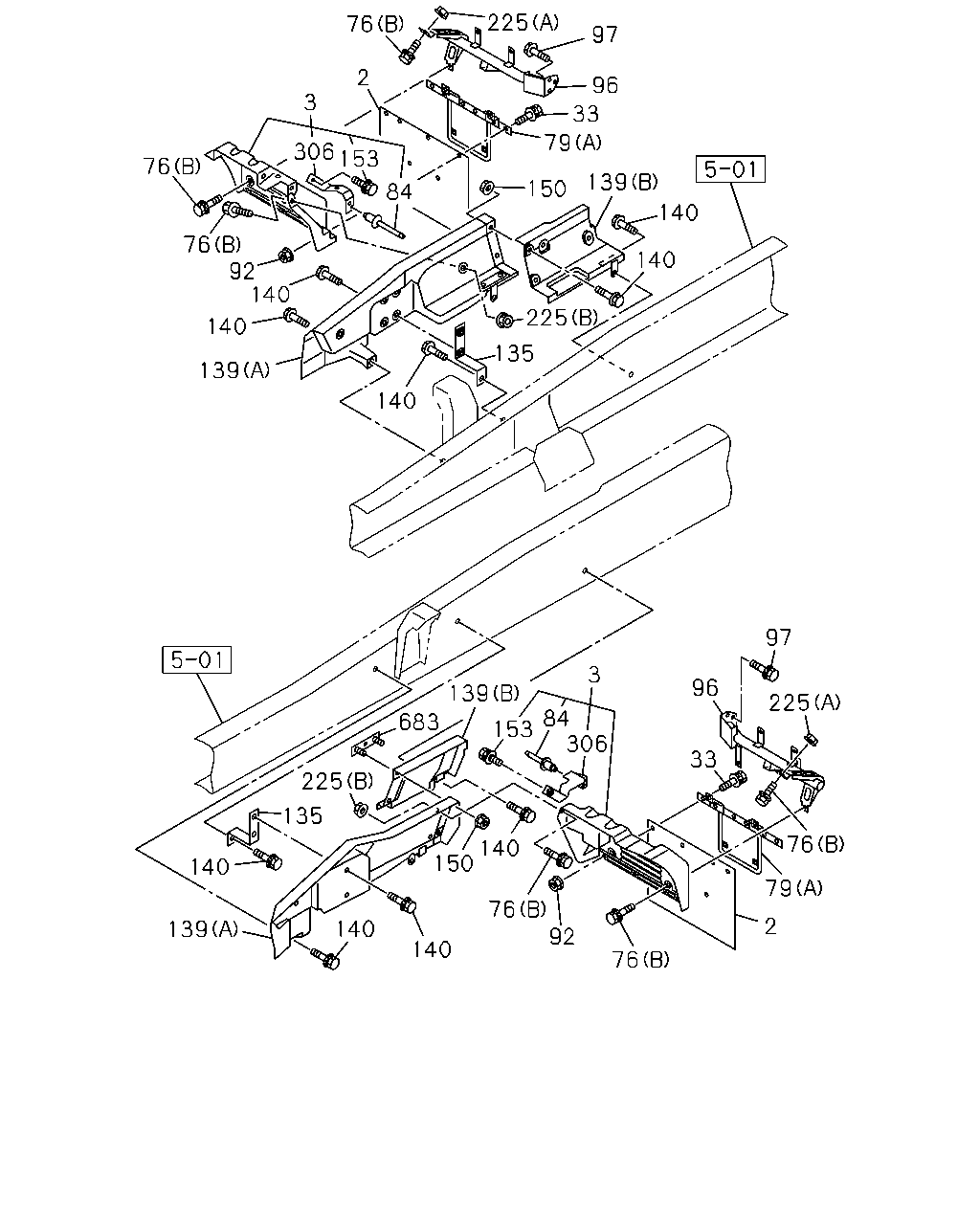

çizim 99508
97 225 76 79 2 96 33 76 92 76 3 306 84 140 153 139 683 150 140 140 139 140 135 225 140 139 140 140 92 76 76 306 3 153 84 2 76 225 97 96 33 79 150 139 140 140 225 135
BalonParca AdiParca NoAdetTipApplied Date A B
2 COVER; MUD,TIRE RR 8-98050-885-0 02 1 0712-0712 ● ●
2 COVER; MUD,TIRE RR 8-98111-019-0 02 1 0801- ● ●
3 GUARD; MUD,RR 1-79931-473-1 01 1 0712-1211 ● ●
3 GUARD; MUD,RR 8-98196-109-0 01 1 1212- ● ●
3 GUARD; MUD,RR 1-79931-546-1 01 1 0712-1212 ● ●
3 GUARD; MUD,RR 8-98196-121-0 01 1 1301- ● ●
33 BOLT; MUD COVER
M6X20 W/LK&PL WASHER 		1-09980-495-0 10 1 0712-0801 ● ●
33 BOLT; MUD COVER
M6X20 W/LK&PL WASHER 		1-09980-495-0 12 1 0802- ● ●
76 BOLT; MUD GUARD
(B) M8X25 W/LK&PL WASHER 		1-09030-093-0 09 1 0712-1009 ● ●
76 BOLT; MUD GUARD
(B) M8X25 W/LK&PL WASHER 		1-09030-093-0 07 1 1010-1211 ● ●
76 BOLT; MUD GUARD
(B) M8X30 W/LK&PL WASHER 		1-09030-095-0 07 1 1212- ● ●
76 BOLT; MUD GUARD
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 10 1 0712-0908 ● ●
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		8-94331-747-1 10 1 0909- ● ●
79 RETAINER; MUD COVER
(B) 		8-98041-218-1 02 1 0712- ● ●
79 RETAINER; MUD COVER
(A) 		8-98102-106-0 01 1 0712-0712 ● ●
79 RETAINER; MUD COVER
(A) 		8-97625-882-0 01 1 0801-0812 ● ●
79 RETAINER; MUD COVER
(A) 		8-98137-130-0 01 1 0901- ● ●
79 RETAINER; MUD COVER
(A) 		8-98102-105-0 01 1 0712-0712 ● ●
79 RETAINER; MUD COVER
(A) 		8-97625-881-0 01 1 0801-0812 ● ●
79 RETAINER; MUD COVER
(A) 		8-98137-129-0 01 1 0901- ● ●
84 RIVET; MUD GUARD 5-09734-006-1 02 1 1212-1212 ● ●
84 RIVET; MUD GUARD 5-09734-006-1 04 1 1301- ● ●
92 NUT; MUD COVER
M6 FLANGE 		0-91180-106-0 06 1 0712-0801 ● ●
92 NUT; MUD COVER
M6 FLANGE 		0-91180-106-0 08 1 0802- ● ●
96 STAY; MUD GUARD 1-79931-523-2 01 1 0712- ● ●
96 STAY; MUD GUARD 1-79931-522-2 01 1 0712- ● ●
97 BOLT; STAY TO FRAME
M10X30 FLANGE 		0-28651-030-0 06 1 0712- ● ●
135 BRACKET; SIDE PANEL 1-53457-191-0 02 1 0712- ● ●
139 PANEL; SIDE
(B) 		1-53194-591-0 01 1 0712- ● ●
139 PANEL; SIDE
(A) 		8-98090-078-0 01 1 0712- ● ●
139 PANEL; SIDE
(B) 		1-53194-590-0 01 1 0712- ● ●
139 PANEL; SIDE
(A) 		8-98090-077-0 01 1 0712- ● ●
140 BOLT; SIDE PANEL
M8X30 W/LK&PL WASHER 		1-09030-095-0 15 1 0712- ● ●
150 NUT; SIDE PANEL
M8 W/DISHED WASHER 		8-97329-625-0 04 1 0712- ● ●
153 BOLT; BRKT
M8X25 W/LK&PL WASHER 		1-09030-093-0 01 1 1212-1212 ● ●
153 BOLT; BRKT
M8X25 W/LK&PL WASHER 		1-09030-093-0 02 1 1301- ● ●
225 NUT; MUD GUARD
(B) M8 W/DISHED WASHER 		8-97329-625-0 02 1 0712- ● ●
225 NUT; MUD GUARD
(A) M8 FLANGE 		0-91180-108-0 02 1 0712- ● ●
306 BRACKET; MUD GUARD 8-98196-125-0 01 1 1212- ● ●
306 BRACKET; MUD GUARD 8-98196-127-0 01 1 1301- ● ●
683 PLATE; SIDE PANEL 8-98067-739-0 01 1 0712-1211 ● ●
683 PLATE; SIDE PANEL 8-98199-233-0 01 1 1212- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
