◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11421 - FTS(AUST)EURO4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#48843) — 166 parça

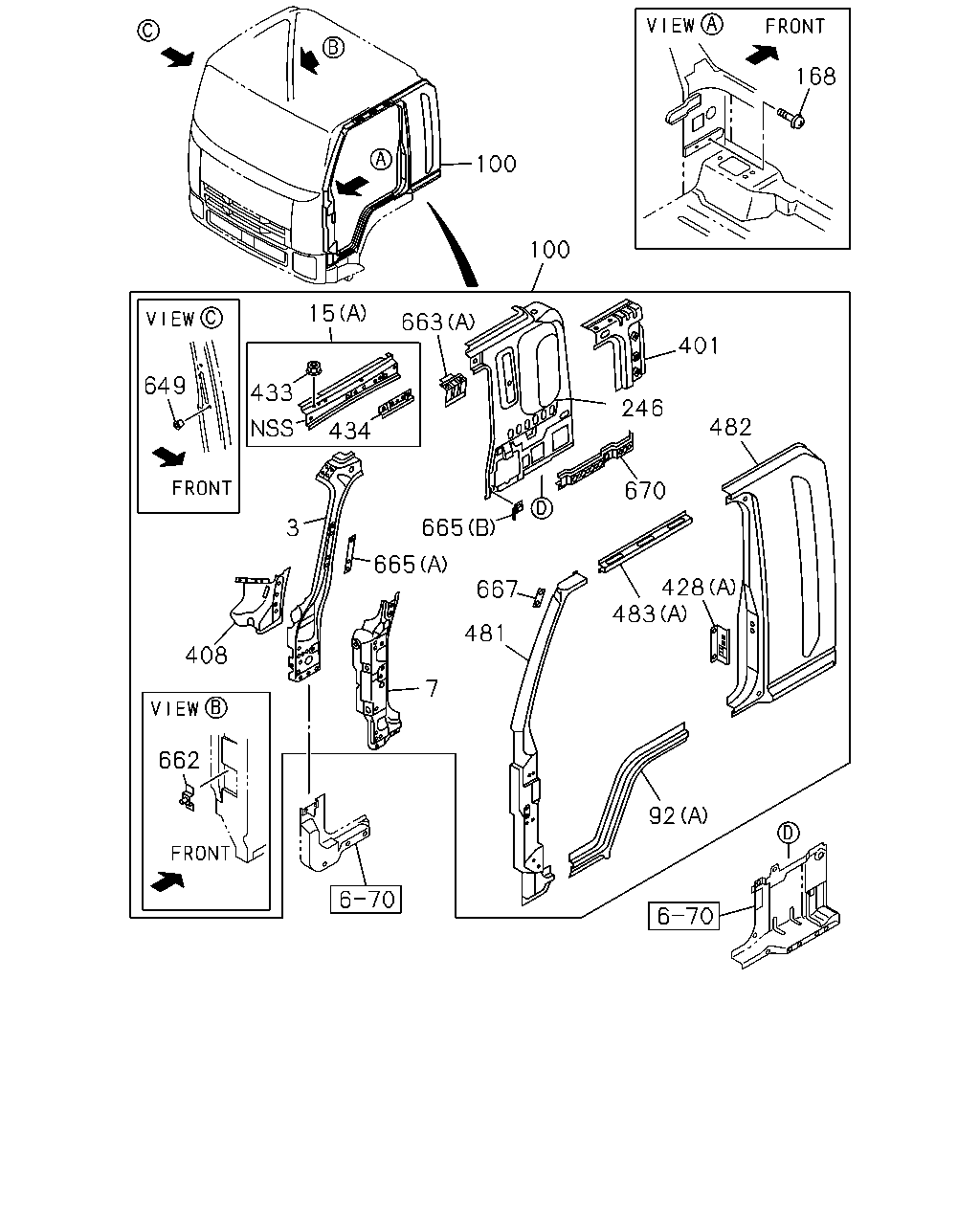

çizim 25044
168 100 100 15 663 401 649 433 246 434 482 670 665 3 665 428 483 667 481 408 7 662 92
BalonParca AdiParca NoAdetTipApplied Date A B
3 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 0712- ● ●
3 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 0712- ● ●
7 REINFORCEMENT; HINGE 8-97585-244-4 01 1 0712- ● ●
7 REINFORCEMENT; HINGE 8-97585-240-3 01 1 0712- ● ●
15 PANEL; CANT RAIL SIDE
(A) 		8-97585-293-2 01 1 0712- ●
15 PANEL; CANT RAIL SIDE
(A) 		8-97585-292-2 01 1 0712- ●
15 PANEL; CANT RAIL SIDE
(B) 		8-97583-740-1 01 1 0712- ●
15 PANEL; CANT RAIL SIDE
(B) 		8-97583-739-1 01 1 0712- ●
92 PANEL; SIDE SILL,CAB
(A) 		8-98055-462-1 01 1 0712- ● ●
92 PANEL; SIDE SILL,CAB
(A) 		8-98055-461-1 01 1 0712- ● ●
92 PANEL; SIDE SILL,CAB
(B) 		8-98069-113-0 02 1 0712- ●
100 PANEL ASM; BODY SIDE 8-98088-579-2 01 1 0712-0901 ●
100 PANEL ASM; BODY SIDE 8-97586-063-5 01 1 0902- ●
100 PANEL ASM; BODY SIDE
MIRROR O/S UNDER VIEW<RR9> 		8-98088-590-3 01 1 0712-0901 ●
100 PANEL ASM; BODY SIDE
MIRROR O/S UNDER VIEW<RR9> 		8-97586-079-7 01 1 0902- ●
100 PANEL ASM; BODY SIDE
EXC. MIRROR O/S UNDER VIEW<RR9> 		8-98088-587-3 01 1 0712-0901 ●
100 PANEL ASM; BODY SIDE
EXC. MIRROR O/S UNDER VIEW<RR9> 		8-97586-071-6 01 1 0902- ●
168 BOLT; BODY SIDE PANEL
M6X16 		0-38050-616-0 08 1 0712-0802 ● ●
168 BOLT; BODY SIDE PANEL
M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 0803- ● ●
246 PANEL; RR PILLAR,INNER 8-97586-158-5 01 1 0712- ●
246 PANEL; RR PILLAR,INNER 8-97586-156-5 01 1 0712- ●
401 PATCH; CLOSING,FRT PILLAR 8-97586-161-2 01 1 0712- ●
401 PATCH; CLOSING,FRT PILLAR 8-97586-160-2 01 1 0712- ●
408 GUSSET; PILLAR 8-97586-194-2 01 1 0712- ● ●
408 GUSSET; PILLAR 8-97586-193-3 01 1 0712- ● ●
428 REINFORCEMENT; DOOR STRIKER
(A) 		8-97585-261-4 01 1 0712- ●
428 REINFORCEMENT; DOOR STRIKER
(A) 		8-97585-260-4 01 1 0712- ●
428 REINFORCEMENT; DOOR STRIKER
(C) 		8-97851-446-1 01 1 0712- ●
428 REINFORCEMENT; DOOR STRIKER
(B) 		8-98014-549-0 01 1 0712- ●
428 REINFORCEMENT; DOOR STRIKER
(C) 		8-97851-445-1 01 1 0712- ●
428 REINFORCEMENT; DOOR STRIKER
(B) 		8-98014-548-0 01 1 0712- ●
433 NUT; HEADER SHELF
M6 		9-09114-086-0 04 1 0712- ● ●
434 PATCH; ASSIST GRIP 8-98039-020-0 01 1 0712- ● ●
434 PATCH; ASSIST GRIP 8-98039-019-0 01 1 0712- ● ●
481 PANEL; SIDE FRT PILLAR 8-98093-579-0 01 1 0712- ● ●
481 PANEL; SIDE FRT PILLAR
MIRROR O/S UNDER VIEW<RR9> 		8-98092-915-0 01 1 0712- ● ●
481 PANEL; SIDE FRT PILLAR
EXC. MIRROR O/S UNDER VIEW<RR9> 		8-98072-714-1 01 1 0712- ● ●
482 PANEL; SIDE RR PILLAR 8-98055-469-0 01 1 0712-0807 ●
482 PANEL; SIDE RR PILLAR 8-98092-925-0 01 1 0808-0901 ●
482 PANEL; SIDE RR PILLAR 8-98055-469-0 01 1 0902- ●
482 PANEL; SIDE RR PILLAR 8-98055-468-0 01 1 0712-0807 ●
482 PANEL; SIDE RR PILLAR 8-98092-923-0 01 1 0808-0901 ●
482 PANEL; SIDE RR PILLAR 8-98055-468-0 01 1 0902- ●
482 PANEL; SIDE RR PILLAR 8-98097-238-0 01 1 0712- ●
482 PANEL; SIDE RR PILLAR 8-98097-237-0 01 1 0712- ●
483 PANEL; SIDE CANTRAIL
(A) 		8-98055-460-0 01 1 0712- ●
483 PANEL; SIDE CANTRAIL
(A) 		8-98055-458-0 01 1 0712- ●
483 PANEL; SIDE CANTRAIL
(C) 		8-98069-095-0 02 1 0712- ●
483 PANEL; SIDE CANTRAIL
(B) 		8-98056-609-0 01 1 0712- ●
483 PANEL; SIDE CANTRAIL
(B) 		8-98056-608-0 01 1 0712- ●
649 NUT; POP
M5 POP NUT 		8-97249-574-0 02 1 0712- ● ●
662 BRACKET; DUCT 8-97584-611-1 01 1 0712- ●
663 BRACKET; AIR
(A) 		8-97585-208-2 01 1 0712- ● ●
663 BRACKET; AIR
(A) 		8-97585-207-2 01 1 0712- ● ●
663 BRACKET; AIR
(B) 		8-98020-643-1 01 1 0712- ●
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 02 1 0712- ●
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 02 1 0712- ● ●
667 BRACKET; MIRROR
MIRROR O/S UNDER VIEW<RR9> 		8-98005-264-0 01 1 0712-0806 ● ●
667 BRACKET; MIRROR
MIRROR O/S UNDER VIEW<RR9> 		8-98109-948-0 01 1 0807- ● ●
670 STIFFENER; PANEL,SIDE 8-98015-044-1 02 1 0712- ●

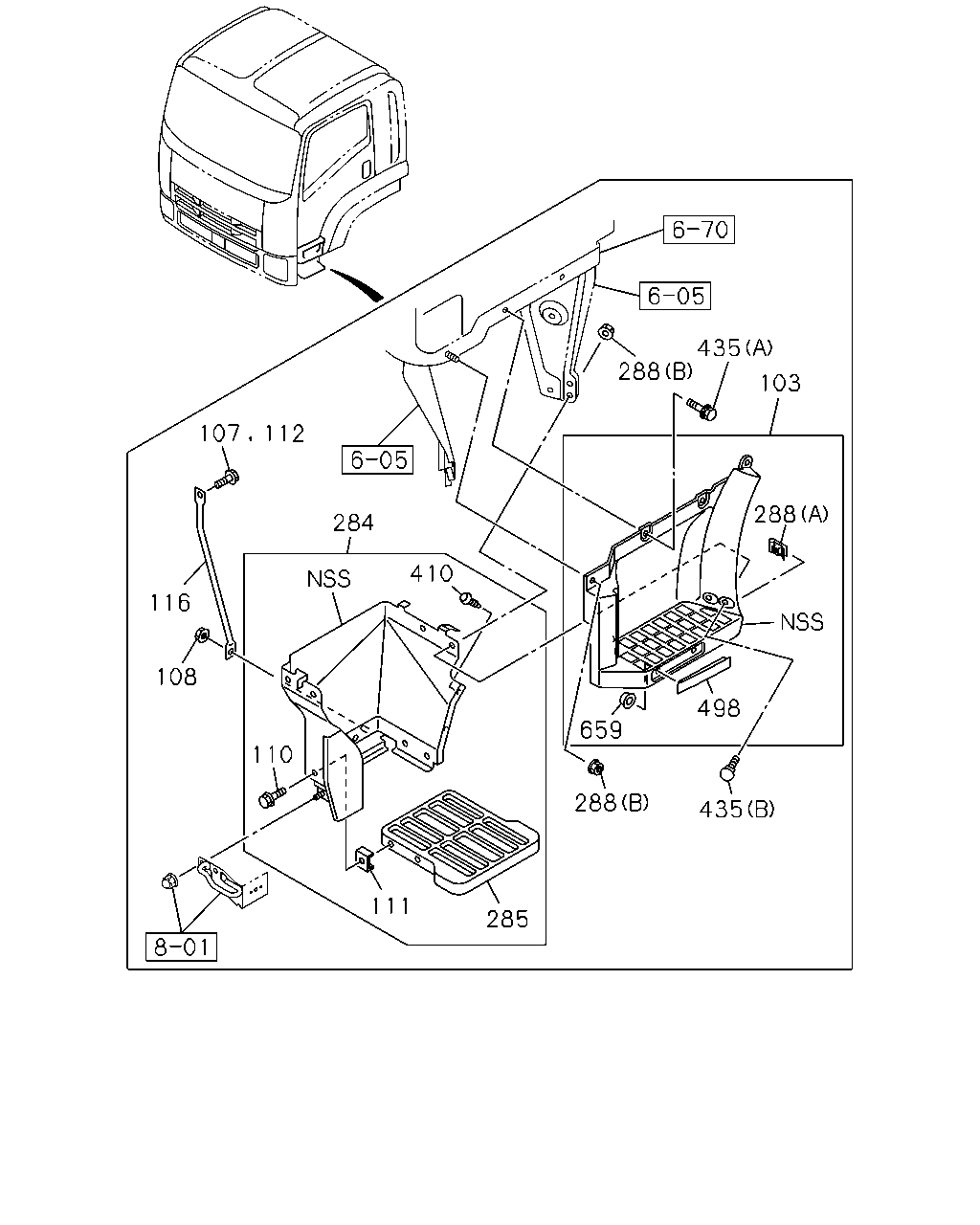

çizim 25632
435 103 288 288 498 659 288 435 285 111 110 108 116 107 112 284 410
BalonParca AdiParca NoAdetTipApplied Date A B
103 PLATE; STEP 8-98058-319-2 01 1 0712- ● ●
103 PLATE; STEP 8-98058-318-2 01 1 0712- ● ●
107 BOLT; SIDE STEP
M8X20 FLANGE 		0-28650-820-0 02 1 1310- ● ●
108 NUT; SIDE STEP
M8 FLANGE 		0-91180-108-0 02 1 1310- ● ●
110 BOLT; 1ST STEP PLATE
M8X16 FLANGE 		0-28050-816-0 10 1 0712- ● ●
111 COVER; 1ST STEP 1-71998-153-0 10 1 0712- ● ●
112 BOLT; 1ST STEP
M8X20 FLANGE 		0-28650-820-0 02 1 0712-1309 ● ●
116 STAY; 1ST STEP,FRT 8-98057-382-0 01 1 0712- ● ●
116 STAY; 1ST STEP,FRT 8-98057-381-0 01 1 0712- ● ●
284 STEP ASM; 1ST 8-98057-377-1 01 1 0712- ● ●
284 STEP ASM; 1ST 8-98057-376-1 01 1 0712- ● ●
285 PLATE; STEP,1ST STEP 1-71998-312-2 02 1 0712- ● ●
288 NUT; STEP
(B) M8 FLANGE 		0-91180-108-0 12 1 0712-1309 ● ●
288 NUT; STEP
(B) M8 FLANGE 		0-91180-108-0 10 1 1310- ● ●
288 NUT; STEP
(A) M8 		8-98040-792-0 02 1 0712- ● ●
410 CLIP; COVER,STEP PLATE
OD=12 L=14.8 		8-94279-921-0 06 1 0712- ● ●
435 BOLT; RR STEP
(B) M8X16 		8-98049-538-1 08 1 0712-0907 ● ●
435 BOLT; RR STEP
(B) M8X18 		8-98146-670-0 08 1 0908- ● ●
435 BOLT; RR STEP
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0712- ● ●
498 REFLECTOR 8-98092-734-0 01 1 0712- ● ●
498 REFLECTOR 8-98092-733-0 01 1 0712- ● ●
659 CLIP; SPRING NUT 8-97811-510-0 04 1 0712- ● ●

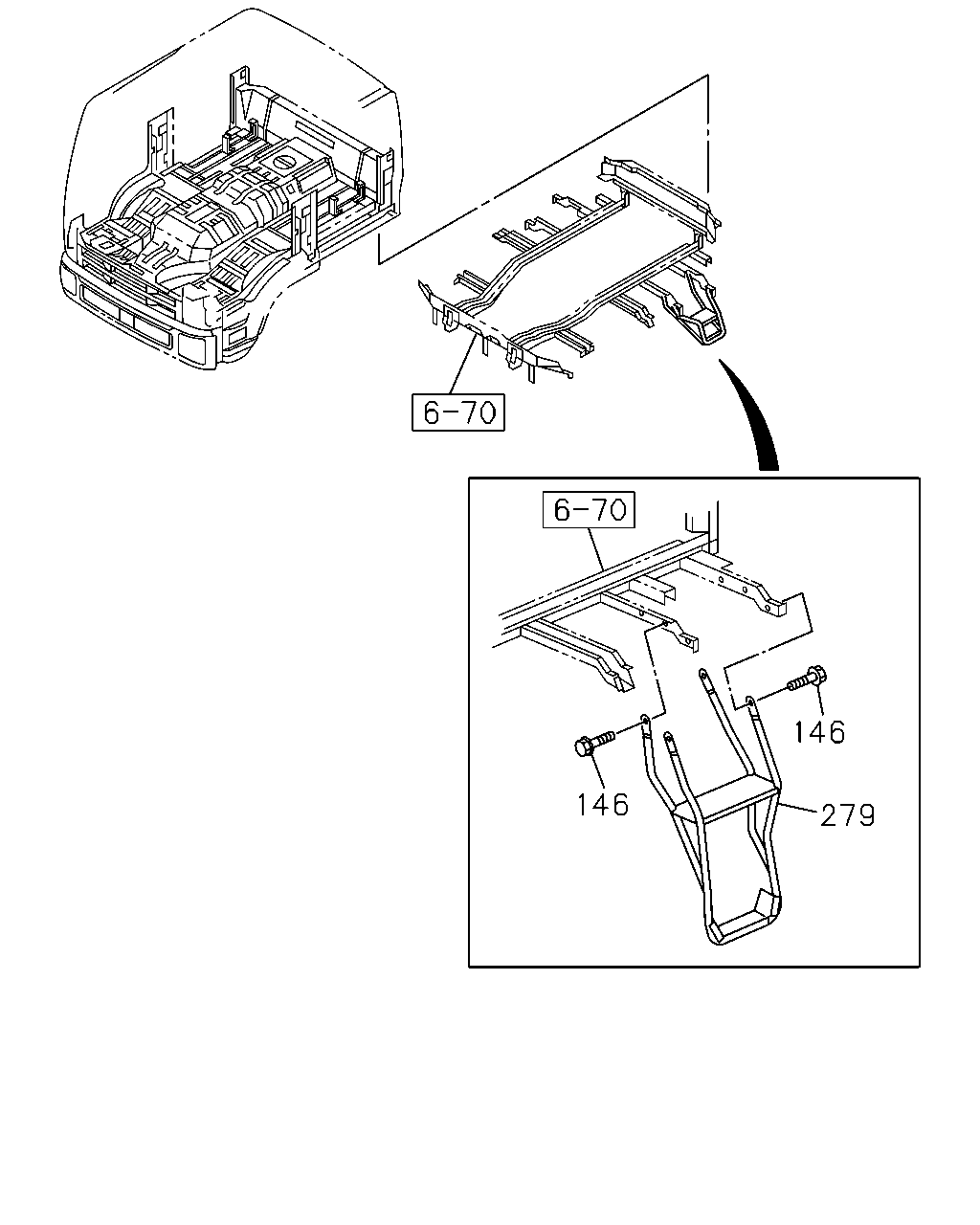

çizim 25725
146 146 279
BalonParca AdiParca NoAdetTipApplied Date A B
146 BOLT; STEP BRKT
M8X25 FLANGE 		0-28650-825-0 08 1 0712- ●
279 BOARD; STEP 1ST 8-98065-901-3 02 1 0712- ●

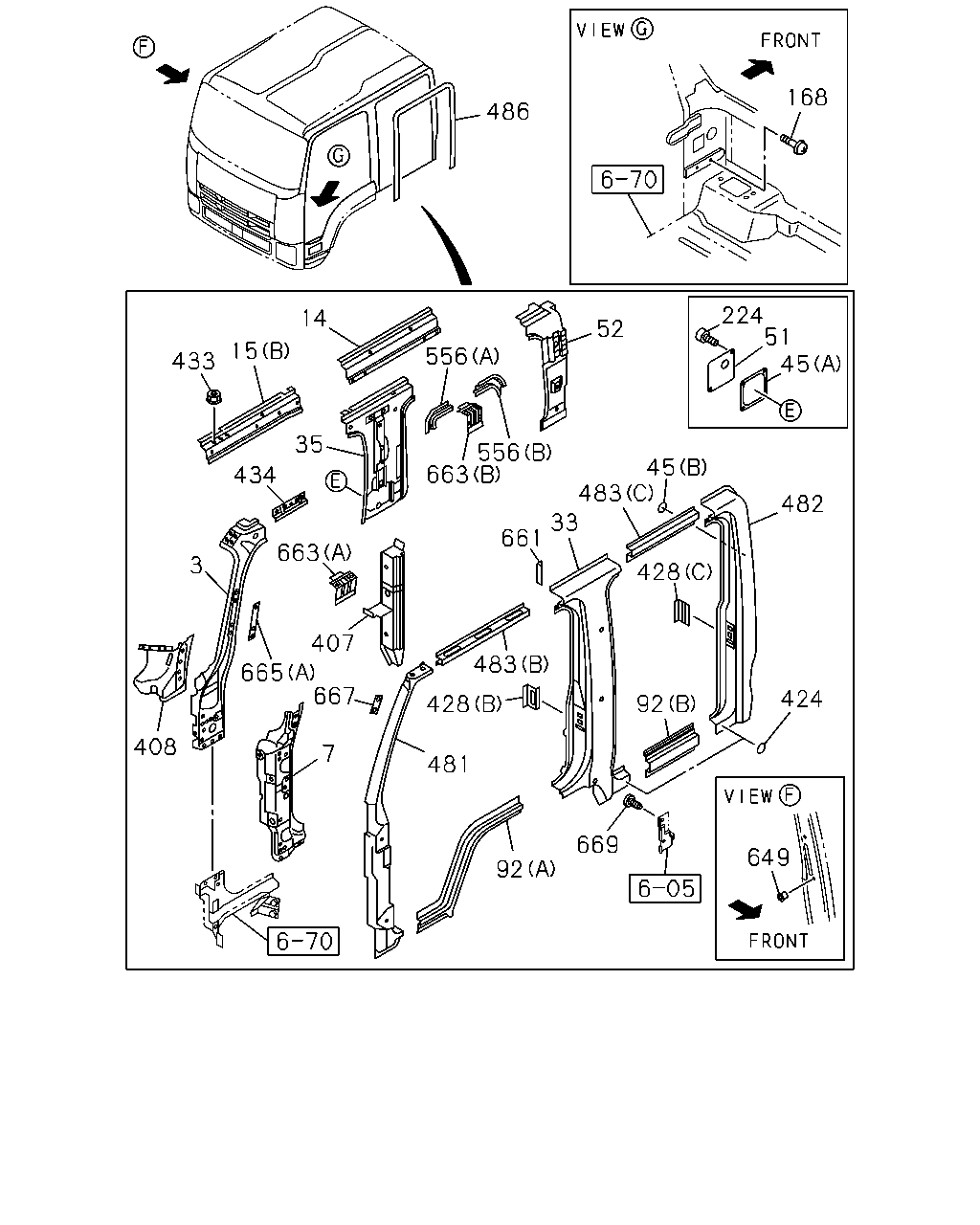

çizim 99284
168 486 224 51 45 14 52 15 556 433 35 556 663 45 483 434 482 33 661 663 3 428 407 483 665 667 424 92 428 408 7 481 669 649 92
BalonParca AdiParca NoAdetTipApplied Date A B
3 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 0712- ● ●
3 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 0712- ● ●
7 REINFORCEMENT; HINGE 8-97585-244-4 01 1 0712- ● ●
7 REINFORCEMENT; HINGE 8-97585-240-3 01 1 0712- ● ●
14 PANEL; REINF,SIDE DRIP 8-97583-706-2 01 1 0712- ●
15 PANEL; CANT RAIL SIDE
(A) 		8-97585-293-2 01 1 0712- ●
15 PANEL; CANT RAIL SIDE
(A) 		8-97585-292-2 01 1 0712- ●
15 PANEL; CANT RAIL SIDE
(B) 		8-97583-740-1 01 1 0712- ●
15 PANEL; CANT RAIL SIDE
(B) 		8-97583-739-1 01 1 0712- ●
33 PANEL; CENTER PILLAR,OUTER 8-98097-245-0 01 1 0712-0901 ●
33 PANEL; CENTER PILLAR,OUTER 8-98069-091-0 01 1 0902- ●
33 PANEL; CENTER PILLAR,OUTER 8-98097-244-0 01 1 0712-0901 ●
33 PANEL; CENTER PILLAR,OUTER 8-98069-090-0 01 1 0902- ●
35 PANEL; CENTER PILLAR,INNER 8-98080-456-2 01 1 0712- ●
35 PANEL; CENTER PILLAR,INNER 8-98080-457-2 01 1 0712- ●
45 SEAL; B-C POST
(A) 		8-97853-731-2 02 1 0712- ●
45 SEAL; B-C POST
BODY COLOR ARC WHITE(729) (B) OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 0712-0905 ●
45 SEAL; B-C POST
BODY COLOR ARC WHITE(729),BODY COLOR POLAR WHITE(982) (B) OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 0906- ●
45 SEAL; B-C POST
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (B) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0712-0905 ●
45 SEAL; B-C POST
BODY COLOR AL GRAY(517),BODY COLOR BRIGHT YELLOW(538),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLORCARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),B ODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR GREEN(989),BOD Y COLOR TRANS BLUE(999) (B) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0906-0906 ●
45 SEAL; B-C POST
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLORFIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0906- ●
51 COVER; HOLE,B-C POST 8-94273-658-0 02 1 0712- ●
52 PANEL; D-POST UPR 8-98062-006-1 01 1 0712- ●
52 PANEL; D-POST UPR 8-98062-005-1 01 1 0712- ●
92 PANEL; SIDE SILL,CAB
(A) 		8-98055-462-1 01 1 0712- ● ●
92 PANEL; SIDE SILL,CAB
(A) 		8-98055-461-1 01 1 0712- ● ●
92 PANEL; SIDE SILL,CAB
(B) 		8-98069-113-0 02 1 0712- ●
168 BOLT; BODY SIDE PANEL
M6X16 		0-38050-616-0 08 1 0712-0802 ● ●
168 BOLT; BODY SIDE PANEL
M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 0803- ● ●
224 SCREW; COVER
M5X16 HEX SOCKET 		0-72380-516-0 04 1 0712- ●
407 PILLAR; HINGE,RR DOOR 8-98089-274-1 01 1 0712-0901 ●
407 PILLAR; HINGE,RR DOOR 8-97410-824-2 01 1 0902- ●
407 PILLAR; HINGE,RR DOOR 8-97410-822-2 01 1 0712- ●
408 GUSSET; PILLAR 8-97586-194-2 01 1 0712- ● ●
408 GUSSET; PILLAR 8-97586-193-3 01 1 0712- ● ●
424 SEAL; CLOSING
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 0712-0905 ●
424 SEAL; CLOSING
BODY COLOR ARC WHITE(729),BODY COLOR POLAR WHITE(982) OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 0906- ●
424 SEAL; CLOSING
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0712-0905 ●
424 SEAL; CLOSING
BODY COLOR AL GRAY(517),BODY COLOR BRIGHT YELLOW(538),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLORCARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),B ODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR GREEN(989),BOD Y COLOR TRANS BLUE(999) OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0906-0906 ●
424 SEAL; CLOSING
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLORFIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0906- ●
428 REINFORCEMENT; DOOR STRIKER
(A) 		8-97585-261-4 01 1 0712- ●
428 REINFORCEMENT; DOOR STRIKER
(A) 		8-97585-260-4 01 1 0712- ●
428 REINFORCEMENT; DOOR STRIKER
(C) 		8-97851-446-1 01 1 0712- ●
428 REINFORCEMENT; DOOR STRIKER
(B) 		8-98014-549-0 01 1 0712- ●
428 REINFORCEMENT; DOOR STRIKER
(C) 		8-97851-445-1 01 1 0712- ●
428 REINFORCEMENT; DOOR STRIKER
(B) 		8-98014-548-0 01 1 0712- ●
433 NUT; HEADER SHELF
M6 		9-09114-086-0 04 1 0712- ● ●
434 PATCH; ASSIST GRIP 8-98039-020-0 01 1 0712- ● ●
434 PATCH; ASSIST GRIP 8-98039-019-0 01 1 0712- ● ●
481 PANEL; SIDE FRT PILLAR 8-98093-579-0 01 1 0712- ● ●
481 PANEL; SIDE FRT PILLAR
MIRROR O/S UNDER VIEW<RR9> 		8-98092-915-0 01 1 0712- ● ●
481 PANEL; SIDE FRT PILLAR
EXC. MIRROR O/S UNDER VIEW<RR9> 		8-98072-714-1 01 1 0712- ● ●
482 PANEL; SIDE RR PILLAR 8-98055-469-0 01 1 0712-0807 ●
482 PANEL; SIDE RR PILLAR 8-98092-925-0 01 1 0808-0901 ●
482 PANEL; SIDE RR PILLAR 8-98055-469-0 01 1 0902- ●
482 PANEL; SIDE RR PILLAR 8-98055-468-0 01 1 0712-0807 ●
482 PANEL; SIDE RR PILLAR 8-98092-923-0 01 1 0808-0901 ●
482 PANEL; SIDE RR PILLAR 8-98055-468-0 01 1 0902- ●
482 PANEL; SIDE RR PILLAR 8-98097-238-0 01 1 0712- ●
482 PANEL; SIDE RR PILLAR 8-98097-237-0 01 1 0712- ●
483 PANEL; SIDE CANTRAIL
(A) 		8-98055-460-0 01 1 0712- ●
483 PANEL; SIDE CANTRAIL
(A) 		8-98055-458-0 01 1 0712- ●
483 PANEL; SIDE CANTRAIL
(C) 		8-98069-095-0 02 1 0712- ●
483 PANEL; SIDE CANTRAIL
(B) 		8-98056-609-0 01 1 0712- ●
483 PANEL; SIDE CANTRAIL
(B) 		8-98056-608-0 01 1 0712- ●
486 SEAL; BODY SIDE
DARK GRAY 		8-97405-303-2 02 1 0712-0912 ●
486 SEAL; BODY SIDE 8-98154-664-0 02 1 1001- ●
556 PATCH; ROOF SIDE
(A) 		8-98024-391-0 01 1 0712- ●
556 PATCH; ROOF SIDE
(B) 		8-98024-393-0 01 1 0712- ●
556 PATCH; ROOF SIDE
(A) 		8-98024-390-0 01 1 0712- ●
556 PATCH; ROOF SIDE
(B) 		8-98024-392-0 01 1 0712- ●
649 NUT; POP
M5 POP NUT 		8-97249-574-0 02 1 0712- ● ●
661 BRACKET; SIDE PANEL 8-98012-623-1 01 1 0712- ●
661 BRACKET; SIDE PANEL 8-98012-621-1 01 1 0712- ●
663 BRACKET; AIR
(A) 		8-97585-208-2 01 1 0712- ● ●
663 BRACKET; AIR
(A) 		8-97585-207-2 01 1 0712- ● ●
663 BRACKET; AIR
(B) 		8-98020-643-1 01 1 0712- ●
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 02 1 0712- ●
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 02 1 0712- ● ●
667 BRACKET; MIRROR
MIRROR O/S UNDER VIEW<RR9> 		8-98005-264-0 01 1 0712-0806 ● ●
667 BRACKET; MIRROR
MIRROR O/S UNDER VIEW<RR9> 		8-98109-948-0 01 1 0807- ● ●
669 STUD; FENDER
M6X12 		8-98013-112-0 01 1 0712- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
