6-01 — FRONT BUMPER (#48839) — 35 parça

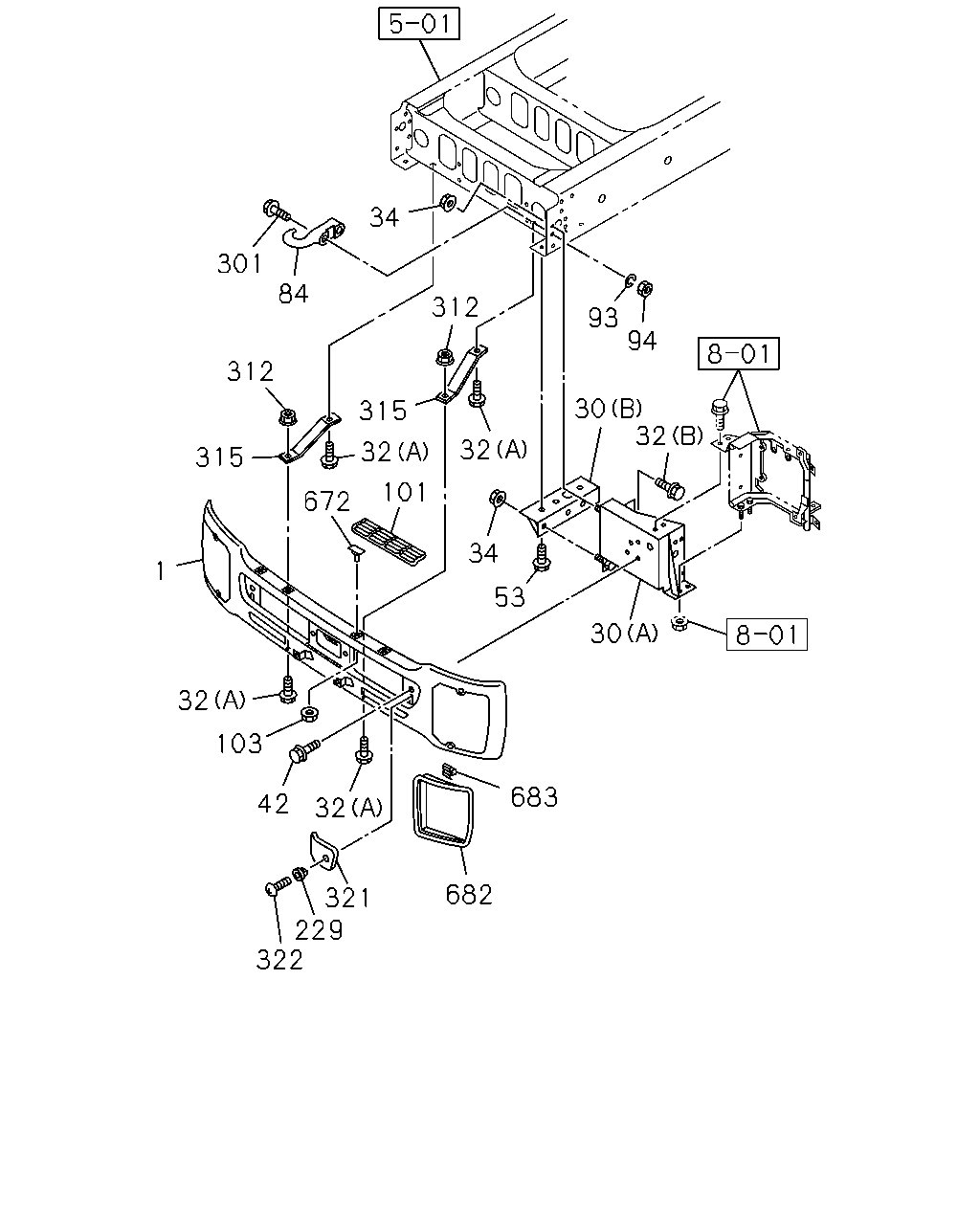

çizim 25035
34 301 84 312 93 94 312 30 32 315 32 32 315 101 672 34 1 53 30 32 103 683 42 32 682 321 229 322
BalonParca AdiParca NoAdetTipApplied Date A B
1 BUMPER ASM; FRT
WHITE 		8-97409-273-2 01 1 0712-1212 ● ●
1 BUMPER ASM; FRT
WHITE 		8-97425-798-0 01 1 1301-1405 ● ●
1 BUMPER ASM; FRT
WHITE 		8-97465-355-0 01 1 1406- ● ●
30 BRACKET; FRT BUMPER
(B) 		8-97619-571-0 01 1 0712- ● ●
30 BRACKET; FRT BUMPER
(A) 		8-97623-902-2 01 1 0712-1208 ● ●
30 BRACKET; FRT BUMPER
(A) 		8-97642-919-0 01 1 1209-1405 ● ●
30 BRACKET; FRT BUMPER
(A) 		8-98283-922-0 01 1 1406- ● ●
30 BRACKET; FRT BUMPER
(B) 		8-97619-570-0 01 1 0712- ● ●
30 BRACKET; FRT BUMPER
(A) 		8-97623-901-2 01 1 0712-1208 ● ●
30 BRACKET; FRT BUMPER
(A) 		8-97642-918-0 01 1 1209-1405 ● ●
30 BRACKET; FRT BUMPER
(A) 		8-98283-921-0 01 1 1406- ● ●
32 BOLT; BRKT,BUMPER
(A) M10X25 FLANGE 		0-28651-025-0 04 1 0712- ● ●
32 BOLT; BRKT,BUMPER
(B) M12X40 FLANGE 		0-28651-240-0 02 1 0712- ● ●
34 NUT; BRKT,BUMPER
M12 FLANGE 		0-91180-212-0 08 1 0712- ● ●
34 NUT; BRKT,BUMPER
M14 FLANGE 		0-91180-214-0 06 1 0712- ● ●
42 BOLT; BUMPER
M10X30 		8-94324-205-0 06 1 0712- ● ●
53 BOLT; BRKT TO FRAME
M14X45 FLANGE 		0-28851-445-0 06 1 0712- ● ●
84 HOOK 1-57181-027-1 01 1 0712- ● ●
93 WASHER; LK,HOOK
ID=16.2 		0-91510-816-0 02 1 0712- ● ●
94 NUT; HOOK
M16 		0-91110-516-0 02 1 0712- ● ●
101 STEP; BUMPER 8-97611-541-0 01 1 0712- ● ●
101 STEP; BUMPER 8-97611-540-0 01 1 0712- ● ●
103 NUT; BUMPER STEP
M6 FLANGE 		0-91180-106-0 04 1 0712- ● ●
229 GROMMET
D=7X7 L=7.5 		5-09983-007-0 02 1 0712- ● ●
301 BOLT; HOOK TO FRAME
M16X70 		0-10861-670-0 02 1 0712- ● ●
312 NUT; BRKT
M10 FLANGE 		0-91180-110-0 02 1 0712-0802 ● ●
312 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0803- ● ●
315 STAY; BUMPER 8-97623-661-0 02 1 0712- ● ●
321 COVER; BUMPER FRT SIDE 8-97616-291-1 01 1 0712- ● ●
321 COVER; BUMPER FRT SIDE 8-97616-290-1 01 1 0712- ● ●
322 SCREW; COVER FIX
M5X16 TAPPING 		0-72180-516-0 02 1 0712- ● ●
672 STUD; STEP 8-97611-666-0 04 1 0712- ● ●
682 BEZEL; BUMPER 8-97611-533-1 01 1 0712- ● ●
682 BEZEL; BUMPER 8-97611-532-1 01 1 0712- ● ●
683 CLIP; BEZEL,BUMPER 8-98084-293-0 08 1 0712- ● ●
