5-15 — CAB MOUNTING; CAB SIDE (#48834) — 176 parça

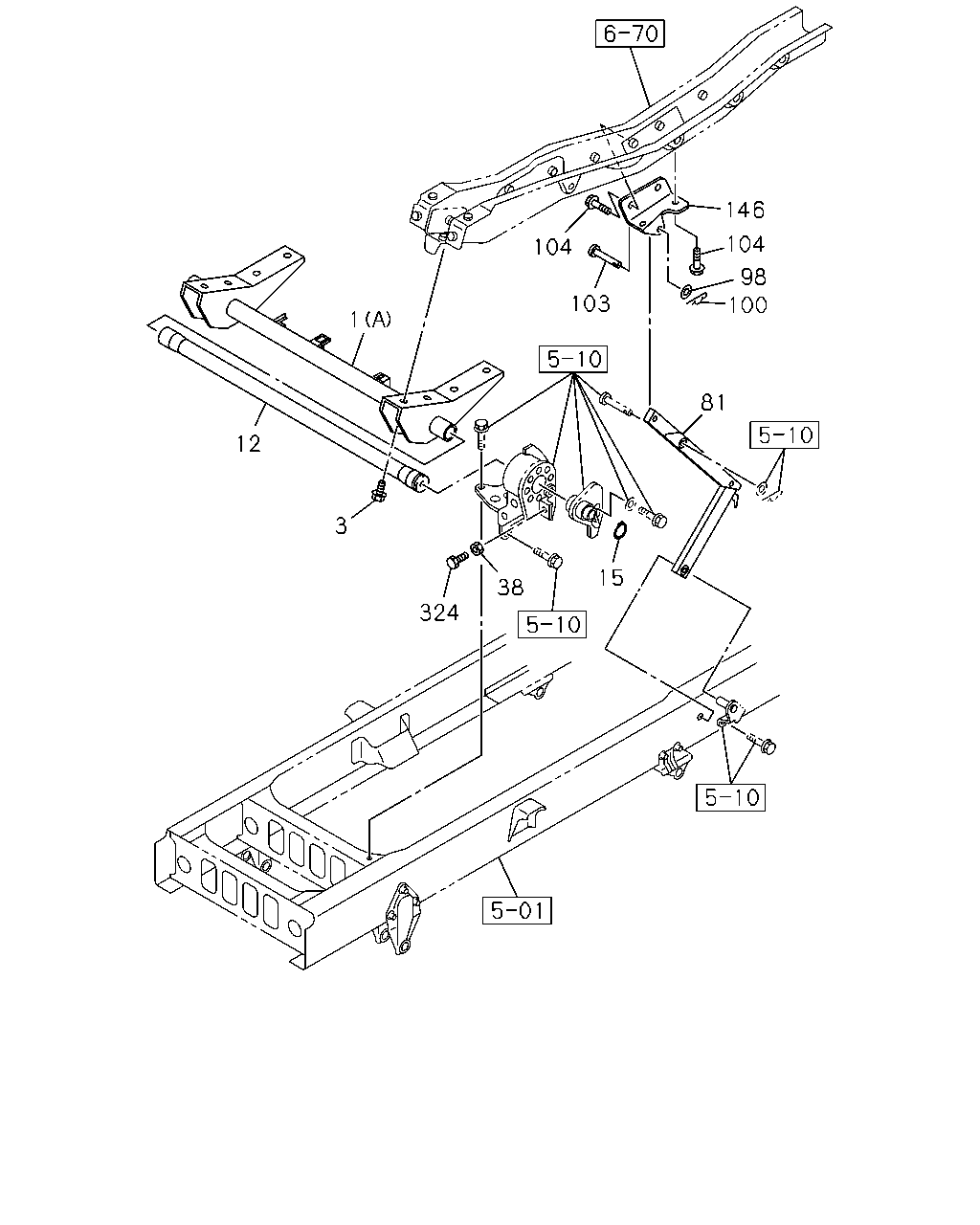

146 104 104 98 103 100 1 81 12 3 15 38 324

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LEVER; TORSION BAR (A)	8-98010-752-7	01	1	0712-	●
1	LEVER; TORSION BAR (B)	8-98010-764-1	01	1	0712-		●
3	BOLT; LEVER M12X42 FLANGE	8-98090-287-1	08	1	0712-	●	●
12	BAR; TORSION,UPR	8-98010-947-1	01	1	0712-	●
15	RING; SNAP,TORSION BAR T=1.90 BLUE	8-97129-615-0	01	1	0712-	●
38	NUT; LK M14	0-91110-514-0	01	1	0712-	●
81	STAY ASM; CAB TILT	1-62500-761-0	01	1	0712-1406	●
81	STAY ASM; CAB TILT	8-98278-116-0	01	1	1407-	●
98	WASHER; CAB STAY ID=10.5 T=2.0	1-09985-183-0	01	1	0712-	●
100	PIN; SNAP,CAB STAY TO CAB L=34	8-98039-426-1	01	1	0712-	●
103	PIN; JOINT,CAB STAY	1-09744-108-1	01	1	0712-	●
104	BOLT; CAB STAY BRKT M10X30 FLANGE	0-28661-030-0	04	1	0712-	●
146	BRACKET ASM; CAB STAY UPR	8-98019-506-0	01	1	0712-	●
324	BOLT; ADJUST M14X55	8-98004-319-1	01	1	0712-	●

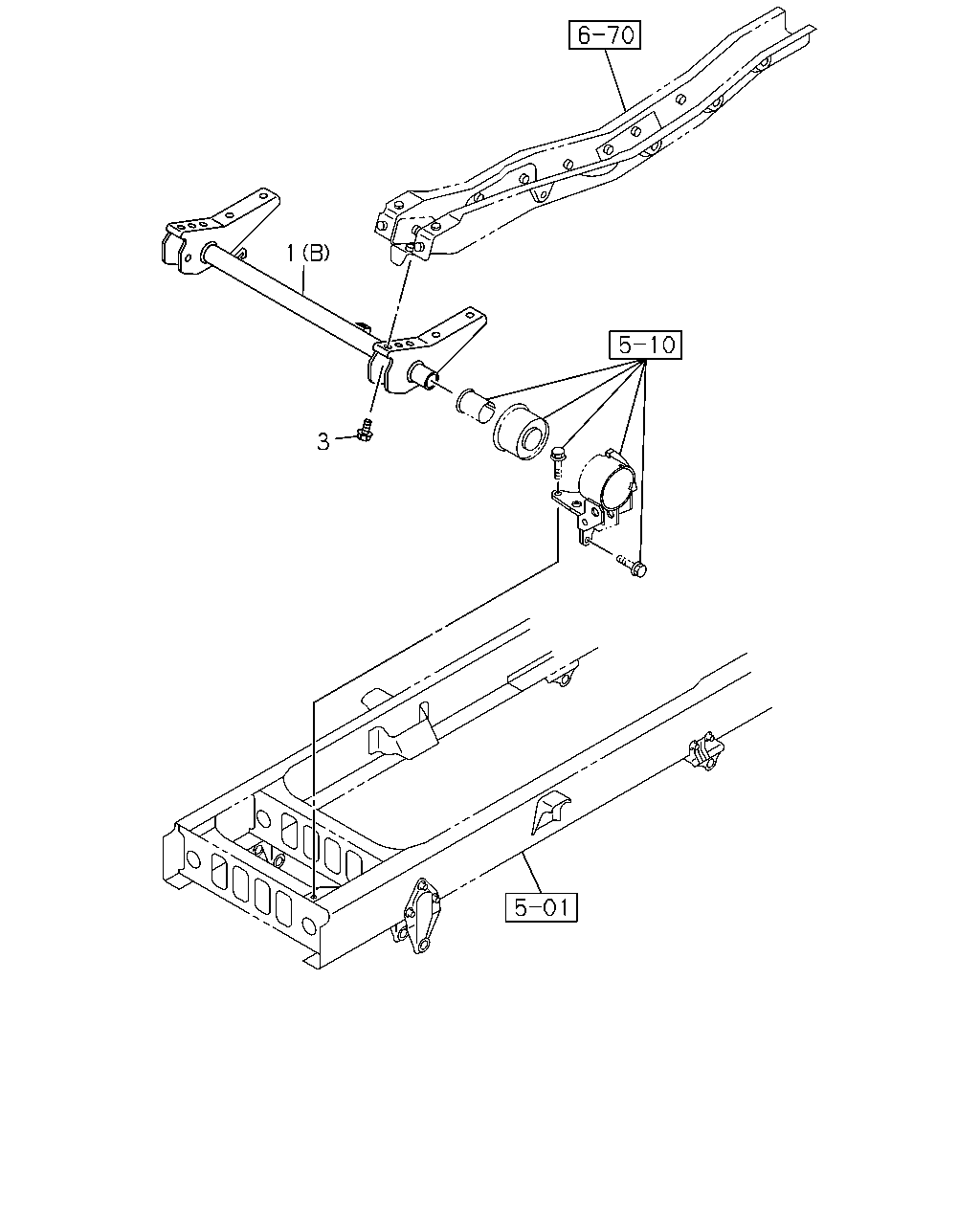

1 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LEVER; TORSION BAR (A)	8-98010-752-7	01	1	0712-	●
1	LEVER; TORSION BAR (B)	8-98010-764-1	01	1	0712-		●
3	BOLT; LEVER M12X42 FLANGE	8-98090-287-1	08	1	0712-	●	●

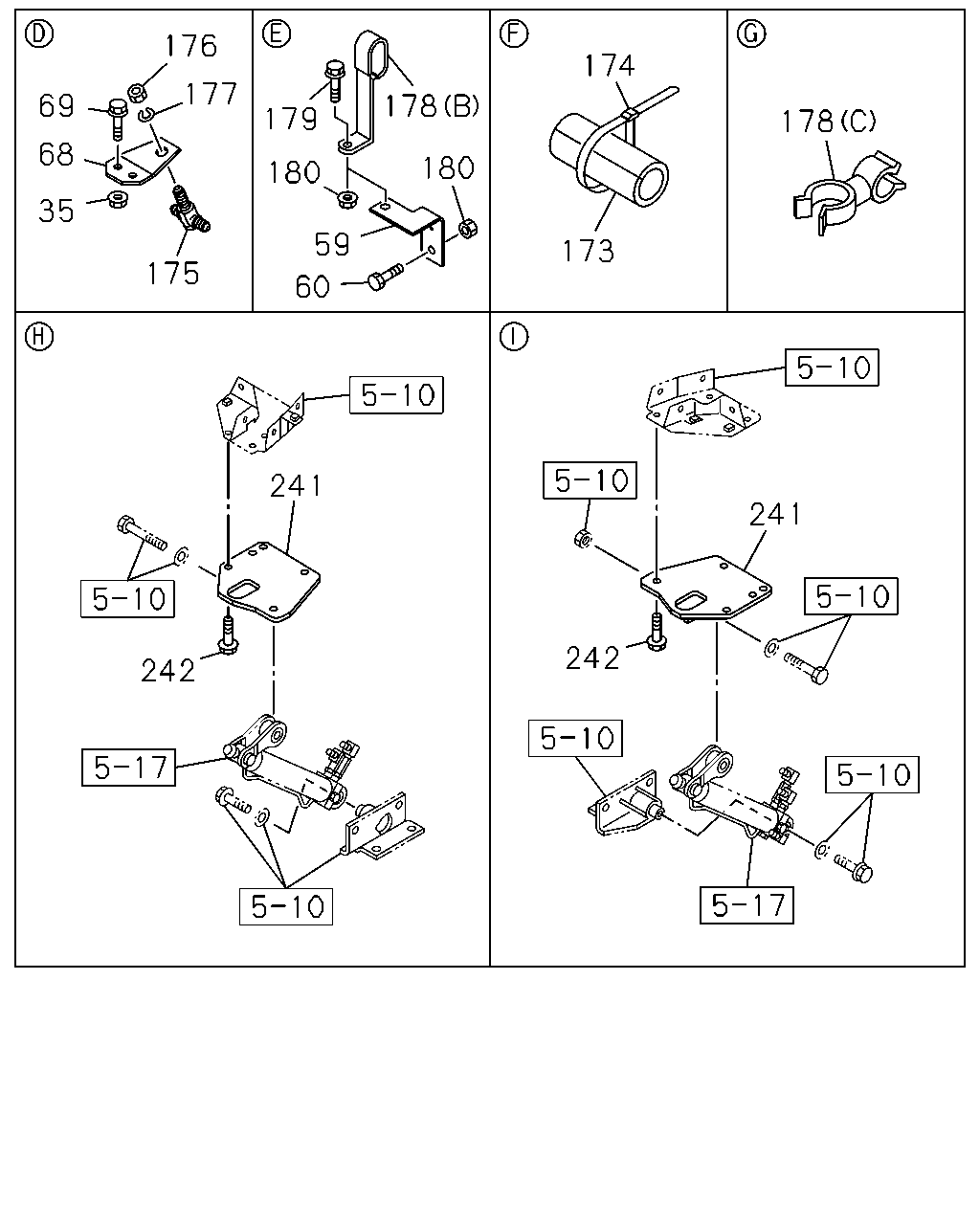

176 174 177 69 178 179 178 68 180 180 35 59 173 175 60 241 241 242 242

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
35	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0805-	●
59	BRACKET; CLIP	8-98083-609-0	01	1	0805-	●
60	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	0805-	●
68	BRACKET; UNION	8-98044-029-1	01	1	0712-	●
69	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	0805-	●
173	SLEEVE; RUBBER,FLEX HOSE ID=17 OD=21 L=40	1-09337-012-0	02	1	0805-0812	●
173	SLEEVE; RUBBER,FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=17 OD=21 L=40	1-09337-012-0	02	1	0901-	●
174	CLIP; BAND,FLEX HOSE L=140	5-09707-031-1	03	1	0712-0804	●
174	CLIP; BAND,FLEX HOSE L=140	5-09707-031-1	04	1	0805-0812	●
174	CLIP; BAND,FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) L=140	5-09707-031-1	04	1	0901-	●
174	CLIP; BAND,FLEX HOSE L=250	5-09707-030-1	02	1	0805-	●
174	CLIP; BAND,FLEX HOSE EXC. AIR CONDITIONER MANUAL CONTROL(C60) L=140	5-09707-031-1	02	1	0901-	●
175	UNION; FLEX HOSE M12 L=69	0-92138-506-0	01	1	0712-	●
176	NUT; UNION M12	9-09840-280-0	01	1	0712-	●
177	WASHER; LK,UNION	1-09985-189-0	01	1	0712-	●
178	CLIP; FLEX HOSE (A) ID=11X2 L=20	0-95325-035-0	07	1	0712-0804	●
178	CLIP; FLEX HOSE (A) ID=9X2 L=20	0-95324-835-0	04	1	0805-	●
178	CLIP; FLEX HOSE (B) ID=11X2 H=35 L=20	1-09700-847-0	02	1	0712-0804	●
178	CLIP; FLEX HOSE (B) M13X2 H=20 L=60	1-09701-280-0	02	1	0805-	●
178	CLIP; FLEX HOSE (B) ID=14X2 H=85 L=30	1-09701-062-0	01	1	0805-	●
178	CLIP; FLEX HOSE (C) ID=8.3 & 10	8-94176-792-0	02	1	0805-	●
178	CLIP; FLEX HOSE (D) ID=19 L=58	1-09700-733-1	01	1	0806-	●
179	BOLT; CLIP,FLEX HOSE M8X20 FLANGE	0-28650-820-0	09	1	0712-0803	●
179	BOLT; CLIP,FLEX HOSE M8X20 FLANGE	0-28650-820-0	06	1	0804-0804	●
179	BOLT; CLIP,FLEX HOSE M8X20 FLANGE	0-28650-820-0	05	1	0805-0805	●
179	BOLT; CLIP,FLEX HOSE M8X20 FLANGE	0-28650-820-0	06	1	0806-	●
179	BOLT; CLIP,FLEX HOSE M8X25 FLANGE	0-28650-825-0	03	1	0804-0804	●
179	BOLT; CLIP,FLEX HOSE M8X25 FLANGE	0-28650-825-0	02	1	0805-	●
180	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	0712-0805	●
180	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0805-0805	●
180	NUT; CLIP M8 FLANGE	0-91180-108-0	05	1	0806-0812	●
180	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0901-	●
180	NUT; CLIP M8 FLANGE	0-91180-108-0	04	1	0901-	●
241	BRACKET; POWER CYL UPR,CAB TILT	8-98095-154-0	01	1	0712-	●
241	BRACKET; POWER CYL UPR,CAB TILT	8-98095-153-0	01	1	0712-	●
242	BOLT; POWER CYL BRKT,CAB TILT M10X30 FLANGE	0-28661-030-0	08	1	0712-	●

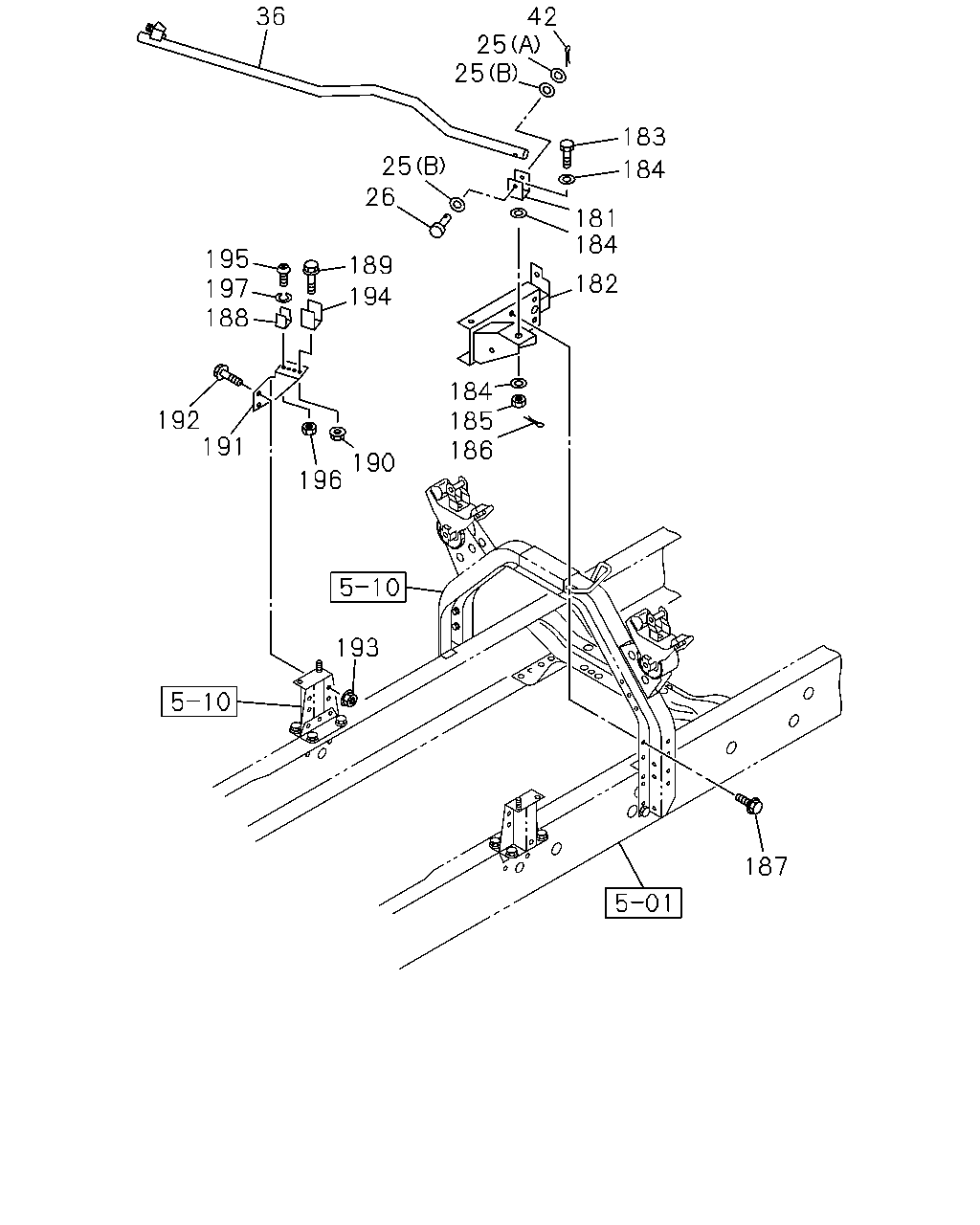

36 42 25 25 183 25 26 184 181 184 195 197 188 189 182 194 184 185 186 192 191 190 196 193 187

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
25	WASHER; PL,STAY (A) ID=15	0-91610-514-0	01	1	0712-	●
25	WASHER; PL,STAY (B) ID=15 OD=30	9-09164-614-0	02	1	0712-1010	●
25	WASHER; PL,STAY (B) ID=15	0-91614-614-0	02	1	1011-	●
26	PIN; STAY OD=14 L=62	0-82354-462-0	01	1	0712-	●
36	STAY; OIL TILT	8-98057-730-1	01	1	0712-	●
42	PIN; SPLIT,STAY OD=3.7 L=25	0-81124-025-0	01	1	0712-	●
181	BRACKET; STAY,OIL TILT	1-53719-018-1	01	1	0712-	●
182	BRACKET; STAY BRKT,OIL TILT	8-98100-304-1	01	1	0712-	●
183	BOLT; BRKT M16X40 W/PIN HOLE	1-09042-043-0	01	1	0712-	●
184	WASHER; PL,BRKT ID=17 OD=30	0-91610-516-0	03	1	0712-	●
185	NUT; BRKT M16 SLOTTED	0-91116-516-0	01	1	0712-1010	●
185	NUT; BRKT M16 SLOTTED	8-98049-689-0	01	1	1011-	●
186	PIN; BRKT OD=3.7 L=25	0-81124-025-0	01	1	0712-	●
187	BOLT; BRKT M8X25 FLANGE	0-28050-825-0	04	1	0712-	●
188	CLIP; STAY,OIL TILT	1-09709-114-0	01	1	0712-	●
189	BOLT; CLIP M6X12 FLANGE	0-28050-612-0	02	1	0712-	●
190	NUT; CLIP M6 FLANGE	0-91180-106-0	02	1	0712-	●
191	BRACKET; CLIP,STAY	8-98050-969-1	01	1	0712-	●
192	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	0712-	●
193	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0712-	●
194	GUIDE; STAY	1-53719-020-0	01	1	0712-	●
195	SCREW; GUIDE M4X12	0-34218-412-0	02	1	0712-	●
196	NUT; GUIDE M4	9-99110-404-0	02	1	0712-	●
197	WASHER; LK,GUIDE ID=4.1	0-91510-504-0	02	1	0712-	●

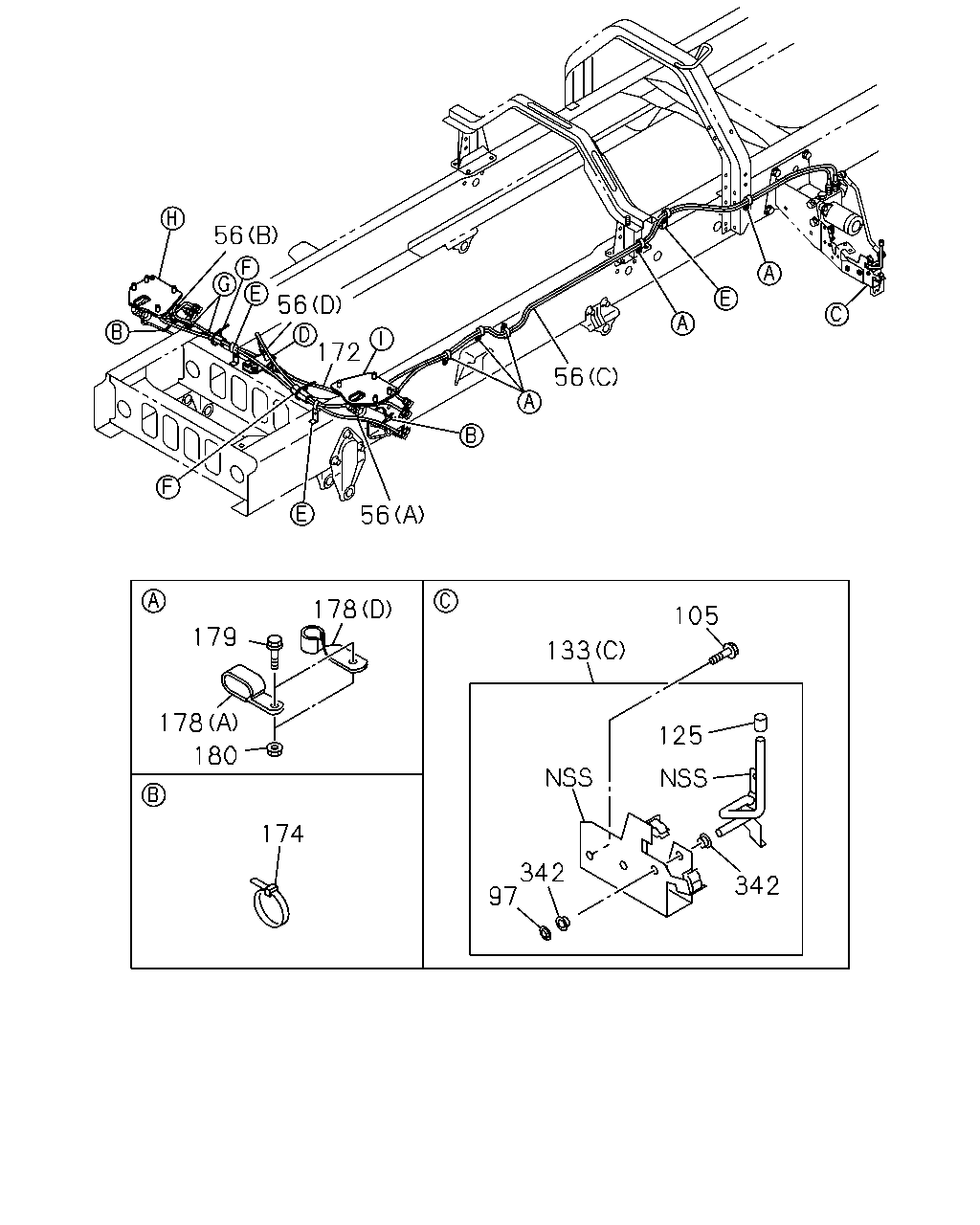

56 56 172 56 56 178 105 179 133 178 125 180 174 342 97 342

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
56	HOSE; FLEX,OIL PIPE (A) L=1710	8-98044-009-2	01	1	0712-		●
56	HOSE; FLEX,OIL PIPE (D) L=1060	8-98044-010-2	01	1	0712-		●
56	HOSE; FLEX,OIL PIPE (C) L=2490	8-98044-008-2	01	1	0712-		●
56	HOSE; FLEX,OIL PIPE (B) L=1270	8-98044-011-2	01	1	0712-		●
97	NUT; CAB STAY PIN ID=9.9 PUSH NUT	8-97022-566-0	01	1	0712-		●
105	BOLT; CAB STAY M8X16 FLANGE	0-28050-816-0	02	1	0712-		●
125	GRIP; HAND LEVER,CAB LOCK ID=9.0	8-94207-303-0	01	1	0712-		●
133	LOCK ASM; CAB (A)	8-98094-285-2	01	1	0712-	●	●
133	LOCK ASM; CAB (B)	8-98061-489-1	01	1	0712-	●	●
133	LOCK ASM; CAB (C)	8-97608-198-0	01	1	0712-		●
172	HOSE; FLEX,OIL TILT L=3010	8-98044-012-2	01	1	0712-		●
174	CLIP; BAND,FLEX HOSE L=140	5-09707-031-1	03	1	0712-0804		●
174	CLIP; BAND,FLEX HOSE L=140	5-09707-031-1	04	1	0805-0812		●
174	CLIP; BAND,FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) L=140	5-09707-031-1	04	1	0901-		●
174	CLIP; BAND,FLEX HOSE L=250	5-09707-030-1	02	1	0805-		●
174	CLIP; BAND,FLEX HOSE EXC. AIR CONDITIONER MANUAL CONTROL(C60) L=140	5-09707-031-1	02	1	0901-		●
178	CLIP; FLEX HOSE (A) ID=11X2 L=20	0-95325-035-0	07	1	0712-0804		●
178	CLIP; FLEX HOSE (A) ID=9X2 L=20	0-95324-835-0	04	1	0805-		●
178	CLIP; FLEX HOSE (B) ID=11X2 H=35 L=20	1-09700-847-0	02	1	0712-0804		●
178	CLIP; FLEX HOSE (B) M13X2 H=20 L=60	1-09701-280-0	02	1	0805-		●
178	CLIP; FLEX HOSE (B) ID=14X2 H=85 L=30	1-09701-062-0	01	1	0805-		●
178	CLIP; FLEX HOSE (C) ID=8.3 & 10	8-94176-792-0	02	1	0805-		●
178	CLIP; FLEX HOSE (D) ID=19 L=58	1-09700-733-1	01	1	0806-		●
179	BOLT; CLIP,FLEX HOSE M8X20 FLANGE	0-28650-820-0	09	1	0712-0803		●
179	BOLT; CLIP,FLEX HOSE M8X20 FLANGE	0-28650-820-0	06	1	0804-0804		●
179	BOLT; CLIP,FLEX HOSE M8X20 FLANGE	0-28650-820-0	05	1	0805-0805		●
179	BOLT; CLIP,FLEX HOSE M8X20 FLANGE	0-28650-820-0	06	1	0806-		●
179	BOLT; CLIP,FLEX HOSE M8X25 FLANGE	0-28650-825-0	03	1	0804-0804		●
179	BOLT; CLIP,FLEX HOSE M8X25 FLANGE	0-28650-825-0	02	1	0805-		●
180	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	0712-0805		●
180	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0805-0805		●
180	NUT; CLIP M8 FLANGE	0-91180-108-0	05	1	0806-0812		●
180	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0901-		●
180	NUT; CLIP M8 FLANGE	0-91180-108-0	04	1	0901-		●
342	BUSHING; LEVER,CAB LOCK T=6 OD=17.5	9-33659-249-0	02	1	0712-		●

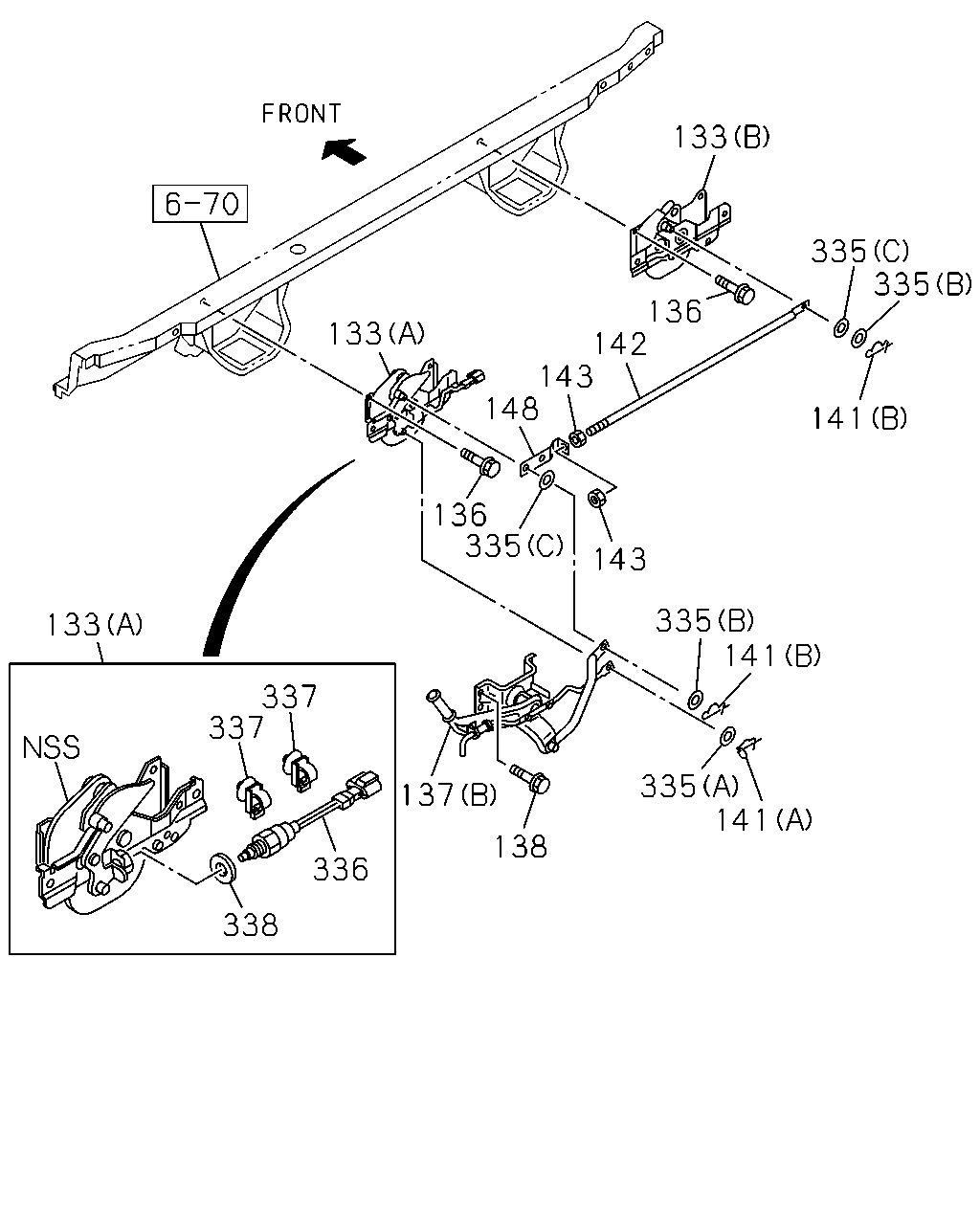

133 335 335 136 142 143 148 133 141 136 335 143 335 141 133 337 337 335 141 137 138 336 338

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
133	LOCK ASM; CAB (A)	8-98094-285-2	01	1	0712-	●	●
133	LOCK ASM; CAB (B)	8-98061-489-1	01	1	0712-	●	●
133	LOCK ASM; CAB (C)	8-97608-198-0	01	1	0712-		●
136	BOLT; CAB LK M8X20 FLANGE	0-28650-820-0	08	1	0712-	●	●
137	CONTROL UNIT; CAB LOCK (A)	8-97587-592-5	01	1	0712-	●
137	CONTROL UNIT; CAB LOCK (B)	8-98057-301-4	01	1	0712-		●
138	BOLT; CAB LOCK CONT UNIT M8X20 FLANGE	0-28650-820-0	04	1	0712-	●	●
141	PIN; SNAP,CAB LOCK ROD (A) L=25.3	8-98039-045-1	01	1	0712-	●	●
141	PIN; SNAP,CAB LOCK ROD (A) L=25.3	8-98039-045-1	01	1	0712-	●
141	PIN; SNAP,CAB LOCK ROD (B) L=32.6	8-98062-280-0	02	1	0712-	●	●
142	ROD; HOOK TO HOOK	8-97587-990-0	01	1	0712-	●	●
143	NUT; JAW JOINT,HOOK TO HOOK M10	0-91110-510-0	02	1	0712-	●	●
148	JOINT; JAW,HOOK TO HOOK	8-97410-736-0	01	1	0712-	●	●
335	WASHER; CAB LOCK ROD (A) ID=8.4 OD=16	0-91610-508-0	01	1	0712-	●	●
335	WASHER; CAB LOCK ROD (B) ID=12.5 OD=26	0-91610-612-0	02	1	0712-	●	●
335	WASHER; CAB LOCK ROD (C) ID=13 OD=22	8-98060-839-0	02	1	0712-	●	●
336	SWITCH; CAB LOCK	8-98091-155-1	01	1	0712-	●	●
337	CLIP; CAB LOCK L=155	8-97173-307-0	02	1	0712-1008	●	●
338	WASHER; CAB LOCK ID=17 OD=30	0-91610-516-0	01	1	0712-	●	●

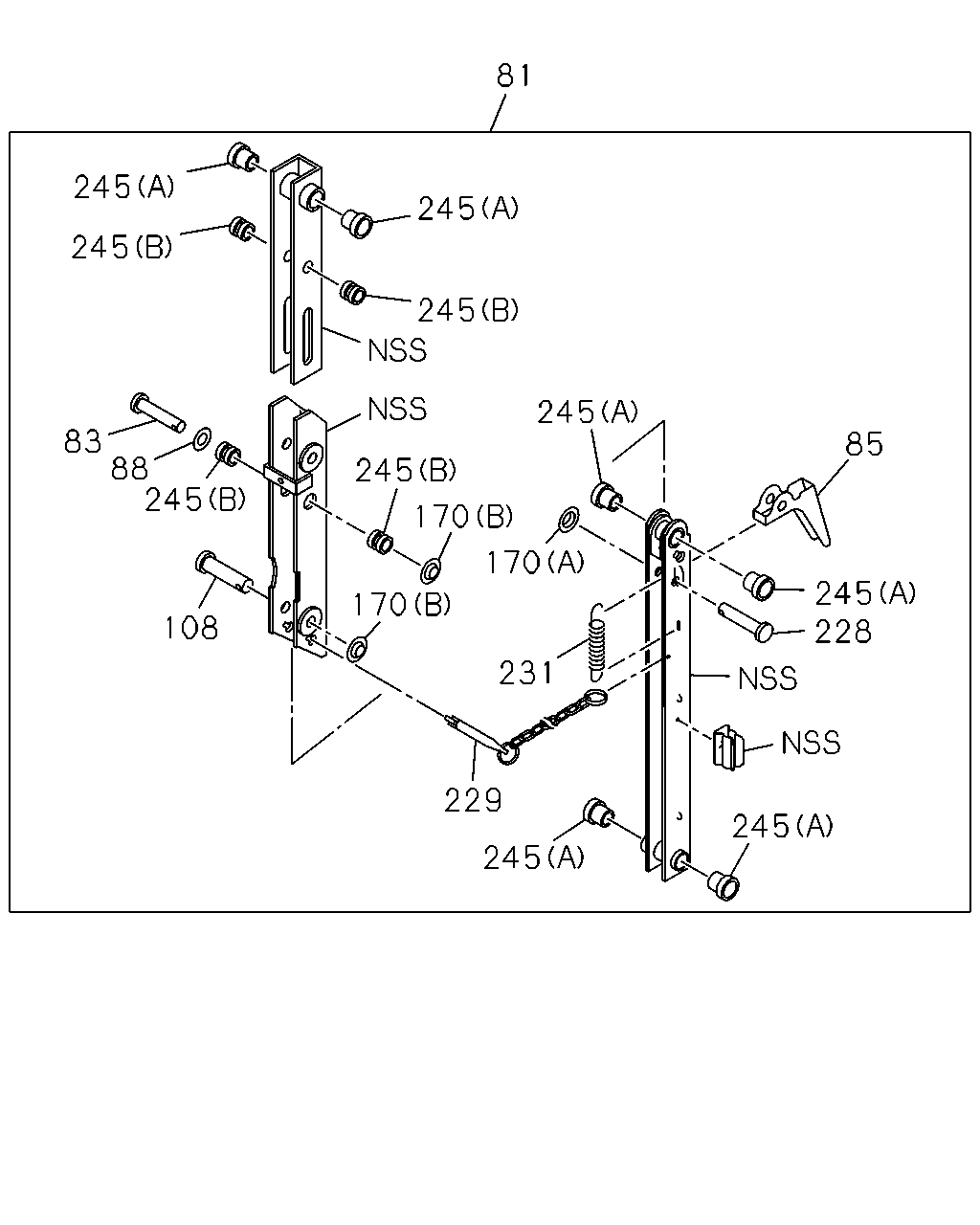

81 245 245 245 245 245 83 88 245 85 245 170 170 245 228 170 108 231 229 245 245

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
81	STAY ASM; CAB TILT	1-62500-761-0	01	1	0712-1406	●
81	STAY ASM; CAB TILT	8-98278-116-0	01	1	1407-	●
83	PIN; JOINT,CAB STAY OD=10 L=42	1-09744-106-0	01	1	0712-	●
85	LEVER; LOCK,CAB STAY	1-62500-503-0	01	1	0712-	●
88	WASHER; PL,CAB STAY PIN ID=10.5 T=2.0	1-09985-183-0	01	1	0712-	●
108	PIN; ADJ,CAB STAY OD=10 L=42	1-09744-106-0	01	1	0712-	●
170	NUT (A) ID=7.9 PUSH NUT	8-97022-565-0	01	1	0712-	●
170	NUT (B) ID=9.9 PUSH NUT	8-97022-566-0	02	1	0712-	●
228	PIN; SAFETY LOCK SPRING,CAB STAY	1-09744-086-2	01	1	0712-	●
229	PIN ASM; SAFETY	1-62500-517-1	01	1	0712-	●
231	SPRING; RETURN,LOCK LEVER,CAB STAY	1-09583-244-0	01	1	0712-	●
245	BUSHING; CAB STAY (A)	1-62500-587-0	06	1	0712-	●
245	BUSHING; CAB STAY (B)	1-62500-588-0	04	1	0712-	●

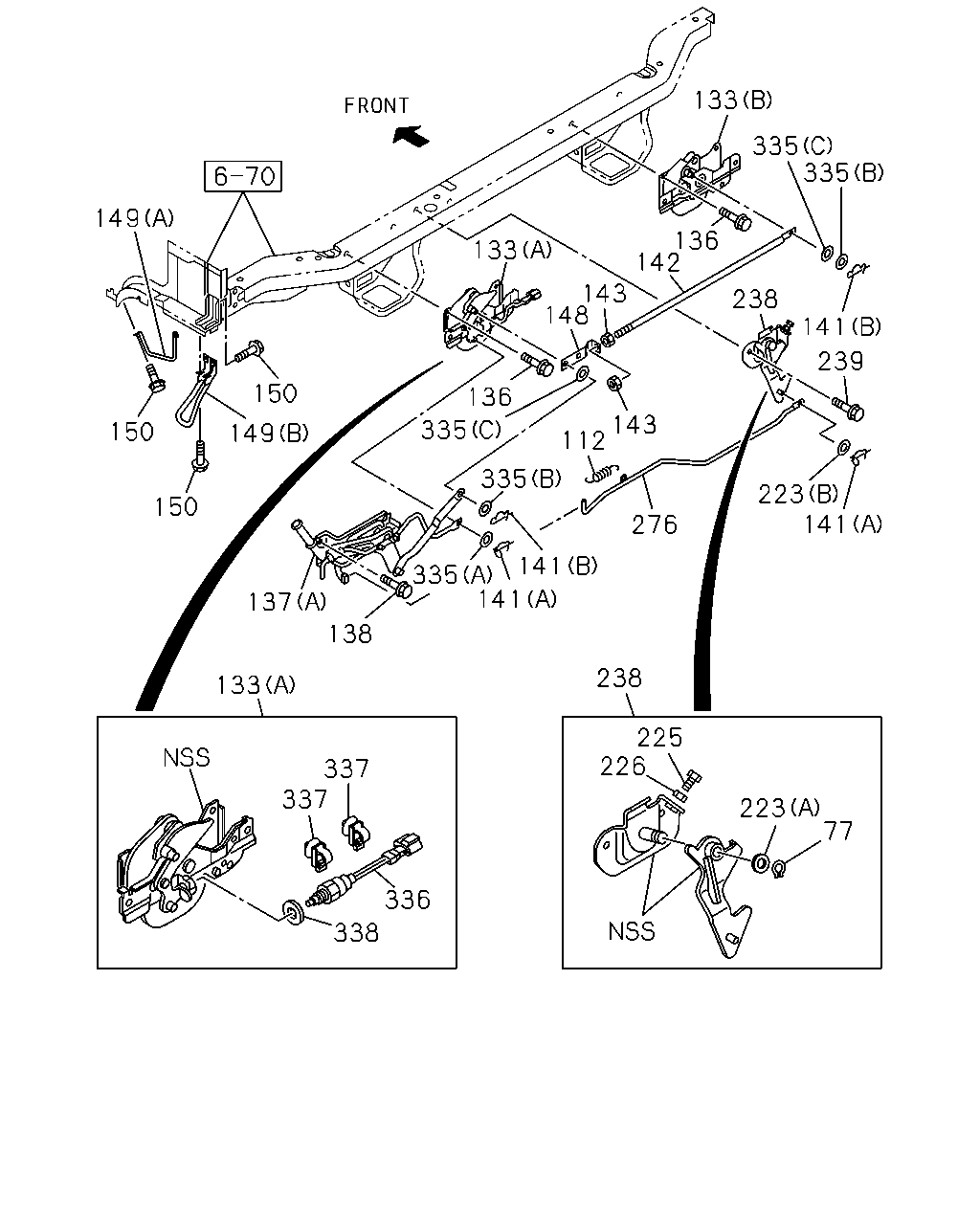

133 335 335 149 136 142 133 143 148 238 141 239 150 136 335 143 112 150 149 335 223 141 150 276 141 335 141 137 138 238 133 225 226 337 337 223 77 336 338

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
77	RING; SNAP ID=14.7	0-91800-616-0	01	1	0712-	●
112	SPRING; RETURN,SAFETY ROD	1-79718-655-0	01	1	0712-	●
133	LOCK ASM; CAB (A)	8-98094-285-2	01	1	0712-	●	●
133	LOCK ASM; CAB (B)	8-98061-489-1	01	1	0712-	●	●
133	LOCK ASM; CAB (C)	8-97608-198-0	01	1	0712-		●
136	BOLT; CAB LK M8X20 FLANGE	0-28650-820-0	08	1	0712-	●	●
137	CONTROL UNIT; CAB LOCK (A)	8-97587-592-5	01	1	0712-	●
137	CONTROL UNIT; CAB LOCK (B)	8-98057-301-4	01	1	0712-		●
138	BOLT; CAB LOCK CONT UNIT M8X20 FLANGE	0-28650-820-0	04	1	0712-	●	●
141	PIN; SNAP,CAB LOCK ROD (A) L=25.3	8-98039-045-1	01	1	0712-	●	●
141	PIN; SNAP,CAB LOCK ROD (A) L=25.3	8-98039-045-1	01	1	0712-	●
141	PIN; SNAP,CAB LOCK ROD (B) L=32.6	8-98062-280-0	02	1	0712-	●	●
142	ROD; HOOK TO HOOK	8-97587-990-0	01	1	0712-	●	●
143	NUT; JAW JOINT,HOOK TO HOOK M10	0-91110-510-0	02	1	0712-	●	●
148	JOINT; JAW,HOOK TO HOOK	8-97410-736-0	01	1	0712-	●	●
149	HANDLE; TILT (A)	8-97586-206-1	01	1	0712-	●
149	HANDLE; TILT (B)	8-98025-706-0	01	1	0712-0803	●
149	HANDLE; TILT (B)	8-98025-707-3	01	1	0804-	●
150	BOLT; TILT HANDLE M8X20 FLANGE	0-28650-820-0	06	1	0712-	●
223	WASHER; PL,SAFETY LK (B) ID=8.4 OD=16	0-91610-508-0	01	1	0712-	●
223	WASHER; PL,SAFETY LK (A) ID=17 OD=30	0-91610-516-0	01	1	0712-	●
225	BOLT; SAFETY LK M8X30 FLANGE	0-28050-830-0	01	1	0712-	●
226	NUT; SAFETY LK M8	0-91110-508-0	01	1	0712-	●
238	LOCK ASM; SAFETY,CAB TILT	8-98048-899-1	01	1	0712-	●
239	BOLT; SAFETY LK M8X20 FLANGE	0-28650-820-0	02	1	0712-	●
276	ROD ASM; CAB LOCK,HOOK TO HOOK	8-98048-831-1	01	1	0712-	●
335	WASHER; CAB LOCK ROD (A) ID=8.4 OD=16	0-91610-508-0	01	1	0712-	●	●
335	WASHER; CAB LOCK ROD (B) ID=12.5 OD=26	0-91610-612-0	02	1	0712-	●	●
335	WASHER; CAB LOCK ROD (C) ID=13 OD=22	8-98060-839-0	02	1	0712-	●	●
336	SWITCH; CAB LOCK	8-98091-155-1	01	1	0712-	●	●
337	CLIP; CAB LOCK L=155	8-97173-307-0	02	1	0712-1008	●	●
338	WASHER; CAB LOCK ID=17 OD=30	0-91610-516-0	01	1	0712-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
